EG10087 Revised 10/23
CAUTION
INSPECT CONTENTS IMMEDIATELY AND FILE CLAIM WITH DELIVERING
CARRIER FOR ANY DAMAGE. SAVE YOUR BOX AND ALL PACKING MATERIALS.
YOU ARE RESPONSIBLE FOR DAMAGE TO YOUR UNIT IF RETURNED IMPROPERLY PACKED.

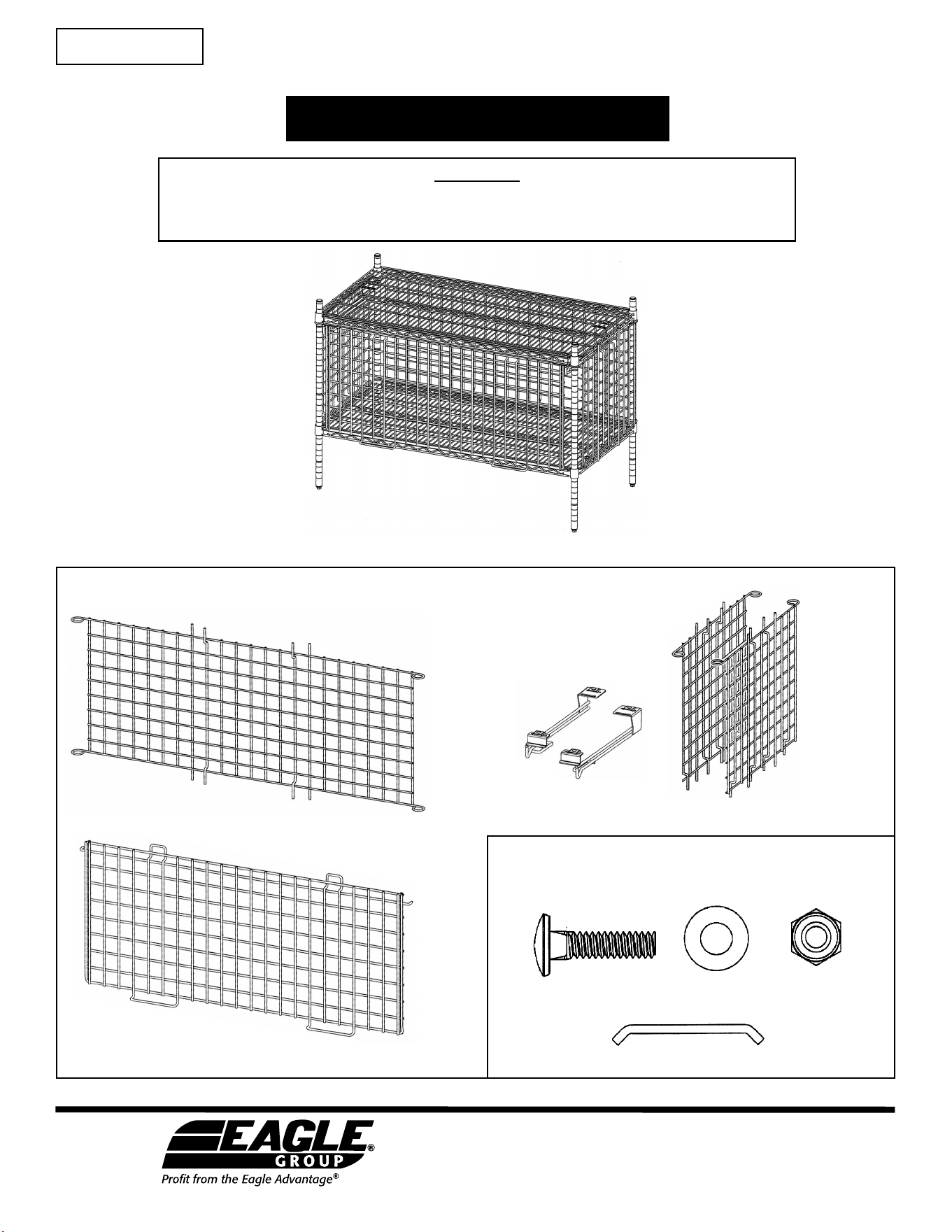

Parts List
Hardware included
(actual size)
ASSEMBLY INSTRUCTIONS
Security Modules
with Flip-Up Door
security module with flip-up door
shown attached to shelves and posts
(shelves and posts not included)
(1) flip-up door
(1) pair of tracks
(2) end panels
(4) carriage bolts
(4) washers (4) lock nuts
(1) rear panel
(4) clip supports
Eagle Foodservice Equipment, Eagle MHC, and SpecFAB
®
are divisions of Eagle Group. ©2023 by the Eagle Group
• 100 Industrial Boulevard, Clayton, Delaware 19938-8903 U.S.A.
• Phone: 302/653-3000 • 800/441-8440 • Fax: 302/653-2065
• www.eaglegrp.com • www.eaglegrpnews.com • www.eaglemhc.com
INSTRUCTION SHEET
#A219771
lower wire shelf
front
post
left end panel
rear post
right end panel
(in place)
2
ASSEMBLY INSTRUCTIONS
Security Modules
with Flip-Up Door

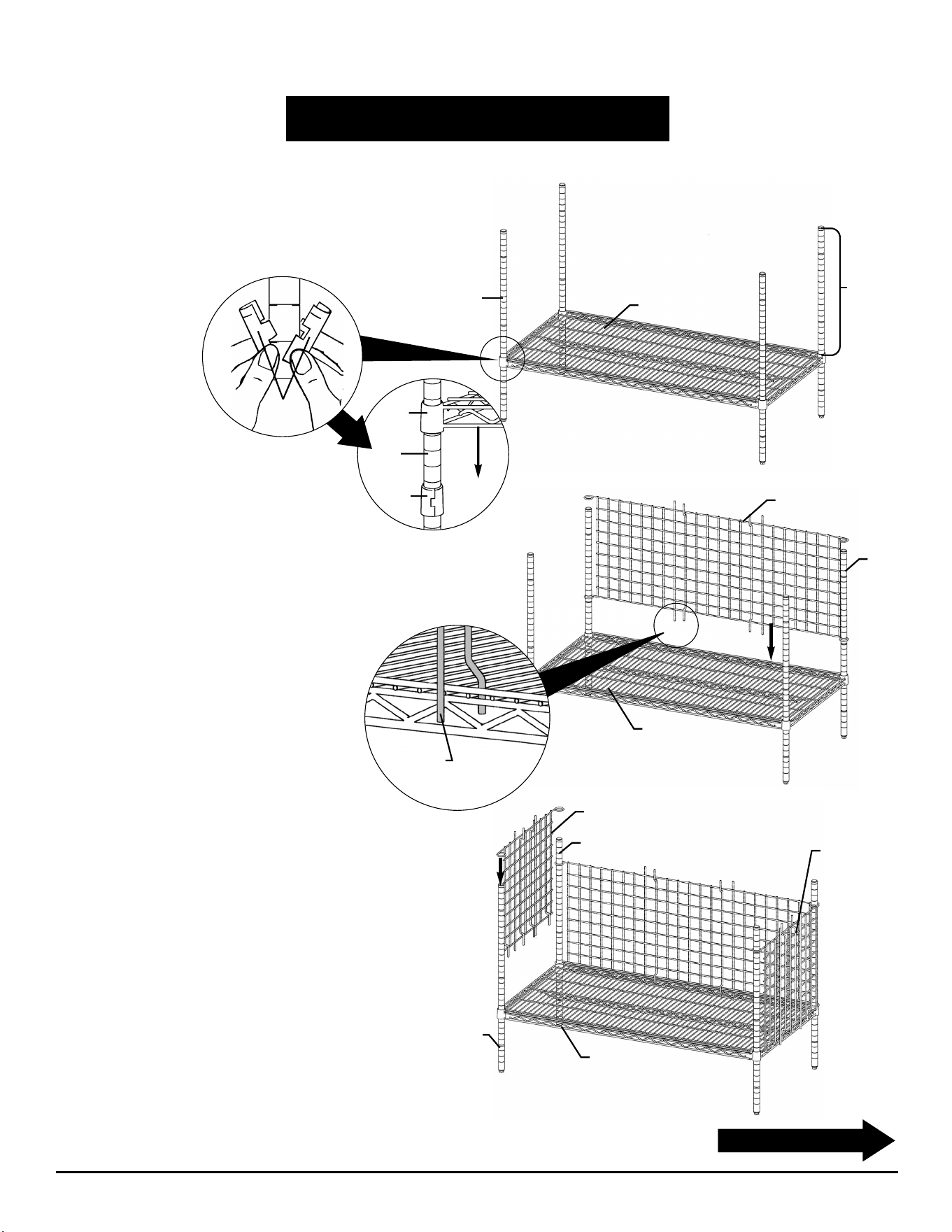

Step 1 - Determine location of security module
by positioning lower wire shelf (not included)
accordingly onto posts.
Note: Measure 20˝ from top of shelf to accommodate for the
rest of the assembly.
split
sleeve
corner
collar
post
post
lower wire shelf
split
sleeves
Step 2 - Install rear panel by sliding loops over
and down the rear posts, with the bottom of the
panel locking into lower wire shelf.
lower wire shelf
rear panel
rear
post
rear panel
(rear view)
Step 3 - Install end panels by sliding loops over
and down the front and rear posts on each end,
with the bottom of each panel locking into lower
wire shelf.
20˝
(continued on next page)
3
ASSEMBLY INSTRUCTIONS
Security Modules
with Flip-Up Door

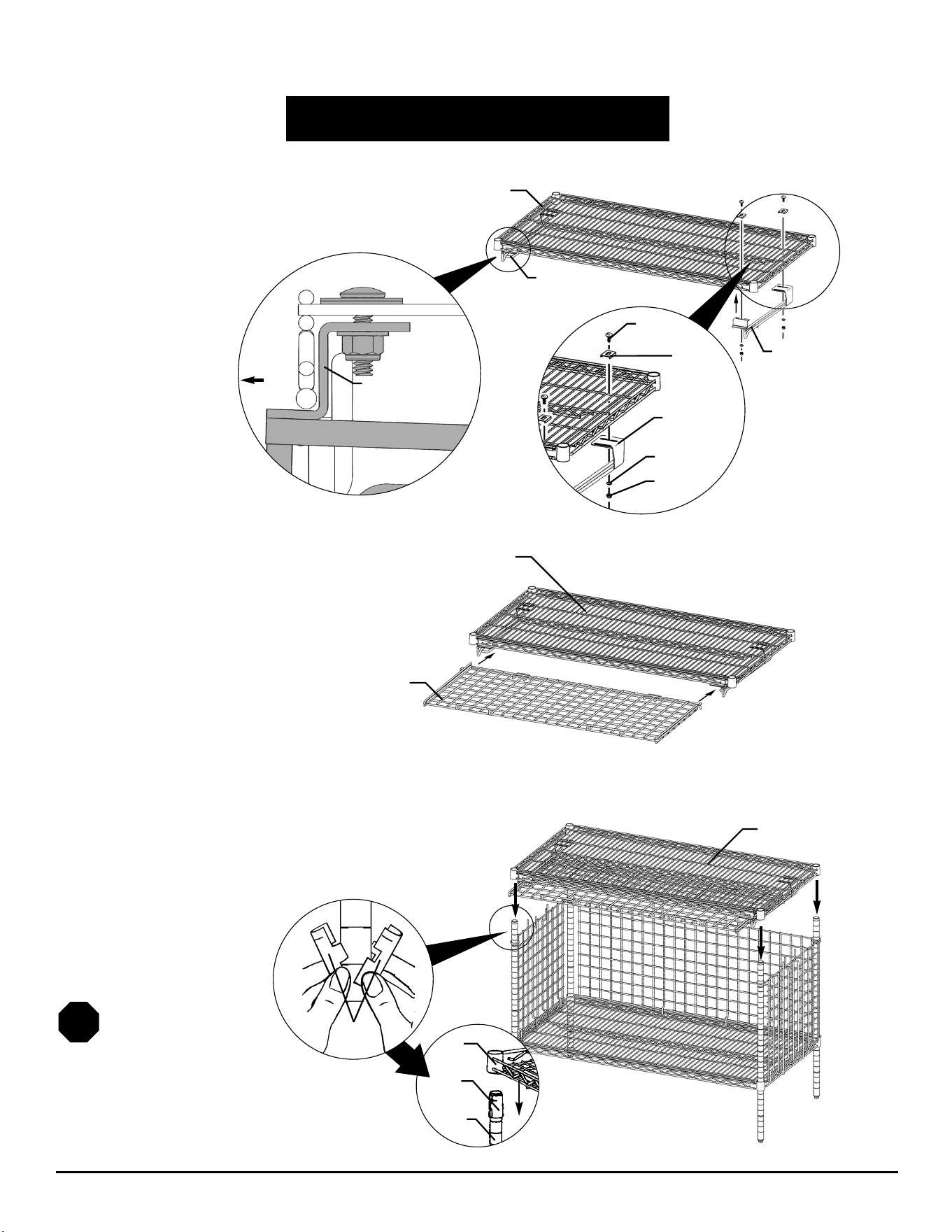

Step 4 - Attach door tracks to top wire shelf,
but do not tighten hardware.
NOTE: Top shelf not included.
Step 5 - Install door into track/shelf assembly.
Tighten all hardware.
(side view)
top
wire shelf
track/shelf
assembly
door/track/shel
f assembly
door
front of door track
flush against rear side
of wire shelf truss
front
carriage
bolt
clip
support
door track
door track
(in place)
door track
washer
lock nut
split
sleeve
top
wire shelf
post
split
sleeves

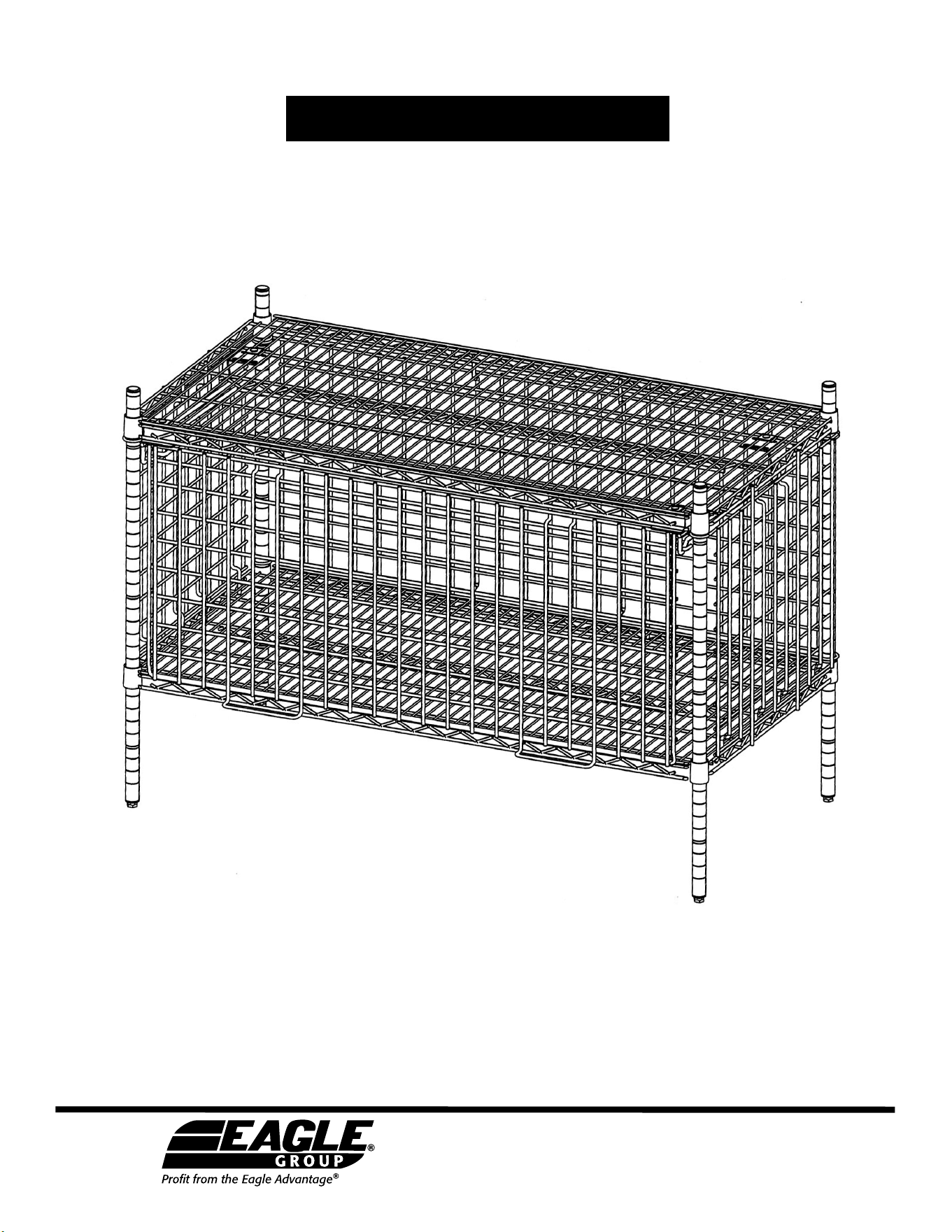

Assembly is complete.
Step 6 - Install door/track/shelf assembly to unit.
Rear panel and end panels should lock into top
wire shelf.
NOTE: For easier installation, door should be pushed in all the way.
(End)
