T3S
TREADMILL
YESOUL TREADMILL
T3S Product Manual
Please read all the details of this
manual before use,
and keep it for future reference.
Product model：
YS-TT3
Item NO.：
T3S
Product Specifications
60Hz
3.0HP(MAX)
1-14kph/0.6-8.7mph
155 ～ 190cm/61 ～ 74.8in
136kg/300lbs
EN ISO 20957-1：2013 EN ISO 20957-6：2010
Unfolded size: (Length) 1410mm×(Width) 745mm×(Height) 1165mm
Folded size: (Length) 830mm× (Width) 745mm×(Height) 1215mm/
Unfolded size: (Length) 55.1in×(Width) 29.3in×(Height) 45.9in
Folded size: (Length) 32.7in× (Width) 29.3in×(Height) 47.8in
(Length)1150mm×(Width) 450mm/
(Length)45.3in×(Width) 17.7in
V5.0
110V
46.5kg/102.5lbs
55.5kg/122.4lbs
Maximum tablet width: 10.1-inch
Tablet (mobile phone) holder size
Bluetooth
Rated voltage
Rated frequency
Rated power
Speed
Applicable height
Net weight
iOS 12.0 and above, Android 5.1 and above (inclusive)
Supported software version
Gross weight
Rated maximum load
Running surface area
Product dimensions
Executive standard
Important Safety Instructions
◆ Wear appropriate sportswear and shoes before exercising. Ensure that clothing is
properly fastened or zipped to prevent it from getting caught in the treadmill.
◆ Do not carry hard objects in your pockets while using the treadmill, as this may cause
accidents or injuries.
◆ Do not use the treadmill after consuming alcohol, as it may lead to accidents or injuries.
◆ When turning on the treadmill, stand on the non-slip side rails.
◆ Only one person is allowed on the treadmill when it is in operation.
◆ Do not eat or engage in other activities while using the treadmill.
◆ Ensure that people stay at a safe distance from the treadmill during use to prevent
accidents or injuries from falls.
◆ Check that the treadmill is placed on a stable surface before use.
◆ Verify that the treadmill functions properly before use. Check if the column covers
and handlebars are securely locked. If they are loose, injury may occur.
◆ Attach the safety key clip to your clothing before use to ensure the treadmill stops safely
in case of an emergency.
◆ Before working, start by walking slowly on the treadmill with your left foot following
the belt direction. Once comfortable, begin working while maintaining proper posture.
◆ Maintain a safety clearance of 2000x1000mm/78.7x39.3in behind the treadmill while
in use.
◆ Adjust speed gradually based on your capacity. Do not suddenly increase speed above
3.8kph/2.3mph to prevent falls and injuries.
◆ Do not jump while working to avoid falling or injury.
◆ Do not jump off the treadmill after exercising to prevent accidents.
◆ To stop the treadmill after exercise, pull the safety key down or press the stop button.
◆ After exercising, turn off the treadmill's power switch and unplug it.
◆ The treadmill is designed for indoor use. Keep it dry, avoid water spills, and do not
place any foreign objects on it.
◆ Avoid prolonged excessive use, as it may damage the motor and controller and
accelerate wear on the running board and belt. Regular maintenance is recommended.
◆ Reduce dust levels and maintain proper indoor humidity to prevent static interference
with the console or controller.
◆ Do not use the treadmill outdoors. This product is intended for home fitness use and is
not a medical device.
◆ The treadmill should not operate continuously for more than 1 hour.
Warning! This product is a plug-in product.
Please read the following details on the safety
precautions for the treadmill and properly use it.
Important Safety Instructions
◆ Ensure proper indoor ventilation while using the treadmill.
◆ Always unplug the treadmill before moving it.
◆ Stop exercising immediately and consult a doctor if you feel unwell or notice any
abnormalities.
◆ People who lack regular physical activity should not engage in sudden, intense exercise.
◆ Store silicone oil out of children's reach after use to prevent accidental ingestion.
◆ Only qualified personnel should access the motor cover or roller housing.
◆ The treadmill should only be connected to an external circuit of at least 15A.
◆ Children must not use the treadmill or play near it. Guardians should ensure that
children do not operate the machine, as this may cause injury.
◆ Individuals with disabilities should avoid using this treadmill to prevent accidents or
injuries.
◆ Ensure a safe environment when using, storing, or moving the treadmill. Make sure no
people or pets are behind, under, or in front of the machine to avoid accidents.
◆ Do not use the treadmill if the casing is cracked, broken, or has exposed internal parts,
as this may result in injury or malfunction.
◆ Do not use or store the treadmill outdoors, near bathrooms, or in humid environments
to prevent moisture damage.
◆ Keep the treadmill away from direct sunlight and high-temperature areas (e.g., near
stoves, electric heating carpets) to prevent electrical hazards or fire.
◆ Do not attempt to disassemble, repair, or modify the treadmill yourself, as this may
cause mechanical failure and safety risks.
◆ Keep the treadmill console and body away from water or liquids to prevent electric
shock or fire hazards.
◆ If the treadmill malfunctions during operation, stop using it immediately and
disconnect the power.
◆ Contact your local distributor for repairs if a defect occurs. Do not attempt to dismantle
any parts of the machine.
◆ If you are undergoing medical treatment or belong to any of the following groups,
consult a doctor before using this equipment.
(1) Those experiencing back pain or who have suffered leg, back, or neck injuries, as well
as those with numbness in the legs, back, neck, or hands (e.g., herniated discs, spondylo-
listhesis, cervical spondylosis).
(2) People with degenerative arthritis, rheumatism, or gout.
(3) Individuals with osteoporosis or other bone disorders.
(4) Those with circulatory system diseases, such as heart disease, vascular diseases, or
hypertension.
(5) Individuals with respiratory disorders.
(6) Users of pacemakers or other implanted medical electronic devices.
(7) People diagnosed with malignant tumors.
Important Safety Instructions
(8) Those with blood clot disorders, severe aneurysms, acute phlebitis, or skin infections.
(9) Individuals with severe peripheral circulatory disorders or sensory abnormalities due
to diabetes.
(10) Individuals with open skin wounds.
(11) Individuals experiencing high fever (38°C or above) due to illness.
(12) Individuals with spinal abnormalities or curvature.
(13) Pregnant women, those who may be pregnant, or those currently menstruating.
(14) Individuals requiring bed rest or feeling unwell.
(15) Individuals in poor physical condition.
(16) Individuals using the treadmill for rehabilitation purposes.
(17) Individuals who feel physically unwell or believe that using the treadmill may worsen
their condition should avoid using it to prevent health risks or accidents.
◆ If an emergency occurs, grip the side handrails for support, lift your feet off the running
belt, and step onto the treadmill's side safety area.
◆If you notice any incline adjustment issues (such as jamming or failure to rise and lower),
stop using the treadmill immediately and contact customer service.
◆ When unplugging the power cord, hold the plug itself and pull gently to avoid damaging
the plug or power cable.
◆ Do not use the treadmill if the power cord or plug is damaged, or if the power outlet is
loose, as this may cause electric shock, short circuits, or fire hazards.
◆ Keep the power cord away from high-temperature objects to prevent overheating or
damage.
◆ Do not bend, twist, or forcefully pull the power cord, and do not place heavy objects on it
or trap it under furniture to prevent short circuits, electric shocks, or fire hazards.
◆ Ensure the power plug is free from foreign objects such as pins, dust, or moisture to
avoid the risk of electric shock, short circuits, or fire.
◆ Do not unplug the power cord or turn off the power switch while the treadmill is working,
as this may cause injury.
◆ Do not touch the power plug with wet hands to avoid electric shock or injury.
◆ When not using the treadmill, unplug it to prevent insulation deterioration due to dust
and moisture, which could lead to leakage or fire.
◆ Always unplug the treadmill before performing maintenance to avoid the risk of electric
shock or injury.
◆ If the treadmill malfunctions, stop using it immediately, unplug it, and contact a
professional for inspection and repairs. Continuing to use a faulty treadmill may cause
electric shock or injury.
◆ During a power outage, immediately unplug the power cord to prevent accidents or
injuries when power is restored.
◆ The power plug must be properly grounded and used with a dedicated circuit outlet to
prevent electrical interference with other appliances.
◆ This treadmill must be grounded to ensure electrical current flows safely to the ground
in case of a malfunction, reducing the risk of electric shock.
Important Safety Instructions
◆ The power cord is equipped with a grounding plug and must be inserted into a properly
installed and grounded outlet that meets local regulations.
◆ Incorrect grounding can result in electric shock hazards. If you are unsure about proper
grounding, consult a professional electrician.
◆ Do not modify the plug or outlet on your own. If necessary, have a professional
electrician install a suitable outlet.
◆ Use only the designated grounded plug for this equipment. Please make sure the
sockets match and do not use conversion sockets.

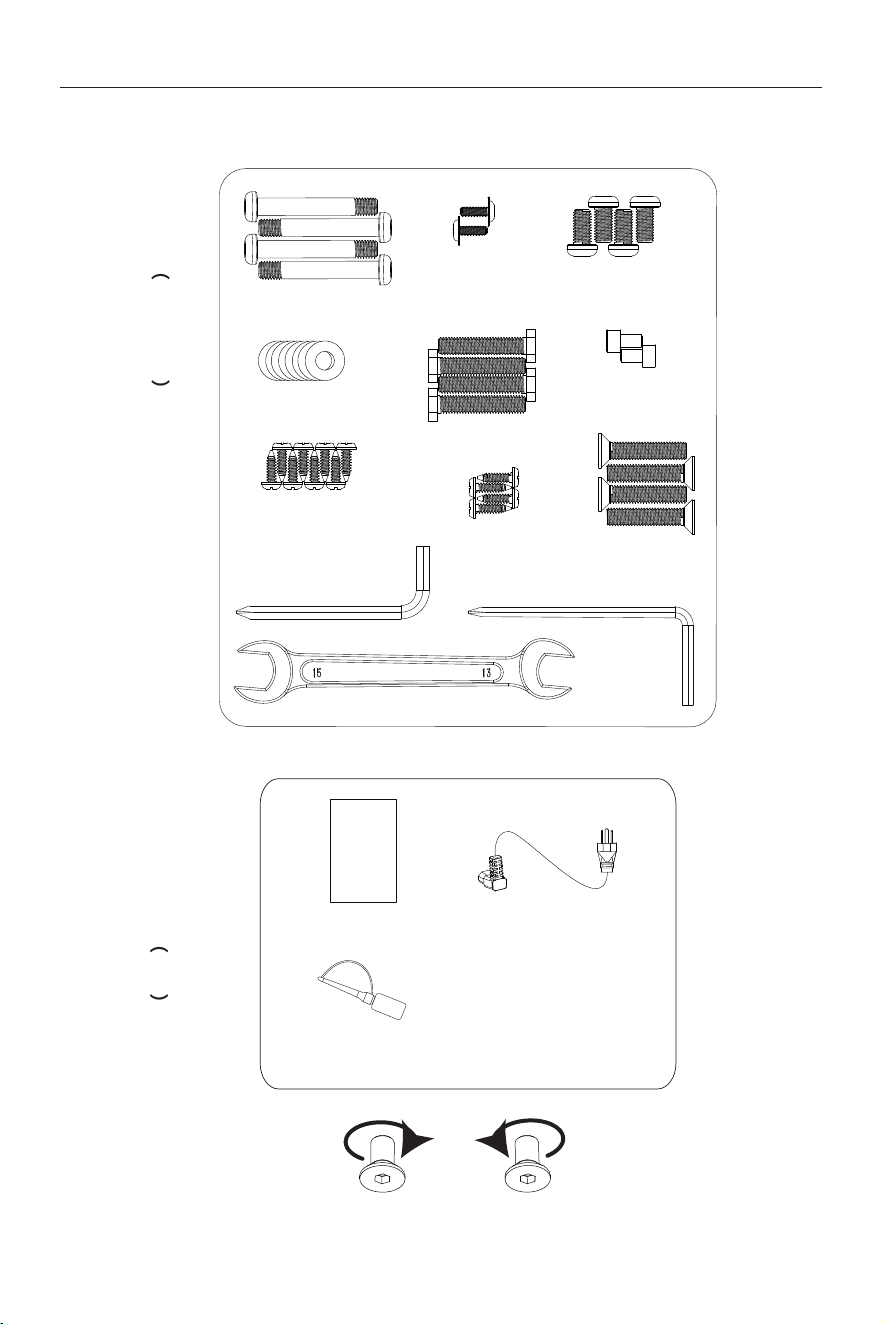

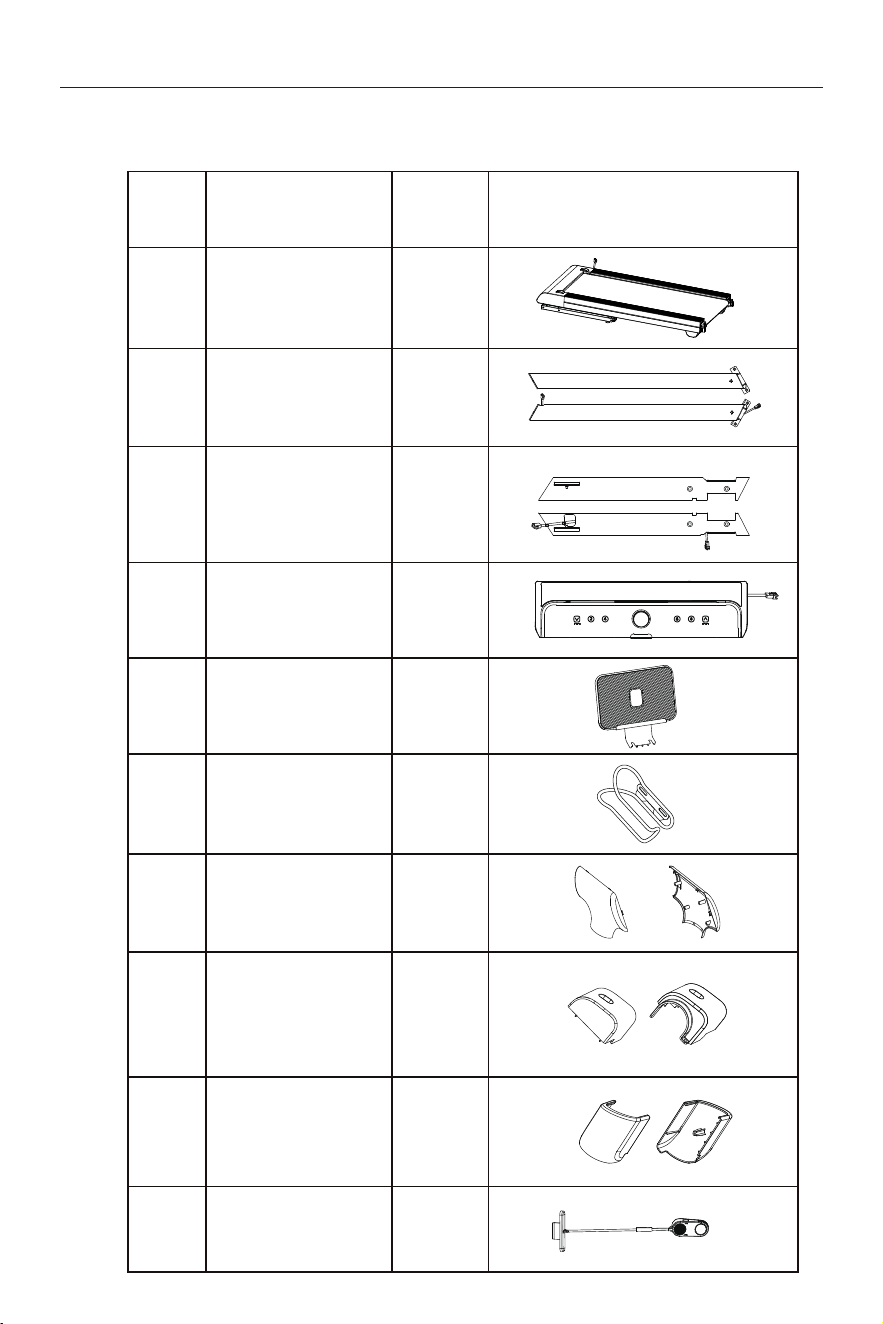

Installation Guide - List of Parts
STEP 1：Check of parts
⑧
NO.
Name
Quantity Picture
Main Frame ASM.
Console ASM.
Left/Right Upright
Left/Right Handlebar
（Left）
（Left）
（Right）
（Right）
（Left） （Right）
（Left） （Right）
②
③
④
2
2
①
1
⑤
⑥
1
1
1
2
2
1
⑨
⑩
Water Bottle Holder
Tablet (phone) Holder
Left/Right Base
Upright Cover
Left/Right Rear
Foot Guard Trim
Cover
⑦
4
Left/Right Handrail
Trim Cover
Safety Lock
Parts List (Components List)
（Left）
（Right）
Installation Guide - List of Parts
⑪Socket Flat Head Screw
M8×55 4PCS
⑮External hex head screw
M8×40 4PCS
⑲Socket Countersunk
Head Screw
M8×40 4PCS
⑭Flat Washer
D8 8PCS
⑬Socket Flat Head
Screw M8×15 4PCS
㉒Open-End Wrench 13# 15#
⑰Philips Pan Head Screw
ST4.2×13 8PCS
㉑L-Shaped
Hex Wrench 5#
⑳L-Shaped Hex Wrench 6#
⑱Philips Pan
Head Screw
ST4.2×16 4PCS
Parts List
︵
Parts
︶
Parts List
︵
Blister Board
︶
A.Instructionsx1
C.
Silicone Oil Bottlex1
Instructions
B.Data Cable x1
⑫Philips Pan
Head Screw
M4×10 2PCS
⑯Socket Head Cap Screw
M6×10 2PCS
*Bolt fastening method: tighten clockwise, loosen counterclockwise.
Clockwise Counterclockwise
Installation Guide
STEP 2: Position the Main frame ASM.

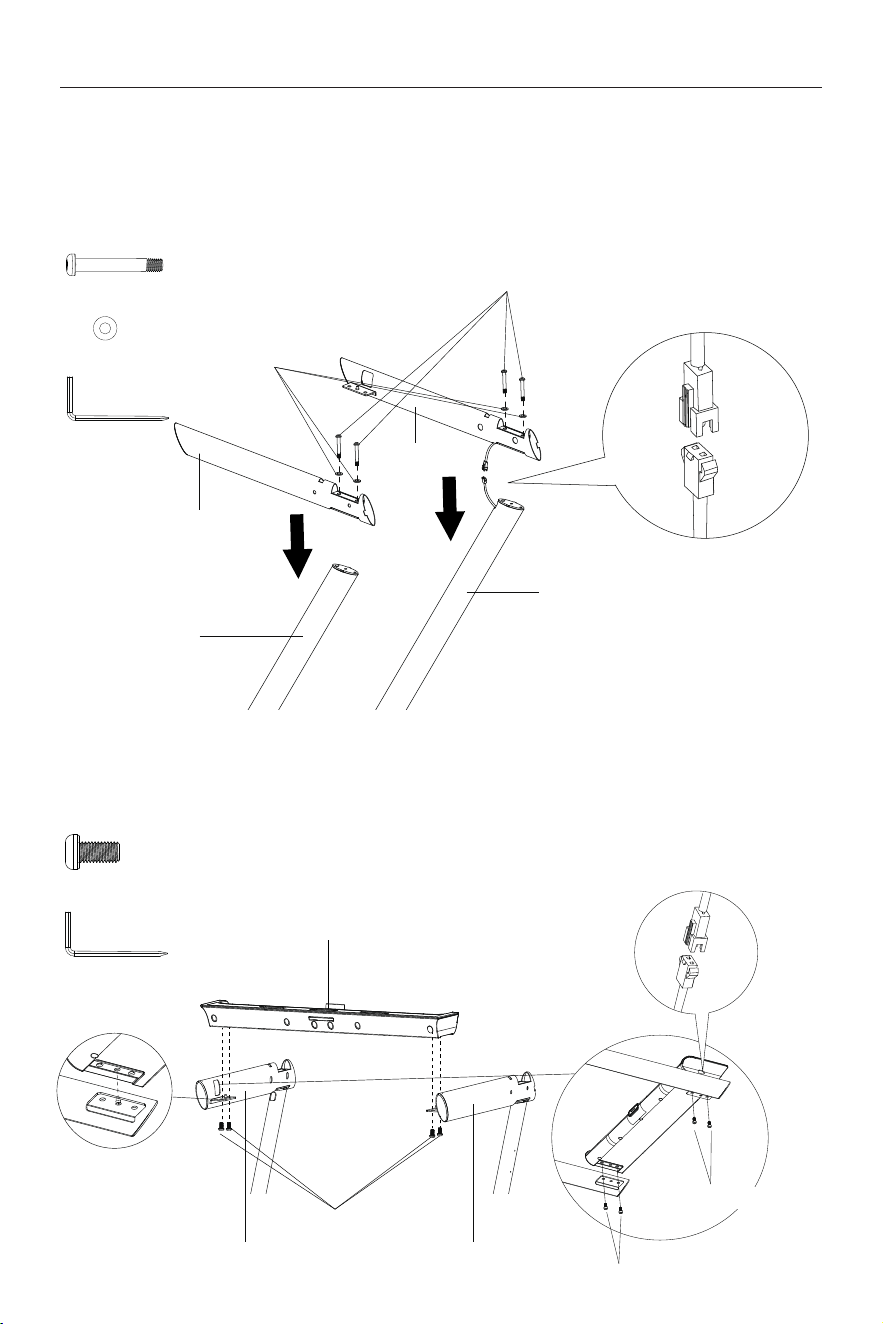

STEP 3: Assemble the Left and Right Uprights

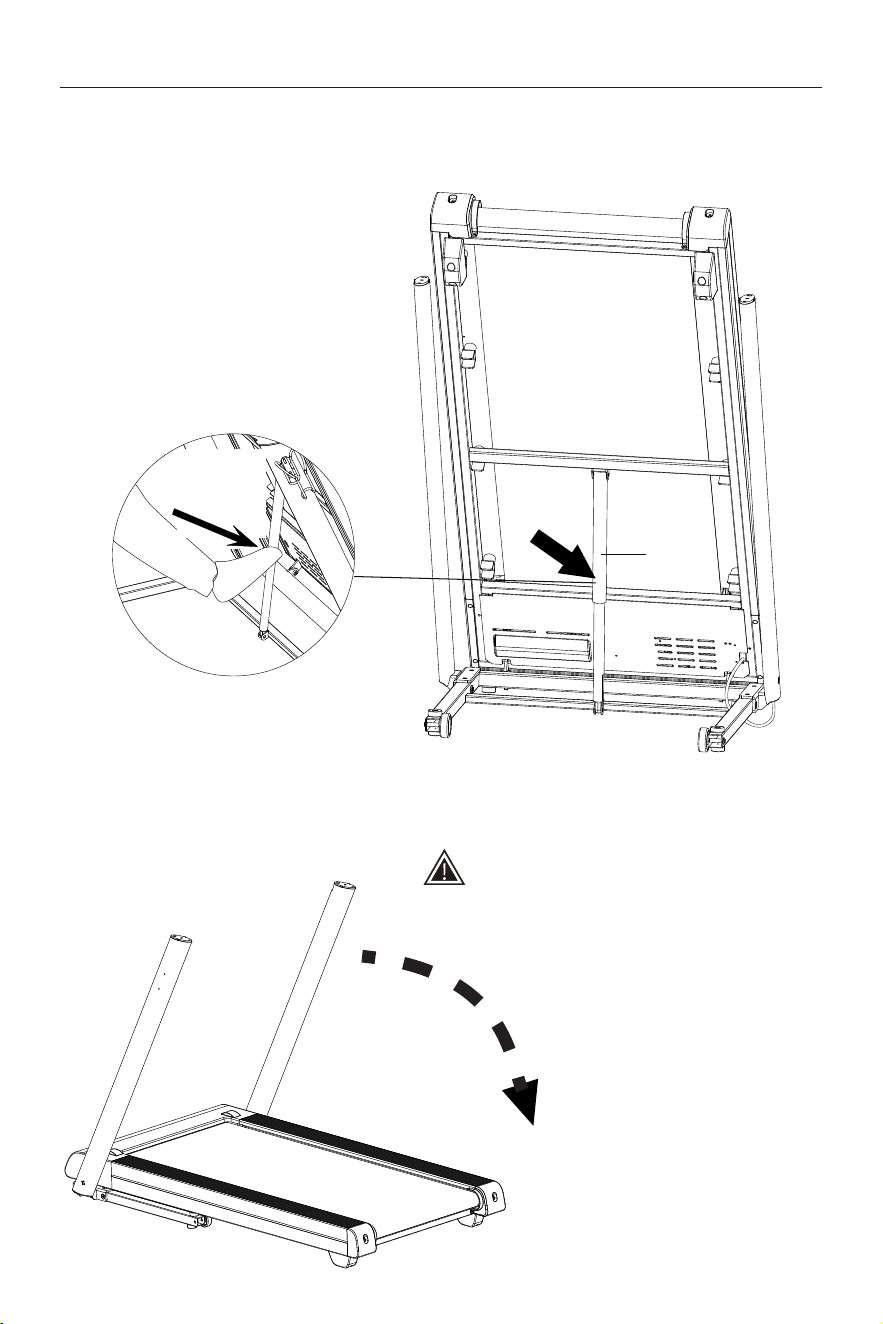

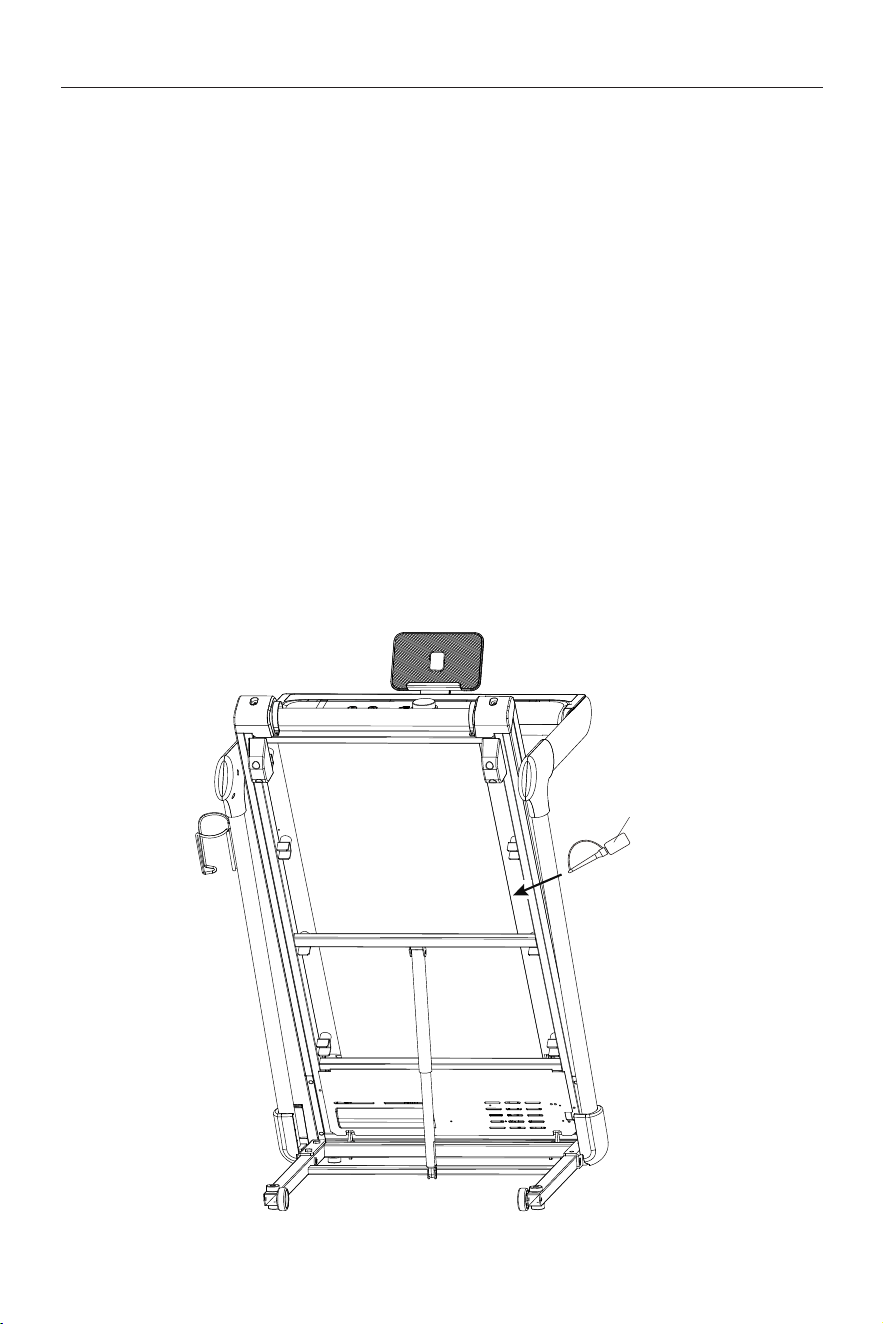

1. Raise the ①main frame ASM. until the anti-rollback bar clicks into place (ensure locking is confirmed).

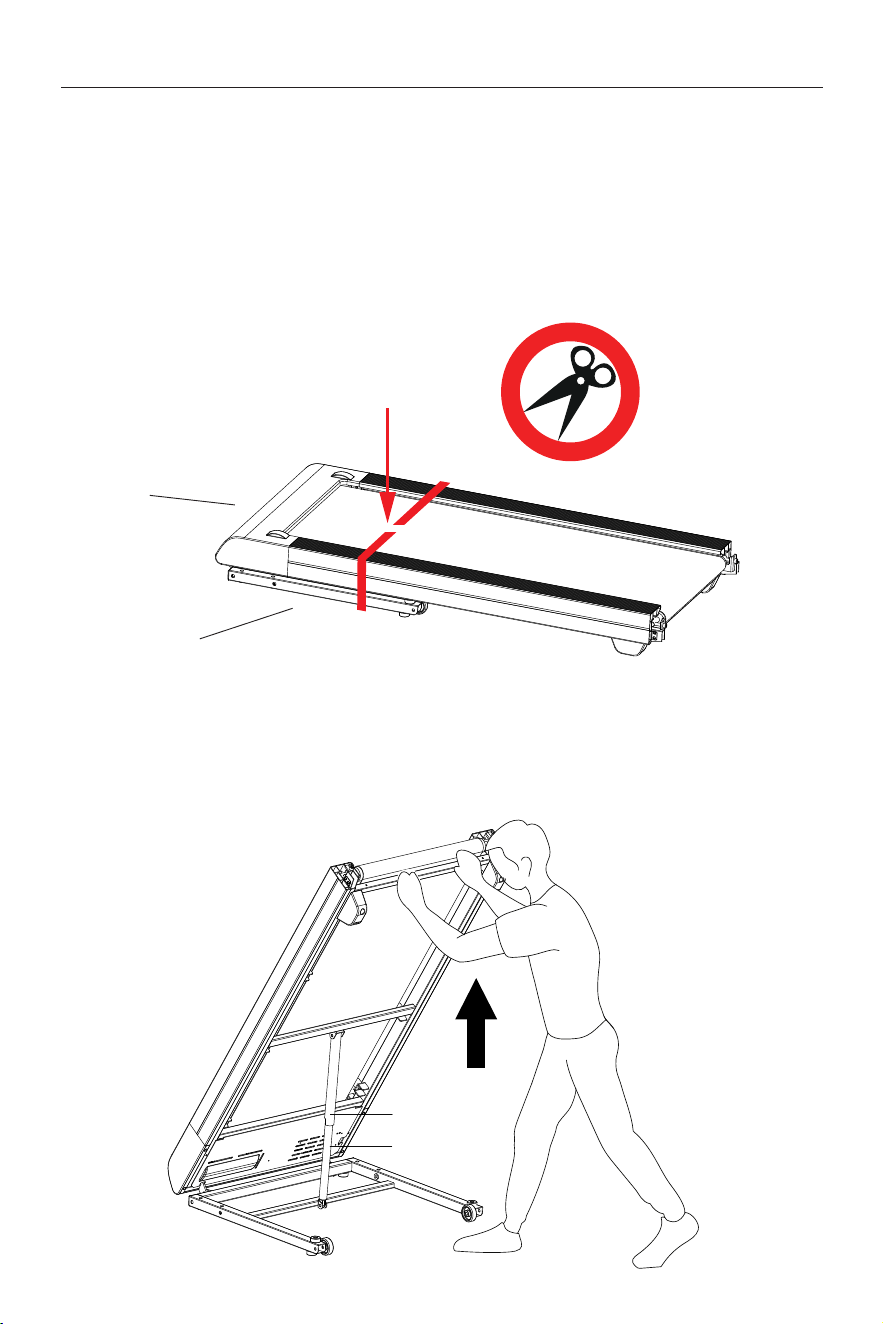

1. Remove the ①main frame ASM. from the packaging, use scissors to cut through the packing tape, and
position it on a flat floor (as shown in the figure).
①Main frame ASM.
Folding support assembly
DANGER: Never cut the straps while the unit is
inverted! Ensure the folding support assembly is
touching the ground before cutting. Prevent sudden
release of the mechanism to avoid crushing or
impact injuries.
Anti-rollback bar
Gas spring
Installation Guide
⑲ Socket countersunk
head Screw M8×40
②Right upright
Folding support assembly
⑲ Socket countersunk head screw M8×40
②Left upright
⑲ Socket countersunk head screw
M8×40 4PCS
㉑ L-shaped hex wrench 5#

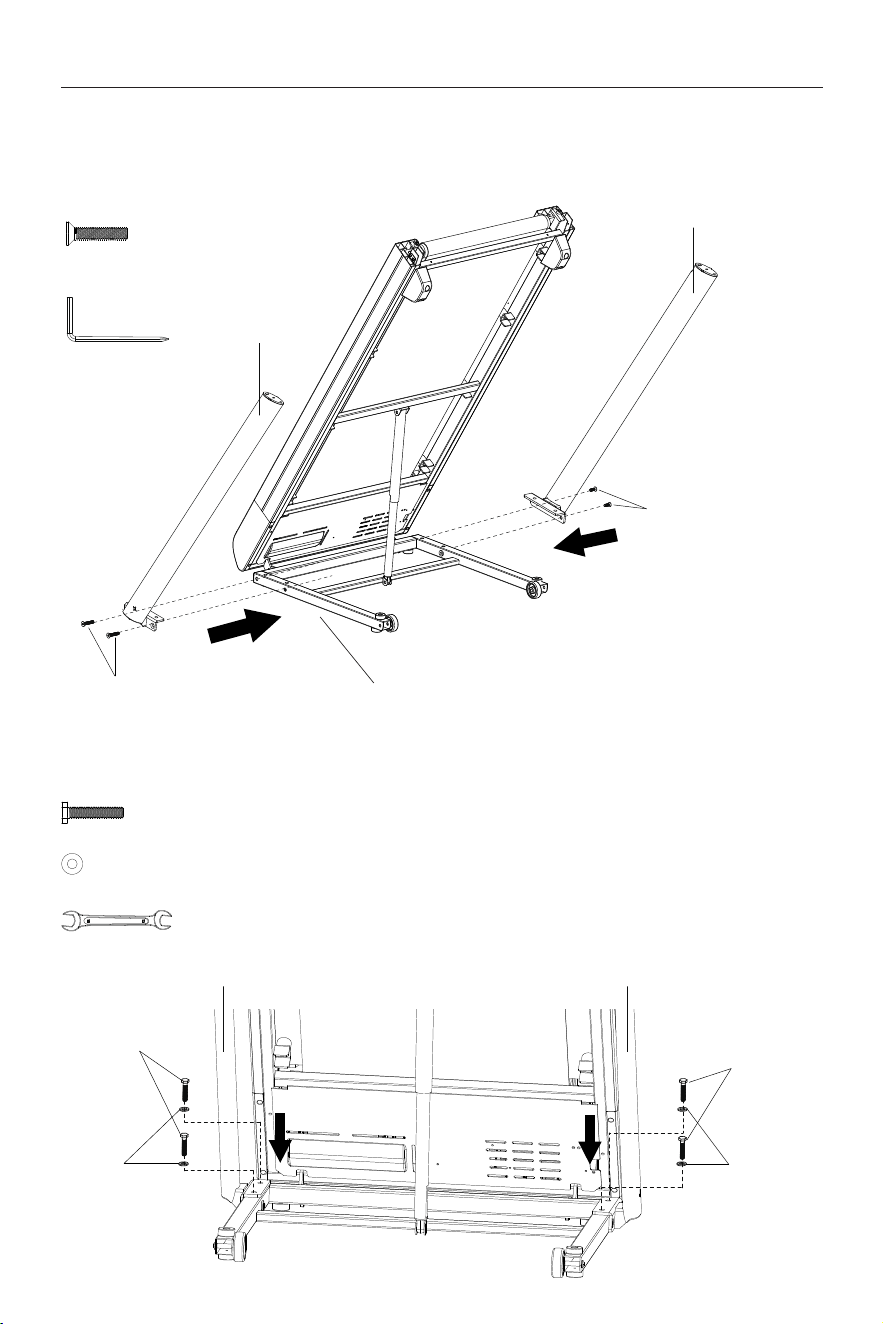

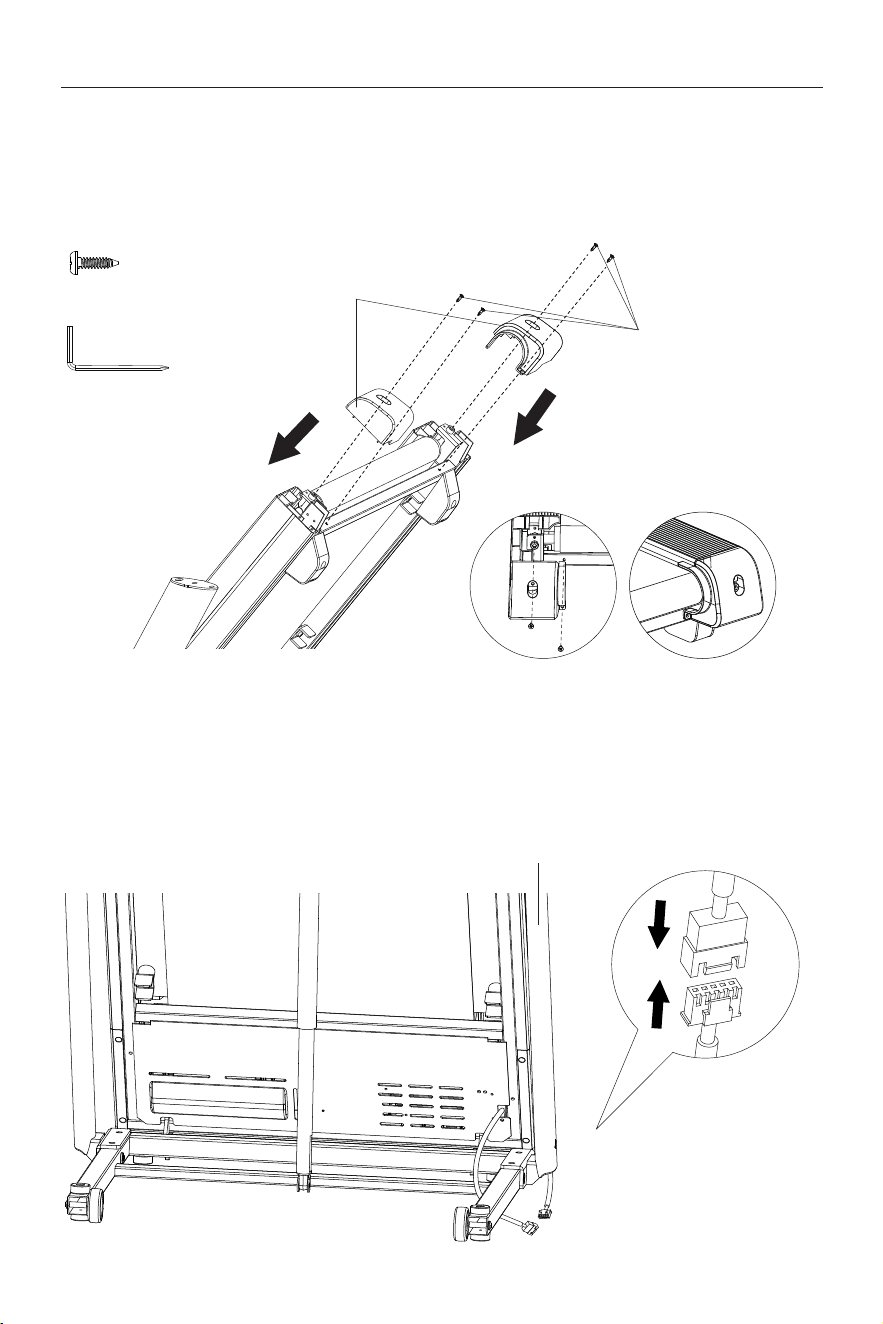

2. Insert two ⑲socket countersunk head screws M8x40 through the holes at the bottom of the ②left
upright, align them with the holes on the folding support assembly, and tighten them with the ㉑l-shaped
hex wrench 5# (The right upright should be tightened using the same method.)
3. Fit two ⑮external hex head screws M8×40 each with one ⑭flat washer D8 . Insert them through the
aligned holes at the top where the ②left upright and folding support assembly overlap. Tighten them using
the ㉒open-end wrench 13# 15# . (The right upright should be installed using the same method.)
⑭
Flat washer D8 4PCS
㉒Open-end wrench 13# 15#
⑮
External hex head screw M8×40 4PCS
②Left upright ②Right upright
⑭
Flat washer D8
⑮
External hex head screw
M8×40
⑭Flat washer D8
⑮
External hex
head screw
M8×40
NOTE: Align the red mark (L) on the part with the red
mark (L) on the main frame for installation. Align the
blue mark (R) on the part with the blue mark (R) on the
main frame for installation!
Installation Guide
1. Connect the signal cable from the right upright to the main frame, then tuck the cable into the interior
along the bottom of the upright.

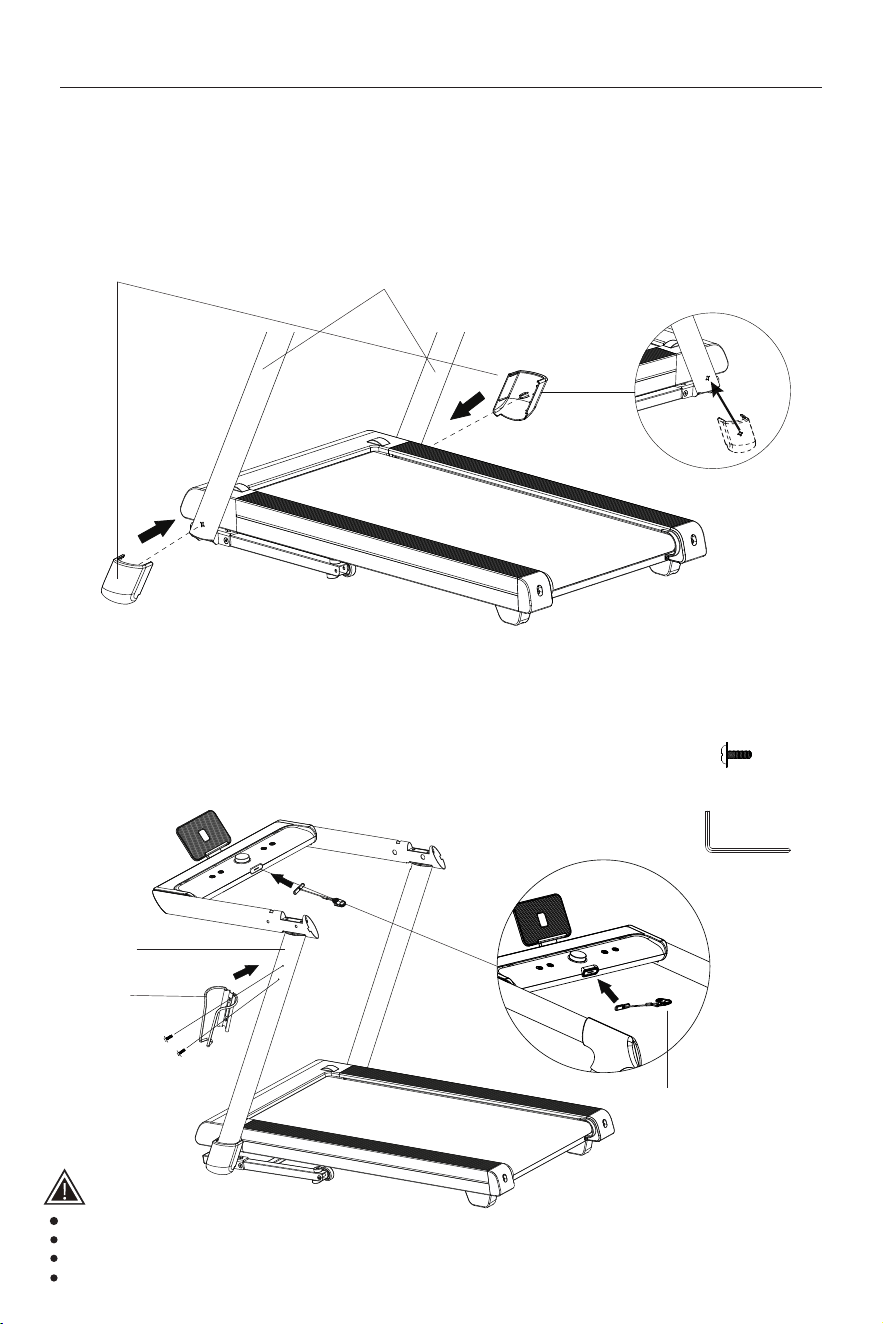

STEP 4: Install the Rear Foot Guards
STEP 5：Install the Right Upright Wiring
⑱Philips pan
head screw ST4.2×16 4PCS
②Right upright
㉑L-shaped hex wrench 5#
1. Align the ⑧left/right rear foot guard with the side strip in the direction of the arrow, and press down until it
snaps into place. Use the ㉑l-shaped hex wrench 5# to tighten the ⑱phillips pan head screw ST4.2×16 ,
ensuring a secure installation.
Align the connectors to join
the cable, and retract any
excess wire into the tube.
*CAUTION: Ensure the
connector orientation is
correct.
Do not force the
connection!
⑱Philips pan
head screw ST4.2×16
⑧Left/right rear foot guard trim cover
During installation
After completion
Installation Guide

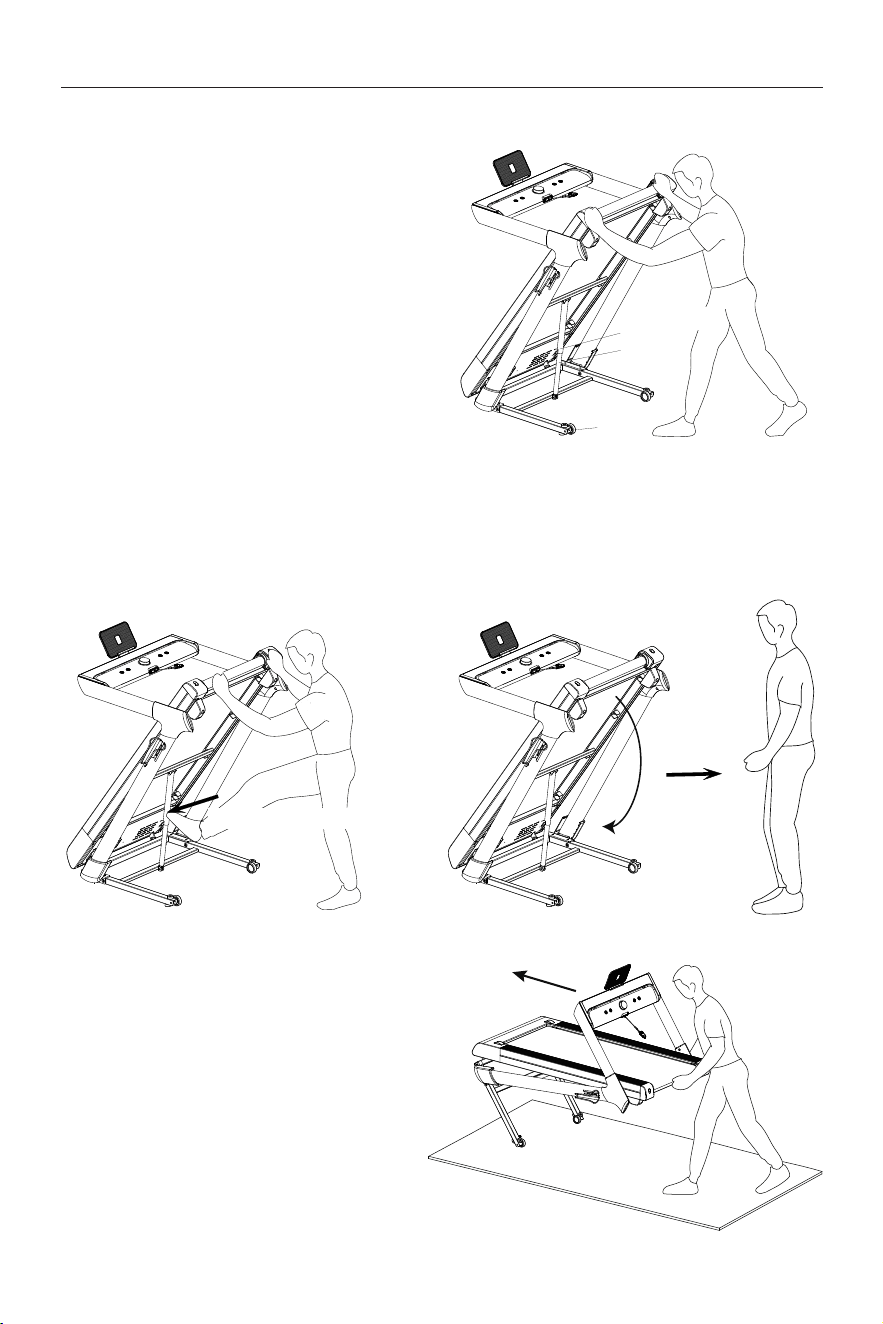

2. Hold the treadmill firmly with both hands and step down firmly on the anti-rollback bar with your foot.
(Maintain a safe distance of approximately 1 meter from the treadmill until the machine is fully unfolded.)
3. Wait for the main frame to descend completely and stabilize before proceeding to the next step.

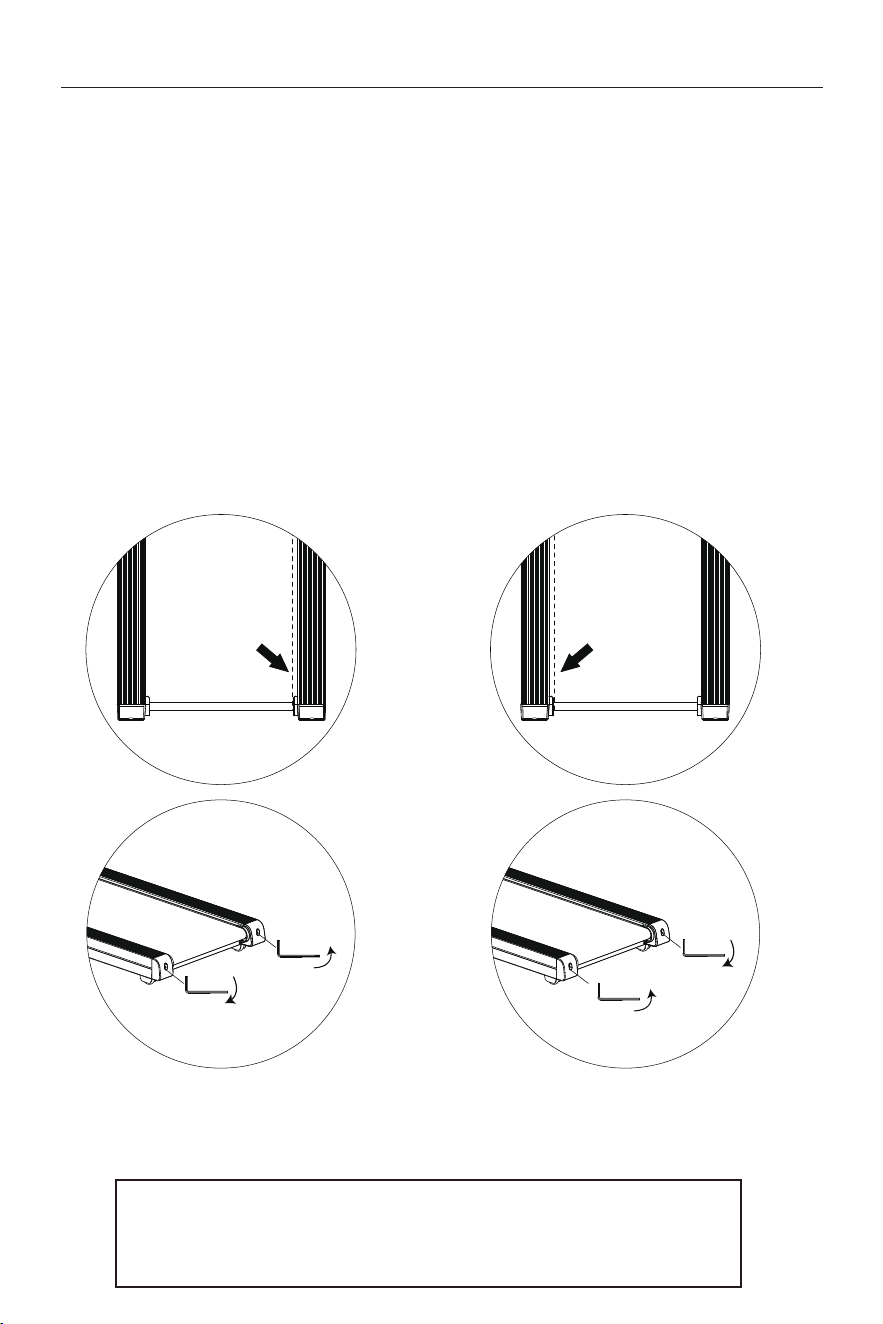

SAFETY NOTE:
The slow folding speed of the main frame is normal
and is designed to prevent sudden collapse.
Anti-rollback bar
Tap firmly
toward the
arrow
Installation Guide
⑬Socket flat head screwM8×15 4PCS
⑬Socket Flat Head ScrewM8×15
⑬Socket flat head screwM8×15
④Console ASM.
⑬Socket flat head screwM8×15

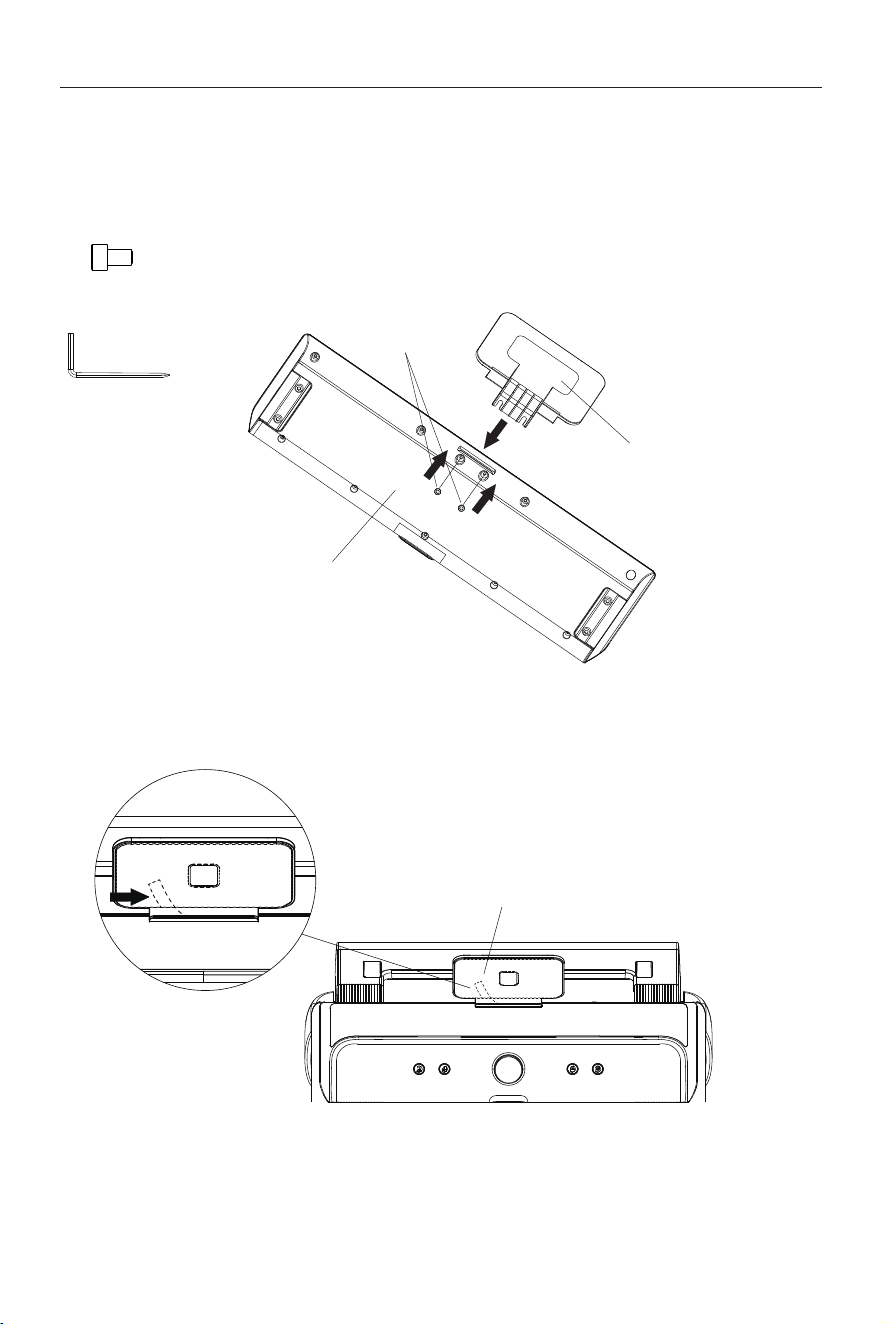

STEP 7：Install the Console ASM.
㉑L-shaped
hex wrench 5#
1. First, connect the signal cable of the electronic console mount to the signal cable of the right handlebar.
2. Align the ④console ASM. with the mounting holes on the left and right handlebars. Use the ㉑l-shaped
hex wrench 5# to tighten the four ⑬socket flat head screwsM8×15 .
*During installation,
align the locating pin
with the hole.
③Right handlebar③Left handlebar

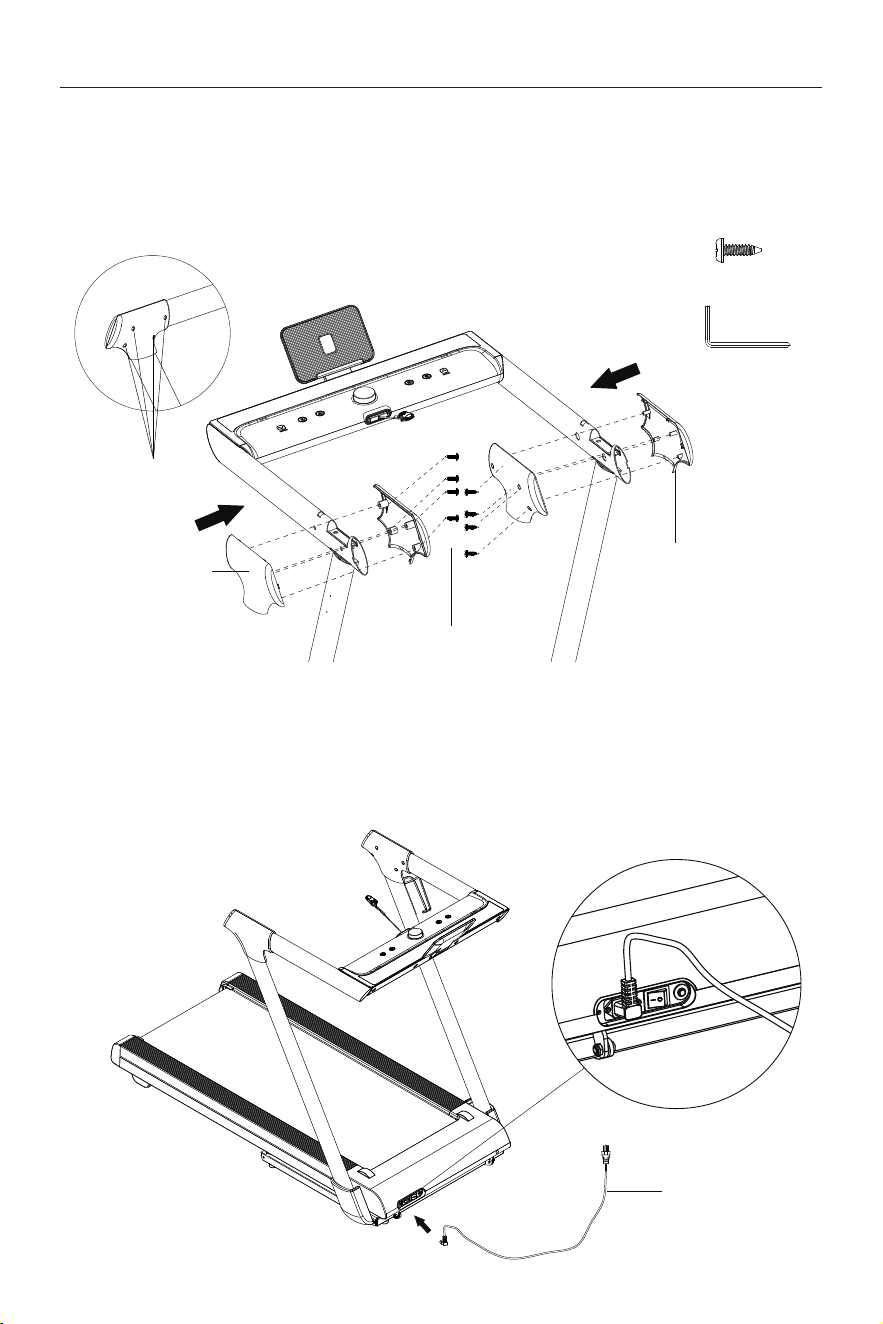

STEP 6：Install Left/Right Handlebars
⑪
Socket flat head screw M8×55 4PCS
⑪
Socket flat head screw M8×55
⑭
Flat washer D8 4PCS
③Right handlebar
③Left handlebar
②Left upright
②Rright upright
⑭
Flat washer D8
㉑L-shaped
hex wrench 5#
1. Connect the signal cable of the right handlebar to the signal cable of the right upright.
2. Press the left and right handlebars firmly against their corresponding uprights, aligning the mounting holes.
3.Take four ⑪socket flat head screws M8×55 , each paired with one ⑭flat washer D8. Use the ㉑l-shaped hex
wrench 5# to tighten all screws.
Align the connectors to join
the cable, and retract any
excess wire into the tube.
*CAUTION: Ensure the
connector orientation is
correct.
Do not force the
connection!
Align the connectors to
join the cable, and
retract any excess wire
into the tube.
*CAUTION: Ensure the
connector orientation
is correct.
Do not force the
connection!
Installation Guide
STEP 8：Install the Tablet (Phone) Holder
⑤Tablet (phone) holder
⑯Socket head cap screwM6×10
④Console ASM.
⑯Socket head cap
screwM6×10 2PCS
1. Align the ⑤tablet (phone) holder with the slot on the ④electronic console mount and insert it to connect.
2.Then use the ㉑L-shaped hex wrench 5# to tighten the two ⑯M6×10 hex socket head screws.
3.Peel off the white sticker on the surface of the protective film on the ⑤ tablet (phone) holder.
⑤Tablet (phone) holder
㉑L-shaped
hex wrench 5#
Installation Guide
本手册在印刷时已尽可能的包含产品的各项功能介绍和使用说明。
但由于产品硬件和软件功能不断完善、设计优化等，仍可能与您购买的实际产品有
不符处。由此造成的差异，如外观、界面、颜色等，请以实际产品为准。
后尾座
STEP 10：Install the Water Bottle Holder and Safety Lock
1.Align the ⑥ water bottle holder with the holes on the side of the ② left upright. Use the ㉒L-Shaped Hex
Wrench 6# to tighten the two ⑫ M4×10 Phillips pan head screws with washers.
2. Install the ⑩ safety lock into its designated position.
⑫Philips pan head screw
M4×10 2PCS
㉒L-Shaped hex wrench 6#
STEP 9：Install the Base Upright Covers
1. Align the ⑨left/right base upright covers with the holes on the ②left/right uprights, then install them on
both sides of the base and snap them into place.
Safety tips：
Before starting, please attach the safety key to clothing.
The machine will not work without the safety key inserted.
When the safety key is removed while walking, the machine will perform an emergency stop.
When not in use, please remove the safety key to prevent children from starting the machine.
⑨Left/right base upright cover ②Left/right upright
Note: Ensure the holes are
properly aligned.
⑩Safety lock
⑥Water bottle holder
②Left upright
⑫Philips pan head
screw M4×10
STEP 12：Install the power cable
Installation Guide
1. Position the ⑦left/right handrail trim covers on both sides of the handrails and align the holes as shown in
the illustration. Snap the covers closed and press them firmly into place. Use the ⑳l-shaped hex wrench 6# to
tighten the four ⑰phillips pan head screws ST4.2×13 (The other side should be installed using the same
method.)
1. As shown in the figure, connect the power supply, turn on the power switch, and the device enters the
standby state.
STEP 11：Install the Handrail Trim Covers
⑳
L-Shaped hex wrench 6#
声明:
本手册在印刷时已尽可能的包含产品的各项功能介绍和使用说明。
但由于产品硬件和软件功能不断完善、设计优化等，仍可能与您购买的实际产品有
不符处。由此造成的差异，如外观、界面、颜色等，请以实际产品为准。
平板（手机）支架
安全锁
扶手
跑带
边条
使用前，请先检查跑步机底部
脚垫是否放置平稳，不会晃动。
安全提示：
立柱
水壶架
底座饰盖
⑰
Philips pan head screw
ST4.2×13
8PCS
⑰
Philips pan head screw
ST4.2×13
⑦
Left handrail trim Cover
⑦
Right handrail trim cover
⑰
Philips pan head screw
ST4.2×13
B.Data cable

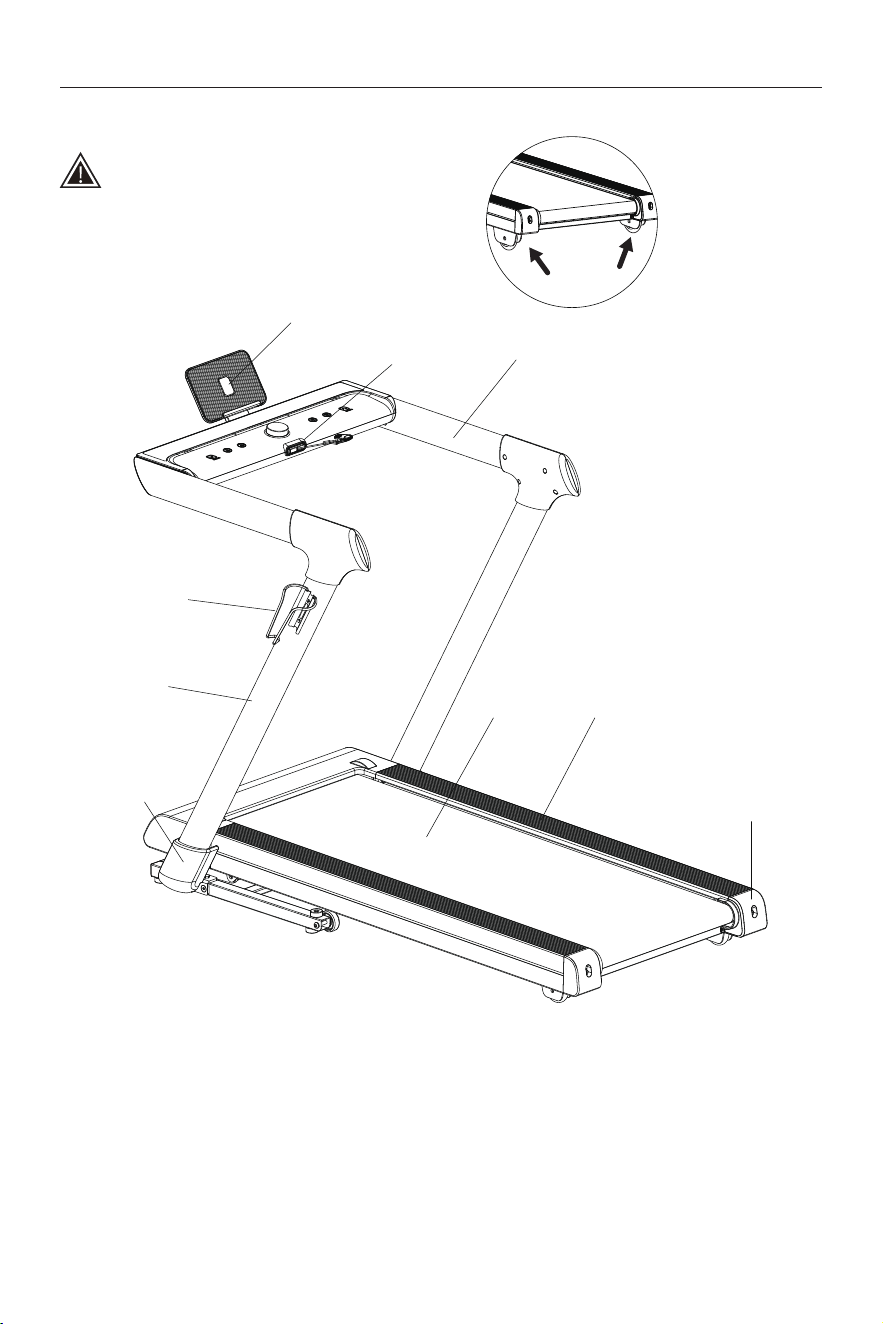

Complete Assembly (For reference only. Actual configuration may vary.)
Statement:
This manual includes a comprehensive introduction to the product's functions and
operating instructions as of the time of printing. However, due to ongoing improvements
in hardware, software, and design, there may be differences between this manual and
the product you purchased. In the event of any discrepancies in appearance, interface,
or color, please refer to the actual product.
Tablet (phone) holder
Safety lock
Handlebar
Treadbelt
Edge strip
Rear tail support
Before use, please check whether the
foot pad at the bottom of the treadmill
is placed stably and does not shake.
Safety tips：
Upright
Water bottle holder
Base upright cover
Operating Instructions
Electronic display function operation
1. Parameter Description
Exercise parameters for various exercise modes:
·The minimum display speed is 1kph/0.6mph.
·The maximum display speed is 14kph/8.7mph.
2. Panel Button Functions and Operation Instructions
Knob --- Function Description: Speed increase/decrease, Start/Pause/Stop key.
Operation Instructions:
·In standby mode, press the knob to start the treadmill.
·In operation mode, rotate the knob to adjust the speed.
·In operation mode, press the knob to stop the treadmill.
Speed Shortcut Keys②,④,⑥,⑧ --- Function Description: Quick speed adjustment.
Operation Instructions:
·In operation mode, press the speed shortcut key to adjust to the corresponding speed.
3. Exercise Mode Description
Manual Mode Function Description
Entering Manual Mode: After the treadmill powers on and all displays light up, it enters full
manual operation mode. At this point, press the knob to enter manual operation mode.
Operation Instructions:
·The initial working speed is 1kph/0.6mph, and the time, distance, and calorie windows
start counting from zero.
·Rotate the knob to adjust the working speed.
·Press the speed shortcut keys②,④,⑥,⑧ to quickly adjust to the corresponding speed.
Press the knob to stop the treadmill.
·Pulling out the safety lock can immediately stop the motor.
Speed
Speed shortcut key
kph/mph
Speed shortcut key
kph/mph
Distance
Calorie
Time
Knob
Bluetooth
Operating Instructions
4.Display Range of Each Value:
Set parameters
Initial Set initial value Set range Display range
Time
(minutes:seconds)/
(hour:minute)
0:00
0.0
1（ k p h ）/
0.6（mph）
1-14（kph）/
0.6-8.7（mph）
1-14（kph）/
0.6-8.7（mph）
0.00-9999（km）/
0.00-9999（mile）
0.0-9999
0.00
_ _
_ _
_
_
0.0
Speed
(kph)/（mph）
Distance
(km)/（mile）
Calories (kcal)
5. Sleep Function Description:
When the treadmill stops working and no operation is performed for more than 10 minutes, it will enter
sleep mode. The display on the electronic monitor will automatically turn off. Press any key to wake up the
monitor, and after all displays light up, it will return to the initial standby state.
6. Display Range of Each Value:
·During normal use, the safety lock must be inserted into the designated position on the electronic monitor
in order to operate it.
·When the safety lock is removed, the display window will show "_", accompanied by an alert sound.
·If the safety lock is removed during operation, the system will quickly stop, and after reinserting the safety
lock, all exercise data will be reset to zero.
Time display instructions:
·When displaying minutes: seconds, the time icon is always on
·When displaying hours: minutes, the time icon flashes
0:00-59:59(minutes:seconds)/
1:00-18：12(hour:minute)
Note: Due to equipment manufacturing deviations exist, the above data may differ
slightly from actual values and are for reference only.
Operating Instructions
The buzzer sounds three times
Speed set to the lowest speed
The buzzer sounds three times
Speed set to the lowest speed
Enter
Short press the
knob
Short press the
knob
Standby
mode
Control Panel Operation
Start
Speed
adjustment
Pause state
Exercise state
Exercise state
In pause/stop state
Invalid
Left/right adjustment knob
Rotate the knob
to the right
Rotate the knob
to the left
Speed decreases by 0.1 kph per rotation notch
Speed increases by 0.1 kph per rotation notch
Pause
Pause
During workout
The speed interface
displays 0
The distance interface
displays the paused
workout mileage
Time/calories Interface
displays the time/calories
before the pause
Short press the
knob
The display will turn off after 10 minutes of inactivity
Paused state
no operation
Operating Instructions
Stop
The display will turn off after 10 minutes of inactivity
Stop state
No operation
In motion
Non-exercise
Unfasten the safety latch
Secure the safety
latch in place
The digital display bars disappear, and the data shows “00”
The buttons are functioning normally
Workout
automatically
stops
Emergency
stop
Power on
Shuts down automatically after >90 minutes of inactivity, resets timer when operated.
The buzzer beeps continuously
until the safety key is installed.
All digit tubes display "--".
No response to button press
The time/calorie interface
alternates every 5 seconds
The speed display reads 0
The distance interface displays
the last workout mileage
Bluetooth connected
Bluetooth icon constantYes
No
Bluetooth icon blinking

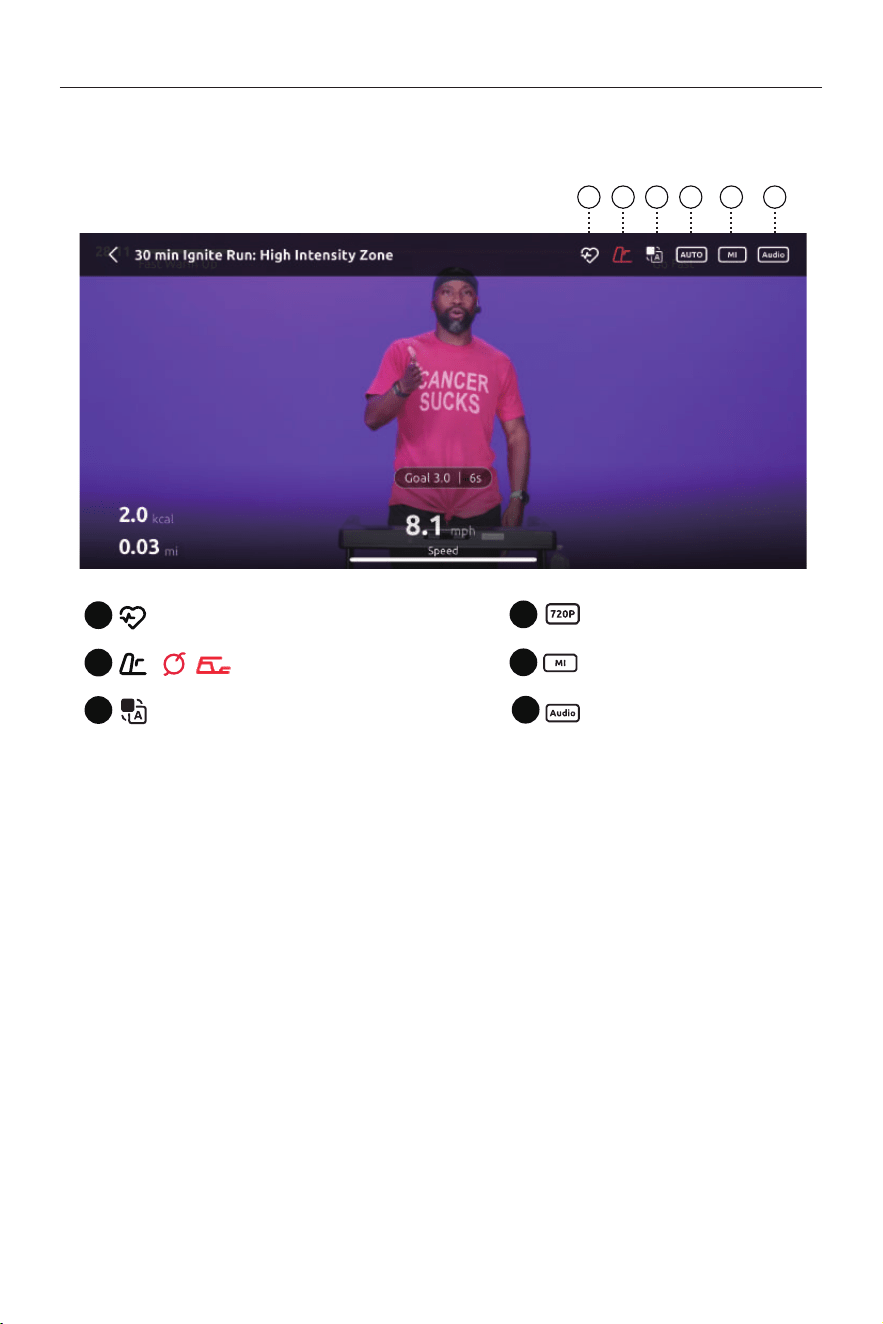

App Instructions
Connect devices
·When using for the first time, click the 「+」 in the upper right corner of the「Home」or enter the
course and connect the device according to the interface prompts.

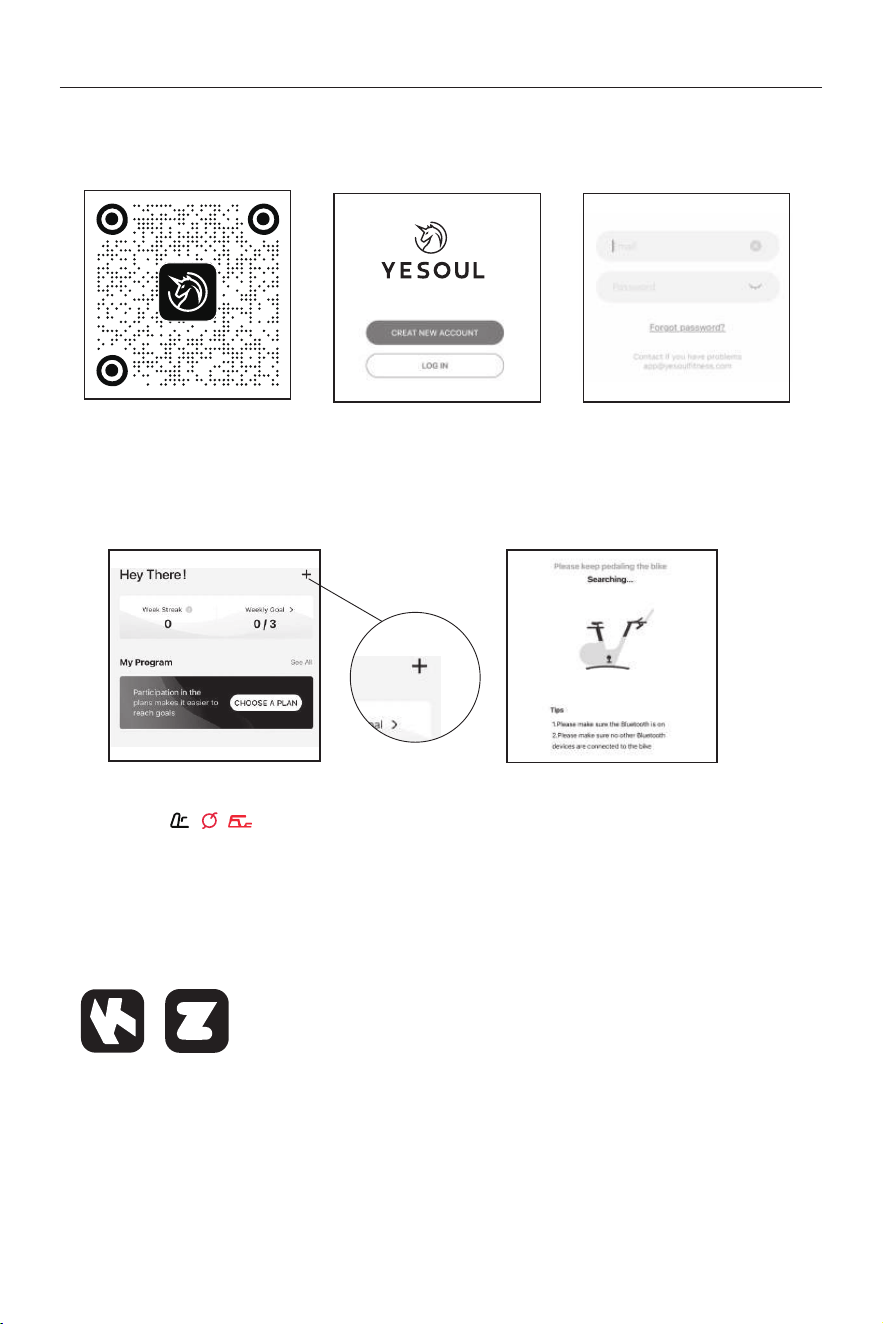

APP installation registration
·You can scan the QR code below to download the APP and register an APP account.
·Turn on the ( / ) button for the sports mode or course in the APP to establish
connection automatically.
·The device does not support connecting multiple cell phones at the same time.
Please confirm that no other users are connected to the device at this time before use.
·After shutting down, Bluetooth will be automatically disconnected.
·In addition to connecting with YESOUL FITNESS APP, Bluetooth can also be connected
with Kinomap and Zwift software.
Zwift
Kinomap
2. Enter the APP login page
1.Scan the QR code and
download the APP
4. Enter the APP homepage
3. Register an APP account
5.Search for devices
Purchase APP membership
Open the APP and find 「Homepage」-「Settings」- 「Member Rights」,
and follow the interface prompts to complete the membership purchase.
App Instructions
About unit switching
1 2 3 4 5 6
Bluetooth Heart Rate Monitor Connection
2
1
Bluetooth Device Connection
3
Subtitles / Voice Translation
4
Metric / Imperial Units Toggle
6
Video Resolution
5
Audio Controls
/
( )
·The "Bluetooth Device Connection" icon may vary depending on the type of device supported by each
course. Please follow the on-screen instructions to connect the appropriate device.
·Due to variations in terminal device configurations, certain features may not function properly. Please
select a compatible device based on your actual situation.
·The illustrations and data above may differ slightly from the actual product. Due to continuous software
updates and manufacturing tolerances, please refer to the actual usage for accuracy.
Instructions For Use of the Machine
Folding and moving the treadmill
·Folding of treadmill
1. Before folding the treadmill, ensure the power is
disconnected.
2. Check whether the incline of the treadmill
is at the lowest position.
3. Lift the treadmill to the upright position,
and the non-return pipe will automatically
get stuck on the pneumatic cylinder.
4. Verify that the anti-return tube is properly
engaged with the pneumatic cylinder.
· Deployment of treadmill
1. To unfold the treadmill, you need to choose a place about 1 meter away from the power socket
and with a flat ground and no other obstacles.
2. When unfolding the treadmill, you must first hold the treadmill with both hands and step on the
anti-return tube with your feet. The treadmill will automatically lower to the ground slowly. At this
time, the person must stay about 1 meter away from the treadmill until the treadmill is fully
unfolded.
·Movement of treadmill
When moving the unit you must make sure:
1: The treadmill power switch is turned off.
2: The power plug has been pulled out from
the power socket.
3: The large frame has been folded. After
clarifying the above points, grab the end of
the treadmill with one hand and the
handrail on the same side with the other
hand. When tilting 40 to 50 degrees toward
your chest, you can slowly move the
machine.
Walking
wheel
Gas spring
Anti-rollback bar
Please stay away
from
Tap firmly toward the arrow
Routine Maintenance
·Lubrication
After the running belt has been used for a period of time, it must be lubricated with specially
formulated methyl silicone oil.
Recommendation: Use less than 3 hours per week Lubricate once every 5 months
Use 4~7 hours per week Lubricate once every 2 months
Use more than 7 hours per week Lubricate once a month
Note: Do not over-lubricate. More lubricant is not always better. Proper lubrication is an
important factor in extending the service life of the treadmill.
·How to judge whether lubricant needs to be applied again
Just grab the running belt and touch your hand as far as possible to the center of the back of
the running belt. If there is silicone on your hand (it feels a little moist), it means no more
lubricant is needed. If the running board is dry , and there is no silicone stuck to your hands,
you need to add lubricant.
·Steps to apply lubricant to running boards
Stop the running belt, fold the machine, lift up the running belt on the back of the main frame,
put the oil bottle into the middle of the running belt as much as possible, spray silicone oil on
the inside of the running belt, and coat both sides of the running belt with silicone. Run the
treadmill at a speed of 1kph/0.6mph to evenly apply the silicone,
and gently step on the running belt from left to right. It will take a few minutes for the silicone
to be completely absorbed by the running belt. (as the picture shows)
C.Silicone oil bottle
Lift up the
running belt
Routine Maintenance
·Tightness adjustment of running belt
The user has a tendency to stop and slip while running. When this phenomenon occurs, adjust
the running belt adjustment bolts left and right simultaneously in half-turn clockwise
directions. If the running belt is too loose, the running belt and rollers will slip when you step on
the belt. However, it is not good if it is too tight. It will easily increase the load on the motor and
damage the motor, running belt and rollers.
·Adjustment of running belt deviation
All treadmills require adjustment of the running belt before leaving the factory and after
installation. However, after a period of use, it may still wander. The reasons for this
phenomenon are as follows:
① The host is not placed smoothly
② The user’s feet are not in the center of the running belt when exercising
③ The user exerts uneven force on both feet
If the misalignment is artificially caused, it can return to normal after a few minutes of no-load
rotation. For misalignment that cannot be restored automatically, use the ⑳l-shaped hex
wrench 6# that comes with the machine to gradually adjust it in half-turn increments.
Declare:
Running Belt Misalignment is not covered under warranty and must be
maintained by the user according to the manual. Misalignment can cause
serious damage to the running belt. It must be detected and corrected
promptly.
If the running belt deviates to the left,
adjust the left bolt clockwise or the
right bolt counterclockwise.
If the running belt deviates to the right,
adjust the right bolt clockwise or the
left bolt counterclockwise.
（Tight）
（Loose）
Turn clockwise to
increase running
belt tension
（Tight）
（Loose）
Turn clockwise to
reduce walking
belt tension
The running belt is
deviating to the left
The running belt is
deviating to the right
Common Faults and Solutions
Treadmill brushless system error message prompts:
E02: Indicates the lower control power input overvoltage protection information prompt
E01: Indicates abnormal communication between the electronic meter and the electronic control
E03: Indicates the input undervoltage protection information of the lower control power supply
E04: Indicates that the main motor is open circuit, phenomenon prompt
E05: Indicates that the current ADC is abnormal
Fault codes Fault code meaning Fault code processing method
E01
E02
E03
E04
E05
The upper and lower control main
connection line interface is loose
The upper and lower control main
connection line is broken
The electronic meter is broken
The controller is damaged
Reinforce the connection line interface
Replace the upper and lower control main
connection line
Replace the electronic meter
Replace the controller
An external filter regulator needs to be added
Replace the lower control, waiting for repair
The user's grid voltage is unstable,
and the peak voltage is too high
An external filter regulator needs to be added
Replace the lower control, waiting for repair
The user's grid voltage is unstable,
and the peak voltage is low
The main motor line is not connected or loose
The load of the treadmill exceeds the
rated working current of the motor
There is a problem with the assembly
structure of the treadmill and the motor,
causing resistance or blockage of the motor
Failure of the lower control current
limiting system
It is recommended to be within the rated
working current range of the motor
Check whether the treadmill structure
is normal
Replace the lower control, waiting for repair
The main motor is open circuit, damaged
The controller is open circuit, damaged
The main motor is blocked and damaged
Reinforce the main motor connection line
Replace the motor
Replace the controller
Replace the motor
The controller is damaged
The controller is damaged
E06: Indicates voltage ADC abnormality prompt
The user's grid voltage is unstable,
and the peak voltage is too high
Wrong wheel diameter value setting
Controller damage
Need to add an external filter stabilizer
Reset the wheel diameter value and try not
to exceed the rated voltage of the motor
Replace the lower control, waiting for repair
E06
Common Faults and Solutions
E08: Indicates that the 3s three-phase current deviation is greater than the set value
E11: Indicates that the maximum current exceeds the setting
E13: Indicates abnormal Hall signal value or timing error
E14: Controller temperature is too high
E15: Indicates power tube breakdown explosion protection information prompt
E17: Indicates that the Hall signal error is too large
Main motor damaged
Controller abnormally damaged
Replace motor
Replace controller
E08
E11
E13
E14
E15
E17
Main motor damaged
Controller abnormally damaged
Replace motor
Replace controller
Replace controller
Replace controller
Main motor damaged
Controller abnormally damaged
Controller abnormally damaged
Replace motor
Controller temperature is too high Stop using for more than 1 hour
The power transistor breaks down and
the controller is damaged
Replace controller
NOTE: Perform the operations above only during power disconnection.
If the fault code persists, contact the after-sales service team for assistance.
----: Reminder that the electronic meter safety lock is not properly placed
----
Red Gauss magnet falls off Reposition the magnet
Safety lock is not in place
Reposition the safety lock, if not effective,
contact after-sales
Grounding Guide
1. This product must be grounded. If the treadmill malfunctions or becomes damaged,
the grounding wire creates a circuit of lowest resistance and conducts current underground,
reducing the risk of electric shock. This product comes with a cable that has a conductor and a
grounding plug that ground the equipment.
2. The plug must be inserted into an outlet that meets local codes and ordinances installation
and grounding requirements.
3. Improper connection of the equipment grounding conductor may result in electric shock
hazards. If you are unsure whether your equipment is properly grounded, consult a qualified
electrician or service personnel. Please do not modify the plug provided with this product
without authorization. If the plug
If inconsistent with the outlet, have a qualified electrician install a proper outlet.
Warm up
Before exercising, it is best to do stretching exercises.
Warm muscles stretch more easily, so warm up for 5
to 10 minutes first. Then stop and stretch as follows -
5 times for 10 seconds or more on each leg, then do it
again at the end of the exercise.
1.Stretching by touching toes
Stand with your knees slightly bent and your hips moving
slowly forward. Touch yourtoes as far as possible, while
relaxing your back and shoulders. Keep this posture for 15s
and thenrelax. Repeat the exercise three times.
Stretched parts: Ligaments,internal parts of knees, and back.
(See Figure 1)
2.Ligament stretching exercise
Sit with one leg stretched forward.Put the other sole close
to your body andon the inner side of the thigh of the stretched
leg. Touch your toes as far as possible. Keep thisposture for 15s
and then relax. Exercise both legs three times, respectively.
Stretched parts:Ligaments, back and groin.(See Figure 2)
Stand with one hand against the wall for balance and the other
hand reaching back to grab your foot. Pull your heel as close to
your buttocks as possible. Keep this posture for 15s and
then relax. Repeat the exercise three times for each leg.
Stretched parts: Quadriceps and hip muscles. (See Figure 3)
3.Calf/heel stretching exercise
Stand with one hand against the wall for balance and the other
hand reaching back to grab your foot. Pull your heel as close to
your buttocks as possible. Keep this posture for 15 seconds and
then relax. Repeat the exercise three times for each leg.
Stretched parts: Quadriceps and hip muscles. (See Figure 4)
4.Quadriceps femoris stretching exercise
Sit with the soles of your feet together and your knees turned out.
Make your feet asclose as possible to the groin. Keep this posture
for 15s and then relax. Repeat the exercise threetimes.
Stretched parts: Ouadriceps and hip muscles. (See Figure 5)
5.Inner thigh stretching exercise
Note: This product is a full-body training equipment,
please follow the above steps to perform warm-up exercises.
1
2
3
4
5
This device complies with Part 15 of the FCC Rules
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
This device has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This device generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this device does cause harmful interference to radio or television reception, which can be
determined by turning the device off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the device and receiver.
--Connect the device into an outlet on a circuit different from that to which the receiver is
connected.
--Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
The device has been evaluated to meet general RF exposure requirement. The device can
be used in portable exposure condition without restriction.
