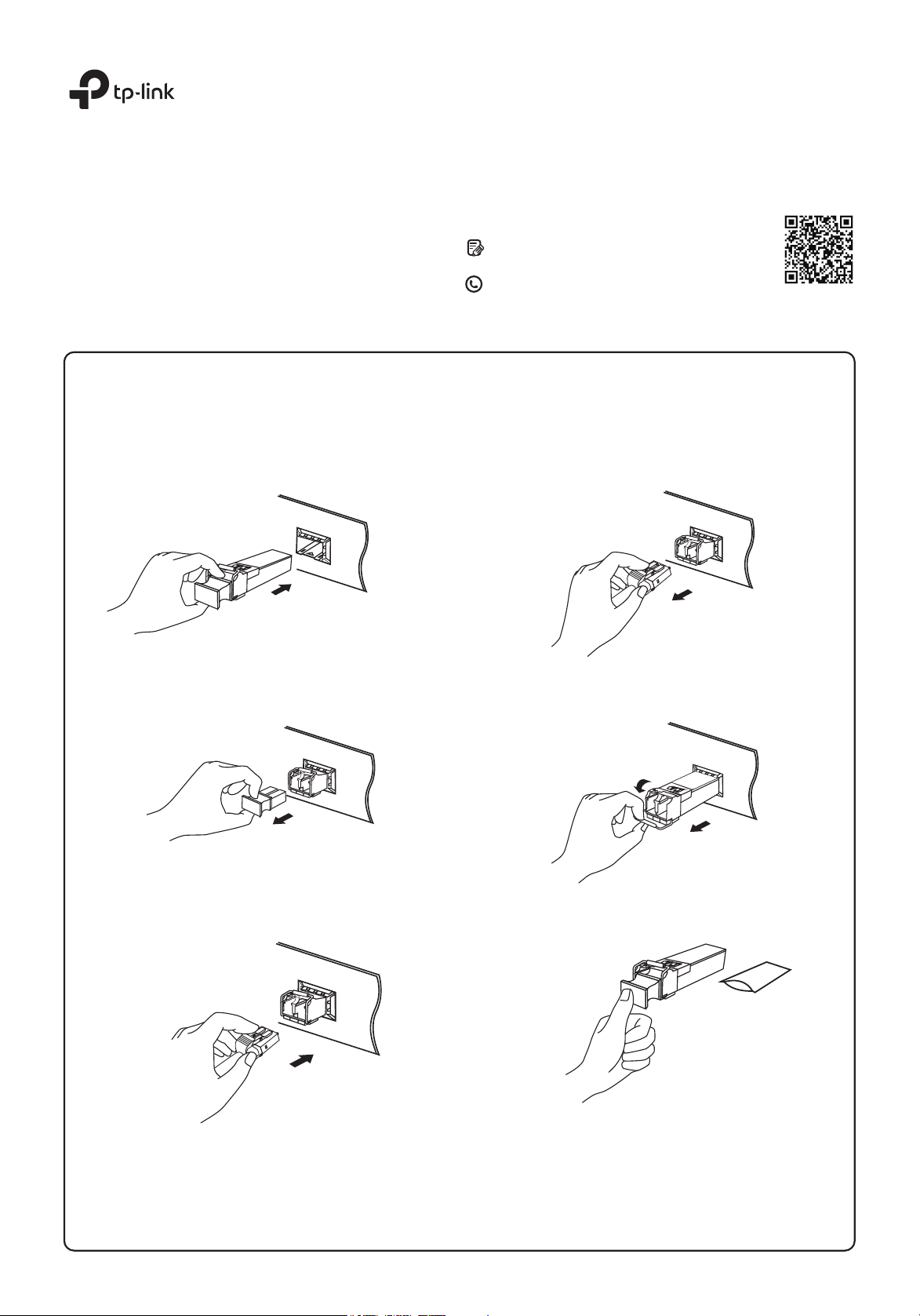

Remove the moduleInstall the module
MiniGBIC Module
1. Wear an ESD-preventive wrist or ankle strap to prevent ESD damage to
the transceiver.
2. Insert the module into the SFP slot and rmly press it into place.
3. Remove the protective dust plug from the module.
4. Plug ber-optic cables into the module. Note that the module works
without any additional conguration.
1. Wear an ESD-preventive wrist or ankle strap to prevent ESD damage to
the transceiver.
2. Disconnect the network ber-optic cables from the module.
4. Reinstall the protective dust plug in the module’s optical bores and
place it on antistatic mat or a static shielding bag.
3. Pull the safety latch downwards to release the module, and then pull it
out from the slot.
Installation Guide
Note:
1. Do not touch the output pins on the transceiver with your hand.
2. Always keep the protective dust plug on the module’s optical bores until you are ready to make a connection.
Caution:
DO NOT point or stare directly into the beam or into the optical port of the transceiver when it is operating, as this can injure your eyesight.
©2024 TP-Link 7106511319 REV1.0.0
For technical support and other information, please visit
https://www.tp-link.com/support/?type=smb, or simply scan the QR code.
To ask questions, find answers, and communicate with TP-Link users
or engineers, please visit https://community.tp-link.com/business
to join TP-Link Community.
Only use the same transceiver model between switches for fast and reliable connectivity.

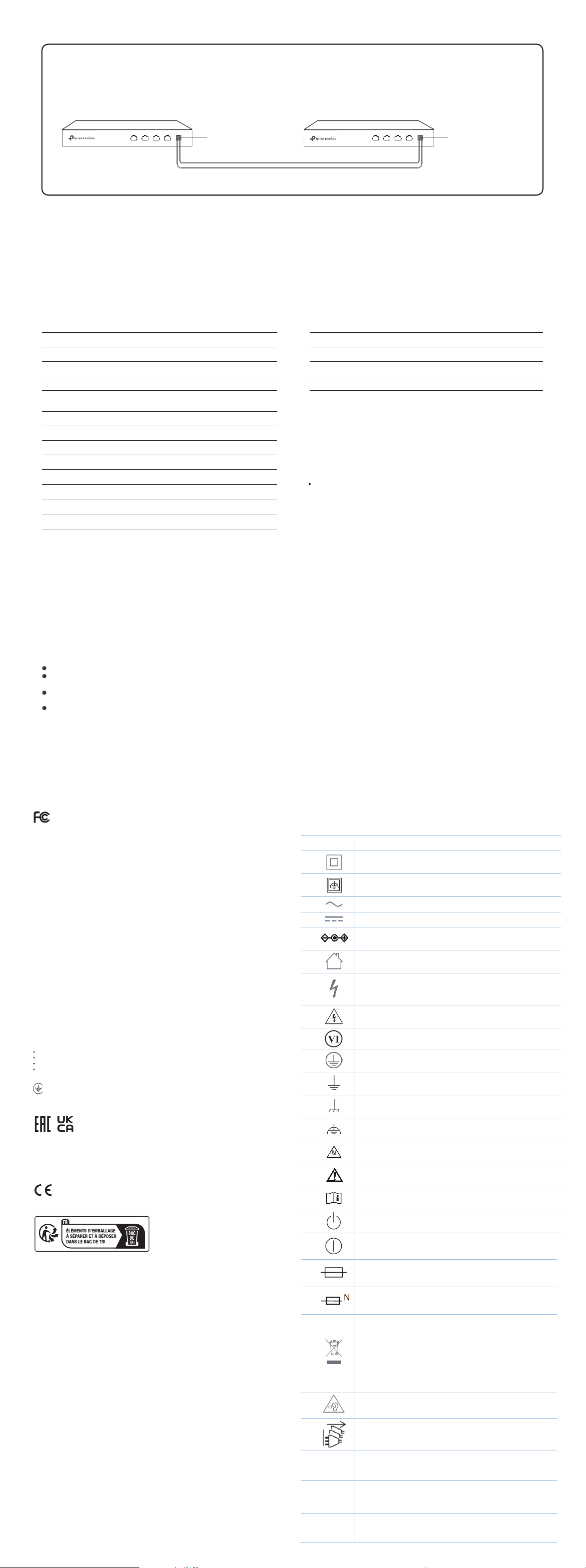

Connection
Switch Switch
TL-FM311
Fiber
TL-FM311
この装置は、クラスA情報技術装置です。この装置を家庭環境で使用すると電波妨害を引き起こすことがあり
ます。この場合には使用者が適切な対策を講ずるよう要求されることがあります。 VCCI-A
FCC compliance information statement
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause
harmful interference in which case the user will be required to correct the interference at his own expense.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
1) This device may not cause harmful interference.
2) This device must accept any interference received, including interference that may cause undesired operation.
Any changes or modications not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
Product Name: MiniGBIC Module
Model Number: TL-FM311/TL-FM321
TP-Link USA Corporation
Address: 10 Mauchly, Irvine, CA 92618
Website: https://www.tp-link.com/us/
Tel: +1 626 333 0234
Fax: +1 909 527 6804
E-mail: [email protected]
We, TP-Link USA Corporation, has determined that the equipment shown as above has been shown to comply
with the applicable technical standards, FCC part 15. There is no unauthorized change is made in the equipment
and the equipment is properly maintained and operated.
Issue Date: 2024/06/05
This is a class A product. In a domestic environment, this product may cause radio interference, in which case
the user may be required to take adequate measures.
CE Mark Warning
Продукт сертифіковано згідно с правилами системи УкрСЕПРО на відповідність вимогам нормативних
документів та вимогам, що передбачені чинними законодавчими актами України.
CAN ICES-3 (A)/NMB-3(A)
Industry Canada Statement
Safety Information
Keep the device away from water, re, humidity or hot environments.
Do not attempt to disassemble, repair, or modify the device.
Avoid using this product during an electrical storm. There may be a remote risk of electric shock from lightning.
Do not point or stare directly into the beam or into the optical port of the transceiver when it is operating, as this
can injure your eyesight.
TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant
provisions of the Electromagnetic Compatibility Regulations 2016 and Electrical Equipment (Safety)
Regulations 2016.
The original UK declaration of conformity may be found at https://www.tp-link.com/support/ukca/.
TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant
provisions of directives 2014/30/EU, 2014/35/EU, 2011/65/EU and (EU)2015/863.
The original EU declaration of conformity may be found at https://www.tp-link.com/en/support/ce/.
EU Declaration of Conformity
UK Declaration of Conformity
E
xplana�on of the symbols on the product label
s
ymbols may vary from products
Symbol
Explanation
Class II e quipment
Class II e quipment with functional earthing
Alternating current
Direct current
Pol a rity of d.c. power connector
For indoor use only
Dangerous voltage
Cauti on, risk of electric shock
Energy eciency Marking
Protective earth
Earth
Fra me or chassis
Functional earthing
Cauti on, hot surface
Cauti on
Opera tor's manual
Stand-by
"ON"/"OFF" (push-push)
Fuse
Fuse is used in neutral N
Cauti on, avoid listening a t high volume levels for long periods
Disconnection, all power plugs
m
Switch of mini-gap construction
µ
Switch of micro- gap construction (for US version)
Switch of micro-gap / micro
-
disconnection construction
(for other versions except US)
ε
Switch without contact gap (Semiconductor switching device)
RECYCLING
This product bears the selective sorting symbol for Waste
electrical and electronic equipment (WEEE). This means that
this product must be handled pursuant to European directive
2012/19/EU in order to be recycled or dismantled to minimize its
impact on the environment.
User has the choice to give his product to a competent recycling
organization or to the retailer when he buys a new electrical or
electronic equipment.
Product Operating Temperature 0˚C to 70˚C (32˚F to 158˚F)
Storage Temperature -40˚C to 85˚C (-40˚F to 185˚F)
Storage Humidity 5% to 90% RH, Non-condensing
Operating Humidity 10% to 90% RH, Non-condensing
General Specications Environmental and Physical Specications
Specications
TP-Link Compatible Products
Note:
The SFP modules may be incompatible with other vendors’ devices. We
recommend that you use only TP-Link SFP modules on your TP-Link devices.
TP-Link switches/media converters with gigabit SFP slots
Port Type
Fiber Type
Data Rate
Wave Length 850 nm
TL-FM321
1310 nm
IEEE 802.3z, TCP/IP
Multi-mode FiberSingle-mode Fiber
9/125 um Single-mode
20 km
1.25 Gbps
LC Duplex
3.3 V
FCC, CE
Standards and Protocols
Cable
Model TL-FM311
Max. Cable Length
Power Support
Safety & Emission
Ye s
Ye s
DDM
SFP-MSA
Ye s
Hot Swappable
IEEE 802.3z, TCP/IP
1.25 Gbps
LC Duplex
3.3 V
FCC, CE
Ye s
Ye s
Ye s
Safety Information
Keep the device away from water, re, humidity or hot environments.
Do not attempt to disassemble, repair, or modify the device. If you need
service, please contact us.
Avoid using this product during an electrical storm. There may be a remote
risk of electric shock from lightning.
Do not point or stare directly into the beam or into the optical port of the
transceiver when it is operating, as this can injure your eyesight.
50/125 um or 62.5/125 um
Multi-mode
550m
For simplicity, we will take TL-FM311 as an example.
