ENGLISH
OWNER’S MANUAL
PERFORMANCE
WALL MOUNT
PWM SAT
ENGLISH
Thank you for purchasing Performance Wall Mount speakers by PSB, a highly developed slim prole speaker engineered
for a customized audio solution. This compact solution captures all the sounds from your music and video collections
and brings them to life. Producing crystal clear voicing and a spacious soundstage, the On-Wall Speakers make motion
pictures and music catalogues come to life.
Engineered with highly acclaimed audio excellence and research, the Performance Wall Mount speakers by PSB will
deliver wide frequency and dynamic range, natural tonal balance and precise spatial imaging for today’s on-wall audio
applications.
By supplying this Owner’s Guide, we hope you will read through this booklet to help assure that you are getting the most
out of your PSB product, and your music.
UNPACKING…
The packing materials are designed to protect the speakers from damage during transport, however if visible or
concealed damage is to occur in handling, it should be reported at once to your authorized PSB dealer, or to the shipping
company that delivered your loudspeakers. We highly recommend retaining all packaging, as it may be needed to
transport the speakers in the future.
ENGLISH

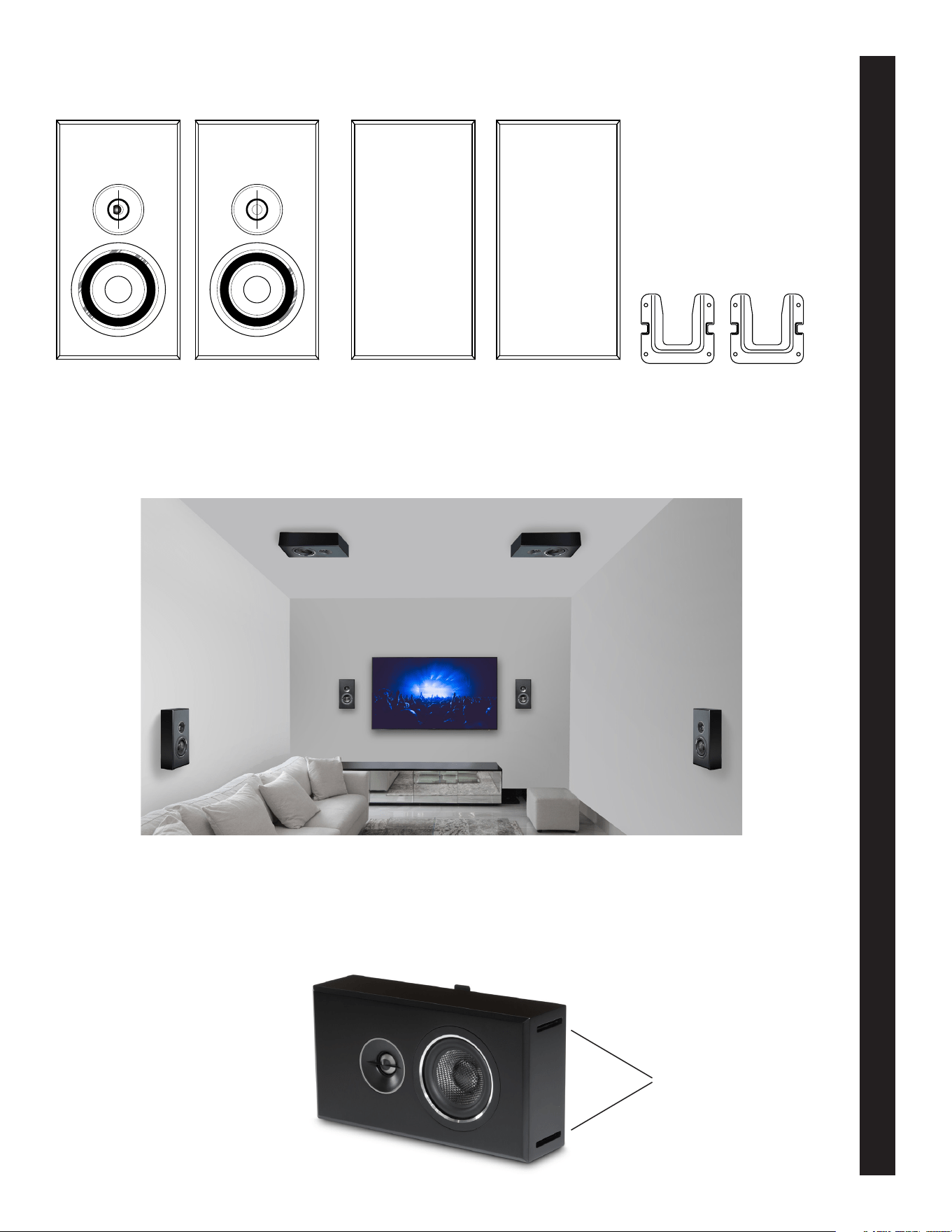

CONTENTS…
POSITIONING…
I. The PWM Sat is designed as a multi purpose speaker capable of being installed in a variety of locations.
II. It can be used as a left and right front, surround or height speaker
III. The PWM Sat can be installed vertically, horizontally and upside down.
IV. The PWM is designed with 2 slot ports at the bottom of the cabinet. These ports must never be blocked when
the speaker is in use. When deciding the placement of the PWM Sat, make sure to leave a minimum of 1” (2.5 cm)
of clearance for the ports to properly function.
Slot Ports
ENGLISH
Installation

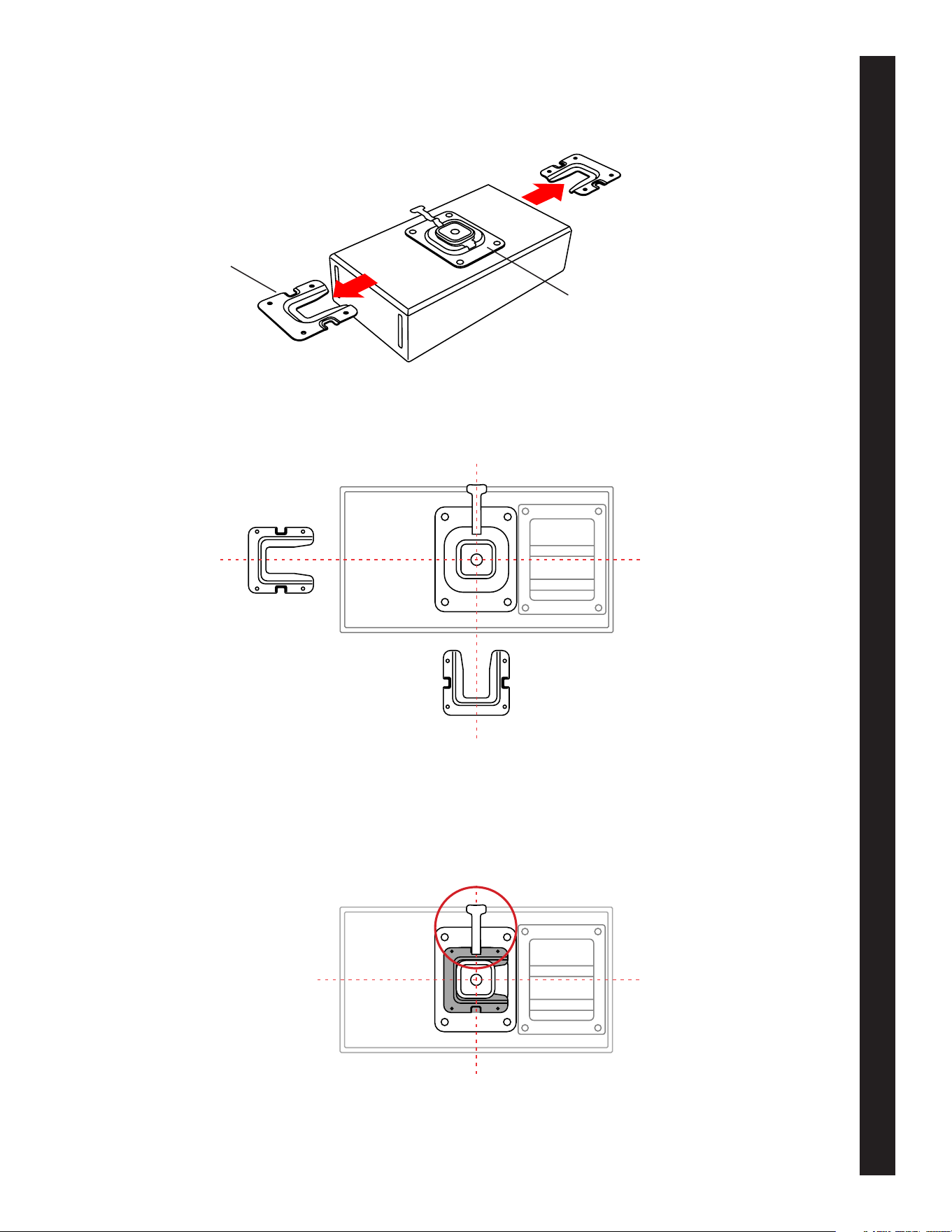

Locking Bracket
The PWM Sat comes equipped with a two-piece locking bracket.
The exact centre of the speaker aligns with the centre of the wall portion of the bracket
The Wall plate can be applied vertically, horizontally, or upside down depending on your choice of application.
The speaker portion of the bracket has a locking mechanism to hold the speaker in place.
When placing the speaker into place, make sure the locking lever of the speaker locks into the wall portion.
To detach the speaker from the wall, press the locking tab and slide the speaker off the wall plate
Speaker Harness
Wall plate
ENGLISH
CONNECTING…

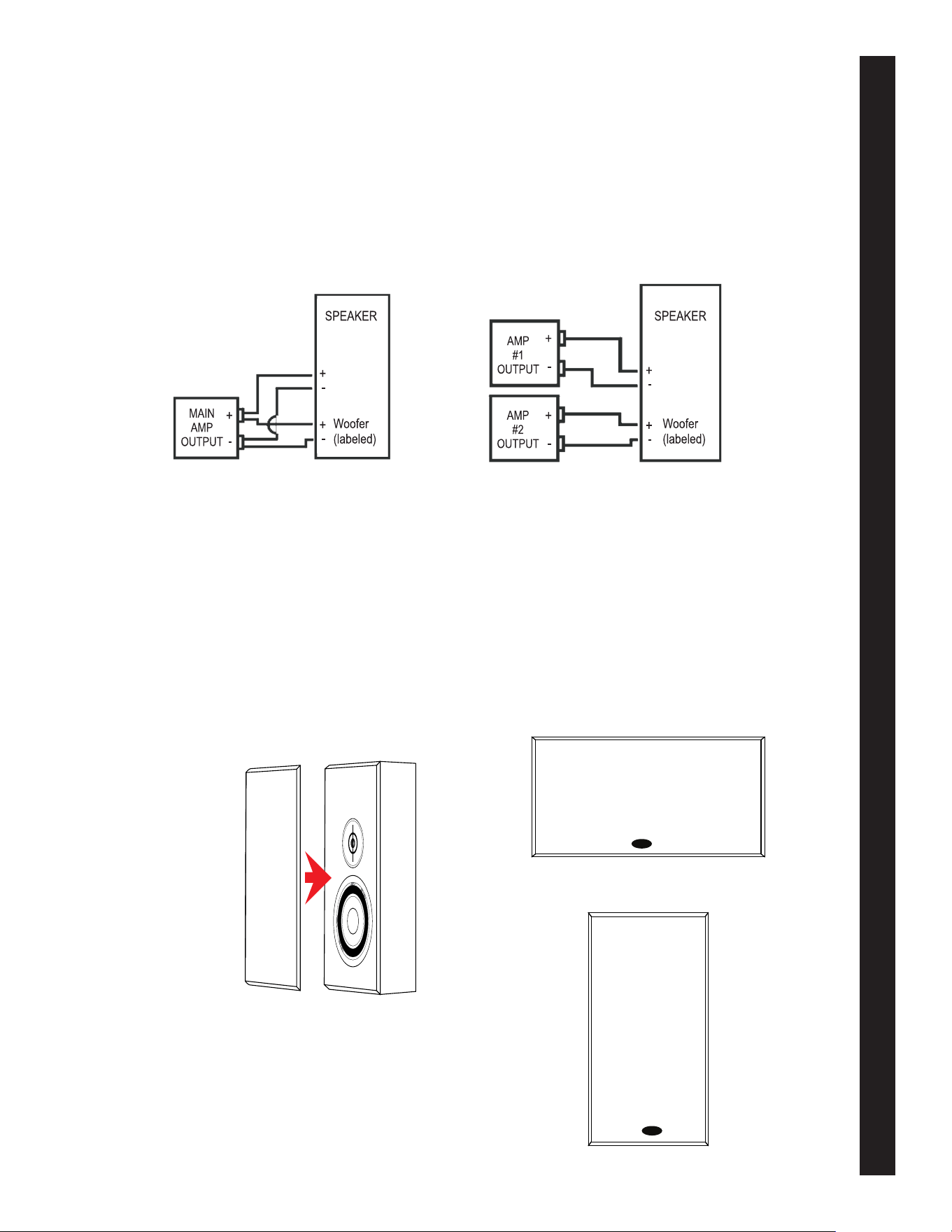

Bi-wiring and Bi-amping
I. The Metal jumper strap that connects the two sets of terminals on some of our speakers is removable. This allows you
to connect either seperate cables to the seperated woofer and tweeter terminals (”bi-wiring”) or seperate ampliers
(“bi-amping”). With Bi-Amp hookup you must use either identical ampliers or ampliers adjusted to have the same
voltage gain. Consult your PSB dealer for further information. (Illustrations are for one speaker hookup only). With single
cable inputs, the jumper straps must be in place and both sets of terminals tightened rmly.
Bi-wire and Bi-amp Wiring Between Speakers and Amplier
Note: The PSB PWM models perform best when complemented with a powered subwoofer. PSB Speakers offers a number of
suitable subwoofers to pair with your on-wall speakers. To nd these subwoofers, please visit www.psbspeakers.com
BI-WIRE HOOKUP BI-AMP HOOKUP
Snap Magnetic
grille into place
Horizontal Logo Position
Vertical Logo Position
Tweeter Tweeter
The Grille
I. The PWM speakers come with an optional magnetic
grille, which will snap into place when positioned
correctly. The use of the grille is a matter of personal
preference and does not effect the performance of
the speakers either way.
II. The grille does not come with a brand logo
attached. Should you desire to place logos on
your speakers, please use the locations specied in
the diagram.
PROTECTING YOUR INVESTMENT
For long lasting enjoyment of your PSB speakers, you should respect their limits and avoid excessive volume levels for music or movie
playback. Excessive volume levels can damage all types of speakers.
If your speakers are pushed to excessive volume levels, they could be driven into “clipping”, which could result in severe and/
or permanent damage. If listening to your speakers at loud levels, listen carefully for any signs of harsh, distorted midrange and
diminishing precision – if detected, turn the volume down immediately.
NEVER TEST PEAK LISTENING LEVELS OF YOUR SPEAKERS BY TURNING THE VOLUME
UP ALL THE WAY!
CARING AND CLEANING…
For safe use, it is essential to maintain and clean your speakers periodically. However, excessive cleaning may cause damage and
jeopardize the longevity of the product. When not in use, avoid storing in extreme hot or cold temperatures and humidity, and avoid
exposure to liquids.
I. Cabinet Care
PSB cabinets have varying materials and nishes, including wood veneers, vinyl, anodized aluminium and high gloss, and
should be treated with the same care you would with similar nishes such as on furniture. Dust lightly with a soft cloth,
avoiding abrasive materials that will cause permanent damage to the cabinet. If necessary, wipe carefully with a cloth slightly
dampened with water-based cleaner to remove heavy soil.
II. Drivers and Port Care
During light cleaning, avoid touching speaker diaphragms as it could cause permanent damage to the tweeter and/or drivers.
If deeper cleaning is required, we suggest using a lint brush to clean the driver ports.
TROUBLESHOOTING…
Issue: Audible Distortion
I. If a speaker begins to sound distorted or fatigued, check to see whether playing at a lower volume resolves this issue.
Issue: Low or No Volume Output
I. If there is low or no volume output, check that the audio source is powered “on”, and the audio is set to a medium volume
level and not muted.
II. If audio source is indeed powered “on”, check and ensure that the cable connections to the audio source and speakers are
secure and are “in-phase”. Also, connect a different cable to see if this resolves the issue.
If you require service, please visit your local authorised PSB service centre, or our PSB Speakers website and open a support ticket in the
PSB Lounge (www.psbspeakers.com/lounge).
If you have moved since your purchase, the nearest authorised PSB dealer will be able to assist you. If the problem is not resolved,
please contact us directly and provide the model name, serial number, date of purchase, dealer name, and a full detailed description of
the issue.
We appreciate your purchase, and hope this owner’s guide helps you enjoy the exceptional satisfaction that PSB speaker systems have
to offer. We wish you many years of enjoyable listening!
Environmental Protection
At the end of its useful life, this product must not be disposed of with regular household waste but must be returned to a collection
point for the recycling of electrical and electronic equipment. The symbol on the product, owner’s manual and packaging, point this out.
The materials can be reused in accordance with their markings. Through re-use, recycling of raw materials, or other forms of recycling of
old products, you are making an important contribution to the protection of our environment.
Your local administrative ofce can advise you of the responsible waste disposal point.
We appreciate your purchase of our product, and thank you for taking the time to read this owner’s guide. We hope you enjoy the
exceptional satisfaction that PSB Speakers have to offer, and wish you many years of enjoyable listening.
Real Sound for Real People.
SPECIFICATIONS
Frequency Response
On Axis @ 0° ±3dB 90 - 23,000Hz
LF Cutoff -10dB 62Hz
Sensitivity
Anechoic Chamber 83dB
Listening Room 85dB
Impedance
Nominal 6 Ohms
Minimum 4 Ohms
Acoustic Design
Tweeter (Nominal) 1” (25mm)
Titanium Dome with Ferrouid
Woofer (Nominal) 1 x 4” (100mm) Carbon Fibre Cone Rubber Surround Cast Basket
Design Type Bass Reex
Construction
Cabinet MDF
Grille Face Acoustic Transparent Cloth
Frame MDF
Size (W x H x D)
Net W 12” (305mm)
Net H 6.5” (165mm)
Net D 3.38” (85mm)
Depth With Grill 3.5” (90mm)
Finish
Available Finishes Satin Black, Satin White
Grille Type Magnetic, Cloth Grille
Wall Bracket Locking Bracket for vertical, horizontal and ceiling application
