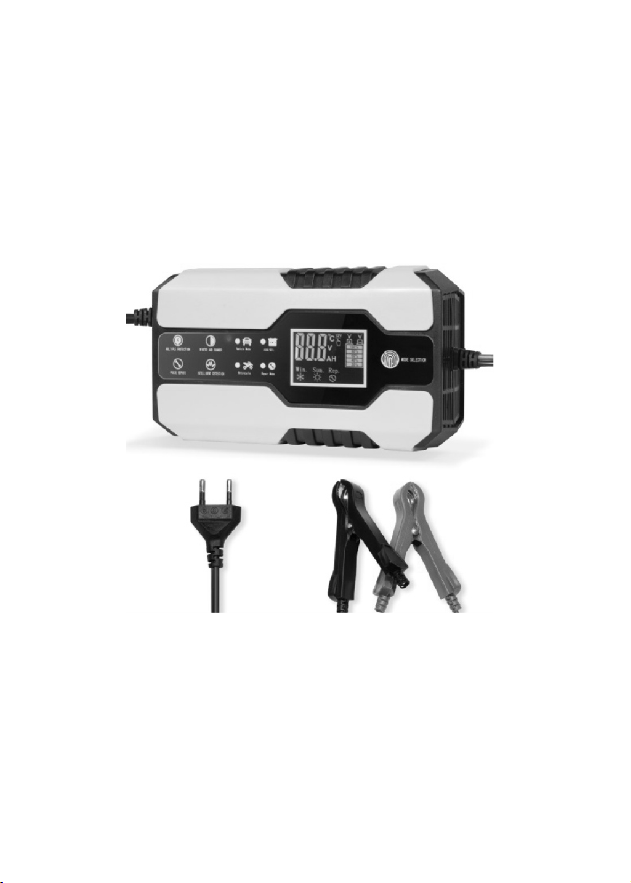

Intelligent Battery
Charger/Maintainer
Model No.：TS-XFQ1208
Please keep the original box, package and receipt. Please read
the manual before using the product and keep it for future reference.
UserManual
Thank you for choosing this item. Please read the instructions
before using the device。
Rangeofapplication
Suitable for ordinary cars, starting and stopping battery,
motorcycles, e-bike, all kinds of agricultural vehicles, all kinds of
trucks and all kinds of lead-acid batteries.
Old, idle for a long time, unable to charge, you can choose
repair mode to try to activate repair charging.
Specificationdata
Input voltage：AC 110V-240V
Input power：AC-140W
Output voltage：DC 13.8-27.6V
Output currency：DC 12V 8A /24V 4A
Application range：12V/24V 2AH-150AH Lead-acid
battery（no Lithium battery）
Size：165x94x63mm
Input cord length :100CM
Output cord length:65CM
Material：ABS

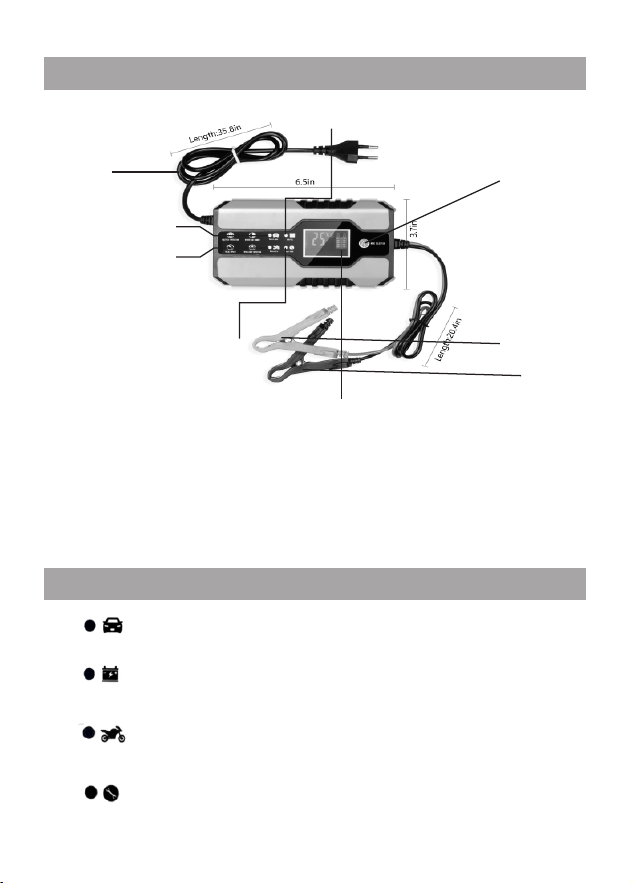

Productphoto
1
2
3
4
5
6
7
8
9
1、Input plug
2、Vehicle mode
3、Motorcycle mode
4、Repair mode
5、Start/stop mode
6、LCD display
7、Output black alligator clip “-”
8、Output redalligator clip “+
9、Touch swift
Modeselection
Vehide mode
AGM/GEL
MOOROYCLE
RepairMode
Vehicle Mode
Suitable for car,truck,farm vehicle and kinds of Lead-acid
battery(Range:12V24V 15AH-150AH)
START-STOP BATTERY MODE
Suitable for car batteries with starting function,(Range：12V24V 15AH-
150AH)
MOTORCYCLE MODE
Suitable for motorcycles and kinds of Lead-acid battery(Range：12V24V
15AH-150AH)
REPAIR MODE
Old, idle for a long time, not charged, you can choose the repair mode and
try to activate

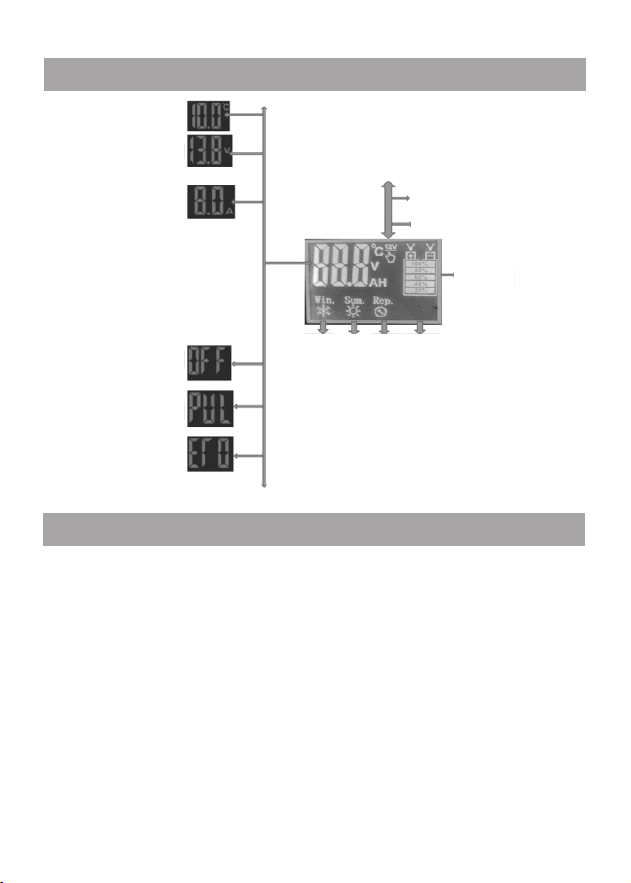

Screendisplay
Functionintroduction：
1.Charge 12V/24V (2AH-150AH) lead-acid batteries.(No
Lithium battery)
2.The repair mode can be selected to activate and repair the
old lead-acid batteries that have been idle for a long time and
cannot be charged.
3.Four modes, charging mode can be selected according to
different types of battery.
4.One-touch switch mode, HD LED display charging voltage,
current and temperature.
5.Summer and winter pattern according to different self
adjusting voltage,Summer is > 28 ℃, winter is <10 ℃。
Temperature
Voltage
Currency
Finish
Repair
Inverse connected
12V battery
24V battery
Battery level
Winter
Summer
Repair
Inverse connected
6.The temperature will be automatically detected without setting.
10 ℃ ~ 28 ℃, the icon will not be displayed.
7.Products with a reverse connection protection alarm, when
output alligator clip is negative clamp, display and buzzer will
alarm.
8.Temperature protection. When the product is charging, it will
automatically detect that the charger temperature rises more
than 40 degrees, and the charging current will automatically
adjust to the appropriate current for charging.The output is
automatically turned off when the temperature rises to 60
degrees, indicating that the CUP stops charging.
9.This product has short circuit protection, over current
protection, over voltage protection, low voltage protection, over
temperature protection, fire protection, reverse connection
protection and multiple protection to make you feel easy.
10.This product with the function of anti false touch buttons, in
each mode are recharged to need long press to switch to switch
mode.
Howtouse
Charging
1.Check whether your battery parameters match the charger;
2.The red clamp connect to the battery“+” the black clamp
connect to the battery “-”
3.After the clamp is connected, the charger display screen lights
up, showing the power level and OFF means that the
connection is correct;
4.Connect the household 220V power supply, and the charger
will start charging automatically;
5.Select the charging mode that matches your battery;
6.After finished, the battery display bar displays full and OFF at
the same time, indicating finished. At this point will automatically
enter the floating charge mode, continue to charge for an hour is
the best.
7.After finished,unplug the power cord and black,red clamp
Repair operation
1.Connect the battery, plug in, select the mode and turn on the
"Repair" indicator.PUL is displayed at this time, and the battery
full grid flashes.
2.It is recommended to repair motorcycle batteries in about 5
hours, and automobile batteries in about 8 hours (the longer the
time it takes to repair batteries without heating, the better the
repair effect will be).
3.If you need to stop the repair, press "Select mode" to adjust or
unplug the charger directly.
4.Please pay attention to the battery temperature during the
repair. If it becomes hot, please stop in advance!The MAX repair
time is 18 hours, and it will automatically change to charging
mode after 18 hours!
5.When repairing,it can also charge with electric current, and the
battery can be fully charged for a long time. After switching to
charging mode, if it shows "OFF", you can also continue to float
for 1 hour, which is the best effect!After charging, you can
unplug it to check whether it is fully charged normally.
ProblemShooting
1. The screen no displayed
Cause: the anode and cathode are connected incorrectly. The
anode and cathode clamps are not properly clamped on the
battery or the battery is not energized.
Solution: First check whether the battery “+” and “-” clamp is
wrong, check and confirm whether the battery has power, clamp
is firmly.
2. The charger alarms constantly
Reason: red and black crocodile clamp positive and negative
polarity connection.
Solution: First, check whether the battery “+” and “-” electrodes
are connected wrong, and change the positions of the positive
and negative clamps
3. The battery has no power or the battery is low.
Reason: feed battery, sulfurized battery, voltage is too low, idle
time long battery, due to the battery resistance is too large, or
battery capacity reduction, charging will reach the full voltage
value can not be filled, so it will show full.
Solution: You can charge in repair mode and use repair mode to
try to activate the repair charge to activate the battery.
4. Connect the battery to show the power level, but it doesn't
work when it is plugged in.
Reason: No power input.
Solution: Check whether the power supply is normal, try to
replace a few sockets!
5. Being not full charged for a long time
Reason: If the battery is not full charged for a long time, it is due
to the battery vulcanization, feed, or lack of water, the voltage
value can not be charged up, so it will keep charging, this kind of
battery may be hot.
Solution: If the battery heating hot should stop charging, to
prevent battery swelling, if it is a water and electricity bottles
should be tested battery is not a lack of fluid!
SafetyCaution
1.Do not charge lithium batteries!Do not charge the dead
battery, non-lead-acid battery or non-voltage battery.Do not
charge batteries that are not rechargeable!Do not approach
open flames while charging!Please do not open it by non-
professionals because there is high voltage inside
2.When charging the vehicle or equipment, please take off the
battery and place it in a safe and non-flammable space for
charging; you shall be responsible for any accident.
3.For indoor use, beware of rain.A well-ventilated area must be
maintained when charging.Do not put it or charge it the car.
Beware of flames and sparks, which may cause fire
4.Please cut off the power after more than 12hours charging .
Long charging time is strictly prohibited
5.If the power cord is damaged, it must be replaced by a
professional.
6.Before connecting or disconnecting it from the battery.
Disconnect the power supply
