BATTERY CHARGER
USER MANUAL
MODEL:GS450C
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and does not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
MODEL:GS450C
Have product questions? Need technical support? Please feel free to
contact us:
Technical Support and E-Warranty Certificate
www.vevor.com/support
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
BATTERY CHARGER
READ AND UNDERSTAND ALL SAFETY INFORMATION BEFORE USING THIS
PRODUCT. Failure to follow these safety instructions may result in ELECTRICAL
SHOCK, EXPLOSION, FIRE, which may result in a SERIOUS INJURY, DEATH, or
PROPERTY DAMAGE.
Electrical Shock. Product is an electrical device that can shock and cause serious
injury. Do not cut power
cords. Do not submerge in water or get wet.
Explosion. Unmonitored, incompatible, or damaged batteries can explode if used with
product. Do not leave product unattended while in use. Do not attempt to jump start a
damaged or frozen battery. Use product only with batteries of recommended voltage.
Operate product in well ventilated areas.
Fire. Product is an electrical device that emits heat and is capable of causing burns. Do
not cover product.
Do not smoke or use any source of electrical spark or fire when operating product.
Keep product away from
combustible materials.
Eye Injury. Wear eye protection when operating product. Batteries can explode and
cause flying debris.
Battery acid can cause eye and skin irritation. In the case of contamination of eyes or
skin, flush affected
area with running clean water and contact poison control immediately.
Explosive Gases. Working in the vicinity of a lead-acid is dangerous. Batteries
generate explosive gases during normal battery operation. To reduce risk of battery
explosion, follow all safety information instructions and those published by the battery
manufacturer and manufacturer of any equipment intended to be used
in the vicinity of battery. Review cautionary markings on these products and on engine.
IMPORTANT SAFETY WARNINGS
The VEVOR GS450C.represents some of the most innovative and advanced
technology on the market, making each charge simple and easy. It is quite
possibly the safest and most efficient charger you will ever use. The GS450C. is
designed for charging all types of 6V & 12V & 24V lead-acid batteries, including
Lithium ,LiFePO4, Wet (Flooded), Gel, MF (Maintenance-Free), CA (Calcium),
EFB (Enhanced Flooded Battery), and AGM (Absorption Glass Mat) batteries. It is
suitable for charging battery capacities up to 600 Amp-Hours and maintaining all
battery sizes. Getting Started. Before using the charger, carefully read the battery
manufacturer’s specific precautions and recommended rates of charge for the
battery. Make sure to determine the voltage and chemistry of the battery by
referring to your battery owner’s manual prior to charging. Mounting. It is important
to keep in mind the distance to the battery. The DC cable length from the charger,
with either the battery clamp or eyelet terminal connectors, is approximately 47.2
inches (1200mm).Proposition 65. Battery posts, terminals, and related
accessories contain chemicals, including lead. These materials are known to the
State of California to cause cancer and birth defects and other reproductive harm.
Personal Precaution. Only use product as intended. Someone should be within
range of your voice or close enough to come to your aid in case of emergency.
Have a supply of clean water and soap nearby in the case of battery acid
contamination. Wear complete eye protection and protective clothing while
working near a battery. Always wash hands after handling batteries and related
materials. Do not handle or wear any metal objects when working with batteries
including; tools, watches or jewelry. If metal is dropped onto battery, it may spark
or create a short circuit resulting in electrical shock, fire, explosion which may
result in injury, death or property damage. Minors. If the product is intended by
“Purchaser” to be used by a minor, purchasing adult agrees to provide detailed
instructions and warnings to any minor prior to use. Failure to do so is the sole
responsibility of the “Purchaser,” who agrees to indemnify VEVOR for any
unintended use or misuse by a minor. Choking Hazard. Accessories may present a
choking hazard to children. Do not leave children unattended with product or any
accessory. The product is not a toy. Handling. Handle product with care. The
product can become damaged if impacted. Do not use a damaged product,
including, but not limited to, cracks to the casing or damaged cables. Do not use
product with a damaged power cord. Humidity and liquids may damage product.
Do not handle product or any electrical components near any liquid. Store and
operate product in dry locations. Do not operate product if it becomes wet. If
product is already operating and becomes wet, disconnect it from the battery and
discontinue use immediately. Do not disconnect the product by pulling on the
cables. Modifications. Do not attempt to alter, modify or repair any part of the
product. Disassembling product may cause injury, death or damage to property. If
product becomes damaged, malfunctions or comes in contact with any liquid,
discontinue use, and contact VEVOR. Any modifications to the product will void
your warranty. Accessories. This product VEVOR is only approved for use with
VEVOR accessories. VEVOR is not responsible for user safety or damage when
using accessories not approved by VEVOR. Location. Prevent battery acid from
coming in contact with the product. Do not operate the product in a closed-in area
or an area with restricted ventilation. Do not set a battery on top of product.
Position cable leads to avoid accidental damage by moving vehicle parts
(including hoods and doors), moving engine parts (including fan blades, belts, and
pulleys), or what could become a hazard that may cause injury or death. Operating
Temperature. This product is designed to work in ambient temperatures between
-4° F and 104° F (-20° C and 40° C). Do not operate outside of temperature ranges.
Do not charge a frozen battery. Discontinue use of product immediately if the
battery becomes excessively warm. Storage. Do not use or store your product in
areas with high concentrations of dust or airborne materials. Store your product on
flat; secure surfaces so it’s not prone to falling. Store your product in a dry location.
The storage temperature is -20ºC - 25ºC (average temperature). Never exceed
70ºC under any condition. Compatibility. The product is only compatible with 6V &
12& 24-volt Lead-Acid, AGM, 12& 24-volt LiFePO4, and 12& 24-volt Lithium
batteries. Do not attempt to use product with any other type of battery. Charging
other
Battery chemistries may result in injury, death or property damage. Contact the
battery manufacturer prior to attempting to charge the battery. Do not charge a
battery if you are unsure of the battery’s specific chemistry or voltage. Medical
Devices. Product may emit electromagnetic fields. Product contains magnetic
components which may interfere with pacemakers, defibrillators, or other medical
devises. These electromagnetic fields may interfere with pacemakers or other
medical devices. Consult with your physician prior to use if you have any medical
device including pacemakers. If you suspect the product is interfering with a
medical device, stop using the product immediately and consult your physician.
Cleaning. Power off the product before attempting any maintenance or cleaning.
Clean and dry product immediately if it comes in contact with liquid or any type of
contaminant. Use a soft, lint-free (micro fiber) cloth. Avoid getting moisture in
openings. Explosive Atmospheres. Obey all signs and instructions. Do not operate
product in any area with a potentially explosive atmosphere, including fueling
areas or areas which contain chemicals or particles such as grain, dust or metal
powders. High-Consequence Activities. This product is not intended for use where
the failure of the product could lead to injury, death or severe environmental
damage. Radio Frequency Interference. Product is designed, tested, and
manufactured to comply with regulations governing radio frequency emissions.
Such emissions from the product can negatively affect the operation of other
electronic equipment, causing them to malfunction. Model GS450C This device
complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause
undesired operation. NOTE: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential
area is likely to cause harmful interference in which case the user will be required
to correct the interference at his own expense.
HOW TO USE
Charging Modes.
The GS450C has fifteen (15) modes: Standby, CHARGING(6VAGM,12V
AGM,24V AGM, 12V Lithium,24V Lithium,12V
LiFePO4,24VLiFePO4),Maintain(6VAGM,12V AGM,24V
AGM),Desulfation(6VAGM,12V AGM), and Supply Mode(6VAGM,12V
AGM,24V AGM). When Supply Mode selected,you can charge by selecting
different currents with different Voltages .Please select battery types after
open the switch.These modes are advanced charging modes that require
your full attention before selecting. It is important to understand the
differences and purpose of each charge mode. Do not operate the charger
until you confirm the appropriate charge mode for your battery. Below is a
brief description:
Model
Explanation (Peak Voltage Measured At 25°C, Amperage Rating Is Bulk
Amperage When Above 0°C)
Standby
In Standby mode, the charger is not charging or providing any power to the battery.
Energy Save is activated during this mode, drawing microscopic power from the
electrical outlet. Canbus is enabled in Standby mode. When in Standby, the LCD will
illuminate.
Charge
6V
Lead
For charging 6-volt Lead acid batteries. When selected, the 6V will be
lined by blue.
7.3V | 10A | Up To 200AH Batteries, 7.3V | 20A | Up To 400AH Batteries.
12V
Lead
For charging 12-volt Lead acid batteries. When selected, the 12V will be
lined by blue.
14.6V | 10A | Up To 200AH Batteries, 14.6V | 20A | Up To 400AH
Batteries,14.6V | 35A | Up To 600AH Batteries
24V
Lead
For charging 24 -volt Lead acid batteries. When selected, the 24V
will be lined by blue .
29.2V | 10A | Up To 200AH Batteries,29.2V | 20A | Up To 400AH Batteries
12V
LiFePo
4
For 12-volt LiFePo4 batteries. When selected, the 12V will be lined by
blue.
14.6V | 10A | Up To 200AH Batteries,14.6V | 20A | Up To 400AH
Batteries,14.6V | 35A | Up To 600AH Batteries
24V
LiFePo
4
For 24-volt LiFePo4 batteries, the 12V will be lined by blue.
29.2V | 10A | Up To 200AH Batteries,29.2V | 20A | Up To 400AH Batteries
12V
Lithium
For 12V Lithium charging batteries. When selected, the 12V will be
lined by blue.
12.6V | 10A | Up To 200AH Batteries,12.6V | 20A | Up To 400AH
Batteries,12.6V | 35A | Up To 600AH Batteries
24V
Lithium
For 24V Lithium charging batteries. When selected, the 24V will be
lined by blue.
25.2V | 10A | Up To 200AH Batteries,25.2V | 20A | Up To 400AH Batteries
Maintain
6V
Lead
For charging 6-volt Lead acid batteries. When selected, the 6V will be lined
by blue.
7.3V| Up To 400AH Batteries.
12V
Lead
For charging 12-volt Lead acid batteries. When selected, the 12V will be
lined by blue
14.6V | Up To 600AH Batteries
24V
Lead
For charging 24 -volt Lead acid batteries. When selected, the 24V
will be lined by blue.
29.2V | Up To 400AH Batteries
Desulfation
6V
Lead
For charging 6-volt Lead acid batteries. When selected, the 6V will be lined
by blue.
7.3V| Up To 400AH Batteries.
12V
Lead
For charging 12-volt Lead acid batteries. When selected, the 12V will be
lined by blue
14.6V | Up To 600AH Batteries
Supply Mode
6V
lead
For charging 6-volt Lead acid batteries. When selected, the 6V will be lined
by blue.
7.3V | 10A | Up To 200AH Batteries, 7.3V | 20A | Up To 400AH Batteries.
12V
lead
For charging 12-volt Lead acid batteries. When selected, the 12V will be
lined by blue
14.6V | 10A | Up To 200AH Batteries, 14.6V | 20A | Up To 400AH
Batteries,14.6V | 35A | Up To 600AH Batteries
24V
lead
For charging 24 -volt Lead acid batteries. When selected, the 24V
will be lined by blue.
29.2V | 10A | Up To 200AH Batteries,29.2V | 20A | Up To 400AH Batteries
Lead acid battery charging
1 Firstly press the key Battery Type to select lead , then press the key Start
to charge.
2 Firstly press the key Battery Type to select lead, secondly press the key
Voltage（6v,12v,24v）,then press the key Start to charge.
3 Firstly press the key Battery Type to select lead, secondly press the key
Voltage（6v,12v,24v）,then press the key Current , at last press the key Start
to charge.
Caution:when this mode selected,please make sure your charger is lead
acid battery. Please make sure your battery voltage is suitable with
selected voltage,or the charging will fail.When the battery voltage is
unknown,please select auto for voltage.
LiFePo4 battery charging
1 Firstly press the key Battery Type to select LiFePo4 , then press the key
Voltage（12v,24v）,then press the key Start to charge
2 Firstly press the key Battery Type to select LiFePo4, secondly press the
key Voltage（12v,24v）,then press the key Current , at last press the key
Start to charge
Caution: when this mode selected,please make sure your charger is
LiFePo4 battery.Please make sure your battery voltage is suitable with
selected voltage,or the charging will fail.
Lithium battery charging
1 Firstly press the key Battery Type to select Lithium battery, then press the
key Voltage（12v,24v, ) then press the key Start to charge.
2 Firstly press the key Battery Type to select Lithium battery, secondly
press the key Voltage（12v,24v）,then press the key Current ,at last press
the key Start to charge
Caution:when this mode selected,please make sure your charger is
Lithium battery.Please make sure your battery voltage is suitable with
selected voltage,or the charging will fail.
Maintain
Firstly press the key Battery Type to select lead,secondly press the key
Maintain, then press the key Voltage to select suitable voltage and at last
press the key Start to charge.The charger will be charged by light current
to make sure full current state and this mode will not damage your battery.
Desulfation:
Firstly press the key Battery Type to select lead,secondly press the key
Desulfation,and then press the key Voltage(6v,12v),at last press the key
Start to charge
Caution:when the battery ageing seriously and the capacity insufficient,you
can select this mode to repair.Please notice the battery can be only
repaired one by on.
Supply Mode
First press the key Battery Type to select lead, secondly press the key
Voltage ,thirdly press the key Current and at last press the key Start.
Caution:used as power supply or undetected battery voltage, this mode
can be selected.
Professional Mode
Firstly press the key Battery Type, then open the power to enter the
professional mode.
When entering professional mode,please select different battery with
different steps:
1 Press the key Battery Type to select LiFePo4,secondly press the key
Voltage to select voltage and bat cells(three cells is 11V after fully
charged,four cells is 14.6V after fully charged,6 cells is 21.9V after fully
charged, 8 cells is 29.2V after fully charged), and the current is selected as
the same with non-professional mode
2 Press the key Battery Type to select Lithium,secondly press the key
Voltage to select voltage and bat cells(three cells is 12.6V after fully
charged,four cells is 16.8V after fully charged,6 cells is 25.2V after fully
charged, 8 cells is 33.6V after fully charged), and the current is selected as
the same with non-professional mode.
Caution: In the mode of LiFePo4 and Lithium, hidden Bat cells will be
show.Please notice that non-professionals don’t select this mode.If
selected ,please connect the battery supplier, or there will be
dangerous.This mode can’t be memorized,after put off,the charger will
back to the state of non-professional.
Connecting to the Battery.
Do not connect the AC power plug until all other connections are made.
Identify the correct polarity of the battery terminals on the battery. Do not
make any connections to the carburetor, fuel lines, or thin, sheet metal
parts. The below instructions are for a negative ground system (most
common). If your vehicle is a positive ground system (very uncommon),
follow the below instructions in reverse order.
1.) Connect the positive (red) eyelet terminal connector to the positive
(POS,P,+) battery terminal.
2.) Connect the negative (black) eyelet terminal connector to the negative
(NEG,N,-) battery terminal.
3.) Connect the battery charger into a suitable electrical outlet. Do not face
the battery when making this connection.
4.) When disconnecting, disconnect in the reverse sequence, removing the
negative first (or positive first for positive ground systems).
Begin Charging.
1.) Verify the voltage and chemistry of the battery.
2.) Confirm that you have connected the battery clamps or eyelet terminal
connectors properly and the AC power plug is plugged into an electrical
outlet.
3.) [First time use] The charger will begin in Standby mode, and pause will
be circled by blue . In Standby, the charger is not providing any power.
4.) Press the key battery type to select batteries,secondly press the key
Voltage,thirdly press the key Current.
5.) Press the key Start and it will be lined by blue,secondly the battery will
be detected.If the battery is normal,no battery indicator will lose and the
charger will work normally, or reversly.
6.) The charger can now be left connected to the battery at all times to
provide maintenance charging.
Auto-Memory: The charger has built in auto-memory and will return to the
last charge mode when connected. Select suitable mode and press the key
Start and then the charger will save new working mode.
Caution:Professional Mode can’t Auto-Memory.
CHARGING TIMES.
Charging Times.
The estimated time to charge a battery is shown below. The size of the
battery (Ah) and its depth of discharge (DOD) greatly affect its charging
time. The charge time is based on an average depth of discharge to a fully
charged battery and is for reference purposes only. Actual data may differ
due to battery conditions. The time to charge a normally discharged battery
is based on a 50% DOD. Temperature will also impact charging times.
GS450C features thermal compensation that automatically adjusts
charging profiles to maximize charging performance.
Battery Size
Ah (Amp
hour)
Approximate Time to
Charge In Hours
Battery Size
Ah (Amp hour)
Approximate Time to
Charge In Hours
6V
24V
12V
40
1.5
1.5
60
1.5
80
3.0
3.0
120
3.0
160
6.0
6.0
240
6.0
200
7.0
7.0
300
7.0
400
17
17
600
17

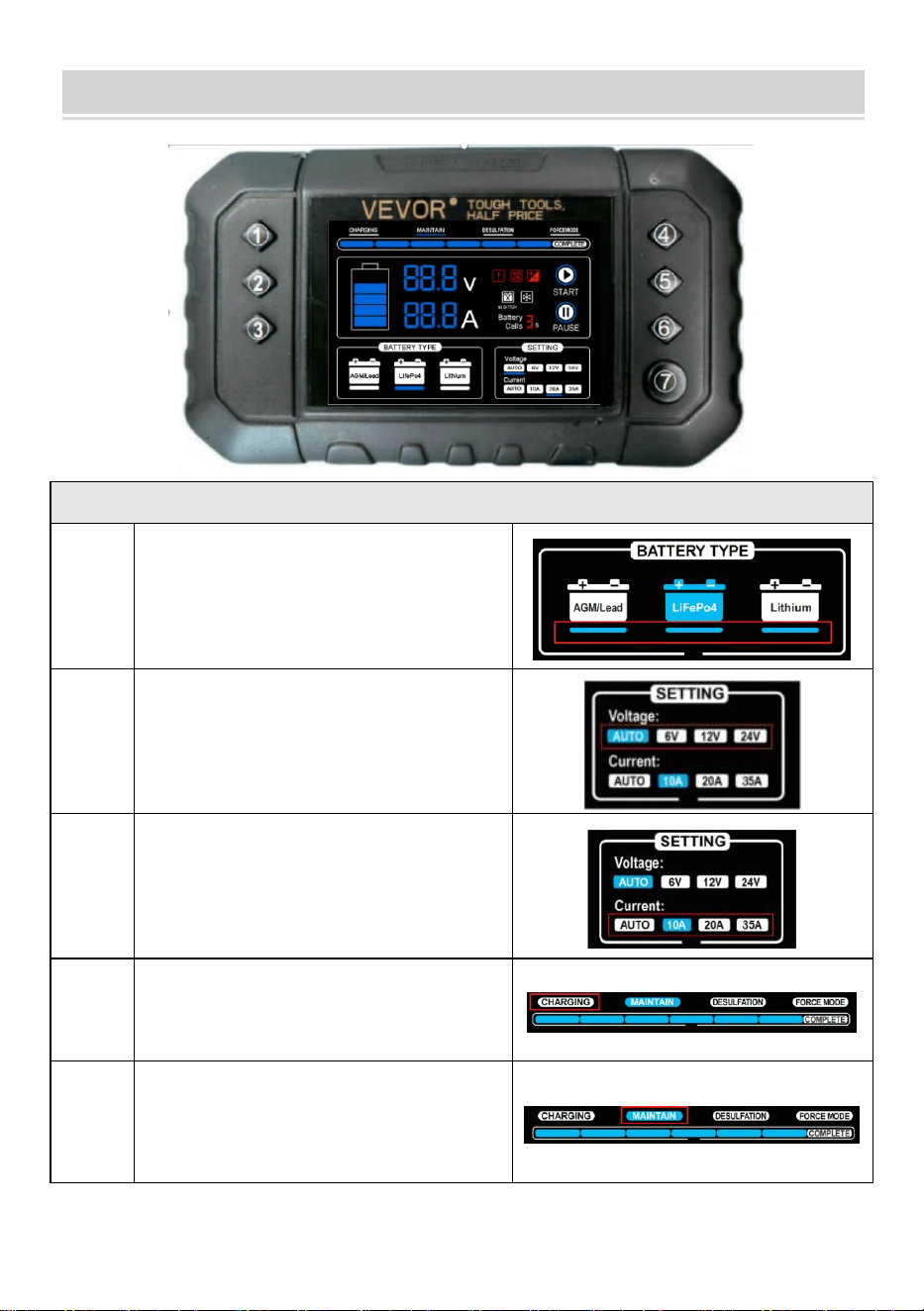

UNDERSTANDING CHARGE INDICATION
Button Illustration
Button
1
Battery Button:
Push the button to choose Battery type, the
Battery Type Indicator on,See
Button
2
Voltage Button:
Push the button to choose Voltage, the
Voltage Indicator on
Button
3
Current Button:
Push the button to choose current, the
Current Indicator on, See
Button
4
Charging and Maintain Mode:
“Charging” Indicator on,When connect wel1
the Battery and Power,the Progress Bar
Indicator on according to charging mode
If long time not use the battery ,push the
button to select maintain mode, the battery is
charging by a smaller current to
maintain,"Maintain” indicator on, the Progress
Bar Cyclic flashing("Maintain” mode is only
for Lead Acid Battery )
Button
5
Desulfation Mode (Lead Acid Battery Only)
If the battery use long time, the capacity is
used up soon, pushthe button , use
"Desulfation" mode to charging to repair
battery"Desulfationindicator on, the Progress
Bar Cyclic flashing
Button
6
Supply Mode
When battery conenct well, but can not be
detected, push the button,Use "Supply"
mode to charging battery"Supply indicator
on, the Progress Bar Cyclic flashing
Button
7
START and PAUSE Button
When set wel1, push the button, “Start"
Indicator on , chargerworkPush under
workcondiction, “PAUSE” indocator on,the
charger stop work

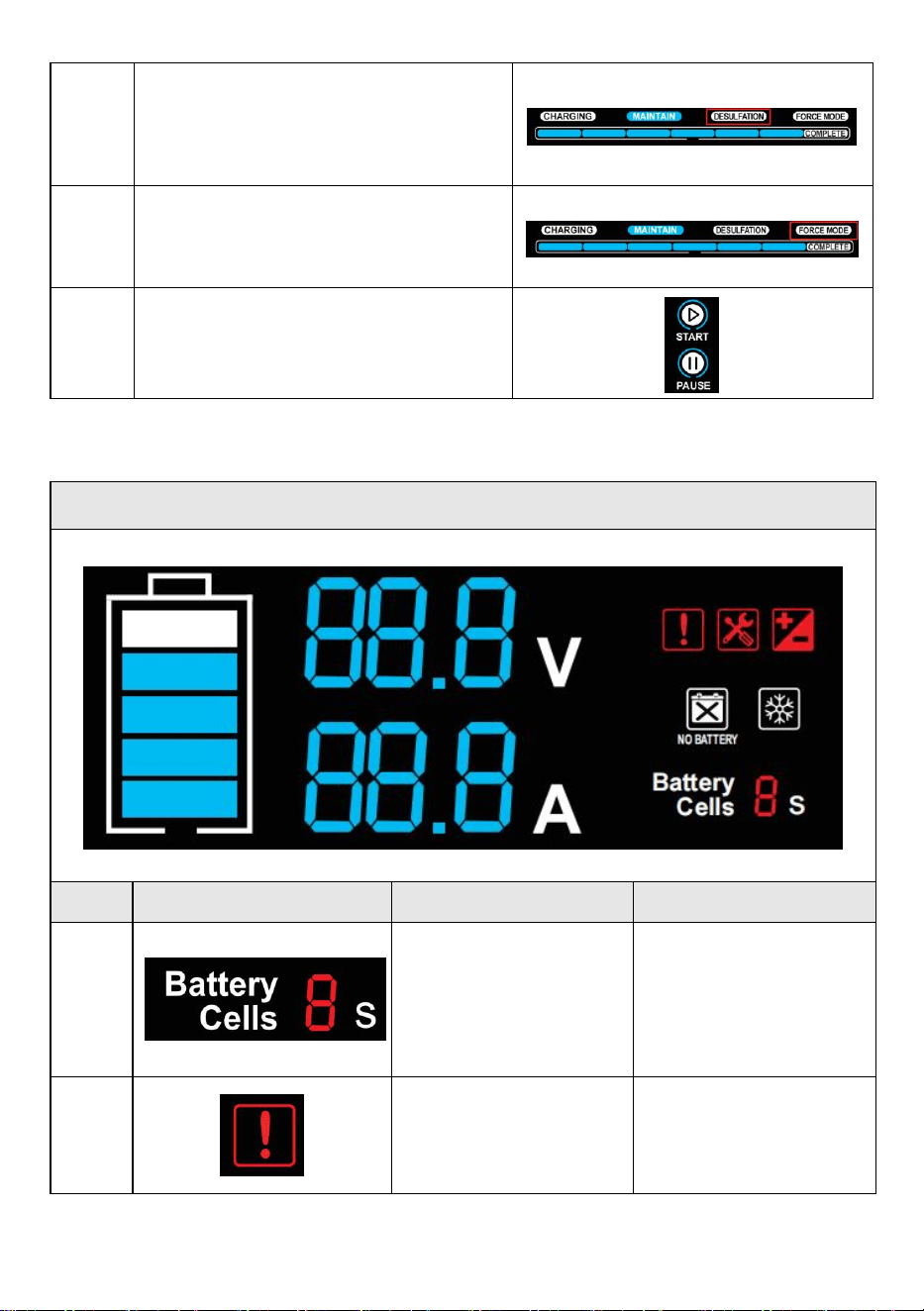

Graphic Indication
S/N
Graphic
Indicator
Explanation
1
Show Battery Cell
number
In professional mode,
display battery cel number;
In normally mode, no
displayed
2
ON or Flash
Warning:
Over Current
Short circuit
3
ON
Charging in“Desulfation”
4
ON
Battery Reverse connect
5
ON
Not Connect Battery
6
ON
Ambient Temperature for
charging
7
ON
Show Battery Capacity
8
---
Show Charging Voltage
9
---
Show Charging Current
10
Display Number
For a description of the fault
codes, see the fault code
description on page 18
Progress Bar Indication
1
Battery detect is normal
2
Desulfation Stage, only for lead acid battery
3
Small current charging mode
4
Bulk charging mode
5
ABS mode
6
Floating Charging Mode
7
Full Charged
TECHNICAL SPECIFICATIONS
Input Voltage AC
100-240 VAC, 50/60Hz Max 540W
Output Power
450W Max
Charging Voltage
Various
Charging Current
10A (6V),20A (6V),10A (12V),20A
(12V),35A (12V),10A (24V),20A
(24V),Auto (6V,12V,24V)
Low-Voltage Detection
1V (6V), 8V (12V), 16V (24V)
Back Current Drain
<0.5mA
Ambient Temperature
-20°C to +40°C
Type of Batteries
6V, 12V, 24V
Battery Chemistries
Wet, Gel, MF, CA, EFB, AGM, Calcium,
Lithium,LiFePO4
Battery Capacity
Up to 600Ah, Maintains All Battery
Sizes
Cooling
Fan Convection
Dimensions (L x W x H)
200*115*55mm
Weight
1.38Kg
When the machine cannot be charged during use, the product
display will display the fault code, please refer to the following fault
code number description table, corresponding to the fault number to
eliminate the phenomenon of non-charging caused by misoperation.
Fault number
Description of the fault
01
The battery output electrode is reversed
02
The charger output is shorted
03
The temperature inside the machine is too high
04
The output charging mode is selected incorrectly
41
Output voltage over voltage
42
Output current over current
LIST OF ACCESSORIES
1.Battery charging cable *1
2.Plug the power cord at the end of the figure-eight tail *1
3.Copper wire terminals*2
4.Product body * 1
5.Instructions *1
FAILURE CODE
Manufacturer: Shanghaimuxinmuyeyouxiangongsi
Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu,
shanghai 200000 CN.
Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW
2122 Australia
Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place,
Rancho Cucamonga, CA 91730
REP
EC
E-CrossStu GmbH
Mainzer Landstr.69, 60329 Frankfurt am Main.
REP
UK
YH CONSULTING LIMITED.
C/O YH Consulting Limited Office 147, Centurion House,
London Road, Staines-upon-Thames, Surrey, TW18 4AX
Made In China
