100G QSFP28 Transceiver
Installation Guide
©2025 TP-Link 7100001814 REV1.2.0
For technical support, replacement services, user guides, and
more, please visit https://support.omadanetworks.com/, or
simply scan the QR code.
Note: The gures thoughout this guide are for demonstration only. They may vary from your actual products.

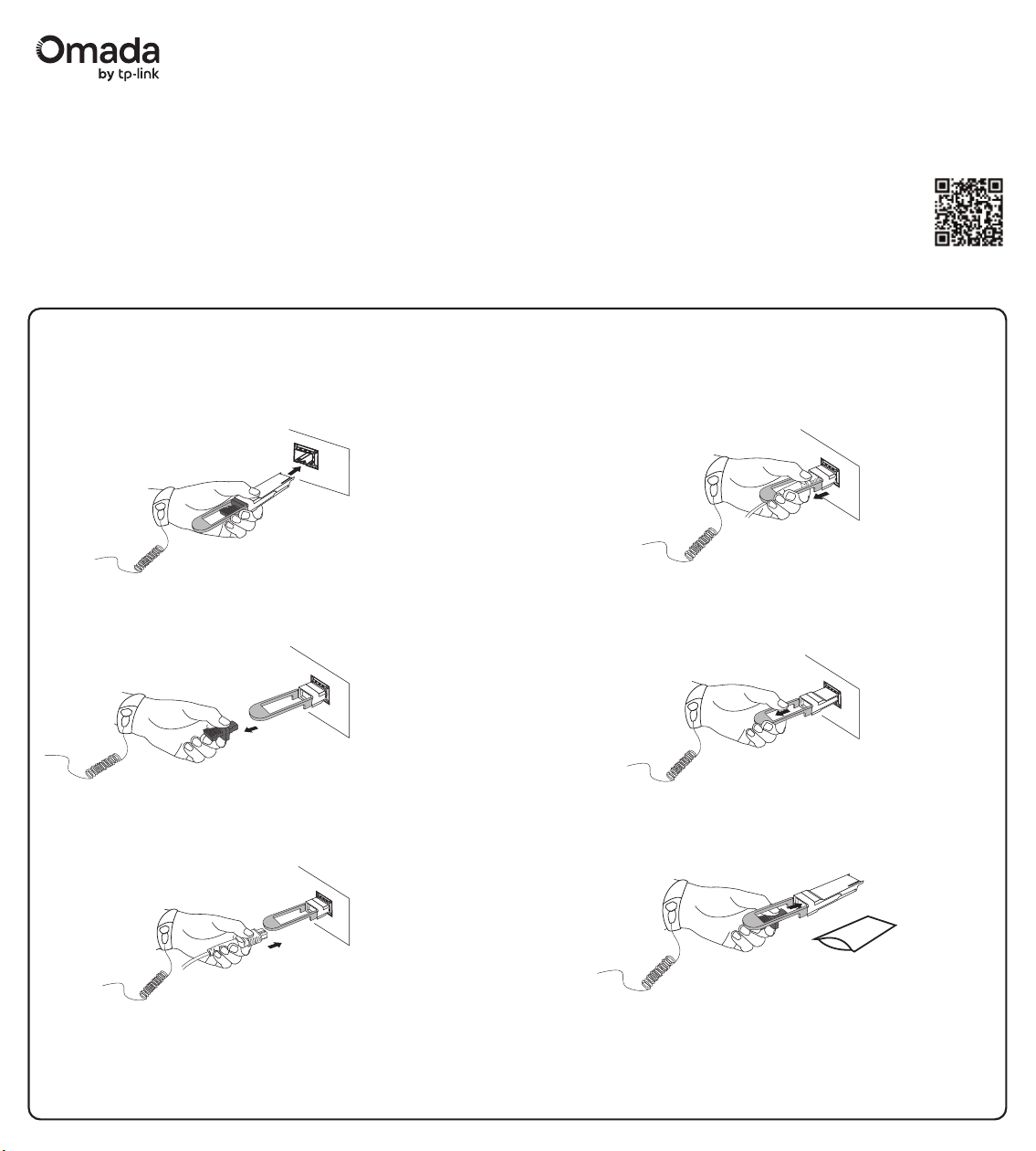

Remove the TransceiverInstall the Transceiver
1. Wear an ESD-preventive wrist or ankle strap to prevent ESD damage to
the transceiver.
2. Insert the transceiver into the slot and rmly press it into place.
3. Remove the protective dust plug from the transceiver.
4. Plug the ber-optic cable into the transceiver. Note that the transceiver
works without any additional conguration.
1. Wear an ESD-preventive wrist or ankle strap to prevent ESD damage to
the transceiver.
2. Disconnect the network ber-optic cable from the transceiver.
4. Reinstall the protective dust plug into the transceiver’s optical bores
and place it on an antistatic mat or in a static-shielding bag.
3. Pull the safety latch backwards to release the transceiver, and then pull it
out from the slot.
Note:
1. Do not touch the output pins on the transceiver with your hand.
2. Always keep the protective dust plug on the transceiver’s optical bores until you are ready to make a connection.
Caution:
DO NOT look into the beam or the optical port of an operating transceiver. This may cause eye injury.
Keep the device away from water, re, humidity or hot environments.
Do not attempt to disassemble, repair, or modify the device. If you need
service, please contact us.
Avoid using this product during an electrical storm. There may be a remote
risk of electric shock from lightning.
Do not point or stare directly into the beam or into the optical port of the
transceiver when it is operating, as this can injure your eyesight.
TP-Link hereby declares that the transceiver is in compliance with the essential
requirements and other relevant provisions of directives 2014/30/EU,
2014/35/EU, 2011/65/EU and (EU)2015/863.
The original EU declaration of conformity may be found at
https://www.tp-link.com/en/support/ce/
EU declaration of conformity
TP-Link hereby declares that the transceiver is in compliance with the essential
requirements and other relevant provisions of the Electromagnetic
Compatibility Regulations 2016 and Electrical Equipment (Safety) Regulations
2016.
The original UK Declaration of Conformity may be found at
https://www.tp-link.com/support/ukca/
UK declaration of conformity
CAN ICES-003 (B)/NMB-003(B)
Industry Canada Statement
FCC compliance information statement
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used
in accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his own
expense.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1) This device may not cause harmful interference.
2) This device must accept any interference received, including interference that may cause
undesired operation.
Any changes or modications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
Product Name: Omada 100GBASE-SR4 QSFP28 Transceiver
Model Number: SM9110-SR4
We, TP-Link Systems Inc, has determined that the equipment shown as above has been shown to
comply with the applicable technical standards, FCC part 15. There is no unauthorized change is
made in the equipment and the equipment is properly maintained and operated.
Issue Date: 2025/09/09
CE Mark Warning
Продукт сертифіковано згідно с правилами системи УкрСЕПРО на відповідність вимогам
нормативних документів та вимогам, що передбачені чинними законодавчими актами України.
Specications
Wavelength
Standards and
Protocols
Cable
Max. Cable Length
Data Rate
Port Type
Power Support
Safety & Emissions
DDM
QSFP28 MSA
Hot Swappable
Operating Temperature
Storage Temperature
Operating Humidity
Storage Humidity
Model
850 nm
IEEE 802.3bm, IEEE 802.3ba, QSFP28 MSA,
SFF-8665, SFF-8636, SFF-8436,
CPRI, eCPRI
MMF 50/125 μm
70 m (OM3), 100 m (OM4) @103.125 Gbps (4×25.78 Gbps)
100 m (OM3), 150 m (OM4) @41.2 Gbps (4×10.3 Gbps)
103.125 Gbps (4×25.78 Gbps)
41.2 Gbps (4×10.3 Gbps)
MTP/MPO-12
3.3 V
FCC, CE, RoHS
Ye s
Ye s
Ye s
0°C to 70°C (32°F to 158°F)
-40°C to 85°C (-40°F to 185°F)
5% to 95% RH Non-condensing
5% to 95% RH Non-condensing
SM9110-SR4
TP-Link Systems Inc.
Address: 10 Mauchly, Irvine, CA 92618
Website: https://www.tp-link.com/us/
Tel: +1 626 333 0234
Fax: +1 909 527 6804
E-mail: [email protected]

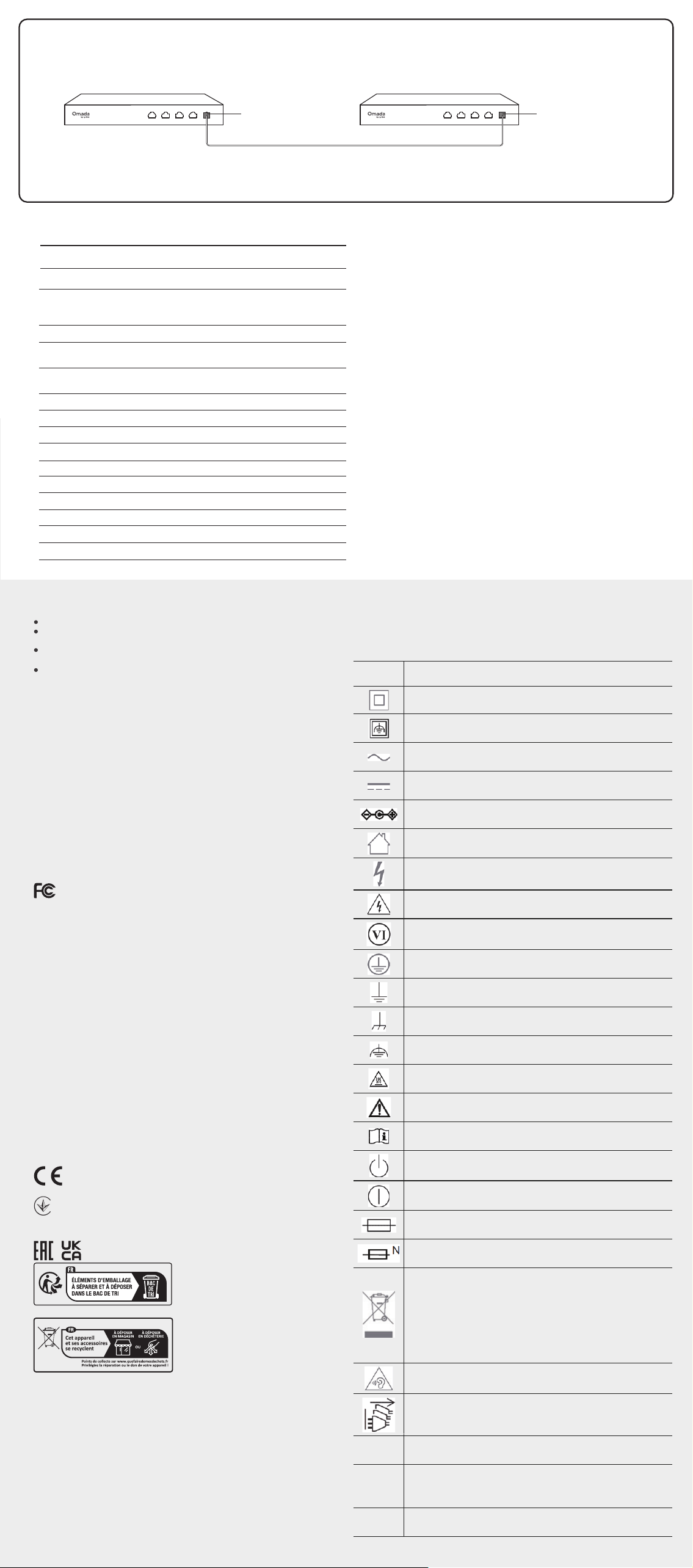

Explanation of the symbols on the product label
Note: The product label can be found at the bottom of the product.
Symbols may vary from products.
Symbol
Explanation
Class II equipment
Class II equipment with functional earthing
Alternating current
Direct current
Polarity of DC power connector
For indoor use only
Dangerous voltage
Caution, risk of electric shock
Energy eciency marking
Protective earthng
Earth
Frame or chassis
Functional earthing
Caution, hot surface
Caution
Operator's manual
Stand-by
"ON"/"OFF" (push-push)
Fuse
Fuse is used in neutral N
RECYCLING
This product bears the selective sorting symbol for Waste electrical
and electronic equipment (WEEE). This means that this product must
be handled pursuant to European directive 2012/19/EU in order to be
recycled or dismantled to minimize its impact on the environment.
Users have the choice to give their product to a competent
recycling organization or to the retailer when they buy new
electrical or electronic equipment.
Caution, avoid listening at high volume levels for long periods
Disconnection, all power plugs
m
Switch of mini-gap construction
µ
Switch of micro-gap construction (for US version)
Switch of micro-gap / micro-disconnection construction (for other
versions except US)
ε
Switch without contact gap (Semiconductor switching device)
Only use the same transceiver model for fast and reliable connectivity.
To ensure device compatibility, we recommend that you use only TP-Link transceivers on your TP-Link devices.
Connection
Switch Switch
SM9110-SR4
Fiber
SM9110-SR4
Note: When plugged into a 100G QSFP28 slot, the module operates at 100 Gbps. In a 40G QSFP+ slot, set byte 98 on page 00h from FF to 00 to run at 40 Gbps. When
plugged into a TP-Link device's 40G QSFP+ slot, the module auto-downgrades to 40 Gbps—no action required.
