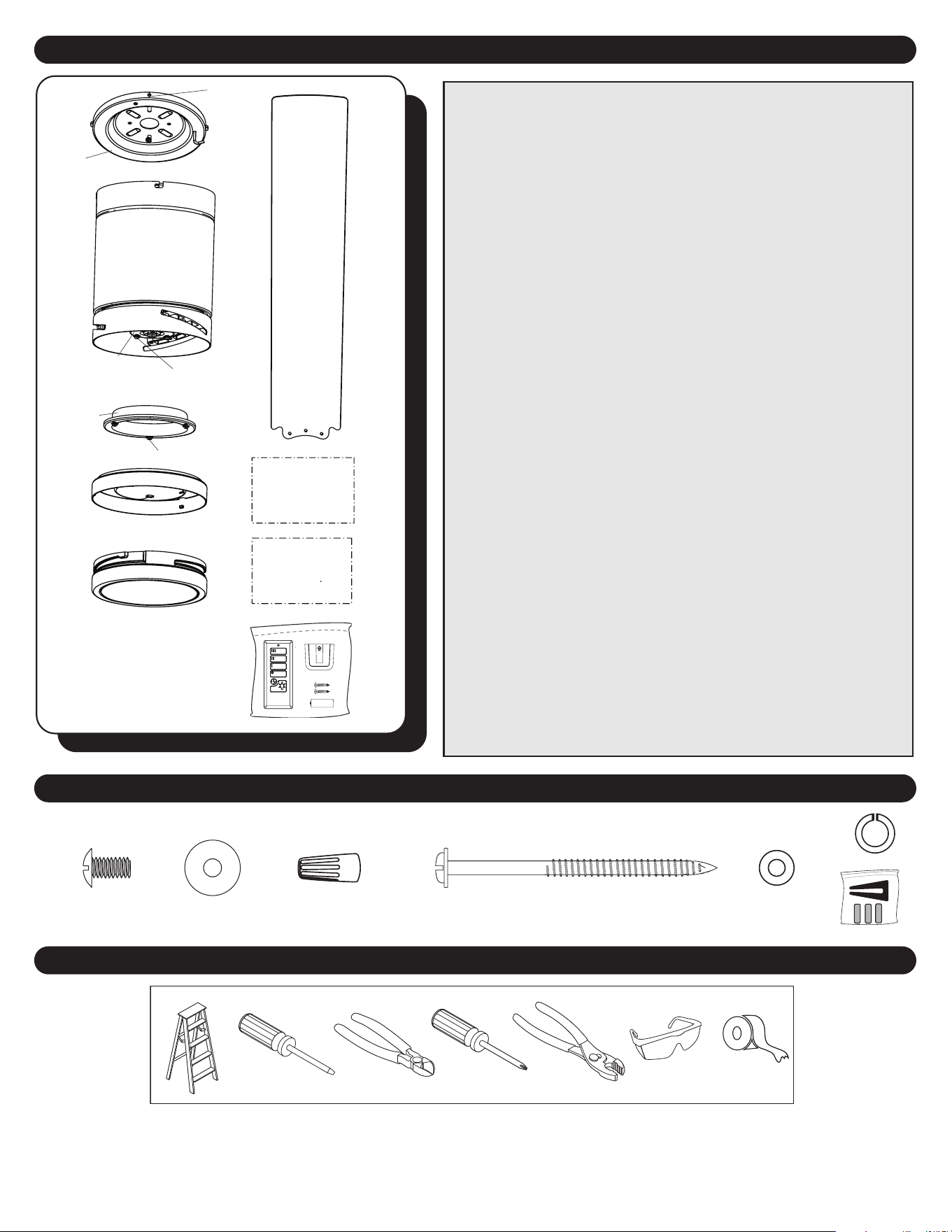

PACKAGE CONTENTS
2
HARDWARE CONTENTS
1. Mounting Bracket
2. Mounting Bracket Screw
(x4)
3. Motor Assembly
4. Adapter Plate
5. Adapter Plate Screw (x3)
6. Fitter Plate
7. Fitter Plate Screw (x3)
8. Light Kit
9. Bowl Housing
10. Blade (x3)
11. Hardware Kit
12. Owner’s Manual
13. Remote Pack
14. Blade Screw (x9)
15. Blade Washer (x9)
16. Wire Connector (x3)
17. Secondary Support
Washer
18. Support Washer
19. Secondary Spring Washer
20. Blade Balancing Kit
Unpack your fan and check the contents. You should
have the following items:
PACKAGE CONTENTS
HARDWARE CONTENTS
Note: Some extra hardware has been included. The quantity
listed above is the number required for installation.
2
TOOLS REQUIRED (not included)
Tools required for assembly: Electrical tape, Phillips Screwdriver, Pliers, Safety Glasses, Step Ladder, Wire Cutters
and Wire Strippers
Helpful Tools: AC Tester Light, Tape Measure, and Wiring Handbook
14
16 17
18
19
20
15
Hardware Kit
Owner’s
Manual
11
12
13
9
8
10
7
6
5
3
4
2
1
Mounting Bracket
Mounting Bracket Screw
Hook
Motor Assembly
Fitter Plate Screw
Fitter Plate
Bowl Housing
Light Kit
Blade

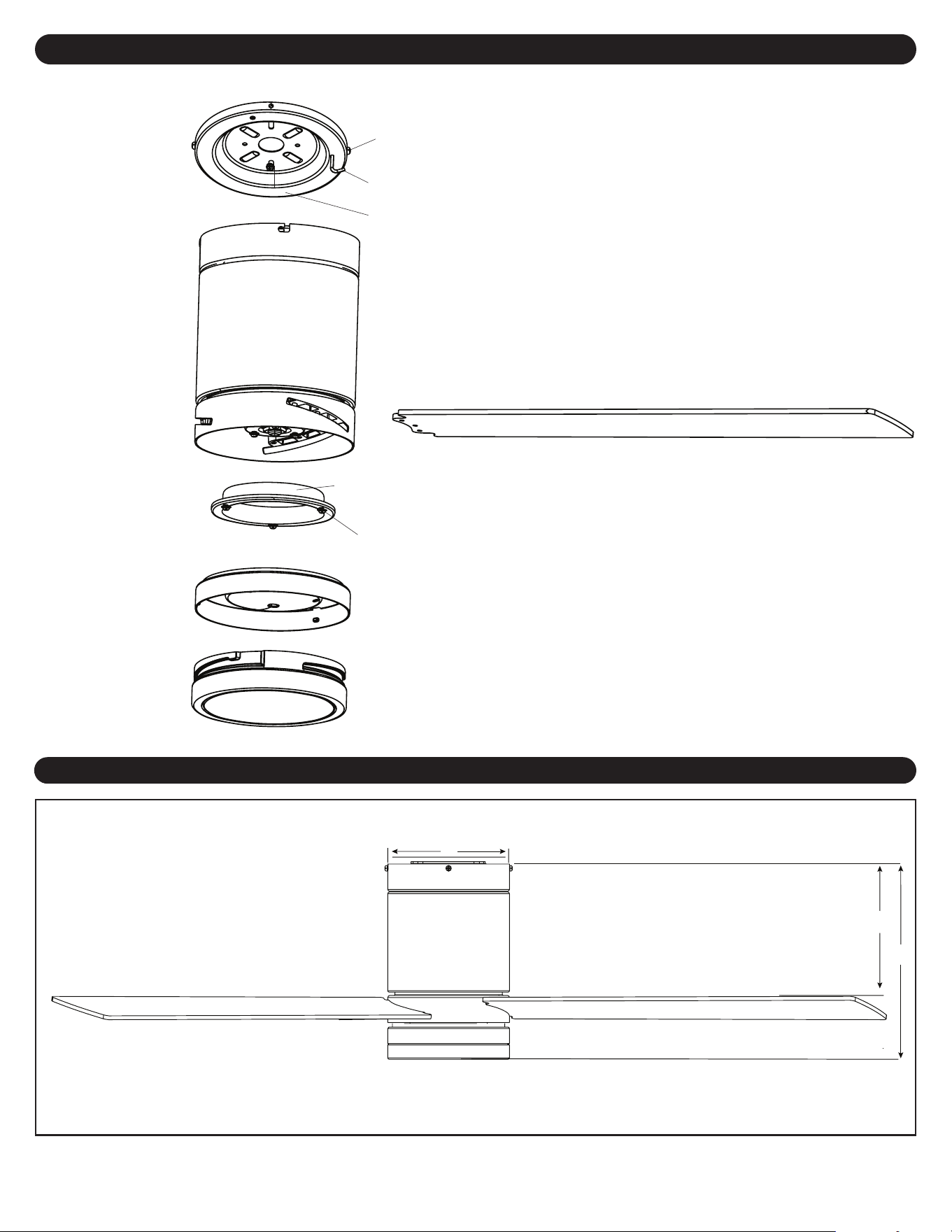

EXPLODED VIEW DETAIL
3
A. 10.74 in. B. 8.51 in. C. 6.69 in.
DIMENSION REFERENCE
C
A
B
4
READ ALL SAFETY INFORMATION AND INSTALLATION INSTRUCTIONS BEFORE YOU BEGIN INSTALLING THE
FAN AND SAVE INSTRUCTIONS.
All set screws of the fan must be checked and retightened where necessary before installation.
To reduce the risk of personal injury, do not bend the blade brackets when installing the brackets, balancing the
blades or cleaning fan. Do not insert foreign objects in between rotating fan blades.
Before changing the fan direction, turn o the fan and wait for the fan blades to stop completely.
The safeguards provided by these safety instructions and by the separate installation instructions are not meant to
cover all possible conditions and situations that may occur. It must be understood that common sense, caution and
care are factors which can not be built into this product. These factors must be supplied by the person(s) installing,
caring for and operating the fan.
The fan weight is Net Weight: 14.04 lbs (6,38 kg). Be sure the outlet box (not included) is securely attached to the
building structure and is marked “Acceptable For Fan Support”. Failure to do so can result in serious injury.
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following
two conditions: (1) this device may not cause interference, and (2) this device must accept any interference,
including interference that may cause undesired operation of the device (if applicable).
CAN ICES-005 (B) / NMB-005 (B)
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment o and
on, the user is encouraged to try to correct the interference by one or more of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver
--Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
--Consult the dealer or an experienced radio/TV technician for help.
Please note changes or modications not expressly approved by the party responsible for compliance could void
the user’s authority to operate the equipment.
HKC-US
3350 Player’s Club Parkway, #225
Memphis, TN 38125
1-877-706-3267
SAFETY INSTRUCTIONS
CAUTION:
WARNING:
To avoid risk of electric shock, be sure to shut o power at the main fuse or circuit breaker box before
installing or servicing this xture. Turning o the electrical power by using the light switch is not
sucient to prevent electrical shock.
To reduce the risk of injury, install the fan so that the blades are at least 7 feet (2.1 Meters) above the
oor and at least 18 inches (0.5 Meters) from the tip of the blades to the wall.
To reduce the risk of re, electric shock, or personal injury, mount to outlet box marked “acceptable for
fan support” and use mounting screws provided with the outlet box.
The installation has to be in accordance with the national electrical code, ANSI/NFPA 70-1999 and
local codes. If you are unfamiliar with the methods of installing electrical wiring, seek the services of a
qualied licensed electrician.
Using a full-range dimmer switch to control fan speed will cause a loud humming noise from the fan. To
reduce the risk of re or electric shock, do NOT use a full-range dimmer switch to control the fan speed.
SAFETY INSTRUCTIONS
5
Mounting
Bracket
Screw
Mounting
Bracket
Mounting
Bracket
Outlet Box
6

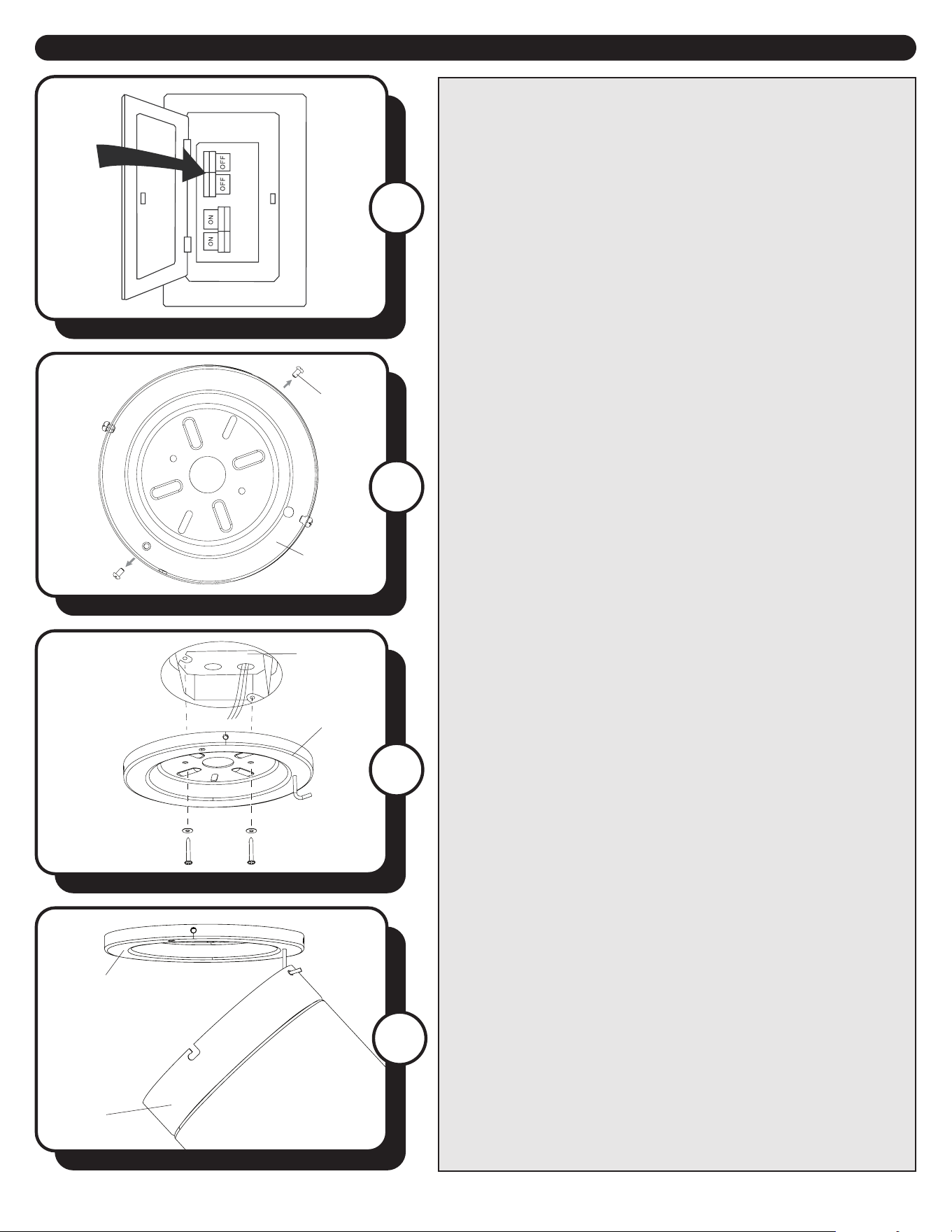

ASSEMBLY INSTRUCTIONS
3
2
1
1. Turn OFF the electrical power at the main fuse or circuit
breaker.
DANGER: Failure to disconnect the power supply prior to
installation may result in serious injury or death.
2. Loosen all four mounting bracket screws, then
completely remove two mounting bracket screws from
opposite sides of the mounting bracket.
3. Feed the supply wires from the outlet box through the
center hole in the mounting bracket. Then, secure the
mounting bracket to the outlet box (not included) using
screws and washers provided with the outlet box.
WARNING: It is very important you use the proper
hardware when installing the mounting bracket as it will
support the fan.
Mounting
Bracket
Motor
Assembly
4. Raise the fan and place top of the motor assembly on
the hook on the mounting bracket, temporarily leaving
hands free for the wiring process.
4
7
ASSEMBLY INSTRUCTIONS
Secondary
Support
Screw
Open Loop
Support
Washer
Secondary
Spring
Washer
Secondary
Support Screw
Braided Cable
Outlet Box
Brace
5
6
7

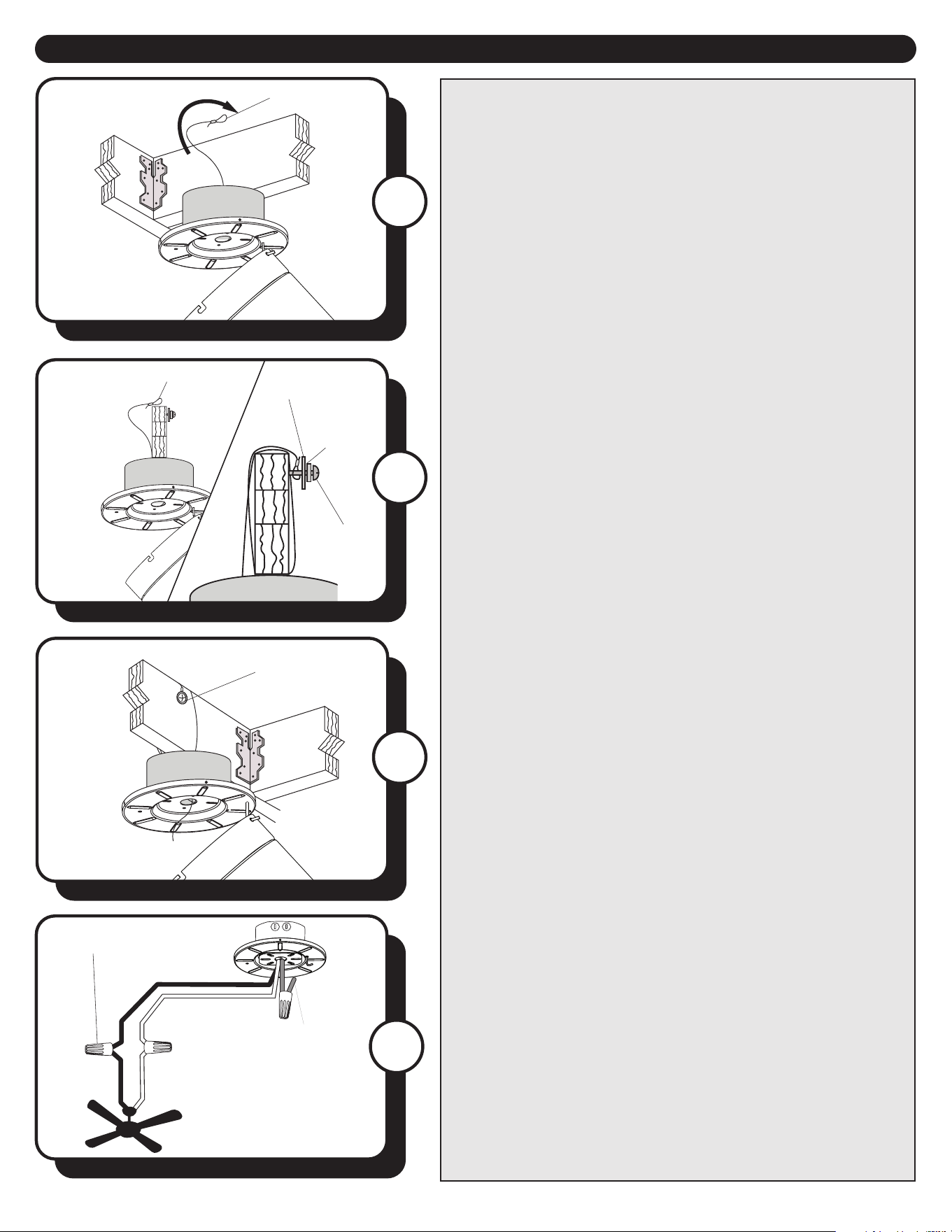

6. Install secondary support screw, secondary spring
washer, and support washer partly into the side of the
brace installed in the ceiling. Then lift the braided cable up
and over the ceiling brace and place the open loop of the
braided cable around the secondary support screw.
Note: The ceiling support brace may not be accessible
from below. If not, it must be accessed from above.
Important: The braided cable must make a complete
circle around the support brace to secure the fan.
7. Tighten the secondary support screw securing the
braided cable.
SECONDARY HANGING SYSTEM
For installation in the United States: Building codes
in the U.S.A. do not require installation of a Secondary
Hanging System. If desired, the braided cable can be cut
and removed using wire cutters (sold separately). Skip to
Step 8.
For installation in Canada: In compliance with building
codes in Canada, installation of the Secondary Hanging
System is required.
5. Feed the loop of the braided cable, preassembled to the
motor assembly, up through the outlet box mounted in the
ceiling.
WARNING: Do NOT
wire a fan motor to a
wall control.
Wire Connector
8
8. Connect supply and fan wires according to the diagram
and these steps:
• Connect the Green wire from the mounting bracket to
the Bare/Green (ground) supply wire.
• Connect the White wire from the fan to the White
(neutral) supply wire.
• Connect the Black wire from the fan to the Black (hot)
supply wire.
• Secure all wiring connections together with wire
connectors.
Note: The Black wire is hot power. The White wire is
neutral. The Green wire is the ground wire. If supply wires
are dierent colors than referred to above, a professional
electrician should determine the proper wiring.
White (neutral)
Black
Black (hot)
Bare/Green
(ground)
White
8
ASSEMBLY INSTRUCTIONS
10
9

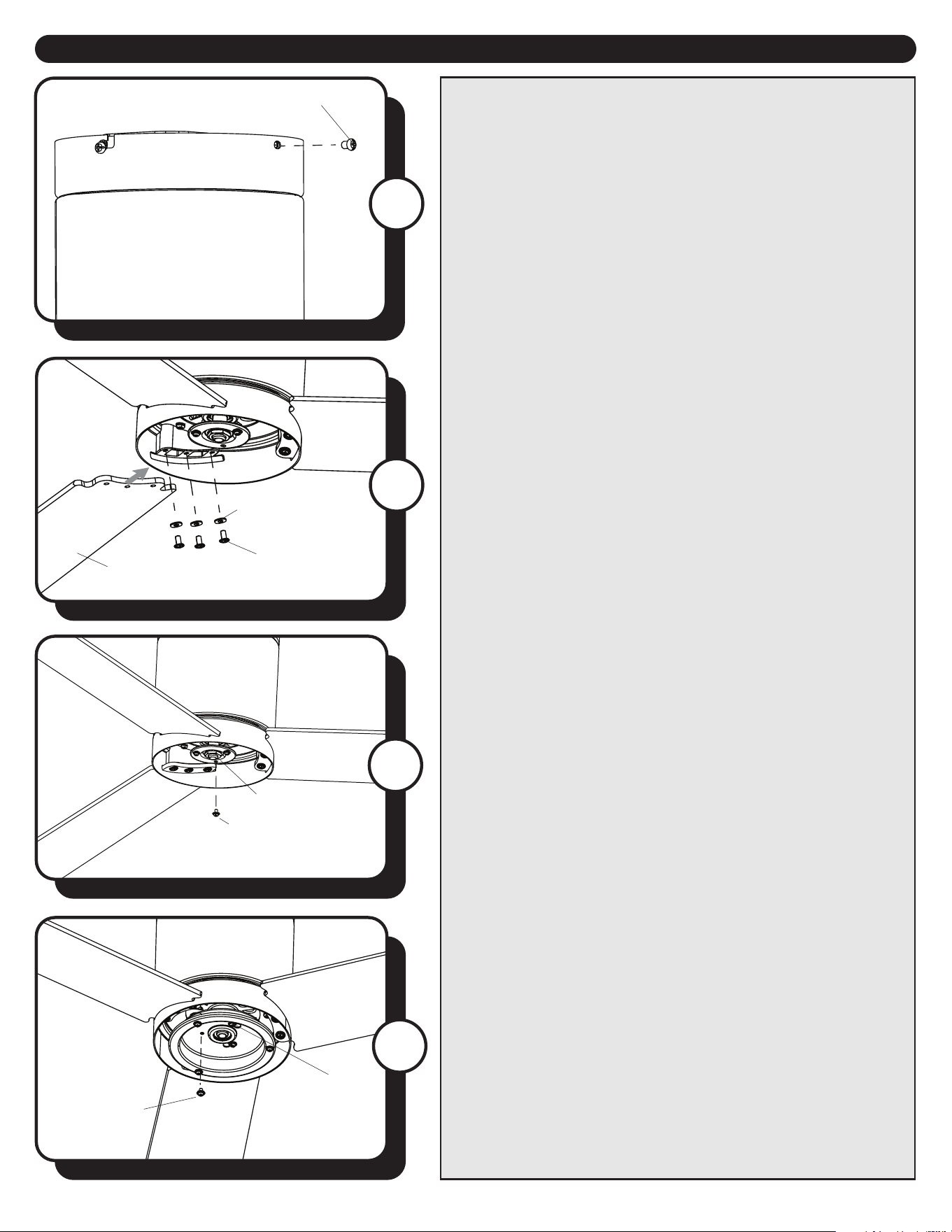

10. Insert blade through slot in the side of the motor
assembly. Align the holes of one blade with three blade
screw holes in underside of the motor assembly. Secure
with the three blade screws and blade washers. Repeat
this step for the remaining blades.
11. Remove one of the three adapter plate screws
preassembled to the adapter plate and loosen the other
two.
11
Blade Washer
Adapter Plate
Adapter Plate Screw
Blade Screw
Blade
Mounting Bracket Screw
9. Slide the top of the motor assembly over the mounting
bracket, aligning the slotted holes in the top of the
motor assembly with the previously loosened mounting
bracket screws in the mounting bracket. Twist the motor
assembly clockwise to lock. Then, re-insert the mounting
bracket screws and securely tighten all screws.
12
Adapter
Plate Screw
Keyhole Slot
12. Align the keyhole slots of the tter plate with the
loosened adapter plate screws and turn in a clockwise
direction. Replace previously removed adapter plate
screw, then tighten all screws.
9
ASSEMBLY INSTRUCTIONS
Bowl Housing
15
14
13
Single Pin
Connector

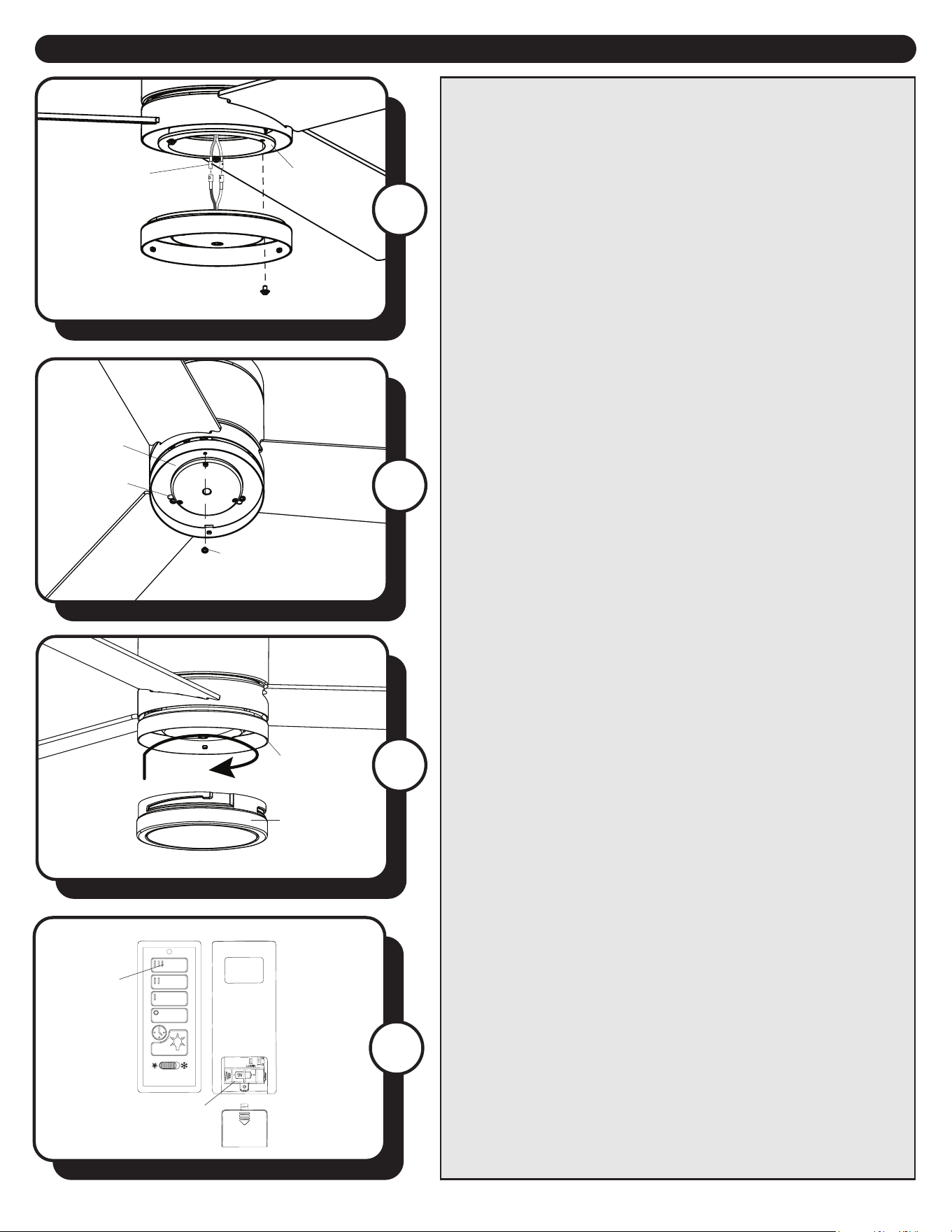

13. Remove one of the tter plate screws preassembled to
the tter plate and loosen the other two screws but do not
remove. Connect the single-pin connectors from the tter
plate to the single-pin connectors from the light kit -- blue
to black and white to white.
14. Align the keyhole slots in the light kit with the
loosened screws in the tter plate. Turn light kit clockwise
and replace the previously removed tter plate screw.
Tighten all screws.
15. Lift the bowl housing into the light kit. Then, twist the
bowl housing tightly in a clockwise direction until it is
secure.
16
Battery Cover
Battery Compartment
Front
Back
High Fan
Speed
16. Remove the battery cover from the back of the
remote found in the remote pack. Insert the battery
from remote pack into the remote; ensure polarity of
battery matches the polarity indicated in the battery
compartment -- positive (+) to positive (+) and negative
(-) to negative (-). Replace the battery cover and press
the HIGH fan speed button on the remote to ensure the
remote turns on the fan.
Note: If remote does not turn on fan, see page 12.
Fitter
Plate
Light Kit
Fitter Plate Screw
Fitter Plate Screw
Light Kit
Keyhole Slot
Light Kit
10
18. Turn on the circuit breakers and the wall switch to the
fan supply lead lines.
Assembly is complete.
ASSEMBLY INSTRUCTIONS
Wall Bracket
Mounting Screw

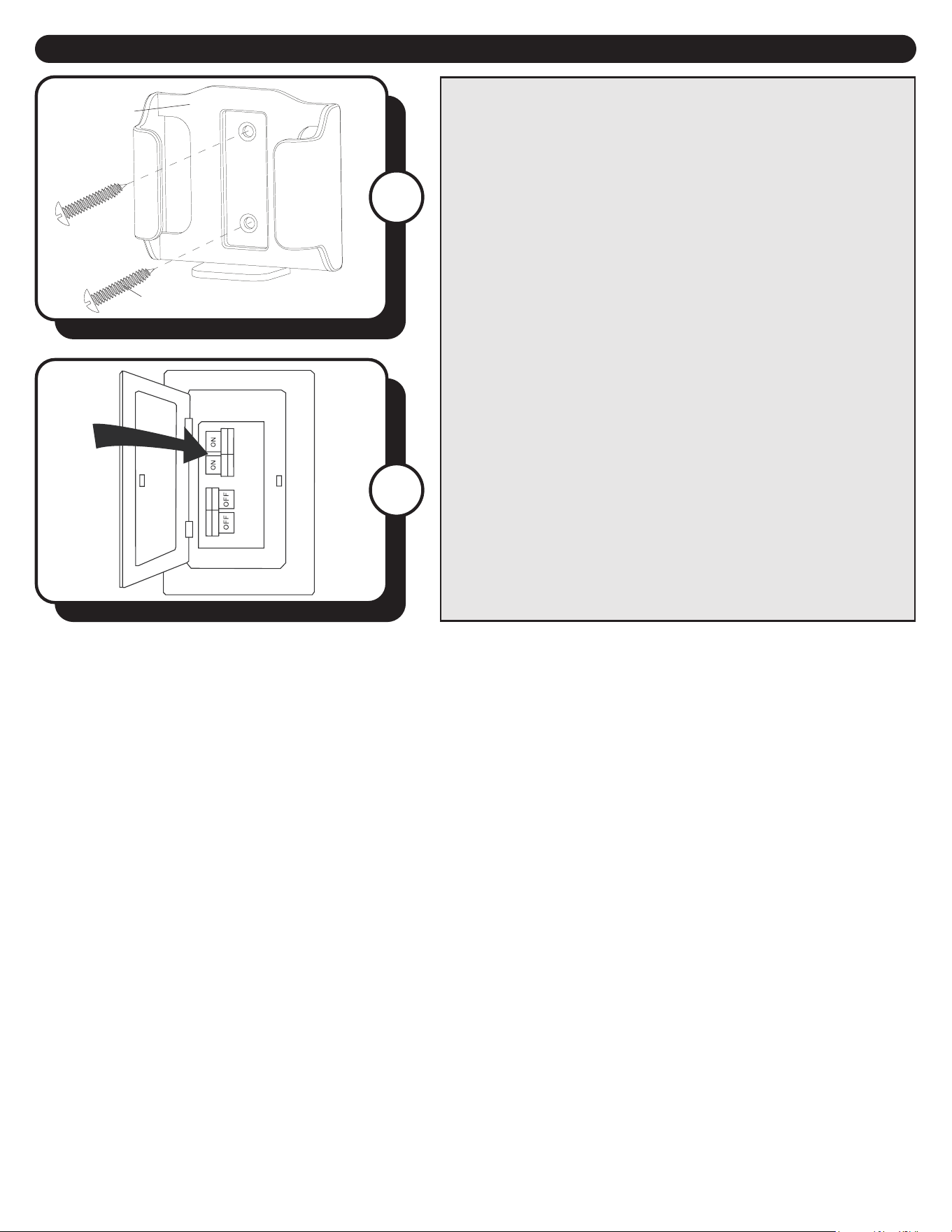

17. If desired, the wall bracket in remote pack can be
installed to a wall using the provided mounting screws.
Store the remote on the wall bracket when not in use.
17
18
D CFL
LEARN
2

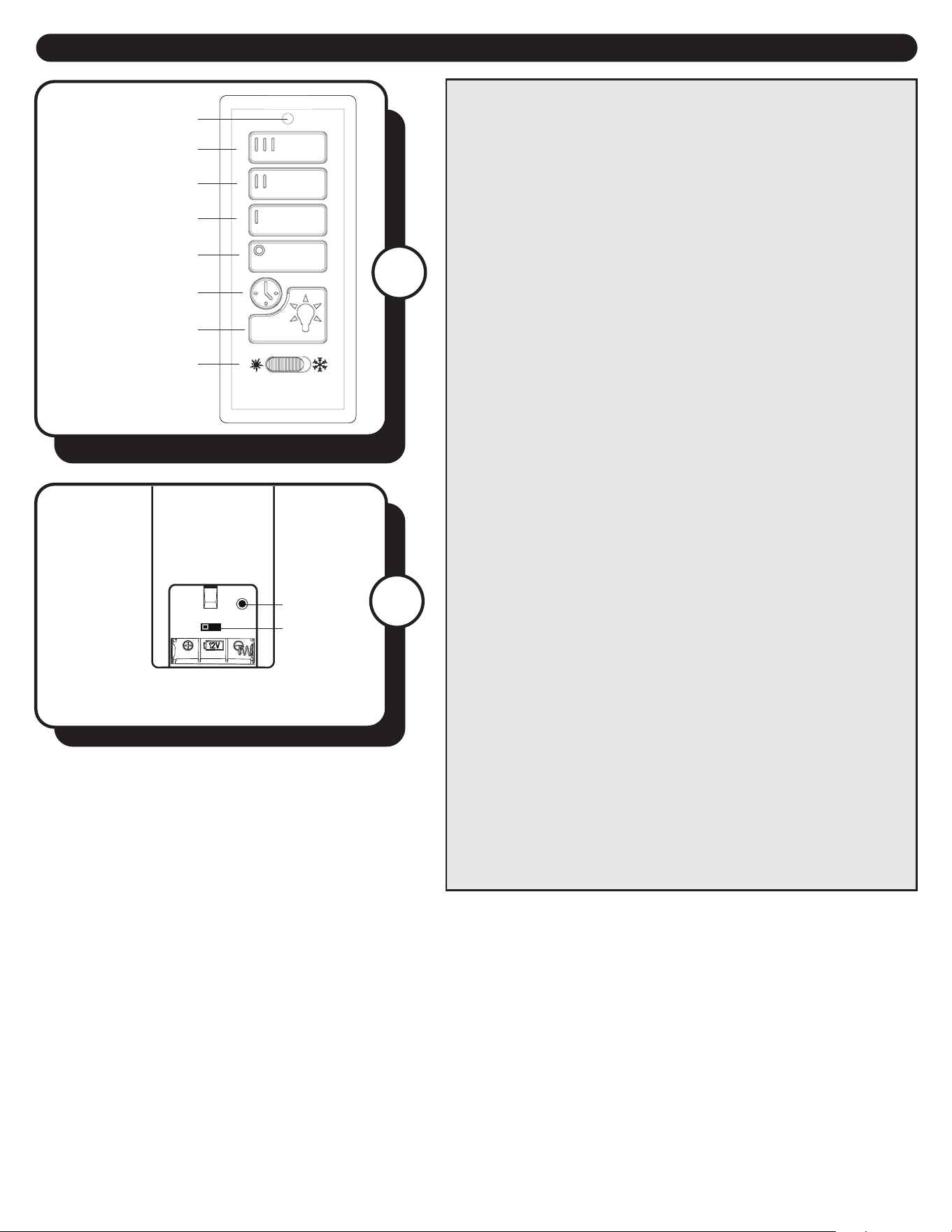

OPERATING INSTRUCTIONS
1
2. Remove battery door from back o the remote to
access the following:
D/CFL Switch - set to “D” at the factory. The switch should
remain in the “D” position to ensure the LED is dimmable.
LEARN - Syncs remote to receiver (see troubleshooting
for instructions).
2
1. To operate the fan using the remote from remote pack,
press and release the following buttons:
III - High speed
II - Medium speed
I - Low speed
Fan O - Turns power o to fan.
Light Delay - Tap the light delay button, which will turn
o the light after one minute. Tap the light control button
to exit light delay mode.
Light Control - Tap the light control button to turn the
light o and on. Press and hold light control button to dim
or brighten the lights.
Reverse Switch - In warmer weather, push the reverse
switch left toward sun icon, which will result in downward
airow creating a wind chill eect.
In cooler weather, push the reverse switch right toward the
snowake icon, which will result in upward airow that
can help move hot air o the ceiling.
Important: Wait for the fan to stop before moving
the seasonal slide switch. The reverse switch must be
set either completely left or right in order for the fan
to function correctly. If the switch is set in the middle
position, the fan will not operate.
LED Indicator - LED Indicator will ash for one minute as a
reminder to replace the 12-volt battery.
Battery Compartment
(battery door removed)
11
High Speed
LED Indicator
Medium Speed
Low Speed
Fan O
Learn
D/CFL
Light Delay
Light Control
Reverse Switch
12
PROBLEM SUGGESTED REMEDY
1. After installation is complete, switch the power o and back on again. Within 30 seconds,
press and hold the “LEARN” button, located in the battery compartment, for 5 seconds.
Fan will turn on at low speed and light o. This conrms that the SMART SYNC is active.
2. Insert new 12V battery in battery compartment of the remote control.
3. If there are several fans in close proximity, turn power o to other fans and re-sync the
remote (see Corrective Action 1 above).
TROUBLESHOOTING
If you have diculty operating your new ceiling fan, it may be the result of incorrect assembly, installation or
wiring. In some cases, these installation errors may be mistaken for defects. If you experience any faults, please
check the Troubleshooting section below. If a problem cannot be remedied or you are experiencing diculty in
installation, please contact the Service Department: 1-877-706-3267, 8 a.m. - 5 p.m. Central, Monday - Friday.
5. Remote control does
not work:
WARNING: To reduce the risk of re, electrical shock or personal injury, shut o the power supply to fan before
you begin any maintenance tasks.
1. Fan does not start:
2. Fan is noisy:
3. Fan wobbles:
4. Light does not work:
1. Make sure that the wall switch is turned ON.
2. Check main and branch circuit fuses or circuit breakers.
3. Check all wire connections from household supply wires to the fan.
4. Make sure forward/reverse switch pushed completely left or right. Fan will not operate
when switch is in the middle.
1. Make sure all screws in motor assembly are snug, but not overtightened.
2. Make sure the screws that attach the blade arms to the motor are tight.
3. Make sure wire connectors are not rattling against each other or against the interior wall
of the switch housing.
4. Make sure wire connectors are not rattling against each other or against the interior wall
of the canopy.
5. Some fan motors are sensitive to signals from Solid State variable speed controls. DO NOT
USE a Solid State variable speed control.
6. Ensure fan does not wobble excessively (see Fan wobbles solutions below).
1. Ensure the mounting bracket is tightened securely to outlet box and outlet box is
mounted rmly to ceiling joist.
2. Ensure all blades are screwed rmly into blade arms.
3. Ensure all blade arms are tightened securely to motor.
4. Switch one blade with a blade from the opposite side. Or balance the fan using the blade
balancing kit.
5. If blade wobble is still noticeable, interchanging two adjacent (side by side) blades can
redistribute the weight and possibly result in smoother operation.
1. Check for loose or disconnected 9-pin and/or single-pin connectors in switch housing or
light kit.
2. Ensure the blue wire from fan is connected to hot power supply wire.
Model Name: 52” Ceiling Fan
Model No: 51463 - Bright Whte
51464 - Matte Black
51465 - Gun Metal
13
LIMITED LIFETIME WARRANTY
To obtain service, please contact the Service Department:
1-877-706-3267, 8 a.m. - 5 p.m. Central, Monday - Friday.
Set forth below, the manufacturer, Hong Kong China Electric appliance Company (HKC) warrants the fan
motor for this ceiling fan to be free from defects in workmanship and material for the life of the product.
Also, subject to the limitations below, HKC warrants all ceiling fan parts (“ceiling fan parts” excludes the
motor and parts made in whole or in part with glass) to be free from defects in workmanship and material
for a period of one year after the date of purchase by the original purchaser at retail.
All claims must be made by the original purchaser, whether such purchaser purchased the product through a
store or contractor. Ceiling fan part defects must be reported within the rst year from the date of purchase.
Parts made in whole or in part with glass and the nishes of metal and other surfaces are not warranted.
Purchasers are responsible for all costs of removing and reinstalling the product. Any damage to any
part caused by ordinary wear and tear, accident, misuse, or improper installation, is not covered by this
warranty. HKC assumes no responsibility whatsoever for fan installation. Any service performed by a non-
licensed electrician will render the warranty invalid.
HKC’s sole responsibility shall be to repair or replace the motor, parts, or product within the terms stated
above. HKC shall not be liable for any loss or damage of any kind, including any incidental or consequential
damages resulting directly or indirectly, from any breach of warranty, express or implied, or any other
failure of this product. Some states do not allow the exclusion or limitation of incidental or consequential
damages so this limitation may not apply to you.
If the original purchaser ceases to own the fan, this warranty is voided.
Should the purchaser encounter a problem with your fan related to defects in workmanship or materials
within the warranty period associated with the defective part, HKC agrees to replace the defective part
without charge, or at its option, to replace the ceiling fan with a comparable or superior model.
HKC’s warranties are limited to the written warranties set out in this HKC ceiling fan limited lifetime
warranty. All other express and implied warranties, including, without limitation, the implied warranty of
tness for a particular purpose and the implied warranty of merchantability are disclaimed. Some states do
not allow the disclaimer of implied warranties, so this disclaimer may not apply to you.
