B u i l d - i n i c e m a c h i n e
O p e r a t i o n M a n u a l
For your safety and proper use of the product, please read the
instructions carefully before use
Please keep this instruction manual properly for reading at any time
The product is subject to the actual goods in the packing box
Support Email:help@coomotech.com
IMPORTANT SAFETY INSTRUCTIONS
When using electrical appliances, basic safety precautions should be
followed to reduce the riskof fire,electricshock,andinjury to personsor
property.Read all instructions before operating the machine for the first time.
1 .If connect with water supply, CAUTION: must connect the potable water
supply;
2. The machine is intended to be used in household and similar applications
such as:
-staff kitchen areas in shops, offices, and other working environments;
-farmhouses
-by clients in hotels, motels, and other residential type environments;
-Catering industry and similar industries.
3. The machine should be used indoors and without obstacles surrounded
good ventilation place. There is must be 15 inches at least between the
four sides of the machine with the wall.
4. When using electrical appliances, basic safety precautions should be
followed to reduce the risk of fire, electric shock , and injury to persons or
property. Read all instructions before using any appliance.
5. Don’t operate this or any other appliance with a damaged cord.
6. Connect to properly polarized outlets only. No other appliance should be
plugged into the same outlet. Be sure that the plug is fully inserted into
the socket.
7. Don’t place the machine and power cord near flammable material. Do
not cover the cord. Do not submerge it in water.
8. We do not recommend the use of an extension cord, as it may overheat
and become a risk of fire.
9. Unplug the ice maker before cleaning or making any repairs or servicing.
10.Exercise caution and supervision when the appliance is used near
children.
11.Don’t use your ice maker outdoors. Avoid direct sunlight and make sure
that there is at least
15 inches
of space between the back and sides of
your unit and the wall.
12.Don’t use any liquid other than water in the unit to make the ice.
13.Do not clean your ice maker with flammable detergents.The fumes can
create a fire hazard or explosion.
14.Do not tip the machine over.
15.If the ice maker is brought indoors from outdoors during the wintertime,
give it a few hours to warm up to room temperature before plugging into
the power source.
16.This unit should be properly grounded for your safety. The power cord is
equipped with a three-prong plug mated with standard three-prong wall
outlets to minimize the possibility of electric shock.
17.Plug your appliance into a dedicated, properly installed, and grounded
wall outlet. Do not, under any circumstance power and /or grounding
should be directed toward a certified electrician.
18. The foaming materials inside are combustible which must be kept away
from fire.
19. It’s forbidden to pull the cable to unplug the plug, pull the plug is a must.
IMPORTANCE: To avoid hazards due to instability,the unit must be placed
on an even and flat surface.
WARNING: This appliance must be grounded.
1) voltage fluctuation can’t be exceeded ±10% than the
rated voltage,or a Voltage stabilizer is needed.
2)In addition to the method recommended by the
manufacturer, mechanical equipment or other methods
must not be used to accelerate the defrosting process,
and the refrigeration system must not be damaged.
3)The refrigeration system contains high-pressure
refrigerant, and the refrigeration system must not be
damaged. Be especially careful when installing and
moving. Installation and maintenance must be
performed by the manufacturer or professional. Scrap
must be disposed of by the designated recycling
department.
4)There are heat insulation materials in the appliance,
which are combustible materials, and must be kept
away from fire sources. Repairs must be performed by
the manufacturer or professionals. Scrap must be
disposed of by the designated recycling department.
IMPORTANCE:To avoid hazards due toinstability, the unit must be placed
on an even and flat surface.
Installation and connection
Note: The installation must be carried out by professionals
according to the instructions.
Warning:
Combustible
materials
UNPACKING YOUR ICE MAKER
1.Remove all exterior and interior packaging materials. Check whether all
the below accessories are included or not. If any parts are missing,
please contact our customer service. After you unpack the machine, we
recommend you to leaving it for 24 hours before turning it on.
2.Clean the interior with lukewarm water and a soft cloth or clean the unit
using the Self-Clean function.
3.Find a location for your ice maker where it’s protected from direct sunlight
and other sources of heat (i.e. stove, furnace, radiator). Place the ice
maker on a level surface. Make sure that there is at least 15 inches of
space between the back and sides of your ice maker and the wall.
4.Allow one hour for the refrigerant to settle before plugging the unit for
initial use.
5.The appliance must be positioned where the plug is accessible.

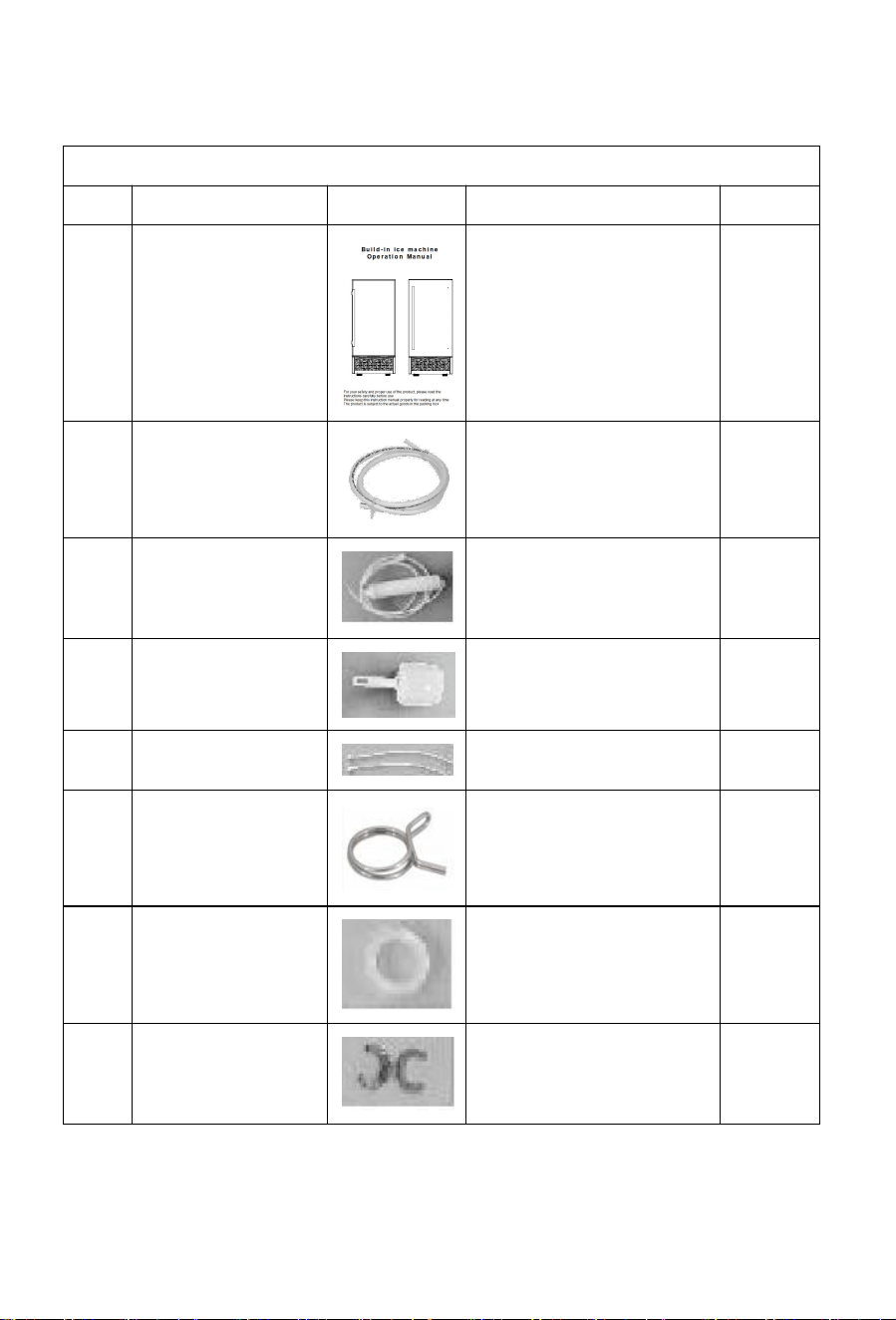

Package Contents
Ice maker machine x 1
Warm Tips：.Check whether all below accessories are included.
Accessories list
NO
Description
Usage
QTY
1
Manual
Operation manual
1PC
2
Inlet water pipe
Ice making and water
supply
1PC
3
Filter
Filter water
1PC
4
Ice spoon
Take ice cubes
1PC
5
nylon cable ties
Fix pipe if needed
2PCS
6
Hoop
fasten the outlet and
the drainage pipe
together if needed
1PC
7
Seal ring
Do put it in the faucet
of the intake pipe.The
other one is spare.
2PCS
8
Spare blue clip
Spare blue clip if
needed.
2PCS

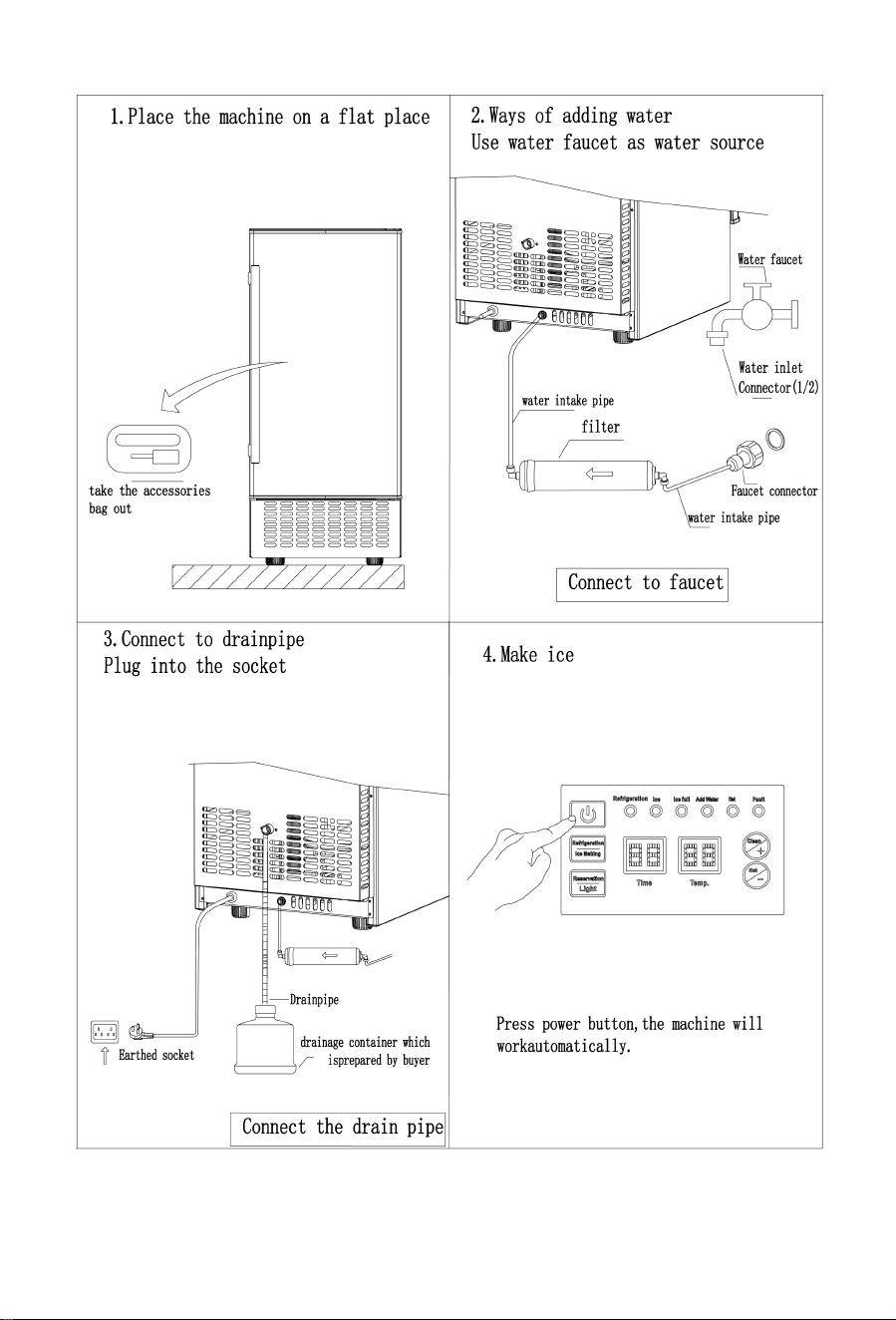

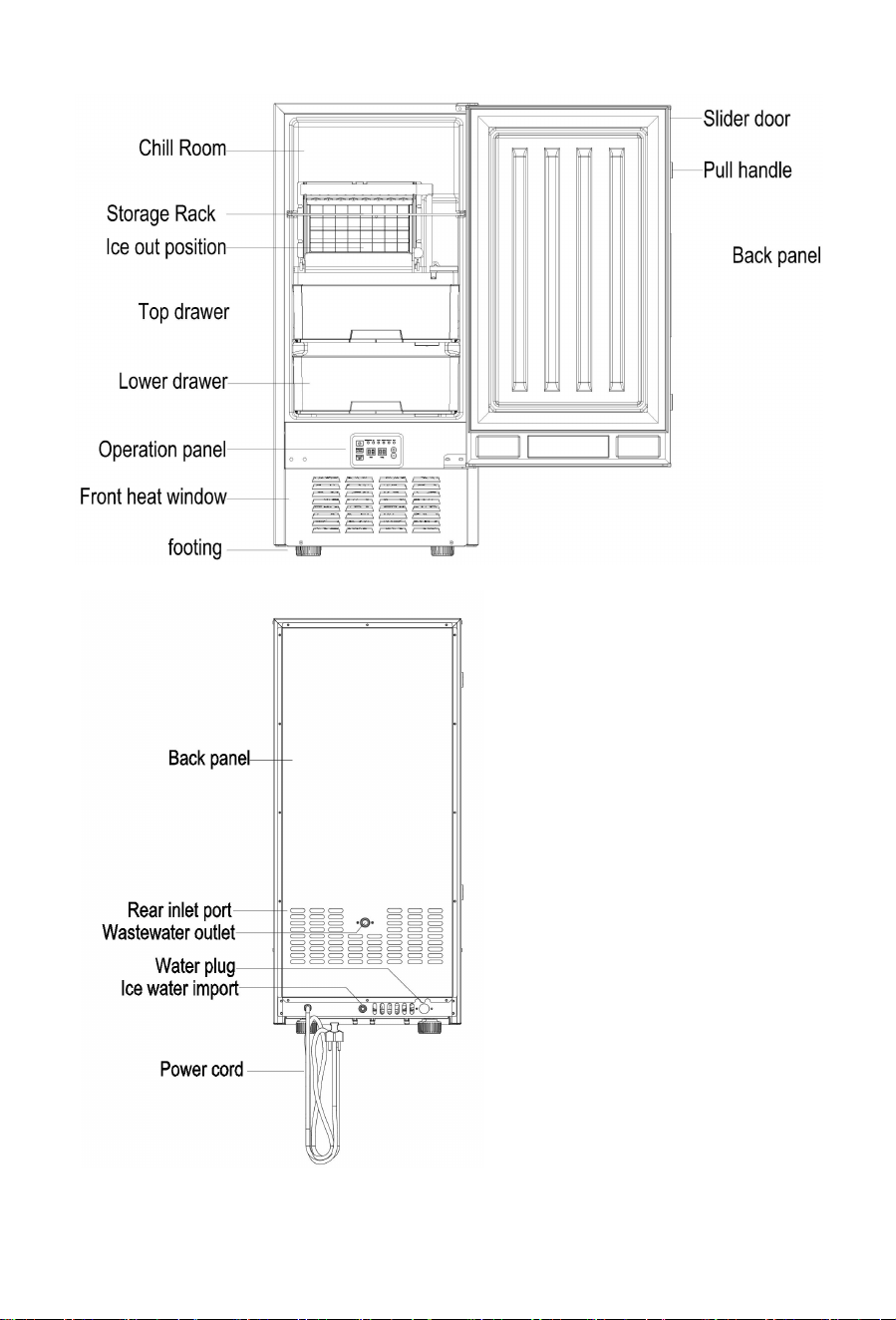

Quick installation diagram
The place of installation
a)The appliance should be placed in a clean place with good ventilation,
which should be kept from sunlight and rain.
b) The machine cannot be placed near any heat source.
c) The ambient temperature around should not be lower than 3℃, not
higher than 40℃, and there is must be 15 inches at least between the
four sides of the machine with the wall.
d) The machine should be placed in a flat place.
e) Do not place anything on top of the appliance.

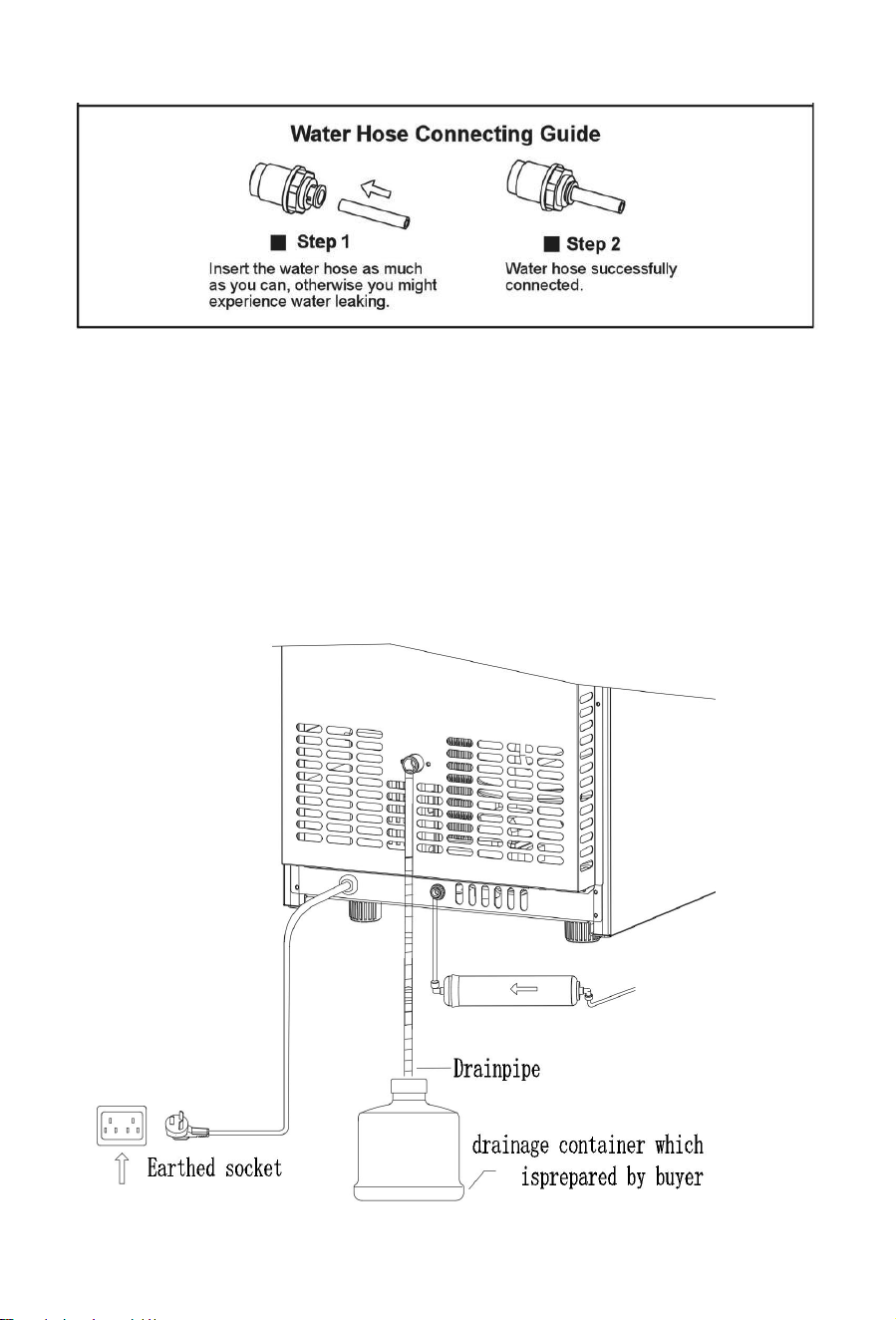

Connect drainage pipe and water intake pipe
Warning:
1)The machine can only connect with drinking water sources,and must
meet local drinking water standards
2)The water pressure must be in 0.1-0.4Mpa,if exceed 0.4Mpa,a pressure
reducing valve must be connected.
3) Drainage:The outlet of the drainage pipe must be lower than the outlet
on the machine

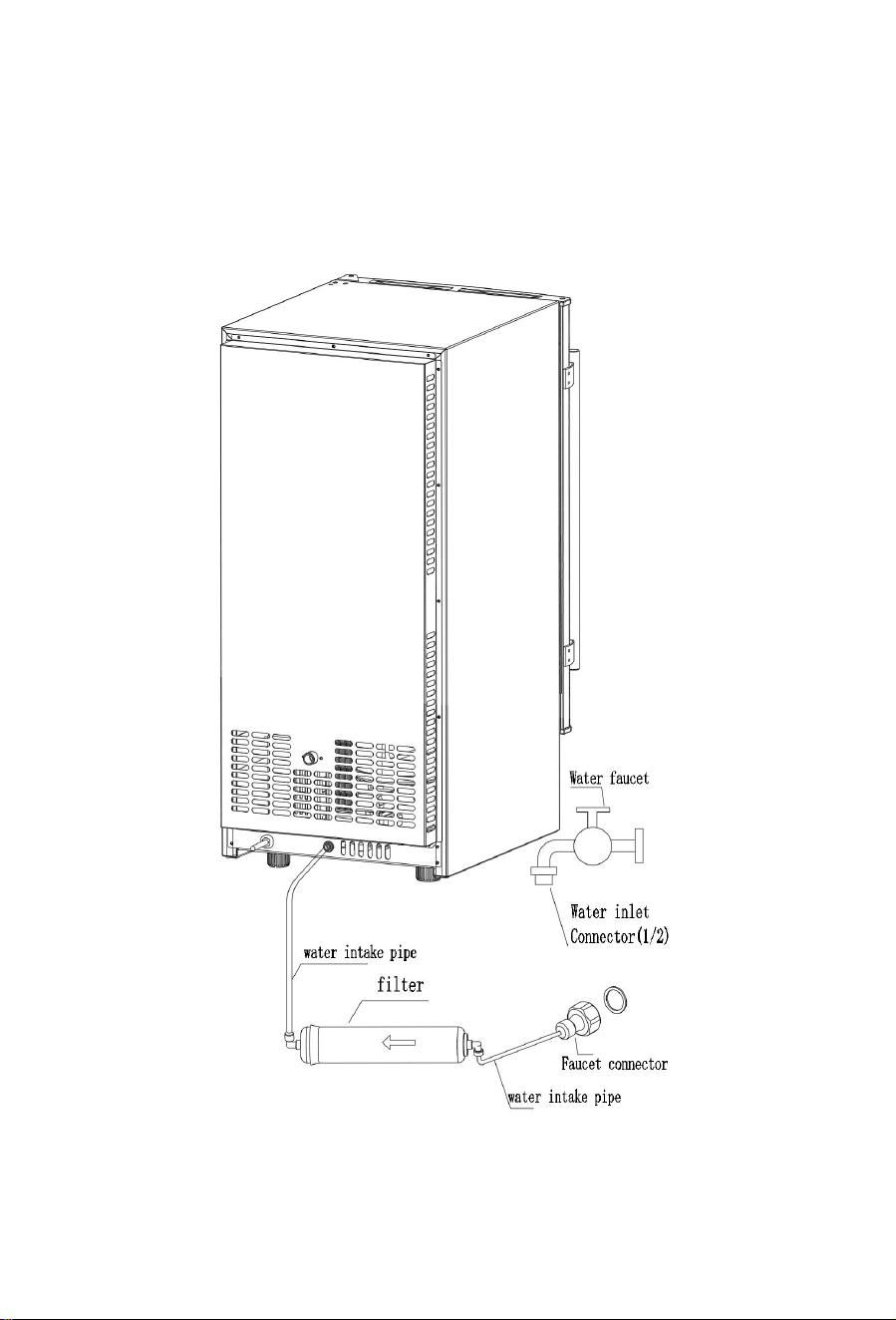

CONNECTING WITH WATER
Please connect your ice maker with other parts by referring the diagram
below.
Drain.
Warning: Because the ice in the inner tank will melt, drain pipe must be
connected before using, and insert the drain pipe into a container or into
the sewer.
Note: Connect one end of the drain pipe to the machine, and the other
end to a container or sewer. The other port of the drain pipe must be
lower than the drain port of the machine.
MACHINE OPERATIONS

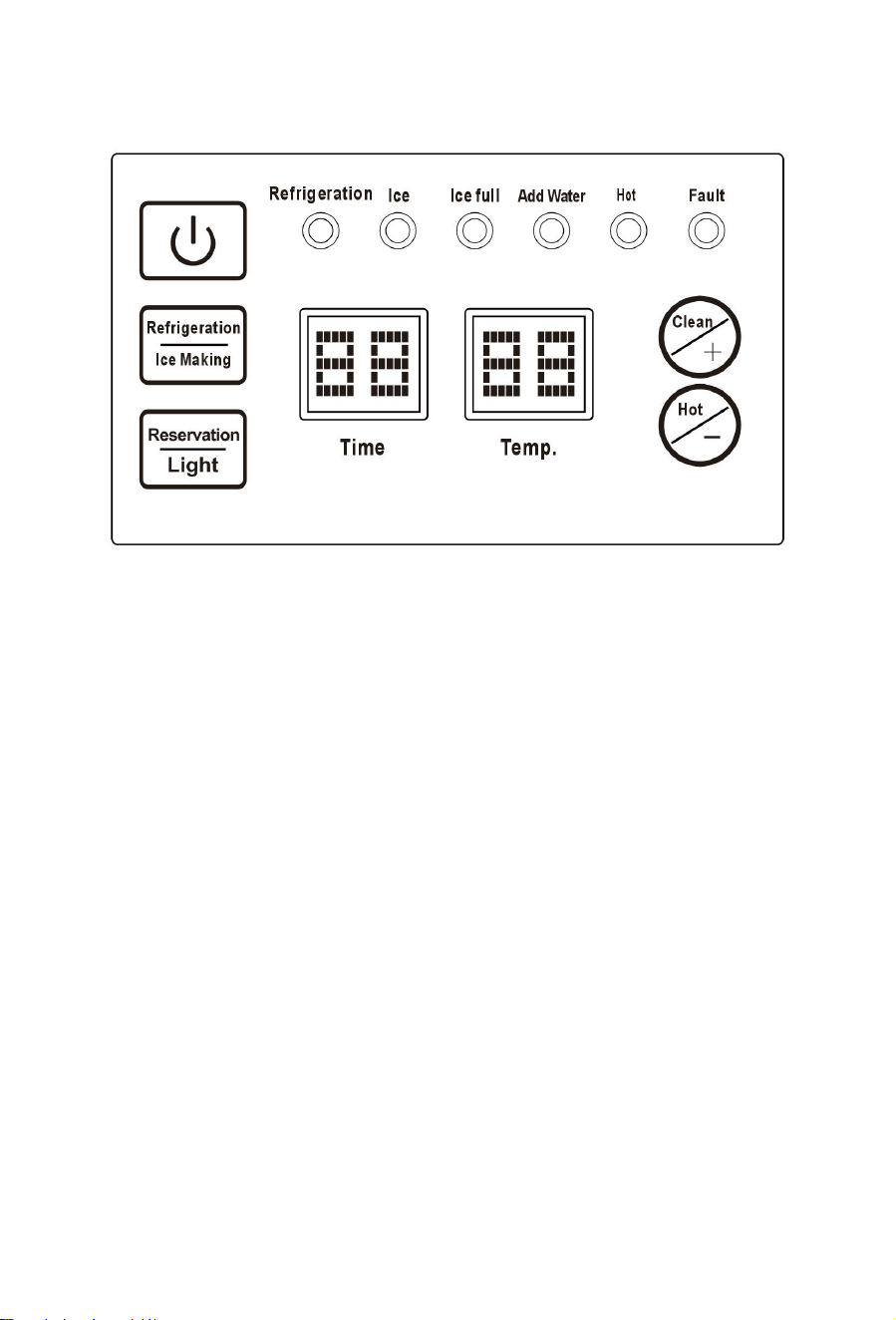

Operation Panel
Power button:
Touch to enter run mode; touch to enter standby mode (shutdown)
Refrigeration/Ice making button:
Touch the cycle selection to select the operating mode in standby state:
refrigeration, ice making, refrigeration ice making; the temperature display
box flash for a second after touching the button in the running state, and the
refrigeration temperature can be set by touching the plus and minus buttons.
Reservation/Light button:
Tap to switch on/off the light; when the machine is off, press and hold the
button for a few seconds, the time display box will flash and set the time by
touching the plus and minus buttons to set the reservation start time.
Plus and minus button:
The thickness of the ice cubes can be adjusted directly through the /- keys,
from -8 to 8, with a default of 0.
The plus and minus button can complete the setting of reservation start
time and chilled temperature.
In standby mode, press and hold clean key for cleaning; in operation mode,
press and hold the hot key for manual defrosting.
Time:
Display device operation status.
Temp.:
Display real-time refrigerator temperature.
Refrigeration:
Cooling mode indicator
Ice:
Ice-making mode indicator
Ice full:
Ice full indicator
Add Water:
When the external water source is disconnected, the constant light
indicates a lack of water, and the cleaning mode flashes for a few seconds.
Hot：
Ice-clearing mode of the running device or manual ice-clearing by long
pressing the hot button.
Fault：
When the device shows an abnormal automatic shutdown indication, it
needs to be manually restarted.
Notes:
The surrounding environmental temperature will influence the time needed
for ice making.
Warning:
1.The appliance is used to make ice cubes and store ice temporarily .
please follow the following principles to keep the ice cubes clean:
●Wash your hands before taking out the ice cubes and use the plastic ice
scoop provided to take ice.
●Except ice cubes, please do not put anything else in the machine.
●Clean the storage tank before use. Keep the ice scoop clean and use a
neutral detergent to clean it. Close the door after taking ice to prevent
dust.
2. The use of any electrical appliances must follow basic guidelines,
especially:
● A high humidity environment will increase the risk of short circuit or
electric shock. If in doubt, please cut off the power of the machine.
● Please do not pull the power cord directly to turn off the machine.
● Without adult supervision, the ice maker cannot be used alone by
children or the elderly.
CLEANING & MAINTENANCE
Please thoroughly clean your ice maker before initial use.
1) Cleaning of internal and external parts
Note:
Unplug the power plug before doing any cleaning or maintenance
procedures.
Clean the condenser at least once a year, so that the ice maker can work
better.
Do not use alcohol to clean the ice machine, as this may cause the plastic
to crack.
a) External
Use a clean soft cloth to wipe the ice machine at least once a week, and
then use a soft cloth with a neutral detergent to remove grease or other
impurities.
b) Ice scoop cleaning (weekly)
Dip the ice scoop in a mixture of neutral detergent and water for at least 3
minutes, then rinse with water.
c) Storage tank cleaning (weekly)
Open the ice door and remove all ice cubes.
Use a neutral detergent to clean the inner wall of the tank, and then rinse
with water.
Wipe the inner wall with a cloth with neutral detergent, rinse with water, and
finally dry the inner surface with another clean cloth.
INTERIOR: please use the following Self-Clean function:
1.Plug in unit,press and hold the Plus button for approximately 3
seconds,then release.The unit will automatically enter Self-clean program.
This process takes about 5-6 minutes.When the Self-Clean program is
finished,unit will automatically power off.
2.The fan blade will be rotating.This process rinses the inside parts several
times.
3.After the Self-Clean program is completed,unplug the power cord and
drain out the water by unplugging the drain cap on the side.Replace drain
cap.
4.Plug the unit and repeat the Self-Clean process by repeating steps 3 to 5.
After draining the water,replace and tighten drain cap.
5.Dry the interior and exterior with a clean,soft cloth.
NOTE: It is strongly recommended to clean the unit before initial use or
after the unit has not been in use for a long period of time.
2) Long-term storage of the ice maker
a) Unplug the power plug to cut off the power supply;
b) Turn off the water supply and remove the water inlet pipe;
c) Remove all ice cubes and drain the water ;
d) Wash and dry the inner walls of the storage tank and water tank.
Common malfunction analysis
Support Email:[email protected]m
E1
Temperature
sensor short
circuit or open
circuit
This fault can make ice
normally, but only shows
when powered on.
Replace the sensor
E2
Display
anomaly
Ice maker motor not
running or evaporator
sensor damaged
Replace the faulty
components
E3
The fan is not
work
The condenser prob is
not sensitive
Unplug the prob or replace
by a new one
The fan is jammed Adjust the fan
Fan is broken Replace by a new fan
E4
Ice-making
fault
Ice-making device is
blocked
Restart the machine
