INSTRUCTION MANUAL
BUILT-IN BEVERAGE COOLER
MODEL: ORYD100HD
Read this manual and follow all safety rules and operating instructions before first use of this
Beverage cooler.
Support Email：[email protected]
Support Phone：(213)516-2282
TABLE OF CONTENTS
IMPORTANT SAFETY INSTRUCTIONS 3
PRODUCT DIAGRAM 6
INSTALLATION INSTRUCTIONS 7
Before Using Your Beverage cooler 7
To Install Stainless Steel Handle 7
To Install Your Beverage cooler 8
OPERATION IN STRUCTIONS 10
Controls 10
Storage 11
Shelves 11
CARE & MAINTENANCE 11
Cleaning Your Beverage cooler 11
Power Failure 12
Vacation Time 12
Moving Your Beverage cooler 12
Energy Saving Tips 12
TROUBLESHOOTING GUIDE 13-14
3
IMPORTANT SAFETY INSTRUCTIONS
Your safety and the safety of others are very important.
This Beverage cooler complies with the applicable safety requirements and is safe for daily use.
However, basic safety precautions should always be followed when using an electrical appliance,
to reduce the risk of fire, electric shock, and person al injury.
.
Plug into its own individual electrical outle t with a voltage rating that m atches the rating
label on the cooler (115 V/60Hz). Use receptacles that cannot be
turned off by a
switch or pull chain. Be sure tha t the plug is fully inserted into the
receptacle.
.
Plug into a grounded 3-prong outlet. Do not under any circumstances cut or remov e the
third ground prong from the power cord supplied.
.
To protect against electric shock, do not immerse the Beverage cooler, plug or cord in
wa
ter or other liquids.
.
Never unplug the cooler by pulling the power cord. To disconnect the Beverage cooler ,
always grip the plug firmly and pull straight out from the wall outlet.
.
Repair or replace immediately all power cords that have become frayed or otherwise
damaged. Do not use a cord tha t shows cracks or abrasion damage along its length or at
either end.
.
Do not connect or disconnect the electric plug when you r hands are wet. Do not operate
the cooler with wet hands, while
standing on a wet surface or while standing in water.
.
Unplug the Beverage cooler or disconnect power before cleaning or servicing . Failure to
do so can result in electrical shock or death.
.
When moving the Beverage cooler, be careful not to roll over or dam age the power cord.
.
Never clean Beverage cooler parts with flammable fluids. These fumes can create a fi re
hazard or explosion. And do not store or use gasoline or other flammable vapor and
liquids in the vic inity of this or
any other appliance. The f umes can create a fire hazard
or explosion.
.
Do not attempt to repair or replace any part of your Beverage cool e r unless it is
specifically recommended in this manual. All other servicing should be referred to a
qualified technic ian.
.
An empty Beverage cooler can be dangerous to children. Remove any latches, lids, locks,
and/or doors from unused or discarded Beverage coolers to prevent child entrapment
and suffocation. Never allow children to op
erate, play with or crawl inside this Beverage
cooler.

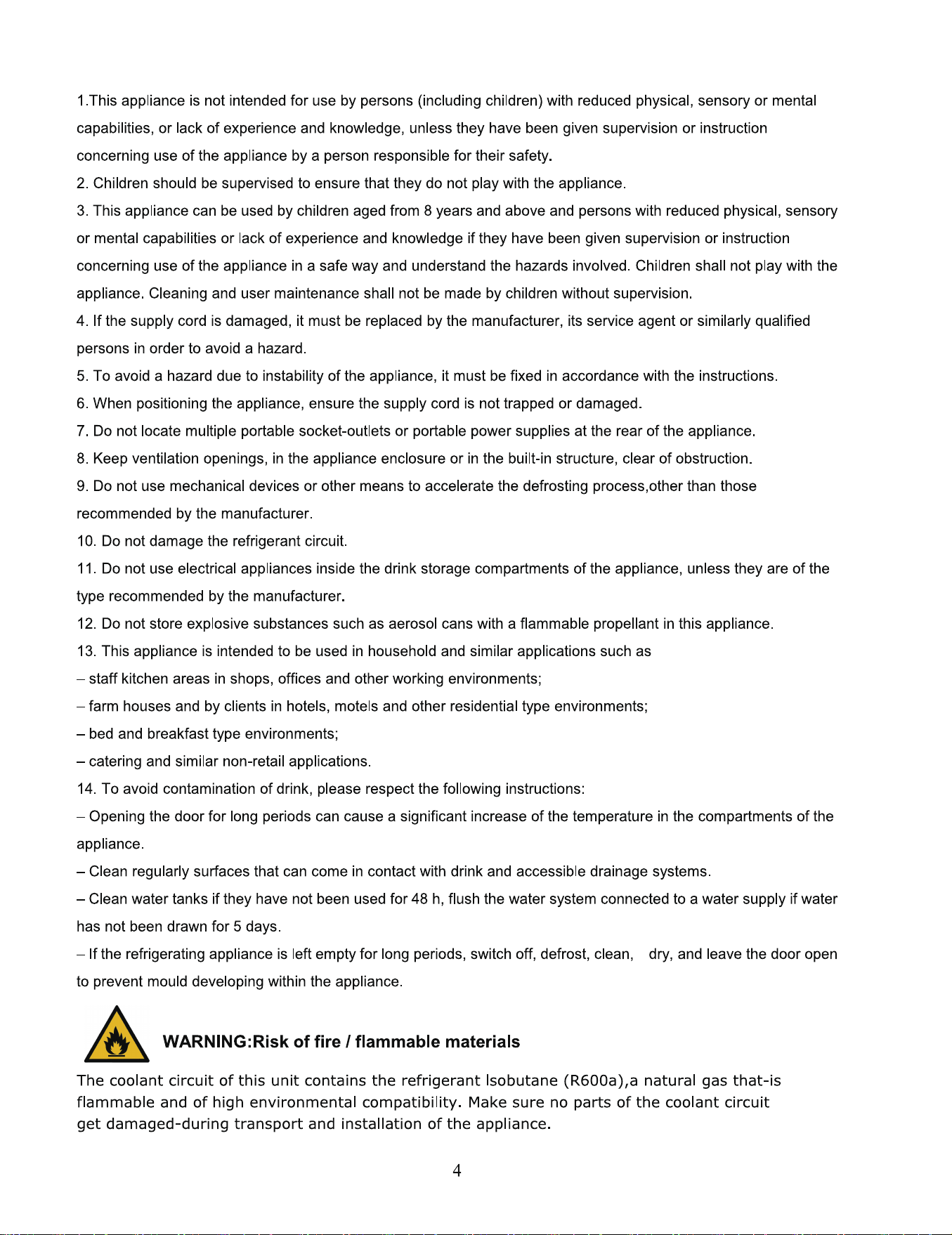

5
FLAMMABLE REFRIGERANT GAS
DANGER - Risk of fire or explosion. Flammable refrigerant used.
DO NOT use mechanical devices to defrost refrigerator. DO NOT puncture refrigerant
tubing.
DANGER - Risk o f fire or explosion. Flammable refrigerant used. To be repaired only by trained
service personnel. DO NOT puncture refrigerant tubing.
CAUTION - Risk of fire or explosion. Flammable refrigerant used. Consult repair man ual / owner’s
guide before attempting to service this product. All safety precauti
ons must be followed.
CAUTION - Risk of fire or explosi on. Dispose of property in accordance with federal or local
regulations. Flammable refrigeran t used.
CAUTION - Risk of fire or explosion due to puncture of refrigerant tubing. Follow handling
instructions careful ly. Flammable refrigerant used.
CAUTION - To prevent a child from being entrapped, keep out of reach of children and not in the
vicinity of the cooler.
.
Do not use this beverage cooler for other than its intended purpose. For indoor,
household use only.
.
Move this beverage cooler by 2 people. Failure to do so can result in injury.
.
Place this beverage cooler in a well-ventilated area with temperatures above 15°C (60°F)
and below 32°C (90°F).
.
To ensure proper ventilation for your beverage cooler, the front of the cooler must be
completel y unobstructed.
.
This beverage cooler must be installed in an area away from wind, rain, water spray or
drips.
.
The beverage cooler should not be located next to ove ns, grills or other sources of high
heat.
.
Do not kink or pinch the power suppl y cord of beverage cooler.
.
It is important for the beverage cooler to be leveled in order to work properly. You may
need to make several adjustments to level it.
.
This beverage cooler is designed for storing and cooling . Do not store
perishable
food or medical products inside the cooler.
.
When disposing of refrigeration beverage coolers, special handling is often required. It is
the consumer’s responsibility to comply with federal and local regulations when
disposing of this product.
.
WARNING: Risk of child entrapment and suffocation. Before you throw away this or an
old cooler, remove the door. Leave the shelves in place, so that children may no t easily
climb inside.
beverages
6

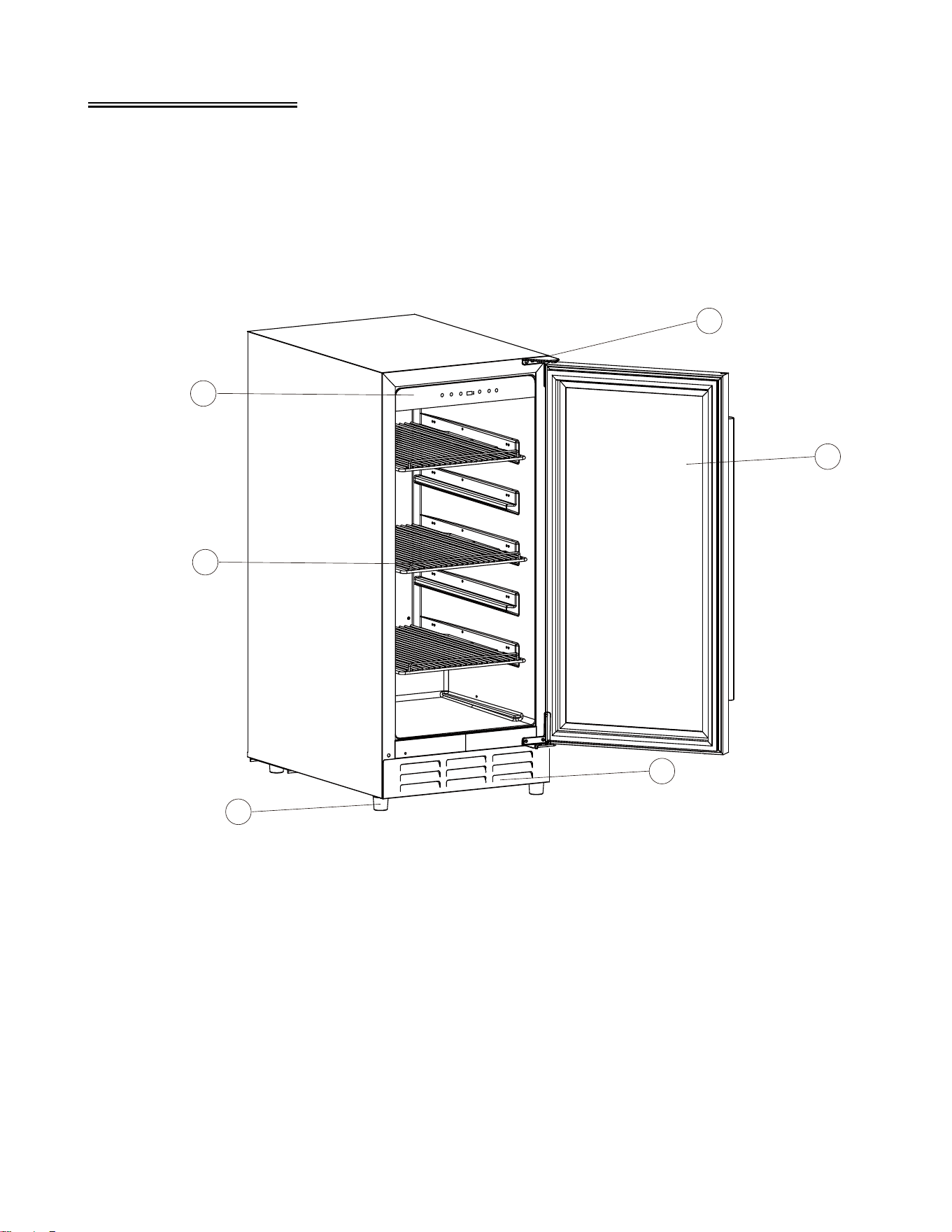

PRODUCT DIAGRAM
1 Control Panel
5
Top Hinge
2 Shelves
6
Door with Handle
3
Exhaust Window
4
Leveling Legs
5
4
3
6
2
1
7
INSTALLATION INSTRUCTIONS
Before Using Your Beverage cooler
—
Remove the exterior and interior packaging.
—
Check to be sure you have all of the following parts:
o
3 wired Shelves
o
Stainless Steel Handle
o
Instruction Manual
o
2 Extra Screws for Installing Handle
—
IMPORTANT: Before connecting this Beverage cooler to a power source, let it stand upright
for approximately 24 hours. This will reduce the possibility of a malfunction in the cooling
system from handling during transportation.
—
Clean the interior surface with lukewarm water using a soft cloth.
—
Install the handle on the left side of the door.

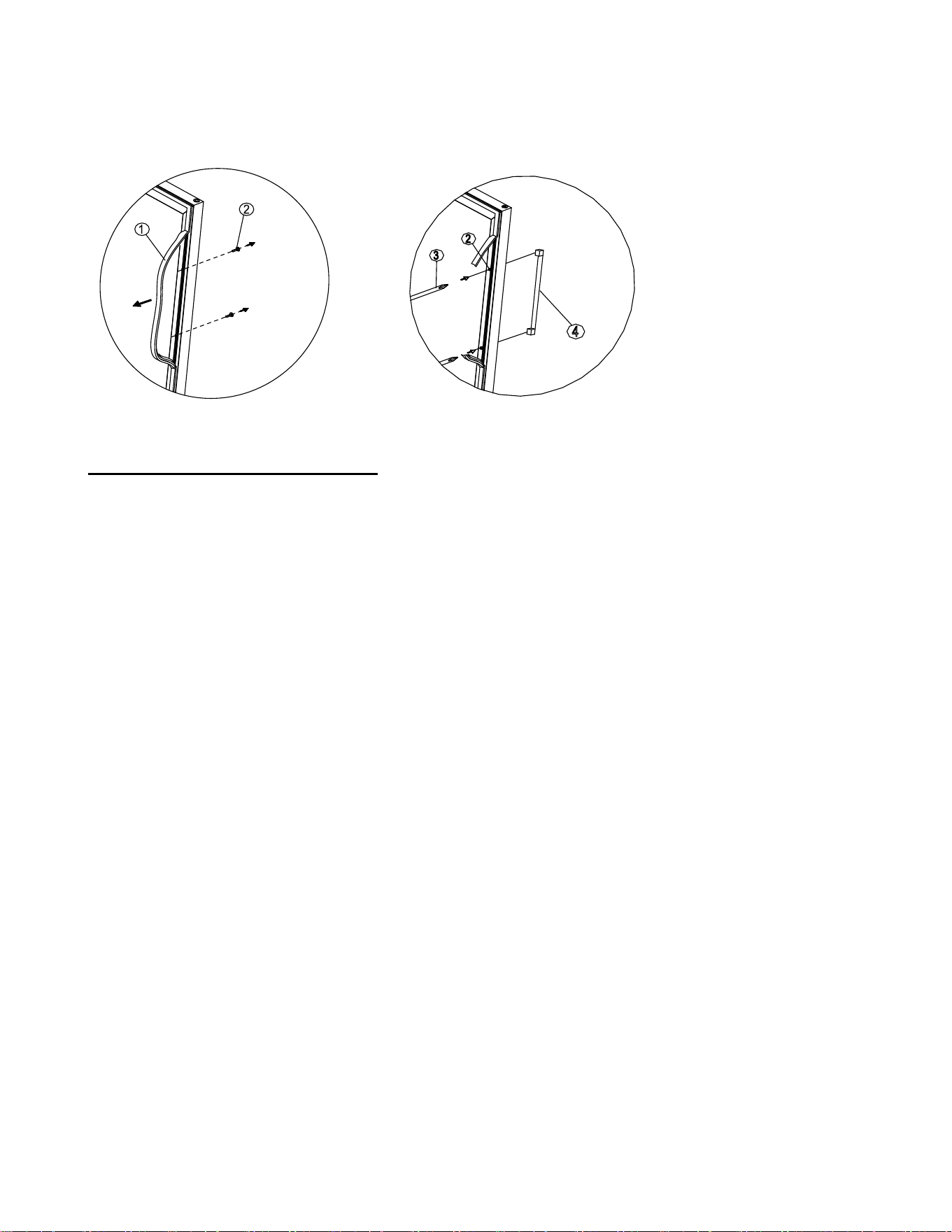

To Install Stainless Steel Handle
1) Pul l away the door gasket in the area where the handle is to be installed, as Illustration #1.
The gasket is easily removed by hand, no tools are necessary.
2) Align the handle with the pre-installe d screws on the door f rame. Tighte n the screws with a
screwdriver until the handles secure tightly against the door frame, as Illustra tion #2. (Do NOT
over tighten as this will c
ause damage to the handle assembly).
3) Replace the door gasket to its original position.
Note: This Beverage cooler includes st ainless steel handles that are not required to operate this
Beverage cooler. If you choose not to use the han dle supplied, simp ly foll ow step 1 to access the
pre-installed screws and remove them and then place 2 decorati ve plugs (NOT included) into the
two holes separately. Continue on to step 3 to replace the door gasket to its original position.
8
Illustration #1 Illustration #2
To Install Your Beverage cooler
-
This Beverage cooler is designed for free standing or built-in (fully recessed) installatio n.
-
Place your Beverage cooler on a solid and level floor tha t is strong enough to support it when
it is fully loaded. This will ensure a vibration-free and noise-free operation. Adjust the leveling
legs in and out to stabilize the cooler horizontally. If the legs are not properly adjusted, the
cooler may be unstable and result in excess noise or vibration.
-
Locate the Beverage cooler away from direct sunlight and sources of heat (stove, heater,
radiator, etc.). Direct sunlight may affect the acrylic coating and heat sources may increase
electrical consum ption. Extremely cold ambient temperatures may also cause the cooler not
to perform properly.
-
It is not advisable to install this cooler in moist areas or directly adjacent to a kitchen sink, as
moisture could cause premature corrosion to the components of your new cooler.
-
It i s recommended you install the Beverage cooler in a place with temperatures above 60 °F
(15°C) and below 90°F (32°C), and humidity is under 60% . If the ambient temperature is
above or below recommended temperatures, the perform ance of the cooler may be affected.
Placing your cooler in extremely cold or hot conditions may cause interior temperatures to
1 Gasket
2 Screw
3 Screw Driver
4 Handle
fluctuate, and the temperature range of 3ºC-18ºC (37ºF-65ºF) may not be reached.
9
-
Connect the Beverage cooler to an exclusive, properly grounded, standard electrical supply
(115V/60Hz ), in accordance with the National Electrical Code and local codes and ordinances.
Any questions concerning power and/or grounding should be directed toward a certified
electrician or an authorized products service center.
Warning: Improper use of the grounded plug can result in the risk of electrical shock. If the
power cord is damaged, have it replaced by an authorized service center.
.
The Beverage cooler should always be plugged into its own individual electrical outlet
which has a voltage rating that matches the rating label on the Beverage cooler. This
provides the best performance and also prevents overloading house wiring circuits tha t
could cause a fire hazard from overheated.
.
Do not under any circumstances cut or remove the third ground prong from the power
cord supplied.
.
Do not use an extension cord or adapter plug. However, if you must use an extension
cord, it is absolutely necessary that it be a UL-listed, 3-wire grounding type Beverage
cooler extension cord having a grounding type plug and outlet and that the electrical
rating of the cord is 10 amperes (minimum) and 120 volts.
.
Do not use a cord that shows cracks or abrasio n damage along its l e ngth or at either end.
.
If the B e verage cooler is going to be used in an area that is prone to power
surges/outages, it is suggested that you use a power surge protector. The surge
protector that you select must have a surge block high enough to prot e ct the Beverage
cooler it is connected to. Damages due to power surges are not considered a
manufacturer covered defect and will void your product warranty.
10
OPERATION INSTRUCTIONS

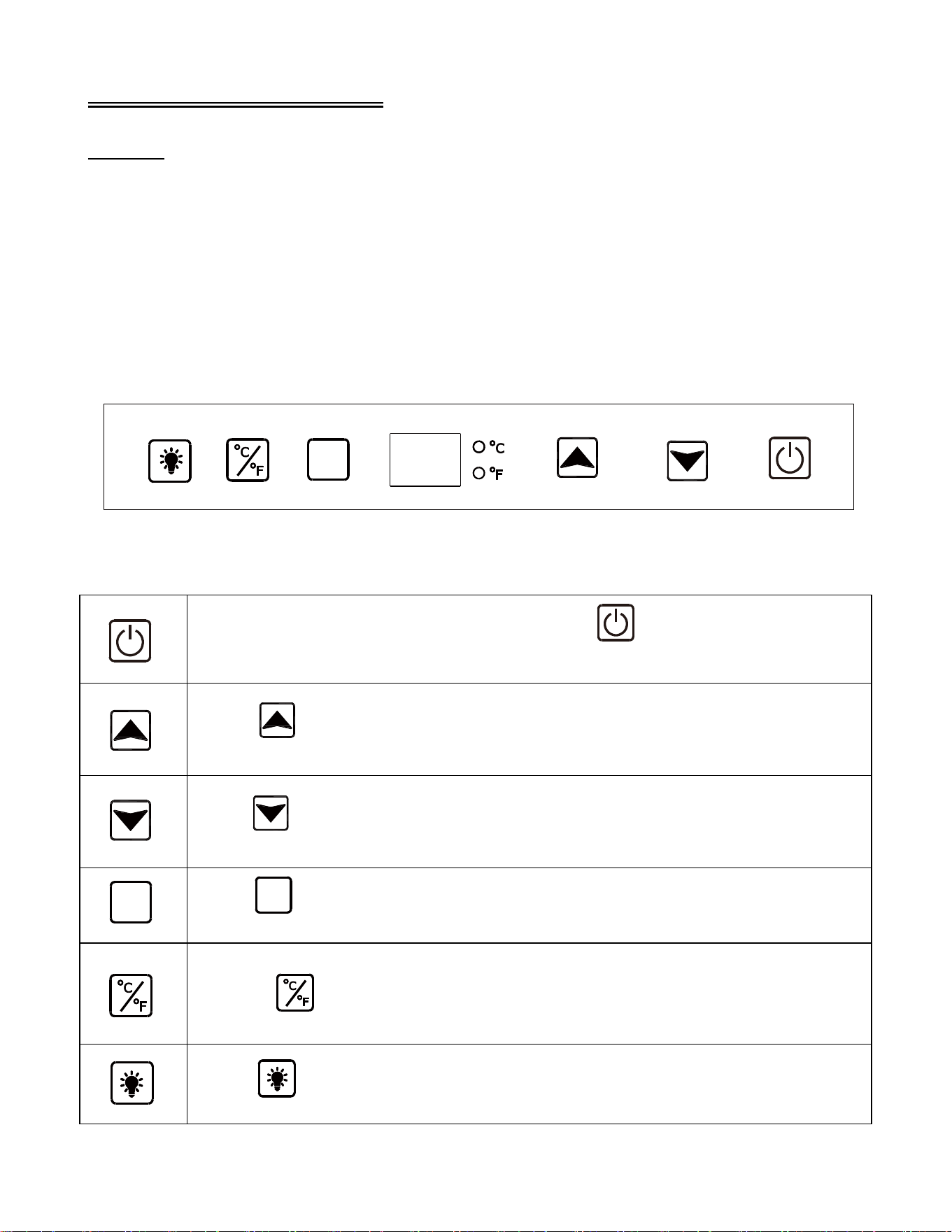

Controls
After plugging the Beverage cooler into a wall outlet, the cooler would turn on automatically and
the LCD screen would show the temperature inside of the cooler.
After setting your desired serving temperature, allow the cooler to cool down for 3 to 4 ho urs
before placing wine bottles in the Beverage cooler.
Press to begin adjusting the temperature
Press once to turn ON the cooler. Press and ho ld about 3 seconds to turn OFF
the cooler
Toggles the temperature display between Cel
sius and Fahrenheit
Temperature setting range：3-18℃(37℉-65℉)
Press the temperature in 1 degree increments
Press the temperature in 1 degree decrements
SET
Press once to turn the interior light ON or OFF
SET
SET
11
Storage
Many cans and bottles may differ in size and dimensions. As such the actual number of bottles
you may be able to store may vary..
Shelves

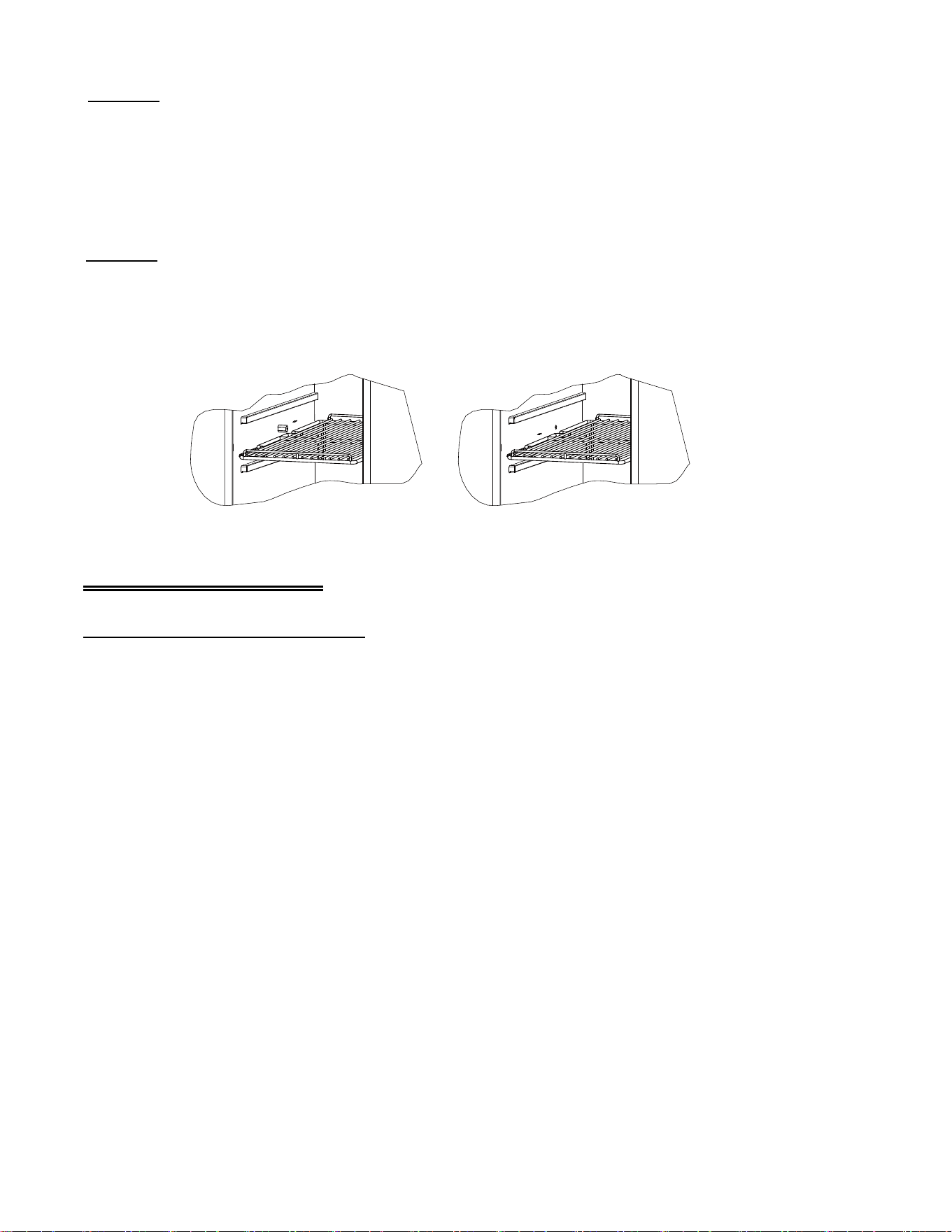

To remove the shelves from the track, pull each shelf out to the shelf post,as show n in figure A. Lift
it up aga in, then slowly pull the shelf out, as shown in figure B.
Figure A Figure B
CARE & M AINTENANCE
Cleaning Your Beverage cooler
IMPORTANT: Always unplug the cooler before cleaning or perfor ming maintenance. Never use
harsh cleansers or scouring pads to clean any part of the cooler.
.
Turn off the power, unplug the Beverage cooler, and remove all items including shelves.
.
Wash the inside surfac e s with warm water and baking soda solution. The solution should
be about 2 tablespoons of baking soda to a quart of water.
.
Wash the shelves with a mil d detergent solution.
.
Wring excess water out of the sponge or cloth when cleaning the area near the controls,
or any electrical parts.
.
Wash the outside cabinet with warm water and a mild liquid detergent. Rinse well and
wipe dry with a clean soft cloth. Do not use steel wool or steel brush to rub the stainless
steel, which will contaminate the stainless steel with steel particles and rusting may
occur.
12
Power failure
Most power failures are corrected within a few hours and should not affect the temperature of
your Beverage cooler. If the power is off for an extende d period of time, proper steps should be
taken to protect your contents.
Vacation Time
Leave the Beverage cooler operating during vacations of l e ss than three weeks. For periods
longer than this, turn the Beverage cooler off and leave the door slightly ajar to prevent odor
from building inside the Beverage cooler.
Moving Your Beverage cooler
-
Remove all items (bottles) from the cooler;
-
Securely tape down any loose items, such as shelves, inside the cooler.
-
Turn the adjustable leg up to the base to avoid damage.
-
Tape the doo r shut.
-
Ensure that the Beverage cooler stays securely in the upright position during transportation.
Protect the outside of the Beverage cooler with a blanket or a similar item.
Energy saving tips
- The cooler should be located i n the coolest area of the room away from heat sources or direct
sunlight.
- Ensure that the cooler is adequately ventilated. Never cover air ven ts.
- Only open the cooler door fo r as long as necessary. Frequent opening of the door will affect
internal temperature.
13
TROUBLESHOOTING GUIDE
PROBLEM POSSIBLE CAUSE SOLUTION
The Beverage
cooler does not
run.
The Beverage cooler may not be
plugged in, or plug may be l oose.
Ensure the Beverage cooler has b een
plugged in pr operly.
The Beverage cooler is turned off.
Press to turn on the cooler.
House fuse blown or tripped circuit
breaker.
Check/replace fuse. Reset circuit
breaker.
The Beverage
cooler is not
cold enough.
External environment may require a
higher setting.
Set a colder setting. Allow se ver a l hours
for t
he temperature to stabilize.
The Beverage cooler has r ecently
been disconnected for a period of
time.
It takes 3-4 hours for the Beverage
cooler to coo l down completely.
Prolonged or frequent door
openings.
Open the door less often.
The door is not closed comp l etely. Close the door properly.
The door gasket does not seal
properly.
Check the door gasket. Clean or change
gasket if necessary.
The compressor
turns on and off
frequently.
The room temperature is hotter than
norma
l.
It’s normal for the Beverage cooler to
work harder under these conditions.
A large amount of contents has be en
added to the cooler.
A large amount of contents cause the
Beverage cooler to run more un til the
desired temperature is r eached.
Prolonged or frequent door
openings.
Open the door less often.
The temperature has not been set
correctly.
Press either or to check
the set temperature, and set the
temperature properly.
The door is not closed comp l etely. Close the door pr
operly.
The door gasket does not seal
properly.
Check the door gasket. Clean or change
gasket if necessary.
14
PROBLEM POSSIBLE CAUSE SOLUTION
The light does not
work.
Not plugged in. Plug the cooler in.
The circuit breaker tripped
or a blown fuse.
Check the breaker a nd/or fuses.
The light button is “OFF”.
Press to turn the light ON.
Vibrations.
The cooler is not leveled. Check to assu r e that the cooler is level.
The bottles are vibrating.
Make sure the bottles don
’
t touch each
others.
There is an object under the
cooler.
Remove the o bject under the cooler.
The cooler seems to
make too muc
h
noise.
The cooler is not level. Level the cooler.
Normal noise from t he flow
of the ref rigerant
The rattling noise may come from the flow
of the ref rigerant, which is nor m al. As each
cycle ends, you may hear gurgli ng sounds
caused by the flow of re frigerant in your
cooler. Contraction and expansion of the
inside walls may cause popping and
crackling noises.
The door will not
close properly.
The cooler is not level. Level the cooler.
The door was reversed and
not properly inst al
led.
Re-install the door properly.
The gasket is d i r ty. Clean the door gasket.
The shelves are out of
position.
Place the shelves properly.
Moisture build up on
interior or
exterior of the
Beverage cooler.
This is norm al during high
humidity periods.
Lower the room humidity.
This is norm al in high
temperature environment.
Move the cooler to a cooler place, and a vo i d
heat and su nligh t.
Prolonged or frequent door
openings.
Open the door less often.
The door does not seal
compl
etely.
Check door gaskets for proper seal.
Error Code:
E1-E2-E3-E4-E7-E8
A sensor has failed. Contact the customer service
