SAFETY PRECAUTION
Before using the appliance, please read the manual carefully. To
reduce the risk of fire, electrical shock, or injury when using the
appliance, follow these basic precautions, including:
DANGER:
Read all instructions before using the ice-making machine.
Plug into a grounded 3-prong outlet, do not remove grounding prong, do not
use an adapter, and do not use an extension cord.
It is recommended that a separate circuit, serving only your appliance be
provided. Use an outlet that cannot be turned off by a switch.
Never clean appliance parts with flammable fluids, as the fumes can create a
fire hazard or cause an explosion. Also, do not store or use gasoline or other
flammable vapors and liquids near this or any other appliance, as their fumes
can also pose a fire risk or lead to an explosion.
Before proceeding with cleaning and maintenance operations, make sure the
power line of the unit is disconnected.
Do not connect or disconnect the electric plug when your hands are wet.
Unplug the appliance or disconnect power before cleaning or servicing.
Failure to do so can result in electrical shock or death.
Do not attempt to repair or replace any part of your appliance unless it is
specifically recommended in this material. All other servicing should be
referred to a qualified technician.
To prevent a child from being entrapped, Keep out of reach of children and
not in the vicinity of ice-making machine.
Before you throw away your old ice-making machine, take off the door but
leave the shelves in place so that children may not easily climb inside.
Never allow children to operate, play with, or crawl inside the appliance.
Warning：
This machine should be operated only by professionals or trained personnel,
and it must be reliably connected to the ground to ensure safety.
- 2 -
Use the power consistent with the one in the nameplate, and the bias voltage
is less than ± 10% of the rated voltage. The professionals must do the wiring;
If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard.;
Before maintaining the machine, make sure you have cut off the power;
Don’t wet or sprinkle the liquid onto the plugs, motors, or other electrical parts
to avoid electric shock;
This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
FLAMMABLE REFRIGERANT
For your safety observe the following recommendations.
This appliance contains a small quantity of R290 ice-making machine which is
environmentally friendly, but flammable. It does not damage the ozone layer,
nor does it increase the greenhouse effect.
During transportation and installation, ensure that the tubing of the refrigerant
circuit is not damaged.
when handling, moving and use of the refrigerator or freezer to avoid either
damaging the refrigerant tubing or increasing the risk of a leak.
Avoid using or manipulating sharp objects near by the appliances.
Leaking refrigerant can ignite and may damage the eyes.
In the event any damage does occur, avoid exposure to open fires and any
device which creates a spark. Disconnect the appliance from the mains
power.
Thoroughly ventilate the room in which the appliance is located for several
minutes.
Notify Customer Service for necessary action and advice.
The ice-making machine quantity contained in this appliance is listed above in
grams; it is also noted on the Rating Plate of the appliance.
- 3 -
WARNING: During using, service and disposal the
appliance, please pay attention to symbol similar as
left side, which is located on rear of appliance (rear
panel or compressor) and with yellow or orange color.
It’s risk of fire warning symbol. There are flammable
materials in refrigerant pipes and compressor. Please be far away fire
source during using, service and disposal.
Note:
Please keep the water or other conductive liquids away from the machine;
Don’t stick clubs into the machine;
During the movement of the machine, it should be carefully carried at an
angle of less than 45 degrees.
Prohibit water discharge pipe or water supply pipe from being bent so that the
pipes are damaged and water leaks out from the pipes.
The distance between the air outlets and the wall should be over 30 cm.
Besides, keep good ventilation and ensure the machine is dry and clean.
QUICK USAGE INSTRUCTIONS
Installation Requirements:
1. The surface of the machine is covered with a metal protective film, which must
be removed before use.
2. To extend the service life of the ice maker, it must be placed upright for at least 6
hours before being powered on.
3. The ice maker's host should be placed directly above the ice storage bin,
ensuring that the left, right, and back sides of the ice maker host are aligned with
the ice storage bin.
4. Pay attention to personal safety when placing the main unit of the ice maker.
The main unit should not tilt more than 15 degrees and must be at least 30 cm
away from obstacles.

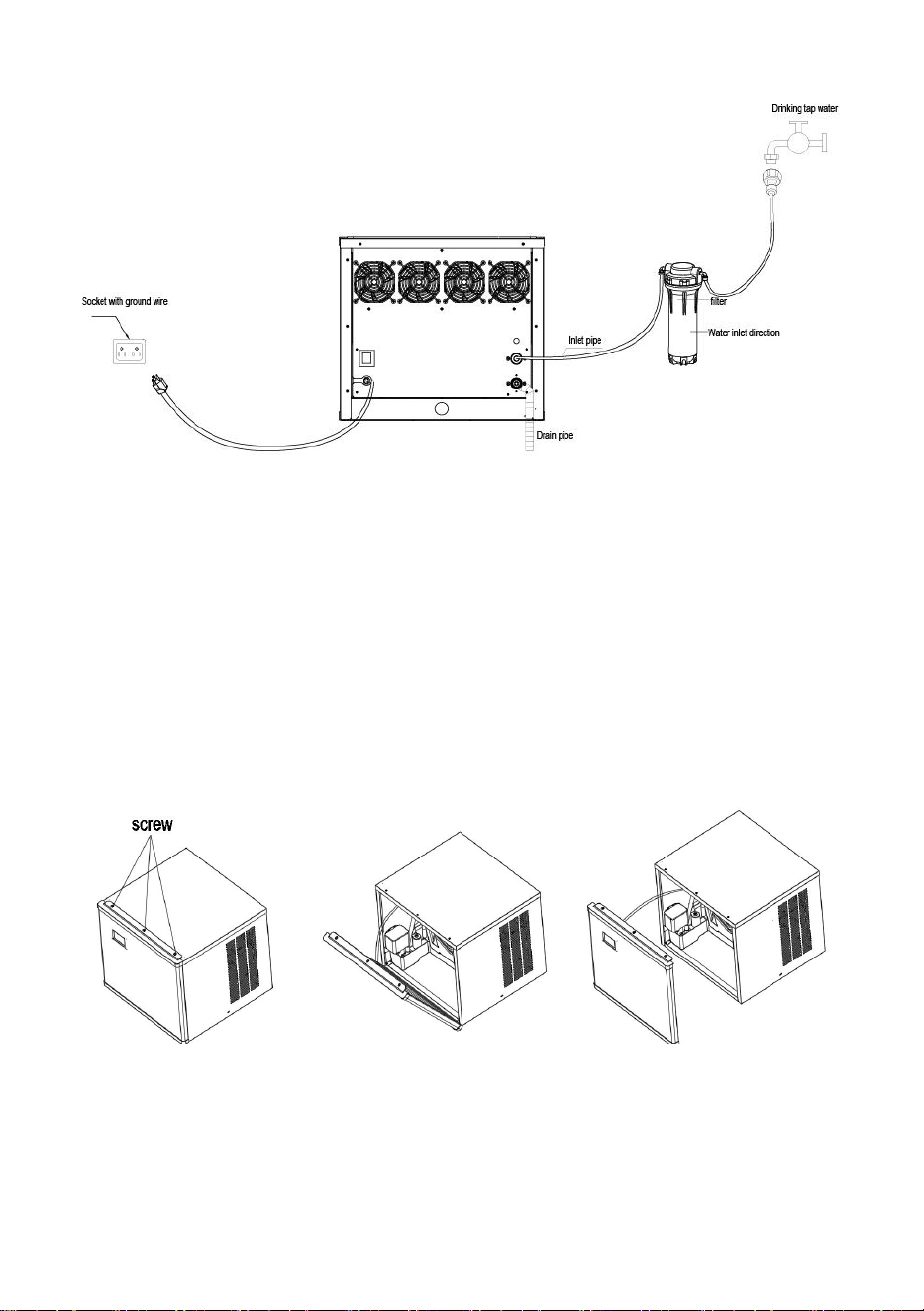

5. Please install the water inlet and outlet pipes of the ice maker host according to
the installation diagram located on the back of the host.
- 4 -
6.The ambient temperature for this product should not exceed 38°C, and the inlet
water temperature should not exceed 32°C.
7.If an E04 alarm occurs, please check the ambient temperature and water
temperature promptly and make corresponding adjustments.
8.Before use, the protective tape must be removed. The specific steps are as
follows:
Step 1: Loosen the screws.
Step 2: Remove the tape.
- 5 -
CLEANING REQUIREMENTS:
1.Due to significant differences in water quality among different regions, it is
recommended to connect the inlet to prevent impurities from depositing and
blocking pipelines and water pumps.
2.Adding a water purification device to the water pipe may cause impurities to
deposit and block the water path, which is not a product quality issue. Please
clean the machine regularly.
3.It is recommended to clean the main water system (sink, water pump, water pipe)
every 10-14 days.
4.Before manual cleaning mode, add the prepared cleaning agent (such as citric
acid descaling agent) to the water tank. Clean for about 40 minutes.
1.Due to significant differences in water quality among different regions, it is
recommended to connect the inlet to prevent impurities from depositing and
blocking pipelines and water pumps.
2.Adding a water purification device to the water pipe may cause impurities to
deposit and block the water path. This is not a product quality issue. Please
clean the machine regularly.
3.It is recommended to clean the main water system (sink, water pump, water pipe)
every 10-14 days.
4.Before initiating manual cleaning mode, add the prepared cleaning agent (such
as a citric acid descaling agent) to the water tank. Then, clean for about 40
minutes.
Function Description:

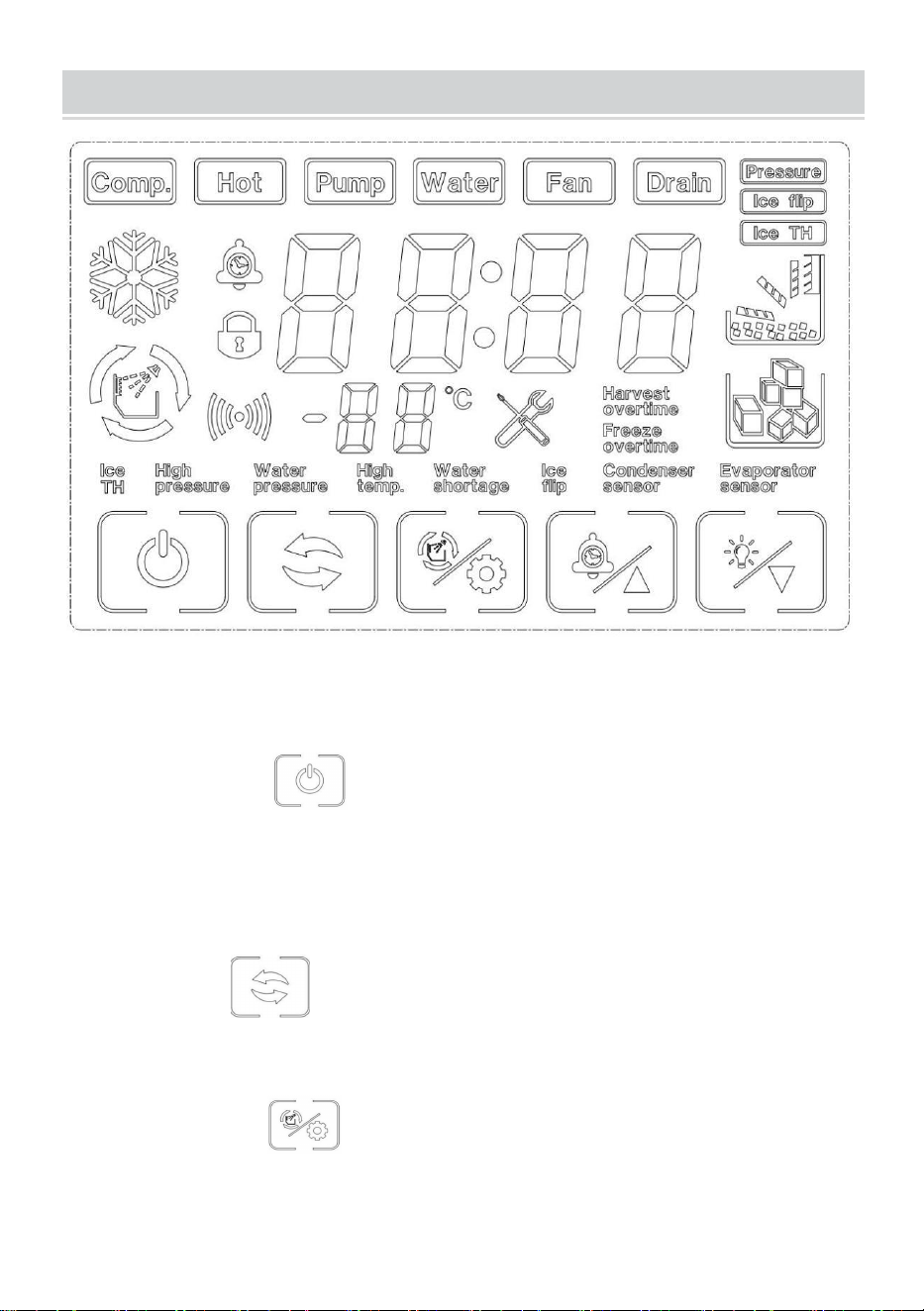

1.Ice Thickness Setting Function: Press the 'Reservation/ Addition' button twice in
the startup state to enter the ice thickness adjustment mode. At this time, you
can adjust the ice thickness according to the actual ice thickness by pressing the
'Reservation/ Addition' and 'Lighting/ Reduction' buttons. It is recommended that
the ice thickness setting is not less than zero.
2.Cleaning Function: Press the 'Switch' button to turn the display OFF, then press
the 'Clean/Set' button to enter the cleaning mode. The cleaning time in this
mode is about 40 minutes.
- 6 -
SAVE THESE INSTRUCTIONS

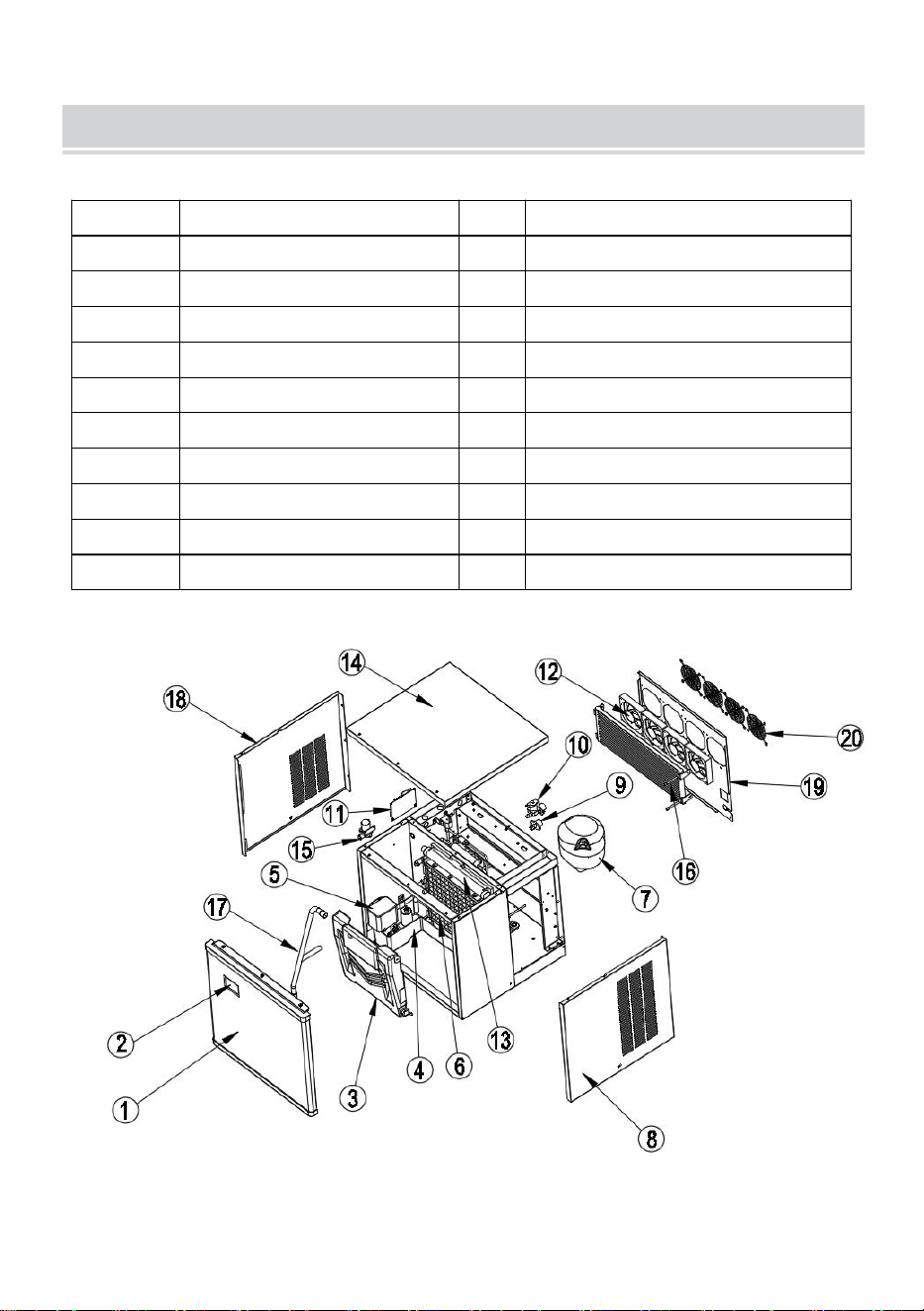

BASIC STRUCTURE
Split type

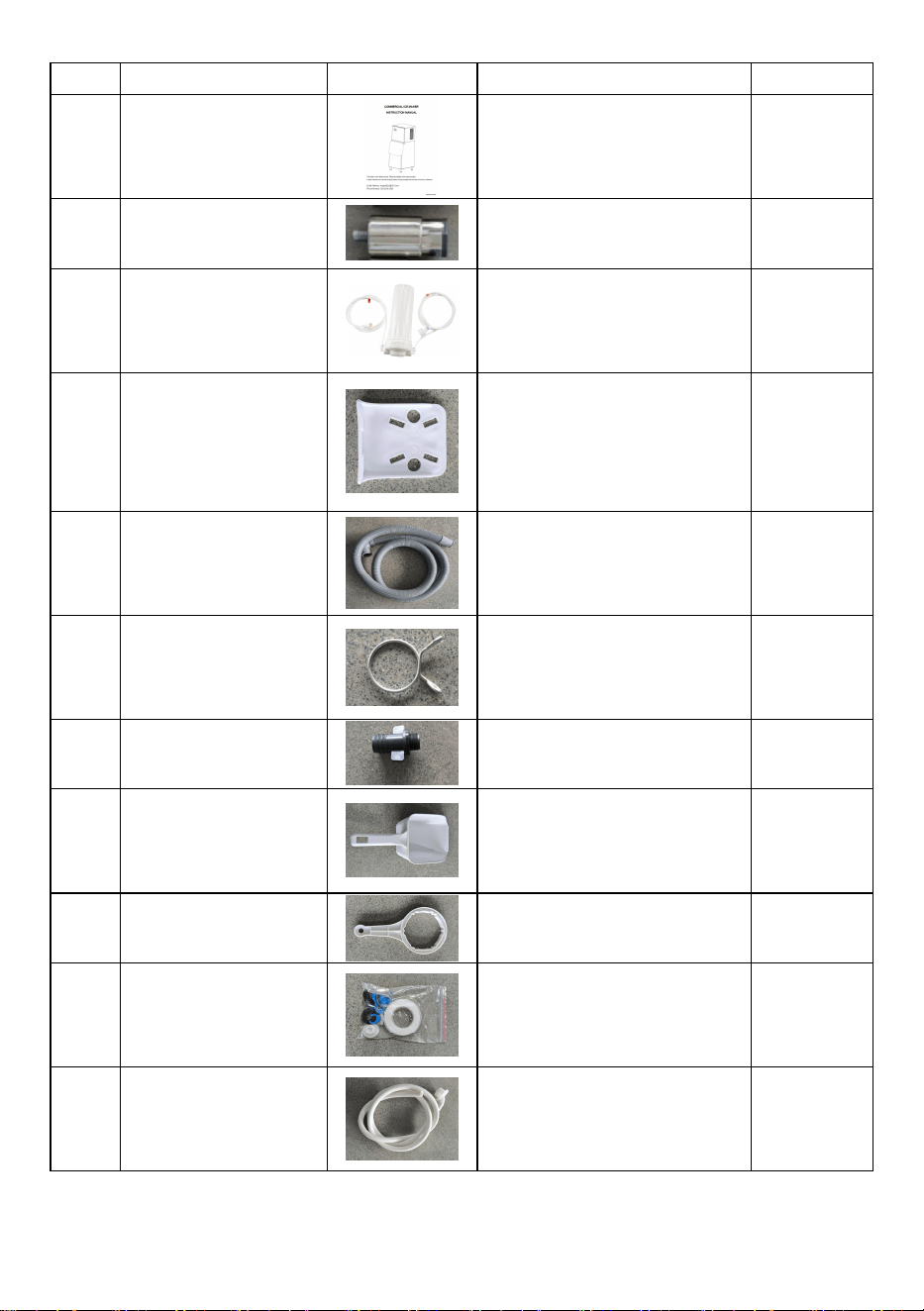

No.
Name
No.
Name
1
Front panel
11
electric control panel
2
Control panel
12
Fan motor
3
Evaporator cover
13
spray pipe
4
Water storage tank
14
Top panel
5
Water pump
15
drain valve
6
Evaporator
16
condenser
7
Compressor
17
water pump outlet pipe
8
Right panel
18
Left panel
9
outfall
19
back shroud
10
water supply valve
20
fan guard
- 7 -
No.
Name
Purpose
Quantity
1
Manual
Machine operating
instructions
1PCS
2
Adjustable feet
Assemble before using
4PCS
3
Assembled filter
Filter water
1SET
4
Mounted panel
Fix the filter
1PCS
5
Drain hose of ice
bin
Drain
1PCS
6
Hoop
Fix drain hose
1PCS
7
Drain hose
connector
Connect the drain hose
and ice bin
1PCS
8
Ice spoon
Take ice
1PCS
9
Wrench
Loose the filter
1PCS
10
Accessory kit
If needed
1PCS
11
Water intake
hose
Intake water
1PCS
- 8 -
INSTALLATION
1.Open the case, move the machine to a appropriate location. Check the packing
list and the contents, if they are different, please inquire your dealer.

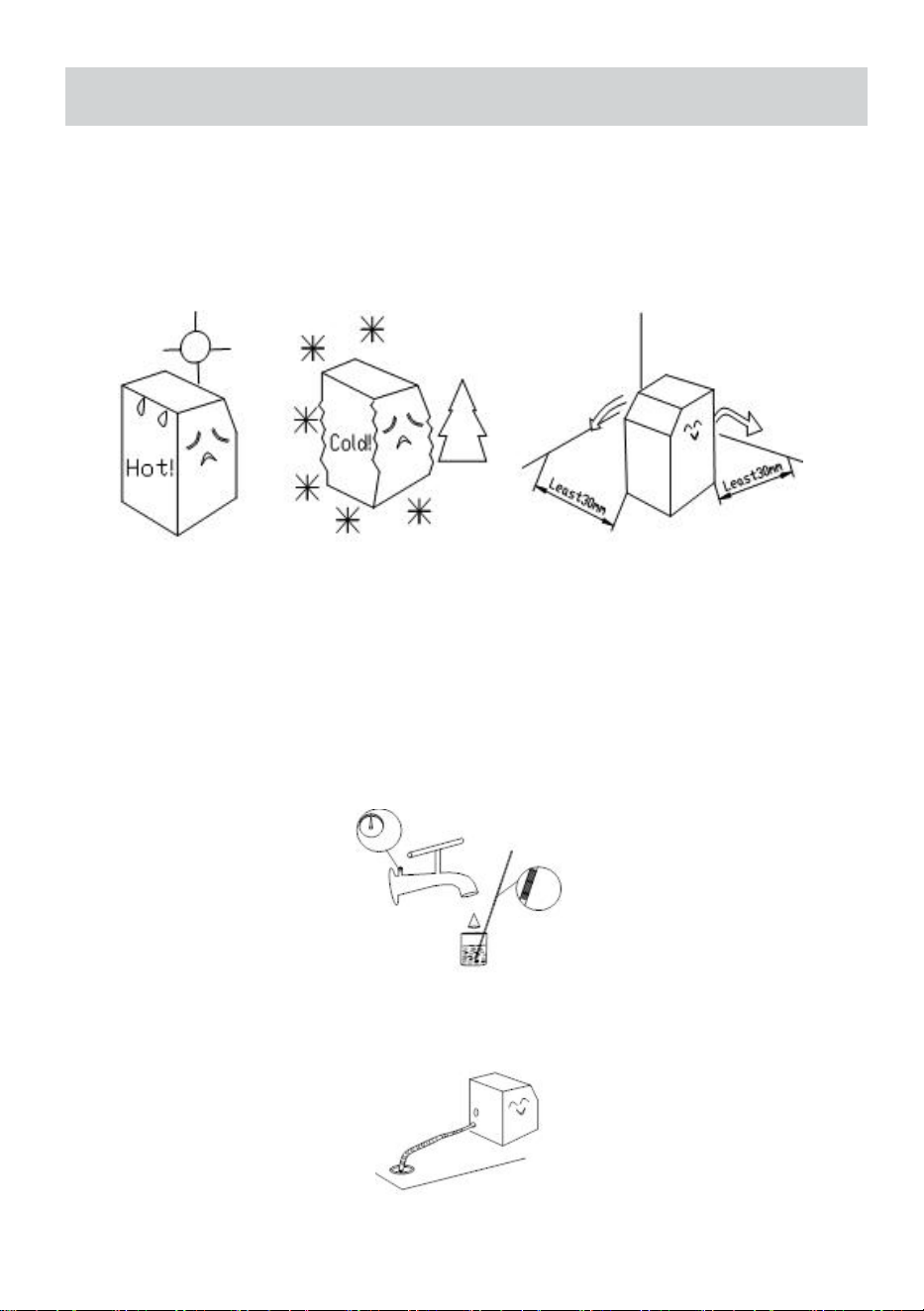

2. Operating environment
A.Environment temperature:SN/N:10
℃
~38
℃
Environment humidity: relative humidity ≤90%
The distance between the air outlets and the wall should be over 30 cm.
Besides, keep good ventilation and ensure the machine is dry and clean. The
position to place the ice maker must be far away from the heat source, such as
a bake oven, electric cooker, etc.
B.Water source is suitable for the sanitary standards, the water temperature
and pressure is suitable. For getting the biggest efficiency, the inlet water
temperature value should be 0.6~32℃, and the pressure should be
0.138～0.552MPa.
C.There should be a sewer. While working, some of the water will be
discharged, so the sewer is necessary. Furthermore, the sewer must be
kept unblocked.
- 9 -
POWER SUPPLY
1.Select the proper power supply according to the voltage and power on the
nameplate.
2.Connect the power wire and supply, ensuring the yellow and green wires were
connected with the ground wire firmly.
Caution:
a.For safety, ensure the ground connection is in good condition.
b.All the exterior wires and other appliances must confirm with
national standard.
3.If the voltage fluctuation range is extensive (± 10% over the rated voltage), it will
cause many faults, such as the machine can’t be started, the electronic control
board is damaged, or the compressor being damaged. Therefore, you must use
a suitable automatic voltage regulator.
4. Connect the water supply pipe. Remove the water supply pipe from the
accessory bag and connect its two ends to the water supply valve and the water
faucet. First, attach connector 1 to the water faucet. Then, join one end of the
water supply pipe, which has steel balls, to connector 1 (ensure the end of the
water supply pipe is attached before releasing it from connector 1). Next,
connect the other end, which has a screw attachment, to the water supply valve.
The valve also has a screw at its end; tighten the valve clockwise. After
completing the installation, check the connections for leaks. You should connect
the water pipes according to the diagram on the rear panel. The flow rate of
condensate water is adjustable based on the customer's needs. (Note:
Condensate flow is related to the speed of ice production.
Warning
：
The water used to make edible ice block must be
drinking water, furthermore, water’s temperature must be
among 0.6~32℃ and the pressure among 0.138~0.552Mpa.
- 10 -
5. Connect the water discharge pipe
The water discharge pipe is situated at the back of the machine, extended
pipe’s end to the sewer.
Attention
：
In order to keep the water discharged smoothly,
discharge pipe’s lowest point must be above the highest point of
the sewer, so to prevent the discharge water to flow back.
6. Keep the main body in level situation
Please keep the main body level to ensure the ice maker
usually works. First, screw down the two adjustable legs into
the machine’s nuts. You can adjust the two legs properly if
the main body is not level.
SERVICE INSTRUCTION
1. Operation Process
First, turn on the water faucet, power, and water supply valve. Fill the sink with
water, then turn off the faucet when the sink is filled with an appropriate amount
of water.
2.Ice-Making Process
After several minutes, the water pump starts working, and the water is pumped
and flows through the ice mold evenly. Eventually, ice forms in the mold. When
the ice thickness sensor detects the regulated thickness of ice, the ice begins to
drop.
3.Ice-Drop Process
The water pump stops working, the water supply valve opens, and water flows
into the sink. The heating valve is turned on, leading refrigerant gas into the ice
mold. The ice root melts, and after about 2 minutes, the ice block drops into the
ice cabinet. The falling ice block hits the retaining board (which triggers an
inductive switch fixed on the right side of the retaining board). At this point, one
cycle is complete, and a new ice-making cycle will start.
- 11 -
4.Auto-Stop
When the ice cabinet is filled with ice blocks, any additional falling ice blocks will
be trapped between the retaining board and the evaporator. The retaining board
will continue to open and cannot return to its original position. After several
seconds, the ice maker will automatically stop working. Once the ice block
trapped between the retaining board and evaporator is removed, the retaining
board will return to its original position, and the ice maker will restart to make
more ice.
5.Running Check
A. During the ice-making process, a sudden interruption of the water supply can
prevent the sink from being filled with the appropriate amount of water. The ice
maker will enter a standby mode and not produce ice as usual. Once the water
supply is restored and the machine is restarted, it can resume normal operation.
B. The fan motor for the condenser is temperature-controlled. When the
condenser's surface temperature is low, the fan motor will stop to save power.
When the surface temperature rises, the fan motor will work again, so the fan
motor operates intermittently during the ice-making process.
C. When operating the commercial ice maker in a low ambient temperature, the
ice-drop process may be delayed. If this happens three times consecutively, the
machine will stop automatically, and the red light in the electrical box will
alternately flicker with the other four lights. After restarting the machine, it will
return to normal operation. Therefore, we suggest not using the machine in low
ambient temperatures.
- 12 -
LCD FULL PAGE DISPLAY
7. Buttons on display board
Boot / shutdown:
press 3 seconds to turn off the machine under turn on status
press on/off button to turn on the machine under turn off status press the on/off
button to exit setting under ice thickness setting and filling water adjust status
Mode button:
Switch the ice making program
Clean / Set Button:
Press to clean status under machine turn off status
- 13 -
+/reservation button:
press to ice thickness adjust under pressure equilibrium,making ice,unload
ice,ice full status.
click to increase 1, long press the button to increase continuously under ice
thickness adjust status.
click to reservation time setting status under turn off status.
-/light button:
click to decrease 1,long press the button to decrease continuously under ice
thickness adjust status
Instruction: when the machine is in the “lack-water protection” condition, it can
restart automatically after the sink is filled with appropriate water. If other faults
cause the machine to stop, press the start button or supply power again after
forty-five minutes, and the machine will start again.
- 14 -

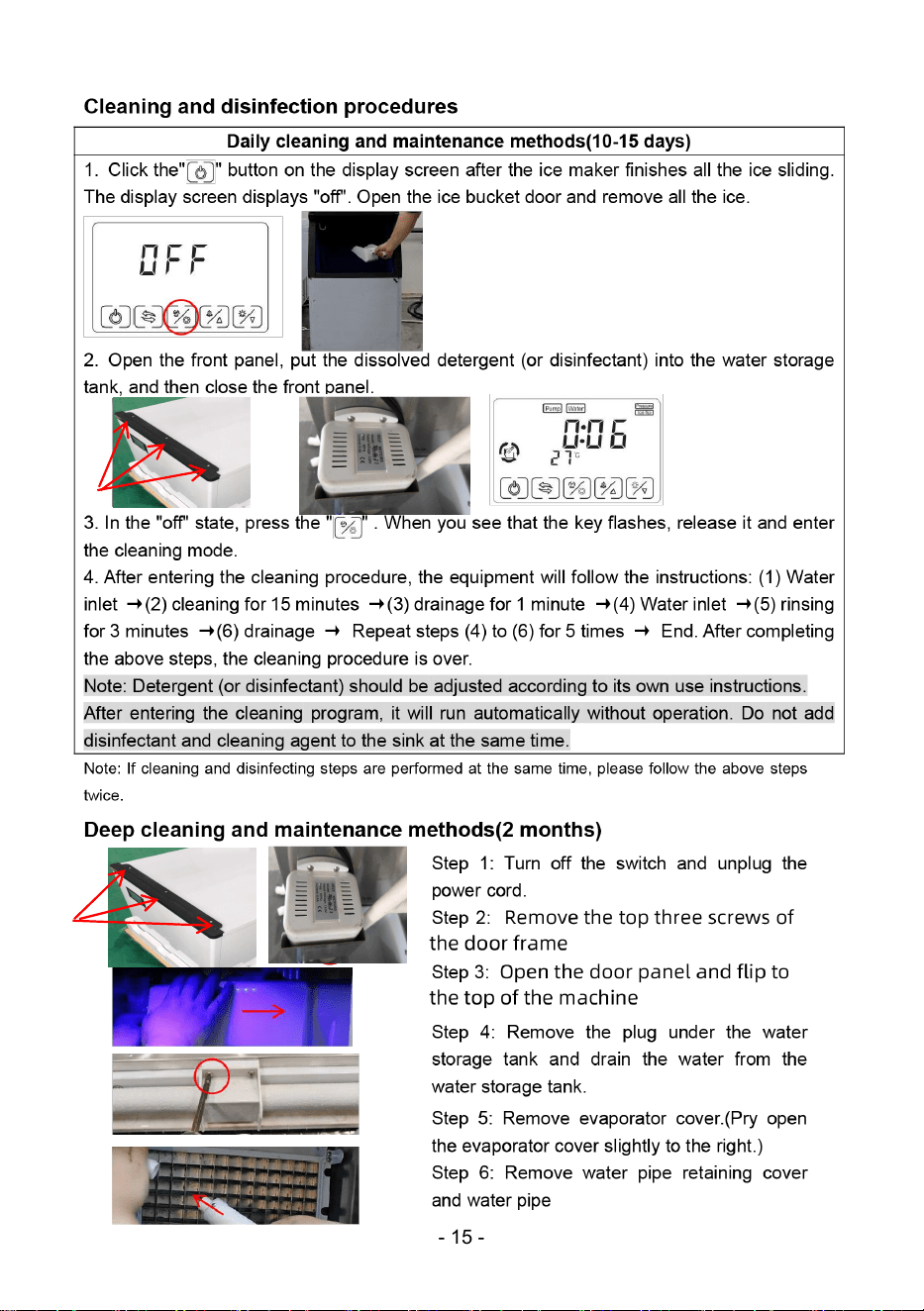

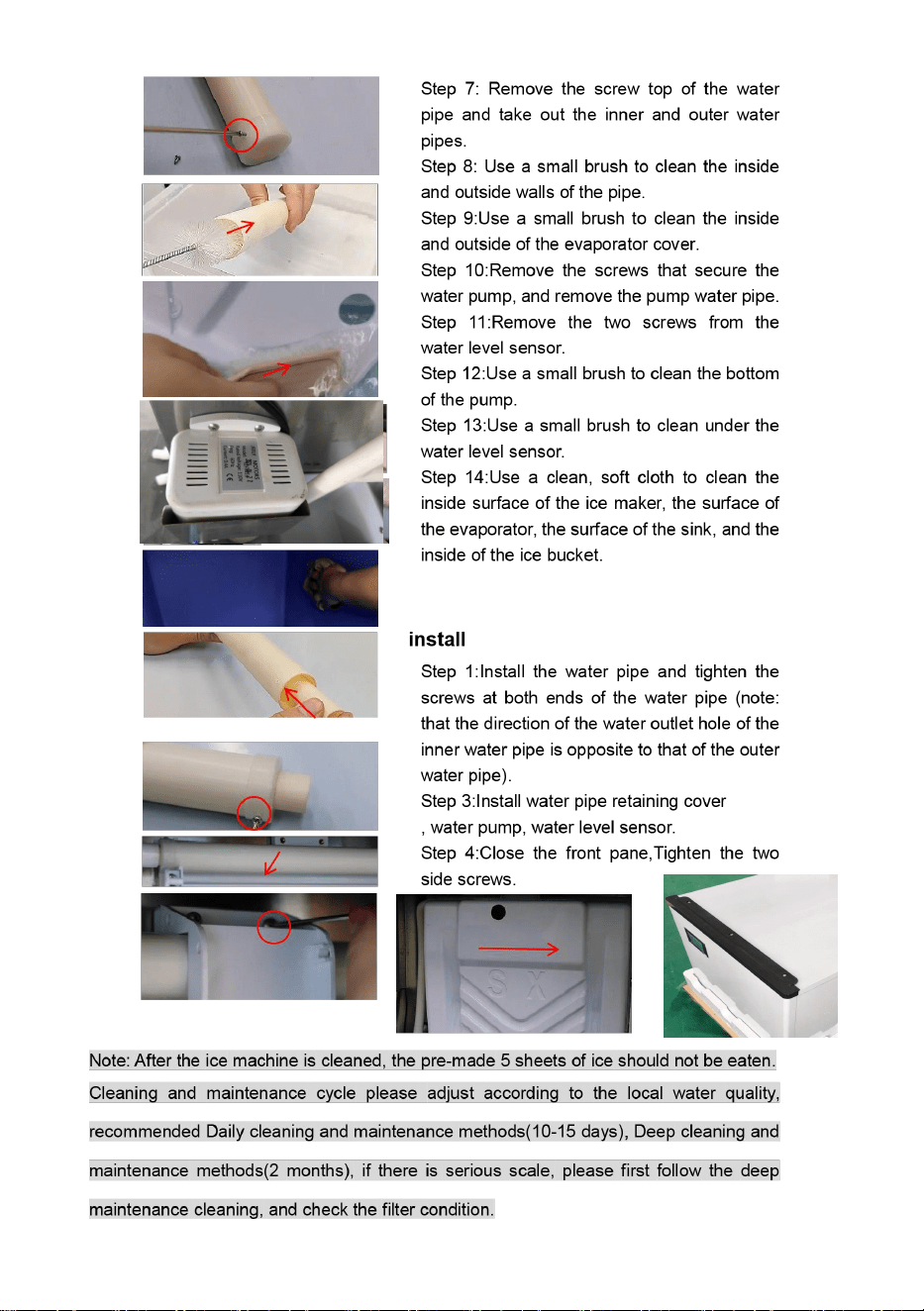

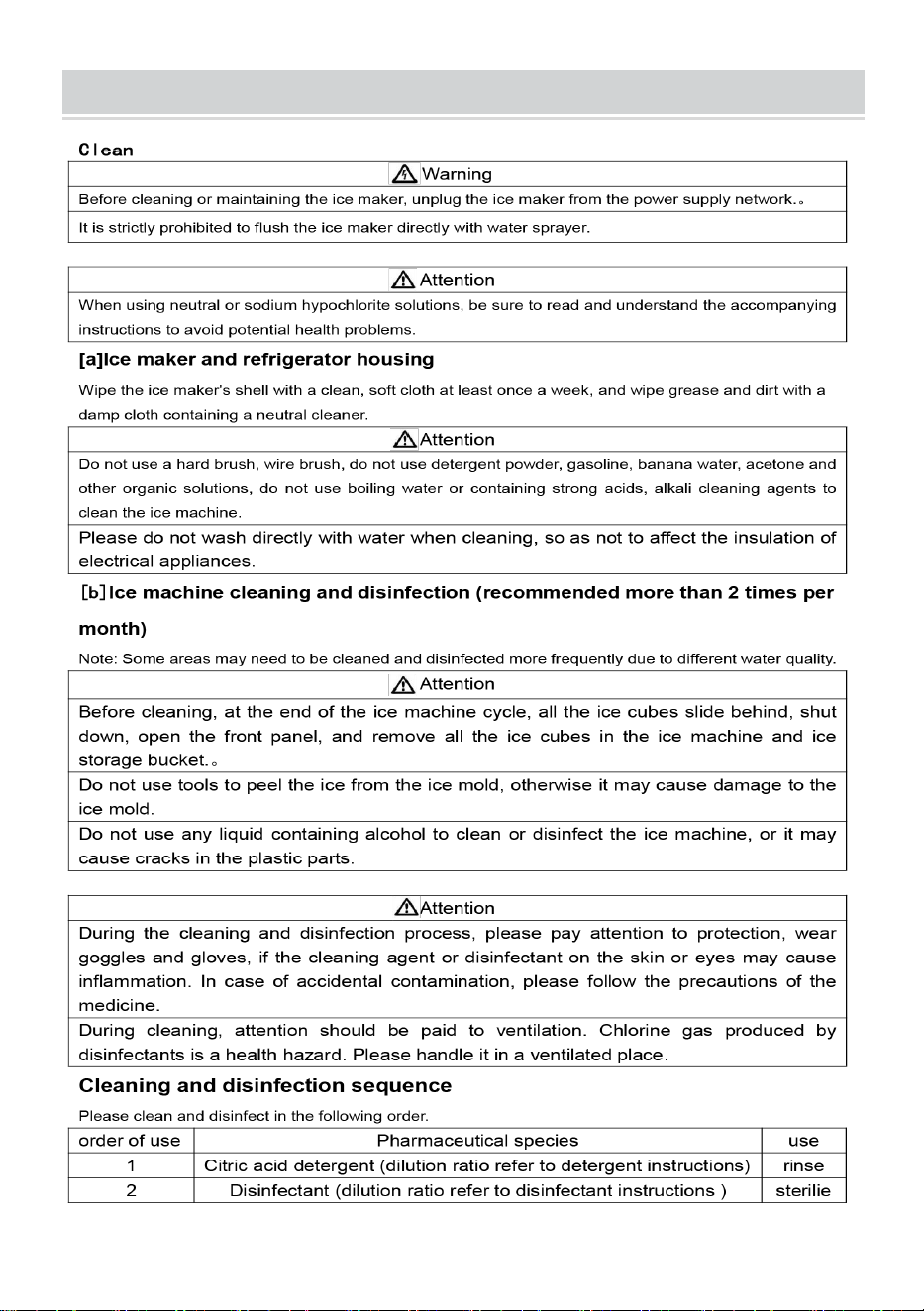

DAILY CLEANING AND MAINTENANCE
- 15 -
- 16 -
- 17 -
TROUBLE SHOOTING
LED
Panel
LCD
Panel
Possible Cause
Solution
E01
1. De-icing plate is
missing or misplaced,
2. The polarity of the
magnetic induction
element is reversed;
3. Abnormal ice full
switch;
1. Reset the ice removal plate;
2. Replace the ice removal
plate/full ice sensor;
3. Contact after-sales service
/visual trouble guidance/confirm
the fault point;
E03
1. The ice cube setting
is too thin;
2. The water tank is
insufficient,
3. The ambient
temperature is too low;
4. De-icing solenoid
valve failure;
1. Check and set the water
thickness parameters
(Recommended gears 0-2)
2. Check the water inlet system,
or if the water sufficient;
3.Use membrane materials to
block the ventilation inlet area
proportionally;
4.Check if the ice is stuck;
5.Check if the machine is
placed horizontally;
6.Contact after-sales/video
guidance/confirm the point of
failure;
E04
1. The ambient
temperature is too high;
2. The cooling effect of
the condensing system
is poor;
3. The cooling fan is
damaged;
1. Improve environmental
ventilation or displacement,or
turn on air conditioning,
2. Clean the condenser;
3.The distance between the
machine and the obstruction
should be at least 30cm;
4. Check if the fan is working ;
- 18 -
5. Contact after-sales /confirm
the point of failure;
E05
1. No water supply;
2. The water supply
pressure is too low,
3. Water tank leaks;
4. The water level
sensor fails;
5. Malfunction of the
inlet valve;
1. Check the water source or
whether the water filter is
blocked;
2. Check the water supply
pressure or whether the water
filter is blocked;
3. Check whether the bottle cap
at the bottom of the water tank
is tightened and sealed;
4. Check for scale on the water
level switch ;
5.Contact after-sales/video
guidance/confirm the point of
failure ;
E06
1. The condenser
temperature is too high,
2. The refrigeration
system is blocked;
3. Pressure switch
failure;
4. The main control
board is abnormal;,
1. Improve environmental
ventilation or displacement,or
tum on air conditioning;
2. Check the condensation heat
dissipation system;
3. Contact after-sales/video
guidance/confirm the point of
failure;
E11
1. The ring temperature
is too high;
2. Poor dissipation
effect of the condensing
system;
3. Leakage of
refrigeration system;
1.Check if the water pump is
started and running
2.Clean the condenser;
3.The distance between the
machine and the obstruction
should be at least 30cm;
4. Contact after-sales/video
guidance/confirm the point of
failure ;
- 19 -
TECHNICAL PARAMETER AND WIRING DIAGRAM
A. Technology parameters are on the nameplate.
B. The electrical schematic diagram is on the inner side of the board .
AFTER SALE SERVICE
1.If your product breaks down or has any problems after purchase, please contact
us, you can always contact our customer service by email at
support221@163.com.
2.Regarding any product problems or issues you encounter, our customer service
will guide you through the entire service process. We reserves the right to
re-inspect damaged or returned products.
3.If you have any warranty questions, please contact us at
