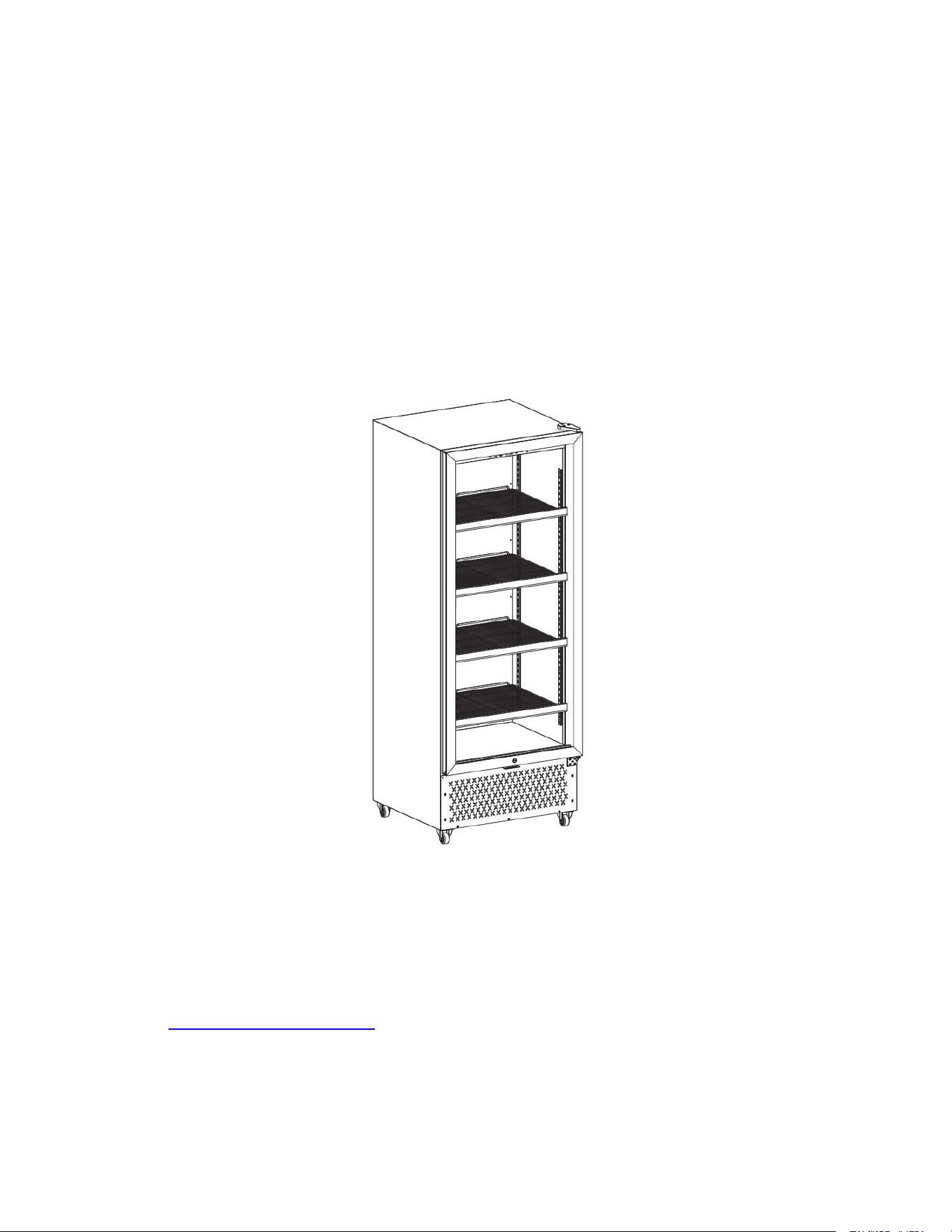

INSTRUCTION MANUAL
BEVERAGE COOLER
MODEL:TYBC600
E-mail: [email protected]
Thanks for choosing our products, hope that our products can bring you different feelings.
Please read the following safety and operating instructions carefully before using the Beverage cooler.
TABLE OF CONTENTS
IMPORTANT SAFETY INSTRUCTIONS
3
PRODUCT DIAGRAM
6
INSTALLATION INSTRUCTIONS
7
Before Using Your Beverage Cooler
7
To Install Your Beverage Cooler
7
Electrical Connection
8
OPERATION INSTRUCTIONS
9
Controls
9
Storage
9
Door Lock
10
Shelves
10
CARE & MAINTENANCE
11
Cleaning Your Beverage Cooler
11
Power Failure
11
Vacation Time
11
Moving Your Beverage Cooler
12
Energy Saving Tips
12
TROUBLESHOOTING GUIDE
13-14
3
IMPORTANT SAFETY INSTRUCTIONS
Your safety and the safety of others are very important.
This Beverage cooler complies with the applicable safety requirements and is safe for daily use.
However, basic safety precautions should always be followed when using an electrical appliance, to
reduce the risk of fire, electric shock, and personal injury.
Plug into its own individual electrical outlet with a voltage rating that matches the rating label on
the cooler (115/120V AC only, 60Hz, 10A). Use receptacles that cannot be turned off by a
switch or pull chain. Be sure that the plug is fully inserted into the receptacle.
Plug into a grounded 3-prong outlet. Do not under any circumstances cut or remove the third
ground prong from the power cord supplied.
To protect against electric shock, do not immerse the Beverage cooler, plug or cord in water or
other liquids.
Never unplug the cooler by pulling the power cord. To disconnect the Beverage cooler, always
grip the plug firmly and pull straight out from the wall outlet.
Repair or replace immediately all power cords that have become frayed or otherwise damaged.
Do not use a cord that shows cracks or abrasion damage along its length or at either end.
Do not connect or disconnect the electric plug when your hands are wet. Do not operate the
cooler with wet hands, while standing on a wet surface or while standing in water.
Unplug the Beverage cooler or disconnect power before cleaning or servicing. Failure to do so
can result in electrical shock or death.
When moving the Beverage cooler, be careful not to roll over or damage the power cord.
Never clean Beverage cooler parts with flammable fluids. These fumes can create a fire hazard
or explosion. And do not store or use gasoline or other flammable vapor and liquids in the
vicinity of this or any other appliance. The fumes can create a fire hazard or explosion.
Do not attempt to repair or replace any part of your Beverage cooler unless it is specifically
recommended in this manual. All other servicing should be referred to a qualified technician.
An empty Beverage cooler can be dangerous to children. Remove any latches, lids, locks,
and/or doors from unused or discarded Beverage coolers to prevent child entrapment and
suffocation. Never allow children to operate, play with or crawl inside this Beverage cooler.
4

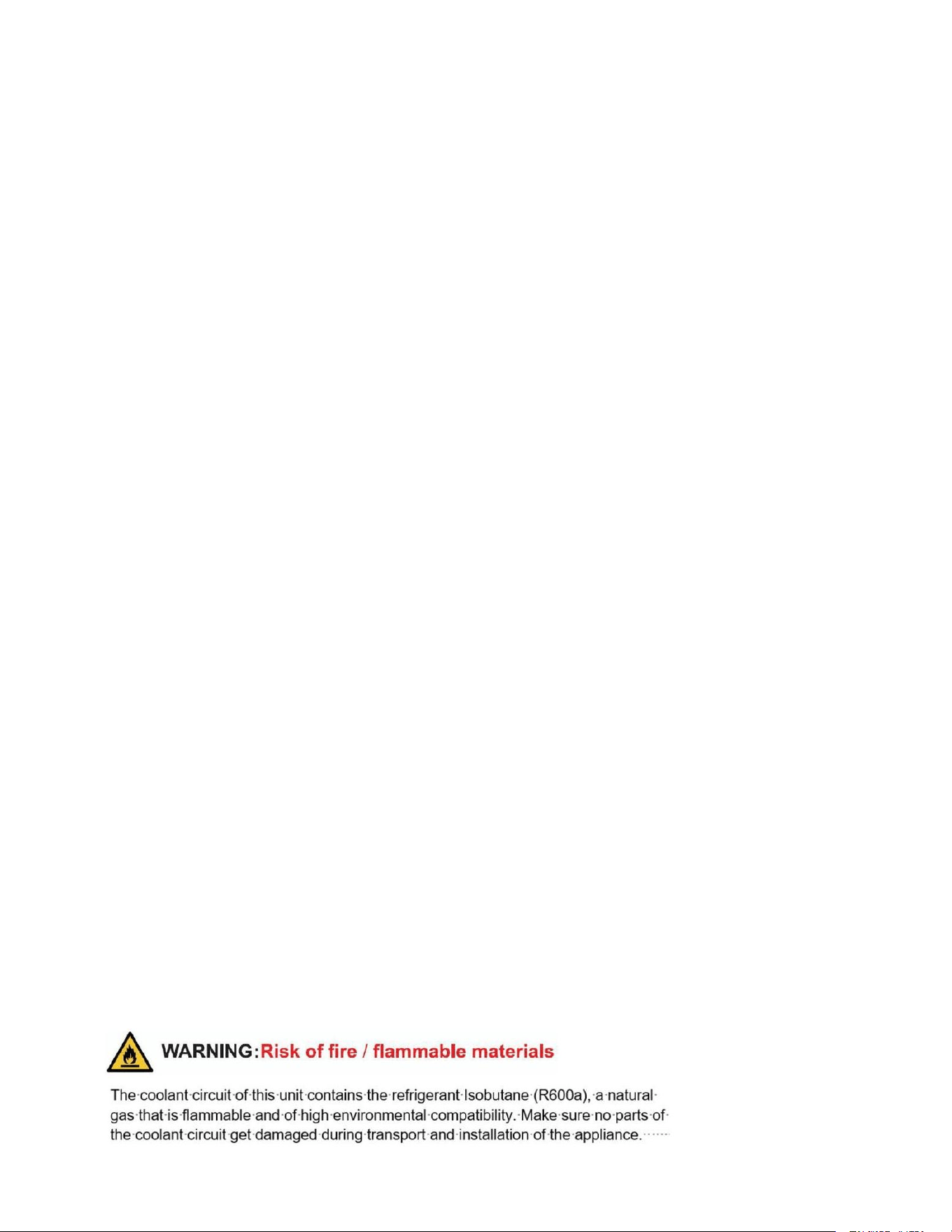

This appliance is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety.
2. Children should be supervised to ensure that they do not play with the appliance.
3. This appliance can be used by children aged from 8 years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and understand the hazards involved. Children
shall not play with the appliance. Cleaning and user maintenance shall not be made by children without
supervision.
4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
5. To avoid a hazard due to instability of the appliance, it must be fixed in accordance with the instructions.
6. When positioning the appliance, ensure the supply cord is not trapped or damaged.
7. Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
8. Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
9. Do not use mechanical devices or other means to accelerate the defrosting process,other than those
recommended by the manufacturer.
10. Do not damage the refrigerant circuit.
11. Do not use electrical appliances inside the drink storage compartments of the appliance, unless they are
of the type recommended by the manufacturer.
12. Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
13. This appliance is intended to be used in household and similar applications such as
– staff kitchen areas in shops, offices and other working environments;
– farm houses and by clients in hotels, motels and other residential type environments;
– bed and breakfast type environments;
– catering and similar non-retail applications.
14. To avoid contamination of drink, please respect the following instructions:
– Opening the door for long periods can cause a significant increase of the temperature in the
compartments of the appliance.
– Clean regularly surfaces that can come in contact with drink and accessible drainage systems.
– Clean water tanks if they have not been used for 48 h, flush the water system connected to a water supply
if water has not been drawn for 5 days.
– If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the
door open to prevent mould developing within the appliance.
5
Do not use this wine cooler for other than its intended purpose. For indoor, household use only.
Move this wine cooler by 2 people. Failure to do so can result in injury.
Place this wine cooler in a well-ventilated area with temperatures above 15°C (60°F) and below
32°C (90°F).
To ensure proper ventilation for your wine cooler, the front of the cooler must be completely
unobstructed.
This wine cooler must be installed in an area away from wind, rain, water spray or drips.
The wine cooler should not be located next to ovens, grills or other sources of high heat.
Do not kink or pinch the power supply cord of wine cooler.
It is important for the wine cooler to be leveled in order to work properly. You may need to make
several adjustments to level it.
This wine cooler is designed for storing and cooling wines. Do not store perishable food or
medical products inside the cooler.
When disposing of refrigeration wine coolers, special handling is often required. It is the
consumer’s responsibility to comply with federal and local regulations when disposing of this
product.
WARNING: Risk of child entrapment and suffocation. Before you throw away this or an old
cooler, remove the door. Leave the shelves in place, so that children may not easily climb
inside.
FLAMMABLE REFRIGERANT GAS
DANGER - Risk of fire or explosion. Flammable refrigerant used.
DO NOT use mechanical devices to defrost refrigerator. DO NOT puncture refrigerant tubing.
DANGER - Risk of fire or explosion. Flammable refrigerant used. To be repaired only by trained service
personnel. DO NOT puncture refrigerant tubing.
CAUTION - Risk of fire or explosion. Flammable refrigerant used. Consult repair manual / owner’s guide
before attempting to service this product. All safety precautions must be followed.
CAUTION - Risk of fire or explosion. Dispose of property in accordance with federal or local regulations.
Flammable refrigerant used.
CAUTION - Risk of fire or explosion due to puncture of refrigerant tubing. Follow handling instructions
carefully. Flammable refrigerant used.
CAUTION - To prevent a child from being entrapped, keep out of reach of children and not in the vicinity of
the cooler.
6

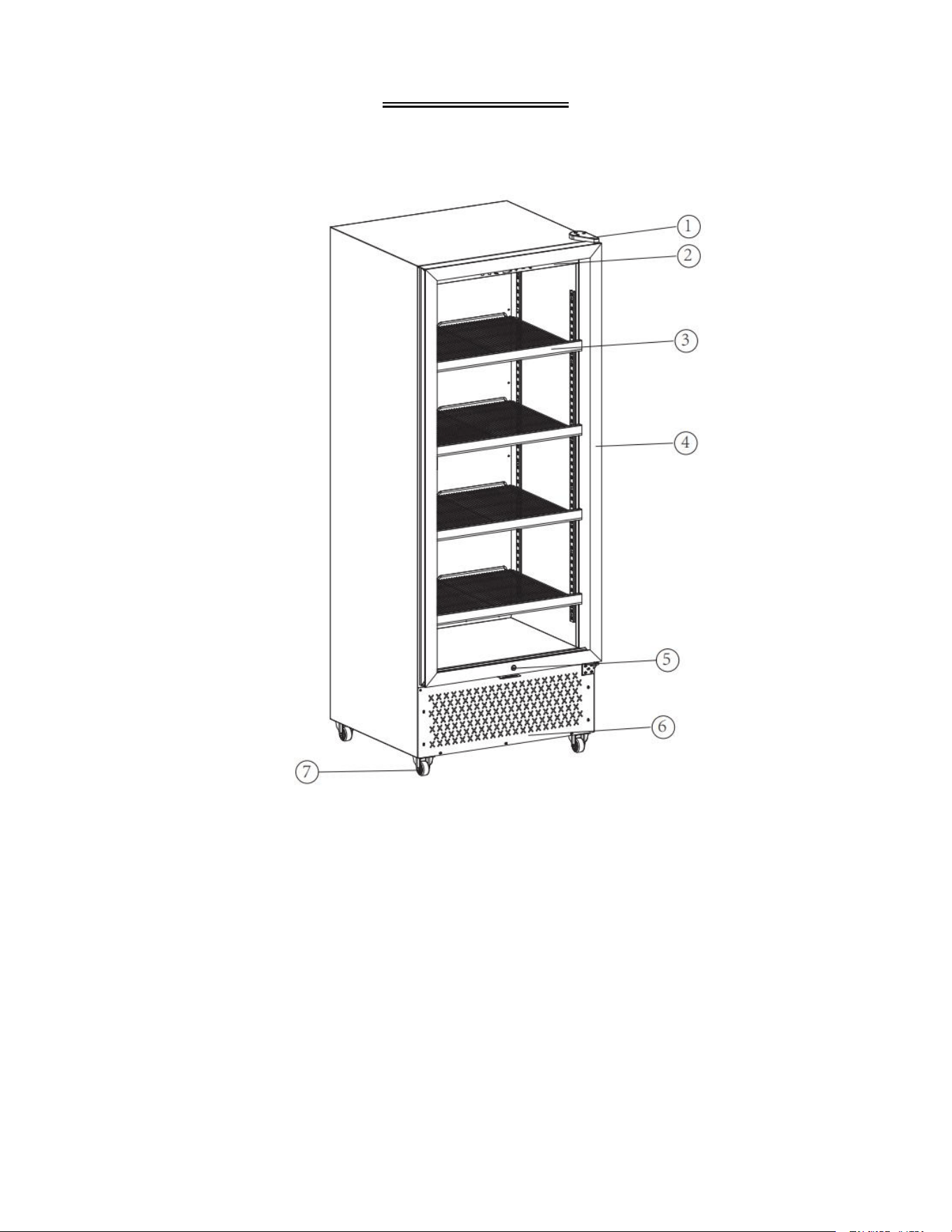

PRODUCT DIAGRAM
1
Top Hinge
4
Door
2
Control Panel
5
Lock
3
Shelves
6
Front Grille
7
Wheel
7
INSTALLATION INSTRUCTIONS
Before Using Your Beverage Cooler
Remove the exterior and interior packaging.
Check to be sure you have all of the following parts:
o Shelves
o 2 Keys
o Instruction Manual
IMPORTANT: Before connecting this Beverage cooler to a power source, let it stand upright for
approximately 24 hours. This will reduce the possibility of a malfunction in the cooling system from
handling during transportation.
Clean the interior surface with lukewarm water using a soft cloth.
Install the handle on the left side of the door.
To Install Your Beverage Cooler
This Beverage cooler is designed for free standing or built-in (fully recessed) installation.
Place your Beverage cooler on a solid and level floor that is strong enough to support it when it is
fully loaded. This will ensure a vibration-free and noise-free operation. Adjust the leveling legs in and
out to stabilize the cooler horizontally. If the legs are not properly adjusted, the cooler may be
unstable and result in excess noise or vibration.
Locate the Beverage cooler away from direct sunlight and sources of heat (stove, heater, radiator,
etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical
consumption. Extremely cold ambient temperatures may also cause the cooler not to perform
properly.
It is not advisable to install this cooler in moist areas or directly adjacent to a kitchen sink, as
moisture could cause premature corrosion to the components of your new cooler.
8
It is recommended you install the Beverage cooler in a place with temperatures above 60°F (15°C)
and below 90°F (32°C), and humidity is under 60%. If the ambient temperature is above or below
recommended temperatures, the performance of the cooler may be affected. Placing your cooler in
extremely cold or hot conditions may cause interior temperatures to fluctuate, and the temperature
range of 3ºC-18ºC (37ºF-65ºF) may not be reached.
Connect the Beverage cooler to an exclusive, properly grounded, standard electrical supply (115 V
AC 60 Hz), in accordance with the National Electrical Code and local codes and ordinances. Any
questions concerning power and/or grounding should be directed toward a certified electrician or an
authorized products service center.
Electrical Connection
Warning: Improper use of the grounded plug can result in the risk of electrical shock. If the power
cord is damaged, have it replaced by an authorized service center.
The Beverage cooler should always be plugged into its own individual electrical outlet which
has a voltage rating that matches the rating label on the Beverage cooler. This provides the
best performance and also prevents overloading house wiring circuits that could cause a fire
hazard from overheated.
Do not under any circumstances cut or remove the third ground prong from the power cord
supplied.
Do not use an extension cord or adapter plug. However, if you must use an extension cord, it is
absolutely necessary that it be a UL-listed, 3-wire grounding type Beverage cooler extension
cord having a grounding type plug and outlet and that the electrical rating of the cord is 10
amperes (minimum) and 120 volts.
Do not use a cord that shows cracks or abrasion damage along its length or at either end.
If the Beverage cooler is going to be used in an area that is prone to power surges/outages, it is
suggested that you use a power surge protector. The surge protector that you select must have
a surge block high enough to protect the Beverage cooler it is connected to. Damages due to
power surges are not considered a manufacturer covered defect and will void your product
warranty.
9
OPERATION INSTRUCTIONS
Controls

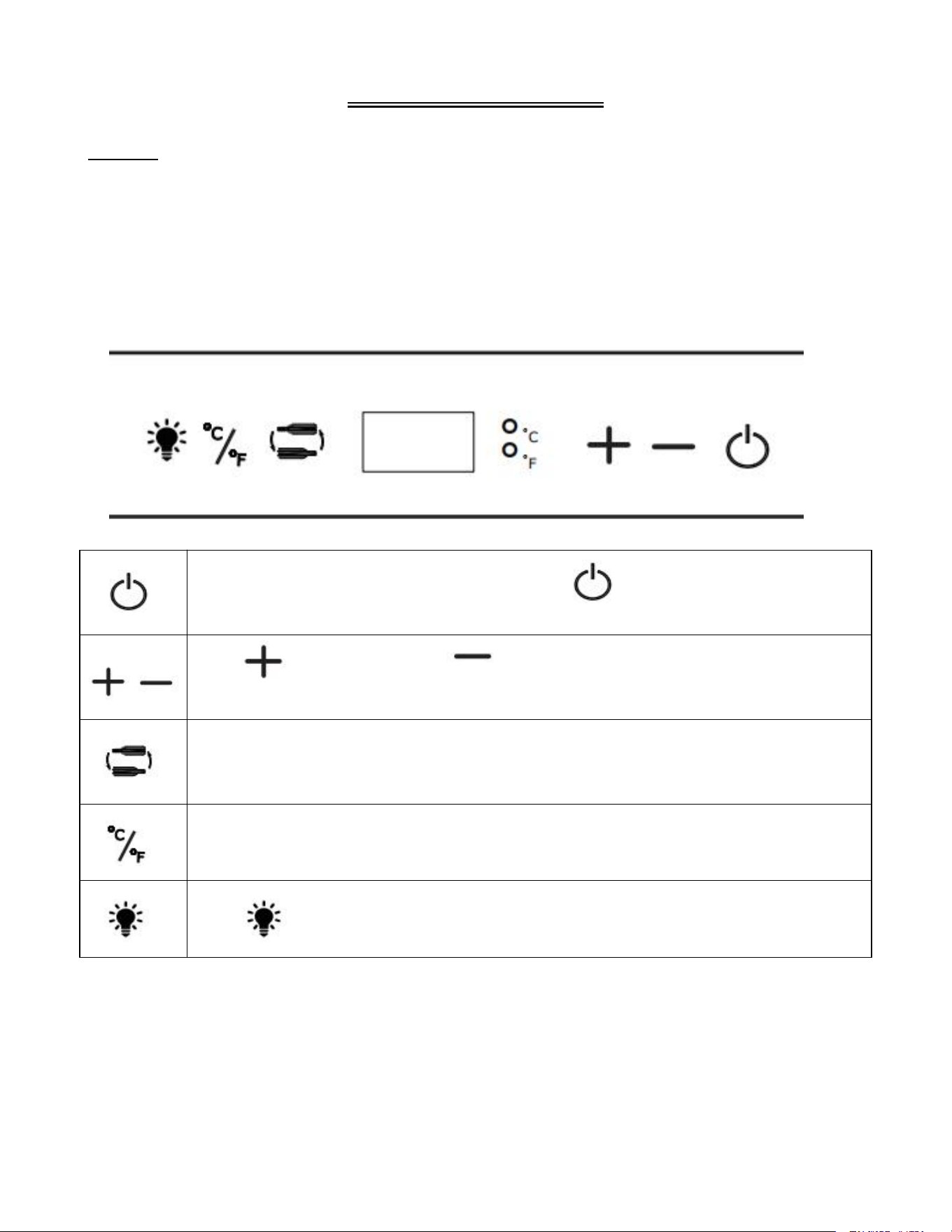

After plugging the Beverage cooler into a wall outlet, the cooler would turn on automatically and the
LCD screen would show the temperature inside of the cooler.
After setting your desired serving temperature, allow the cooler to cool down for 3 to 4 hours before
placing wine bottles in the Beverage cooler.
Press once to turn ON the cooler. Press and hold about 3 seconds to turn OFF the
cooler
Press to increase or press to decrease the temperature in 1 degree
increments between 3°C and 18°C or between 37°F and 65°F
Press this button, when the number flashing, can adjusting the temperature increase or
decrease. The display shows the actual temperature if 5 seconds no operation
Toggles the temperature display between Celsius and Fahrenheit
Press once to turn the interior light ON or OFF
10
Storage
Many cans and bottles may differ in size and dimensions. As such the actual number of bottles you
may be able to store may vary.
Door Lock
If there is a lock on the door, this cooler can be secured with a lock and key. The keys are located
inside the plastic bag that contains the Instruction Manual. Insert the key into the lock and turn it
clockwise to lock the door, making sure the metal pin is engaged completely. To unlock the door, do the
reverse. Remove the key and put it in a secure location.
Shelves

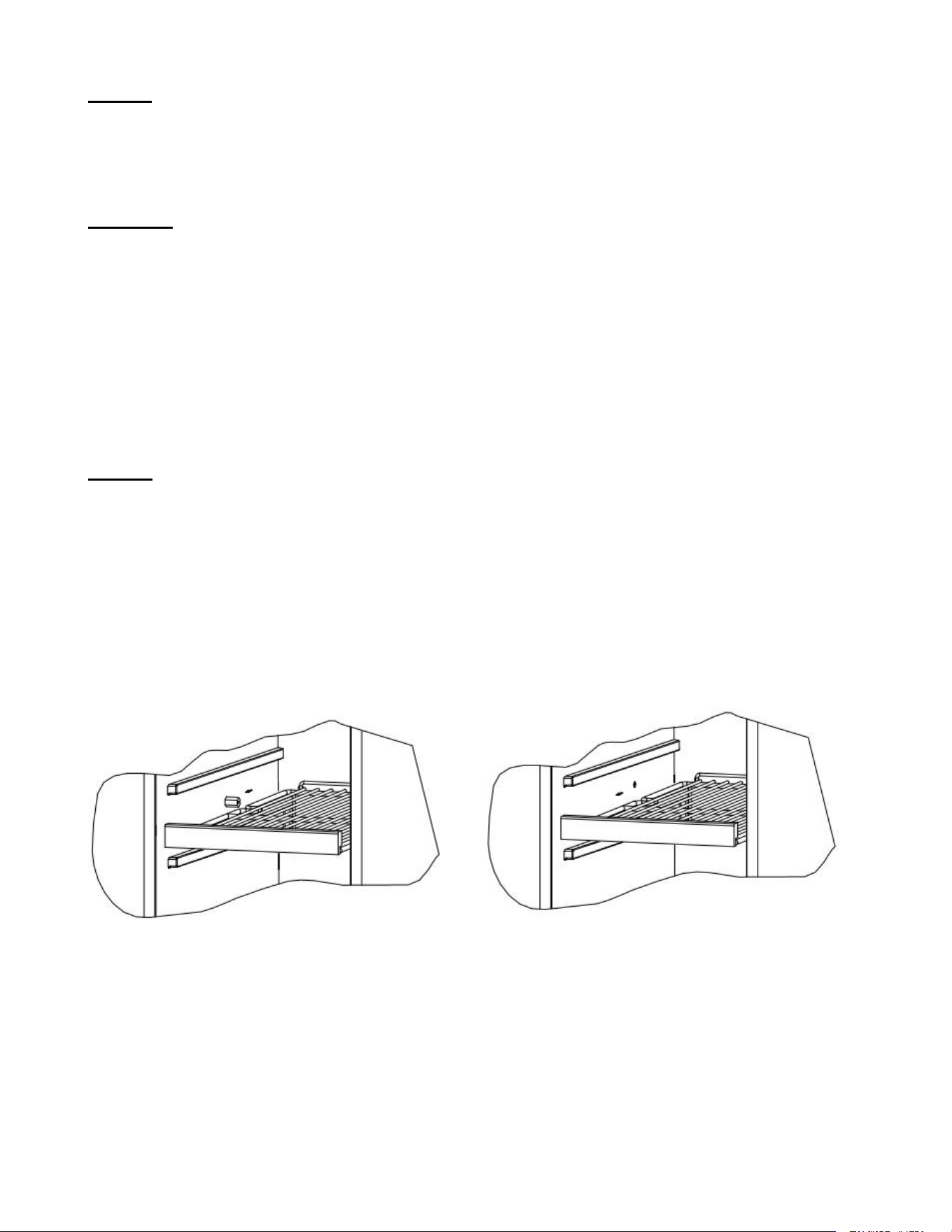

- The appliance is equipped with three wired shelves. You can remove the shelf by lift up and pull it
out smoothly. To prevent damaging the door gasket, make sure to have the door all the way opened
when pulling the bottom shelf out of the rail compartment.
- To remove the shelves from the track, pull each shelf out to the shelf post, as shown in figure A. Lift
it up again, then slowly pull the shelf out, as shown in figure B.
Figure A
Figure B
11
CARE & MAINTENANCE
Cleaning Your Beverage Cooler
IMPORTANT: Always unplug the cooler before cleaning or performing maintenance. Never use harsh
cleansers or scouring pads to clean any part of the cooler.
Turn off the power, unplug the Beverage cooler, and remove all items including shelves.
Wash the inside surfaces with warm water and baking soda solution. The solution should be
about 2 tablespoons of baking soda to a quart of water.
Wash the shelves with a mild detergent solution.
Wring excess water out of the sponge or cloth when cleaning the area near the controls, or any
electrical parts.
Wash the outside cabinet with warm water and a mild liquid detergent. Rinse well and wipe dry
with a clean soft cloth. Do not use steel wool or steel brush to rub the stainless steel, which will
contaminate the stainless steel with steel particles and rusting may occur.
Power Failure
Most power failures are corrected within a few hours and should not affect the temperature of your
Beverage cooler. If the power is off for an extended period of time, proper steps should be taken to
protect your contents.
Vacation Time
Leave the Beverage cooler operating during vacations of less than three weeks. For periods longer
than this, turn the Beverage cooler off and leave the door slightly ajar to prevent odor from building
inside the Beverage cooler.
12
Moving Your Beverage Cooler
Remove all items (bottles) from the cooler;
Securely tape down any loose items, such as shelves, inside the cooler.
Turn the adjustable leg up to the base to avoid damage.
Tape the door shut.
Ensure that the Beverage cooler stays securely in the upright position during transportation. Protect
the outside of the Beverage cooler with a blanket or a similar item.
Energy Saving Tips
- The cooler should be located in the coolest area of the room away from heat sources or direct
sunlight.
- Ensure that the cooler is adequately ventilated. Never cover air vents.
- Only open the cooler door for as long as necessary. Frequent opening of the door will affect internal
temperature.
13
TROUBLESHOOTING GUIDE
PROBLEM
POSSIBLE CAUSE
SOLUTION
The Beverage
cooler does not
run.
The Beverage cooler may not be
plugged in, or plug may be loose.
Ensure the Beverage cooler has been
plugged in properly.
The Beverage cooler is turned off.
Press to turn on the cooler.
House fuse blown or tripped circuit
breaker.
Check/replace fuse. Reset circuit
breaker.
The Beverage
cooler is not cold
enough.
External environment may require a
higher setting.
Set a colder setting. Allow several hours
for the temperature to stabilize.
The Beverage cooler has recently
been disconnected for a period of
time.
It takes 3-4 hours for the Beverage
cooler to cool down completely.
Prolonged or frequent door openings.
Open the door less often.
The door is not closed completely.
Close the door properly.
The door gasket does not seal
properly.
Check the door gasket. Clean or change
gasket if necessary.
The compressor
turns on and off
frequently.
The room temperature is hotter than
normal.
It’s normal for the Beverage cooler to
work harder under these conditions.
A large amount of contents has been
added to the cooler.
A large amount of contents cause the
Beverage cooler to run more until the
desired temperature is reached.
Prolonged or frequent door openings.
Open the door less often.
The temperature has not been set
correctly.
Press either or to check the
set temperature, and set the temperature
properly.
The door is not closed completely.
Close the door properly.
The door gasket does not seal
properly.
Check the door gasket. Clean or change
gasket if necessary.
14
PROBLEM
POSSIBLE CAUSE
SOLUTION
The light does not
work.
Not plugged in.
Plug the cooler in.
The circuit breaker tripped or
a blown fuse.
Check the breaker and/or fuses.
The light button is “OFF”.
Press to turn the light ON.
Vibrations.
The cooler is not leveled.
Check to assure that the cooler is level.
The bottles are vibrating.
Make sure the bottles don’t touch each
others.
There is an object under the
cooler.
Remove the object under the cooler.
The cooler seems to
make too much
noise.
The cooler is not level.
Level the cooler.
Normal noise from the flow of
the refrigerant
The rattling noise may come from the flow of
the refrigerant, which is normal. As each
cycle ends, you may hear gurgling sounds
caused by the flow of refrigerant in your
cooler. Contraction and expansion of the
inside walls may cause popping and
crackling noises.
The door will not
close properly.
The cooler is not level.
Level the cooler.
The door was reversed and
not properly installed.
Re-install the door properly.
The gasket is dirty.
Clean the door gasket.
The shelves are out of
position.
Place the shelves properly.
Moisture build up on
interior or
exterior of the
Beverage cooler.
This is normal during high
humidity periods.
Lower the room humidity.
This is normal in high
temperature environment.
Move the cooler to a cooler place, and avoid
heat and sunlight.
Prolonged or frequent door
openings.
Open the door less often.
The door does not seal
completely.
Check door gaskets for proper seal.
Error Code:
E1-E2-E3
A sensor has failed.
Contact the customer service
