T3-S3 V1.3
User Guide
About This Guide
This document is intended to help users set up the basic software development
environment for developing applications using hardware based on the T3-S3 V1.3.
Through a simple example, this document illustrates how to use Arduino, including the
menu based configuration wizard, compiling the Arduino and firmware download to the
ESP32-S3 module.
Release Notes
Date
Version
Release notes
2025.11
V1.0 First release.
!
1. Introduction
1. Introduction
1.1. T3-S3 V1.3
T3-S3 V1.3 is a development board. It can work independently.
It consists of ESP32-S3 MCU supporting Wi-Fi + BLE communication protocol and
motherboard PCB.
And this product has LoRa function. LoRa chip is SX1262. OLED is 0.96 inch SSD1306
For applications ranging from low-power sensor networks to the most demanding tasks.
ESP32-S3 integrates Wi-Fi (2.4 GHz band) and Bluetooth 5.0 solutions on a single
chip, along with dual high performance cores and many other versatile peripherals.
ESP32-S3 provides a robust, highly integrated platform to meet the continuous
demands for efficient power usage, compact design, security.
Xinyuan provides the basic hardware and software resources that empowers
application developers to build their ideas around the ESP32-S3 series hardware. The
software development framework provided by Xinyuan is intended for rapidly
developing Internet-of-Things (IoT) applications, with Wi-Fi, Bluetooth, flexible power
management and other advanced system features.
The manufacturer is Shenzhen Xin Yuan Electronic Technology Co., Ltd.
1.2. Arduino
A set of cross-platform applications written in Java. The Arduino Software IDE is
derived from the Processing programming language and the integrated development
environment of the Wiring program. Users can develop applications in Windows/Linux/
MacOS based on Arduino. It is recommended to use Windows 10. Windows OS has
been used as an example in this document for illustration purposes.
1.3. Preparation
To develop applications for ESP32-S3 you need:
• PC loaded with either Windows, Linux or Mac operating system
• Toolchain to build the Application for ESP32-S3
• Arduino that essentially contains API for ESP32-S3 and scripts to operate the
Toolchain
• CH9102 serial port driver
• The ESP32-S3 board itself and a USB cable to connect it to the PC
Lilygo
! /121
2025.11
!
2. Get Started
2. Get Started
2.1. Download the Arduino Software
The quickest how to install the Arduino Software (IDE) on Windows machines
2.1.1. Quick Start Guide
The website provides a quick start tutorial
• Windows:
https://www.arduino.cc/en/Guide/Windows
• Linux:
https://www.arduino.cc/en/Guide/Linux
• Mac OS X:
https://www.arduino.cc/en/Guide/MacOSX
2.1.2. Installation steps for Windows platform Arduino
Xinyuan
! /122
2025.11

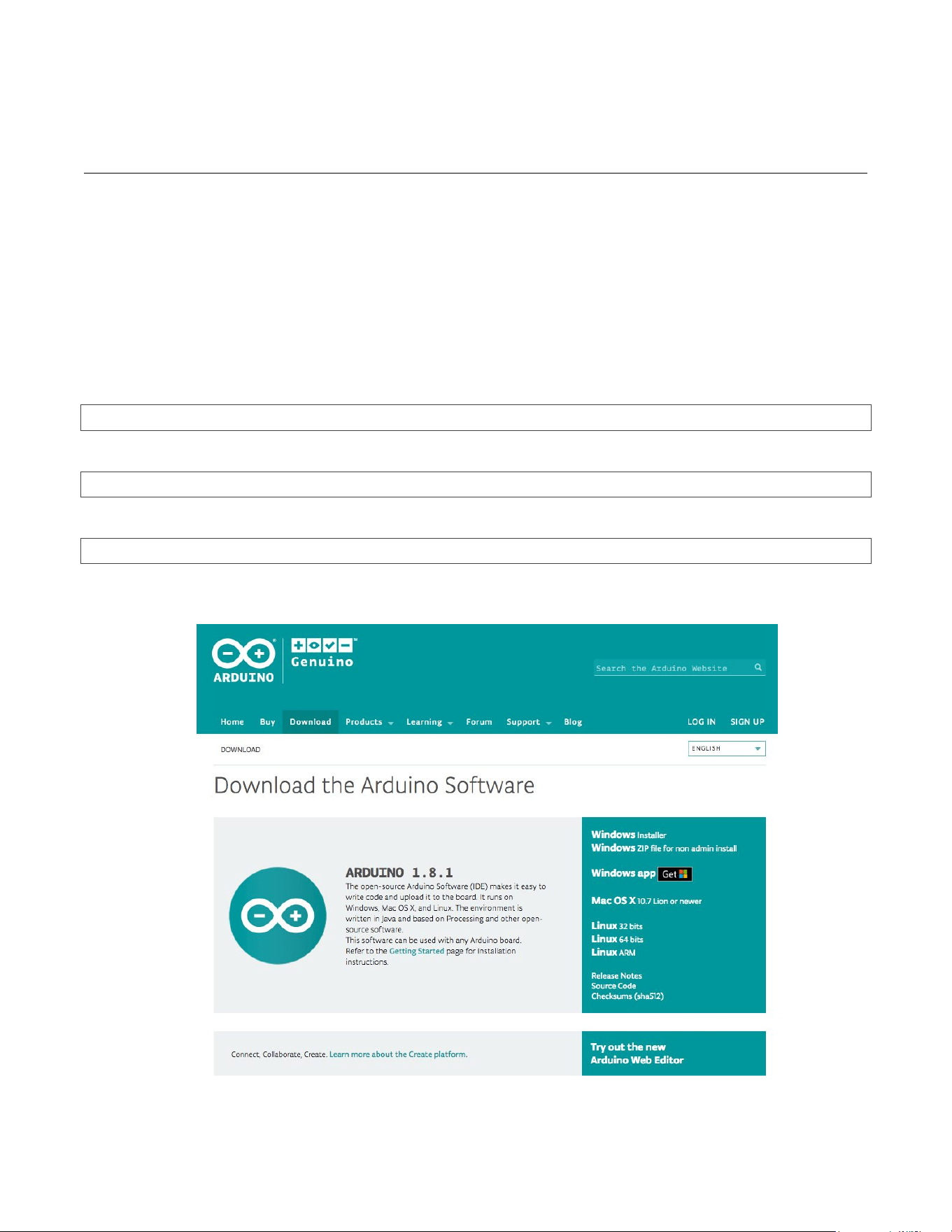

Enter the download interface, select Windows installer to install directly
!
2. Get Started
2.2. Install the Arduino Software
Xinyuan
! /123
2025.11

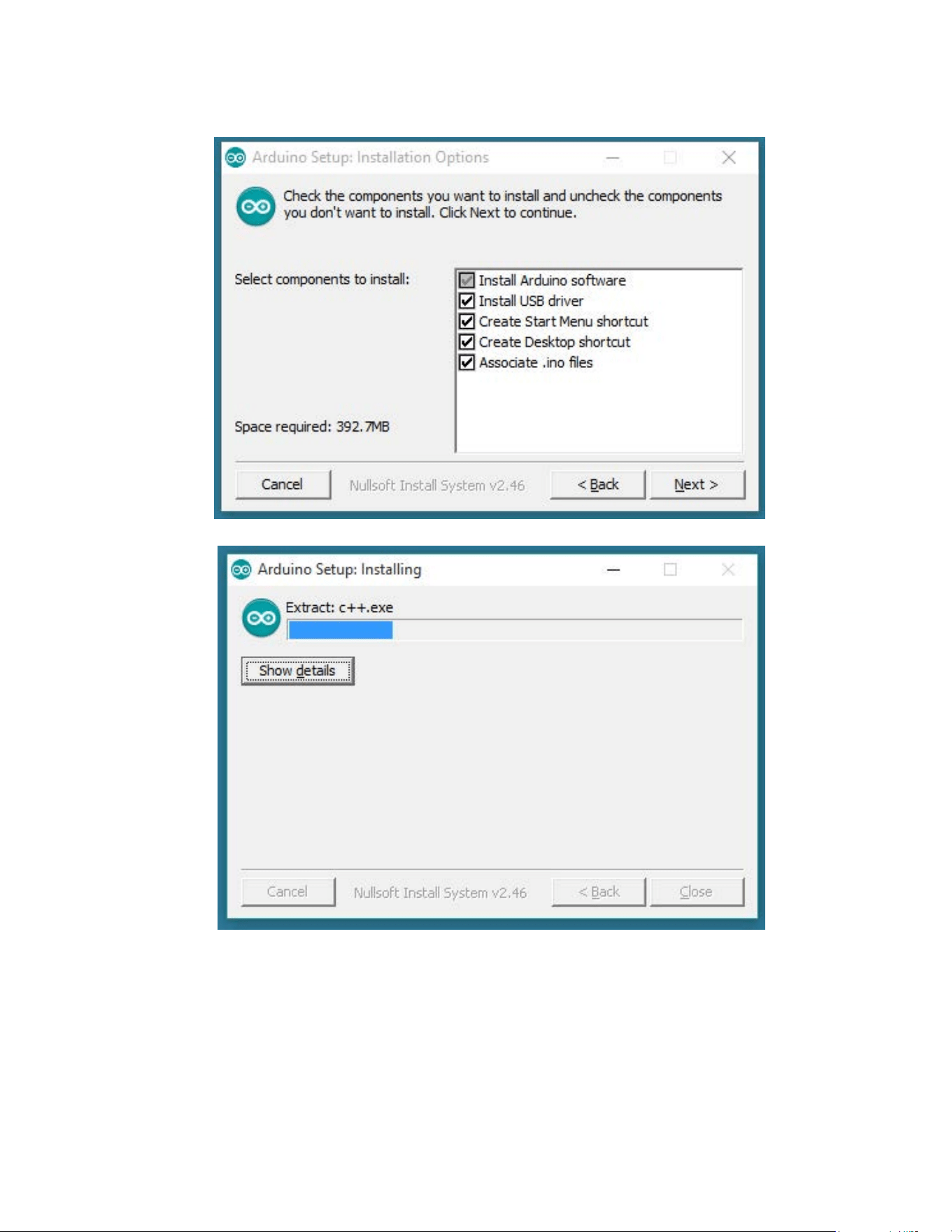

Wait for installation
!
3. Start a Project
3. Configure
Download the installation package Git.exe
Xinyuan
! /124
2025.11

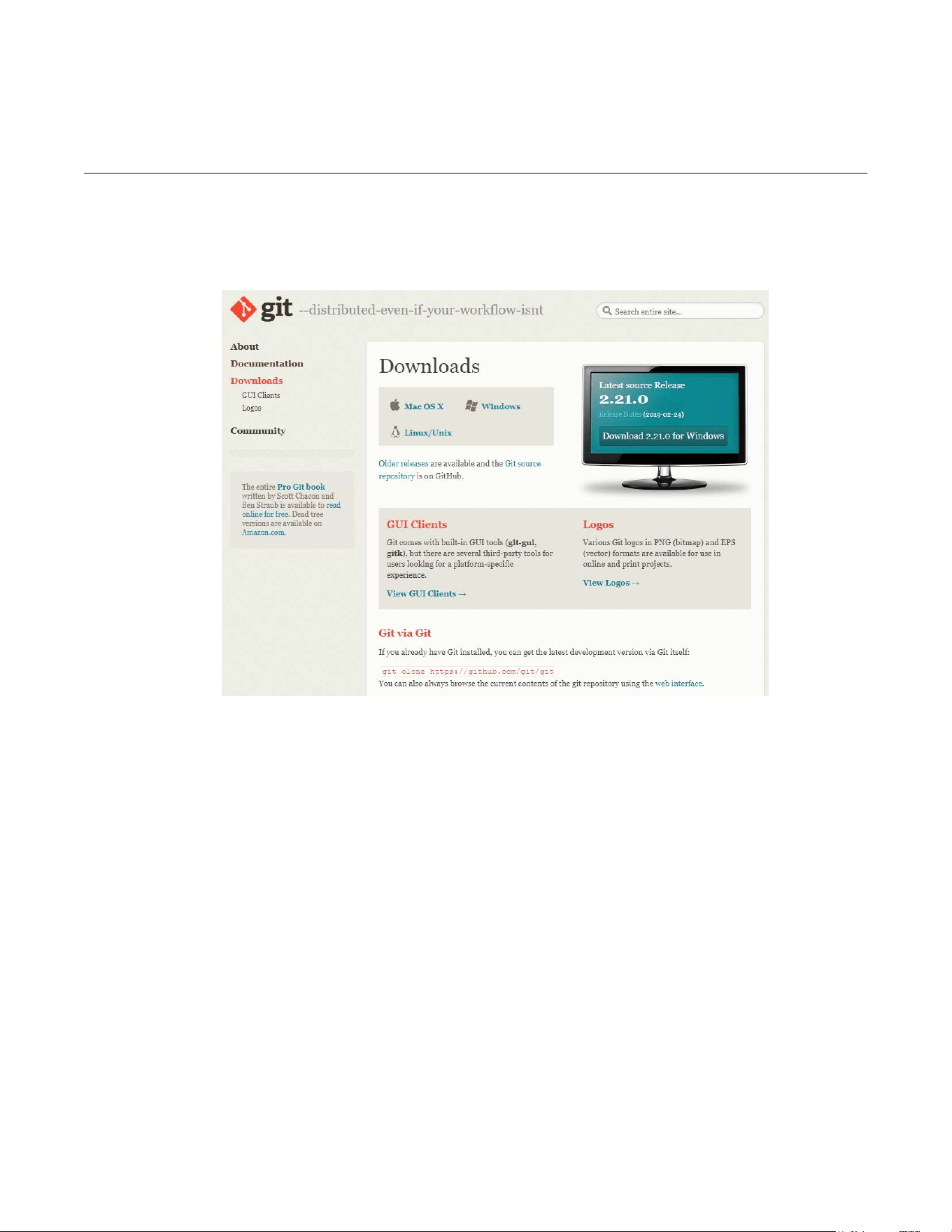

3.1. Download Git
3.2. Pre-build configuration
Click Arduino icon, then right click and select ``Open folder where ``
Select hardware ->
Mouse ** Right click ** ->
Click Git Bash Here
3.3. Cloning a remote repository
$ mkdir espressif
$ cd espressif
$ git clone --recursive https://github.com/espressif/arduino-esp32.git esp32
!
4. Connect
4. Connect
You are almost there. To be able to proceed further, connect ESP32-S3 board to PC,
check under what serial port the board is visible and verify if serial communication
works.
Xinyuan
! /125
2025.11
!
5.
Test Demo

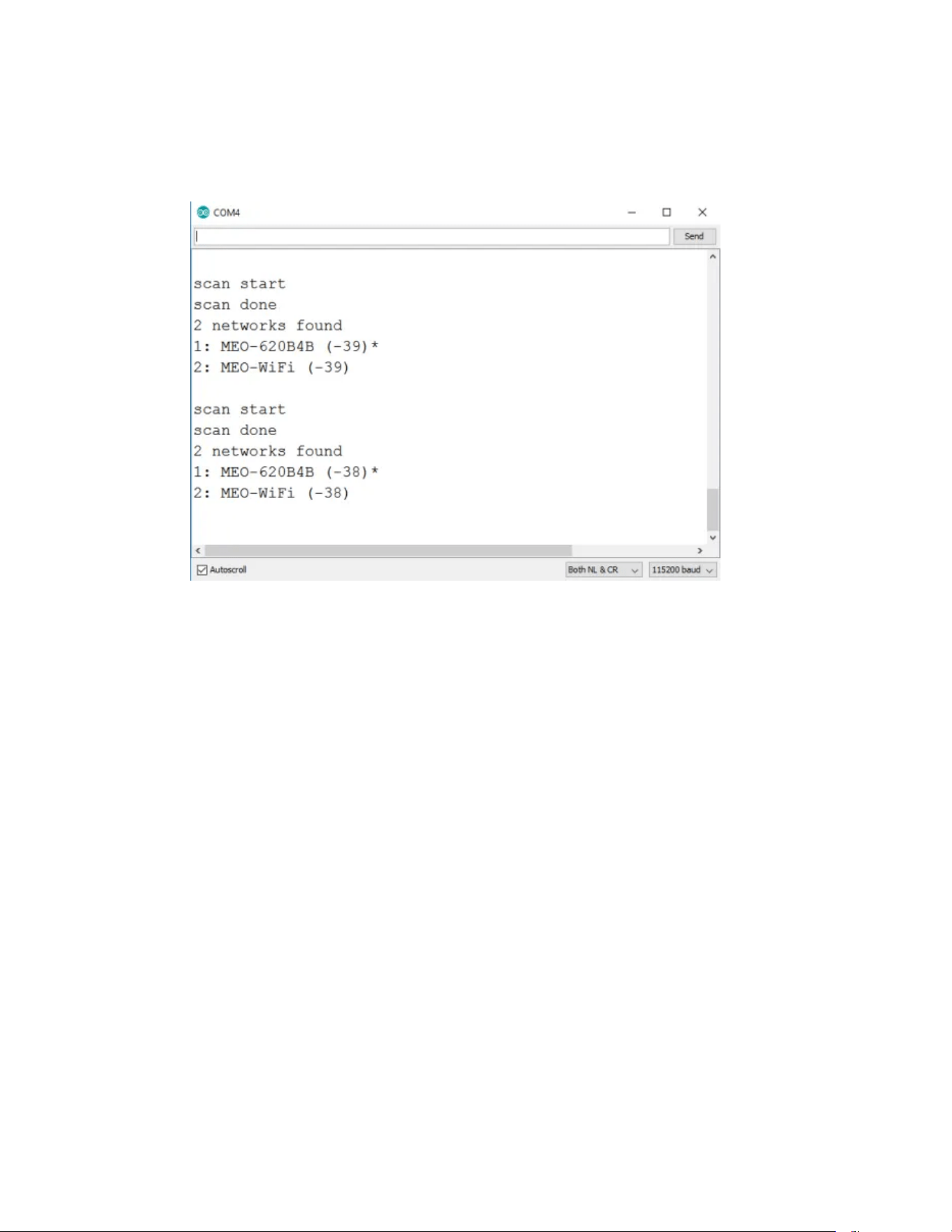

1.Wi-Fi Demo：Select File>>Example>>WiFi>>WiFiScan
!
Xinyuan
! /126
2025.11

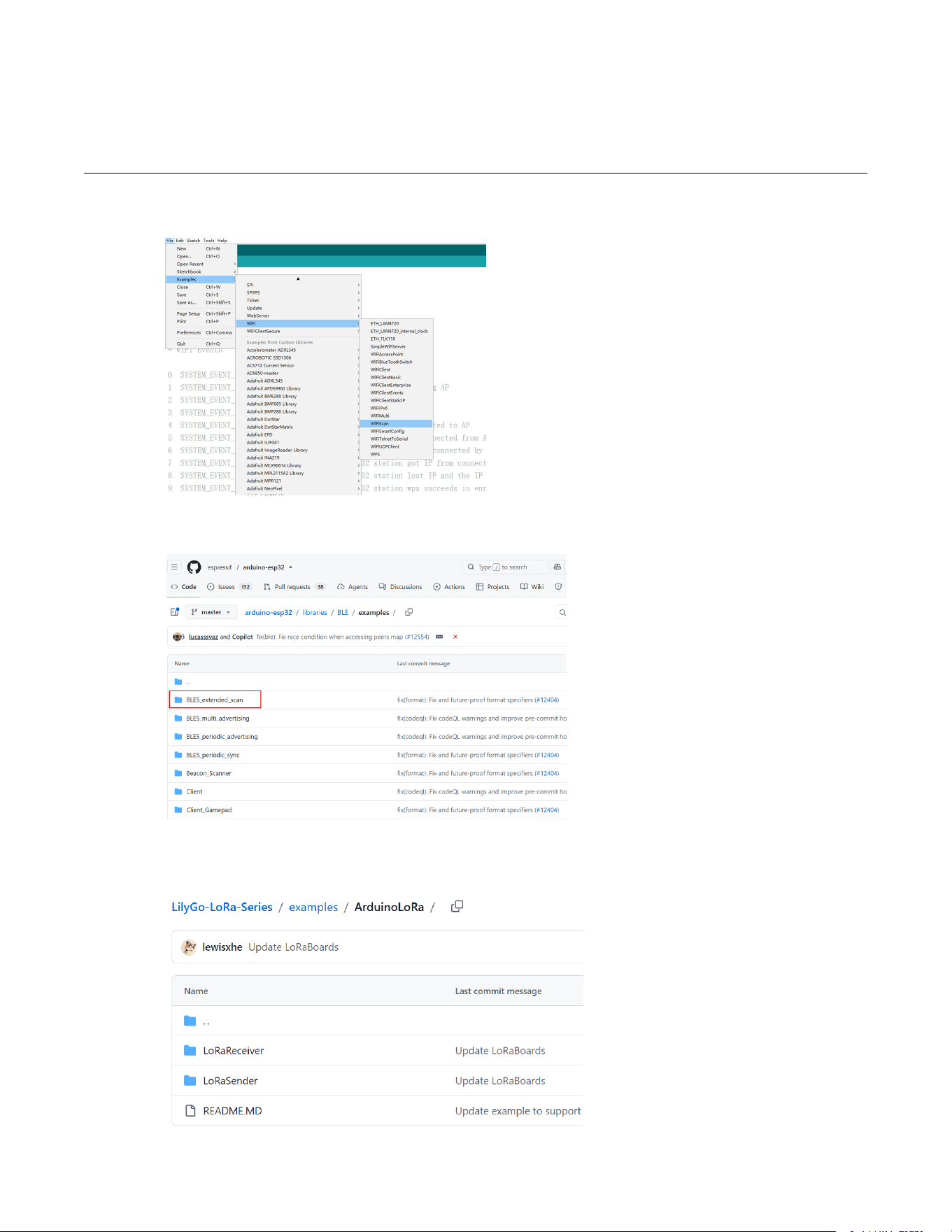

2. BLE Demo：
https://github.com/espressif/arduino-esp32/tree/master/libraries/BLE/examples
3. LoRa
Demo: https://github.com/Xinyuan-LilyGO/LilyGo-LoRa-Series/tree/master/examples/ArduinoLoRa
2. BLE Demo：https://github.com/espressif/arduino-esp32/tree/master/libraries/BLE/examples
!
6. Upload Sketch
6.1. Select Board
Tools<<Board<<ESP32S3 Dev Module
Xinyuan
! /127
2025.11
6.2. Upload
Sketch << Upload
!
6.3. Serial Monitor
Tools << Serial Monitor
Xinyuan
! /128
2025.11
!
