User Manual.

This is the main product document for model FFFFD176624LS.

The file format is pdf, 24 pages, you can download this manual here .

background
ENGLISH
5HDGWKHVHLQVWUXFWLRQVFDUHIXOO\EHIRUHXVLQJ\RXUDSSOLDQFHDQGNHHSLWFDUHIXOO\
,I\RXIROORZWKHLQVWUXFWLRQV\RXUDSSOLDQFHZLOOSURYLGH\RXZLWKPDQ\\HDUVRIJRRGVHUYLFH
USER
&21)250672
8/67'

&(57,),('72&6$67'&
12
MANUAL
Refrigerator
MODEL NUMBER SERIES
FFFFD1766-24RS
FFFFD1766-24WHT-RS
FFFFD1766-24BLK-RS
Customer Care
.........................................................
4
background
background
SUMMARY
Customer Care.....................................................................................................4
SAFETY INFORMATION....................................................................................5
Disposal of Old Appliance...............................................................................9
Energy Saving.....................................................................................................10
Before rst use....................................................................................................10
Fridge use.............................................................................................................11
Freezer use...........................................................................................................11
Storage..................................................................................................................12
Control panel..................................................................................................... 13

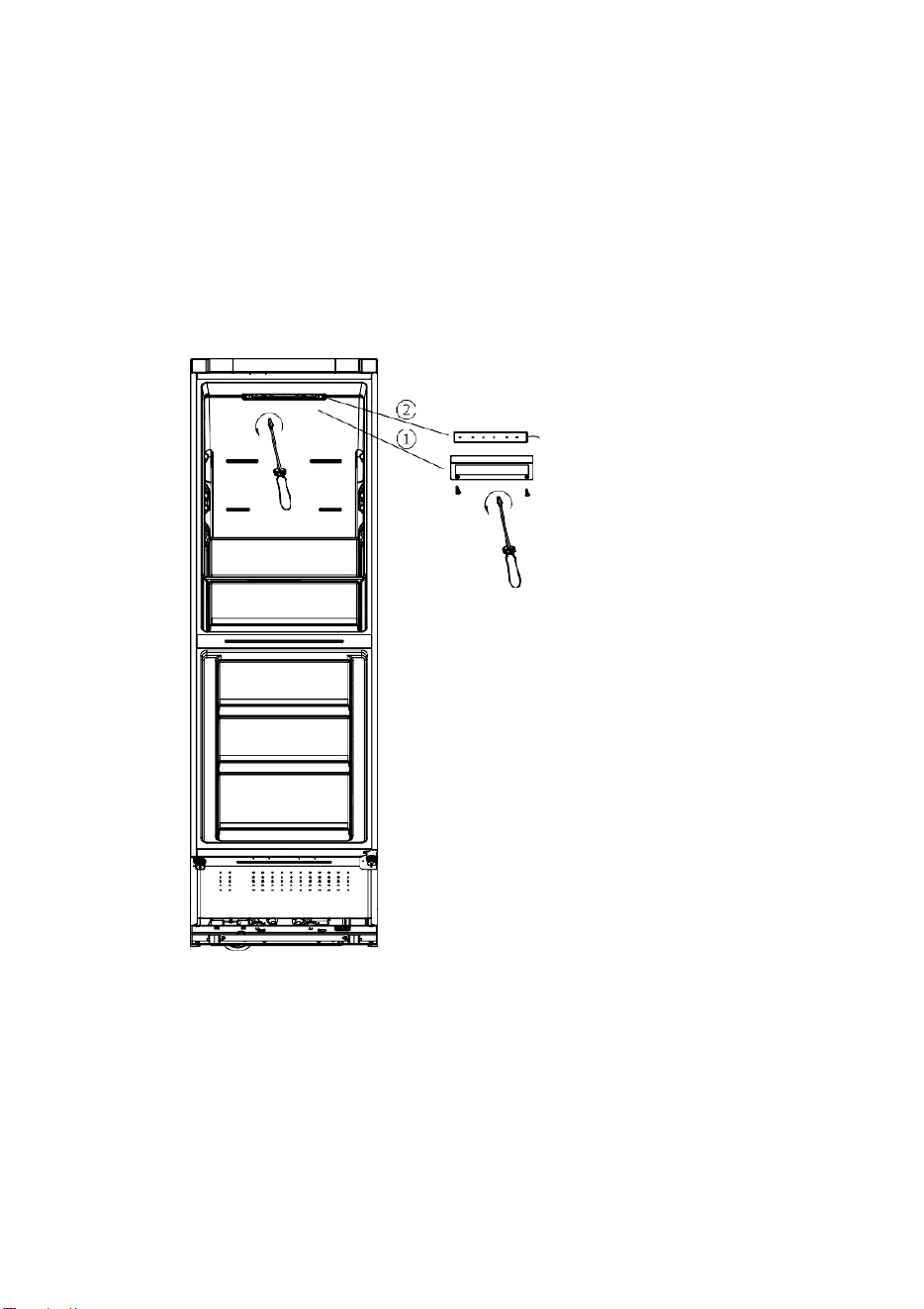

LED light replacement instructions.............................................................15
Care and Cleaning............................................................................................ 16
Defrosting........................................................................................................... 16
Troubleshooting................................................................................................17

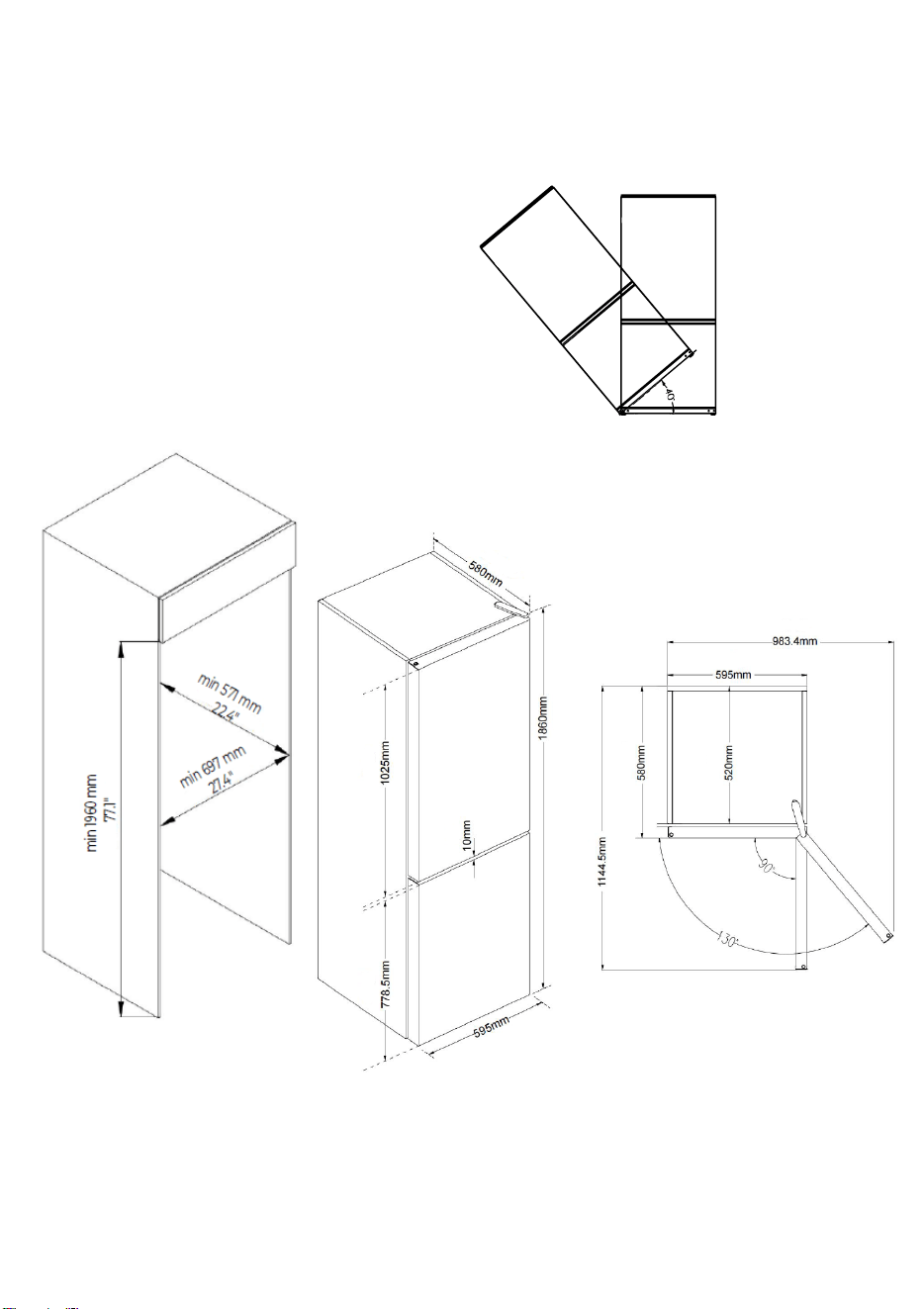

Installation preparation..................................................................................18

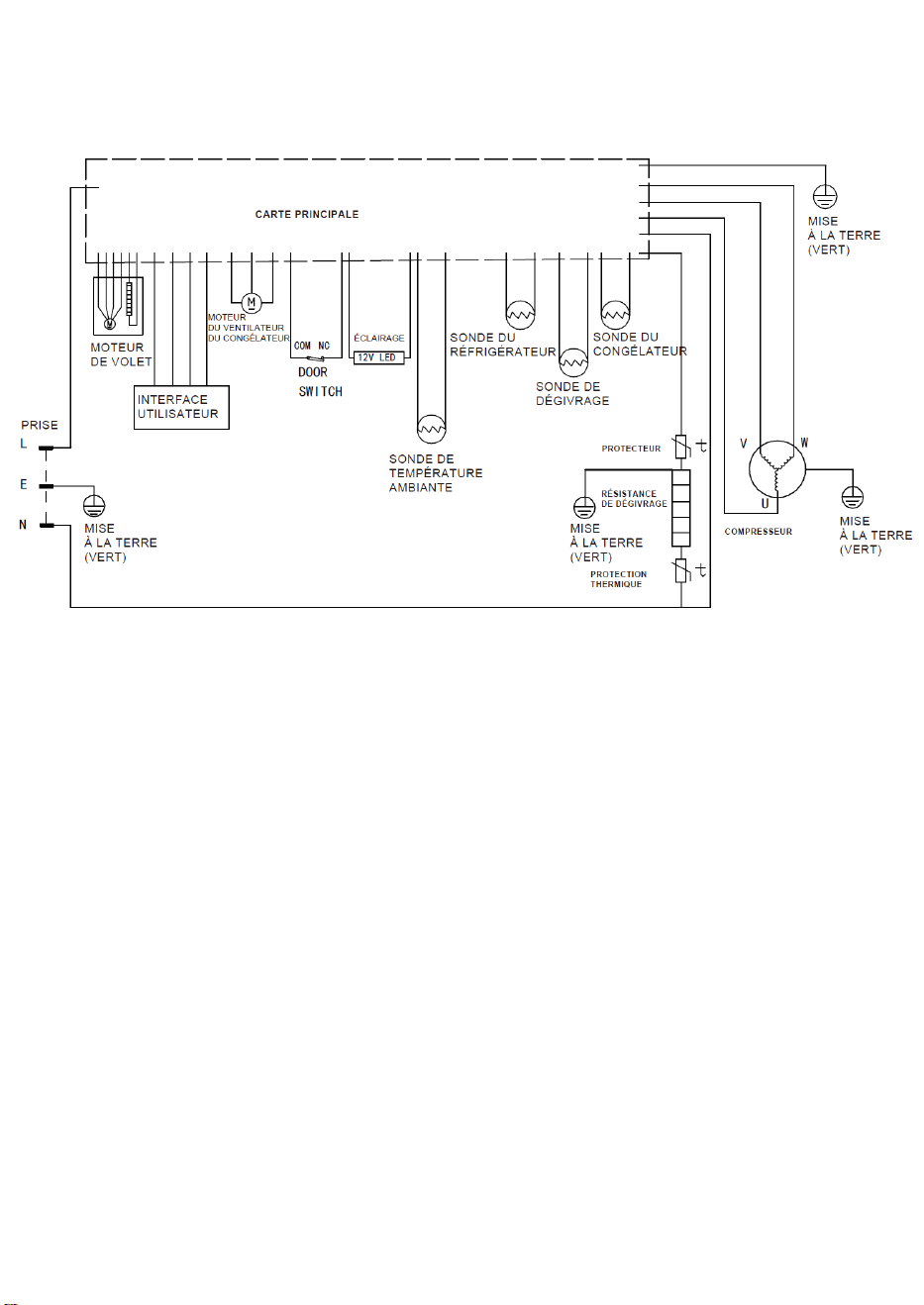

Circuit Diagram..................................................................................................21
Warranty.............................................................................................................. 22
Ventilation ...........................................................................................................20

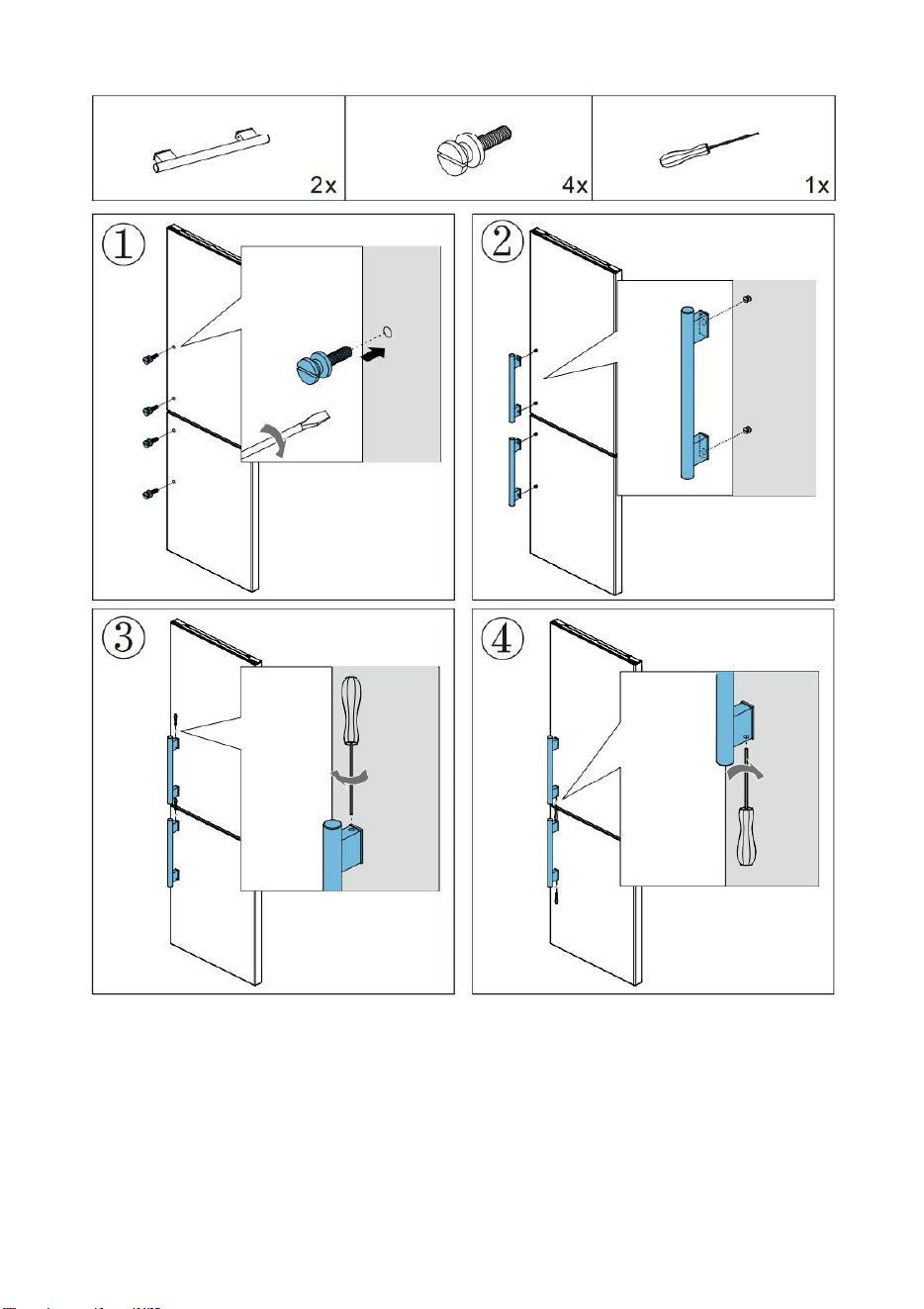

Door h andle installation..................................................................................19
background
Thank you for purchasing a Forno product. Please read the entire instruction manual before operating your new appliance
practices, features, operation and care recommendations of your appliance.
Both the model and serial number are listed inside the product. For warranty purposes, you will also need the date of
purchase .
Record this information below for future reference.
Product Information Service Information
Model Number : _________________________________________
Use these numbers in any
correspondence or services calls
concerning your product.
If you received a damaged product,
immediately contact Forno.
To save time and money, before
you call for serviced, check the
troubleshooting guide. It listed the
causes of minor operation problems
that you can correct yourself.
Serial Number :
Date of Purchase :________________________________________
Purchase Address And Phone : _____________________________
_______________________________________________________
_______________________________________________________
Customer Care
³1HHGVRPHTXLFNKHOS"6LPSO\VFDQWKHTUFRGHDQGJHWDFFHVV
WRRXUIDVWVXSSRUWIRUP:H¶UHDOZD\VKHUHWRDVVLVW\RXZLWKDQ\
TXHVWLRQVRUFRQFHUQV\RXPD\KDYH6RGRQ¶WKHVLWDWHWRUHDFKRXW´
Services in Canada and Untied States
Keep the instruction manual handy to answer your questions. If you don’t understand something or need more assistance,
please visit our website for fast support. Please provide us your name, number, address,serial number of the product that
troubleshooting, proof of purchase, and a short description of the issue. A customer service representative will contact you
providers are carefully selected and rigorously trained by us.
4
background
5
Thank you for purchasing this product.
Before using your refrigerator, please carefully read this instruction manual
in order to maximize its performance. Store all documentation for
subsequent use or for other owners. This product is intended solely for
household use or similar applications such as:
The kitchen area for personnel in shops, offices and other
working environments On farms, by clients of hotels, motels
and other environments of a residential type At bed and
breakfasts(B&B)
For catering services and similar applications not for retail sale.
This appliance must be used only for purposes of storage of food, any other
use is considered dangerous and the manufacturer will not be responsible
for any omissions. Also, it is recommended that you take note of the
warranty conditions.
SAFETY INFORMATION
This is the Safety Alert Symbol. This symbol alerts you to potential
hazards that can kill or injure you and others. All safety messages will follow the
Safety Alert Symbol and either the words” DANGER”, “WARNING” or “CAUTION”.
Danger means that failure to heed this safety statement may result in severe
personal injury or death.
Warning means that failure to heed this safety statement may result in extensive
product damage, serious personal injury, or death.
Caution means that failure to heed this safety statement may result in minor or
moderate personal injury, or property or equipment damage.
All safety messages will alert you to what the potential hazard is, tell you how to
reduce the chance of injury, and let you know what can happen if the instructions
are not followed.
background
6
If the supply cord is damaged, it must be replaced by the manufacturer, its service
agent or similarly qualified persons in order to avoid a hazard.
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
This appliance can be used by children aged from 8 years and above and persons
with reduced physical sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved. Children shall not play
with the appliance. Cleaning and user maintenance shall not be made by children
without supervision.(EU)
Keep the appliance and its cord out of reach of children less than 8 years.(EU).
Do not store explosive substances such as aerosol cans with a flammable propellant
in this appliance.
The max. loading of shelve is 22 lbs(10kg).
The appliance shall be used at an ambient temperature listed according to it’s
climate class:
89 °F32℃)± 35 °F2℃) on appliances of climatic class 0,1,2,3,4,6 or 8;
109 °F 43°C± 35 °F2℃)Con appliances of climatic class 5 or 7.
The appliance use flammable insulation blowing gas C5H10, disposal of the
appliance shall in accordance with the regulations of local authorities.
The appliance provided with double-capped fluorescent lamps, the lamp has to be
replaced by identical lamps only.
The key for appliance electric box should be safe kept by qualified persons in order
to avoid a hazard
Based on business order(s) to EU market, give true EU authorized representative
information on the label with full business name and full EU address in the marking
plate.
If the appliance use flammable refrigerant, such as R600a, R290:
background
7
Warning; Risk of fire / flammable materials
WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in
structure, clear of obstruction.
WARNING: Do not use mechanical devices or other means to accelerate the
defrosting process, other than those recommended by the manufacturer.
WARNING: Do not damage the refrigerant circuit.
WARNING: Do not use electrical appliances inside the food storage compartments
of the appliance, unless they are of the type recommended by the
manufacturer.
WARNING: When positioning the appliance, ensure the supply cord is not trapped or
damaged.
WARNING: Do not locate multiple portable socket-outlets or portable power supplies
at the rear of the appliance.
WARNING:Do not store explosive substances such as aerosol cans with a
flammable propellant in this appliance.
WARNING:To avoid a hazard due to instability of the appliance, it must be fixed in
accordance with the instructions
Handling, moving, and use of the refrigerator or freezer to avoid either damaging the
refrigerant tubing, or increasing the risk of a leak
Caution Risk of Fire or Explosion due to Flammable Refrigerant Used. Follow
Handling Instructions Carefully in Compliance with U.S. Government Regulations.
Component parts shall be replaced with like components and that servicing shall be
done by factory authorized service personnel, so as to minimize the risk of possible
ignition due to incorrect parts or improper service.
CAUTION Risk Of Fire Or Explosion Due To Puncture Of Refrigerant Tubing;
Follow Handling Instructions Carefully. Flammable Refrigerant Used
background
8
DANGER: Risk of child entrapment. Before you throw away your old refrigerator or
freezer:Take off the doors Leave the shelves in place so that children may not easily
climb inside.
DANGER:If the LED lamp is damaged, it must be replaced by the manufacturer, its service
agent or similarly qualified persons in order to avoid a hazard.
DANGER-Risk Of Fire or Explosion.Flammable Refrigerant Used. Do Not Use
Mechanical Devices To Defrost Refrigerator.Do Not Puncture Refrigerant Tubing.
DANGER-Risk Of Fire Or Explosion.Flammable Refrigerant Used. To Be Repaired
Only By Trained Service Personnel.Do Not Puncture Refrigerant Tubing.
CAUTION-Risk Of Fire Or Explosion.Flammable Refrigerant Used. Consult Repair
Manual/Owner's Guide Before Attempting To Service This Product. All Safety
Precautions Must be Followed.
CAUTION-Risk Of Fire Or Explosion.Dispose Of Property In Accordance With
Federal Or Local Regulations. Flammable Refrigerant Used
CAUTION-Risk Of Fire Or Explosion DueTo Puncture Of Refrigerant Tubing;Follow
Handling Instructions Carefully.Flammable Refrigerant Used
background
9
This appliance is intended to be used in household and similar applications such as
staff kitchen areas in shops, offices and other working environments;
farm houses and by clients in hotels, motels and other residential type
environments;
bed and breakfast type environments;
catering and similar non-retail applications.
Disposal of Old Appliance
Dispose of your appliance packaging properly. Refrigeration equipment must be
properlydisposed of in a way which protects the environment. This applies to your old
appliance and to your newunit once it has reached the end of its service life.
Please according to local regulations regarding disposal of the appliance for its
flammable refrigerant and blowing gas.
WARNING:
Please ensure that old, worn appliances are rendered unusable before
disposal by removing the plug, cutting the power cable, and removing or destroying
any snap fastenings or bolts. You will thus prevent children from locking themselves
in the appliance during play (risk of suffocation) or endangering their lives in any other
way.
The appliance must not be disposed with normal household waste collection.
The coolant circuit, particularly the heat exchange at the back/bottom of the unit,
must not be damaged.
The symbol on the product or its packaging indicates that this product is not to be
handled as normal household waste but is to be taken to a recycling collection point
for electrical and electronic goods. By correctly disposing of this product you are
contributing to the protection of the environment. Improper disposal endangers health
and the environment. Further information about the recycling of the product may be
obtained from your town hall or local waste collection department.
background
10
Energy Saving
For better energy saving we suggest :
Installing the appliance away from heat sources and not exposed to direct sunlight and in a
well ventilated room.
Avoid putting hot food into the refrigerator to avoid increasing the internal temperature
and therefore causing continuos functionaliting of the compressor.
Do not excessively stuff foods so as to ensure proper air circulation.
Defrost the appliance in case there is ice to facilitate the transfer of cold.
In case of absence of electrical energy, it is advisable to keep the refrigerator doorclosed.
Open or keep the doors of the appliance open as little as possible
Avoid adjusting the setting to temperatures too cold.
Remove dust present on the rear of theappliance
Before first use
You must allow the fridge to settle for at least four hours prior to switching the
power on.
It is recommended that you clean the interior of the appliance prior to first use, using a
solution of bicarbonate of soda and warm water and then thoroughly drying the interior.
The fridge may have an odor to it at first use. This will disappear as the appliance cools.
Please note:
The appliance will start 41 °F (5°C) for fridge and -0.5 °F(-18) for freezer and work
continuously until it comes down to the correct temperature. If the appliance is switched
off, you should allow five minutes before switching it on again to prevent unnecessary
damage to the compressor. Never store in flammable or explosive items and strong
corrosive acids or alkalis in the appliance. This fridge cools your food by making the inside
back of the cavity cold. It is normal for frost to build up on this surface; it then dissipates
and drains through a small drain at the bottom, where it evaporates harmlessly. The
presence of frosting at the back is not a malfunction of the fridge.
background
11
Fridge use
Never put liquids in the refrigerator uncovered.
Never put hot foods in the refrigerator. Warm food should be allowed to cool
to room temperature before being put into the refrigerator.
Nothing should rest against the rear wall of the refrigerator, as this will
cause frost and possible condensation problems which will be difficult to remove.
Make sure food is clean and any extra water is wiped away before putting
into the fridge.
Wrap or cover food before putting into the fridge. This will help prevent the loss of moisture, keep food
fresh and avoid unpleasant odors.
Sort foods prior to storing. Any foods to be used soon should be stored at the front of the shelf to
prevent deterioration caused by the door being open for prolonged periods.
Do not overfill the fridge. There should be sufficient space between the
foods to allow the cool air to circulate.
Thawing frozen foods in the fridge compartment will help to keep the temperature low and save energy.
Never store raw meats on shelves above cooked meats or other produce. This will help to prevent juices
from raw meat contaminating otherfoodstuffs.
Freezer use
The freezer compartments are designed to store only frozen food.
Never put hot or warm foods in the freezer, allow them to cool fully before putting them into the freezer.
Follow the instructions on the food packaging for storage of frozen food. If no information is
provided, foods should not be stored for more than three months after the purchase date.
Store food in small packages (ideally less than 2.2 lbs (1kg) ).This reduces the freezing time and
improves the quality of the food after thawing.
Wrap food before putting into the freezer. To stop the wrapping
sticking together, ensure it is dry.
Label the food before freezing with information including type of food and dates of storage and expiry.
Once food is thawed, it must not be refrozen. Only defrost as much food as is required to prevent wastage.
Bottled or canned drinks should not be stored in the freezer compartments as they could explode.
The maximum amount of fresh food that can be frozen within a 24 hour period is 5.8 lbs ( 2.6kg).
Do not attempt to freeze more than the maximum amount.
background
12

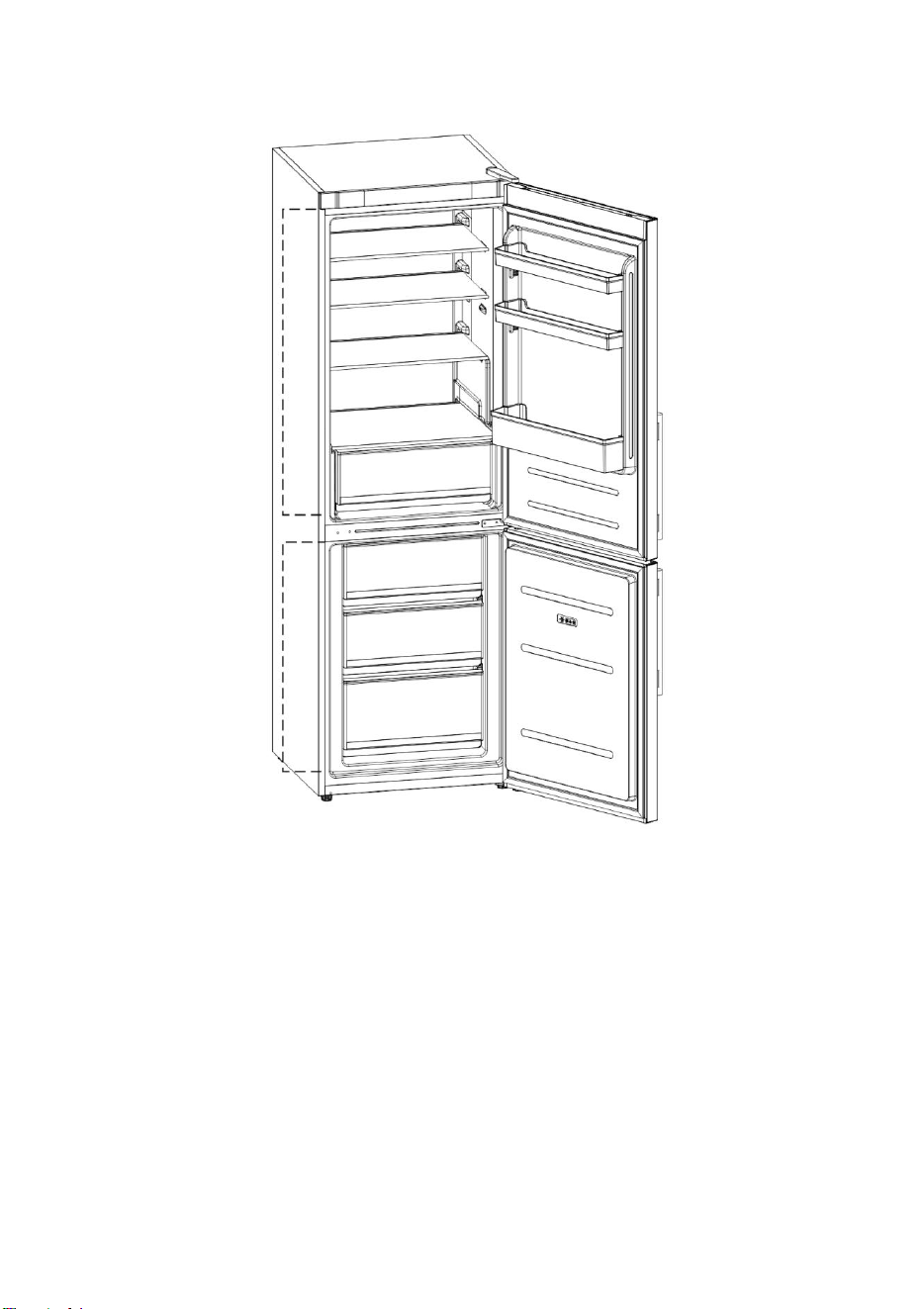

1-
Fridge compartment
2-
Freezer compartment
3-
Display/indicator panel
4- Butter & cheese section
5- FlexiLift Door Shelves
6- Bottle shelf
Storage
Figures in this user manual are schematic and may not match the product exactly.
lf the subject partsare not included in the product you have purchased, then those
parts are only valid for other model
7-Adjustable glass shelf
8-Crisper
9-Upper Freezer Drawer
10-Lower Freezer Drawer
s
*3
*1
*2
*4
*5
*6
*8
*7
*9
*10
background
13
Control panel
1. First time of switching on the appliance, this appliance always works at settings: 41 °F (5°C) for
fridge, 0°F-18 for freezer. If you want to adjust the temperature or functions manually,
pres and -s the button to conduct the operations.
2. Fridge temperature adjustment –press button on left part of control panel to achieve
different temperatures from 34°F (1) to 43°F ( 6).
3. Freezer temperature adjustment –press button on right part of control panel to
achieve different temperatures from 5°F(-15) to-9°F(-23).
4. Sabbath Mode-Press and hold buttons and simultaneously for 5 seconds to enter
Sabbath mode, turning off all lights. After the screen turns off, touch any button to display “SABB”
for 1 second before returning to normal display. Press and hold buttons and
simultaneously for 5 seconds again to exit Sabbath mode, restoring all lights to normal display.
5. Fast cooling function –Press button , light of button illumines and fast cooling function is
turned on, fridge starts to work automatically at temperature setting 36°F(2) and quits after 24
hours, light of symbol eliminates.
6. Holiday function–Press button , light of button illumines, holiday functionis turned on and
whole appliance starts to work automatically at settings: fridge at 63°F(17) and freezer at -
F(-18).
7. Eco function Press button on control panel, eco function is turned on and button
illuminates, fridge compartment works at setting 41°F (5°C) and freezer compartment works at
setting of-0°F(-18).
8. Fast freezing function Press button , light of button illumines and freezer start to
work at fast freezing function, temperature setting -13°F(-25). After 24 hours, fast freezing
function quits automatically.
9.Press button for 3 seconds to switch off your appliance and the button illumines, power
is cut off. Internal lamps eliminate, compressor stops working. Press the button for 3
background
seconds to switch on your appliance, the symbol illumined and power is connected again
14
.
10. On the no frost models, there is a function: compulsive defrosting. Press the buttons
+ for 5 seconds to switch on the compulsive defrosting function to clean the freezer evaporator
and digitals of freezer temperature shine. Press the button + 3 seconds to switch off
the compulsive defrosting function , and the digitals of freezer temperature eliminate.
10 Fault display
This appliance has ‘fault display & alarm function. Once the sensors got fault, there are alarms
displayed on the temperature displaying, the appliance still cools but professional service engineer
should be called and check the appliance.
F3 Sensor of fridge apartment
F4 Sensor of freezer compartment
F5 Sensor of defrosting
2E Fault of fan/motor in freezer
CE– Communication fault between main panel and display panel.
The above Errors only show on display, no voice
Over temperature alarm in freezer: after freezer temperature arrives at the set
temperature, after that, if the temperature rises to 77°F (-1 °C), the alarm
will start, accompany with flash of freezer temperature digit. Press any button to
cancel the voice alarm. The flash will remain until the temperature is 77°F (-
1 °C).
PS: Main board locates in compressor compartment
POSITION CONDITIONS
41 °F (5°C) - -0.5 °F(-18)
Summer or ambient temperature between
77°F(25°C) - 95°F ( 35 °C)
41 °F (5°C) - -0.5 °F(-18)
Spring or ambient temperature between
59°F(15°C) - 77°F ( 25 °C)
41 °F (5°C) - -0.5 °F(-18)
Winter or ambient temperature between
41°F(5°C) - 59°F ( 15 °C)
background
15
LED light replacement instructions
Note: the LED light is set to be non replaceable by the user and needs to be replaced
by professionals.
Lighting parameters: 12V / 2W
1. Unplug the power plug.
2. Remove the screws securing the top light cover. Steps and are shown below
3. Replace the spare LED light board.
background
16
Care and Cleaning
Always disconnect the appliance from the power supply before any cleaning or
maintenance.
The fridge and freezer sections should be cleaned using a solution of bicarbonate of
soda and lukewarm water. Do not use abrasive products or detergents. After washing,
rinse and dry thoroughly.
Clean the shelves and balconies separately by hand with a mild solution of washing up
liquid and water. Do not put them in the dishwasher.
If the appliance is not to be used f
or prolonged periods of time, unplug and clean the
appliance. The doors should be left slightly ajar to prevent the formation of mildew and
unpleasant odors.
Defrosting
The product has a no frost system which is designed to prevent the heavy build up of ice.
Under normal use, there should be no need to regularly defrost the freezer system.
Please note: If you are regularly finding a heavy build up of ice, or pools of water, in the
freezer section then it is likely that the door is not sealing properly. This could be due to a
defective door seal or an incorrectly fitted, or overly heavy, decor door. For more
information see the troubleshooting section about ice.
background
17
If you have any problems with your appliance, you should check the troubleshooting prior to calling
CustomerCare.
Troubleshooting
If the appliance is not working, check:
That there is power to the appliance.
The house fuses are intact and the fuse in the plug has notblown.
The fridge has not been turned off.
The plug socket is functioning fine. To check this, plug another
electrical appliance in to see if the socket is faulty.
If the appliance is working, but not very well, check:
The appliance is not overloaded.
The thermostat is set to an appropriatetemperature.
The doors are closing properly.
The cooling system at the rear of the appliance is clean and free of
dust, and not touching the rear wall.
There is enough ventilation at the side and rear walls.
If the appliance is noisy, check:
The appliance is level and stable.
The side and rear walls are clear, and there is nothing resting on the
appliance.
Note: The cooling gas in the refrigerator may make a slight bubbling or
gurgling noise, even when the compressor is not running.
If the appliance is beeping, check:
That the doors are closed. An alarm will sound after 60seconds of a
door being open.
If ice has formed on the back wall of the fridge:
It isnormal for some ice droplets to formon the back wall of thefridge.
This does not constitute a fault with the appliance.
Ensure that no items inside the fridge are in contact with the back
wall.
background
18
Check that there is some resistance when opening the door of the
appliance. If it opens at the slightest touch it may mean that the door
seal needs to be replaced.
Check the door seal for any kinks, debris or damage. If you notice any,
and are unable to resolve the issue yourself, contact Customer Care so
that the seal can be replaced.
This can be due to the decor door(s) not being properly fitted. If you
are at all unsure, ask your fitter to check the décor doors.
If excessive ice has formed in the freezer:
Check that there is some resistance when opening the door of the
appliance. If it opens at the slightest touch it may mean that the door
seal needs to be replaced.
Check the door seal for any kinks, debris or damage. If you notice any,
and are unable to resolve the issue yourself, contact Customer Care so
that the seal can be replaced.
This can be due to the decor door(s) not being properly fitted. If you are at all unsure,
ask your fitter to check the decor doors.
If one or more of the LED units within the appliance is not working:
Contact Customer Care to arrange a servicevisit.
Installation preparation
Important:
Before connecting the refrigerator to a power source, allow it to stand upright and undisturbed for 24 hours.
This appliance must never be installed close to heat sources, e.g. heating elements
or cookers, nor in damp places.
Seek the help of another individual, or two, when installing this appliance. This
appliance may have sharp edges. Wear adequate PPE for the task and
environment.
To ensure the appliance is level, you should use the height
adjustable feet at the front of the appliance.
The cooling system at the rear of theappliance must not
touch the rear wall. The greater the gap, the better.
The appliance must be installed with adequate ventilation.
Ensure that there is clearance above the appliance to allow
air to escape and that there is space between the rear of the
appliance and the wall.
background
19
Ensuring the door seals correctly:
It is normal for the seal to be compressed after the door has been reversed. With the door closed, use
a hair dryer to expand the seal and fill the gap between the door and the body of the appliance. Take
care not to use the hair dryer too close to the appliance, which could damage the seal. A distance of
approximately 10cm should be adequate. When completed, allow the seal and door to cool before
touching them. Once done, the seal should remain in position.
Door Handle Installation
background
20
Ventilation
The main consideration when installing
any refrigeration unit into a fitted kitchen
is ventilation. The heat removed from the
cooling compartment needs to be
dissipated into the atmosphere. Incorrect
ventilation can lead to premature
compressor failure, excessive power
consumption, total system failure and
may invalidate the warranty provided
with the appliance.For products intended
to be installed into a tall housing unit, the
following requirements need to be met:
Do not tilt beyond 40°
As above the fridge can fit in the cupboard, the top of the cupboard needs to have at least
100mm(3 15/16”) of ventilation clearance from the fridge
38.7"
23.4"
45"
22.8"
20.4"
73.2"
22.8"
40.3"
30.6"
0.4"
23.4"
background
Circuit Diagram
21
background
Warranty
What this limited warranty covers:
The Warranty coverage provided by Forno Appliances in
appliance (“Product”) sold to the consumer (“Purchaser”) by
and installed in the United States or Canada, and which has
always remained within the original country of purchase (the
United States or Canada). Warranty coverage is activated on
the date of the Product’s original retail purchase and has a
duration of two (2) years. This warranty does not cover
installation at the time of purchase or during replacement.
replacement. Forno Appliances will repair or replace any
component/part which fails or proves defective due to
materials and/or workmanship within 2 years of the date of
the original retail purchase and under conditions of ordinary
residential, non-commercial use. Repair or replacement
will be free of charge, including labor at standard rates and
Product reasonably accessible for service. Repair service
during normal working hours.
Important
Retain proof of original purchase to establish warranty period.
Forno’s liability on any claim of any kind, with respect to the
value of the goods or service or part there of which has given
rise to the claim.
30-Day Cosmetic Warranty
The Purchaser must inspect the product at the time of
delivery. Forno warrants that the Product is free from
manufacturing defects in materials and workmanship for
a period of thirty (30) days from date of the original retail
purchase of the Product.
This coverage includes:
Paint blemishes
Chips
Cosmetic warranty does NOT cover:
Issues resulting from incorrect transport, handling and/
or installation (e.g.: dents, broken, warped or deformed
structures or components, cracked or otherwise damaged
glass components);
Slight color variations on painted/enameled components;
location or other analogous factors; > stains/corrosion/
How to receive service
To receive warranty services, the Purchaser must contact the
Forno Support department in order to determine the problem
and the required service procedures. Troubleshooting with
a customer service representative will be necessary before
moving forward with the service. Model number, serial number
and date of original retail purchase will be requested.
Warranty Exclusions: What Is Not Covered.
Use of the Product in any non-residential, commercial
application.
Use of the Product for anything other than its intended
purpose.
Repair services provided by anyone other than a Forno
Damages or repair services to correct services provided
Installation not in accordance with local/state/city/county
building codes, laws or regulations.
Defects or damage due to improper storage of the
Product.
Defects, damage or missing parts on products sold out of
the original factory packaging or from displays. > Service
calls or repairs to correct an incorrect installation of the
Product and/or related accessories.
Replacement of parts/service calls to connect, convert
or otherwise repair the electrical wiring and/or gas line in
order to properly use the product.
Replacement of parts/service calls to provide instructions
and information on the use of the Product.
Replacement of parts/service calls to correct issues
arising from the product being used in a manner other
than what is normal and customary for residential use.
Replacement of parts/service calls due to wear and tear
of components such as seals, knobs, pan supports,
shelving, cutlery baskets, buttons, touch displays,
scratched or broken ceramic-glass tops.
Replacement of parts/service calls for lack of/improper
maintenance, including but not limited to: build up of
residues, stains, scratches, discoloration, corrosion.
Defects and damages arising from accidents, alteration,
misuse, abuse or improper installation.
Defects and damages arising from Product transport,
logistics and handling. Inspection of the product must be
made at time of delivery. Following receipt and inspection,
any issues arising from handling, transport and logistics.
beyond the control of Forno Appliances, including but
failures surrounding the appliance and other acts of God.
Products whose serial number has been altered/
damaged/tampered with. In no case shall Forno be held
liable or responsible for damage to surrounding property,
structures surrounding the Product. Forno is neither liable
nor responsible for the Product if it is located in a remote
not reasonably available. Purchaser must bear any
transportation and delivery costs of the Product to the
Warranty coverage is non-transferable. In the event of
replacement of parts or of the entire product, the replacement
Product (or parts) shall assume the remaining original
Warranty activated with the original retail purchase document.
22
background
THERE ARE NO EXPRESS WARRANTIES OTHER THAN THOSE LISTED AND DESCRIBED ABOVE, AND NO WARRANTIES, EITHER EXPRESS OR IMPLIED,
INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE THAT SHALL APPLY
AFTER THE EXPRESS WARRANTY PERIODS STATED ABOVE, AND NO OTHER EXPRESS WARRANTY OR GUARANTEE GIVEN BY ANY PERSON, FIRM
OR CORPORATION WITH RESPECT TO THIS PRODUCT SHALL BE BINDING ON FORNO. FORNO SHALL NOT BE LIABLE FOR LOSS OF REVENUE OR
PROFITS, FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS, TIME AWAY FROM WORK, MEALS, LOSS OF FOOD OR BEVERAGES, TRAVELING OR
HOTEL EXPENSES, EXPENSES TO RENT OR PURCHASE APPLIANCES, REMODELING/CONSTRUCTION EXPENSES IN EXCESS OF DIRECT DAMAGES
WHICH ARE UNDENIABLY CAUSED EXCLUSIVELY BY FORNO OR ANY OTHER SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY THE
USE, MISUSE OR INABILITY TO USE THIS PRODUCT, REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF FORNO
HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. NOR SHALL RECOVERY OF ANY KIND AGAINST FORNO BE GREATER IN AMOUNT
THAN THE PURCHASE PRICE OF THE PRODUCT SOLD BY FORNO AND CAUSING THE ALLEGED DAMAGE. WITHOUT PREJUDICE TO THE FOREGOING,
PURCHASER ASSUMES ALL RISK AND LIABILITY FOR LOSS, DAMAGE OR INJURY TO PURCHASER AND PURCHASER’S PROPERTY AND TO OTHERS
AND THEIR PROPERTY ARISING FROM THE USE, MISUSE, OR INABILITY TO USE THIS PRODUCT SOLD BY FORNO THAT IS NOT A DIRECT RESULT OF
NEGLIGENCE ON THE PART OF FORNO THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL PURCHASER OF THIS
PRODUCT, IS NON-TRANSFERABLE, AND STATES YOUR EXCLUSIVE REMEDY.
Warranty (continued)
23
background
Customer Support: Call 1-866-231-8893 or email: [email protected]
®

Specifications

Forno FFFFD176624LS Questions and Answers

Questions and Answers

Related Products
