Fusion Gateway
Quick Installation Guide
Note: Fusion gateways are for enterprise installation and use. Fusion 2.5G is
used as an example throughout the guide. Images may dier from your actual
product.
Fusion Gateway
2.5G PoE SwitchPoE Gigabit Switch
Wall Plate AP
Celling Mount AP
Outdoor AP
Management
PC
Managed Switch
Non-PoE Gigabit Switch
Oce Area, Meeting Room
Celling Mount AP
Oce Area, Meeting Room
PC
PC
PC
PC
Department
A
Department
B
Open a web browser and type the default
management address https://omada.local or
https://192.168.188.1 in the address field of the
browser, then press the Enter key.
4.
Make sure the management PC is configured to
Obtain an IP address automatically.
3.
Follow the setup wizard to configure the internet
settings, bind the gateway to your TP-Link ID, set
up the controller, and add devices.
5.
After the setup wizard is complete, you will be
directed to the management page. And you can
configure more settings and manage your network.
6.
For detailed information and conguration, refer to
the gateway's user guide. The guide can be found on
the Documents page of our ocial website:
https://support.omadanetworks.com/document/.
Initial Setup
The Fusion gateway delivers an all-in-one solution for
networking and centralized management on a single
device, featuring a built-in controller for the entire
Omada ecosystem. It is ideal for small businesses
across single or multiple sites.
This Quick Installation Guide is for qualied IT sta and
professional installers. It covers typical network
topology, basic software conguration, and
descriptions of enterprise-dedicated features. For
detailed instructions, refer to the user guide.
Enterprise Solution
Connect the Internet port (Port 1) of the gateway
to the internet using the provided Ethernet
cable.
1.
Connect the gateway to a grounded power
outlet using the provided power adapter. The
touchscreen on the front panel will light up.
2.
Via Omada Cloud Portal
a. Enable Cloud Access on the Settings page on the
gateway and bind a TP-Link ID to your gateway. If you
have configured this in the setup wizard, skip the step.
b. Launch a web browser and enter
https://omada.tplinkcloud.com in the address bar.
c. Enter your TP-Link ID and password to log in. A list of
Fusion gateways that have been bound with your
TP-Link ID will appear in the Fusion Systems page.
Then you can launch your device to further configure
the gateway.
With the TP-Link Omada app, you can access and
manage your Omada devices at a local site or remotely.
More Management Methods
Via Omada App

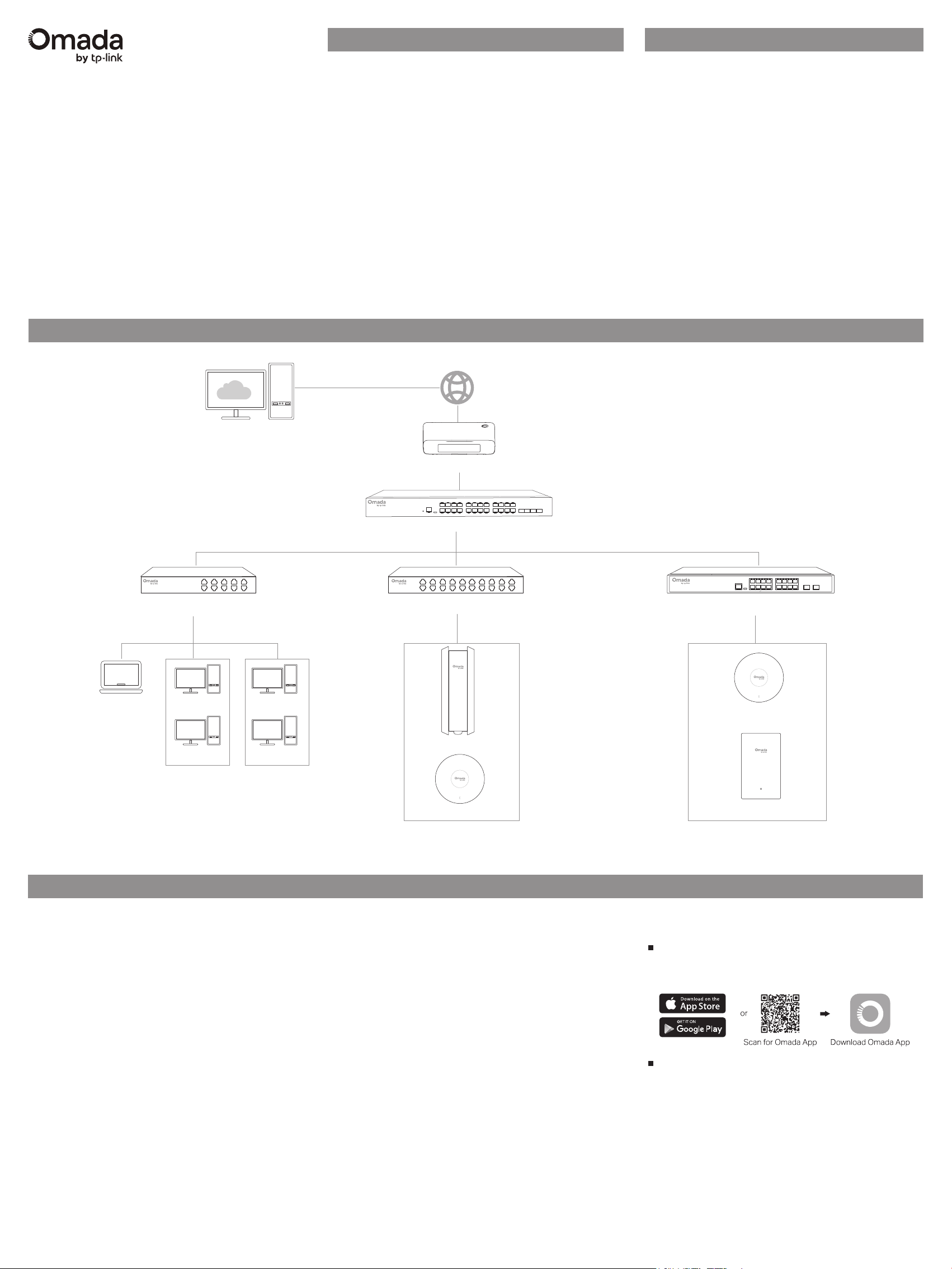

Typical Network Topology
Software Configuration
Safety PrecautionsPreface
