R
DURASTAR.COM 1
OWNER'S MANUAL
115V SINGLE ZONE SYSTEM
SPLIT-STYLE HEAT PUMP
DREW09S2AL/ DRE1U09S2A,
DREW12S2AL/ DRE1U12S2A
Model Number:
Serial Number:
Purchase Date:
Installing Contractor Company Name:
TIP
Capture relevant information about your Durastar mini-split equipment before it is
installed and write it above for future reference.
R-454B 115V 1ph 60 HZ
R
DURASTAR.COM2
TABLE OF CONTENTS
INTRODUCTION ..................................................................................................................................................3
SYMBOLS USED IN THIS MANUAL ...........................................................................................................3
IMPORTANT SAFETY PRECAUTIONS ....................................................................................................4
FCC COMPLIANCE STATEMENT ...............................................................................................................13
ACCESSORIES .....................................................................................................................................................14
OPERATING TEMPERATURES ...................................................................................................................15

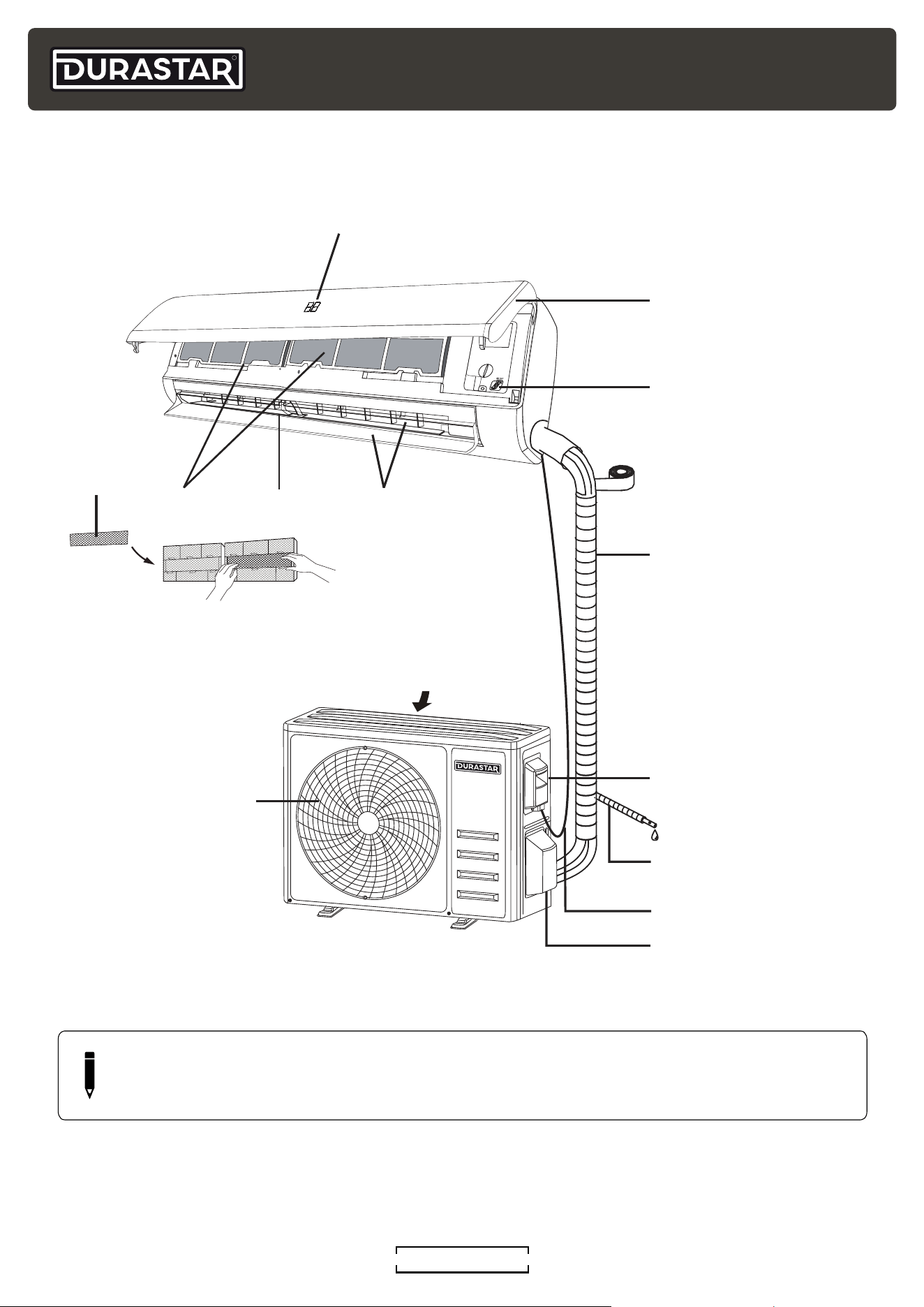

PARTS IDENTIFICATION ................................................................................................................................16
INDOOR UNIT LED DISPLAY INDICATORS .........................................................................................17
REMOTE CONTROL SCREEN INDICATORS .......................................................................................17

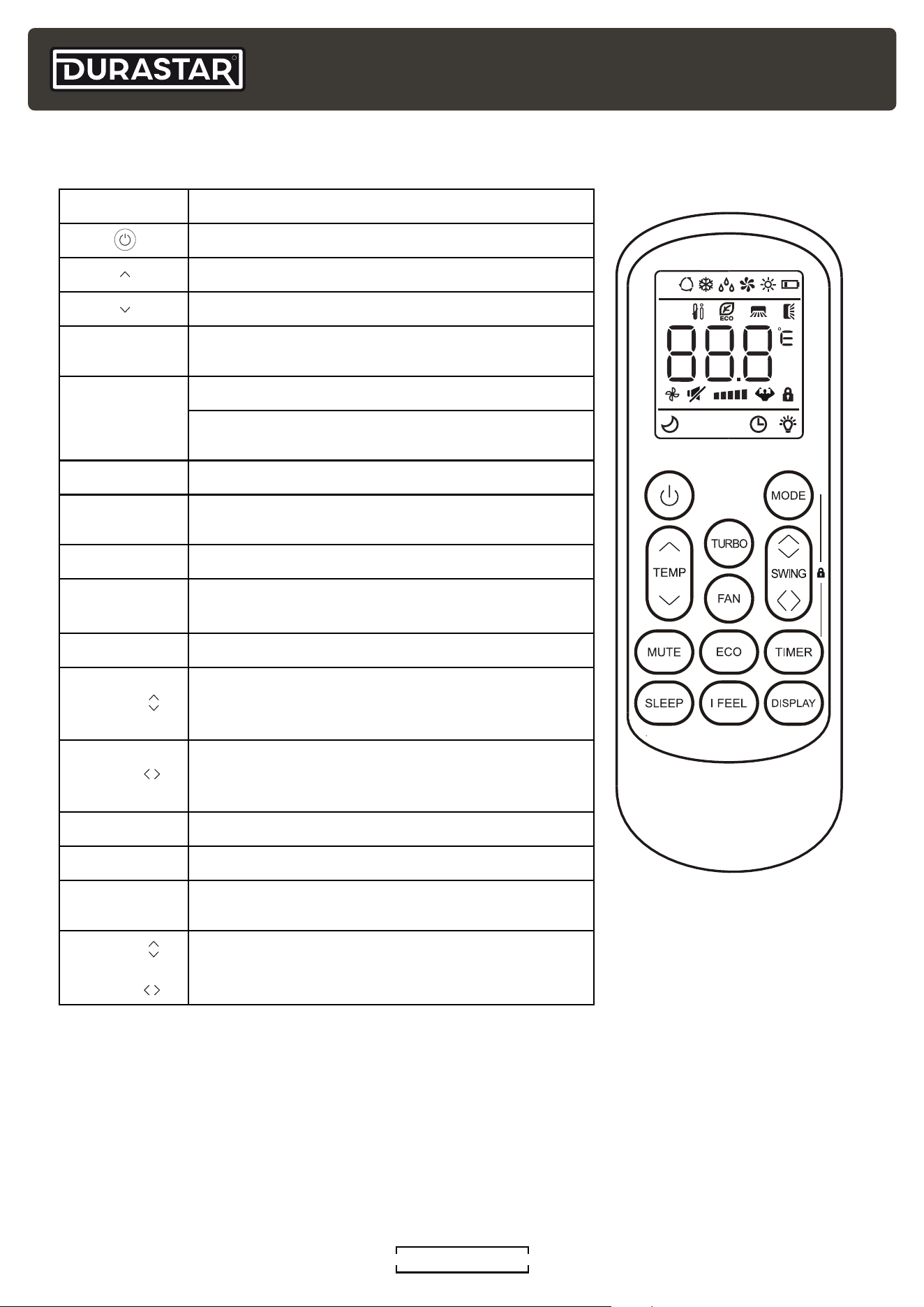

REMOTE CONTROL BUTTONS .................................................................................................................18

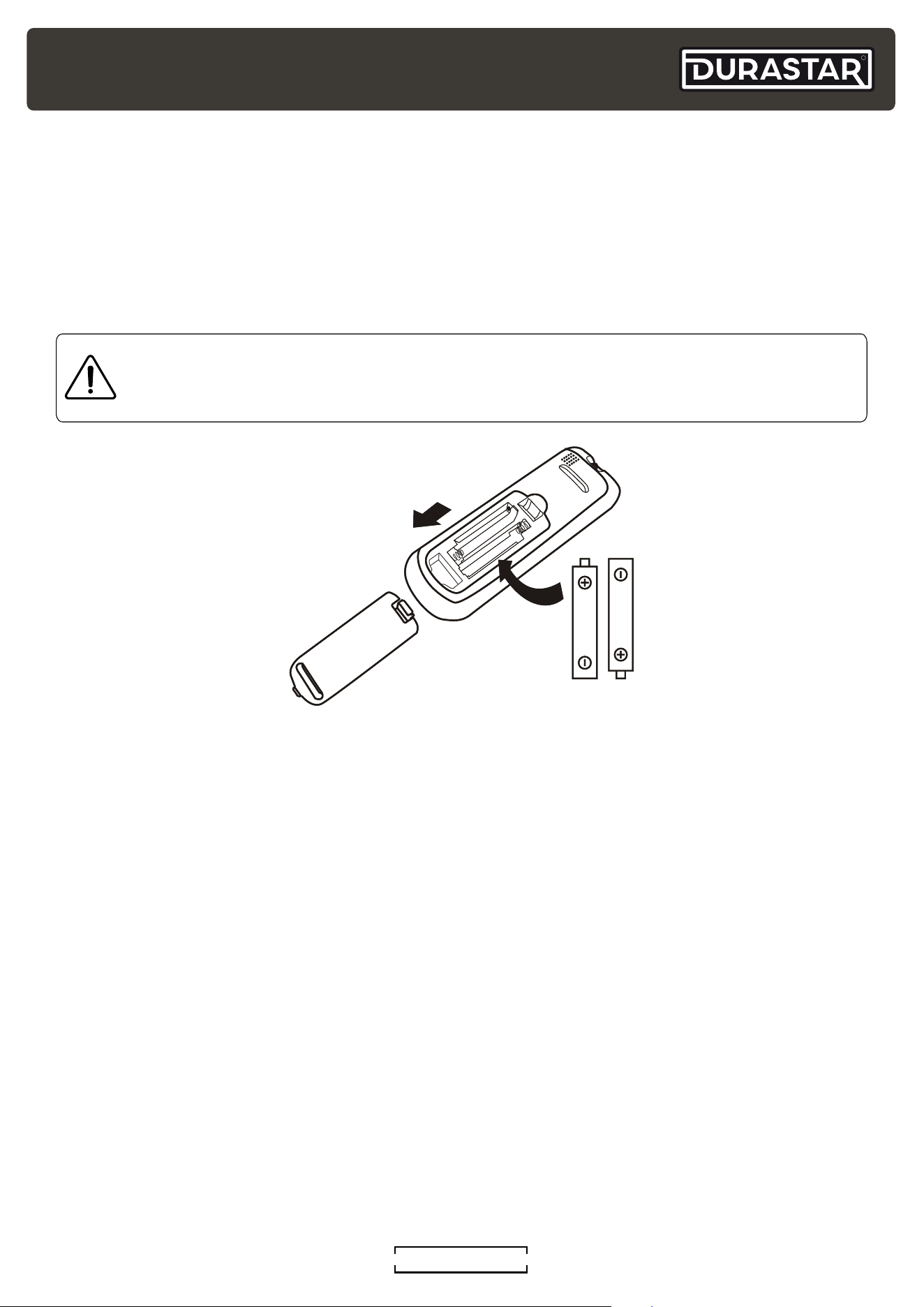

REPLACING THE REMOTE BATTERIES ................................................................................................ 19

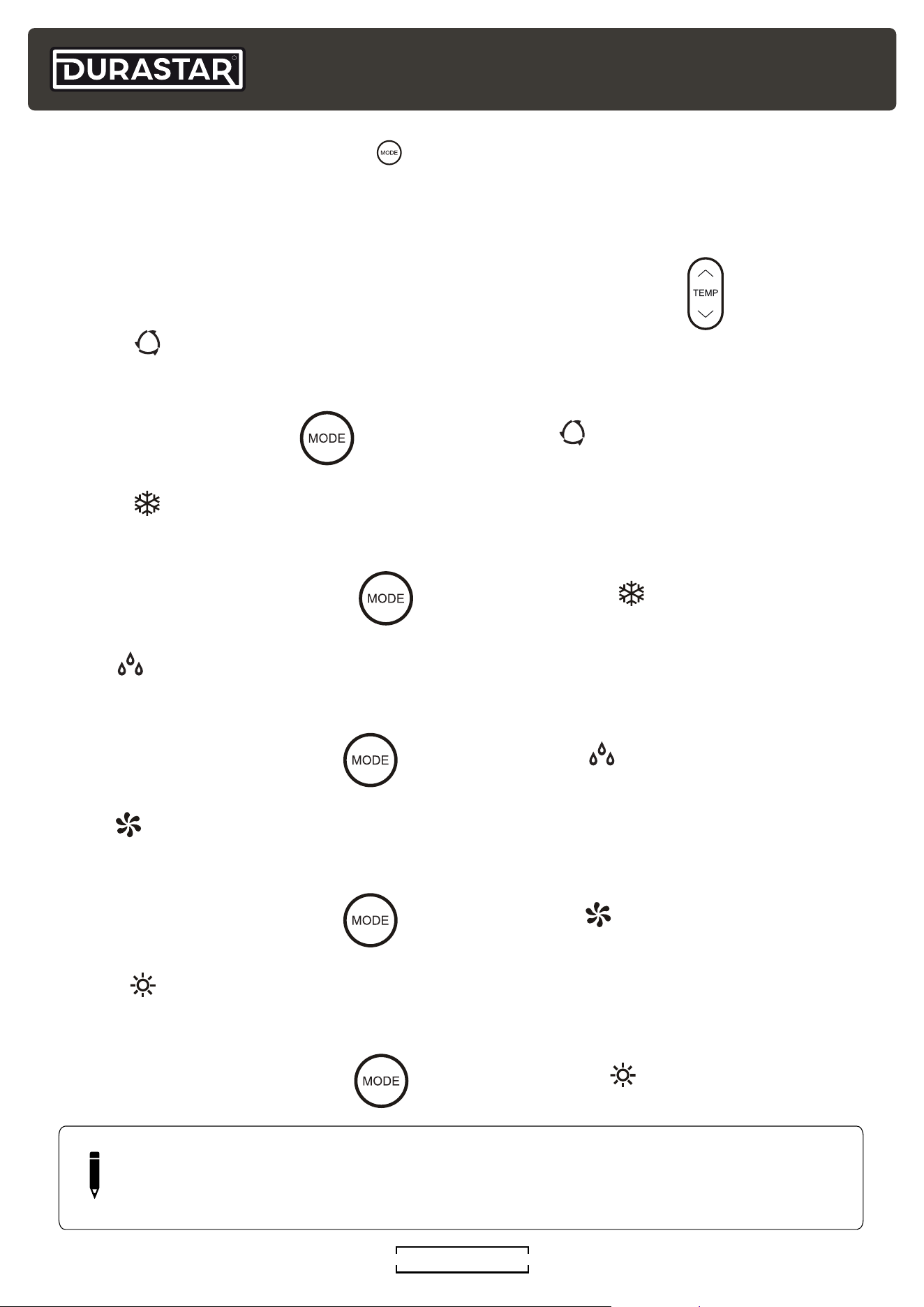

OPERATING MODES ...................................................................................................................................... 20

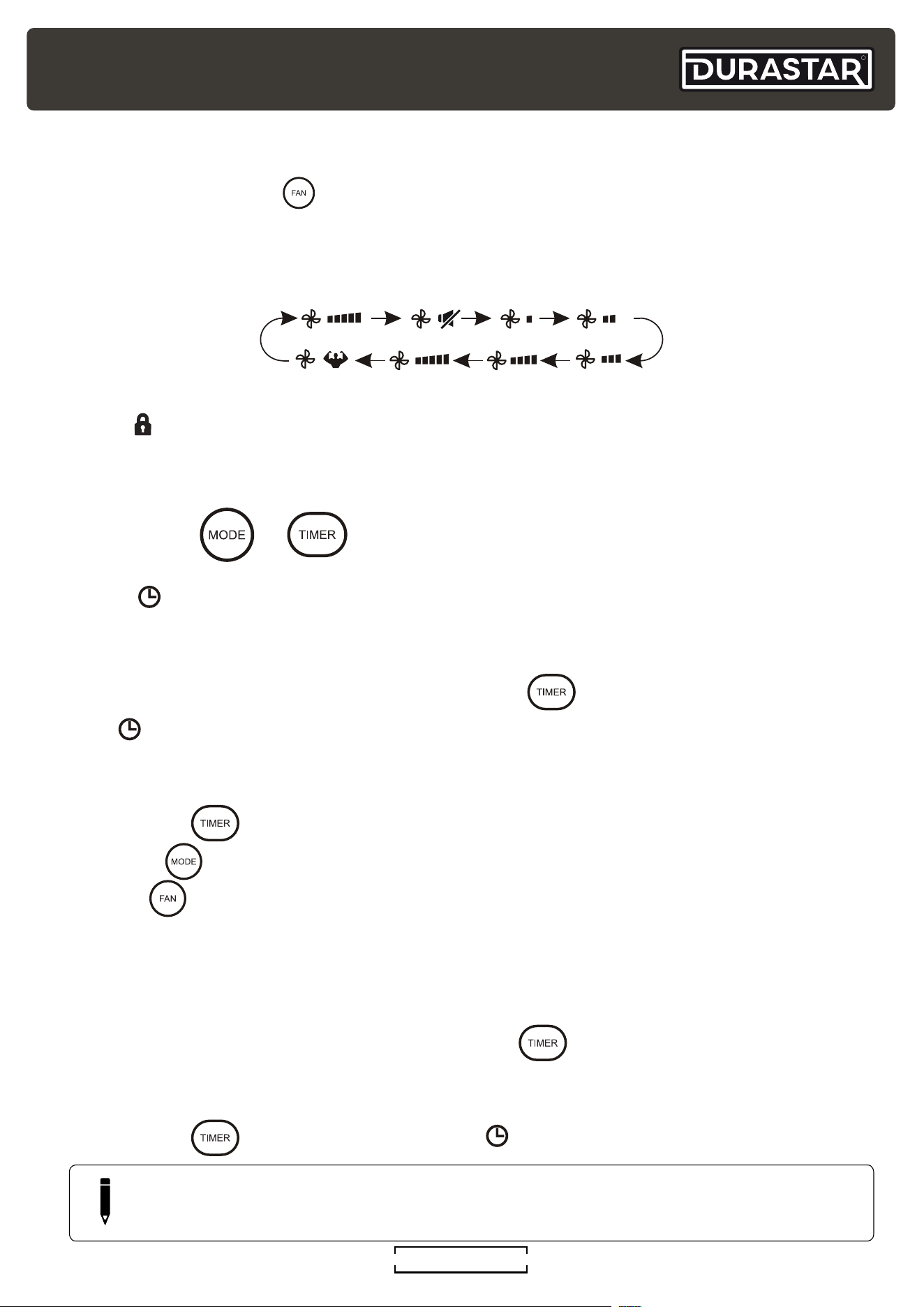

ADVANCED BUTTONS AND FUNCTIONS ............................................................................................21
SETTING AIR FLOW DIRECTION .............................................................................................................. 23
MANUAL OPERATION ....................................................................................................................................24

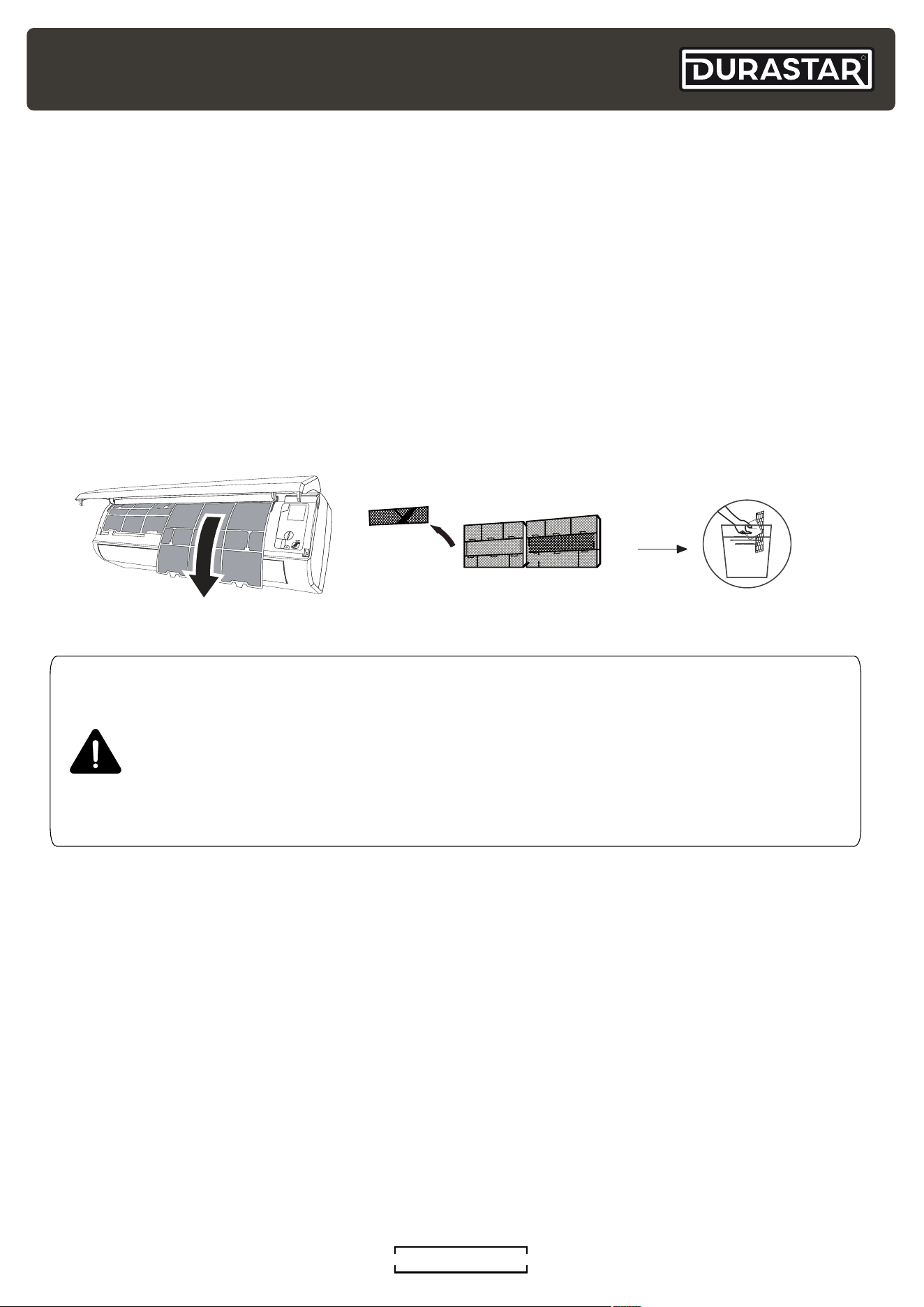

CARE AND MAINTENANCE .........................................................................................................................24
TROUBLESHOOTING ..................................................................................................................................... 26
WARRANTY ......................................................................................................................................................... 29
R
DURASTAR.COM
3

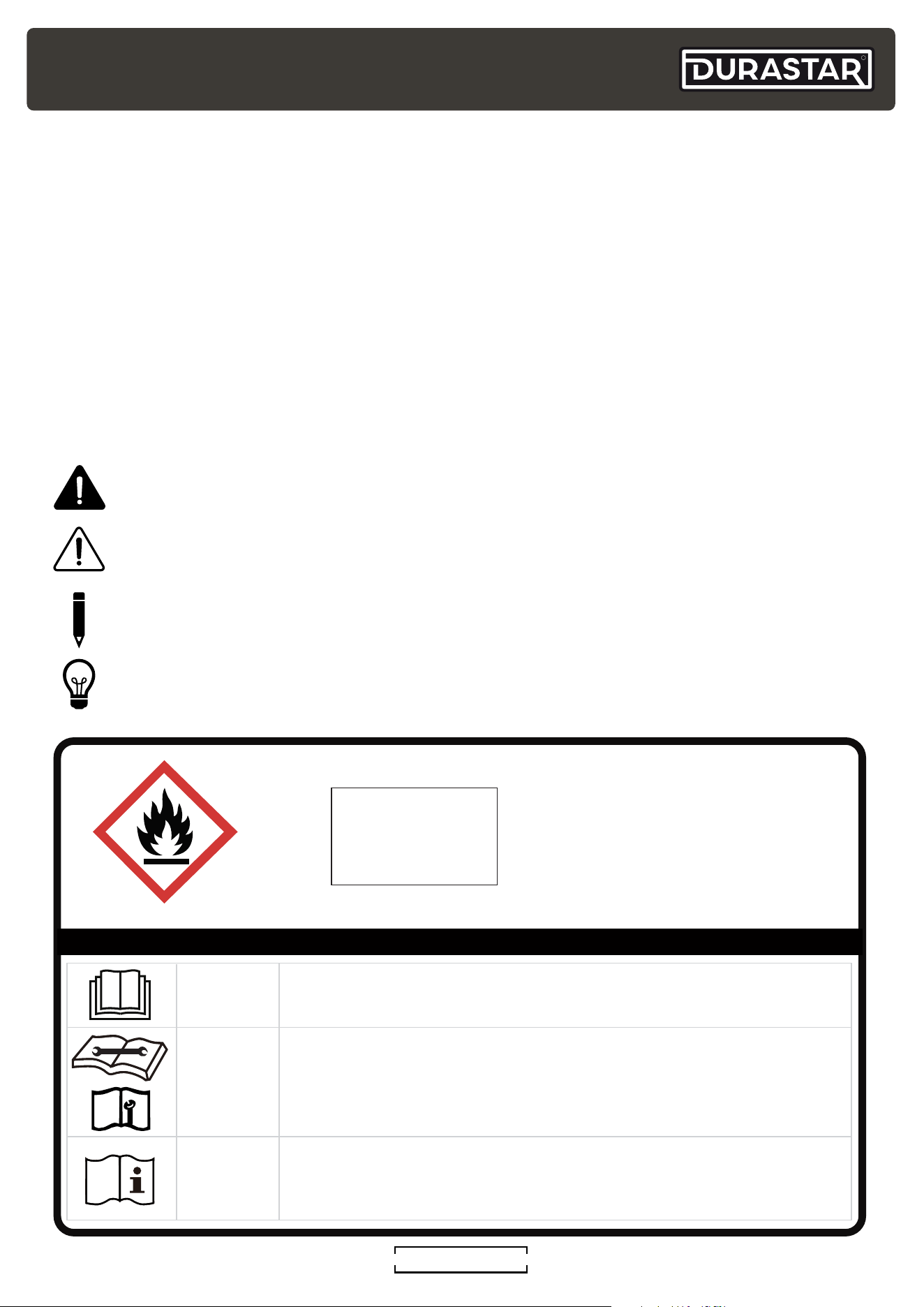

INTRODUCTION
WARNING: The warning symbol indicates personal injury or loss of life is possible. Extra
care and precautions should be taken to ensure the user's safety.
CAUTION: The caution symbol indicates property damage or other serious
consequences could occur.
NOTE: The pencil indicates any manufacturer notes relating to surrounding content.
These may include further clarifications or call-outs.
TIP: A light bulb symbol indicates suggested manufacturer tips for the user to get the
most out of the Durastar equipment and to accommodate the best user experience.
SYMBOLS USED IN THIS MANUAL
WARNING:
RISK OF FIRE DUE TO FLAMMABLE
MATERIALS
Follow handling instructions carefully
in compliance with national regulations.
Explanation of symbols displayed on the unit
CAUTION
This symbol shows that the operation manual should be read carefully.
CAUTION
This symbol shows that a service personnel should be handling this equipment
with reference to the installation manual.
CAUTION
This symbol shows that information is available such as the operating
manual or installation manual.
R-454B
A2L
Refrigerant
Safety Group
A2L
To better serve you, please do the following before contacting customer service:
• If you received a damaged product, immediately contact the retailer or dealer that sold you the
product.
• Read and follow this manual carefully to help you use and maintain your air handler.
• Read the troubleshooting section of this manual as it will help you diagnose and solve common
issues.
• Visit us on the web at www.durastar.com to download product guides and up-to-date
information.
• If you need warranty service, our friendly customer service representatives are available via
email at [email protected] or by telephone at 1-888-320-0706.
R
DURASTAR.COM4
IMPORTANT SAFETY PRECAUTIONS
Improper handling can cause serious damage or injury. Please read the following safety
information in its entirety.
Operation, Cleaning, and Maintenance Safety Precautions
• Children and people with reduced physical, sensory, or mental capabilities, or lack of
experience and knowledge, should only use, clean, or maintain this air conditioner if they
are given supervision or instructions concerning use of the air conditioner in a safe way and
understand the hazards involved. Children should not play with the air conditioner.
• Maintenance or repair must be performed by qualified professionals. Otherwise, you may
experience personal injury or damage to the air conditioner and surrounding property.
• Disconnect the power supply by turning it off at the circuit breaker when cleaning, maintaining,
or repairing the air conditioner. Otherwise, you could risk electric shock.
• When turning the unit on or off via the emergency operation switch, press the switch with an
insulated object other than metal.
• If the below problems occur, please turn off the air conditioner and disconnect power at the
circuit breaker immediately. Then contact your dealer or a qualified professional for service.
- The power cord is overheating or damaged.
- There is an abnormal sound during operation.
- The circuit breaker trips frequently.
- The air conditioner gives off a burning smell.
- The indoor unit is leaking.
• Do not block the air outlet or air inlet. This could cause a malfunction.
• Never stick fingers or any other body parts into the air conditioner openings. The internal fan
may be rotating at high speeds, and may result in injury.
• Do not spill water on the remote control as this can permanently damage the remote.
• Do not spray water on the indoor unit. This could cause electric shock or a unit malfunction.
• Do not clean the air conditioner with excessive amounts of water.
• Do not clean the air conditioner with combustible cleaning agents; they can cause fire or
deformation.
• After removing the filter, do not touch the fins in order to avoid injury.
• Do not use fire or a hair dryer to dry the filter. This could cause a deformation or fire hazard.
• Do not step on the top panel of the unit, or put heavy objects on the top panel. This could
cause damage or personal injury.
• Do not use flammable materials such as hair spray, lacquer, or paint near the air conditioner as
they may catch fire.
• Do not operate the air conditioner in places near combustible gases. Emitted gases may
collect around the air conditioner and cause an explosion.
• Do not operate your air conditioner in a wet room such as a bathroom or laundry room. Too
much exposure to water can cause electrical components to short circuit.
• If the air conditioner is used together with burners or other heating devices, thoroughly
ventilate the room to avoid oxygen deficiency.
WARNING
Turn off the air conditioner and disconnect the power before installing, cleaning, or
repairing the air conditioner. Failure to do so can cause electric shock.
R
DURASTAR.COM
5
Electrical Safety
• Do not modify the length of the power supply cord or use an extension cord to power the unit.
• If the supply cord is damaged, it must be replaced by the manufacturer, a service agent, or a
similarly qualified person in order to avoid a safety hazard.
• Keep power plug clean. Remove any dust or grime that accumulates on or around the plug.
Dirty plugs can cause fire or electric shock.
• Do not pull power cord to unplug unit. Hold the plug firmly and pull it from the outlet. Pulling
directly on the cord can damage it, which can lead to fire or electric shock.
• Do not share the electrical outlet with other appliances. Improper or insufficient power supply
can cause fire or electrical shock.
• The product must be properly grounded at the time of installation, or electrical shock may
occur.
• For all electrical work, follow all local and national wiring standards and regulations. Connect
cables tightly, and clamp them securely to prevent external forces from damaging the
terminal. Improper electrical connections can overheat and cause fire, and may also cause
shock. All electrical connections must be made according to the Electrical Connection
Diagram located on the panels of the indoor and outdoor units.
• All wiring must be properly arranged to ensure that the control board cover can close properly.
If the control board cover is not closed properly, it can lead to corrosion and cause the
connection points on the terminal to heat up, catch fire, or cause electrical shock.
• If connecting power to fixed wiring, an all-pole disconnection device which has at least 3mm
clearances in all poles, and have a leakage current that may exceed 10mA, the residual
current device(RCD) having a rated residual operating current not exceeding 30mA, and
disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.
• The air conditioner’s circuit board (PCB) is designed with a fuse to provide over-current
protection. The specifications of the fuse are printed on the circuit board.
Installation Safety
• Installation must be performed by an authorized dealer or specialist. Improper installation
can cause water leakage, electrical shock, or fire. (In North America, installation must be
performed in accordance with NEC and CEC requirements by authorized personnel only.)
• Installation must be performed according to the installation instructions. Improper installation
can cause water leakage, electrical shock, or fire.
• This air conditioner shall be installed in accordance with national and local wiring regulations.
• Contact an authorized service technician for repair or maintenance of this unit.
• Only use the included accessories, parts, and specified parts for installation. Using non-
standard parts can cause water leakage, electrical shock, fire, and can cause the unit to fail.
• Install the unit in a firm location that can support the unit’s weight. If the chosen location
cannot support the unit’s weight, or the installation is not done properly, the unit may fall and
cause serious injury and damage.
• Install drainage piping according to the instructions in the installation manual. Improper
drainage may cause water damage to your home and property.
• For units that have an auxiliary electric heater, do not install the unit within 3 feet (1 meter) of
any combustible materials.
• Do not install the unit in a location that may be exposed to combustible gas leaks. If
combustible gas accumulates around the unit, it may cause a fire.
R
DURASTAR.COM6
• Do not turn on the power until all work has been completed.
• When moving or relocating the air conditioner, consult experienced service technicians for
disconnection and re-installation of the unit.
• Be careful when opening or closing valves below freezing temperatures. Refrigerant may spurt
out from the gap between the valve stem and the valve body, resulting in injuries.
WARNING: REFRIGERANT SAFETY (A2L)
• Do not use means to accelerate the defrosting process or to clean the unit, other
than those recommended by the manufacturer.
• The appliance shall be stored in a room without continuously operating ignition
sources (for example: open flames, an operating gas appliance or an operating
electric heater).
• Do not pierce or burn.
• Be aware that flammable refrigerants may not contain an odor.
• Compliance with national refrigerant regulations shall be observed.
1. Installation (Where Refrigerant Pipes Are Allowed)
• Any person who is involved with working on or breaking into a refrigerant circuit should hold a
current valid certificate from an industry-accredited assessment authority, which authorizes
their competence to handle refrigerants safely in accordance with an industry recognized
assessment specification.
• Maintenance and repair requiring the assistance of other skilled personnel shall be carried out
under the supervision of the person competent in the use of flammable refrigerants.
• That the installation of pipe-work shall be kept to a minimum.
• That pipe-work shall be protected from physical damage.
• Where refrigerant pipes shall be compliance with national gas regulations.
• That mechanical connections shall be accessible for maintenance purposes.
• Be more careful that foreign matter (oil, water,etc) does not enter the piping. Also, when
storing the piping, securely seal the opening by pinching, taping, etc.
• All working procedure that affects safety means shall only be carried by competent persons.
• Appliance shall be stored in a well ventilated area where the room size corresponds to the
room area as specific for operation.
• Joints shall be tested with detection equipment with a capability of 0.18 oz (5 g) per year of
refrigerant or better, with the equipment in standstill and under operation or under a pressure
of at least these standstill or operation conditions after installation. Detachable joints shall
NOT be used in the indoor side of the unit (brazed, welded joint could be used).
• In cases that require mechanical ventilation, ventilation openings shall be kept clear of
obstruction.
•
2. Because a FLAMMABLE REFRIGERANT is used, the requirements for installation
space of appliance and/or ventilation requirements are determined according to:
• the mass charge amount(M) used in the appliance,
• the installation location,
• the type of ventilation of the location or of the appliance.
• piping material, pipe routing, and installation shall include protection from physical damage
A2L REFRIGERANT SAFETY PRECAUTIONS
R
DURASTAR.COM
7
in operation and service, and be in compliance with national and local codes and standards,
such as ASHRAE 15, IAPMO Uniform Mechanical Code, ICC International Mechanical Code, or
CSA B52. All field joints shall be accessible for inspection prior to being covered or enclosed.
• that protection devices, piping, and fittings shall be protected as far as possible against
adverse environmental effects, for example, the danger of water collecting and freezing in
relief pipes or the accumulation of dirt and debris;
• that piping in refrigeration systems shall be so designed and installed to minimize the
likelihood of hydraulic shock damaging the system;
• that steel pipes and components shall be protected against corrosion with a rustproof coating
before applying any insulation;
• that precautions shall be taken to avoid excessive vibration or pulsation;
• the minimum floor area of the room shall be mentioned in the form of a table or a single figure
without reference to a formula;
• After completion of field piping for split systems, the field pipework shall be pressure tested
with OXYGEN-FREE NITROGEN (OFN) and then vacuum tested prior to refrigerant charging,
according to the following requirements:
1. Pressure test the refrigerant piping to 500 PSI.
2. The test pressure after removal of pressure source shall be maintained for at least 1 hour
with no decrease of pressure indicated by the test gauge, with test gauge resolution not
exceeding 5% of the test pressure.
3. During the evacuation test, after achieving a vacuum level specified in the manual or less,
the refrigeration system shall be isolated from the vacuum pump and the pressure shall
not rise above 1500 microns within 10 min. The vacuum pressure level shall be specified in
the manual, and shall be the lessor of 500 microns or the value required for compliance
with national and local codes and standards, which may vary between residential,
commercial,and industrial buildings.
• Field-made refrigerant joints indoors shall be tightness tested according to the following
requirements: The test method shall have a sensitivity of 0.18 oz (5 g) per year of refrigerant or
better under a pressure of at least 125% of the maximum allowable pressure. No leak shall be
detected.
3 . Qualifications Of Workers
Any maintenance, service and repair operations must be performed by qualified personnel.
Any working procedure that impacts safety must be performed only by qualified individuals
who have completed the necessary training and obtained certification to demonstrate their
competence. The training of these procedures is carried out by national training organizations
or manufacturers that are accredited to teach the relevant national competency standards that
may be set in legislation. All training shall follow the ANNEX HH requirements of UL 60335-2-40
4th Edition.
Examples for such working procedures are:
• breaking into the refrigerating circuit;
• opening of sealed components;
• opening of ventilated enclosures.
4. Checks To The Area
Prior to beginning work on systems containing flammable refrigerants, safety checks are
necessary to ensure that the risk of ignition is minimized. For repair to the refrigerating system,
the following precautions shall be complied with prior to conducting work on the system.
R
DURASTAR.COM8
5. Work Procedure
Works shall be undertaken under a controlled procedure so as to minimize the risk of a flammable
gas or vapor being present while the work is being performed.
6. General Work Area
All maintenance staff and others working in the local area shall be instructed on the nature of
work being carried out. Working in confined spaces shall be avoided.
7. Checking For Presence Of Refrigerant
The area shall be checked with an appropriate refrigerant detector prior to and during work,
to ensure the technician is aware of potentially flammable atmospheres. Ensure that the leak
detection equipment being used is suitable for use with flammable refrigerants, i.e. no sparking,
adequately sealed or intrinsically safe.
8. Presence Of Fire Extinguisher
If any hot work is to be conducted on the refrigeration equipment or any associated parts,
appropriate fire extinguishing equipment shall be available to hand. Have a dry power or CO2 fire
extinguisher adjacent to the charging area.
9. No Ignition Sources
No person carrying out work in relation to a REFRIGERATING SYSTEM which involves exposing
any pipe work shall use any sources of ignition in such a manner that it may lead to the risk of fire
or explosion. All possible ignition sources, including cigarette smoking, should be kept sufficiently
far away from the site of installation, repairing, removing and disposal, during which refrigerant
can possibly be released to the surrounding space. Prior to work taking place, the area around
the equipment is to be surveyed to make sure that there are no flammable hazards or ignition
risks.
“No Smoking” signs shall be displayed.
10. Ventilated Area
Ensure that the area is in the open or that it is adequately ventilated before breaking into the
system or conducting any work that could produce ignition. Keep ventilation openings clear of
obstruction. Ventilation continue during the period that the work is carried out. Proper ventilation
should safely disperse any released refrigerant and preferably expel it externally into the
atmosphere.
11. Checks To The Refrigeration Equipment
Where electrical components are being changed, they shall be fit for the purpose and to the
correct specification. At all times the manufacturer’s maintenance and service guidelines shall be
followed. If in doubt consult the manufacturer’s technical department for assistance. The following
checks shall be applied to installations using FLAMMABLE REFRIGERANTS:
• the actual refrigerant charge is in accordance with the room size within which the refrigerant
containing parts are installed;
• the ventilation machinery and outlets are operating adequately and are not obstructed;
• if an indirect refrigerating circuit is being used, the secondary circuits shall be checked for the
presence of refrigerant;
R
DURASTAR.COM
9
• marking to the equipment continues to be visible and legible, marking and signs that are
illegible shall be corrected;
• refrigeration pipe or components are installed in a position where they are unlikely to be
exposed to any substance which may corrode refrigerant containing components, unless the
components are constructed of materials which are inherently resistant to being corroded or
are suitably protected against being so corroded.
12. Checks To Electrical Devices
Repair and maintenance to electrical components shall include initial safety checks and
component inspection procedures. If a fault exists that could compromise safety, then no
electrical supply shall be connected to the circuit until it is satisfactorily dealt with. If the fault
cannot be corrected immediately but it is necessary to continue operation, and adequate
temporary solution shall be used. This shall be reported to the owner of the equipment so all
parties are advised. Initial safety checks shall include:
• that capacitors are discharged: this shall be done in a safe manner to avoid possibility of
sparking;
• that there no live electrical components and wiring are exposed while charging, recovering or
purging the system;
• that there is continuity of earth bonding;
• Sealed electrical components shall be replaced if it's damage;
• Intrinsically safe components must be replaced if it's damage.
13. Wiring
Check that wiring will not be subject to wear, corrosion, excessive pressure, vibration, sharp edges
or any other adverse environmental effects. The check shall also take into account the effects of
aging or continual vibration from sources such as compressors or fans.
14. Detection Of Flammable Refrigerants
Under no circumstances shall potential sources of ignition be used in the searching for or
detection of refrigerant leaks. A halide torch (or any other detector using a naked flame) shall not
be used.
The following leak detection methods are deemed acceptable for refrigerant systems:
• Electronic leak detectors may be used to detect refrigerant leaks but, in the case of
FLAMMABLE REFRIGERANTS, the sensitivity may not be adequate, or may need re-
calibration to a sensitivity of 0.18 oz (5 g) per year. (Detection equipment shall be calibrated
in a refrigerant free area.) Ensure that the detector is not a potential source of ignition and is
suitable for the refrigerant used. Leak detection equipment shall be set at a percentage of the
LFL of the refrigerant and shall be calibrated to the refrigerant employed, and the appropriate
percentage of gas (25 % maximum) is confirmed.
• Leak detection fluids are also suitable for use with most refrigerants but the use of detergents
containing chlorine shall be avoided as the chlorine may react with the refrigerant and corrode
the copper pipe-work.
If a leak is suspected, all naked flames shall be removed/extinguished.
If a leakage of refrigerant is found which requires brazing, all of the refrigerant shall be recovered
from the system, or isolated (by means of shut o valves) in a part of the system remote from the
leak. See the following instructions for removal of refrigerant.
R
DURASTAR.COM10
15. Evacuation
When breaking into the refrigerant circuit to make repairs - or for any other purpose conventional
procedures shall be used. However, for flammable refrigerants it is important that best practice
be followed, since flammability is a consideration.
The following procedure shall be adhered to:
• safely remove refrigerant following local and national regulations; evacuate;
• purge the circuit with NITROGEN
• evacuate (requirement);
• continuously flush or purge with NITROGEN when using flame to open circuit; and
• open the circuit
The refrigerant charge shall be recovered into the correct recovery cylinders if venting is not
allowed by local and national codes. For appliances containing flammable refrigerants, the
system shall be purged with OXYGEN-FREE NITROGEN (OFN) to render the appliance safe for
flammable refrigerants. This process might need to be repeated several times. Compressed air or
oxygen shall not be used for purging refrigerant systems.
For appliances containing flammable refrigerants, refrigerant purging shall be achieved by
breaking the vacuum in the system with OXYGEN-FREE NITROGEN (OFN) and continuing to fill
until the working pressure is achieved, then venting to atmosphere, and finally pulling down to
a vacuum (requirement). This process shall be repeated until no refrigerant is within the system
(requirement). When the final oxygen-free nitrogen charge is used, the system shall be vented
down to atmospheric pressure to enable work to take place.
The outlet for the vacuum pump shall not be close to any potential ignition sources, and
ventilation shall be available.
16. Charging Procedures
In addition to conventional charging procedures, the following requirements shall be followed:
• Works shall be undertaken with appropriate tools only (In case of uncertainty, please consult
the manufacturer of the tools for use with flammable refrigerants).
• Ensure that contamination of different refrigerants does not occur when using charging
equipment.
• Hoses or lines shall be as short as possible to minimize the amount of refrigerant contained in
them.
• Cylinders shall be kept upright.
• Ensure that the refrigeration system is grounded prior to charging the system with refrigerant.
• Label the system when charging is complete (if not already).
• Extreme care shall be taken not to overfill the refrigeration system.
• Prior to recharging the system it shall be pressure tested with OXYGEN FREE NITROGEN
• (OFN). The system shall be leak tested on completion of charging but prior to commissioning.
• A follow up leak test shall be carried out prior to leaving the site.
17. Decommissioning
Before carrying out this procedure, it is essential that the technician is completely familiar with the
equipment and all its detail. It is recommended good practice that all refrigerants are recovered
safely. Prior to the task being carried out, an oil and refrigerant sample shall be taken in case
analysis is required prior to re-use of recovered refrigerant. It is essential that electrical power is
Note
Examples of leak detection fluids are bubble method and fluorescent method agents.
R
DURASTAR.COM
11
available before the task is commenced.
• Become familiar with the equipment and its operation.
• Isolate system electrically
• Before attempting the procedure ensure that:
1. mechanical handling equipment is available, if required, for handling refrigerant cylinders;
2. all personal protective equipment is available and being used correctly;
3. the recovery process is supervised at all times by a competent person;
4. recovery equipment and cylinders conform to the appropriate standards.
• Pump down refrigerant system, if possible.
• If a vacuum is not possible, make a manifold so that refrigerant can be removed from various
parts of the system.
• Make sure that cylinder is situated on the scales before recovery takes place.
• Start the recovery machine and operate in accordance with instructions.
• Do not overfill cylinders (no more than 80 % volume liquid charge)
• Do not exceed the maximum working pressure of the cylinder, even temporarily.
• When the cylinders have been filled correctly and the process completed, make sure that the
cylinders and the equipment are removed from site promptly and all isolation valves on the
equipment are closed off.
• Recovered refrigerant shall not be charged into another refrigeration system unless it has
been cleaned and checked.
18. Labeling
Equipment shall be labeled stating that it has been decommissioned and emptied of refrigerant.
The label shall be dated and signed. For appliances containing FLAMMABLE REFRIGERANTS,
ensure that there are labels on the equipment stating the equipment contains FLAMMABLE
REFRIGERANT.
19. Recovery
When removing refrigerant from a system, either for servicing or decommissioning, it is
recommended good practice that all refrigerants are removed safely. When transferring
refrigerant into cylinders, ensure that only appropriate refrigerant recovery cylinders are
employed. Ensure that the correct number of cylinders for holding the total system charge is
available. All cylinders to be used are designated. for the recovered refrigerant and labeled for
that refrigerant (i. e. special cylinders for the recovery of refrigerant). Cylinders shall be complete
with pressure-relief valve and associated shut-o valves in good working order. Empty recovery
cylinders are evacuated and, if possible,cooled before recovery occurs.
The recovery equipment shall be in good working order with a set of instructions concerning the
equipment that is at hand and shall be suitable for the recovery of the flammable refrigerant. If
in doubt, the manufacturer should be consulted. In addition, a set of calibrated weighing scales
shall be available and in good working order. Hoses shall be complete with leak-free disconnect
couplings and in good condition.
The recovered refrigerant shall be processed according to local legislation in the correct recovery
cylinder, and the relevant waste transfer note arranged. Do not mix refrigerants in recovery units
and especially not in cylinders.
If compressors or compressor oils are to be removed, ensure that they have been evacuated
to an acceptable level to make certain that flammable refrigerant does not remain within the
R
DURASTAR.COM12
lubricant. The compressor body shall not be heated by an open flame or other ignition sources to
accelerate this process. When oil is drained from a system, it shall be carried out safely.
20. Unventilated Areas
• An unventilated area where the appliance using FLAMMABLE REFRIGERANTS is installed
shall be so constructed that should any refrigerant leak, it will not stagnate so as to create a
fire or explosion hazard.
• If appliances connected via an air duct system to one or more rooms with A2L
REFRIGERANTS are installed in a room with an area less than Amin,that room shall be without
continuously operating open flames (e.g. an operating gas appliance) or other POTENTIAL
IGNITION SOURCES (for e.g. an operating electric heater, hot surfaces). A flame-producing
device may be installed in the same space if the device is provided with an active flame arrest.
• Auxiliary devices which may be a POTENTIAL IGNITION SOURCE shall not be installed in
the duct work. Examples of such POTENTIAL IGNITION SOURCES are hot surfaces with a
temperature exceeding 700 °C and electric switching devices.
• Only auxiliary devices(such as certificated heater kit) approved by the appliance manufacturer
or declared suitable with the refrigerant shall be installed in connecting ductwork.
• For duct connected appliances, false ceilings or drop ceilings may be used as a return air
plenum if a REFRIGERANT DETECTION SYSTEM is provided in the appliance and any external
connections are also provided with a sensor immediately below the return air plenum duct
joint.
• REFRIGERANT SENSORS for REFRIGERANT DETECTION SYSTEMS shall only be replaced
with sensors specified by the appliance manufacture.
• LEAK DETECTION SYSTEM installed. Unit must be powered except for service.
21. Transportation, Marking and Storage for Units That Employ Flammable
Refrigerants
The following information is provided for units that employ FLAMMABLE REFRIGERANTS
Transport of equipment containing flammable refrigerants: Attention is drawn to the fact that
additional transportation regulations may exist with respect to equipment containing flammable
gas. The maximum number of pieces of equipment or the configuration of the equipment
permitted to be transported together will be determined by the applicable transport regulations.
Marking of equipment using signs: Signs for similar appliances used in a work area are generally
addressed by local regulations and give the minimum requirements for the provision of safety
and/or health signs for a work location. All required signs are to be maintained and employers
should ensure that employees receive suitable and sufficient instruction and training on the
meaning of appropriate safety signs and the actions that need to be taken in connection with
these signs. The effectiveness of signs should not be diminished by too many signs being placed
together. Any pictograms used should be as simple as possible and contain only essential details.
Disposal of equipment using flammable refrigerants: See national regulations.
Storage of equipment/appliances: The storage of the appliance should be in accordance with
the applicable regulations or instructions,whichever is more stringent.
Storage of packed (unsold) equipment: Storage package protection should be constructed in
such a way that mechanical damage to the equipment inside the package will not cause a leak
of the REFRIGERANT CHARGE. The maximum number of pieces of equipment permitted to be
stored together will be determined by local regulations.
R
DURASTAR.COM
13
Additional Precautions
• Turn off the air conditioner and disconnect the power if you are not going to use it for a long
time.
• Turn off the unit during electrical storms to avoid damaging the unit.
• Make sure that water condensation can drain unhindered from the unit.
• Do not operate the air conditioner with wet hands. This may cause electric shock.
• Do not use this device for any other purpose than its intended use.
• Do not climb onto or place objects on top of the outdoor unit.
• Do not allow the air conditioner to operate for long periods of time with doors or windows
open, or if the humidity is very high.
• If the air handler is used together with burners or other heating devices, thoroughly ventilate
the room to avoid oxygen deficiency and carbon monoxide build up.
• In certain environments, such as kitchens, server rooms, etc., the use of specially designed air-
conditioning units is highly recommended.
• As with any mechanical equipment, contact with sharp sheet metal edges can result in
personal injury. Take care while handling this equipment and wear gloves and protective
clothing.
• Excessive Weight Hazard - Use two (2) or more people when moving and installing the unit.
Failure to do so can result in back or other type of injury.
FCC COMPLIANCE STATEMENT
The remote provided with this unit complies with part 15 of the FCC Rules for Class B digital
devices per the declaration of conformity below. These guidelines are meant to prevent against
harmful interference in residential applications. This equipment generates a radio frequency
that can interfere with radio communications if the unit is not installed in accordance with the
installation manual provided and used in accordance with the owners manual provided. As
mentioned in the installation manual, do not run the equipment's power and communication
cables in parallel with antenna cables. If interference does occur, you are encouraged to try
relocating the antenna or receiver and increasing the distance between the antenna and the
equipment.
Supplier's Declaration of Conformity
Per FCC Part 2 Section 2.1077
Unique Identifier
: DREW09S2AL, DREW12S2AL
Responsible Party – U.S. Contact Information
Company name：
Ferguson Enterprises LLC
Street Address:
751 Lakefront Commons
City, State：
Newport News, VA
Postal Code：
23606
Telephone number or internet contact information：
Durastar.com
FCC Compliance Statement
This device complies with Part 15 of the FCC Rules. Operaon is subject to the
following two condions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including interference
that may cause undesired operaon.
R
DURASTAR.COM14

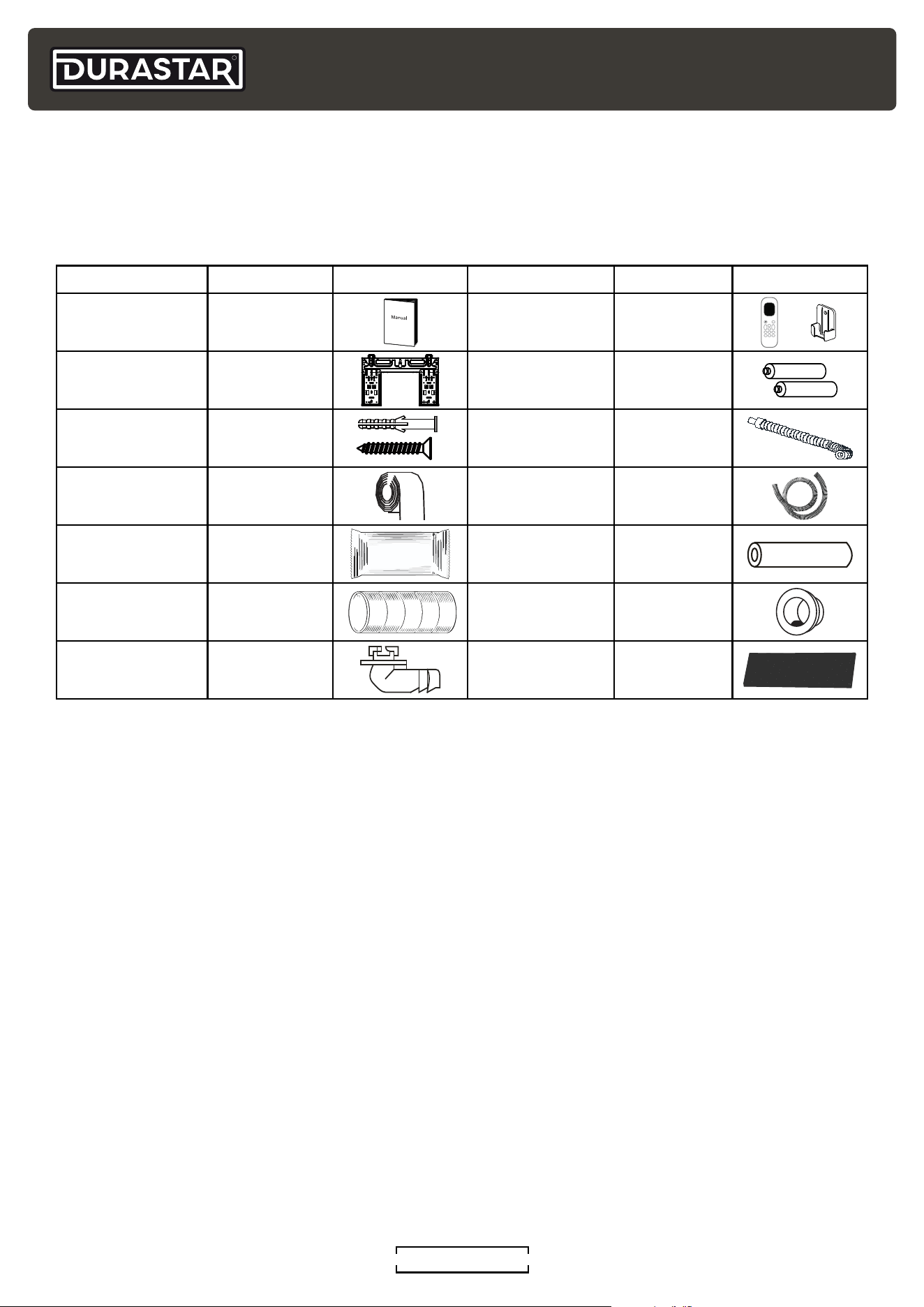

INCLUDED INSTALLATION ACCESSORIES
The air conditioning system comes with the following accessories.
ACCESSORIES
Accessory Quantity Image Accessory Quantity Image
Manual 2
Remote Control
and Holder
1
Mounting Plate 1 Batteries 2
Wall Anchors
and Screws
6
Indoor Unit
Drain Pipe
1
Pipe Tape 1
Flexible 5/8"
Drain Pipe
1
Sealant 1 Insulation 1
Wall Sleeve 1
Wall Sleeve
Cover
1
Drain Joint 1 Carbon Filter 2
R
DURASTAR.COM
15
Your air conditioner is designed to operate in the following indoor and outdoor temperatures.
When your air conditioner is used outside of the following temperature ranges, certain safety
features may activate and turn off the unit to protect it from damage.
After switching the operation mode or restoring power following an outage, the unit may require
2–5 minutes to start up in order to protect the compressor and/or allow for preheating.
TEMPERATURE RANGES
HEAT mode COOL mode DRY mode
Indoor Air
Temperature
32°F - 86°F
(0°C - 30°C)
63°F - 90°F
(17°C - 32°C)
Outdoor Air
Temperature
-4°F - 86°F
(-20°C - 30°C)
5°F - 122°F
(-15°C - 50°C)
To further optimize the performance of your unit, do the following:
• Keep doors and windows closed.
• Limit energy usage by using ECO, SLEEP, TIMER ON and TIMER OFF functions.
• Do not block air inlets or outlets.
• Regularly inspect and clean air filters.
OPERATING TEMPERATURES
NOTE
Keep the room's relative humidity below 80%. If the air conditioner operates in excess
of this, the surface of the air conditioner may attract condensation. To help prevent
condensation from forming and dripping, set the vertical airflow louver to its maximum
angle (vertically to the floor) and set the fan to HIGH.
NOTE
When outdoor air temperatures are at or below 32°F (0°C), we strongly recommend
keeping the unit plugged in at all times to ensure smooth ongoing performance.
R
DURASTAR.COM16
PARTS IDENTIFICATION
INDOOR UNIT
OUTDOOR UNIT
Display
Front Panel
Valve Cover
Power/ Communication
Cable
Drainage Pipe
Wiring Cover
Refrigerant/ Drainage
Pipe
Manual Button
Air Deflectors
Air Outlet
Air Inlet/
Filters
Air Outlet
Air Inlet
®
Carbon
Filters
NOTE
Illustrations in this manual are for explanatory purposes. The actual shape of your mini-
split equipment may vary slightly.
R
DURASTAR.COM
17
Indicator Function Notes
Battery indicator
Auto Mode
Cooling Mode
Dry Mode
Fan Mode
Heating Mode
ECO Mode
TIMER
Temperature indicator
Fan speed:
auto/ low/ low-mid/ mid/ mid-high/ high
Mute function
TURBO
Vertical Swing
Horizontal Swing
SLEEP
I FEEL
Child-Lock
Display

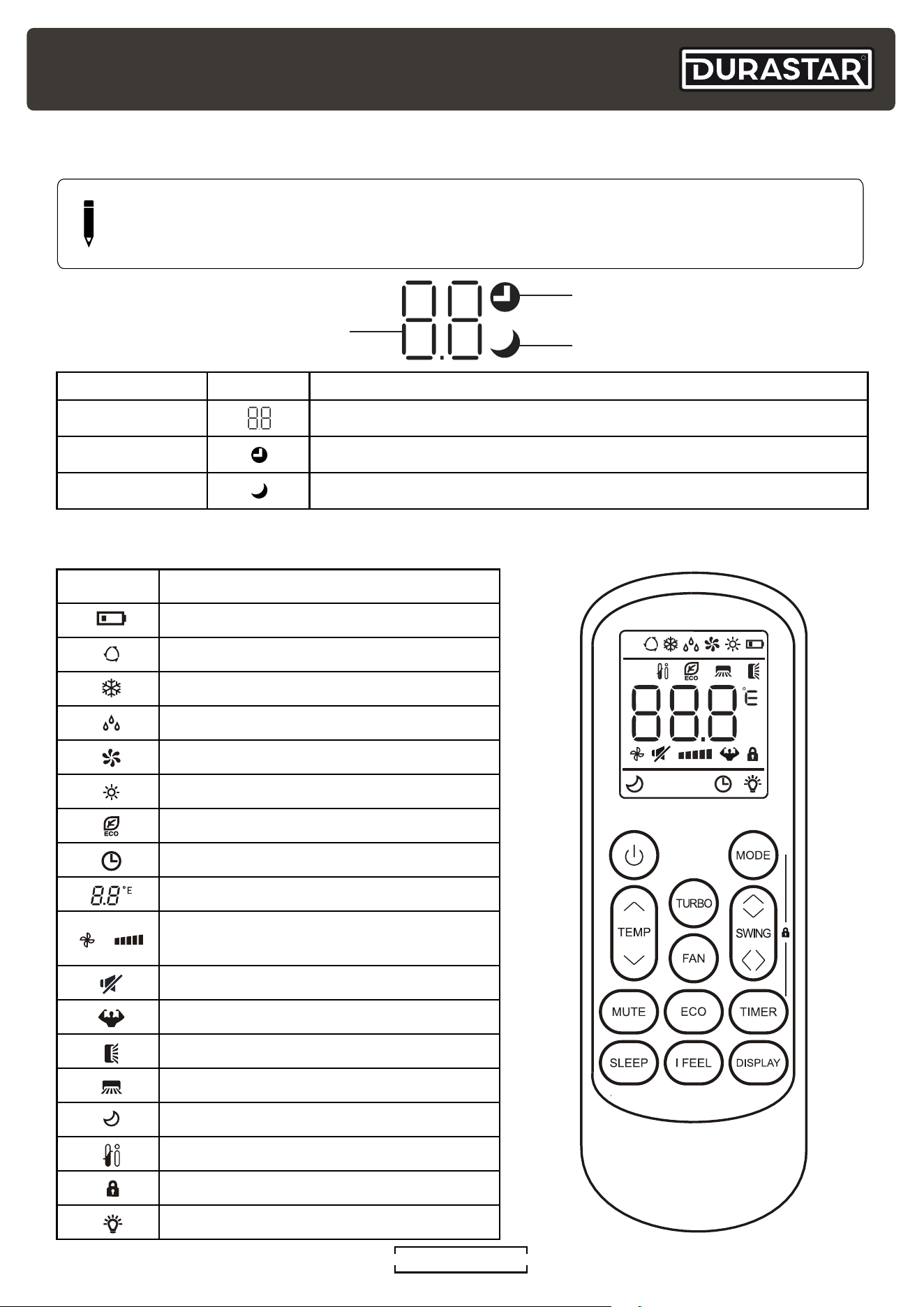

INDOOR UNIT LED DISPLAY INDICATORS
Number Indicator Function Notes
1 Display for temperature, TIMER and error codes
2 Lights up during TIMER operation
3 Lights up when SLEEP mode is active
1
2
3
REMOTE CONTROL SCREEN INDICATORS
NOTE
All indicators shown in the figures are for purposes of clear representation. During actual
operation, only the relative indicators are illuminated on the displays.
R
DURASTAR.COM18
REMOTE CONTROL BUTTONS
Button Notes
Turns on/off the air conditioner.
Increases temperature or TIMER hours.
Decreases temperature or TIMER hours.
Selects the mode of operation
(AUTO, COOL, DRY, FAN, HEAT)
Activates/ deactivates the ECO function
Hold for 3 seconds to activate/ deactivate the
46°F heating function
Activates/ deactivates the TURBO function
Selects the fan speed:
auto/ low/ low-mid/ mid/ mid-high/ high/ turbo
Press to set the time for TIMER on/off.
Activates/ deactivates the SLEEP function
Activates/ deactivates the LED display.
Activates/ deactivates vertical air flow SWING
movement of the louvers or sets the desired
up/ down air flow direction.
Activates/ deactivates horizontal air flow
SWING movement of the louvers or sets the
desired left/ right air flow direction.
Activates/ deactivates the I FEEL function.
Activates/ deactivates the MUTE function.
Press both to activate/ deactivate
LOCK function.
Press both to activate SELF-CLEAN function. It
runs for ~30 minutes. Press the power button to
deactivate if needed.
MODE
TURBO
FAN
ECO
TIMER
SLEEP
DISPLAY
I FEEL
MUTE
SWING
MODE + TIMER
SWING
SWING
SWING
+
R
DURASTAR.COM
19
REPLACING THE REMOTE BATTERIES
The remote uses two (2) AAA 1.5V batteries. To replace the batteries in your remote, do the
following:
1. Remove the battery cover plate from the rear of the remote control by sliding it in the direction
of the arrow.
2. Install the batteries according to the direction (+ and -) shown on the remote control.
3. Reinstall the battery cover by sliding it into place.
CAUTION
Do not use rechargeable batteries. Do not dispose of batteries with regular household
waste. Batteries must be collected separately for proper treatment.
R
DURASTAR.COM20
OPERATING MODES
SETTING TEMPERATURE
This unit can be set at any temperature within its operating range in AUTO, COOL, and HEAT
modes (see "Temperature Ranges" section). You can increase or decrease the set temperature in
1°F (0.5°C) increments by pressing the TEMP UP (
^
) or DOWN (
V
) button.
Press and hold TURBO for 5 seconds to switch between °F and °C.
AUTO ( )
In AUTO mode, the unit will automatically select the COOL or HEAT modes to maintain the set
temperature.
To set the AUTO mode press until the AUTO symbol (
) appears at the top of the
display.
COOL ( )
In COOL mode, the unit will cool the room to the desired set temperature while reducing the air
humidity at the same time.
To set the unit to COOL mode press until the COOL symbol (
) appears at the top of
the display.
DRY ( )
In DRY mode, the unit lowers room humidity for improved comfort. The function operates
automatically, and the temperature cannot be adjusted.
To set the unit to DRY mode press until the DRY symbol (
) appears at the top of the
display.
FAN ( )
In FAN mode, the unit's fan is used to provide air circulation. The fan speed is controlled using the
fan button as described on the next page. Temperature is not shown and cannot be adjusted.
To set the unit to FAN mode press until the FAN symbol (
) appears at the top of the
display.
HEAT ( )
In HEAT mode, the unit's heat pump technology is used to heat the room to the desired
temperature.
To set the unit to HEAT mode press until the HEAT symbol (
) appears at the top of the
display.
( )
NOTE
In HEAT mode, the unit may run a 2–10 minute defrost cycle to remove condenser frost.
The indoor fan stops during this process, then heating resumes automatically. If needed,
press the ECO button 10 times within 8 seconds in HEAT mode to start forced defrosting.
R
DURASTAR.COM
21
FAN SPEED BUTTON ( )
Press the FAN button to set the speed of the fan in AUTO, COOL, or HEAT modes. Pressing the
fan button rotates through the following settings in the path illustrated below:
LOCK ( )
The LOCK function disables all remote buttons to prevent changes to your settings. When active,
no buttons will operate except the buttons that when pressed together unlock this function.
To activate hold + , to deactivate follow this same step.
TIMER ( )
The TIMER function allows you to schedule when the unit turns itself on or off.
TIMER ON sets when the unit will turn on. Enable with the following steps:
1. Confirm that the unit is OFF and start by pressing the button.
2. The symbol will display and flash while the default setting of 6.0 hours shows on the screen.
3. Use the TEMP UP (
^
) or DOWN (
V
) button to set the desired time delay. The time changes
by 0.5 between 0 and 10 hours and 1 between 10 and 24 hours.
4. Pressing the button again to confirm.
5. Press the button to select the operating mode the unit should start in.
6. Use the button to set the fan speed that the unit should operate with.
7. Use the TEMP UP (
^
) or DOWN (
V
) button to set the desired temperature.
8. The unit is now scheduled to start after the elapsed time.
TIMER OFF sets when the unit will turn off. Enable with the following steps:
1. Confirm that the unit is ON and start by pressing the button.
2. Use the TEMP UP (
^
) or DOWN (
V
) button to set the desired time delay. The time changes
by 0.5 between 0 and 10 hours and 1 between 10 and 24 hours.
3. Pressing the button again to confirm. The symbol will show on the remote and unit.
ADVANCED BUTTONS AND FUNCTIONS
Auto
(Flash)
Mute Low Low-mid
MidHigh-midHighTurbo
NOTE
Press the TIMER button at any time during the steps above to cancel. If no buttons are
pressed within 5 seconds, programming cancels and may need to be restarted.
R
DURASTAR.COM22
SLEEP ( )
The SLEEP function is designed to decrease energy use while you sleep. The SLEEP function is not
available in FAN or DRY mode.
When you are ready to go to sleep select the button and press OK. Press the button again to
deactivate the function.
When in COOL mode, the unit will slowly increase the temperature over the first ~1-2 hours by up to
4°F (2°C). When in HEAT mode, the unit will decrease the temperature over the first ~1-2 hours by
up to 4°F (2°C).
The SLEEP feature will turn off after ten (10) hours and the system will return to normal functioning.
I FEEL ( )
This feature uses the temperature at the remote's location, instead of the indoor unit's location, to
optimize the temperature around you and ensure maximum comfort.
To activate the I FEEL feature, press the button and will appear on the display. Press the
button again to deactivate the function.
This feature will automatically deactivate after 8 hours (some models may be 2 hours).
ECO ( )
In this mode, the appliance operates automatically to save energy. ECO is only available in COOL
and HEAT modes.
To activate the ECO mode, press the button and will appear on the display. Press the
button again to deactivate the function.
FREEZE PROTECTION
This feature prevents indoor pipes and household items from freezing when the house is unoccupied
for long periods of time in the winter.
Press and hold the button for 3 seconds to set the indoor temperature to 46°F (8°C), and
press the button again to deactivate it. The unit will return to standby once 48°F (9°C) is reached.
The function automatically cancels once the outdoor temperature is 64°F (18°C).
DISPLAY
This button turns the LED display on the indoor unit ON/OFF.
Press the button and the LED on the unit will turn off. Press the button again to turn it on.
MUTE ( )
In this mode, the appliance runs at its lowest indoor unit fan speed to minimize operational noise.
The controller will display the AUTO fan speed and the icon will appear on the display.
To activate the MUTE function, press the button. Pressing FAN, TURBO or MUTE will
deactivate the function.
R
DURASTAR.COM
23

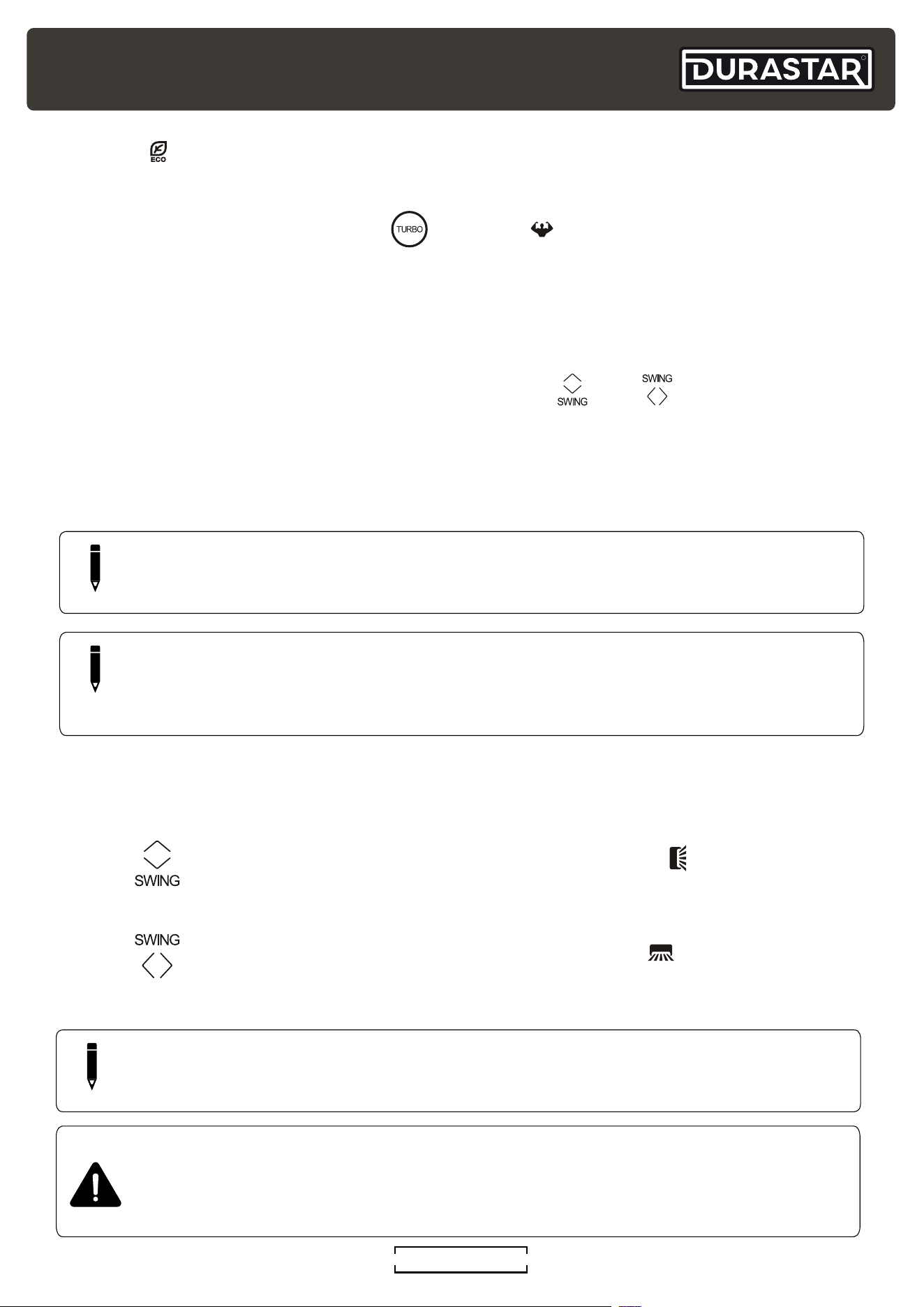

TURBO ( )
In COOL or HEAT mode, selecting TURBO activates rapid cooling or heating with maximum fan
speed to reach the set temperature as quickly as possible.
To activate the TURBO mode, press the button and will appear on the display. Press the
button again to deactivate the function.
SELF-CLEAN
This function helps wash away dust, mold, and grease that may cause odors by freezing then
rapidly thawing condensation on the indoor unit coil. We recommend activating it every 3 months.
To activate the function, turn OFF the indoor unit. Press the and button at the same
time toward the unit until you hear a beep. "AC" will show on the remote control and the indoor
unit display.
This function will run for about 30 minutes. When it is complete you will hear 2 beeps and the unit
will return to the pre-set mode. You can pres the power button to cancel this function during the
process.
NOTE
Some noise is normal during operation of this function, caused by plastic expanding with
heat and contracting with cold.
NOTE
Use this function only when the indoor temperature is less than 86°F (30°C) and the
outdoor ambient temperature is between 41°F (5°C) and 86°F (30°C) to prevent safety
shutdowns.
SETTING AIR FLOW DIRECTION
The SWING button adjusts the louver direction and activates vertical and horizontal oscillation.
Press the
button to make the horizontal louvers swing up and down. will appear on the
remote.
Press again to stop the swing movement at the desired angle.
Press the
button to make the vertical louvers swing up and down. will appear on the
remote.
Press again to stop the swing movement at the desired angle.
NOTE
Reminder, pressing the horizontal and vertical SWING buttons together activates the
Self-Clean function described above.
WARNING
Never adjust the flaps by hand, as this may damage the mechanism. Do not insert
fingers or objects into the air vents—contact with moving or live parts can cause
damage or injury.
R
DURASTAR.COM24

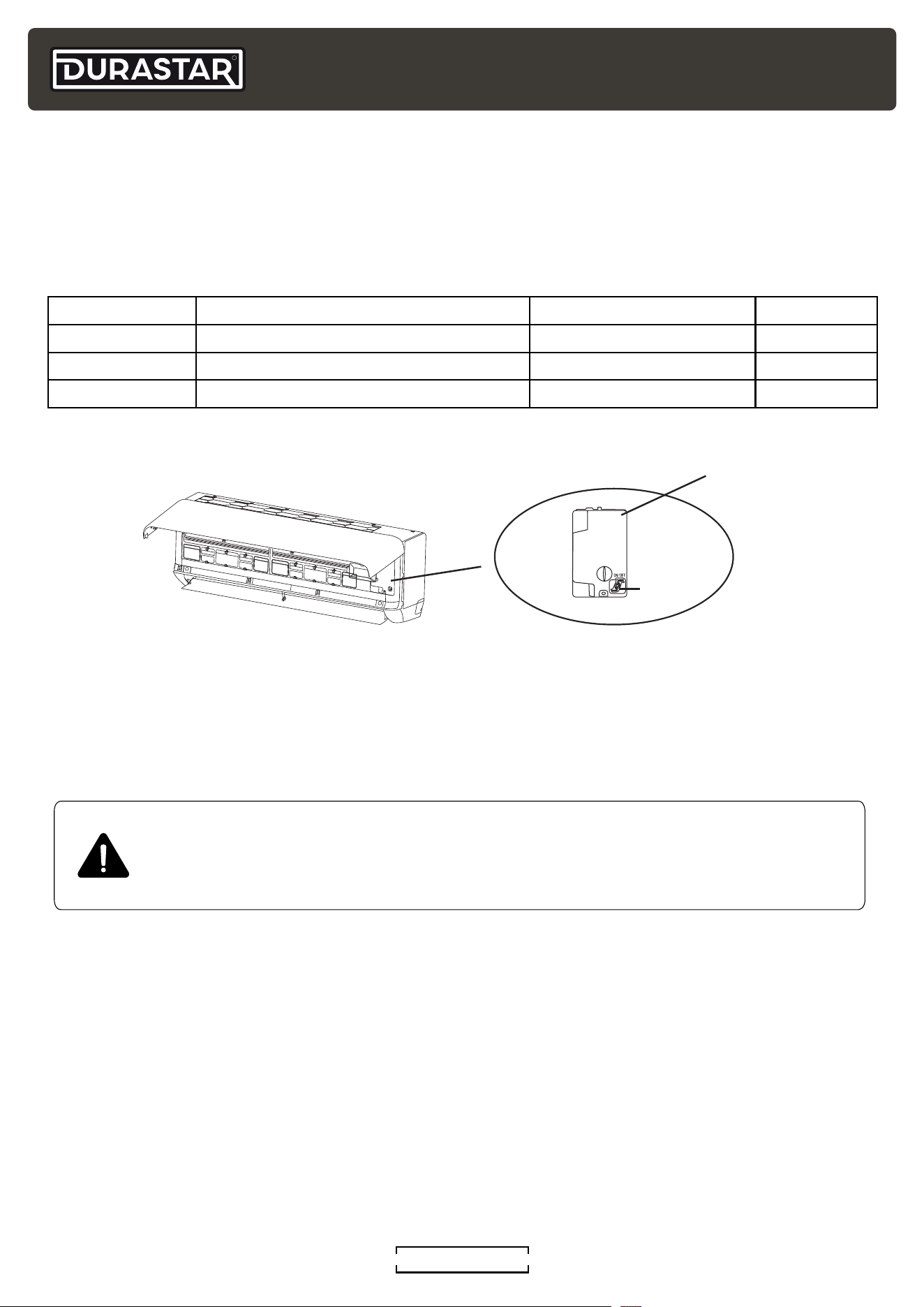

MANUAL OPERATION (USE WITHOUT REMOTE)
The manual override button is intended for testing purposes and emergency operation. Please do
not use this button unless the remote control is lost and it is absolutely necessary. The unit must
be turned off before manual operation, except to turn the unit off. (Always press the emergency
button with an insulated material)
Open the indoor unit panel Control box cover
ON/ OFF
CARE AND MAINTENANCE
CLEANING INDOOR UNIT
• Do not use chemicals or chemically treated cloths to clean the unit.
• Do not use benzene, paint thinner, polishing powder or other solvents to clean the unit. They
can cause the plastic surface to crack or deform.
• Do not use water hotter than 104°F (40°C) to clean the front panel. This can cause the panel to
deform or become discolored.
WARNING
• Always turn off the unit and disconnect power before cleaning or maintenance.
• Only use a soft, dry cloth to wipe the unit clean. If the unit is especially dirty, you can
use a cloth soaked in warm water to wipe it clean.
Running Status Instructions Unit Response Enters Mode
Standby (Off) Press emergency button once Beeps briefly once COOL
Standby (Off) Press emergency button twice in 3 sec Beeps briefly twice HE AT
Running Press emergency button once Keeps beeping for a while OFF
R
DURASTAR.COM
25
MAINTENANCE: LONG PERIODS OF NON-USE
If you do not plan to use your air conditioner for an extended period of time, do the following:
• Clean all filters.
• Turn on the FAN until the unit dries out completely.
• Turn off the unit and disconnect the power.
• Remove batteries from remote control.
MAINTENANCE: PRE-SEASON INSPECTION
After long periods of non-use, or before periods of frequent use, do the following:
• Inspect for damaged wires.
• Clean all filters.
• Check for leaks.
• Replace batteries.
• Make sure nothing is blocking any air inlets or outlets.
Remove the filter
Remove accessory filter if
applicable
Clean the filter with soapy
water and air dry it
<104 F
(40 C)
WARNING
• When removing the filter, do not touch the metal parts in the unit. The sharp metal
edges can cut you.
• Do not use water to clean the inside of the indoor unit. This can destroy insulation
and cause electrical shock.
• Do not expose filter to direct sunlight when drying. This can shrink the filter.
CLEANING THE AIR FILTER
A dirty air filter can reduce the cooling efficiency of your unit, and can also be bad for your health.
Make sure to clean the filter once every two weeks.
1. Lift the front panel of the indoor unit.
2. First press the tab on the end of filter to loosen the buckle, lift it up, then pull it towards yourself
3. Now pull the filter out.
4. If your filter has a small air freshening filter, unclip it from the larger filter. Clean this air
freshening filter with a hand-held vacuum.
5. Clean the large air filter with warm, soapy water. Be sure to use a mild detergent.
6. Rinse the filter with fresh water, then shake off excess water.
7. Dry filter in a cool, dry place, and refrain from exposing it to direct sunlight.
8. When dry, re-clip the air freshening filter to the larger filter, then slide it back into the indoor
unit.
9. Close the front panel of the indoor unit.
R
DURASTAR.COM26
TROUBLESHOOTING
SAFETY PRECAUTIONS
If ANY of the following conditions occurs, turn off your unit immediately!
• The power cord is damaged or abnormally warm
• You smell a burning odor
• The unit emits loud or abnormal sounds
• A power fuse blows or the circuit breaker frequently trips
• Water or other objects fall into or out of the unit
DO NOT ATTEMPT TO FIX THESE YOURSELF! CONTACT AN AUTHORIZED SERVICE PROVIDER
IMMEDIATELY!
COMMON ISSUES
The following problems are not a malfunction and in most situations will not require repairs.
ISSUE POSSIBLE CAUSES
Unit does not turn on
when pressing ON/OFF
button
Verify that the unit has power.
The unit has a protection feature that prevents the unit from overloading.
The unit cannot be restarted within 2-5 minutes of being turned off.
Verify that the TIMER-ON function is active.
The unit changes from
COOL/HEAT mode to
FAN mode
The unit may change its setting to prevent frost from forming on the
unit. Once the temperature increases, the unit will start operating in the
previously selected mode again.
The set temperature has been reached, at which point the unit turns off
the compressor. The unit will continue operating when the temperature
fluctuates again.
The indoor unit emits
white mist
In humid regions, a large temperature difference between the room’s air
and the conditioned air can cause white mist.
Both the indoor and
outdoor units emit
white mist
When the unit restarts in HEAT mode after defrosting, white mist may be
emitted due to moisture generated during the defrosting process.
The indoor unit makes
noises
A rushing air sound may occur when the louver resets its position.
A squeaking sound may occur after running the unit in HEAT mode due to
expansion and contraction of the unit’s plastic parts.
Both the indoor unit
and outdoor unit make
noises
Low hissing sound during operation: This is normal and is caused by
refrigerant gas flowing through both indoor and outdoor units.
Low hissing sound when the system starts, has just stopped running, or
is defrosting: This noise is normal and is caused by the refrigerant gas
stopping or changing direction.
Squeaking sound: Normal expansion and contraction of plastic and
metal parts caused by temperature changes during operation can cause
squeaking noises.
R
DURASTAR.COM
27
ADDITIONAL TROUBLESHOOTING
When troubles occur, check the following points. Contact a trained contractor to service the unit.
ISSUE POSSIBLE CAUSES
The outdoor unit makes
noises
The unit will make different sounds based on its current operating
mode.
Dust is emitted from
either the indoor or
outdoor unit
The unit may accumulate dust during extended periods of non-use,
which will be emitted when the unit is turned on. This can be mitigated
by covering the unit during long periods of inactivity.
The unit emits a bad
odor
The unit may absorb odors from the environment (such as furniture,
cooking, cigarettes, etc.) which will be emitted during operations.
The unit’s filters have become moldy and should be cleaned.
The fan of the outdoor
unit does not operate
During operation, the fan speed is controlled to optimize product
operation.
Operation is erratic,
unpredictable, or unit is
unresponsive
Interference from cell phone towers and remote boosters may cause
the unit to malfunction. In this case, try the following:
• Disconnect the power, then reconnect.
• Press ON/OFF button on remote control to restart operation.
The display is not
showing.
Activate the DISPLAY function
Verify that the unit has power.
Switch off the air
conditioner immediately
and cut off the power
supply in the event of:
Strange noises during operation.
Faulty electronic control board
Faulty fuses or switches
Spraying water or objects inside the unit
Overheated cables or plugs
Very strong smells coming from the unit
PROBLEM POSSIBLE CAUSES SOLUTION
Poor Cooling
Performance
Temperature setting may be higher than
ambient room temperature
Lower the temperature setting
The heat exchanger on the indoor or
outdoor unit is dirty
Clean the affected heat exchanger
The air filter is dirty Remove the filter and clean it according
to instructions
The air inlet or outlet of either unit is
blocked
Turn the unit off, remove the obstruction
and turn it back on
Doors and windows are open Make sure that all doors and windows
are closed while operating the unit
Excessive heat is generated by sunlight Close windows and curtains during
periods of high heat or bright sunshine
Low refrigerant due to leak or long-term
use
Check for leaks, re-seal if necessary and
top off refrigerant
R
DURASTAR.COM28
PROBLEM POSSIBLE CAUSES SOLUTION
Poor Cooling
Performance
Excessive heat is generated by sunlight Block sunlight in installation area
Too many sources of heat in the room
(people, computers, electronics, etc.)
Reduce amount of heat sources
Poor Heating
Performance
The outdoor temperature is extremely
low
This model is designed to work down to
-13°F, however, heating performance
is impacted at temperatures below
freezing
Cold air is entering through doors and
windows
Make sure that all doors and windows
are closed during use
Low refrigerant due to leak or
long-term use
Check for leaks, re-seal if necessary,
and top off refrigerant
The unit
starts
and stops
frequently
There’s too much or too little refrigerant
in the system
Check for leaks and recharge the system
with refrigerant
Incompressible gas or moisture has
entered the system
Evacuate and recharge the system with
refrigerant
The voltage is too high or too low Install a manostat to regulate the
voltage
The unit is not
working
Power failure Wait for the power to be restored
The power is turned off Turn on the power
The fuse is burned out Replace the fuse
Remote control batteries are dead Replace batteries
Remote is not close enough to the unit. Stand closer to the unit.
There are obstructions between the unit
and the remote.
Remove the obstructions
The unit’s 2-5 minute protection has
been activated
Wait 2-5 minutes after restarting the unit
Timer is activated Turn timer off
Indicator
lamps
continue
flashing or
error code
appears
The unit may stop operation or continue to run safely. If the indicator lamps con-
tinue to flash or error codes appear, wait for about 10 minutes. The problem may
resolve itself.
If not, disconnect the power, then connect it again. Turn the unit on.
If the problem persists, disconnect the power and contact your nearest customer
service center.
NOTE
If your problem persists after performing the checks and diagnostics above, turn off your
unit immediately and contact an authorized service center.
WARNING
DO NOT ATTEMPT TO FIX THESE YOURSELF! CONTACT AN AUTHORIZED
SERVICE PROVIDER! INJURY, DAMAGE TO THE EQUIPMENT AND/OR VOIDING
THE WARRANTY COULD OCCUR.
R
DURASTAR.COM
29
LIMITED WARRANTY - PARTS
This Limited Warranty applies to Covered Equipment manufactured on or after November 1
st
, 2024.
COVERED EQUIPMENT is defined by the following model number categories:
DRA1_S2A, DRA3_M2A, DRA4_M2A, DRA5_M2A, DRA6_M2A, DRU1_S2A, DRE1_S2A, DREW_S2AL,
DRAC_F2A, DRAD_F2A, DRAF_F2A, DRAL_F2A, DRAM_F2A, DRAS_F2A, DRAW_F2A, DRUM_S2A.
Durastar accessories installed with Covered Equipment carry the balance of the Covered Equipment warranty.
BASE RESIDENTIAL WARRANTY: SEVEN (7) YEARS PARTS
Subject to the terms of this Limited Warranty, Manufacturer will repair or replace, at its option, any part of the
Covered Equipment that is found to be defective in material or workmanship.
Covered Equipment Parts are warranted to be free from defects in material and workmanship for a period of
seven (7) years from the date of installation, under normal use and service. Durastar will, at its option, repair or
replace any part determined by Durastar to be defective. Replacement parts carry the balance of the original
parts warranty. If an exact replacement part is not available, an equivalent part or credit will be provided.
To qualify:
• The Covered Equipment must be installed in a residential single-family home.*
• The Covered Equipment must be properly installed by a licensed HVAC professional pursuant to all local
and state laws.
• Any part to be replaced must be made available to Durastar in exchange for the replacement.
*Single-family home is defined as any single-family dwelling, which includes apartments, condominiums,
duplexes, and homes.
BASE COMMERCIAL WARRANTY: TWO (2) YEAR PARTS
Subject to the terms of this Limited Warranty, Covered Equipment installed in commercial applications are
warranted against defects in material and workmanship for a period of TWO (2) YEARS.
REGISTERED WARRANTY
Parts for Covered Equipment that is registered by the purchaser online within ninety (90) days of the original
installation date shall be warranted for an extended period subject to the terms in this Limited Warranty. Any
Covered Equipment not properly registered within the ninety (90) day registration window will be subject to the
base warranty terms outlined herein. To register your Covered Equipment online, go to: www.durastar.com/
warranty-registration
Registered Residential Warranty: TEN (10) years
Registered Commercial Warranty: FIVE (5) years
FLORIDA, TEXAS, AND CALIFORNIA RESIDENTS ONLY: Failure to register Covered Equipment does not
diminish or decrease your limited warranty length. Covered Equipment will receive the full REGISTERED
WARRANTY terms.
EFFECTIVE DATE OF WARRANTY
The Effective Date of warranty coverage is determined as follows: (a) If the original installation date can
be verified by the installer’s invoice then the Effective Date of warranty coverage is the original installation
date as shown on the installer’s invoice. For residential new construction installations, the final occupancy
permit, or proof of purchase from the builder can be substituted for the installer’s invoice. (b) if the original
installation date cannot be verified by the installer’s invoice, or proof of purchase from the builder in residential
new construction applications, then the Effective Date of warranty coverage is the Covered Equipment’s
manufacture date (as verified by the product’s serial number) plus ninety (90) days.
LIMITATIONS
There is NO LABOR component provided with this warranty. This Limited Warranty does NOT cover any labor
costs or expenses for service, NOR for removing or reinstalling parts.
R
DURASTAR.COM30
This Limited Warranty does NOT cover shipping costs for warranty replacement parts from our factory to
the Manufacturer’s distributor or from the distributor to the location of your Covered Equipment. You also are
responsible for the cost of shipping allegedly defective parts to the distributor and for incidental costs incurred
locally, including handling charges. (If in Alaska, Hawaii or Canada, you also must pay the shipping costs of
returning the failed part to the port of entry into the continental United States.)
Manufacturer's Liability hereunder is limited to the repair or replacement of Covered Equipment Parts, and
in no event shall exceed the value of the original Covered Equipment Purchase Price. Liability for incidental,
consequential or special damages are specifically excluded.
EXCLUSIONS
In addition to the other exclusions identified in this Limited Warranty, this Limited Warranty excludes:
• Damages, malfunctions, or failures resulting from failure to properly install, operate, or maintain Covered
Equipment in accordance with the Manufacturer’s instructions.
• Damages, malfunctions, or failures resulting from misuse, accident, contaminated/ corrosive atmosphere,
vandalism, freight damage, fire, flood, freeze, lightning, power surges, acts of war, acts of God and the like.
• Non-original parts installed with Covered Equipment or used in connection with normal maintenance, such
as cleaning or replacing air filters, refrigerant, thermostats, tubing, or concrete pads.
• Covered Equipment that is not installed in the United States.
• Covered Equipment that is not installed by a qualified, trained or licensed HVAC professional in accordance
with applicable codes, ordinances, and good trade practices.
• Damages, malfunctions, or failures resulting from the use of any attachment, accessory, or component not
authorized by the Manufacturer or resulting from alteration or modification of the unit.
• Covered Equipment moved from the original installation location.
• Covered Equipment when operated with system components (indoor unit, outdoor unit, coil, and
refrigerant control devices) or accessories which do not match or meet the specifications recommended
by the Manufacturer.
• Any Covered Equipment manufactured that has been sold to the consumer via the Internet or auction
website, and has not been installed by a trained, qualified HVAC professional.
• Covered Equipment that is not part of a properly matched system as specified by the Air Conditioning,
Heating & Refrigeration Institute (AHRI).
OBTAINING WARRANTY SERVICE
If you believe your Covered Equipment is defective, contact the licensed contractor who installed your mini-
split system. Alternatively, contact a licensed contractor, dealer, or distributor.
Durastar Customer Support is available for troubleshooting assistance. Before contacting Customer Support,
please locate your model number, serial number, and proof of purchase. These items will be required to
complete any warranty service. A Durastar authorized representative will verify warranty eligibility and
determine appropriate service options. Service will be provided during normal business hours.
The warranty claim must be submitted at www.durastar.com/warranty-claim by the servicing contractor within
90 DAYS after the date of service in order for the warranty to be approved. The service invoice and/or return
of parts may be requested to verify eligibility.
THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTY, EXPRESS OR IMPLIED, INCLUDING WITHOUT
LIMITATION, ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. TO THE
EXTENT ANY IMPLIED WARRANTY IS REQUIRED BY LAW, IT IS LIMITED IN DURATION TO THE EXPRESS
WARRANTY PERIOD ABOVE. NEITHER THE MANUFACTURER NOR ITS DISTRIBUTORS SHALL BE LIABLE
FOR ANY INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY NATURE,
INCLUDING WITHOUT LIMITATION, LOST REVENUES OR PROFITS, OR ANY OTHER DAMAGE WHETHER
BASED IN CONTRACT, TORT, OR OTHERWISE. IN NO EVENT AND UNDER NO CIRCUMSTANCE OF ANY TYPE
OR KIND SHALL THE SELLER, MANUFACTURER AND/OR DISTRIBUTOR BE LIABLE FOR ANY REASON,
UNDER ANY THEORY, FOR MORE THAN THE BASIC COST OF THE PRODUCT TO THE PURCHASER OR END
USER. SOME STATES DO NOT ALLOW THE EXCLUSION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES,
SO THE ABOVE EXCLUSION MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL
RIGHTS. YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE.
R
DURASTAR.COM
31
THIS PAGE INTENTIONALLY LEFT BLANK.
R
DURASTAR.COM32
©2025 Durastar
V1.0 0925
THIS PAGE INTENTIONALLY LEFT BLANK.
