Fruit Vine Press
MODEL:LD-BP6/LD-BP12/LD-BP18
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only
represents an estimate of savings you might benefit from buying certain tools
with us compared to the major top brands and does not necessarily mean to cover
all categories of tools offered by us. You are kindly reminded to verify carefully
when you are placing an order with us if you are actually Saving
Half in comparison with the top major brands.
- 1 -
MODEL:LD-BP6/LD-BP12/LD-BP18
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel free to
contact us:
Technical Support and E-Warranty Certificate
www.vevor.com/support
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
Warning-To reduce the risk of injury, user must read
instructions manual carefully.
Fruit Vine Press
- 2 -
Thank you for choosing our product. Please read the Manual Careful
before mounting or using the product to avoid damage caused by
improperuse. Pay particular attention to the safety instructions. If you are to
pass this product on to third parties, you must include this instruction
manual.
Warning
• Read through the manual before assembly and use to avoid unnecessary
personal injury or property damage. Save the manual for future reference.
• Keep the working area clean and dry to avoid slipping or press
movement!
• Hard fruits must be crushed before pressing.
• Secure the legs to the floor before pressing,if required,to prevent it from
moving.
• Do not reach into the press with your hand while you start pressing.
• Wash the parts with warm water after pressing and allow them to dry
completely before storing the press in a dry well-ventilated place.
• If it is not usedfor a long period of time,grease the spindle with edible oil.
• The edible oil on the spindle can be removed with common cleaning
agents.
• Common rust removers can remove the rust from the metal surface if the
press gets
rusty.
• The wrench for the spindle nut M16 and the cross screwdriver for the
fixing screws
are not included in the delivery.
Product deScription
The wood basket press is a device used to extract juice from fruits (most
often grapes).
It consists of oak wood and coated metal.In addition, its huge volume
allows you to press the maximum amount of fruit at one time. The provided
filter bag prevents the peel, pulp or other contaminants from being mixed
- 3 -
with the wine or juice.

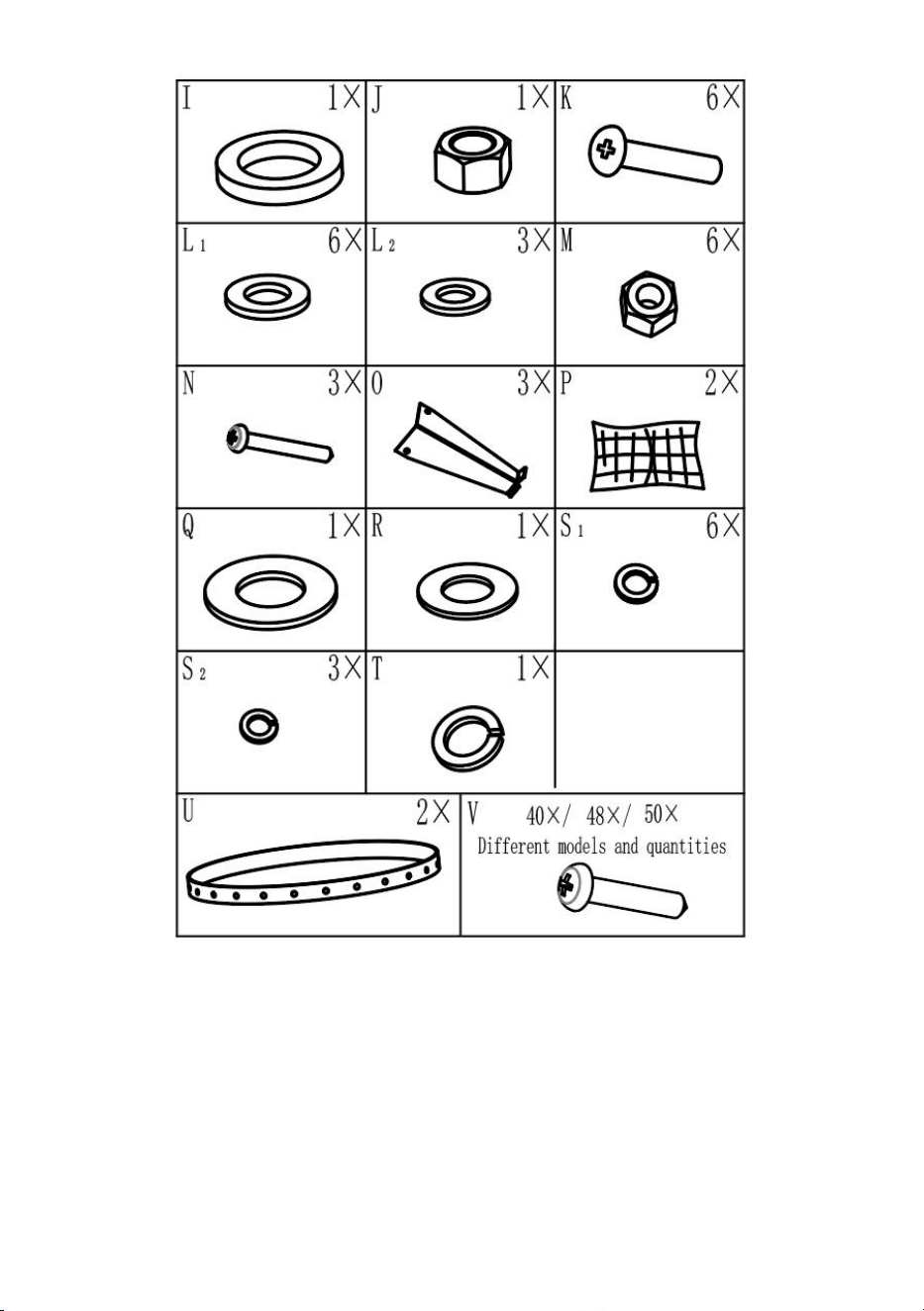

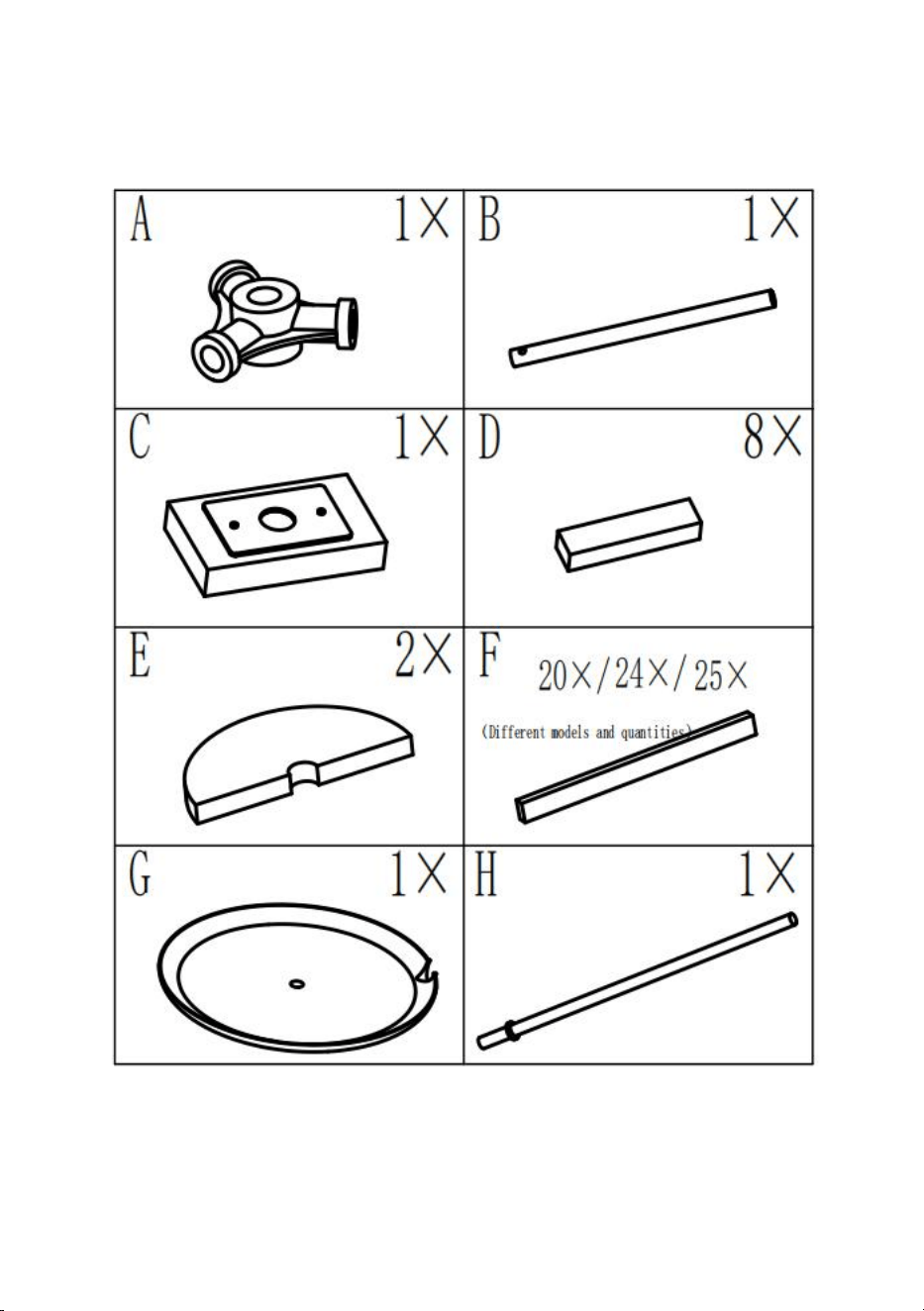

Partslist
- 4 -
Operation
Attention: before use,it is important to clean and sanitize any parts that
come in contact with the juice or wine.(This product is LFGB certified.)

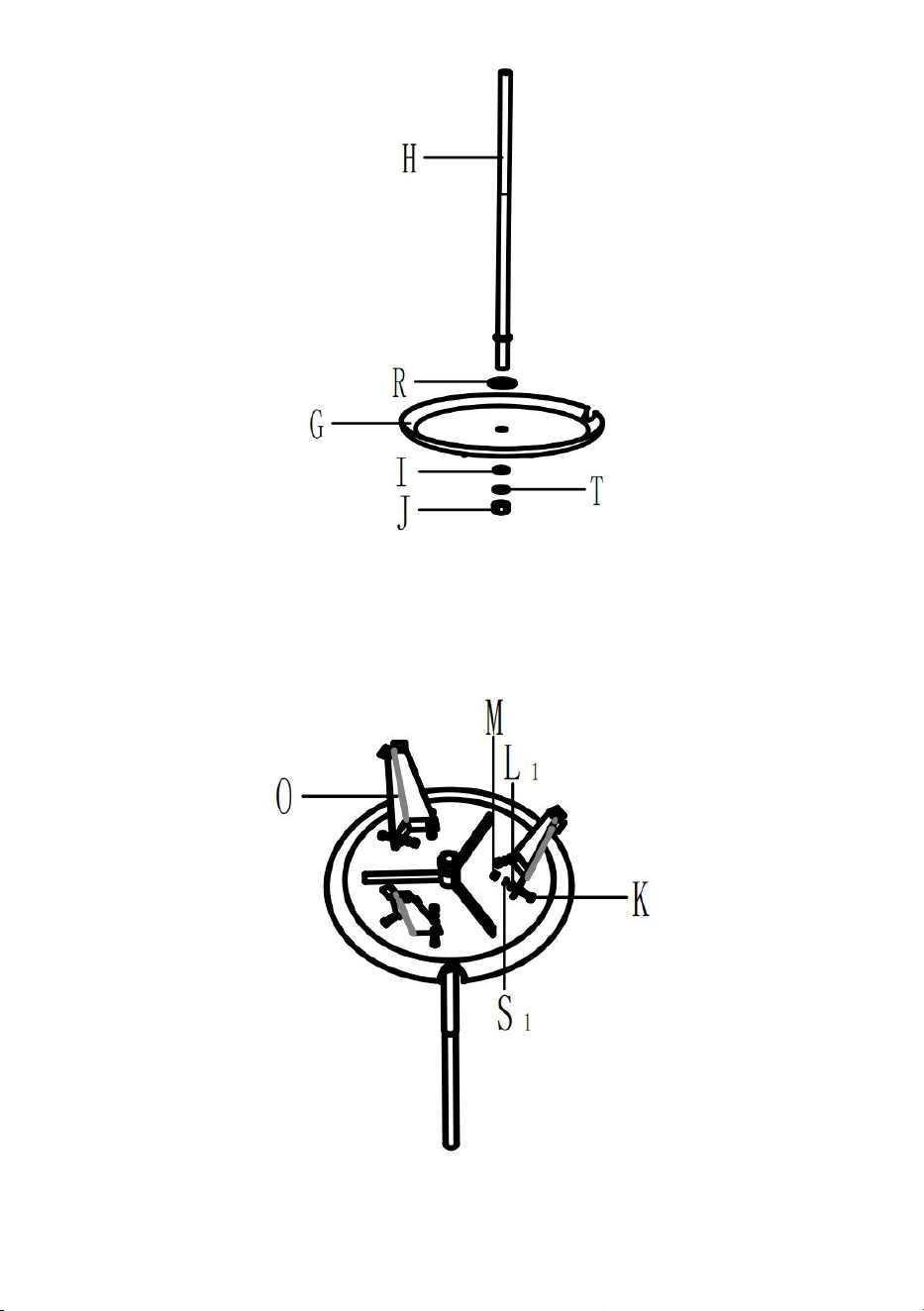

1. Insert the spindle(H) into the central hole of the collecting tray(G),
secured with a washer(I) and a spindle nut(J). Ensure the spindle is
properly tightened.
- 5 -
2. Attach the legs(O)to the curved plates under the tray,secured with
screws(K), washers(L) and nuts(M). Use the provided wrench(Q) to secure
the screws.
- 6 -

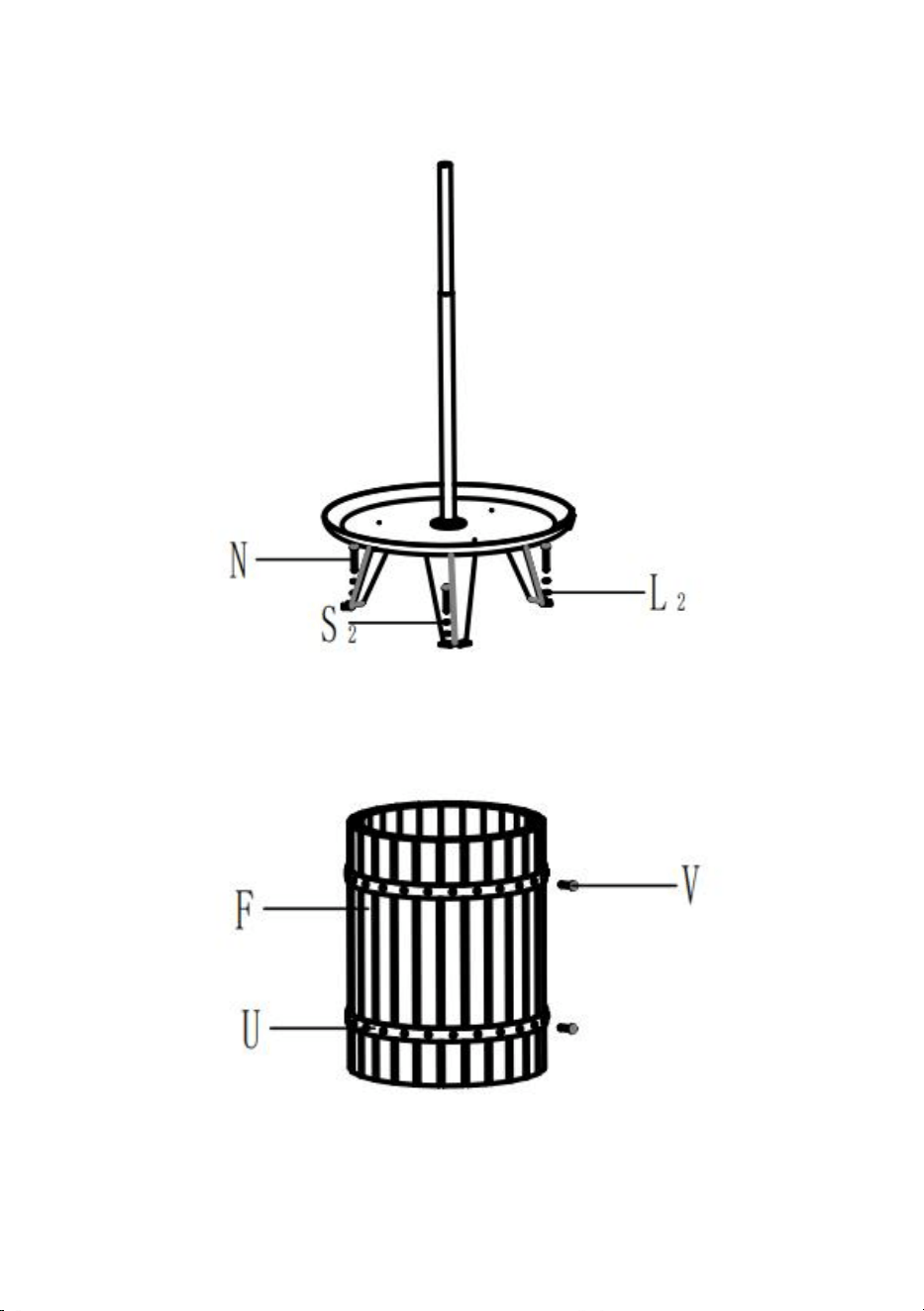

3.If necessary, fix the legs to the floor with the fixing screws(N) and
washers(L),in order to make the press more stable.
4.Assemble the basket

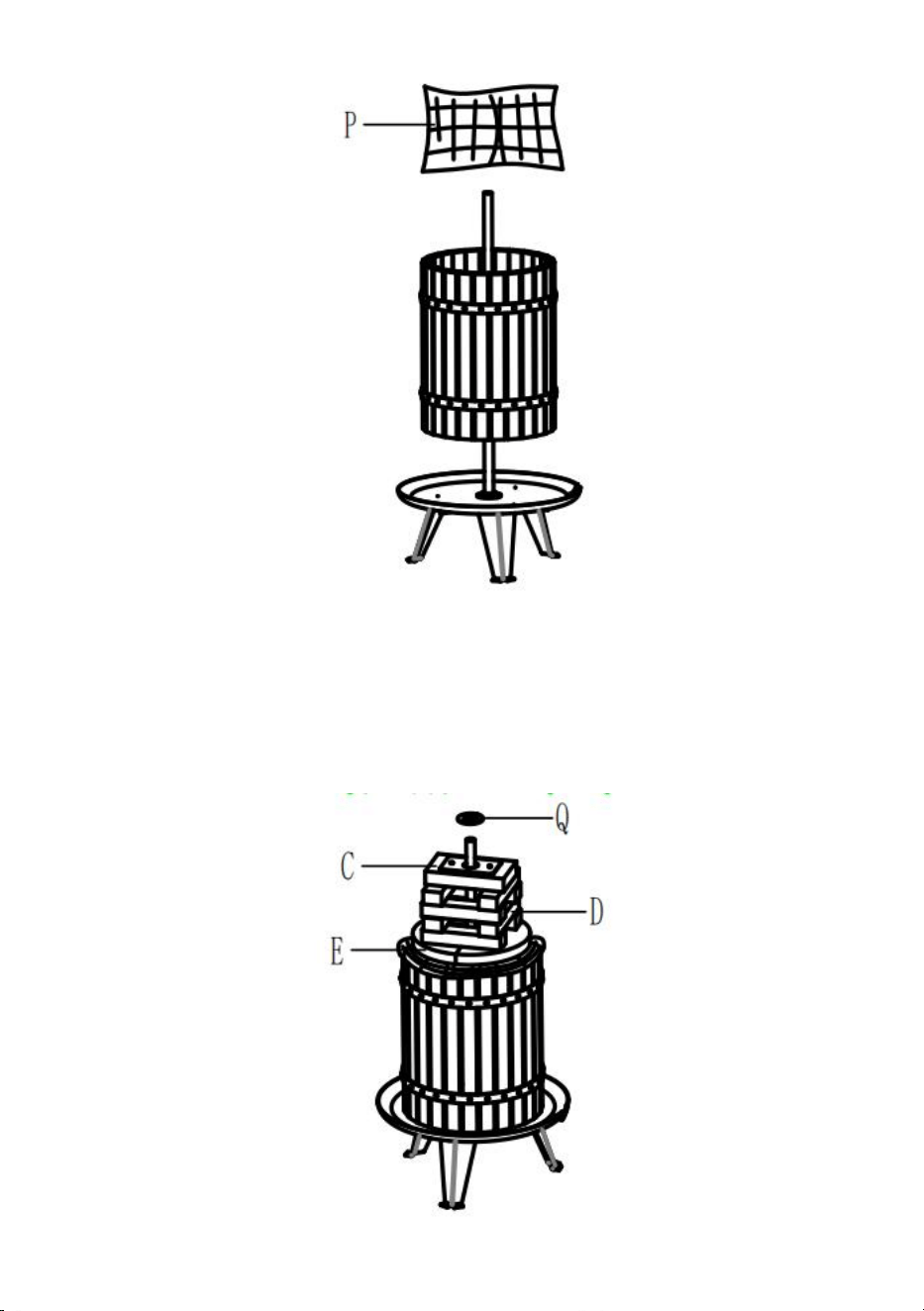

5. Mount the basket(F)on the tray and then line the basket with the filter
bag(P).
- 7 -
6. Put the fruit to be pressed into the bag.Caution:hard fruit must be
crushed before being pressed.
7. Place the semi-circle pressing plates (E) on the top of the fruit, followed
by wood blocks (D)and rectangle pressing plate(C) placed at right angles
to the previous ones.
- 8 -

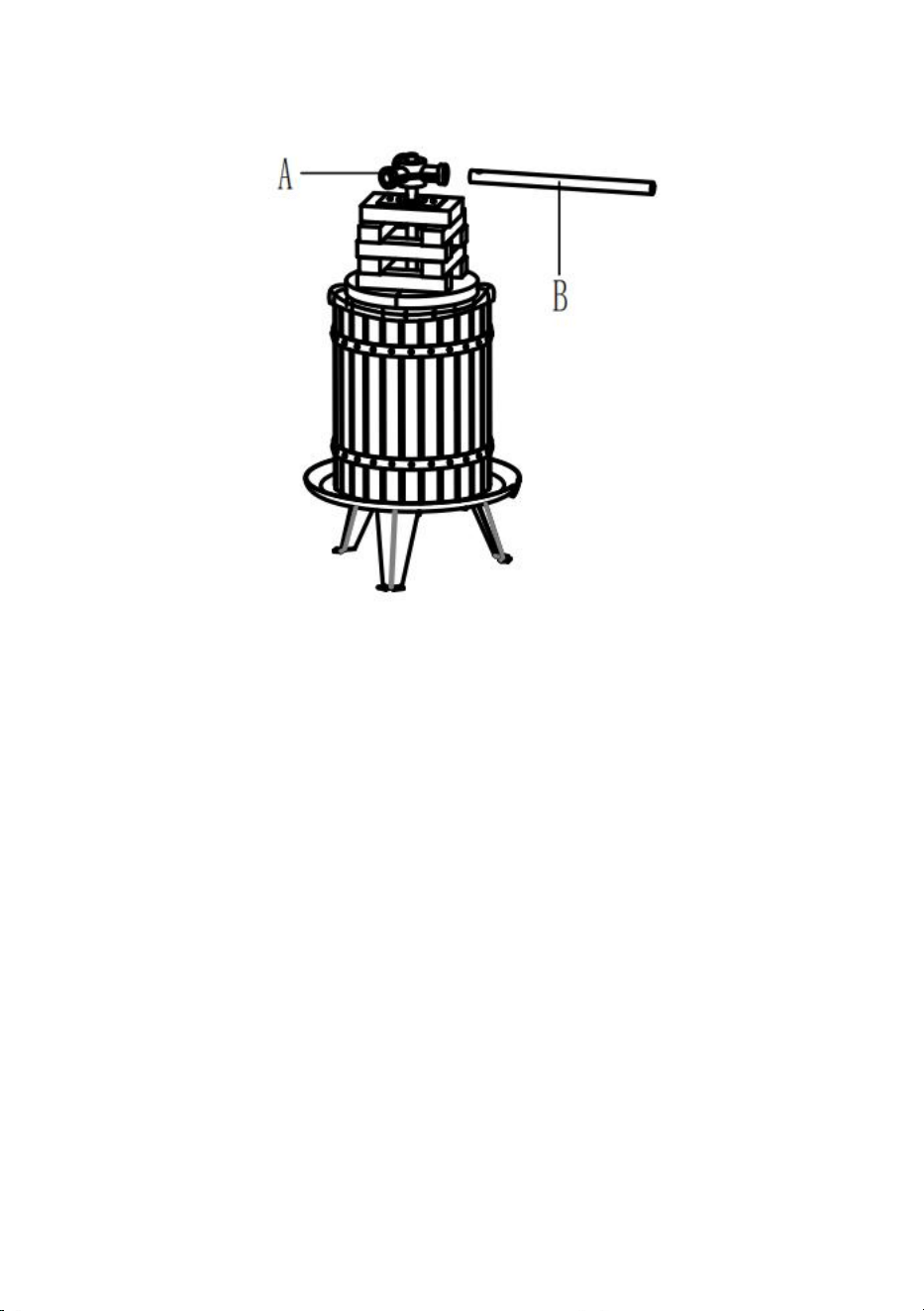

8.Thread the angle iron(A) down the spindle and insert either end of the
handle(B) into the Opening of the iron.
9. Put a container(not included) under the spout of the tray to collect the
juiceor wine.
10. Start pressing by turning the handle clockwise.
