ATTACH YOUR RECEIPT HERE
1
EB16287
Purchase Date
MAYFIELD
CEILING FAN
ITEM #0807423/0807424/807425/5730164
MODEL #BTH44WW5L/BTH44OSB5L/BTH44BNK5L/BTH44MBK5L
HARBOR BREEZE and logo design are trademarks or
registered trademarks of LF, LLC. All rights reserved.
Español p. 18
Thank you for purchasing this HARBOR BREEZE product.
Questions, problems, missing parts?
Before returning, contact us on:
888-251-1003, 8 a.m-8 p.m., EST, Monday-Sunday.
2
Safety Information ..................................................................................................................................... 2
Package Contents ..................................................................................................................................... 5
Hardware Contents ................................................................................................................................... 6
Preparation ............................................................................................................................................... 6
Initial Installation ....................................................................................................................................... 6
Wiring ........................................................................................................................................................ 9
Final Installation ...................................................................................................................................... 11
Operating Instructions ............................................................................................................................. 15
Care and Maintenance ........................................................................................................................... 16
Troubleshooting ...................................................................................................................................... 17
Limited Lifetime Warranty ....................................................................................................................... 18

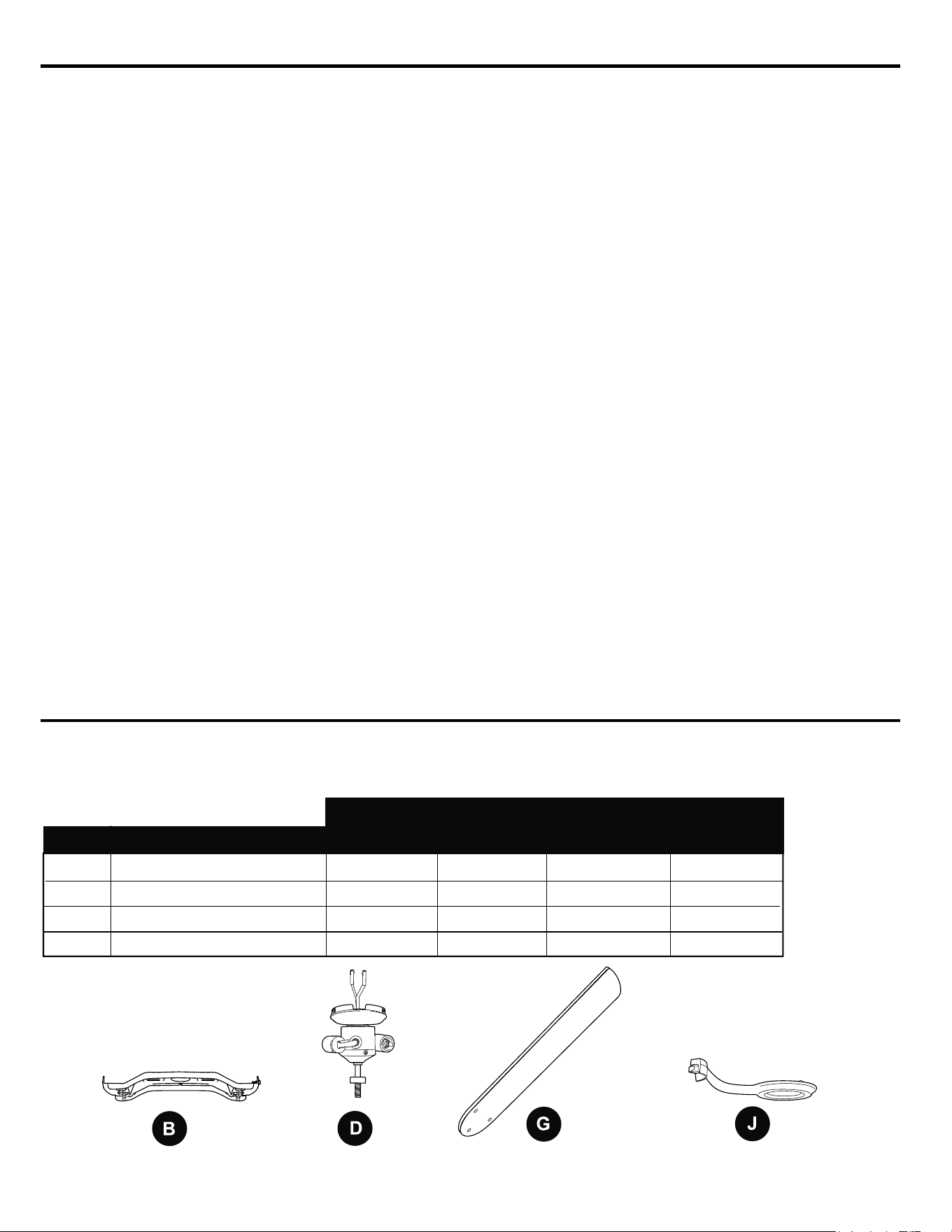

Replacement Parts List ........................................................................................................................... 18
TABLE OF CONTENTS
CAUTION: Changes or modifications not approved by the party responsible for compliance could
void the user's authority to operate the equipment.
*NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Distributed by: Litex Industries Inc., P.O. Box 535639, Grand Prairie, TX, 75050; 800-527-1292
The device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference; (2) this device must accept any interference
received, including interference that may cause undesired operation.
NOTE: Dimmable to 10%
SAFETY INFORMATION
3
SAFETY INFORMATION
To reduce the risk of fire, electrical shock or personal injury, mount fan to outlet box
marked "ACCEPTABLE FOR FAN SUPPORT OF 35 LBS. (15.9 KG) OR LESS" and use
mounting screws provided with the outlet box. Most outlet boxes commonly used for the
support of lighting fixtures are not acceptable for fan support and may need to be replaced.
Consult a qualified electrician if in doubt.
When mounting fan to a ceiling outlet box, use a METAL octagonal outlet box; do NOT use a
plastic outlet box. Secure the outlet box directly to the building structure. The outlet box and its
support must be able to support the moving weight of the fan (at least 35 lbs.).
To avoid personal injury, the use of gloves may be necessary while handling fan parts with sharp
edges.
To reduce the risk of fire, electrical shock or personal injury, wire connectors provided with this fan
are designed to accept only one 12-gauge house wire and two lead wires from the fan. If your
house wire is larger than 12-gauge or there is more than one house wire to connect to the
corresponding fan lead wires, consult an electrician for the proper size wire connectors to use.
To reduce the risk of fire or electrical shock, do not use the fan with any solid state speed control
device or control fan speed with a full-range dimmer switch.
To reduce the risk of personal injury, use ONLY parts provided with this fan. The use of parts
OTHER than those provided with this fan will void the warranty.
Before installation, be sure to shut off electricity at main switch or circuit breaker in order to avoid
electrical shock.
WARNING
DANGER
When using an existing outlet box, make sure the outlet box is securely attached to the
building structure and can support the full weight of the fan. Failure to do this can result in
serious injury or death. The stability of the outlet box is essential in minimizing wobble and
noise in the fan after installation is complete.
To reduce the risk of serious bodily injury, DO NOT use power tools to assemble any part of
the fan, including the blades.
READ AND SAVE THESE INSTRUCTIONS
• Do not discard fan carton or foam inserts. Should this fan need to be returned to the factory for
repairs, it must be shipped in its original packaging to ensure proper protection against damage that
might exceed the initial cause for return.
• Make sure all electrical connections comply with local codes, ordinances, the National Electrical
Code and ANSI/NFPA 70-1999. Hire a qualified electrician or consult a do-it-yourself wiring handbook
if you are unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum clearance of 7 ft. from the underside of
the fan to the floor and at least 30 in. from the edge of the motor assembly to any obstruction.
• After you install the fan, make sure all connections are secure to prevent the fan from falling.
• The net weight of this fan including the light kit is: 14 lbs.
4
SAFETY INFORMATION
Read all instructions and safety information before installing your new fan. Review the
accompanying assembly diagrams.
Be sure outlet box is properly grounded and that a ground wire (green or bare) is present.
Once installation is complete, carefully check all screws, bolts and nuts on fan motor assembly
to ensure that they are secured.
Do NOT tamper with or attempt to repair LED component. The light source is designed for this
specific application and should not be serviced by untrained personnel. If any servicing is
required, call our customer service department.
CAUTION
N 5.4 mm Lock Washer 10
(preassembled) + 1 extra
O Hex Nut (preassembled) 2
P Lock Washer 1
(preassembled)
Q Rubber Washer 1
(preassembled)
R Motor Housing Mounting 4
Screw (preassembled)
S Mounting Bracket Flat 4
Washer (preassembled)
T Motor Housing Lock 4
Washer (preassembled)
U Mounting Bracket Nut 4
(preassembled)
V
Switch Housing Cap 3
Screw
(preassembled)

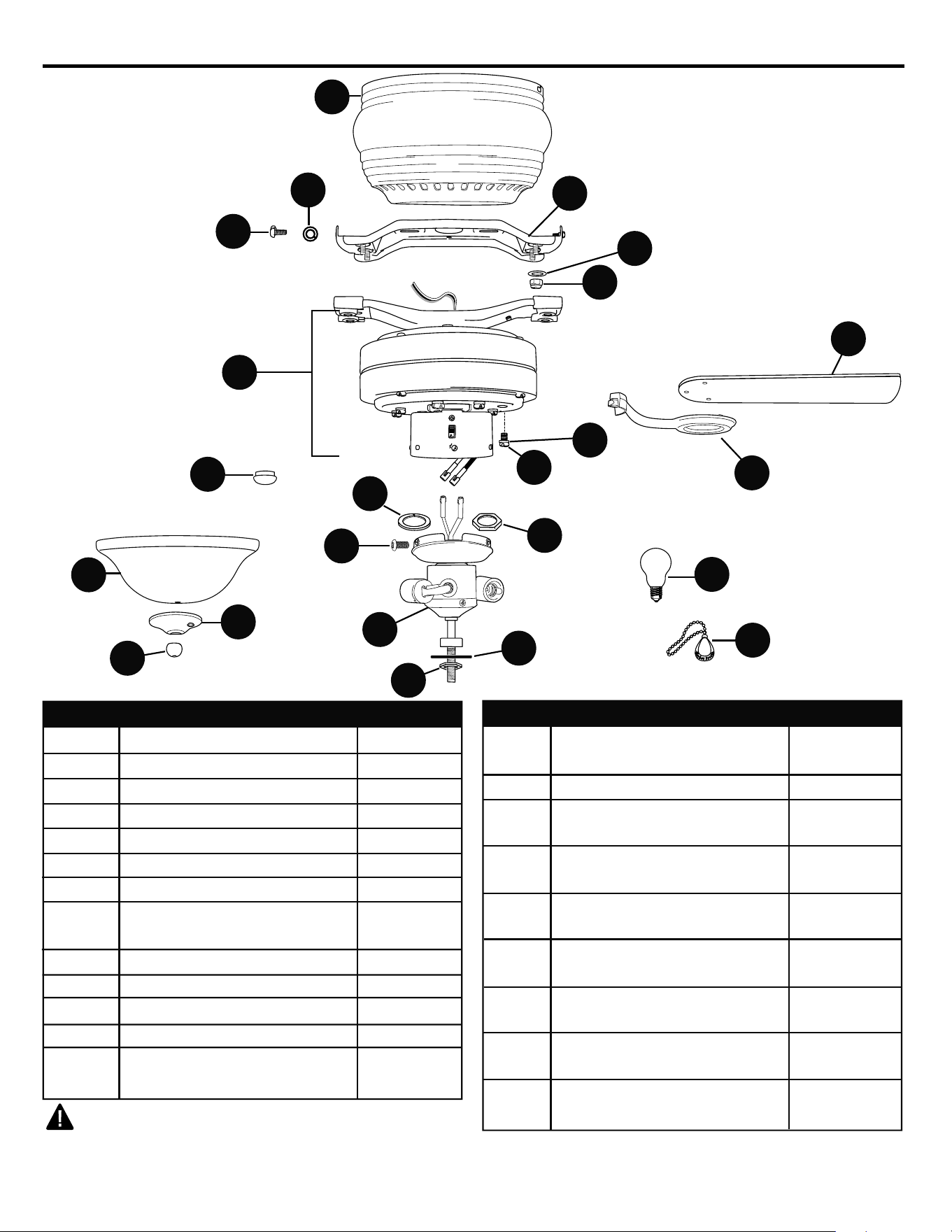

PACKAGE CONTENTS
IMPORTANT REMINDER: You must use the
parts provided with this fan for proper installation
and safety.
J
A Motor Housing 1
B Mounting Bracket 1
C Motor Assembly 1
D Light Kit Fitter 1
E Shade 1
F Pull Chain Extension 2
G Blade 5
H Finial Plate 1
(preassembled)
I Finial (preassembled) 1
J Blade Arm 5
K Cap 1
L Bulb 2
M Motor Screw 10
(preassembled) + 1 extra
A
B
D
C
E
P
Q
O
H
I
K
R
T
S
U
G
N
M
V
O
F
L
PART DESCRIPTION QUANTITY
PART DESCRIPTION QUANTITY
5
6
PREPARATION

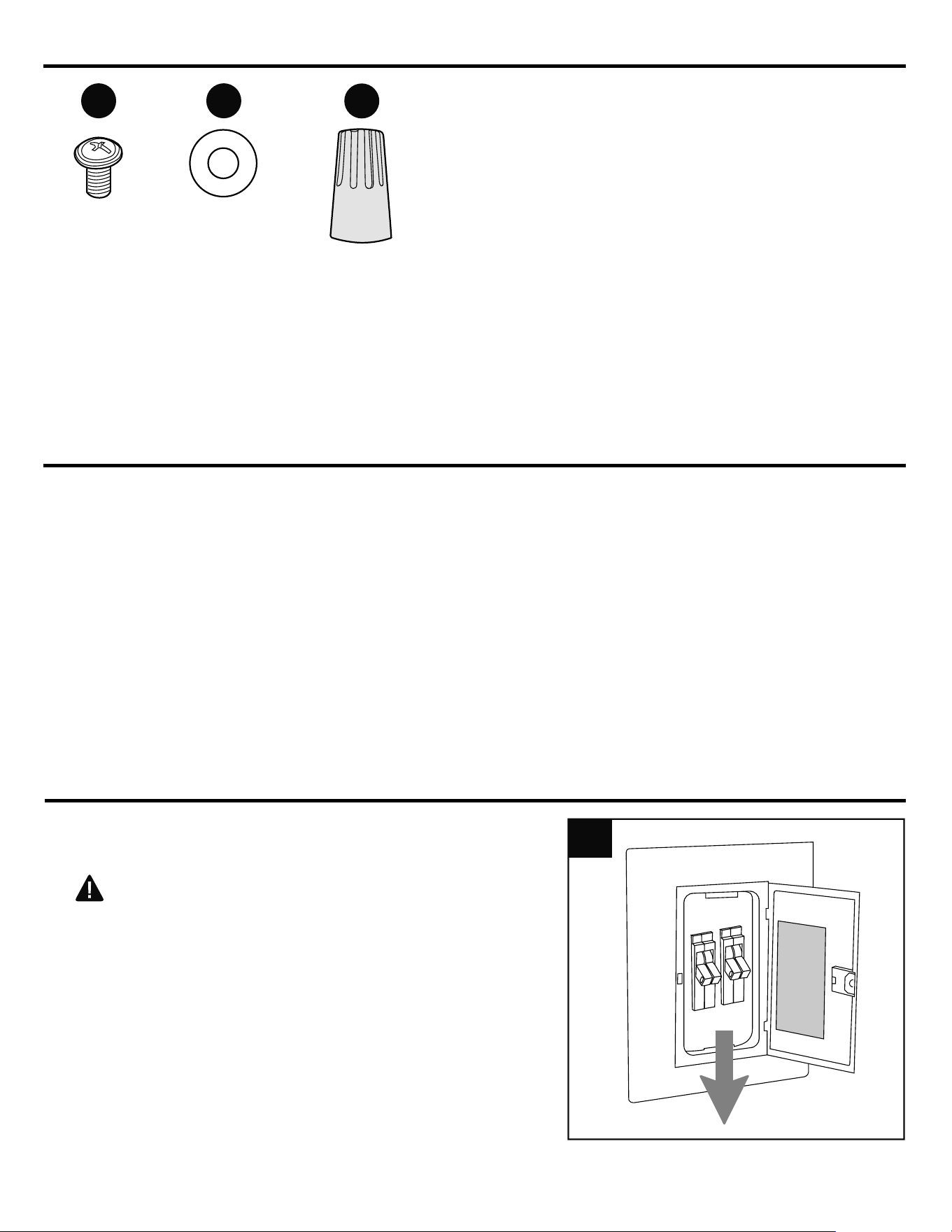

HARDWARE CONTENTS (shown actual size)
Before beginning assembly of product, make sure all parts are present. Place motor on carpet or on
foam to avoid damage to finish. Compare parts with package contents list and hardware contents list.
If any part is missing or damaged, do not attempt to assemble the product.
Estimated Assembly Time: 120 minutes
Tools Required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety
Glasses, Stepladder and Wire Strippers.
Helpful Tools (not included): AC Tester Light, Tape Measure, Do-It-Yourself Wiring Handbook and
Wire Cutters.
INITIAL INSTALLATION
Turn off circuit breakers or fuse and wall switch to
the fan supply line leads.
DANGER: Failure to disconnect power supply
prior to installation may result in serious injury or
death.
1.
ON
OFF
ON
OFF
1
CC
Wire
Connector
Qty. 3
+ 1 extra
AA BB
Fiber Blade
Washer
Qty. 21
+ 1 extra
Blade
Screw
Qty. 21
+ 1 extra
7

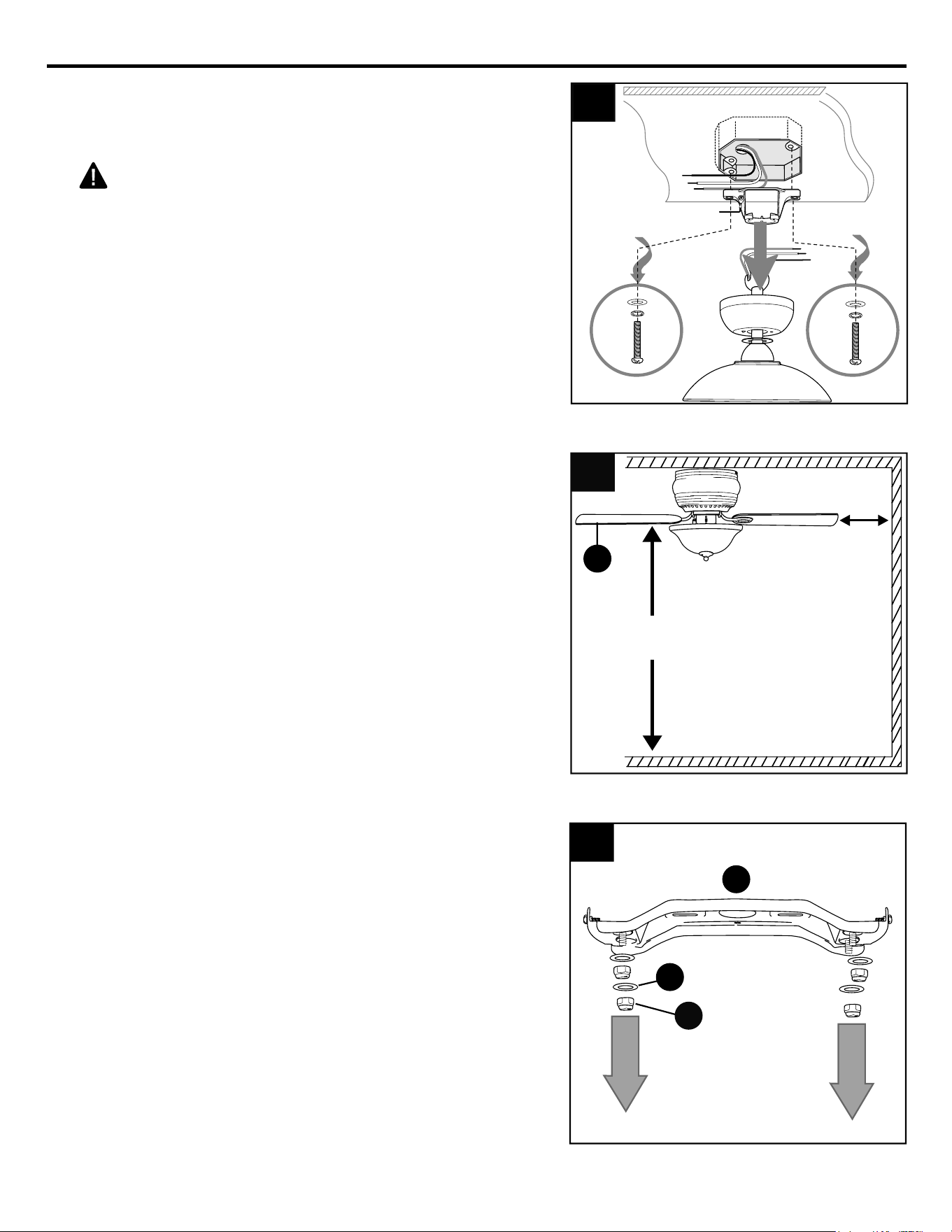

If applicable, remove existing fan, including the
mounting bracket, from the outlet box and
disconnect all electrical wiring.
WARNING: To reduce the risk of personal
injury, use ONLY parts provided with your new
fan. The use of parts OTHER than those
provided with this fan will void the warranty.
Set aside the screws, spring washers and flat
washers provided with the outlet box to be used
for fan installation.
INITIAL INSTALLATION
3.
This fan can be mounted as a flushmount on a
regular (no-slope) ceiling only.
Check to make sure blades (G) will be at least
30 in. from any obstruction and at least 7 ft.
above the floor.
Remove all mounting bracket nuts (U) and
mounting bracket flat washers (S) from
mounting bracket (B).
4.
3
4
7 ft.
min.
30 in.
min.
G
U
S
B
2.
2
[Representative
Drawings]
INITIAL INSTALLATION
8
5
6.

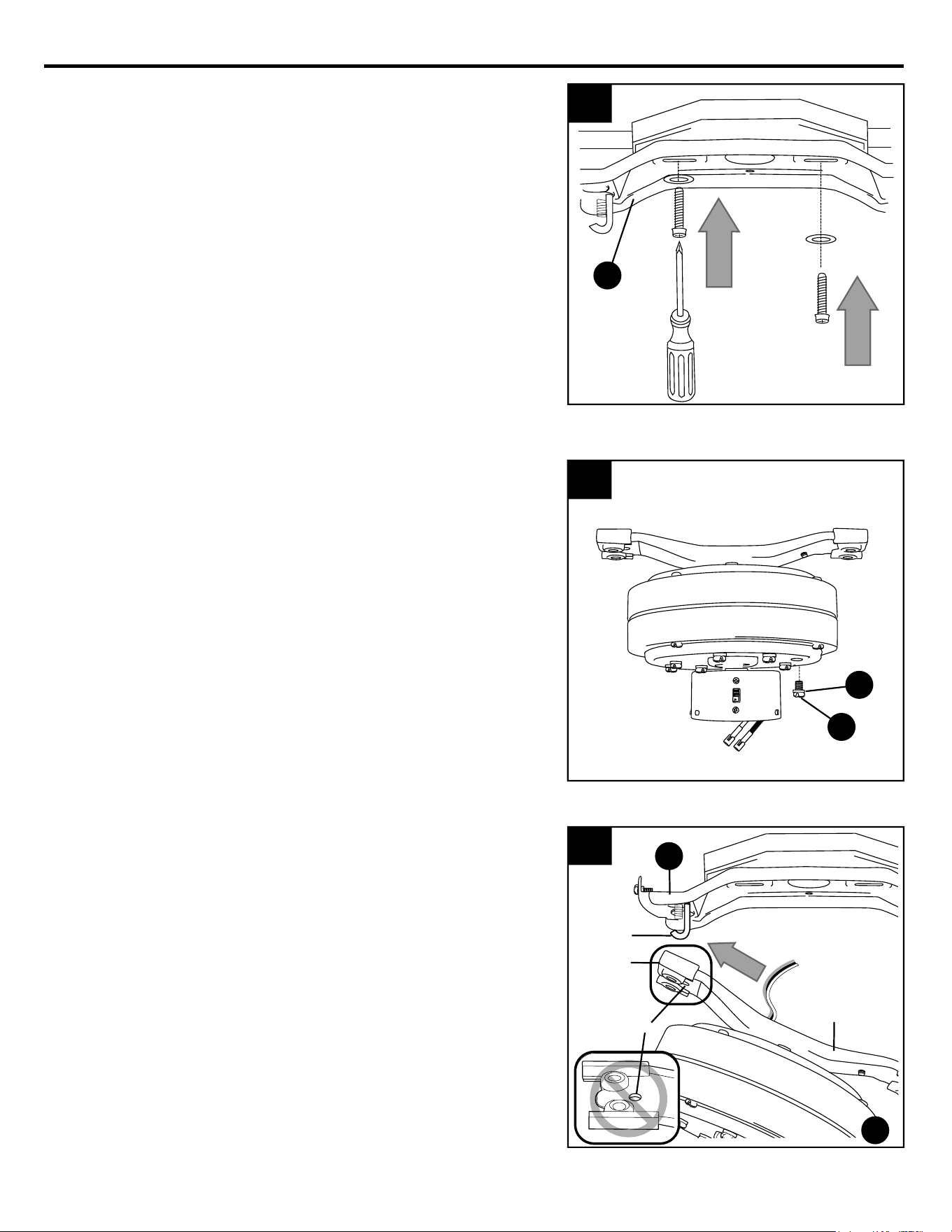

Remove motor screws (M) and 5.4 mm lock
washers (N) from underside of motor and save for
blade arm (J) attachment later on. [If there are
plastic motor blocks installed with the motor
screws (M) and 5.4 mm lock washers (N), discard
the plastic motor blocks.]
6
5.
7.
Slide the slot in the bar at the top of the motor
assembly (C) onto the "J" hook on the mounting
bracket (B) to support the fan during wiring.
IMPORTANT: DO NOT use the end of the bar on
the motor assembly (C) with the small round hole
to hang the motor assembly (C) on the mounting
bracket (B).
7
B
N
Secure the mounting bracket (B) to the outlet box
using screws, spring washers and flat washers
provided with the outlet box.
*NOTE: It is very important that you use the
proper hardware when installing the mounting
bracket (B) as this will support the fan.
M
"J" Hook
B
Small Hole
C
End Bar
Bar

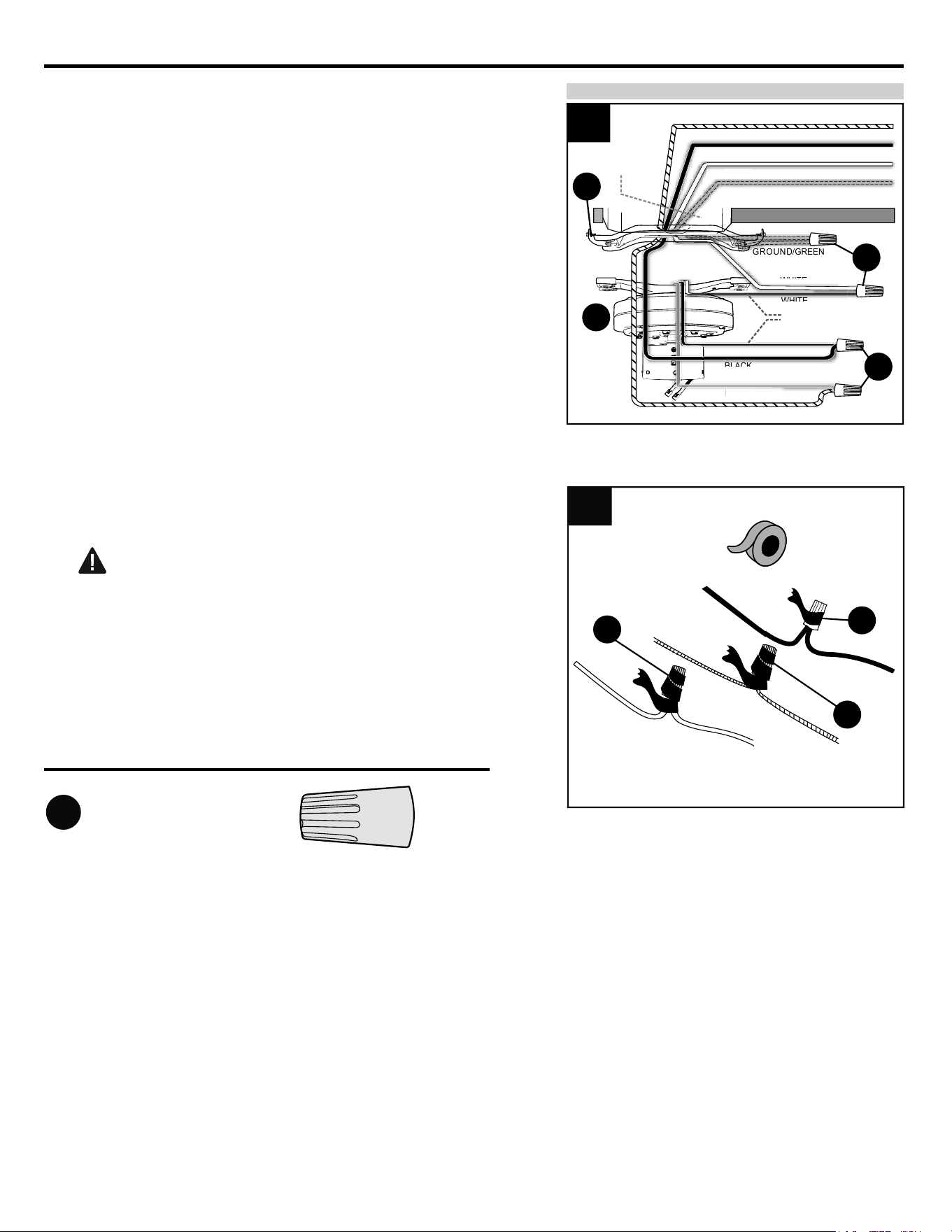

WIRING

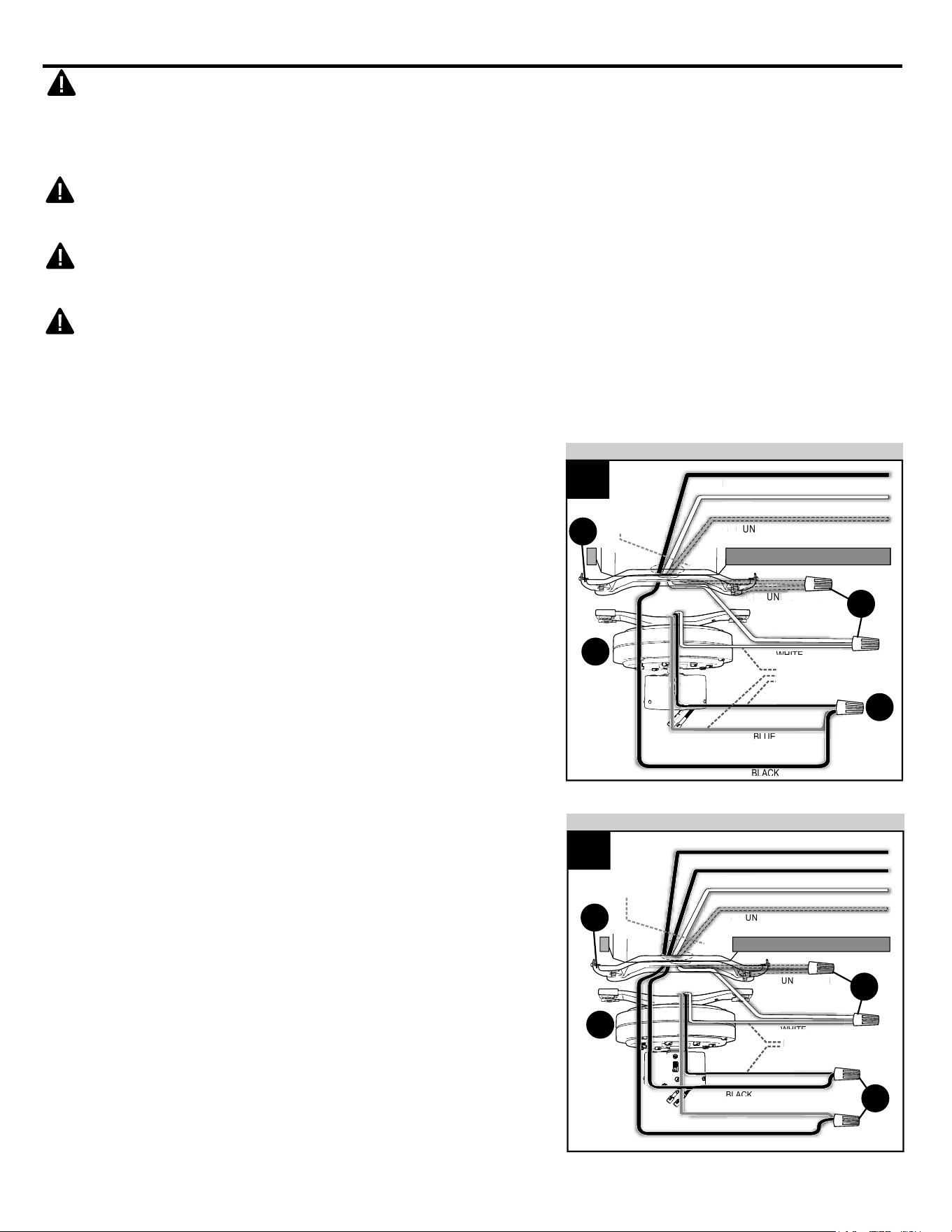

Choose the wiring diagram (Fig. 1a, Fig. 1b or Fig.
1c) that fits your situation and make appropriate
wiring connections as follows: [NOTE: For each wire
connection below, use one of the wire connectors
(CC), making sure to screw wire connector (CC) on
in a clockwise direction.]
1a. FAN AND LIGHT CONTROLLED BY PULL
CHAINS: Connect the BLACK and BLUE wires
from the fan to BLACK wire from ceiling. Connect
WHITE wire from fan to WHITE wire from ceiling.
Connect all GROUND (GREEN) wires together
from fan (on motor assembly (C) and mounting
bracket (B)) to BARE/GREEN wire from ceiling.
1.
1b. FAN CONTROLLED BY PULL CHAIN,
LIGHT BY WALL SWITCH: If you intend to
control the fan light with a separate wall switch,
connect BLACK wire from fan to BLACK wire from
ceiling. Connect BLUE wire from fan to the
BLACK wire from the independent wall switch for
the light. Connect WHITE wire from fan to WHITE
wire from ceiling. Connect all GROUND (GREEN)
wires together from fan (on motor assembly (C)
and mounting bracket (B)) to BARE/GREEN wire
from ceiling.
FAN AND LIGHT CONTROLLED BY TWO WALL SWITCHES
1b
FAN CONTROLLED BY PULL CHAIN, LIGHT BY WALL SWITCH
GROUND/GREEN (BARE)
WHITE
BLACK
B
LA
C
K
WHITE
G
R
O
U
N
D/G
REEN
(
BARE
)
GROUND/GREEN
BLACK
WHITE
WHITE
BLUE
FROM FAN
BLACK
BLUE
BLUE
WHITE
FRO
M FA
N
WHITE
G
R
O
U
N
D/G
REE
N
G
R
O
U
N
D/GREEN
WHITE
BLACK
120 V Power
from ceiling
FAN AND LIGHT CONTROLLED BY TWO WALL SWITCHES
1a
FAN AND LIGHT CONTROLLED BY PULL CHAINS
GROUND/GREEN (BARE)
WHITE
BLACK
120 V Power
from ceiling
B
LA
C
K
WHITE
G
R
O
U
N
D
/GREEN
(
BARE
)
GROUND/GREEN
BLACK
WHITE
WHITE
BLUE
FROM FAN
BLA
CK
B
L
UE
BLACK
WHITE
FRO
M F
AN
WHITE
G
O
U
D/GREEN
G
R
O
U
N
D/G
RE
E
WHI
TE
BLACK
BLACK (WALL SWITCH)
BLACK (WALL SWITCH)
WARNING: To reduce the risk of fire, electrical shock or personal injury, wire connectors
provided with this fan are designed to accept only one 12-gauge house wire and two lead wires from
the fan. If your house wire is larger than 12-gauge or there is more than one house wire to connect to
the corresponding fan lead wires, consult an electrician for the proper size wire connectors to use.
CAUTION: Be sure outlet box is properly grounded and that a ground (GREEN or BARE) wire is
present.
WARNING: If house wires are different colors than referred to in the following steps, stop
immediately. A professional electrician is recommended to determine wiring.
WARNING: Using a full-range dimmer switch (not included) to control fan speed will cause a loud
humming noise from fan. To reduce the risk of fire or electrical shock, do NOT use a full-range
dimmer switch to control fan speed.
CC
C
C
B
CC
CC
CC
B
9
10
NOTE: BLACK wire is hot power for fan. BLUE
wire is hot power for light kit. WHITE wire is
common for fan and light kit. BARE/GREEN wire is
ground.
FAN AND LIGHT CONTROLLED BY TWO
WALL SWITCHES: If you intend to control the fan
and light with separate wall switches, connect
BLACK wire from fan to BLACK wire from the
independent wall switch for the fan. Connect
BLUE wire from fan to the BLACK wire from the
other independent wall switch for the light.
Connect WHITE wire from fan to WHITE wire
from ceiling. Connect all GROUND (GREEN)
wires together from fan (on motor assembly (C)
and mounting bracket (B)) to BARE/GREEN wire
from ceiling.
Wrap electrical tape (not included) around each
individual wire connector (CC) down to the wire.
WARNING: Make sure no bare wire or wire
strands are visible after making connections. Place
BARE/GREEN and WHITE connections on
opposite side of box from the BLACK and BLUE (if
applicable) connections.
Turn spliced/taped wires upward and gently push
wires and wire connectors (CC) into outlet box.
2.
2
Hardware Used
Wire Connector
x 4
WHITEWHITE
GROUND/GREEN
BLACK
WHITE
WHITE
BLUE
FROM FAN
BLACK
B
L
UE
BLA
CK
WHITE
FR
O
M FA
N
WHI
TE
G
R
O
U
N
D/GREEN
WHITE
G
R
O
U
N
D/GREEN
WHITE
WHI
TE
BLACK
BLACK (WALL SWITCH FOR LIGHT)
BLACK (WALL SWITCH)
BLACK (WALL SWITCH)
GROUND/GREEN (BARE)
120 V Power
from ceiling
FAN AND LIGHT CONTROLLED BY TWO WALL SWITCHES
1c
FAN AND LIGHT CONTROLLED BY TWO WALL SWITCHES
CC
CC
CC
CC
CC
B
C
CC
WIRING
1c.
11
3.

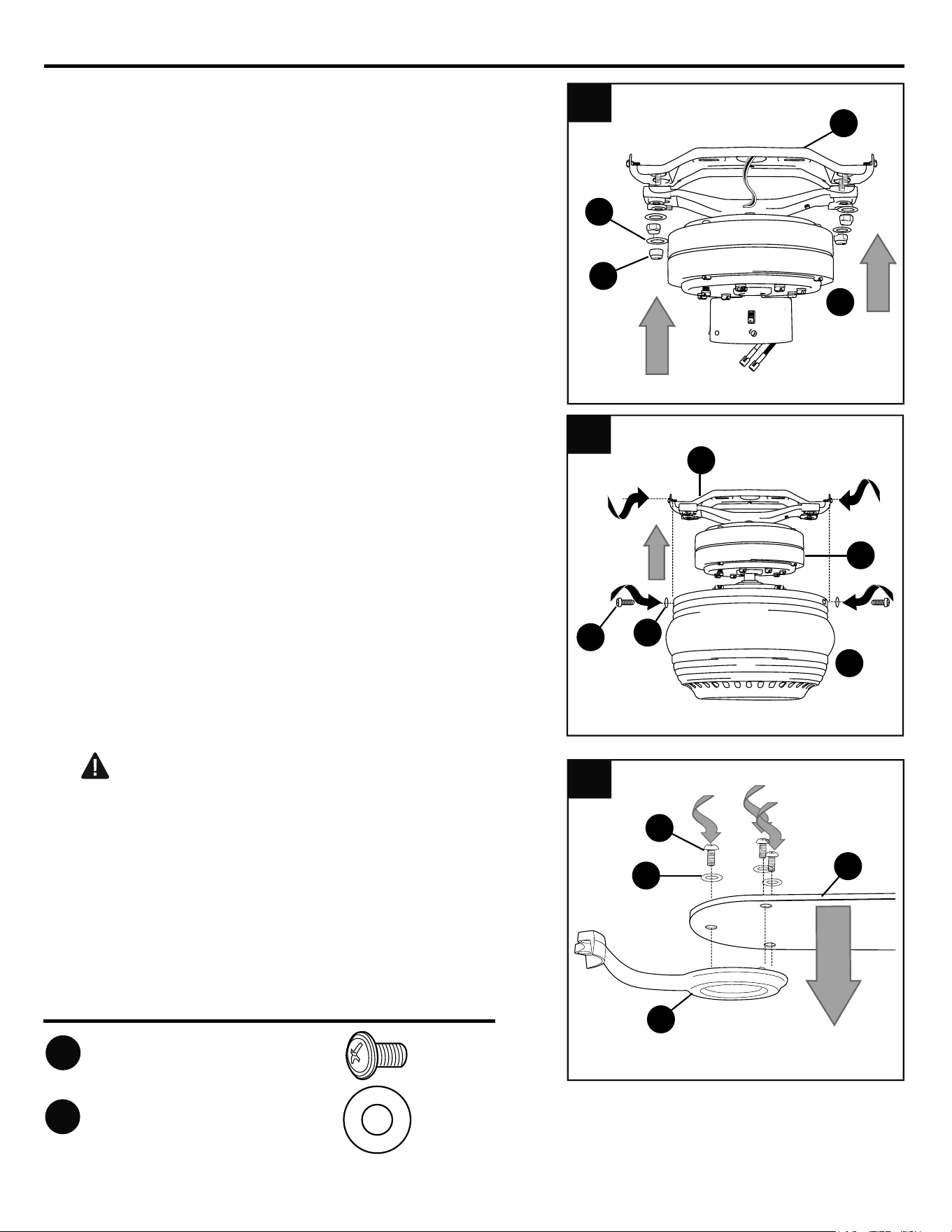

DANGER: To reduce the risk of serious bodily
injury, DO NOT use power tools to assemble the
blades (G). If screws are overtightened, blades (G)
may crack and/or break.
Partially insert three blade screws (AA) along
with three fiber blade washers (BB) into holes in
blade (G) to attach blade arm (J) to blade (G).
Then, tighten each blade screw (AA) starting
with the one in the middle.
Repeat Step 3 with remaining blades (G).
3
FINAL INSTALLATION
1.
Remove motor assembly (C) from "J" hook.
Align holes in motor assembly (C) with holes in
mounting bracket (B). Secure motor assembly (C)
with mounting bracket flat washers (S) and
mounting bracket nuts (U) previously removed
(Step 3, page 7).
1
Hardware Used
Blade Screw
x 15
Fiber Blade Washer
x 15
2
2.
Temporarily lift motor housing (A) to mounting
bracket (B). Determine which two motor housing
mounting screws (R) in sides of mounting bracket
(B) align with the slotted holes in the top edge of
the motor housing (A) and partially loosen these
two motor housing mounting screws (R). Remove
the other two motor housing mounting screws (R)
and motor housing lock washers (T). Slide motor
housing (A) over motor assembly (C), aligning
slotted holes in motor housing (A) with loosened
motor housing mounting screws (R) in mounting
bracket (B). Twist motor housing (A) to lock.
Re-insert the other two motor housing mounting
screws (R), along with motor housing lock washers
(T), previously removed. Tighten all motor housing
mounting screws (R) securely.
BB
AA
B
B
C
C
S
U
R
T
A
BB
AA
J
G
12

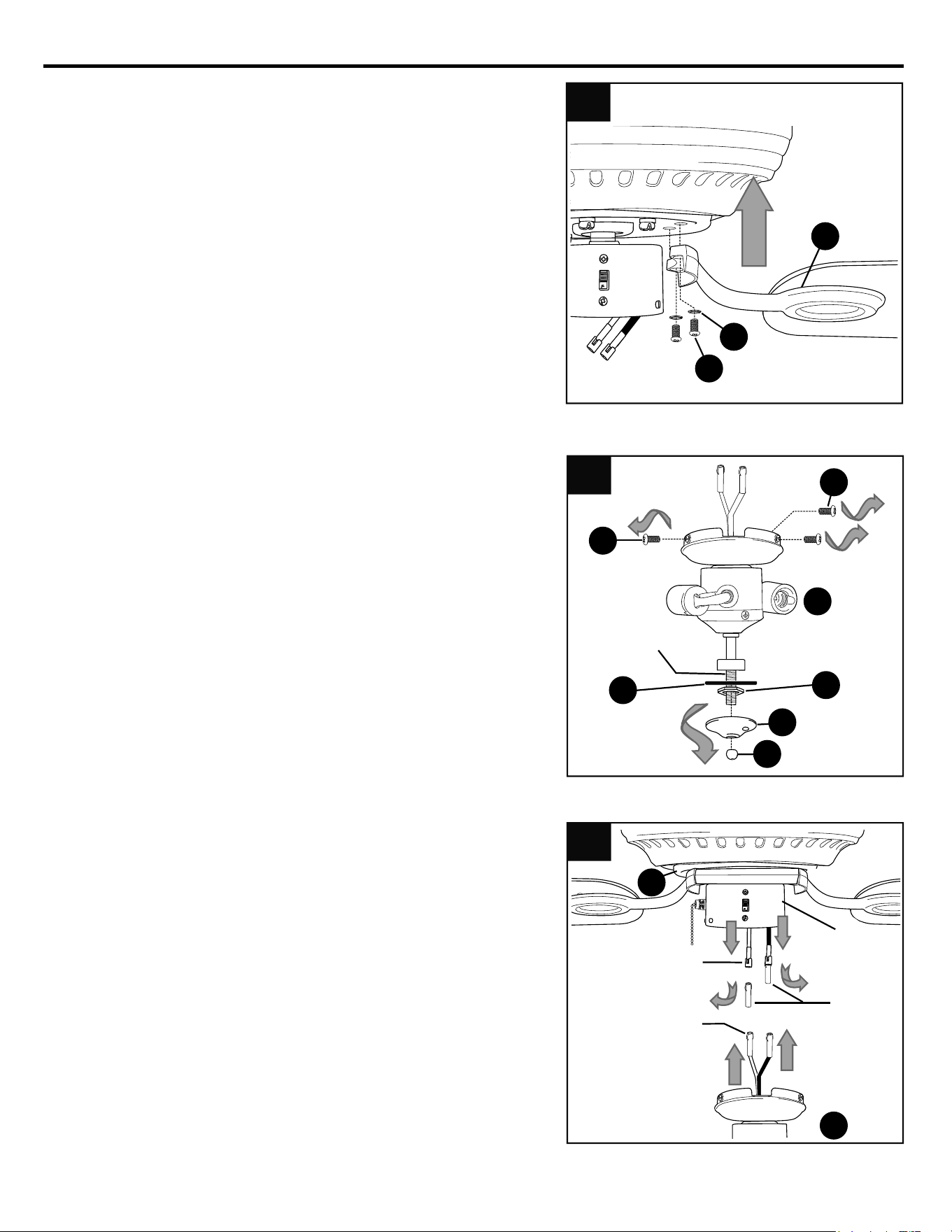

Locate motor screws (M) and 5.4 mm lock
washers (N) previously removed (Step 5, page 8).
Insert two motor screws (M) along with 5.4 mm
lock washers (N) through one blade arm (J) to
attach blade arm (J) to motor. Tighten motor
screws (M) securely. Repeat with remaining blade
arms (J), making sure to completely secure each
blade arm (J) before proceeding with the next.
4.
Remove three switch housing cap screws (V)
from TOP of light kit fitter (D).
If you wish to USE the light kit, remove finial (I),
finial plate (H), hex nut (O) and rubber washer (Q)
from BOTTOM of light kit fitter (D). Save hardware
for later use.
Continue to Step 6 for installation with light kit.
If you do NOT wish to use the light kit, proceed
to Step 11, page 14.
5.
4
Locate BLUE (or BLACK) and WHITE wires in
switch housing of motor assembly (C) labeled FOR
LIGHT and remove plastic that holds these two
wires together. Also, remove molex safety caps
from bottom of BLUE (or BLACK) and WHITE
wires. NOTE: It may be necessary to pull firmly in
order to remove molex safety caps.
Connect WHITE wire from switch housing to
WHITE wire from light kit fitter (D). Connect BLUE
(or BLACK) wire from switch housing to BLACK
wire from light kit fitter (D). Make sure that molex
connections are secure.
6.
6
Molex
Connections
Switch
Housing
Molex
Safety
Caps
Molex
Connections
5
Threaded
Rod
FINAL INSTALLATION
J
N
M
V
V
D
O
H
I
Q
C
D
13

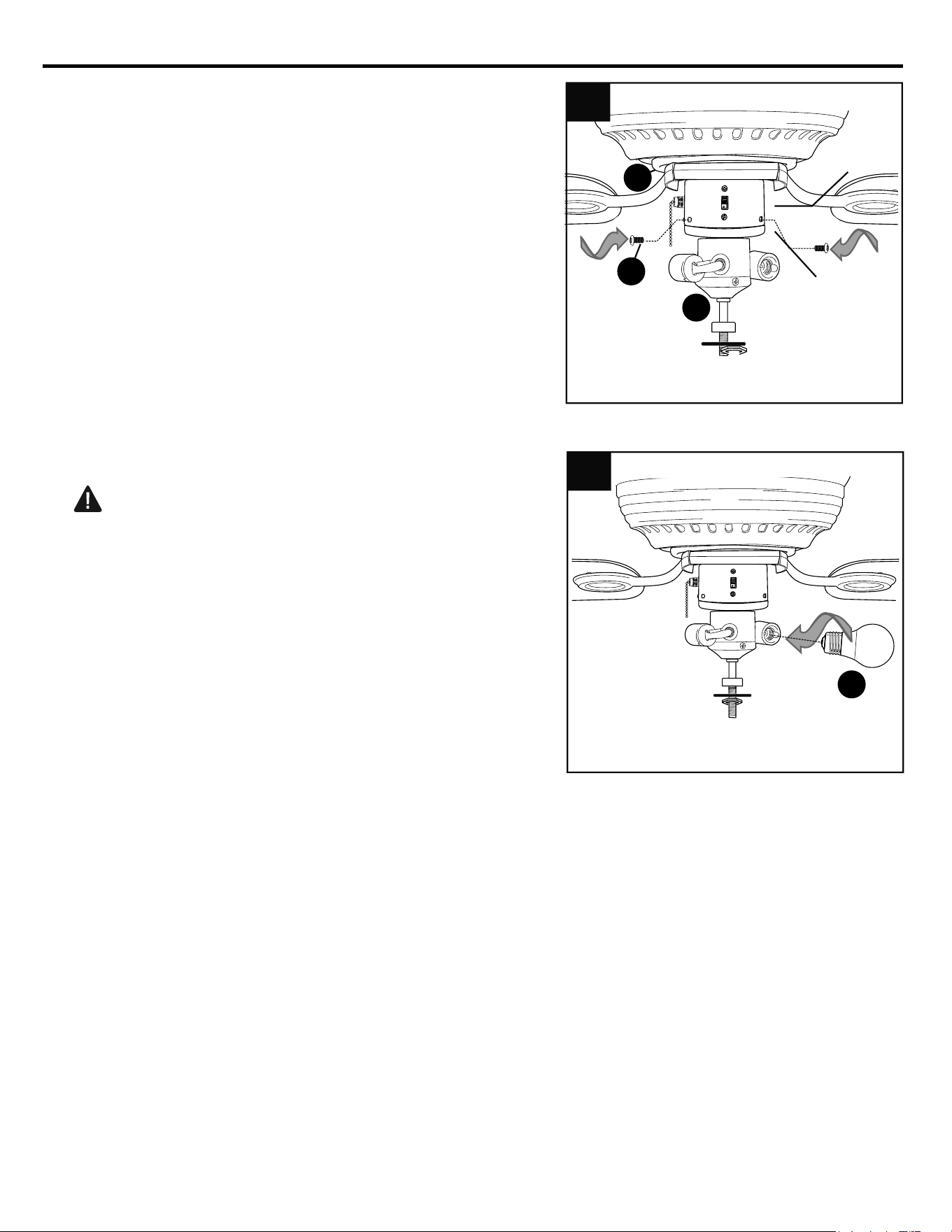

To attach light kit fitter (D) to motor assembly (C),
align holes in switch housing cap, at top of light
kit fitter (D), with holes in switch housing. (Make
sure to align gap on top edge of the switch
housing cap with the reverse switch on switch
housing for the correct fit.) Re-insert switch
housing cap screws (V) previously removed
(Step 5, page 12). Tighten all switch housing cap
screws (V) securely.
7.
8.
Install bulbs (L).
WARNING: When you need to replace
bulbs, please allow bulbs and light kit to cool
down before touching.
Switch
Housing
Cap
Switch
Housing
8
FINAL INSTALLATION
V
C
D
L
7
14
9.
10.
FINAL INSTALLATION
10
(For Fan)
(For Light)
F

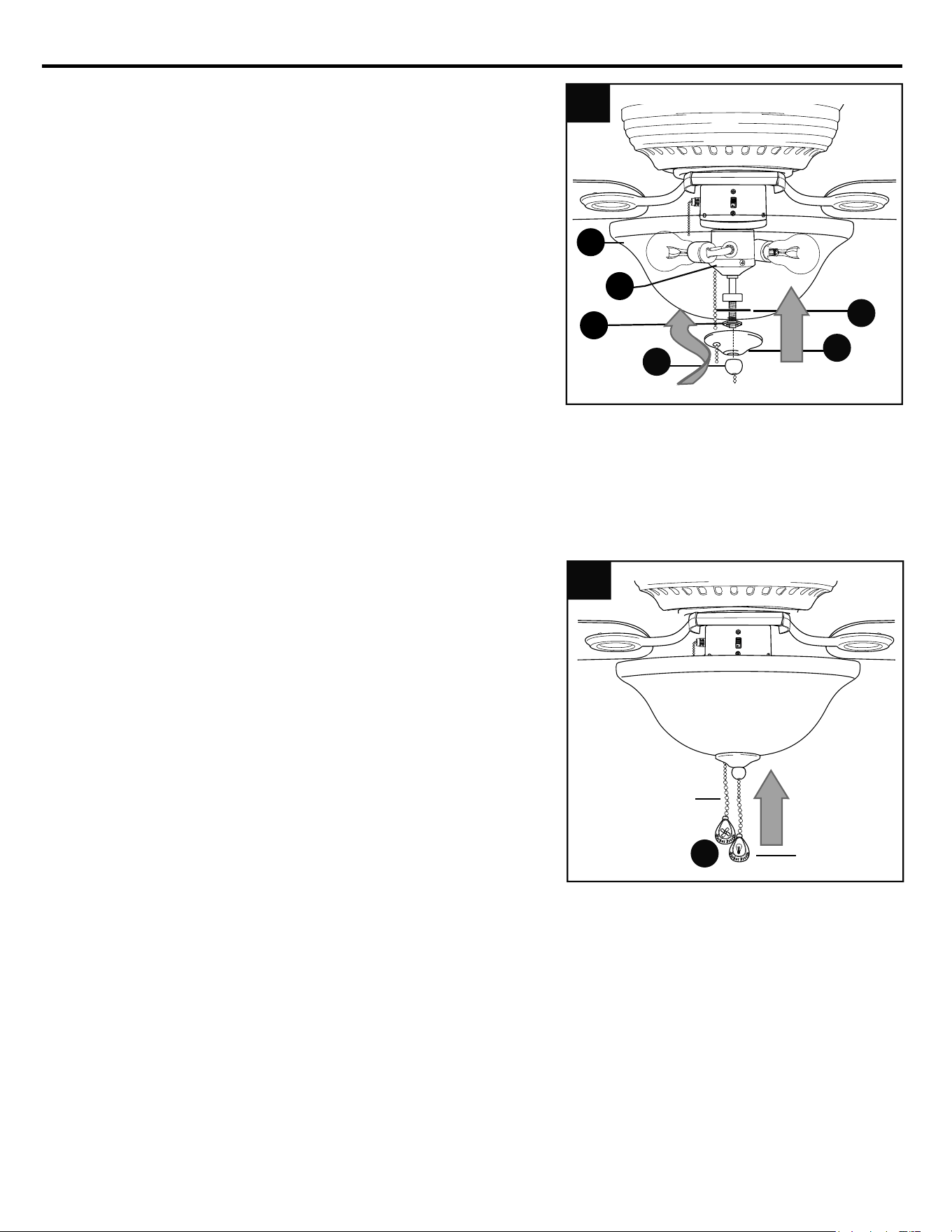

Locate rubber washer (Q), hex nut (O), finial
plate (H) and finial (I) previously removed (Step
5, page 11). Place rubber washer (Q) inside
shade (E) over center hole. Align hole in center
of shade (E) with threaded rod on light kit fitter
(D), allowing pull chains to come through
corresponding holes in shade (E). Push up gently
on shade (E) until threaded rod comes through
hole. (Be sure fan pull chain does not rub against
bulbs during fan operation.)
Secure shade (E) with hex nut (O).
Align hole in center of finial plate (H) with
threaded rod, allowing the pull chains to come
through appropriate holes in finial plate (H) and
push up. Thread center pull chain through hole in
finial (I) and secure shade (E) by tightening finial
(I).
NOTE: Do NOT overtighten finial (I) as glass
may crack or break.
Attach applicable pull chain extensions (F) or
custom pull chain extensions (not included) to the
fan and light pull chains.
Assembly is now complete.
9
I
H
Q
D
O
E
15
Switch
Housing

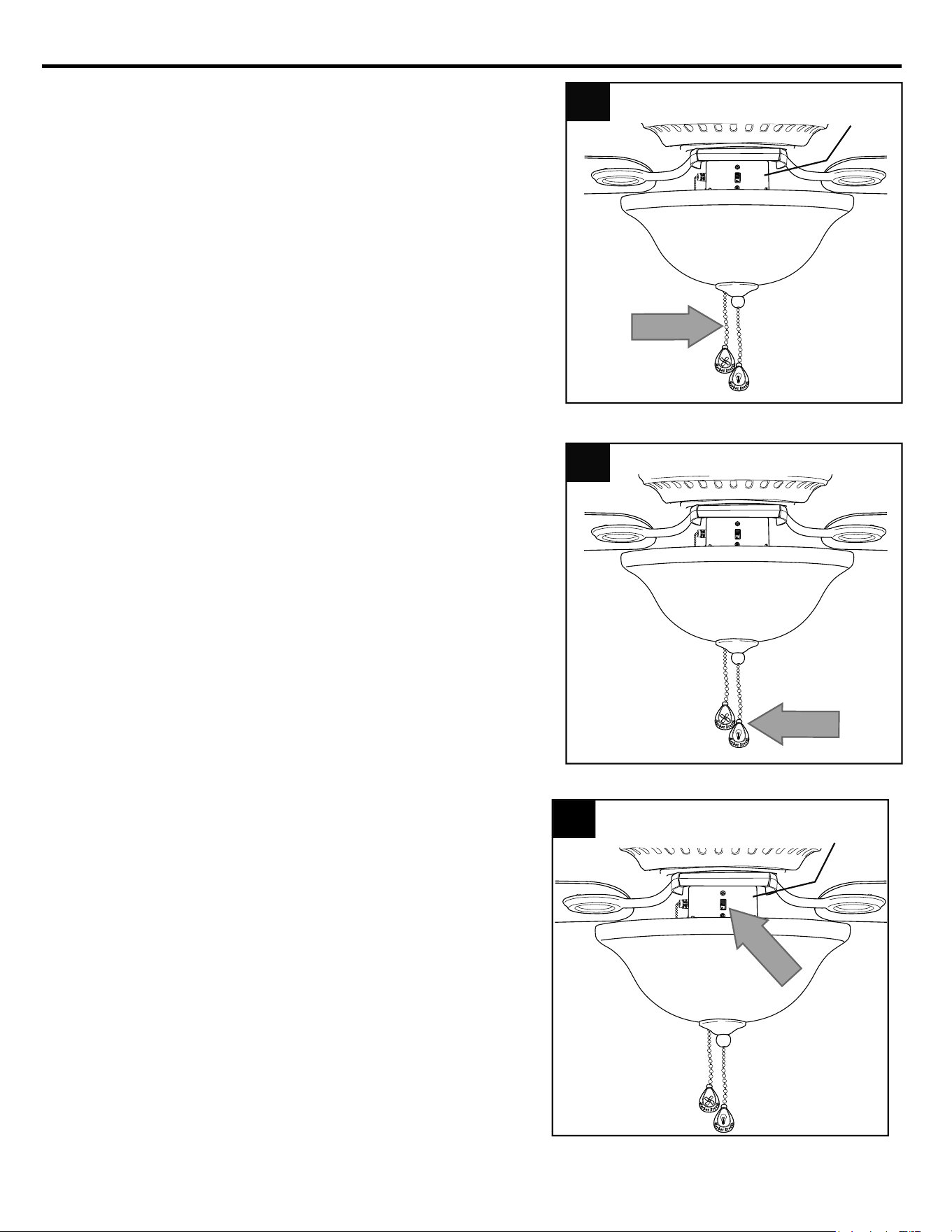

The pull chain located on the switch housing
has four positions to control fan speed. One pull
is HIGH, two is MEDIUM, three is LOW and four
turns the fan OFF.
1.
The pull chain located in the center is used to
turn the light ON or OFF.
2.
1
2
3.
Use the fan reverse switch, located on the
switch housing, to optimize the fan for seasonal
performance. A ceiling fan will allow you to raise
your thermostat setting in summer and lower
your thermostat setting in winter without feeling
a difference in your comfort.
NOTE: Wait for fan to stop before moving the
reverse switch.
3
Switch
Housing
OPERATING INSTRUCTIONS
16
OPERATING INSTRUCTIONS
At least twice each year, lower motor housing (A) to check motor assembly (C), and then tighten all
screws. Clean motor housing (A) with only a soft brush or lint-free cloth to avoid scratching the finish.
Clean blades (G) with a lint-free cloth. You may occasionally apply a light coat of furniture polish to
wood blades for added protection.
IMPORTANT: Shut off main power supply before beginning any maintenance. Do not use water or a
damp cloth to clean the ceiling fan.
Bulb Replacement: Use standard-base 6.5-watt LED bulbs or incandescent/halogen/CFL equivalents.
3a
3b
3c

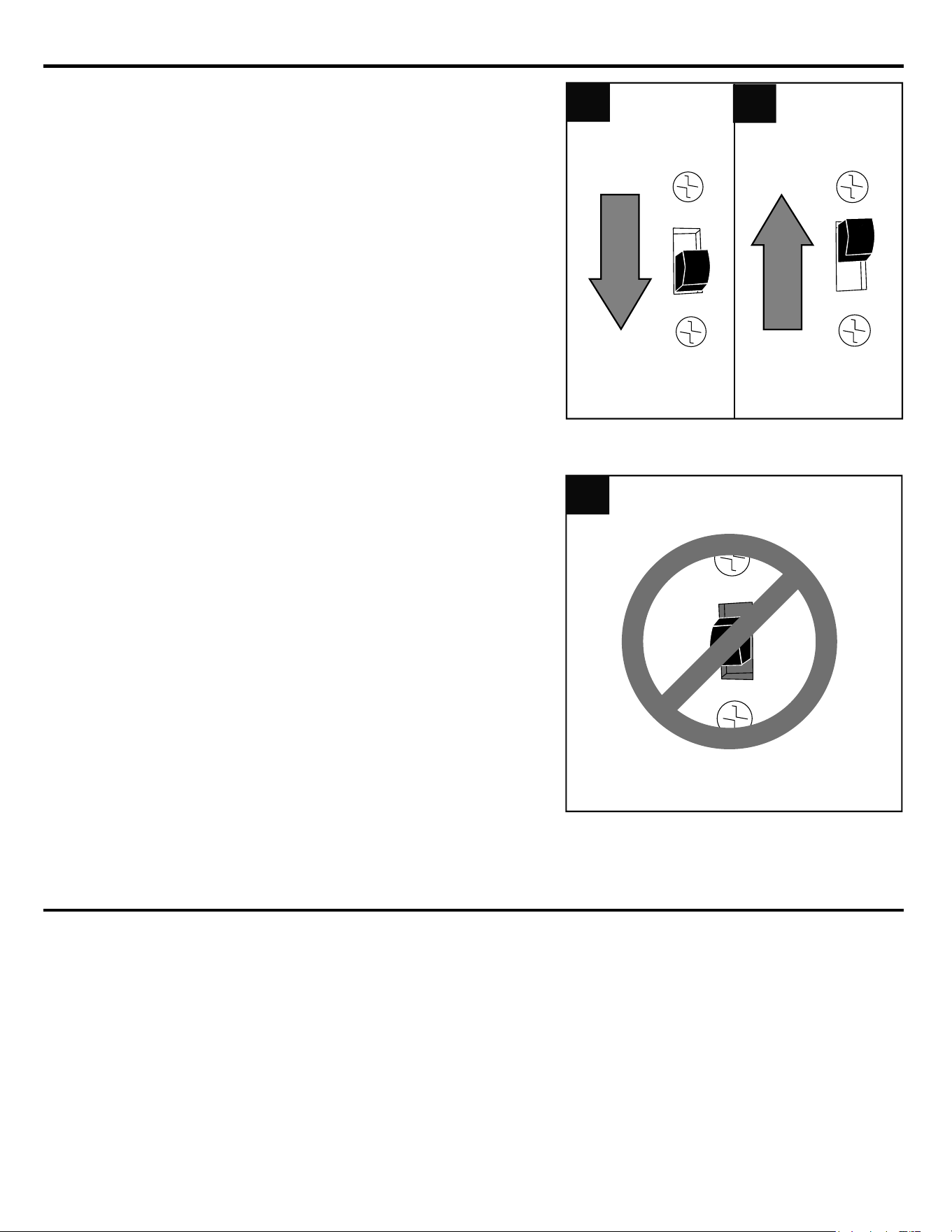

IMPORTANT: Reverse switch must be set either
completely UP or completely DOWN for fan to
function. If the reverse switch is set in the middle
position, fan will not operate.
In warmer weather, setting the reverse
switch in the DOWN position will result in
downward airflow creating a wind chill effect.
In cooler weather, setting the reverse
switch in the UP position will result in
upward airflow that can help move stagnant,
hot air off the ceiling area.
3a.
3b.
3c.
CARE AND MAINTENANCE
17
TROUBLESHOOTING
WARNING: Before beginning work, shut off the power supply to avoid electrical shock.
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Fan does not move. 1. Reverse switch not engaged.
2. Power is off or fuse is blown.
3. Faulty wire connection.
1. Push switch firmly either up or
down.
2. Turn power on or check fuse.
3. Turn power off. Loosen motor
housing and check all connections.
Noisy operation. 1. Blades are loose.
2. Cracked blade.
3. Full-range dimmer switch.
4. Fan is new.
5. Motor housing is loose.
1. Tighten all blade screws.
2. Replace blade.
3. Replace with an approved speed
control device.
4. Allow fan a “break in” period of a
few days, especially when running
the fan at Medium and High
speeds.
5. Turn power off. Carefully loosen
motor housing and verify that
mounting bracket is secure
according to instructions on page
10.
Excessive wobbling. 1. Blades are loose.
2. Blade arms incorrectly attached.
3. Unbalanced blades.
4. Fan not securely mounted.
1. Tighten all blade screws.
2. Re-install blade arms.
3. Switch one blade with a blade from
the opposite side.
4. Turn power off. Carefully loosen
motor housing and verify that
mounting bracket is secure.
NOTE: A small amount of "wobble" is normal and should not be considered a defect.
Fan operates but
light fails (if
applicable).
1. Bulb(s) not installed correctly.
2. Wires in outlet box not wired
properly.
3. Wall switch to fan is off.
4. Wires in switch housing not wired
correctly.
1. Re-install bulb(s).
2. Check wires in outlet box and, if
necessary, re-wire according to
instructions on pages 8 and 9.
3. Make sure that wall switch to fan is
on.
4. Check wires in switch housing and,
if necessary, re-wire according to
instructions on page 11.
PART DESCRIPTION
#807423 #807424 #807425 #5730164
PART # PART # PART # PART #
B Mounting Bracket
D Light Kit Fitter
G Blade
J Blade Arm
5730164-B
5730164-D
5730164-G
5730164-J
807425-B
807425-D
807425-G
807425-J
807423-B
807423-D
807423-G
807423-J
807424-B
807424-D
807424-G
807424-J
Set forth below, the manufacturer warrants the fan motor for this ceiling fan to be free from defects in
workmanship and material for the life of the product. Also, subject to the limitations below, the
manufacturer warrants all ceiling fan parts (“ceiling fan parts” excludes the motor and parts made in whole
or in part of glass) to be free from defects in workmanship and material for a period of one year after the
date of purchase by the original purchaser at retail.
All claims must be made by the original purchaser, whether such purchaser purchased the product
through a store or contractor. Ceiling fan part defects must be reported within the first year from the date
of purchase. Parts made in whole or in part with glass and the finishes of metal and other surfaces are not
warranted.
Purchasers are responsible for all costs of removing and reinstalling the product. Any damage to any part
caused by ordinary wear and tear, accident, misuse, or improper installation, is not covered by this
warranty. The manufacturer assumes no responsibility whatsoever for fan installation. Any service
performed by a non-licensed electrician will render the warranty invalid.
The manufacturer’s sole responsibility shall be to repair or replace the motor, parts, or product within the
terms stated above. The manufacturer shall not be liable for any loss or damage of any kind, including any
incidental or consequential damages resulting directly or indirectly, from any breach of warranty, express
or implied, or any other failure of this product. Some states do not allow the exclusion or limitation of
incidental or consequential damages so this limitation may not apply to you.
If the original purchaser ceases to own the fan, this warranty is voided.
Should the purchaser encounter a problem with the fan related to defects in workmanship or materials
within the warranty period associated with the defective part, the manufacturer agrees to replace the
defective part without charge, or at its option, to replace the ceiling fan with a comparable or superior
model.
The manufacturer’s warranties are limited to the written warranties set out in this ceiling fan limited lifetime
warranty. All other express and implied warranties, including, without limitation, the implied warranty of
fitness for a particular purpose and the implied warranty of merchantability, are disclaimed. Some states
do not allow the disclaimer of implied warranties, so this disclaimer may not apply to you.
REPLACEMENT PARTS LIST
LIMITED LIFETIME WARRANTY
All parts are replaceable (see parts list in “Package Contents” on Page 5), however, only the parts listed
below are under warranty. For replacement parts, call our customer service department at
888-251-1003, 8 a.m. - 8 p.m., EST, Monday - Sunday.
Printed in China
18
BHLI0526
