MAYFIELD CEILING FAN
Harbor Breeze® is a registered trademark
of LF, LLC. All Rights Reserved.
E124404
LISTED
MODEL #BTH44ABZC5C
BTH44BNK5C
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-800-643-0067, 8 a.m. - 6 p.m., EST, Monday - Thursday, 8 a.m. -
5 p.m., EST, Friday.
ATTACH YOUR RECEIPT HERE
Serial Number
Purchase Date
XXXXXX
1
Lowes.com/harborbreeze
Español p. 20
ITEM #0331094
0331096
Safety Information ...............................................................................................................2
Package Contents ...............................................................................................................4
Hardware Contents
..........................................................................................................................
5
Preparation ..........................................................................................................................5
Initial Installation ..................................................................................................................6
Wiring ..................................................................................................................................8
Final Installation ................................................................................................................10
Installing Fan Without Included Light Kit (Optional) ..........................................................14
Operating Instructions .......................................................................................................15
Care and Maintenance ......................................................................................................16
Troubleshooting .................................................................................................................17
Warranty ............................................................................................................................18
Replacement Parts List .....................................................................................................19
TABLE OF CONTENTS
2
Lowes.com/harborbreeze
SAFETY INFORMATION
READ AND SAVE THESE INSTRUCTIONS
Please read and understand this entire manual before attempting to assemble, install or operate the
product.
• Do not discard fan carton or foam inserts. Should this fan need to be returned to the factory for
repairs, it must be shipped in its original packaging to ensure proper protection against damage
that might exceed the initial cause for return.
• Make sure that all electrical connections comply with local codes, ordinances, the National
Electrical Code and ANSI/NFPA 70-1999. Hire a qualified electrician or consult a do-it-yourself
wiring handbook (available at Lowe's) if you are unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum clearance of 7 ft. from the blades to
the floor and at least 30 in. from the end of the blades to any obstruction.
• After you install the fan, make sure that all connections are secure to prevent the fan from falling.
• The net weight of this fan including the light kit is: 12.72 lbs. (5.77 kg).
SAFETY INFORMATION
To reduce the risk of fire, electrical shock, or personal injury, mount fan to outlet box
marked "ACCEPTABLE FOR FAN SUPPORT OF 35 LBS. (15.9 KG) OR LESS" and use
mounting screws provided with the outlet box. Most outlet boxes commonly used for the
support of lighting fixtures are not acceptable for fan support and may need to be replaced.
Consult a qualified electrician if in doubt.
When mounting fan to a ceiling outlet box, use a METAL octagonal outlet box. Secure the outlet
box directly to the building structure. The outlet box and its support must be able to support the
moving weight of the fan (at least 35 lbs.). Do NOT use a plastic outlet box.
To avoid personal injury, the use of gloves may be necessary while handling fan parts with
sharp edges.
To reduce the risk of fire, electrical shock, or personal injury, wire connectors provided with this
fan are designed to accept only one 12-gauge house wire and two lead wires from the fan. If your
house wire is larger than 12-gauge or there is more than one house wire to connect to the
corresponding fan lead wires, consult an electrician for the proper size wire connectors to use.
To reduce the risk of fire or electrical shock, do not use the fan with any solid state speed
control device or control fan speed with a full range dimmer switch.
To reduce the risk of fire, electrical shock, or personal injury, do not bend the blade arms when
installing them, balancing the blades, or cleaning the fan. Do not insert objects between the
rotating fan blades.
To reduce the risk of personal injury, use only parts provided with this fan. The use of parts
OTHER than those provided with this fan will void the warranty.
WARNINGS
CAUTIONS
Before proceeding, be sure to shut off electricity at main switch or circuit breaker in order to avoid
electrical shock.
Read all instructions and safety information before installing your new fan. Review the
accompanying assembly diagrams.
3
Lowes.com/harborbreeze

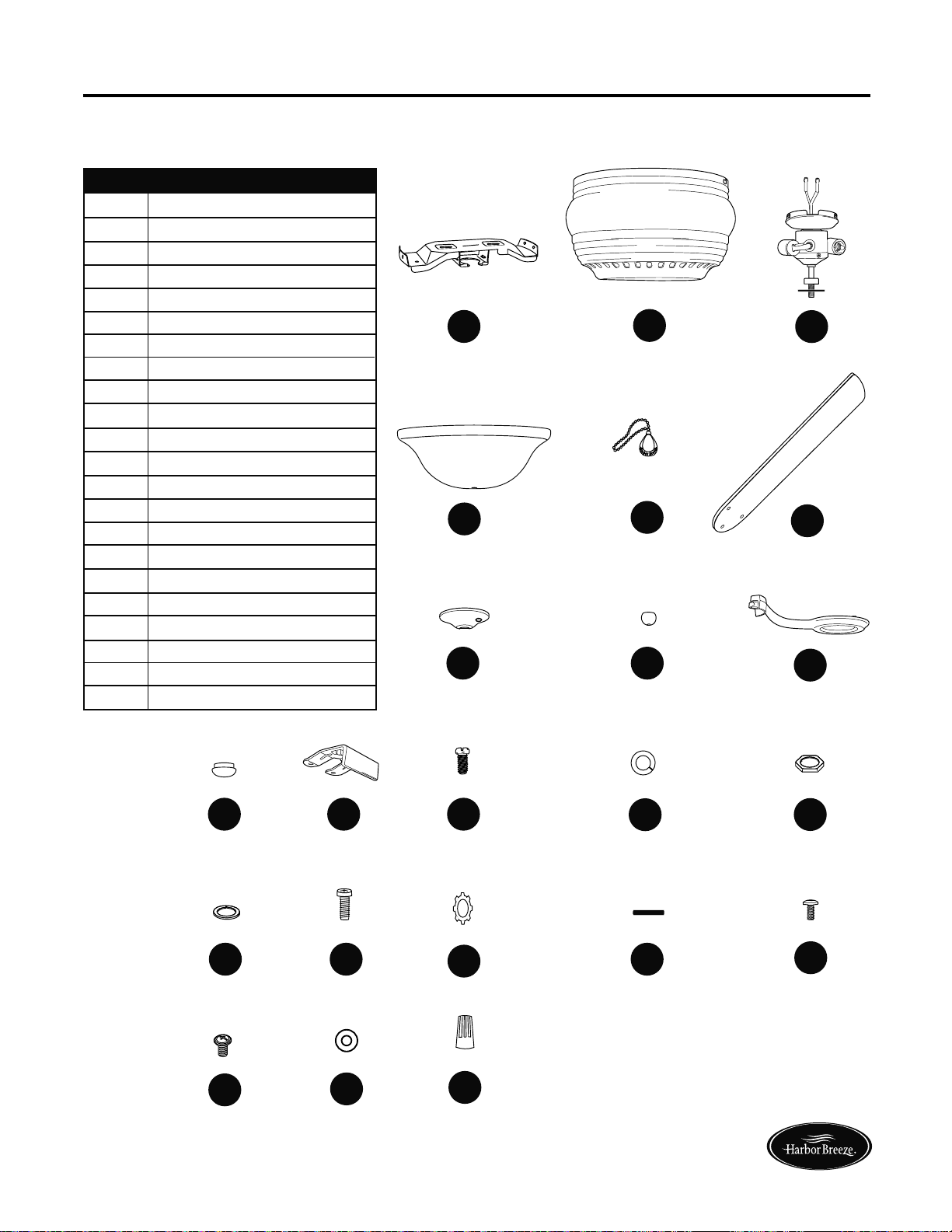

PACKAGE CONTENTS
4
Lowes.com/harborbreeze
A
Mounting Bracket 1
B
Motor Housing
1
C
Motor Assembly
1
D
Light Kit Fitter
1
E
Glass Shade
1
F
Pull Chain Extension
2
G
Blade
5
H Finial Plate
1
(preassembled)
I Finial (preassembled)
1
J
Blade Arm
5
K
Cap
1
L Plastic Lock Tab
1
M Bulb
3
DESCRIPTIONPART
QUANTITY
N
Motor Screw
1
0
(preassembled)
+ 1 extra
O 5.4 mm Lock Washer 10
(preassembled)
+ 1 extra
P Hex Nut (preassembled)
1
Q Lock Washer
1
(preassembled)
R
Mounting Bracket Screw
4
(preassembled)
S
Star Washer
4
(preassembled)
T Rubber Washer
1
(preassembled)
U
Switch Housing Cap
3
Screw (preassembled)
DESCRIPTIONPART
QUANTITY
IMPORTANT REMINDER: You must use the
parts provided with this fan for proper installation
and safety.
A
E
D
B
F
C
H
I
G
J
K
L
M
R
S
T
Q
P
U
N
O
5
Before beginning assembly of product, make sure all parts are present. Compare parts with package
contents list and hardware contents list. If any part is missing or damaged, do not attempt to
assemble the product.
Estimated Assembly Time: 120 minutes
Tools Required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety
Glasses, Stepladder and Wire Strippers
Helpful Tools (not included): AC Tester Light, Tape Measure, Do-It-Yourself Wiring Handbook and
Wire Cutters
Bulbs Required (included): 3 candelabra-base 40-watt max. bulbs
DANGER: When using an existing outlet box, make sure the outlet box is securely attached to
the building structure and can support the full weight of the fan. Failure to do this can result in serious
injury or death. The stability of the outlet box is essential in minimizing wobble and noise in the fan
after installation is complete.
CAUTION: Be sure outlet box is properly grounded and that a ground wire (green or bare) is
present.
After opening top of carton, remove mounting hardware package from foam inserts. Remove motor
from packing and place on carpet or on foam to avoid damage to finish.
CAUTION: Carefully check all screws, bolts and nuts on fan motor assembly to ensure that they
are secured.
HARDWARE CONTENTS (shown actual size)
PREPARATION
Lowes.com/harborbreeze
CC
Blade
Screw
Qty. 15
+ 1 extra
E3 Wire
Connector
Qty. 4
BB
AA
Fiber
Blade
Washer
Qty. 15
+ 1 extra
6
Turn off circuit breakers and wall switch to the fan
supply line leads.
DANGER: Failure to disconnect power supply
prior to installation may result in serious injury or
death.
1.
2.
Secure mounting bracket (A) to outlet box using
screws, spring washers, and flat washers provided
with the outlet box. Pull wires from outlet box
through center hole in mounting bracket (A).
*NOTE: It is very important that you use the proper
hardware when installing the mounting bracket (A)
as this will support the fan.
3.
Check to make sure blades (G) are at least 30 in.
from any obstruction and at least 7 ft. above the
floor.
INITIAL INSTALLATION
ON
OFF
ON
OFF
3
2
1
Lowes.com/harborbreeze
7 ft.
min.
30 in.
min.
G
A
5.
6.
7

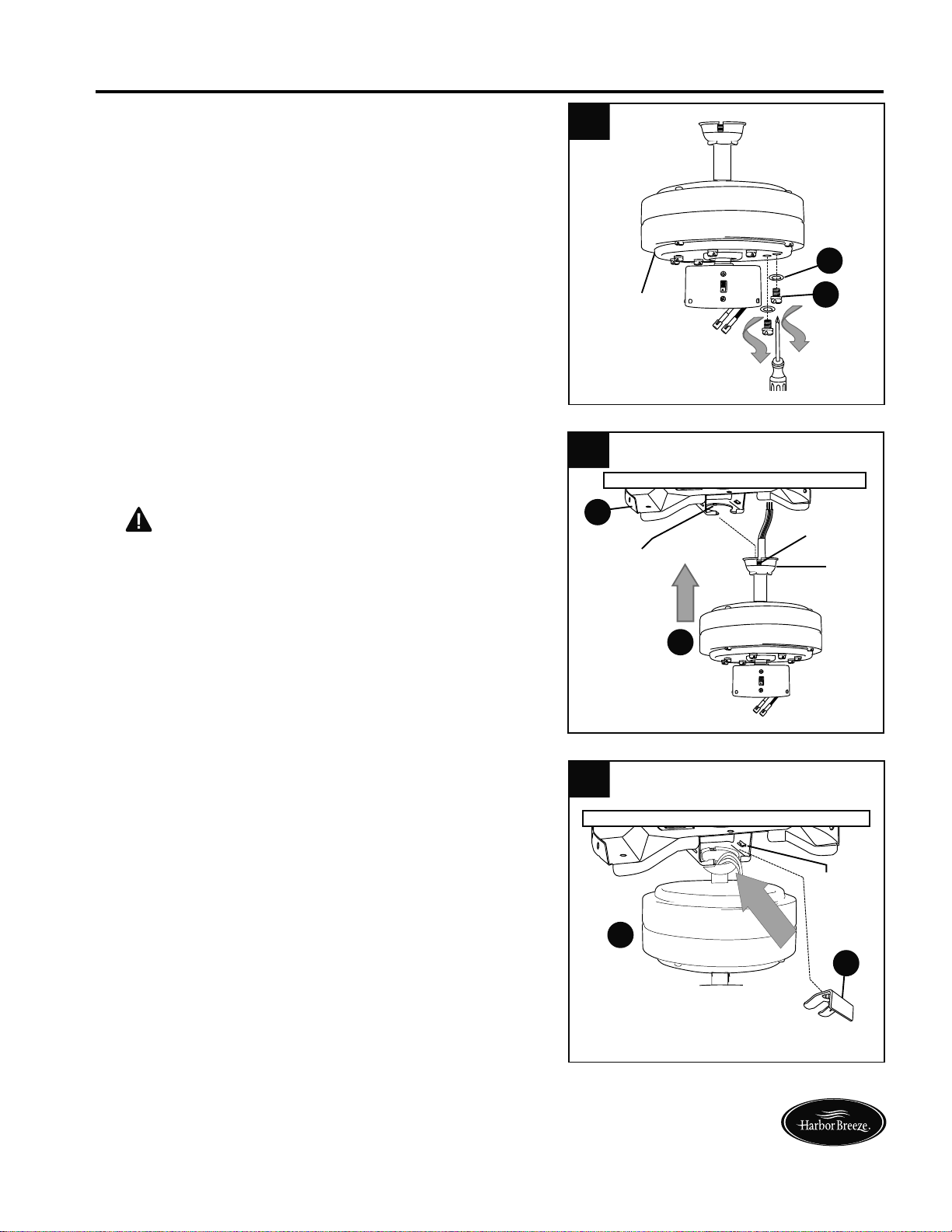

Remove motor screws (N) and 5.4 mm lock
washers (O) from underside of motor and save for
blade arm (J) attachment later on. [If there are
plastic motor blocks installed with the motor
screws (N) and 5.4 mm lock washers (O), discard
the plastic motor blocks.]
4.
To ensure the safety of the installation and to
prevent the motor assembly (C) from becoming or
coming loose, use the plastic lock tab (L). Slide
plastic lock tab (L) under bracket tabs so that it
will snap into place.
IMPORTANT: Keep in mind that it will require
some force to fully insert the plastic lock tab
(L) so that it does not move or come out once
in the correct position.
INITIAL INSTALLATION
4
6
Lowes.com/harborbreeze
C
5
L
O
N
Motor
Install ball end of motor assembly (C) into
mounting bracket (A) opening. Align slot in ball
with tab in mounting bracket (A).
DANGER: Failure to align slot in ball with tab
in mounting bracket (A) may result in serious
injury or death.
Tab
Bracket
Tab
A
Ball
Slot
C
WIRING
8
Lowes.com/harborbreeze
WARNING: To reduce the risk of fire, electrical
shock, or personal injury, wire connectors provided
with this fan are designed to accept only one
12-gauge house wire and two lead wires from the
fan. If your house wire is larger than 12-gauge or
there is more than one house wire to connect to the
corresponding fan lead wires, consult an electrician
for the proper size wire connectors to use.
CAUTION: Be sure outlet box is properly
grounded and that a ground (green or bare) wire is
present.
WARNING: If house wires are different colors
than referred to in the following steps, stop
immediately. A professional electrician is
recommended to determine wiring.
Choose wiring diagram (Fig. 1A, Fig. 1B or Fig. 1C)
that fits your situation and make appropriate wiring
connections as follows: [NOTE: For each wire
connection below, use one of the wire connectors
(CC) provided, making sure to screw wire connector
(CC) on in a clockwise direction.]
1A. FAN AND LIGHT CONTROLLED BY PULL
CHAINS: Connect BLACK and BLUE wire from
fan to BLACK wire from ceiling. Connect WHITE
wire from fan to WHITE wire from ceiling. Connect
all GROUND (GREEN) wires together from fan
(on motor assembly (C) and mounting bracket (A))
to BARE/GREEN wire from ceiling. (Fig. 1A)
1.
1B. FAN CONTROLLED BY PULL CHAIN,
LIGHT BY WALL SWITCH: If you intend to
control the fan light with a separate wall switch,
connect BLACK wire from fan to BLACK wire
from ceiling. Connect BLUE wire from fan to the
BLACK wire from the independent wall switch for
the light. Connect WHITE wire from fan to WHITE
wire from ceiling. Connect all GROUND (GREEN)
wires together from fan (on motor assembly (C)
and mounting bracket (A)) to BARE/GREEN wire
from ceiling. (Fig. 1B)
FAN AND LIGHT CONTROLLED BY PULL CHAINS
BLACK
WHITE
GROUND/GREEN (BARE)
WHITE
BLUE
WHITE
FROM FAN
120 V Power
FROM
CEILING
GREEN
BLACK
GREEN
1A
FAN
1B
FAN CONTROLLED BY PULL CHAIN, LIGHT BY WALL SWITCH
WHITE
BLACK
BLACK (WALL SWITCH)
GROUND/GREEN (BARE)
BLACK
BLUE
WHITE
FROM FAN
120 V Power
FROM
CEILING
GREEN
WHITE
GREEN
FAN
9
Lowes.com/harborbreeze
NOTE: Black wire is hot power for fan. Blue wire is
hot power for light kit. White wire is common for fan
and light kit. Green or bare wire is ground.
WIRING

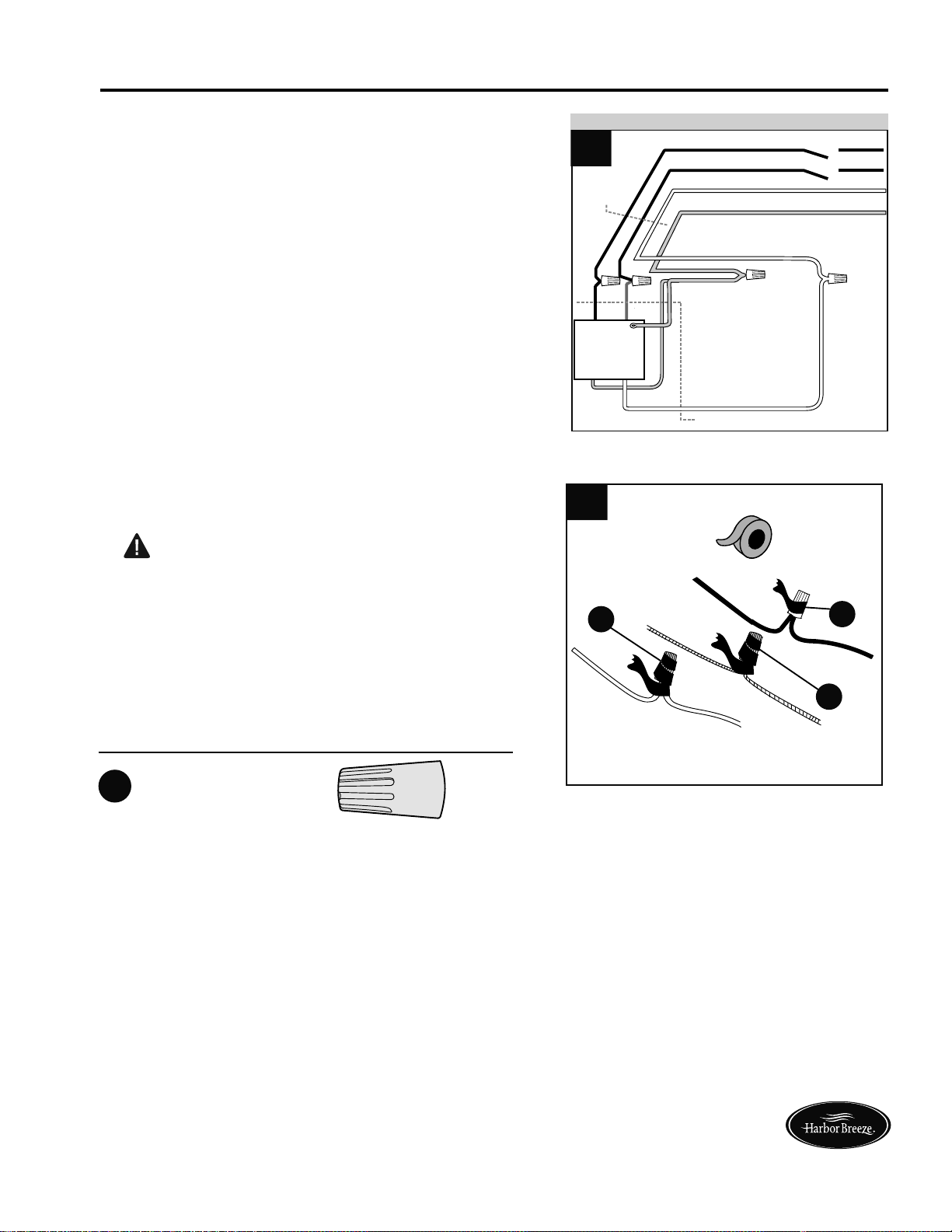

1C. FAN AND LIGHT CONTROLLED BY TWO
WALL SWITCHES: If you intend to control the fan
and light with separate wall switches, connect
BLACK wire from fan to BLACK wire from the
independent wall switch for the fan. Connect
BLUE wire from fan to the BLACK wire from the
other independent wall switch for the light.
Connect WHITE wire from fan to WHITE wire
from ceiling. Connect all GROUND (GREEN)
wires together from fan (on motor assembly (C)
and mounting bracket (A)) to BARE/GREEN wire
from ceiling. (Fig. 1C)
Wrap electrical tape (not included) around each
individual wire connector (CC) down to the wire.
WARNING: Make sure no bare wire or wire
strands are visible after making connections. Place
green and white connections on opposite side of
box from the black and blue (if applicable)
connections.
Turn spliced/taped wires upward and gently push
wires and wire connectors (CC) into outlet box.
2.
2.
CC
2
CC
CC
1C
FAN AND LIGHT CONTROLLED BY TWO WALL SWITCHES
WHITE
BLACK (WALL SWITCH)
(WALL SWITCH FOR LIGHT)
GROUND/GREEN (BARE)
BLACK
BLUE
WHITE
FROM FAN
120 V Power
FROM
CEILING
GREEN
WHITE
GREEN
FAN
BLACK
Hardware Used
E3 Wire Connector
x 4
CC
WIRING
10
Lowes.com/harborbreeze

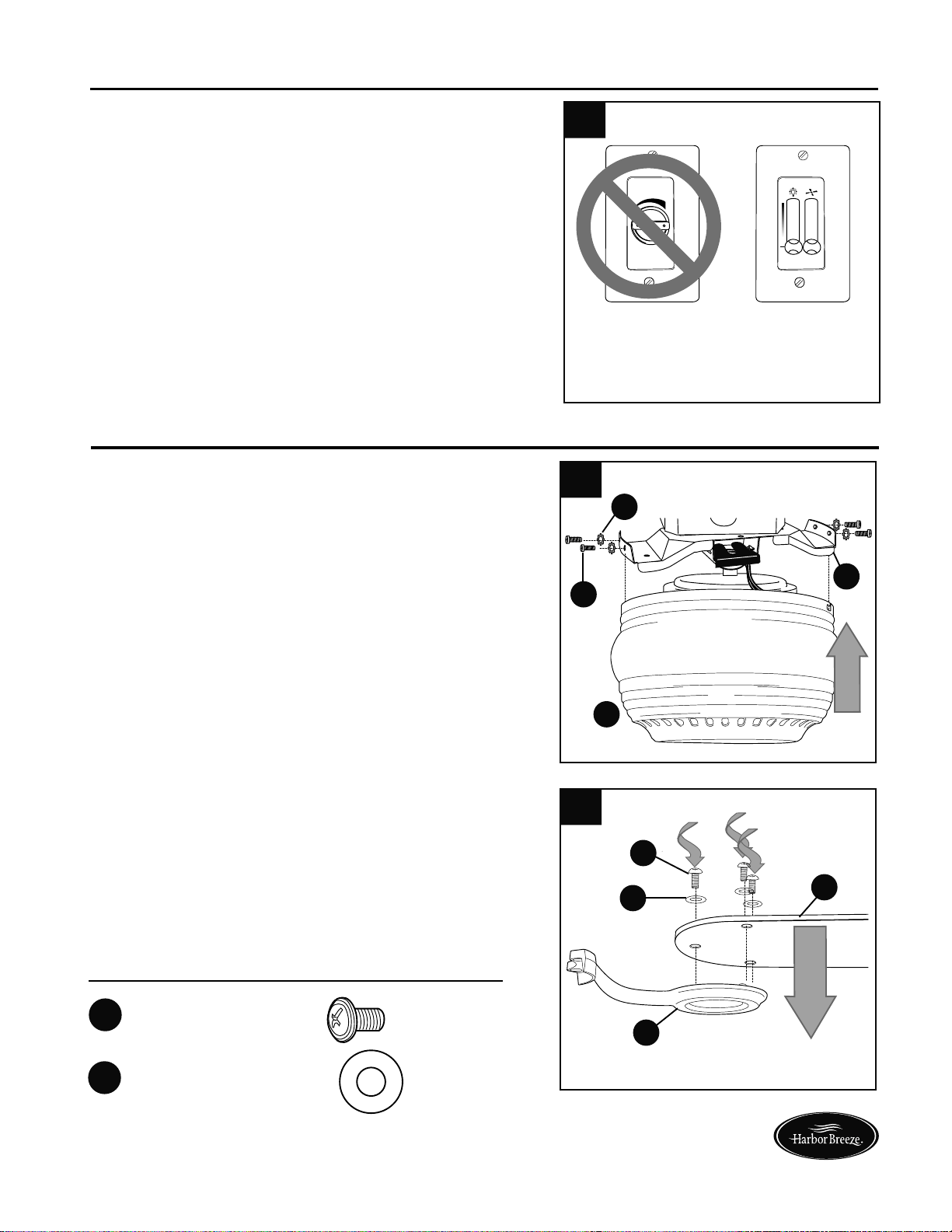

IMPORTANT: Using a full range dimmer
switch (not included) to control fan speed will
cause a loud humming noise from fan. To
reduce the risk of fire or electrical shock, do
NOT use a full range dimmer switch to control
fan speed.
3.
3
Dimmer
Switch
Speed
Switch
For illustrative purposes only--not
intended to cover all types of controls
FINAL INSTALLATION
1.
Temporarily raise motor housing (B) to
mounting bracket (A) to determine which two
mounting bracket screws (R) align with slotted
holes in motor housing (B) and partially loosen
these two mounting bracket screws (R).
Remove the other two mounting bracket screws
(R) and star washers (S). Now, lift motor
housing (B) to mounting bracket (A) again,
aligning slotted holes in motor housing (B) with
loosened mounting bracket screws (R) in
mounting bracket (A). Twist motor housing (B)
to lock. Re-insert mounting bracket screws (R),
along with star washers (S), that were
previously removed. Tighten all four mounting
bracket screws (R) securely.
1
2.
Partially insert three blade screws (AA), along
with three fiber blade washers (BB), into holes
in blade (G) to attach blade arm (J) to blade
(G). Then, tighten each blade screw (AA)
starting with the one in the middle.
Repeat Step 2 with remaining blades (G).
2
1
2
3
S
R
B
BB
AA
G
J
A
Hardware Used
Blade Screw
x 15
AA
Fiber Blade Washer
x 15
BB
11
Lowes.com/harborbreeze
Locate motor screws (N) and lock washers (O)
that were removed in Step 4 on page 7.
Insert two motor screws (N), along with 5.4 mm
lock washers (O), through one blade arm (J) to
attach blade arm (J) to motor. Tighten motor
screws (N) securely. Repeat with remaining
blade arms (J), making sure to completely secure
each blade arm (J) before proceeding with the
next.
3.
Remove three switch housing cap screws (U)
from top of light kit fitter (D).
If you wish to USE the light kit, remove finial (I),
finial plate (H), and rubber washer (T) from
bottom of light kit fitter (D). Save finial (I), finial
plate (H), and rubber washer (T) for later use.
Continue to Step 5.
If you do NOT wish to use the light kit, please
go to section titled “Installing Fan Without
Included Light Kit (Optional)” on page 14.
4.
FINAL INSTALLATION
3
4
U
T
D
J
Threaded
Rod
J
O
N
H
I
Locate BLUE (or BLACK) and WHITE wires in
switch housing labeled FOR LIGHT and remove
plastic that holds these two wires together. Also,
remove molex safety caps from bottom of BLUE
(or BLACK) and WHITE wires. It may be
necessary to pull firmly in order to remove
molex safety caps.
Connect WHITE wire from switch housing to
WHITE wire from light kit fitter (D). Connect
BLUE (or BLACK) wire from switch housing to
BLACK wire from light kit fitter (D). Make sure
that molex connections are secure.
5.
5
D
Molex
Connections
Switch
Housing
Molex
Safety
Caps
U
Molex
Connections
To attach light kit fitter (D) to motor assembly (C),
align holes in switch housing cap, at top of light
kit fitter (D), with holes in switch housing. (Make
sure to align gap on top edge of the switch
housing cap with the reverse switch on switch
housing for the correct fit.) Re-insert switch
housing cap screws (U) that were removed in
Step 4 on the previous page and use a Phillips
screwdriver (not included) to secure all switch
housing cap screws (U).
6.
7.

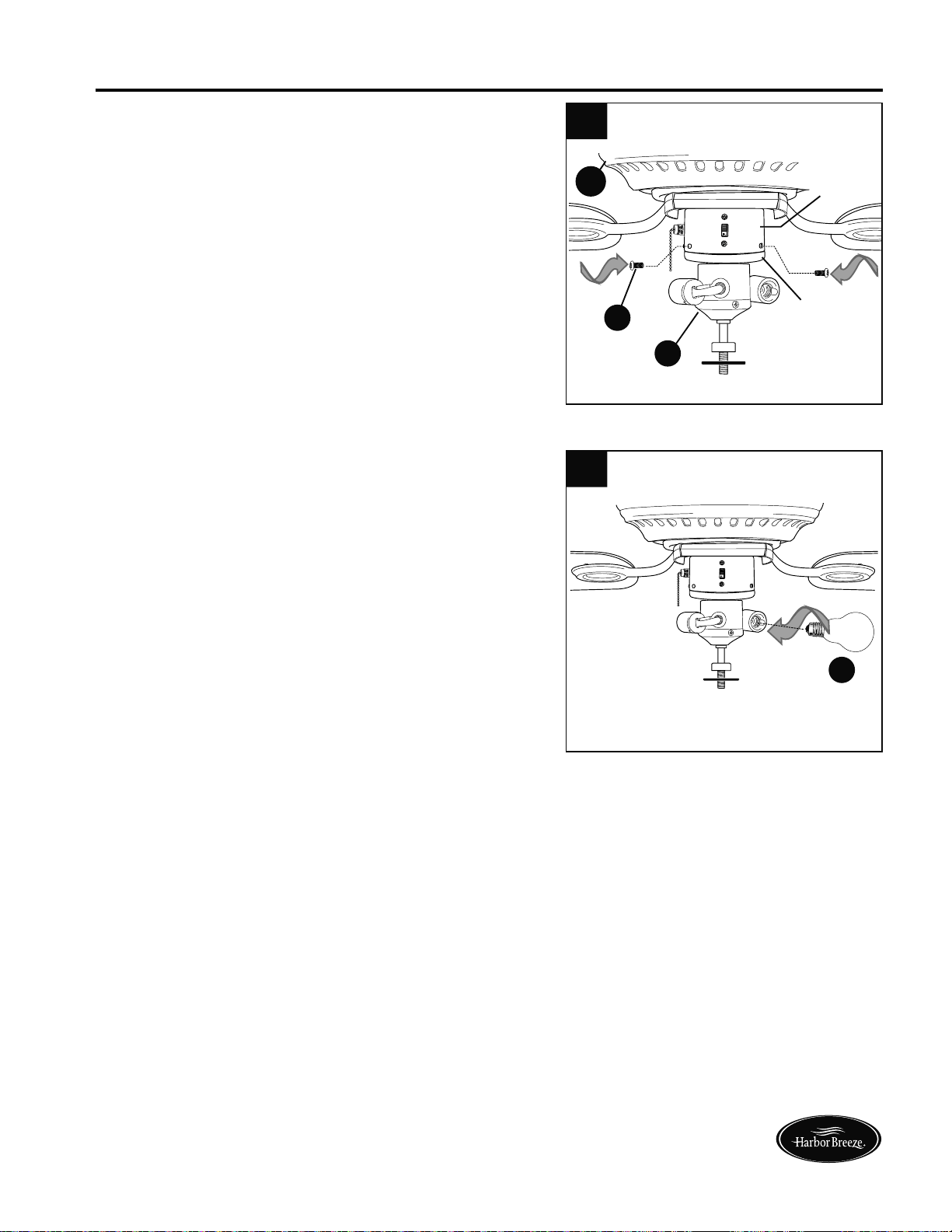

Install three candelabra-base 40-watt max.
bulbs (M) included.
IMPORTANT: When you need to replace bulbs,
please allow bulbs and light kit to cool down
before touching the bulbs or the light kit.
12
Lowes.com/harborbreeze
7
6
M
FINAL INSTALLATION
C
Switch
Housing
Cap
Switch
Housing
U
D
8.

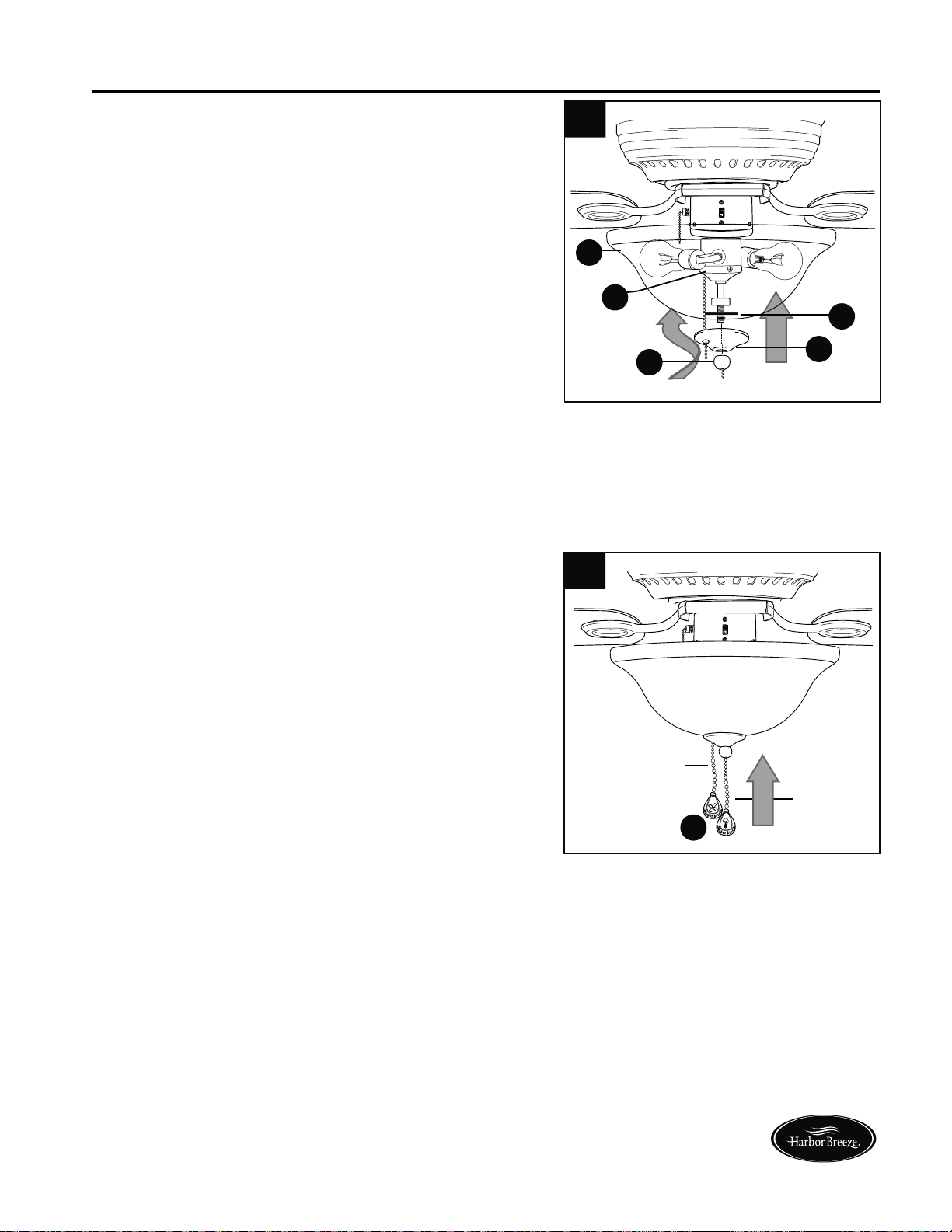

The pull chain extensions (F) supplied in one of
the hardware packs or custom pull chain
extensions (not included) may be attached to the
fan and light pull chains.
9.
FINAL INSTALLATION
8
9
13
Lowes.com/harborbreeze
E
(For Fan)
(For Light)
F
Locate rubber washer (T), finial plate (H), and
finial (I) that were removed in Step 4 of this
section. Place rubber washer (T) inside glass
shade (E) over center hole. Align hole in center
of glass shade (E) with threaded rod on light kit
fitter (D), allowing pull chains to come through
corresponding holes in glass shade (E). Push up
gently on glass shade (E) until threaded rod
comes through hole. (Be sure fan pull chain does
not rub against bulbs during fan operation.)
Align hole in center of finial plate (H) with
threaded rod, allowing the pull chains to come
through appropriate holes in finial plate (H) and
push up. Thread center pull chain through hole in
finial (I) and secure glass shade (E) by tightening
finial (I).
NOTE: Do NOT overtighten finial (I) as glass
may crack or break.
I
H
T
D
1.
INSTALLING FAN WITHOUT INCLUDED LIGHT KIT (OPTIONAL)
1
14
Lowes.com/harborbreeze
D
If you do NOT wish to use the light kit,
remove the hex nut (P) and lock washer (Q)
from the threaded rod at the top of the light kit
fitter (D). Unscrew the switch housing cap to
remove it from the light kit fitter (D), and then
gently feed the BLACK and WHITE wires from
the light kit fitter (D) through the hole in the
middle of the switch housing cap.
CAUTION: RISK OF SHOCK. The molex
safety caps should not be removed unless a
light kit will be immediately installed and the
power should be turned off prior to molex
safety cap removal and light kit installation.
Switch
Housing
Cap
WHITE
BLACK
2.
2
Locate cap (K) in one of the hardware packs
and place cap (K) firmly in hole in middle of
switch housing cap. Align holes in switch
housing cap with holes in switch housing and
secure switch housing cap with three switch
housing cap screws (U) that were removed in
Step 4 of “Final Installation” section (page 11).
Tighten all three switch housing cap screws (U)
securely.
3.
3
The pull chain extension (F) supplied in one of
the hardware packs or a custom pull chain
extension (not included) may be attached to
fan pull chain.
P
Q
Switch
Housing
U
U
K
F
Switch
Housing
Cap
15
OPERATING INSTRUCTIONS
Lowes.com/harborbreeze
Switch
Housing
The pull chain located on the switch housing
has four positions to control fan speed. One pull
is HIGH, two is MEDIUM, three is LOW and four
turns the fan OFF.
1.
The pull chain located in the center is used to
turn the light ON or OFF.
2.
1
2
3.
Use the fan reverse switch, located on the
switch housing, to optimize your fan for seasonal
performance. A ceiling fan will allow you to raise
your thermostat setting in summer and lower
your thermostat setting in winter without feeling
a difference in your comfort.
NOTE: Wait for fan to stop before moving the
reverse switch.
3
Switch
Housing
At least twice each year, lower motor housing (C) to check motor assembly (C), and then tighten all
screws. Clean motor housing (B) with only a soft brush or lint-free cloth to avoid scratching the finish.
Clean blades (G) with a lint-free cloth. You may occasionally apply a light coat of furniture polish to
wood blades for added protection.
IMPORTANT: Shut off main power supply before beginning any maintenance. Do not use water or a
damp cloth to clean the ceiling fan.
16
CARE AND MAINTENANCE
OPERATING INSTRUCTIONS
Lowes.com/harborbreeze
3A
3B
3C
3C. IMPORTANT: Reverse switch must be set
either completely UP or completely DOWN for
fan to function. If the reverse switch is set in the
middle position (Fig. 3C), fan will not operate.
3A. In warmer weather, setting the reverse switch
in the DOWN position will result in downward
airflow creating a wind chill effect. (Fig. 3A)
3B. In cooler weather, setting the reverse switch
in the UP position will result in upward airflow that
can help move stagnant, hot air off the ceiling
area. (Fig. 3B)
WARNING: Before beginning work, shut off the power supply to avoid electrical shock.
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Fan does not
move.
1. Reverse switch not engaged.
2. Power is off or fuse is blown.
3. Faulty wire connection.
1. Push switch firmly either up or
down.
2. Turn power on or check fuse.
3. Turn power off. Loosen motor
housing (B) and check all
connections.
Noisy operation. 1. Blades (G) are loose.
2. Cracked blade (G).
3. Full range dimmer switch.
4. Fan is new.
5. Motor housing (B) is loose.
1. Tighten all blade screws (AA).
2. Replace blade (G).
3. Replace with an approved speed
control device.
4. Allow fan a “break in” period of a
few days, especially when running
the fan at Medium and High speeds.
5. Turn power off. Carefully loosen
motor housing (B) and verify that
mounting bracket (A) is secure
according to instructions on page 10.
Excessive
wobbling.
1. Blades (G) are loose.
2. Blade arms (J) incorrectly attached.
3. Unbalanced blades (G).
4. Fan not securely mounted.
1. Tighten all blade screws (AA).
2. Re-install blade arms (J).
3. Switch one blade (G) with a blade
(G) from the opposite side.
4. Turn power off. Carefully loosen
motor housing (B) and verify that
mounting bracket (A) is secure.
NOTE: A small amount of "wobble" is normal and should not be considered a defect.
17
TROUBLESHOOTING
Lowes.com/harborbreeze
Fan operates but
light fails (if
applicable).
1. Bulb(s) not installed correctly.
2. Wires in outlet box not wired
properly.
3. Wall switch to fan is off.
4. Wires in switch housing not wired
correctly.
1. Re-install bulb(s).
2. Check wires in outlet box and, if
necessary, re-wire according to
instructions on pages 8 and 9.
3. Make sure that wall switch to fan
is on.
4. Check wires in switch housing
and, if necessary, re-wire according
to instructions on page 11.
LIMITED LIFETIME WARRANTY: The distributor warrants this fan to be free from defects in
workmanship and materials present at time of shipment from the factory for Lifetime limited from the
date of purchase. This warranty applies only to the original purchaser. The distributor agrees to
correct any defect at no charge or, at our option, replace the ceiling fan with a comparable or superior
model.
To obtain warranty service, present a copy of your sales receipt as proof of purchase. All cost of
removal and reinstallation are the express responsibility of the purchaser. Any damage to the ceiling
fan by accident, misuse or improper installation, or by using parts not produced by the manufacturer
of this fan or affixing accessories not produced by the manufacturer of this fan, are the purchaser's
own responsibility. The distributor assumes no responsibility whatsoever for fan installation during the
limited lifetime warranty. Any service performed by an unauthorized person will render the warranty
invalid.
Due to varying climatic conditions, this warranty does not cover changes in brass finish, rusting,
pitting, tarnishing, corroding or peeling. Brass finish fans maintain their beauty when protected from
varying weather conditions. Any glass provided with this fan is not covered by the warranty.
Any replacement of defective parts for the ceiling fan must be reported within the first year from the
date of purchase. For the balance of the warranty, call our customer service department (at
1-800-527-1292) for return authorization and shipping instructions so that we may repair or replace
the ceiling fan. Any fan or parts returned improperly packaged is/are the sole responsibility of the
purchaser. There is no further express warranty. The distributor disclaims any and all implied
warranties. The duration of any implied warranty which cannot be disclaimed is limited to the limited
lifetime period as specified in our warranty. The distributor shall not be liable for incidental,
consequential or special damages arising at or in connection with product use or performance except
as may otherwise be accorded by law. This warranty gives you specific legal rights and you may also
have other rights which vary from state to state. This warranty supersedes all prior warranties.
WARRANTY
18
Lowes.com/harborbreeze
Printed in China

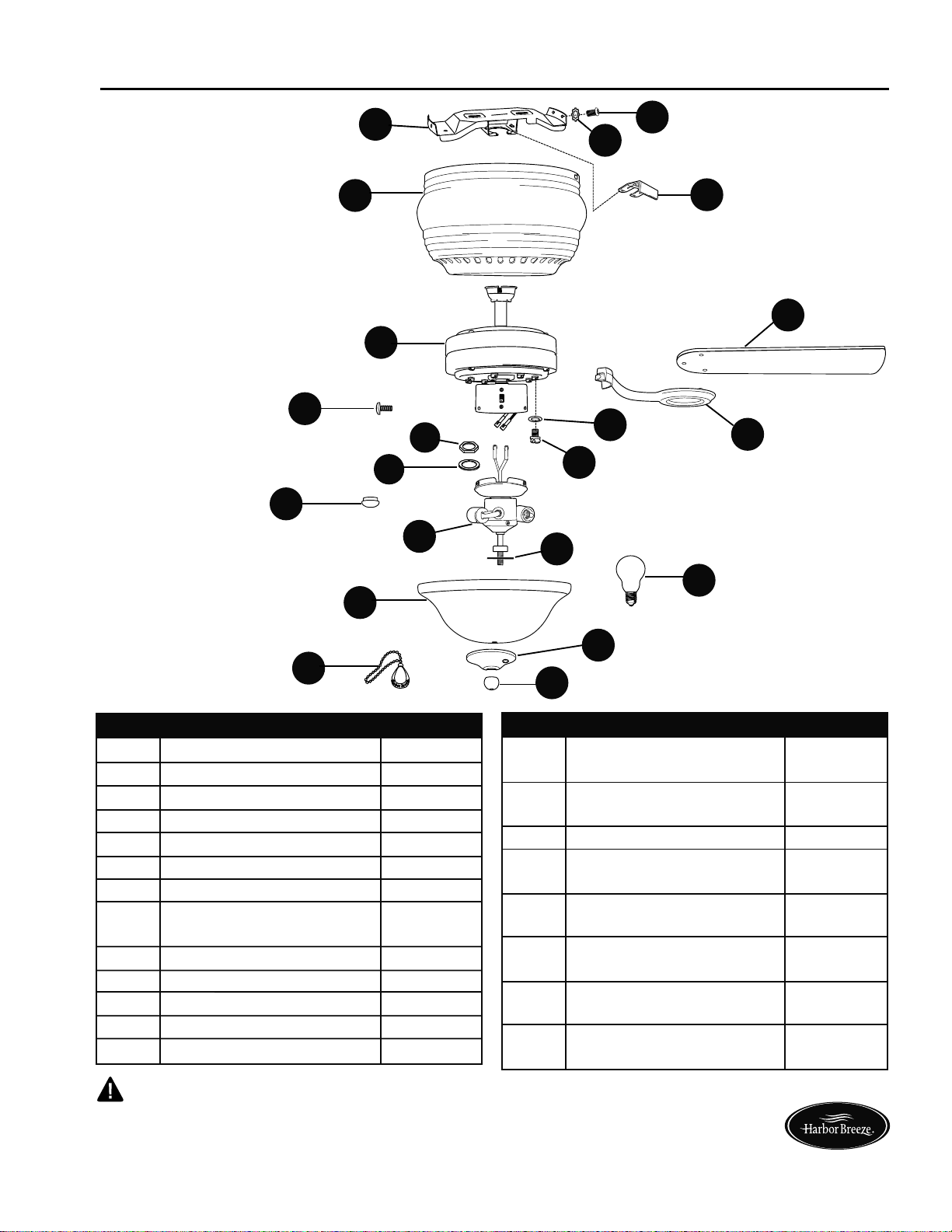

REPLACEMENT PARTS LIST
For replacement parts, call our customer service department at 1-800-643-0067, 8 a.m. - 6 p.m., EST,
Monday - Thursday, 8 a.m. - 5 p.m., EST, Friday.
PART DESCRIPTION
A Mounting Bracket
B Motor Housing
D Light Kit Fitter
E Glass Shade
F Pull Chain Extension
G Blade
H Finial Plate
I Finial
J Blade Arm
K Cap
L Plastic Lock Tab
N Motor Screw
O 5.4 mm Lock Washer
P Hex Nut
Q Lock Washer
R Mounting Bracket Screw
S Star Washer
T Rubber Washer
U Switch Housing Cap Screw
AA Blade Screw
BB Fiber Blade Screw
CC E3 Wire Connector
LI1208
Harbor Breeze® is a registered trademark
of LF, LLC. All Rights Reserved.
19
Lowes.com/harborbreeze
A
E
B
F
H
O
Q
L
N
T
D
I
G
J
K
T
AA
BB
S
R
CC
U
P
