LYNNPARK CEILING FAN
ITEM #5249291
MODEL #CNL23MBK3LR
Purchase Date
1
Español p. 17
ATTACH YOUR RECEIPT HERE
ADJUNTE SU RECIBO AQUÍ
SS23308
HARBOR BREEZE and logo design are
trademarks or registered trademarks of
LF, LLC. All rights reserved.
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 888-251-1003, 8 a.m. - 8 p.m., EST, Monday - Sunday. You could also
contact us at [email protected].
4007498
2
TABLE OF CONTENTS
Safety Information ..................................................................................................................2
Package Contents ..................................................................................................................4
Hardware Contents ................................................................................................................5
Preparation ............................................................................................................................5
Initial Installation ....................................................................................................................5
Downrod-Style Fan Mounting ................................................................................................7
Closemount-Style Fan Mounting ...........................................................................................9
Wiring ...................................................................................................................................10
Final Installation ...................................................................................................................11
Operating Instructions ..........................................................................................................12
Care and Maintenance .........................................................................................................15
Troubleshooting ....................................................................................................................15
Limited Lifetime Warranty .....................................................................................................16
Replacement Parts List ........................................................................................................16
CAUTION: Changes or modifications not approved by the party responsible for compliance could
void the user's authority to operate the equipment.
*NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
The device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, (2) this device must accept any
interference received, including interference that may cause undesired operation.
Distributed by: Litex Industries Inc., P.O. Box 535639, Grand Prairie, TX, 75053; 800-527-1292
NOTE: Dimmable to 10%.
SAFETY INFORMATION
SAFETY INFORMATION
3
To reduce the risk of fire, electrical shock or personal injury, mount fan to outlet box
marked "ACCEPTABLE FOR FAN SUPPORT OF 35 LBS. (15.9 KG) OR LESS" and use
mounting screws provided with the outlet box. Most outlet boxes commonly used for the
support of lighting fixtures are not acceptable for fan support and may need to be replaced.
Consult a qualified electrician if in doubt.
When mounting fan to a ceiling outlet box, use a METAL octagonal outlet box; do NOT use a
plastic outlet box. Secure the outlet box directly to the building structure. The outlet box and its
support must be able to support the moving weight of the fan (at least 35 lbs.).
To avoid personal injury, the use of gloves may be necessary while handling fan parts with sharp
edges.
To reduce the risk of fire, electrical shock or personal injury, wire connectors provided with this fan
are designed to accept only one 12-gauge house wire and two lead wires from the fan. If your
house wire is larger than 12-gauge or there is more than one house wire to connect to the
corresponding fan lead wires, consult an electrician for the proper size wire connectors to use.
To reduce the risk of fire or electrical shock, do not use the fan with any solid state speed control
device or control fan speed with a full range dimmer switch.
To reduce the risk of personal injury, use ONLY parts provided with this fan. The use of parts
OTHER than those provided with this fan will void the warranty.
Before installation, be sure to shut off electricity at main switch or circuit breaker in order to avoid
electrical shock.
WARNING
DANGER
When using an existing outlet box, make sure the outlet box is securely attached to the building
structure and can support the full weight of the fan. Failure to do this can result in serious injury or
death. The stability of the outlet box is essential in minimizing wobble and noise in the fan after
installation is complete.
To reduce the risk of serious bodily injury, DO NOT use power tools to assemble any part of the
fan, including the blades.
READ AND SAVE THESE INSTRUCTIONS
• Do not discard fan carton or foam inserts. Should this fan need to be returned to the factory for
repairs, it must be shipped in its original packaging to ensure proper protection against damage that
might exceed the initial cause for return.
• Make sure all electrical connections comply with local codes, ordinances, the National Electrical
Code and ANSI/NFPA 70-1999. Hire a qualified electrician or consult a do-it-yourself wiring
handbook if you are unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum clearance of 7 ft. from the underside of
the fan to the floor and at least 30 in. from the edge of the motor assembly to any obstruction.
• After you install the fan, make sure all connections are secure to prevent the fan from falling.
• The net weight of this fan including the light kit is: 14 lbs.
4
SAFETY INFORMATION
Read all instructions and safety information before installing your new fan. Review the
accompanying assembly diagrams.
Be sure outlet box is properly grounded and that a ground wire (green or bare) is present.
Once installation is complete, carefully check all screws, bolts and nuts on fan motor assembly
to ensure that they are secured.
Do NOT tamper with or attempt to repair LED component. The light source is designed for this
specific application and should not be serviced by untrained personnel. If any servicing is
required, call our customer service department.
CAUTION
K
H
A
D
IMPORTANT REMINDER: You must use the
parts provided with this fan for proper installation
and safety.

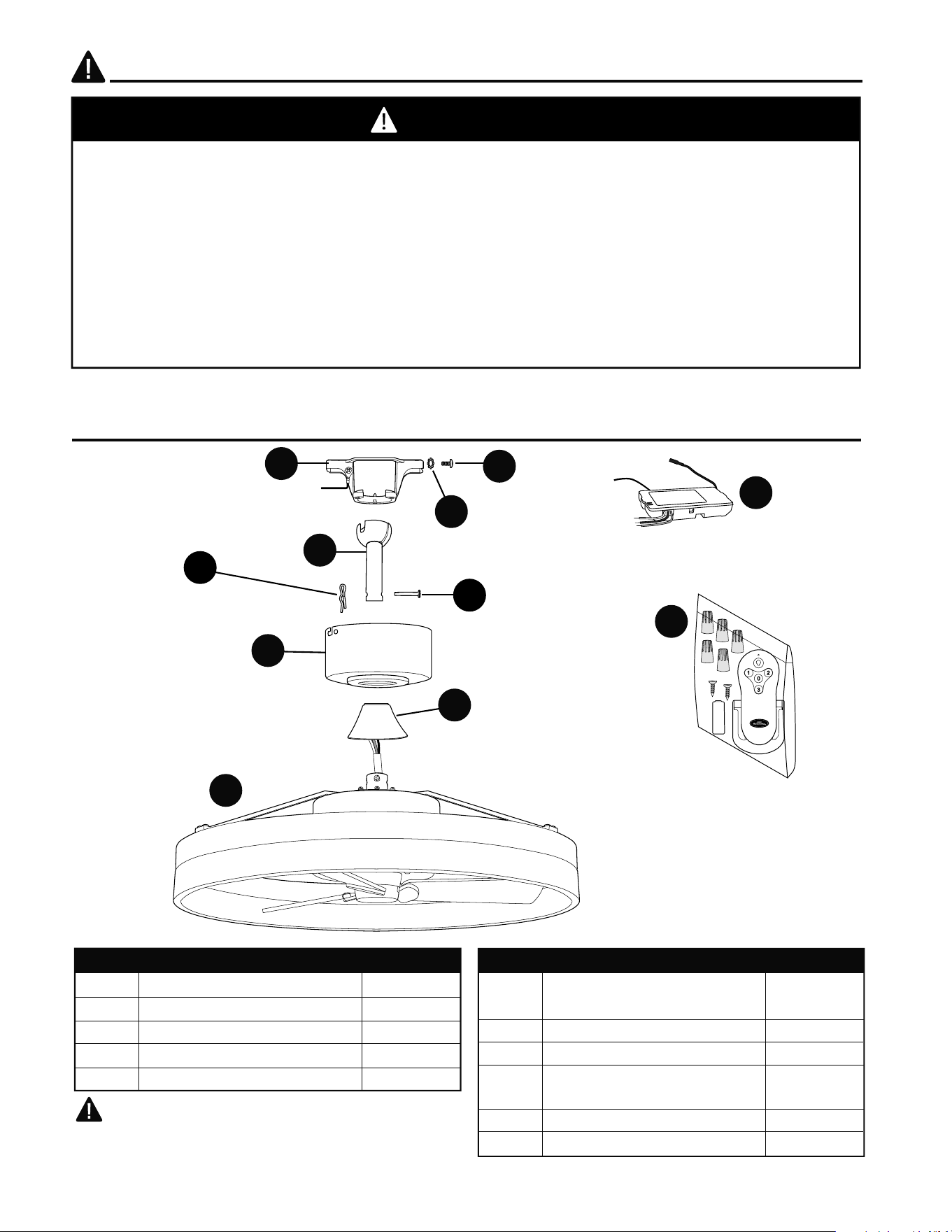

A Downrod 1
B Canopy 1
C Mounting Bracket 1
D Motor Assembly 1
E Yoke Cover 1
DESCRIPTIONPART
QUANTITY
PACKAGE CONTENTS
DESCRIPTIONPART
QUANTITY
F Canopy Mounting Screw 4
(preassembled)
G Pin (preassembled) 1
H Clip (preassembled) 1
I Star Washer 4
(preassembled)
J Remote Pack 1
K Remote Control Receiver 1
J
C
G
B
E
I
F

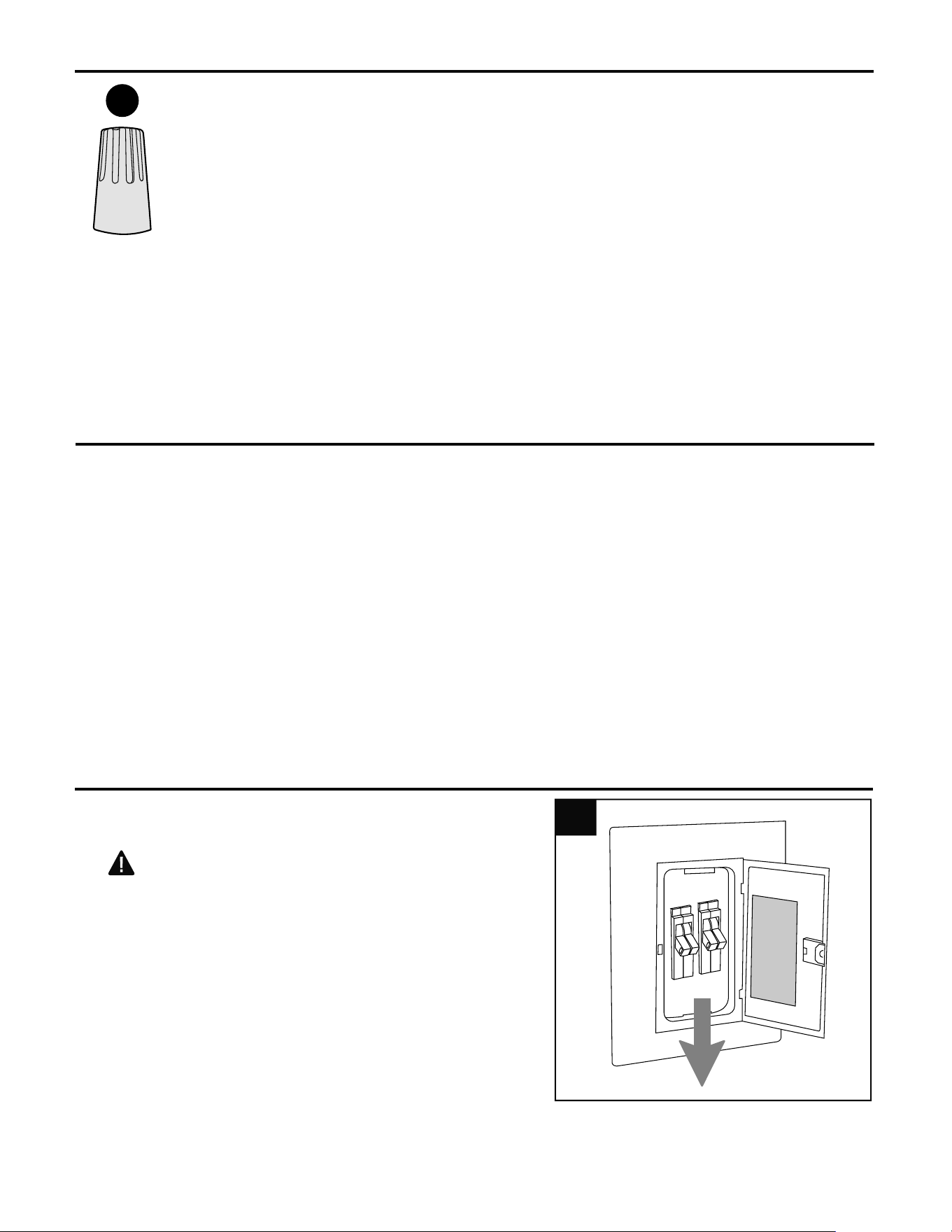

5
PREPARATION
HARDWARE CONTENTS (shown actual size)
Before beginning assembly of product, make sure all parts are present. Place motor on carpet or on
foam to avoid damage to finish. Compare parts with package contents list and hardware contents list.
If any part is missing or damaged, do not attempt to assemble the product.
Estimated Assembly Time: 120 minutes
Tools Required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety
Glasses, Stepladder and Wire Strippers.
Helpful Tools (not included): AC Tester Light, Tape Measure, Do-It-Yourself Wiring Handbook and
Wire Cutters.
Wire
Connector
Qty. 5
AA
INITIAL INSTALLATION
Turn off circuit breakers or fuse and wall switch to
the fan supply line leads.
DANGER: Failure to disconnect power supply
prior to installation may result in serious injury or
death.
1.
ON
OFF
ON
OFF
1
2.

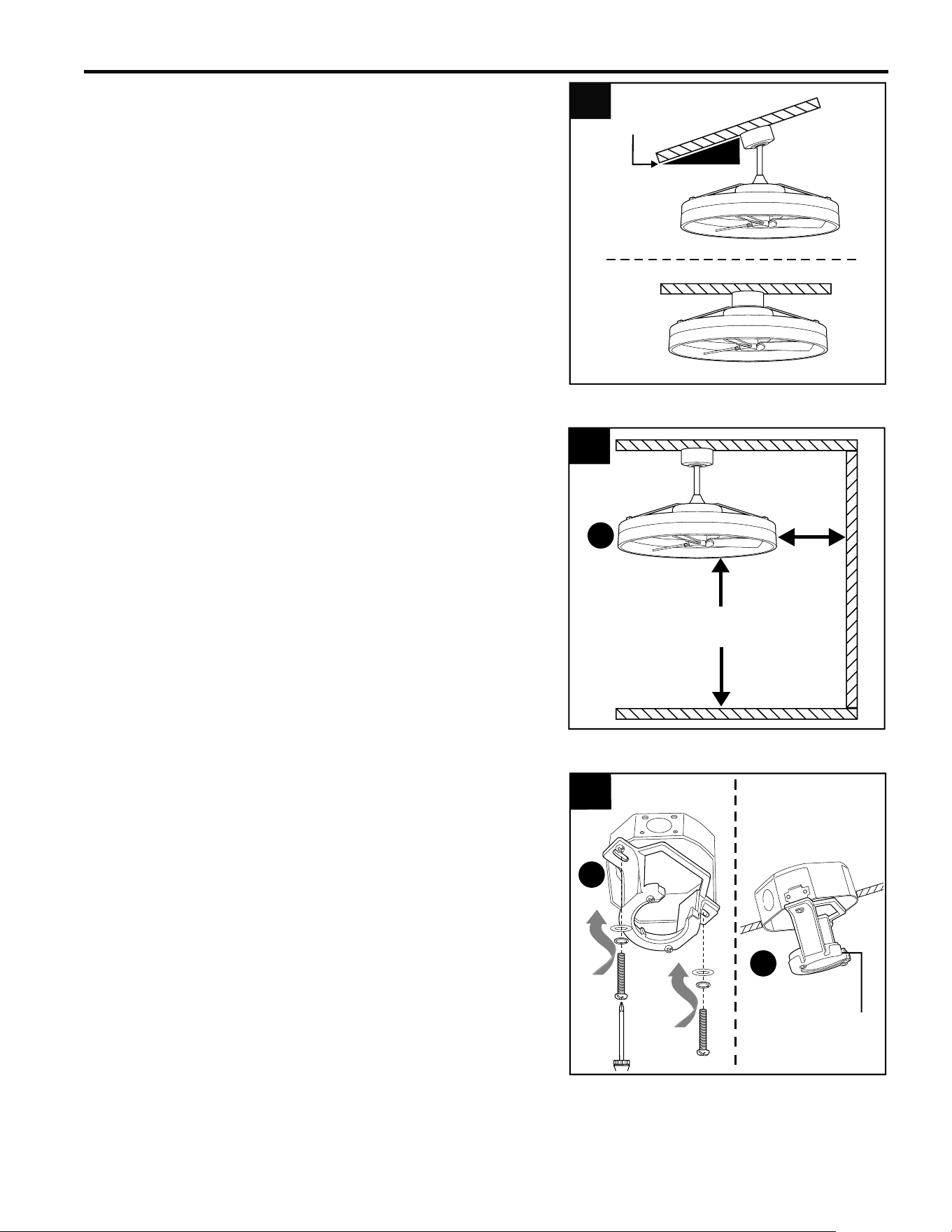

Determine mounting method to use.
A. Downrod mount (standard or angled ceiling)
B. Closemount (standard ceiling only)
IMPORTANT: If using the angle mount, ensure
the ceiling angle is not steeper than 19°.
*Helpful Hint: Downrod-style mounting is best
suited for ceilings 8 ft. or higher. For taller ceilings
you may want to use a longer downrod (not
included). Angle-style mounting is best suited for
angled or vaulted ceilings. A longer downrod is
sometimes necessary to ensure proper blade
clearance.
6
Check to make sure motor assembly (D) will be at
least 30 inches from any obstruction and at least
7 ft. above the floor.
3.
INITIAL INSTALLATION
2
B
A
4.
Open End
4
C
C
ANGLE MOUNTSTANDARD MOUNT
Secure mounting bracket (C) to outlet box (not
included) using screws, spring washers and flat
washers provided with the outlet box.
*NOTE: It is very important you use the proper
hardware when installing the mounting bracket (C)
as this will support the fan.
IMPORTANT: If using the angle mount, make sure
open end of mounting bracket (C) is installed facing
the higher point of the ceiling, and ensure the
ceiling angle is not steeper than 19°.
7 ft.
min.
30 in.
min.
3
D
19° max.
For DOWNROD-STYLE FAN MOUNTING, proceed
to the following page.
For CLOSEMOUNT-STYLE FAN MOUNTING, skip
to page 9.
7

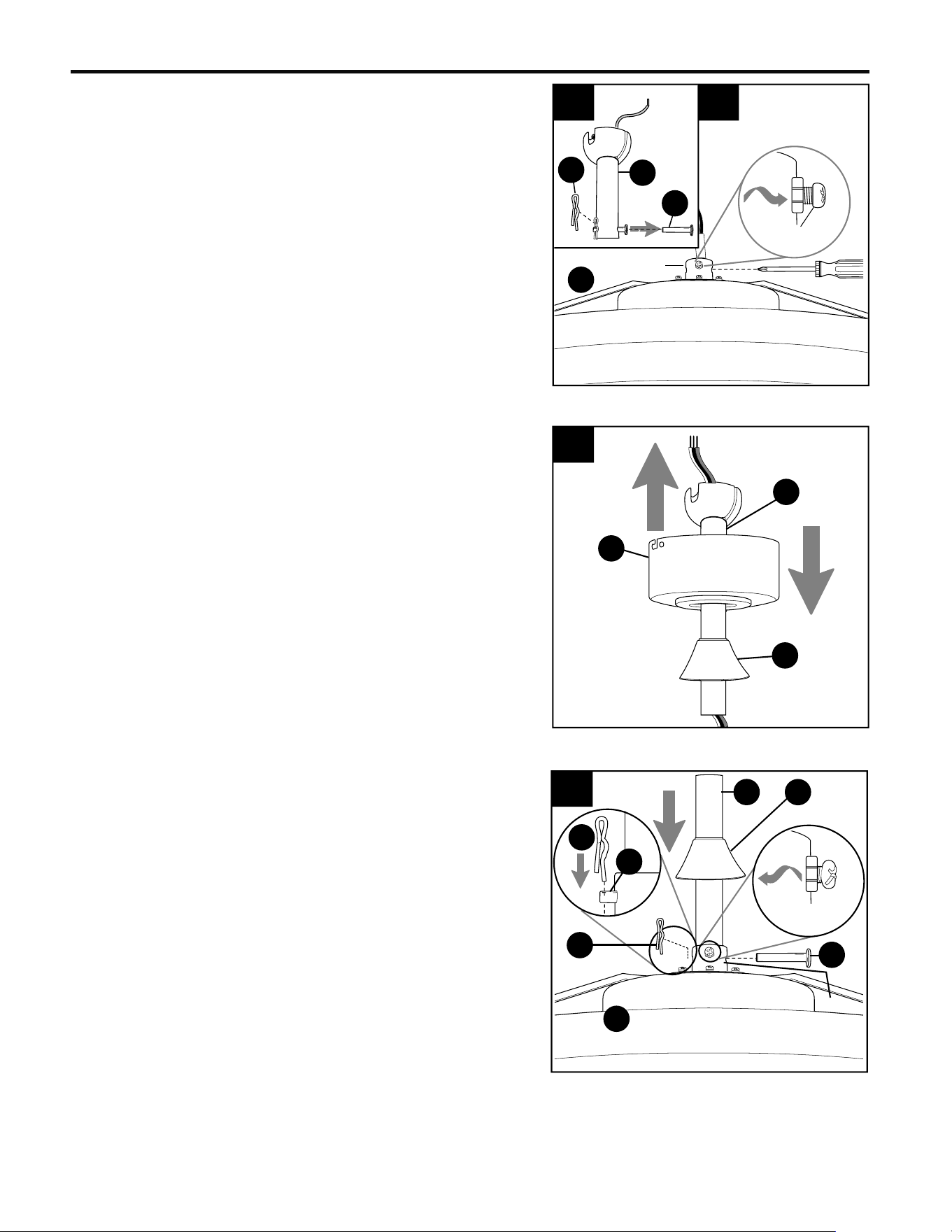

Remove pin (G) and clip (H) from downrod (A).
Partially loosen preassembled set screws and nuts
in yoke at top of motor assembly (D).
1a
H
G
1b
A
Set Screw
Sideview
D
Yoke
2.
Insert downrod (A) through canopy (B) and yoke
cover (E).
Then, thread wires from motor assembly (D)
through downrod (A).
2
B
E
A
1a.
1b.
3.
Slip downrod (A) into yoke at top of motor
assembly (D), align holes and re-install pin (G)
and clip (H). Tighten set screws in yoke and then
tighten preassembled nuts on the set screws.
Slide yoke cover (E) down until it rests on top of
motor assembly (D).
3
A
D
E
Yoke
M
L
Set Screw
and Nut
Sideview
G
H
DOWNROD-STYLE FAN MOUNTING
8

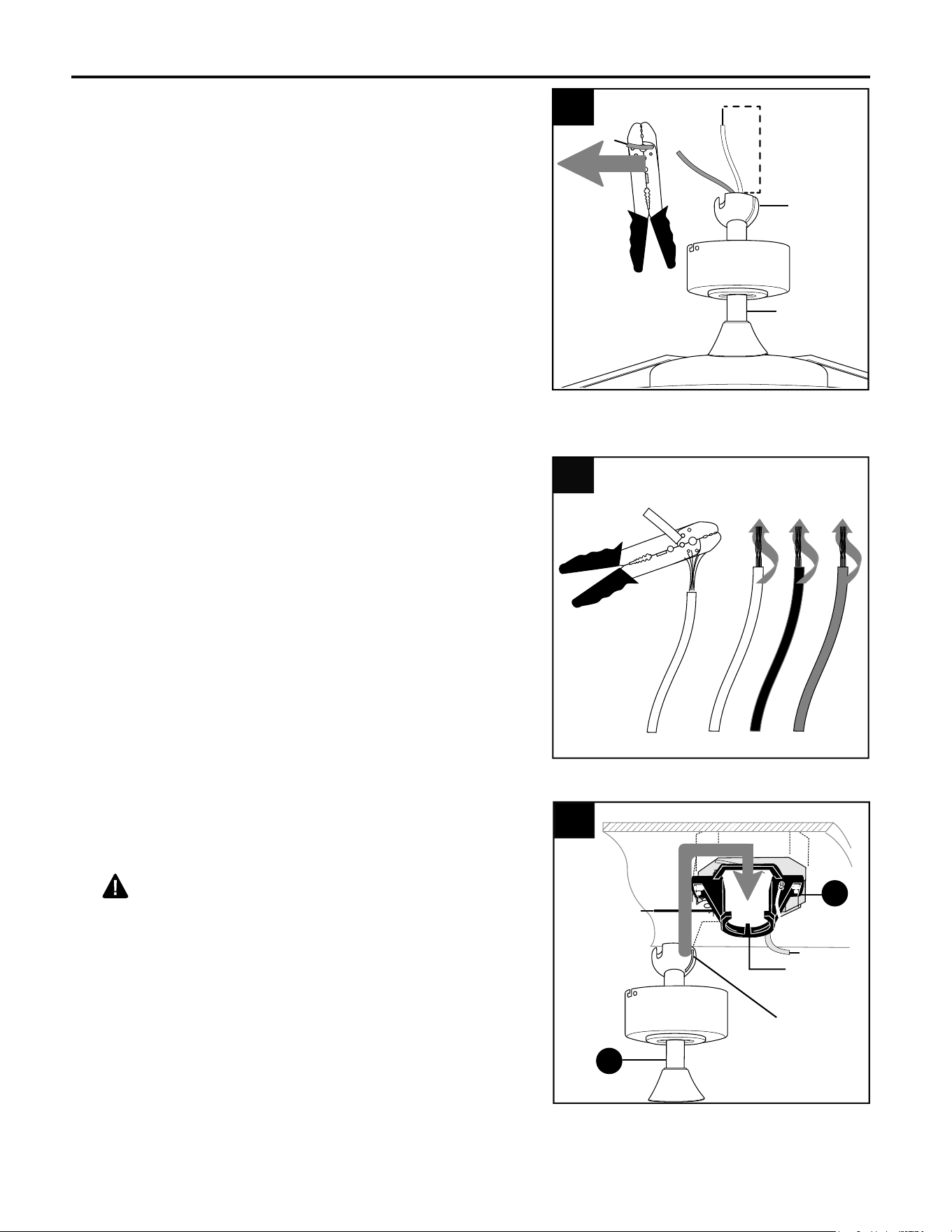

Depending on the length of downrod you use, you
may need to cut the lead wires back to simplify
the wiring. If you decide to cut back the lead
wires, it is suggested you do so in the following
manner:
Take the lead wires and make sure you have
pulled them all the way through the top of the
downrod. Start at the TOP of the hanging ball on
the downrod and measure 8 in. of lead wire, then
cut the excess wire off with wire cutters (not
included).
NOTE: If you do not cut back the lead wires,
Steps 4 and 5 are not necessary and you may
proceed to Step 6 instead.
4.
Hanging
Ball
4
8 in.
If you decided to cut back the lead wires in Step 8,
strip 1/2 in. of insulation from end of each wire --
white, black, green and blue (if applicable). Twist
stripped ends of each strand of wire within the
insulation with pliers (not included).
5.
5
Downrod
Install hanging ball of downrod (A) into opening of
mounting bracket (C). Align slot in hanging ball
with tab in mounting bracket (C).
DANGER: Failure to align slot in the ball with
the tab may result in serious injury or death.
Continue to WIRING on page 10.
6.
C
Tab
6
A
Slot
DOWNROD-STYLE FAN MOUNTING
9
CLOSEMOUNT-STYLE FAN MOUNTING

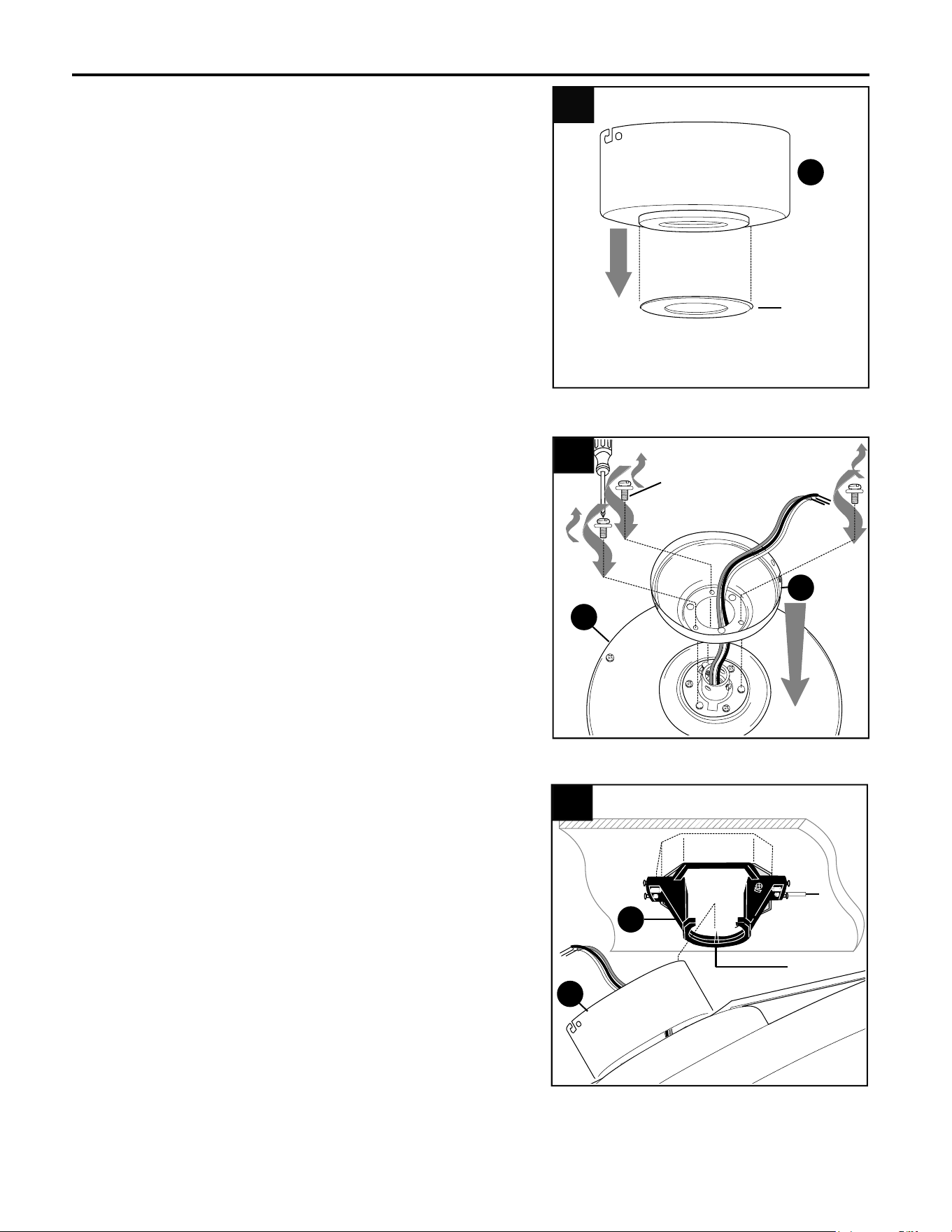

Remove preassembled canopy cover from bottom
of canopy (B). [NOTE: It may be necessary to use
the handle end of a screwdriver (not included) to
remove the canopy cover by tapping gently on the
canopy cover from the inside of the canopy (B).]
NOTE: The downrod (A), yoke cover (E) and
canopy cover are not used in this type of
installation.
1.
1
Canopy
Cover
Remove every other preassembled screw/lock
washer from top of motor assembly (D).
Pull wires up through hole in the middle of the
canopy (B) and attach canopy (B) to motor
assembly (D) using the three previously removed
screws/lock washers.
2.
3.
Tab
C
3
Temporarily hang fan on the tab on the mounting
bracket (C) using one of the non-slotted holes in
the canopy (B).
2
F
I
Screw
/Lock Washer
B
B
10

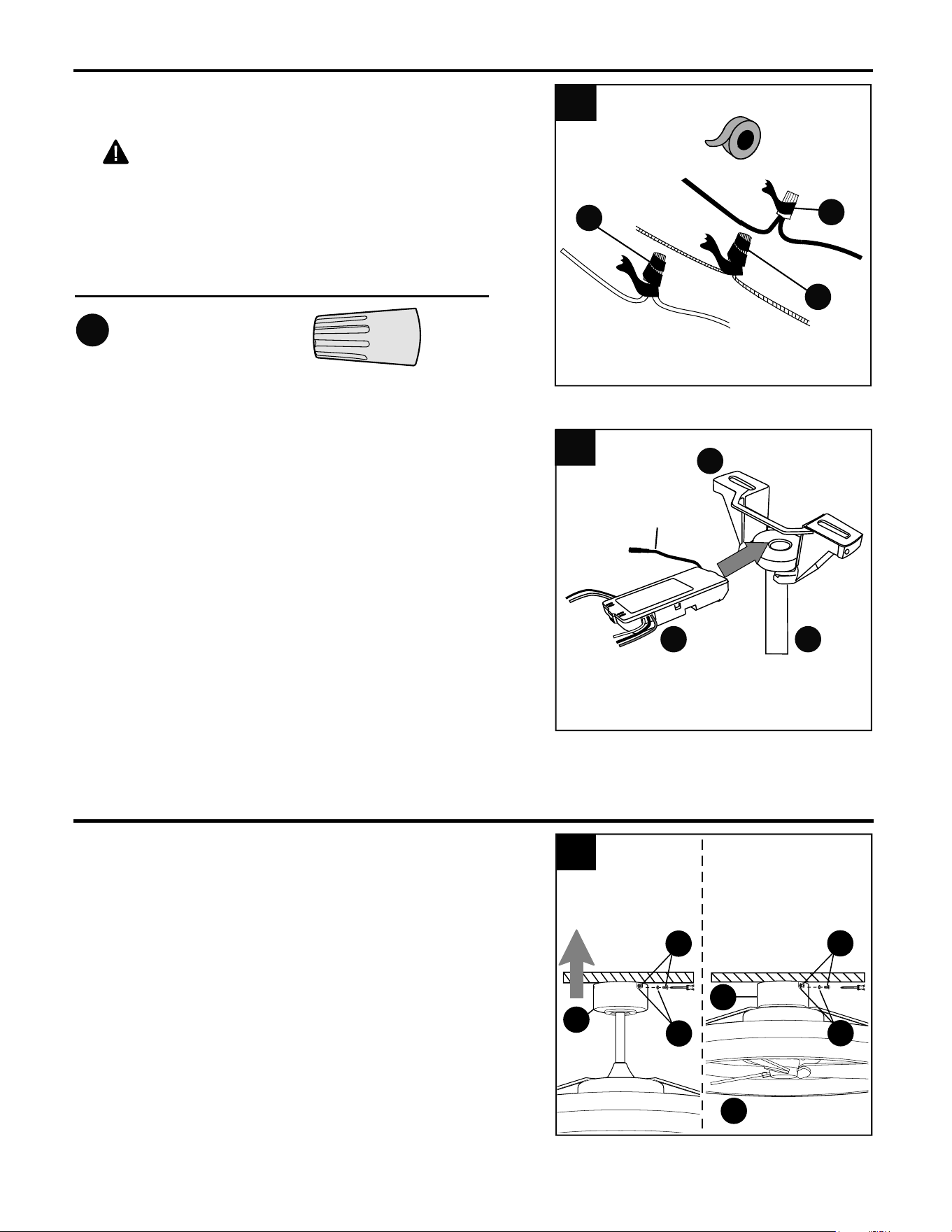

WIRING

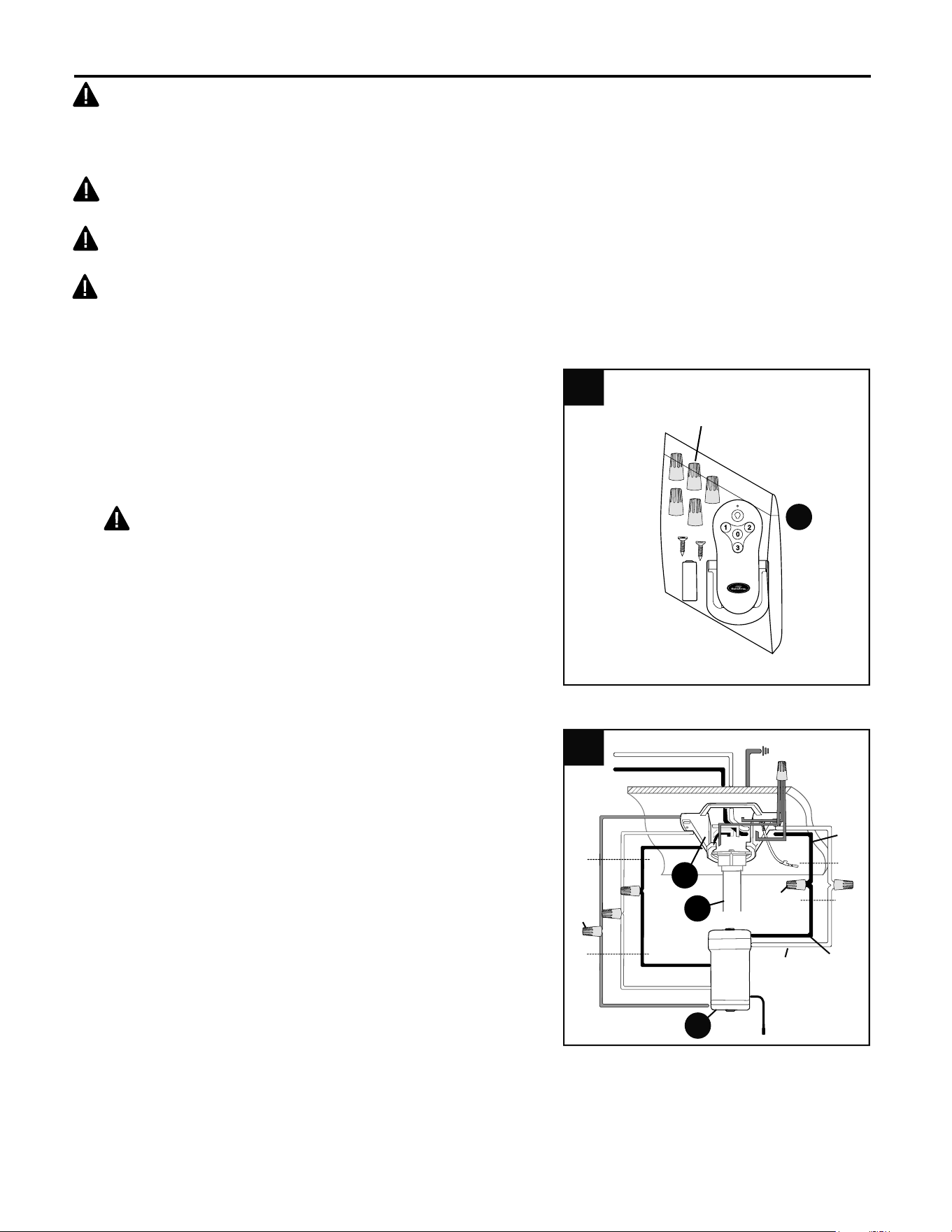

WARNING: To reduce the risk of fire, electrical shock or personal injury, wire connectors provided
with this fan are designed to accept only one 12-gauge house wire and two lead wires from the fan. If
your house wire is larger than 12-gauge or there is more than one house wire to connect to the
corresponding fan lead wires, consult an electrician for the proper size wire connectors to use.
CAUTION: Be sure outlet box is properly grounded and that a ground (green or bare) wire is
present.
WARNING: If house wires are different colors than referred to in the following steps, stop
immediately. A professional electrician is recommended to determine wiring.
WARNING: Using a full range dimmer switch (not included) to control fan speed will cause a loud
humming noise from fan. To reduce the risk of fire or electrical shock, do NOT use a full range dimmer
switch to control fan speed.
1a.
Make the necessary wiring connections for remote
control operation as detailed below and in the
accompanying drawing. For each wire connection,
use one of the wire connectors from the remote
pack (J), making sure to screw each wire connector
on in a clockwise direction.
CAUTION: Assistance from another person is
recommended for this step.
Connect all GROUND (GREEN) wires from fan (on
downrod (A), if applicable, and mounting bracket
(C)) to BARE/GREEN supply wire from ceiling.
Connect BLACK wire (labeled AC IN L) from
remote control receiver (K) to BLACK supply wire
from ceiling.
Connect WHITE wire (labeled AC IN N) from remote
control receiver (K) to WHITE supply wire from
ceiling.
Connect WHITE wire (labeled TO MOTOR N) from
remote control receiver (K) to WHITE wire from
motor assembly (D).
Connect BLACK wire (labeled TO MOTOR L) from
remote control receiver (K) to BLACK wire from
motor assembly (D).
Connect BLUE wire (labeled FOR LIGHT) from
remote control receiver (K) to BLUE wire from motor
assembly (D).
J
1b
WHITE SUPPLY WIRE
BLACK SUPPLY WIRE
BLACK
BLACK
WHITE
BLUE
BLUE
WHITE
BLACK
AC IN L
WHITE
AC IN N
WHITE
GROUND (GREEN OR BARE)
GROUND
(GREEN OR BARE)
BLACK
FROM
RECEIVER
FROM
FAN
FROM
RECEIVER
FROM
CEILING
A
C
Wire
Connector
Wire
Connector
Wire
Connectors
1b.
1a
K
11
WIRING
Wrap electrical tape (not included) around each
individual wire connector (AA) down to the wire.
WARNING: Make sure no bare wire or wire
strands are visible after making connections. Place
GREEN and WHITE connections on opposite side of
the outlet box from the BLACK and BLUE (if
applicable) connections.
2.
2
Hardware Used
Wire Connector
x 5
AA
AA
AA
AA
3
Gently slide remote control receiver (K) flat-side up
into mounting bracket (C). Turn spliced/taped wires
upward and gently push wires and wire connectors
(AA) into outlet box. Let antenna from remote control
receiver (K) hang to the side.
NOTE: The remote control included with this fan
meets the following requirements:
a. Not for use with solid state fans.
b. Electrical rating: 120V / 60 Hz;
motor amps:1.25 MAX.
Should you choose to use a different remote control
with this fan, it must also meet these same
requirements.
3.
Antenna
A
K
C
FINAL INSTALLATION
1.
Temporarily lift canopy (B) to mounting bracket (C) to
determine which two preassembled canopy mounting
screws (F) in mounting bracket (C) align with slotted
holes in canopy (B) and partially loosen these two
canopy mounting screws (F). Remove the other two
canopy mounting screws (F), along with the
preassembled star washers (I). Now, lift canopy (B) to
mounting bracket (C) again, aligning slotted holes in
canopy (B) with loosened canopy mounting screws
(F) in mounting bracket (C). Twist canopy (B)
clockwise to lock. Re-insert the two canopy mounting
screws (F) and star washers (I) that were just
removed and tighten all four canopy mounting
screws (F) securely.
1
I
B
B
Downrod
Option
Closemount
Option
F
D
I
F
12
CAUTION: The remote control transmitter can be programmed to multiple receivers or fans. If
this is not desired, turn wall switch off to any other programmable receiver or fan.
OPERATING INSTRUCTIONS
FCC Compliance Notice for Remote Control
Modifications not approved by the party responsible for compliance could void the user's
authority to operate the equipment.
*NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.

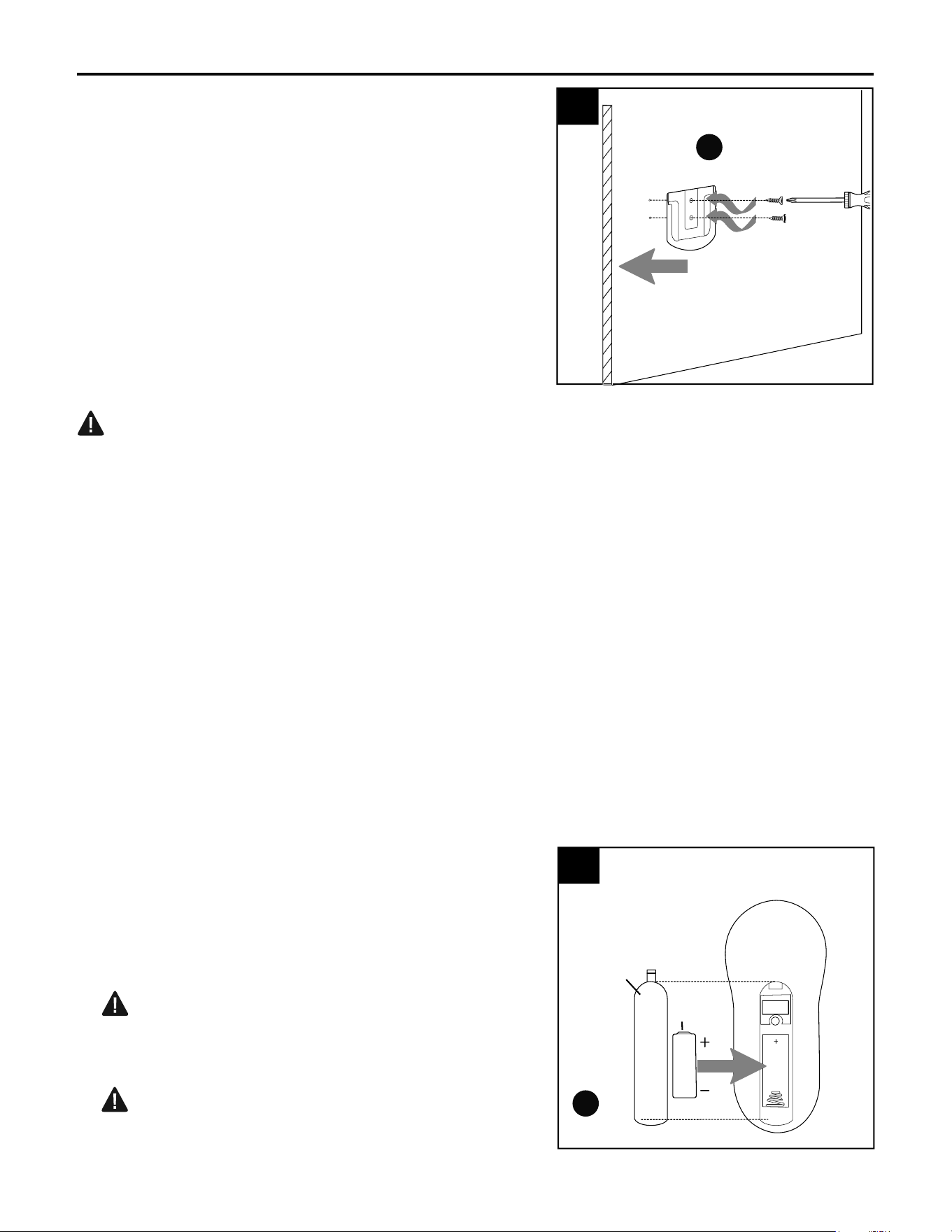

Locate battery and remote control transmitter in
remote pack (J). Remove protective covering from
each one and discard protective covering.
Remove battery cover from back of remote control
transmitter. Install battery with positive (+) end
toward top of remote control transmitter.
WARNING: Battery is to be inserted with the
correct polarity.
Replace battery cover on remote control transmitter.
WARNING: Choking Hazard - Small parts.
Keep battery away from children.
2.
2
Battery
Cover
Remote Control
Transmitter
(back side)
Battery
J
1
Remote Control
Bracket
Wall
1.
If you wish to use the remote control bracket from
remote pack (J), install screws from remote pack (J)
through bracket and into the desired installation site.
The remote control transmitter from remote pack (J)
rests inside the bracket.
Bracket
Screws
J
13
OPERATING INSTRUCTIONS
3.
Restore electrical power.
IMPORTANT: To prevent damage to remote control
transmitter, remove the batteries if not used for long
periods. Store the remote control transmitter away
from excess heat or humidity.
NOTE: If fan and/or remote control fail(s) to operate
or you have purchased a new remote control
transmitter, make sure to turn the power off first.
Restore electrical power. Within 30 seconds of
restoring electrical power, press and hold the “ ” on
the remote control transmitter for 5 seconds or until
light on the fan blinks twice. Use the remote control
transmitter to test the light and fan functions to
confirm the learning process is complete.
3
Remote Control Transmitter

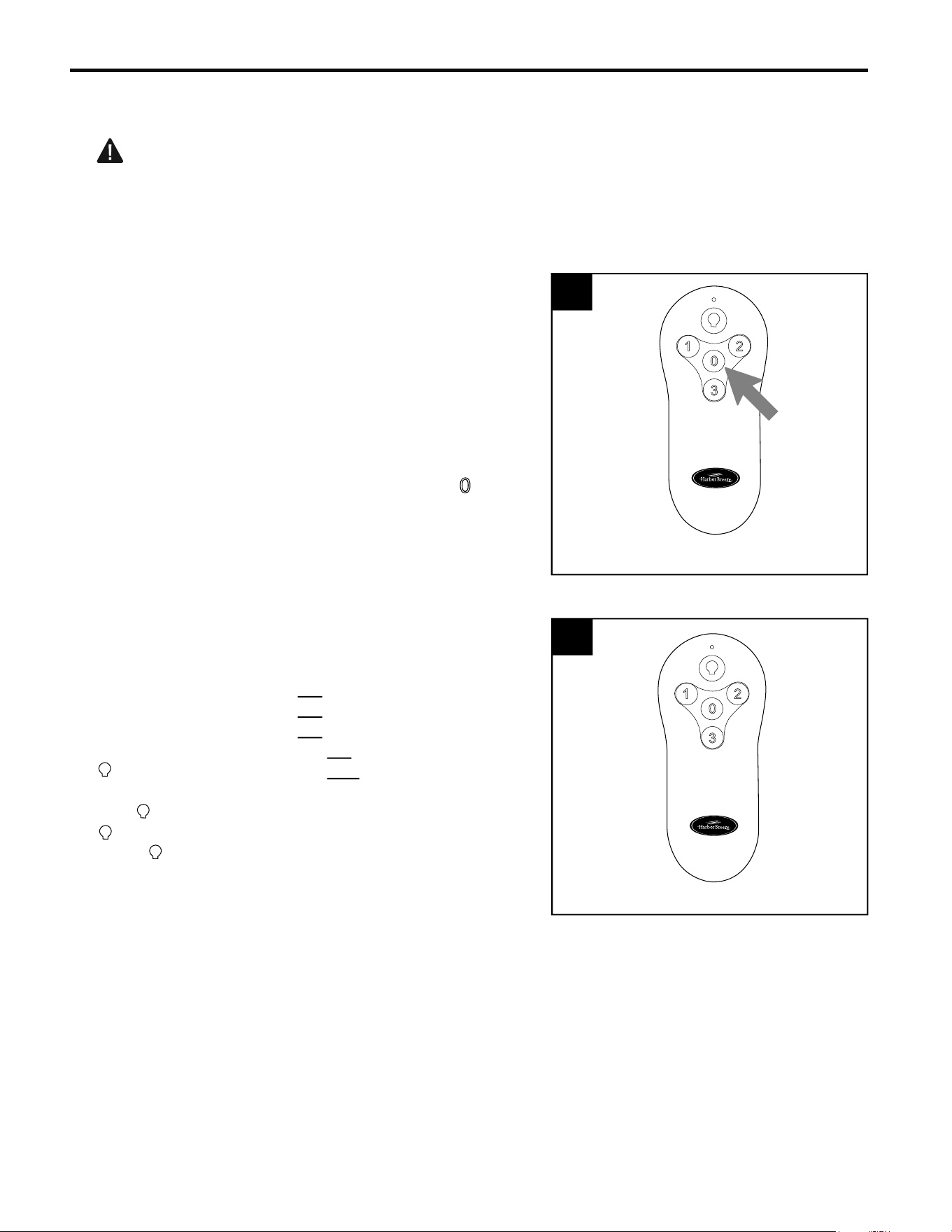

Operation buttons on the panel of the remote control
transmitter:
3 button for fan HIGH speed
2 button for fan MEDIUM speed
1 button for fan LOW speed
0 button to turn fan OFF
button to turn light ON or OFF
Tap button quickly to turn lights off or on. Hold
button down to increase or decrease lights. If you
press button in excess of 0.7 seconds, it
becomes a dimmer. The lights vary cyclically in
8 seconds. The light button has an auto resume
function, which keeps the light at the same
brightness as the last time it was turned off.
4.
4
Remote Control Transmitter
NOTE: Battery is NOT rechargeable. Remove battery with low or no charge and dispose of
properly.
CAUTION: “DO NOT DISPOSE OF BATTERIES IN FIRE, BATTERIES MAY EXPLODE OR
LEAK.” - When disposing of household alkaline batteries, it is best to check with your local and
state recycling or household hazardous waste coordinators concerning the specifics of the
program in your area.
14
OPERATING INSTRUCTIONS
5a
5b
5c
5c. IMPORTANT: Reverse switch must be set
either completely LEFT or completely RIGHT for
fan to function. If the reverse switch is set in the
middle position, fan will not operate.
5a. In warmer weather, setting the reverse switch
in the LEFT position will result in downward airflow
creating a wind chill effect.
5b. In cooler weather, setting the reverse switch
in the RIGHT position will result in upward airflow
that can help move stagnant, hot air off the ceiling
area.

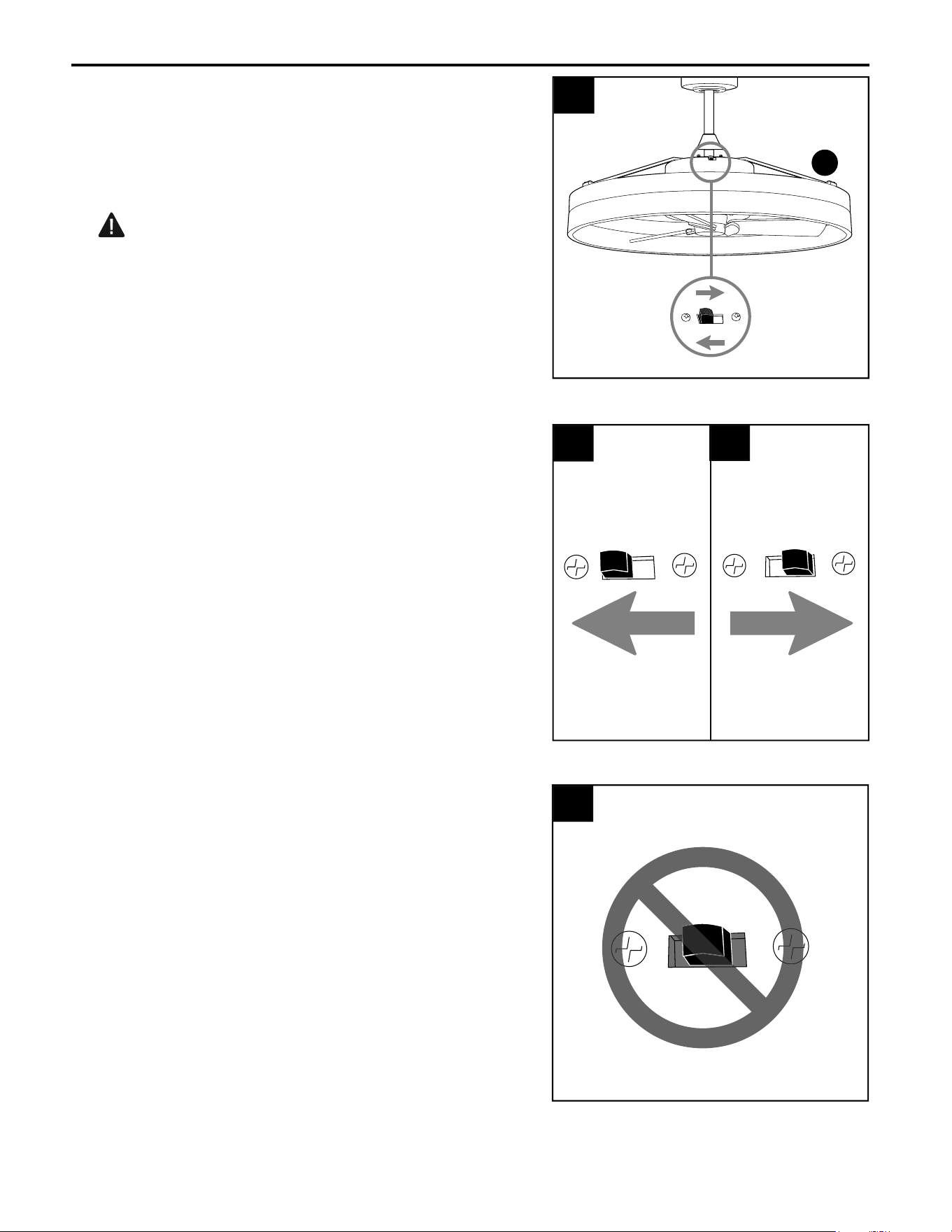

5.
Use the fan reverse switch, located on the top of the
motor assembly (D), to optimize the fan for seasonal
performance. A ceiling fan will allow you to raise
your thermostat setting in summer and lower your
thermostat setting in winter without feeling a
difference in your comfort.
CAUTION: Turn fan off at wall switch and let
blades come to a complete stop before manually
activating the reverse switch.
5
Reverse Switch
D
15
WARNING: Before beginning work, shut off the power supply to avoid electrical shock.
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Fan does not move. 1. Reverse switch not engaged.
2. Power is off or fuse is blown.
3. Faulty wire connection.
1. Push switch firmly either left or
right.
2. Turn power on or check fuse.
3. Turn power off. Loosen canopy
and check all connections.
Noisy operation. 1. Cracked blade.
2. Full range dimmer switch.
3. Fan is new.
1. Replace blade.
2. Replace with an approved
speed control device.
3. Allow fan a “break in” period of
a few days, especially when
running the fan at Medium and
High speeds.
Excessive wobbling. 1. Fan not securely mounted.
2. Fan too close to vaulted ceiling.
3. Set screw(s) in yoke of motor
assembly is (are) not tightened
properly.
4. Set screw on hanging ball is not
tightened properly.
1.Turn power off. Carefully loosen
canopy and verify that mounting
bracket is secure.
2. Use a longer downrod or move
fan to another location.
3. Tighten yoke set screw(s)
securely.
4. Carefully loosen and lower
canopy and verify that set screw
on hanging ball is tightened
securely.
NOTE: A small amount of "wobble" is normal and should not be considered a defect.
CARE AND MAINTENANCE
At least twice each year, lower canopy (B) to check downrod (A) assembly and tighten all screws on
fan. Clean motor assembly (D) with only a soft brush or lint-free cloth to avoid scratching the finish.
Clean blades with a lint-free cloth. You may occasionally apply a light coat of furniture polish to wood
blades for added protection.
IMPORTANT: Shut off main power supply before beginning any maintenance. Do not use water or a
damp cloth to clean the ceiling fan.
• Total wattage for this fan is 30 watts; do not attempt to replace the LEDs.
C
PART DESCRIPTION
5249291-A
5249291-B
5249291-C
PART #
B
A
A Downrod
B Canopy
C Mounting Bracket
REPLACEMENT PARTS LIST
For replacement parts, call our customer service department at 888-251-1003, 8 a.m. - 8 p.m., EST,
Monday - Sunday. You could also contact us at [email protected].
Set forth below, the manufacture warrants the fan motor for this ceiling fan to be free from defects in
workmanship and material for the life of the product. Also, subject to the limitations below, the
manufacturer warrants all ceiling fan parts (“ceiling fan parts” excludes the motor and parts made in
whole or in part with glass) to be free from defects in workmanship and material for a period of one
year after the date of purchase by the original purchaser at retail.
All claims must be made by the original purchaser, whether such purchaser purchased the product
through a store or contractor. Ceiling fan part defects must be reported within the first year from the
date of purchase. Parts made in whole or in part with glass and the finishes of metal and other
surfaces are not warranted.
Purchasers are responsible for all costs of removing and reinstalling the product. Any damage to any
part caused by ordinary wear and tear, accident, misuse, or improper installation, is not covered by
this warranty. The manufacturer assumes no responsibility whatsoever for fan installation. Any service
performed by a non-licensed electrician will render the warranty invalid.
The manufacturer’s sole responsibility shall be to repair or replace the motor, parts, or product within
the terms stated above. The manufacturer shall not be liable for any loss or damage of any kind,
including any incidental or consequential damages resulting directly or indirectly, from any breach
of warranty, express or implied, or any other failure of this product. Some states do not allow the
exclusion or limitation of incidental or consequential damages so this limitation may not apply to you.
If the original purchaser ceases to own the fan, this warranty is voided.
Should the purchaser encounter a problem with your fan related to defects in workmanship or
materials within the warranty period associated with the defective part, the manufacturer agrees to
replace the defective part without charge, or at its option, to replace the ceiling fan with a comparable
or superior model.
The manufacturer’s warranties are limited to the written warranties set out in this ceiling fan limited
lifetime warranty. All other express and implied warranties, including, without limitation, the implied
warranty of fitness for a particular purpose and the implied warranty of merchantability are disclaimed.
Some states do not allow the disclaimer of implied warranties, so this disclaimer may not apply to you.
LIMITED LIFETIME WARRANTY
16
KHLI2303
Printed in China
