KIAWAH CEILING FAN
ITEM #5497063
Purchase Date
1
Español p. 22
MODEL #KIA60MBK6LR
SS23580
ATTACH YOUR RECEIPT HERE
ADJUNTE SU RECIBO AQUÍ
HARBOR BREEZE and logo design are
trademarks or registered trademarks of LF, LLC.
All rights reserved.
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 888-251-1003, 8 a.m. - 8 p.m., EST, Monday - Sunday. You could also
contact us at [email protected].
4009218
APPROVED FOR USE
IN WET LOCATIONS
2
Safety Information ...........................................................................................................................
.
. 2
Package Contents ...........................................................................................................................
.
. 5
Hardware Contents
..........................................................................................................................................
6
Preparation ......................................................................................................................................... 6
Initial Installation ................................................................................................................................. 6
Downrod-Style Fan Mounting ............................................................................................................. 8
Closemount-Style Fan Mounting ...................................................................................................
.
.. 10
Wiring ................................................................................................................................................12
Final Installation ............................................................................................................................... 14
Operating Instructions ...................................................................................................................... 17
Care and Maintenance ................................................................................................................
.
.... 19
Troubleshooting ............................................................................................................................... 20
Limited Lifetime Warranty ................................................................................................................ 21

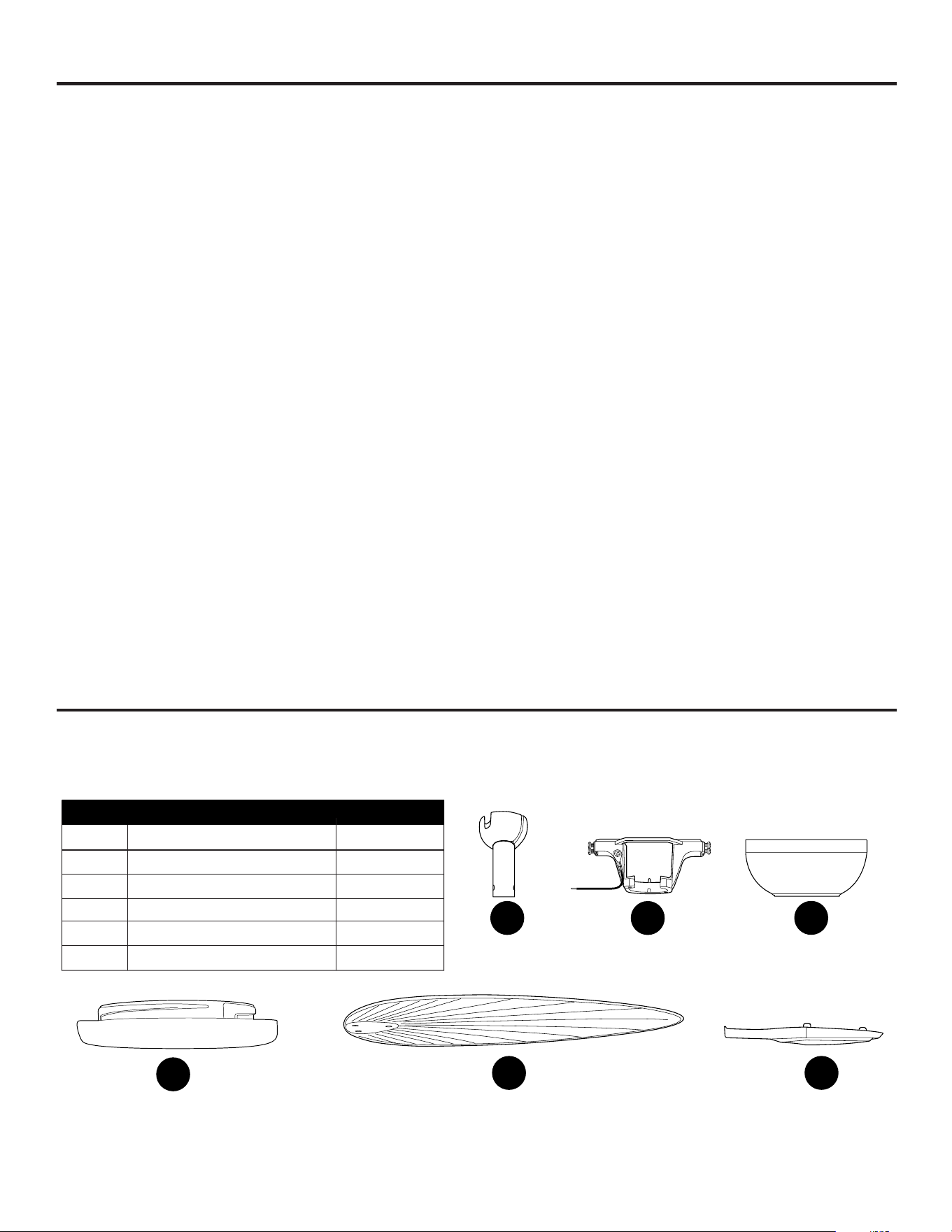

Replacement Parts List .................................................................................................................... 21
TABLE OF CONTENTS
CAUTION: Changes or modifications not approved by the party responsible for compliance could void
the user's authority to operate the equipment.
*NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
The device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, (2) this device must accept any interference received,
including interference that may cause undesired operation.
Distributed by: Litex Industries Inc., P.O. Box 535639, Grand Prairie, TX, 75050; 800-527-1292
NOTE: Dimmable to 10%.
SAFETY INFORMATION
3
READ AND SAVE THESE INSTRUCTIONS
• Do not discard fan carton or foam inserts. Should this fan need to be returned to the factory for repairs,
it must be shipped in its original packaging to ensure proper protection against damage that might
exceed the initial cause for return.
• Make sure all electrical connections comply with local codes, ordinances, the National Electrical Code
and ANSI/NFPA 70-1999. Hire a qualified electrician or consult a do-it-yourself wiring handbook if you
are unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum clearance of 7 ft. from the blades to the
floor and at least 30 in. from the end of the blades to any obstruction.
• After you install the fan, make sure all connections are secure to prevent the fan from falling.
• The net weight of this fan including the light kit is: 21 lbs.
SAFETY INFORMATION
To reduce the risk of fire, electrical shock or personal injury, mount fan to outlet box
marked "ACCEPTABLE FOR FAN SUPPORT OF 35 LBS. OR LESS" and use mounting
screws provided with the outlet box. Most outlet boxes commonly used for the support of
lighting fixtures are not acceptable for fan support and may need to be replaced. Consult a qualified
electrician if in doubt.
When mounting fan to a ceiling outlet box, use a METAL octagonal outlet box; do NOT use a plastic
outlet box. Secure the outlet box directly to the building structure. The outlet box and its support must
be able to support the moving weight of the fan (at least 35 lbs.).
To avoid personal injury, the use of gloves may be necessary while handling fan parts with sharp
edges.
WARNING
DANGER
When using an existing outlet box, make sure the outlet box is securely attached to the building
structure and can support the full weight of the fan. Failure to do this can result in serious injury or
death. The stability of the outlet box is essential in minimizing wobble and noise in the fan after
installation is complete.
To reduce the risk of serious bodily injury, DO NOT use power tools to assemble any part of the fan,
including the blades.
If using this fan in a WET location, connect this product to a Ground Fault Circuit Interrupting (GFCI)
outlet to reduce the risk of personal injury, electrical shock or death. If one is not provided, contact a
qualified electrician for proper installation.
4
SAFETY INFORMATION
CAUTION
Be sure outlet box is properly grounded and that a ground wire (green or bare) is present.
Once installation is complete, carefully check all screws, bolts and nuts on fan motor assembly to
ensure that they are secured.
Read all instructions and safety information before installing your new fan. Review the accompanying
assembly diagrams.
Do NOT tamper with or attempt to repair LED component. The light source is designed for this specific
application and should not be serviced by untrained personnel. If any servicing is required, call our
customer service department.
To reduce the risk of fire, electrical shock or personal injury, wire connectors provided with this fan are
designed to accept only one 12-gauge house wire and two lead wires from the fan. If your house wire
is larger than 12-gauge or there is more than one house wire to connect to the corresponding fan lead
wires, consult an electrician for the proper size wire connectors to use.
To reduce the risk of fire or electrical shock, do not use the fan with any solid state speed control
device or control fan speed with a full range dimmer switch.
To reduce the risk of fire, electrical shock or personal injury, do not bend the blades when installing or
balancing them or when cleaning the fan. Do not insert objects between the rotating fan blades.
To reduce the risk of personal injury, use only parts provided with this fan. The use of parts OTHER
than those provided with this fan will void the warranty.
Before proceeding, be sure to shut off electricity at main switch or circuit breaker in order to avoid
electrical shock.
WARNING

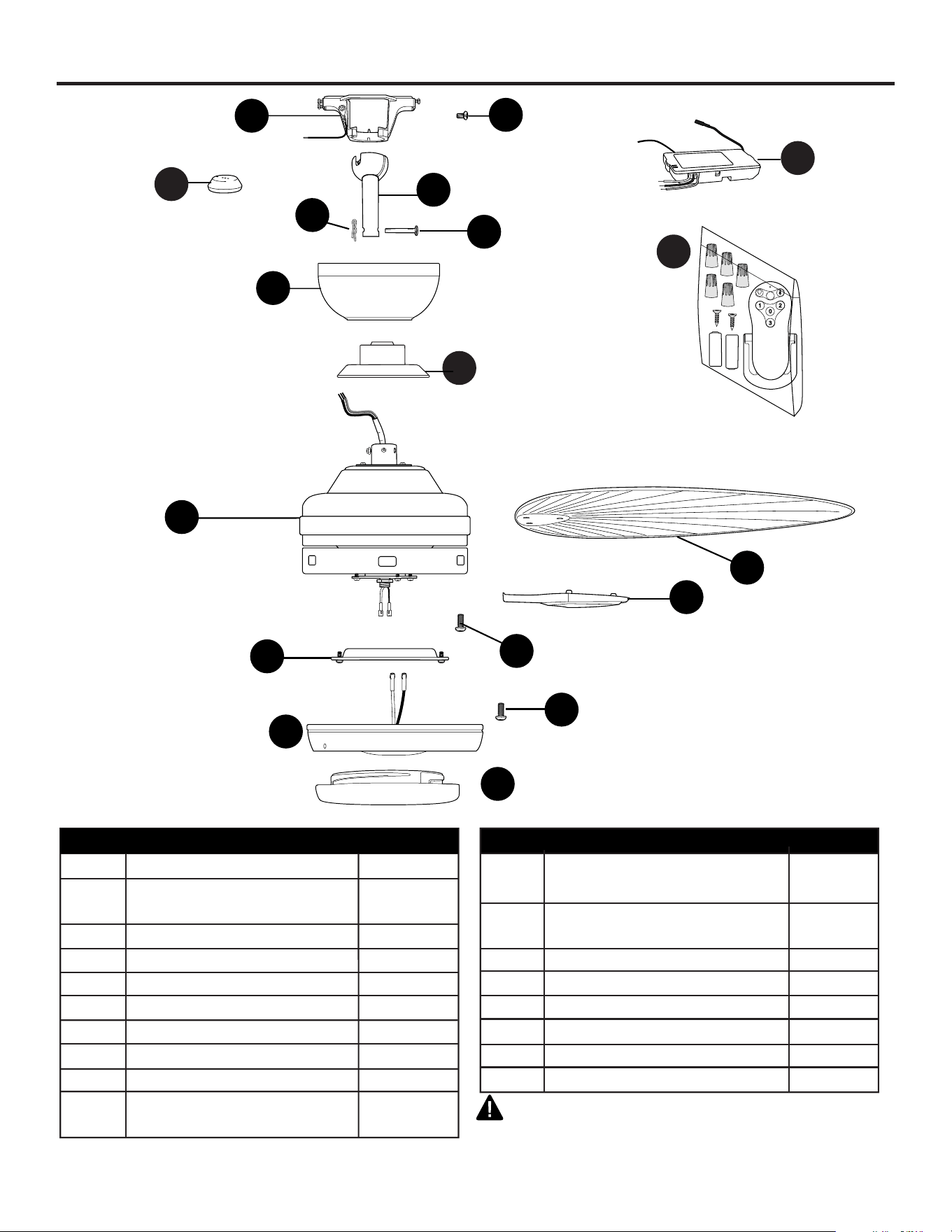

PACKAGE CONTENTS
5
IMPORTANT REMINDER: You must use the
parts provided with this fan for proper installation
and safety.
A Downrod 1
B Mounting Bracket 1
(preassembled)
C Canopy 1
D Motor Housing 1
E Shade 1
F Fitter Plate 1
G LED Light Kit 1
H Pin (preassembled) 1
I Clip (preassembled) 1
J Motor Plate Screw 3
(preassembled)
DESCRIPTIONPART
QUANTITY
K Fitter Plate Screw 3
(preassembled)
L Canopy Mounting Screw 4
(preassembled) .
M Blade 6
N Yoke Cover 1
O Blade Arm 6
P Hanging Ball Cover 1
Q Remote Control Receiver 1
R Remote Pack 1
DESCRIPTION
QUANTITY
PART
D
F
J
I
H
G
A
N
E
K
C
B
L
M
P
O
Q
R
6

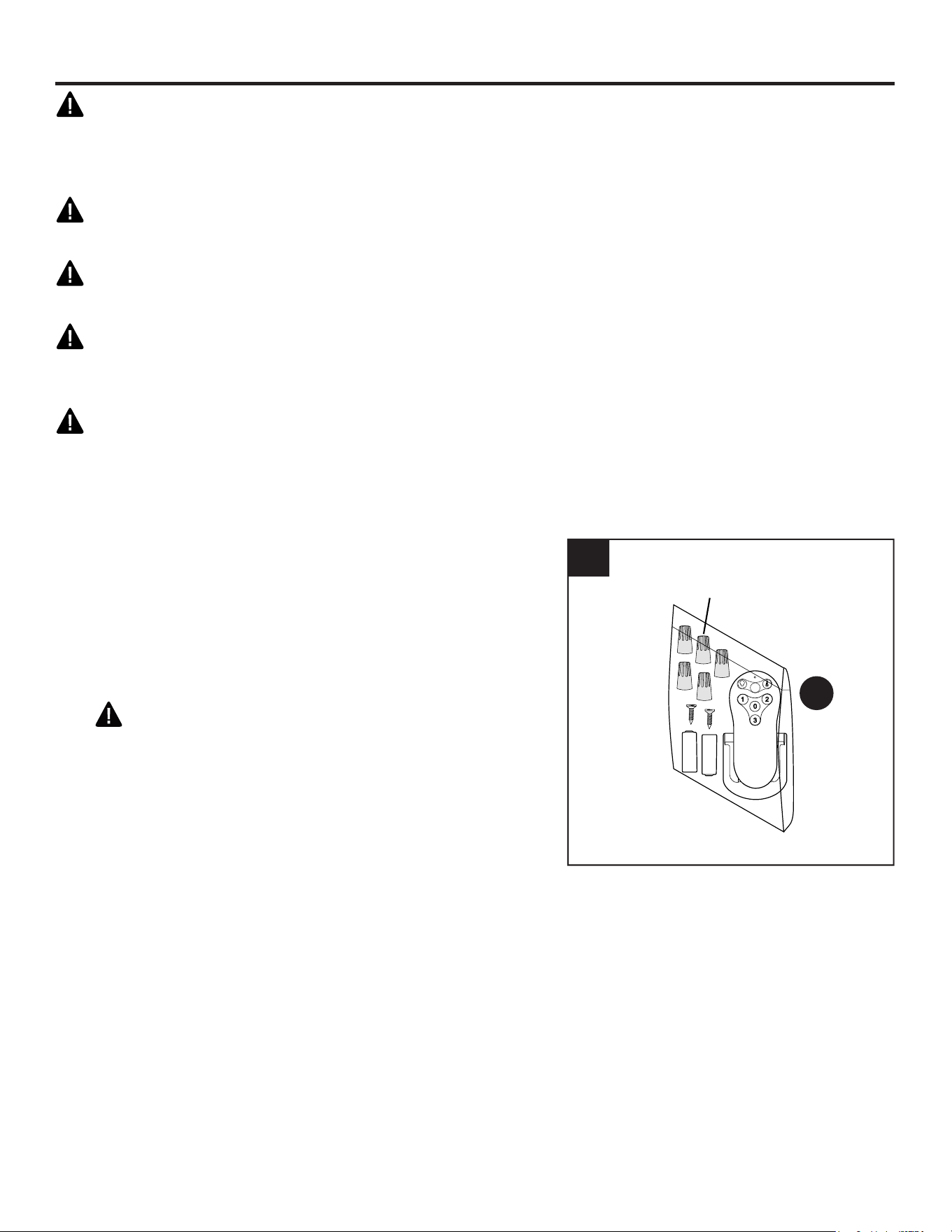

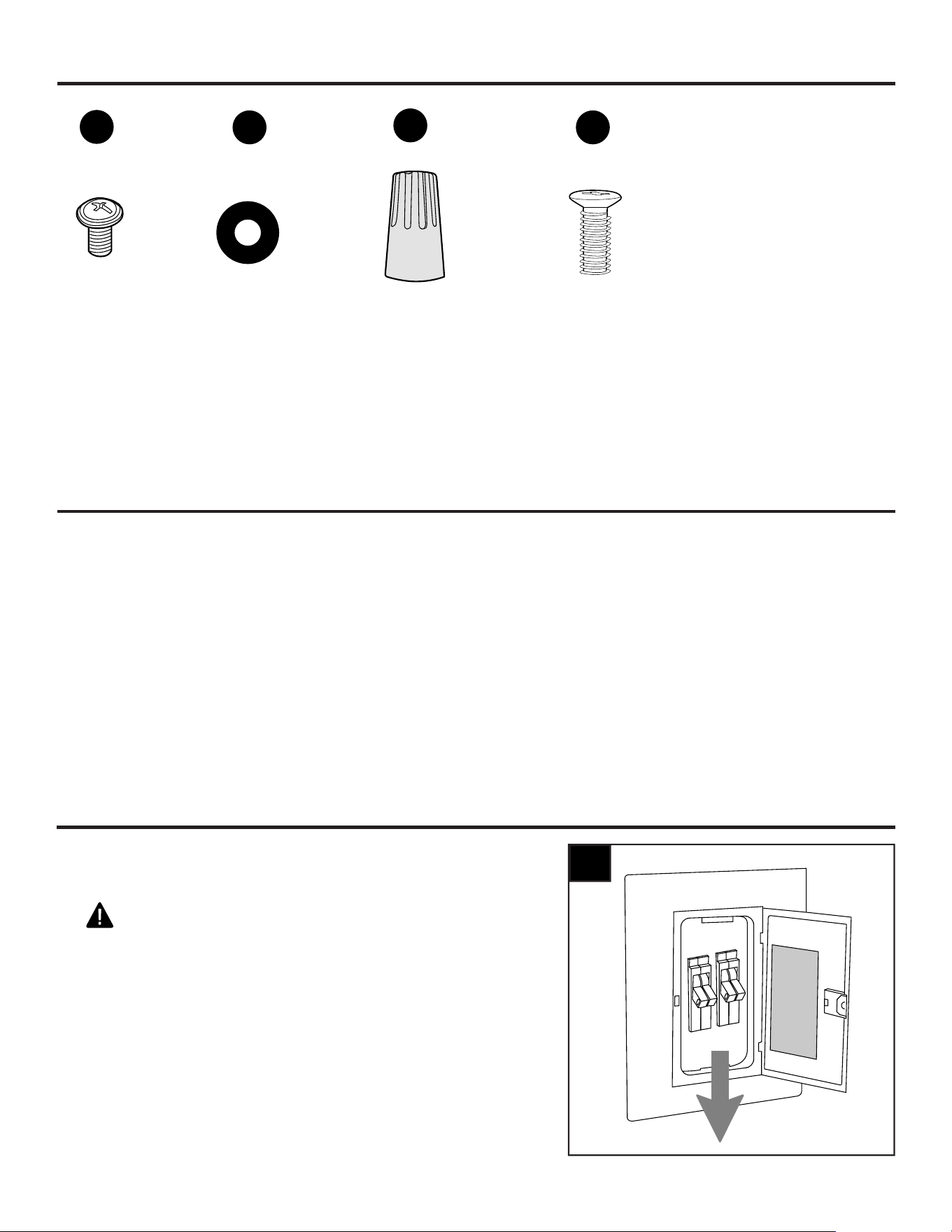

HARDWARE CONTENTS (shown actual size)
ON
OFF
ON
OFF
1
Turn off circuit breakers and wall switch to the fan
supply line leads.
DANGER: Failure to disconnect power supply
prior to installation may result in serious injury or
death.
1.
INITIAL INSTALLATION
Before beginning assembly of product, make sure all parts are present. Place motor on carpet or on
foam to avoid damage to finish. Compare parts with package contents list and hardware contents list. If
any part is missing or damaged, do not attempt to assemble the product.
Estimated Assembly Time: 120 minutes
Tools Required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety
Glasses, Stepladder and Wire Strippers
Helpful Tools (not included): AC Tester Light, Tape Measure, Do-It-Yourself Wiring Handbook and Wire
Cutters
PREPARATION
Blade
Screw
Qty. 18
+ 1 extra
CC
Wire
Connector
Qty. 4
AA
DD
Blade Arm
Screw
Qty. 12
+ 1 extra
BB
CC
Rubber Blade
Washer
Qty. 18
+ 1 extra
INITIAL INSTALLATION
7
2.

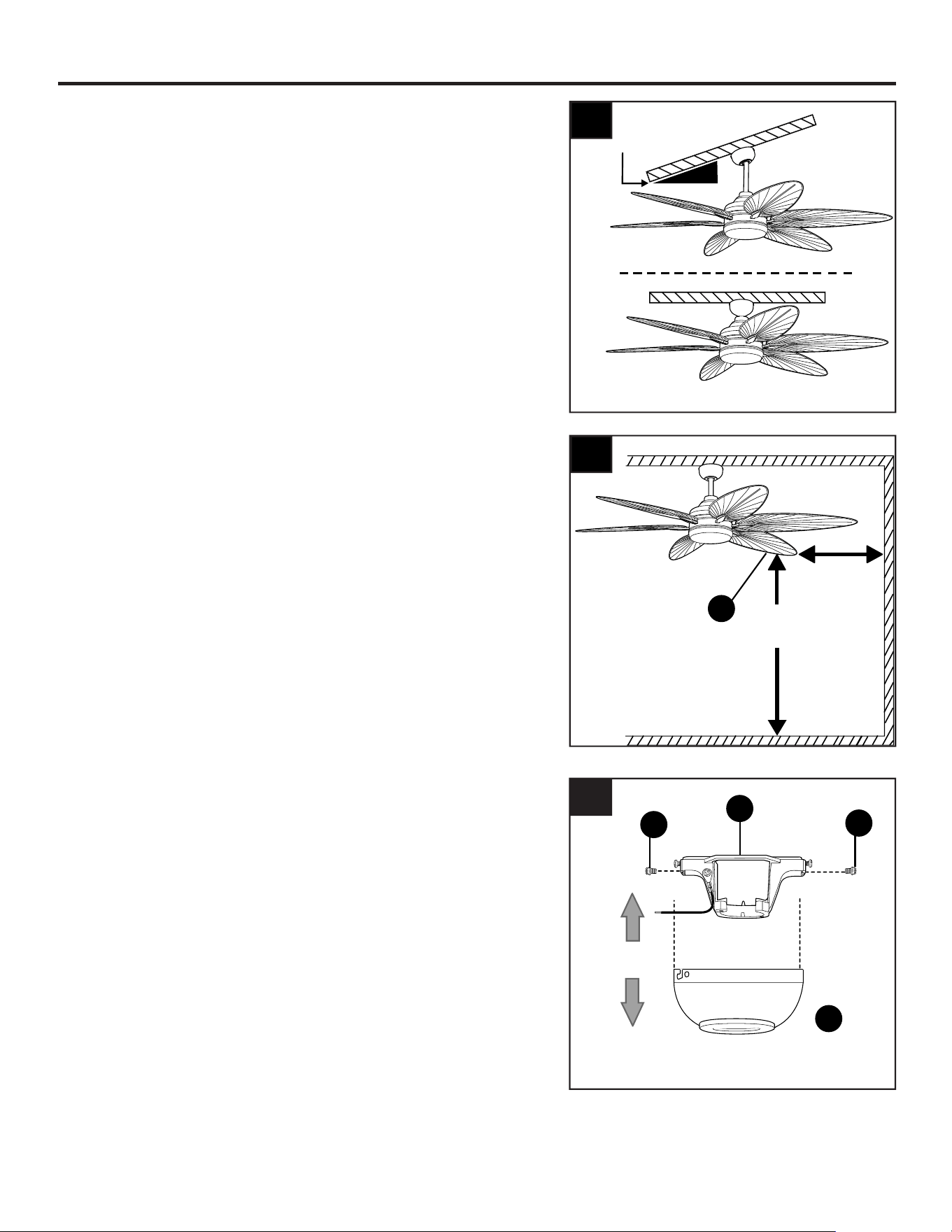

Determine mounting method to use.
A. Downrod mount (standard or angled ceiling).
B. Closemount (standard ceiling only).
IMPORTANT: If using the angle mount, check to
make sure the ceiling angle is not steeper than 19°.
*Helpful Hint: Downrod-style mounting is best
suited for ceilings 8 ft. or higher. For taller ceilings
you may want to use a longer downrod (not
included). Angle-style mounting is best suited for
angled or vaulted ceilings. A longer downrod is
sometimes necessary to ensure proper blade
clearance. Closemount mounting is more suitable
for ceilings lower than 8 ft. high.
Check to make sure blades (M) will be at least
30 in. from any obstruction and at least 7 ft.
above the floor.
3.
A
B
19° max.
7 ft.
min.
30 in.
min.
M
2
3
4.
Loosen canopy mounting screws (L) in slotted
holes of canopy (C) and remove the other two
canopy mounting screws (L); save for later use.
Remove mounting bracket (B) from canopy (C).
4
B
C
L
L
DOWNROD-STYLE FAN MOUNTING
8
INITIAL INSTALLATION
5
Open End
B
B
2.

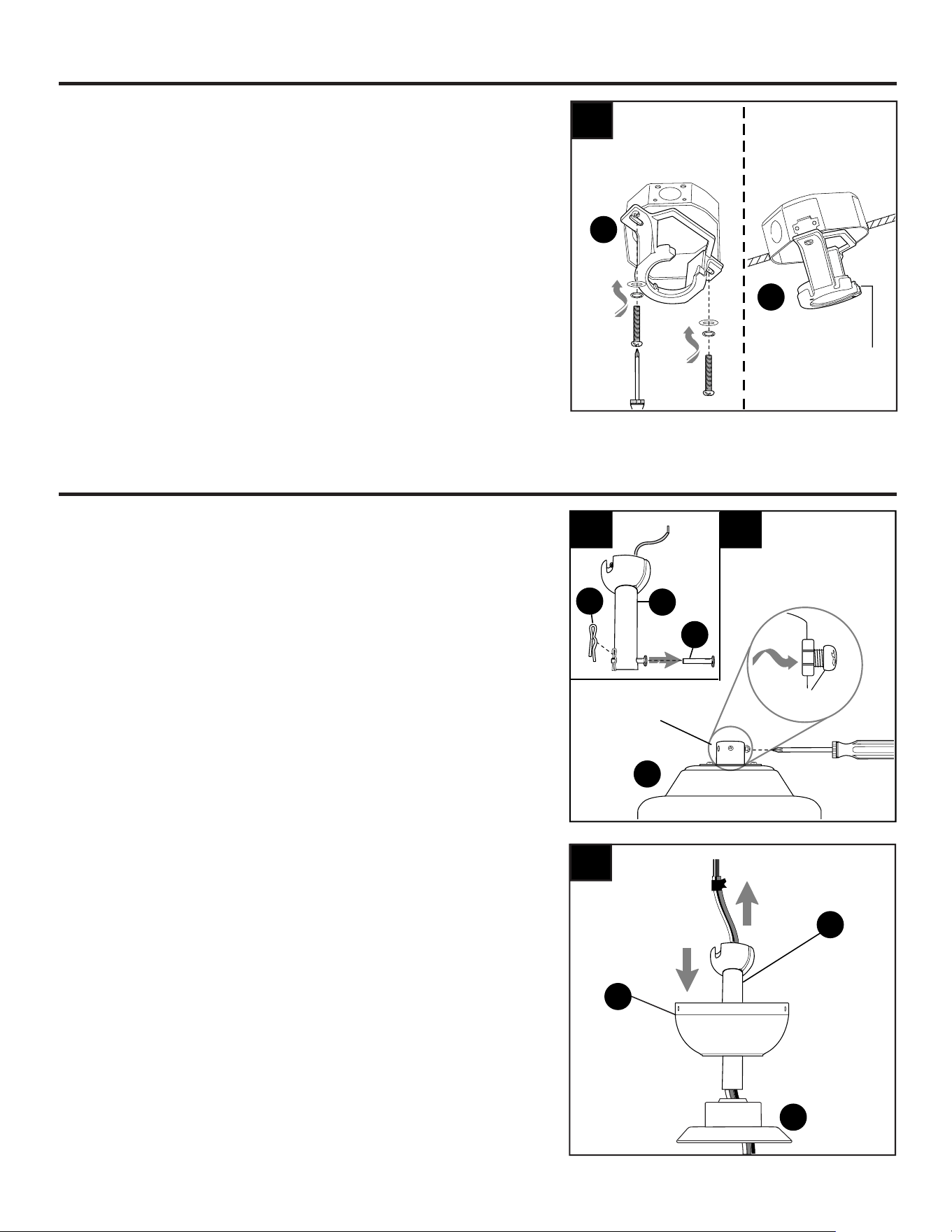

Secure mounting bracket (B) to outlet box (not
included) using screws, spring washers and flat
washers provided with the outlet box.
*NOTE: It is very important you use the proper
hardware when installing the mounting bracket (B)
as this will support the fan.
IMPORTANT: If using the angle mount, make sure
open end of mounting bracket (B) is installed facing
the higher point of the ceiling, and ensure the ceiling
angle is not steeper than 19°.
For DOWNROD-STYLE FAN MOUNTING, proceed
to Step 1 below.
For CLOSEMOUNT-STYLE FAN MOUNTING, skip
to page 10.
5.
Insert downrod (A) through yoke cover (N) and
canopy (C). Thread wires from motor housing
(D) up through downrod (A).
Remove pin (H) and clip (I) from downrod (A).
Partially loosen preassembled set screws and nut
in yoke at top of motor housing (D).
1a.
1b.
1a
I
D
H
1b
A
Set Screw
& Nut
Sideview
ANGLE
MOUNT
STANDARD
MOUNT
A
2
C
N
Yoke
DOWNROD-STYLE FAN MOUNTING
9
4.
3.
5.

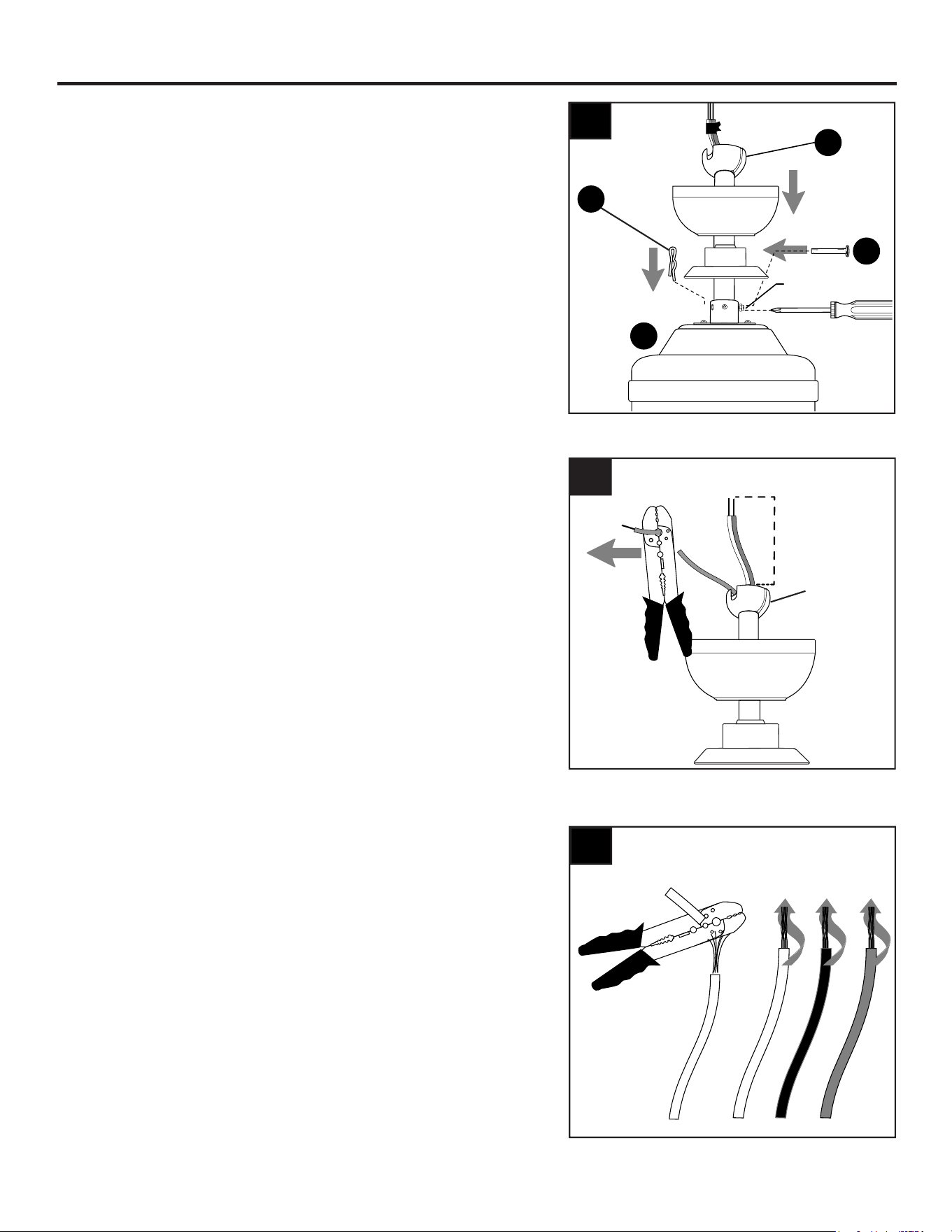

Depending on the length of downrod you use, you
may need to cut the lead wires back to simplify the
wiring. If you decide to cut back the lead wires, it is
suggested you do so in the following manner:
Take the lead wires and make sure you have pulled
them all the way through the top of the downrod.
Start at the TOP of the hanging ball on the downrod
and measure 8 in. of lead wire, and then cut the
excess wire off with wire cutters (not included).
NOTE: If you do not cut back the lead wires, Steps
4 and 5 are not necessary and you may proceed
to Step 6 instead.
Slip downrod (A) into yoke, align holes and
re-install pin (H) and clip (I). Tighten downrod
set screws and then tighten nut.
If you cut back the lead wires in Step 4, strip 3/4 in.
of insulation from end of each wire -- WHITE,
BLACK, GREEN and BLUE (if applicable). Twist
stripped ends of each strand of wire within the
insulation with pliers (not included).
4
Hanging
Ball
8 in.
3
I
H
Set Screw
and Nut
D
A
5
DOWNROD-STYLE FAN MOUNTING
10
7.

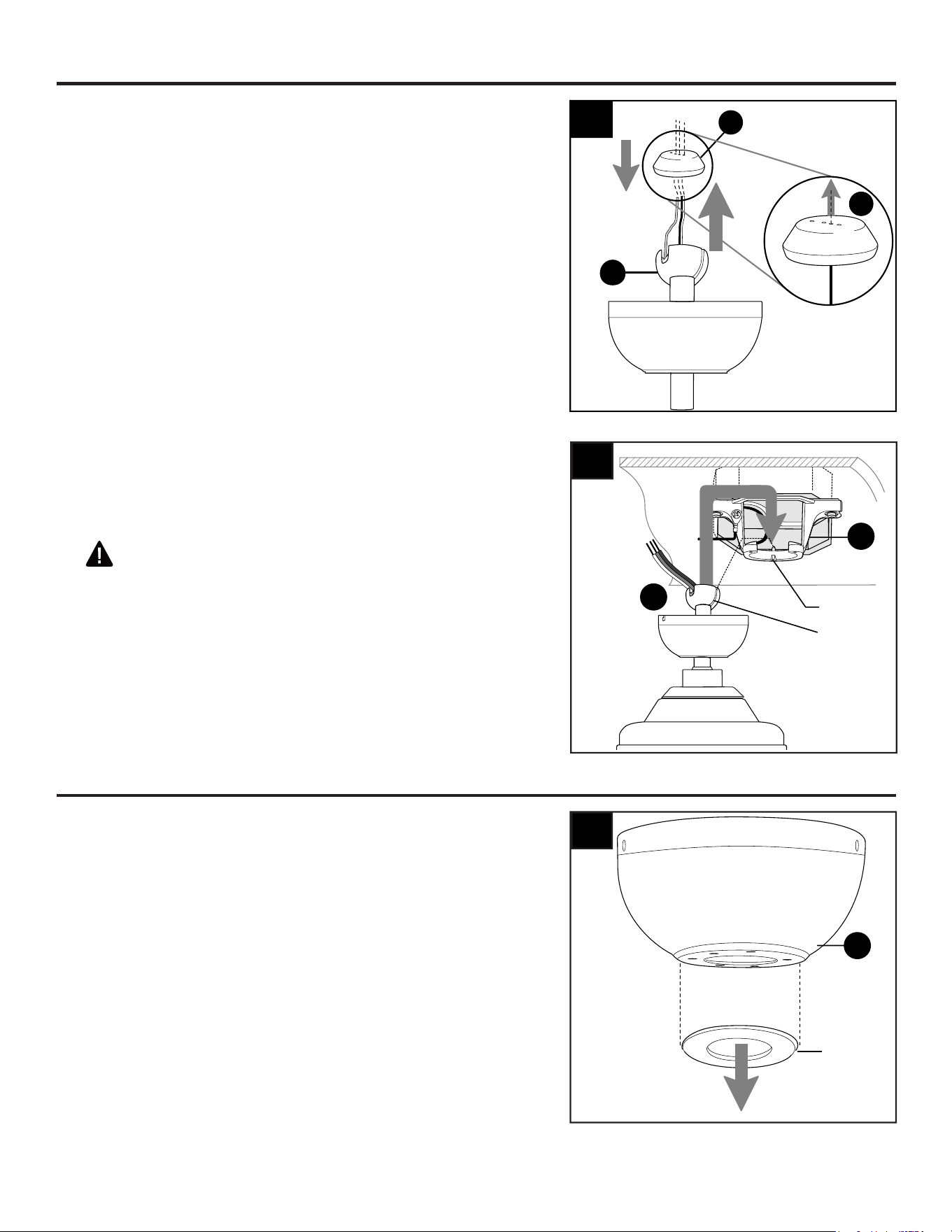

Remove preassembled canopy cover from
bottom of canopy (C).
NOTE: It may be necessary to use the
handle end of a screwdriver (not included) to
remove the canopy cover by tapping on the
canopy cover from the inside of the canopy
(C).
NOTE: The downrod (A) and canopy cover
are not used in this type of installation.
CLOSEMOUNT-STYLE FAN MOUNTING
1.
Install hanging ball of downrod (A) into
opening of mounting bracket (B). Align the
slot in hanging ball with the tab in mounting
bracket (B).
DANGER: Failure to align slot in hanging
ball with the tab in mounting bracket (B) may
result in serious injury or death.
Continue to WIRING on page 12.
Canopy
Cover
1
C
Tab
B
7
A
Slot
6.
Thread each of the wires through a different hole
in the hanging ball cover (P). Pull hanging ball
cover (P) down securely over hanging ball on
downrod (A).
6
A
P
P
CLOSEMOUNT-STYLE FAN MOUNTING
11

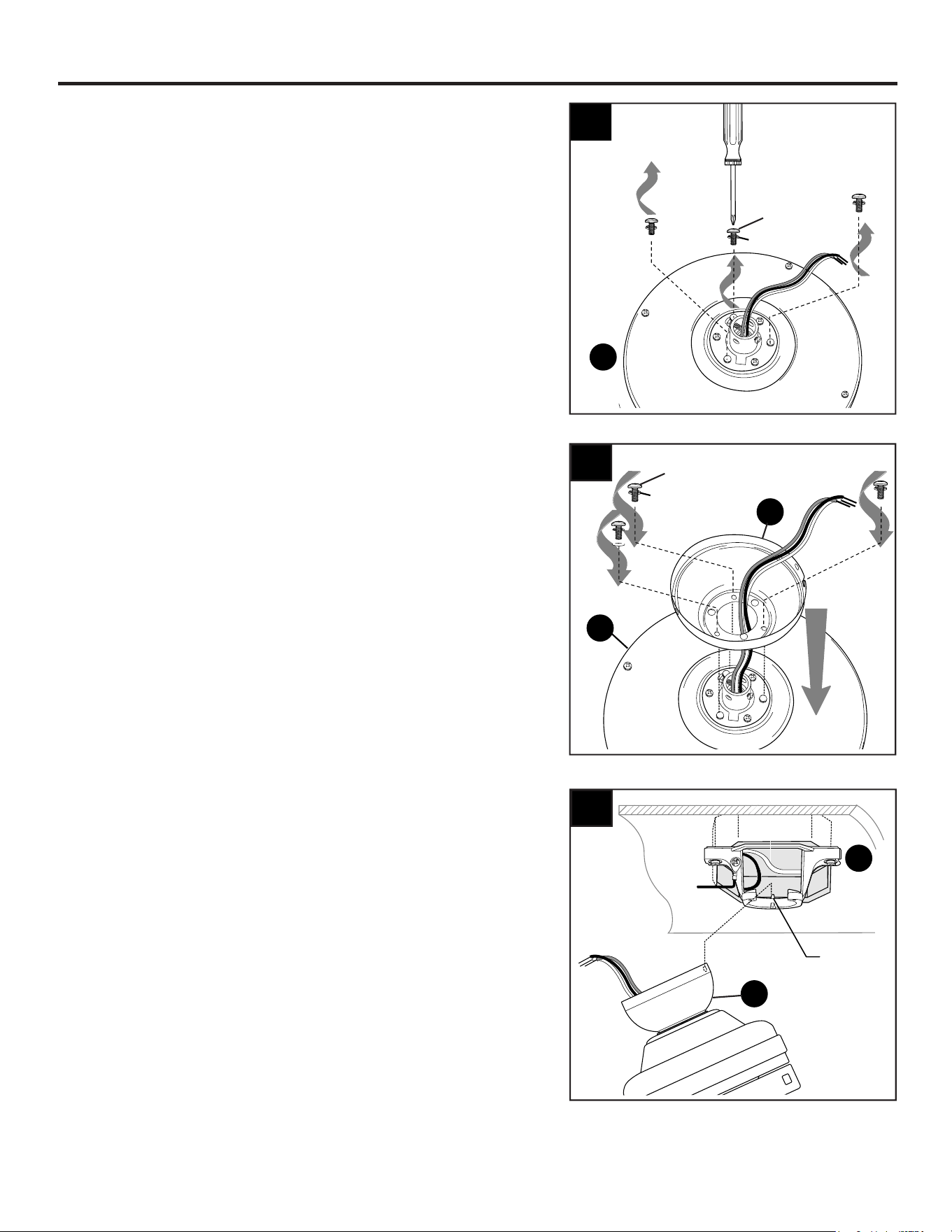

Temporarily hang fan on the tab on the
mounting bracket (B) using one of the
non-slotted holes in the canopy (C).
4.
3.
2.
Remove every other preassembled screw/lock
washer from top of motor housing (D).
Pull wires up through hole in the middle of the
canopy (C) and attach canopy (C) to motor
housing (D) using the three screws/lock
washers previously removed.
D
2
3
D
C
Tab
C
4
B
Screw
Lock Washer
Screw
Lock Washer
12
WARNING: To reduce the risk of fire, electrical shock or personal injury, wire connectors provided
with this fan are designed to accept only one 12-gauge house wire and two lead wires from the fan. If
your house wire is larger than 12-gauge or there is more than one house wire to connect to the
corresponding fan lead wires, consult an electrician for the proper size wire connectors to use.
CAUTION: Be sure outlet box is properly grounded and that a ground (GREEN or BARE) wire is
present.
WARNING: If house wires are different colors than referred to in the following steps, stop
immediately. A professional electrician is recommended to determine wiring.
WARNING: Using a full range dimmer switch (not included) to control fan speed will cause a loud
humming noise from fan. To reduce the risk of fire or electrical shock, do NOT use a full range dimmer
switch to control fan speed.
DANGER: If using this fan in a WET location, this fan must be connected to a supply circuit that is
protected by a Ground Fault Circuit Interrupter (GFCI) to reduce the risk of personal
injury, electrical shock or death.
WIRING
1a.
Make the necessary wiring connections for
remote control operation as detailed below
and in the accompanying drawing. To make
wire connections, use wire connectors in
hardware pack and wire connectors in remote
pack (R), making sure to screw each wire
connector on in a clockwise direction.
CAUTION: Assistance from another
person is recommended for this step.
R
Wire
Connectors
1a
WIRING
13
Wrap electrical tape (not included) around each
individual wire connector (CC) down to the wire.
WARNING: Make sure no bare wire or
wire strands are visible after making
connections. Place GREEN and WHITE wire
connections on the opposite side of the outlet
box from the BLACK and BLUE wire
connections.
Turn spliced/taped wires upward and gently
push wires and wire connectors (CC) into outlet
box.
2.
CC
Wire Connector x 4
Hardware Used
CC
CC
2
CC

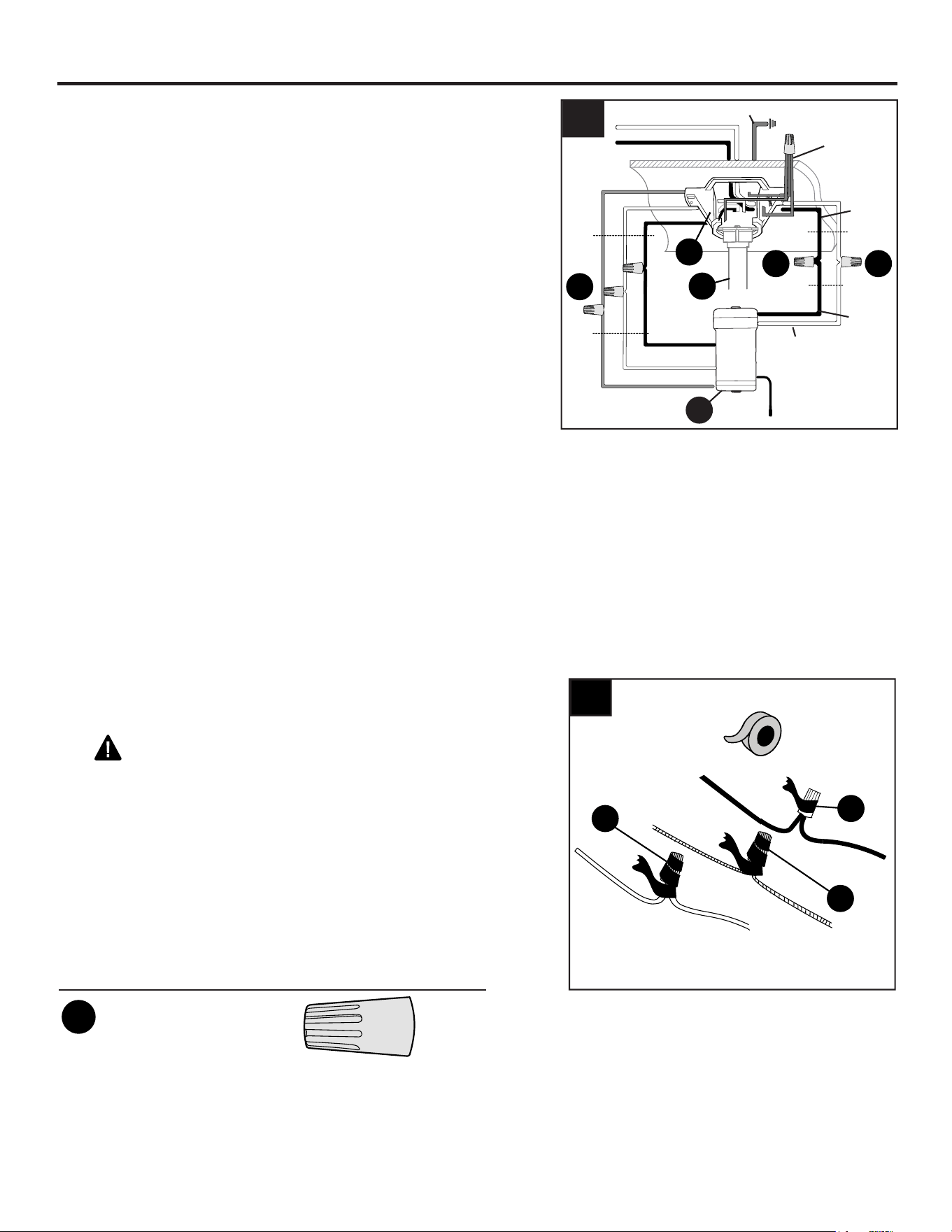

1b.
Connect all GROUND (GREEN) wires from fan
(on downrod (A), if applicable, and mounting
bracket (B)) to BARE/GREEN supply wire from
ceiling.
Connect BLACK wire (labeled AC IN L) from
remote control receiver (Q) to BLACK supply
wire from ceiling.
Connect WHITE wire (labeled AC IN N) from
remote control receiver (Q) to WHITE supply
wire from ceiling.
Connect WHITE wire (labeled TO MOTOR N)
from remote control receiver (Q) to WHITE wire
from motor housing (D).
Connect BLACK wire (labeled TO MOTOR L)
from remote control receiver (Q) to BLACK wire
from motor housing (D).
Connect BLUE wire (labeled FOR LIGHT) from
remote control receiver (Q) to BLUE wire from
motor housing (D).
Q
1b
WHITE SUPPLY WIRE
BLACK SUPPLY WIRE
BLACK
BLACK
WHITE
BLUE
BLUE
WHITE
BLACK
AC IN L
WHITE
AC IN N
WHITE
GROUND (GREEN OR BARE)
BLACK
FROM
RECEIVER
FROM
FAN
FROM
RECEIVER
FROM
CEILING
A
B
GROUND
(GREEN
OR BARE)
CC CC
CC
FINAL INSTALLATION
14
1.
WIRING

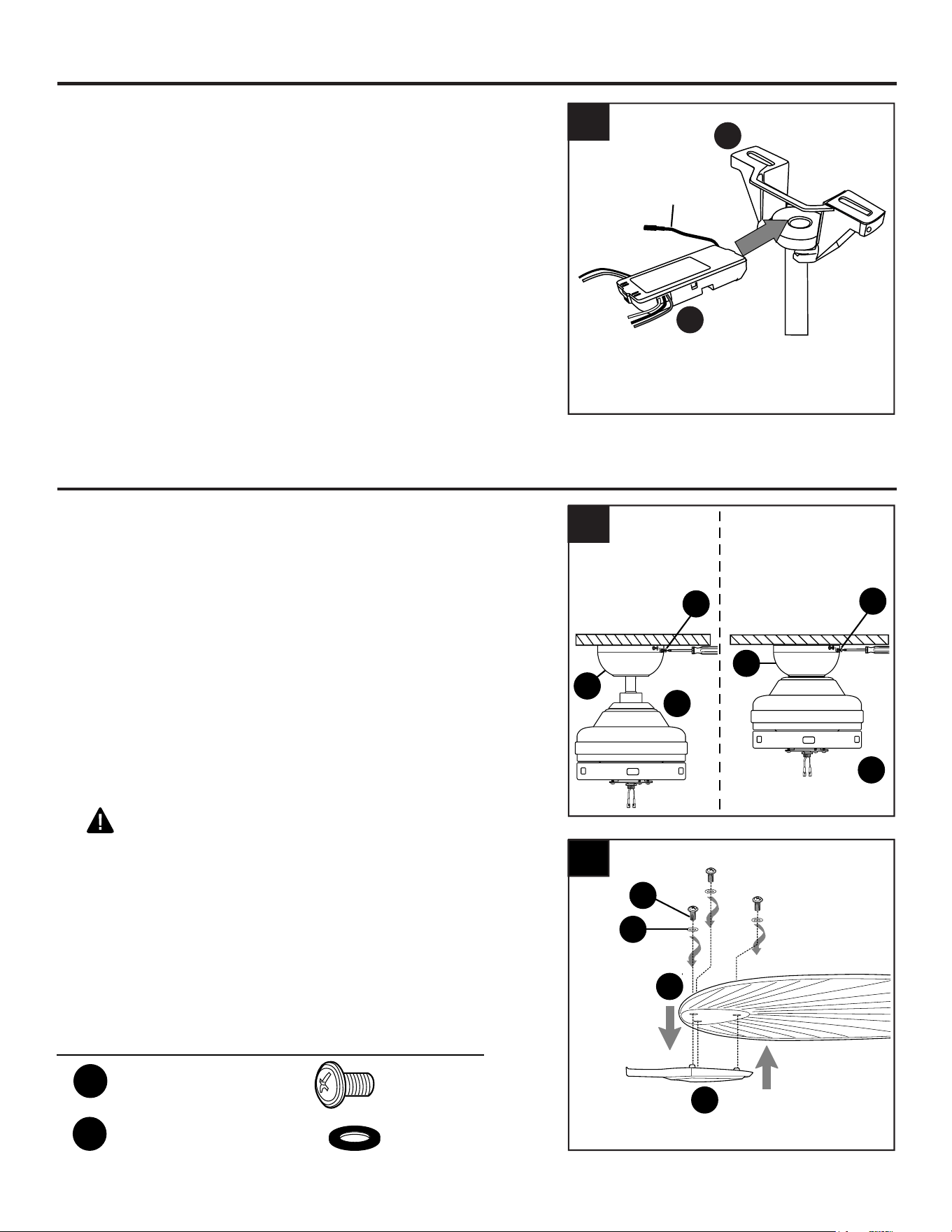

Lift canopy (C) to mounting bracket (B),
aligning slotted holes in canopy (C) with
loosened canopy mounting screws (L) in
mounting bracket (B). Twist canopy (C)
clockwise to lock. Re-insert the two canopy
mounting screws (L) that were previously
removed (Step 4, Page 7) and tighten all
canopy mounting screws (L) securely.
1
C
L
C
Downrod
Option
Closemount
Option
L
D
D
3
Gently slide remote control receiver (Q) flat-side up
into mounting bracket (B). Turn spliced/taped wires
upward and gently push wires and wire connectors
into outlet box. Let antenna from remote control
receiver (Q) hang to the side.
NOTE: The remote control included with this fan
meets the following requirements:
a. Not for use with solid state fans.
b. Electrical rating: 120V / 60 Hz;
motor amps:1.25 MAX.
Should you choose to use a different remote control
with this fan, it must also meet these same
requirements.
3.
Antenna
Q
B
2.
Hardware Used
Blade Screw x 18
AA
Rubber Blade Washer x 18
BB
DANGER: To reduce the risk of serious bodily
injury, DO NOT use power tools to assemble the
blades (M). If screws are overtightened, blades (M)
may crack and break.
Partially insert three blade screws (AA) along with
three rubber blade washers (BB) into holes in blade
(M) (labeled THIS SIDE UP) to attach blade arm (O)
to blade (M). Then, tighten each blade screw (AA)
starting with the one in the middle.
Repeat for remaining blades (M) and blade arms (O).
2
BB
AA
O
M
FINAL INSTALLATION
15
4.
Remove one motor plate screw (J) from motor
plate preassembled on the underside of the motor
housing (D) and partially loosen the other two
motor plate screws (J).
Align slotted holes in fitter plate (F) with loosened
motor plate screws (J), allowing molex
connections to come through hole in fitter plate
(F). Twist fitter plate (F) to lock. Re-insert the
motor plate screw (J) that was removed and
securely tighten all three motor plate screws (J).
4
I
J
I
J
I
J
F
D
5.
Remove one fitter plate screw (K) from
underside of fitter plate (F) and partially
loosen the other two fitter plate screws (K).
Connect WHITE wire from motor housing
(D) to WHITE wire from LED light kit (G).
Connect BLACK (or BLUE) wire from motor
housing (D) to BLACK wire from LED light
kit (G). Make sure connections are secure.
Molex
Connections
molex
connections

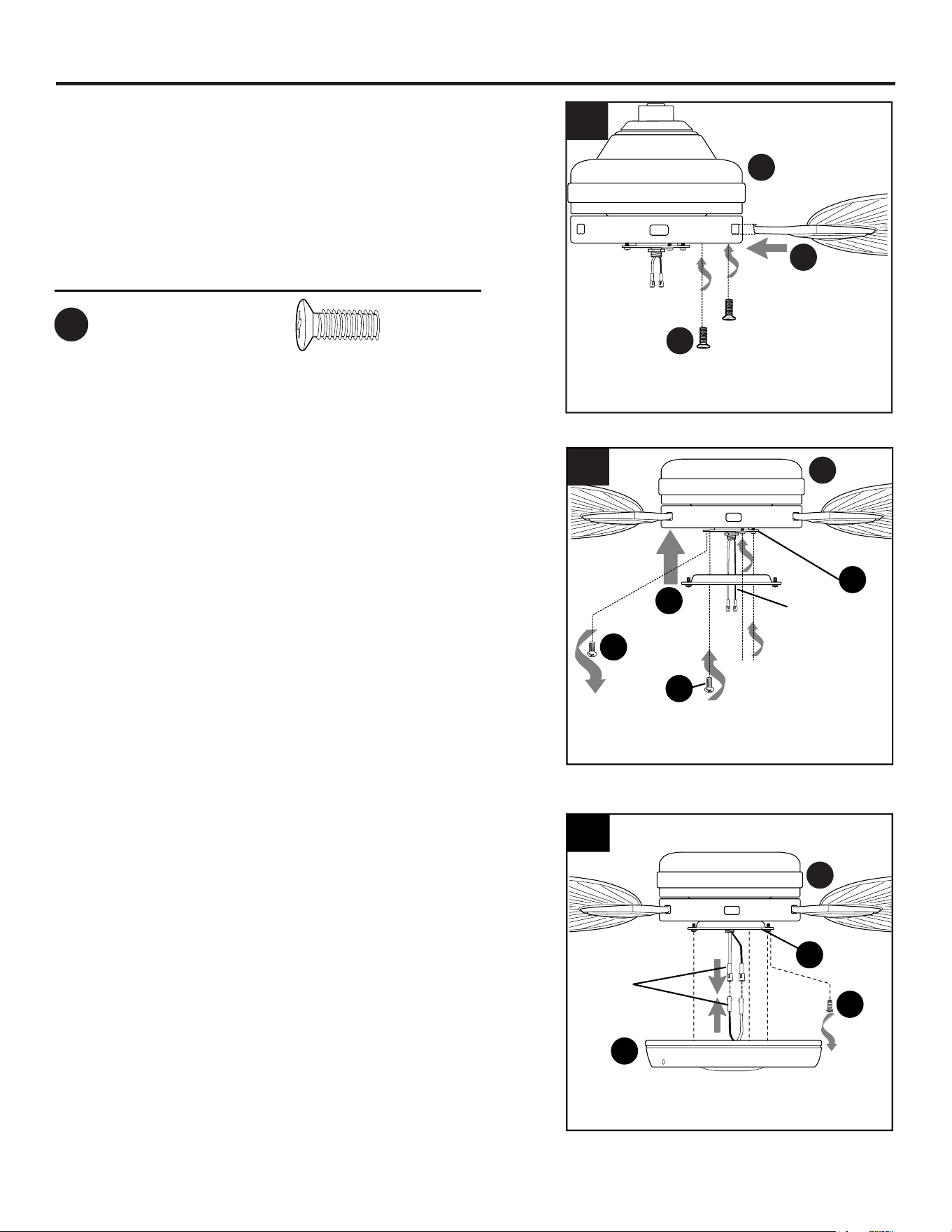

Insert the blade arm (O) through the slot on the
band of the motor housing (D). Align holes in blade
arm (O) with holes in underside of motor. Attach the
blade arm (O) with blade arm screws (DD). Tighten
blade arm screws (DD) securely. NOTE: Make sure
to completely secure each blade arm (O) before
proceeding to the next.
3.
3
3
D
O
DD
DD
Blade Arm Screw x 12
Hardware Used
D
F
G
K
5
D
F
G
K
FINAL INSTALLATION
16

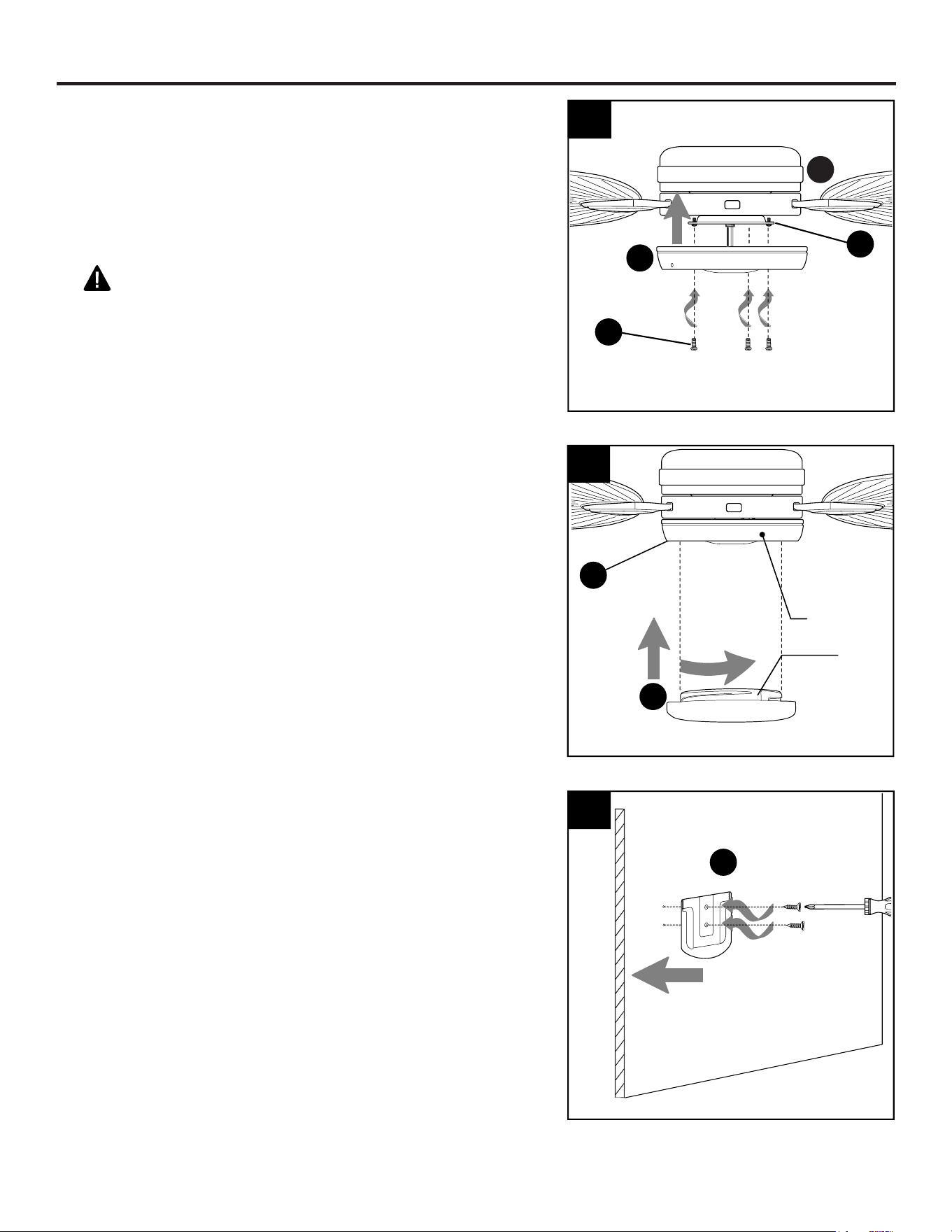

6.
Carefully arrange all wires and wire
connections inside fitter plate (F). Align slotted
holes in LED light kit (G) with loosened fitter
plate screws (K). Twist LED light kit (G) to lock.
Re-insert the fitter plate screw (K) that was
removed and securely tighten all three fitter
plate screws (K).
CAUTION: Make sure no wires are being
pinched before securing LED light kit (G).
6
7.
Align slots on shade (E) with protrusions on
the inside border of LED light kit (G). Turn
shade (E) clockwise until it no longer turns.
NOTE: Pull down gently on the shade (E) to
make sure it is completely secured.
7
Slot
Protrusion
E
G
8
Remote Control
Bracket
Wall
8.
If you wish to use the remote control bracket from
remote pack (R), install screws from remote pack (R)
through bracket and into the desired installation site.
The remote control transmitter from remote pack (R)
rests inside the bracket.
Bracket
Screws
R
17
FCC Compliance Notice for Remote Control and LED Light Kit
CAUTION: Changes or modifications not approved by the party responsible for compliance could void
the user's authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, (2) this device must accept any interference received,
including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
* Consult the dealer or an experienced radio/TV technician for help.
Distributed by: Litex Industries Inc., P.O. Box 535639, Grand Prairie, TX, 75053; 1-800-527-1292
CAUTION: The remote control transmitter can be programmed to multiple receivers or fans. If this is
not desired, turn wall switch off to any other programmable receiver or fan.
OPERATING INSTRUCTIONS

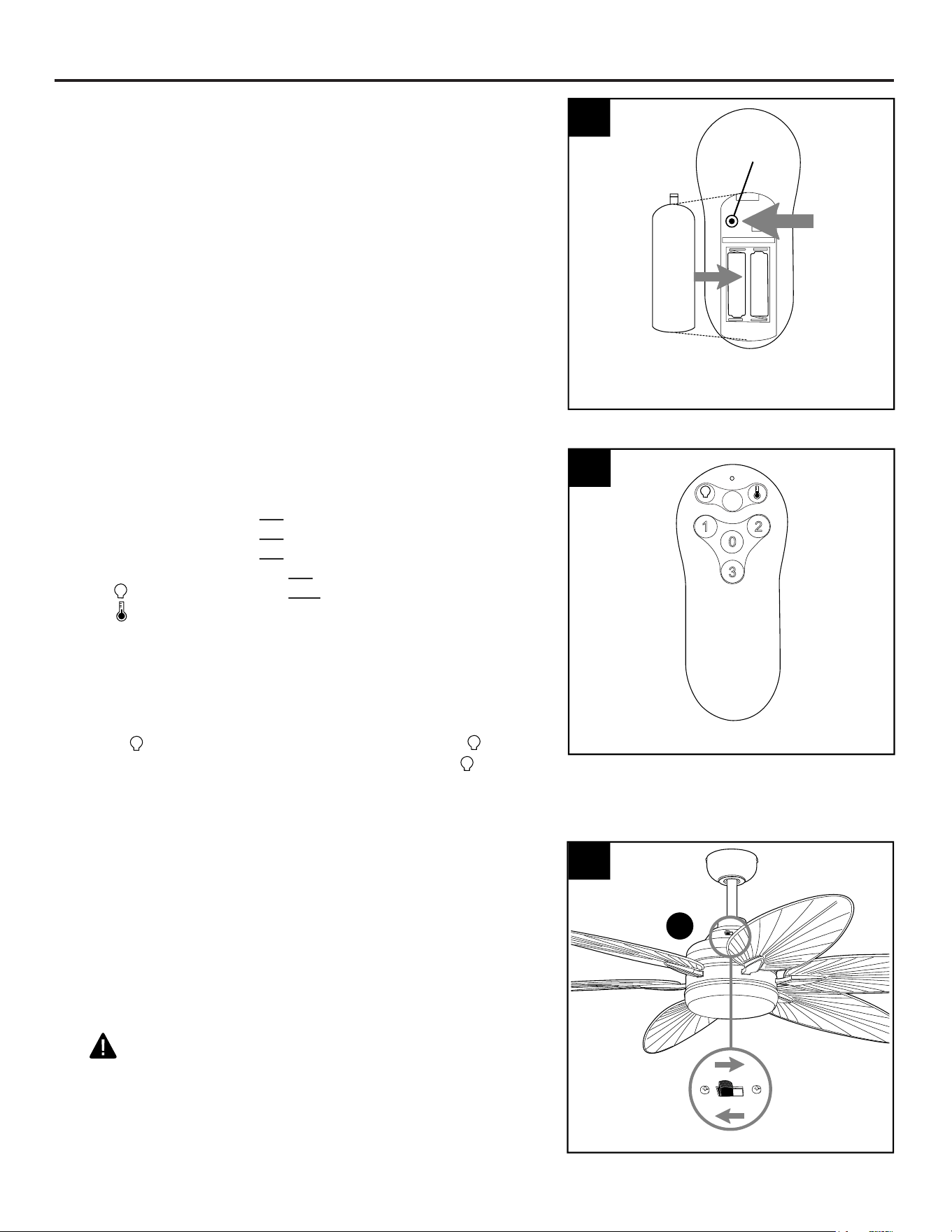

Locate batteries and remote control transmitter in
remote pack (R). Remove protective covering from
each one and discard protective covering. Remove
battery cover from back of remote control transmitter.
Install two AAA batteries (included).
WARNING:Batteries are to be inserted with
correct polarity.
WARNING: Choking Hazard - Small parts. Keep
batteries away from children.
NOTE: DO NOT mix old and new batteries; DO NOT
mix alkaline, standard (carbon - zinc) or rechargeable
(nickel - cadmium) batteries or equivalent.
NOTE: Batteries are NOT rechargeable. Remove
batteries with low or no charge and dispose of
properly.
1.
1
Battery
Cover
Remote Control
Transmitter (back side)
Batteries
AAA
-
+
-
+
AAA
R
CAUTION: “DO NOT DISPOSE OF BATTERIES IN FIRE, BATTERIES MAY EXPLODE OR LEAK.” -
When disposing of household alkaline batteries, it is best to check with your local and state recycling or
household hazardous waste coordinators concerning the specifics of the program in your area.
18
OPERATING INSTRUCTIONS
(back side)
LEARN
button
2.
Restore electrical power. Within 30 seconds of
powering fan, press and hold LEARN button on the
back of remote control transmitter for 5 seconds (or
until light turns on) in order to synchronize remote
with fan motor. Use the remote control transmitter to
test the light and fan functions to confirm the learning
process is complete.
Replace battery cover on remote control transmitter
IMPORTANT: To prevent damage to remote control
transmitter, remove the battery if not used for long
periods. Store the remote control transmitter away
from excess heat or humidity.
NOTE: If fan and/or remote control fail(s) to operate
or you have purchased a new remote control
transmitter, make sure to turn the power off first.
Remote Control Transmitter
2
Operation buttons on the panel of the remote control
transmitter:
3 button for fan HIGH speed
2 button for fan MEDIUM speed
1 button for fan LOW speed
0 button to turn fan OFF
button to turn light ON or OFF
button to change/select color mode:
– warm white
– bright warm white
– natural white
– bright white
– daylight
Tap button quickly to turn light off or on. Hold button
down to increase or decrease light. If you press button
in excess of 0.7 seconds, it becomes a dimmer. The light
varies cyclically in 8 seconds. The light button has an auto
resume function, which keeps the light at the same
brightness as the last time it was turned off.
3.
3
Remote Control Transmitter
4.
Use the fan reverse switch, located on the top of the
motor housing (D), to optimize the fan for seasonal
performance. A ceiling fan will allow you to raise your
thermostat setting in summer and lower your
thermostat setting in winter without feeling a difference
in your comfort.
CAUTION: Turn fan off at wall switch and let
blades (M) come to a complete stop before manually
activating the reverse switch.
4
Reverse Switch
D
19

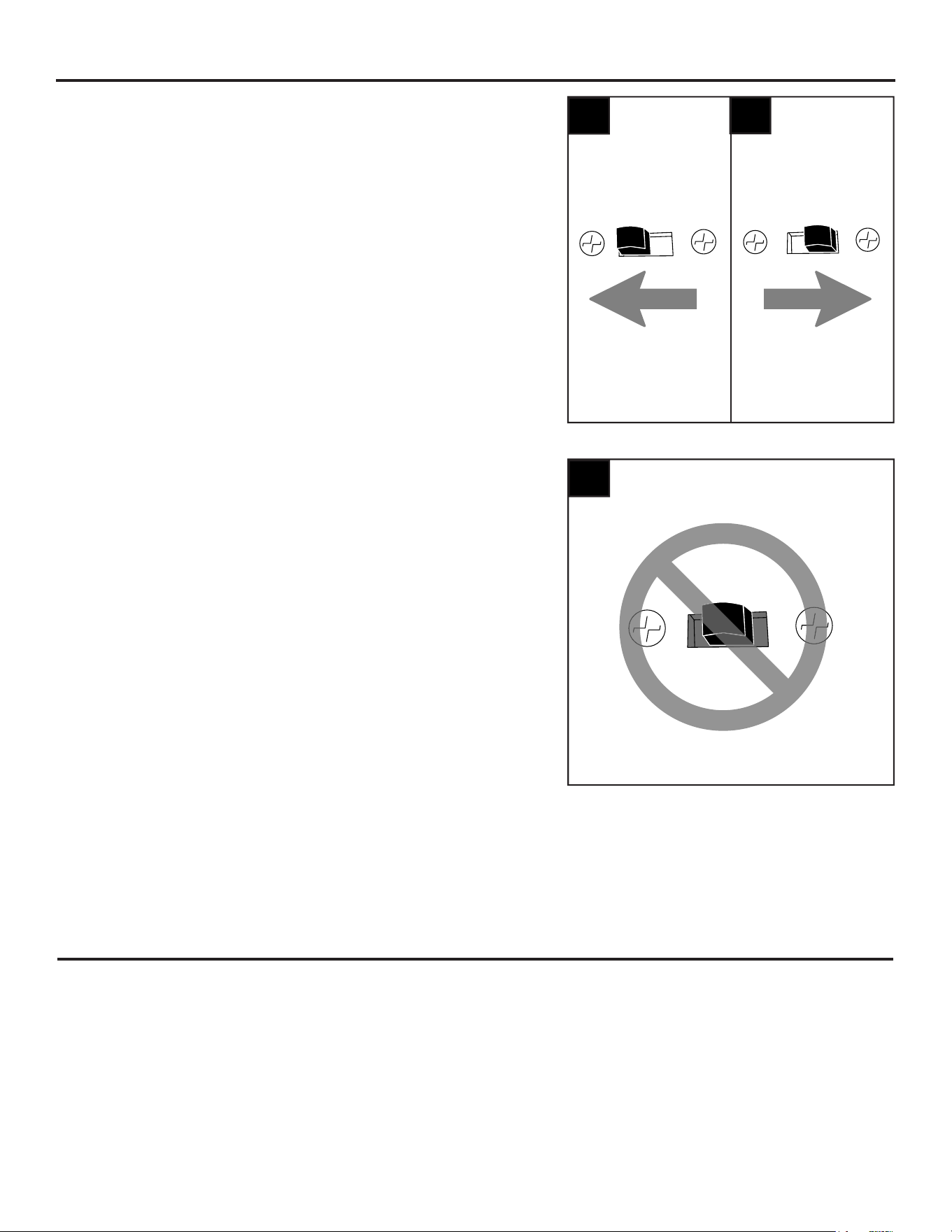

OPERATING INSTRUCTIONS
4A
4B
4A. In warmer weather, setting the reverse switch in
the LEFT position will result in downward airflow
creating a wind chill effect.
4B. In cooler weather, setting the reverse switch in
the RIGHT position will result in upward airflow that
can help move stagnant, hot air off the ceiling area.
4C
4C. IMPORTANT: Reverse switch must be
set either completely LEFT or completely
RIGHT for fan to function. If the reverse
switch is set in the middle position, fan will not
operate.
CARE AND MAINTENANCE
At least twice each year, lower canopy (C) to check downrod (A) assembly and tighten all screws on
fan. Clean motor housing (D) with only a soft brush or lint-free cloth to avoid scratching the finish.
Clean blades (M) with a lint-free cloth.
IMPORTANT: Shut off main power supply before beginning any maintenance. Do not use water or a
damp cloth to clean the ceiling fan.
Total wattage for the LED light kit on this fan is 18 watts; do not attempt to replace the LEDs.
20
WARNING: Before beginning work, shut off the power supply to avoid electrical shock.
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Fan does not move. 1. Reverse switch not engaged.
2. Power is off or fuse is blown.
3. Faulty wire connection.
4. Molex connections not connected
properly.
1. Push switch firmly either left or right.
2. Turn power on or check fuse.
3. Turn power off. Loosen canopy and
check all connections.
4. Check that molex connections in
switch housing are connected
properly according to instructions on
page 15.
Noisy operation.
1. Blades are loose.
2. Cracked blade.
3. Full range dimmer switch.
4. Fan is new.
1. Tighten all blade screws.
2. Replace blade.
3. Replace with an approved speed
control device.
4. Allow fan a “break in” period of a few
days, especially when running the
fan at Medium and High speeds.
Excessive wobbling.
1. Blades are loose.
2. Blade arms incorrectly attached.
3. Unbalanced blades.
4. Fan not securely mounted.
5. Fan too close to vaulted ceiling.
6. Set screw(s) on motor housing yoke
is (are) not tightened properly.
7. Set screw on hanging ball is not
tightened properly.
1. Tighten all blade screws.
2. Re-install blade arms.
3. Switch one blade with a blade from
the opposite side.
4. Turn power off. Carefully loosen
canopy and verify that mounting
bracket is secure.
5. Use a longer downrod or move fan
to another location.
6. Tighten yoke set screw(s) securely.
7. Carefully loosen and lower canopy
and verify that set screw on hanging
ball is tightened securely.
NOTE: A small amount of "wobble" is normal and should not be considered a defect.
TROUBLESHOOTING
Fan operates but
light fails
1. Wires in canopy not wired properly.
2. Wall switch to fan is off.
3. Wires from LED light kit not wired
correctly.
1. Check wires in canopy and, if
necessary, re-wire according to
instructions on page 13.
2. Make sure that wall switch to fan is
on.
3. Check wires from LED light kit and,
if necessary, re-wire according to
instructions on page 15.
Remote control fails
to operate.
1. Remote control transmitter not
synced with fan.
2. Battery not installed correctly.
3. Battery no longer working.
1. Refer to instructions in Step 2 on
page 18.
2. Check that battery has been
installed with correct polarity.
3. Replace battery according to
instructions on page 17.
Printed in China
21
GGLI2306
LIMITED LIFETIME WARRANTY
Set forth below, the manufacturer warrants the fan motor for this ceiling fan to be free from defects in
workmanship and material for the life of the product. Also, subject to the limitations below, the
manufacturer warrants all ceiling fan parts (“ceiling fan parts” excludes the motor and parts made in
whole or in part with glass) to be free from defects in workmanship and material for a period of one year
after the date of purchase by the original purchaser at retail.
All claims must be made by the original purchaser, whether such purchaser purchased the product
through a store or contractor. Ceiling fan part defects must be reported within the first year from the date
of purchase. Parts made in whole or in part with glass and the finishes of metal and other surfaces are
not warranted.
Purchasers are responsible for all costs of removing and reinstalling the product. Any damage to any
part caused by ordinary wear and tear, accident, misuse, or improper installation, is not covered by this
warranty. The manufacturer assumes no responsibility whatsoever for fan installation. Any service
performed by a non-licensed electrician will render the warranty invalid.
The manufacturer’s sole responsibility shall be to repair or replace the motor, parts, or product within the
terms stated above. The manufacturer shall not be liable for any loss or damage of any kind, including
any incidental or consequential damages resulting directly or indirectly, from any breach of warranty,
express or implied, or any other failure of this product. Some states do not allow the exclusion or
limitation of incidental or consequential damages so this limitation may not apply to you.
If the original purchaser ceases to own the fan, this warranty is voided.
Should the purchaser encounter a problem with your fan related to defects in workmanship or materials
within the warranty period associated with the defective part, the manufacturer agrees to replace the
defective part without charge, or at its option, to replace the ceiling fan with a comparable or superior
model.
The manufacturer’s warranties are limited to the written warranties set out in this ceiling fan limited
lifetime warranty. All other express and implied warranties, including, without limitation, the implied
warranty of fitness for a particular purpose and the implied warranty of merchantability are disclaimed.
Some states do not allow the disclaimer of implied warranties, so this disclaimer may not apply to you.
E
PART DESCRIPTION PART#
A Downrod
B Mounting Bracket
C Canopy
E Shade
M Blade
O Blade Arm
REPLACEMENT PARTS LIST
5497063-A
5497063-B
5497063-C
5497063-E
5497063-M
5497063-O
A
B
C
O
M
For replacement parts, call our customer service department at 888-251-1003, 8 a.m. - 8 p.m., EST,
Monday - Sunday. You could also contact us at [email protected].
