Purchase Date
1
4007498
COGDELL CEILING FAN
Español p. 20
MODEL #COG60BK7LR
COG60MWW7LR
ATTACH YOUR RECEIPT HERE
APPROVED FOR USE IN
DAMP LOCATIONS
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 800-527-1292, 8:30 a.m. - 5 p.m., CST, Monday - Friday.
ITEM #5190467
5730161
2
TABLE OF CONTENTS
CAUTION: Changes or modifications not approved by the party responsible for compliance could
void the user's authority to operate the equipment.
*NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
The device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, (2) this device must accept any
interference received, including interference that may cause undesired operation..
Distributed by: Litex Industries Inc., P.O. Box 535639, Grand Prairie, TX, 75053; 800-527-1292
NOTE: Dimmable to 10%.
SAFETY INFORMATION
Safety Information .................................................................................................................................2
Package Contents .................................................................................................................................5
Hardware Contents ..............................................................................................................................6
Preparation ..........................................................................................................................................6
Initial Instalación....................................................................................................................................6
Downrod-Style Fan Mounting ...............................................................................................................8
Closemount-Style Fan Mounting ...................................................................................................... 10
Wiring ................................................................................................................................................ 11
Final Instalation ................................................................................................................................. 12
Operating Instructions ........................................................................................................................ 16
Care and maintenance ..................................................................................................................... 18
Troubleshooting ................................................................................................................................. 18
Limited Lifetime Warranty .................................................................................................................. 19
Replacement Parts List ..................................................................................................................... 19
3
READ AND SAVE THESE INSTRUCTIONS
Please read and understand this entire manual before attempting to assemble, install or
operate the product. Review the accompanying assembly diagrams.
• Do not discard fan carton or foam inserts. Should this fan need to be returned to the factory for
repairs, it must be shipped in its original packaging to ensure proper protection against damage that
might exceed the initial cause for return.
• Make sure all electrical connections comply with local codes, ordinances, the National Electrical
Code and ANSI/NFPA 70-1999. Hire a qualified electrician or consult a do-it-yourself wiring
handbook if you are unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum clearance of 7 ft. from the blades to
the floor and at least 30 in. from the end of the blades to any obstruction.
• After you install the fan, make sure all connections are secure to prevent the fan from falling.
• The net weight of this fan including the light kit is: 15.65 lbs.
To reduce the risk of fire, electrical shock or personal injury, mount fan to outlet box
marked "ACCEPTABLE FOR FAN SUPPORT OF 35 LBS. (15.9 KG) OR LESS" and use
mounting screws provided with the outlet box. Most outlet boxes commonly used for the
support of lighting fixtures are not acceptable for fan support and may need to be replaced.
Consult a qualified electrician if in doubt.
When mounting fan to a ceiling outlet box, use a METAL octagonal outlet box; do NOT use a
plastic outlet box. Secure the outlet box directly to the building structure. The outlet box and its
support must be able to support the moving weight of the fan (at least 35 lbs.).
To avoid personal injury, the use of gloves may be necessary while handling fan parts with sharp
edges.
To reduce the risk of fire, electrical shock or personal injury, wire connectors provided with this fan
are designed to accept only one 12-gauge house wire and two lead wires from the fan. If your
house wire is larger than 12-gauge or there is more than one house wire to connect to the
corresponding fan lead wires, consult an electrician for the proper size wire connectors to use.
WARNING
DANGER
When using an existing outlet box, make sure the outlet box is securely attached to the building
structure and can support the full weight of the fan. Failure to do this can result in serious injury or
death. The stability of the outlet box is essential in minimizing wobble and noise in the fan after
installation is complete.
To reduce the risk of serious bodily injury, DO NOT use power tools to assemble any part of the
fan, including the blades.
SAFETY INFORMATION
4
SAFETY INFORMATION
To reduce the risk of fire or electrical shock, do not use the fan with any solid state speed control
device or control fan speed with a full range dimmer switch.
To reduce the risk of fire, electrical shock or personal injury, do not bend the blades when
installing or balancing them, or cleaning the fan. Do not insert objects between the rotating fan
blades.
To reduce the risk of personal injury, use ONLY parts provided with this fan. The use of parts
OTHER than those provided with this fan will void the warranty.
Before installation, be sure to shut off electricity at main switch or circuit breaker in order to avoid
electrical shock.
WARNING
The DC Motor will not operate until blades are installed.
Be sure outlet box is properly grounded and that a ground wire (green or bare) is present.
Once installation is complete, carefully check all screws, bolts and nuts on fan motor assembly to
ensure that they are secured.
Do NOT tamper with or attempt to repair LED component. The light source is designed for this
specific application and should not be serviced by untrained personnel. If any servicing is
required, call our customer service department.
CAUTION

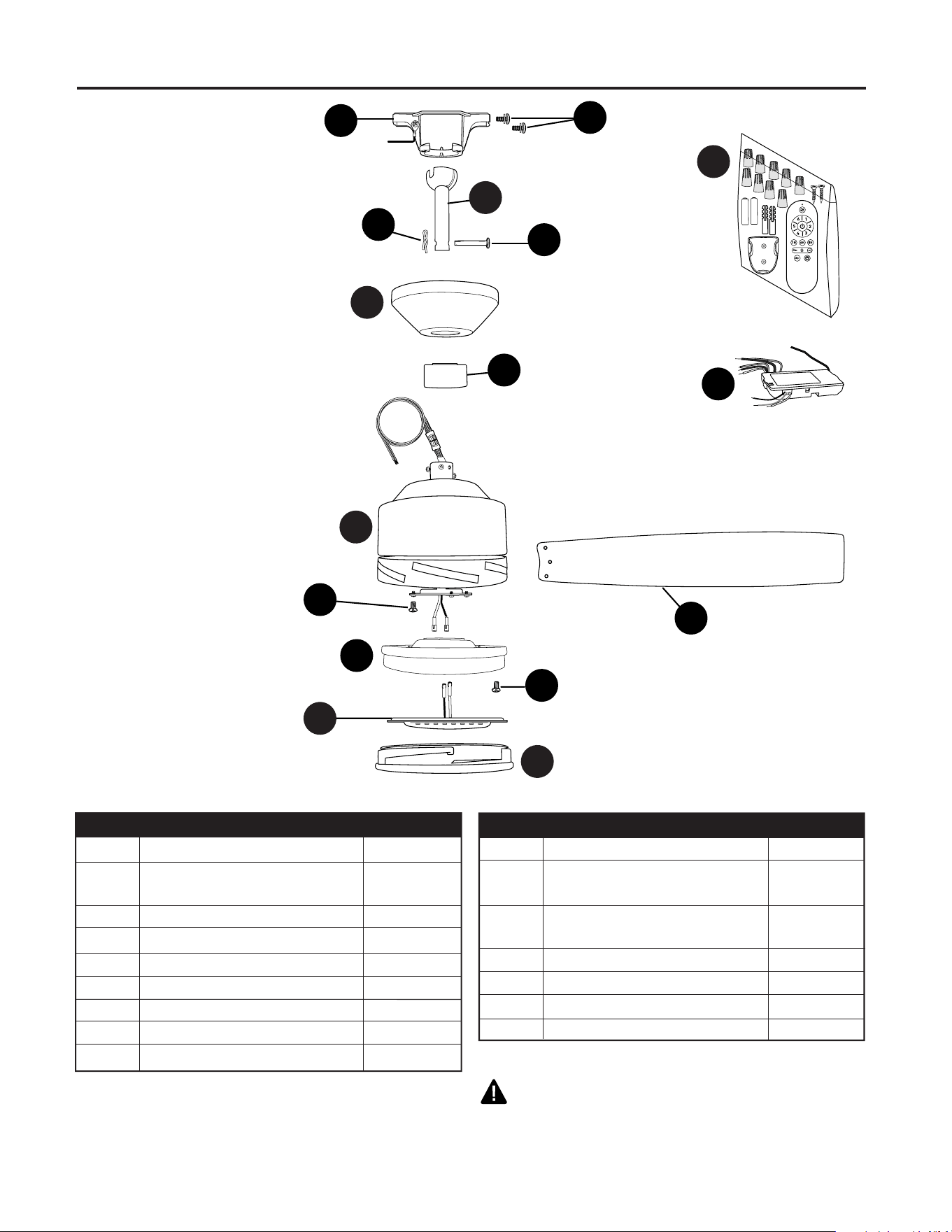

PACKAGE CONTENTS
5
A Mounting Bracket 1
B Canopy Mounting Screw 4
(preassembled)
C Downrod 1
D Pin (preassembled) 1
E Clip (preassembled) 1
F Canopy 1
G Remote Pack 1
H Yoke Cover 1
I Motor Housing 1
DESCRIPTIONPART
QUANTITY
DESCRIPTIONPART
QUANTITY
J Fitter Plate 1
K Motor Plate Screw 3
(preassembled)
L Fitter Plate Screw 3
(preassembled)
M LED Light Kit 1
N Shade 1
O Blade 7
P Remote Control Receiver 1
IMPORTANT REMINDER: You must use the
parts provided with this fan for proper installation
and safety.
L
D
E
H
I
G
J
N
O
M
P
F
K
B
A
C
6

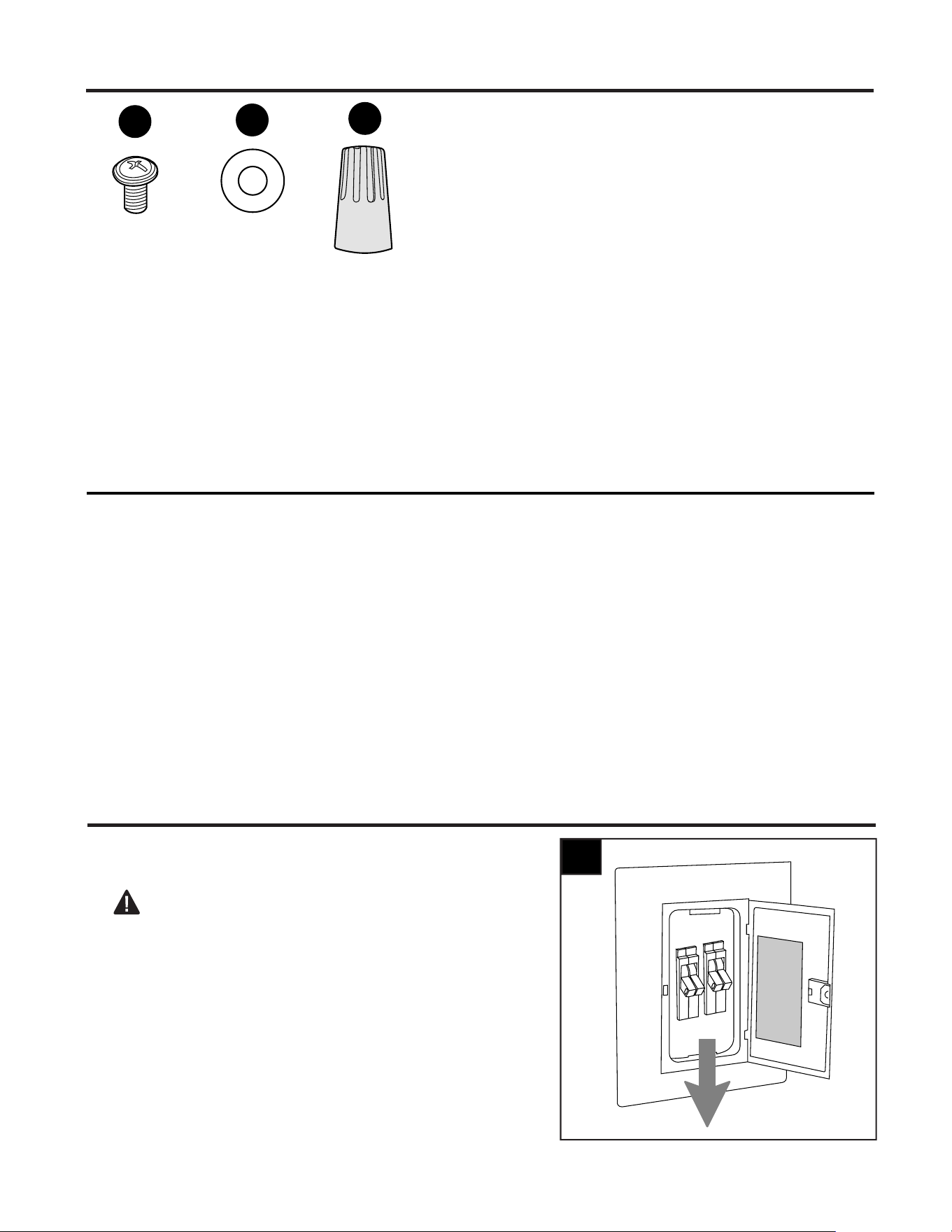

HARDWARE CONTENTS (shown actual size)
Before beginning assembly of product, make sure all parts are present. Place motor on carpet or on
foam to avoid damage to finish. Compare parts with package contents list and hardware contents list.
If any part is missing or damaged, do not attempt to assemble the product.
Estimated Assembly Time: 120 minutes
Tools Required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety
Glasses, Stepladder, Wire Strippers and Precision Screwdriver (0 x 2 in.).
Helpful Tools (not included): AC Tester Light, Tape Measure, Do-It-Yourself Wiring Handbook and
Wire Cutters.
PREPARATION
INITIAL INSTALLATION
ON
OFF
ON
OFF
1
Turn off circuit breakers and wall switch to the
fan supply line leads.
DANGER: Failure to disconnect power
supply prior to installation may result in serious
injury or death.
1.
AA
Blade
Screw
Qty. 21
+ 1 extra
Fiber
Blade
Washer
Qty. 21
+ 1 extra
BB
CC
CC
Wire
Connector
Qty. 3
+ 1 extra
INITIAL INSTALLATION
7

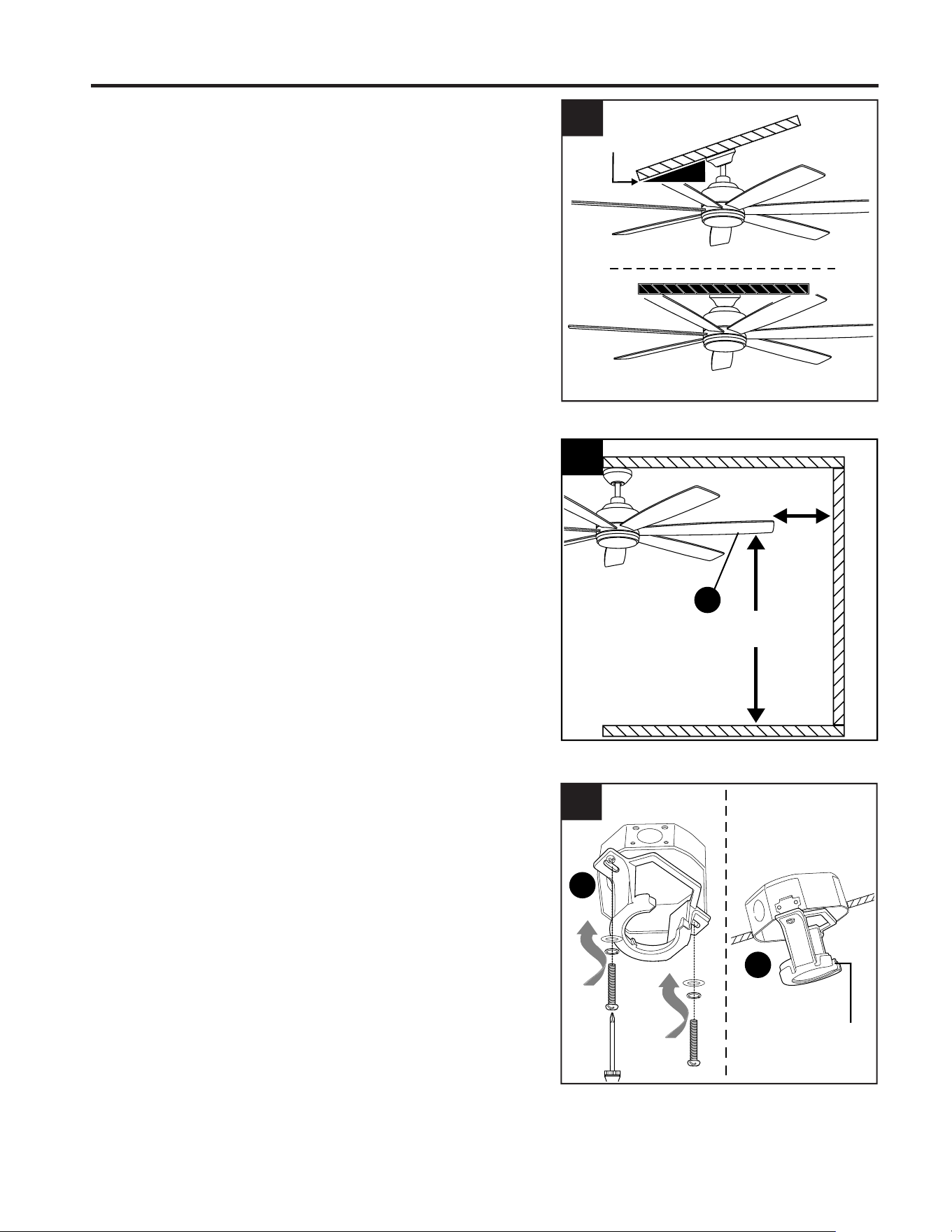

Check to make sure blades (O) will be at least
30 inches from any obstruction at least 7 ft. above
the floor.
3.
7 ft.
min.
30 in.
min.
3
O
2.
Determine mounting method to use.
A. Downrod mount (standard or angled ceiling)
B. Closemount (standard ceiling only)
IMPORTANT: If using the angle mount, ensure the
ceiling angle is not steeper than 15°.
*Helpful Hint: Downrod-style mounting is best
suited for ceilings 8 ft. or higher. For taller ceilings
you may want to use a longer downrod (not
included). Angle-style mounting is best suited for
angled or vaulted ceilings. A longer downrod is
sometimes necessary to ensure proper blade
clearance.
A
B
2
15° max.
4.
Secure mounting bracket (A) to outlet box (not
included) using screws, spring washers and flat
washers provided with the outlet box.
*NOTE: It is very important you use the proper
hardware when installing the mounting bracket (A)
as this will support the fan.
IMPORTANT: If using the angle mount, make sure
open end of mounting bracket (A) is installed facing
the higher point of the ceiling, and ensure the ceiling
angle is not steeper than 19°.
For DOWNROD-STYLE FAN MOUNTING, proceed
to the following page.
For CLOSEMOUNT-STYLE FAN MOUNTING, skip
to page 10.
Open End
4
A
ANGLE MOUNTSTANDARD
MOUNT
4
A

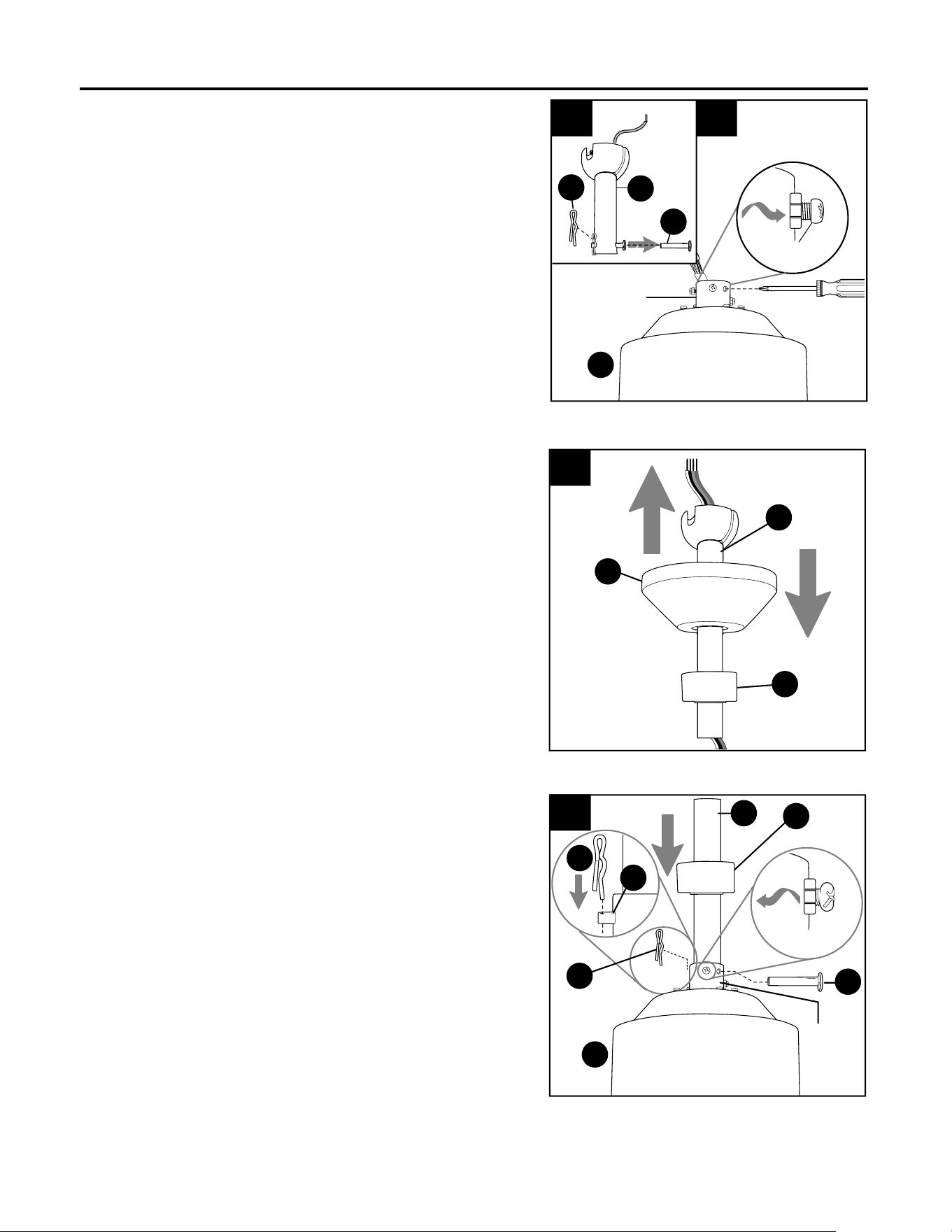

Remove pin (D) and clip (E) from downrod (C).
Partially loosen preassembled set screws and nut
in yoke at top of motor housing (I).
1a.
1a
E
1b
C
Set Screw
Sideview
D
Yoke
2.
Insert downrod (C) through canopy (F) and yoke
cover (H).
Then, thread wiring from motor housing (I)
through downrod (C).
2
F
H
C
1b.
I
3.
Slip downrod (C) into motor housing yoke, align
holes and re-install pin (D) and clip (E). Tighten
set screws in motor housing yoke and then tighten
preassembled nut on one of the set screws. Then,
slide yoke cover (H) down until it rests on top of
motor housing (I).
3
I
H
E
Yoke
Set Screw
and Nut
Sideview
8
D
E
C
DOWNROD-STYLE FAN MOUNTING
D
9
DOWNROD-STYLE FAN MOUNTING

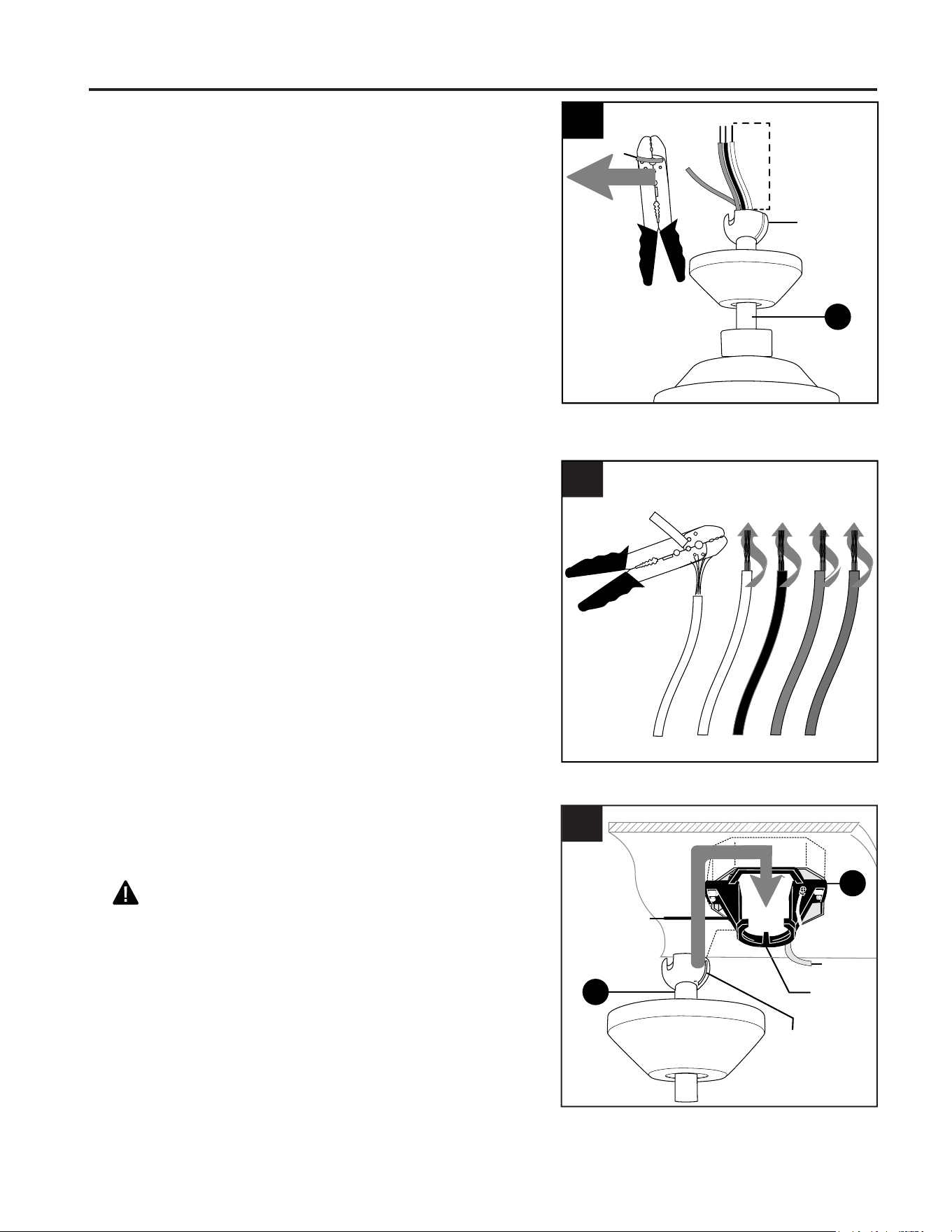

If you decided to cut back the lead wires in Step 4,
strip 3/4 in. of insulation from end of each wire --
WHITE, BLUE, PINK, GRAY and RED (if
applicable). Twist stripped ends of each strand of
wire within the insulation with pliers (not included).
Depending on the length of downrod you use, you
may need to cut the lead wires back to simplify
the wiring. If you decide to cut back the lead
wires, it is suggested you do so in the following
manner:
Take the lead wires and make sure you have
pulled them all the way through the top of the
downrod. Start at the TOP of the hanging ball on
the downrod and measure 8 in. of lead wire, then
cut the excess wire off with wire cutters (not
included).
NOTE: If you do not cut back the lead wires, Step
5 is not necessary and you may proceed to
Step 6 instead.
Hanging
Ball
4
8 in.
5
5.
4.
Install hanging ball of downrod (C) into opening of
mounting bracket (A). Align one of the slots in
hanging ball with tab in mounting bracket (A).
DANGER: Failure to align one of the slots in
the ball with the tab may result in serious injury or
death.
Tab
A
6.
C
Slot
6
C
10

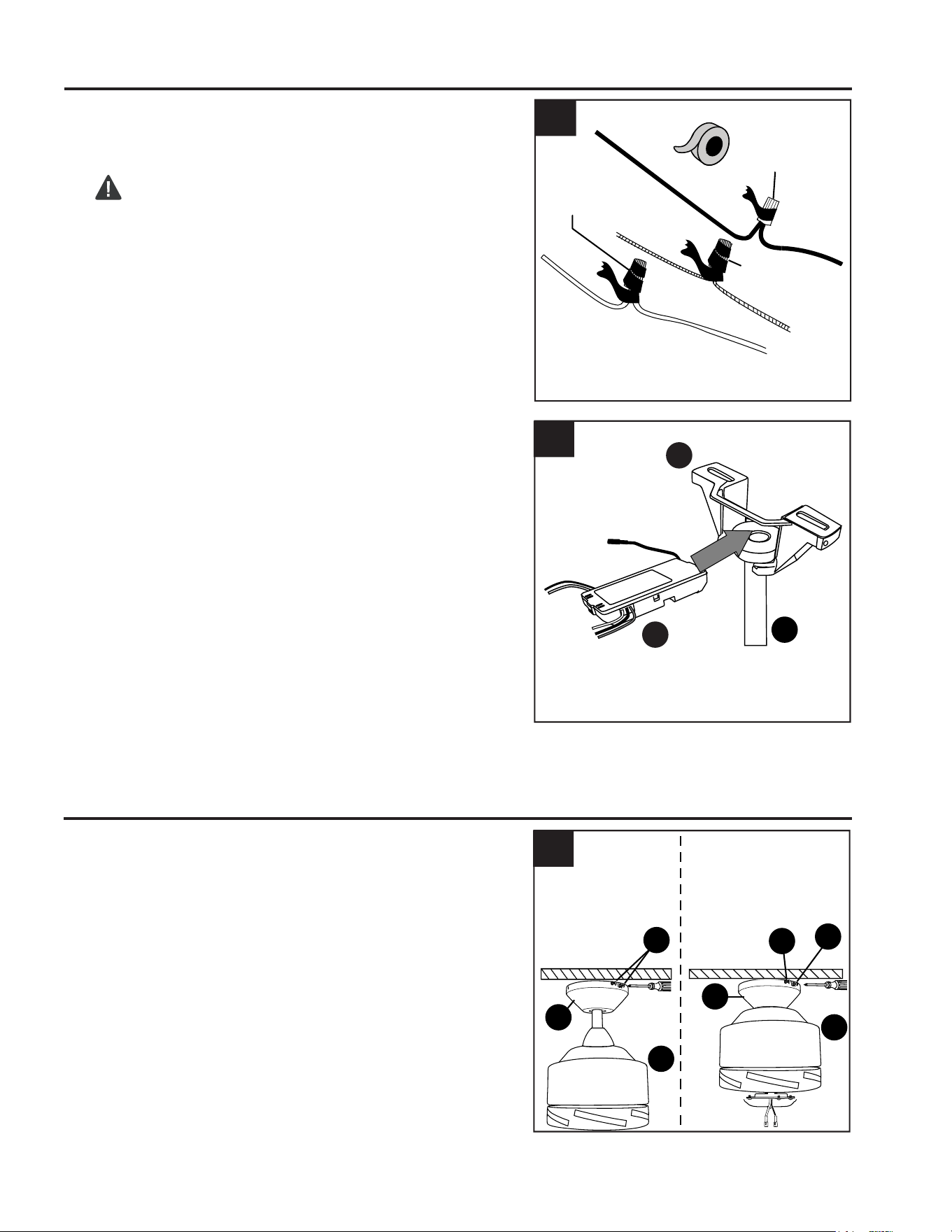

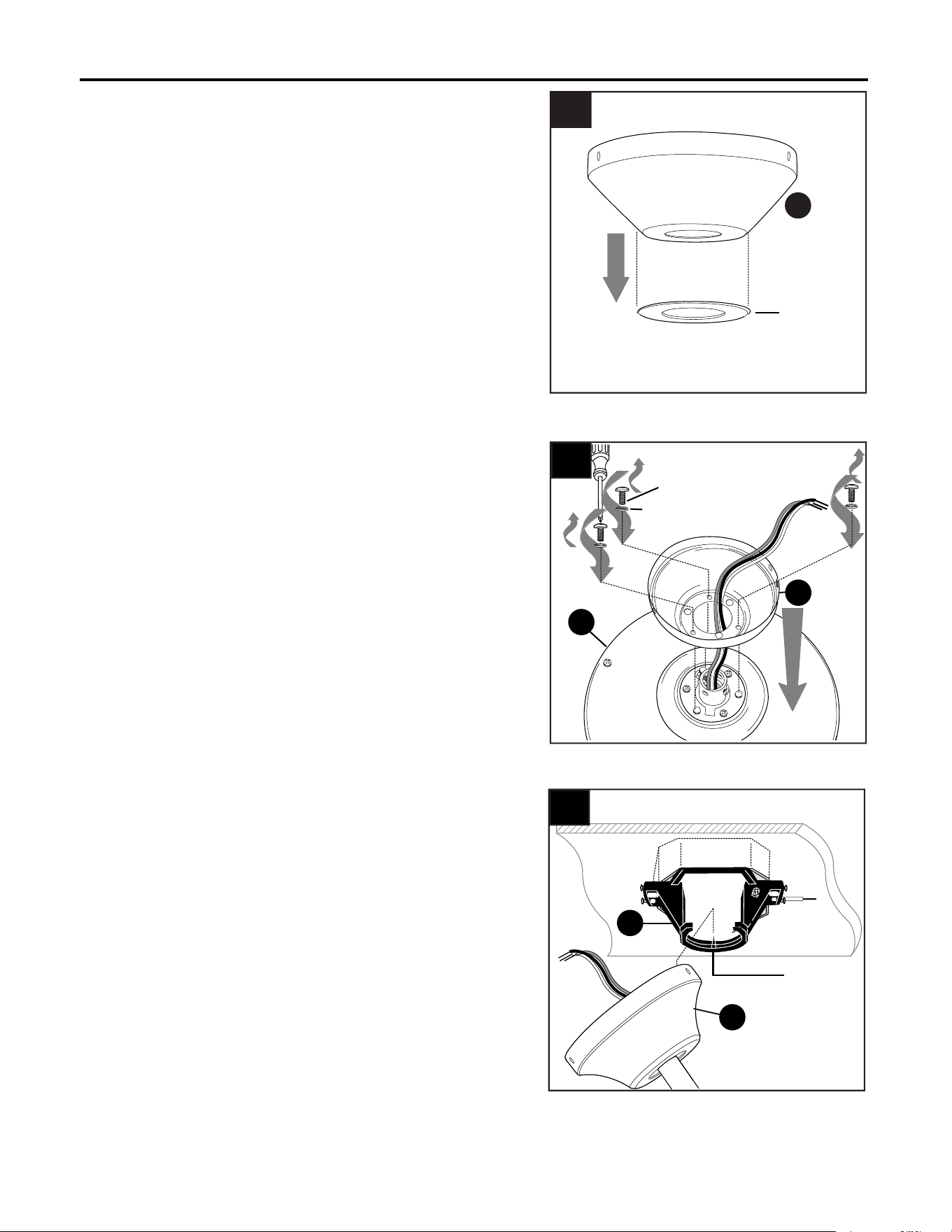

CLOSEMOUNT-STYLE FAN MOUNTING
Remove preassembled canopy cover from bottom
of canopy (F). NOTE: To remove canopy cover
from canopy (F), twist canopy cover until the two
small protrusions on the inner lip of the canopy
cover align with the two notches on the bottom of
the canopy (F). Pull on canopy cover to remove.
NOTE: The downrod (C) and canopy cover are
not used in this type of installation.
1.
1
Canopy
Cover
F
Remove every other preassembled screw and
lock washer from top of motor housing (I).
Pull wires up through hole in the middle of the
canopy (F) and attach canopy (F) to motor
housing (I) using the three previously removed
screws and lock washers.
2.
3.
Tab
Temporarily hang fan on the tab on the mounting
bracket (A) using one of the non-slotted holes in
the canopy (F).
2
F
I
Screw
Lock Washer
A
3
F
11
WARNING: To reduce the risk of fire, electrical shock
or personal injury, wire connectors provided with this fan
are designed to accept only one 12-gauge house wire and
two lead wires from the fan. If your house wire is larger
than 12-gauge or there is more than one house wire to
connect to the corresponding fan lead wires, consult an
electrician for the proper size wire connectors to use.
CAUTION: Be sure outlet box is properly grounded and
that a ground (green or bare) wire is present.
WARNING: If house wires are different colors than
referred to in the following steps, stop immediately. A
professional electrician is recommended to determine
wiring.
WARNING: Using a full range dimmer switch (not
included) to control fan speed will cause a loud humming
noise from fan. To reduce the risk of fire or electrical shock,
do NOT use a full range dimmer switch to control fan
speed.

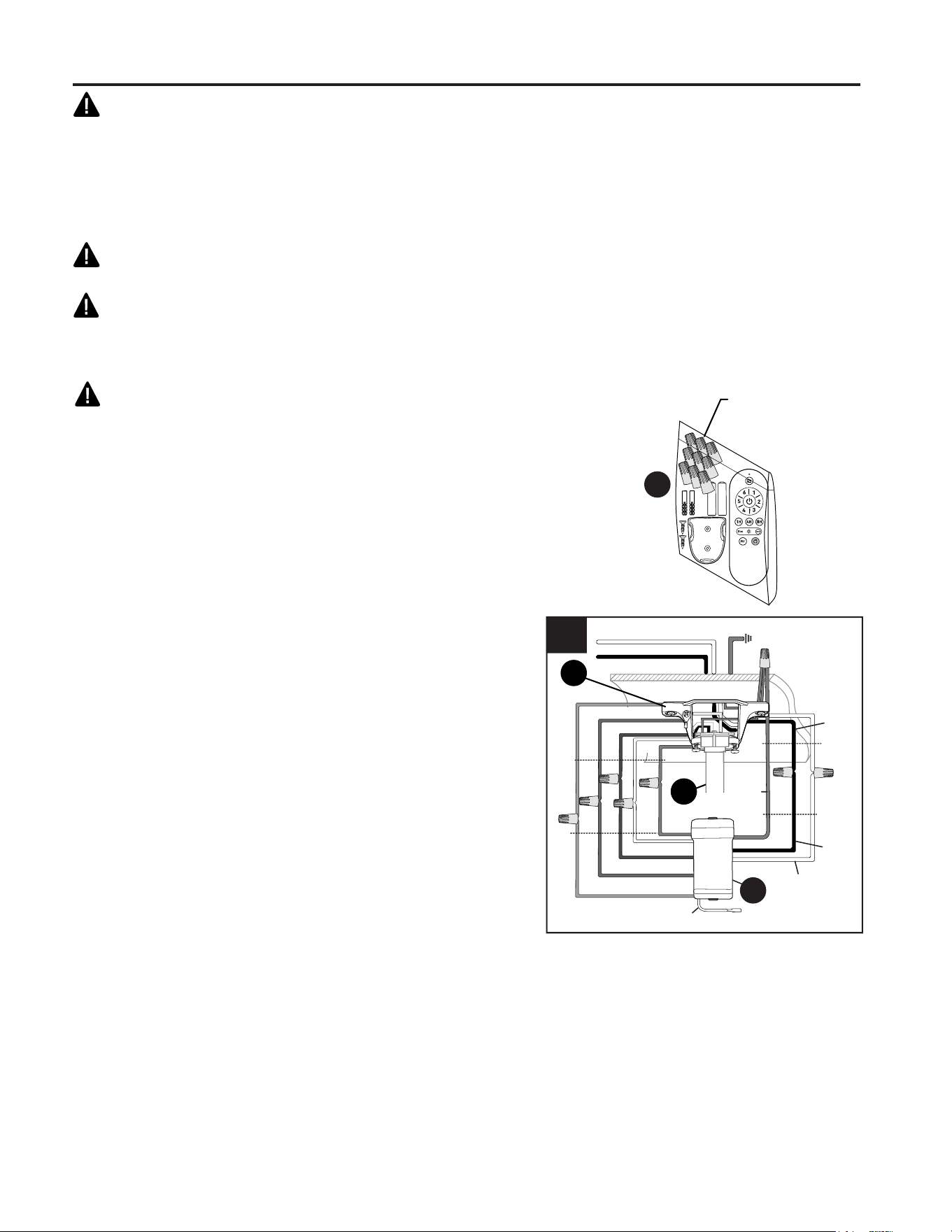

WIRING
Wire
Connectors
IMPORTANT: Make the necessary wiring connections for
remote control operation as detailed in Step 1 below. For
each wire connection, use one of the wire connectors from
the remote pack (G), making sure to screw wire connector
on in a clockwise direction.
G
Connect all GROUND (GREEN) wires from fan (on
downrod (C) and mounting bracket (A)) and remote
control receiver (P) to BARE/GREEN supply wire
from ceiling.
Connect BLACK wire (labeled AC IN L) from
remote control receiver (P) to BLACK supply wire
from ceiling.
Connect WHITE wire (labeled AC IN N) from remote
control receiver (P) to WHITE supply wire from
ceiling.
Connect PINK wire (labeled TO MOTOR) from
remote control receiver (P) to PINK wire from motor
housing (I).
Connect GRAY wire (labeled TO MOTOR) from
remote control receiver (P) to GRAY wire from
motor housing (I).
Connect RED wire (labeled TO MOTOR) from
remote control receiver (P) to RED wire from motor
housing (I).
Connect WHITE wire (labeled FOR LIGHT N)
from remote control receiver (P) to WHITE wire
from motor housing (I).
Connect BLUE wire (labeled FOR LIGHT L) from
remote control receiver (P) to BLUE wire from motor
housing (I).
1.
1
WHITE SUPPLY WIRE
BLACK SUPPLY WIRE
PINK
WHITE
BLUE
BLUE
WHITE
BLACK
AC IN L
WHITE
AC IN N
WHITE
GROUND (GREEN OR BARE)
GROUND
(GREEN OR BARE)
BLACK
FROM
RECEIVER
FROM
FAN
FROM
RECEIVER
FROM
CEILING
PINK
GRAY
RED
GRAY
RED
ANTENNA
C
GREEN
/GROUND
P
A
12
Wrap electrical tape (not included) around each
individual wire connector from remote pack (G);
wrap down to the wire.
WARNING: Make sure no bare wire or wire
strands are visible after making connections. Place
GREEN and WHITE connections on opposite side
of the outlet box from the BLACK and BLUE (if
applicable) connections.
2.
2
WIRING
Wire
Connector
Wire
Connector
Wire
Connector
3
Gently slide remote control receiver (P) flat-side up
into mounting bracket (A). Turn spliced/taped wires
upward and gently push wires and wire connectors
from remote pack (G) into outlet box. Let antenna
from remote control receiver (P) hang to the side.
NOTE: The remote control included with this fan
meets the following requirements:
a. Not for use with solid state fans.
b. Electrical rating: 120V / 60 Hz;
motor amps:1.25 MAX.
3.
Antenna
P
A
FINAL INSTALLATION
C
1.
Temporarily lift canopy (F) to mounting bracket (A) to
determine which two canopy mounting screws (B) in
mounting bracket (A) align with slotted holes in
canopy (F) and partially loosen these two canopy
mounting screws (B). Remove the other two canopy
mounting screws (B). Now, lift canopy (F) to mounting
bracket (A) again, aligning slotted holes in canopy (F)
with loosened canopy mounting screws (B) in
mounting bracket (A). Twist canopy (F) clockwise to
lock. Re-insert the two canopy mounting screws (B)
that were just removed and tighten all canopy
mounting screws (B) securely.
1
I
F
Downrod
Option
Closemount
Option
B
F
B
B
I
J
Molex
Connections
L
L
13

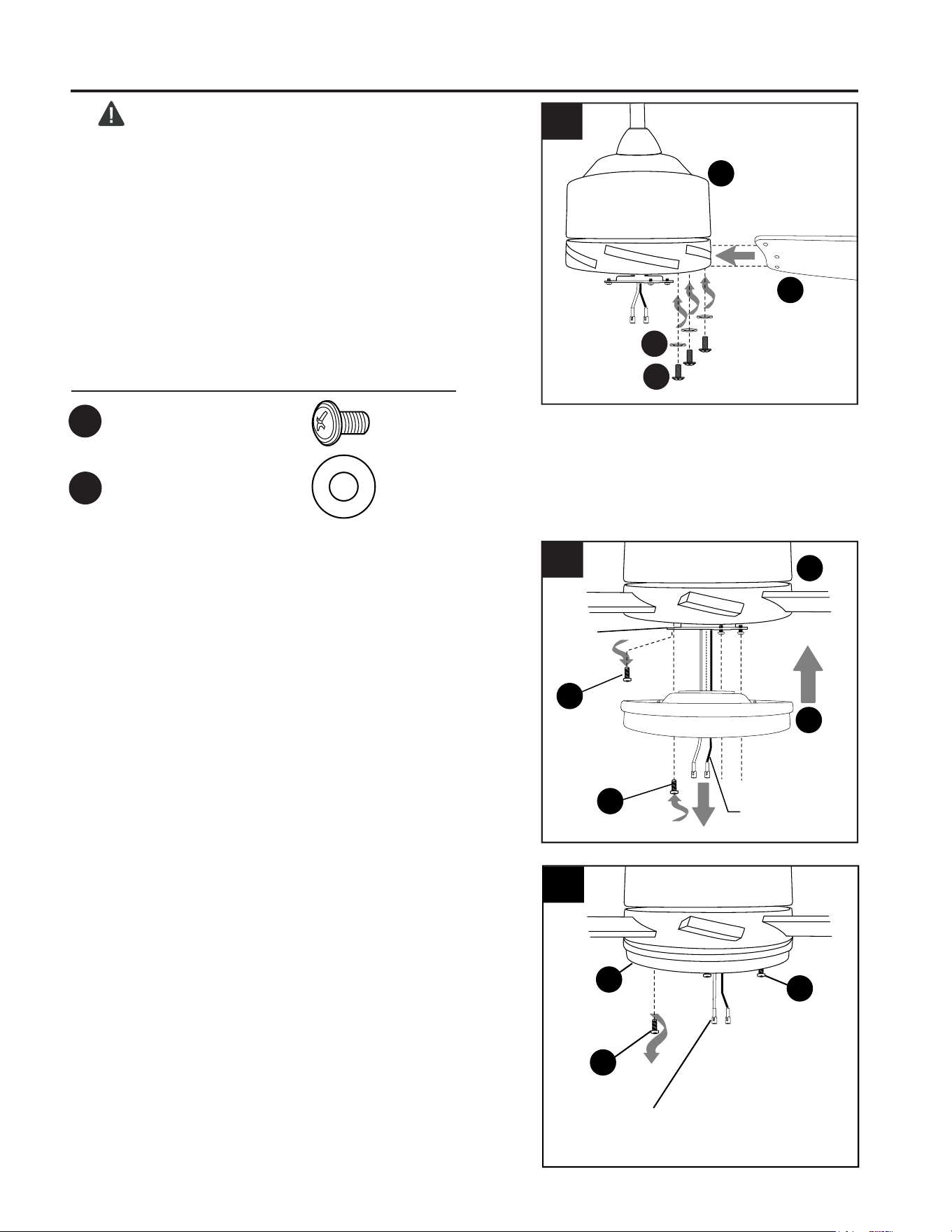

FINAL INSTALLATION
2.
Hardware Used
AA
Blade Screw x 21
Fiber Blade Washer x 21
BB
DANGER: To reduce the risk of serious bodily
injury, DO NOT use power tools to assemble the
blades (O). If screws are overtightened, blades
(O) may crack and break.
Insert the blade (O) through the slot on the band
of the motor housing (I). Align holes in blade (O)
with holes on underside of motor. Attach the blade
(O) with blade screws (AA) and fiber blade
washers (BB). Then, tighten each blade screw
(AA), starting with the one in the middle. Repeat
for remaining blades (O).
4.
3.
3
2
BB
Remove one fitter plate screw (L) from underside
of fitter plate (J) and partially loosen the other two
fitter plate screws (L).
3
Motor
Plate
Molex
Connections
I
O
I
4
I
K
Remove one motor plate screw (K) from motor
plate on underside of motor housing (I) and
partially loosen the other two motor plate screws
(K). Align slotted holes in fitter plate (J) with
loosened motor plate screws (K), allowing molex
connections from motor housing (I) to come
through hole in fitter plate (J). Twist fitter plate (J)
to lock. Re-insert the motor plate screw (K) that
was removed and securely tighten all three motor
plate screws (K).
I
K
I
J
AA
I
14

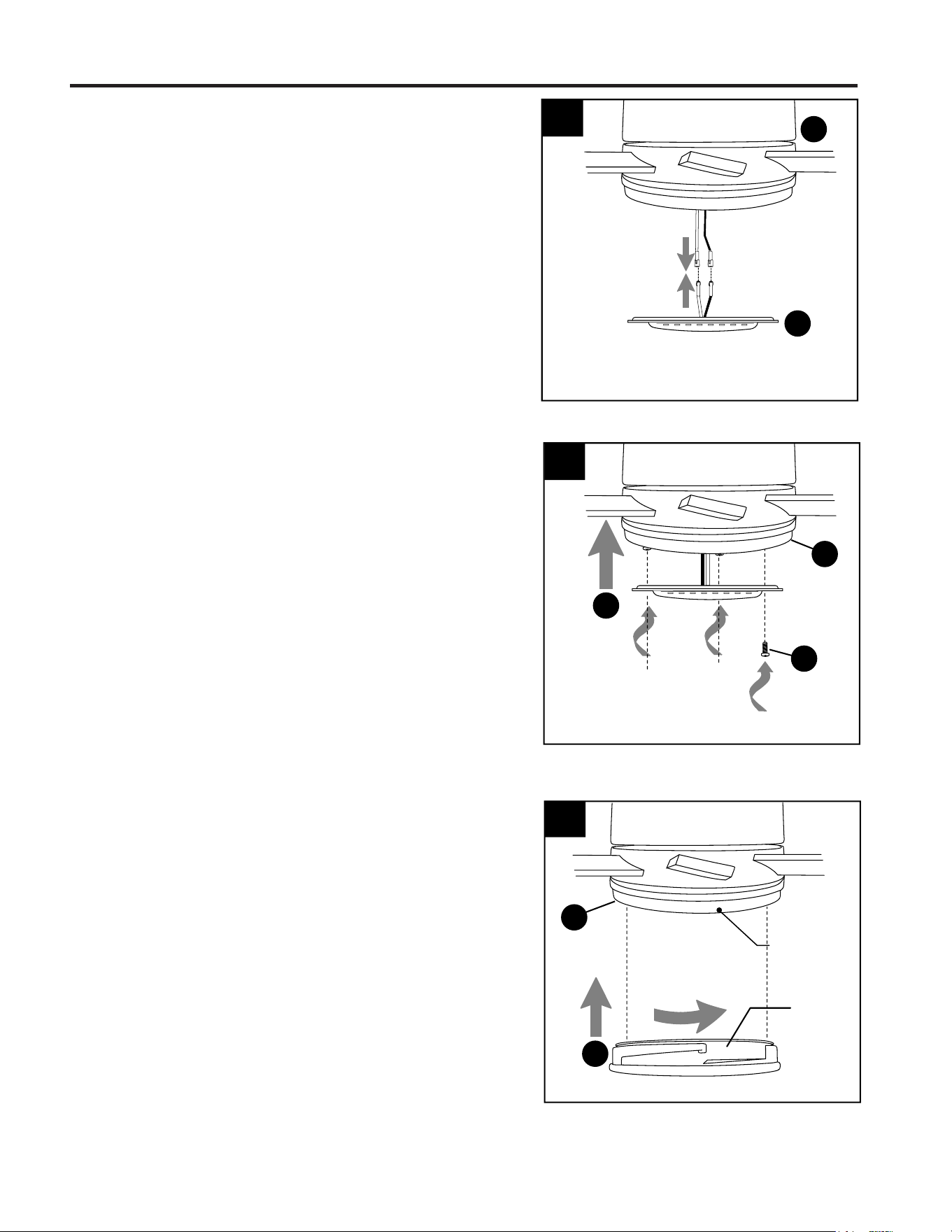

FINAL INSTALLATION
6.
Carefully arrange wiring within the fitter plate (J) to
ensure wires do not get pinched when attaching the
LED light kit (M).
Align slotted holes in LED light kit (M) with
loosened fitter plate screws (L) on fitter plate (J).
Twist LED light kit (M) to lock in place. Re-insert the
previously removed fitter plate screw (L) and
securely tighten all fitter plate screws (L).
J
L
6
M
7.
Align slots on shade (N) with protrusions on
underside of fitter plate (J). Turn shade (N)
clockwise until it no longer turns.
NOTE: Pull down gently on the shade (N) to make
sure it is completely secured.
7
Slot
Protrusion
N
I
5.
Connect WHITE wire from LED light kit (M) to
WHITE wire from motor housing (I). Connect BLUE
wire from LED light kit (M) to BLUE (or BLACK) wire
from motor housing (I). Make sure molex
connections snap together securely.
M
5
WHITE
BLUE (or BLACK)
WHITE
BLUE
J
15
FINAL INSTALLATION
9.
8.

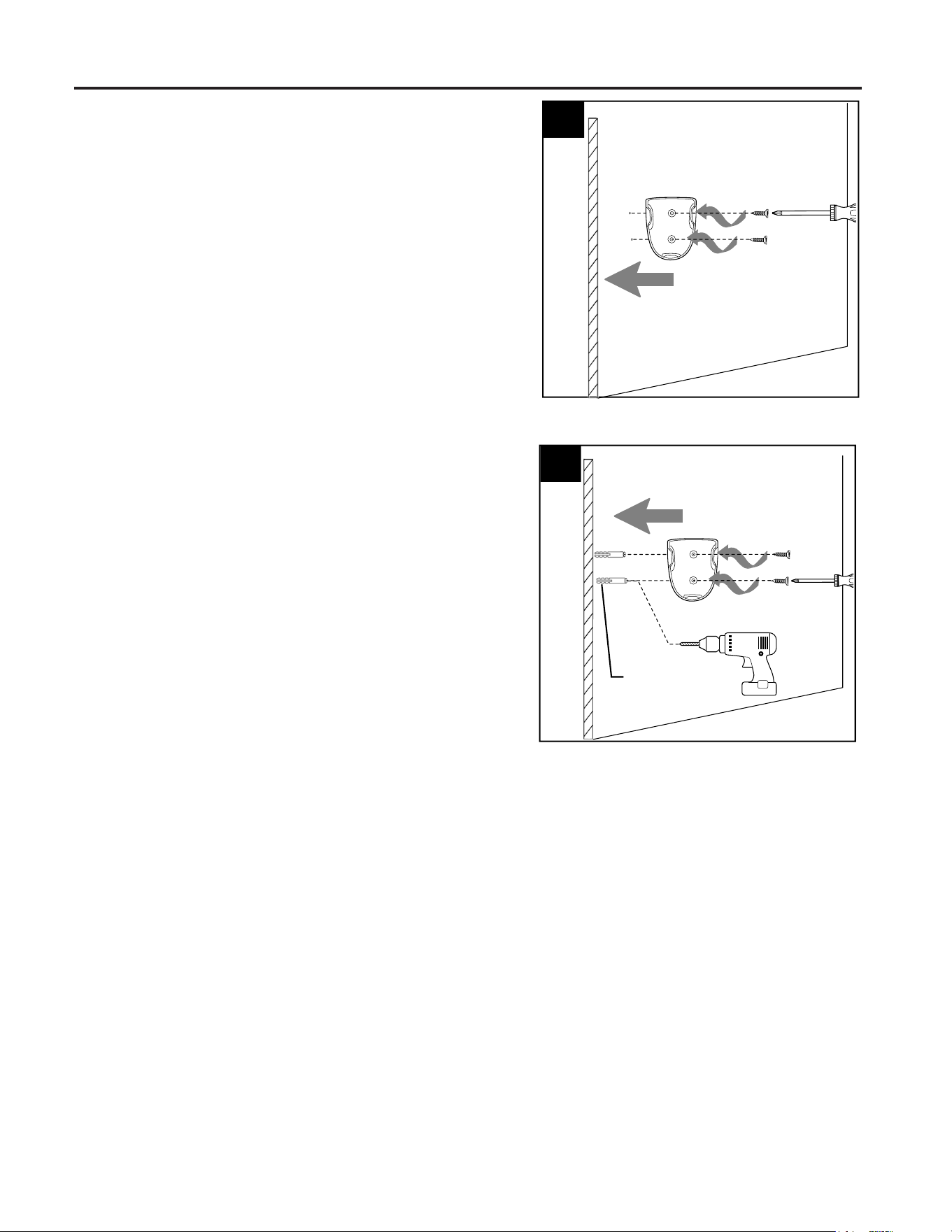

If mounting surface is drywall, mark the
location of the holes using a pencil or a marker
(not included). Use a 7/32 in. drill bit (not
included) to drill two pilot holes in drywall at
marked locations.
Position plastic anchor in each pilot hole. Gently
tap plastic anchors with a hammer (not included)
until flush with wall surface. Screw bracket
screws into plastic anchor.
The remote control transmitter from remote pack
(G) rests inside the bracket.
9
Remote Control
Bracket
Wall
Bracket
Screws
Wall
Anchor
8
Remote Control
Bracket
Wall
Bracket
Screws
If you wish to use the remote control bracket
from remote pack (G) on a wood surface, install
bracket screws from remote pack (G) through
bracket and into the desired installation site.
16
1
Battery
Cover
Remote Control
Transmitter (back side)
Batteries
AAA
-
+
-
+
AAA
G
OPERATING INSTRUCTIONS
CAUTION: The remote control transmitter can be programmed to multiple receivers or fans. If
this is not desired, turn wall switch off to any other programmable receiver or fan.
FCC Compliance Notice for Remote Control and LED Light Kit
CAUTION: Changes or modifications not approved by the party responsible for compliance
could void the user's authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, (2) this device must accept any
interference received, including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
Distributed by: Litex Industries Inc., P.O. Box 535639, Grand Prairie, TX, 75053; 800-527-1292

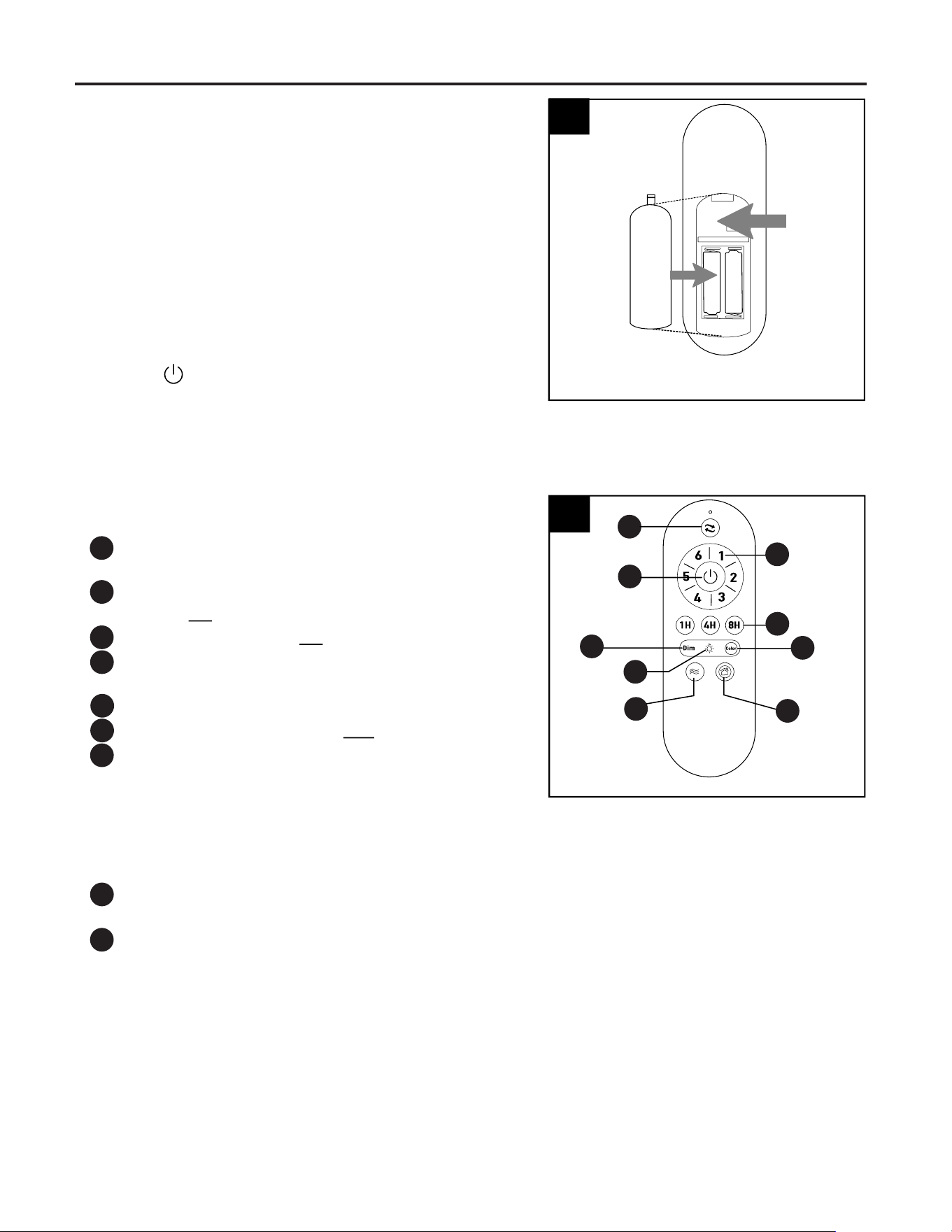

Locate remote control transmitter in remote pack
(G). Remove battery cover from the back side of
the remote control transmitter. Install two AAA
batteries from remote pack (G) into battery
compartment. Observe diagram inside battery
compartment to install batteries correctly.
WARNING: Batteries are to be inserted with
the correct polarity.
NOTE: When replacing batteries, do not mix
different types of batteries such as alkaline,
carbon-zinc or rechargeable batteries. Do not mix
old and new batteries.
WARNING: Choking/Ingestion Hazard -
Small parts.Keep batteries away from children.
1.
CAUTION: “DO NOT DISPOSE OF BATTERIES IN FIRE, BATTERIES MAY EXPLODE OR
LEAK.” - When disposing of household alkaline batteries, it is best to check with your local and
state recycling or household hazardous waste coordinators concerning the specifics of the
program in your area. You may also locate a recycling center by calling 1-800-8-BATTERY or
1-877-2-RECYCLE or visit www.epa.gov/epawaste/index.htm or www.earth911.org for more
information.
NOTE: Batteries are NOT rechargeable. Remove
batteries with low or no charge and dispose of
properly.
Replace battery cover on remote control transmitter.
Restore electrical power.
IMPORTANT: To prevent damage to remote control
transmitter, remove the batteries if not used for long
periods. Store the remote control transmitter away
from excess heat or humidity.
NOTE: If fan and/or remote control fail(s) to operate
or you have purchased a new remote control
transmitter, make sure to turn the power off first.
Restore electrical power. Within 30 seconds of
restoring electrical power, press and hold the OFF
button ( ) on the remote control transmitter (refer
to Fig. 3 below) for 5 seconds or until fan beeps.
Use the remote control transmitter to test the light
and fan functions to confirm the learning process is
complete.
17
OPERATING INSTRUCTIONS
2.
Remote Control Transmitter
(back side)
2
3.
Operation buttons on the front panel of the remote
control transmitter:
- Reverse function ─ fan must be set on low before
reversing blade direction
- Fan speeds: 1 (lowest) to 6 (highest) and
to turn fan ON
- OFF power button for fan and learning function
- Timer mode: fan may be set to run for
– 1 hour / 4 hours / 8 hours
- Dimmer mode: press and hold to dim light
- ON / OFF, power button for light
- Color mode: change/select light color
– soft white
– warm white
– cool white
– daylight
– cool daylight
- Breeze mode: fan automatically cycles between all
6 different speeds
- Vacation mode: light kit switches on for 5 minutes
every 2 hours
3
1
2
4
5
6
8
9
7
Remote Control Transmitter
3
1
3
8
9
2
4
7
5
6
18
CARE AND MAINTENANCE
At least twice each year, lower canopy to check downrod assembly, and then tighten all screws on fan.
Clean motor housing with only a soft brush or lint-free cloth to avoid scratching the finish. Clean blades
with a lint-free cloth. You may occasionally apply a light coat of furniture polish to wood blades for added
protection.
IMPORTANT: Shut off main power supply before beginning any maintenance. Do not use water or a
damp cloth to clean the ceiling fan.
Total wattage for this fan is 20 watts; do not attempt to replace the LEDs.
WARNING: Before beginning work, shut off the power supply to avoid electrical shock.
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Fan does not move.
1. Power is off or fuse is blown.
2. Faulty wire connection.
3. Wires in LED light kit not wired
correctly.
4. Blades are not installed.
1. Turn power on or check fuse.
2. Turn power off. Loosen canopy and
check all connections.
3. Check that molex connections in
LED light kit are connected properly
according to instructions on page
14.
4. Install all blades (see page 13).
Noisy operation.
1. Blades are loose.
2. Cracked blade.
3. Fan is new.
1. Tighten all blade screws.
2. Replace blade.
3. Allow fan a “break in” period of a
few days, especially when running
the fan at Medium and High
speeds.
Excessive wobbling.
1. Blades are loose.
2. Unbalanced blades.
3. Fan not securely mounted.
4. Fan too close to vaulted ceiling.
5. Set screw(s) on motor housing yoke is
(are) not tightened properly.
6. Set screw on hanging ball is not
tightened properly.
1. Tighten all blade screws.
2. Switch one blade with a blade from
the opposite side.
3. Turn power off. Carefully loosen
canopy and verify that mounting
bracket is secure.
4. Use a longer downrod or move fan
to another location.
5. Tighten yoke set screw(s) securely.
6. Carefully loosen and lower canopy
and verify that set screw on hanging
ball is tightened securely.
TROUBLESHOOTING
Fan operates but
light fails.
1. Wires in canopy not wired properly.
2. Wall switch to fan is off.
3. Wires from LED light kit not wired
correctly.
1. Check wires in canopy and, if
necessary, re-wire according to
instructions on pages 11 - 12.
2. Make sure wall switch to fan is on.
3. Check wires from LED light kit and, if
necessary, re-wire according to
instructions on page 14.
Remote control
fails to operate.
1. Remote control transmitter not synced
with fan.
2. Batteries not installed correctly.
3. Battery/Batteries no longer working.
1. Refer to instructions in Step 2 on
page17.
2. Check that batteries have been
installed with correct polarity.
3. Replace both batteries according to
instructions on page 16.
NOTE: A small amount of "wobble" is normal and should not be considered a defect.
Printed in China
KHLI2403
19
A
F
C
REPLACEMENT PARTS LIST
PART DESCRIPTION
A Mounting Bracket
C Downrod
F Canopy
N Shade
O Blade
5190467-A
5190467-C
5190467-F
5190467-N
5190467-O
PART #
N
O
LIMITED LIFETIME WARRANTY
For replacement parts, call our customer service department at 800-527-1292, 8:30 a.m. - 5 p.m., CST,
Monday - Friday.
Set forth below, the manufacture warrants the fan motor for this ceiling fan to be free from defects in
workmanship and material for the life of the product. Also, subject to the limitations below, the manufacturer
warrants all ceiling fan parts (“ceiling fan parts” excludes the motor and parts made in whole or in part with
glass) to be free from defects in workmanship and material for a period of one year after the date of
purchase by the original purchaser at retail.
All claims must be made by the original purchaser, whether such purchaser purchased the product through
a store or contractor. Ceiling fan part defects must be reported within the first year from the date of
purchase. Parts made in whole or in part with glass and the finishes of metal and other surfaces are not
warranted.
Purchasers are responsible for all costs of removing and reinstalling the product. Any damage to any part
caused by ordinary wear and tear, accident, misuse, or improper installation, is not covered by this warranty.
The manufacturer assumes no responsibility whatsoever for fan installation. Any service performed by a
non-licensed electrician will render the warranty invalid.
The manufacturer’s sole responsibility shall be to repair or replace the motor, parts, or product within the
terms stated above. The manufacturer shall not be liable for any loss or damage of any kind, including any
incidental or consequential damages resulting directly or indirectly, from any breach
of warranty, express or implied, or any other failure of this product. Some states do not allow the exclusion
or limitation of incidental or consequential damages so this limitation may not apply to you.
If the original purchaser ceases to own the fan, this warranty is voided.
Should the purchaser encounter a problem with your fan related to defects in workmanship or materials
within the warranty period associated with the defective part, the manufacturer agrees to replace the
defective part without charge, or at its option, to replace the ceiling fan with a comparable or superior model.
The manufacturer’s warranties are limited to the written warranties set out in this ceiling fan limited lifetime
warranty. All other express and implied warranties, including, without limitation, the implied warranty of
fitness for a particular purpose and the implied warranty of merchantability are disclaimed. Some states do
not allow the disclaimer of implied warranties, so this disclaimer may not apply to you.
5730161-A
5730161-C
5730161-F
5730161-N
5730161-O
PART #
