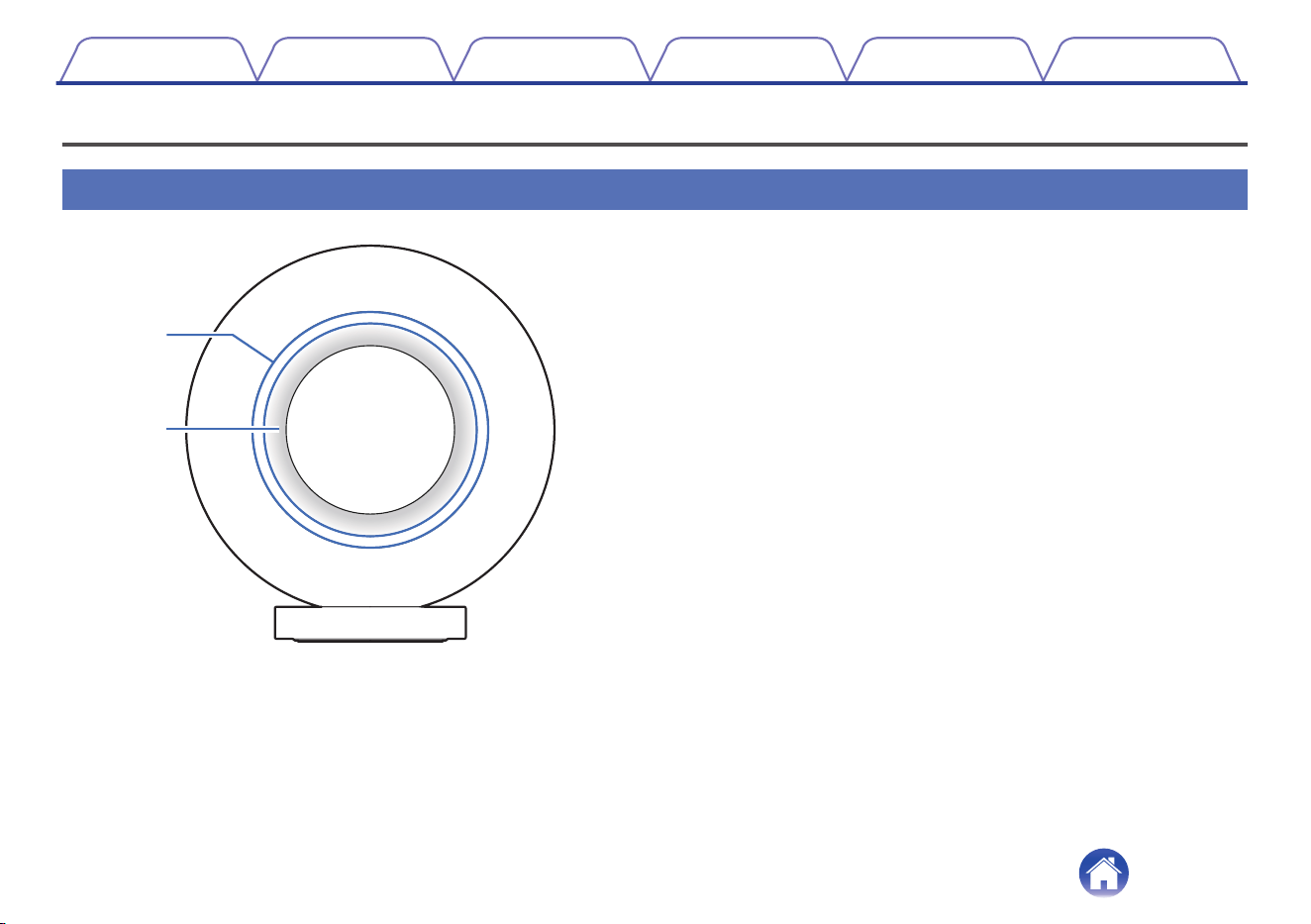

Front panel
5
Touch controls
6
Rear panel
7
Connecting
8
Connecting a digital device
8

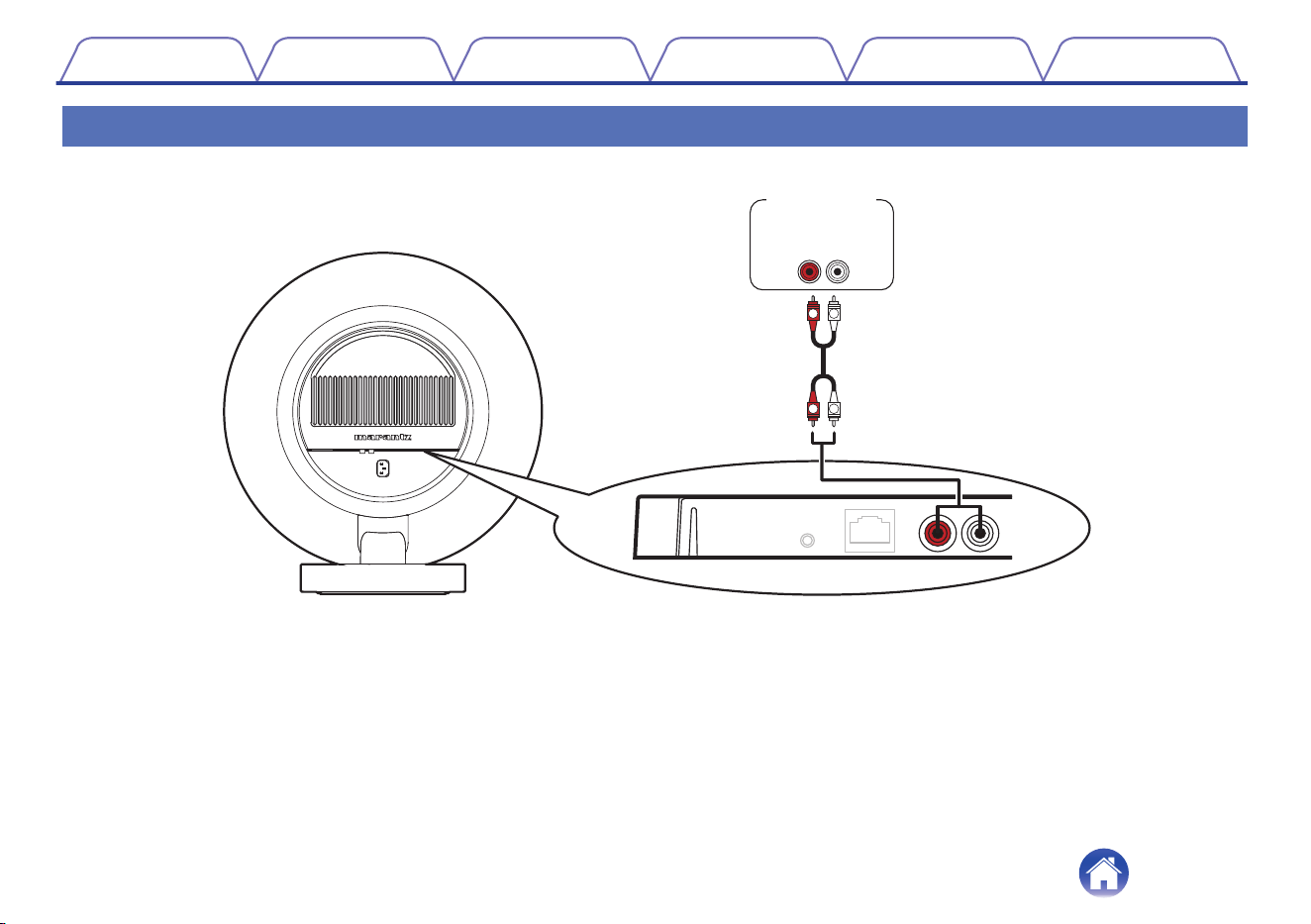

Connecting an analog device
9

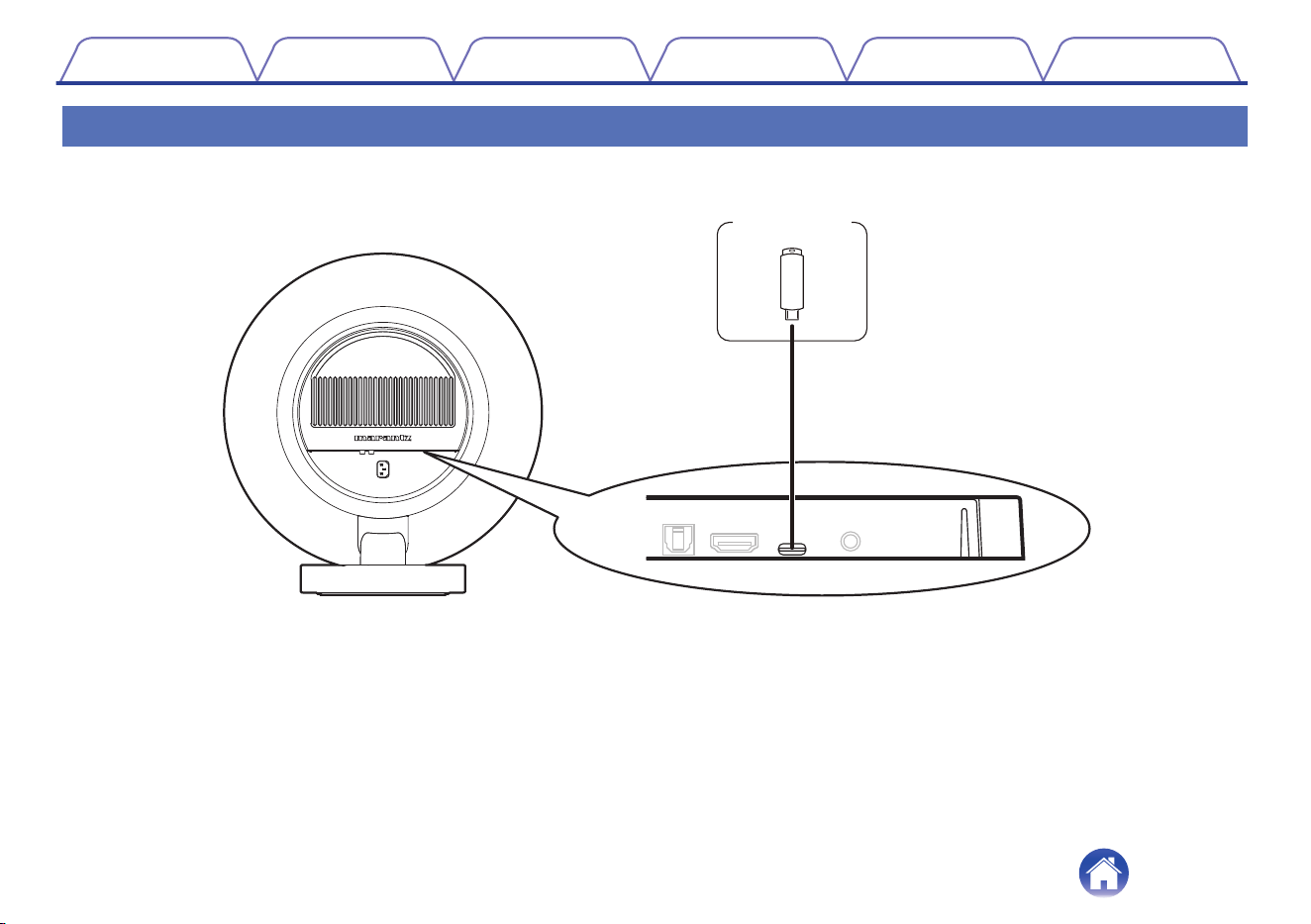

Connecting a USB flash drive
10
Connecting the power cord
11
Attaching the rear cover
12
Getting the HEOS app
13
Setup
Setting up the HEOS app for the first time with a HEOS Built-in
device
14
About HEOS
15
HEOS account
15
Playback
Playing music from a Bluetooth device
16
Using Apple AirPlay
17
Spotify Connect
18
Playing Spotify music with the speaker
18
Troubleshooting
Troubleshooting
19
Cannot connect this unit to the network
20
Cannot pair a Bluetooth mobile device with this unit
20
Cannot hear Bluetooth music
20
Music cuts out or delays sometimes
21
Cannot connect to a network using an iOS device
21
Cannot connect to a WPS network
22
The HDMI control function does not work
22
Audio can be heard coming from the TV speakers
22
I hear a delay when using the external input with my TV
23
Resetting network settings
23
Resetting factory settings
23
Introduction Setup Playback Troubleshooting LED table Appendix
2
Thank you for purchasing this Marantz product.
To ensure proper operation, please read this owner’s manual carefully before using the product.
After reading this manual, be sure to keep it for future reference.

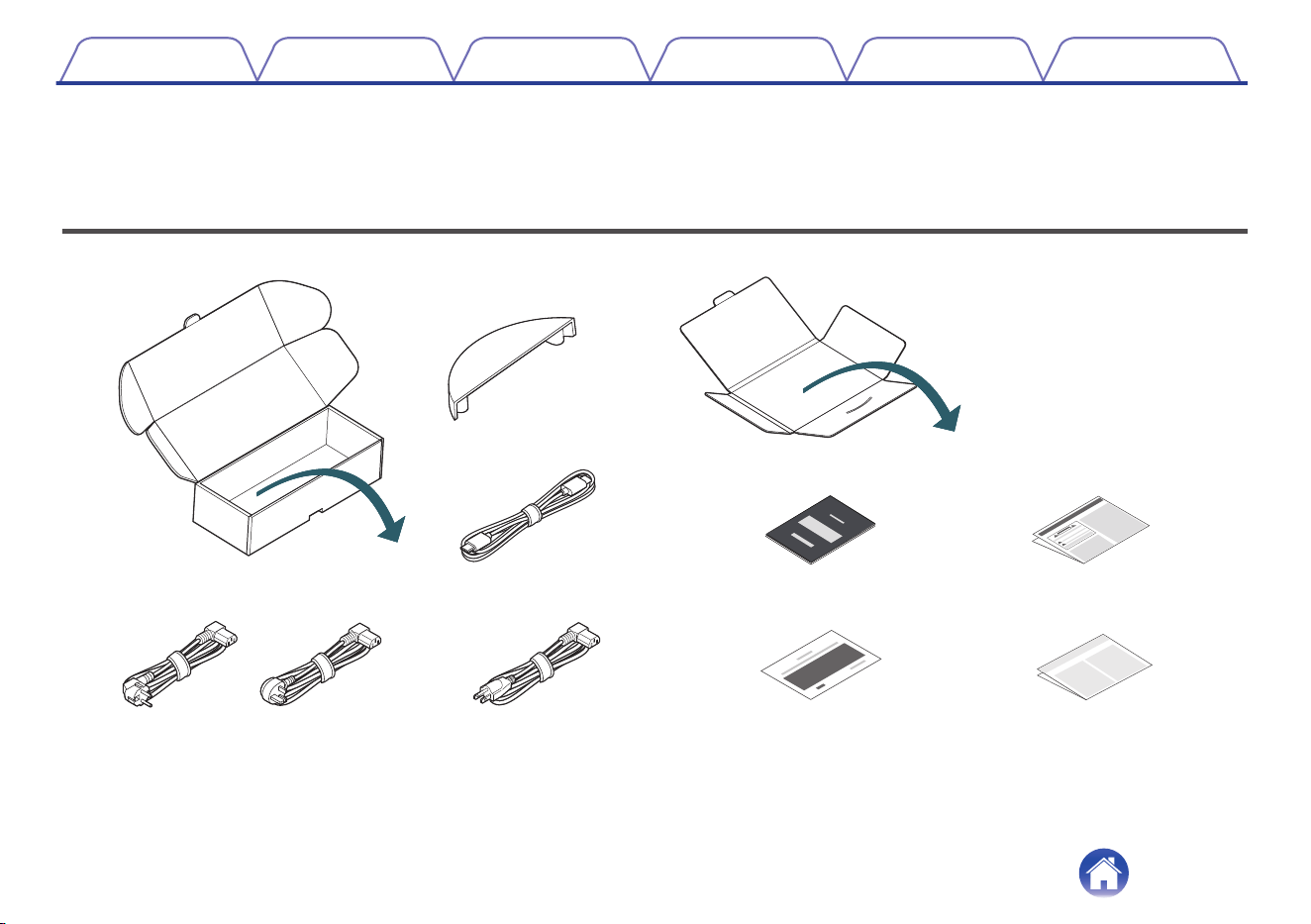

Accessories
Check that the following parts are included with the product.
Quick Start Guide Safety Instructions
Warranty
(North America model only)
Certificate of Authenticity
Power cords
(for Europe/UK model)
Power cord
(for North America model)
or
HDMI cable
Rear cover
Literature pack
Accessory box
Introduction Setup Playback Troubleshooting LED table Appendix
4

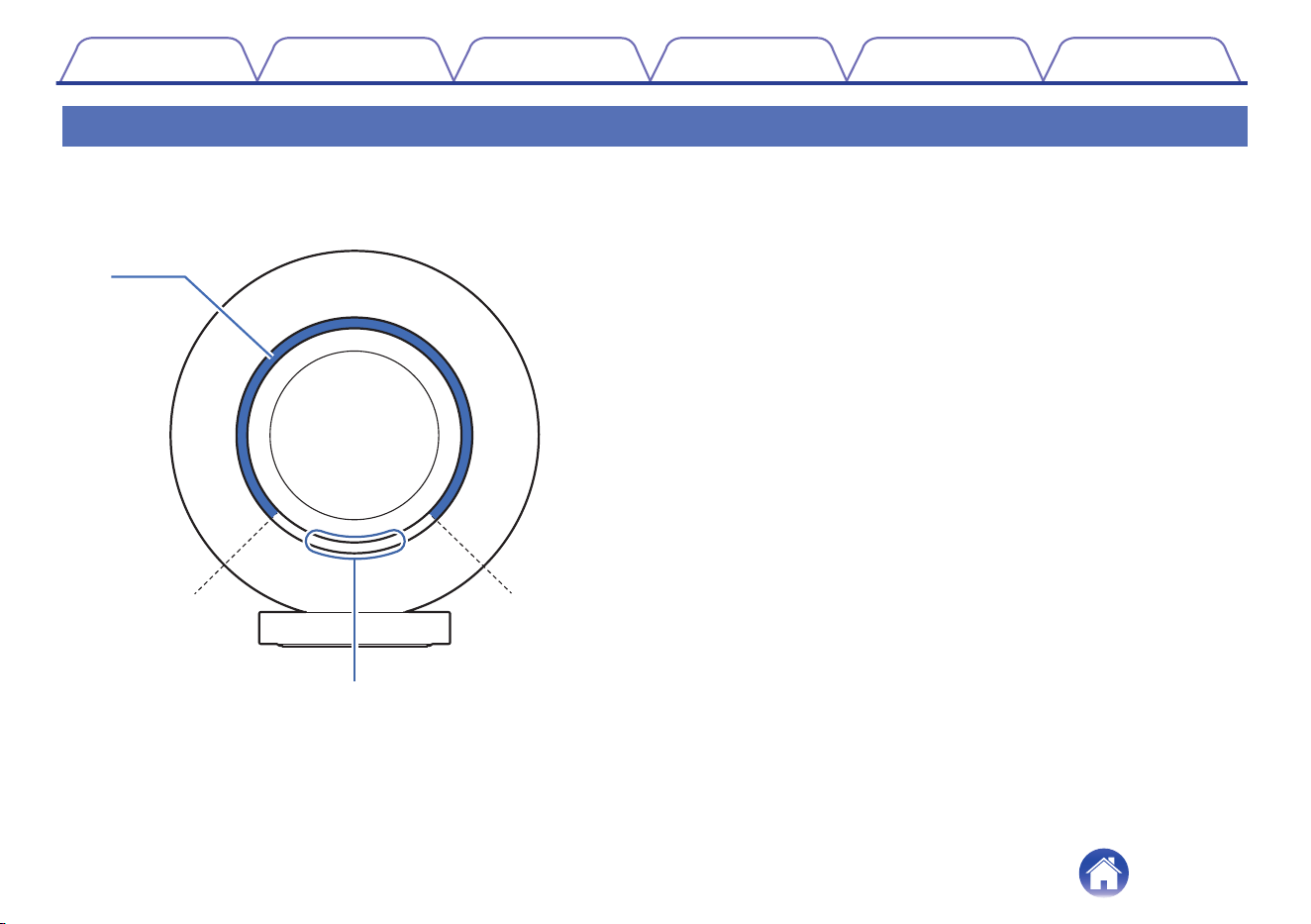

Touch controls
q
w
Volume
minimum
Volume
maximum
A
Volume control
Touch and hold along the touch ring to increase or decrease the
volume according to the position of your finger.
B
Playback controls
Use the bottom of the touch ring to perform playback operations:
Single tap: Play/Pause
Double tap: Skip Forward
Triple tap: Skip Backward
Introduction Setup Playback Troubleshooting LED table Appendix
6

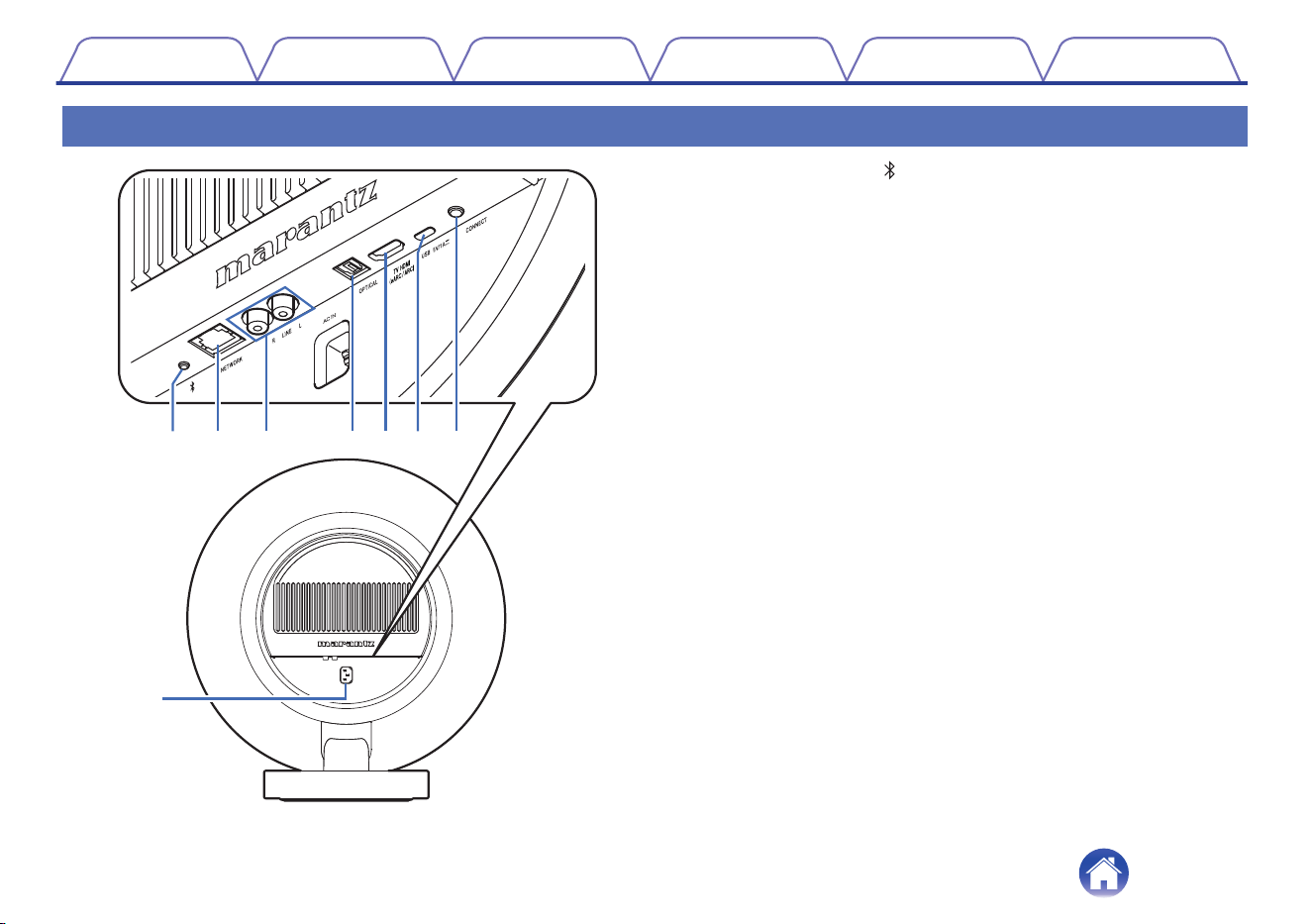

Rear panel
i
q w e r t y u
A
Bluetooth button ( )
Used to pair the speaker with Bluetooth audio sources.
(v p. 16)
B
NETWORK connector
Used to connect the speaker to a wired Ethernet network.
C
LINE input connectors
Used to connect analog audio devices to the speaker. (v p. 9)
D
OPTICAL input connector
Used to connect digital audio devices to the speaker. (v p. 8)
E
HDMI connector (eARC)
Used to connect the speaker to a TV. (v p. 8)
F
USB (Type C) port
Used to connect USB (Type C) storage devices (such as USB flash
drives). (v p. 10)
G
CONNECT button
Used for Wi-Fi setup.
H
AC inlet
Used to connect the power cord. (v p. 11)
Introduction
Setup Playback Troubleshooting LED table Appendix
7
Connecting
Connecting a digital device

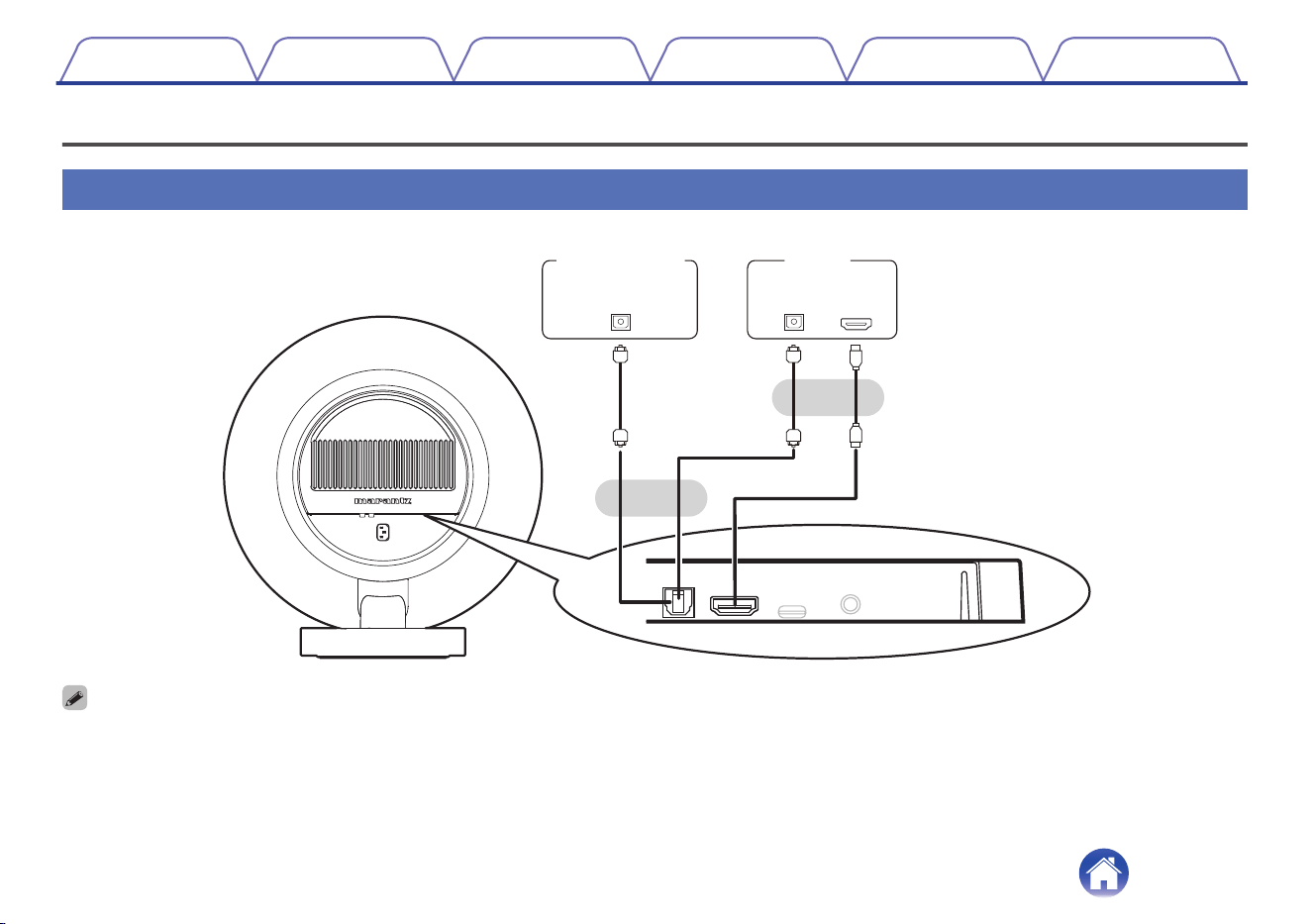

Connect the speaker to a device with an optical digital audio output.
IN
HDMI
(eARC/ARC)
OPTICAL
OUT
TV
or
Digital device
or
OPTICAL
OUT
0
When connecting a TV to the speaker, turn off the audio output of the TV’s internal speakers. See the owner’s manual of your TV for details.
0
When connecting the HDMI (eARC/ARC) terminal of this speaker to your TV, connect it to the HDMI input terminal of your TV that supports the eARC/ARC function.
0
When connecting to a TV that does not support the eARC/ARC function, use an optical connection to play the TV audio.
Introduction
Setup Playback Troubleshooting LED table Appendix
8
Connecting the power cord

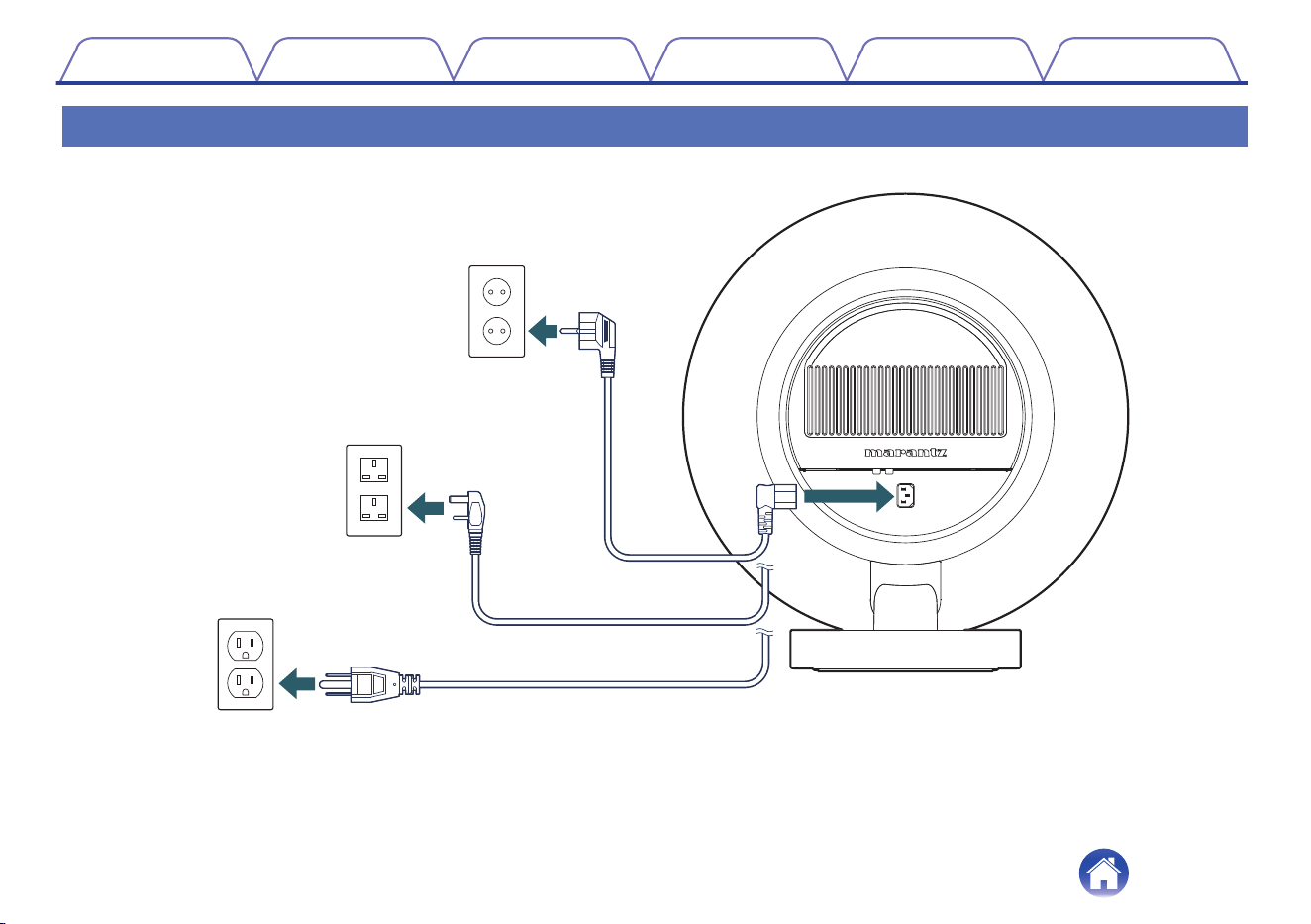

Connect the power cord included in the box between the speaker and an AC outlet.
Power cord (included)
Power cord (included)
Power cord (included)
(for Europe)
(for UK)
(for North America)
Power supply: AC 100 – 120 V, 50/60 Hz
(for North America model)
Power supply: AC 100 – 240 V, 50/60 Hz
(for Europe/UK model)
Introduction Setup Playback Troubleshooting LED table Appendix
11
o

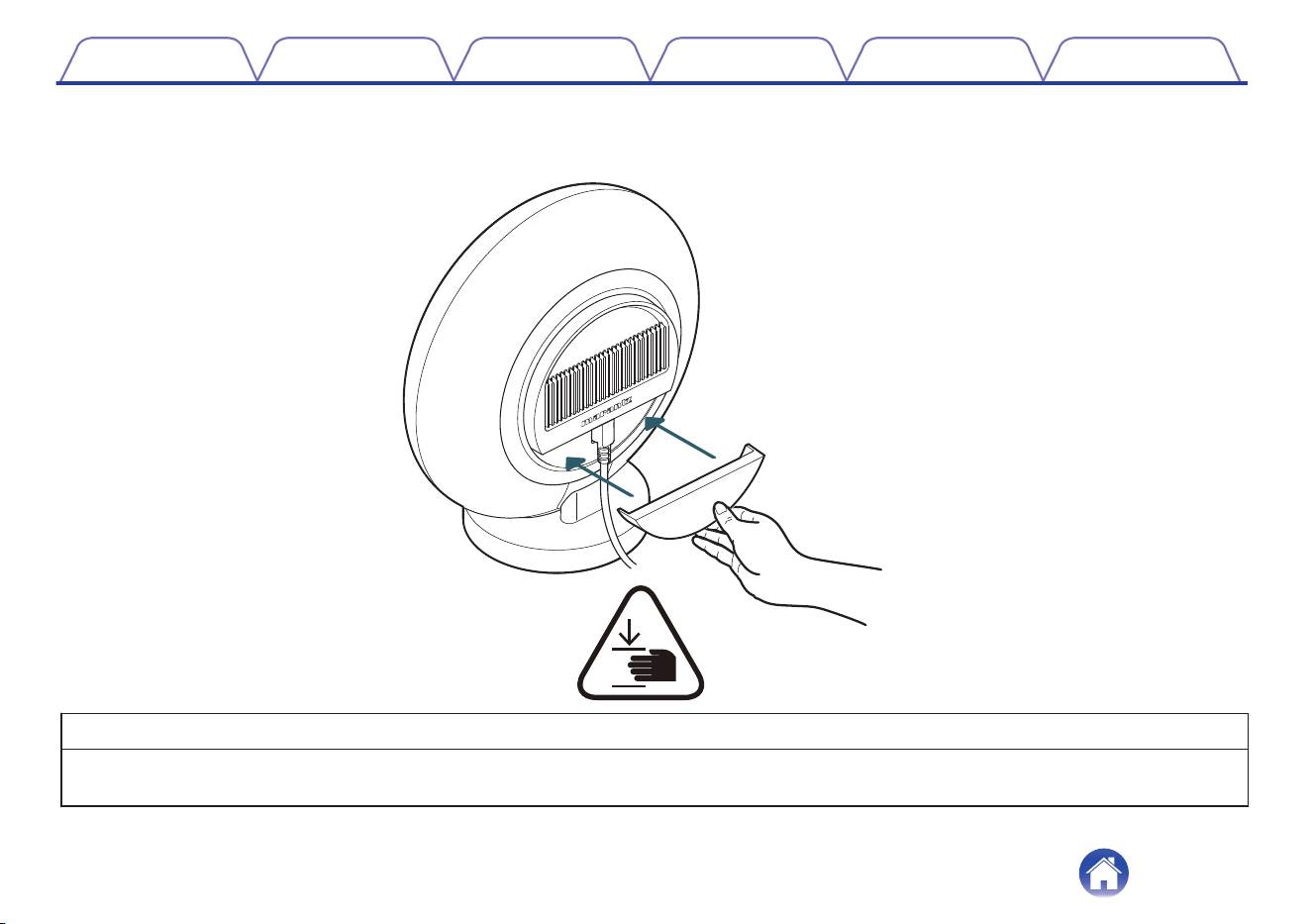

Attaching the rear cover
After all connections have been made, attach the included rear cover to this unit.
Caution!
0
The rear cover is equipped with powerful magnets and may cause injury from pinching between the cover and rear panel. Please attach the rear
cover using the hand position shown above.
Introduction
Setup Playback Troubleshooting LED table Appendix
12
Getting the HEOS app
Download the HEOS app for iOS or Android by searching App Store
®
, Google Play™ store or Amazon App Store for “HEOS”.
For the purpose of improvement, the specifications and design of the app are subject to change without notice.
Introduction Setup Playback Troubleshooting LED table Appendix
13
Setting up the HEOS app for the first time with a HEOS Built-in device
Once you have placed the speaker in your listening room and have downloaded the HEOS app, you are ready to configure the speaker for music
playback. This involves following a few simple steps to get the speaker connected to your existing home network:
0
Do not connect the Ethernet cable if you are connecting this unit to a wireless network. If you are connecting this unit to a wired network, use an Ethernet cable (not included)
to connect this unit to your network or router.
1
Make sure your mobile device is connected to your
wireless network (the same network you want this unit
connected to).
You can check this in the “Settings” - “Wi-Fi” menu of your iOS or
Android device.
0
Activate the Bluetooth setting on your mobile device.
0
If your wireless network is secure, make sure you know the password to join
your network.
2
Launch the HEOS app on your
mobile device.
3
Tap the “Setup Now” button at the top of the screen.
4
Follow the instructions to add this unit to your wireless
network.
0
If you have any problems connecting your speaker, jump to the Troubleshooting
section (v p. 19).
Introduction Setup Playback Troubleshooting LED table Appendix
14
About HEOS
The HEOS system is a true multi-room audio system that automatically synchronizes audio playback between multiple HEOS Built-in devices so that the
audio coming from different rooms is perfectly in sync and always sounds amazing! You can easily add up to 32 HEOS Built-in devices to your HEOS
system.
HEOS account
o
What is a HEOS account?
A HEOS account is a master account or “keychain” for managing all of your HEOS music services with one single username and password.
o
Why do I need a HEOS account?
With a HEOS account, you only need to enter your music services login names and passwords once. This allows you to easily and quickly use multiple
controller apps on different devices. You just log into your HEOS account on any device and you will have access to all of your associated music
services, play history and custom playlists, even if you are at a friend’s house listening to music on their HEOS system.
o
Signing up for a HEOS account
You will be instructed to sign up for a HEOS account the first time you try to access any music service from the “Home” screen of the HEOS app.
Introduction
Setup Playback Troubleshooting LED table Appendix
15
Playing music from a Bluetooth device
1
Activate the Bluetooth setting on your mobile device.
2

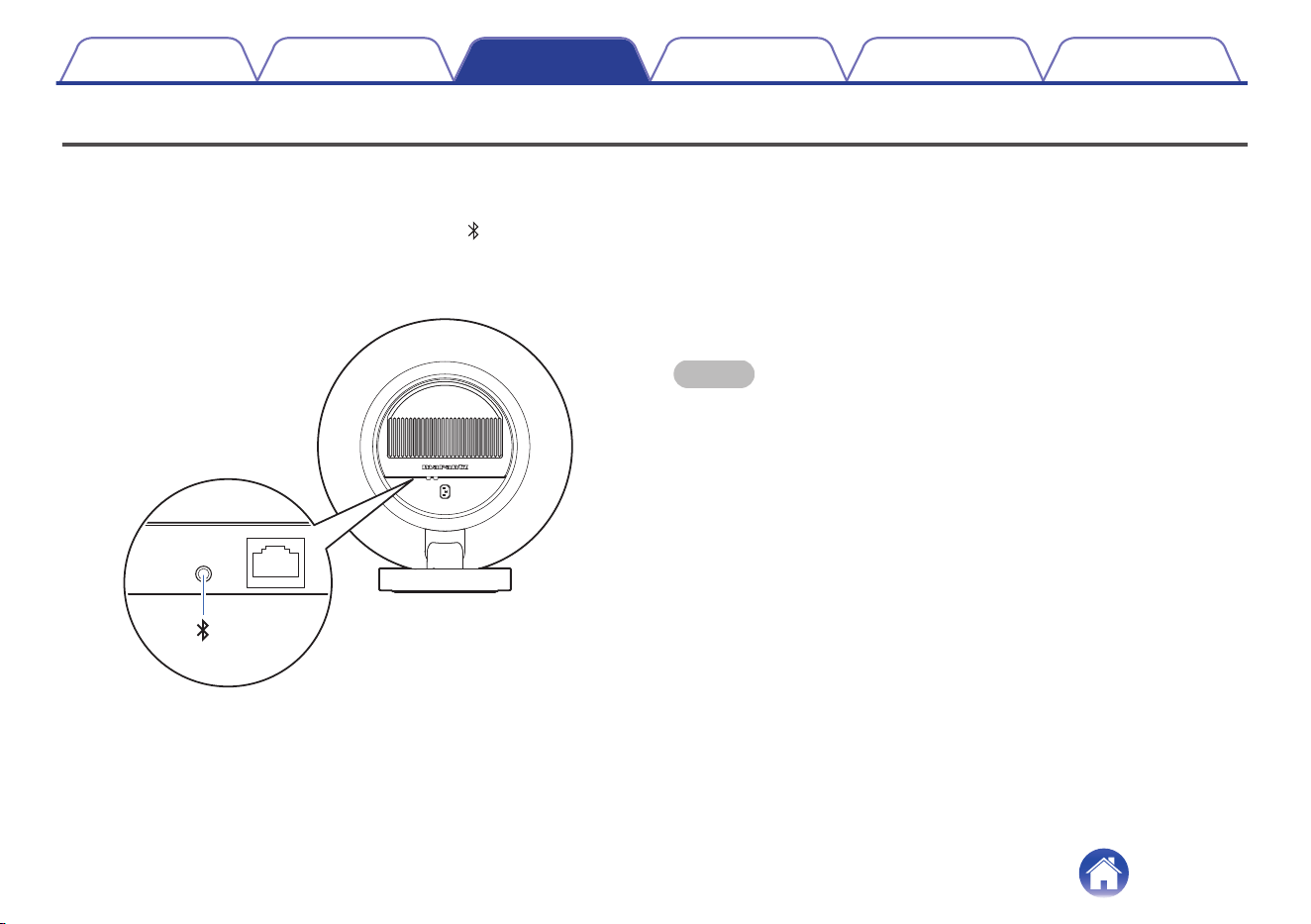

Press and hold the Bluetooth button ( ) located on the
rear panel of the speaker for 3 seconds and release the
button when you see the front halo light flash.
3
Select “Marantz Grand Horizon” from the list of
available Bluetooth devices.
In a few seconds, your mobile device will indicate that it is
connected to this unit.
4
Play music using any app on your device.
The sound will now play from this unit.
NOTE
0
If no sound is heard, disconnect and reconnect Bluetooth connections from your
Bluetooth device.
Introduction Setup Playback Troubleshooting LED table Appendix
16
Using Apple AirPlay
Music files stored on your iPhone, iPod touch, iPad, Mac or Windows PC can be played on this unit via the network.
0
Input source will be switched to “AirPlay” when AirPlay playback is started.
0
You can stop AirPlay playback by choosing another input source.
0
The screen may differ depending on the OS and software versions.
This device supports AirPlay 2
®
.
Sync multiple AirPlay 2 compatible devices/speakers for simultaneous playback.
Introduction Setup Playback Troubleshooting LED table Appendix
17
Spotify Connect
Spotify is all the music you’ll ever need. Millions of songs available
instantly. Just search for the music you love, or let Spotify play you
something great. Spotify works on your phone, tablet, computer and home
speakers. So you’ll always have the perfect soundtrack for whatever
you’re doing. Now you can enjoy Spotify with your free account as well as
a Premium account.
Use your phone, tablet or computer as a remote control for Spotify.
Go to www.spotify.com/connect to learn how.
The Spotify software is subject to third party licenses found here:
www.spotify.com/connect/third-party-licenses
Playing Spotify music with the speaker
Download the “Spotify App” onto your iOS or Android device beforehand.
1
Connect the Wi-Fi settings of the iOS or Android device
to the same network as the speaker.
2
Launch the Spotify App.
3
Play back a Spotify track.
4
Tap the Spotify icon to select the unit.
The music will stream to the speaker.
Introduction Setup Playback Troubleshooting LED table Appendix
18
Troubleshooting
If a problem should arise, first check the following:
1. Are the connections correct?
2. Is this unit being operated as described in the owner’s manual?
3. Are the other devices operating properly?
0
If the steps above do not improve the problem, restarting the unit may improve the problem. Remove and re-insert the power cord of the unit.
If this unit does not operate properly, check the corresponding symptoms in this section.
If the symptoms do not match any of those described here, consult your dealer as it could be due to a fault in this unit. In this case, disconnect the power
immediately and contact the store where you purchased this unit.
Introduction Setup Playback Troubleshooting LED table Appendix
19
Cannot connect this unit to the network
0
Make sure your mobile device is connected to your wireless network before setting up this unit. (v p. 14)
0
Alternatively, you can connect this unit to your network router using an Ethernet cable sold separately. Once connected via Ethernet, the HEOS app
should recognize the device and you can manually move it to your wireless network using “Settings” - “My Devices” - (“Device Name”) - “Advanced” -
“NETWORK SETTINGS”.
Cannot pair a Bluetooth mobile device with this unit
0
The connection from the Bluetooth mobile device is malfunctioning. Power cycle the mobile device, remove the pairing information and re-pair this unit
to the mobile device.
Cannot hear Bluetooth music
0
Your Bluetooth mobile device is not paired with this unit. Re-pair this unit to the mobile device.
0
This unit is in Wi-Fi mode or LINE-in mode, etc. Pair and connect a Bluetooth device to this unit.
0
The Bluetooth mobile device is connected to another audio device. Make sure your Bluetooth device is connected to this unit.
0
The volume on your Bluetooth mobile device or your speaker is set too low. Check the volume on the Bluetooth mobile device. Check the volume on
this unit.
Introduction
Setup Playback Troubleshooting LED table Appendix
20
Music cuts out or delays sometimes
0
Make sure your Internet connection is operating correctly. If you are sharing your network with other users or devices, they may be using most of your
bandwidth (especially if they are streaming video).
0
Make sure this unit is within range of your wireless network.
0
Make sure this unit is not located near other electronic devices that could interfere with its wireless connectivity (like microwave ovens, cordless
phones, TVs, etc.).
Cannot connect to a network using an iOS device
0
This speaker supports Apple’s WAC (Wireless Accessory Configuration) setup mode. WAC setup mode allows you to connect your speaker to your
network without requiring you to type in the network name and password.
The iOS device firmware version needs to support iOS 10.0.2 or later.
1. On the speaker, press and hold at the top and bottom of the control ring for 3 seconds until the Halo light turns amber.
2. On your iOS device, go to the Wi-Fi menu under Settings.
3. Select “Marantz Grand Horizon”] under “SET UP NEW AIRPLAY SPEAKER...” at the bottom of the list.
4. Select the network you want your speaker to connect to and select “Next”.
5. Follow the instructions on the screen to complete setup.
HEOS system will stay in WAC setup mode for 15 minutes. If the device is not set up within 15 minutes, it will revert back to its previous network
connection. Press the bottom touch button if you want to cancel WAC setup mode.
The front halo light will quickly blink 5 times.
Introduction Setup Playback Troubleshooting LED table Appendix
21
Cannot connect to a WPS network
0
If your wireless router supports WPS (Wi-Fi Protected Setup™), your speaker can optionally connect to your network using the “Push Button” method
by following these steps:
1. Press the WPS button on your router.
2. Within 2 minutes, press and hold the CONNECT button on the rear panel of the speaker for 5 seconds.
3. The front halo light will flash green for several seconds as it connects to your WPS router.
4. When the connection is complete, the front halo light will turn solid white.
Wi-Fi Protected Setup™ is trademarks of Wi-Fi Alliance.
The HDMI control function does not work
The HDMI control function does not work.
0
You cannot operate devices that are not compatible with the HDMI control function. In addition, depending on the connected device or the settings, the
HDMI control function may not work. In this case, operate the external device directly.
0
Check that the HDMI control function setting is enabled on the TV connected to this unit.
Audio can be heard coming from the TV speakers
Audio can be heard coming from the TV speakers.
0
Disable the TV speakers (Some TVs have a dedicated rear-panel switch for this purpose, however on most TVs you must disable the built-in speakers
in the setup menu).
Introduction
Setup Playback Troubleshooting LED table Appendix
22
I hear a delay when using the external input with my TV
I hear a delay when using the external input with my TV.
0
If you are connecting the external input with your cable or satellite box for enjoying TV audio through multiple HEOS built-in devices, you may hear a
delay between when you see someone speak and when you hear the audio. This is because the HEOS system must buffer the audio before it sends it
out to the HEOS built-in devices, so that it arrives at all devices at the same time. You can avoid this delay by listening only to the device which is
directly connected to the set top box.
Resetting network settings
0
If network content cannot be played or the unit cannot connect to the network, resetting the network device may improve the problem. Network settings
are reset to the factory default values. After restoring the factory default settings, reconfigure the settings appropriately for your network.
To network reset this unit, press and hold the CONNECT button located on the rear panel of this unit for 10 seconds until the front halo light begins to
flash amber.
Resetting factory settings
0
Resetting your speaker will delete the wireless network info, name and all settings but retain its current software. You must use “Settings” - “Add
Device” to reconnect the speaker to your home network before it can be used.
To reset this unit, press and hold the CONNECT and Bluetooth ( ) buttons located on the rear panel of this unit for 5 seconds until the front halo light
begins to flash amber.
Introduction
Setup Playback Troubleshooting LED table Appendix
23
LED table
The LEDs on the front panel indicate the current status.

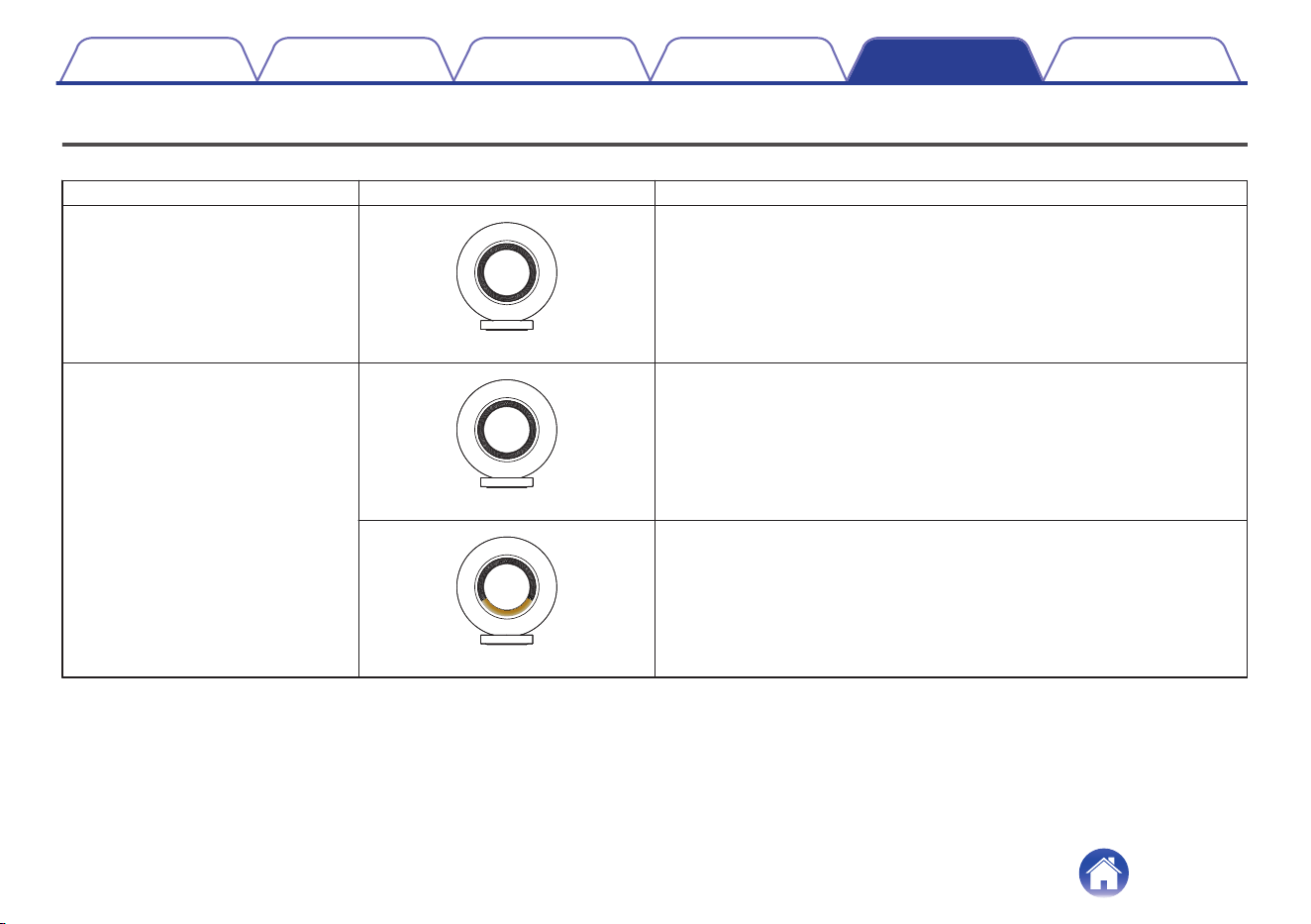

Status Front Halo light Description
Power Off
(when the main plug is removed)
off
Auto Standby
off
The speaker is in auto standby mode (Connected to your network).
(v p. 30)
dimmed solid amber
The speaker is in auto standby mode (Not connected to your network).
(v p. 30)
Introduction Setup Playback Troubleshooting LED table Appendix
24

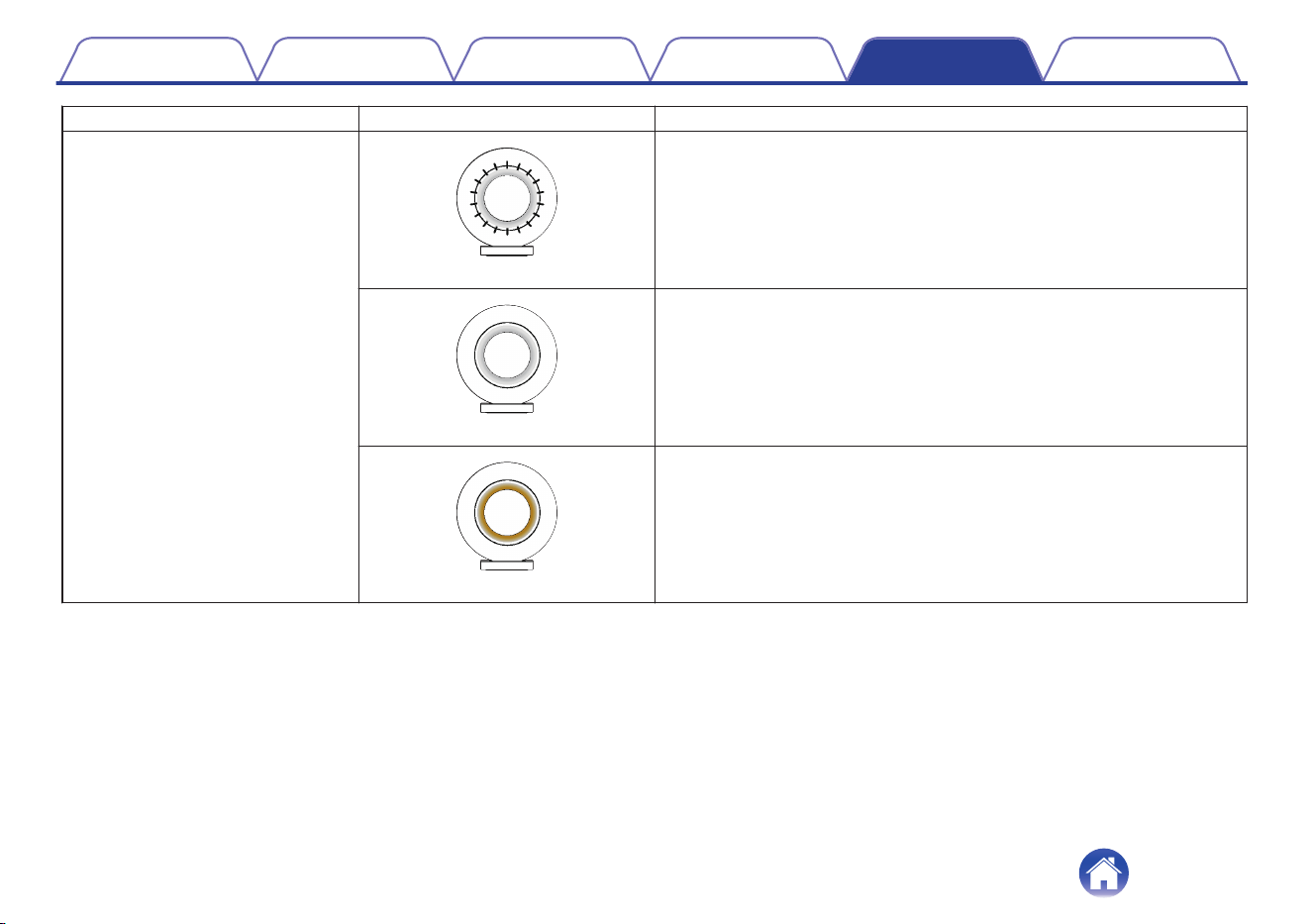

Status Front Halo light Description
Powering on
blinking white
The speaker is starting up or connecting to the network.
solid white
The speaker is connected to the network.
solid amber
The speaker is unable to connect to the network. Try to connect this unit
again.
Introduction Setup Playback Troubleshooting LED table Appendix
25
Status Front Halo light Description

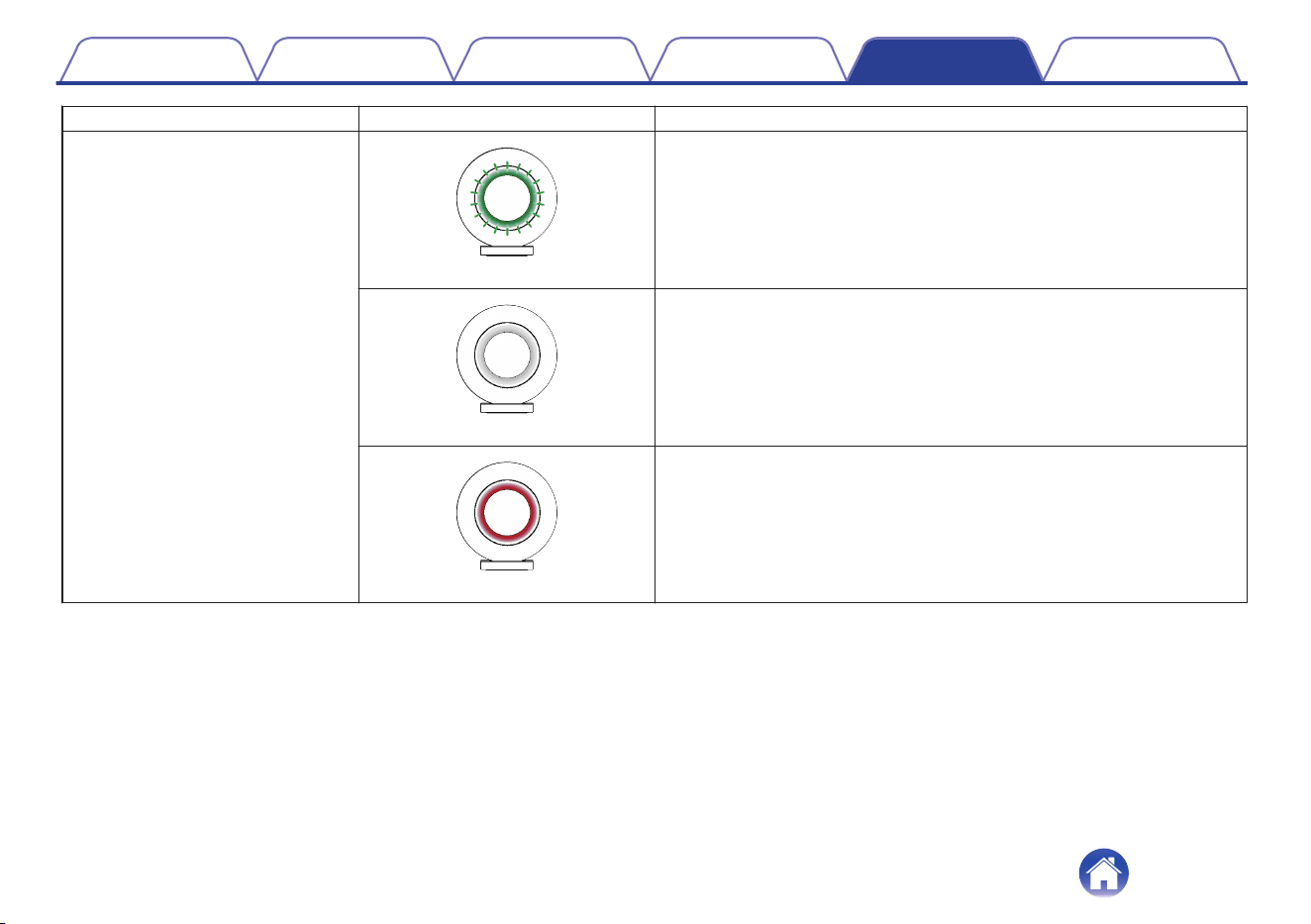

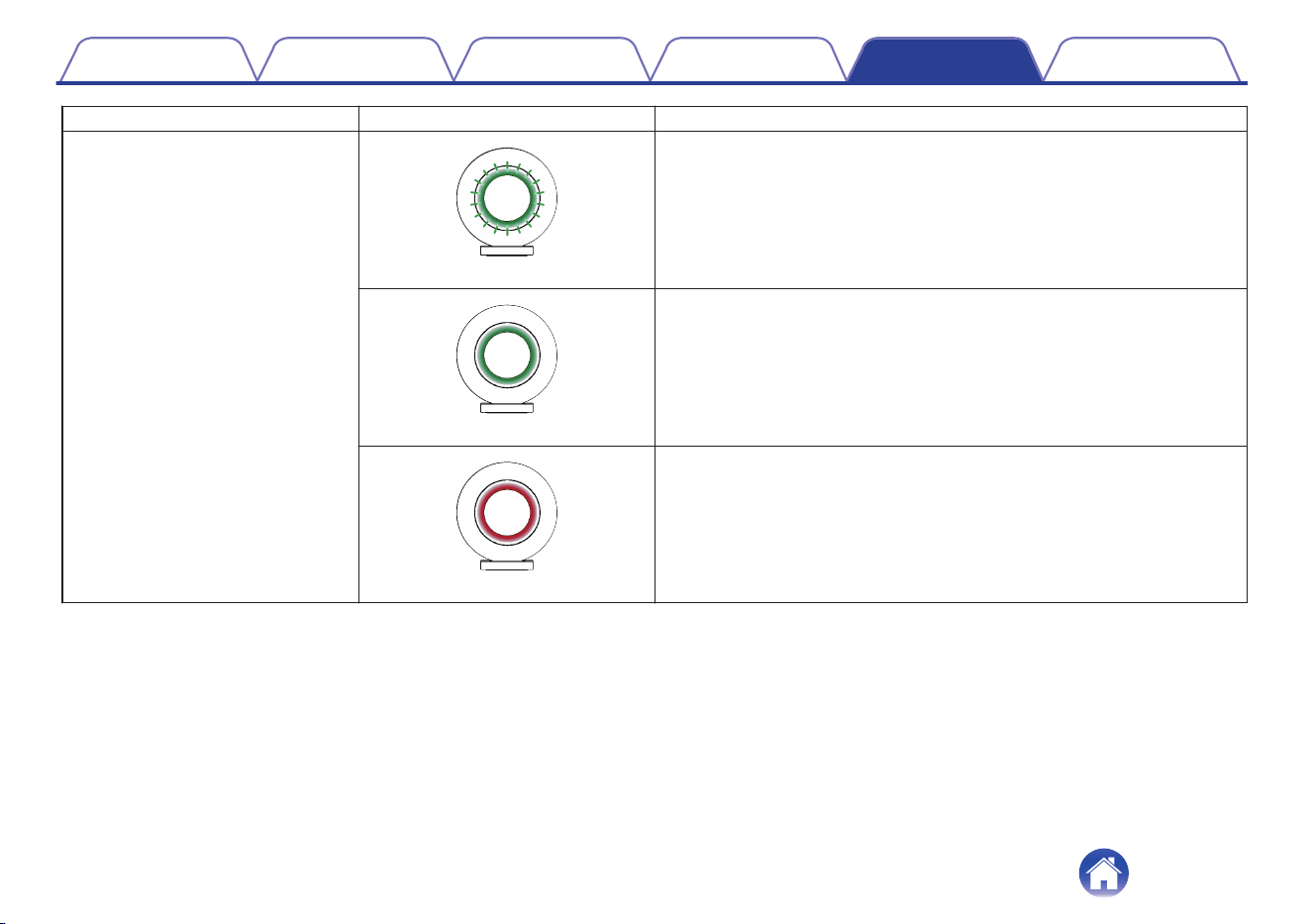

Bluetooth
blinks green twice
The speaker is pairing via Bluetooth.
solid white
The speaker is paired via Bluetooth.
solid red for 3 seconds
The speaker failed to pair to the Bluetooth device. Try to pair again.
(v p. 16)
Introduction Setup Playback Troubleshooting LED table Appendix
27
Status Front Halo light Description
Volume setting
blinking white slowly
The speaker is muted.
Firmware update
blinking amber
Firmware is being updated.
blinking red slowly (not fading)
There is a firmware error. Check your Internet connection quality, relaunch
the app, then try to update the firmware again.
Introduction Setup Playback Troubleshooting LED table Appendix
28

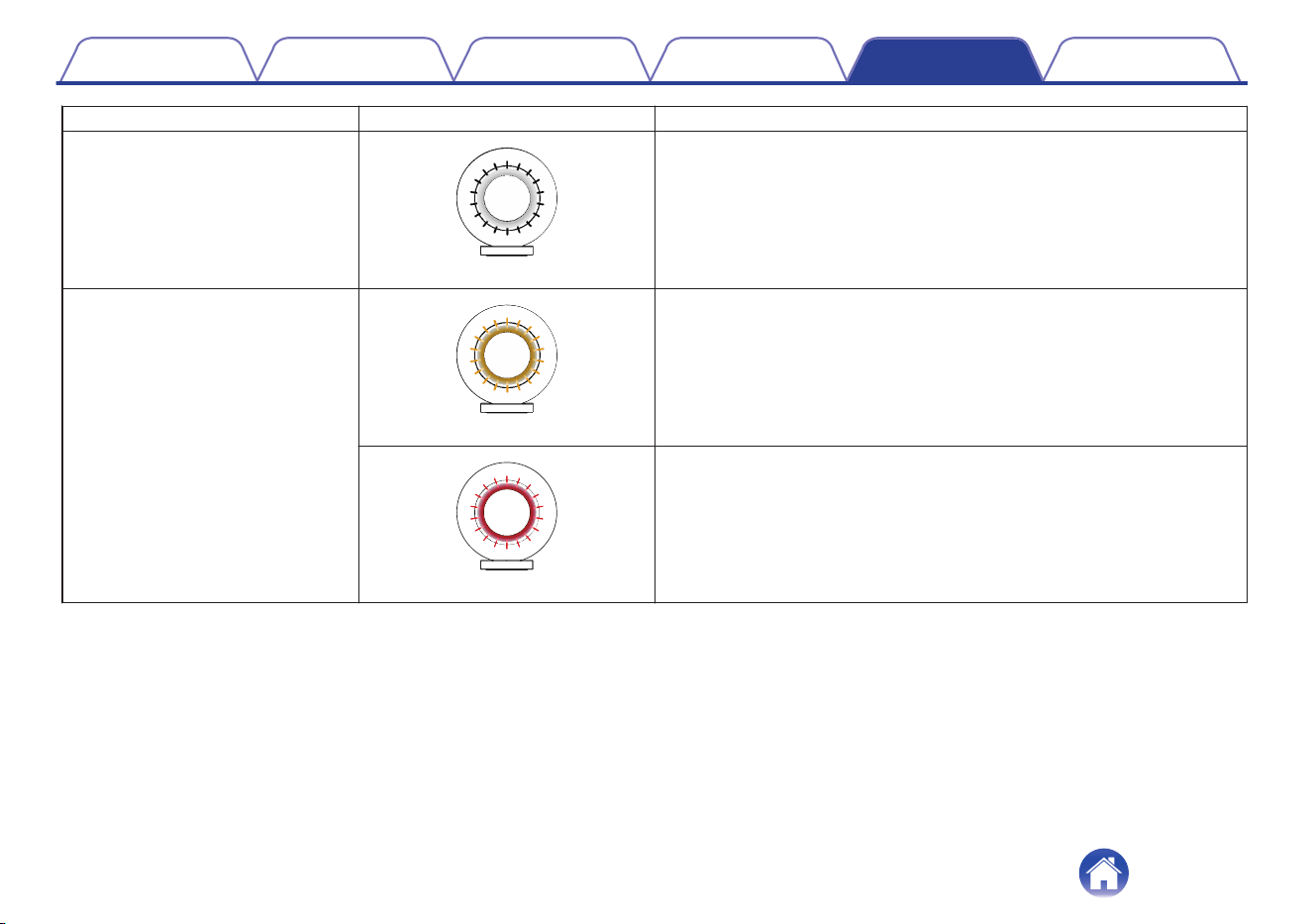

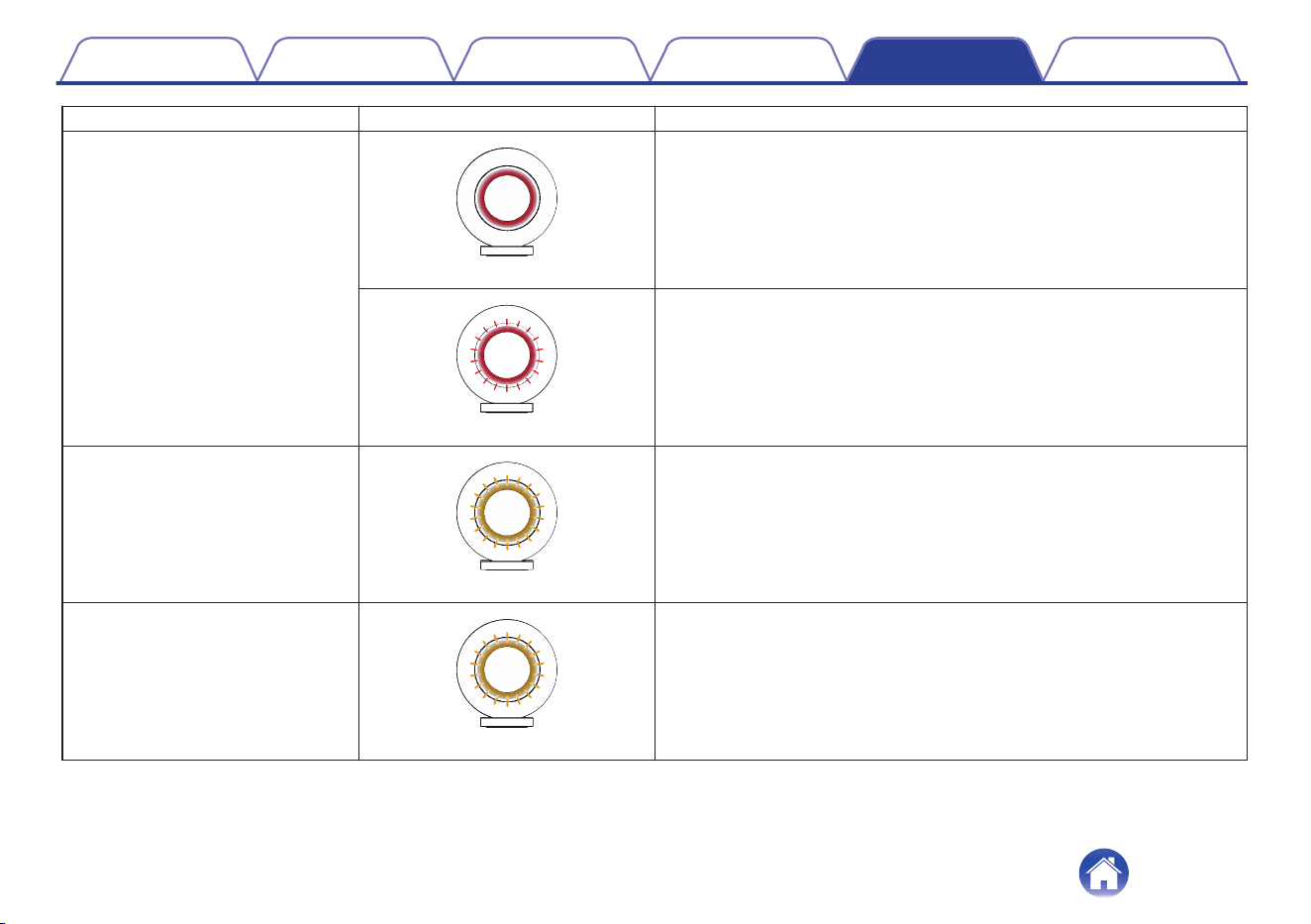

Status Front Halo light Description
Error
solid red
There was a setup error. Check your usage environment, then follow the
correct procedure to try setup again. If the error occurs again, restore
factory settings and try setup again. (v p. 23)
blinking red rapidly
There is a hardware error. Unplug the power cord, wait about 30 seconds,
then plug the power cord back in.
Factory reset
blinking amber rapidly
Factory settings have been restored.
Network reset
blinking amber rapidly
Network settings have been reset.
Introduction Setup Playback Troubleshooting LED table Appendix
29
Power management
o
Auto Standby
The speaker automatically enters standby mode to save power after
20 minutes of inactivity including:
n
Ethernet
After 20 minutes of no operation and no network access after
playing music via Ethernet.
n
Wi-Fi
After 20 minutes of no operation and no network access after
playing music via Wi-Fi.
n
USB
After 20 minutes of no operation and no network access after
playing music from a USB flash drive.
n
Bluetooth
After the Bluetooth connection is disconnected and there is 20
minutes of no operation and no network access after playing music
via Bluetooth.
n
LINE input
After 20 minutes of no audio.
n
Optical input
After 20 minutes of no operation after optical device is put into
standby.
n
HDMI (eARC/ARC)
Connect this unit and the eARC/ARC compatible TV with HDMI
cable and play TV. 20 minutes after TV is put into standby.
o
Off
To completely turn off the power to the device, you must remove the
mains plug from the power outlet.
Introduction
Setup Playback Troubleshooting LED table Appendix
30
Enable/disable Wi-Fi and Bluetooth functions
By disabling Wi-Fi and Bluetooth functions, you can reduce power
consumption in Auto Standby. Follow these steps to disable/enable these
functions:
1
In the HEOS app, tap the “Home” tab.
2
Select the Settings icon in the upper-right corner of
the screen.
3
Select “My Devices”.
4
Select “Marantz Grand Horizon”.
5
Select “Network”.
o
Wi-Fi
On
(Default):
Wi-Fi function enabled.
Off: Wi-Fi function disabled.
0
When setting Wi-Fi to “Off”, use an Ethernet cable to establish the network
connection.
o
Bluetooth
On
(Default):
Bluetooth function enabled.
Off: Bluetooth function disabled.
Introduction Setup Playback Troubleshooting LED table Appendix
31
Supported file types and codecs
Sampling frequency Bit length File extension Codec Bit rates
32/44.1/48/88.2/96/176.4/192 kHz 16/24 bit wav PCM –
32/44.1/48 kHz 16 bit mp3
MPEG-1 Audio Layer 3
CBR/VBR
32 - 320 kbps
32/44.1/48 kHz 16 bit
m4a
aac
AAC-LC 48 - 320 kbps
32/44.1/48 kHz 16 bit wma
wma9
CBR
CBR:48 - 192 kbps
44.1/48/88.2/96/176.4/192 kHz 16/24 bit flac flac –
44.1/48/88.2/96/176.4/192 kHz 16/24 bit m4a ALAC –
2.8/5.6 MHz 1 bit
dff
dsf
DSDIFF
DSF
–
NOTE
0
For USB flash drive, the limited numbers of folders and files that can be played back on this unit are as follows.
0
Number of folder directory levels: 8 levels (The limited number includes the root folder.)
0
Number of folders: 500
0
Number of files: 5000 (The allowable number of files may differ according to the USB flash drive capacity and the file size.)
0
Files protected by DRM, such as Apple’s FairPlay DRM, are not supported.
0
If you select a music source with a high bit rate or high resolution, it is set to the appropriate level by codec before being output.
0
The ALAC decoder is distributed under the Apache License, Version 2.0 (http://www.apache.org/licenses/LICENSE-2.0)
Introduction Setup Playback Troubleshooting LED table Appendix
32
o
Supported audio formats (Optical)
2-channel Linear PCM
2-channel, 32 kHz – 192 kHz
Bitstream
Dolby Digital
o
Supported audio formats (HDMI)
2-channel Linear PCM
2-channel, 32 kHz – 192 kHz
Multi-channel Linear PCM
7.1-channel, 32 kHz – 192 kHz
Bitstream
Dolby Digital / Dolby Atmos / Dolby
TrueHD / Dolby Digital Plus
Introduction Setup Playback Troubleshooting LED table Appendix
33
About HDMI
This unit supports the following HDMI functions.
0
eARC (Enhanced Audio Return Channel)/ARC (Audio Return Channel) function
Enjoy movies, music, etc., on your TV simply by connecting an eARC/ARC function-compatible TV to this unit via HDMI.
0
HDMI control function
Connect an HDMI control-compatible TV and this unit via HDMI and enable the HDMI control to enable linked control from either device.
0
Input source switching
If the TV is turned on, this unit automatically powers on and switches the input source.
0
Power off link
The TV power off operation is linked so this unit also turns off.
0
Volume adjustment
The volume of this unit can be adjusted using the TV remote control.
0
Audio output destination switching
If this unit is turned on, TV audio is output from this unit. If this unit is turned off, TV audio is output from the speakers of the TV.
0
Some functions may not operate depending on the connected TV.
Introduction Setup Playback Troubleshooting LED table Appendix
34
Trademark information
Apple, AirPlay, iPad, iPad Air, iPad Pro, iPhone and Mac are trademarks
of Apple Inc., registered in the U.S. and other countries.
The trademark “iPhone” is used in Japan with a license from Aiphone
K.K.
Use of the Works with Apple badge means that an accessory has been
designed to work specifically with the technology identified in the badge
and has been certified by the developer to meet Apple performance
standards.
The Bluetooth
®
word mark and logos are registered trademarks owned
by the Bluetooth SIG, Inc. and any use of such marks by DEI Sales, Inc.
is under license. Other trademarks and trade names are those of their
respective owners.
Dolby, Dolby Atmos, and the double-D symbol are registered trademarks
of Dolby Laboratories Licensing Corporation. Manufactured under license
from Dolby Laboratories. Confidential unpublished works. Copyright ©
2012–2024 Dolby Laboratories. All rights reserved.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade
dress and the HDMI Logos are trademarks or registered trademarks of
HDMI Licensing Administrator, Inc.
Introduction Setup Playback Troubleshooting LED table Appendix
35
The Wi-Fi CERTIFIED logo is a registered trademark of the Wi-Fi
Alliance.
Wi-Fi Certification provides assurance that the device has passed the
interoperability test conducted by the Wi-Fi Alliance, a group that certifies
interoperability among wireless LAN devices.
Google Play and the Google Play logo are trademarks of Google LLC.
App Store
®
is registered trademark of Apple, Inc. in the U.S. and other
countries.
Being Roon Ready means that Marantz uses Roon streaming
technology, for an incredible user interface, simple setup, rock-solid daily
reliability, and the highest levels of audio performance, without
compromise.
Introduction Setup Playback Troubleshooting LED table Appendix
36
Specifications
Wireless LAN
Network type: Conforming to IEEE 802.11a/b/g/n/ac/ax
Used frequency range: 2.4 GHz, 5 GHz, 6 GHz
Bluetooth section
Communications system: Bluetooth Version 5.4
Transmission power: Power Class 1
Maximum communication range: Approx. 98.4 ft/30 m in line of sight *
Used frequency range: 2.4 GHz band
Modulation scheme: FHSS (Frequency-Hopping Spread Spectrum)
Supported profiles: A2DP, AVRCP
Corresponding codec: SBC
Transmission range (A2DP): 20 Hz – 20,000 Hz
* The actual communication range varies depending on the influence of such factors as obstructions between devices, electromagnetic waves from
microwave ovens, static electricity, cordless phones, reception sensitivity, antenna performance, operating system, application software, etc.
Introduction
Setup Playback Troubleshooting LED table Appendix
37
General
Operating temperature: 41 °F - 95 °F (5 °C - 35 °C)
Power supply: AC 100 – 240 V, 50/60 Hz (for Europe model)
AC 100 – 120 V, 50/60 Hz (for North America model)
Power consumption: 120 W
Power consumption in Auto Standby:
Connection
Setting items in the HEOS app
Power consumption
Wi-Fi (v p. 31) Bluetooth (v p. 31)
Wi-Fi 2.4 GHz On Off 1.8 W
Wi-Fi 5 GHz On Off 1.8 W
Ethernet Off Off 1.9 W
USB with Ethernet Off Off 2.0 W
Bluetooth Off On 1.7 W
All with Ethernet On On 2.0 W
Max Analog Input: 2 Vrms

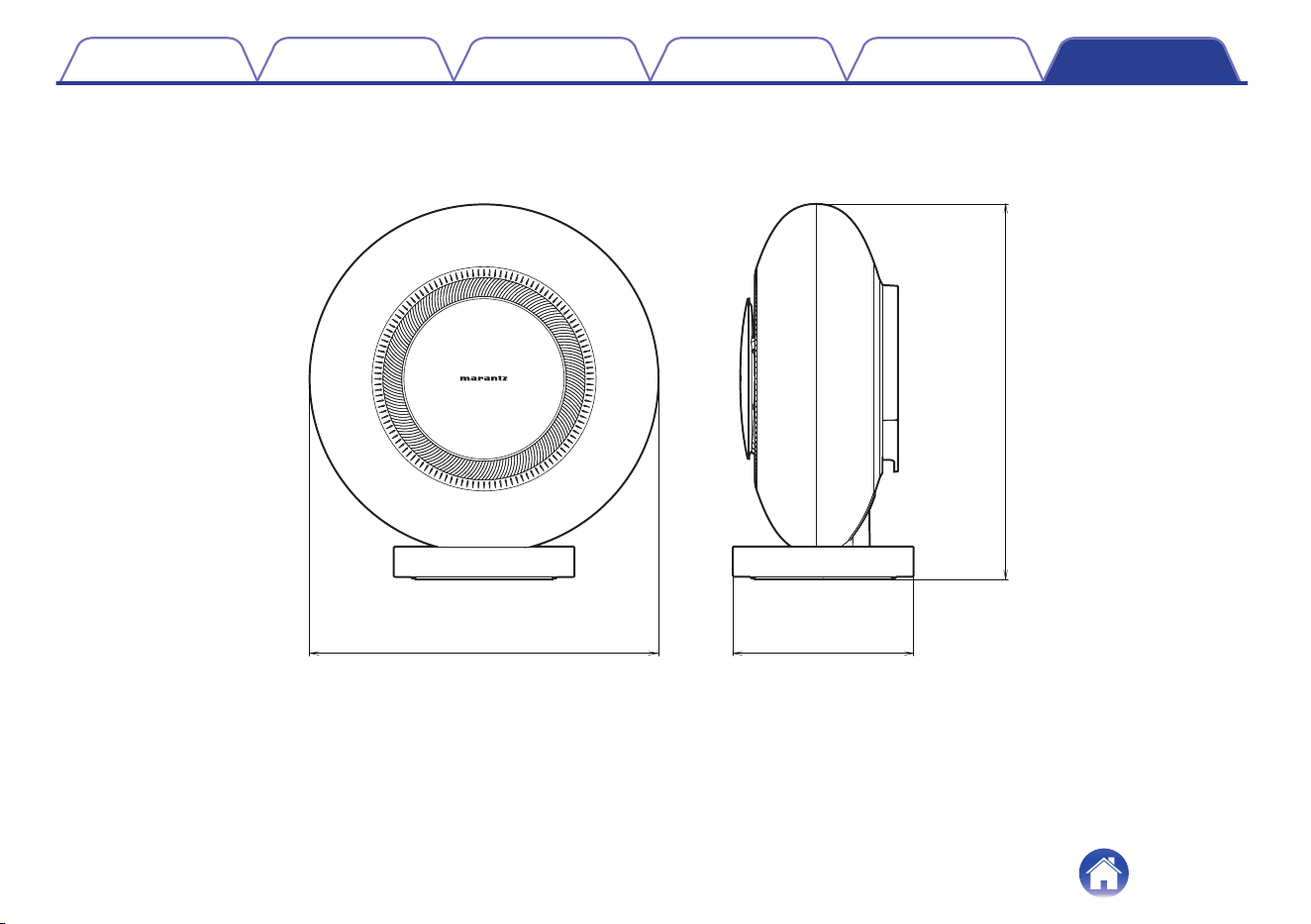

Introduction Setup Playback Troubleshooting LED table Appendix
38
3520 10973 00ASA
©2024 Masimo. All Rights Reserved.
40
