Refrigerator
User manual
RZ40H*****
Free Standing Appliance
English2
Contents
Safety information 4
What you need to know about the safety instructions 4
Important safety symbols and precautions: 5
State of California Proposition 65 Warning 5
Important safety precautions 5
Severe warning signs for transportation and site 7
Critical installation warnings 7
Installation cautions 9
Critical usage warnings 9
Usage cautions 12
Cleaning cautions 13
Critical disposal warnings 14
Installation 15
Refrigerator at a glance 15
Step-by-step installation 16
Operations 21
Main panel 21
Special features 24
Maintenance 27
Door reversal 27
Auto Open Door option touch sensor reversible (applicable models only) 39
Reversing the door handle position (applicable models only) 40
Handle and care 42
Cleaning 43
Replacement 43
Troubleshooting 44
General 44
Do you hear abnormal sounds from the refrigerator? 46
LIMITED WARRANTY (U.S.A.) 48
SAMSUNG REFRIGERATOR 48
English 3
Warranty Information (CANADA) 51
If your refrigerator needs service 51
Limited Warranty for Original Purchaser 51
Obligation to the Original Owner 51
Exclusions of the Warranty 52
NOTICE TO QUEBEC CONSUMERS – Warranty of Availability of Replacement Parts, Repair
Services, and Maintenance and Repair Information 52
DISCLAIMER OF LIABILITY 53
English4
Safety information
Before using your new Samsung Refrigerator, please read this manual thoroughly to ensure
that you know how to operate the features and functions that your new appliance offers
safely and efciently.
What you need to know about the safety instructions
• This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety. Children should be supervised to ensure that they
do not play with the appliance.
• Because the following instructions cover various models, the characteristics of your
refrigerator may differ slightly from the refrigerator described in this manual.
• If you have any question, contact us at 1-800-SAMSUNG or nd help and information
online at www.samsung.com.
• Refrigerant squirting out of the pipes could ignite or cause an eye injury. When
refrigerant leaks from the pipe, avoid any naked ames and move anything ammable
away from the product and ventilate the room immediately.
- Failing to do so may result in re or explosion.
• Improper use of the grounding plug can result in a risk of electric shock. If it is
necessary to use an extension cord, use only a 3-wire extension cord that has a 3-blade
grounding plug and a 3-slot receptacle that will accept the plug on the appliance.
The marked rating of the extension cord should be AC 115-120 V, 10 A, or more. If a
grounding adapter is used, make sure the receptacle box is fully grounded.
English 5
Important safety symbols and precautions:
Please follow all safety instructions in this manual. This manual uses the following safety
symbols.
WARNING
Hazards or unsafe practices that may result in severe personal injury, property damage,
and/or death.
CAUTION
Hazards or unsafe practices that may result in severe personal injury and/or property
damage.
NOTE
Useful information that helps users understand or benet from the refrigerator.
These warning signs are here to prevent injury to you and others.
Please follow them carefully.
After reading this section, keep it in a safe place for future reference.
State of California Proposition 65 Warning
WARNING
Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Important safety precautions
WARNING; Risk of re / ammable materials
WARNING
• R-600a is used as a refrigerant. This product contains ammable gas (Refrigerant
R-600a), contact your local authority in regard to safe disposal of this product.
• In order to avoid the creation of a ammable gas-air mixture if a leak in the
refrigerating circuit occurs, the size of the room in which the appliance may be sited
depends on the amount of refrigerant used. The room must be 35.3 ft³ in size for every
8 g of R-600a refrigerant inside the appliance.
Safety information
English6
• The installation location should not be exposed to direct sunlight and not placed near
any electric appliance or heat source, e.g. stove, oven or hob, radiator, etc.
• If you use two products side by side, for safety reason, be sure to use certied products
in explosive gas atmospheres.
• Never start up an appliance showing any signs of damage. If in doubt, consult your
dealer.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent
or similarly qualied persons in order to avoid a hazard.
• The socket must be easily accessible so that the appliance can be quickly disconnected
from the supply in an emergency. It must be outside the area of the rear of the
appliance.
• Do not store explosive substances such as aerosol cans with a ammable propellant in
this appliance.
• New hose-sets supplied with the appliance are to be used and that old hose-sets should
not be reused.
• When positioning the appliance, ensure the supply cord is not trapped or damaged.
• Do not locate multiple portable socket-outlets or portable power supplies at the rear of
the appliance.
WARNING
• Fill with potable water only.
• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of
obstruction.
• Do not use mechanical devices or other means to accelerate the defrosting process,
other than those recommended by the manufacturer.
• Do not damage the refrigerant circuit.
• Do not use electrical appliances inside the food storage compartments of The appliance,
unless they are of the type recommended by the manufacturer.
• Connect to potable water supply only.
WARNING
• Risk of child entrapment. Before you throw away your old refrigerator or freezer:
- Take off the doors.
- Leave the shelves in place so that children may not easily climb inside.
This appliance is intended to be used in household and similar applications such
as
• staff kitchen areas in shops, ofces and other working environments;
• farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• catering and similar non-retail applications.
English 7
Severe warning signs for transportation and site
WARNING
• When transporting and installing the appliance, care should be taken to ensure that no
parts of the refrigerating circuit are damaged.
- Refrigerant leaking from the pipe work could ignite or cause an eye injury. If a leak
is detected, avoid any naked ames or potential sources of ignition and air the room
in which the appliance is standing for several minutes.
- This appliance contains a small amount of isobutane refrigerant (R-600a), a natural
gas with high environmental compatibility that is, however, also ammable.
Critical installation warnings
WARNING
• Do not install the refrigerator in a damp location or place where it may come in contact
with water.
- Deteriorated insulation on electrical parts may cause an electric shock or re.
• Do not place this refrigerator in direct sunlight or expose it to the heat from stoves,
room heaters, or other appliances.
• Do not plug several appliances and the refrigerator into the same multiple power strip.
The refrigerator should always be plugged into its own individual electrical outlet which
has a voltage rating that matches the voltage listed on the refrigerator’s rating plate.
- This provides the best performance and also prevents overloading of house wiring
circuits, which could overheat the wires and cause a re hazard.
• If the wall socket is loose, do not insert the power plug.
- There is a risk of electric shock or re.
• Do not use a power cord that has cracks or abrasion damage along its length or at
either end.
• Do not bend the power cord excessively or place heavy objects on it.
• Do not pull or excessively bend the power cord.
• Do not twist or tie the power cord.
• Do not hook the power cord over a metal object, place a heavy object on the power
cord, insert the power cord between objects, or push the power cord into the space
behind the appliance.
• When moving the refrigerator, be careful not to roll over or damage the power cord.
- This may result in an electric shock or re.
• Never unplug your refrigerator by pulling on the power cord. Always grip the plug
rmly and pull straight out from the outlet.
- Damage to the cord may cause a short-circuit, re, and/or electric shock.
• Do not install this appliance near a heater or ammable material.
• Do not install this appliance in a location where gas may leak.
- This may result in an electric shock or re.
• This refrigerator must be properly located and installed in accordance with the
instructions in this manual before you use it.
Safety information
English8
• Connect the power plug in the proper position with the cord hanging down.
- If you connect the power plug upside down, the wire can get cut off and cause a re
or electric shock.
• Make sure that the power plug is not crushed or damaged by the back of the
refrigerator.
• Keep the packing materials out of reach of children.
- There is a risk of death from suffocation if a child puts the packing materials on his
or her head.
• The appliance must be positioned so that the plug is accessible after installation.
- Failing to do so may result in an electric shock or re due to electric leakage.
• Do not install this appliance in a humid, oily or dusty location, or in a location exposed
to direct sunlight or to water (rain drops).
- Deteriorated insulation on electrical parts may cause an electric shock or re.
• If large amounts of dust or water enter the refrigerator, disconnect the power plug and
contact a Samsung Electronics service center.
- Otherwise there is a risk of re.
• Do not stand on top of the appliance or place objects (such as laundry, lighted candles,
lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance.
- This may result in an electric shock, re, problems with the product, or injury.
• You need to remove all the protective plastic lm before you initially plug the product
in.
• Children should be supervised to ensure that they do not play with the snap rings used
for door adjustment or the water tube clips.
- There is risk of death by suffocation if a child swallows a snap ring or water tube
clip. Keep the snap rings and water tube clips out of children's reach.
• The refrigerator must be safely grounded.
- Always make sure that you have grounded the refrigerator before attempting to
investigate or repair any part of the appliance. Power leakages can cause severe
electric shock.
• Never use gas pipes, telephone lines, or other potential lightning attractors as an
electrical ground.
- You must ground the refrigerator to prevent any power leakages or electric shocks
caused by current leakage from the refrigerator.
- Current leakage may result in an electric shock, re, explosion, or problems with the
product.
• Plug the power plug into the wall socket rmly. Do not use a damaged power plug,
damaged power cord, or loose wall socket.
- This may result in an electric shock or re.
• Only a qualied technician or service company should be allowed to change the fuse in
the refrigerator.
- Failing to do so may result in an electric shock or personal injury.
English 9
Installation cautions
CAUTION
• Allow sufcient space around the refrigerator and install it on a at surface.
- Keep the ventilation space in the appliance enclosure or mounting structure clear of
obstructions.
• After you have installed the refrigerator and turned it on, allow the appliance to stand
for 2 hours before loading it with food.
• It is strongly recommended you have a qualied technician or service company install
the refrigerator.
- Failing to do so may result in an electric shock, re, explosion, problems with the
product, or injury.
• Overloading one door may make the refrigerator fall, causing physical injury.
Critical usage warnings
WARNING
• Do not insert the power plug into a wall socket with wet hands.
- This may result in an electric shock.
• Do not store articles on the top of the appliance.
- When you open or close the door, the articles may fall and cause personal injury
and/or material damage.
• Do not insert hands, feet, or metal objects (such as chopsticks, etc.) into the bottom or
the back of the refrigerator.
- This may result in an electric shock or injury.
- Any sharp edges may cause a personal injury.
• Do not touch the inside walls of the freezer or products stored in the freezer with wet
hands.
- This may cause frostbite.
• Do not put a container lled with water on the refrigerator.
- If spilled, there is a risk of re or electric shock.
• Do not keep volatile or ammable objects or substances (benzene, thinner, propane gas,
alcohol, ether, LP gas, and other such products) in the refrigerator.
- This refrigerator is for storing food only.
- This may result in re or explosion.
• Children should be supervised to ensure that they do not play with the appliance.
- Keep ngers out of “pinch point” areas. Clearances between the doors and cabinet
are necessarily small. Be careful when you open the doors if children are in the area.
• Do not let children hang on the door or door bins. A serious injury may occur.
• Do not let children go inside the refrigerator. They could become trapped.
• Do not insert your hands into the area under the appliance.
- Any sharp edges may cause personal injury.
Safety information
English10
• Do not store pharmaceutical products, scientic materials, or temperature sensitive
products in the refrigerator.
- Products that require strict temperature controls must not be stored in the
refrigerator.
• Do not place or use electrical appliances inside the refrigerator/freezer, unless they are
of a type recommended by the manufacturer.
• If you smell smoke, pull out the power plug immediately, and then contact a Samsung
Electronics service center.
• If large amounts of dust or water enter the refrigerator, disconnect the power plug and
contact your Samsung Electronics service center.
- Otherwise there is a risk of re.
• Do not let children step on a drawer.
- The drawer may break and cause them to slip.
• Do not leave the doors of the refrigerator open while the refrigerator is unattended and
do not let children enter the refrigerator.
• Do not allow babies or children to go into a drawer.
- It can cause death from suffocation by entrapment or personal injury.
• Do not overll the refrigerator with food.
- When you open the door, an item may fall out and cause personal injury or material
damage.
• Do not spray volatile material such as insecticide onto the surface of the appliance.
- As well as being harmful to humans, it may also result in an electric shock, re, or
problems with the product.
• Never put ngers or any objects into the water dispenser outlet, ice chute, or ice maker
bucket.
- It may cause a personal injury or material damage.
• Do not use or place any substances sensitive to temperature such as ammable sprays,
ammable objects, dry ice, medicine, or chemicals near or inside the refrigerator.
• Do not use a hair dryer to dry the inside of the refrigerator. Do not place a lighted
candle in the refrigerator to remove bad odors.
- This may result in an electric shock or re.
• Fill the water tank and ice cube trays with potable water only (tap water, mineral water,
or puried water).
- Do not ll the tank with tea, juice, or a sports drink. They can damage the
refrigerator.
• Do not stand on top of the appliance or place objects (such as laundry, lighted candles,
lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance. This may
result in an electric shock, re, problems with the product, or injury. Do not put a
container lled with water on the appliance.
- If spilled, there is a risk of re or electric shock.
• Never stare directly at the UV LED lamp for long periods of time.
- This may result in eye strain due to the ultraviolet rays.
• Do not put a fridge shelf into the refrigerator upside down. The shelf stopper will not
work.
- The glass shelf could fall and cause personal injury.
• Keep ngers out of “pinch point” areas. Clearances between the doors and cabinet are
necessarily small. Be careful when you open the doors if children are in the area.
English 11
• If a gas leak is detected, avoid any naked ames or potential sources of ignition, and air
the room in which the appliance is standing for several minutes.
- Do not touch the appliance or power cord.
- Do not use a ventilating fan.
- A spark may result in an explosion or re.
• Use only the LED Lamps provided by the manufacturer or its service agents.
• Bottles should be stored tightly together so that they do not fall over or out.
• This product is intended only for the storage of food in a domestic environment.
• Never put ngers or any objects into the water dispenser outlet, ice chute, or ice maker
bucket.
- This can cause a personal injury or material damage.
• Do not attempt to repair, disassemble, or modify the refrigerator yourself.
- Unauthorized modications can cause safety problems. To reverse an unauthorized
modication, we will charge the full cost of parts and labor.
• Do not use any fuse (such as cooper, steel wire, etc.) other than a standard fuse.
• If your refrigerator needs to be repaired or reinstalled, contact your nearest Samsung
service center.
- Failing to do so may result in an electric shock, re, problems with the product, or
injury.
• If the interior or exterior LED lamp has gone out, contact your nearest Samsung service
center.
• If the refrigerator emits a burning smell or smoke, unplug the refrigerator immediately
and contact a Samsung service center.
- Failing to do so may result in an electric or re hazards.
• Pull the power plug out of the socket before changing the interior lamps of the
refrigerator.
- Otherwise, there is a risk of electric shock.
• If you experience difculty changing a non-LED light, contact a Samsung service center.
• If the product is equipped with LED lamps, do not disassemble the Lamp Covers and
LED lamps yourself.
- Contact a Samsung service center.
• Plug the power plug into the wall socket rmly.
• Do not use a damaged power plug, damaged power cord, or loose wall socket.
- This may result in an electric shock or re.
Safety information
English12
Usage cautions
CAUTION
• Do not re-freeze frozen foods that have thawed completely.
• Use only the ice maker provided with the refrigerator.
• To get the best performance from the product:
- Do not place food too close to the vents at the rear of the refrigerator as this can
obstruct free air circulation in the refrigerator compartment.
- Wrap food up properly or place it in airtight containers before putting it into the
refrigerator.
- Please observe maximum storage times and expiration dates of frozen goods.
• Do not put glass containers or bottles or carbonated beverages into the freezer.
- The container may freeze and break, and this may result in injury.
• Service Warranty and Modication.
- Any changes or modications performed by a 3rd party on this nished appliance
are not covered under Samsung warranty service, nor is Samsung responsible for
safety issues that result from 3rd party modications.
• Do not block the air vents inside the refrigerator.
- If the air vents are blocked, especially with a plastic bag, the refrigerator can be over
cooled. If a cooling period lasts too long, the water lter may break and cause water
leakage.
• If the refrigerator is disconnected from the power supply, you should wait for at least
ve minutes before plugging it back in.
• If large amounts of water enter the refrigerator, pull out the power plug and contact a
Samsung service center.
• Do not strike or apply excessive force to any glass surface.
- Broken glass may result in a personal injury and/or property damage.
• Fill the water tank and ice cube trays with potable water only (tap water, mineral water,
or puried water).
- Do not ll the tank with tea, juice, or a sports drink. They can damage the
refrigerator.
• If the refrigerator is ooded, shut off the power to the refrigerator and contact your
nearest Samsung service center.
- There is a risk of electric shock or re.
• Do not keep vegetable oil in your refrigerator’s door bins. The oil can solidify, making it
foul-tasting and difcult to use. In addition, the open container can leak and the leaked
oil can cause the door bin to crack. After opening an oil container, it is best to keep the
container in a cool and shaded place such as a cupboard or pantry.
- Examples of vegetable oil: olive oil, corn oil, grape-seed oil, etc.
English 13
Cleaning cautions
CAUTION
• Do not spray water directly on the inside or outside of the refrigerator.
- There is a risk of re or electric shock.
• Do not use a hair dryer to dry the inside of the refrigerator.
• Do not place a lighted candle in the refrigerator to remove bad odors.
- This may result in an electric shock or re.
• Do not spray cleaning products directly on the display.
- Printed letters on the display may come off.
• If any foreign substance such as water has entered the appliance, unplug the power
plug and contact your nearest Samsung service center.
- Failing to do so may result in an electric shock or re.
• Use a clean, dry cloth to remove any foreign matter or dust from the power plug blades.
Do not use a wet or damp cloth when cleaning the plug.
- Otherwise, there is a risk of re or electric shock.
• Do not clean the appliance by spraying water directly onto it.
• Do not use benzene, thinner, or Clorox (bleach) to clean the refrigerator.
- They may damage the surface of the appliance and may cause a re.
• Never put ngers or any objects into the dispenser outlet.
- This can cause a personal injury or material damage.
• Before cleaning or performing maintenance, unplug the appliance from the wall socket.
- Failing to do so may result in an electric shock or re.
• Use a clean sponge or soft cloth and a mild detergent in warm water to clean the
refrigerator.
• Do not use abrasive or harsh cleansers such as window sprays, scouring cleansers,
ammable uids, muriatic acid, cleaning waxes, concentrated detergents, bleaches, or
cleansers containing petroleum products on exterior surfaces (doors and cabinet), plastic
parts, door and interior liners, and gaskets.
- These can scratch or damage the material.
• Do not clean glass shelves or covers with warm water when they are cold. Glass shelves
and covers may break if exposed to sudden temperature changes or impacts such as
bumping or dropping.
Safety information
English14
Critical disposal warnings
WARNING
• Children trapped inside a refrigerator can hurt themselves or suffocate to death.
• Please dispose of the packaging material from this product in an environmentally
friendly manner.
• Ensure that none of the pipes on the back of the refrigerator are damaged prior to
disposal.
• This product contains R-600a, a ammable gas, which is used as the refrigerant. Contact
your local authorities regarding safe disposal of this product.
• When disposing of this refrigerator, remove the door/door seals and door latch so that
small children or animals cannot become trapped inside. Children should be supervised
to ensure that they do not play with the appliance.
- If trapped inside, the child could be injured or suffocate to death.
• Cyclopentane is used in the insulation. The gases in the insulation material require
a special disposal procedure. Please contact your local authorities in regard to the
environmentally safe disposal of this product.
• Keep all packaging materials well out of the reach of children, as packaging materials
can be dangerous to children.
- If a child places a bag over his or her head, the child could suffocate.
English 15
Installation
Follow these instructions carefully to ensure a proper installation of this refrigerator and to
prevent accidents before using it.
WARNING
• Use the refrigerator only for its intended purpose as described in this manual.
• Any servicing must be performed by a qualied technician.
• Dispose of the product packaging material in compliance with the local regulations.
• To prevent electric shock, unplug the power cord before servicing or replacements.
Refrigerator at a glance
The actual image and provided component parts of the refrigerator may differ, depending
on the model and the country.
01
02
05
04
06
03
01 Door bin
02 Top shelf cover *
03 Freezer shelf
04 Freezer drawer
05 Twist ice maker *
06 Bottom drawer
* Applicable models only
NOTE
• For best energy efciency, make sure all of shelves, drawers, and baskets are placed in
their original position.
Installation
English16
Step-by-step installation
STEP 1 Select a site
Site requirements:
• Solid, level surface without carpeting or ooring that may obstruct ventilation
• Away from direct sunlight
• Adequate room for opening and closing the door
• Away from a heat source
• Room for maintenance and servicing
• Temperature range: between 38 °F (3 °C ) and 110 °F (43 °C)
Clearance
See the pictures and table below for space requirements for installation.
C
B
A
Depth “A” 27
3
/ 8” (694 mm)
Width “B” 23
3
/ 8” (595 mm)
Overall Height “C” 73
1
/ 8” (1858 mm)
English 17
01
03
05
06
07
08
04
02
Bar handle type
01 more than 2” (50 mm) recommended
02 more than 12 mm recommended
03 130°
04 7
1
/ 8” (181.5 mm)
05 30
5
/ 8” (776.5 mm)
06 22
5
/ 8” (575 mm)
07
2
/ 8” (5.5 mm)
08 47” (1194 mm)
NOTE
The measurements in the above table may differ, depending on the measuring method.
Installation
English18

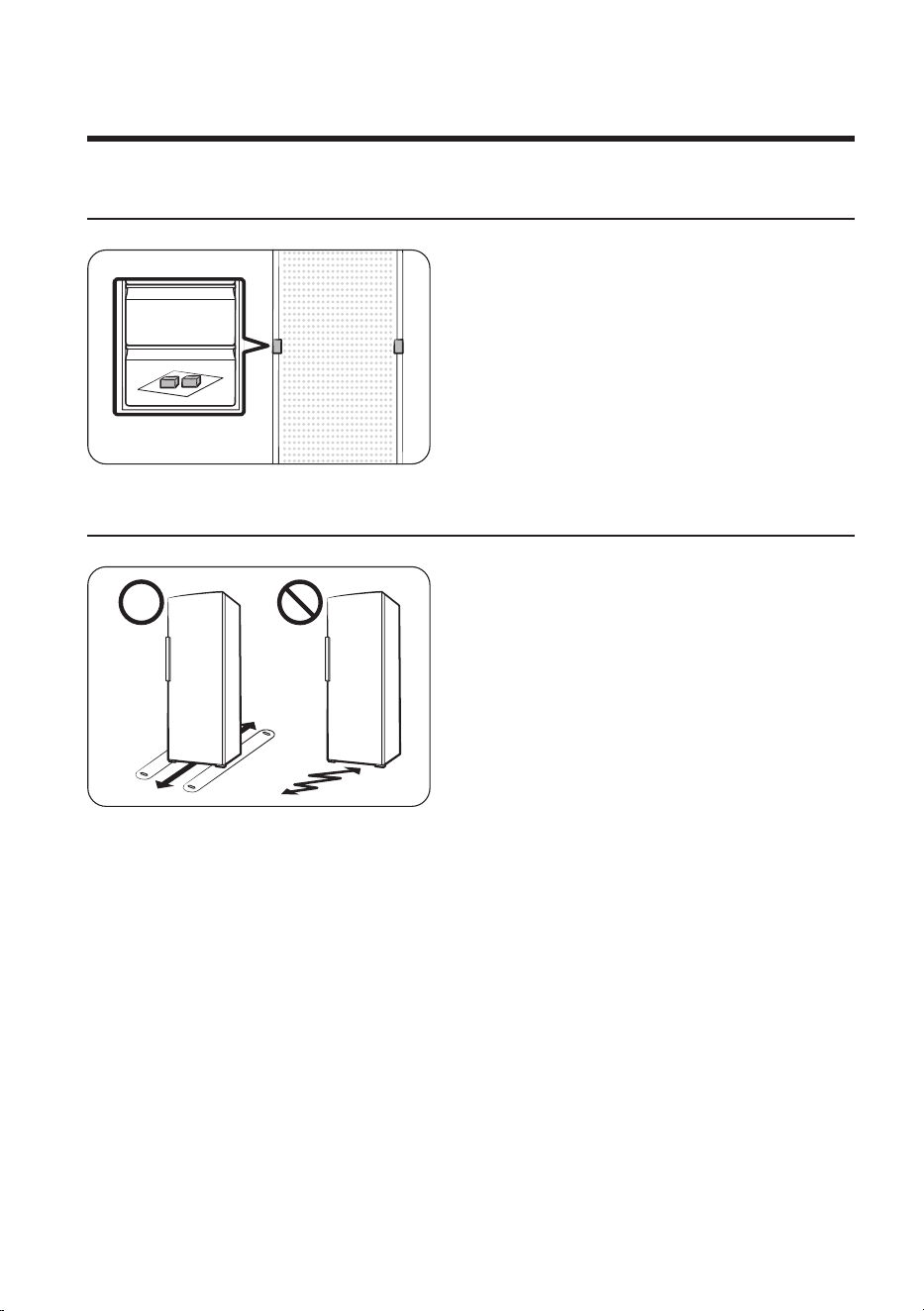

STEP 2 Spacing
1. Open the door and locate the provided
spacers (x2).
2. Unpack both spacers and attach them
to the rear of the refrigerator as shown.
They help ventilate air to the rear wall
and save power consumption.
STEP 3 Flooring
• The surface to install the refrigerator
must support a fully loaded refrigerator.
• To protect the oor, put a large piece
of cardboard on each foot of the
refrigerator.
• Once the refrigerator is in its nal
position, do not move it unless
necessary to protect the oor. If you
have to, use a thick paper or cloth such
as old carpet along the movement path.
English 19

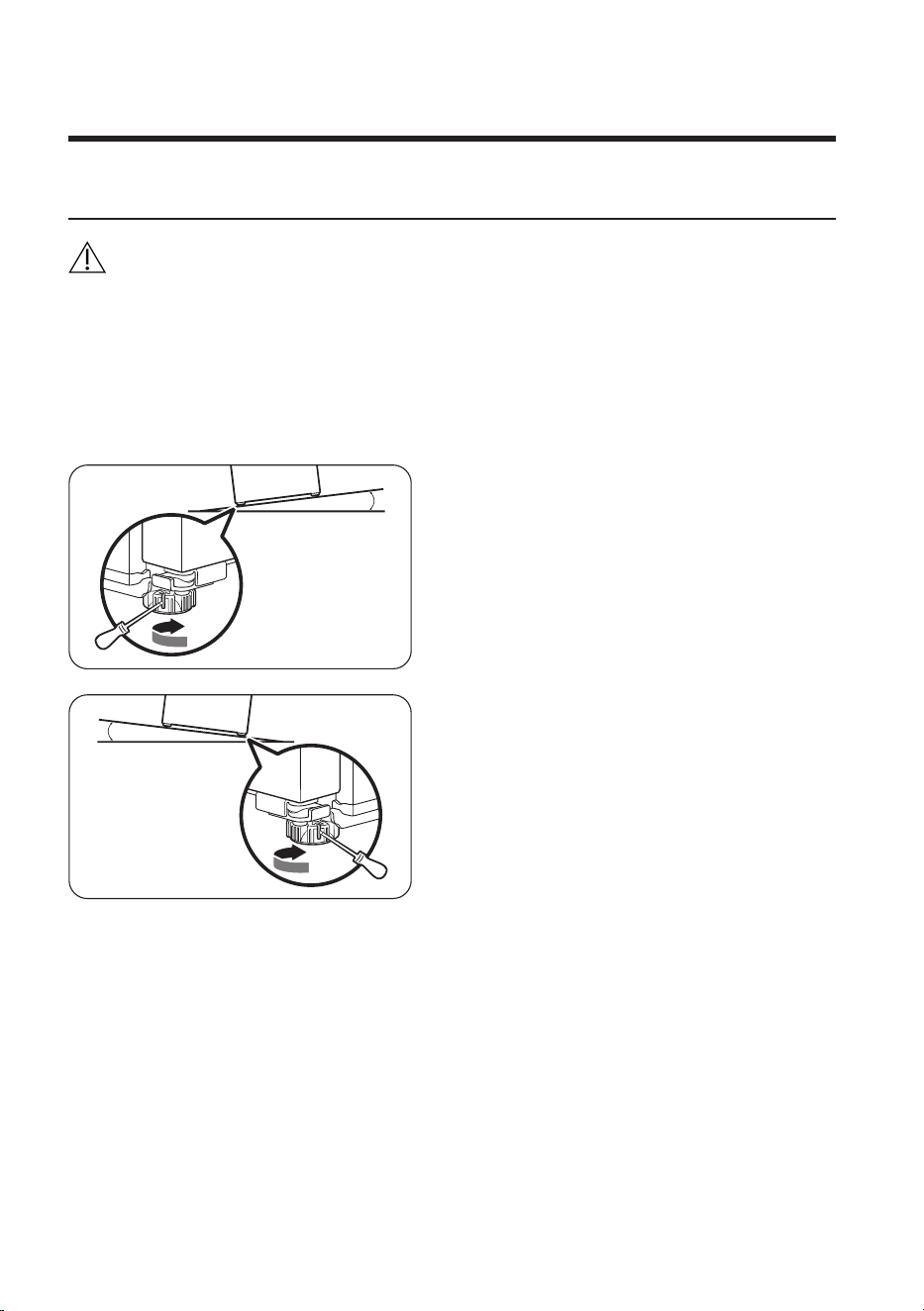

STEP 4 Adjust the levelling legs
CAUTION
• The refrigerator must be levelled on a at, solid oor. Failing to do so can cause damage
to the refrigerator or physical injury.
• Levelling must be performed with an empty refrigerator. Make sure no food items
remain inside the refrigerator.
• For safety reasons, adjust the front side a little higher than the rear side.
The refrigerator can be levelled using the front legs that have a special screw (leveller) for
levelling purposes. Use a at-head screwdriver for levelling.
To adjust the height of the left side:
Insert a at-head screwdriver into the
leveller of the front left leg. Turn the
leveller clockwise to raise, or turn it
counter clockwise to lower.
To adjust the height of the right side:
Insert a at-head screwdriver into the
leveller of the front right leg. Turn the
leveller clockwise to raise, or turn it
counter clockwise to lower.
Installation
English20
STEP 5 Initial settings
By completing the following steps, the refrigerator should be fully functioning.
1. Remove the PE foam sheet on each shelf corner, which is attached to protect the
refrigerator during transportation.
2. Plug the power cord into the wall socket to turn the refrigerator on .
3. Open the door, and check if the interior light lights up.
4. Set the temperature to the lowest, and wait until the refrigerator reaches the set
temperature. Now the refrigerator is ready for use.
NOTE
When the refrigerator powers on, the alarm will sound. To turn off the alarm, press
Freezer.
STEP 6 Final check
When installation is complete, conrm that:
• The refrigerator is plugged into an electrical outlet and grounded properly.
• The refrigerator is installed on a at, level surface with a reasonable clearance from the
wall or the cabinet.
• The refrigerator is level and is sitting rmly on the oor.
• The door opens and closes freely, and the interior light turns on automatically when you
open the door.
English 21
Operations
Main panel
The actual appearance of your main panel may differ from the gure and the main panel
design is subject to change without notice.
02 0301
01 Temp. / Freezer Convert 3 sec 02 Door alarm
03 Lock
* Applicable models only
01 Temp. / Freezer Convert 3 sec
Temp.
Tap Temp. to select the desired temperature or available function.
• The selection changes in the following cycle in the Freezer mode:
0 °F -1 °F -2 °F -3 °F -4 °F -5 °F -6 °F -7 °F -8 °F
( Power Freeze ) 5 °F 4 °F 3 °F 2 °F 1 °F 0 °F
-19 °C -20 °C -21 °C -22 °C -23 °C ( Power Freeze )
-15 °C -16 °C -17 °C -18 °C -19 °C
• The selection changes in the following cycle in the Fridge mode:
37 °F 36 °F 35 °F 34 °F 44 °F 43 °F 42 °F 41 °F
40 °F 39 °F 38 °F 37 °F (3 °C 2 °C 1 °C 7 °C 6 °C
5 °C 4 °C 3 °C 2 °C)
• The temperature is xed and cannot be changed in the Soft Freeze
and Cold mode.
- Soft Freeze : 23 °F (-5 °C)
- Cold : 30 °F (-1 °C)
Operations
English22
Freezer Convert
3 sec
Touch and hold Temp. for 3 seconds to select the desired operating
mode.
• The operating mode changes in the following cycle: Soft Freeze
Cold Fridge
• When the operating mode is Freezer , all the mode indicators
( Fridge, Cold, and Soft Freeze) turn off.
• Fridge, Cold, or Soft Freeze indicator turns on when the
corresponding mode is selected.
CAUTION
Before changing the operating mode, check that the food and
containers stored inside are suitable for the selected mode to prevent
damage or spoilage.
Power Freeze
(applicable
models only)
Power Freeze speeds up the freezing process at maximum fan speed.
The freezer keeps running at full speed for 50 hours and then returns
to the previous temperature.
• To activate Power Freeze , press and hold Temp. for 3 seconds.
The LED indicator on the left side of the button lights up, and the
refrigerator will speed up the freezing process.
• To deactivate, press and hold Temp. for 3 seconds again. The
freezer returns to the previous temperature setting.
• To freeze large amounts of food, activate Power Freeze for at least
20 hours before putting food in the freezer.
NOTE
• Using Power Freeze increases power consumption. Make sure you
turn it off and return to the previous temperature if you do not
intend to use it.
• To quickly freeze large quantities of food, remove the drawers and
use the provided shelf.
• Power Freeze can only be activated when the refrigerator is in the
Freezer mode.
WARNING
• Do not put glass bottles containing liquid in the freezer. When cancelling Fridge mode,
the glass bottles may break or burst in the freezer.
• Make sure to remove frozen food from the freezer before enabling the Fridge mode.
Frozen foods melt and spoil as the temperature increases ( Freezer mode changes to
Fridge mode).
• Make sure to remove chilled foods from the freezer before disabling the Freezer mode.
Chilled foods may freeze as the temperature decreases ( Fridge mode changes to Freezer
mode).
English 23
NOTE
If you want to use Fridge mode, it is strongly recommended to use plastic containers to
store food, especially vegetables.
02 Door Alarm / °F °C 3 sec
Door Alarm
Tap the button to turn the door alarm on or off.
• If the door is left open for more than 2 minutes, the alarm will
sound, and the LED indicator on the left side of the button will
blink.
• If the door is left open for 5 minutes, internal light (in the fridge,
freezer) will blink for 5 minutes and turn off. This is for alerting the
hearing-impaired person, and it is normal.
°F °C 3 sec
Touch and hold the button for 3 seconds to switch the temperature
unit between Celsius and Fahrenheit.
03 Lock (3 sec)
Touch and hold the button for 3 seconds to turn the Lock function on or off.
• When you turn on the function, all controls will be disabled, and the LED indicator on
the left side of the button will turn on.
• After you turn on the function, you must turn it off to use the main panel again.
Activating or deactivating the Sabbath mode
The Sabbath mode stays active for 85 hours once it is activated. After that, it will be
deactivated automatically.
• To activate and deactivate the Sabbath mode, touch and hold the and buttons
simultaneously for 6 seconds. Then, when the display blinks, tap the button.
NOTE
The Sabbath mode stays active even if the refrigerator powers off. To exit the Sabbath
mode, you must deactivate it manually.
Operations
English24
Special features
The actual image and special functions of your refrigerator may differ depending on the
model and the country.
Ice making (applicable models only)

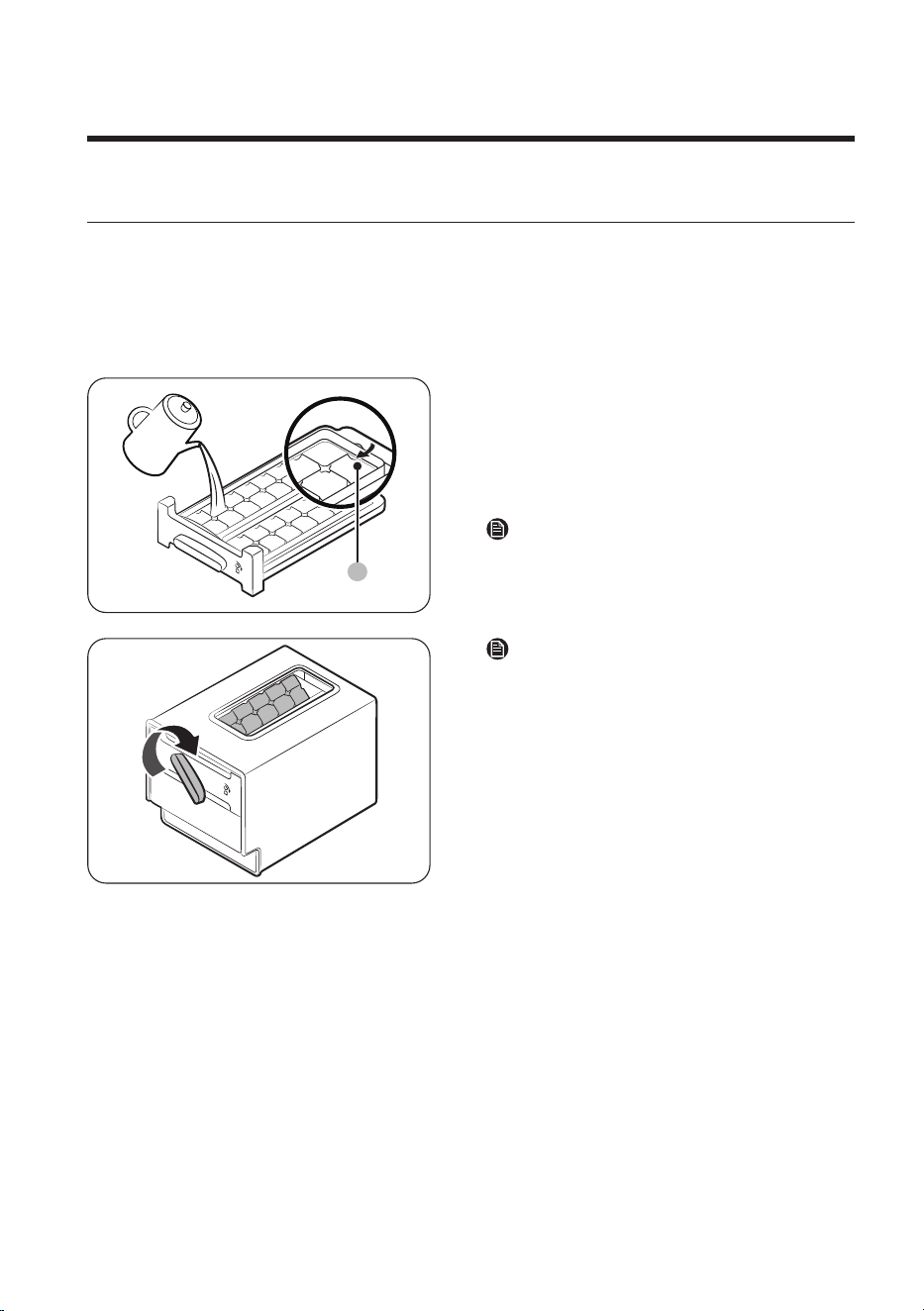

Twist ice maker (applicable models only)
A
1. Open the freezer door, and slide open
the ice tray.
2. Fill the tray with water up to the
maximum level (A) marked on the inner
rear of the tray.
3. Slide the tray back into position.
NOTE
The ice making time depends on your
temperature settings.
NOTE
• Make sure the ice cube storage bin is in
place under the ice tray.
• To dispense the ice cubes, turn the ice
tray handle to the right to empty the ice
cubes into the bin.
• To take out the bin, pull it forward.
• Put the twist ice maker on the freezer
shelf if it does not t under the shelf.
English 25

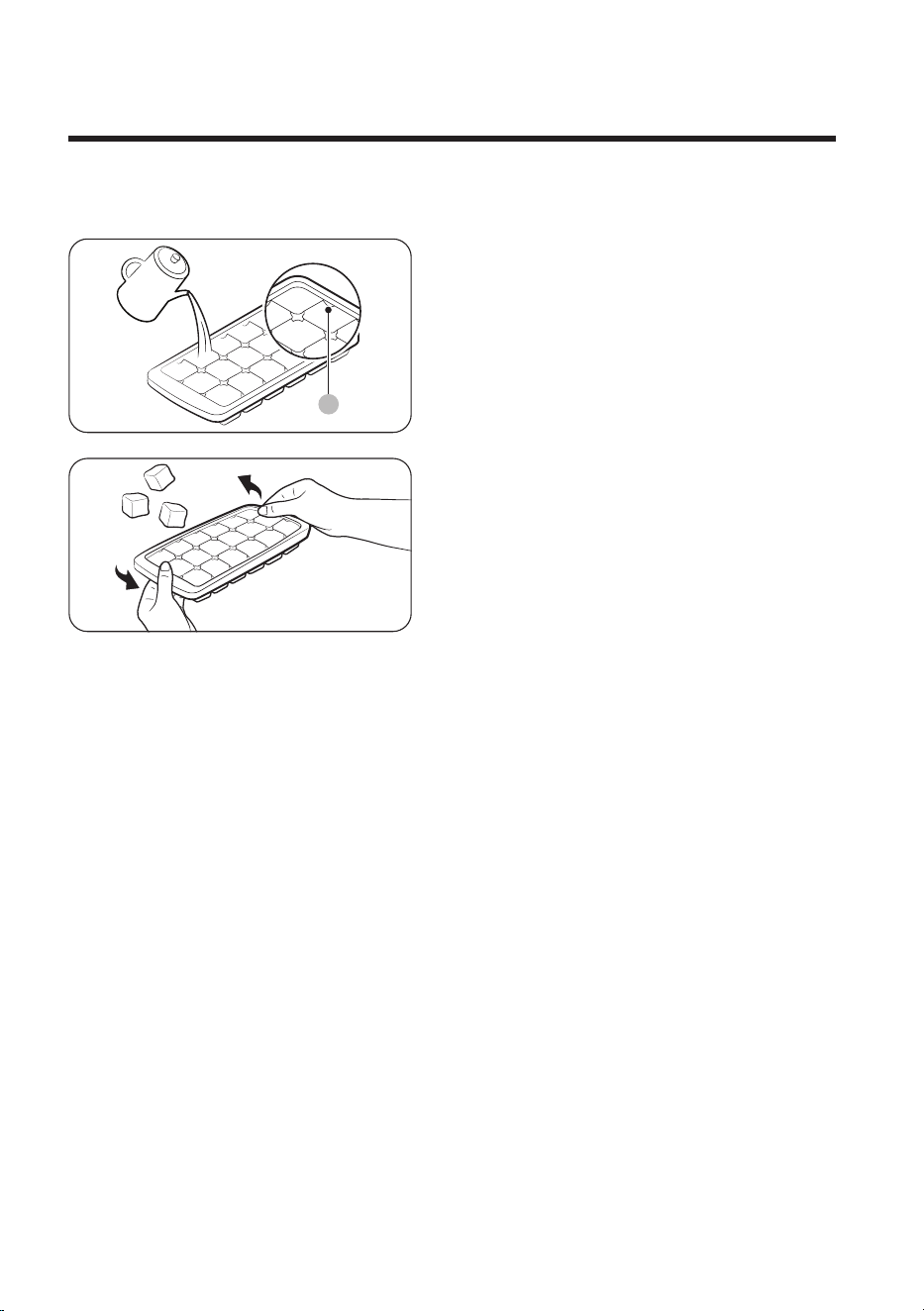

Tray type (applicable models only)
A
To make ice cubes, ll the tray with water
up to the maximum level (A) marked on the
inner rear of the tray.
To empty the ice tray, hold both ends of
the tray and gently twist to remove the ice
cubes.
Operations
English26

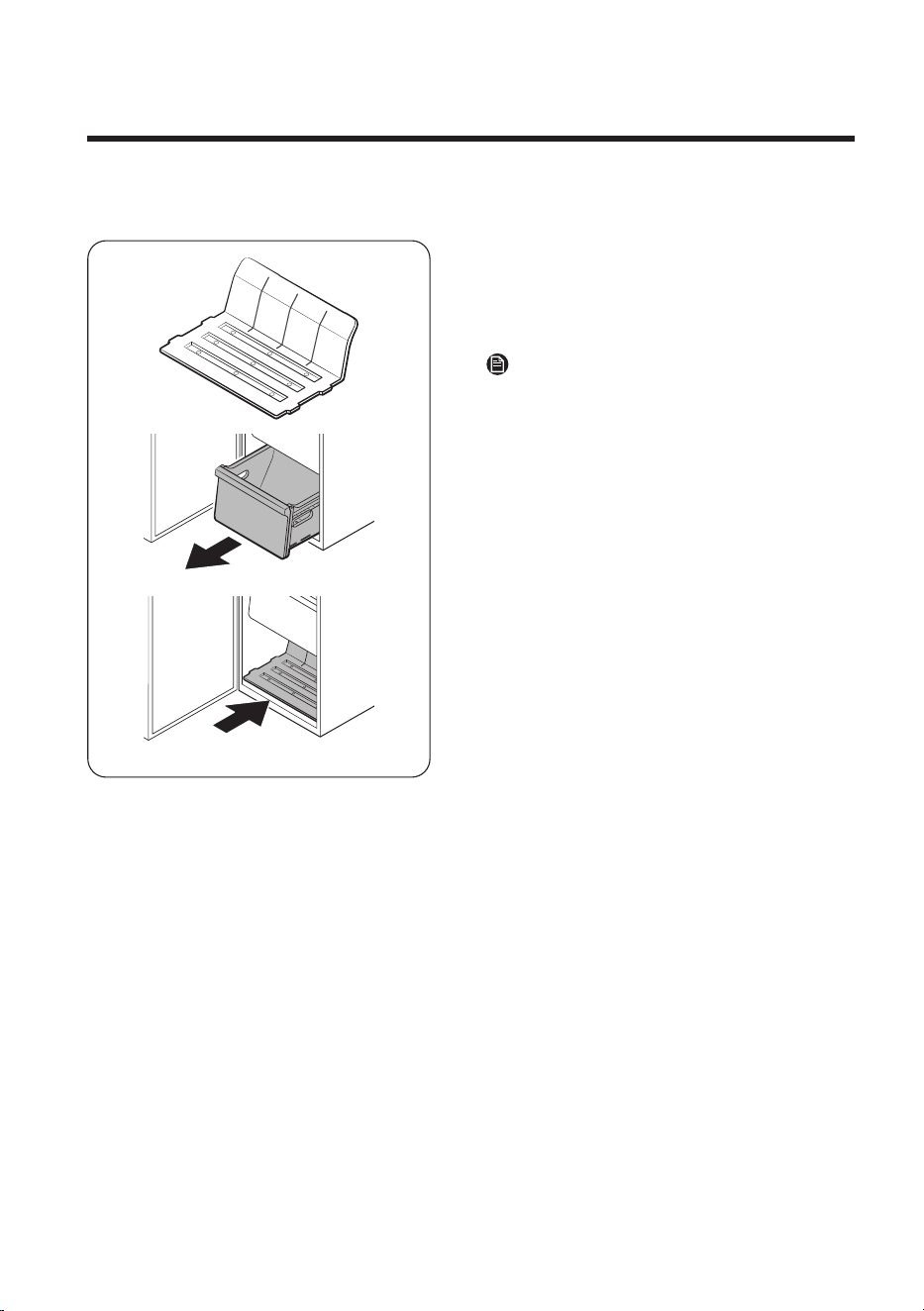

To secure more storage space (applicable models only)
If you need more storage space, remove
the top shelf cover and all 4 drawers and
insert the provided shelf (see the gure)
in the inner bottom of the main unit. Then,
remove the Slim Ice Maker.
NOTE
• Removal of the top shelf cover and the
drawers does not affect thermal and
mechanical characteristics of the freezer.
• A declared storage volume of the
freezer is based on the conditions where
the top shelf cover and all the drawers
are removed and the provided shelf is
inserted.
English 27
Maintenance
Door reversal
WARNING
• The warranty does not cover reversal failure or property damage occurring due to
unapproved agencies.
• Make sure that the refrigerator is disconnected from the power source before reversing
the door.
• You must wait for at least an hour after door reversal is complete. This is to prevent any
electric shock that could occur.
• Reversing the door must be performed by Samsung-approved servicing personnel at
your own expense because this kind of servicing is not covered by the Warranty.
CAUTION
The door is heavy. Have at least two people work on the door reversal. Otherwise, it may
cause a personal injury.
Tools required (not provided)
Phillips screwdriver Flat-head
screwdriver
Adjustable wrench 8 mm socket
wrench
(for bolts)
Accessories
The accessories below may differ in appearance depending on the model.
Top-left door hinge cover Top-left door hinge Cam riser
Low cam riser Cap space
Maintenance
English28
CAUTION
Throughout the entire reversal procedure, keep all the small parts (screws, caps, etc.) of the
refrigerator away from children or infants for safety reasons.

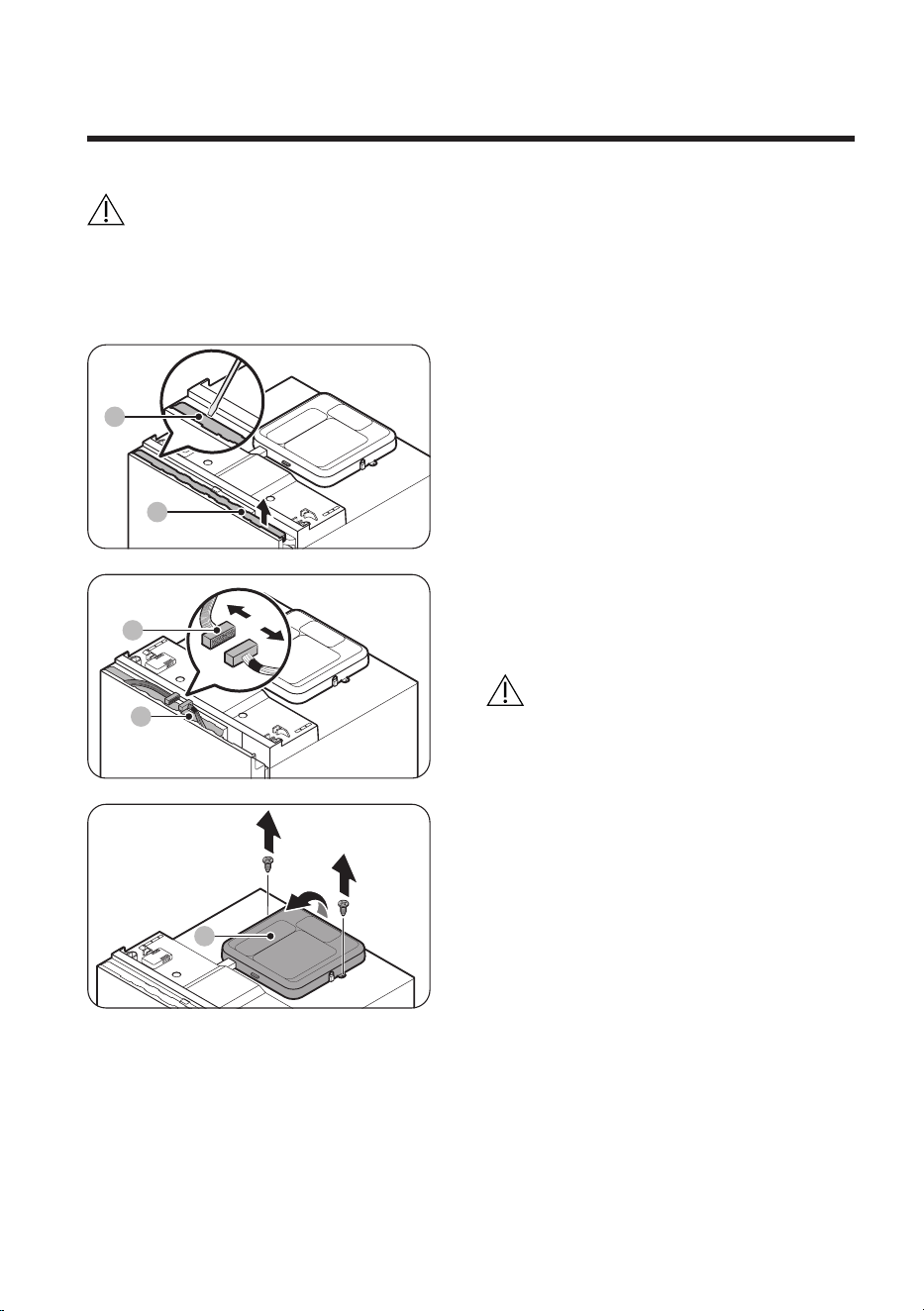

Step-by-step instructions
A
B
1. Use the at-head screwdriver to unlock
the hook (A) of the wire cover (B),
located on the top of the door) before
pulling up to remove.
A
B
2. Remove and disconnect the wire
connector (A) from inside the cap door
(B), which is located on the top of the
door. (applicable models only)
CAUTION
Keep the wire cover (B, in the above step)
in a safe place for later use.
A
3. Use the Phillips screwdriver to loosen
the left/right screws (x2) from the PBA
cover (A), which is on the top of the
refrigerator. Pull up the rear of the PBA
cover (A) rst to remove.
English 29

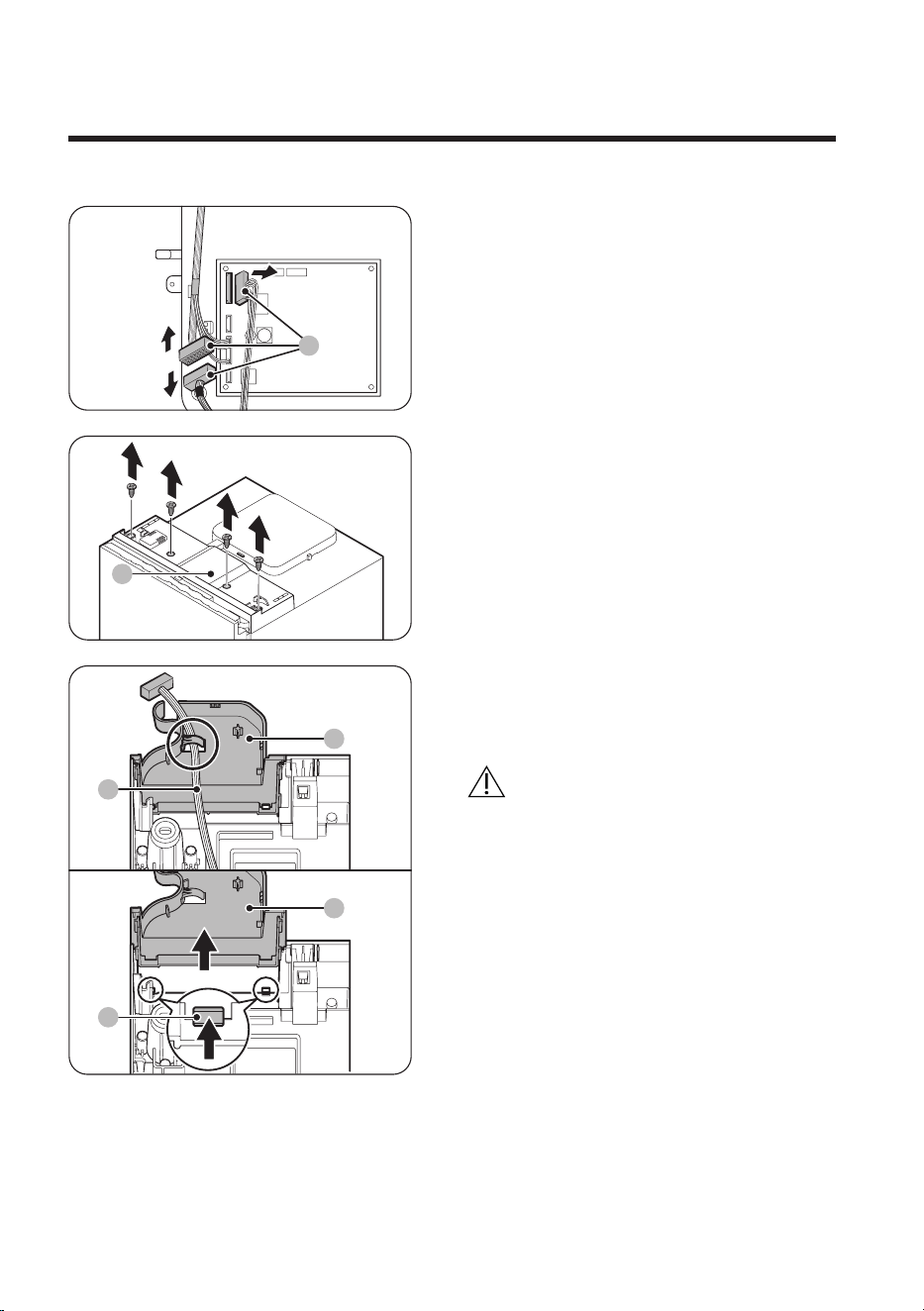

A
4. Remove the top cable wires (A) from
inside the PBA box.
A
5. Use the Phillips screwdriver to loosen
the screws (x4) from the top table. Pull
up gently to release the hook of the
hinge cover (A) before removing the top
table from the refrigerator.
B
A
A
C
6. Remove the wires (B) from the hinge
cover (A) of the top table. Then, press to
release the hooks (x2, C) simultaneously
and pull up the hinge cover (A).
CAUTION
Keep the hinge cover (A) in a safe place for
reversing the door later.
Maintenance
English30
A
B
7. From the opposite side, press to release
the hooks (x2, A) simultaneously and
pull up the hinge cap (B).
A
8. Insert the hinge cap (B, in Step 7) in the
position of the hinge cover (A, in Step 6)
until the hooks (A) are properly locked.
English 31
A
9. Press to t the hinge cover (A) of the
top right door in the position of the
hinge cap (B, in Step 7).
NOTE
Use the hinge cover (A) of the top-right
door included in the door reversing kit.
A
A
A
10. Reinsert the wires (B, in Step 6) and
insert the wire tapes in the cable
holders (A) of the hinge cover (A, in Step
9).
Maintenance
English32
A
B
11. Use the 8 mm wrench to loosen the
screws (x2) from the top hinge (A). Lift
the top hinge (A) gently so that the shaft
is detached from the cap door (B).
CAUTION
• Take caution not to drop the door.
Otherwise, the door can cause a physical
injury due to its weight.
• Keep the top hinge (A) in a safe place
for reversing the door later.
A
12. Lift the door so that it is detached from
the shaft of the low hinge (A).
CAUTION
Take caution not to drop the door.
Otherwise, the door can cause a physical
injury due to its weight.
13. Lay down the door on the oor.
NOTE
Put a carton box on the oor to prevent
damage to the door.
English 33
A
B
14. Use the Phillips screwdriver to loosen
the screws at the bottom of the door.
Then, remove the cam riser (A) and the
stopper (B).
CAUTION
Keep the cam riser (A) in a safe place for
reversing the door later.
A
B
15. Apply grease (not provided) to the cam
riser (A) in the shading areas as shown.
Then, insert the stopper (B) and the cam
riser (A) in this sequence in the opposite
of the door bottom. Use the Phillips
screwdriver to tighten the screws.
A
16. Use the Phillips screwdriver to loosen
the auto close screws (x2, A) at the top
of the door.
Maintenance
English34
A
17. Pull upward then outward the cap space
(A) at the top of the door (the opposite
side of the auto close) to remove.
CAUTION
Keep the cap space (A) in a safe place for
reversing the door later.
A
18. Insert the auto close (A) in the cap
space (A, in Step 17) position. Then, use
the Phillips screwdriver to tighten the
screws (x2).
NOTE
You can use the auto close (A) in the
reverse direction as well.
A
19. Slide in the provided cap space (A) along
the door cap rib, (where the auto close
was removed) until the protruding part
of the cap space (A) inserts into the door
cap hole.
A
20. Lay down the refrigerator on the oor.
21. Use the Phillips screwdriver to loosen
the screws (x3) of the low hinge (A) at
the bottom of the refrigerator. Turn to
remove the leveling leg, which is in the
opposite side of the low hinge (A).
English 35
A
B
22. Use the Phillips screwdriver to loosen
the screws of the low cam riser (A).
Then, remove the leveling leg from the
low hinge (B).
CAUTION
Keep the low cam riser (A) in a safe place
for reversing the door later.
B
A
23. Use the 12 mm socket wrench to loosen
the shaft nuts (x2, A) on the low hinge
(B).
B B
A
24. Use the Phillips screwdriver to remove
the two shafts(B) from the low hinge
(A) and switch their positions before
reinserting. Tighten the shaft nut (x2, A
in Step 23) in each shaft (x2, B). Then,
reinsert the leveling leg.
CAUTION
Make sure to switch the position of each
shaft before reinserting.
A
1
2
4
3
25. Apply grease (not provided) to the
shading areas of the low cam riser (A)
as shown. Insert the low cam riser (A) in
the shaft position before tightening with
the screw.
Maintenance
English36
A
26. Use the Phillips screwdriver to tighten
the low hinge (A) with the screws (x3)
in the opposite side of the refrigerator’s
bottom.
A
27. Set the refrigerator upright.
28. Reinsert the door so that it ts into the
shaft of the low hinge (A).
CAUTION
Take caution not to drop the door.
Otherwise, the door can cause a physical
damage due to its weight.
A
B
29. Apply grease (not provided) to the rear
shaft of the provided top-left door hinge
(A). Hook the shaft to the rear locking
position before turning it slowly until it
inserts into the door hole (B).
English 37
A

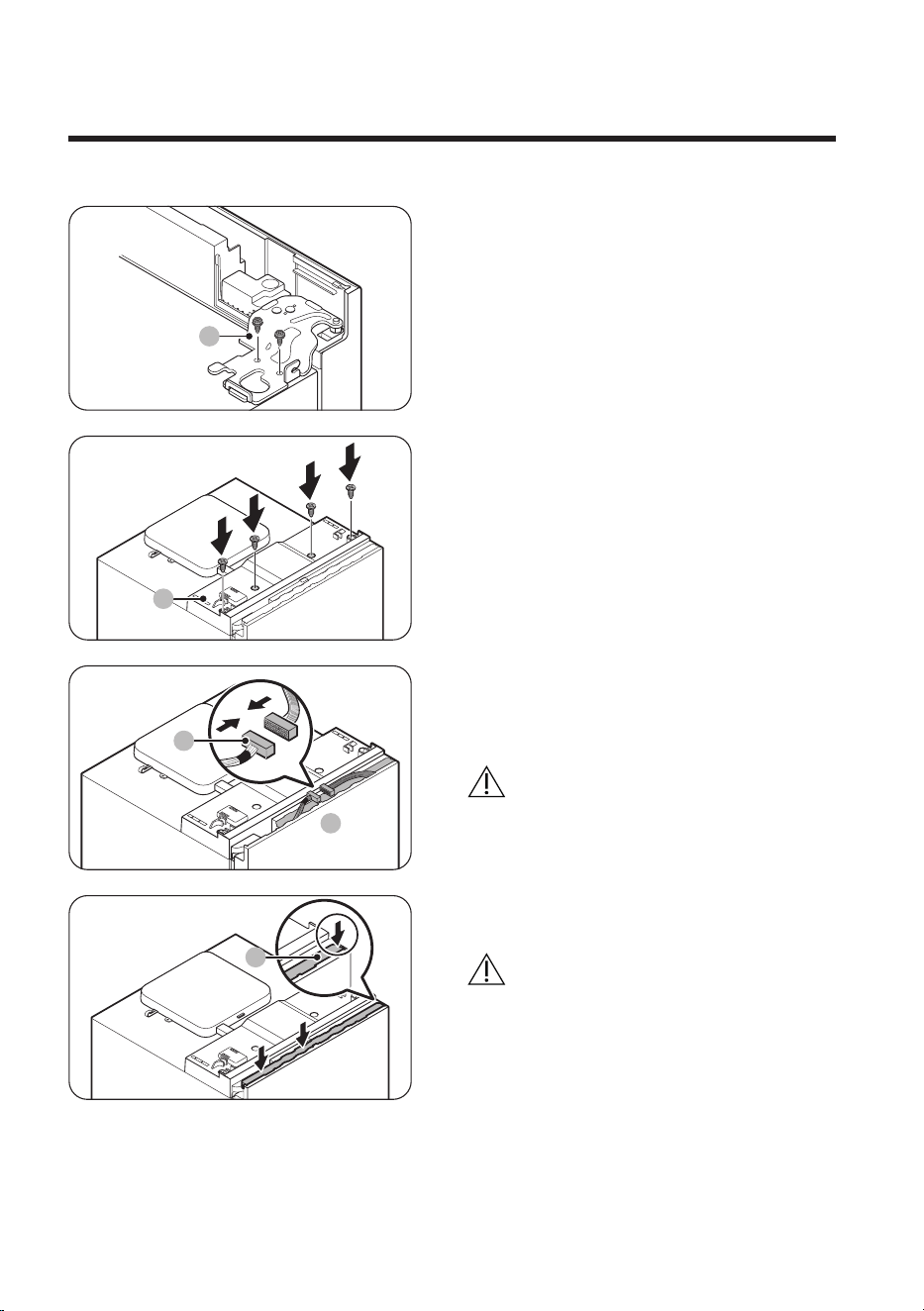

30. Use the Phillips screwdriver or the 8
mm socket wrench to tighten the top
hinge (A) using the screws (x2).
A
31. Hook the hinge cover (A) to the hinge
before tightening it on the top table
using the screws (x4).
A
B
32. Reconnect the wire connectors (A) inside
the cap door (B) before arranging the
wires inside the cap door (B). (applicable
models only)
CAUTION
Make sure the wires are not exposed
outside.
A
33. Insert the wire cover (A) with the
opposite side of the hinge rst.
CAUTION
Make sure the wires are not exposed
outside.
Maintenance
English38
A
34. Connect the wires inside the PBA box ( A,
located on the top of the refrigerator) to
the PBA.
A
35. Hook the front side of the PBA cover (A)
to the PBA box. Then, press down to x
the PBA cover (A).
36. Use the Phillips screwdriver to fasten
the PBA cover (A) using the screws (x2).
English 39

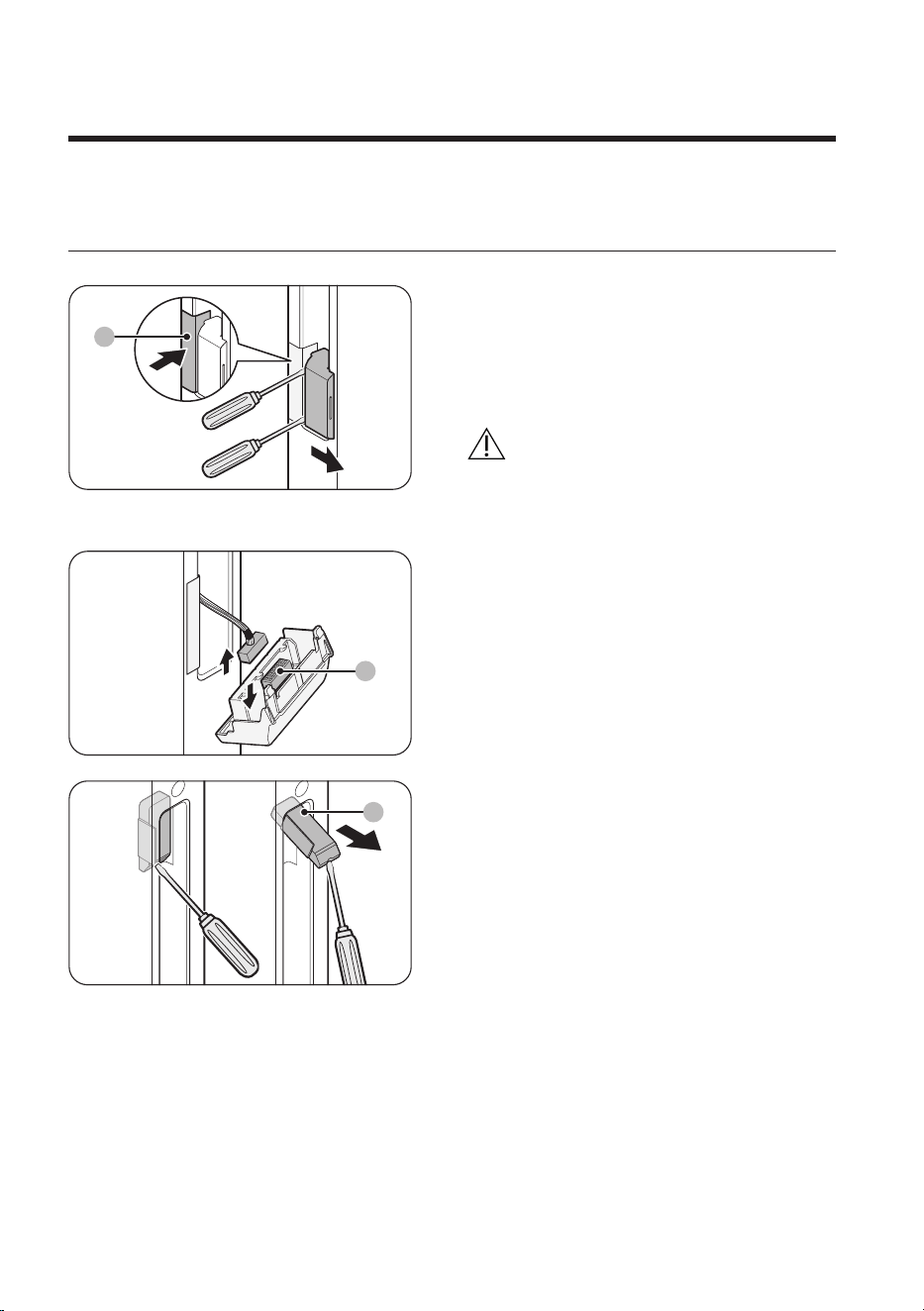

Auto Open Door option touch sensor reversible (applicable
models only)
A
1. Put the protective tape (A) on the rear
of the Auto Open Door sensor (located
on the recess handle of the door). Then,
insert the at-head screwdriver (3-6 mm
head) in the hook of the Auto Open Door
sensor to remove.
CAUTION
To prevent scratches on the Auto Open
Door sensor, make sure to put the
protective tape (A) on the sensor.
A
2. Disconnect the wire connector (A) of the
touch sensor.
A
3. Insert the at-head screwdriver in the
handle cover ( A, located in the opposite
of the touch sensor) to remove.
Maintenance
English40
B
A

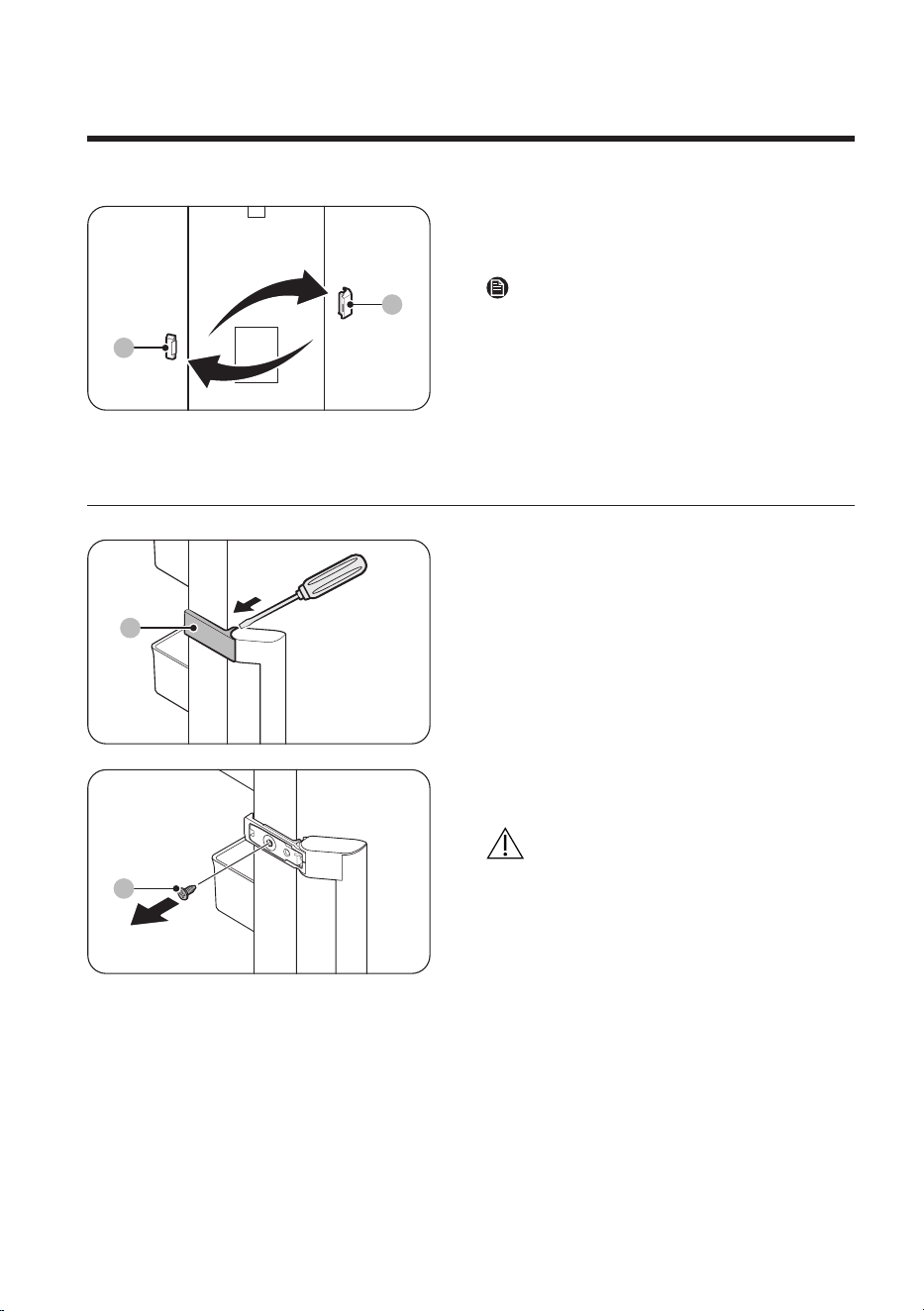

4. Switch the positions of the touch sensor
(A) and the handle cover (B) before
reinserting them.
NOTE
Before reinserting the touch sensor, be sure
to reconnect the wire connector ( A, in Step
2).
Reversing the door handle position (applicable models only)
A
1. Remove the handle cover (A).
A
2. Use a Phillips screwdriver to remove the
screw (A) and detach the handle.
CAUTION
Keep the handle in a safe place for later
use.
English 41
A

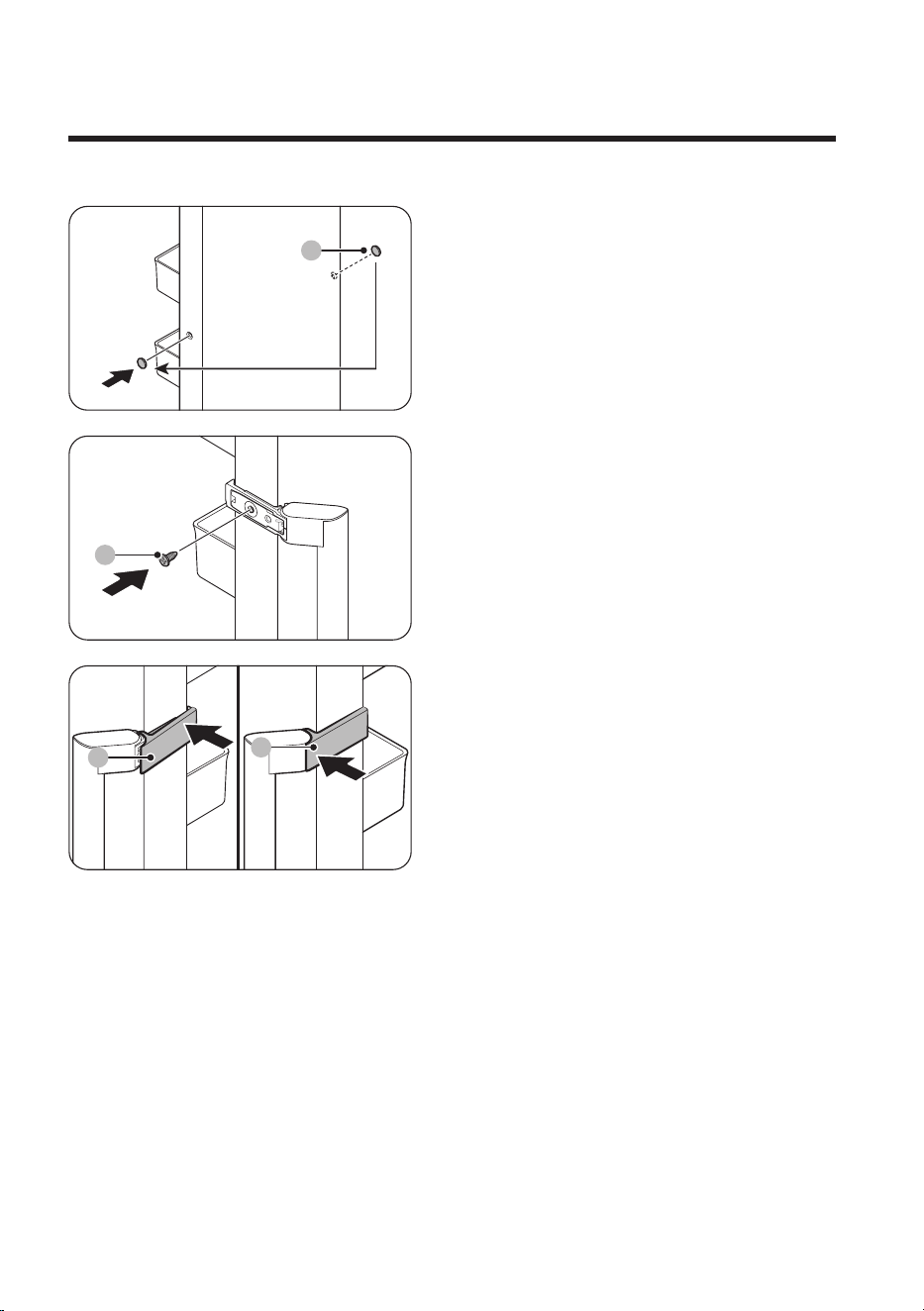

3. Use a at-head screwdriver to remove
the hole cap (A) from the opposite side
of the door.
A
4. Insert the hole cap (A, in the above step)
into the hole from which you detached
the handle.
5. Place the handle on the opposite side
of the door, aligning the holes on the
handle and the door.
6. Use a Phillips screwdriver to attach the
handle with the screw (A).
A
A
7. Attach the handle cover (A).
Maintenance
English42

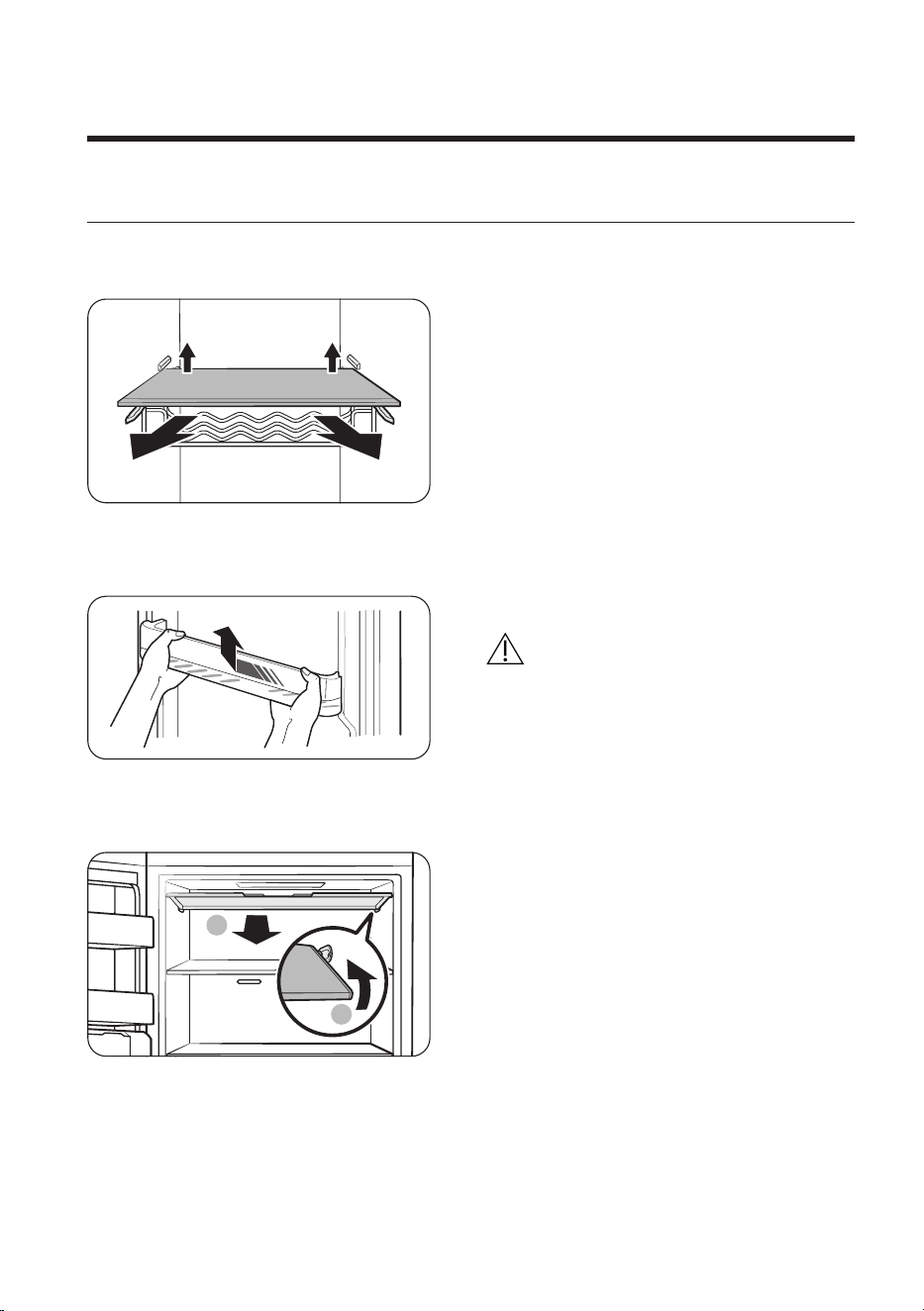

Handle and care
Shelves
Slightly lift up the rear side of the shelf to
pull out.
Door guards
Slightly lift up and pull out the door guard.
CAUTION
To prevent accidents, empty the door
guards before removing.
Top shelf cover
1
2
1. Push the right side of the cover inwards
to unhook the cover.
2. Then, pull up the cover to the front to
remove.
English 43
Cleaning
Interior and exterior
WARNING
• Do not use benzene, thinner, vinegar, liquid bleach, baking soda, citric, salt mixtures
or home/car detergent such as Clorox™ for cleaning purposes. They may damage the
surface of the refrigerator and cause a re.
• Do not spray water onto the refrigerator. This may cause electric shock.
Regularly use a dry cloth to remove all foreign substances such as dust or water from the
power plug terminals and contact points.
1. Unplug the power cord.
2. Use a moistened, soft, lint-free cloth or paper towel to clean the refrigerator’s interior
and exterior.
3. When done, use a dry cloth or paper towel to dry well.
4. Plug in the power cord.
Replacement
LED Lamps
To replace the lamps of the refrigerator, contact a local Samsung service centre.
WARNING
• The lamps are not user-serviceable. Do not attempt to replace a lamp yourself. This can
cause electric shock.
English44
Troubleshooting
Before calling for service, review the symptoms and recommended solutions below. If none
of the suggested solutions resolve your problem, please visit our website at www.samsung.
com or call Samsung Customer Care at 1-800-SAMSUNG (726-7864). Note that you will be
charged for any service visits in which no defects were found.
General
Temperature
Symptom Possible causes Solution
Freezer does not
operate.
Freezer
temperature is
warm.
• Power cord is not plugged in
properly.
• Properly plug in the power
cord.
• Temperature control is not
set correctly.
• Set the temperature lower.
• Refrigerator is located near
a heat source or direct
sunlight.
• Keep the refrigerator away
from direct sunlight or a
heat source.
• Not enough clearance
between refrigerator and
sides/rear.
• We recommend that the gap
between the refrigerator and
nearby walls (or cabinets) is
more than 2" (50 mm).
• The refrigerator is
overloaded. Food is blocking
the refrigerator vents.
• Do not overload the
refrigerator. Do not allow
food to block ventilation.
Freezer is over-
cooling.
• Temperature control is not
set correctly.
• Set the temperature higher.
Interior wall is hot.
• Refrigerator has heat-proof
piping in the interior wall.
• To prevent condensation
from forming, the
refrigerator has heat-proof
piping in the front corners.
If the ambient temperature
rises, this equipment may
not work effectively. This is
not a system failure.
English 45
Odors
Symptom Possible causes Solution
Refrigerator has
odors.
• Spoiled food.
• Clean the refrigerator and
remove any spoiled food.
• Food with strong odors.
• Make sure strong smelling
food is wrapped airtight.
Condensation
Symptom Possible causes Solution
Condensation forms
on the interior
walls.
• If door is left open, moisture
enters the refrigerator.
• Remove the moisture and do
not open the door for a long
time.
• Food with high moisture
content.
• Make sure food is wrapped
airtight.
Troubleshooting
English46
Do you hear abnormal sounds from the refrigerator?
Before calling for service, review the information below. If you still have questions about
sounds your refrigerator is making, please call Samsung Customer Care at 1-800-SAMSUNG
(726-7864). Note that you will be charged for any service visits related to normal
operating sounds in which no defects were found.
These sounds are normal.
• When starting or ending an operation, the refrigerator may make sounds similar to a
car engine igniting. As the operation stabilizes, the sounds will decrease.
Clicking!
or Chirping!
Buzzing!
• While the fan is operating, these sounds may occur. When the refrigerator reaches the
set temperature, no fan sound will occur.
SSSRRR!
Whir!
English 47
• During a defrost cycle, water may drip on the defrost heater, causing sizzling sounds.
HiSS!
• As the refrigerator cools or freezes, refrigerant gas moves through sealed pipes, causing
bubbling sounds.
Bubbling!
• As the refrigerator temperature increases or decreases, plastic parts contract and
expand, creating knocking noises. These noises occur during the defrosting cycle or
when electronic parts are working.
Cracking!
• For ice maker models: When the water valve opens to ll the ice maker, buzzing sounds
may occur.
• Due to pressure equalizing when opening and closing the refrigerator door, whooshing
sounds may occur.
English48
LIMITED WARRANTY (U.S.A.)
SAMSUNG REFRIGERATOR
LIMITED WARRANTY TO ORIGINAL CONSUMER PURCHASER WITH PROOF OF
PURCHASE
This SAMSUNG brand product, as supplied and distributed by Samsung Electronics
America, Inc. (SAMSUNG) and delivered new, in the original carton to the original consumer
purchaser, is warranted by SAMSUNG against manufacturing defects in materials or
workmanship for the limited warranty periods, starting on the date of delivery to the
original consumer purchaser:
One (1) year parts and labor
Five (5) years parts and labor on Sealed Refrigeration System Only (Compressor,
Evaporator, Condenser, Drier, and Connecting Tubing)
Ten (10) years part and Five (5) years labor on Digital Inverter Compressor Only
This limited warranty is valid only on products purchased and used in the United States
that have been installed, operated, and maintained according to the instructions attached
to or furnished with the product. To receive warranty service, the purchaser must contact
SAMSUNG at the address or phone number provided below for problem determination and
service procedures. Warranty service can only be performed by a SAMSUNG authorized
service center. The original dated bill of sale and/or proof of delivery must be presented
upon request as proof of purchase to SAMSUNG or SAMSUNG's authorized service center to
receive warranty service.
SAMSUNG will provide in-home service within the contiguous United States during the
warranty period at no charge, subject to availability of SAMSUNG authorized servicers
within the customer’s geographic area. If in-home service is not available, SAMSUNG may
elect, at its option, to provide transportation of the product to and from an authorized
service center. If the product is located in an area where service by a SAMSUNG authorized
servicer is not available, you may be responsible for a trip charge or required to bring the
product to a SAMSUNG authorized service center for service.
To receive in-home service, product must be unobstructed and accessible to the service
agent.
During the applicable warranty period, a product will be repaired, replaced, or the purchase
price refunded, at the sole option of SAMSUNG. SAMSUNG may use new or reconditioned
parts in repairing a product, or replace the product with a new or reconditioned product.
Replacement parts and products are warranted for the remaining portion of the original
product’s warranty or ninety (90) days, whichever is longer. All replaced parts and products
are the property of SAMSUNG and you must return them to SAMSUNG.
English 49
This limited warranty covers manufacturing defects in materials or workmanship
encountered in normal household, noncommercial use of this product and shall not
cover the following: damage that occurs in shipment, delivery, installation, and uses for
which this product was not intended; damage caused by unauthorized modication or
alteration of the product; product where the original factory serial numbers have been
removed, defaced, changed in any way, or cannot be readily determined; cosmetic damage
including scratches, dents, chips, and other damage to the product’s nishes; damage
caused by abuse, misuse, pest infestations, accident, re, oods, or other acts of nature or
God; damage caused by use of equipment, utilities, services, parts, supplies, accessories,
applications, installations, repairs, external wiring or connectors not supplied or authorized
by SAMSUNG; damage caused by incorrect electrical line current, voltage, uctuations
and surges; damage caused by failure to operate and maintain the product according
to instructions; in-home instruction on how to use your product; and service to correct
installation not in accordance with electrical or plumbing codes or correction of household
electrical or plumbing (i.e., house wiring, fuses, or water inlet hoses). The cost of repair or
replacement under these excluded circumstances shall be the customer’s responsibility.
Visits by an authorized servicer to explain product functions, maintenance or installation
are not covered by this limited warranty. Please contact SAMSUNG at the number below
for assistance with any of these issues.
EXCLUSION OF IMPLIED WARRANTIES
IMPLIED WARRANTIES, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST
PERIOD ALLOWED BY LAW. Some states do not allow limitations on how long an implied
warranty lasts, so the above limitations or exclusions may not apply to you. This warranty
gives you specic rights, and you may also have other rights, which vary from state to
state.
LIMITED WARRANTY (U.S.A.)
English50
LIMITATION OF REMEDIES
YOUR SOLE AND EXCLUSIVE REMEDY IS PRODUCT REPAIR, PRODUCT REPLACEMENT,
OR REFUND OF THE PURCHASE PRICE AT SAMSUNG’S OPTION, AS PROVIDED IN THIS
LIMITED WARRANTY. SAMSUNG SHALL NOT BE LIABLE FOR SPECIAL, INCIDENTAL OR
CONSEQUENTIAL DAMAGES, INCLUDING BUT NOT LIMITED TO TIME AWAY FROM WORK,
HOTELS AND/OR RESTAURANT MEALS, REMODELING EXPENSES, LOSS OF REVENUE OR
PROFITS, FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS REGARDLESS OF THE LEGAL
THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF SAMSUNG HAS BEEN ADVISED OF
THE POSSIBILITY OF SUCH DAMAGES. Some states do not allow exclusion or limitation of
incidental or consequential damages, so the above limitations or exclusions may not apply
to you. This warranty gives you specic rights, and you may also have other rights, which
vary from state to state.
SAMSUNG does not warrant uninterrupted or error-free operation of the product. No
warranty or guarantee given by any other person, rm, or corporation with respect to this
product shall be binding on SAMSUNG.
To obtain warranty service, please contact SAMSUNG at:
Samsung Electronics America, Inc.
700 Sylvan Avenue,
Englewood Cliffs, NJ 07632
1-800-SAMSUNG (726-7864)
www.samsung.com/support
English 51
Warranty Information (CANADA)
If your refrigerator needs service
Do not hesitate to call any Samsung Authorized Service Center nearby giving them your
name, address and telephone number if your product is not functioning properly.
Limited Warranty for Original Purchaser
This Samsung product is warranted by Samsung Electronics Canada Inc. (hereafter referred
to as SECA) against manufacturing defects in material or workmanship for the following
periods:
Labor: 1 year (in-home)
Parts: 1 year
Inverter Compressor: 10 years (Part only)
SECA further warrants that if this product fails to operate properly within the specied
warranty period and the failure is due to improper workmanship or defective material,
SECA will repair or replace the product at its option. In-home service is not available in all
areas. Contact us to nd out if in-home service is currently available in your area by using
the contact information at the back of this warranty.
All warranty repairs or part replacements must be performed by a SECA Authorized Service
Center. (To nd the nearest SECA Service Center, call 1-800-SAMSUNG (7267864) or visit
our web site at www.samsung.com/ca)
Obligation to the Original Owner
The original dated sales receipt must be retained by the customer and is the only
acceptable proof of purchase. It must be presented to a SECA Authorized Service Center
at the time service is requested before warranty services are rendered. On all carry-in
models, transportation to and from the Authorized Service Center is the responsibility of
the customer.
Warranty Information (CANADA)
English52
Exclusions of the Warranty
This warranty does not cover damage due to accident, re, ood, and/or other Acts of God,
misuse, incorrect line voltage, improper installation, improper or unauthorized repairs,
commercial use, or damage that occurs during shipping. Customer adjustments which are
explained in this owners manual are not covered under the terms of this warranty. This
warranty will automatically be voided for any unit found with a missing or altered serial
number. This warranty is valid only on products purchased and used in Canada.
SAMSUNG CUSTOMER CARE CENTER
Samsung Electronics Canada Inc.
2050 Derry Road West
Mississauga, Ontario L5N 0B9
Canada
1-800-Samsung (726-7864)
www.samsung.com/support
NOTICE TO QUEBEC CONSUMERS – Warranty of Availability of
Replacement Parts, Repair Services, and Maintenance and Repair
Information
Replacement Parts
Although Samsung Canada will use reasonable efforts to make replacement parts available
to customers (subject to availability and applicable lead times), Samsung Canada does not
guarantee the availability of replacement parts within the meaning of the warranty of
availability set out in sections 39 (paragraph 3), 39.1 and 39.2 of the Quebec Consumer
Protection Act.
To purchase replacement parts and tools for self-repair, please visit:
samsung.com/ca/support/buy-certied-parts
Repair Services
Although Samsung Canada offers repair services for Samsung products through Samsung
Authorized Service Centers located in most major urban centers (dened as a city in
Canada with a population equal or greater than 50,000) across Canada, Samsung Canada
does not guarantee the availability of any repair services within the meaning of the
warranty of availability set out in sections 39 (paragraph 3), 39.1 and 39.2 of the Quebec
Consumer Protection Act in all locations, cities, or regions in Quebec.
To nd your nearest Samsung Authorized Service Center, please visit:
samsung.com/ca/support/service-center
English 53
Information for Maintenance or Repair
Although Samsung Canada provides information on the maintenance and/or repair of
goods for select Samsung products (please visit samsung.com/ca/support/self-repair for
more information), Samsung Canada does not guarantee the availability of information that
is necessary to maintain or repair Samsung products within the meaning of the warranty
of availability set out in sections 39 (paragraph 3), 39.1 and 39.2 of the Quebec Consumer
Protection.
DISCLAIMER OF LIABILITY
Samsung is not liable for any damage or defect determined to be caused by repair by a
non-authorized service provider, self-repair or non-professional repair of the product.
Samsung is not liable for any resulting damage to the product, person, or property, or any
injury or other product safety issue caused by or resulting from any repair, or any attempt
to repair, any diagnosis, maintenance, or modication performed by any person, including,
but not limited to, any of the following: (i) any indirect, incidental, special, or consequential
damages (including but not limited to, damage to or loss of personal or commercial
property, damage to reputation, loss of use, cost of purchase of replacement goods, etc.);
(ii) any loss of data, goodwill, privacy, or prots or loss of business opportunity; and (iii)
any inability to use, or reduced functionality of, the product. Any damage or defect to
product resulting from a repair, or an attempt to repair, the product by any person (other
than a Samsung certied service provider) will not be covered by the warranty. Samsung’s
liability shall be limited to the greatest extent permitted by law.
All text, graphics, user interfaces, visual interfaces, photographs, trademarks, and logos
(collectively, "Content"), including but not limited to the design, structure, selection,
coordination, "look and feel" and arrangement of such Content, contained in this manual is
owned, controlled or licensed by or to Samsung, and is protected by trade dress, copyright,
patent and trademark laws, and various other intellectual property rights and unfair
competition laws.
No part of this manual or the Content may be copied, reproduced, republished, uploaded,
posted, publicly displayed, encoded, translated, transmitted or distributed in any way
(including "mirroring") to anyone, any entity, any other computer, server, Web site or other
medium for publication or distribution or for any commercial purpose, without Samsung’s
express prior written consent.
Warranty Information (CANADA)
English54
Limitation of Liability. WHILE SAMSUNG MAKES ALL REASONABLE EFFORTS TO ENSURE
THAT ALL INFORMATION IN THIS MANUAL IS CORRECT, SAMSUNG DOES NOT ASSUME
ANY RESPONSIBILITY FOR THE ACCURACY OR COMPLETENESS OF ANY INFORMATION
CONTAINED IN THIS MANUAL. SAMSUNG PROVIDES INFORMATION AND MATERIALS
CONTAINED IN THIS MANUAL TO YOU ON AN “AS IS” BASIS WITHOUT WARRANTY OF ANY
KIND, EITHER EXPRESS OR IMPLIED. SAMSUNG SPECIFICALLY DISCLAIMS ANY LIABILITY
FOR ANY DIRECT, INDIRECT, INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES
ARISING OUT OF OR IN ANY WAY CONNECTED WITH YOUR ACCESS TO OR USE OF THE
INFORMATION IN THIS MANUAL, INCLUDING BUT NOT LIMITED TO ANY LOSS OR DAMAGE
CAUSED BY YOUR RELIANCE ON INFORMATION OBTAINED THROUGH THIS MANUAL. Some
jurisdictions do not allow exclusion of certain warranties or limitations of liability, so the
above limitations or exclusions may not apply to you. Samsung’s liability in any case shall
be limited to the greatest extent permitted by law.
Samsung reserves the right, at its sole discretion, to change, modify, add or remove
portions of any part of this manual at any time. It is your responsibility to check the
manual periodically for changes. Your use of the manual will mean that you accept and
agree to the terms and conditions set out in this manual. If you do not agree to comply
with the terms and conditions of this manual, in whole or in part, please stop using this
manual immediately.
Memo
Scan the QR code* or visit
www.samsung.com/spsn
to view our helpful
How-to Videos and Live Show
s
* Requires reader to be installed on your
smartphone
U.S.A
- Consumer
Electronics
- Mobile Phones
1-800-SAMSUNG (726-7864)
1-844-SAM-PAYS (726-7297)
www.samsung.com/support
CANADA 1-800-Samsung (726-7864)
OID145110-01
