Smart Analog/Digital Repeater
REPT01
User Manual
1. Introduction
This smart repeater is designed to extend the communication range of your two-way
radios. It features 20 programmable channels and Auto-Check (AutoChk) technology,
which automatically detects and forwards both Analog and Digital signals.
2. Interface & Display

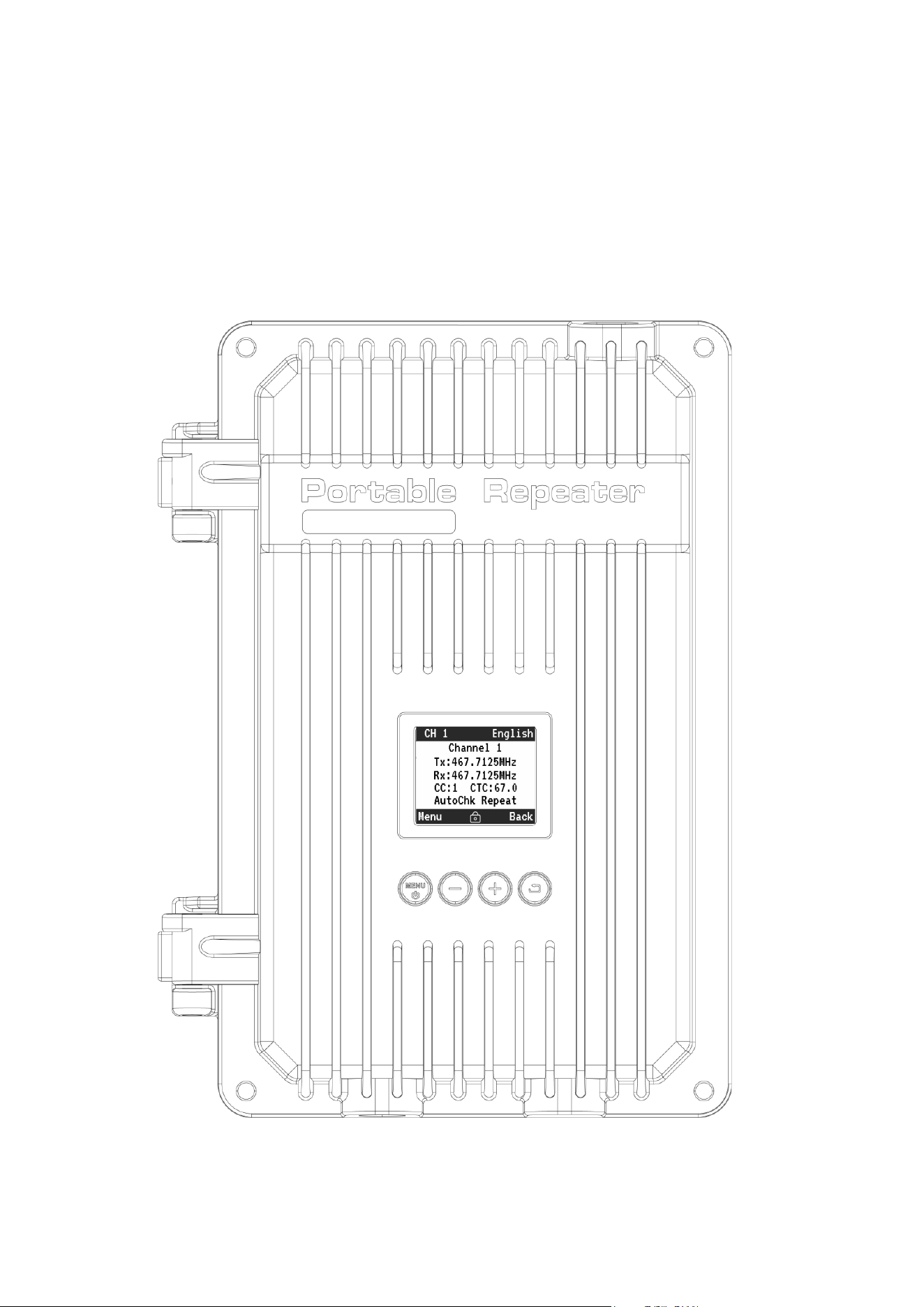

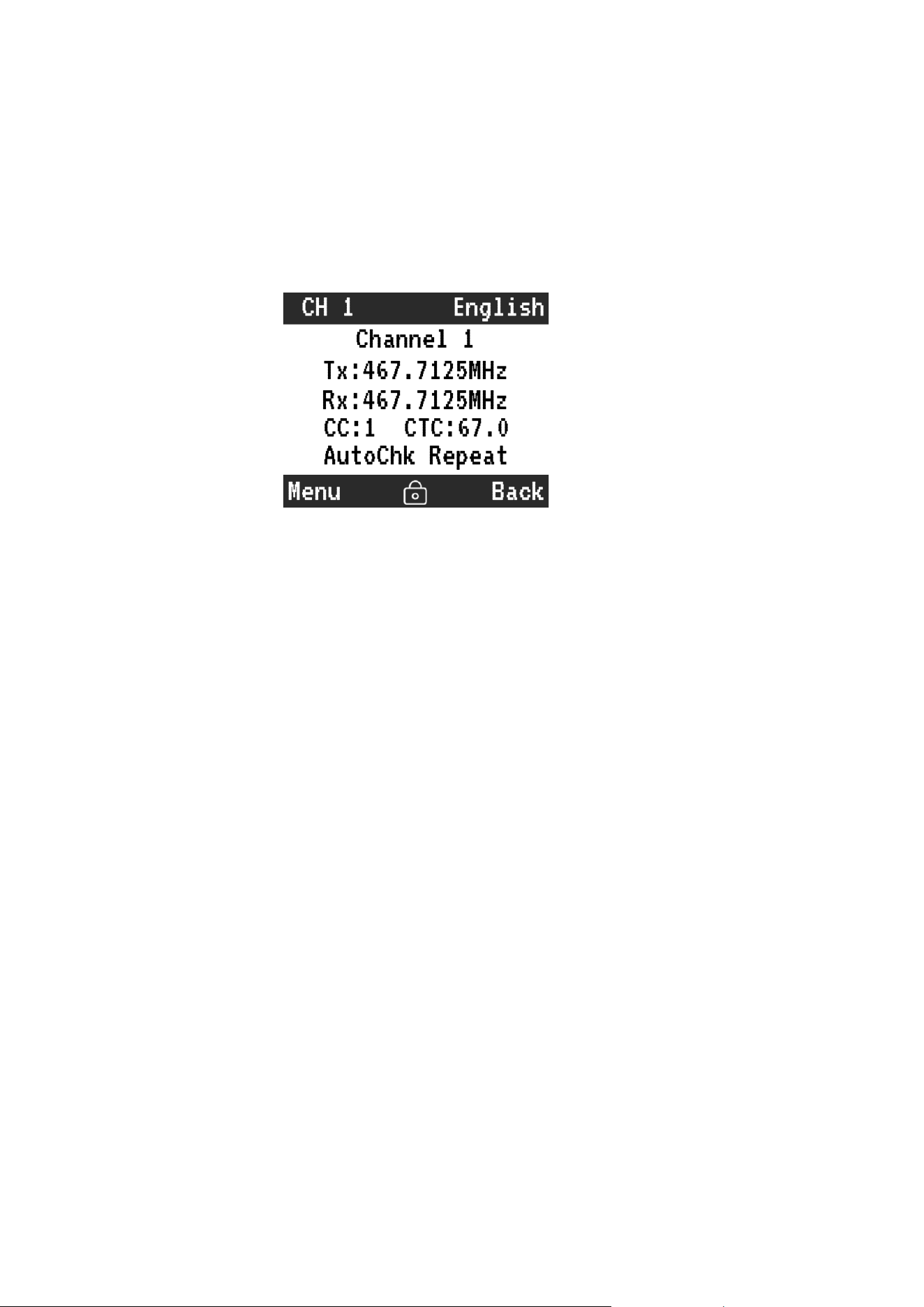

LCD Screen Overview:
The main screen displays the current channel and operating parameters.
• CH XX: Indicates the current Channel Number (1–20).
• Tx: Transmit Frequency (Downlink). This is the frequency your radio receives.
• Rx: Receive Frequency (Uplink). This is the frequency your radio transmits.
• CC: Color Code (0–15). Active only for Digital signals.
• CTC: CTCSS/CDCSS (1-121). Active only for Analog signals.
• AutoChk Repeat: Indicates the device is in smart detection mode.
3.Button Functions
Button
Function in Standby
Function in Menu
MENU
Enter Settings
Select / Confirm item
UP
Next Channel
Increase value
DOWN
Previous Channel
Decrease value
BACK
Unlock Keypad
Exit / Cancel
4. Operation Guide
4.1 Switching Channels
In standby mode, press the [menu] and then press the [ + ] or [ - ] buttons to cycle
through the 20 pre-set channels. The screen will update to show the frequencies for the
selected channel.
4.2 Programming Parameters
To customize the frequency, Color Code, or CTCSS tone for the current channel:
1. Enter Menu: Press the [ MENU ] button. The first editable item (Tx) will highlight.
2. Select Item: Press [ MENU ] repeatedly to scroll through the parameters:
o Tx (Transmit Frequency)
o Rx (Receive Frequency)
o CC (Digital Color Code)
o CTC (Analog Tone)
3. Adjust Value: When the desired item is highlighted, press [ + ] or [ - ] to change
the value.
4. Save & Exit: Press [ BACK ] to save your changes and return to the main
screen.
5. "AutoChk" Mode Explained
This repeater supports mixed-mode operation. You do not need to manually switch
between Analog and Digital modes.
• Digital Mode: If a digital signal matches the Rx frequency and Color Code (CC),
the repeater forwards it digitally.
• Analog Mode: If an analog signal matches the Rx frequency and CTCSS (CTC),
the repeater forwards it as an analog signal.
> Note: Please ensure your portable radios are programmed with the matching
Frequencies, Color Codes, or CTCSS tones.
