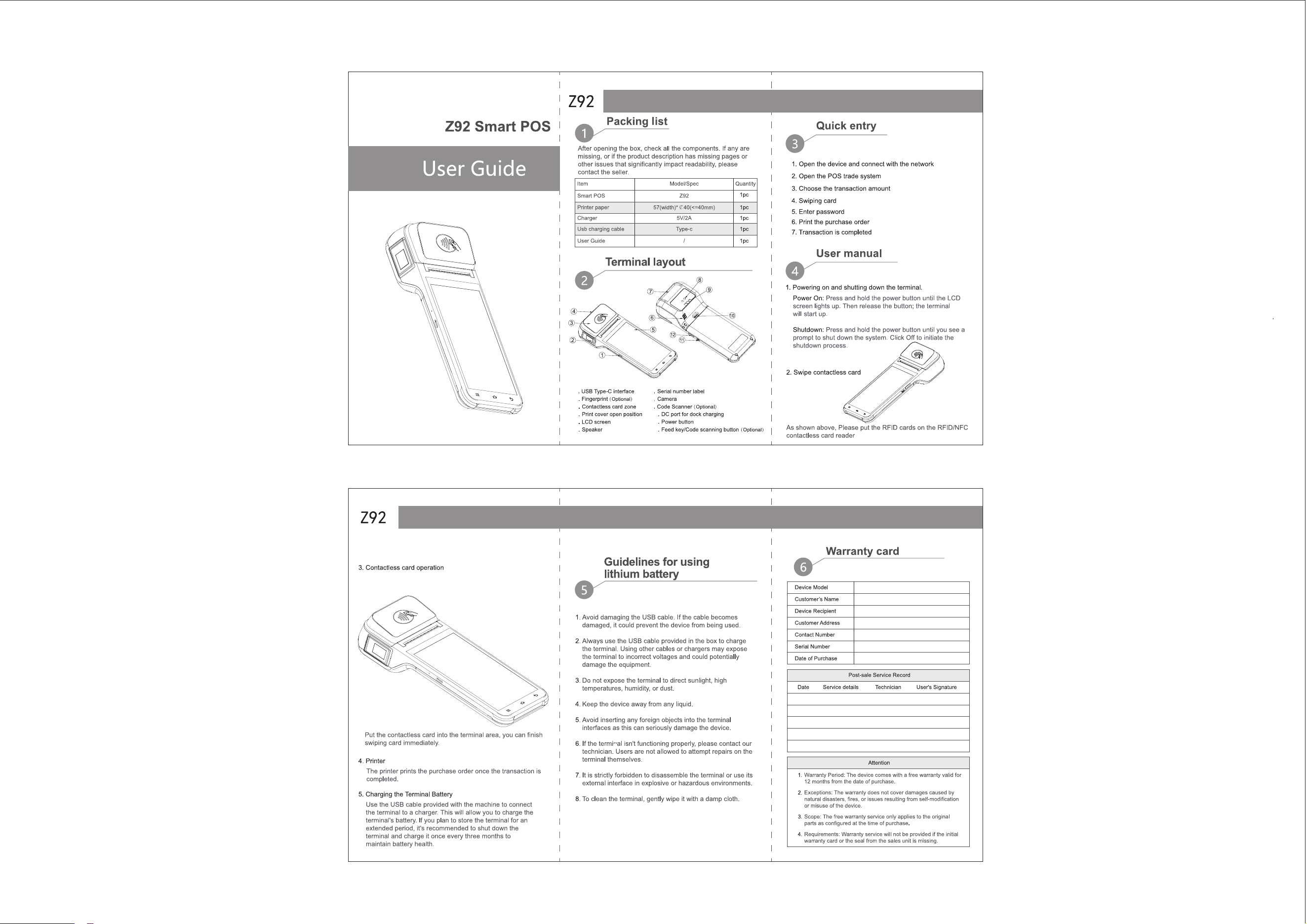

Caution:
Use the Product in the environment with the temperature Between -20℃ and 35℃;Otherwise,it
may damage your product. Products can only be used below 2000m altitude
For the following equipment:
Product Name: Smart POS
Brand Name: ZCS
Model No.: Z92
Shenzhen ZCS Technology Co.,Ltd.
E-mail: p[email protected]
hereby declares that this [Name: Smart POS, Model: Z92] is in compliance with the essential
requirements and other relevant provisions of Directive 2014/53/EU.
The full text of the EU declaration of conformity is available at the internet address:
https://zcs-tms.oss-cn-shenzhen.aliyuncs.com/file/download/sdkFile/Z92_RED_Declaration%20of
%20Conformity%20RED%20Directive%20Rev1.1.pdf
The product shall only be connected to a USB interface of version USB2.0 and that the connection
to a power USB is allowed.
Adapter shall be installed near the equipment and shall be easily accessible.
Only can use adapter as below:
Adapter Model: GQ10-050200-ZGU
Input:AC110-240 50/60Hz 0.35A Output:DC5V2.0A
Dong Guan City GangQi Electronic Co.,Ltd.
The plug considered as disconnect device of adapter.
This product is intended for sale and application in a business environment.
RED Article 10 2
-This product can be used across EU member states
RED Article 10 10
-The product is class 1 product, No restrictions
The RF distance between body and product is 0mm
Technical Characteristics of EUT
2G
Support Networks: GSM, GPRS, EDGE
Support Bands: GSM900, DCS1800
Frequency Range: GSM900: Tx: 880-915MHz, Rx: 925-960MHz
DCS1800: Tx: 1710-1785MHz, Rx: 1805-1880MHz
Modulation Type: GMSK, 8PSK
Type of Antenna: FPC Antenna
Antenna Gain: GSM900: -1.21dBi, DCS1800:-2.09dBi
GPRS/EDGE Class: Class 12
3G
Support Networks: WCDMA, HSDPA, HSUPA
Support Bands: WCDMA Band 1, WCDMA Band 8
Frequency Range:
WCDMA Band 1: Tx: 1920-1980MHz, Rx: 2110-2170MHz
WCDMA Band 8: Tx: 880-915MHz, Rx: 925-960MHz
Modulation Type: BPSK, QPSK, 16QAM
Antenna Type: FPC Antenna
Antenna Gain: WCDMA Band 1: 2.15dBi, WCDMA Band 8: -1.21dBi
4G
Support Bands: FDD-LTE Band 1, 3, 7, 8, 20, TDD-LTE Band 40
Frequency Range:
FDD-LTE Band 1: Tx: 1920-1980MHz, Rx: 2110-2170MHz
FDD-LTE Band 3: Tx: 1710-1785MHz, Rx: 1805-1880MHz
FDD-LTE Band 7: Tx: 2500-2570MHz, Rx: 2620-2690MHz
FDD-LTE Band 8 Tx: 880-915MHz, Rx: 926-960MHz
FDD-LTE Band 20 Tx: 832-862MHz, Rx: 791-821MHz
TDD-LTE Band 40: Tx: 2300-2400MHz, Rx: 2300-2400MHz
Modulation Type: QPSK, 16QAM
Antenna Type: FPC Antenna
Antenna Gain:
FDD-LTE Band 1: 2.15dBi, FDD-LTE Band 3: -2.09dBi,
FDD-LTE Band 7: 1.33dBi, FDD-LTE Band 8: -1.21dBi,
FDD-LTE Band 20: -2.04dBi, TDD-LTE Band 40:-0.66dBi,
Wi-Fi (2.4GHz)
Support Standards: 802.11b, 802.11g, 802.11n-HT20/40
Frequency Range:
2412-2472MHz for 802.11b/g/n(HT20)
2422-2462MHz for 802.11n(HT40)
Type of Modulation: CCK, OFDM, QPSK, BPSK, 16QAM, 64QAM
Quantity of Channels 13 for 802.11b/g/n(HT20), 9 for 802.11n(HT40)
Channel Separation: 5MHz
Type of Antenna: FPC Antenna
Antenna Gain: 1.0dBi
Bluetooth
Bluetooth Version: Bluetooth V5.0
Frequency Range: 2402-2480MHz
Type of Modulation: GFSK, π/4 DQPSK, 8DPSK
Data Rate: 1Mbps, 2Mbps, 3Mbps
Quantity of Channels 79/40
Channel Separation:
1MHz/2MHz
Type of Antenna: FPC Antenna
Antenna Gain: 1.0dBi
NFC
Frequency Range: 13.56MHz
Modulation: ASK
Type of Antenna: FPC Antenna
Antenna Gain: 0dBi
Transmitter Product Class 1
GPS
Frequency Range: 1575.42MHz Receiving
FCC Radiation Exposure Statement:
This device meets the government's requirements for exposure to radio waves. The guidelines are based on
standards that were developed by independent scientific organizations through periodic and thorough
evaluation of scientific studies. The standards include a substantial safety margin designed to assure the
safety of all persons regardless of age or health. The SAR limit of USA (FCC) is 1.6 W/kg averaged. Device
types: Smart POS (FCC ID: 2A8NR-Z92) has also been tested against this SAR limit. SAR information can
be viewed on‐line at http://www.fcc.gov/oet/ea/fccid/. Please use the device FCC ID number for search.
This device was tested simulation typical 5mm to body. To maintain compliance with FCC RF exposure
requirements, use accessories should maintain a separation distance between the user's bodies mentioned
above, the use of holsters and similar accessories should not contain metallic components in its assembly,
the use of accessories that do not satisfy these requirements may not comply with FCC RF exposure
requirements, and should be avoided.
FCC Warning
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
NOTE 1: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
NOTE 2: Any changes or modifications to this unit not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
