User Manual
Internet radio with FM
WR-393
Please read this user manual carefully before using the receiver
- 3 -
Contents
Location of Controls ......................................................…………........4-5
Remote control ............................................................………….............6
Before you start.......................................................................................7
1. Getting started..............................................................………….........7
Entering password for your wireless network.………...........................9
3.
Overview of features and functions ..............……......….....…............11
4.
Internet Radio ......................................................…………...........12-14
5.
Media Centre .....................................…………..................................15
6.
7.
FM Radio ..................................................................…………...........17
8.
BT playback ..............................................…………...........................18
9.
Alarm Setting ..................................................................………….....19
10.
Timer Setting .................................................…………......................20
11.
.Sleep Timer Setting .................. ........…………….............................20
12.
.Podcasts operation ..............................…… ………..........................21
.Configuration ............................................…………….............. ..22-25

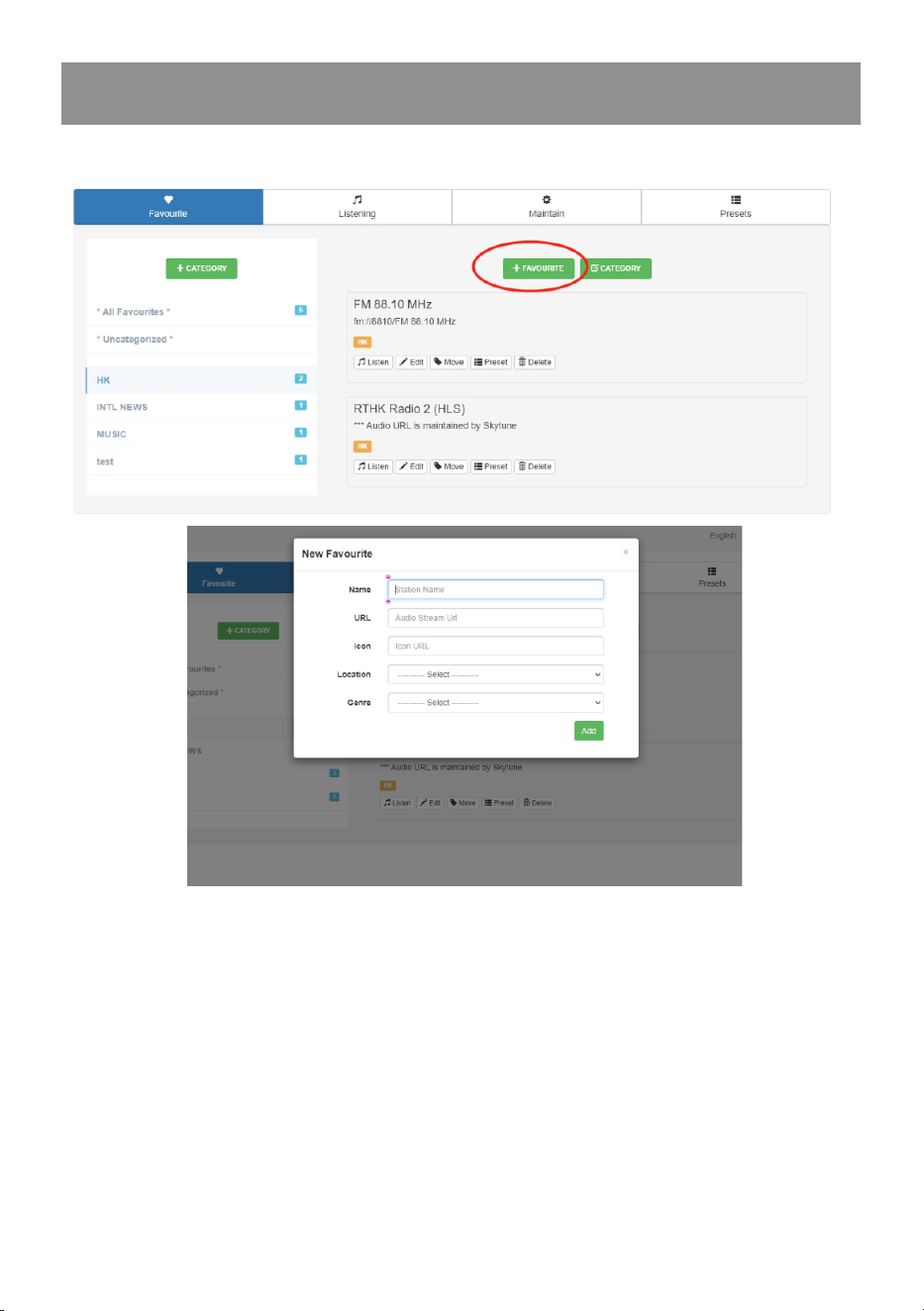

13.Web browser control via PC / Smart phone
-
Tuning internet radio & manage favourite………...…………...26-28
14..Trouble Shooting ....................………..............….........................29-30
Helpful Tips ...............................……………...........................................31
Technical Specification ..................…………..........................................32
2.
Setting up network (Scan & Select)......................………….................8
Setting up network (WPS).................................……….…..................10
In the box..................………….....................……………….....................33
- 4 -
Location of Controls
1.
Pre
ss to enter/
wake from Standby mode.
3. IR sensor
Rece
ives Infra red signal from remote control
.
4
. Dedicated Pres
et button No.1-5
Press and hold to preset 5 dedicated stations. Press briefly to recall to play.
These are independent presets and will not appear on the "My Favorite"
list.
8.
(Left key)
Rotate to adjust volume/dial up down. Push to select/confirm.
2. Headphone jack (stereo)
3
.5 mm stereo output.
5. Color display 3.5"
6. (HOME)
Press to display Home menu to view different radio modes / setting options.
7. (FAV)
Pres
s and hold to preset the favorite stations up to 150. Press it briefly
Press to exit to previous menu / delete entry of character / left navigation.
Press to cycle through the display options in radio playing mode / Enter
9. (Right key)
edi
t menu in Favourite list / right navigation.
to recall the list.
10. Dial/Select knob (for volume/up/down/select/OK)
- 5 -
Location of Controls
11. Speaker
12. Telescopic antenna for FM
13.
External Wifi antenna socket - please screw on the wifi
antenna (supplied in the box) before setting up the radio
1
4
. Power on / off switch
15. DC-IN Jack (12V 2A)
- 6 -
Remote control
1. :
Mute
2. 0-9: Input index number on the list / input
characters for WiFi security code
3. : Preset the current playing station to
Favorite
4. ▲ :
Up navigation
5. ◄/
:
Left nav
igation/
back to
previous menu
6. : Alarm button
7. : Sleep Timer
8. Mode: Switch between various radio modes
9. : Home
10. : Previous station on the list (Internet radio /
Podcasts)
Manual tune on FM
Previous track on BT / Media Centre
Under Podcasts, press and hold the button
to skip backward in the same track
11. : Access network info of the radio unit
12. : Press to t
oggle
between Standby
and
Operation
13. : Recall the favorite list
14. OK: confirm button
15. ► :
Right navigation
16.
▼
: D
own navigation
17. Vol+:
Volume up
18. Vol-: Volume down
19. EQ: Equalizer
20. : Next station on the list (Internet radio /
Podcasts)
Manual
tune on FM
Next track on BT / Media Centre
Under Podcasts, press and hold the button
to skip forward in the same track
21. :
Play / pause for BT / Media Centre / Podcasts
Play/stop for Internet radio
22. Dimmer: Access the Dimmer menu to adjust the brightness of the
display
23. Info: Toggle to cycle through the station's info, the big clock display or
return to now playing screen
- 7 -
Before you start
Pl
ease ensure the following is ready:
You have a broadband internet connection.
A wireless broadband router is connected to the internet successfully. The
radio supports Wireless B, G and N connection (Wireless N router can also
be used with the setting on B or G).
You know the Wired Equivalent Privacy (WEP) or Wi-Fi Protected Access
(WPA) data encryption code/password. You need to ke
y in the correct code
wh
en the radio is connected to the wireless router for network connection.
If you do not know the code/password, please contact the person
/technician who set up the router/network for you.
The radio
works via 2.4GHz Wireless network connection (Wi-Fi connection)
only.
Precautions
• T
he radio should not be used in a high temperature or high humidity
environment over prolonged periods of time as this may damage the unit.
• Keep the radio away from liquids as it may get damaged. Please switch off
the radio immediately if water or liquids is spilled into the radio. Consult
with the shop you bought this radio for any question.
• Avoid using or storing the unit in dusty
or sandy environment.
• Do n
ot open and repair the radio by yourself.
• Use only the DC adaptor supplied with the radio. Connecting a power
supply with a different rating will cause permanent damage to the radio
and may be hazardous.
• Clean only with dry cloth.
1. Getting started
• Remove
internet radio from the package box.
• P
l
ug in the DC adapter and switch the Power on/off switch (on the rear
cabinet) to ON. The radio will turn on automatically.
◊ Caution: Use only the adaptor supplied with the radio. Connecting a
power supply with a different rating will cause permanent damage to the
radio and may be hazardous.
- 8 -
•
Setting up the radio for the first time will prompt you to select
your preferred language and the time zone. Next, configure
the network following the wizard.
Choose Yes to start.
•
There are two ways to search the wifi networks:
"Scan & Select" or via "WPS button".
Refer to the chapter in the next page for the instructions on
how to enter the password.
An "A
ssociation Complete" will pop up if the connection is
successful. The Wifi signal bar will appear on the top left of the
display.
2. Setting up network (Scan & Select)
• Choose "Scan & Select", it will start scanning the network
availalbe. Choose your network and press [OK] to confirm. If
your wifi network has a password protected, it will ask you to
enter the passphrase/ password.
Note: The password is case sensitive, please consult with the
one who setup your network if you don't know the password.
Scan & Select
- 9 -
Button 1: 1 ! @#$%^&*()_+[]{};:'”\|,./<>?
Button 2: 2ABCabc
Button 3: 3DEFdef
Button 4: 4GHIghi
Button 5: 5JKLjkl
Button 6: 6MNOmno
Button 7
:7PQRSpqrs
Button 8: 8TUVtuv
Button 9:9WXYZwxyz
Button 0: 0
Alternatively, use the and button to select the character,
press [OK] to input the next one. When done, move the cursor
to the mark, and press OK to confirm.
When the entries are
done, move the cursor to
this mark and press OK
to confirm.
Using control buttons on the radio unit
Rotate the [Dial/Select] knob to scroll through the
characters, highlight it and
push the [Dial/Select] knob to
input the next one. When done, scroll to the mark and
push the [
Dial/Select] knob to complete the entry.
Note: The password is case sensitive.
Entering password for your wireless network
Using Remote control
On the alpha-numeric keypad, press the button repeatedly to cycle
through the characters assigned to each button (see the list below).
Press [OK] to input the next one.
- 10 -
the radio near to the WiFi router for the
setup. Select the "WPS button" option on the radio, press
OK on the remote, or push the [Dial/Select] knob on the
radio unit to confirm.
Meanwhile, press the WPS button on the Wifi router, it will
start connecting with the radio. Once the connection is
made, it will display "Association complete".
If your wifi router has a WPS button, you can choose the
"
WPS button" option to quickly connect to the wifi
network.
Suggest
to place
Setting up network (WPS)
- 11 -
3. Overview of features and functions
Press
[ ] to enter the Home screen or the on the remote control.
Scroll by
rotating
the
[
Dial/Select] knob
or
the
navigation buttons on
th
e remote:
My
F
a
vorite ─ To
show the list of favorite stations which have been
assigned to the presets. There are up to 150 presets
available.
Internet Radio ─ Start exploring the worldwide radio stations and music
here.
Media Centre ─ You can browse and stream music from your network via
UPnP or DLNA Compatible devices.
FM
Radio
─ Receive ordinary FM radio stations in your local area (no
internet
connecti
on required).
BT
streaming ─ BT playback, to play audio stream (receive) from another
BT
enabled device after pairing/connected each other.
Alarm ─ Alarm
clock. Two alarm settings available.
Timer ─ To count down from a specified time with alarm.
Sleep Timer ─ Enable the timer to turn th
e radio in standby after the
selected
time elapsed.
Configuration ─
More options/settings available to personalize as y
ou
desire.
Podcasts ─
Explore a wide range of podcast programs from around the
world.
Clock
style
Set
the clock display in Digital or Analog as you like. Under Configuration>
Date & Time > Set clock style.
Digital style
Analog
style
History
16 Mon
4:19
pm
- 12 -
4. Internet Rad
io
On the Home screen, choose Internet Radio and you will find the options
below:
Skytune
Select Skytune to start enjoying thousands of radio stations over the world.
You can filter your search by Region, Music genre and talks.
The Local Radio let you access quickly the stations available in your local
area through internet connection.
Note ─ You can change the Local Radio area under Configuration> Local
rad
io setup.
Note ─ When you scroll along the list of Globe All and want to quickly reach
to a certain point of the long list, input the index number on the remote
control to quickly jump to that point. For example, on the remote control,
input 2 8 and press OK, it will highlight the station no. 28.
Search
Instead of browsing the radio station list, you can input a few characters of
th
e desired station to filter out / short list the stations.
His
tory
The radio memorizes the stations you have listened up to 99 stations.
If you have listened more than 99 stations, it will supersede the first station
that you have listened.
Start playing internet radio
When a radio station starts playing, more station information can be
displayed. Press the [ ] button on the unit or [ INFO ] button on the
rem
ote control in the state of the playback screen below:
►
- 13 -
4. Internet Ra
dio
Press [ ] to return home screen. To go back to the playback screen,
press the [ ] button again.
My Favorite
This is to show the list of your Favorite stations which have been assigned
to the presets.
Preset a station
When a radio station is playing, press the button on the remote control,
you will see the icon appears as below. It means the station is added to
the Favor
ite list. Alternatively, you can press and hold the [ ] bu
tton on
the radio to save to Favorite.
The new added station will always show in the last item on the Favorite list.
You can store up to 150 presets.
Recall a station
Press the button on the remote control to recall the list of My favorite,
or navigate to My Favourite on the Home screen and select it to confirm. On
the radio, pres
s the [ ] bu
tton to recall the favorite list.
Dedicated Preset button #1-5
Program the 5 preset button to access the stations you play it most of time.
Press and hold the 1-5 button on the radio to preset, press it briefly to
recall.
These 5 presets are stored separately from the My Favorite list.
Preset icon
Every time you press the [ ] bu
tton on the unit or [ INFO ] button on the
remote control, it will cycle through information at a time such as the
streaming bit rate, name of the song, artist name (if available), the big time
clock and the radio's station logo (if available) or return to now playing
screen:
►
- 14 -
4. Internet Radio
N
ote: The 5 dedicated preset stations do not appear on the "My Favorite"
list. To replace it with another station, play the station you want to replace
with, then press and hold the preset number button on the radio.
Create new categories -
Organise your Favorites in your way!
There
a
re two items in the My Favorite list as below, "All Favorites" and
"Uncategorized":
You can create new categories of your favorites and name it as you like,
e.g., "Morning mix", "My Jazz", "After work"...etc to manage your favorites.
In the page of "My Favorite", press the [
►] button, it will enter the edit
m
enu with "Create Category" as below:
Press the
[ ► ] button
Highlight the
station
to
move
c
ategory
, press [
►] button
Press
OK,
e
nter the name
of category,
e.g. My Jazz
Choose "Move to category",
i
t will display the list and select
the one you want to move it to.
e.g., "My Jazz", then press OK.
The station is now moved
to
"My Jazz" folder.
My favourite 2/2
1
1:30am
All favourites 3
U
ncategorized 3
My favourite 1/3
1
2:48am
Edit 1/2
1
2:48am
Move to category
D
elete
My favourite 3/3
1
1:30am
All favourites
3
Uncategorized
2 My Jazz 1
Once a category is created, you can assign the favorite stations to the category as
desired. The "Uncategorized" folder gathers the stations that ar
e not yet assigned to
any custom categories.
My favourite 2/2
1
1:30am
All favourites 3
U
ncategorized 3
To move stations to the desired category, navigate to the "
U
ncategorized" folder,
choose the station to move, press the [ ► ] button and select "move to
category". Then h
Edit 1/1
1
2:48am
Create catogory
My favourite 3/3
1
1:30am
All favourites 3
U
ncategorized 3
My Jazz
ighlight the desired category to move it to, and push
[Dial/Select] on the radio device or press [OK] on the remote to confirm. You will
find the selected station is moved to the new category. You can always move the
station from one to another.
<
101 SMOOTH JAZZ
FM 106.30 MHZ
FM 98.90 MHz
- 15 -
5. Media Centre
Th
e device supports UPnP and is DLNA-compatible.
This provides the opportunity to stream music from your network. However,
this requires you to have a compatible device in your network that can
function as a server. This can be e.g., a network hard drive or a
conventional PC with e.g., Windows 8 via which access to the shared folder
or media sharing is permitted. The folders can then be browsed and played
on the radio.
Note ─ Please make sure your computer laptop is on the same Wi-Fi
network as the Radio before you start using this function.
Music streaming
• Once the UPnP/DLNA compatible server is configure to share media files
with your radio, you can start music streaming.
• On the main menu, select Media Centre and choose UPnP.
• It may take a few seconds for the radio to complete th
e scan for available
U
PnP servers. If no UPnP servers are found, it will show Empty List.
• After a successful scan is done, select your UPnP server.
• The radio will show the media categories available from the UPnP server,
e.g. 'Music', 'Playlists' etc.
• Choose the media files that you wish to play.
You can set the mode of playback under Configuration > Playback setup.
My Playlist
You can make your own play
list for the UPnP music files. Choose and
hi
ghlight the song you want to add to playlist, press and hold the [ ]
button or press the button on remote, until the sign appears. The
song will be added to My playlist.
Clear My Playlist
Remove all songs in "My Playlist" to allow a new playlist to be prepared.
Note ─ If you have DLNA compatible servers available, follow the steps
described above to browse the audio files from DLNA compatible device on
th
e radio to play.
- 16 -
6. FM Radio
To receive
the ordinary FM stations (no internet connection is required),,
place the radio close to the window and extend the antenna as far as it can
go to get the best reception.
On the Home screen (main menu), scroll to FM Radio or use the [MODE]
button on remote to switch to FM Radio. Press [OK] to start.
Choose FM full scan to confirm scanning if this is the first time using the
FM radio. When it is done, it
will automatically save the found channels on
presets and display the list for your action.
You can select the channel and start listening to it. Whenever you want to
add to My Favourite, press the button and it will add to the favourite
list (or press and hold the [ ] button on device).
Press the [ button to return to preset list. ]
Note ─ When it is playing FM radio, press [ ] button on the device or
[ INFO ] button on the remote control to view more radio information, each
time you press the button, it will display various information at a time such
as radio frequency and big clock display.
Manual Tune
To manual tune the frequency, long
press the [Dial/Select] knob on the unit,
until you see the "Tuning" appeared on the display at the bottom right corner.
Use t
he [ /
► ] buttons to tune the frequency. When done, long press the
[Dial/Select] knob to exit manual tune.
Using the remote control to fine-tune the frequency, press the [ / ]
buttons and the frequency will begin advancing or receding, when done,
add it to the Favorite.
Tuning
◄
◄
►
- 17 -
7. BT playback
Before transmission
between your BT device and the radio is possible, both
devices must be coupled. This process is called "pairing". The radio is
served as a receiver, to receive music stream to play on the radio.
If you have already coupled to a BT device before, this connection will be
restored automatically when both devices are in range and BT operation
has been selected on the radio. "Pairing"
does not have to be repeated.
This function may need to be activated in your BT device, however.
• Choose BT Streaming on the radio
to enter the BT mode.
• Switch your BT device to which you want to connect the radio on and activate
the pairing mode here. The device scans for BT devices in the reception range.
• When the radio is found, your BT device shows its name WR-393-XXXX (the
XXXX is an identification code for your radio unit).
• Select the radio at your BT device.
• Start playback on your BT device.
• Playback now takes place using the radio.
- 18
-
8. Alarm Setting
• Choose Alarm from
the Home menu or press the button on the
remote control.
• Select either Alarm 1 or Alarm 2, choose Turn on to activate the Alarm.
• Follow the alarm wizard instructions to set the alarm.
• The wizard will guide you through the settings below:
Time ─ Set the time for the alarm
Sound ─ You can choose Wake to Tone, My Favourite, Wake to FM
Radio as
the alarm source.
Note ─
Wake
to
FM -
only the preset stations
can be used for the radio alarm (if the preset scan has been
completed).
Wake to My Favourite ─ Please preset your favorite station before
setting this as the alarm source.
The Presets in Preset button 1-5 cannot be selected direct as the
alarm source. If you want those 5 presets to become one of the
alarm sounds, add the
se stations
to
the
"My Favorite" list by press
and hold the [ ] button or the [ ] button on remote.
Repeat ─ You can schedule the alarm as you desire -Everyday, Once or
multiple days.
Alarm Volume ─ Adjust the volume
setting of the alarm by rotating the
[Dial/Select ] or [▲/▼] buttons on remote.
Alarm duration ─ Set the duration of the alarm from the preset options
ranging from 30 to 180 minutes. The radio will be
turned to standby when the selected duration of time
is due.
• After the above settings are completed, press the [ ◄ ] button
to exit and
make sure the Alarm is turned on. You will see the Alarm icon appeared on
the display if it is activated.
Stopping the Alarm/Activate the Snooze function
When the alarm goes off, press the [ ] to stop the alarm or press the
[OK] button to activate the Snooze feature.
When the Snooze is activated, the alarm is muted for 9 minutes and sounds
again when the time is due. You ca
n
repeat
the process
multiple times. To
s
top
the "Snooze" function, press the [ ] button.
- 19 -
9. Timer Set
ting
Setting the Timer
Th
e device offers the Timer function as a kitchen timer. The time will count
down from a specified time and ends with a beeping sound. Timer settings
is up to 99 hours, 59 minutes, 59 seconds.
The beeping sound volume and sound duration is adjustable from the Timer
settings in Configuration menu.
Switching off the timer
When the alarm sounds, you can turn it off by pre
ssing the [OK] button on
the radio device or on the remote control.
10. Sleep Timer Se
tting
You can set
the timer to let the radio goes to sleep after the selected timer
elapsed. There are number of preset timer options from 15 minutes to 180
minutes.
Press [ ] button on the remote control to set the timer.
You will see the icon appeared on the display if the timer is set.
Alarm S leep Ti
mer
- 20 -
11. Podcasts operat
ion
On the Home screen, select "Podcasts" and
press OK to confirm. You will
find the following options:
Listen again ─ You can always add a particular episode to "Listen again" to
repeat on listening or continue the unfinished part.
To save the episode to "Listen again", press the Preset button
on the
rem
ote when it's playing. It will be added to the list. To remove it from Listen
again, highlight the episode and press the right button
► to edit.
Not
e: The episode will resume to play from where it left off.
Subscribed ─ Subscribe your favourite Podcast for easy access to listen to
the latest episode.
To subscribe a Podcast, highlight the Podcast and press the right
button , then select Subscribe.
To remove the subscription, highlight the podcast and press the right
button to edit.
History ─ the previous listened episode of the podcasts.
Browse ─ To browse the list of Podcasts available
Search ─ Search the Podcast by keywords
Search history ─ the list of previous search records.
Using remote control to operate more functions. When an episode is
playing,
you can always skip forward / backward by "press and hold" the
but
tons, press these buttons briefly will skip to next /
previous episode.
Press the to pause the playback.
►
►
- 21 -
12. Configuration
Here you will
find the complete settings / options available to configure your
own radio. On the main menu, navigate to Configuration setting. Press OK
and you will see a list of options available.
Network
• Wireless Network
» Add wireless network
Scan & select ─ It will scan out a list of wireless networks around.
WPS button─ Choose this option to connect your Wi-Fi router via WPS
if the router has
a WPS button.
» Remove wireless network
If you have already set up a network and want to remove it, choose this
option.
Note ─ Always bring the radio within 2 meters of the Wi-Fi router for
setup.
» AP: [ ]
If you have added more than one network on the radio and want to
switch to another one, select this option to change.
» Signal
This is to show the strength of the wifi Signal of the wifi router as
receiv
ed by
the radio. Usually signal levels lower than -70dBm is at
weaker level and if it affects the reception of your radio, you may need
to optimize the router location or check any problem of the router itself.
» IP
The IP is set Dynamic by default. Select to change Fixed IP according
to your network condition.
» DNS
The DNS is set Dynamic by default. Select to change <Fixed> DNS
according to your network co
ndition.
- 22
-
• Network
auto on/off
Always on: The WLAN function remains switched on (faster access
when
switching from FM mode to Internet radio).
Auto off in 15s/30s: The WLAN function shuts down after 15/30
seconds when not in use (to save energy).
• Wireless Channels
Not all of the Wireless channels are available in every country. There
may be variation between different countries. Therefore it is necessary
to choose the Wireless
channel
s
to ensure the Wi-Fi performs
satisfactory.
We
have already set the channels according to the requirement in
different countries. Choose the country you are staying from the list to
get the correct channel.
• Network connection test
In case there are any issues in connecting Skytune, select this option to
check out any failed items of the network parameters for further
diagnosis.
Date and Time
• Time z
one
•
Set
Time Format
Choose either 12-hour or 24-hour notation you prefer.
12. Configuration
• S
et date & time
E
nter date and time manaully by selecting this option.
Set the time zone to synchronize the time automatically to the
network time. Coupled with the "set time from network" and "DST
(Daylight time saving) will be adjusted automatically if you choose to
use network time.
• Set
clock style
You can choose the clock display in digital form or Analog style. The
selected style will apply in Stan
dby as
well as the big clock display in
radio
playback.
• Set Date Format
• DST (Day Light Saving)
Enable on/off
- 2
3 -
•
Set time from network
T
his
is designed to synchronize a device's clock with a time server. Your
ra
dio will synchronize the time server by default every time it powers up
and connects to Internet. This ensures a very high degree of accuracy in
the radio's clock. You can change to use other time server by inputting
the URL address (see below
Network time server). You can choose not to
use the n
etwork time by setting "off" in this option.
• Network time server
It shows the default time server being used to synchronize the
radio
device's
clock. If you want to set another time server, input the URL to make the
change.
Language
There are multiple languagues available.
12. Configuration
• Set time from FM
Choose to synchronize the time with the FM broadcasts. The accu
racy
depends on the broadcasting station, and may vary by station.
FM Setup
• Scan setting
E
ither "All stations" or "strong stations" (with stronger signal) can be
selected for the scan.
• Audio setting
If the signal is weak and stable stereo reception is not possible, select"
Forced Mono" to get better reception.
• FM full scan
You can always carry out a new scanning of FM channels by selecting this
option. All current presets and channels will be erased. The
radio at
the
lowest frequency of the scanned values will be highlighted. The preset list
will be saved unless a new preset scan is carried out.
• FM station list
You can adjust the preset ranking by Move down, Move up or Delete it.
Highlight one of the preset and press the [ ► ] button, it will enter into the
Edit menu.
Always press the [ ◄ ] button to return to the Preset list.
Local Radio
The region of the Local radio is set by default. Follow the steps below to change
the region:
1. Highlight the Local Radio and press OK.
2.
Choose Manual-set Local radio to change the region setting.
- 24
-
12. Configuration
Playback
Setup
This
is to set the mode of playback under UPnP/DLNA compatible
streaming: Repeat All, Repeat Once or Shuffle.
Power-On
Options
This is to select the state of the radio after a power reset / power cut, or the
next power up from Standby. There are 3 options available:
─
Go to Standby
─ Resume once ready: the radio will resume playing the last listened
station.
─ Ready to use: the radio w
ill
stay in Home screen
for you
r action.
Auto Power Save
The radio will automatically turn to Standby after certain time of no signal/
not playing. There are several timer selections available.
You
can
set the backlight level for the display as you prefer.
There are two settings: Mode and Level
• Mode
─ Normal or Power Saving
Normal
─ the display will stay with the same level of brightness all the time
without dim down.
Dim ─ the
display will dim down after 20 seconds if no operation is made on
the radio.
• Level
─ Bright and Dim
Bright ─ This is to adjust the level of brightness in Normal m
ode.
Dim ─ This
is to adjust the level of brightness in Dim mode.
Dimmer
• Dimmer
in Standby
The
highest backlight level in standby is set by system default. To further
reduce
the backlight or turn it completely off, adjust it by pressing the ▼
button. Increasing the backlight beyond the system level will illuminate for
20
seconds and then dim to default setting automatically.
- 2
5 -
EQ(Equaliser)
Various music genres can be set.
Bu
ffer Time
Sometimes you may experience uneven playback of the internet radio. This
can happen if the internet connection is slow or network congestion occurs.
To help improving the situation, you can choose longer buffer time to get a
few seconds of radio stream before beginning to play.
The default value is 2 seconds. You can choose 5
/10 seconds if you prefer
to h
ave a longer buffering time.
Timer
This is to set the alarm sound volume and the duration for the Timer
function.
Network information
View the network signal and other parameters.To access quickly to this
information, press the [ ] button on the remote control.
When you use your PC to manage the My favorite stations, you have to use
the IP address and you can view this info from here. Then type in the IP
12. Configuration
address ( Configuration > Network Information > IP ) to your PC's browser
input window.
System information
Th
e model number, system MID and software version (App version) can be
found here.
Software Update
There may be software release to upgrade features of the radio from time to
time. Check the update regularly to keep your radio up to date with the
latest software.
Reset to Default
You can do the reset to clear all the settings and return to default
settings.**Please note all the Station presets, Settings
and configuration
will be erased after you have performed the Reset.
- 26
-
13. Web browser control via PC / Smart phone ─ Tuning
internet radio & manage favourite
Experience an easy way to control tuning
internet radio channels and
manage your favourite list via PC or Smart phone's web browser.
The supported browsers are Internet Explorer and Chrome. Have the radio
stayed on Internet radio mode when using this feature.
- Connect your PC or Smart phone to the same Wi-Fi netwo
rk
as your radio.
- Visit
www.skytune.net
- On the home page, click “Browse/Search”
- Browse or enter the name to search the radio channel, a list of internet
radio channels will be displayed.
- Click the “ ”symbol
- 27
-
13. Web browser cont
rol via PC / Smart phone ─
Tuning internet radio & manage favourite
- It
will prompt you whether to "Add Favourite" or "Listen to Station". Enter
the IP
address of your radio (e.g. 192.168.1.11):
The IP address can be located on the radio unit as follow:
* On the remote control, press the [ ] button, scroll to IP to view the IP
address
* On the radio, return to the Home menu. Navi
gate
to Configuration >
Network Information > IP
- Select
"Listen to Station", click "Send"
and the radio unit will switch
playing the channel and the "My Favourite" page will pop up on the web
browser
.
You can then choose to add the playing station to favourite or manage your
list by other edit options. Any changes will synchronize to the radio unit
immediately.
- 28 -
13. Web browser control via PC / Smart phone ─
Tuning internet radio & manage favourite
You can also add the radio channel
if you know the published audio stream
URL with the streaming format as follow:
1. Audio formats: MP3, AAC, AAC+
2. Stream formats: Shoutcast, Icecast (HTTP, HTTPS) and HLS
3. Playlist formats: PLS, M3U
4. Sampling frequency: 44.1 KHz and 48 KHz
- 29 -
14. Trouble Shooting
Problem
Cause
Solutions
Cannot connect to
Wi-Fi
network
Network down
• Confirm that a Wi-Fi or Ethernet
Wired connected PC can access
the internet (i.e. can browse the
web) using the same network.
• Check that a DHCP server is
available, or that you have
configured a static IP address on
the radio.
• Check that you firewall is not
blocking any outgoing ports. As a
minimum the radio needs access
to UDP and TCP ports 80,443 and
8008, DNS port
53.
Router
restricts
a
ccess
to listed
MAC addresses
Obtain the MAC address from
Configuration > Information >
Network > Wi-Fi MAC and add to
the allowed equipment list on your
access point.
Note: The radio has separate MAC
addresses for wired and wireless
networks
Insufficient Wi-Fi
signal
strength
• Check distance to router; see if a
computer can connect to the
network in this location
• Optimize the distance of the
router’s location
Unknown
encryption method
Change encryption method on
router.
The radio supports WEP, WPA,
WPA2
Firewall
preventing access
• Disable
the fire wall to see if radio
can connect to the network.
• Windows Media Player: varies non
Microsoft firewalls may require
configuration for UPnP.
- 30 -
Problem
Cause
Solutions
15. Trouble Shooting
If your radio can
connect to the
network successfully,
but is unable to play
particular stations
• The station is not broadcasting at
this time of the day (remember it
may be located in a different time
zone).
• The station has too many people
trying to attach to the radio station
server and the server capacity is
not large enough.
• The station has reached the
maximum allowed number of
simulta
neous listeners.
• The update of
the link is done
regularly. To get the updated list of
stations, please access from
Internet radio > Skytune. If case a
particular stream is still not
working, please contact us or
Skytune to report the case.
N
o
FM reception
• P
l
ease carry out “Factory Reset” on
the radio and extend the antenna.
• Move the radio close to the window.
• Please check that the aerial is
extended for the maximum signal
strength and improved reception.
• Check that you do not have other
electrical equipment too close to
your radio, causing interference.
FM Radio
reception is poor
• Please check if the playback is
stopped. Press the OK button on the
remote to resume playback.
• Adjust the volume
• Check if other radio stations have the
same problem or just happened on a
particular station.
No sound
- 31 -
Helpful Tips
1. If
the Internet Radio keeps re-buffering radio station:
The Internet Radio is streaming the data from the radio station via your
broadband connection, if there is a high error rate on your broadband
connection, or the connection is intermittent, then it will cause the Internet
Radio to pause until the connection is re-established and it has received
enough data to start playing again. If y
our
Internet Radio keeps stopping,
please check the DSL modem to ensure that the Broadband line is not
suffering a high error rate or disconnections. If you are experiencing these
problems, you will need to contact your broadband supplier.
2. What is Buffering?
When playing a stream, the Internet Radio/Media player, downloads a
small amount of the stream before it starts playing. This is used to fill in any
gaps
in the stream that may occur if the internet or the wireless network is
busy. The Internet Radio streams music data from the PC while you are
listening. If a stream gets blocked or experiences Internet congestion while
transferring it may stop/interfere with the quality of play. If this happens,
check your internet connection speed- it must be faster than the speed of
the streams.
3. My radio is wor
king
but some stations cannot be played.
The problem may be due to one or more of the followings:
a. The radio station is no longer broadcasting.
b. The radio station has reached the maximum allowed number of
simultaneous listeners.
c. The radio station has changed the stream arrangement and the link is no
longer valid.
d. The radio station is not broadcasting at the time of the day (not all
stations are broa
dcasting 24
hours throughout the day).
e. The
Internet connection between your radio and the radio station server
is too slow or unstable to support the data rate of the broadcast.
- 32 -
Technical Specification
Model
Power input
Power
voltage
Wireless Network
Wireless
network
frequency
Security Protocol
WR-393
12V 2A
100-240V~50/60Hz
IEEE802.11b/g/n
2.4 GHz
WEP/WPA/WPA2
BT version
BT frequency
BT
range
V5.
3
2.4 GHz
10 meters
(line of sight)
FM frequency range
87.5-108MHz
Audio output
Stereo headphone jack 3.5 mm
Telescopic antenna
for FM
f
or wireless network reception
Remark: Specification may vary without notice
Wifi antenna
Unit
Dimension
245 x 119 x 190mm(L x H x D) - including buttons and knob
- 33 -
In the box
• Internet
Radio
• Power adaptor
• Remote control (without batteries)
• User manual
WEEE and Recycling
The European laws do not allow any more the disposal of old or
defective electric or electronic devices with the household waste.
Return your product to a municipal collection point for recycling to
dispose of it. This system is financed by the industry and ensures
environmentally responsible dis
posal
and the recycling
of valuable raw
materials.
• Wifi
antenna
- 34 -
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications to this device not explicitly
approved by manufacturer could void your authority to operate this
equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
This equipment complies with the FCC RF radiation exposure limits
set forth for an uncontrolled environment. This equipment should be
installed and operated with a minimum distance of 20cm between the
radiator and any part of your body.
FCC
WR-393_2025-12_V1
