Stereo internet radio
User Manual
WR-860
Please read this user manual carefully before using the receiver
- 3 -
Contents
Location of Controls ...................................................................4
Remote control ..........................................................................7
Entering security code for your wireless network ..........................8
1. Getting started ...................................................................10
2. Network Setup ...................................................................11
3. Overview of features and functions ......................................12
4. Internet Radio ....................................................................13
5. Media Centre .....................................................................15
6. DAB+/DAB Radio ...............................................................16
7. FM Radio ..........................................................................17
8. Bluetooth playback ............................................................18
9. AUX-IN .............................................................................19
10. USB Playback ..................................................................20
11. Micro SD playback ............................................................21
12. Alarm Setting ...................................................................22
13. Sleep Timer Setting ..........................................................23
14. Configuration ...................................................................24
15. Remote control via PC / Smart phone
- Tuning internet radio & manage favourite ..........................29
16. Trouble Shooting ..............................................................32
Helpful Tips .............................................................................34
Technical Specification .............................................................35
- 4 -

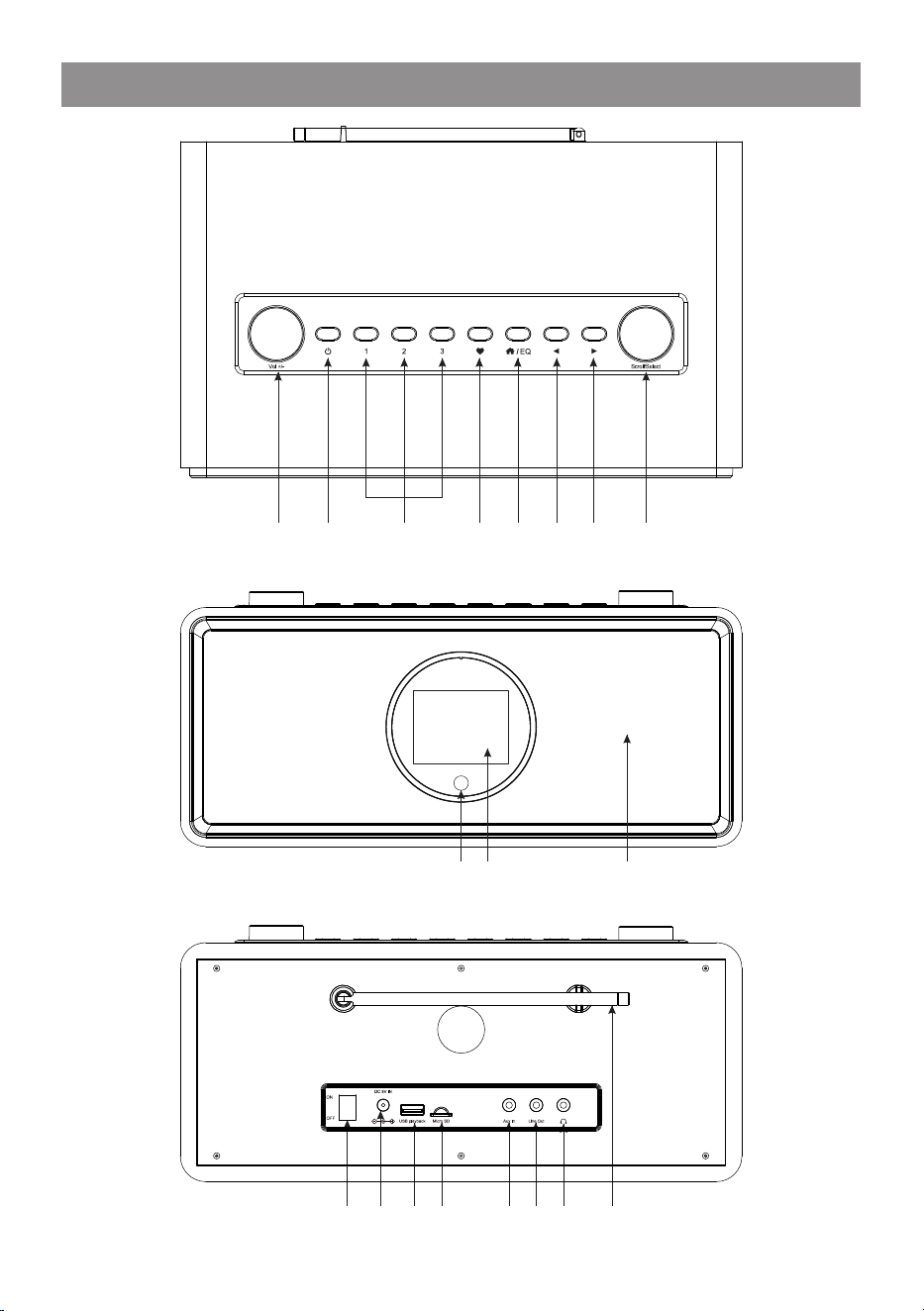

Location of Controls
1 28 3 4 5 6 7
9 10 11
12 13 14 15 16 17 18 19
- 5 -
Location of Controls
1.
Press and release to Standby / activate the radio
2. Quick preset buttons 1-3
Long press to preset a particular station. Short press to recall the
station.
3.
Long press to preset a particular station
Short press to recall the favourite list
4. /EQ
Access Home screen / toggle to return to the now playing screen. Long
press to access EQ setting.
5. ◄
Back to previous menu.
[Internet radio / DAB / FM]
Short press to return to the last level of the menu.
Long press to skip to the previous presets / station
[Media player: UPnP / USB / Micro SD]
UPnP / Micro SD: Short press to return to the list of media files.
USB: Short press return to Home.
[BT]
Long press to exit the BT mode.
6. ►
[Internet radio / DAB / FM]
Under the radio playing display, short press repeatedly to view the radio
info/display the big time clock.
Long press to skip to the next station/presets.
Under My Favorite list, short press to enter edit menu
[BT]
Long press to disconnect the paired device.
7.Scroll / Select
Rotate to scroll along, up/down on the menu
Press in to confirm / Select menu options
[FM]
Rotate the knob to manual tune the FM frequencies.
[Internet radio / DAB]
Rotate to change to next / previous station.
[Media player UPnP / BT / USB / MicroSD]
Rotate to skip to next or previous track.
Press in to pause/play the music
- 6 -
Location of Controls
8. Vol +/−
Rotate to adjust the volume level. Press in to Mute.
9. Remote sensor
10. Color display 2.4''
11. Speakers
12. Power on/off switch
13. DC IN Jack
14. USB port - for playback only
15. Micro SD memory card slot
16. Aux in
17. Line out
18. Earphone jack 3.5 mm
19. Telescopic antenna
- 7 -

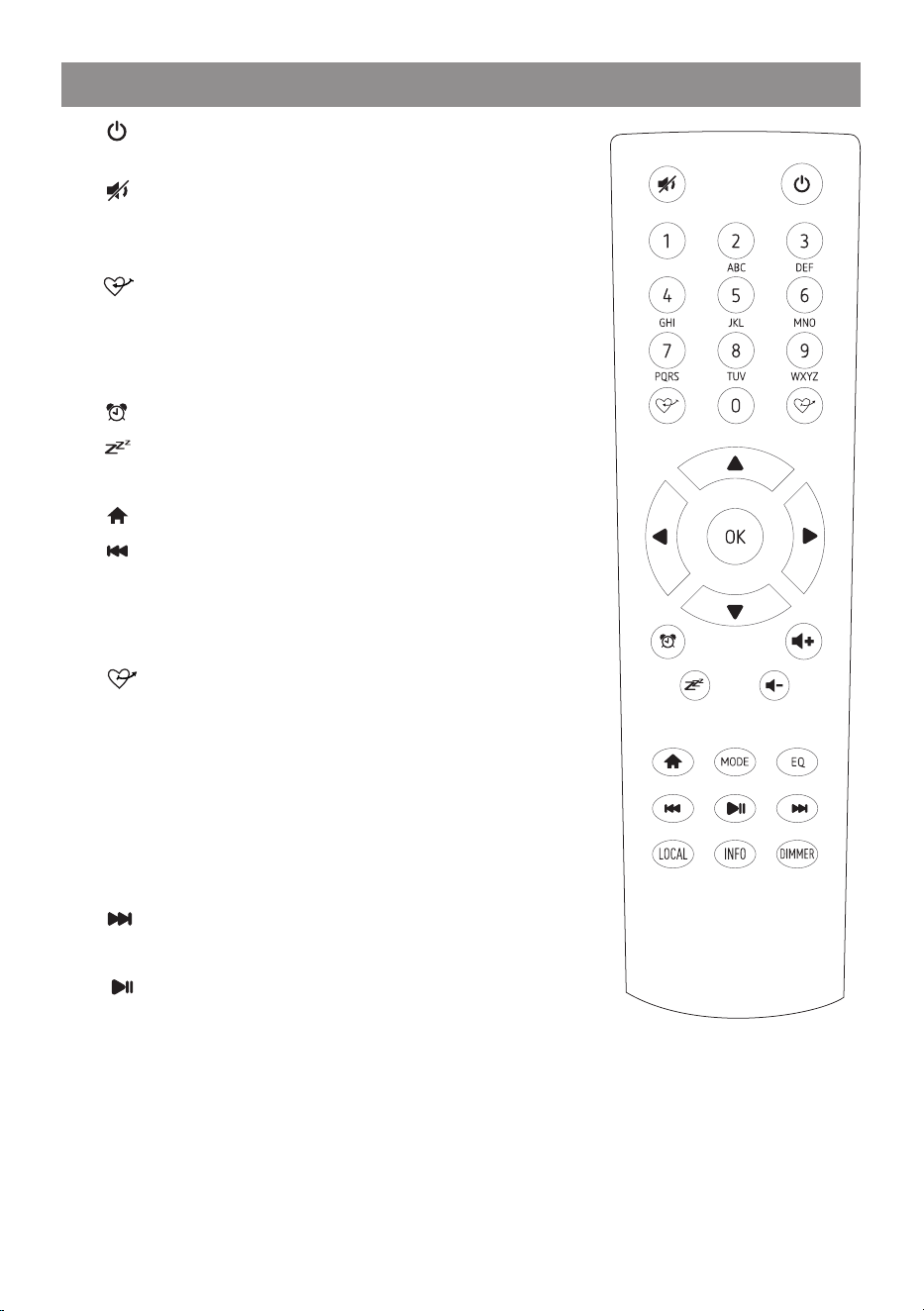

Remote control
1. : Press to toggle between Standby and
Operation
2. : Mute
3. 0-9: Input index number on the list / input
characters for WiFi password
4. : Preset the current playing station to
Favorite
5. ▲ : Cursor up
6. ◄ : Cursor left / back to previous menu
7. : Alarm button
8. : Sleep Timer
9. Mode: Switch between radio modes
10. : Home
11. : Previous station on the list/previous
track on media sources
12. Local: Access the local station list
(Local area set up in Configuration)
13. : Recall the favorite list
14. OK: confirm button
15. ► : Cursor right
16. ▼ : Cursor down
17. Vol+: Volume up
18. Vol-: Volume down
19. EQ: Equalizer
20. : Next station on the list/next track on
media sources
21. : Play/pause for media sources
Play/stop for Internet radio
22. Dimmer: Access the Dimmer menu to adjust
the brightness of the display
23. Info: Quick access to Network and System
information
- 8 -
Entering security code for your wireless network
Using remote control
On the alpha-numeric keypad, press the button repeatedly to cycle through
the characters assigned to each button. Refer to the following list.
To input a character, highlight it and press the [OK] button to confirm and
input the next character. When it comes to the last character of the
password, press and hold [OK] to complete the entry.
Button 1: 1 and different kind of symbols !@#$%^&*()_+[]{};:'”\|,./<>?
Button 2: 2ABCabc
Button 3: 3DEFdef
Button 4: 4GHIghi
Button 5: 5JKLjkl
Button 6: 6MNOmno
Button 7: 7PQRSpqrs
Button 8: 8TUVtuv
Button 9: 9WXYZwxyz
Button 0: 0
Using control button on the radio unit
Use the [Scroll/Select] knob to scroll through the characters, highlight it
and press [ Scroll/Select ] knob to confirm and input the next character.
When it comes to the last character of the password , press and hold
[Scroll/Select] knob to confirm and complete the entry.
Note: The password is case sensitive.
- 9 -
Before you start
Please ensure the following is ready:
You have a broadband internet connection.
A wireless broadband router is connected to the internet successfully. The
radio supports Wireless B, G and N connection (Wireless N router can also
be used with the setting on B or G). You know the Wired Equivalent Privacy
(WEP) or Wi-Fi Protected Access (WPA) data encryption code/password.
You need to key in the correct code when the radio is connected to the
wireless router for network connection. If you do not know the
code/password, please contact the person/technician who set up the
router/network for you.
The radio can work via Wireless network connection (Wi-Fi connection).

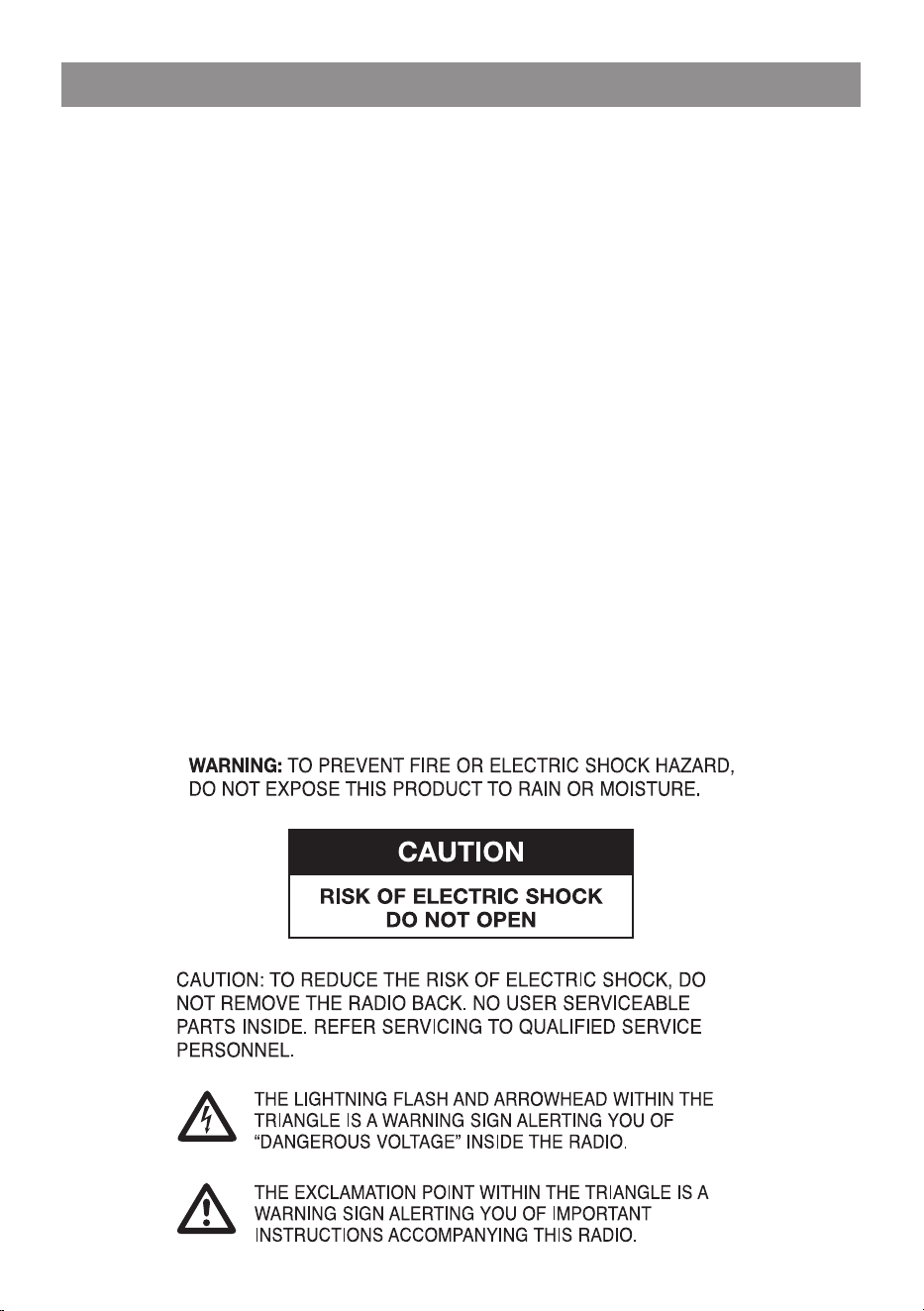

Precautions
• The radio should not be used in a high temperature or high humidity
environment over prolonged periods of time as this may damage the unit.
• Keep the radio away from liquids as it may get damaged. Please switch off
the radio immediately if water or liquids is spilled into the radio. Consult
with the shop you bought this radio for any question.
• Avoid using or storing the unit in dusty or sandy environment.
• Do not open and repair the radio by yourself.
• Use only the specified power input voltage to power up the radio.
Connecting a power supply with a different rating will cause permanent
damage to the radio and may be hazardous.
• Clean only with dry cloth.
- 10 -
1. Getting started
The radio is powered by the mains adapter. A 9V 2A external power adapter
is included. Connect the power adapter to the radio and the mains socket.
.
Switch on the power switch at the rear side of the radio. The display will
illuminate.
- 11 -
2. Network Setup
Internet connection can be setup via Wireless network (WiFi).
Your radio requires a broadband Internet connection.

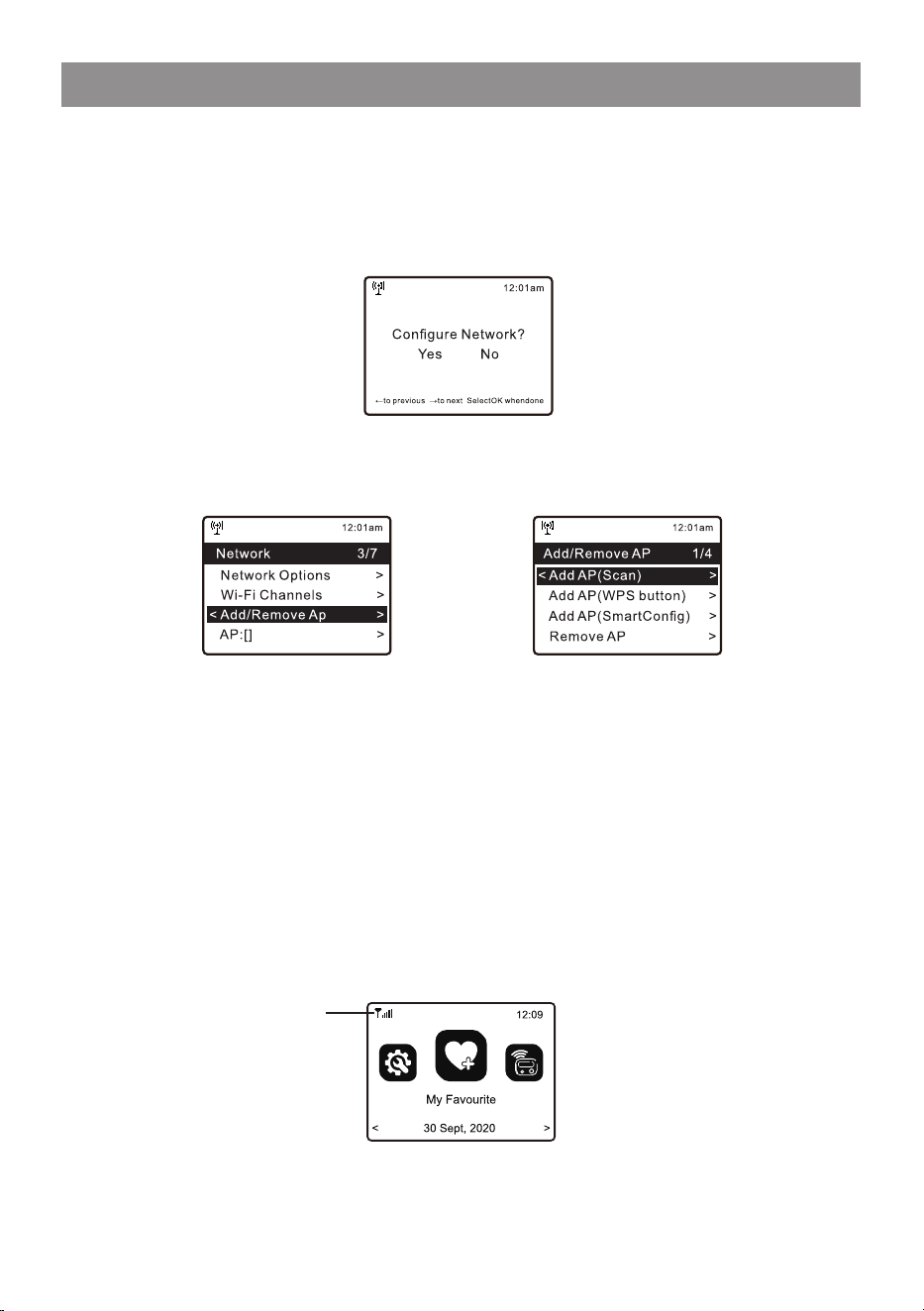

• If this is first time use, the Configure Network wizard will be displayed.
Choose Yes to start configuring network. Press the [ ◄ ] button to highlight
Yes and press [Scroll/Select] to confirm.
• Select Add/Remove AP from the list, use the [Scroll/Select] knob to scroll
and press it to confirm, then choose Add AP (Scan):
• It will start scanning the Wi-Fi networks available. Scroll to your network
and press [Scroll/Select] to confirm. If your wifi network has a password
protected, it will ask you to enter the passphrase / password. Please refer
to the above section ‘Entering security code for your wireless network’
on P.8.
Note: The password is case sensitive. Please consult with the one who
setup your network if you don't know the password.
• When the Wi-Fi connection is successful, the Association Complete will
be shown briefly. The wifi signal bar will appear on the top left corner of the
display:
Wi-Fi signal bar
- 12 -
3. Overview of features and functions
Press [ /EQ ] to enter the Home screen. Scroll by rotating the
[Scroll/Select] knob or the [ ▲▼►◄ ] button on remote to see the
operating modes available:
My Favorite ― To show the list of favorite stations which have been
assigned to the presets. There are up to 150 presets
available.
Internet Radio ― Start exploring the worldwide radio stations and music
here.
Media Centre ― You can browse and stream music via UPnP or DLNA
Compatible devices in the same network of the radio.
DAB+/DAB Radio ― Pick up DAB+ and DAB radio signal if available in
your local area (no internet connection required).
FM Radio ― Receive ordinary FM radio stations in your local area (no
internet connection required).
Bluetooth ― Bluetooth playback, to play audio streamed (receive) from
another Bluetooth enabled device after pairing/connected
each other.
AUX-IN ― Plays music from external media devices by connecting to the
Aux-in jack.
USB ― Plays music from USB thumb drive
Micro SD ― Plays music from Micro SD memory card
Alarm ― Alarm clock. Two alarm settings available.
Sleep Timer ― Enable the timer to turn the radio in standby after the
selected time elapsed.
Configuration ― More options/settings available to personalize as you
desire.
- 13 -
4. Internet Radio

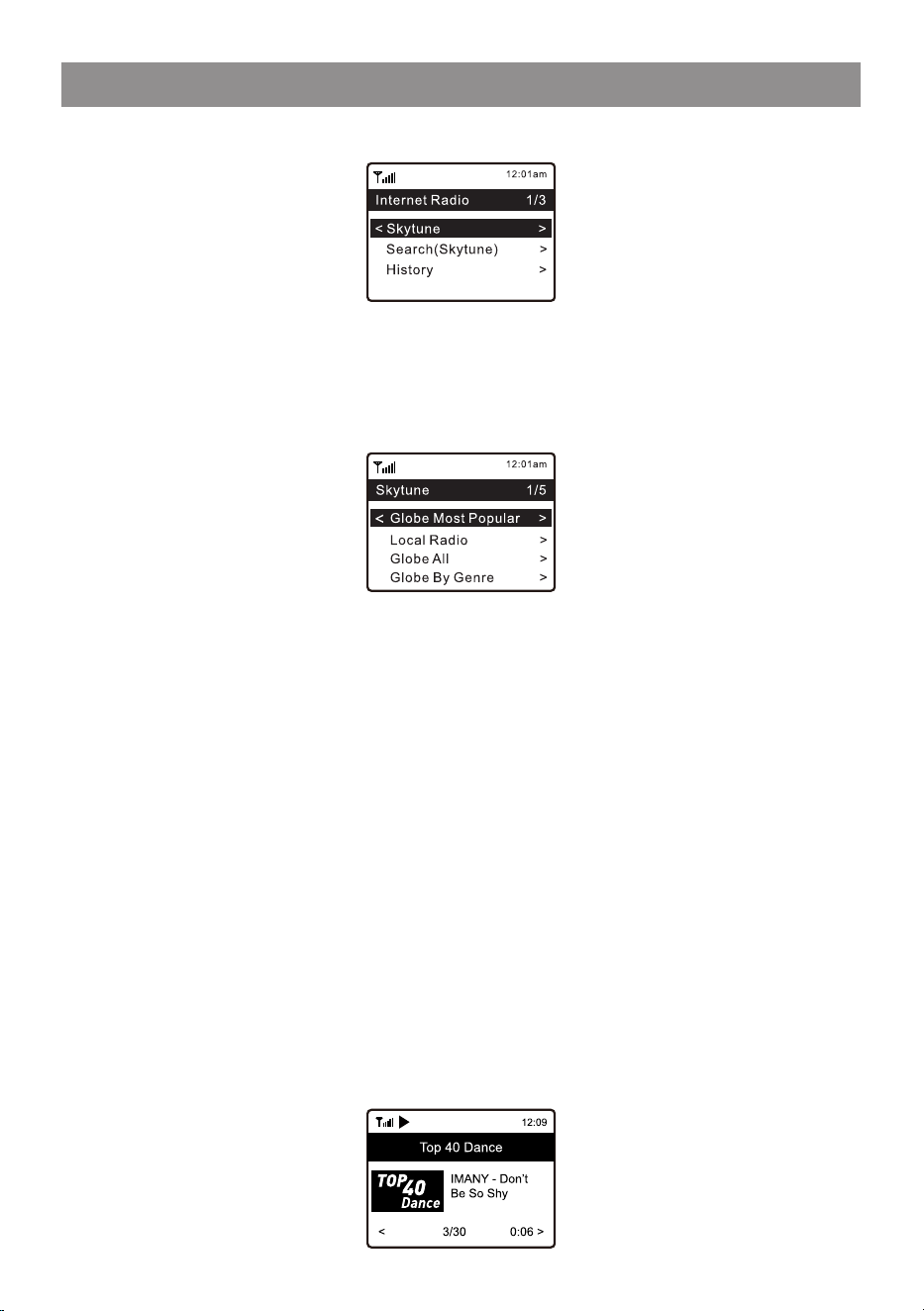

Press Home button, choose Internet Radio and you will find the options
below:
Skytune
Select Skytune to start enjoying thousands of radio stations over the world.
You can filter your search by Region, Music genre and talks.
The Local Radio let you access quickly the stations available in your local
area through internet connection.
Note ─ You can change the Local Radio area under Configuration> Local
radio setup. Please refer to section 14 for the details.
When you scroll along the list of Globe All and want to quickly reach to a
certain point of the long list, input the index number on the remote control to
quickly jump to that point. For example, on the remote control, input 2 8 and
press OK, it will highlight the station no. 28.
Search
Instead of browsing the radio station list, you can input a few characters of
the desired station to filter out / short list the stations.
History
The radio memorizes the stations you have listened up to 99 stations.
If you have listened more than 99 stations, it will supersede the first station
that you have listened.
Start playing internet radio

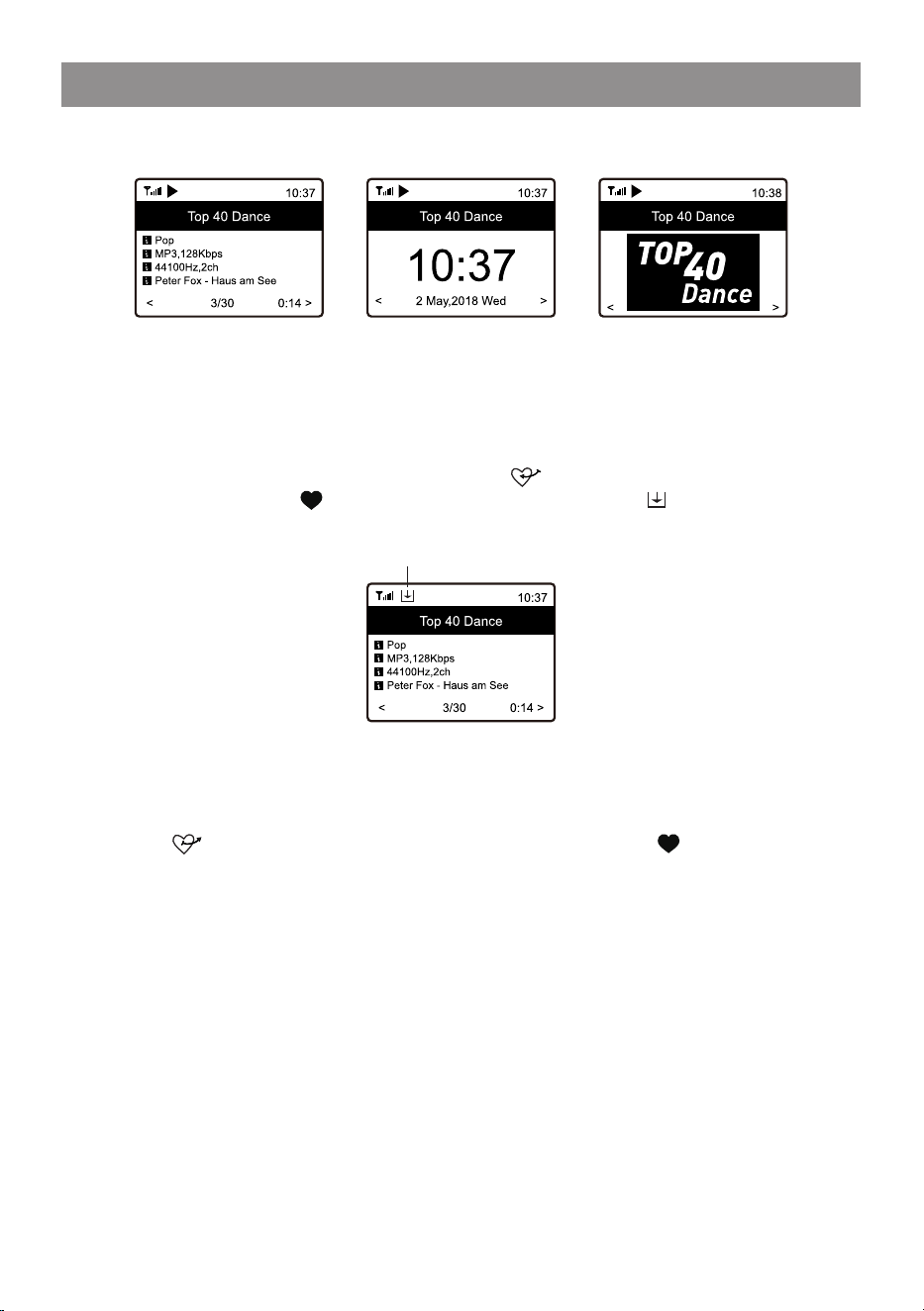

When a radio station starts playing, more radio information can be
displayed. Press the ► button in the state of the playing screen below:
- 14 -
4. Internet Radio
Every time you press the ► button, it will toggle between the big clock and
the radio channel information:
My Favorite
This is to show the list of your Favorite stations which have been assigned
to the presets.
Preset a station
When a radio station is playing, press the button on the remote control
or press and hold the on the unit, you will see the icon appears as
below. It means the station is added to the Favorite list.
The new added station will always show in the last item on the Favorite list.
You can store up to 150 presets.
Recall a station
Press the button on the remote control or press the briefly on the
radio unit to recall the list of presets, or navigate to My Favourite on the
Home screen and select it to confirm.

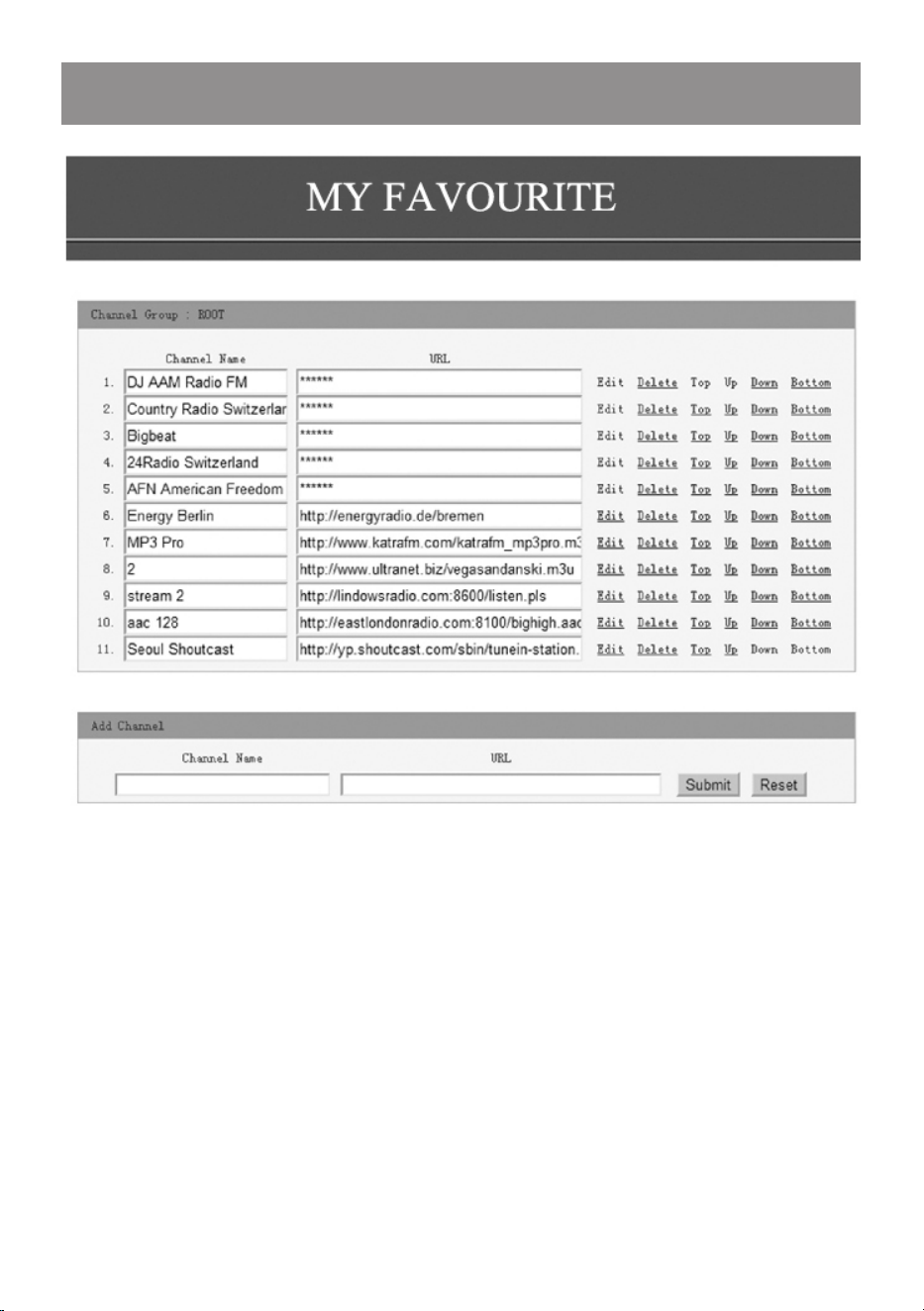

Edit your favorite list
On the Favorite list, choose the radio station you want to edit then press the
[ ► ] button on the remote control (or press [ ► ] on the unit). It will enter
the Edit menu with the following options:
• Move down ─ To move down the ranking of a station
• Move up ─ To move up the ranking of a station
• Delete ─ To delete a particular station
• Move to top — To move the station to the top of the favorite list.
• Move to bottom — To move the station to the bottom of the favorite list.
Preset icon
- 15 -
5. Media Centre
The device supports UPnP and is DLNA-compatible.
This provides the opportunity to stream music from your network. However,
this requires you to have a compatible device in your network that can
function as a server. This can be e.g., a network hard drive or a
conventional PC with e.g., Windows 8 via which access to the shared folder
or media sharing is permitted. The folders can then be browsed and played
on the radio.
Note ─ Please make sure your computer laptop is on the same Wi-Fi
network as the Radio before you start using this function.
Music streaming
• Once the UPnP/DLNA compatible server is configure to share media files
with your radio, you can start music streaming.
• On the main menu, select Media Centre and choose UPnP.
• It may take a few seconds for the radio to complete the scan for available
UPnP servers. If no UPnP servers are found, it will show Empty List.
• After a successful scan is done, select your UPnP server.
• The radio will show the media categories available from the UPnP server,
e.g. 'Music', 'Playlists' etc.
• Choose the media files that you wish to play.
You can set the mode of playback under Configuration > Playback setup.
My Playlist
You can make your own playlist for the UPnP music files. Choose and
highlight the song you want to add to playlist, press and hold the [ ]
button or press the button on remote, until the sign appears. The
song will be added to My playlist.
Clear My Playlist
Remove all songs in “My Playlist” to allow a new playlist to be prepared.
Note ─ If you have DLNA compatible servers available, follow the steps
described above to browse the audio files from DLNA compatible device on
the radio to play.
- 16 -
6. DAB+/DAB Radio(Digital Audio Broadcasting)
If there is Digital Audio Broadcasting (DAB) in your area, the Radio can pick
up the DAB stations as well (no internet connection is required). The Radio
supports both DAB and DAB+.
Place the Radio close to the window and extend the antenna as far as it can
go to get the best reception. Sometimes you may need to adjust the
direction of the antenna to improve reception.
Press the Home button, scroll to DAB Radio or use the [MODE] button on
remote to switch to DAB Radio. Press [OK] to start.

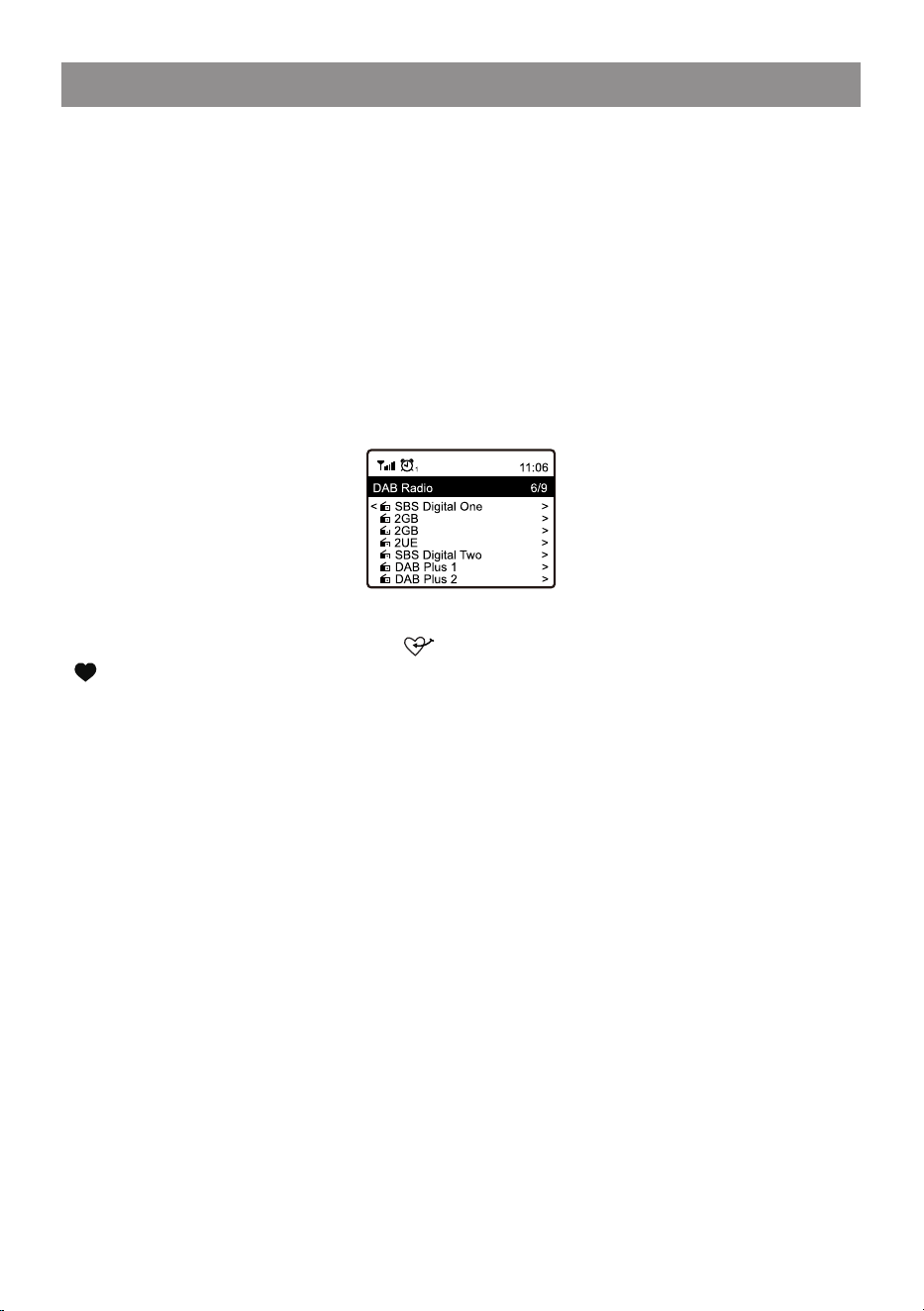

Choose "DAB Full scan" to start scanning. When it is done, a preset page
will be displayed for your action.
You can select the channel and start listening to it. Whenever you want to
add to My Favourite, press the button on remote or press and hold the
button on the radio, and it will add to the favourite list.
Always press the [ ◄ ] button to return to the Preset list.
Note ─ When a DAB radio is playing, press the [ ► ] button to view more
radio information, each time you press the [ ► ] button, it will display
various information at a time such as radio frequency, rolling texts (if
available) and big time clock.
New digital radio stations should be picked up automatically by the radio if
they are part of a multiplex you already received. Otherwise you need to do
the Preset Scan again.
- 17 -
7. FM Radio
To receive the ordinary FM stations (no internet connection is required),
place the radio close to the window and extend the antenna as far as it can
go to get the best reception. Sometimes you may need to adjust the
direction of the antenna to improve reception.
On the Home screen, scroll to FM Radio or use the [MODE] button on
remote to switch to FM Radio. Press [Scroll/Select] knob (or OK button on

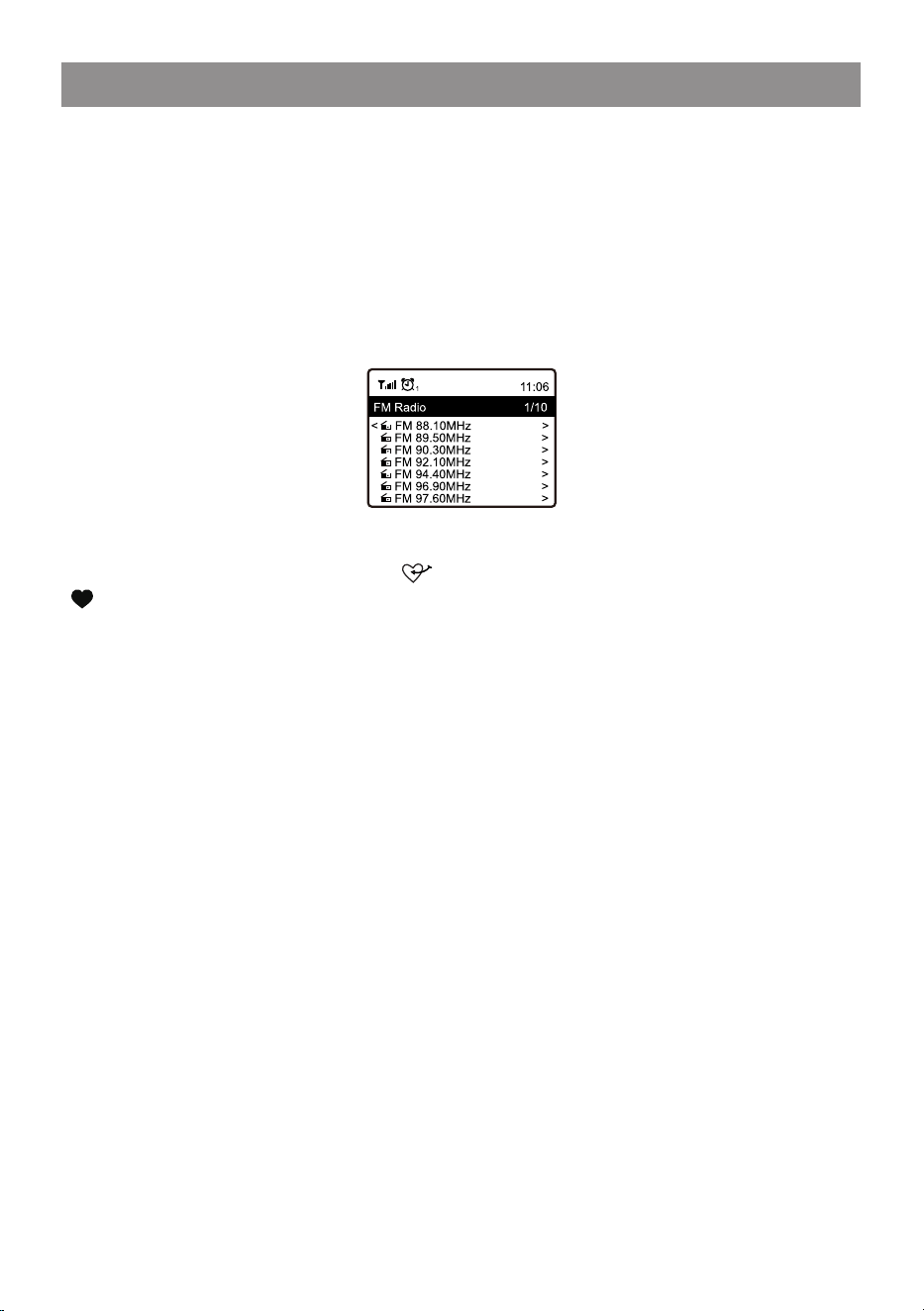

remote) to start. Choose "FM full scan" to start scanning. When it is done, it
will automatically save the found channels on presets and display the list
for your action.
You can select the channel and start listening to it. Whenever you want to
add to My Favourite, press the button on remote or press and hold the
button on the radio, and it will add to the favourite list.
Always press the [◄] button to return to the Preset list.
Note ─ When it is playing FM radio, press the [►] button to view more radio
information, each time you press the [►] button, it will display various
information at a time such as radio frequency and big clock display.
Manual Tune
To manual tune a frequency, rotate the [Scroll/Select ] knob.
- 18 -
8. Bluetooth playback
Before transmission between your Bluetooth device and the radio is
possible, both devices must be coupled. This process is called "pairing".
The radio is served as a receiver, to receive music stream to play on the
radio.
If you have already coupled to a Bluetooth device before, this connection
will be restored automatically when both devices are in range and
Bluetooth operation has been selected on the radio. "Pairing" does not
have to be repeated. This function may need to be activated in your
Bluetooth device, however.
• Push the Menu button to display the selection menu for the different
operating modes.
• Use the up/down button to select the operating mode Bluetooth and push
the dial switch.
• Switch your Bluetooth device to which you want to connect the radio on
and activate the pairing mode here. The device scans for Bluetooth
devices in the reception range.
• When the radio is found, your bluetooth device shows its name WR-860-
XXXX (the XXXX is an identification code for your radio unit).
• Select the radio at your bluetooth device.
• Start playback on your bluetooth device.
• Playback now takes place using the radio.
- 19 -
9. AUX-IN
You can listen to the music from other media device or smart phone through
the connection to the 3.5 mm aux-in jack on the rear side of the radio.
Use the cable with both ends in 3.5 mm pin, connect one end to the aux-in
jack on the radio, the other end to the headphone jack on the media device
or if it has a line out socket.
- 20 -
10. USB Playback
Another option to listen to your favorite music is via the USB thumb drive.
Insert the USB drive to the port at the back of the radio. Press the Home
button and navigate to "USB", press OK to confirm. It will take a moment to
read the USB drive before it starts playing the music.
Skip the next or previous track by rotating the [Scroll/Select] knob.
To pause/play the music, press in the [ Scroll/Select ] knob.
Note:
If a USB thumb drive is not recognized, the list of files on the drive is
corrupted or a file in the list is not played, please connect the USB drive to a
PC, format the device and try again. The supported file system is FAT16
and FAT32.
A USB drive requires high power (more than 500mA or 5V) is not supported.
Compatible audio format: MP3
- 21 -
11. Micro SD playback
To play music from a Micro SD memory card, simply insert a micro SD card
into its port on the front of the radio (with label side up). Press the Home
button and navigate to "Micro SD", press OK to confirm. It will take a
moment to read the micro SD card before it can begin playing music.
Skip the next or previous track by rotating the [Scroll/Select] knob.
To pause/play the music, press in the [ Scroll/Select ] knob.
Note: If a micro SD s not recognized or does not play properly, the list of
files on the device is corrupted or a file in the list is not played, please
format the memory card (all the files will be deleted) and try again. The
supported file system is FAT16 and FAT 32.
Compatible audio format: MP3
- 22 -
12. Alarm Setting
• Press the Home button, navigate to Alarm and press OK. press the [ ]
button on the remote control.
• Select either Alarm 1 or Alarm 2, choose Turn on to activate the Alarm.
• Follow the alarm wizard instructions to set the alarm.
• The wizard will guide you through the settings below:
Time ─ Set the time for the alarm
Sound ─ You can choose Wake to Tone, My Favourite, Wake to FM
Radio or Wake to DAB Radio or other media players as the
alarm source.
Note ─ Wake to FM or Wake to DAB Radio - only the preset stations
can be used for the radio alarm (if the preset scan has been
completed).
Wake to My Favourite ─ Please preset your favorite station before
setting this as the alarm source.
Repeat ─ You can schedule the alarm as you desire -Everyday, Once or
multiple days.
Alarm Volume ─ Adjust the volume of the alarm as you like by rotating
the [Scroll/Select] knob or [▲/▼] button on remote.
Alarm duration ─ There are number of duration choices available. You
can set the preferred duration for the alarm to sound.
When the time is due, it wil turn off automatically.
• After the above settings are completed, press the [◄] button to exit and
make sure the Alarm is turned on. You will see the Alarm icon appeared on
the display if it is activated.
Note: If the selected alarm sources are not available, the wake to Tone will
be released.
Stopping the Alarm/Activate the Snooze function
When the alarm goes off, press the [ ] to stop the alarm or press in the
[Scroll/Select] knob to activate the Snooze feature.
When the Snooze is activated, the alarm is muted for 9 minutes and sounds
again when the time is due. You can repeat the process multiple times.
To stop the "Snooze" function, press the [ ].
- 23 -
13. Sleep Timer Setting
You can set the timer to let the radio goes standby after the selected time
elapsed in the range of 15 minutes to 180 minutes. There are several timer
options to choose from.

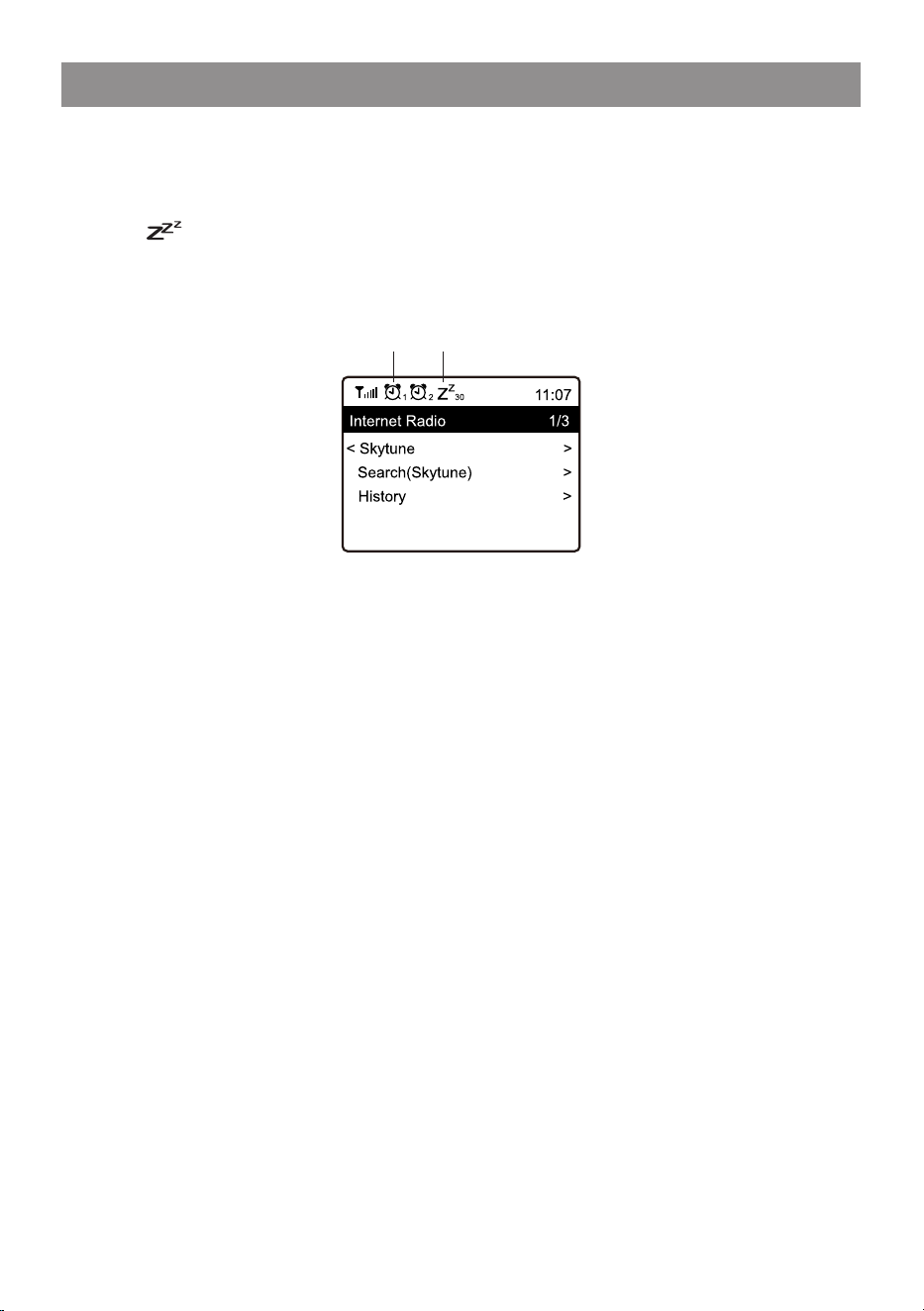

Press [ ] button on the remote control to set the timer, or navigate to
Sleep Timer option on the main menu.
You will see the icon appeared on the display if the timer is set.
Alarm Sleep Timer
- 24 -
14. Configuration
Here you will find the complete settings / options available to configure your
own radio. On the main menu, navigate to Configuration setting. Press OK
and you will see a list of options available.
Network
Network Options
Always on: The WLAN function remains switched on (faster access
when switching from other modes of radio).
Auto off in 30s: The WLAN function shuts down after 30 seconds when
not in use (to save energy).
Wi-Fi Channels
Not all of the Wi-Fi channels are available in every country. There may
be variation between different countries. Therefore it is necessary to
choose the Wi-Fi channels to ensure the Wi- Fi performs satisfactory.
We have already set the channels according to the requirement in
different countries. Choose the country you are staying from the list to
get the correct channel.
Add / Remove AP
Add AP (Scan) — It will scan out a list of routers around.
Add AP (WPS button) — Choose this option to connect your Wi-Fi router
via WPS if the router has a WPS button.
Remove AP — If you have already added a router and want to remove it,
choose this option.
Note — Always bring the radio within 2 meters of the Wi-Fi router for
setup.
AP: [ ]
If you have added more than one routers on the radio and want to switch
to another one, select this option to change.
Signal
This is to show the strength of the Wi-Fi Signal of the Wi-Fi router as
received by the radio. Usually signal levels lower than -70dBm is at
weaker level and if it affects the reception of your radio, you may need to
optimize the router location or check any problem of the router itself.
IP
The IP is set Dynamic by default. Select to change Fixed IP according to
your network condition.
DNS
The DNS is set Dynamic by default. Select to change <Fixed> DNS
according to your network condition.
- 25 -
Date and Time
The radio will set your local time automatically after the internet connection
is completed. If you want to do manual setting, change it by the following
options:
• Time zone
Auto-set Time Zone: This option is set by default.
Manual-set Time Zone: Choose this option if you want to set the time in
another region.
Choose and highlight the region/city you prefer and press OK to confirm.
Coupled with NTP (use network time) and DST (Daylight time saving)
will be adjusted automatically if you choose to use network time (NTP).
• Set Time Format
Choose either 12-hour or 24-hour notation you prefer.
• Set Date Format
• DST (Day Light Saving)
Enable on/off
• NTP (Use network time)
NTP is designed to synchronize a device's clock with a time server. Your
radio will synchronize the time server by default every time it powers up
and connects to Internet. This ensures a very high degree of accuracy in
the radio's clock. You can change to use other time server by inputting
the URL address (see below NTP server). You can choose “Do not use
network time” if you don't want it to.
If you choose not to use NTP for clock synchronization, highlight the
NTP (Network time protocal) and press OK to make the change. You will
see the Set Date & Time appeared on the menu. Select it and adjust the
date and time as you desire.
• NTP Server
NTP is designed to synchronize a device's clock with a time server. Here
it shows the server being used for the radio.
• Set time from DAB
When the DAB radio is selected, the time will be synchronized with the
DAB time.
• Set time from FM
When the FM radio is selected, the time will be synchronized with the
FM time.
14. Configuration
- 26 -
Language
The default language is English, you can choose other languages as
preferred. Scroll with the ▲▼ buttons on remote or [Scroll/Select] knob to
the item with and press OK. Scroll to highlight and press OK to select
your language of choice. English, French, Spanish, Italian, German, Dutch,
Polish, Russian and more are available.
DAB set up
• DAB full scan
You can always carry out a new scanning of DAB channels by selecting this
option. All current presets and channels will be erased.
• DAB manual tune
This is to show the number of stations and signal received of each DAB
frequency.
• DAB station list
The scanned DAB stations will be listed here for management. You can
move the position or even delete any station. Scroll to the station and press
[ ► ] button. A pop up window will be presented: Move up, Move down and
Delete.
FM Setup
• Scan setting
Either "All stations" or "strong stations" (with stronger signal) can be
selected for the scan.
• Audio setting
You can choose to set "Auto Stereo" or "Forced mono" for the reception.
• FM full scan
You can always carry out a new scanning of FM channels by selecting this
option. All current presets and channels will be erased. The radio at the
lowest frequency of the scanned values will be highlighted. The preset list
will be saved unless a new preset scan is carried out.
• FM station list
You can adjust the preset ranking by Move down, Move up or Delete it.
Highlight one of the preset, then press the [ ►] button, it will enter into the
Edit menu.
Always press the [◄] button to return to the Preset list.
Local Radio
The radio is set by default to detect the radio stations in your local area
automatically through internet connection and these stations can be
accessed by a press of [LOCAL] button on remote. You can also set Local
14. Configuration
- 27 -
14. Configuration
in another region if you want. Highlight the Local Radio and press OK.
Choose Manual-set Local radio to change the region setting.
Playback Setup
This is to set the mode of playback under UPnP/DLNA compatible
streaming: Repeat All, Repeat One, Shuffle and Normal.
Resume play options
This is to set the device whether to return to the last operating mode when it
is switched on or displays the Home screen.
Power-On Options
This is to select the state of the radio after a power reset or power cut,
whether to return to Standby or the state subject to the option selected from
the "Resume play options".
Dimmer
You can set the backlight level for the display as you prefer.
There are two settings: Mode and Level
• Mode ─ Normal or Power Saving
Normal ─ the display will stay with the same level of brightness all the time
without dim down.
Dim ─ the display will dim down after 20 seconds if no operation is made on
the radio.
• Level ─ Bright and Dim
Bright ─ This is to adjust the level of brightness in Normal mode.
Dim ─ This is to adjust the level of brightness in Dim mode.
• Dimmer in Standby
The display brightness in standby mode can be adjusted manually by
turning the rotary knob [Scroll/Select] or press the ▼ ▲ buttons on
remote. If no action taken in 20 seconds, it will restore to the dim value as
set in Configuration.
EQ(Equaliser)
Various music genres can be set.
Buffer Time
Sometimes you may experience uneven playback of the internet radio. This
can happen if the internet connection is slow or network congestion occurs.
To help improving the situation, you can choose longer buffer time to get a
few seconds of radio stream before beginning to play.
The default value is 2 seconds. You can choose 5 seconds if you prefer to
have a longer buffering time.
- 28 -
AUX in Gain
If the volume level of the connected auxiliary device is too small even the
volume on the device is set to maximum, you may want to adjust the gain to
6dB to achieve a higher volume level.
Information
View the Network and System Information of your radio.
To access quickly to this information, press the [Info] button on the remote
control.
When you use your PC to manage the My favorite stations, you have to use
the IP address and you can view this info from here. Then type in the IP
address ( Configuration > Information > Network-Information > IP ) to your
PC's browser input window
Software Update
There may be software release to upgrade features of the radio from time to
time. Check the update regularly to keep your radio up to date with the
latest software.
Reset to Default
You can do the reset to clear all the settings and return to default settings.
**Please note all the Station presets, Settings and configuration will be
erased after you have performed the Reset.
14. Configuration
- 29 -
15. Remote control via PC / Smart phone
─ Tuning internet radio & manage favourite
Experience an easy way to control tuning internet radio channels and
manage your favourite list via PC or Smart phone's web browser.
The supported browsers are Internet Explorer and Chrome.
- Connect your PC or Smart phone to the same Wi-Fi network as your radio.
- Visit www.skytune.net
- On the home page, click “Browse/Search”
- Browse or enter the name to search the radio channel, a list of internet
radio channels will be displayed.
- Click the “ ”symbol
- 30 -
15. Remote control via PC / Smart phone
─ Tuning internet radio & manage favourite
- It will prompt you whether to "Add Favourite" or "Listen to Station". Enter
the IP address of your radio (e.g. 192.168.1.11):
The IP address can be located on the radio unit as follow:
* On the remote control, press the [INFO] button, choose Network and
scroll to IP to view the IP address
* On the radio, return to the main menu. Navigate to Configuration >
Information > Network Information > IP
- Select "Listen to Station", click "Send" and the radio unit will switch
playing the channel and the "My Favourite" page will pop up on the web
browser.
You can then choose to add the playing station to favourite or manage your
list by other edit options. Any changes will synchronize to the radio unit
immediately.
- 31 -
15. Remote control via PC / Smart phone
─ Tuning internet radio & manage favourite
You can also add the radio channel if you know the published audio stream
URL with the streaming format as follow:
1. Transport: HTTP progressive like HLS and HTTP like Shoutcast, Icecast
2. Audio: MP3, AAC, AAC+
3. Playlist: M3U, PLS
- 32 -
16. Trouble Shooting
Problem
Cause
Solutions
Cannot connect to
Wi-Fi network
Network down
• Confirm that a Wi-Fi or Ethernet
Wired connected PC can access
the internet (i.e. can browse the
web) using the same network.
• Check that a DHCP server is
available, or that you have
configured a static IP address on
the radio.
• Check that you firewall is not
blocking any outgoing ports. As a
minimum the radio needs access
to UDP and TCP ports 80,443 and
8008, DNS port 53.
Router restricts
access to listed
MAC addresses
Obtain the MAC address from
Configuration > Information >
Network > Wi-Fi MAC and add to
the allowed equipment list on your
access point.
Note: The radio has separate MAC
addresses for wired and wireless
networks
Insufficient Wi-Fi
signal strength
• Check distance to router; see if a
computer can connect to the
network in this location
• Optimize the distance of the
router’s location
Unknown
encryption method
Change encryption method on
router.
The radio supports WEP, WPA,
WPA2
Firewall
preventing access
Windows Media Player:
varies ─ non Microsoft firewalls may
require configuration for UPnP.
- 33 -
Problem
Cause
Solutions
16. Trouble Shooting
If your radio can
connect to the
network successfully,
but is unable to play
particular stations
• The station is not broadcasting at
this time of the day (remember it
may be located in a different time
zone).
• The station has too many people
trying to attach to the radio station
server and the server capacity is
not large enough.
• The station has reached the
maximum allowed number of
simultaneous listeners.
• The link on the radio is out of date.
The update of the link is done
regularly. To get the updated list of
stations, please access from
Internet radio > Skytune. If case a
particular stream is still not
working, please contact us or
Skytune to report the case.
No
DAB/FM reception
• Please carry out “Reset to default”
on the radio and extend the
antenna.
• Move the radio close to the
window.
DAB/FM Radio
reception is poor
• Please check that the aerial is
extended for the maximum signal
strength and adjust the direction to
improve reception.
• Check that you do not have other
electrical equipment too close to
your radio, causing interference.
No sound
• Please check if the volume is
muted. Tune up the volume and
see.
• If that happens on a particular
internet radio station, please try
other channels and see if this is
isolated issue on that station.
- 34 -
Helpful Tips
1. If the Internet Radio keeps re-buffering radio station:
The Internet Radio is streaming the data from the radio station via your
broadband connection, if there is a high error rate on your broadband
connection, or the connection is intermittent, then it will cause the Internet
Radio to pause until the connection is re-established and it has received
enough data to start playing again. If your Internet Radio keeps stopping,
please check the DSL modem to ensure that the Broadband line is not
suffering a high error rate or disconnections. If you are experiencing these
problems, you will need to contact your broadband supplier.
2. What is Buffering?
When playing a stream, the Internet Radio/Media player, downloads a
small amount of the stream before it starts playing. This is used to fill in any
gaps in the stream that may occur if the internet or the wireless network is
busy. The Internet Radio streams music data from the PC while you are
listening. If a stream gets blocked or experiences Internet congestion while
transferring it may stop/interfere with the quality of play. If this happens,
check your internet connection speed- it must be faster than the speed of
the streams.
3. My Radio is working but some stations cannot be played.
The problem may be due to one or more of the followings:
a. The radio station is no longer broadcasting.
b. The radio station has reached the maximum allowed number of
simultaneous listeners.
c. The radio station has changed the stream arrangement and the link is no
longer valid.
d. The radio station is not broadcasting at the time of the day (not all
stations are broadcasting 24 hours throughout the day).
e. The Internet connection between your Radio and the radio station server
is too slow or unstable to support the data rate of the broadcast.
- 35 -
Technical Specification
Model
Power input
Power voltage
Wireless Network
Wireless network
frequency
Security Protocol
WR-860
9V 2A
100-240V~50/60Hz
IEEE802.11b/g/n
2412 - 2484 MHZ
WEP/WPA/WPA2
Bluetooth version
Bluetooth frequency
Bluetooth range
DAB frequency range
V4.2 BR/EDR compliant
2.4 GHz
10 meters (line of sight)
174.928MHz (5A) - 239.200MHz (13F)
Support DAB and DAB+
FM frequency range
87.5-108MHz
Audio output
Stereo earphone jack 3.5 mm
3.5mm line out jack
Audio input
3.5 mm Aux-in jack
USB port for playback
Micro SD slot
Telescopic antenna
Unit Dimension
310 x 133 x 185mm(L x H x D)
Remark: Specification may vary without notice
- 36 -
In the box
• Internet Radio
• Power adaptor
• Remote control (without batteries)
• User manual
WEEE and Recycling
The European laws do not allow any more the disposal of old or defective
electric or electronic devices with the household waste. Return your product to
a municipal collection point for recycling to dispose of it. This system is financed
by the industry and ensures environmentally responsible disposal and the
recycling of valuable raw materials.
- 37 -
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications to this device not explicitly
approved by manufacturer could void your authority to operate this
equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
This equipment complies with the FCC RF radiation exposure limits
set forth for an uncontrolled environment. This equipment should be
installed and operated with a minimum distance of 20cm between the
radiator and any part of your body.
FCC
