ATTACH YOUR RECEIPT HERE
4007498
Purchase Date
Questions, problems, missing parts?
Before returning, contact us on:
800-527-1292, 8:30 a.m. - 5 p.m., CST, Monday - Friday.
ITEM #6838215
MODEL #AD52BNK3LR
ARONDALE LED CEILING FAN
Español p. 19
1
2
Safety Information ...................................................................................................................................
.
. 2
Package Contents .................................................................................................................................... 5
Hardware Contents
.................................................................................................................................................
6
Preparation ............................................................................................................................................... 6
Initial Installation ....................................................................................................................................... 6
Wiring ..................................................................................................................................................... 10
Final Installation ..................................................................................................................................... 12
Operating Instructions ............................................................................................................................ 14
Care and Maintenance ......................................................................................................................
.
.... 16
Troubleshooting ...................................................................................................................................... 17
Limited Lifetime Warranty ....................................................................................................................... 18
Replacement Parts List .......................................................................................................................... 18
TABLE OF CONTENTS
CAUTION: Changes or modifications not approved by the party responsible for compliance could
void the user's authority to operate the equipment.
*NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
The device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, (2) this device must accept any interference
received, including interference that may cause undesired operation.
Distributed by: Litex Industries Inc., P.O. Box 535639, Grand Prairie, TX, 75050; 800-527-1292
NOTE: Dimmable to 10%.
SAFETY INFORMATION
3
READ AND SAVE THESE INSTRUCTIONS
Please read and understand this entire manual before attempting to assemble, install or operate
the product. Review the accompanying assembly diagrams.
• Do not discard fan carton or inserts. Should this fan need to be returned to the factory for repairs, it
must be shipped in its original packaging to ensure proper protection against damage that might
exceed the initial cause for return.
• Make sure all electrical connections comply with local codes, ordinances, the National Electrical Code
and ANSI/NFPA 70-1999. Hire a qualified electrician or consult a do-it-yourself wiring handbook if you
are unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum clearance of 7 ft. from the blades to the
floor and at least 30 in. from the end of the blades to any obstruction.
• After you install the fan, make sure all connections are secure to prevent the fan from falling.
• The net weight of this fan including the light kit is: 18.7 lbs.
SAFETY INFORMATION
To reduce the risk of fire, electrical shock or personal injury, mount fan to outlet box
marked "ACCEPTABLE FOR FAN SUPPORT OF 35 LBS. OR LESS" and use mounting
screws provided with the outlet box. Most outlet boxes commonly used for the support of
lighting fixtures are not acceptable for fan support and may need to be replaced. Consult a qualified
electrician if in doubt.
When mounting fan to a ceiling outlet box, use a METAL octagonal outlet box; do NOT use a plastic
outlet box. Secure the outlet box directly to the building structure. The outlet box and its support must
be able to support the moving weight of the fan (at least 35 lbs.).
To reduce the risk of fire, electrical shock or personal injury, lever wire connectors provided with this
fan are designed to accept only one 12-gauge house wire and one lead wire from the fan. If your
house wire is larger than 12-gauge or there is more than one house wire to connect to the
corresponding fan lead wires, consult an electrician for the proper size lever wire connectors to use.
WARNING
DANGER
When using an existing outlet box, make sure the outlet box is securely attached to the building
structure and can support the full weight of the fan. Failure to do this can result in serious injury or
death. The stability of the outlet box is essential in minimizing wobble and noise in the fan after
installation is complete.
To reduce the risk of serious bodily injury, DO NOT use power tools to assemble any part of the fan.
Before proceeding, be sure to shut off electricity at main switch or circuit breaker in order to avoid
electrical shock.
4
SAFETY INFORMATION
CAUTION
Be sure outlet box is properly grounded and that a ground wire (GREEN or BARE) is present.
Once installation is complete, carefully check all screws, bolts and nuts on fan motor assembly to
ensure that they are secured.
Do NOT tamper with or attempt to repair LED component. The light source is designed for this specific
application and should not be serviced by untrained personnel. If any servicing is required, call our
customer service department.
To avoid personal injury, the use of gloves may be necessary while handling fan parts with sharp
edges.
To reduce the risk of fire or electrical shock, do not use the fan with any solid state speed control
device or control fan speed with a full range dimmer switch.
To reduce the risk of fire, electrical shock or personal injury, do not bend the blades when installing
them or when cleaning the fan. Do not insert objects between the rotating fan blades.
To reduce the risk of personal injury, use only parts provided with this fan. The use of parts OTHER
than those provided with this fan will void the warranty.
WARNING
L
K
A
D
B
F
C
J
I
E
H
G

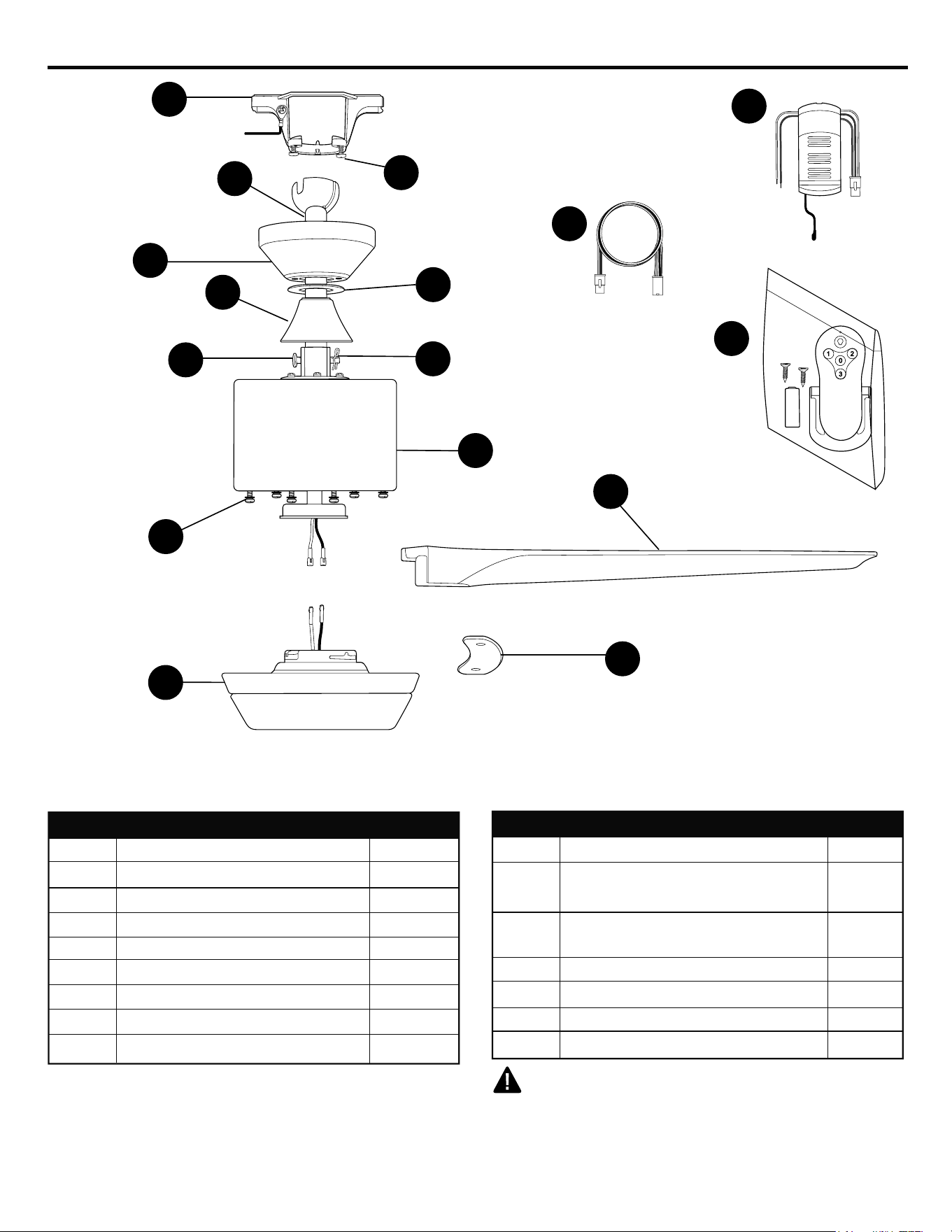

PACKAGE CONTENTS
5
A Mounting Bracket 1
B Downrod (preassembled) 1
C Clip (preassembled) 1
D Pin (preassembled) 1
E Canopy (preassembled) 1
F Motor Housing 1
G Blade 3
H Yoke Cover (preassembled) 1
I LED Light Kit 1
DESCRIPTIONPART
QUANTITY
IMPORTANT REMINDER: You must use the
parts provided with this fan for proper installation
and safety.
DESCRIPTIONPART
QUANTITY
J Blade Plate 3
K Canopy Mounting Screw 2
(preassembled)
L Blade screw/lock washer 6
(preassembled)
M Remote Control Receiver 1
N Additional Wiring 1
O Remote Pack 1
P Canopy Cover (preassembled) 1
M
N
P
O
6

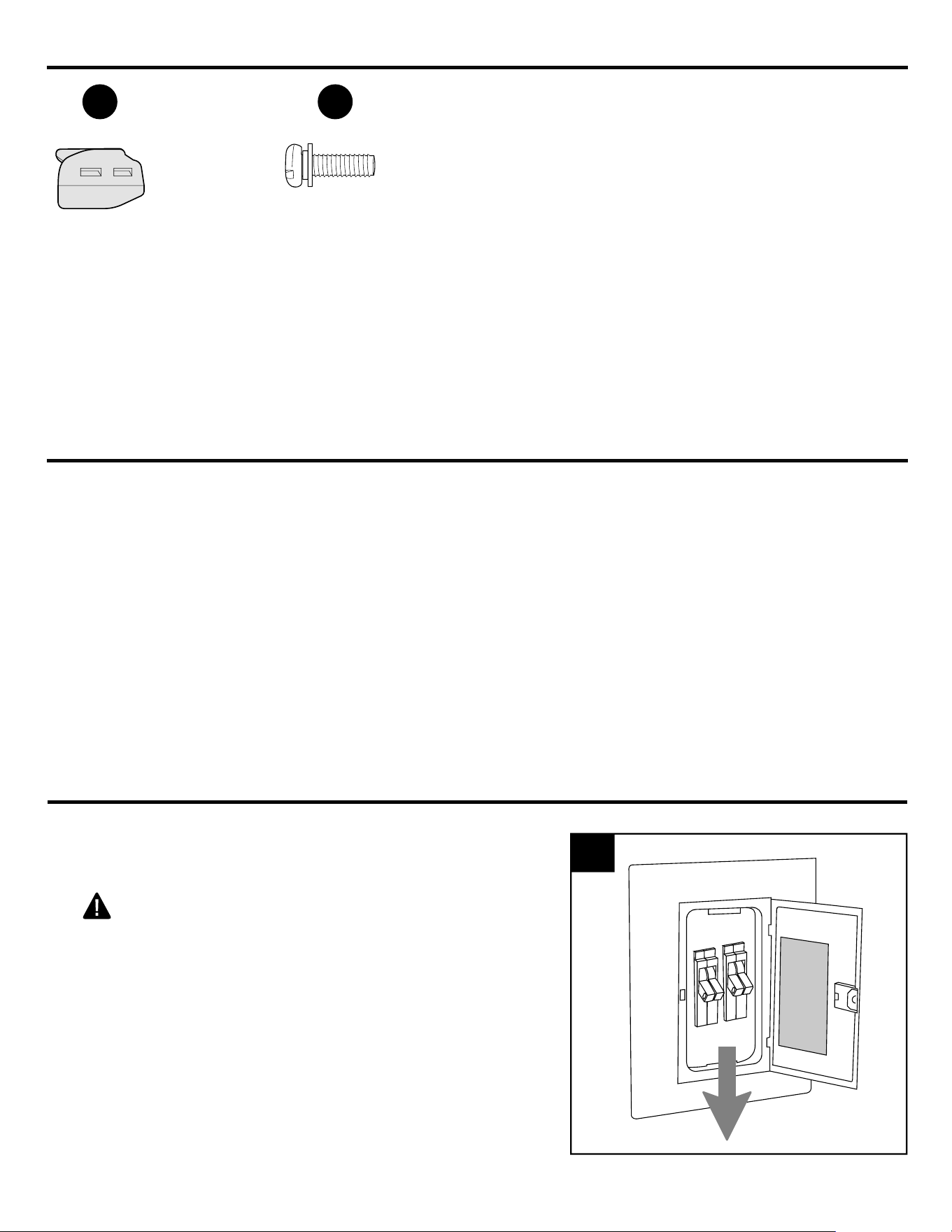

HARDWARE CONTENTS (shown actual size)
Before beginning assembly of product, make sure all parts are present. Place motor on carpet or on
foam to avoid damage to finish. Compare parts with package contents list and hardware contents list. If
any part is missing or damaged, do not attempt to assemble the product.
Estimated Assembly Time: 120 minutes
Tools Required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Flathead Screwdriver,
Pliers, Safety Glasses, Stepladder and Wire Strippers
Helpful Tools (not included): AC Tester Light, Tape Measure, Do-It-Yourself Wiring Handbook and Wire
Cutters
PREPARATION
AA
BB
Turn off circuit breakers or fuse and wall switch to
the fan supply line leads.
DANGER: Failure to disconnect power supply
prior to installation may result in serious injury or
death.
1.
INITIAL INSTALLATION
ON
OFF
ON
OFF
1
Lever Wire
Connector
Qty. 3
Blade Screw/
Lock Washer
Qty. 1 extra

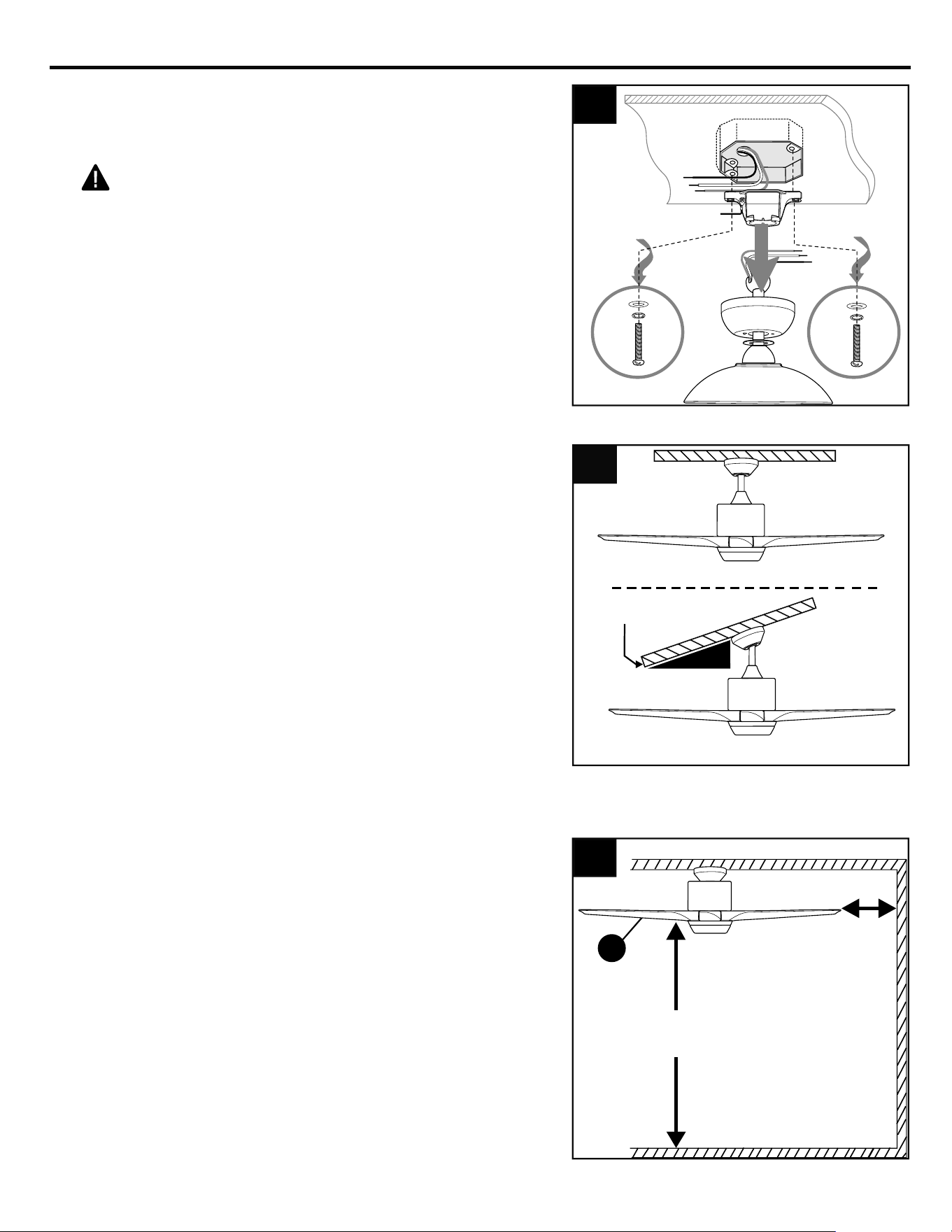

Check to make sure blades (G) will be at least
30 in. from any obstruction and at least 7 ft.
above the floor.
4.
2.
2
If applicable, remove existing fan and fan parts,
including the mounting bracket, from outlet box
and disconnect all electrical wiring.
WARNING: To reduce the risk of personal
injury, use ONLY parts provided with your new
fan. The use of parts OTHER than those
provided with this fan will void the warranty.
Set aside screws, spring washers and flat
washers provided with the outlet box for fan
installation.
INITIAL INSTALLATION
7
7 ft.
min.
30 in.
min.
G
4
3.
Determine mounting method to use for new fan.
A. Standard mount
B. Angle mount
IMPORTANT: If using the angle mount, ensure
the ceiling angle is not steeper than 19°.
NOTE: Closemount option is not available for
this fan.
*Helpful Hint: Downrod-style mounting is best
suited for ceilings 8 ft. high or higher. For taller
ceilings you may want to use a longer downrod
(not included). Angle-style mounting is best
suited for angled or vaulted ceilings. A longer
downrod is sometimes necessary to ensure
proper blade clearance.
3
B
A
19° max.
INITIAL INSTALLATION
8
STANDARD MOUNT
Outlet Box
Screws
Wall
CORRECT Screw Position
VS
INCORRECT Screw Position
5
5a
A
Wall
5b
(underside)
A
(view from underside)
Screw
Screw
Screw
Position
Screw
Position
(view from underside)

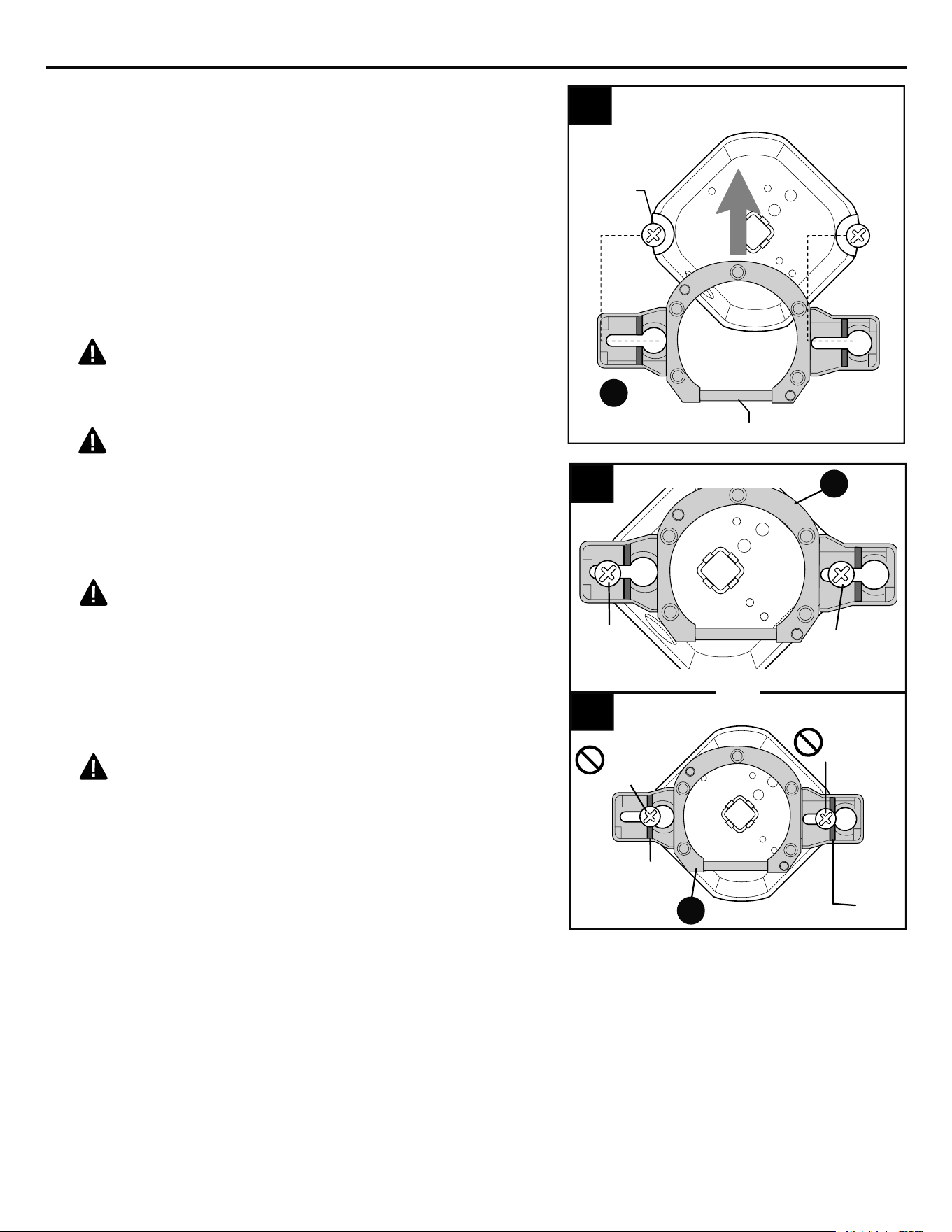

If attaching mounting bracket (A) to an
existing outlet box (not included) with
pre-installed screws, spring washers and
flat washers, slide mounting bracket (A) over
the screws. Then proceed to the following
paragraph. If attaching mounting bracket
(A) to outlet box where screws/washers
were removed, secure mounting bracket (A)
to outlet box using the screws, spring
washers and flat washers previously removed
in (Step 2, page 7).
WARNING: It is very important you use
the proper hardware when installing the
mounting bracket as this will support the fan.
DANGER: To reduce the risk of serious
injury or death, the outlet box screws MUST
be installed somewhere within the long slots
of the mounting bracket and then
TIGHTENED DOWN COMPLETELY. [Refer
to Fig. 5a.]
DANGER: To reduce the risk of fire,
electrical shock, serious personal injury or
damage to the fan, make sure outlet box
screws DO NOT get installed on or near the
wall that separates the keyhole and the long,
narrow slot on each side of the mounting
bracket. [Refer to Fig. 5b.]
WARNING: If using the angle mount,
make sure open end of mounting bracket (A)
is installed facing the higher point of the
ceiling, and ensure the ceiling angle is not
steeper than 19°.
5.
5a.
5b.
A
Open End
9
INITIAL INSTALLATION

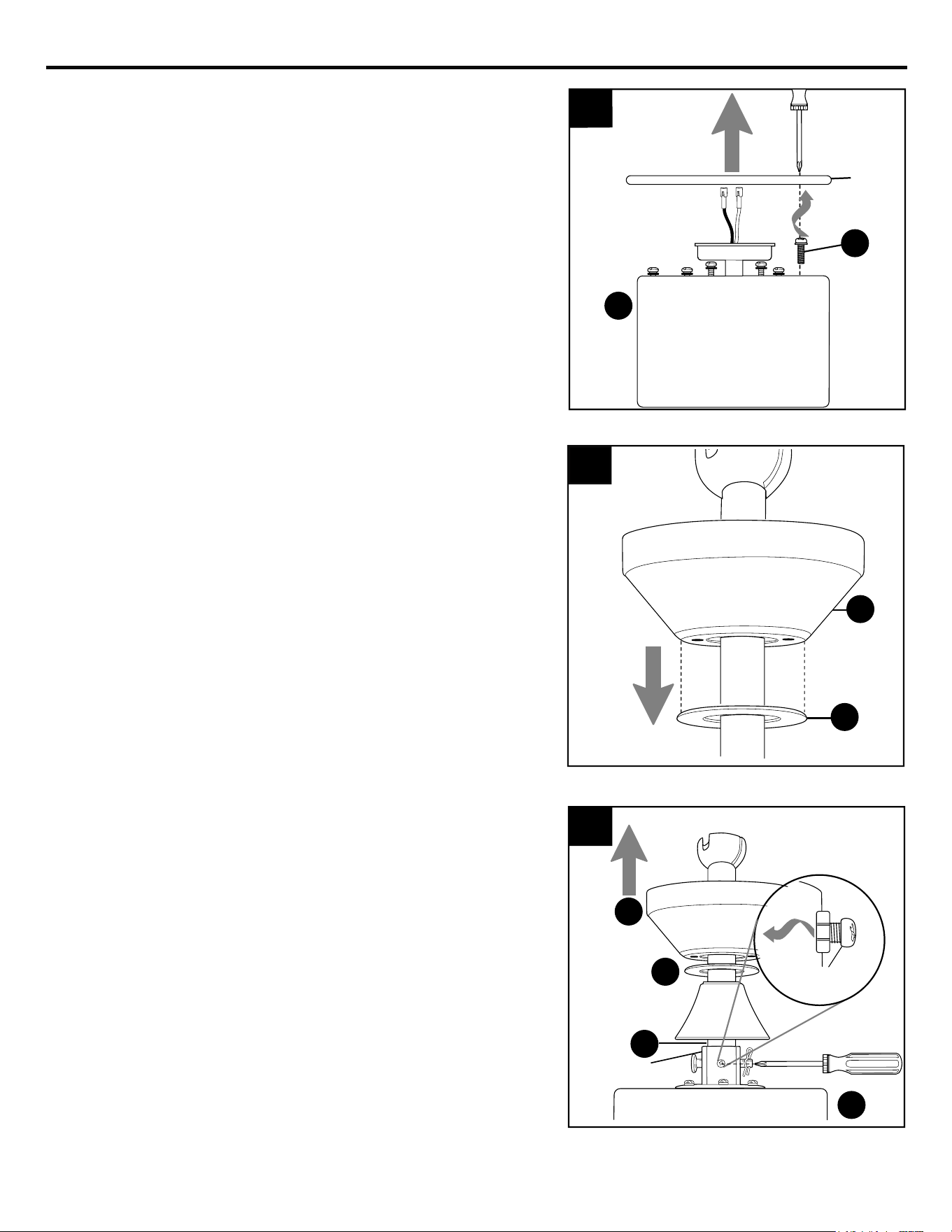

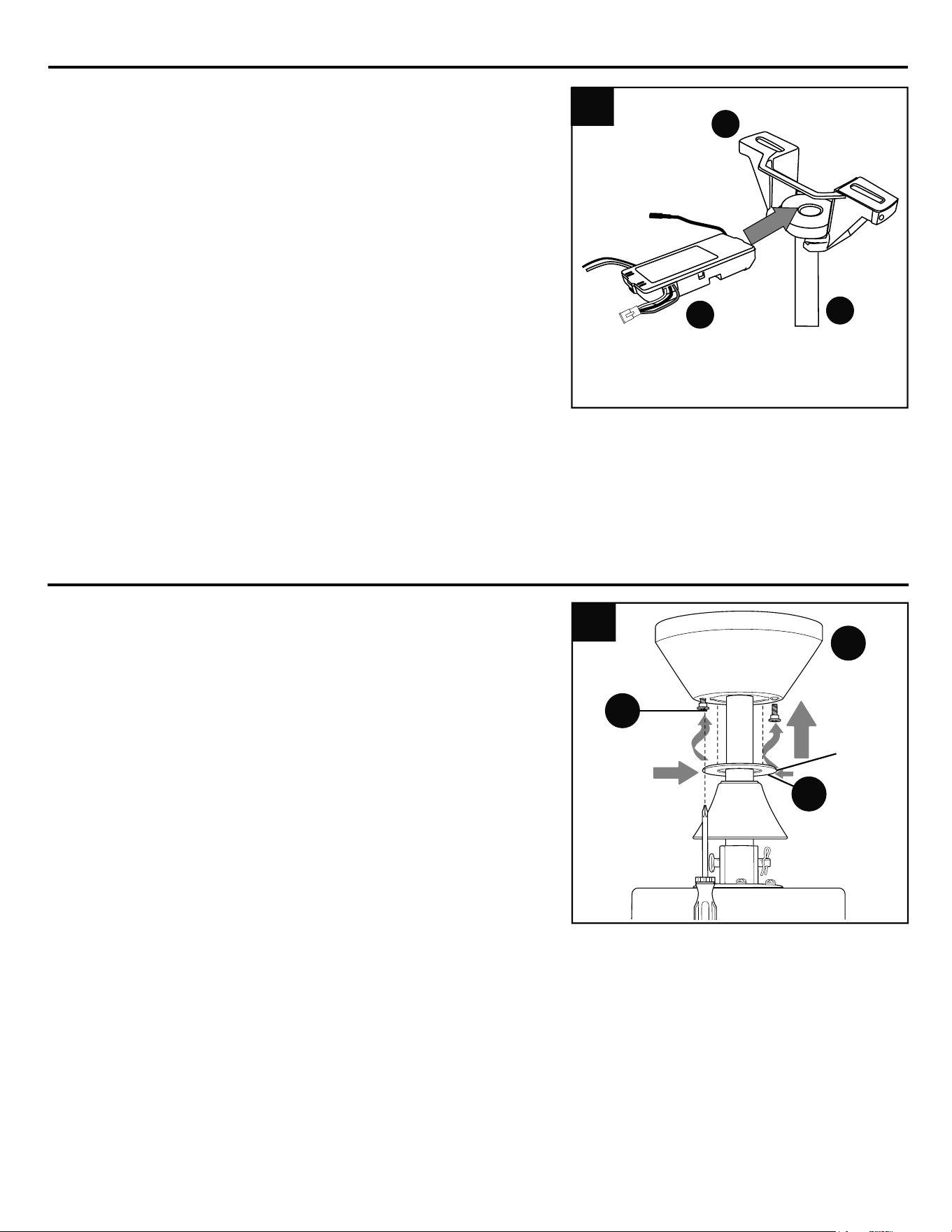

To ensure secure downrod (B) assembly, lift
canopy (E) and yoke cover (H) on downrod (B).
Securely tighten yoke set screws and nut on yoke
on top of motor housing (F).
8.
8
Yoke
Set Screw
& Nut
Sideview
B
E
H
F
Remove preassembled canopy cover (P) from
bottom of canopy (E). NOTE: Turn canopy
cover (P) to the left (counterclockwise) to
remove from canopy (E).
7.
7
E
6.
6
F
L
Remove blade screws/lock washers (L) from
underside of motor housing (F) and save for
blade (G) attachment later on. Remove and
discard plastic motor block ring installed with the
blade screws/lock washers (L).
Plastic
Motor
Block
Ring
P
10
INITIAL INSTALLATION

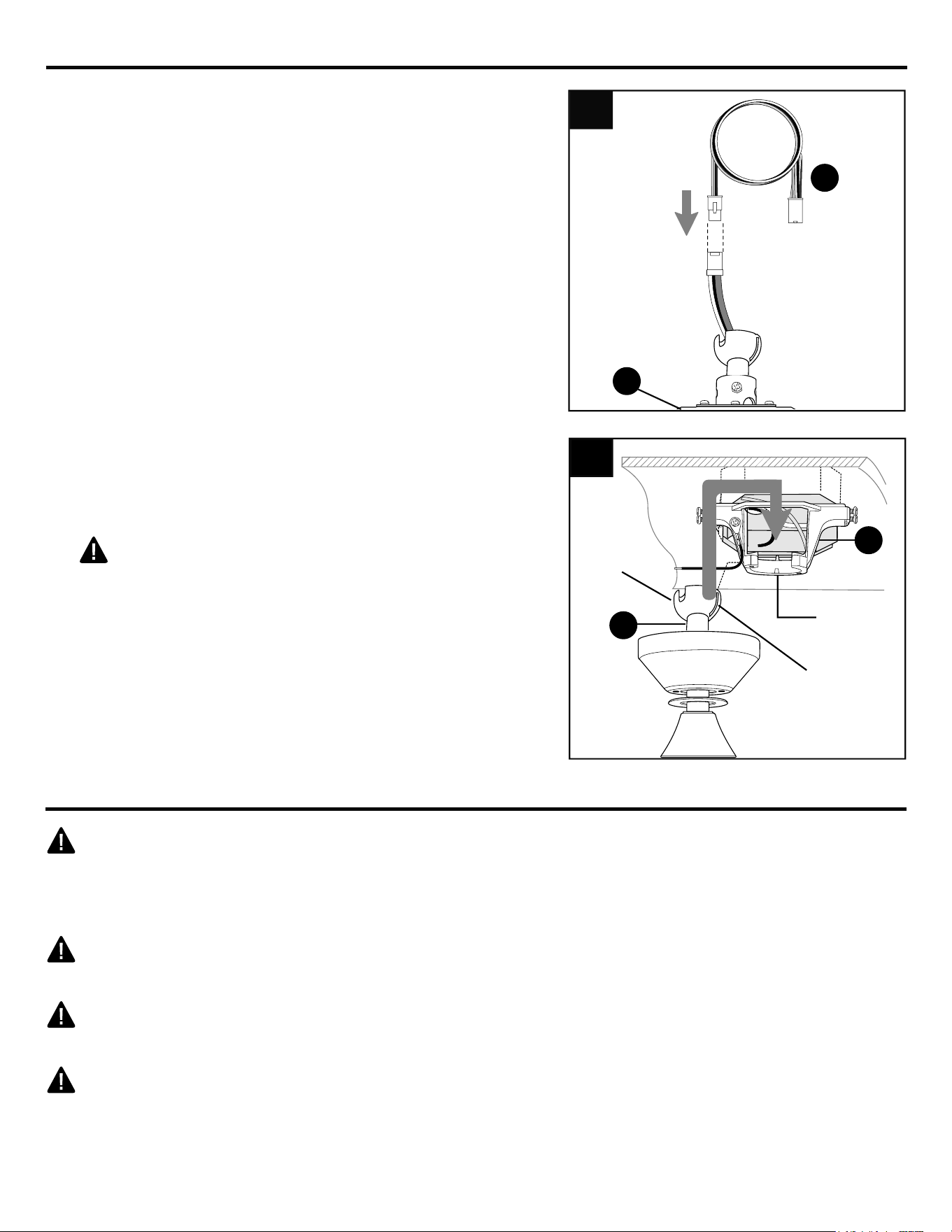

10.
Lift motor housing (F) to mounting bracket (A) and
install hanging ball of downrod (B) into opening of
mounting bracket (A). Align the slot in hanging ball
with the tab in mounting bracket (A).
DANGER: Failure to align slot in hanging ball
with the tab in mounting bracket (A) may result in
serious injury or death.
A
Tab
10
B
Slot

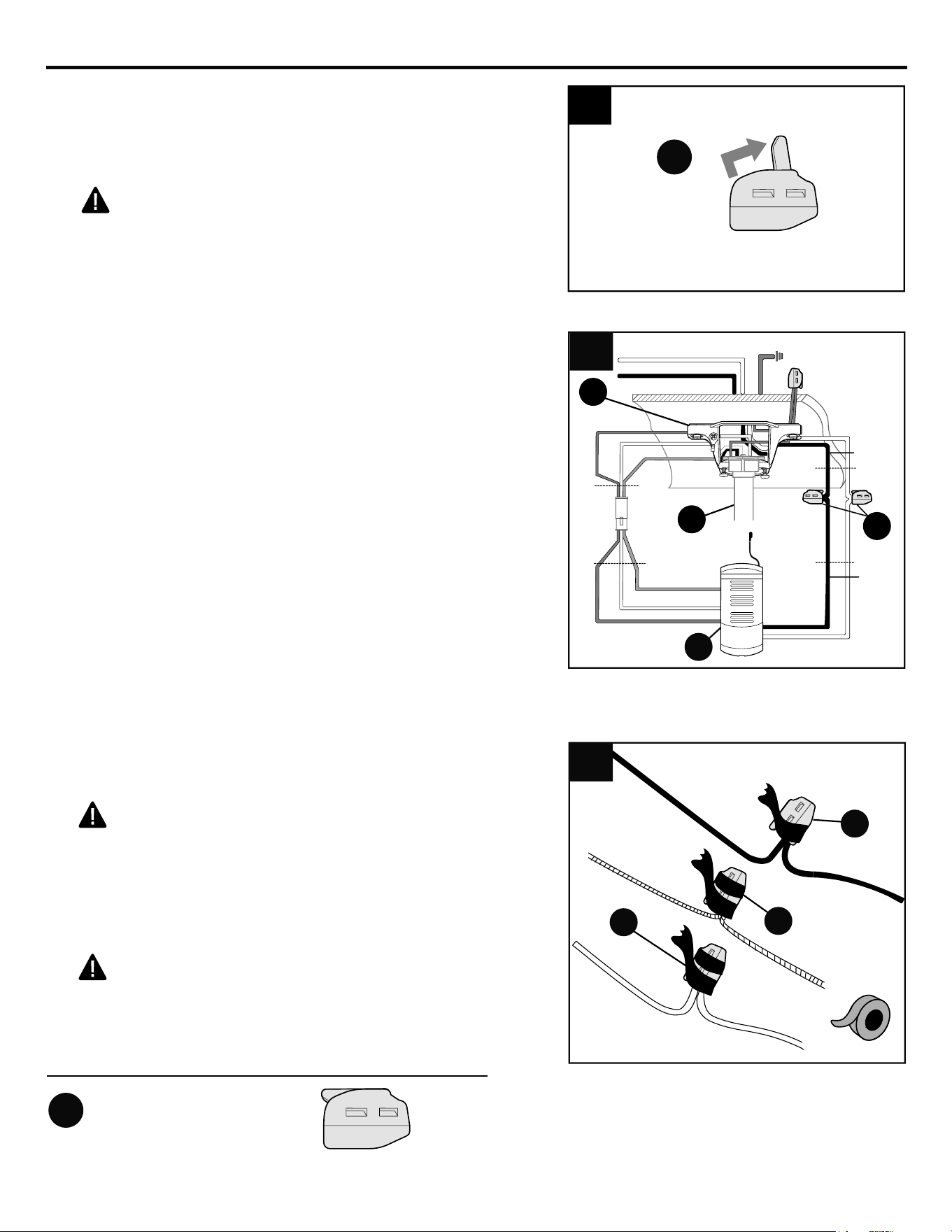

WIRING
Hanging
Ball
WARNING: To reduce the risk of fire, electrical shock or personal injury, lever wire connectors
provided with this fan are designed to accept only one 12-gauge house wire and one lead wire from the
fan. If your house wire is larger than 12-gauge or there is more than one house wire to connect to the
corresponding fan lead wires, consult an electrician for the proper size lever wire connectors to use.
CAUTION: Be sure outlet box is properly grounded and that a ground (GREEN or BARE) wire is
present.
WARNING: If house wires are different colors than referred to in the following steps, stop
immediately. A professional electrician is recommended to determine wiring.
WARNING: Using a full range dimmer switch (not included) to control fan speed will cause a loud
humming noise from fan. To reduce the risk of fire or electrical shock, do NOT use a full range dimmer
switch to control fan speed.
N
F
Depending on the length of downrod you use,
you may need to use the additional lead wiring
(N).
Connect male plug from motor housing (F) to the
end of additional lead wiring (N) with female
plug. Make sure plugs connect tightly.
NOTE: If you do not use additional lead wiring
(N), Step 9 is not necessary and you may
proceed to Step 10 instead.
9.
9
11
WIRING
1.
IMPORTANT: Each wire connection is made by
firmly raising the levers on each lever wire
connector (AA), as shown. Then, ONE wire is
inserted into each opening.
WARNING: In order for wire connections
to be secure, all levers on the lever wire
connectors (AA) must be completely returned
to their original position as shown on Step 2.
1
AA
2.
Insert each GROUND (GREEN) wire from fan
(on downrod (B), if applicable, and mounting
bracket (A)) and the BARE/GREEN wire from
ceiling into openings in lever wire connector
(AA) with three levers.
Insert BLACK wire from remote control receiver
(M) and BLACK wire from ceiling into openings
in lever wire connector (AA).
Insert WHITE wire from remote control receiver
(M) and WHITE wire from ceiling into openings
in lever wire connector (AA).
Connect plug from remote control receiver (M)
to plug from motor housing (F).
NOTE: BLACK wire is hot power for fan.
WHITE wire is common for fan and light kit.
GREEN or BARE wire is ground.
2
M
WHITE SUPPLY WIRE
BLACK SUPPLY WIRE
BLACK
AC IN L
WHITE AC IN N
WHITE
GROUND (GREEN OR BARE)
GROUND
(GREEN OR BARE)
BLACK
FROM
RECEIVER
FROM
FAN
FROM
RECEIVER
FROM
CEILING
A
AA
B
3.
Wrap electrical tape (not included) around each
individual wire connector (AA) down to the wire.
WARNING: Make sure no bare wire or
wire strands are visible after making
connections. Place GREEN and WHITE
connections on opposite side of the outlet box
from the BLACK and BLUE (if applicable)
connections.).
WARNING: GENTLY pull on wires in each
lever wire connector (AA) to confirm the lock is
engaged and that wires are secure.
Lever Wire Connector x 3
Hardware Used
CC
AA
3
AA
AA
12
WIRING
4
Gently slide remote control receiver (M) flat-side
up into mounting bracket (A). Turn spliced/taped
wires upward and gently push wires and lever
wire connectors (AA) into outlet box. Let antenna
from remote control receiver (M) hang to the side.
NOTE: The remote control included with this fan
meets the following requirements:
a. Not for use with solid state fans.
b. Electrical rating: 120V / 60 Hz;
motor amps:1.25 MAX.
Should you choose to use a different remote
control with this fan, it must also meet these same
requirements.
4.
Antenna
B
M
A

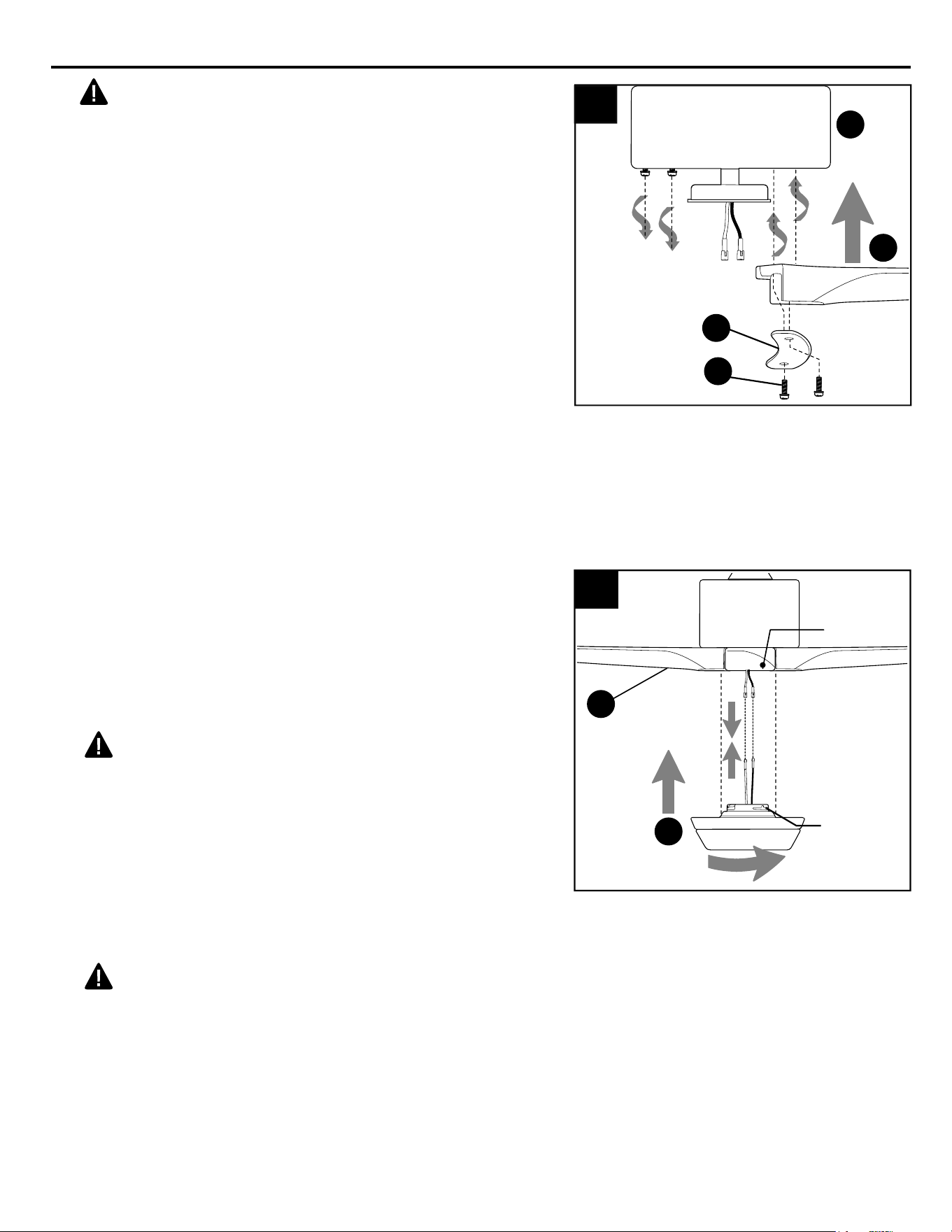

FINAL INSTALLATION
1.
1
Knobs
P
K
E
Locate two canopy mounting screws (K) on
underside of mounting bracket (A) and remove
canopy mounting screw (K) closest to the
open end of the mounting bracket (A). Partially
loosen the other canopy mounting screw (K).
Lift canopy (E) to mounting bracket (A). Place
rounded part of slotted hole in canopy (E) over
loosened canopy mounting screw (K) and
push up. Twist canopy (E) to lock. Re-insert
canopy mounting screw (K) that was removed,
then tighten both canopy mounting screws (K).
Locate knobs on center ring of canopy cover
(P). Slide canopy cover (P) up to canopy (E),
aligning knobs on canopy cover (P) with
openings in bottom of canopy (E). Press up
gently but firmly on canopy cover (P) until it fits
into the bottom of the canopy (E) and then turn
canopy cover (P) about 1/2 in.
13
3.
Connect WHITE wire from LED light kit (I) to
WHITE wire from motor housing (F). Connect
BLUE wire from LED light kit (I) to BLUE (or
BLACK) wire from motor housing (F). Make sure
molex connections snap together securely.
Carefully arrange wiring within LED light kit (I).
WARNING: Make sure wires do not get
pinched in between LED light kit (I) and motor
plate. This could cause damage to the wire(s).
Observe the indentation on each groove at the
top of LED light kit (I). Align these 3 indentations
with the 3 protusions located on the inner part of
the motor plate. Push up on LED light kit (I) and
turn to the RIGHT (clockwise) until it no longer
turns, thus securing the LED light kit (I) to the
motor housing (F).
WARNING: It is extremely important that
you make sure to turn the LED light kit (I) all the
way to the right to ensure that the LED light kit (I)
is completely secure.
3
I
F
FINAL INSTALLATION
2.
DANGER: To reduce the risk of serious
bodily injury, DO NOT use power tools to
assemble the blades (G). If screws are
overtightened, blades (G) may crack and break.
Noting the THIS SIDE UP label on blade (G),
align holes in blade (G) and blade plate (J) with
holes on the bottom of motor housing (F) as
shown. Partially insert three blade screws/lock
washers (L) previously removed (Step 6, page 9)
to attach blade (G) and blade plate (J) to motor
housing (F). Tighten blade screws/lock washers
(L) securely. Repeat Step 2 for remaining blades
(G).
NOTE: Make sure to completely secure each
blade (G) before proceeding to the next.
2
J
L
G
F
Protrusion
BLUE (or BLACK)
BLUE
WHITE
WHITE
Indentation
14
23A
FCC Compliance Notice for Remote Control and LED Light Kit
CAUTION: Changes or modifications not approved by the party responsible for compliance could
void the user's authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, (2) this device must accept any interference
received, including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
* Consult the dealer or an experienced radio/TV technician for help.
Distributed by: Litex Industries Inc., P.O. Box 535639, Grand Prairie, TX, 75053; 800-527-1292
CAUTION: The remote control transmitter can be programmed to multiple receivers or fans. If this
is not desired, turn wall switch off to any other programmable receiver or fan.
OPERATING INSTRUCTIONS
Locate battery and remote control transmitter in
remote pack (O). Remove protective covering from
each one and discard protective covering. Remove
battery cover from back of remote control transmitter.
Install 12-volt battery (included).
WARNING:Battery is to be inserted with correct
polarity.
Replace battery cover on the back side of the remote
control transmitter.
WARNING: Choking/Ingestion Hazard - Small
parts. Keep battery away from children.
NOTE: Battery is NOT rechargeable. Remove battery
with low or no charge and dispose of properly.
1.
CAUTION: “DO NOT DISPOSE OF BATTERIES IN FIRE, BATTERIES MAY EXPLODE OR
LEAK.” - When disposing of household alkaline batteries, it is best to check with your local and state
recycling or household hazardous waste coordinators concerning the specifics of the program in your
area. You may also locate a recycling center by calling 1-800-8-BATTERY or 1-877-2-RECYCLE or visit
www.epa.gov/epawaste/index.htm or www.earth911.org for more information.
(back
side)
1
Battery
Cover
O
Remote
Control
Transmitter
Battery
15
2.
Restore electrical power.
IMPORTANT: To prevent damage to remote control
transmitter, remove the battery if not used for long
periods. Store the remote control transmitter away
from excess heat or humidity.

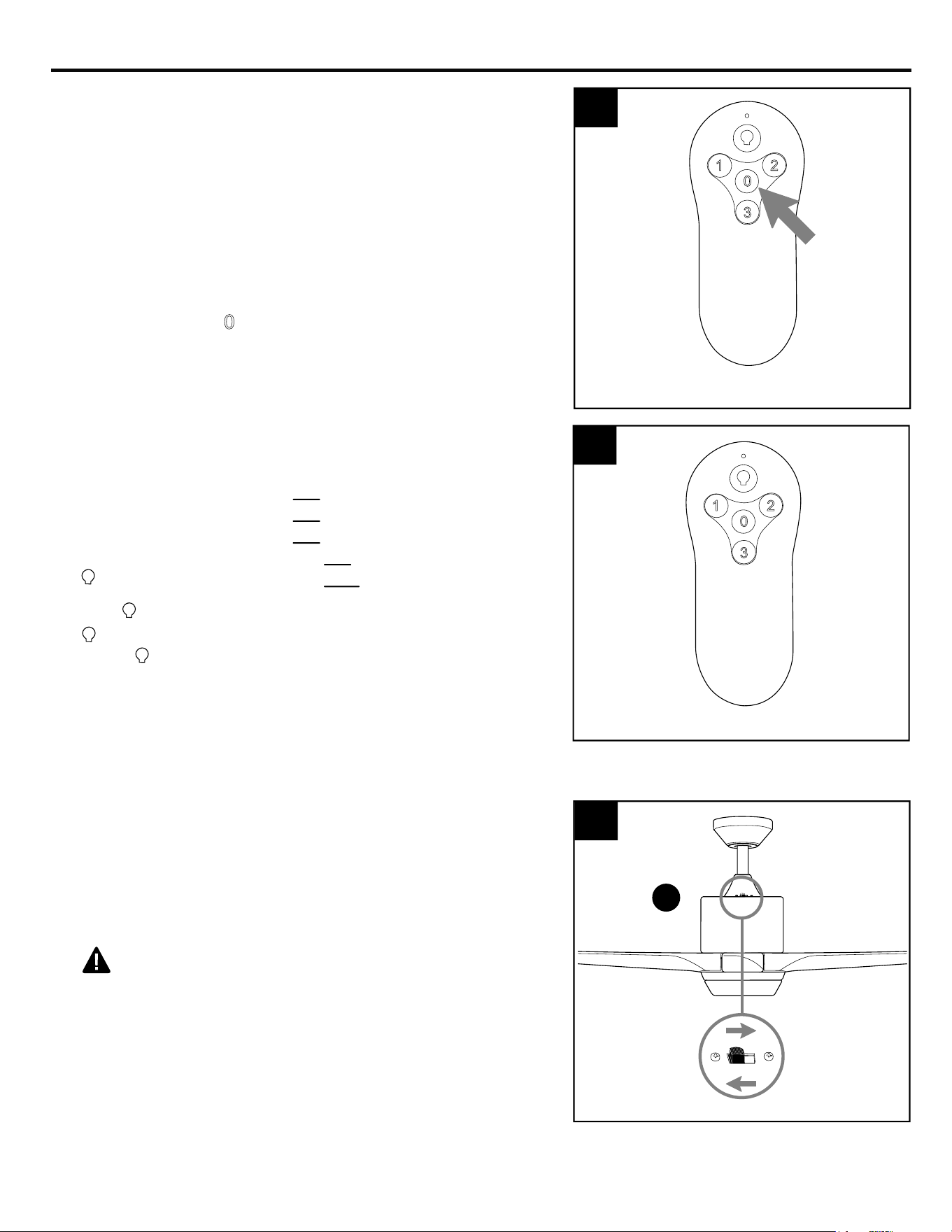

NOTE: If fan and/or remote control fail(s) to operate
or you have purchased a new remote control
transmitter, make sure to turn the power off first.
Restore electrical power. Within 30 seconds of
restoring electrical power, press and hold the
ON/OFF button (
) on the remote control transmitter
for 5 seconds until light blinks twice. Use the remote
control transmitter to test the light and fan functions to
confirm the learning process is complete.
2
Remote Control Transmitter
OPERATING INSTRUCTIONS
Operation buttons on the panel of the remote control
transmitter:
3 button for fan HIGH speed
2 button for fan MEDIUM speed
1 button for fan LOW speed
0 button to turn fan OFF
button to turn light ON or OFF
Tap button quickly to turn lights off or on. Hold
button down to increase or decrease lights. If you
press button in excess of 0.7 seconds, it
becomes a dimmer. The lights vary cyclically in
8 seconds. The light button has an auto resume
function, which keeps the light at the same
brightness as the last time it was turned off.
3.
3
Remote Control Transmitter
4.
Use the fan reverse switch on the top part of motor
housing (F) to optimize the fan for seasonal
performance. A ceiling fan will allow you to raise
your thermostat setting in summer and lower your
thermostat setting in winter without feeling a
difference in your comfort.
CAUTION: Turn fan off at wall switch and let
blades (G) come to a complete stop before manually
activating the reverse switch.
4
reverse switch
F
16
OPERATING INSTRUCTIONS
CARE AND MAINTENANCE

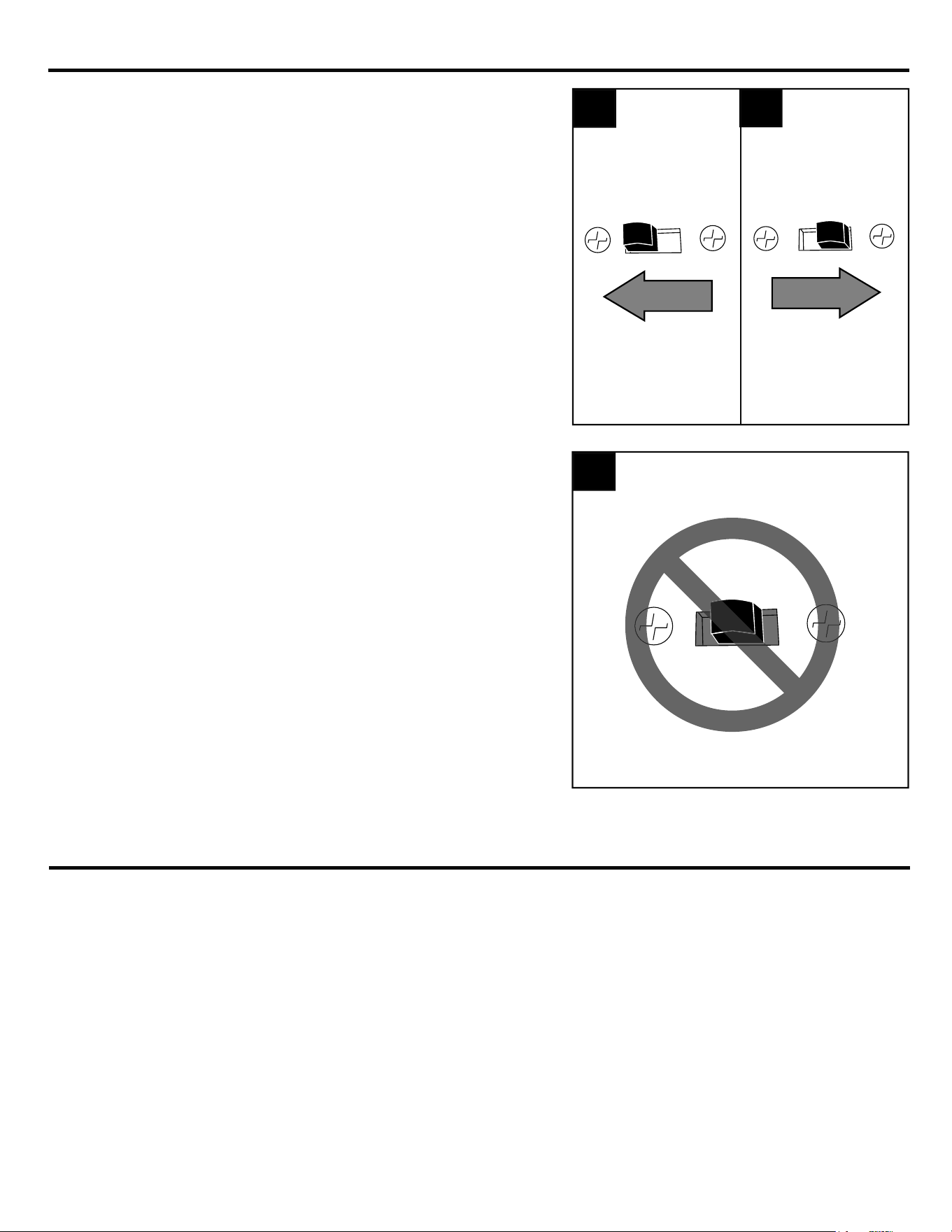

4a
4b
4c
4c. IMPORTANT: Reverse switch must be
set either completely LEFT or completely
RIGHT for fan to function. If the reverse
switch is set in the middle position, fan will
not operate.
4a. In warmer weather, setting the reverse
switch in the LEFT position will result in
downward airflow creating a wind chill effect.
4b. In cooler weather, setting the reverse
switch in the RIGHT position will result in
upward airflow that can help move stagnant,
hot air off the ceiling area.
At least twice each year, lower canopy (E) to check downrod (B) assembly, and then tighten all screws
on fan. Clean motor housing (F) with only a soft brush or lint-free cloth to avoid scratching the finish.
Clean blades (G) with a lint-free cloth. You may occasionally apply a light coat of furniture polish to
wood blades for added protection.
IMPORTANT: Shut off main power supply before beginning any maintenance. Do not use water or a
damp cloth to clean the ceiling fan.
• Total wattage for the light kit for this fan is 18 watts; do not attempt to replace the LEDs.
17
WARNING: Before beginning work, shut off the power supply to avoid electrical shock.
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Fan does not move. 1. Reverse switch not engaged.
2. Power is off or fuse is blown.
3. Faulty wire connection.
4. Learning code process between
fan and remote control transmitter
may not have been successful
and learning code was not
activated.
1. Push switch firmly either left or right.
2. Turn power on or check fuse.
3. Turn power off. Loosen canopy and
check all connections.
4. Turn off power and repeat
instructions in Step 2 on page 15.
Noisy operation.
1. Blades are loose.
2. Cracked blade.
3. Fan is new.
1. Tighten all blade screws.
2. Replace blade.
3. Allow fan a “break in” period of a few
days, especially when running the
fan at Medium and High speeds.
Excessive wobbling.
1. Blades are loose.
2. Unbalanced blades.
3. Fan not securely mounted.
4. Fan too close to vaulted ceiling.
5. Set screw(s) on motor housing
yoke is (are) not tightened properly.
6. Set screw on hanging ball is not
tightened properly.
1. Tighten all blade screws.
2. Switch one blade with a blade from
the opposite side.
3. Turn power off. Carefully loosen
canopy and verify that mounting
bracket is secure.
4. Use a longer downrod or move fan to
another location.
5. Tighten yoke set screw(s) securely.
6. Carefully loosen and lower canopy
and verify that set screw on hanging
ball is tightened securely.
NOTE: A small amount of "wobble" is normal and should not be considered a defect.
Fan operates but
light fails
1. Wires in canopy not wired properly.
2. Wall switch to fan is off.
3. Wires in LED light kit not wired
correctly.
1. Check wires in canopy and, if
necessary, re-wire according to
instructions on page 11.
2. Make sure that wall switch to fan is
on.
3. Check that molex connections in
LED light kit are connected properly
according to instructions on page 13.
Remote control fails
to operate.
1. Remote control transmitter not
synced with fan.
2. Battery not installed correctly.
3. Battery no longer working.
1. Refer to instructions in Step 2 on
page 15.
2. Check that battery has been installed
with correct polarity.
3. Replace battery according to
instructions on page 14.
18
GGLI2509

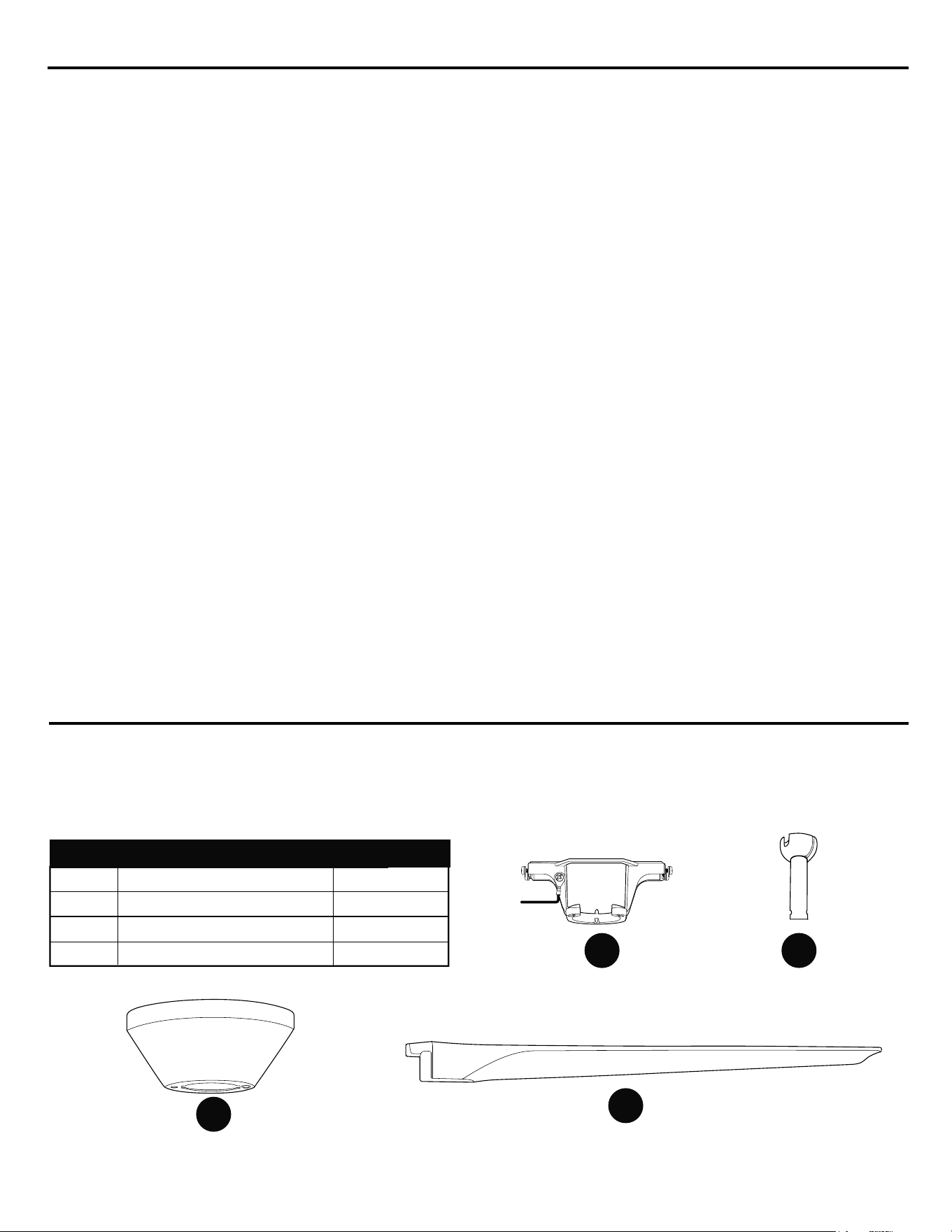

REPLACEMENT PARTS LIST
A Mounting Bracket
B Downrod
E Canopy
G Blade
6838215-A
6838215-B
6838215-E
6838215-G
PART DESCRIPTION PART #
Printed in Cambodia
All parts are replaceable (see parts list in “Package Contents” on Page 5), however, only the parts listed
below are under warranty. For replacement parts, call our customer service department at
800-527-1292, 8:30 a.m. - 5 p.m., CST, Monday - Friday.
A
B
G
E
LIMITED LIFETIME WARRANTY
Set forth below, the manufacturer warrants the fan motor for this ceiling fan to be free from defects in
workmanship and material for the life of the product. Also, subject to the limitations below, the
manufacturer warrants all ceiling fan parts (“ceiling fan parts” excludes the motor and parts made in
whole or in part with glass) to be free from defects in workmanship and material for a period of one year
after the date of purchase by the original purchaser at retail.
All claims must be made by the original purchaser, whether such purchaser purchased the product
through a store or contractor. Ceiling fan part defects must be reported within the first year from the date
of purchase. Parts made in whole or in part with glass and the finishes of metal and other surfaces are
not warranted.
Purchasers are responsible for all costs of removing and reinstalling the product. Any damage to any
part caused by ordinary wear and tear, accident, misuse, or improper installation, is not covered by this
warranty. The manufacturer assumes no responsibility whatsoever for fan installation. Any service
performed by a non-licensed electrician will render the warranty invalid.
The manufacturer’s sole responsibility shall be to repair or replace the motor, parts, or product within the
terms stated above. The manufacturer shall not be liable for any loss or damage of any kind, including
any incidental or consequential damages resulting directly or indirectly, from any breach of warranty,
express or implied, or any other failure of this product. Some states do not allow the exclusion or
limitation of incidental or consequential damages so this limitation may not apply to you.
If the original purchaser ceases to own the fan, this warranty is voided.
Should the purchaser encounter a problem with your fan related to defects in workmanship or materials
within the warranty period associated with the defective part, the manufacturer agrees to replace the
defective part without charge, or at its option, to replace the ceiling fan with a comparable or superior
model.
The manufacturer’s warranties are limited to the written warranties set out in this ceiling fan limited
lifetime warranty. All other express and implied warranties, including, without limitation, the implied
warranty of fitness for a particular purpose and the implied warranty of merchantability are disclaimed.
Some states do not allow the disclaimer of implied warranties, so this disclaimer may not apply to you.
