Thank you for purchasing this HARBOR BREEZE product.
Questions, problems, missing parts? Before returning, contact us on:
888-251-1003, 8 a.m. - 8 p. m., EST, Monday - Sunday.
Purchase Date
ITEM #5519813/6245877/6245875
Español p. 20
ATTACH YOUR RECEIPT HERE
1
MODEL #CHW52BNK3LR/CHW52MBK3LR/CHW52WW3LR
CHETWOOD LED
CEILING FAN
APPROVED FOR
USE IN DAMP
LOCATIONS
4007498
HARBOR BREEZE and logo design are trademarks or
registered trademarks of LF, LLC. All rights reserved.
SG24157
2
Safety Information ...........................................................................................................................
....
. 2
Package Contents ...........................................................................................................................
....
. 5
Hardware Contents
..........................................................................................................................................
6
Preparation ......................................................................................................................................... 6
Initial Installation ................................................................................................................................. 6
Wiring ............................................................................................................................................... 11
Final Installation ............................................................................................................................... 13
Operating Instructions ...................................................................................................................... 15
Care and Maintenance ................................................................................................................
.
.... 17
Troubleshooting ............................................................................................................................... 18
Limited Lifetime Warranty ................................................................................................................ 19
Replacement Parts List .................................................................................................................... 19
TABLE OF CONTENTS
CAUTION: Changes or modifications not approved by the party responsible for compliance could
void the user's authority to operate the equipment.
*NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
The device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, (2) this device must accept any interference
received, including interference that may cause undesired operation.
Distributed by: Litex Industries Inc., P.O. Box 535639, Grand Prairie, TX, 75050; 800-527-1292
SAFETY INFORMATION
READ AND SAVE THESE INSTRUCTIONS
Please read and understand this entire manual before attempting to assemble, install or operate
the product. Review the accompanying assembly diagrams.
• Do not discard fan carton or foam inserts. Should this fan need to be returned to the factory for repairs,
it must be shipped in its original packaging to ensure proper protection against damage that might
exceed the initial cause for return.
• Make sure all electrical connections comply with local codes, ordinances, the National Electrical Code
and ANSI/NFPA 70-1999. Hire a qualified electrician or consult a do-it-yourself wiring handbook if you
are unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum clearance of 7 ft. from the blades to the
floor and at least 30 in. from the end of the blades to any obstruction.
• After you install the fan, make sure all connections are secure to prevent the fan from falling.
• The net weight of this fan including the light kit is: 13.01 lbs.
SAFETY INFORMATION
To reduce the risk of fire, electrical shock or personal injury, mount fan to outlet box
marked "ACCEPTABLE FOR FAN SUPPORT OF 35 LBS. OR LESS" and use mounting
screws provided with the outlet box. Most outlet boxes commonly used for the support of
lighting fixtures are not acceptable for fan support and may need to be replaced. Consult a qualified
electrician if in doubt.
When mounting fan to a ceiling outlet box, use a METAL octagonal outlet box; do NOT use a plastic
outlet box. Secure the outlet box directly to the building structure. The outlet box and its support must
be able to support the moving weight of the fan (at least 35 lbs.).
To reduce the risk of fire, electrical shock or personal injury, wire connectors provided with this fan are
designed to accept only one 12-gauge house wire and two lead wires from the fan. If your house wire
is larger than 12-gauge or there is more than one house wire to connect to the corresponding fan lead
wires, consult an electrician for the proper size wire connectors to use.
WARNING
DANGER
When using an existing outlet box, make sure the outlet box is securely attached to the building
structure and can support the full weight of the fan. Failure to do this can result in serious injury or
death. The stability of the outlet box is essential in minimizing wobble and noise in the fan after
installation is complete.
To reduce the risk of serious bodily injury, DO NOT use power tools to assemble any part of the fan,
including the blades.
Before proceeding, be sure to shut off electricity at main switch or circuit breaker in order to avoid
electrical shock.
3
SAFETY INFORMATION
CAUTION
Be sure outlet box is properly grounded and that a ground wire (GRREN or BARE) is present.
Once installation is complete, carefully check all screws, bolts and nuts on fan motor assembly to
ensure that they are secured.
Do NOT tamper with or attempt to repair LED component. The light source is designed for this specific
application and should not be serviced by untrained personnel. If any servicing is required, call our
customer service department.
To reduce the risk of fire or electrical shock, do not use the fan with any solid state speed control
device or control fan speed with a full range dimmer switch.
To reduce the risk of fire, electrical shock or personal injury, do not bend the blade arms when installing
them, balancing the blades or cleaning the fan. Do not insert objects between the rotating fan blades.
To reduce the risk of personal injury, use ONLY parts provided with this fan. The use of parts OTHER
than those provided with this fan will void the warranty.
To avoid personal injury, the use of gloves may be necessary while handling fan parts with sharp
edges.
WARNING
The DC Motor will not operate until blades are installed.
4

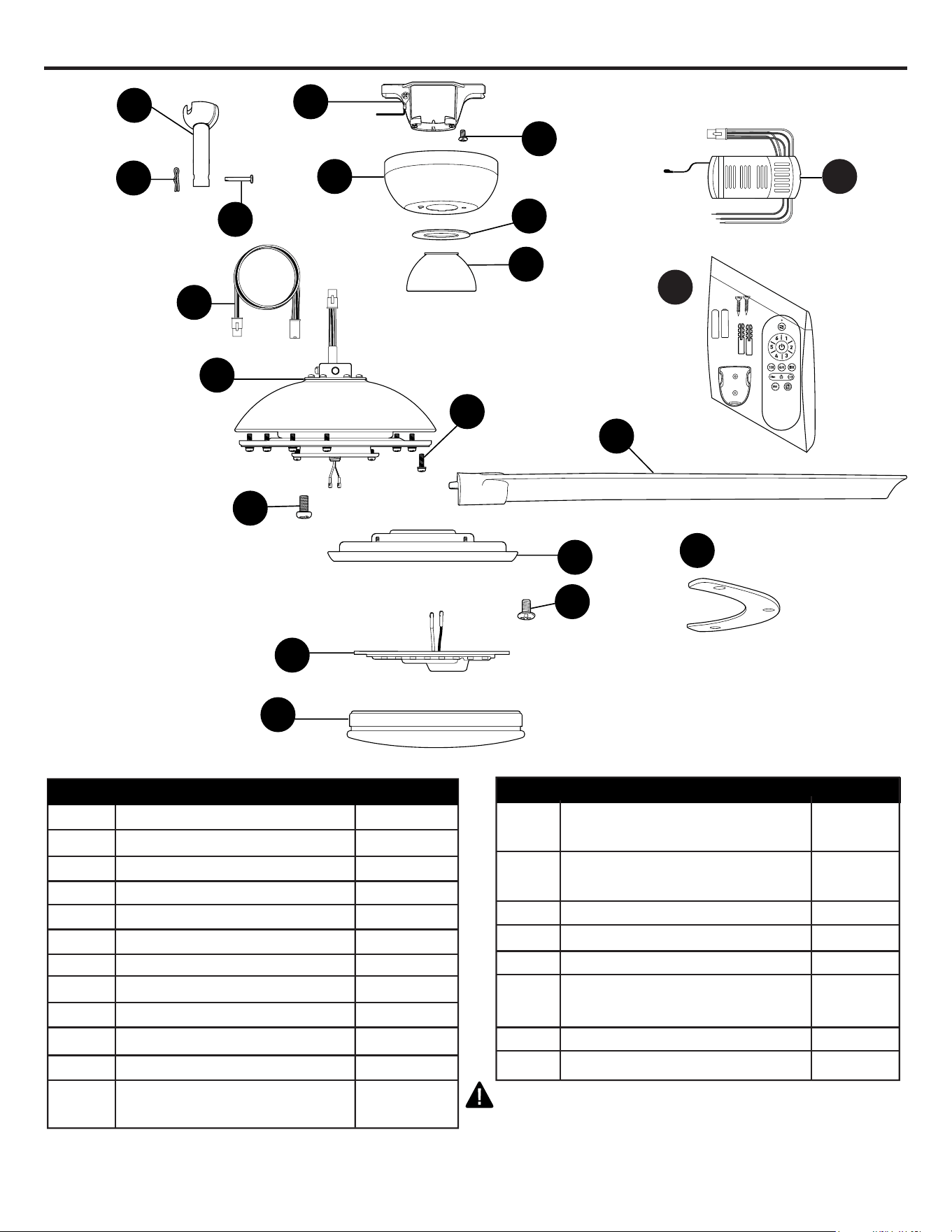

PACKAGE CONTENTS
5
IMPORTANT REMINDER: You must use the
parts provided with this fan for proper installation and
safety.
A Downrod 1
B Mounting Bracket 1
C Canopy 1
D Yoke Cover 1
E Motor Housing 1
F Blade 3
G Fitter Plate 1
H LED Light Kit 1
I Shade 1
J Pin (preassembled) 1
K Clip (preassembled) 1
L Motor Plate Screw 3
(preassembled)
DESCRIPTIONPART
QUANTITY
DESCRIPTION
QUANTITY
PART
G
R
Q
F
N
I
H
T
C
B
S
D
E
M
K
J
A
L
O
P
M Fitter Plate Screw 3
(preassembled)
N Canopy Mounting Screw 2
(preassembled)
O Remote Control Receiver 1
P Remote Pack 1
Q Blade Plate 3
R Blade Screw/Lock Washer 9
(preassembled) +1 extra
S Canopy Cover 1
T Additional Wiring 1
HARDWARE CONTENTS (shown actual size)
ON
OFF
ON
OFF
1

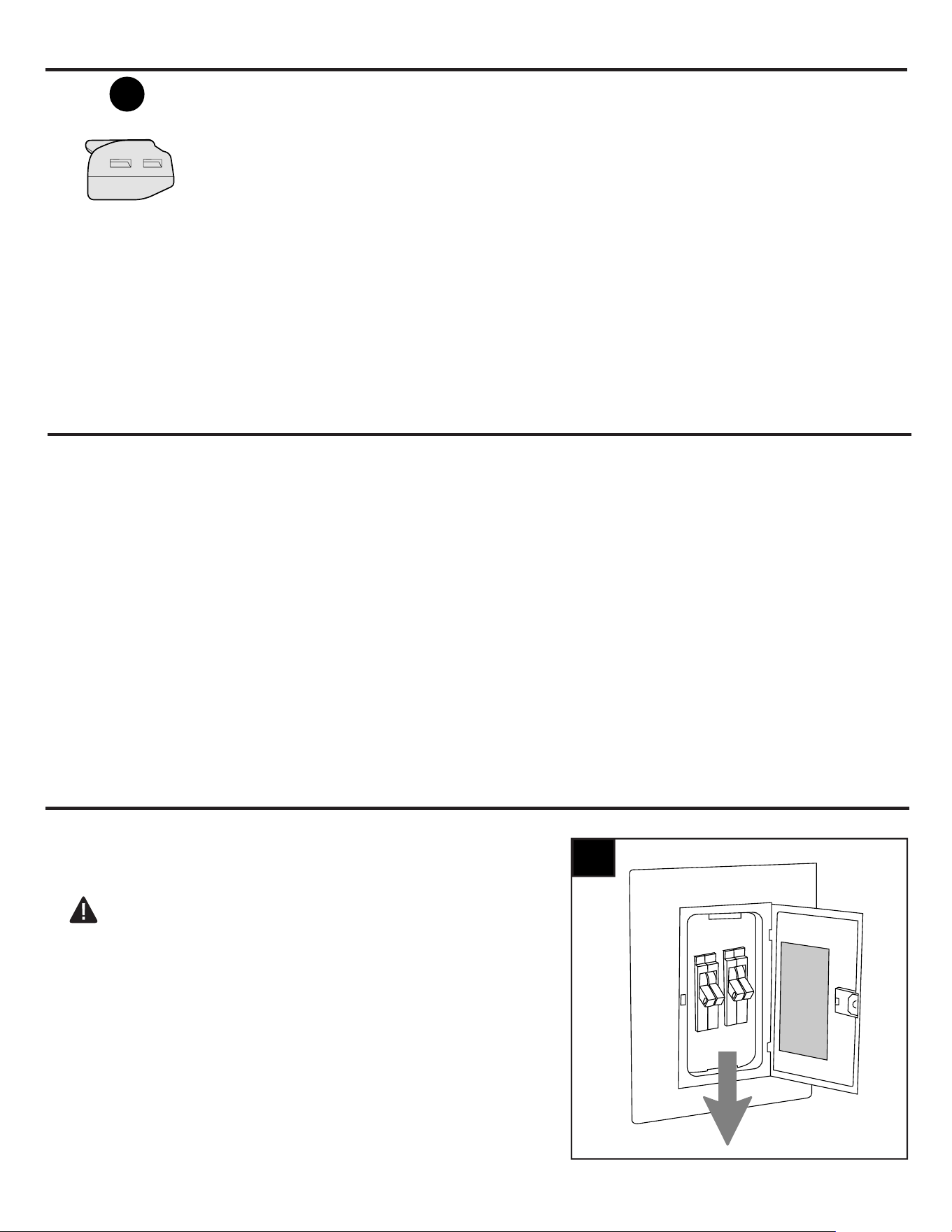

Turn off circuit breakers and wall switch to the
fan supply line leads.
DANGER: Failure to disconnect power
supply prior to installation may result in serious
injury or death.
1.
INITIAL INSTALLATION
Before beginning assembly of product, make sure all parts are present. Place motor on carpet or on
foam to avoid damage to finish. Compare parts with package contents list and hardware contents list. If
any part is missing or damaged, do not attempt to assemble the product.
Estimated Assembly Time: 120 minutes
Tools Required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety
Glasses, Stepladder and Wire Strippers
Helpful Tools (not included): AC Tester Light, Tape Measure, Do-It-Yourself Wiring Handbook and Wire
Cutters
PREPARATION
Lever Wire
Connector
Qty. 3
AA
6
INITIAL INSTALLATION
2.
3.
Determine mounting method to use.
A. Standard mount
B. Angled mount
IMPORTANT: If using the angle mount, check
to make sure the ceiling angle is not
steeper than 20°.
NOTE: Closemount option is not available for
this fan.
*Helpful Hint: Downrod-style mounting is best
suited for ceilings 8 ft. or higher. For taller
ceilings you may want to use a longer downrod
(not included). Angle-style mounting is best
suited for angled or vaulted ceilings. A longer
downrod is sometimes necessary to ensure
proper blade clearance.

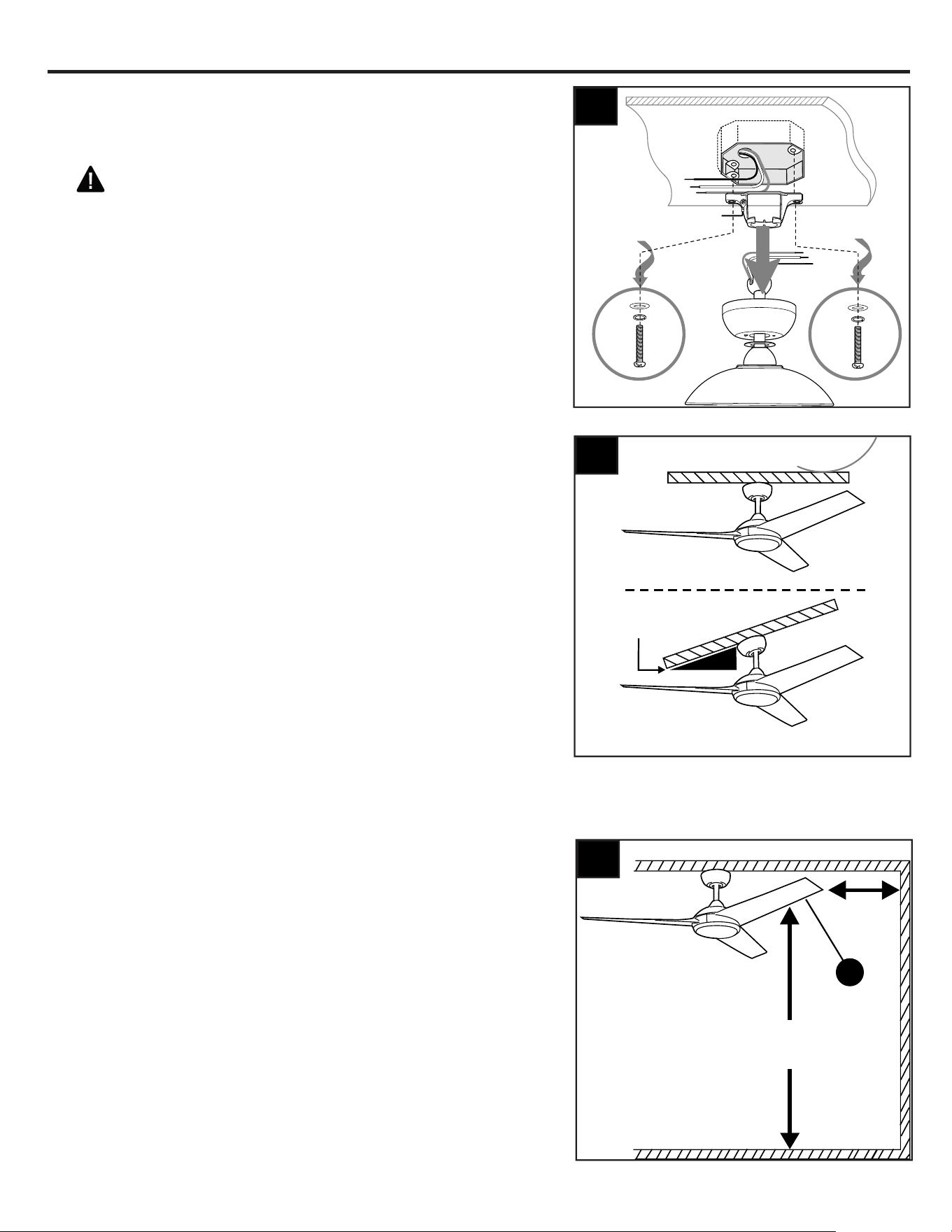

Check to make sure blades (F) will be at least
30 inches from any obstruction. Check downrod
(A) length to ensure blades (F) will be at least
7 ft. above the floor.
4.
3
A
B
20° max.
7 ft.
min.
30 in.
min.
F
4
7
2
If applicable, remove existing fan including the
mounting bracket, from outlet box and
disconnect all electrical wiring.
WARNING: To reduce the risk of personal
injury, use ONLY parts provided with your new
fan. The use of parts OTHER than those
provided with this fan will void the warranty.
Set aside screws, spring washers and flat
washers provided with the outlet box to be used
for fan installation.
INITIAL INSTALLATION
8
5
Open End
Wall
Screw
Position
B
B

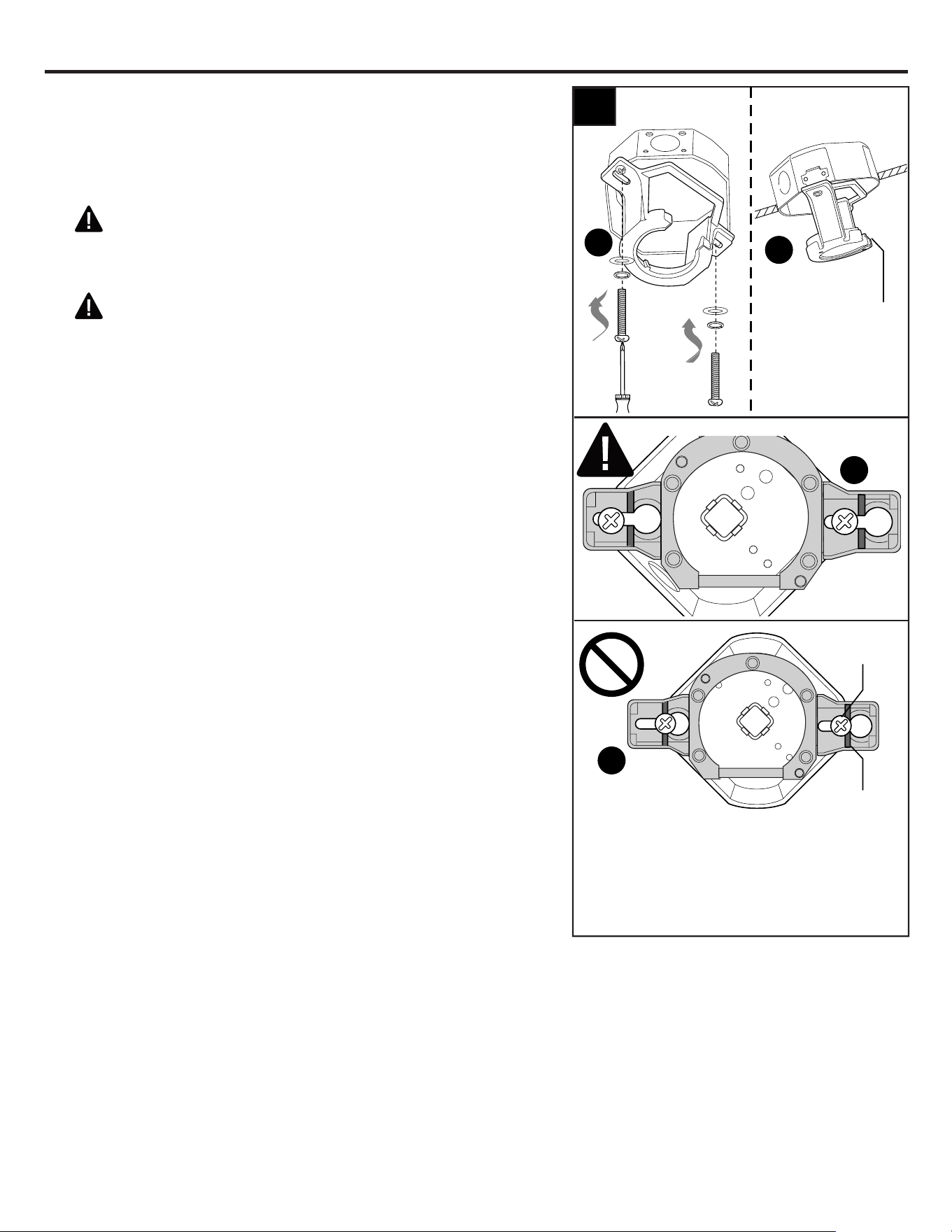

Secure mounting bracket (B) to outlet box (not
included) using the screws, spring washers and
flat washers provided with the outlet box. [These
may have been previously removed in Step 2,
page 7.]
WARNING: It is very important you use the
proper hardware when installing the mounting
bracket as this will support the fan.
DANGER: To reduce the risk of serious injury
or death, the outlet box screws MUST be installed
somewhere within the long slots of the mounting
bracket and then TIGHTENED DOWN
COMPLETELY. Failure to do so may result in
serious injury or death.
IMPORTANT: If using the angle mount, make
sure open end of mounting bracket (B) is installed
facing the higher point of the ceiling, and ensure
the ceiling angle is not steeper than 20°.
5.
ANGLE
MOUNT
STANDARD
MOUNT
DANGER: To reduce the risk of fire, electrical
shock, serious personal injury or damage to the
fan, make sure outlet box screws DO NOT get
installed on or near the wall that separates the
keyhole and the long, narrow slot on each side
of the mounting bracket (see above).
B
B
6
E
R
Plastic
Lock
Ring
INITIAL INSTALLATION
8b.
8a.

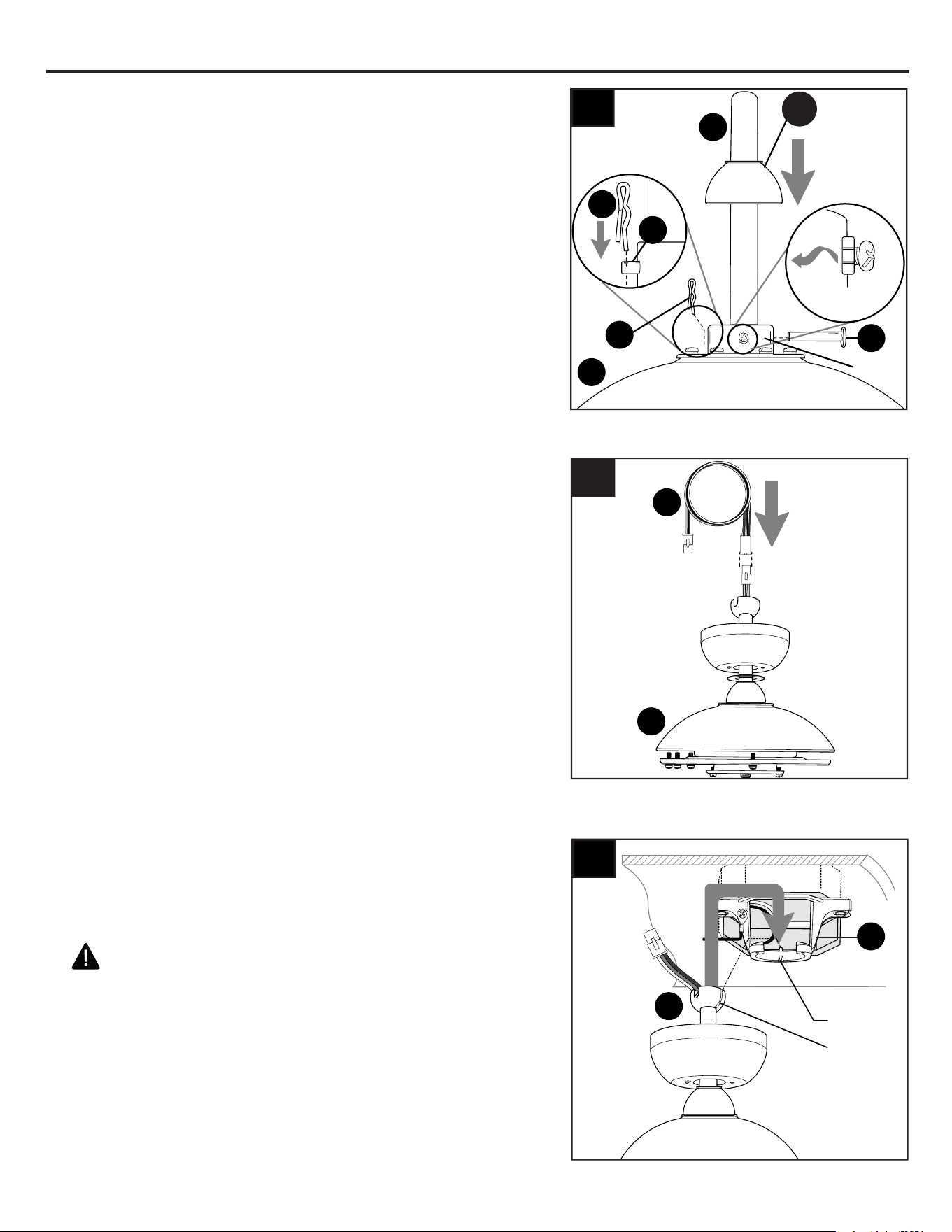

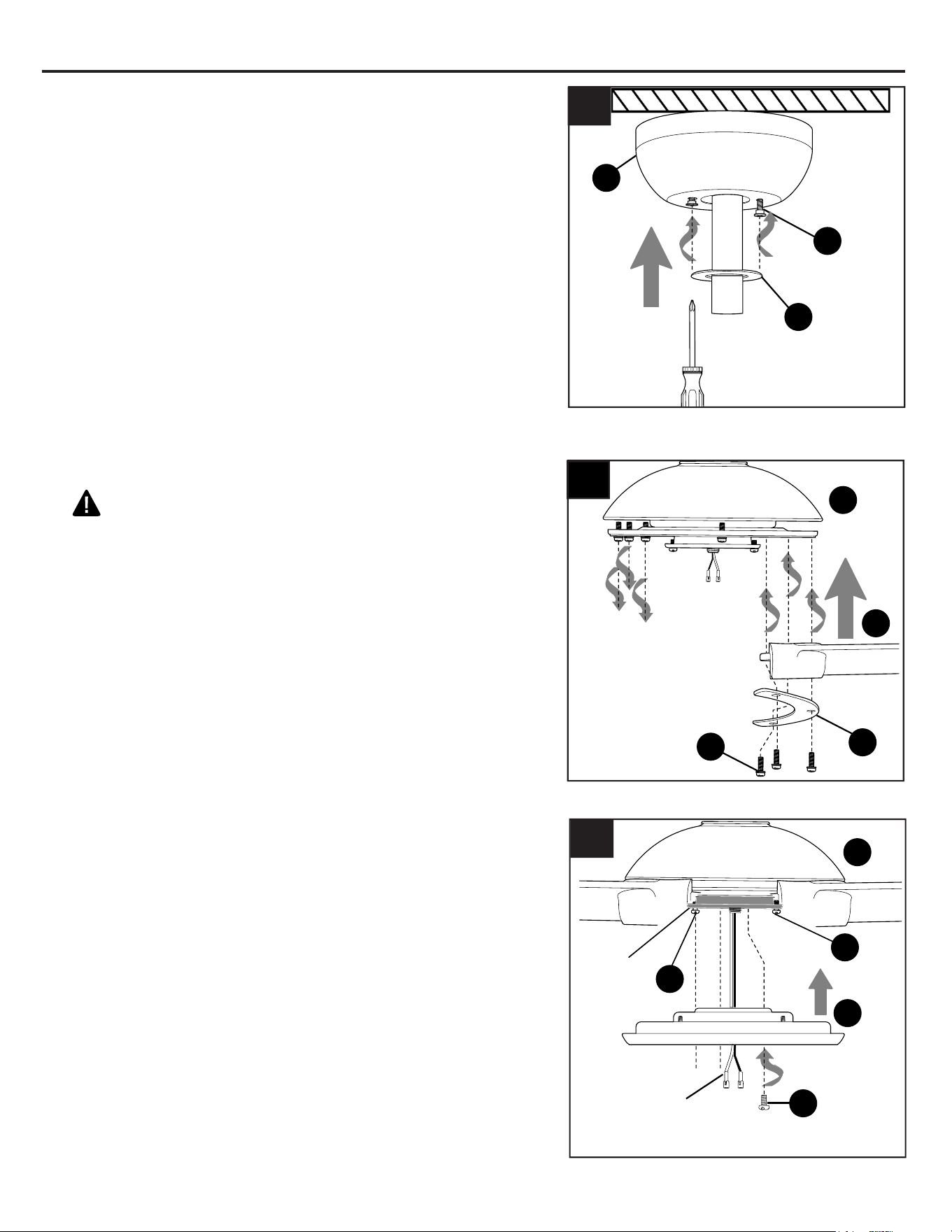

Remove pin (J) and clip (K) from downrod (A).
Partially loosen preassembled set screws and
nut in yoke at top of motor housing (E).
7a.
7b.
7a
K
E
J
7b
A
Yoke
Set Screw
& Nut
Sideview
A
A
8b8a
C
S
D
E
6.

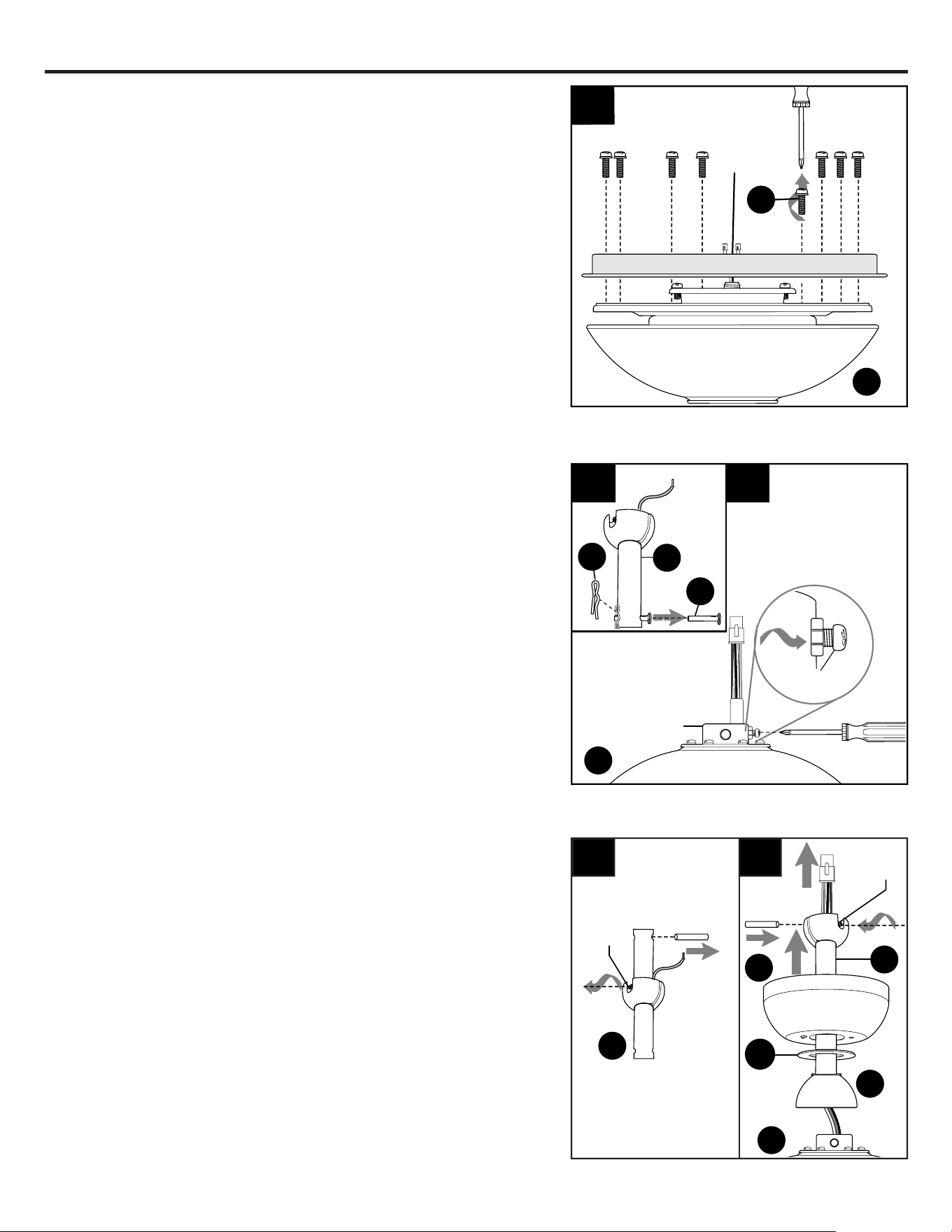

Remove all blade screws/lock washers (R) from
underside of motor housing (E) and save for
blade (F) attachment later on. Discard the plastic
lock ring.
Remove stop pin from downrod (A) by loosening
set screw on hanging ball. Lower hanging ball
and remove stop pin.
Insert downrod (A) through canopy (C), canopy
cover (S) and yoke cover (D). NOTE: Canopy
cover (S) must be turned with the shiny side
toward the motor housing (E).
Thread wires from motor housing (E) through
downrod (A). Raise hanging ball, replace stop
pin and tighten set screw.
9
Set
Screw
Hanging
Ball
Stop Pin
Stop Pin
Set
Screw
INITIAL INSTALLATION
10.
10
9.
Slip downrod (A) into yoke, align holes and
re-install pin (J) and clip (K). Tighten set screws
in yoke and then tighten nut. Then slide yoke
cover (D) down over the motor housing (E).
9
J
K
E
A
11.
Install hanging ball of downrod (A) into
opening of mounting bracket (B). Align one of
the slots in hanging ball with the tab in
mounting bracket (B).
DANGER: Failure to align one of the slots
in hanging ball with the tab in mounting
bracket (B) may result in serious injury or
death.
Tab
B
11
A
Slot
K
J
Set Screw
and Nut
Sideview
Yoke
D
10
Depending on the length of downrod you use,
you may need to use the additional wiring (T).
Connect male plug from motor housing (E) to the
end of additional wiring (T) with female plug.
Make sure plugs connect tightly.
NOTE: If you do not use additional wiring (T),
Step 10 is not necessary and you may
proceed to Step 11 instead.
T
E
WARNING: To reduce the risk of fire, electrical shock or personal injury, wire connectors provided
with this fan are designed to accept only one 12-gauge house wire and two lead wires from the fan. If
your house wire is larger than 12-gauge or there is more than one house wire to connect to the
corresponding fan lead wires, consult an electrician for the proper size wire connectors to use.
CAUTION: Be sure outlet box is properly grounded and that a ground (GREEN or BARE) wire is
present.
WARNING: If house wires are different colors than referred to in the following steps, stop
immediately. A professional electrician is recommended to determine wiring.
WARNING: Using a full range dimmer switch (not included) to control fan speed will cause a loud
humming noise from fan. To reduce the risk of fire or electrical shock, do NOT use a full range dimmer
switch to control fan speed.
1b
O
WHITE SUPPLY WIRE
BLACK SUPPLY WIRE
BLACK
AC IN L
WHITE
AC IN N
WHITE
GROUND (GREEN OR BARE)
GROUND
(GREEN OR BARE)
BLACK
FROM
RECEIVER
FROM
FAN
FROM
RECEIVER
FROM
CEILING
B
GREEN/
GROUND
AA
A
WIRING
11
1b.
1a.

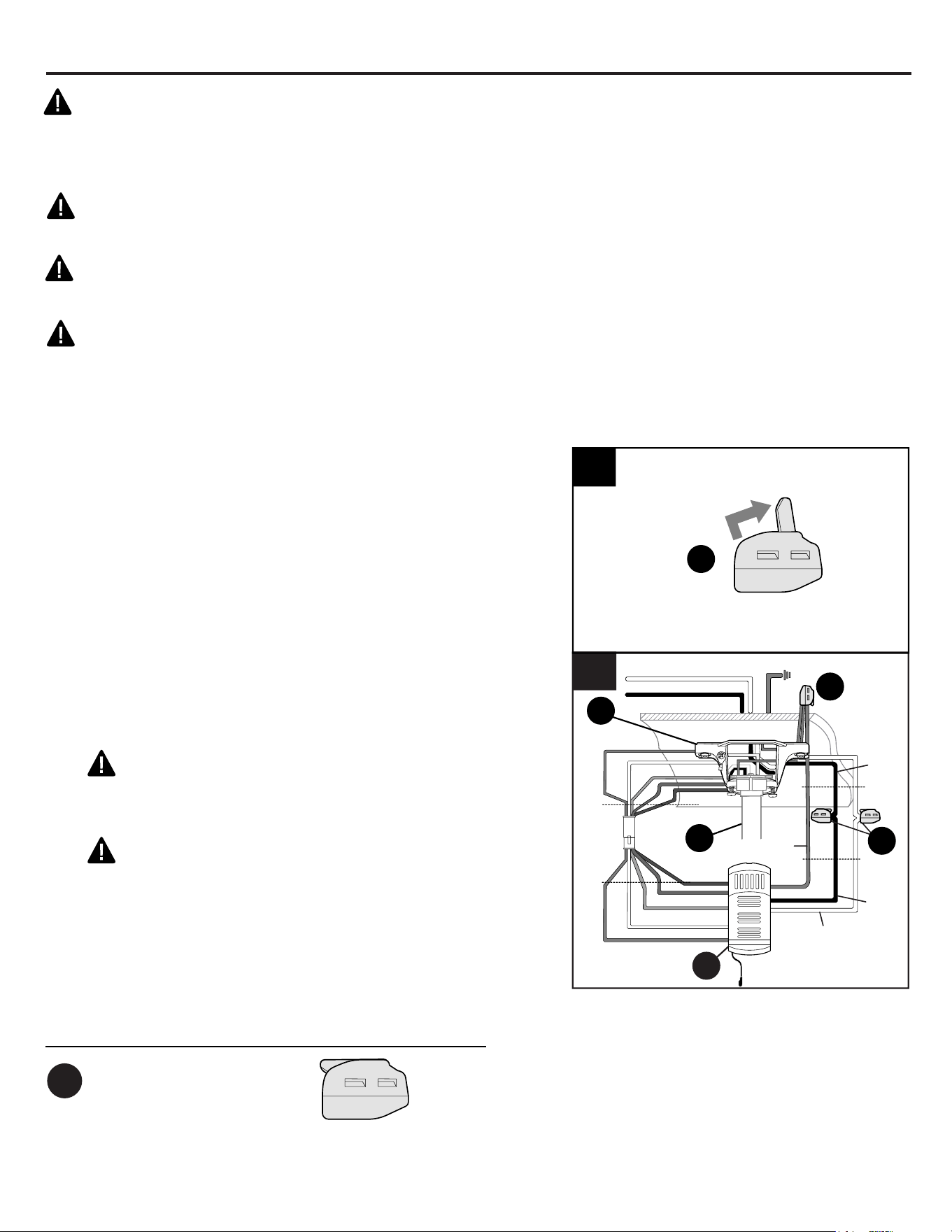

IMPORTANT: Each wire connection is made by
firmly raising the levers on each lever wire
connector (AA), as shown. Then, ONE wire is
inserted into each opening.
Insert each GROUND (GREEN) wire from fan
(on downrod (A), mounting bracket (B) and
remote control receiver (O)) and the
BARE/GREEN wire from ceiling to lever wire
connector (AA) with three levers.
Insert BLACK wire from fan and BLACK wire
from ceiling to lever wire connector (AA). Insert
WHITE wire from fan and WHITE wire from
ceiling to lever wire connector (AA).
WARNING: GENTLY pull on wires in each
lever wire connector (AA) to confirm the lock is
engaged and that wires are secure.
WARNING: In order for wire connections to
be secure, all levers on the lever wire
connectors (AA) must be completely returned to
their original position as shown in Step 1b.
NOTE: Black wire is hot power for fan. White
wire is common for fan and light kit. Green or
bare wire is ground.
1a
Lever Wire Connector x 3
Hardware Used
AA
AA
AA
2
AA
AA
AA
WIRING

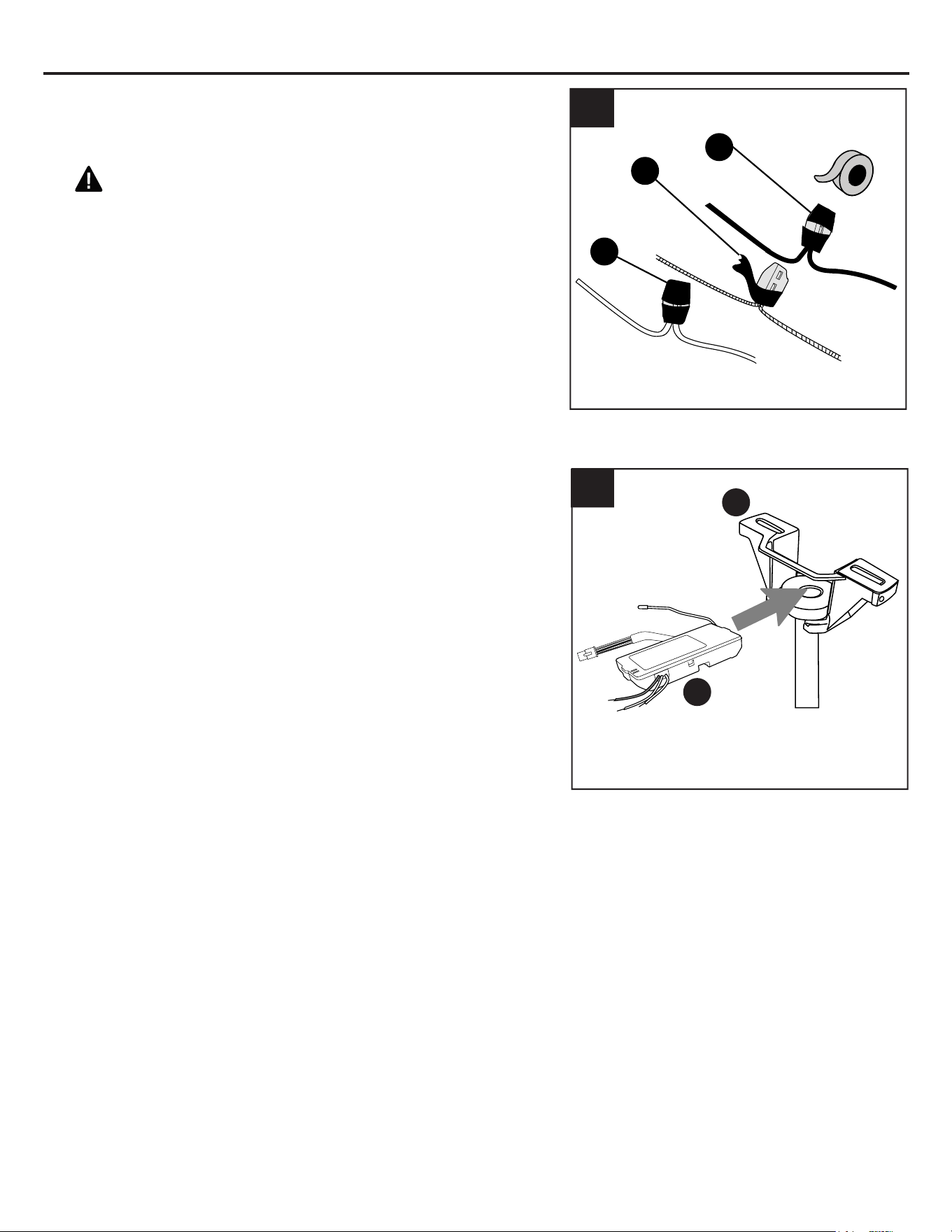

Wrap electrical tape (not included) around each
individual lever wire connector (AA) down to the
wire.
WARNING: Make sure no bare wire or wire
strands are visible after making connections.
Place GREEN and WHITE connections on
opposite side of the outlet box from the BLACK
and BLUE (if applicable) connections.
2.
3
Gently slide remote control receiver (O) flat-side
up into mounting bracket (B). Turn spliced/taped
wires upward and gently push wires and lever
wire connectors (AA) into outlet box. Let
antenna from remote control receiver (O) hang
to the side.
NOTE: The remote control included with this fan
meets the following requirements:
a. Not for use with solid state fans.
b. Electrical rating: 120V / 60 Hz;
motor wattage: 65 MAX.
3.
Antenna
O
B
12
1.
2.
DANGER: To reduce the risk of serious
bodily injury, DO NOT use power tools to
assemble the blades (F). If screws are
overtightened, blades (F) may crack and break.
Noting the THIS SIDE UP label on blade (F),
align holes in blade (F) and blade plate (Q) with
holes on the bottom of motor housing (E) as
shown. Partially insert three blade screws/lock
washers (R) previously removed (Step 5, page 8)
to attach blade (F) and blade plate (Q) to motor
housing (E). Tighten blade screws/lock washers
(R) securely. Repeat Step 2 for remaining blades
(F).
NOTE: Make sure to completely secure each
blade (F) before proceeding to the next.
2
Q
1
N
S
C
R
F
E
Locate two canopy mounting screws (N) on
underside of mounting bracket (B) and remove
canopy mounting screw (N) closest to the open
end of the mounting bracket (B). Partially loosen
the other canopy mounting screw (N). Lift
canopy (C) to mounting bracket (B). Place
rounded part of slotted hole in canopy (C) over
loosened canopy mounting screw (N) and push
up. Twist canopy (C) to lock. Re-insert canopy
mounting screw (N) that was removed, then
tighten both canopy mounting screws (N).
Locate knobs on center ring of canopy cover (S).
Slide canopy cover (S) up to canopy (C),
aligning knobs on canopy cover (S) with
openings in bottom of canopy (C). Press up
gently but firmly on canopy cover (S) until it fits
into the bottom of the canopy (C) and then turn
canopy cover (S) about 1/2 in.
FINAL INSTALLATION
3.

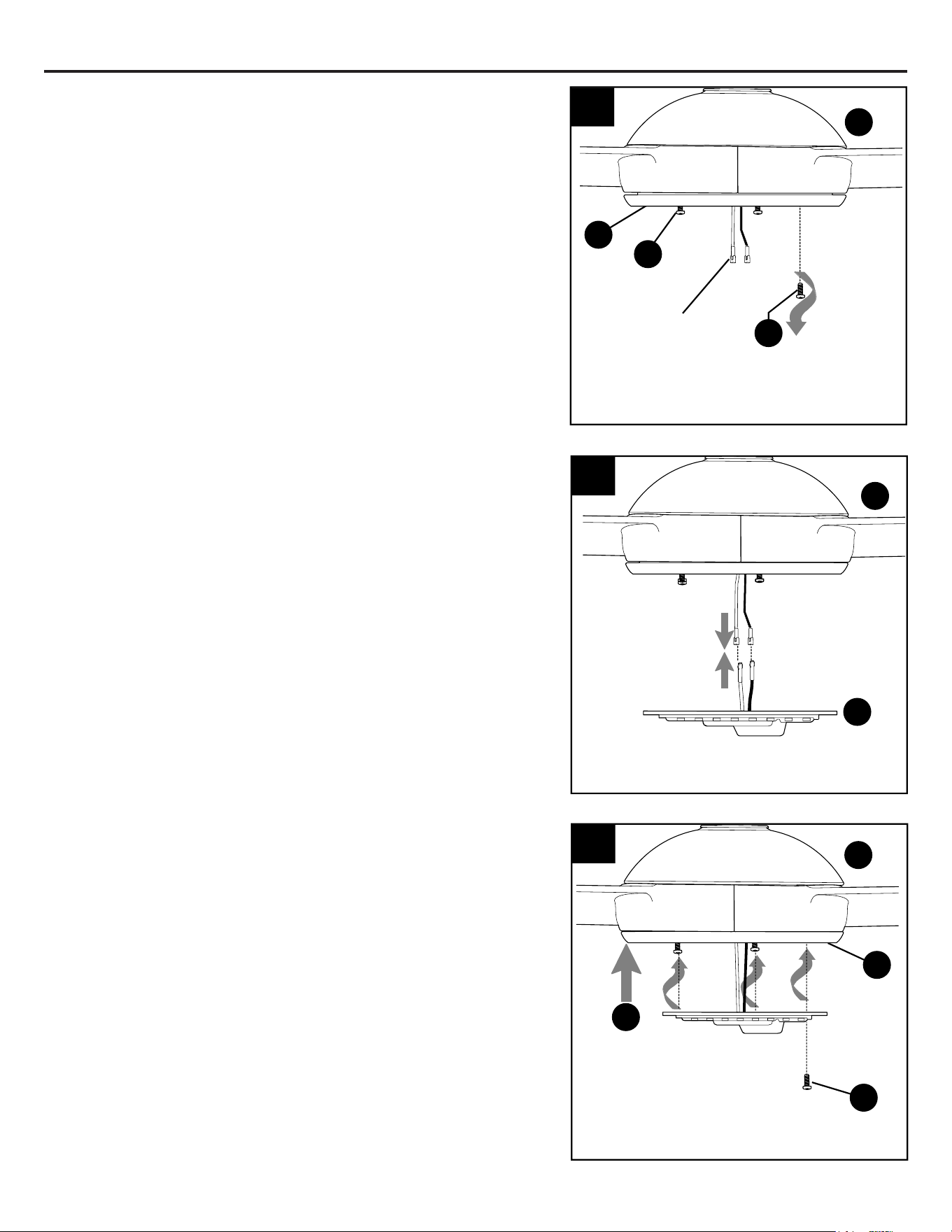

Partially loosen two motor plate screws (L) in
motor plate on underside of motor housing (E)
and remove the other motor plate screw (L).
Align slotted holes in fitter plate (G) with
loosened motor plate screws (L), allowing
molex connections from motor housing (E) to
come through hole in fitter plate (G). Twist fitter
plate (G) to lock. Re-insert the motor plate
screw (L) previously removed and securely
tighten all three motor plate screws (L).
3
Motor
Plate
Molex
Connections
I
G
E
I
L
I
L
I
L
13
4.
Partially loosen two fitter plate screws (M) on
underside of the fitter plate (G) and remove the
other fitter plate screw (M).
Locate molex connections from motor housing
(E) and remove plastic that holds these wires
together (if applicable).
G
4
Molex
Connections
M
5.
Connect WHITE wire from LED light kit (H) to
WHITE wire from motor housing (E). Connect
BLUE wire from LED light kit (H) to BLUE (or
BLACK) wire from motor housing (E). Make
sure molex connections snap together securely.
H
5
WHITE
BLUE (or BLACK)
WHITE
BLUE
E
M
E
E
H
M
FINAL INSTALLATION
6.
Carefully arrange wiring within the fitter plate (G)
to ensure wires do not get pinched when
attaching the LED light kit (H).
Align slotted holes in LED light kit (H) with
loosened fitter plate screws (M) on posts on fitter
plate (G). Twist LED light kit (H) to lock.
Re-insert the previously removed fitter plate
screw (M) (step 4, Page 14) and securely tighten
all fitter plate screws (M).
6
G
14
FINAL INSTALLATION
7.
Align slots on shade (I) with protrusions on inside
of fitter plate (G). Turn shade (I) clockwise until it
no longer turns.
NOTE: Pull down gently on the shade (I) to make
sure it is secured completely.
7
G
Slot
I
OPERATING INSTRUCTIONS
CAUTION: The remote control transmitter can be programmed to multiple receivers or fans. If this is
not desired, turn wall switch off to any other programmable receiver or fan.
FCC Compliance Notice for Remote Control and LED Light Kit
CAUTION: Changes or modifications not approved by the party responsible for compliance could
void the user's authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, (2) this device must accept any interference
received, including interference that may cause undesired operation.
*NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
Distributed by: Litex Industries Inc., P.O. Box 535639, Grand Prairie, TX, 75053; 800-527-1292
15
Protrusion
OPERATING INSTRUCTIONS

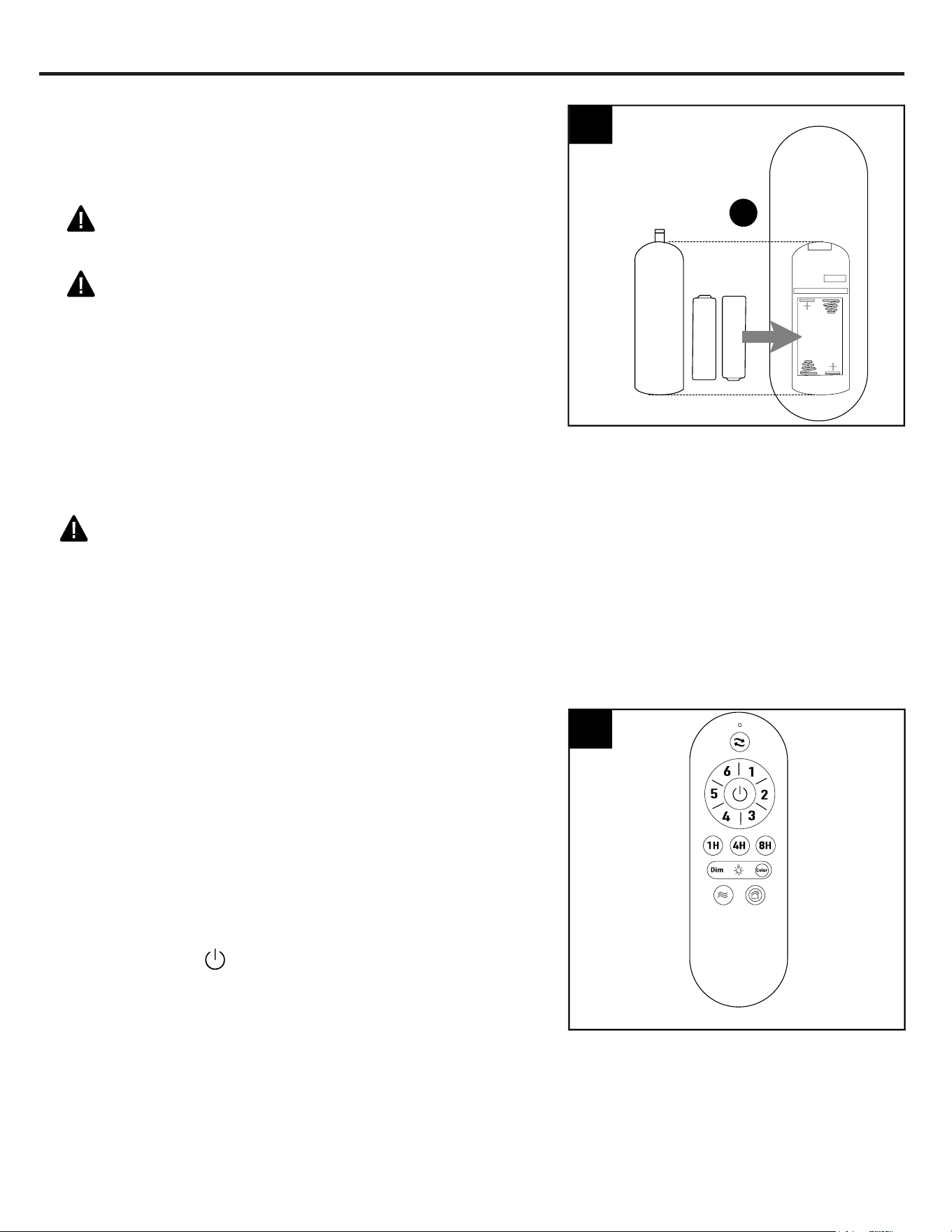

Locate remote control transmitter in remote pack (P).
Remove battery cover. Install two AAA batteries from
remote pack (P). Observe diagram inside battery
compartment to install batteries correctly.
WARNING: Batteries are to be inserted with
correct polarity.
WARNING: Choking/Ingestion Hazard - Small
parts. Keep batteries away from children.
NOTE: DO NOT mix old and new batteries; DO NOT
mix alkaline, standard (carbon - zinc) or rechargeable
(nickel - cadmium) batteries or equivalent.
NOTE: Batteries are NOT rechargeable. Remove
batteries with low or no charge and dispose of
properly.
1.
1
Battery
Cover
Remote Control
Transmitter (back side)
Batteries
AAA
-
+
-
+
AAA
P
CAUTION: “DO NOT DISPOSE OF BATTERIES IN FIRE, BATTERIES MAY EXPLODE OR
LEAK.” - When disposing of household alkaline batteries, it is best to check with your local and state
recycling or household hazardous waste coordinators concerning the specifics of the program in your
area. You may also locate a recycling center by calling 1-800-8-BATTERY or 1-877-2-RECYCLE or
visit www.epa.gov/epawaste/index.htm or www.earth911.org for more information.
2.
Restore electrical power. Replace battery cover.
IMPORTANT: To prevent damage to remote
control transmitter, remove the battery if not used
for long periods. Store the remote control
transmitter away from excess heat or humidity.
NOTE: If fan and/or remote control fail(s) to
operate or you have purchased a new remote
control transmitter, make sure to turn the power
off first. Restore electrical power. Within 30
seconds of powering fan, press and hold
ON/OFF button ( ) on remote control
transmitter for 5 seconds until fan beeps once in
order to synchronize remote with fan motor. Use
the remote control transmitter to test the light and
fan functions to confirm the learning process is
complete.
16
2
Remote Control Transmitter
OPERATING INSTRUCTIONS
CARE AND MAINTENANCE
At least twice each year, lower canopy (C) to check downrod (A) assembly and tighten all screws on fan.
Clean motor housing (E) with only a soft brush or lint-free cloth to avoid scratching the finish. Clean
blades (F) with a lint-free cloth.
IMPORTANT: Shut off main power supply before beginning any maintenance. Do not use water or a
damp cloth to clean the ceiling fan.
Total wattage for the LED light kit on this fan is 20 watts; do not attempt to replace the LEDs.
3.

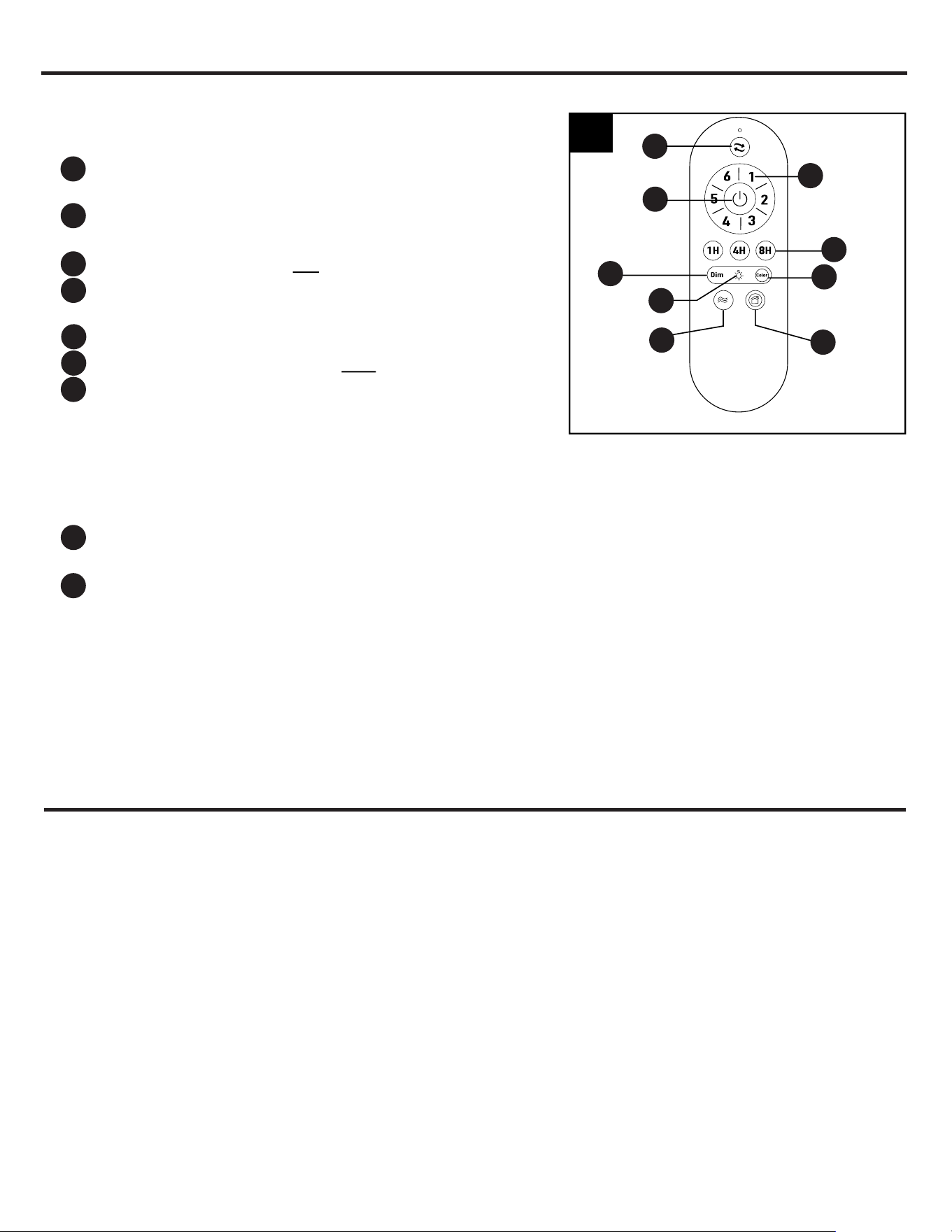

Operation buttons on the front panel of the remote
control transmitter:
- Reverse function ─ fan must be set on low before
reversing blade direction
- Fan speeds: 1 (lowest) to 6 (highest) and
to turn fan ON
- OFF power button for fan.
- Timer mode: fan may be set to run for
– 1 hour / 4 hours / 8 hours
- Dimmer mode: press and hold to dim light
- ON / OFF, power button for light
- Color mode: change/select light color
– soft white
– warm white
– cool white
– daylight
– cool daylight
- Breeze mode: fan automatically cycles between
all 6 different speeds
- Vacation mode: light kit switches on for 5 minutes
every 2 hours
3
1
2
4
5
6
8
9
7
Remote Control Transmitter
3
1
3
8
9
2
4
7
5
6
17
WARNING: Before beginning work, shut off the power supply to avoid electrical shock.
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Fan does not move.
1. Power is off or fuse is blown.
2. Faulty wire connection.
3. Learning code process between fan
and remote control transmitter may
not have been successful and
learning code was not activated.
4. Blades are not installed.
1. Turn power on or check fuse.
2. Turn power off. Loosen canopy and
check all connections.
3. Turn off power and repeat
instructions in Step 2 on page 16.
4. Install all blades (see page 13).
Noisy operation.
1. Blades are loose.
2. Cracked blade.
3. Full range dimmer switch.
4. Fan is new.
1. Tighten all blade screws.
2. Replace blade.
3. Replace with an approved speed
control device.
4. Allow fan a “break in” period of a few
days, especially when running the
fan at Medium and High speeds.
Excessive wobbling.
1. Blades are loose.
2. Blades incorrectly attached.
3. Unbalanced blades.
4. Fan not securely mounted.
5. Fan too close to vaulted ceiling.
6. Set screw(s) on motor housing yoke is
(are) not tightened properly.
7. Set screw on hanging ball is not
tightened properly.
1. Tighten all blade screws.
2. Re-install blades.
3. Switch one blade with a blade from
the opposite side.
4. Turn power off. Carefully loosen
canopy and verify that mounting
bracket is secure.
5. Use a longer downrod or move fan to
another location.
6. Tighten yoke set screw(s) securely.
7. Carefully loosen and lower canopy
and verify that set screw on hanging
ball is tightened securely.
NOTE: A small amount of "wobble" is normal and should not be considered a defect.
TROUBLESHOOTING
Fan operates but
light fails
1. Wires in canopy not wired properly.
2. Wall switch to fan is off.
3. Wires from LED light kit not wired
correctly.
1. Check wires in canopy and, if
necessary, re-wire according to
instructions on page 11.
2. Make sure that wall switch to fan is
on.
3. Check wires from LED light kit and,
if necessary, re-wire according to
instructions on page 14.
Remote control
fails to operate.
1. Remote control transmitter not synced
with fan.
2. Batteries not installed correctly.
3. Battery/Batteries no longer working.
1. Refer to instructions in Step 2 on
page 16.
2. Check that batteries have been
installed with correct polarity.
3. Replace both batteries according to
instructions on page 16.
18
Printed in China
ARLI2604
LIMITED LIFETIME WARRANTY
Set forth below, the manufacturer warrants the fan motor for this ceiling fan to be free from defects in
workmanship and material for the life of the product. Also, subject to the limitations below, the
manufacturer warrants all ceiling fan parts (“ceiling fan parts” excludes the motor and parts made in
whole or in part with glass) to be free from defects in workmanship and material for a period of one year
after the date of purchase by the original purchaser at retail.
All claims must be made by the original purchaser, whether such purchaser purchased the product
through a store or contractor. Ceiling fan part defects must be reported within the first year from the date
of purchase. Parts made in whole or in part with glass and the finishes of metal and other surfaces are
not warranted.
Purchasers are responsible for all costs of removing and reinstalling the product. Any damage to any
part caused by ordinary wear and tear, accident, misuse, or improper installation, is not covered by this
warranty. The manufacturer assumes no responsibility whatsoever for fan installation. Any service
performed by a non-licensed electrician will render the warranty invalid.
The manufacturer’s sole responsibility shall be to repair or replace the motor, parts, or product within the
terms stated above. The manufacturer shall not be liable for any loss or damage of any kind, including
any incidental or consequential damages resulting directly or indirectly, from any breach of warranty,
express or implied, or any other failure of this product. Some states do not allow the exclusion or
limitation of incidental or consequential damages so this limitation may not apply to you.
If the original purchaser ceases to own the fan, this warranty is voided.
Should the purchaser encounter a problem with your fan related to defects in workmanship or materials
within the warranty period associated with the defective part, the manufacturer agrees to replace the
defective part without charge, or at its option, to replace the ceiling fan with a comparable or superior
model.
The manufacturer’s warranties are limited to the written warranties set out in this ceiling fan limited
lifetime warranty. All other express and implied warranties, including, without limitation, the implied
warranty of fitness for a particular purpose and the implied warranty of merchantability are disclaimed.
Some states do not allow the disclaimer of implied warranties, so this disclaimer may not apply to you.
PART DESCRIPTION PART#
A Downrod
B Mounting Bracket
C Canopy
F Blade
REPLACEMENT PARTS LIST
5519813-A
5519813-B
5519813-C
5519813-F
A
B
C
F
19
All parts are replaceable (see parts list in “Package Contents” on Page 5), however, only the parts listed
below are under warranty. For replacement parts, call our customer service department at
888-251-1003, 8 a.m. - 8 p.m., EST, Monday - Sunday.
