Garmin 010-02235-02 GPSMAP 86sc Handheld Marine GPS User Manual

GPSMAP

Owner’s Manual

or improve its products and to make changes in the content of this manual without obligation to notify any person or organization of such changes or improvements. Go to

www.garmin.com for current updates and supplemental information concerning the use of this product.

Garmin

, the Garmin logo, ANT+

, Auto Lap

, AutoLocate

, Fusion

, GPSMAP

, inReach

, TracBack

, VIRB

, and Xero

are trademarks of Garmin Ltd. or its subsidiaries, registered in

the USA and other countries. chirp

™

, Connect IQ

™

, Garmin Connect

™

, Garmin Explore

™

, Garmin Express

™

, Garmin Response

, MapShare

™

, and tempe

™

are trademarks of Garmin

Ltd. or its subsidiaries. These trademarks may not be used without the express permission of Garmin.

Android

™

is a trademark of Google Inc. Apple

, iPhone

, and Mac

are trademarks of Apple Inc., registered in the U.S. and other countries. The BLUETOOTH

word mark and logos

are owned by the Bluetooth SIG, Inc. and any use of such marks by Garmin is under license. iOS

is a registered trademark of Cisco Systems, Inc. used under license by Apple

Inc. Iridium

is a registered trademark of Iridium Satellite LLC. microSD

and the microSDHC logo are trademarks of SD-3C, LLC. NMEA

is a registered trademark of the National

Marine Electronics Association. Wi‑Fi

is a registered mark of Wi-Fi Alliance Corporation. Windows

is a registered trademark of Microsoft Corporation in the United States and other

countries. Other trademarks and trade names are those of their respective owners.

Table of Contents

Introduction......................................1

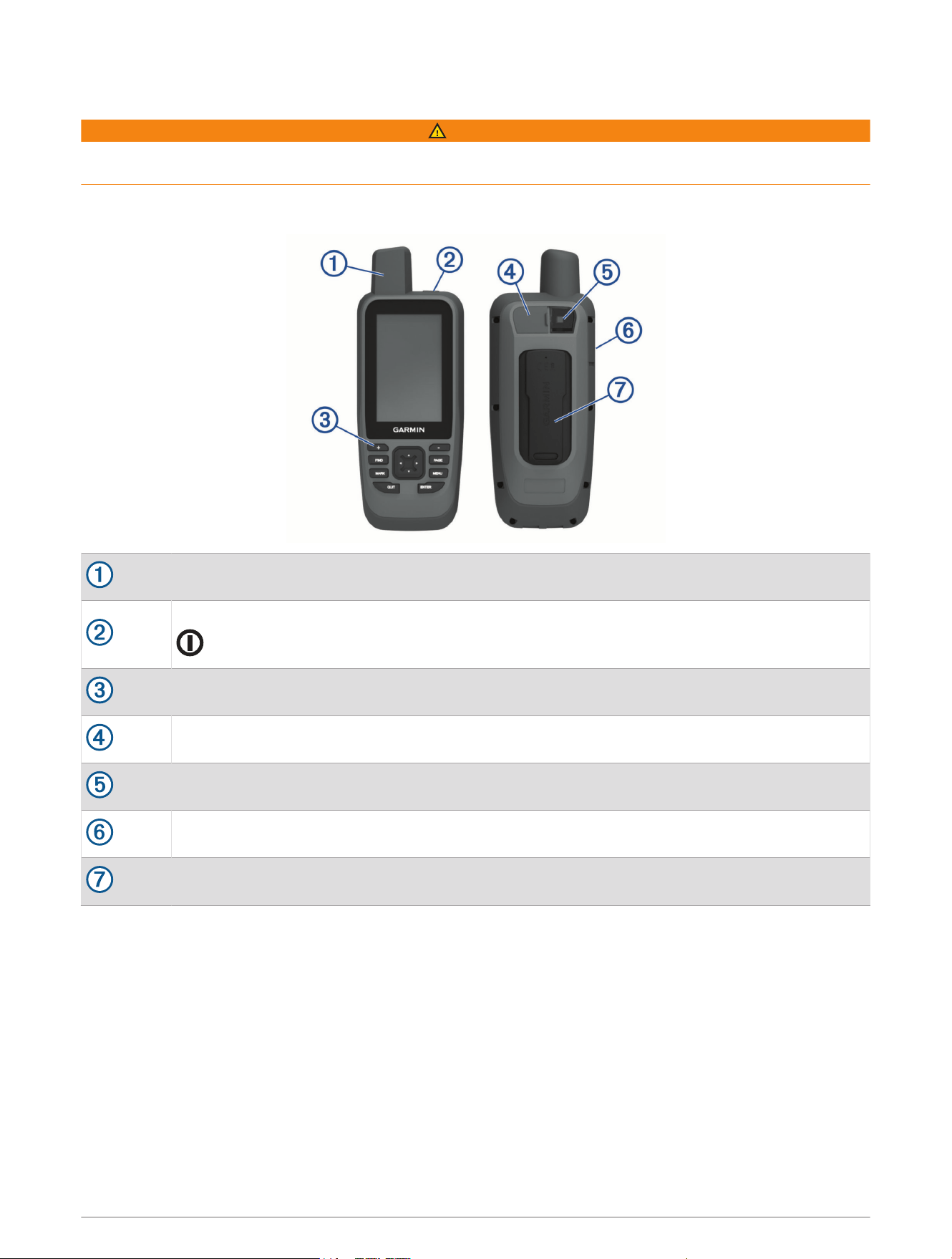

GPSMAP 86s/sc Device Overview......... 1

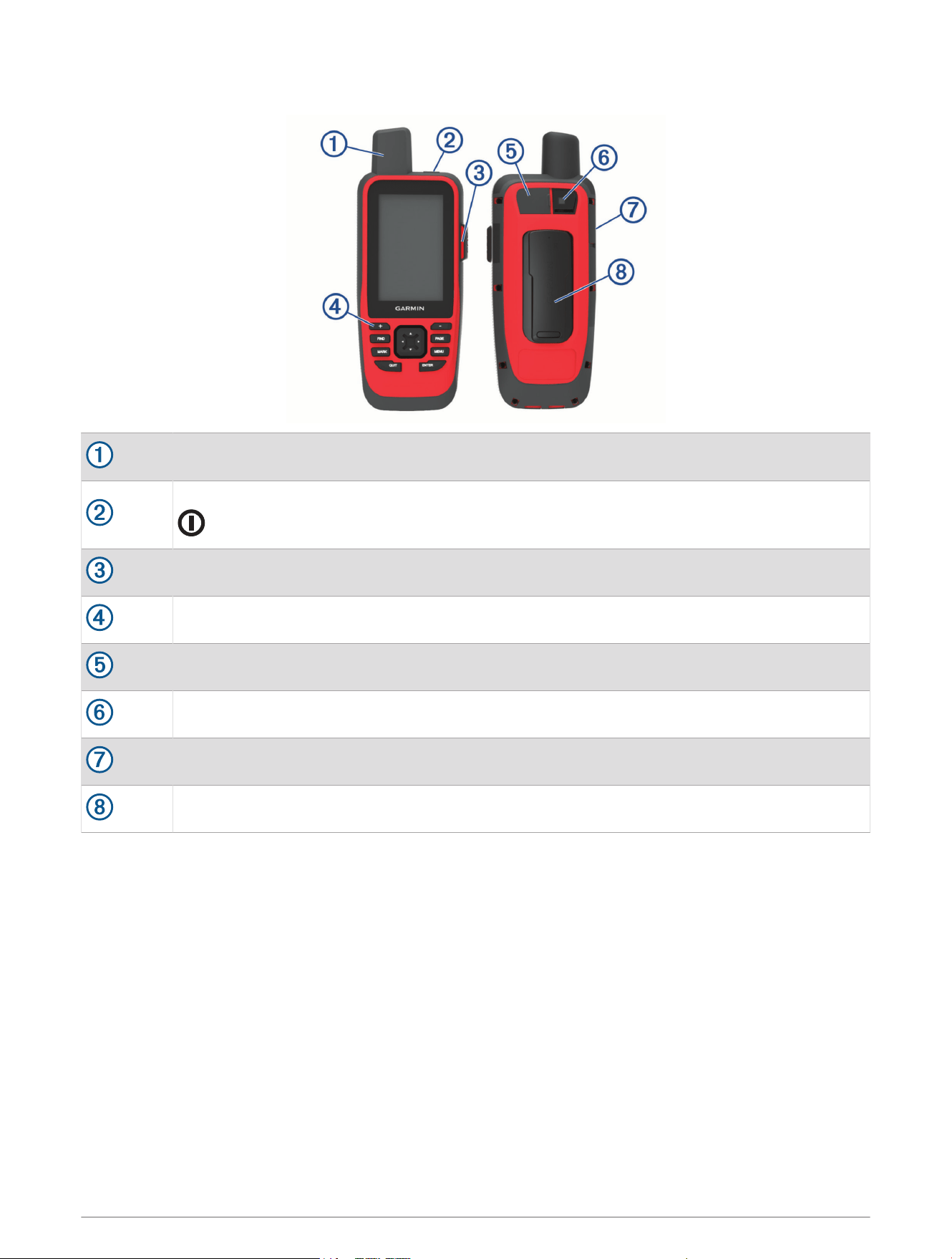

GPSMAP 86i/sci Device Overview......... 2

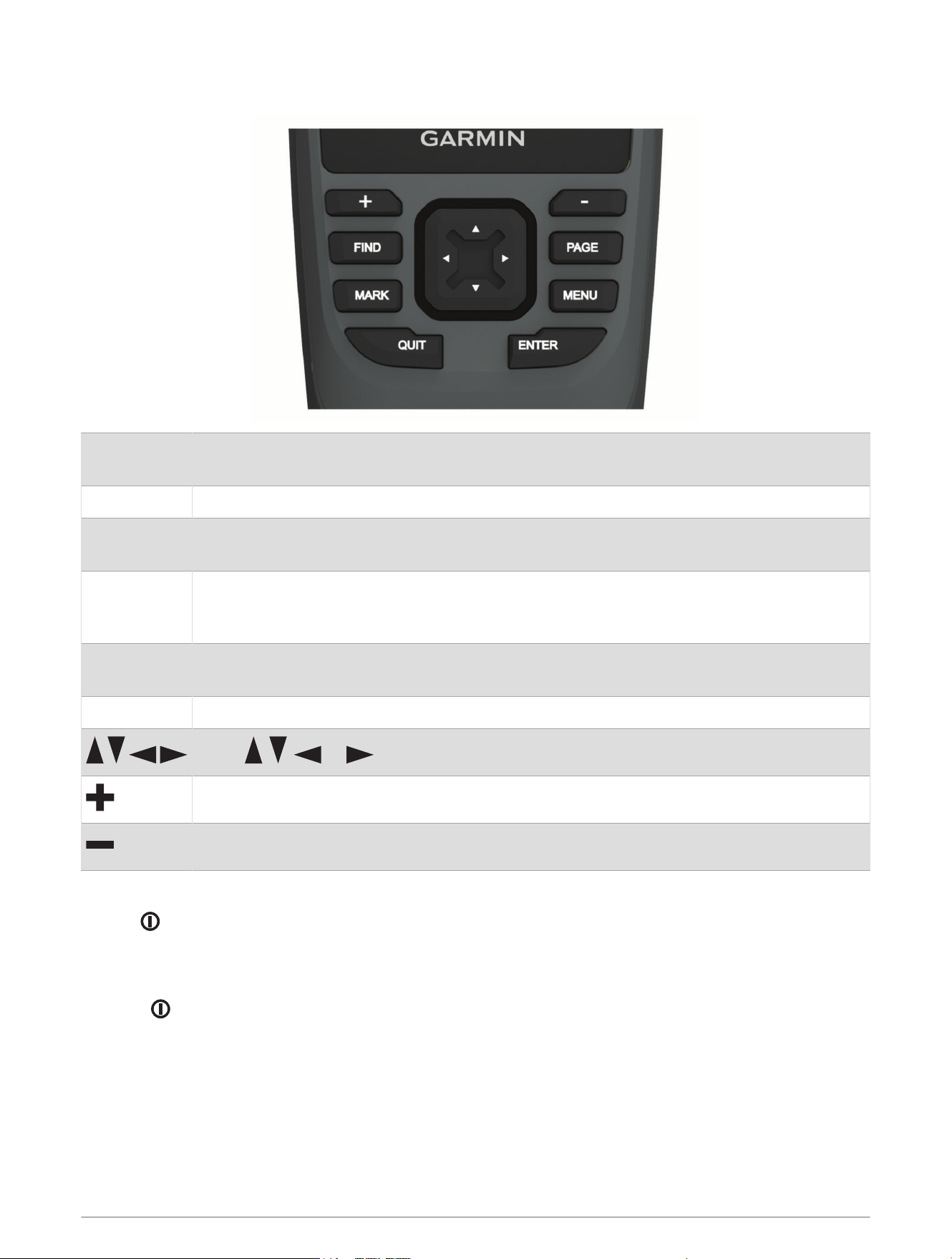

Buttons.....................................................3

Turning On the Device......................... 3

Locking the Keys................................. 3

Turning On the Backlight.....................3

Adjusting the Backlight....................... 4

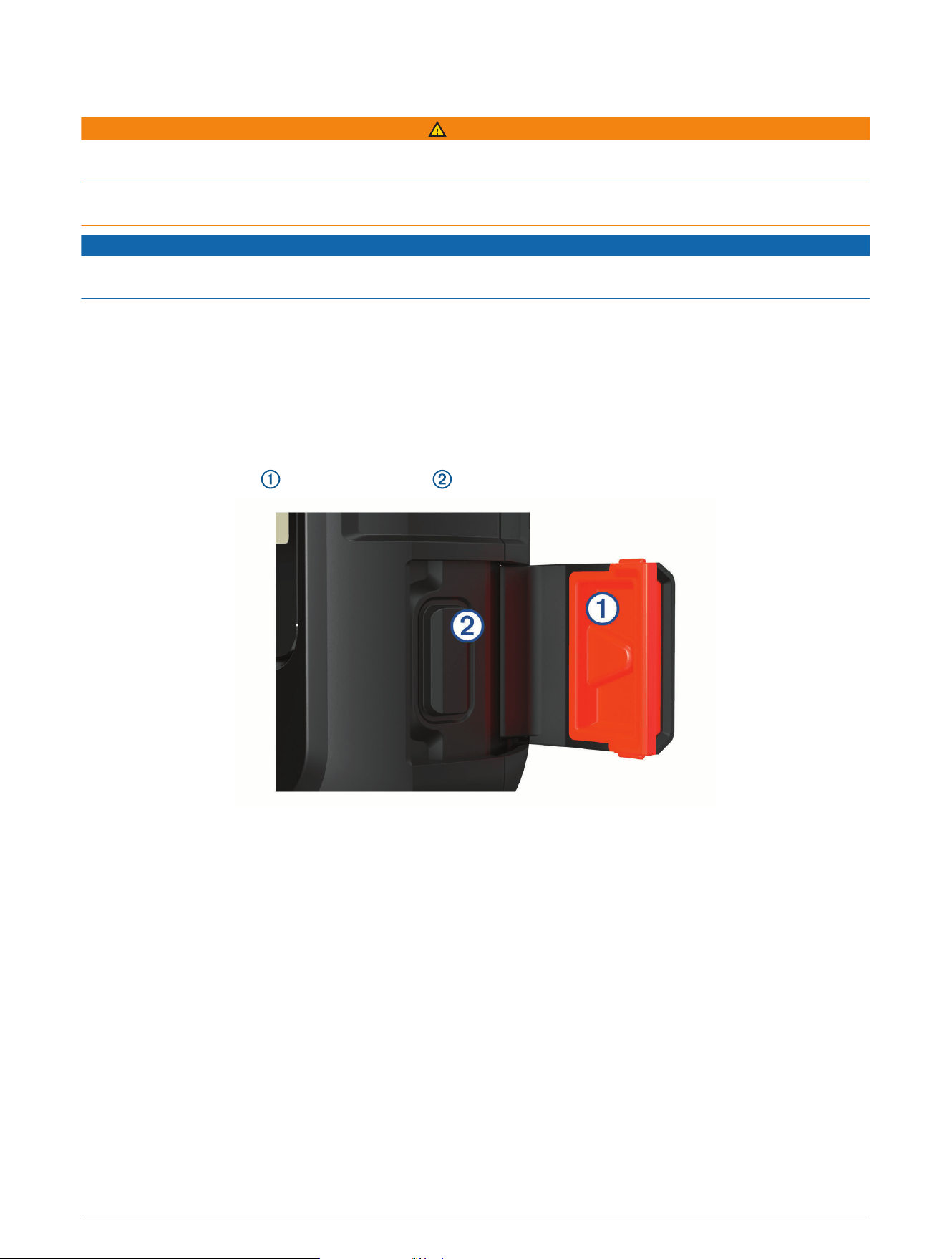

Charging the Device................................ 4

Saving Energy While Charging the

Device...................................................... 4

Activating the Device.............................. 5

Iridium Satellite Network........................ 5

inReach Features..............................5

Messages................................................ 5

Sending a Preset Message................. 5

Sending a Text Message.....................6

Using Keyboard Shortcuts.................. 6

Replying to a Message........................ 6

Checking for Messages...................... 6

Viewing Message Details....................6

Navigating to a Message Location.... 6

Including Location Coordinates in a

Message...............................................7

Deleting Messages.............................. 7

Messages Settings.............................. 7

Tracking................................................... 7

Starting Tracking................................. 7

Stopping Tracking............................... 7

Sharing Your MapShare Web Page.... 7

inReach Tracking Settings.................. 7

SOS........................................................... 8

Initiating an SOS Rescue..................... 8

Sending a Custom SOS

Message........................................... 9

Canceling an SOS Request................. 9

Testing the Device............................9

Syncing inReach Data....................... 9

Contacts...........................................9

Adding a Contact.....................................9

Editing a Contact..................................... 9

Deleting a Contact............................. 10

Using the Main Pages..................... 10

Opening the Main Menu........................10

Map........................................................ 10

Changing the Map Orientation......... 10

Measuring Distance on the Map...... 10

Map Page Settings............................ 10

Map Settings.................................. 11

Advanced Map Settings................ 11

Compass................................................11

Using the Compass........................... 11

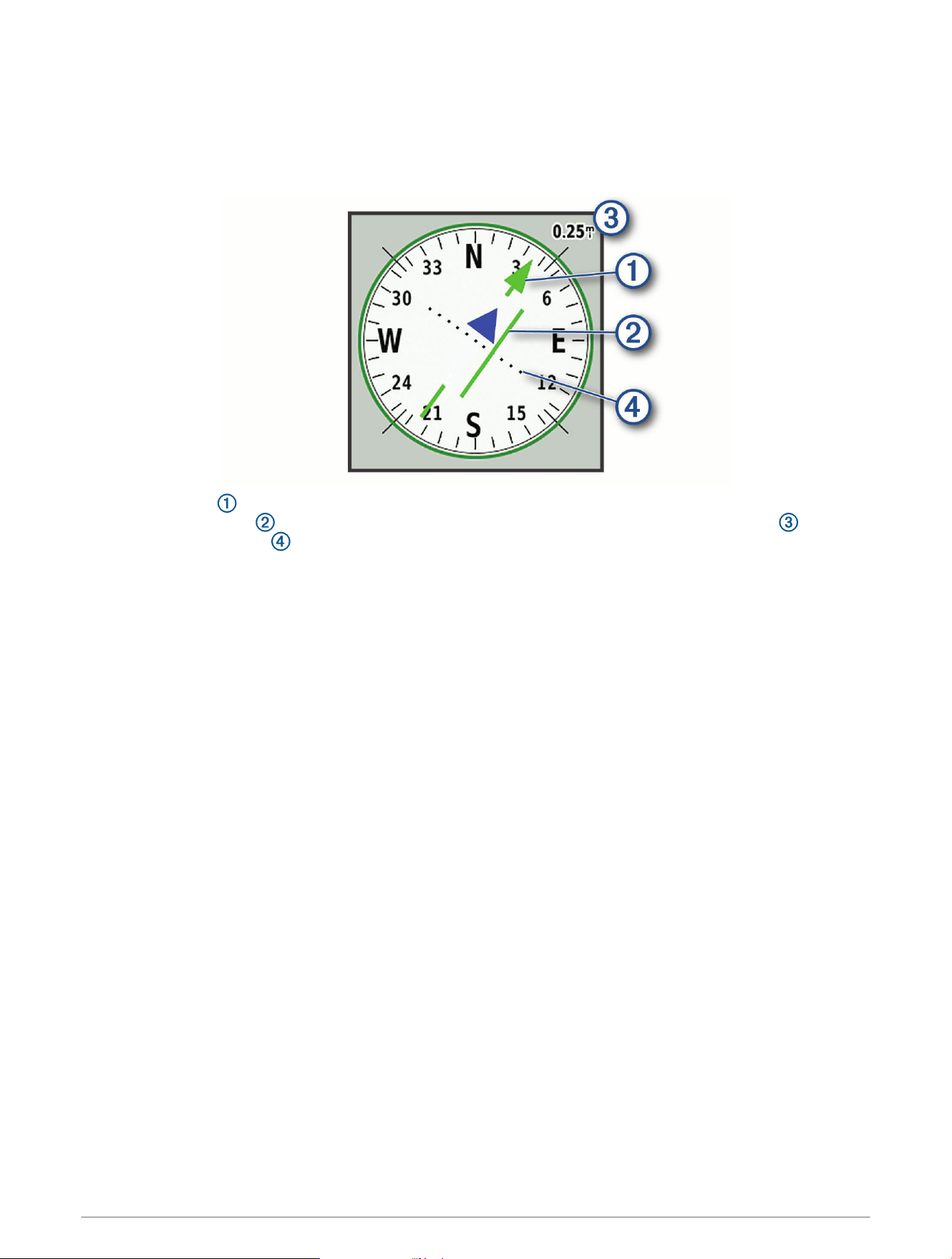

Course Pointer................................... 12

Navigating with Sight 'N Go.............. 12

Compass Settings............................. 12

Calibrating the Compass.............. 13

Heading Settings........................... 13

Trip Computer....................................... 13

Trip Computer Settings..................... 13

Altimeter................................................ 13

Altimeter Plot Settings...................... 14

Altimeter Settings.......................... 14

Calibrating the Barometric

Altimeter.........................................14

Connected Features....................... 15

Connected Feature Requirements....... 15

Pairing a Smartphone with Your

Device.................................................... 16

Phone Notifications.............................. 16

Viewing Phone Notifications............ 16

Hiding Notifications.......................... 16

Managing Notifications.................... 16

Connecting to a Wireless Network.......16

Connect IQ Features............................. 16

Downloading Connect IQ Features.. 17

Downloading Connect IQ Features

Using Your Computer........................ 17

Viewing Connect IQ Widgets............ 17

Controlling and Viewing Compatible

Marine Devices.................................. 17

Garmin Explore...................................... 17

Navigation...................................... 17

Navigating to a Destination.................. 17

Navigating with the Map................... 18

Navigating with the Compass.......... 18

Table of Contents i

Stopping Navigation..........................18

Waypoints.............................................. 18

Saving Your Current Location as a

Waypoint............................................ 18

Saving a Location on the Map as a

Waypoint............................................ 18

Navigating to a Waypoint..................18

Finding a Waypoint............................ 19

Editing a Waypoint............................ 19

Deleting a Waypoint.......................... 19

Increasing the Accuracy of a Waypoint

Location............................................. 19

Projecting a Waypoint from a Saved

Waypoint............................................ 19

Moving a Waypoint on the Map........20

Finding a Location Near a

Waypoint............................................ 20

Setting a Waypoint Proximity

Alarm.................................................. 20

Adding a Waypoint to a Route.......... 20

Repositioning a Waypoint to Your

Current Location................................ 20

Routes.................................................... 20

Creating a Route................................ 20

Navigating a Saved Route.................21

Viewing the Active Route.............. 21

Editing a Route.................................. 21

Viewing a Route on the Map............. 21

Viewing the Elevation Plot of a

Route.................................................. 21

Editing the Name of a Route.............21

Reversing a Route............................. 21

Deleting a Route................................ 22

Recordings.............................................22

Recording Settings............................ 22

Advanced Recording Settings...... 22

Viewing the Current Activity............. 22

Navigating Using TracBack®........... 23

Stopping the Current Activity............23

Navigating a Saved Activity.............. 23

Deleting a Saved Activity.................. 23

Reversing an Activity......................... 23

Creating a Track from a Saved

Activity............................................... 23

Weather..........................................23

Requesting an inReach Weather

Forecast................................................. 24

Updating an inReach Weather

Forecast............................................. 24

Deleting an inReach Weather

Forecast............................................. 24

Viewing an Active Weather Forecast... 24

Viewing an Active Weather Map...... 25

Adding an Active Weather

Location............................................. 25

Switching the Active Weather

Location......................................... 25

Deleting an Active Weather

Location......................................... 25

Data Use and History...................... 25

Viewing Plan Details............................. 25

Viewing Data Use.................................. 26

Main Menu Tools............................26

BirdsEye Imagery.................................. 27

Downloading BirdsEye Imagery........27

Geocaches............................................. 27

Registering Your Device at

Geocaching.com............................... 27

Connecting to Geocaching.com... 27

Downloading Geocaches Using a

Computer........................................... 28

Geocache Searches.......................... 28

Searching for a Geocache.............28

Searching for a Geocache on the

Map.................................................28

Filtering the Geocache List............... 29

Saving a Custom Geocache

Filter................................................29

Editing a Custom Geocache

Filter................................................29

Viewing Geocache Details................ 29

Navigating to a Geocache................ 29

Using Hints and Clues to find a

Geocache....................................... 29

Logging the Attempt......................... 30

chirp................................................... 30

Enabling chirp Searching.............. 30

Finding a Geocache with a chirp.. 30

Removing Live Geocache Data from

the Device.......................................... 30

Removing Your Device Registration

From Geocaching.com..................... 30

Setting a Proximity Alarm..................... 30

ii Table of Contents

Editing or Deleting a Proximity

Alarm.................................................. 31

Sending and Receiving Data

Wirelessly.............................................. 31

Selecting a Profile................................. 31

Calculating the Size of an Area............ 31

Using the VIRB Remote.........................31

Using the Flashlight.............................. 32

Satellite Page........................................ 32

GPS Satellite Settings....................... 32

Customizing the Device.................. 32

Customizing the Data Fields................ 32

Setup Menu........................................... 33

System Settings................................ 33

Satellite Settings............................34

Serial Interface Settings................ 34

Display Settings................................. 34

Changing the Color Mode............. 34

Bluetooth Settings............................. 35

Wi‑Fi Settings..................................... 35

Routing Settings................................ 35

Setting the Device Tones.................. 35

Geocaching Settings......................... 36

Wireless Sensors............................... 36

Pairing Your Wireless Sensors..... 36

Fitness Settings................................. 36

Marking Laps by Distance.............36

Marine Settings................................. 37

Setting Up Marine Alarms............. 37

Menu Settings....................................37

Customizing the Main Menu......... 37

Changing the Page Sequence.......38

Configuring the Page Ribbon

Display............................................ 38

Position Format Settings.................. 38

Changing the Units of Measure........ 38

Time Settings.................................... 39

Profiles............................................... 39

Creating a Custom Profile.............39

Editing a Profile Name.................. 39

Deleting a Profile........................... 39

Resetting Data and Settings............. 39

Restoring Default Page Settings.. 39

Device Information......................... 40

Product Updates................................... 40

Setting Up Garmin Express............... 40

Getting More Information..................... 40

Battery Information............................... 40

Maximizing Battery Life.................... 40

Turning On Battery Save Mode.........40

Turning On Expedition Mode............ 41

Long-Term Storage........................... 41

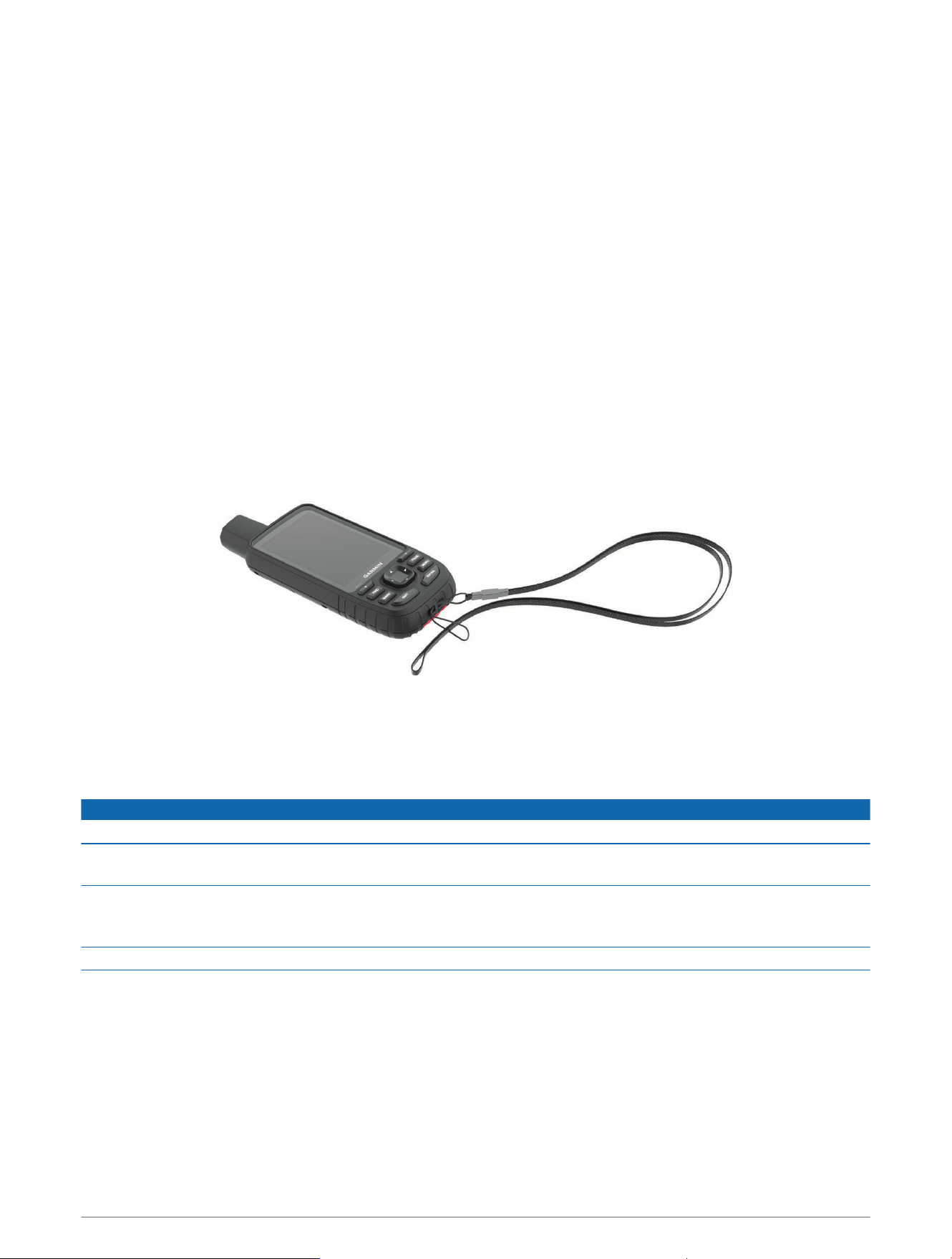

Attaching a Lanyard.............................. 41

Device Care............................................41

Cleaning the Device...........................41

Data Management................................ 41

File Types........................................... 42

Installing a Memory Card..................42

Connecting the Device to Your

Computer........................................... 42

Transferring Files to Your Device..... 43

Deleting Files..................................... 43

Disconnecting the USB Cable........... 43

Specifications........................................44

Viewing E-label Regulatory and

Compliance Information....................... 44

Appendix........................................ 45

Data Fields............................................. 45

Getting More Information..................... 47

Optional Accessories............................ 47

tempe................................................. 48

Tips for Pairing ANT+ Accessories

with Your Garmin Device...................48

About Heart Rate Zones....................... 48

Fitness Goals..................................... 48

Heart Rate Zone Calculations...........48

Table of Contents iii

Introduction

WARNING

See the Important Safety and Product Information guide in the product box for product warnings and other

important information.

GPSMAP 86s/sc Device Overview

Internal and GNSS antenna

Power button

Buttons

Micro-USB port (under weather cap)

Flashlight

microSD

card slot (under weather cap)

Mounting spine

Introduction 1

GPSMAP 86i/sci Device Overview

Internal Iridium

and GNSS antenna

Power button

SOS button

Keypad

Micro-USB port (under weather cap)

Flashlight

microSD card slot (under weather cap)

Mounting spine

2 Introduction

Buttons

FIND

Select to open the search menu.

Hold to mark your current location as a man overboard (MOB) location and activate navigation.

MARK Select to save your current location as a waypoint.

QUIT

Select to cancel or return to the previous menu or page.

Select to scroll through the main pages.

ENTER

Select to choose options and acknowledge messages.

Select to control the current activity recording (from the Map, Compass, Altimeter, and Trip

Computer pages).

Select to open the options menu for the page that is currently open.

Select twice to open the main menu (from any page).

PAGE Select to scroll through the main pages.

Select , , , or to select menu options and move the map cursor.

Select to zoom in on the map.

Select to zoom out on the map.

Turning On the Device

Hold .

Locking the Keys

You can lock the keys to prevent inadvertent key presses.

Select > Lock Keys.

Turning On the Backlight

Select any key to turn on the backlight.

The backlight turns on automatically when alerts and messages are displayed.

Introduction 3

Adjusting the Backlight

1 Select to open the status page.

2 Use and to adjust the brightness.

TIP: You can select NV to reduce the backlight intensity for compatibility with night vision goggles.

Charging the Device

NOTICE

To prevent corrosion, thoroughly dry the USB port, the weather cap, and the surrounding area before charging or

connecting to a computer.

Do not charge the device using the USB port in wet conditions. For all-weather charging, use the optional spine

mount accessory (buy.garmin.com).

NOTE: The device does not charge when it is outside the approved temperature range (Specifications,

page44).

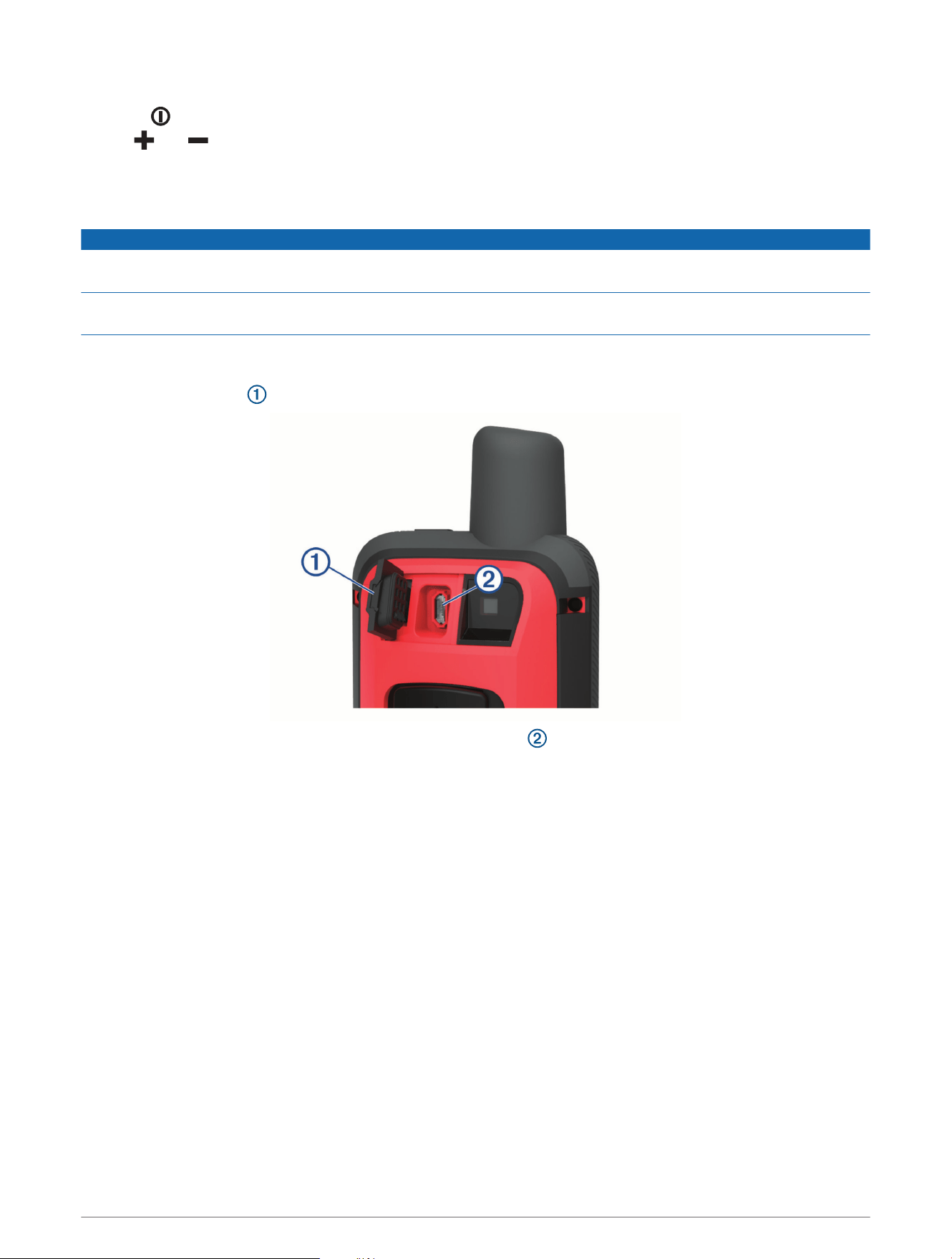

1 Lift the weather cap .

2 Plug the small end of the power cable into the charging port on the device.

3 Plug the other end of the power cable into a compatible 5 V AC power adapter.

4 Plug the AC power adapter into a standard wall outlet.

5 Charge the device completely.

Saving Energy While Charging the Device

1 Connect your device to an external power source.

2 Hold the power button until the screen turns off.

The device goes into a low power, battery charging mode, and the battery gauge appears.

3 Charge the device completely.

4 Introduction

Activating the Device

To get the most out of your GPSMAP 86i/sci device, you should activate it. Activating the device allows you to

use inReach

features, including messaging, SOS, tracking, and inReach Weather.

1 Create an account, and select a satellite subscription at explore.garmin.com.

2 Turn on the device.

NOTE: You must enter the device IMEI number and AUTH code to complete the online portion of activation

before heading outdoors.

3 Follow the on-screen instructions.

4 From the main menu, select Activate, and go outdoors to an open area with a clear view of the sky.

5 Wait while the device communicates with the Iridium satellite network.

NOTE: It may take up to 20 minutes to activate your device. The device must send and receive several

messages, which takes longer than sending a single message during regular use.

Iridium Satellite Network

Your device requires a clear view of the sky to transmit messages and track points over the Iridium satellite

network. Without a clear view of the sky, your device attempts to send the information until it acquires satellite

signals.

TIP: For the best connection with satellites, hold the device with the antenna pointed toward the sky.

inReach Features

WARNING

Messaging, tracking, and SOS functions require an active satellite subscription. Always test your device before

you use it outdoors.

Ensure you have a clear view of the sky when using the messaging, tracking, and SOS functions, because these

features require satellite access to operate properly.

inReach features are available only on the GPSMAP 86i/sci device. To get the most out of your GPSMAP 86i/sci

device, you should activate it. Activating the device allows you to use inReach features, including messaging,

SOS, tracking, and inReach Weather.

Messages

Your GPSMAP 86i/sci device sends and receives text messages using the Iridium satellite network. You can

send messages to an SMS phone number, an email address, or another device that uses inReach technology.

Each message you send includes your location details where allowed.

Sending a Preset Message

Preset messages are messages that you created at explore.garmin.com. Preset messages have predefined text

and recipients.

1 From the Messages page, select Send Preset.

2 Choose a preset message, and press ENTER.

3 Press ENTER to send the message.

inReach Features 5

Sending a Text Message

1 From the Messages page, select New Message.

2 Select an option:

• To start with a pre-written message, select Send Quick Text.

NOTE: You can add and edit quick text messages on the Garmin Explore

™

website.

• To write a custom message, select Type Message.

3 Choose recipients from your contacts list, or enter a recipient's contact information.

4 After you have finished your message, select Send Message.

Using Keyboard Shortcuts

• To select the first autocomplete option, select FIND.

• To cycle through keyboards, select MARK.

• To change character case, select PAGE once, and to turn on caps lock, select PAGE twice.

• To insert a backspace, select .

• To insert a space, select .

Replying to a Message

1 From the Messages page, select a conversation.

2 Select Reply.

3 Select an option:

• To write a custom message, select Type Message.

• To start with a pre-written message, select Send Quick Text and select a message.

4 When you have finished your message, select Send Message.

Checking for Messages

When you send a message, your device listens for replies for 10 minutes. The device also checks for new

messages every hour. When you are using the inReach tracking feature, your device automatically checks for

messages at your tracking interval.

NOTE: Your device must be in view of a satellite at the time of the listen to receive messages.

You can force a check for messages by manually checking for messages, sending a message, or sending a

track point. During a check, your device connects to satellites and receives messages waiting to be sent to your

device.

From the main menu, select inReach Utilities > Mail Check > Check Mailbox.

Viewing Message Details

1 Select Messages.

2 Select a conversation.

3 Select a message.

4 Select the information tab.

Navigating to a Message Location

When you receive a message from another device with inReach technology, the message may include location

information. For these messages, you can navigate to the location from which the message was sent.

1 Select Messages.

2 Select a conversation with location information.

3 Select the map tab.

4 Select Go.

6 inReach Features

Including Location Coordinates in a Message

If you are sending a message to a recipient who may not have internet access, you can include your location

coordinates in the message. For example, if your recipient has an older model cell phone that does not support

viewing maps or is outside of a mobile data coverage area and cannot view a web page.

1 From the Messages page, select New Message > Send Location.

2 Enter one or more recipients.

3 If necessary, enter a message.

4 Select Send Message.

Deleting Messages

1 From the Messages page, select a conversation.

2 Select MENU > Delete Thread.

Messages Settings

Select Setup > Messages.

Ring Until Read: Sets the device to ring until you read a new message. This feature is helpful if you are in a noisy

environment.

Notifications: Alerts you to incoming inReach messages.

Tracking

You can use the tracking feature on your GPSMAP 86i/sci device to record track points and transmit them over

the Iridium satellite network at the specified send interval. Track points appear on the Garmin Explore website

and the MapShare

™

tracking page.

Starting Tracking

From the main menu, select Tracking > Start Tracking.

NOTE: Starting the Tracking feature also starts the recording controls.

Stopping Tracking

From the Tracking page, select Stop Tracking.

Sharing Your MapShare Web Page

You can share a link to your MapShare web page with other people. The system automatically adds text,

including link information, to the end of your message.

1 From the Tracking page, select Send MapShare > Share.

2 Choose recipients from your contacts list, or enter a recipient's contact information.

3 Select Send Message.

inReach Tracking Settings

Select Setup > Tracking.

Auto Track: Sets the device to start tracking when you turn on the device.

Moving Interval: Sets the frequency at which the device records a track point and transmits it over the satellite

network when you are moving. If you are a professional customer, you can specify the interval when you are

stationary.

inReach Features 7

SOS

WARNING

Before you can use the SOS function, you must have an active satellite subscription. Always test your device

before you use it outdoors.

Ensure you have a clear view of the sky when using the SOS function, because this feature requires satellite

access to operate properly.

NOTICE

Some jurisdictions regulate or prohibit the use of satellite communications devices. It is the responsibility of the

user to know and follow all applicable laws in the jurisdictions where the device is intended to be used.

During an emergency, you can use your GPSMAP 86i/sci device to contact the Garmin Response

center

to request help. Pressing the SOS button sends a message to the Garmin Response team, and they notify

the appropriate emergency responders of your situation. You can communicate with the Garmin Response

team during your emergency while you wait for help to arrive. You should only use the SOS function in a real

emergency situation.

Initiating an SOS Rescue

You can initiate an SOS rescue with the device turned on or off if the device has battery power.

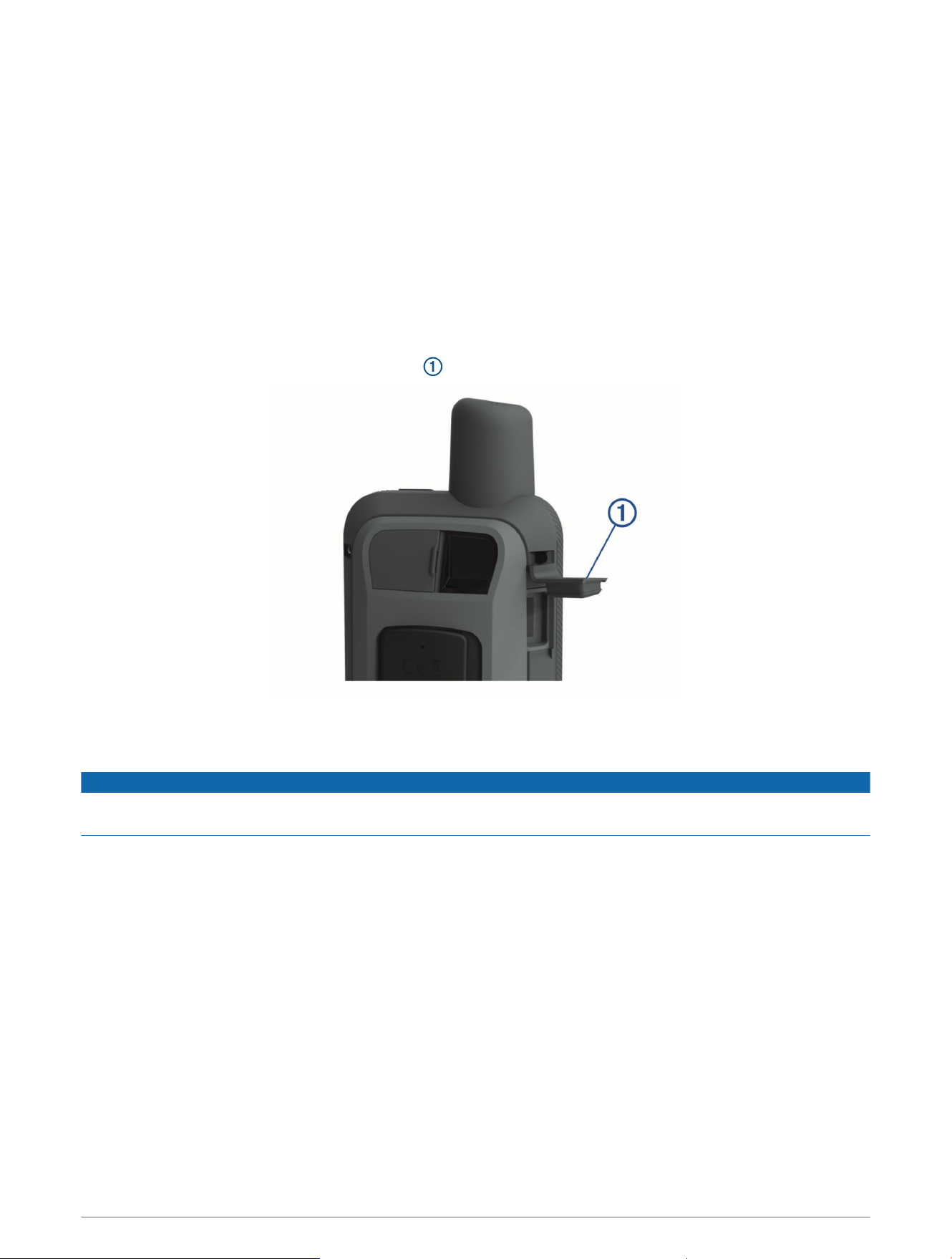

1 Lift the protective cap from the SOS button .

2 Press and hold the SOS button.

3 Wait for the SOS countdown.

The device sends a default message to the emergency response service with details about your location.

4 Reply to the confirmation message from the emergency response service.

Your reply lets the emergency response service know that you are capable of interacting with them during

the rescue. If you do not reply, the emergency response service will still initiate a rescue.

For the first 10 minutes of your rescue, an updated location is sent to the emergency response service every

minute. To conserve battery power after the first 10 minutes, an updated location is sent every 10 minutes.

8 inReach Features

Sending a Custom SOS Message

After pressing the SOS button to initiate an SOS rescue, you can reply with a custom message using the SOS

page.

1 From the main menu, select SOS > Reply.

2 Select Type Message to compose a custom SOS message.

3 Select Send Message.

Your reply lets the emergency response service know that you are capable of interacting with them during the

rescue.

Canceling an SOS Request

If you no longer need assistance, you can cancel an SOS request after it is sent to the emergency response

service.

1 Lift the protective cap, and hold the SOS button.

2 Select Cancel SOS.

3 When prompted to confirm your cancellation request, select Cancel SOS.

Your device transmits the cancellation request. When you receive a confirmation message from the

emergency response service, the device returns to normal operation.

Testing the Device

You should test the device outdoors before using it on a trip to ensure your satellite subscription is active.

From the main menu, select inReach Utilities > Communications Test > Test.

Wait while the device sends a test message. When you receive a confirmation message, your device is ready

to use.

Syncing inReach Data

You can sync data from your Garmin Explore account to your device using the Garmin Explore app. After you

make edits to your data, such as contacts, preset messages, or quick text messages, you must sync them to

your device using the mobile app.

Open the Garmin Explore app.

Changes made to data such as collections, waypoints, routes, and tracks update automatically.

You can now sync your data to your GPSMAP 86i/sci device.

Contacts

You can add, delete, and edit contacts on the GPSMAP 86i/sci device.

Adding a Contact

1 Select Setup > Contacts > New Contact.

2 Select an item to edit.

3 Enter the new information.

Editing a Contact

1 Select Setup > Contacts.

2 Select a contact.

3 Select an item to edit.

4 Enter the new information.

Testing the Device 9

Deleting a Contact

1 Select Setup > Contacts.

2 Select a contact.

3 Select MENU > Delete Contact.

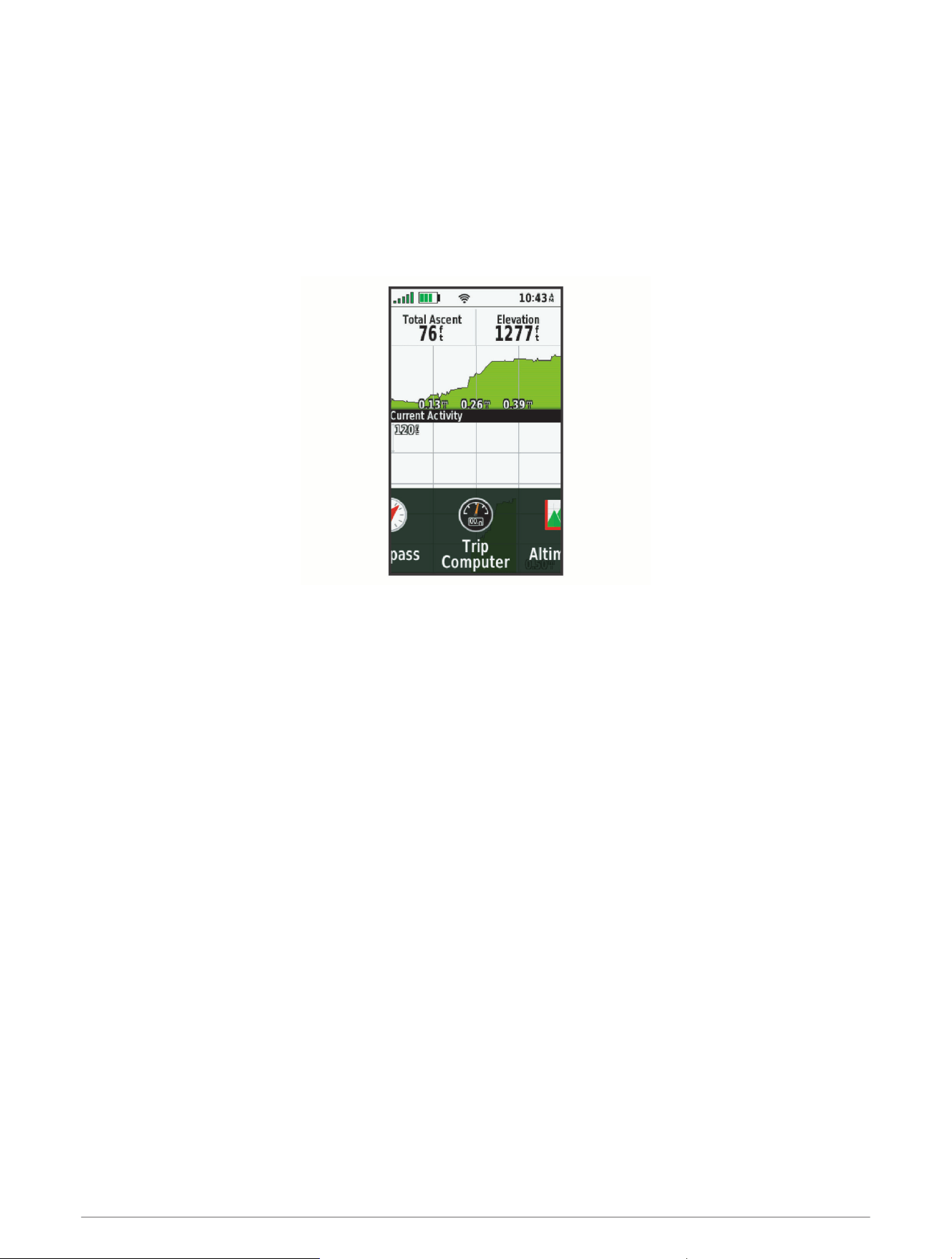

Using the Main Pages

The information needed to operate this device is found on the main menu, map, compass, trip computer, and

altimeter pages.

Select PAGE or QUIT to scroll through the main pages.

Opening the Main Menu

The main menu gives you access to tools and setup screens for waypoints, activities, routes, and more (Main

Menu Tools, page26, Setup Menu, page33).

From any page, select MENU twice.

Map

represents your location on the map. As you travel, moves and displays your path. Depending on your zoom

level, waypoint names and symbols may appear on the map. You can zoom in on the map to see more detail.

When you are navigating to a destination, your route is marked with a colored line on the map.

Changing the Map Orientation

1 From the map, select MENU.

2 Select Map Setup > Orientation.

3 Select an option:

• Select North Up to show north at the top of the page.

• Select Track Up to show your current direction of travel at the top of the page.

• Select Automotive Mode to show an automotive perspective with the direction of travel at the top.

Measuring Distance on the Map

You can measure the distance between multiple locations.

1 From the map, move the cursor to a location.

2 Select MENU > Measure Distance.

3 Select additional locations on the map.

Map Page Settings

From the map, select MENU.

Stop Navigation: Stops navigating the current route.

Map Setup: Enables you to open additional map settings (Map Settings, page11).

Marine Setup: Allows you to configure the marine settings (Marine Settings, page37).

Measure Distance: Allows you to measure the distance between multiple locations (Measuring Distance on the

Map, page10).

Restore Defaults: Restores the map to factory default settings.

10 Using the Main Pages

Map Settings

From the map, select MENU, and select Map Setup.

Configure Maps: Enables or disables the maps currently loaded on the device.

Orientation: Adjusts how the map is shown on the page (Changing the Map Orientation, page10).

Dashboard: Sets a dashboard to display on the map. Each dashboard shows different information about your

route or your location.

Guidance Text: Sets when the guidance text is shown on the map.

Advanced Setup: Enables you to open advanced map settings (Advanced Map Settings, page11).

Advanced Map Settings

From the map, select MENU, and select Map Setup > Advanced Setup.

Auto Zoom: Automatically selects the appropriate zoom level for optimal use on your map. When Off is

selected, you must zoom in or out manually.

Detail: Selects the amount of detail shown on the map. Showing more detail may cause the map to redraw more

slowly.

Shaded Relief: Shows detail relief on the map (if available) or turns off shading.

Vehicle: Sets the position icon, which represents your position on the map. The default icon is a small blue

triangle.

Zoom Levels: Adjusts the zoom level at which map items appear. The map items do not appear when the map

zoom level is higher than the selected level.

Text Size: Selects the text size for map items.

Compass

When navigating, points to your destination, regardless of the direction you are moving. When points

toward the top of the electronic compass, you are traveling directly toward your destination. If points any

other direction, turn until it points toward the top of the compass.

Using the Compass

You can use the compass to navigate an active route.

1 Hold the device level.

2 Follow to your destination.

Using the Main Pages 11

Course Pointer

The course pointer is most useful when you are navigating on water or where there are no major obstacles in

your path. It can also help you avoid hazards near the course, such as shoals or submerged rocks.

To enable the course pointer, from the compass, select MENU > Heading Setup > Go To Line (Pointer) > Course

(CDI).

The course pointer indicates your relationship to the course line leading to the destination. The course

deviation indicator (CDI) provides the indication of drift (right or left) from the course. The scale refers to

the distance between dots on the course deviation indicator, which tell you how far off course you are.

Navigating with Sight 'N Go

You can point the device at an object in the distance, lock in the direction, and navigate to the object.

1 Select Sight 'N Go.

2 Point the device at an object.

3 Select Lock Direction > Set Course.

4 Navigate using the compass.

Compass Settings

From the compass, select MENU.

Sight 'N Go: Allows you to point the device at an object in the distance, and navigate using the object as a

reference point (Navigating with Sight 'N Go, page12).

Stop Navigation: Stops navigating the current route.

Change Dashboard: Changes the theme and information displayed on the dashboard.

Set Scale: Sets the scale for the distance between the dots on the course deviation indicator.

Calibrate Compass: Allows you to calibrate the compass if you experience irregular compass behavior, for

example, after moving long distances or after extreme temperature changes (Calibrating the Compass,

page13).

Heading Setup: Allows you to customize the compass heading settings (Heading Settings, page13).

Change Data Fields: Customizes the compass data fields.

Restore Defaults: Restores the compass to factory default settings.

12 Using the Main Pages

Calibrating the Compass

Before you can calibrate the electronic compass, you must be outdoors, away from objects that influence

magnetic fields, such as cars, buildings, or overhead power lines.

The device has a 3-axis electronic compass. You should calibrate the compass after moving long distances or

experiencing temperature changes.

1 From the compass, select MENU.

2 Select Calibrate Compass > Start.

3 Follow the on-screen instructions.

Heading Settings

From the compass, select MENU, and select Heading Setup.

Display: Sets the type of directional heading shown on the compass.

North Reference: Sets the north reference used on the compass.

Go To Line (Pointer): Sets the behavior of the pointer that appears on the map. Bearing points in the direction of

your destination. Course shows your relationship to the course line leading to the destination.

Compass: Automatically switches from an electronic compass to a GPS compass when you are traveling at a

higher rate of speed for a period of time.

Calibrate Compass: Allows you to calibrate the compass if you experience irregular compass behavior, for

example, after moving long distances or after extreme temperature changes (Calibrating the Compass,

page13).

Trip Computer

The trip computer displays your current speed, average speed, trip odometer, and other helpful statistics. You

can customize the trip computer layout, dashboard, and data fields.

Trip Computer Settings

From the trip computer, select MENU.

Reset: Resets all the trip computer values to zero. For accurate information, reset the trip information before

beginning a trip.

Change Data Fields: Customizes the trip computer data fields.

Change Dashboard: Changes the theme and information displayed on the dashboard.

NOTE: Your customized settings are remembered by the dashboard. Your settings are not lost when you

change profiles (Profiles, page39).

Insert Page: Inserts an additional page of customizable data fields.

TIP: You can use the arrow keys to scroll through the pages.

Remove Page: Removes an additional page of customizable data fields.

More Data: Adds additional data fields to the trip computer.

Less Data: Removes data fields from the trip computer.

Restore Defaults: Restores the trip computer to factory default settings.

Altimeter

By default, the altimeter displays the elevation over the distance traveled. You can customize altimeter settings

(Altimeter Settings, page14). You can select any point on the plot to view details about that point.

Using the Main Pages 13

Altimeter Plot Settings

From the altimeter, select MENU.

Reset: Resets the altimeter data, including waypoint, track, and trip data.

Altimeter Setup: Access additional altimeter settings (Altimeter Settings, page14).

Adjust Zoom Ranges: Adjusts the zoom ranges shown on the altimeter page.

Change Data Fields: Allows you to customize the altimeter data fields.

Restore Defaults: Restores the altimeter to factory default settings.

Altimeter Settings

From the altimeter, select MENU > Altimeter Setup.

Auto Calibration: Once allows the altimeter to automatically calibrate one time when you start an activity.

Continuous allows the altimeter to calibrate throughout the duration of your activity.

Barometer Mode: Variable Elevation allows the barometer to measure changes in elevation while you are

moving. Fixed Elevation assumes the device is stationary at a fixed elevation, so the barometric pressure

should only change due to weather.

Pressure Trending: Sets how the device records pressure data. Save Always records all pressure data, which

can be helpful when you are watching for pressure fronts.

Plot Type: Records elevation changes over a period of time or distance, records barometric pressure over a

period of time, or records ambient pressure changes over a period of time.

Calibrate Altimeter: Allows you to manually calibrate the barometric altimeter (Calibrating the Barometric

Altimeter, page14).

Calibrating the Barometric Altimeter

You can manually calibrate the barometric altimeter if you know the correct elevation or the correct barometric

pressure.

1 Go to a location where the elevation or barometric pressure is known.

2 From the altimeter, select MENU.

3 Select Altimeter Setup > Calibrate Altimeter.

4 Select Method to select the measurement to use in calibration.

5 Enter the measurement.

6 Select Calibrate.

14 Using the Main Pages

Connected Features

Connected features are available for your GPSMAP 86 device when you connect the device to a wireless

network or a compatible smartphone using Bluetooth

technology. Some features require you to install the

Garmin Connect

™

app or Garmin Explore app on your smartphone. Go to garmin.com/apps for more information.

Bluetooth sensors: Allows you to connect Bluetooth compatible sensors, such as a heart rate monitor.

Connect IQ

™

: Allows you to extend your device features with widgets, data fields, and apps using the Connect IQ

app.

EPO Downloads: Allows you to download an extended prediction orbit file to quickly locate GPS satellites and

reduce the time it takes to get an initial GPS fix using the Garmin Connect app or when connected to a Wi‑Fi

network.

BirdsEye imagery: Allows you to download BirdsEye Satellite Imagery directly to your device when connected to

a Wi‑Fi network.

Garmin Explore: The Garmin Explore app syncs and shares waypoints, tracks, and routes with your device. You

can also download maps to your smartphone for offline access.

Live Geocache Data: Provides paid or subscription-free services to view live geocache data from www

.geocaching.com using the Garmin Connect app or when connected to a Wi‑Fi network.

Tracking: Allows you to record track points and transmit them over the Iridium satellite network. You can invite

contacts by sending them an inReach message from the field. This feature allows your contacts to view your

live data on a MapShare tracking page using your Garmin Explore account.

Phone notifications: Displays phone notifications and messages on your GPSMAP 86 device using the Garmin

Connect app.

Software Updates: Allows you to receive updates for your device software using the Garmin Connect app or

when connected to a Wi‑Fi network.

Active Weather: Allows you to view current weather conditions and weather forecasts using the Garmin

Connect app or when connected to a Wi‑Fi network.

inReach Weather: Allows you to receive weather information through your inReach subscription. You can

request a basic, premium, or marine weather forecast.

Connected Feature Requirements

Some features require a smartphone and a specific app on your smartphone.

Feature

Connected to a Paired Smartphone with

the Garmin Connect App

Connected to a Wi‑Fi Network

Activity uploads to Garmin Connect Yes Yes

Software updates Yes Yes

EPO downloads Yes Yes

Live geocache data Yes Yes

Weather Yes Yes

Phone notifications Yes

Connect IQ Yes No

BirdsEye Direct imagery No Yes

The device receives phone notifications from a paired iOS

phone directly, and through the Garmin Connect app on an Android

™

phone.

Connected Features 15

Pairing a Smartphone with Your Device

1 Bring your compatible smartphone within 10m (33ft.) of your device.

2 From the main menu on your device, select Setup > Bluetooth.

3 On your compatible smartphone, enable Bluetooth technology, and open Garmin Connect or Garmin Explore.

4 Follow the on-screen instructions in Garmin Connect or Garmin Explore to pair your device.

Phone Notifications

This feature is not available for all device models.

Phone notifications require a compatible smartphone to be in range and paired with the device. When your

phone receives messages, it sends notifications to your device.

Viewing Phone Notifications

Before you can view notifications, you must pair your device with your compatible smartphone.

1 Select > Notifications.

2 Select a notification.

Hiding Notifications

By default, notifications appear on the device screen when they are received. You can hide notifications to

prevent them from appearing.

Select Setup > Bluetooth > Notifications > Hide.

Managing Notifications

You can use your compatible smartphone to manage notifications that appear on your GPSMAP 86 device.

Select an option:

• If you are using an iPhone

device, go to the iOS notifications settings to select the items to show on the

device.

• If you are using an Android smartphone, from the Garmin Connect app, select Settings > Smart

Notifications.

Connecting to a Wireless Network

1 Select Setup > Wi-Fi.

2 Select the toggle switch to enable Wi‑Fi technology, if necessary.

3 Select Add Network.

4 Select a wireless network from the list and enter the password, if necessary.

The device stores the network information and connects automatically when you return to this location.

Connect IQ Features

You can add Connect IQ features to your device from Garmin

and other providers using the Connect IQ app.

You can customize your device with data fields, widgets, and apps.

Data Fields: Allow you to download new data fields that present sensor, activity, and history data in new ways.

You can add Connect IQ data fields to built-in features and pages.

Widgets: Provide information at a glance, including sensor data and notifications.

Apps: Add interactive features to your device, such as new outdoor and fitness activity types.

16 Connected Features

Downloading Connect IQ Features

Before you can download features from the Connect IQ app, you must pair your GPSMAP 86 device with your

smartphone (Pairing a Smartphone with Your Device, page16).

1 From the app store on your smartphone, install and open the Connect IQ app.

2 If necessary, select your device.

3 Select a Connect IQ feature.

4 Follow the on-screen instructions.

Downloading Connect IQ Features Using Your Computer

1 Connect the device to your computer using a USB cable.

2 Go to apps.garmin.com, and sign in.

3 Select a Connect IQ feature, and download it.

4 Follow the on-screen instructions.

Viewing Connect IQ Widgets

1 Select .

2 Select or to scroll through the widgets.

Controlling and Viewing Compatible Marine Devices

You can use the GPSMAP 86 device to control a compatible autopilot, control a compatible Fusion

stereo, and

view your boat data.

1 Select Connect IQ.

2 Select an option.

• To control a compatible autopilot, select Autopilot to control a compatible autopilot

• To control a compatible Fusion stereo, select FUSION-Link.

• To view streaming boat data such as fuel sensor information from a Garmin marine compatible device,

select Boat Data.

3 Follow the on-screen instructions.

Garmin Explore

The Garmin Explore website and mobile app allow you to plan trips and use cloud storage for your waypoints,

routes, and tracks. They offer advanced planning both online and offline, allowing you to share and sync data

with your compatible Garmin device. You can use the mobile app to download maps for offline access, and then

navigate anywhere without using your cellular service.

You can download the Garmin Explore app from the app store on your smartphone, or you can go to explore

.garmin.com.

Navigation

Navigating to a Destination

1 Select FIND.

2 Select a category.

3 Select a destination.

4 Select Go.

Your route appears as a magenta line on the map.

5 Navigate using the map (Navigating with the Map, page18) or compass (Navigating with the Compass,

page18).

Navigation 17

Navigating with the Map

1 Begin navigating to a destination (Navigating to a Destination, page17).

2 Select Map.

A blue triangle represents your location on the map. As you travel, the blue triangle moves and displays your

path.

3 Complete one or more actions:

• To view different areas of the map, select , , , or .

• To zoom in and out of the map, select and .

Navigating with the Compass

When navigating to a destination, points to your destination, regardless of the direction you are moving.

1 Begin navigating to a destination (Navigating to a Destination, page17).

2 Select Compass.

3 Turn until points toward the top of the compass, and continue moving in that direction to the destination.

Stopping Navigation

Select FIND > Stop Navigation.

Waypoints

Waypoints are locations you record and store in the device. Waypoints can mark where you are, where you are

going, or where you have been. You can add details about the location, such as name, elevation, and depth.

You can add a .gpx file that contains waypoints by transferring the file to the GPX folder (Transferring Files to

Your Device, page43).

Saving Your Current Location as a Waypoint

1 Select MARK.

2 If necessary, select a field to edit the waypoint.

3 Select Save.

Saving a Location on the Map as a Waypoint

You can save a location on the map as a waypoint.

1 From the map, move the cursor to a location.

An information bar appears at the top of the screen.

2 Select ENTER.

3 Select MENU > Save as Waypoint.

Navigating to a Waypoint

1 Select FIND > Waypoints.

2 Select a waypoint.

3 Select Go.

By default, your route to the waypoint appears as a straight, colored line on the map.

18 Navigation

Finding a Waypoint

1 Select Waypoint Manager.

2 Select a waypoint from the list.

3 If necessary, select MENU to narrow the search.

4 Select an option:

• Select Spell Search to search using the name of the waypoint.

• Select Select Symbol to search using the symbol of the waypoint.

• Select Search Near to search near a recently found location, another waypoint, your current location, or a

point on the map.

• Select Sort to view the list of waypoints based on nearest distance or alphabetical order.

Editing a Waypoint

1 Select Waypoint Manager.

2 Select a saved waypoint.

3 Select an item to edit, such as the name or location.

4 Enter the new information, and select Done.

Deleting a Waypoint

1 Select Waypoint Manager.

2 Select a waypoint.

3 Select MENU > Delete.

Increasing the Accuracy of a Waypoint Location

You can refine the accuracy of a waypoint location by averaging the location data. When averaging, the device

takes several GPS readings at the same location and uses the average value to provide more accuracy.

1 Select Waypoint Manager.

2 Select a waypoint.

3 Select MENU > Average Location.

4 Move to the waypoint location.

5 Select Start.

6 Follow the on-screen instructions.

7 When the confidence status bar reaches 100%, select Save.

For best results, collect four to eight samples for the waypoint, waiting at least 90 minutes between samples.

Projecting a Waypoint from a Saved Waypoint

You can save a new waypoint by projecting the distance and bearing from a saved waypoint to a new location.

1 Select Waypoint Manager.

2 Select a waypoint.

3 Select MENU > Project Waypoint.

4 Enter the bearing, and select Done.

5 Select a unit of measure.

6 Enter the distance, and select Done.

7 Select Save.

Navigation 19

Moving a Waypoint on the Map

1 Select Waypoint Manager.

2 Select a waypoint.

3 Select MENU > Move Waypoint.

4 Select a location on the map.

5 Select Move.

Finding a Location Near a Waypoint

1 Select Waypoint Manager.

2 Select a waypoint.

3 Select MENU > Find Near Here.

4 Select a category.

The list displays locations near the selected waypoint.

Setting a Waypoint Proximity Alarm

You can add a proximity alarm for a waypoint. Proximity alarms alert you when you are within a specified range

of a particular location.

1 Select Waypoint Manager.

2 Select a waypoint.

3 Select MENU > Set Proximity.

4 Enter the radius.

When you enter an area with a proximity alarm, the device sounds a tone.

Adding a Waypoint to a Route

1 Select Waypoint Manager.

2 Select a waypoint.

3 Select MENU > Add to Route.

4 Select a route.

Repositioning a Waypoint to Your Current Location

You can change the position of a waypoint. For example, if you move your vehicle, you can change the location

to your current position.

1 Select Waypoint Manager.

2 Select a waypoint.

3 Select MENU > Reposition Here.

The waypoint location changes to your current location.

Routes

A route is a sequence of waypoints or locations that leads you to your final destination.

Creating a Route

1 Select Route Planner > Create Route > Select First Point.

2 Select a category.

3 Select the first point in the route.

4 Select Use.

5 Select Select Next Point to add additional points to the route.

6 Select QUIT to save the route.

20 Navigation

Navigating a Saved Route

1 Select FIND > Routes.

2 Select a route.

3 Select Go.

By default, your route appears as a straight, colored line on the map.

Viewing the Active Route

1 While navigating a route, select Active Route.

2 Select a point in the route to view additional details.

Editing a Route

You can add, remove, or rearrange points on a route.

1 Select Route Planner.

2 Select a route.

3 Select Edit Route.

4 Select a point.

5 Select an option:

• To view the point on the map, select Review.

• To change the order of the points on the route, select Move Up or Move Down.

• To insert an additional point on the route, select Insert.

The additional point is inserted before the point you are editing.

• To remove the point from the route, select Remove.

6 Select QUIT to save the route.

Viewing a Route on the Map

1 Select Route Planner.

2 Select a route.

3 Select View Map.

Viewing the Elevation Plot of a Route

1 Select Route Planner.

2 Select a route.

3 Select Elevation Plot.

Editing the Name of a Route

You can customize the name of a route to make it distinct.

1 Select Route Planner.

2 Select a route.

3 Select Change Name.

4 Enter the new name.

Reversing a Route

You can switch the start and end points of your route to navigate the route in reverse.

1 Select Route Planner.

2 Select a route.

3 Select Reverse Route.

Navigation 21

Deleting a Route

1 Select Route Planner.

2 Select a route.

3 Select Delete Route.

Recordings

Your device records your path as an activity. Activities contain information about points along your recorded

path, including time, location, and elevation for each point.

Recording Settings

Select Setup > Recording.

Record Method: Sets the recording method. The Auto option records points at a variable rate to create an

optimum representation of your path. You can also record points at specific time or distance intervals.

Interval: Sets the recording rate. Recording points more frequently creates a more-detailed path, but fills the

recording log faster.

Auto Pause: Sets the device to stop recording your path when you are not moving.

Auto Start: Sets the device to start a new recording automatically when the previous recording ends.

Activity Type: Sets the default activity type for the device.

Advanced Setup: Enables you to open additional recording settings (Advanced Recording Settings, page22).

Advanced Recording Settings

Select Setup > Recording > Advanced Setup.

Output Format: Sets the device to save the recording as a FIT or a GPX/FIT file (File Types, page42). The FIT

option records your activity with fitness information that is tailored for the Garmin Connect application and

can be used for navigation. The FIT and GPX option records your activity as both a traditional track that can

be viewed on the map and used for navigation, and as an activity with fitness information.

GPX Auto Archive: Sets an automatic archive method to organize your recordings. Recordings are saved and

cleared automatically.

Trip Recording: Sets a trip recording option.

Recorded Data Reset: Sets a reset option. The Activity and Trip option resets the recording and trip data when

you finish the active recording. The Prompted option prompts you to select the data to reset.

Viewing the Current Activity

By default, the device automatically starts recording your path as an activity when it is turned on and has

acquired satellite signals. You can pause and start recording manually.

1 Select Recording Controls.

2 Select and to view an option:

• To control the current activity recording, select .

• To view data fields for the activity, select .

• To view the current activity on the map, select .

• To view the elevation plot for the current activity, select .

22 Navigation

Navigating Using TracBack

While recording, you can navigate back to the beginning of your activity. This can be helpful when finding your

way back to camp or the trail head.

1 Select Recording Controls.

2 Select to switch to the map tab.

3 Select TracBack.

The map displays your route with a magenta line, start point, and end point.

4 Navigate using the map or the compass.

Stopping the Current Activity

1 From the main pages, select ENTER > Stop.

2 Select an option:

• To resume recording, select Resume.

• To save the activity, select .

• To delete the activity and reset the trip computer, select .

Navigating a Saved Activity

1 Select FIND > Recorded Activities.

2 Select an activity.

3 Select Go.

Deleting a Saved Activity

1 Select Recorded Activities.

2 Select an activity.

3 Select MENU > Delete.

Reversing an Activity

You can switch the start and end points of your activity to navigate the activity in reverse.

1 Select Recorded Activities.

2 Select an activity.

3 Select MENU > Copy Reversed.

Creating a Track from a Saved Activity

You can create a track from a saved activity. This allows you to share your track wirelessly with other

compatible Garmin devices.

1 Select Recorded Activities.

2 Select an activity.

3 Select MENU > Save as Track.

Weather

Active Weather: While your GPSMAP 86 device is connected to your smartphone or to a Wi‑Fi network and

has an active internet connection, it can receive detailed weather information from the internet. This feature

provides hourly and daily forecasts and live graphical weather maps.

inReach Weather: Your GPSMAP 86i/sci can receive weather information through your inReach

subscription.Your device can send an inReach message to request basic, premium, or marine weather

forecasts. You can receive weather forecasts for your current location, a waypoint, GPS coordinates, or a

location you choose on the map.

Weather 23

Requesting an inReach Weather Forecast

For the best results, you should ensure your device has a clear view of the sky when you request an inReach

weather forecast.

Your device can send a message to request a basic, premium, or marine weather forecast using your inReach

subscription. You can receive weather forecasts for your current location, a waypoint, GPS coordinates, or a

location you choose on the map. Weather forecasts incur data charges or additional charges on your inReach

subscription. For more information about the different types of forecasts and the associated costs, go to

garmin.com/manuals/inreachweather.

1 Select inReach Weather > New Forecast.

2 If necessary, select Forecast Type, and select a Basic or Premium weather forecast.

3 If necessary, select Location, and select a location.

By default, the device requests weather for your current location.

4 If necessary, select Marine to request a marine weather forecast.

NOTE: For best results, you should only request a marine forecast for a location away from shore and over a

large body of water. Marine forecasts are not available for land locations or inland lakes.

5 Select Get Forecast.

The device sends a request for the forecast. It may take several minutes to receive the weather forecast data.

After the device finishes downloading the data, you can view the forecast at any time until all the information in

the forecast has expired. You can also update the forecast at any time.

Updating an inReach Weather Forecast

You can update an inReach weather forecast that has expired or contains outdated information. Updating a

forecast incurs the same data charges or additional charges as requesting a forecast.

1 Select inReach Weather.

2 Select a location with an outdated weather forecast.

3 Select MENU > Update Forecast.

The device requests an updated forecast. If you update the My Location forecast, the device requests an

updated forecast for your current location. It may take several minutes to receive the updated weather forecast

data.

Deleting an inReach Weather Forecast

You can delete an expired forecast or a forecast for a location that you no longer need.

1 Select inReach Weather.

2 Select a weather location.

NOTE: You cannot delete the My Location forecast.

3 Select MENU > Delete.

Viewing an Active Weather Forecast

While your GPSMAP 86 device is connected to your smartphone or to a Wi‑Fi network and has an active internet

connection, it can receive detailed weather information from the internet.

1 Select Active Weather.

The device automatically downloads a weather forecast for your current location.

2 Select a day to view an hourly forecast, if available.

3 Select a time interval to view detailed weather information.

24 Weather

Viewing an Active Weather Map

To view an active weather map, your device must be connected to your smartphone.

While your device is connected to a smartphone or Wi‑Fi network with internet access, you can view a live

weather map showing weather radar, cloud cover, temperature, or wind conditions.

1 Select Active Weather.

2 Press or to select a weather map tab.

NOTE: Some options may not be available in all areas.

• To view a weather radar, select .

• To view cloud coverage, select .

• To view temperatures, select .

• To view wind speeds and directions, select .

The selected data appears on the map.The device may take a few moments to load the weather map data.

3 Select an option:

• To zoom in or out on the map, press or .

• To pan up, down, left, or right on the map, press to enter panning mode, and use the directional pad.

Adding an Active Weather Location

You can add a weather location to view active weather for waypoints, GPScoordinates, or other locations.

1 While viewing an active weather forecast, select MENU > Manage Locations > New Location.

2 Select a location.

TIP: The Weather Locations option allows you to quickly select a location for which you have previously

requested an inReach weather forecast.

3 Select Use.

The device downloads a forecast for the selected location.

Switching the Active Weather Location

You can quickly switch between forecasts for active weather locations you have previously added.

1 While viewing an active weather forecast, select MENU > Manage Locations.

2 Select a location from the list.

TIP: The My Location option always downloads a forecast for your current location.

3 Select Use.

The device downloads the most recent forecast for the selected location.

Deleting an Active Weather Location

1 While viewing an active weather forecast, select MENU > Manage Locations.

2 Select a location from the list.

NOTE: You cannot delete the My Location forecast.

3 Select Delete.

Data Use and History

Viewing Plan Details

1 Select inReach Utilities.

2 Select Plan Details.

Data Use and History 25

Viewing Data Use

You can view the number of messages, preset messages, and track points sent during the current billing cycle.

The data use counter resets automatically at the beginning of each billing cycle.

1 Select inReach Utilities.

2 Select Plan Usage.

Main Menu Tools

Select MENU twice.

NOTE: Some settings may not be available for all device models.

Tracking: Allows you to share and view details about the tracks you travel.

SOS: Allows you to initiate an SOS rescue.

Messages: Allows you to send a preset or original inReach message.

inReach Utilities: Allows you to view details about your inReach subscription, check mail, and perform a

communications test (inReach Features, page5).

inReach Weather: Allows you to request basic, premium, or marine weather forecasts using your inReach

subscription (Requesting an inReach Weather Forecast, page24).

Recording Controls: Allows you to view details about the current activity and control the current activity

recording (Viewing the Current Activity, page22).

Notifications: Alerts you to incoming calls, texts, social network updates, and more, based on your smartphone

notification settings (Phone Notifications, page16).

Active Weather: Displays the current temperature, temperature forecast, weather forecast, weather radar, cloud

cover, and wind conditions (Viewing an Active Weather Forecast, page24).

Waypoint Manager: Displays all waypoints saved to the device (Waypoints, page18).

Connect IQ: Displays a list of installed Connect IQ apps (Connect IQ Features, page16).

BirdsEye Direct: Allows you to download BirdsEye Satellite Imagery to your device (BirdsEye Imagery, page27).

Geocaching: Displays a list of downloaded geocaches (Geocaches, page27).

Recorded Activities: Displays your current activity and a list of recorded activities (Recordings, page22).

Active Route: Displays your active route and upcoming waypoints (Routes, page20).

Route Planner: Displays a list of saved routes and allows you to create new routes (Creating a Route, page20).

Saved Tracks: Displays a list of saved tracks (Creating a Track from a Saved Activity, page23).

Sight 'N Go: Allows you to point the device at an object in the distance, and navigate using the object as a

reference point (Navigating with Sight 'N Go, page12).

Proximity Alarms: Allows you to set alerts to sound within range of particular locations (Setting a Proximity

Alarm, page30).

Share Wirelessly: Allows you to wirelessly transfer files to another compatible device (Sending and Receiving

Data Wirelessly, page31).

Profile Change: Allows you to change the device profile to customize your settings and data fields for a

particular activity or trip (Selecting a Profile, page31).

Area Calculation: Allows you to calculate the size of an area (Calculating the Size of an Area, page31).

Calendar: Displays a calendar.

Hunt and Fish: Displays the predicted best dates and times for hunting and fishing at your current location.

Sun and Moon: Displays sunrise and sunset times, along with the moon phase, based on your GPS position.

Photo Viewer: Displays saved photos.

Waypoint Averaging: Allows you to refine a waypoint location for more accuracy (Increasing the Accuracy of a

Waypoint Location, page19).

Calculator: Displays a calculator.

26 Main Menu Tools

Alarm Clock: Sets an audible alarm. If you are not currently using the device, you can set the device to turn on at

a specific time.

VIRB Remote: Provides camera controls when you have a VIRB

device paired with your GPSMAP 86 device

(Using the VIRB Remote, page31).

Stopwatch: Allows you to use a timer, mark a lap, and time laps.

Flashlight: Turns on the flashlight (Using the Flashlight, page32).

XERO Locations: Displays laser location information when you have a Xero

bow sight paired with your GPSMAP

86 device.

Satellite: Displays your current GPS satellite information (Satellite Page, page32).

BirdsEye Imagery

BirdsEye imagery provides downloadable, high-resolution map imagery, including detailed satellite imagery and

raster-based topographical maps. You can download BirdsEye Satellite Imagery directly to your device when it is

connected to a Wi‑Fi network.

Downloading BirdsEye Imagery

Before you can download BirdsEye imagery directly to your device, you must connect to a wireless network

(Connecting to a Wireless Network, page16).

1 Select BirdsEye Direct > Download Imagery.

2 Select an option:

• To download BirdsEye imagery files for a specific location or area, select Location, and select a category.

NOTE: The location defaults to your current location.

• To edit the name of the downloaded imagery files, select Name.

• To select an image quality option, select Detail.

• To define the size of the area to be shown in the downloaded imagery files, select Radius, and enter a

distance from the selected location.

An estimated file size appears for the selected image quality and radius. You should verify your device has

enough available storage space for the imagery file.

3 Select Download.

Geocaches

Geocaching is a treasure hunting activity in which players hide or search for hidden caches using clues and GPS

coordinates.

Registering Your Device at Geocaching.com

You can register your device at www.geocaching.com to search for a list of nearby geocaches, or to search live

information for millions of geocaches.

1 Connect to a wireless network (Connecting to a Wireless Network, page16) or to the Garmin Connect app

(Pairing a Smartphone with Your Device, page16).

2 Select Setup > Geocaching > Register Device.

An activation code appears.

3 Follow the on-screen instructions.

4 Select Confirm Registration.

Connecting to Geocaching.com

After you register, you can view geocaches from www.geocaching.com on your device while connected

wirelessly.

• Connect to the Garmin Connect app.

• Connect to a Wi‑Fi network.

Main Menu Tools 27

Downloading Geocaches Using a Computer

You can load geocaches manually onto your device using a computer (Transferring Files to Your Device,

page43). You can place the geocache files into a GPX file and import them into the GPX folder on the device.

With a premium membership to geocaching.com, you can use the "pocket query" feature to load a large group

of geocaches onto your device as a single GPX file.

1 Connect the device to your computer using a USB cable.

2 Go to www.geocaching.com.

3 If necessary, create an account.

4 Sign in.

5 Follow the instructions at geocaching.com to find and download geocaches to your device.

Geocache Searches

You can search the geocaches loaded on your device. If you are connected to www.geocaching.com, you can

search live geocache data and download geocaches.

NOTE: You can download detailed information for more than three geocaches per day with a premium

membership. Go to www.geocaching.com for more information.

Searching for a Geocache

You can search the geocaches loaded on your device. If you are connected to geocaching.com, you can search

live geocache data and download geocaches.

NOTE: You can download detailed information for a limited number of geocaches per day. You can purchase a

premium subscription to download more. Go to www.geocaching.com for more information.

1 Select Geocaching.

2 Select > MENU.

3 Select an option:

• To search the geocaches loaded on your device by name, select Spell Search, and enter a search term.

• To search for geocaches near you or near another location, select Search Near, and select a location.

If you are connected to www.geocaching.com, the search results include live geocache data obtained by

GC Live Download.

• To search for live geocaches by code, select GC Live Download > GC Code, and enter the geocache code.

This feature allows you to download a specific geocache from www.geocaching.com when you know the

geocache code.

4 Select MENU > Filter to filter the search results (optional).

5 Select a geocache.

The geocache details appear. If you selected a live geocache and you are connected, the device downloads

the full geocache details to the internal storage, if necessary.

Searching for a Geocache on the Map

1 Select Geocaching.

2 Select > Download Geocaches to search for and download nearby geocaches on the map.

3 Select MENU > Filter to filter the search results (optional).

4 Select a geocache.

The geocache details appear. If you selected a live geocache and you are connected to www.geocaching

.com, the device downloads the full geocache details to the internal storage.

28 Main Menu Tools

Filtering the Geocache List

You can filter your geocache list based on certain factors, such as the level of difficulty.

1 Select Geocaching > MENU > Filter.

2 Select one or more options to filter:

• To filter by a geocache category, such as puzzle or event, select Type.

• To filter by the physical size of the geocache container, select Cache Size.

• To filter by Unattempted, Did Not Find, or Found geocaches, select Status.

• To filter by the difficulty level of finding the geocache, or the difficulty of the terrain, select a level from 1

to 5.

3 Select QUIT to view the filtered geocache list.

Saving a Custom Geocache Filter

You can create and save custom filters for geocaches based on specific factors.

1 Select Setup > Geocaching > Filter Setup > Create Filter.

2 Select items to filter.

3 Select QUIT.

By default, the new filter is saved automatically as Filter followed by a number. For example, Filter 2. You can

edit the geocache filter to change the name (Editing a Custom Geocache Filter, page29).

Editing a Custom Geocache Filter

1 Select Setup > Geocaching > Filter Setup.

2 Select a filter.

3 Select an item to edit.

Viewing Geocache Details

1 Select Geocaching.

2 Select a geocache.

3 Select MENU > Review Point.

The geocache description and logs appear.

Navigating to a Geocache

1 Select Geocaching.

2 Select a geocache.

3 Select Go.

Using Hints and Clues to find a Geocache

You can use hints or clues, such as a description or coordinates, to help you find a geocache.

1 While navigating to a geocache, select MENU > Geocache.

2 Select an option:

• To view details about the geocache, select Description.

• To view a clue about a geocache location, select Hint.

• To view latitude and longitude for a geocache, select Coordinates.

• To view feedback about the geocache from previous searchers, select Logs.

• To turn chirp

™

searching on, select chirp™.

Main Menu Tools 29

Logging the Attempt

After you have attempted to find a geocache, you can log your results. You can verify some geocaches at www

.geocaching.com.

1 Select Geocaching > Log.

2 Select Found, Did Not Find, Needs Repair, or Unattempted.

3 Select an option:

• To stop logging, select Done.

• To begin navigation to the geocache nearest you, select Find Next Closest.

• To enter a comment about looking for the cache or about the cache itself, select Edit Comment, enter a

comment, and select Done.

If you are signed in to www.geocaching.com, the log uploads to your www.geocaching.com account

automatically.

chirp

A chirp is a small Garmin accessory that is programmed and left in a geocache. You can use your device to find

a chirp in a geocache.

Enabling chirp Searching

1 Select Setup > Geocaching.

2 Select chirp™ Searching > On.

Finding a Geocache with a chirp

1 With chirp searching enabled, navigate to a geocache.

When you are within approximately 10m (33ft.) of the geocache that contains a chirp, details about the

chirp appear.

2 Select Show Details.

3 If necessary, select Go to navigate to the next stage of the geocache.

Removing Live Geocache Data from the Device

You can remove live geocache data to show only geocaches manually loaded on the device using a computer.

Select Setup > Geocaching > Geocaching Live > Remove Live Data.

Live geocaching data is removed from the device and no longer appears in the geocache list.

Removing Your Device Registration From Geocaching.com

If you transfer ownership of your device, you can remove your device registration from the geocaching website.

Select Setup > Geocaching > Geocaching Live > Unregister Device.

Setting a Proximity Alarm

Proximity alarms alert you when you are within a specified range of a particular location.

1 Select Proximity Alarms > Create Alarm.

2 Select a category.

3 Select a location.

4 Select Use.

5 Enter a radius.

When you enter an area with a proximity alarm, the device sounds a tone.

30 Main Menu Tools

Editing or Deleting a Proximity Alarm

1 Select Proximity Alarms.

2 Select an alarm.

3 Select an option:

• To edit the radius, select Change Radius.

• To view the alarm on a map, select View Map.

• To delete the alarm, select Delete.

Sending and Receiving Data Wirelessly

Before you can share data wirelessly, you must be within 3m (10ft.) of a compatible Garmin device.

Your device can send and receive data wirelessly when connected with a compatible Garmin device using

ANT+

technology. You can share waypoints, geocaches, routes, tracks, and more.

1 Select Share Wirelessly.

2 Select an option:

• Select Send, and select a type of data.

• Select Receive to receive data from another device. The other compatible device must be attempting to

send data.

3 Follow the on-screen instructions.

Selecting a Profile

When you change activities, you can change the setup of the device by changing the profile.

1 Select Profile Change.

2 Select a profile.

Calculating the Size of an Area

1 Select Area Calculation > Start.

2 Walk around the perimeter of the area you want to calculate.

3 Select Calculate when finished.

Using the VIRB Remote

Before you can use the VIRB remote function, you must enable the remote setting on your VIRB camera. See the

VIRB Series Owner's Manual for more information.

The VIRB remote function allows you to control your VIRB action camera using your device.

1 Turn on your VIRB camera.

2 On your GPSMAP 86 device, select VIRB Remote.

3 Wait while the device connects to your VIRB camera.

4 Select an option:

• To record video, select .

• To take a photograph, select .

Main Menu Tools 31

Using the Flashlight

NOTE: Using the flashlight can reduce battery life. You can reduce the brightness or flash frequency to extend

the life of the battery.

1 Select Flashlight > ENTER.

2 If necessary, use the brightness slider to adjust the brightness.

3 If necessary, select a different flash type.

0 No strobe, constant beam.

1 through 9 Number of strobes per second.

SOS

Emergency strobe.

NOTE: Wi‑Fi, Bluetooth, and ANT+ connections are disabled in SOS mode.

Satellite Page

The satellite page shows your current location, GPS accuracy, satellite locations, and signal strength.

You can select or to view additional satellite constellations, for example, when the GPS + GLONASS or

GPS + GALILEO satellite system is enabled.

GPS Satellite Settings

Select Satellite > MENU.

Use With GPS On: Allows you to turn the GPS on.

Track Up: Indicates whether satellites are shown with rings oriented with north toward the top of the screen or

oriented with your current track toward the top of the screen.

Single Color: Allows you to select whether the satellite page is displayed in multicolor or single color.

Set Location On Map: Allows you to mark your current location on the map. You can use this location to create

routes or search for saved locations.

AutoLocate Position: Calculates your GPS position using the Garmin AutoLocate

feature.

Satellite Setup: Sets the satellite system options (Satellite Settings, page34).

Customizing the Device

Customizing the Data Fields

You can customize the data fields displayed on each main page.

1 Open the page for which you will change the data fields.

2 Select MENU.

3 Select Change Data Fields.

4 Select the new data field.

5 Follow the on-screen instructions.

32 Customizing the Device

Setup Menu

Select MENU twice, and select Setup.

NOTE: Some settings may not be available for all device models.

System: Allows you to customize system settings (System Settings, page33).

Display: Adjusts the backlight and display settings (Display Settings, page34).

Bluetooth: Pairs your device to a smartphone, and allows you to customize the Bluetooth settings (Bluetooth

Settings, page35).

Wi-Fi: Allows you to connect to wireless networks (Wi‑Fi Settings, page35).

Map: Sets the map appearance (Map Settings, page11).

Recording: Allows you to customize activity recording settings (Recording Settings, page22).

Routing: Allows you to customize how the device calculates routes for each activity (Routing Settings,

page35).

Expedition Mode: Allows you to customize settings for turning on expedition mode (Turning On Expedition

Mode, page41).

Waypoints: Allows you to enter a custom prefix for automatically named waypoints.

Tones: Sets the device sounds, such as key tones and alerts (Setting the Device Tones, page35).

Heading: Allows you to customize the compass heading settings (Heading Settings, page13).

Altimeter: Allows you to customize the altimeter settings (Altimeter Settings, page14).

Geocaching: Allows you to customize your geocache settings (Geocaching Settings, page36).

Sensors: Pairs wireless sensors with your device (Wireless Sensors, page36).

Fitness: Allows you to customize settings for recording fitness activities (Fitness Settings, page36).

Marine: Sets the appearance of marine data on the map (Marine Settings, page37).

Menus: Allows you to customize the page sequence and main menu (Menu Settings, page37).

Tracking: Allows you to customize the Tracking settings (inReach Tracking Settings, page7).

Messages: Allows you to customize the settings for messages (Messages Settings, page7).

Position Format: Sets the geographical position format and datum options (Position Format Settings, page38).

Units: Sets the units of measure used on the device (Changing the Units of Measure, page38).

Time: Adjusts the time settings (Time Settings, page39).

Profiles: Allows you to customize and create new activity profiles (Profiles, page39).

Reset: Allows you to reset user data and settings (Resetting Data and Settings, page39).

About: Displays device information, such as the unit ID, software version, regulatory information, and license

agreement (Viewing E-label Regulatory and Compliance Information, page44).

Contacts: Allows you to add, delete, and edit contacts (Contacts, page9).

System Settings

Select Setup > System.

Satellite: Sets the satellite system options (Satellite Settings, page34).

Text Language: Sets the text language on the device.

NOTE: Changing the text language does not change the language of user-entered data or map data, such as

street names.

Interface: Sets the format of the serial interface (Serial Interface Settings, page34).

RINEX Logging: Enables the device to write Receiver Independent Exchange Format (RINEX) data to a system

file. RINEX is a data interchange format for raw satellite navigation system data.

Customizing the Device 33

Satellite Settings

Select Setup > System > Satellite.

Satellite System: Sets the satellite system to GPS or Demo Mode (GPS off).

WAAS/EGNOS: Enables the system to use Wide Area Augmentation System/European Geostationary Navigation

Overlay Service (WAAS/EGNOS) data.

GPS and Other Satellite Systems

Using GPSand another satellite system together offers increased performance in challenging environments and

faster position acquisition than using GPS only. However, using multiple systems can reduce battery life more

quickly than using GPS only.

Your device can use these Global Navigation Satellite Systems (GNSS). Some satellite systems may not be

available for all device models.

GPS: A satellite constellation built by the United States.

GLONASS: A satellite constellation built by Russia.

GALILEO: A satellite constellation built by the European Space Agency.

Serial Interface Settings

Select Setup > System > Interface.

NOTE: The GPSMAP 86 device can output NMEA

0183 sentences to a computer using a USB connection; the

device does not connect directly to on-board equipment.

Garmin Spanner: Allows you to use the device USB port with most NMEA 0183-compliant mapping programs by

creating a virtual serial port.

Garmin Serial: Sets the device to use a Garmin proprietary format to exchange waypoint, route, and track data

with a computer.

NMEA In/Out: Sets the device to use standard NMEA 0183 output and input.

Text Out: Provides simple ASCII text output of location and velocity information.

MTP: Sets the device to use Media Transfer Protocol (MTP) to access the file system on the device instead of

mass storage mode.

Display Settings

Select Setup > Display.

Backlight Timeout: Adjusts the length of time before the backlight turns off.

Battery Save: Saves the battery power and prolongs the battery life by turning off the screen when the backlight

times out.

Appearance: Changes the appearance of the display background and selection highlight (Changing the Color

Mode, page34).

Screen Capture: Allows you to save the image on the device screen.

Review Text Size: Changes the size of the text on the screen.

Changing the Color Mode

1 Select Setup > Display > Appearance.

2 Select an option:

• To allow the device to display day or night colors automatically based on the time of day, select Mode >

Auto.

• To use a light background, select Mode > Day.

• To use a dark background, select Mode > Night.

• To customize the color scheme for daytime, select Day Color.

• To customize the color scheme for nighttime, select Night Color.

34 Customizing the Device

Bluetooth Settings

Select Setup > Bluetooth.

Status: Enables Bluetooth wireless technology, and shows current connection status.

Notifications: Shows or hides smartphone notifications.

Forget Phone: Removes the connected device from the list of paired devices. This option is available only after

a device is paired.

Wi‑Fi Settings

Select Setup > Wi-Fi.

Wi-Fi: Enables wireless technology.

Add Network: Allows you to scan for and connect to a wireless network.

Routing Settings

The available routing settings vary based on the activity selected.

Select Setup > Routing.

Direct Routing: Calculates the most direct route possible to the destination.

Activity: Sets an activity for routing. The device calculates routes optimized for the type of activity you are

doing.

Calculation Method: Sets the method used to calculate your route.

Lock On Road: Locks the blue triangle, which represents your position on the map, onto the nearest road. This is

most useful when driving or navigating on roads.

Off Route Recalculation: Sets recalculation preferences when navigating away from an active route.

Avoidance Setup: Sets the types of roads, terrain, and transportation methods to avoid while navigating.

Route Transitions: Sets how the device routes from one point on the route to the next. This setting is available

only when the Direct Routing option is enabled. The Distance option routes you to the next point on the route

when you are within a specified distance of your current point.

Setting the Device Tones

You can customize tones for messages, keys, turn warnings, and alarms.

1 Select Setup > Tones.

2 Select Sounds.

3 Select an option:

• To enable both tones and vibration, select Tone & Vibration.

• To enable only tones, select Tone.

• To enable only vibration, select Vibration.

4 Select Volume to set the tone volume.

5 Select a tone for each audible type.

Customizing the Device 35

Geocaching Settings

Select Setup > Geocaching.

Geocaching Live: Allows you to remove live geocache data from your device and remove your device

registration from geocaching.com (Removing Live Geocache Data from the Device, page30, Removing Your

Device Registration From Geocaching.com, page30).

Geocache Style: Sets the device to display the geocache list using names or codes.

chirp™ Searching: Allows the device to search for a geocache containing a chirp accessory (Enabling chirp

Searching, page30).

Program chirp™: Programs the chirp accessory.

Filter Setup: Allows you to create and save custom filters for geocaches (Saving a Custom Geocache Filter,

page29).

Found Geocaches: Allows you to edit the number of geocaches found. This number automatically increases

when you log a find (Logging the Attempt, page30).

Wireless Sensors

Your device can be used with wireless ANT+ or Bluetooth sensors. For more information about compatibility

and purchasing optional sensors, go to buy.garmin.com.

Pairing Your Wireless Sensors

Before you can pair, you must put on the heart rate monitor or install the sensor.

Pairing is the connecting of wireless sensors using ANT+ or Bluetooth technology, for example, connecting a

heart rate monitor with your device.

1 Bring the device within 3m (10ft.) of the sensor.

NOTE: Stay 10m (33ft.) away from other sensors while pairing.

2 Select Setup > Sensors.

3 Select your sensor type.

4 Select Search For New.

When the sensor is paired with your device, the sensor status changes from Searching to Connected.

Fitness Settings

Select Setup > Fitness.

Auto Lap: Sets the device to automatically mark the lap at a specific distance.

User: Sets your user profile information. The device uses this information to calculate accurate training data in

Garmin Connect.

HR Zones: Sets the five heart rate zones and your maximum heart rate for fitness activities.

Marking Laps by Distance

You can use Auto Lap

to automatically mark the lap at a specific distance. This feature is helpful for comparing

your performance over different parts of an activity.

1 Select Setup > Fitness > Auto Lap.

2 Enter a value, and select Done.

36 Customizing the Device

Marine Settings

Select Setup > Marine.

Marine Chart Mode: Sets the type of chart the device uses when displaying marine data. Nautical displays

various map features in different colors so the marine POIs are more readable and so the map reflects the

drawing scheme of paper charts. Fishing (requires marine maps) displays a detailed view of bottom contours

and depth soundings and simplifies map presentation for optimal use while fishing.

Appearance: Sets the appearance of marine navigation aids on the map.

Marine Alarm Setup: Sets alarms for when you exceed a specified drift distance while anchored, when you are

off course by a specified distance, and when you enter water of a specific depth.

Marine Speed Filter: Averages the speed of your vessel over a short period of time for smoother speed values.

Setting Up Marine Alarms

1 Select Setup > Marine > Marine Alarm Setup.

2 Select an alarm type.

3 Enter a distance, and select Done.

Menu Settings

Select Setup > Menus.

Menu Style: Changes the appearance of the main menu.

Main Menu: Allows you to move, add, and delete items in the main menu (Customizing the Main Menu,

page37).

Page Sequence: Allows you to move, add, and delete items in the page sequence (Changing the Page Sequence,

page38).

Setup: Changes the order of items in the setup menu.

Find: Changes the order of items in the find menu.

Customizing the Main Menu

You can move, add, and delete items in the main menu.

1 From the main menu, select MENU > Change Item Order.

2 Select a menu item.

3 Select an option:

• Select Move to change the placement of the item in the list.

• Select Insert to add a new item to the list.

• Select Remove to delete an item from the list.

Customizing the Device 37

Changing the Page Sequence

1 Select Setup > Menus > Page Sequence > Edit Page Sequence.

2 Select a page.

3 Select an option:

• To move the page up or down in the list, select Move.

• To add a new page to the page sequence, select Insert, and select a category.

• To remove a page from the page sequence, select Remove.

TIP: You can select PAGE to view the page sequence.

Configuring the Page Ribbon Display

1 Select Setup > Menus > Page Sequence > Page Ribbon Display.

2 Select an option:

• To disable the page ribbon display, select Off.

• To set the speed at which a page opens after being selected in the page ribbon display, select Slow or

Fast.

Position Format Settings

NOTE: You should not change the position format or the map datum coordinate system unless you are using a

map or chart that specifies a different position format.

Select Setup > Position Format.

Position Format: Sets the position format in which a location reading appears.

Map Datum: Sets the coordinate system on which the map is structured.

Map Spheroid: Shows the coordinate system the device is using. The default coordinate system is WGS 84.

Changing the Units of Measure

1 Select Setup > Units.

2 Select an option:

• To change the unit of measure for speed and distance, select Speed/Distance.

• To change the unit of measure for vertical speed, select Vertical Speed.

• To change the unit of measure for elevation, select Elevation.

• To change the unit of measure for depth to feet, fathoms, or meters, select Elevation > Depth.

• To change the unit of measure for temperature, select Temperature.

• To change the unit of measure for pressure, select Pressure.

3 Select a unit of measure.

38 Customizing the Device

Time Settings

Select Setup > Time.

Time Format: Sets the device to show time in a 12-hour or 24-hour format.

Time Zone: Sets the time zone for the device. Automatic sets the time zone automatically based on your GPS

position.

Profiles

Profiles are a collection of settings that optimize your device based on how you are using it. For example, the

settings and views are different when you use the device for hunting than when geocaching.

Profiles are associated with the activity screens, including the home screen.

When you are using a profile and you change settings, such as data fields or units of measurement, the changes

are saved automatically as part of the profile.

Creating a Custom Profile

You can customize your settings and data fields for a particular activity or trip.

1 Select Setup > Profiles > Create Profile > OK.

2 Customize your settings and data fields.

Editing a Profile Name

1 Select Setup > Profiles.

2 Select a profile.

3 Select Edit Name.

4 Enter the new name.

Deleting a Profile

NOTE: Before you can delete the active profile, you must activate a different profile. You cannot delete a profile

while it is active.

1 Select Setup > Profiles.

2 Select a profile.

3 Select Delete.

Resetting Data and Settings

1 Select Setup > Reset.

2 Select an option:

• To reset data specific to a trip, such as distance and averages, select Reset Trip Data.

• To delete all saved waypoints, select Delete All Waypoints.

• To clear the data recorded since you started your current activity, select Clear Current Activity.

NOTE: The device continues to record new data for the current activity.

• To reset only the settings for your current activity profile to the factory default values, select Reset Profile

Settings.

• To reset all device settings and profiles to the factory default values, select Reset All Settings.

NOTE: Resetting all settings clears all geocaching activity from your device. It does not remove your saved

user data, such as tracks and waypoints.

• To remove all saved user data and reset all settings on the device to the factory default values, select

Delete All.

NOTE: Deleting all settings removes your personal data, history, and saved user data, including tracks and

waypoints.

Restoring Default Page Settings

1 Open a page for which you will restore the settings.

2 Select MENU > Restore Defaults.

Customizing the Device 39

Device Information

Product Updates

On your computer, install Garmin Express

™

(www.garmin.com/express). On your smartphone, you can install the

Garmin Explore app to upload your waypoints, routes, tracks, and activities.

Garmin Express provides easy access to these services for Garmin devices:

• Software updates

• Map updates

• Product registration

Setting Up Garmin Express

1 Connect the device to your computer using a USBcable.

2 Go to garmin.com/express.

3 Follow the on-screen instructions.

Getting More Information

You can find more information about this product on the Garmin website.

• Go to support.garmin.com for additional manuals, articles, and software updates.

• Go to buy.garmin.com, or contact your Garmin dealer for information about optional accessories and

replacement parts.

Battery Information

The actual battery life depends on your device settings, such as the tracking and message checking intervals.

Battery Life Mode

Up to 200 hr. Expedition mode with 30-minute tracking interval

Up to 35hr. Default mode with 10-minute tracking interval with auto recording

Up to 1 yr. Turned off

Maximizing Battery Life

• Turn on Expedition Mode (Turning On Expedition Mode, page41).

• Turn on Battery Save mode (Turning On Battery Save Mode, page40).

• Turn off Bluetooth wireless technology (Bluetooth Settings, page35).

Turning On Battery Save Mode

You can use battery save mode to prolong the battery life.

Select Setup > Display > Battery Save > On.

In battery save mode, the screen shuts off when the backlight times out. You can select the power key to turn on

the screen.

40 Device Information

Turning On Expedition Mode

You can use expedition mode to prolong the battery life. In expedition mode, the screen shuts off, the device

enters low power mode, and the device collects fewer GPS track points.

1 Select Setup > Expedition Mode.

2 Select an option:

• To enable the device to prompt you to turn on expedition mode when you turn off the device, select

Prompted.

• To automatically turn on expedition mode after two minutes of inactivity, select Auto.

• To never turn on expedition mode, select Never.

In expedition mode, the green LED flashes occasionally.

Long-Term Storage

When you do not plan to use the device for several months, you should charge the battery to at least 50% before

you store the device. You should store the device in a cool, dry place with temperatures around the typical

household level. After storage, you should fully recharge the device before using it.

Attaching a Lanyard

1 Insert the loop of the lanyard through the slot in the device.

2 Thread the other end of the lanyard through the loop, and pull it tight.

3 If necessary, attach the lanyard to your clothing or backpack to tether it during an activity.

Device Care

NOTICE

Avoid chemical cleaners, solvents, and insect repellents that can damage plastic components and finishes.

Do not store the device where prolonged exposure to extreme temperatures can occur, because it can cause

permanent damage.

The device is water resistant to IEC Standard 60529 IPX7. It can withstand accidental immersion in 1 meter of

water for 30 minutes. Prolonged submersion can cause damage to the device. After submersion, be certain to

wipe dry and air dry the device before using or charging.

Thoroughly rinse the device with fresh water after exposure to chlorinated or salt water environments.

Cleaning the Device

1 Wipe the device using a cloth dampened with a mild detergent solution.

2 Wipe it dry.

After cleaning, allow the device to dry completely.

Data Management

NOTE: The device is not compatible with Windows

95, 98, Me, Windows NT

, and Mac

OS 10.3 and earlier.

Device Information 41

File Types

The handheld device supports these file types:

• Files from Garmin Explore.

• GPX route, track, and waypoint files.

• GPX geocache files (Downloading Geocaches Using a Computer, page28).

• JPEG photo files.

• GPI custom POI files from the Garmin POI Loader. Go to www.garmin.com/products/poiloader.

• FIT files for exporting to Garmin Connect.

Installing a Memory Card

You can install a microSD memory card for additional storage or pre-loaded maps. The device supports memory

cards up to 32GB. For optimal performance, use a class 10 memory card.

1 Lift the weather cap on the side of the device .

2 Insert the memory card with the gold contacts facing the device screen.

Connecting the Device to Your Computer

NOTICE

To prevent corrosion, thoroughly dry the USB port, the weather cap, and the surrounding area before charging or

connecting to a computer.

1 Pull up the weather cap from the USB port.

2 Plug the small end of the USB cable into the USB port on the device.

3 Plug the large end of the USB cable into a computer USB port.

Your device and memory card (optional) appear as removable drives in My Computer on Windows

computers and as mounted volumes on Mac computers.

42 Device Information

Transferring Files to Your Device

1 Connect the device to your computer.

On Windows computers, the device appears as a removable drive or a portable device, and the memory

card may appear as a second removable drive. On Mac computers, the device and memory card appear as

mounted volumes.

NOTE: Some computers with multiple network drives may not display device drives properly. See your

operating system documentation to learn how to map the drive.

2 On your computer, open the file browser.

3 Select a file.

4 Select Edit > Copy.

5 Open the portable device, drive, or volume for the device or memory card.

6 Browse to a folder.

7 Select Edit > Paste.

The file appears in the list of files in the device memory or on the memory card.

Deleting Files

NOTICE

If you do not know the purpose of a file, do not delete it. Your device memory contains important system files

that should not be deleted.

1 Open the Garmin drive or volume.

2 If necessary, open a folder or volume.

3 Select a file.

4 Press the Delete key on your keyboard.

NOTE: If you are using an Apple

computer, you must empty the Trash folder to completely remove the files.

Disconnecting the USB Cable

If your device is connected to your computer as a removable drive or volume, you must safely disconnect your

device from your computer to avoid data loss. If your device is connected to your Windows computer as a

portable device, it is not necessary to safely disconnect the device.

1 Complete an action:

• For Windows computers, select the Safely Remove Hardware icon in the system tray, and select your

device.

• For Apple computers, select the device, and select File > Eject.

2 Disconnect the cable from your computer.

Device Information 43

Specifications

Battery type Internal rechargeable Lithium-ion

Battery life

Up to 40hr.

Up to 200 hr. in expedition mode

Water rating IEC 60529 IPX7

Operating temperature range From -20° to 60°C (from -4° to 140°F)

Charging temperature range From 0° to 40°C (from 32° to 104°F)

Compass-safe distance 17.5cm (7in.)

Wireless frequency/protocol 2.4GHz @ 14.9dBm nominal

Viewing E-label Regulatory and Compliance Information

The label for this device is provided electronically. The e-label may provide regulatory information, such as

identification numbers provided by the FCC or regional compliance markings, as well as applicable product and

licensing information.

1 Select Setup.

2 Select About.

The device withstands incidental exposure to water of up to 1m for up to 30min. For more information, go to www.garmin.com/waterrating.

44 Device Information

Appendix

Data Fields

Some data fields require you to be navigating or require wireless accessories to display data.

24 hr. Max. Temperature: The maximum temperature recorded in the last 24hours from a compatible

temperature sensor.

24 hr. Min. Temperature: The minimum temperature recorded in the last 24hours from a compatible

temperature sensor.

Accuracy of GPS: The margin of error for your exact location. For example, your GPS location is accurate to

within +/-3.65m (12ft.).

Activity Distance: The distance traveled for the current track or activity.

Alarm Timer: The current time of the countdown timer.

Ambient Pressure: The uncalibrated ambient pressure.

Ascent - Average: The average vertical distance of ascent since the last reset.

Ascent - Maximum: The maximum rate of ascent in feet per minute or meters per minute since the last reset.

Ascent - Total: The total elevation distance ascended during the activity or since the last reset.

Automotive Turn: The direction of the next turn in the route. You must be navigating for this data to appear.

Average Cadence: Cycling. The average cadence for the current activity.

Average HR %Max.: The average percentage of maximum heart rate for the current activity.

Average Lap: The average lap time for the current activity.

Avg. HR: The average heart rate for the current activity.

Barometer: The calibrated current pressure.

Battery Level: The remaining battery power.

Bearing: The direction from your current location to a destination. You must be navigating for this data to

appear.

Cadence: Cycling. The number of revolutions of the crank arm. Your device must be connected to a cadence

accessory for this data to appear.

Calories: The amount of total calories burned.

Compass Heading: The direction you are moving based on the compass.

Course: The direction from your starting location to a destination. Course can be viewed as a planned or set

route. You must be navigating for this data to appear.

Current Lap: The stopwatch time for the current lap.

Date: The current day, month, and year.

Depth: The depth of the water. Your device must be connected to a NMEA 0183 device capable of acquiring the

water depth.

Descent - Average: The average vertical distance of descent since the last reset.

Descent - Maximum: The maximum rate of descent in meters per minute or feet per minute since the last reset.

Descent - Total: The total elevation distance descended during the activity or since the last reset.

Distance to Dest.: The remaining distance to the final destination. You must be navigating for this data to

appear.

Distance to Next: The remaining distance to the next waypoint on the route. You must be navigating for this

data to appear.

Elapsed Activity Time: The total time recorded. For example, if you start the timer and run for 10 minutes, then

stop the timer for 5 minutes, then start the timer and run for 20 minutes, your elapsed time is 35 minutes.

Elevation: The altitude of your current location above or below sea level.

Elevation Above Ground: The altitude of your current location above ground level.

Elevation - Maximum: The highest elevation reached since the last reset.

Appendix 45

Elevation - Minimum: The lowest elevation reached since the last reset.

ETAatDestination: The estimated time of day when you will reach the final destination (adjusted to the local

time of the destination). You must be navigating for this data to appear.

ETAat Next: The estimated time of day when you will reach the next waypoint on the route (adjusted to the local

time of the waypoint). You must be navigating for this data to appear.

Glide Ratio: The ratio of horizontal distance traveled to the change in vertical distance.

Glide Ratio to Dest.: The glide ratio required to descend from your current position to the destination elevation.

You must be navigating for this data to appear.

GPS Elevation: The altitude of your current location using GPS.

GPS Heading: The direction you are moving based on GPS.

GPSSignal Strength: The strength of the GPS satellite signal.

Grade: The calculation of rise (elevation) over run (distance). For example, if you climb 3m (10ft.) for every

60m (200ft.) you travel, the grade is 5%.

Heading: The direction you are moving.

Heart Rate: Your heart rate in beats per minute (bpm). Your device must be connected to a compatible heart

rate monitor.

Heart Rate - %Max.: The percentage of maximum heart rate.

Heart Rate Zone: The performance zone of your current heart rate (1 to 5). The default zones are based on your

user profile and maximum heart rate (220 minus your age).

Lap Ascent: The vertical distance of ascent for the current lap.

Lap Cadence: Cycling. The average cadence for the current lap.

Lap Descent: The vertical distance of descent for the current lap.

Lap Distance: The distance traveled for the current lap.

Lap Heart Rate Percent: The average percentage of maximum heart rate for the current lap.

Lap HR: The average heart rate for the current lap.

Laps: The number of laps completed for the current activity.

Lap Speed: The average speed for the current lap.

Last Lap Ascent: The vertical distance of ascent for the last completed lap.

Last Lap Cadence: Cycling. The average cadence for the last completed lap.

Last Lap Descent: The vertical distance of descent for the last completed lap.

Last Lap Distance: The distance traveled for the last completed lap.

Last Lap HR: The average heart rate for the last completed lap.

Last Lap Speed: The average speed for the last completed lap.

Last Lap Time: The stopwatch time for the last completed lap.

Location (lat/lon): The current position in latitude and longitude, regardless of the selected position format

setting.

Location (selected): The current position using the selected position format setting.

Location of Dest.: The position of your final destination. You must be navigating for this data to appear.

None: This is a blank data field.

Odometer: A running tally of the distance traveled for all trips. This total does not clear when resetting the trip

data.

Off Course: The distance to the left or right by which you have strayed from the original path of travel. You must

be navigating for this data to appear.

Pointer: An arrow points in the direction of the next waypoint or turn. You must be navigating for this data to

appear.

Speed: The current rate of travel.

Speed Limit: The reported speed limit for the road. Not available in all maps and in all areas. Always rely on

posted road signs for actual speed limits.

46 Appendix

Speed - Maximum: The highest speed reached since the last reset.

Speed - Moving Avg.: The average speed while moving since the last reset.

Speed - Overall Avg.: The average speed while moving and stopped since the last reset.

Stopwatch Timer: The stopwatch time for the current activity.

Sunrise: The time of sunrise based on your GPS position.

Sunset: The time of sunset based on your GPS position.

Temperature: The temperature of the air. Your body temperature affects the temperature sensor. Your device

must be connected to a tempe

™

sensor for this data to appear.

Temperature - Water: The temperature of the water. Your device must be connected to a NMEA 0183 device

capable of acquiring the water temperature.

Time of Day: The time of day based on your current location and time settings (format, time zone, daylight

saving time).

Time to Destination: The estimated time remaining before you reach the destination. You must be navigating

for this data to appear.

Time to Next: The estimated time remaining before you reach the next waypoint in the route. You must be

navigating for this data to appear.

To Course: The direction in which you must move to get back on the route. You must be navigating for this data

to appear.

Total Lap: The stopwatch time for all the completed laps.

Trip Odometer: A running tally of the distance traveled since the last reset.

Trip Time: A running tally of the total time spent moving and not moving since the last reset.

Trip Time - Moving: A running tally of the time spent moving since the last reset.

Trip Time - Stopped: A running tally of the time spent not moving since the last reset.

Turn: The angle of difference (in degrees) between the bearing to your destination and your current course. L

means turn left. R means turn right. You must be navigating for this data to appear.

Velocity Made Good: The speed at which you are closing on a destination along a route. You must be navigating

for this data to appear.

Vertical Dist. to Dest.: The elevation distance between your current position and the final destination. You must

be navigating for this data to appear.

Vertical Dist. to Next: The elevation distance between your current position and the next waypoint in the route.

You must be navigating for this data to appear.

Vertical Speed: The rate of ascent or descent over time.

Vertical Speed to Dest.: The rate of ascent or descent to a predetermined altitude. You must be navigating for

this data to appear.

Waypoint at Dest.: The last point on the route to the destination. You must be navigating for this data to appear.

Waypoint at Next: The next point on the route. You must be navigating for this data to appear.

Getting More Information

You can find more information about this product on the Garmin website.

• Go to support.garmin.com for additional manuals, articles, and software updates.

• Go to buy.garmin.com, or contact your Garmin dealer for information about optional accessories and

replacement parts.

Optional Accessories

Optional accessories, such as mounts, maps, fitness accessories, and replacement parts, are available at http:/

/buy.garmin.com or from your Garmin dealer.

Appendix 47

tempe

The tempe is an ANT+ wireless temperature sensor. You can attach the sensor to a secure strap or loop where

it is exposed to ambient air, and therefore, provides a consistent source of accurate temperature data. You must

pair the tempe with your device to display temperature data from the tempe.

Tips for Pairing ANT+ Accessories with Your Garmin Device

• Verify that the ANT+ accessory is compatible with your Garmin device.

• Before you pair the ANT+ accessory with your Garmin device, move 10 m (33 ft.) away from other ANT+

accessories.

• Bring the Garmin device within range 3 m (10 ft.) of the ANT+ accessory.

• After you pair the first time, your Garmin device automatically recognizes the ANT+ accessory each time it

is activated. This process occurs automatically when you turn on the Garmin device and only takes a few

seconds when the accessories are activated and functioning correctly.

• When paired, your Garmin device receives data from only your accessory, and you can go near other

accessories.

About Heart Rate Zones

Many athletes use heart rate zones to measure and increase their cardiovascular strength and improve their

level of fitness. A heart rate zone is a set range of heartbeats per minute. The five commonly accepted

heart rate zones are numbered from 1 to 5 according to increasing intensity. Generally, heart rate zones are

calculated based on percentages of your maximum heart rate.

Fitness Goals

Knowing your heart rate zones can help you measure and improve your fitness by understanding and applying

these principles.

• Your heart rate is a good measure of exercise intensity.

• Training in certain heart rate zones can help you improve cardiovascular capacity and strength.

If you know your maximum heart rate, you can use the table (Heart Rate Zone Calculations, page48) to

determine the best heart rate zone for your fitness objectives.

If you do not know your maximum heart rate, use one of the calculators available on the Internet. Some gyms

and health centers can provide a test that measures maximum heart rate. The default maximum heart rate is

220 minus your age.

Heart Rate Zone Calculations

Zone

% of Maximum Heart

Rate

Perceived Exertion Benefits

1 50–60% Relaxed, easy pace, rhythmic breathing

Beginning-level aerobic training,

reduces stress

2 60–70%

Comfortable pace, slightly deeper

breathing, conversation possible

Basic cardiovascular training, good

recovery pace

3 70–80%

Moderate pace, more difficult to hold

conversation

Improved aerobic capacity, optimal

cardiovascular training

4 80–90%

Fast pace and a bit uncomfortable,

breathing forceful

Improved anaerobic capacity and

threshold, improved speed

5 90–100%

Sprinting pace, unsustainable for long

period of time, labored breathing

Anaerobic and muscular endurance,

increased power

48 Appendix

support.garmin.com

GUID-3D87F918-B81E-4956-8EFC-5C8C977D195D v8December 2022
