LPS-4414-INT Modern Flames Landscape Pro Slim 44" Gen 1 User Manual

Landscape Pro Slim Electric Fireplace

Model# LPS-4414V2/INT LPS-5614V2/INT LPS-6814V2/INT

LPS-8014V2/INT LPS-9614V2/INT

Installation Manual

07-00012-1 REV C

AFFIX SERIAL NUMBER LABEL

HERE FOR FUTURE REFERENCE

Approved for Indoor and Outdoor Use

Rated: 220~240VAC 50/60Hz 6,800 BTUs

Read and understand this entire owner’s manual, including all safety

information, before plugging in or using this product. Failure to do so

could result in fire, electric shock, or serious personal injury. Don’t

spray water directly on to product. Clean with damp cloth or duster.

Keep this owner’s manual for future reference. If you sell or give this

product away, make sure this manual accompanies this product.

WARNING

CAUTION

IMPORTANT SAFETY INFORMATION!

WARNING

When using electrical appliances, basic precautions should always be followed to reduce the risk of

fire, electric shock, and injury to persons, including the following:

1. Read all Instructions before installing or using the heater.

2. This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces.

Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, etc. and curtains

at l east 3 feet (0.9 m) from the front of the heater and keep them away from the sides and rear

(sides and rear restrictions apply to location dedicated heaters only)

3. Extreme caution is necessary when any heater is used by or near children or invalids and

whenever the heater is left operating and unattended.

4. Do not operate heater after it malfunctions. Disconnect power at service panel and have the

heater inspected by a reputable electrician before reusing.

5. To disconnect heater, turn controls to off, and turn power to heater circuit at main disconnect

panel (or operate internal disconnect switch if provided).

6. Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may

cause an electric shock or fire, or damage the heater.

7. To prevent a possible fire, do not block air intakes or exhaust in any manner.

8. A heater has hot and arcing or sparking parts inside. Do not use if in areas where gasoline, paint,

or flammable vapors or liquids are used or stored.

9. Use this heater only as described in this manual. Any other use not recommended by the

manufacturer may cause fire, electric shock, or injury to persons.

10. This heater may include an audible or visual alarm to warn that parts of the heater are getting

excessively hot. If the alarm sounds (or illuminates), immediately turn the heater off and inspect

for any objects on or adjacent to the heater that may have blocked the airflow or otherwise

caused high temperature to have occurred. DO NOT OPERATE THE HEATER WITH THE ALARM

SOUNDING (OR ILLUMINATING).

11.

“SAVE THESE INSTRUCTIONS”

Additional Important Instructions

• Use a dedicated 13 Amp (EU) or 10 Amp (AU/NZ) (or higher) breaker.

• Never use with an extension cord or relocatable power tap (outlet/power strip).

• Never use a wall mount bracket from another manufacturer.

• Always disconnect this unit from the power supply before performing any assembly or cleaning,

or before relocating the electric fireplace.

• Always store this heater in a dry location. Never use the fireplace if it has become wet.

• This product is not intended to be a primary heat source. It is for supplemental heat only.

1

IMPORTANT INSTRUCTIONS

ATTENTION

When using electrical appliances, basic precautions should always be followed to reduce the risk of fire,

electric shock, and injury to persons, including the following:

1. Read all Instructions before installing or using the heater.

2. This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. Keep combustible

materials, such as furniture, pillows, bedding, papers, clothes, etc. and curtains at least 3 feet (0.9 m)

from the front of the heater and keep them away from the sides and rear (sides and rear restrictions

apply to location dedicated heaters only)

3. Extreme caution is necessary when any heater is used by or near children or invalids and whenever the

heater is left operating and unattended.

4. Do not operate heater after it malfunctions. Disconnect power at service panel and have the heater

inspected by a reputable electrician before reusing.

5. To disconnect heater, turn controls to off, and turn power to heater circuit at main disconnect panel (or

operate internal disconnect switch if provided).

6. Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an

electric shock or fire, or damage the heater.

7. To prevent a possible fire, do not block air intakes or exhaust in any manner.

8. A heater has hot and arcing or sparking parts inside. Do not use if in areas where gasoline, paint, or

flammable vapors or liquids are used or stored.

9. Use this heater only as described in this manual. Any other use not recommended by the manufacturer

may cause fire, electric shock, or injury to persons.

10. This heater may include an audible or visual alarm to warn that parts of the heater are getting

excessively hot. If the alarm sounds (or illuminates), immediately turn the heater off and inspect for any

objects on or adjacent to the heater that may have blocked the airflow or otherwise caused high

temperature to have occurred. DO NOT OPERATE THE HEATER WITH THE ALARM SOUNDING (OR

ILLUMINATING).

12.

“SAVE THESE INSTRUCTIONS”

Additional Important Instructions

• Use a dedicated circuit breaker of 13 A (EU) or A (AU/NZ) (or more).

• Never use with an extension cord or relocatable power tap (outlet/power strip).

• Never use a wall mount bracket from another manufacturer.

• Always disconnect this unit from the power supply before performing any assembly or cleaning, or

before relocating the electric fireplace.

• Always store this heater in a dry location. Never use the fireplace if it has become wet.

• This product is not intended to be a primary heat source. It is for supplemental heat only.

2

POWER DATA

LPS-4414V2/INT LPS-5614V2/INT LPS-6814V2/INT LPS-8014V2/INT LPS-9614V2/INT

Volts/HZ Amps AC 220~240V AC 220~240V AC 220~240V AC 220~240V AC 220~240V

50/60Hz 9 Amp 50/60Hz 9 Amp 50/60Hz 9 Amp 50/60Hz 9 Amp 50/60Hz 9 Amp

Heater

AC 220~240V 2000W AC 220~240V 2000W AC 220~240V 2000W AC 220~240V 2000W AC 220~240V 2000W

BTUs 6,800 BTUs 6,800 BTUs 6,800 BTUs 6,800 BTUs 6,800 BTUs

Lamps LED 12V LED 12V LED 12V LED 12V LED 12V

Motor 12 VDC 12 VDC 12 VDC 12 VDC 12 VDC

Stepper Motor Stepper Motor Stepper Motor Stepper Motor Stepper Motor

Shipping Size 1185 mm 1500 mm 1790 mm 2095 mm 2500 mm

x 660 mm x 660 mm x 660 mm x 660 mm x 660 mm

x 205 mm x 205 mm x 205 mm x 205 mm x 205 mm

46.625" x 26" 59" x 26" 70.5" x 26" 82.5" x 26" 98.5" x 26"

x 8.07" x 8.07" x 8.07" x 8.07" x 8.07"

USER INSTRUCTIONS

3

603mm

5

3

⁄8"

141 mm

12.7 mm

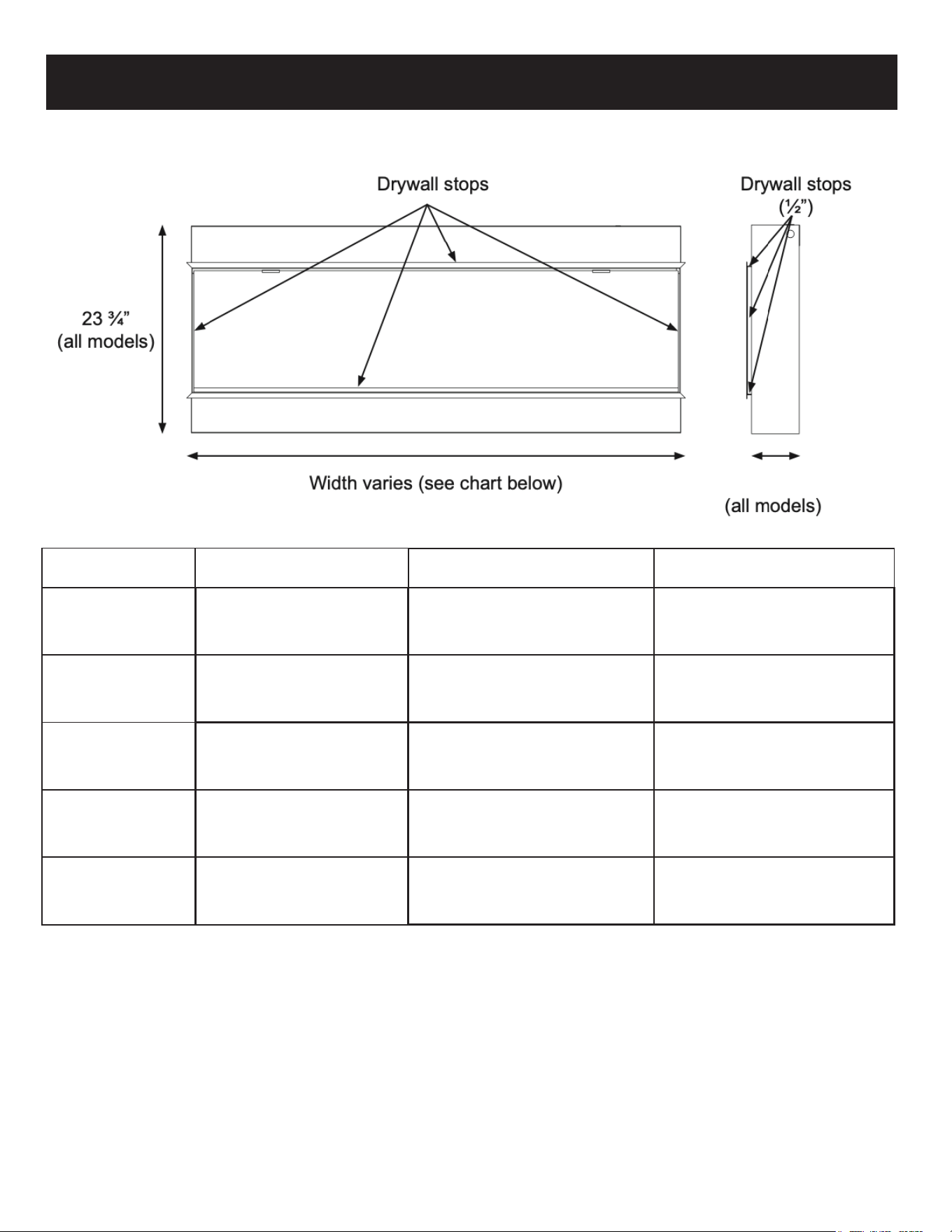

PRODUCT GUIDE

Model Viewing Area Firebox Dimensions Framing Dimensions

LPS-4414V2/INT

1111 mm W x 356 mm H 1124 mm W x 603 mm H x 141 mm D 1130 mm W x 613 mm H x 152 mm D

43 5⁄8" W x 13 5⁄8" H 44 1⁄16" W x 23 3⁄4" H x 5 3⁄8" D 44 1⁄4" W x 24 ¹⁄8" H x 6" D

LPS-5614V2/INT

1416 mm W x 356 mm H 1430 mm W x 603 mm H x 141 mm D 1435 mm W x 613 mm H x 152 mm D

55

5

⁄8" W x 13

5

⁄8" H 56

1

⁄16" W x 23

3

⁄4" H x 5

3

⁄8" D 56

1

⁄4" W x 24 ¹⁄8" H x 6" D

LPS-6814V2/INT

1721 mm W x 356 mm H 1735 mm W x 603 mm H x 141 mm D 1740 mm W x 613 mm H x 152 mm D

67 5⁄8" W x 13 5⁄8" H 68 1⁄16" W x 23 3⁄4" H x 5 3⁄8" D 68 1⁄4" W x 24 ¹⁄8" H x 6" D

LPS-8014V2/INT

2026 mm W x 356 mm H 2040 mm W x 603 mm H x 141 mm D 2045 mm W x 613 mm H x 15 2mm D

9

5

⁄8" W x 13

5

⁄8" H 80

1

⁄16" W x 23

3

⁄4" H x 5

3

⁄8" D 80

1

⁄4" W x 24 ¹⁄8" H x 6" D

LPS-9614V2/INT

2432 mm W x 356 mm H 2446 mm W x 603 mm H x 141 mm D 2451 mm W x 613 mm H x 152 mm D

95

5

⁄8" W x 13

5

⁄8" H 96

1

⁄16" W x 23

3

⁄4" H x 5

3

⁄8" D 96

1

⁄4" W x 24 ¹⁄8" H x 6" D

4

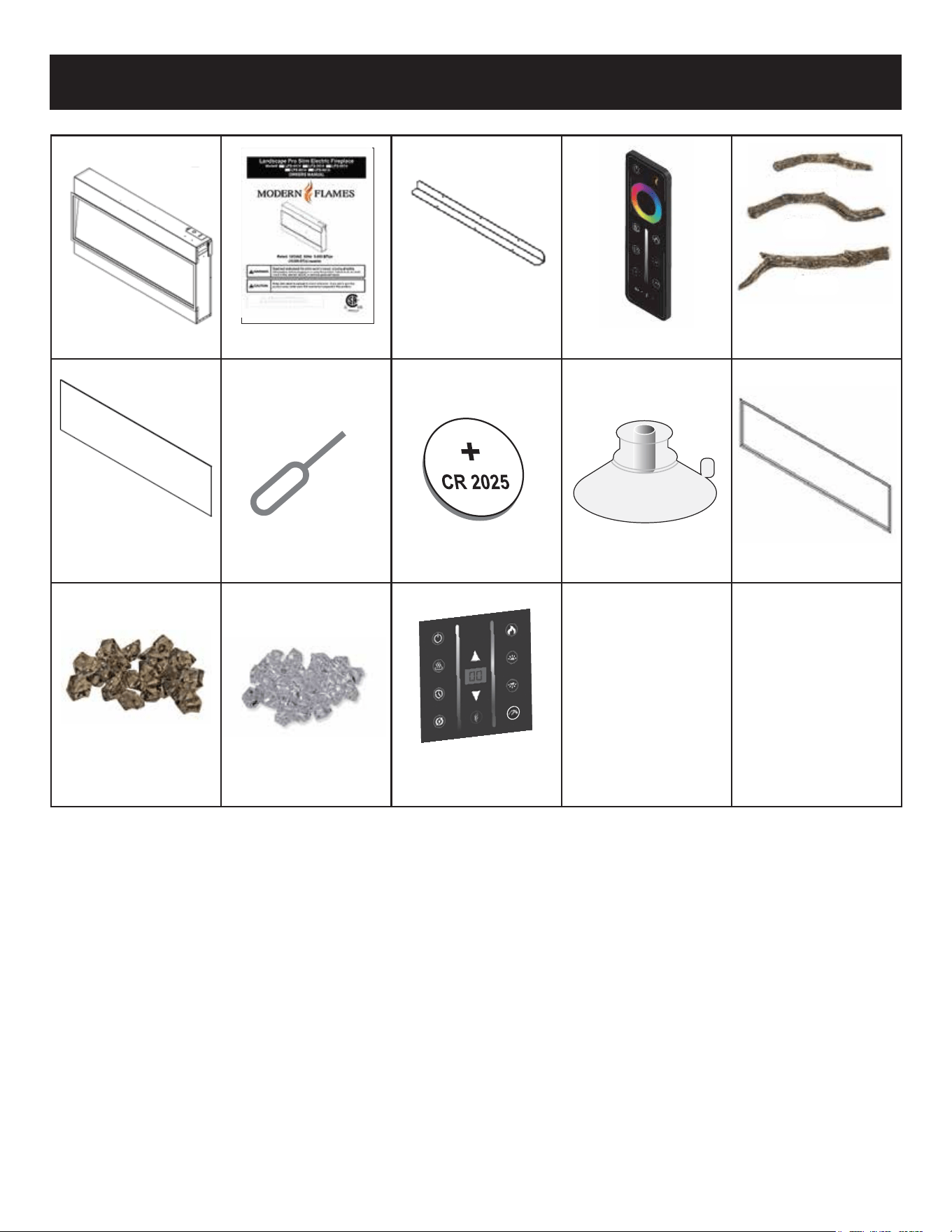

PARTS AND HARDWARE

(1) L-Metal Mounting (1) Canyon

(1) Fireplace (1) Owners Manual Bracket Set (1) Remote Driftwood Logs Set

(1) Front Glass

(1) Battery Tool

(1) CR2025 Battery

(1) Suction Cup

(1) Trim

Wall Mount

Smoke Clear

(1) Touch Control

Acrylic Crystals Pkg Acrylic Stones Pkg

(Sold Separately)

5

This product includes a GLASS panel. Always use extreme caution when handling

glass. Failure to do so could result in personal injury or property damage.

INSTALLATION

Due to the many diﬀerent materials used on diﬀerent walls, it is highly recommended that you

consult your local builder before you install this ﬁreplace.

Remove all parts and hardware from the carton and place them on a clean, soft, dry surface.

Parts and assembly steps are grouped for use. Check the parts list to make sure nothing is

missing. Dispose of packaging materials properly. Please recycle whenever possible.

You will need the following tools (not included): Phillips screwdriver, stud ﬁnder, level,

tape measure, electric drill, 1/4" wood drill bit, hammer.

Select a suitable location that is away from drapes, furniture, and high traﬃc areas.

NOTE: Follow all National and local electrical codes.

6

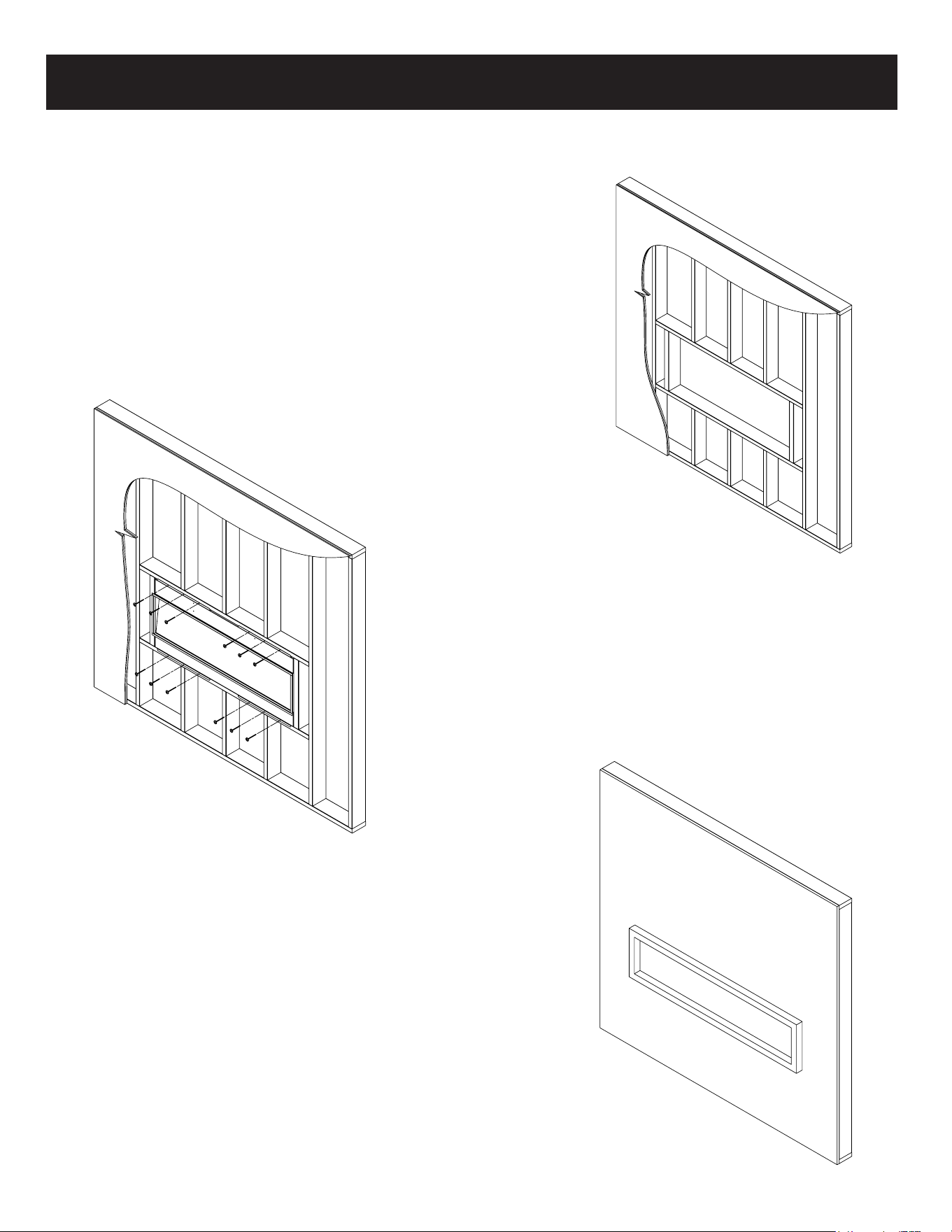

BUILT-IN INSTALLATION

Fully Recessed Installation (Single Sided)

1. This installation is optimized for a 2x6 framed wall.

Prepare the framed opening according to the

framing dimensions chart (pg 4).

*Provide appropriate dedicated circuit for hardwire

install at the top right of framed opening.

2. Install L Metal mounting brackets to the top

and bottom of the ﬁreplace with supplied

screws.

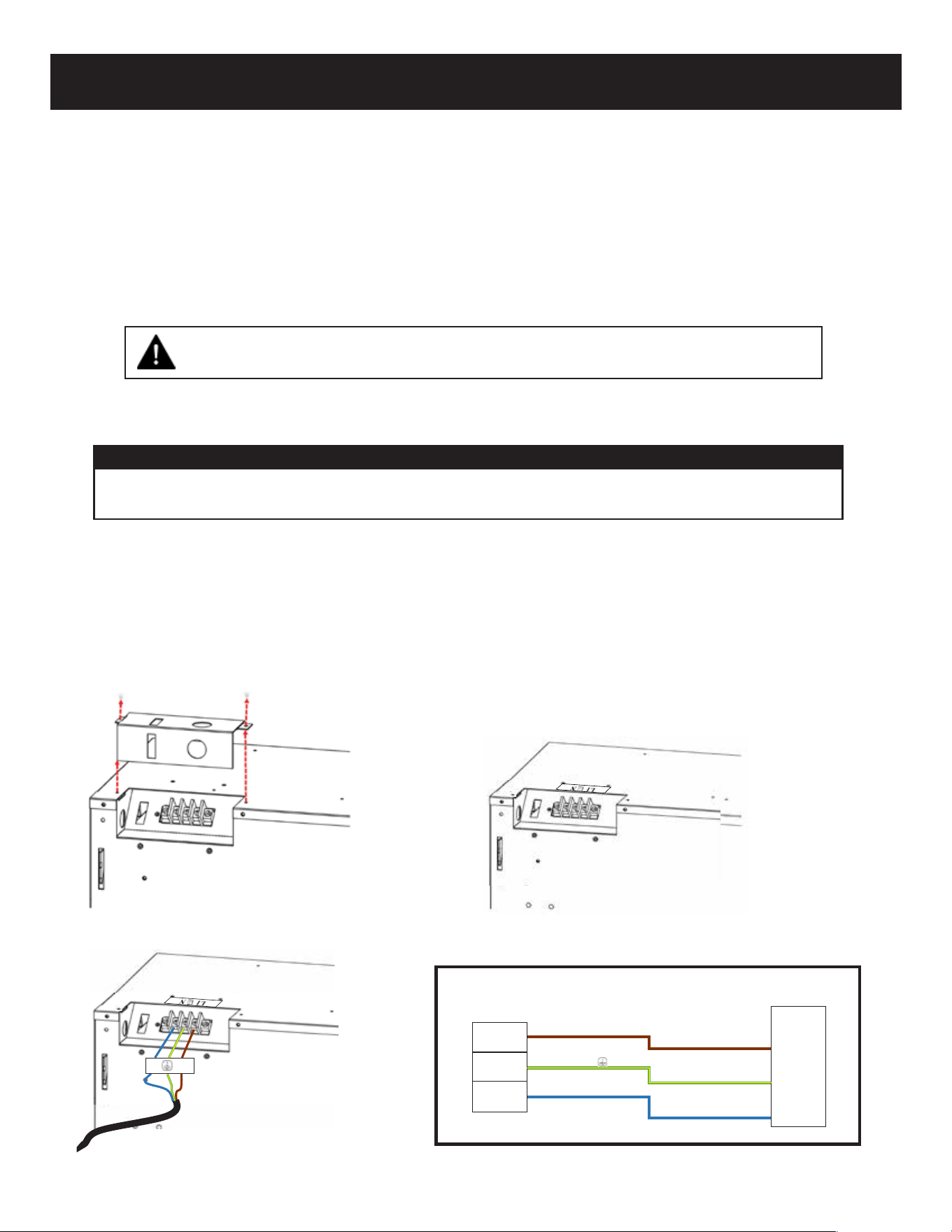

3. Hardwire ﬁreplace (see page 13)

4. Install the ﬁreplace in the framed opening with a

minimum 1 1⁄4" (32 mm) drywall screws to

secure the unit.

5. Mask the exposed ﬁreplace during the

drywall process. Install drywall to the

drywall stops on the perimeter of the

ﬁreplace.

For more information on the drywall

stops see the product guide on

page 4.

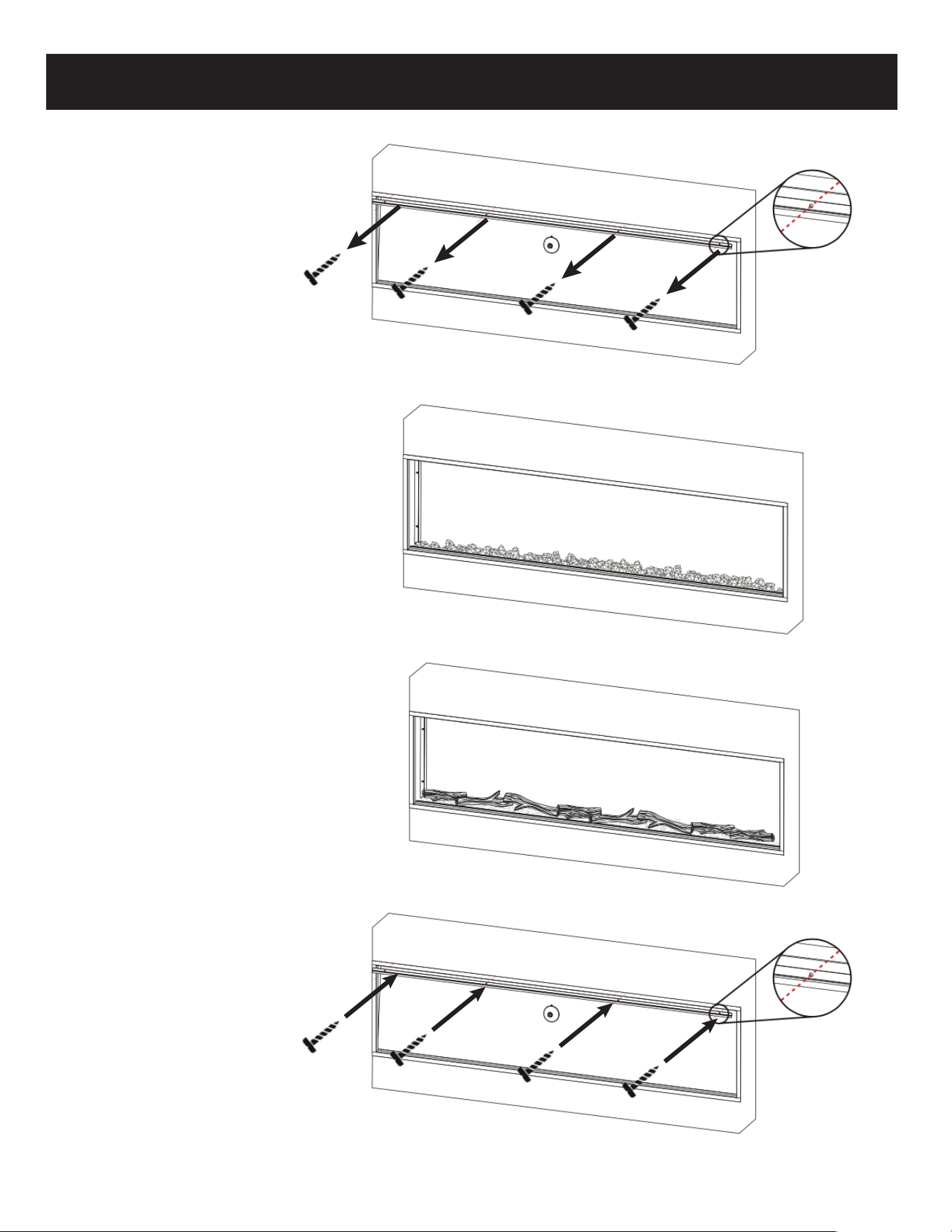

6. Remove glass (see page 14) and install

media. See page 12 for log layout.

7

BUILT-IN INSTALLATION

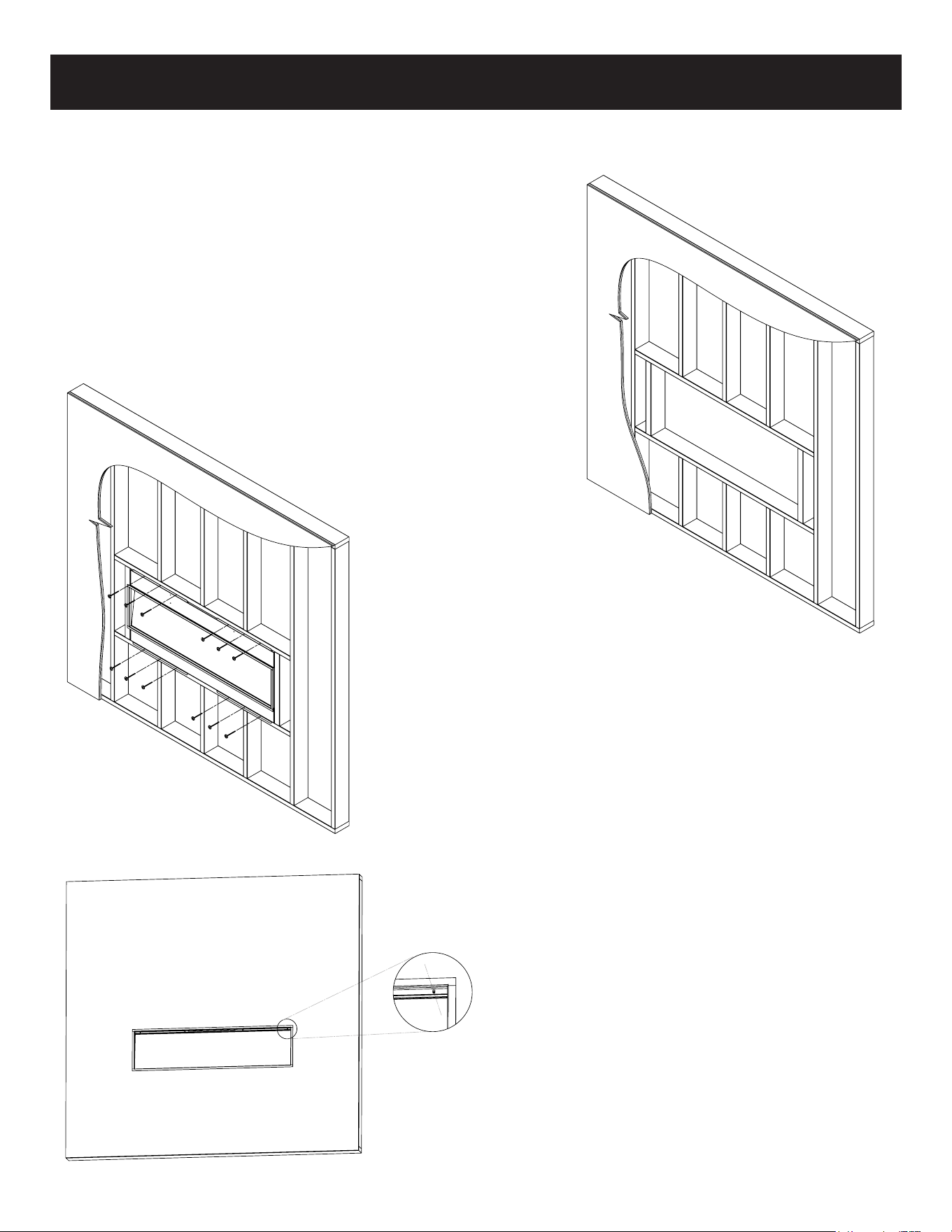

Partial Recessed Installation

1. This installation is optimized for a 2x4 framed

wall. Prepare the framed opening according to

the framing dimensions chart on page 4.

*Provide appropriate dedicated circuit for hardwire

install at the top right of framed opening.

5. Mask the exposed ﬁreplace during the drywall

process. Install drywall to the perimeter of the

ﬁre box. The unit can be covered with a custom

facade.

6. Remove glass (see page 14) and install media.

See page 12 for log layout.

2. Install L Metal Nailing Flanges to the ﬁreplace.

3. Hardwire ﬁreplace (see page 13)

4. Install the ﬁreplace in the framed opening

with a minimum 1 1⁄4" (32 mm) drywall

screws to secure the unit.

8

Front Protection:

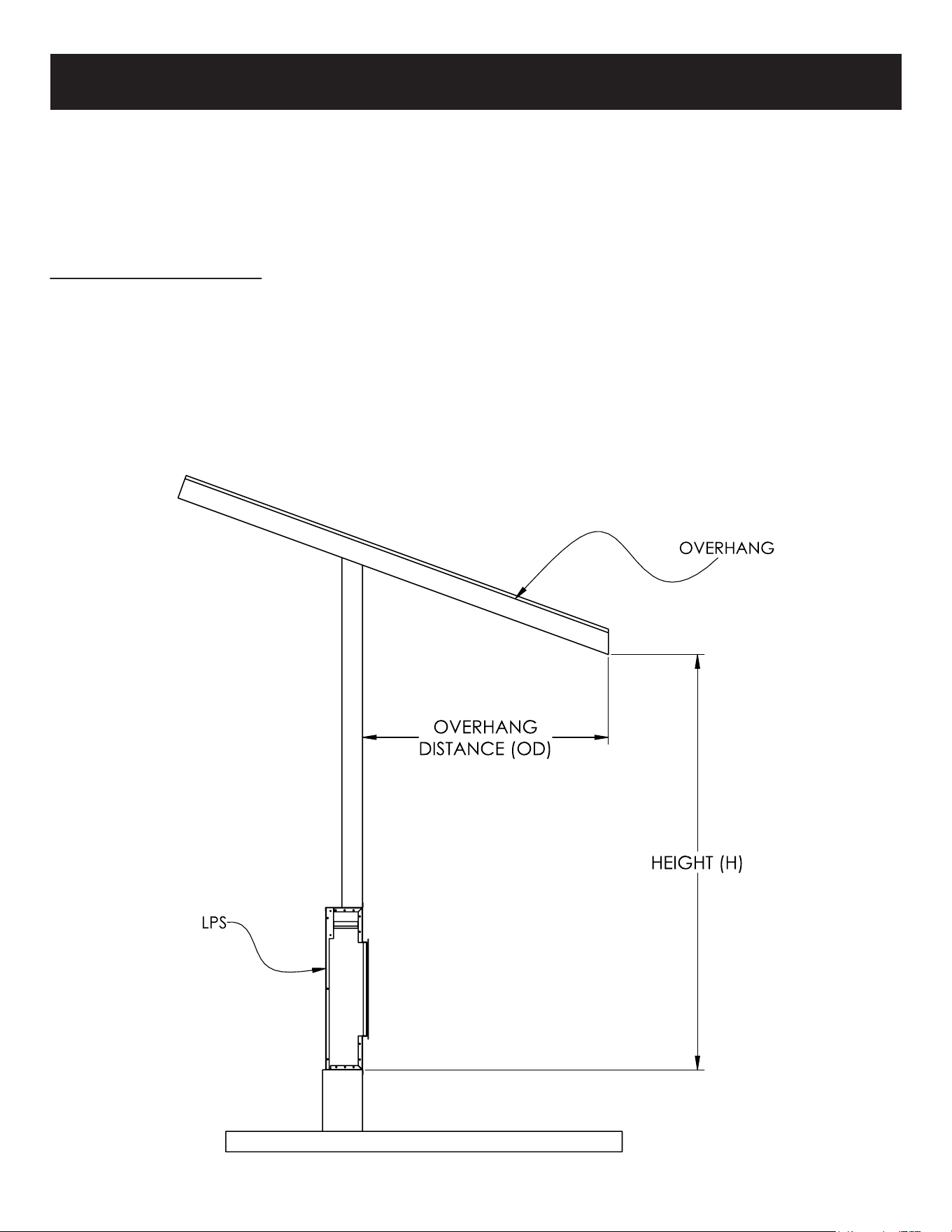

Patio roof overhang must be 50% (or more) of the height of the patio roof from bottom

of ﬁreplace.

If: H=6’

Then: OD=3’ minimum (6’ x 50%=3’)

Note 1: Base of ﬁreplace must be 2" (minimum) above ﬂoor.

Note 2: H taken from bottom of ﬁreplace.

OUTDOOR INSTALLATION REQUIREMENTS

The LPS Series electric ﬁreplaces from Modern Flames LLC have been tested and approved for

installation outdoors under a patio cover and away from direct water contact or direct sun light.

Modern Flames LLC standard warranty applies if installed per instructions. All electrical wiring

shall be to local building codes. Consult professional installers before installation. Approved

installations are as noted below.

9

OUTDOOR INSTALLATION REQUIREMENTS

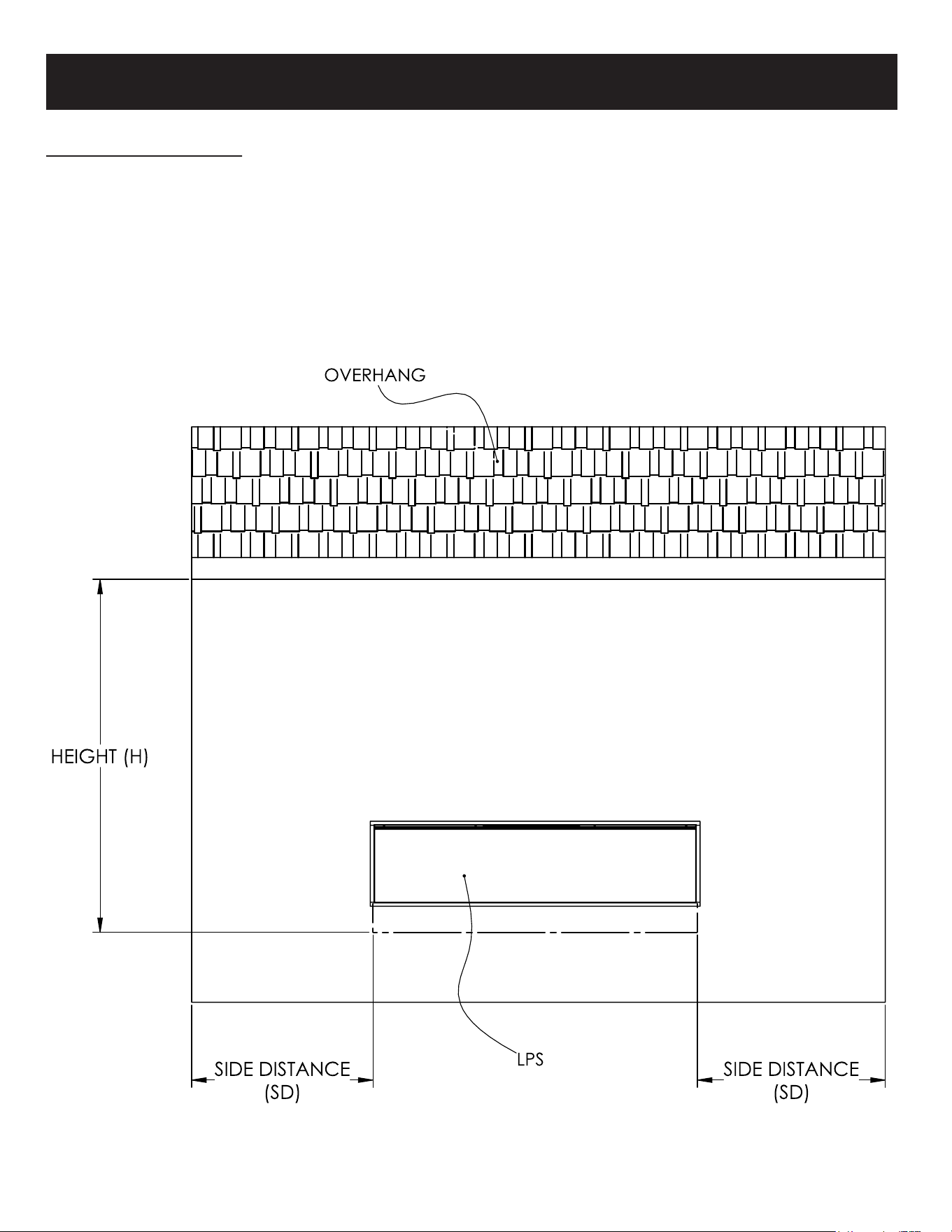

Side Protection:

Side distance (SD) must be 50% (or more) of the height(H).

If: H=6’

Then: SD=3’ minimum (6’ x 50%=3’)

Note: H taken from bottom of ﬁreplace.

10

#1 LOG

#2 LOG

#3 LOG

#4 LOG

#5 LOG

#6 LOG

#7 LOG

#8 LOG

#9 LOG

#10 LOG

#11 LOG

#12 LOG

#13 LOG

#14 LOG

#15 LOG

#16 LOG

#1 LOG

#2 LOG

#3 LOG

#4 LOG

#5 LOG

#6 LOG

#1 LOG

#2 LOG

#3 LOG

#4 LOG

#5 LOG

#6 LOG

#1 LOG

#2 LOG

#3 LOG

#4 LOG

#5 LOG

#6 LOG

#1 LOG

#2 LOG

#3 LOG

#4 LOG

#5 LOG

#6 LOG

#1 LOG

#2 LOG

#3 LOG

#4 LOG

#5 LOG

#6 LOG

#7 LOG

#8 LOG

#7 LOG

#8 LOG

#7 LOG

#8 LOG

#7 LOG

#8 LOG

#9 LOG

#10 LOG

#9 LOG

#10 LOG

#9 LOG

#10 LOG

#11 LOG

#12 LOG

#11 LOG

#12 LOG

#14 LOG

#13 LOG

#16 LOG

#15 LOG

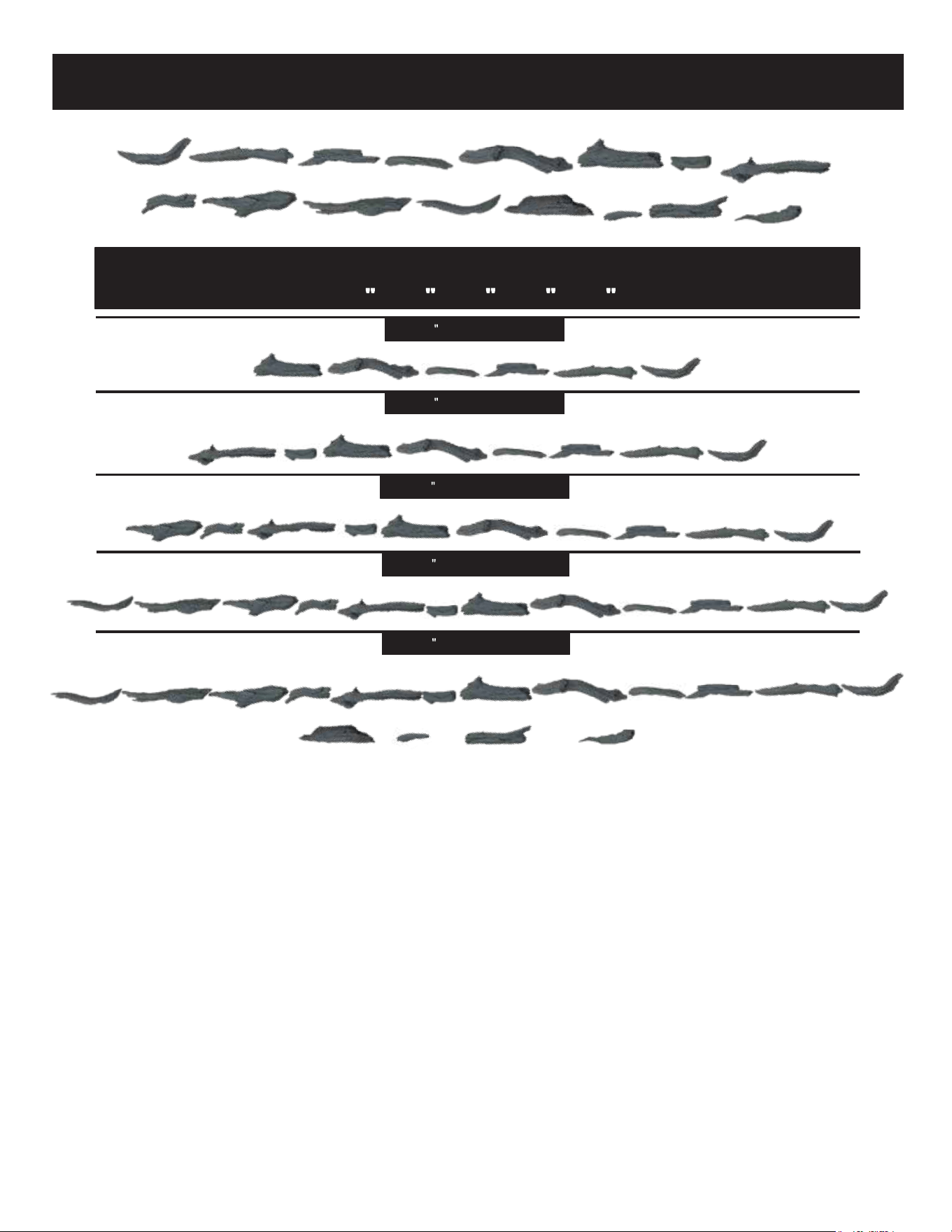

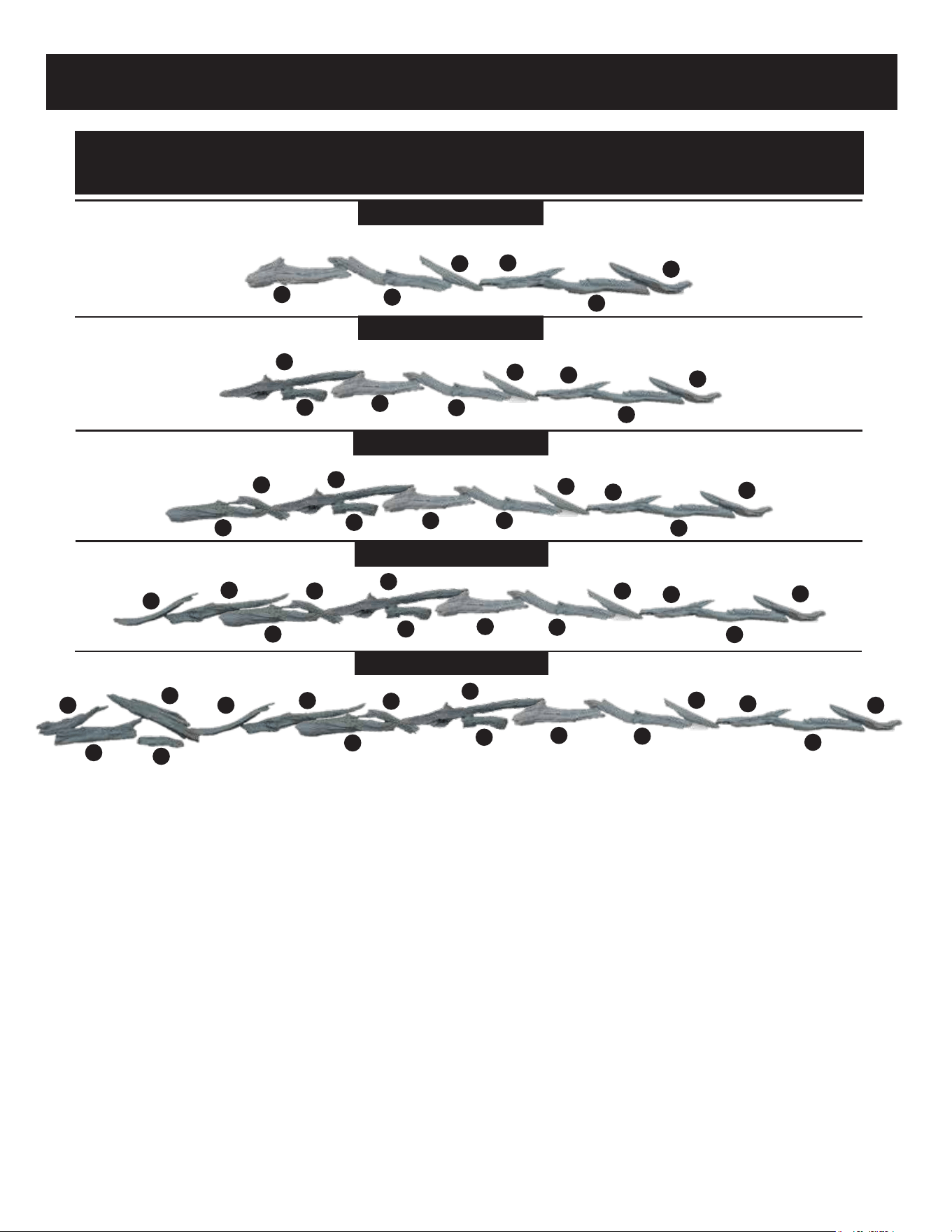

LANDSCAPE PRO SLIM – LOG SET SIZES

44

– 56 – 68 – 80 – 96

LPS 44 – Se t contains 6 logs

LPS 56 – Se t contains 8 logs

LPS 68 – Se t contains 10 logs

LPS 80 – Se t contains 12 logs

LPS 96 – Se t contains 16 logs

LOG SETS

11

LANDSCAPE PRO SLIM – LOG PLACEMENT

44" – 56" – 68" – 80" – 96"

LPS 44" – Set contains 6 logs

LPS 56" – Set contains 8 logs

LPS 68" – Set contains 10 logs

LPS 80" – Set contains 12 logs

LPS 96" – Set contains 16 logs

1

2

3

4

5

6

7

8

7

8

9

10

11

8

9

10

12

9

11

7

8

10

12

13

14

15

16

LOG PLACEMENT

12

N L1

(Fig 3-1)

(Fig 3-2)

BROWN (L1) LINE/HOT

YELLOW/GREEN ( ) GROUND

LIGHT BLUE (N) NEUTRAL

FUSE

BOX

FIREPLACE

JUNCTION/TERMINAL

!

HARD WIRING

• Ensure power from the circuit breaker is oﬀ.

• Remove the 2 securing screws from the junction box cover plate, located on the top

left-hand, backside of the appliance (Fig 3-1).

• From the power supply wire, connect the yellow/green copper wire to the ground (G),

the light blue wire to neutral (N), and the brown wire to Line 1 (L1) (Fig 3-2).

TURN OFF POWER FROM CIRCUIT BREAKER FIRST

220~240 Volt Power (6,800 BTU’s):

Note:

There are 3 wires from the appliance junction box: light blue (neutral), brown (power L1), and

yellow/green (ground) that are connected to 220~240V power source (circuit breaker panel).

A qualiﬁed electrician must wire this ﬁreplace to a dedicated 220~240 volt, 13 amp (EU)

10 amp (AU/NZ), circuit.

A 13 amp (EU) or 10 amp (AU/NZ) circuit is required. A dedicated circuit is preferred

but not essential in all cases. A dedicated circuit will be required if after installation,

the circuit breaker trips on a regular basis. Additional appliances on the same circuit

may exceed the current rating of the circuit breaker.

Note: Follow all national and local electrical codes.

13

INSTALLING MEDIA AND FRONT GLASS

2. The fireplace comes with

clear and smoke crystals.

Mix crystals together and

evenly spread crystals

along the ember bed.

4. The front glass can now

be installed, by

installing bottom of

glass in track,

then tilt towards

fireplace.

After placing the

front glass it can be

secured with screws.

3. Place the logs on top of

the acrylic crystals.

1. Remove screws from top

of glass bracket. Use

the small suction cup

provided in the

hardware

kit to lean glass

towards the front. Then

lift glass up and away.

Place glass in soft, safe

area.

14

The unit has a main power switch just in front of the glass on the top right hand side.

A hand-held remote is included.

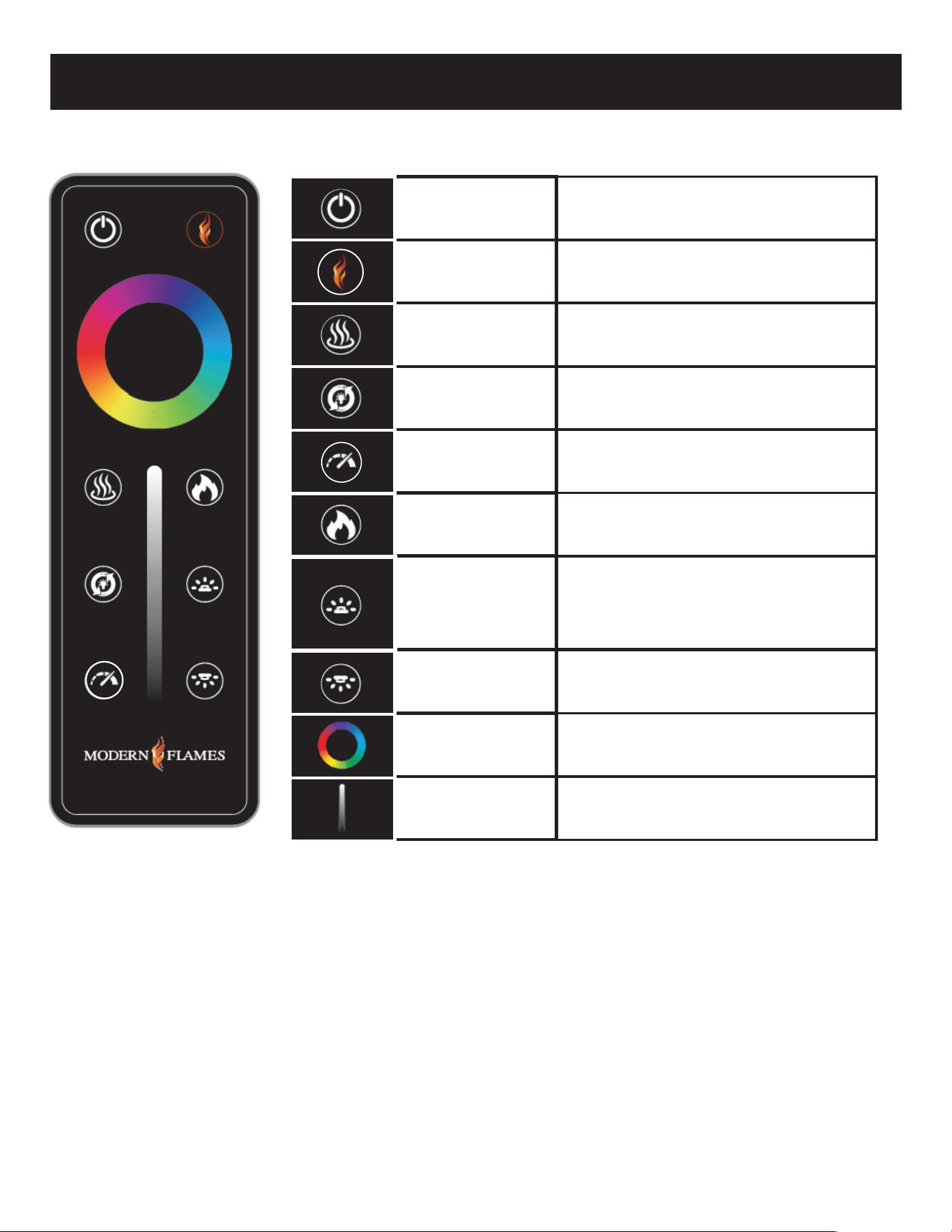

REMOTE CONTROL OPERATION

Power

Home

Heat

Mode

Speed

Flame

Ember Bed

Downlight

Color Wheel

Brightness

Slider

This will cycle the ﬁreplace on and oﬀ. Upon

cycling power on, the ﬁreplace will return to

the settings it had when it was cycled oﬀ .

If the ﬁreplace is on, this button will act as a reset

and bring all colors back to the default Modern

Flames' signature color.

This will cycle the heater between high,

low and oﬀ .

All zones of the ﬁreplace will cycle through

various demo modes - 7 & 3 color

gradient/fade, 7 & 3 color jump,

red/green/blue gradient.

This is the speed button. Pressing will cycle the

ﬂame & ember bed speeds.

Speeds: Low, Medium, Default & High.

This is a zone setting. Touching this button

will allow you to change the color and

brightness of the ﬂame by using the

color wheel and brightness slider.

This is the Ember Bed light adjustment button.

After pressing this button, the color ring and

brightness bar will be adjusted, and only the color

of the ember bed lamp will be adjusted. Long

press this button for 3 seconds to adjust the

optional accessory on or oﬀ

This will cycle the selected zone through the colors

of the color spectrum.

This is a zone setting that controls the

color and brightness of the downlight.

This will adjust the brightness of the

selected zone.

Pairing remote or wall mounted touch control:

Before beginning, read pairing instructions in its entirety. Locate and familiarize yourself with the manual touch

controls on the ﬁreplace and your hand held remote. Ensure remote has a battery installed.

1. On the ﬁreplace touch controls, long press the on/oﬀ button for 3 seconds until a fast double beeping tone is heard

from the ﬁreplace. The power indicator will also ﬂash 3 times in 1 second. This places the ﬁreplace in RF pairing mode.

2. Within 5 seconds of hearing the double beeping tone, either on the handheld remote or wall touch control, press

the power button repeatedly until another beeping tone is heard along with the indicator lights ﬂashing. This is the

ﬁreplace acknowledging that it has paired. An additional tone may also be heard; this is simply the ﬁreplace

completing the pair mode.

NOTE:

• Pairing must be done within 5 seconds or the ﬁreplace will time out of pairing mode.

• After the initial double beep is heard, do not long press the power button on the remote/pairing device to pair as this may not be

successful. Pressing the power button repeatedly is required to ensure the signal is sent from the remote/pairing device to the

ﬁreplace.

• To clear any paired remotes/devices from the ﬁreplace, locate the reset button on the ﬁreplace, then long press the reset button

for 3 seconds. A beeping tone will indicate that the codes have been cleared. Once cleared, a new remote or wall touch control

can now be paired. This will also un-pair any APP that was paired to the ﬁreplace.

15

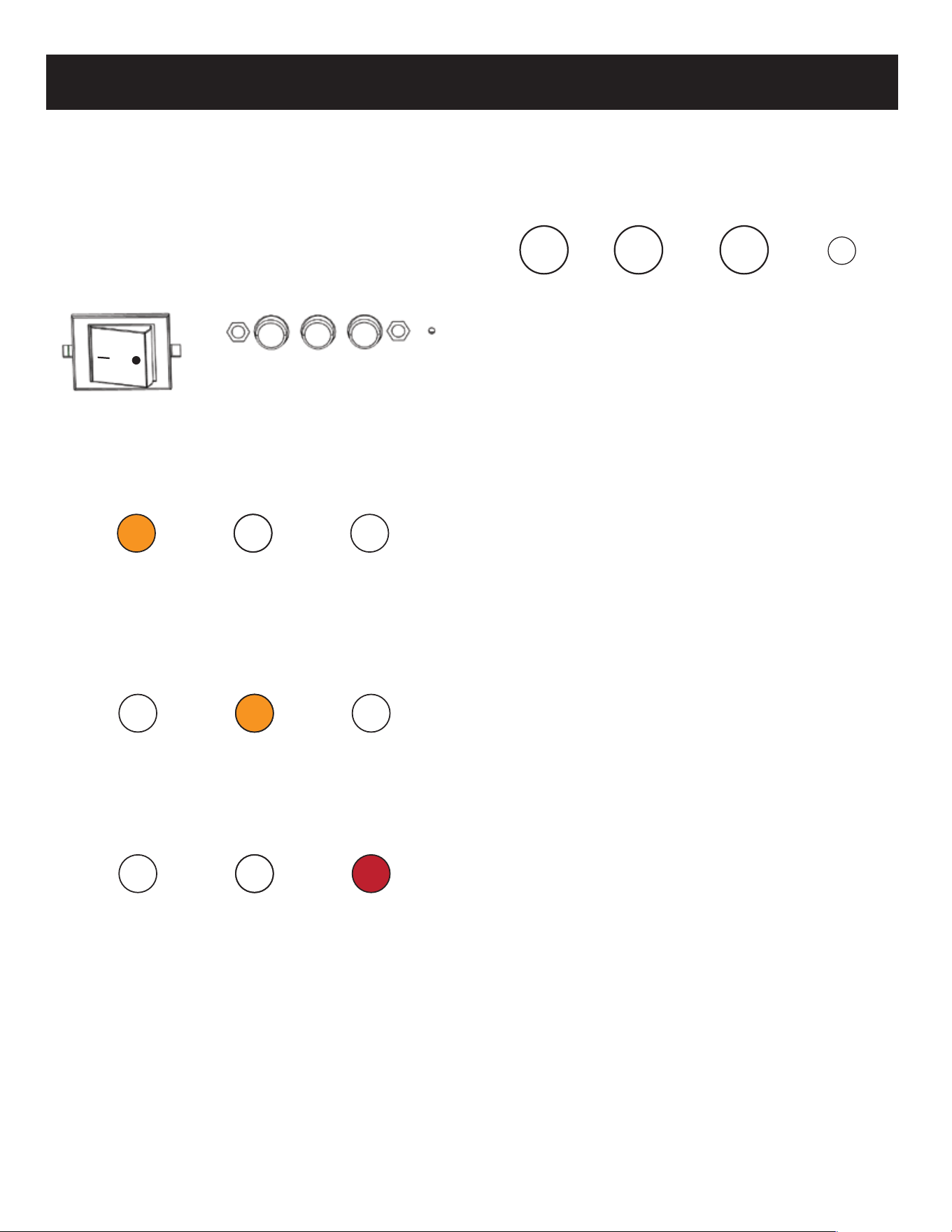

Toggle Switch: The ﬁreplace has a main toggle

switch located next to the manual controls.

The toggle switch is in front of the glass on

the top right side of the viewing area.

When the “-” side of the toggle switch

is depressed, the “O” pops up.

This is the power-on state of the ﬁreplace.

Power Indicator lights: The ﬁreplace is equipped

with Power indicator lights which are located

on the upper right corner of the ﬁreplace

viewing area.

First light: When the ﬁreplace is in the power-on

state, an amber light turns on. The light shows

the ﬁreplace is energized and on stand-by for

any commands. The amber light turns OFF

when the ﬁreplace is turned on and operating.

Second light: When the ﬁreplace is powered on

and the heater is set to low, the second light

turns on. Light will fade away after 6 seconds.

Third light: When the ﬁreplace is powered on and

the heater is set to high, the third light turns

on. Light will fade away after 6 seconds.

Manual Controls

The ﬁreplace has manual controls located next to the

toggle switch, in front of the glass on the top

right side of the viewing area.

Power On/Oﬀ button: Press once, indicator light

turns oﬀ and ﬁreplace power turns on. All

functions enabled. Press again, ﬂame turns oﬀ

and ﬁreplace goes to standby. NOTE: Long

pressing this button for 3 seconds places

ﬁreplace in RF pairing mode.

Heat Button: Pressing heat button cycles the heater

and blower on/oﬀ. Settings: Heater and blower

OFF, Low Heat, and High Heat. Indicator light will

match according to status. NOTE: On US LPM,

low and high heat have the same heat output

when wired for 120 V. Long Press the heater

button for 5 seconds to lock/unlock the heater.

Preset Color Button: Press preset color button to

cycle through the 8 preset color options. This

changes color of all three zones: the ﬂame,

ember bed and down light. Colors in order of

appearance: MF orange-red-orange-golden

orange-green-aqua-blue-magenta

Resetting button: Clears any paired

remotes/devices from the ﬁreplace. Once cleared

you can pair a new remote or wall touch control.

This will also un-pair any APP that was paired to

the ﬁreplace. After long pressing the reset button

for 3 seconds, a beeping tone will be heard

indicating that the pairing codes have been

cleared.

Buzzer Tone Change: Long press the on/oﬀ and

preset color button at the same time to enter the

beeping tone cycle mode. Continue to long press

both buttons to cycle through the 4 tone options.

The tone will change every 2 seconds while

releasing the buttons will act as the selection of

the tone. The tones in order of appearance are;

tone-1, tone-2, tone-3, and silent mode.

Power

Turns

unit

Heat

Cycles

heat low/

high/oﬀ

Color

Changes all

ﬁreplace

colors togeth-

Reset

Resets

unit

SETTING CONTROLS

16

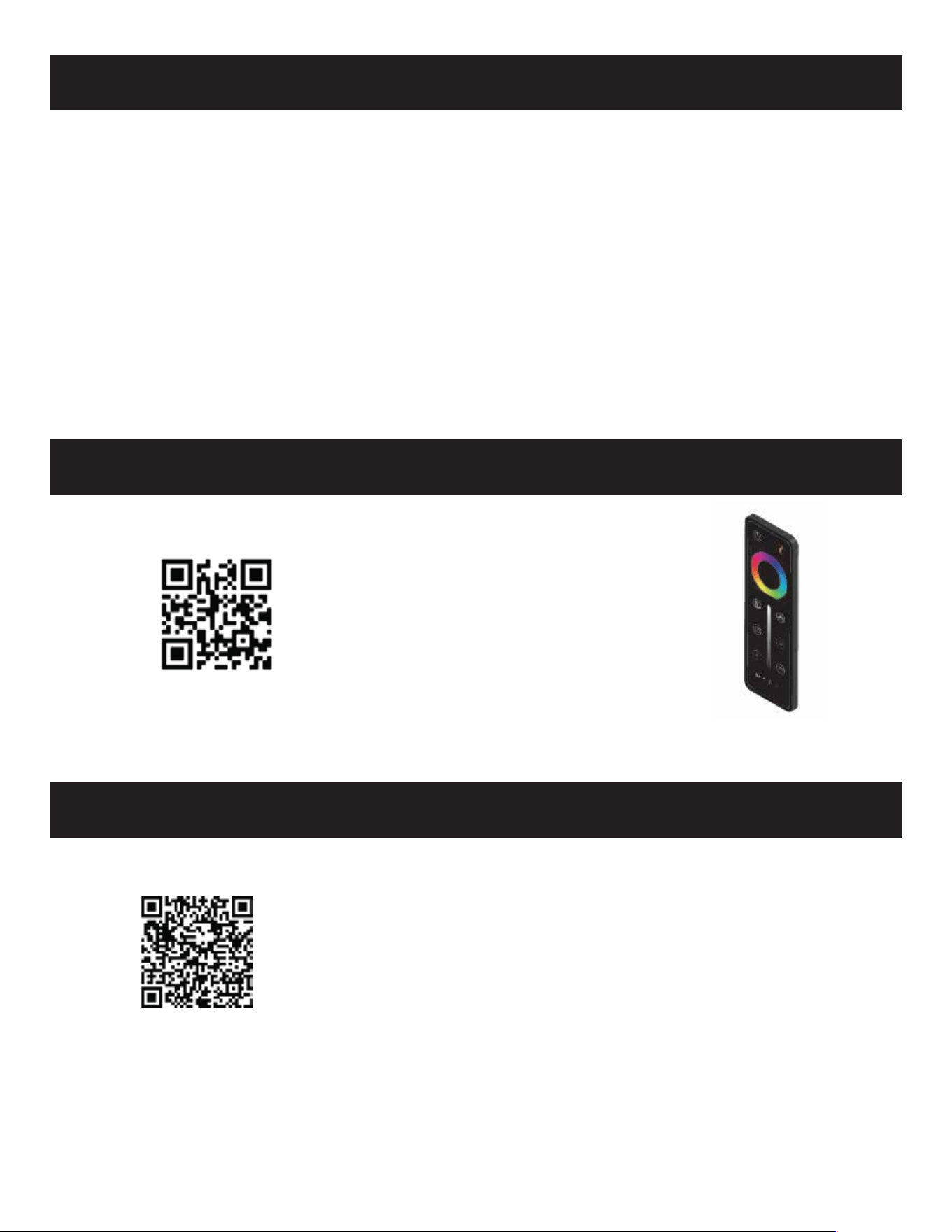

SETTING CONTROLS

NOTE: When silent mode is selected, a tone will

still be present for performing system func-

tions such as remote pairing or Wi-Fi pairing.

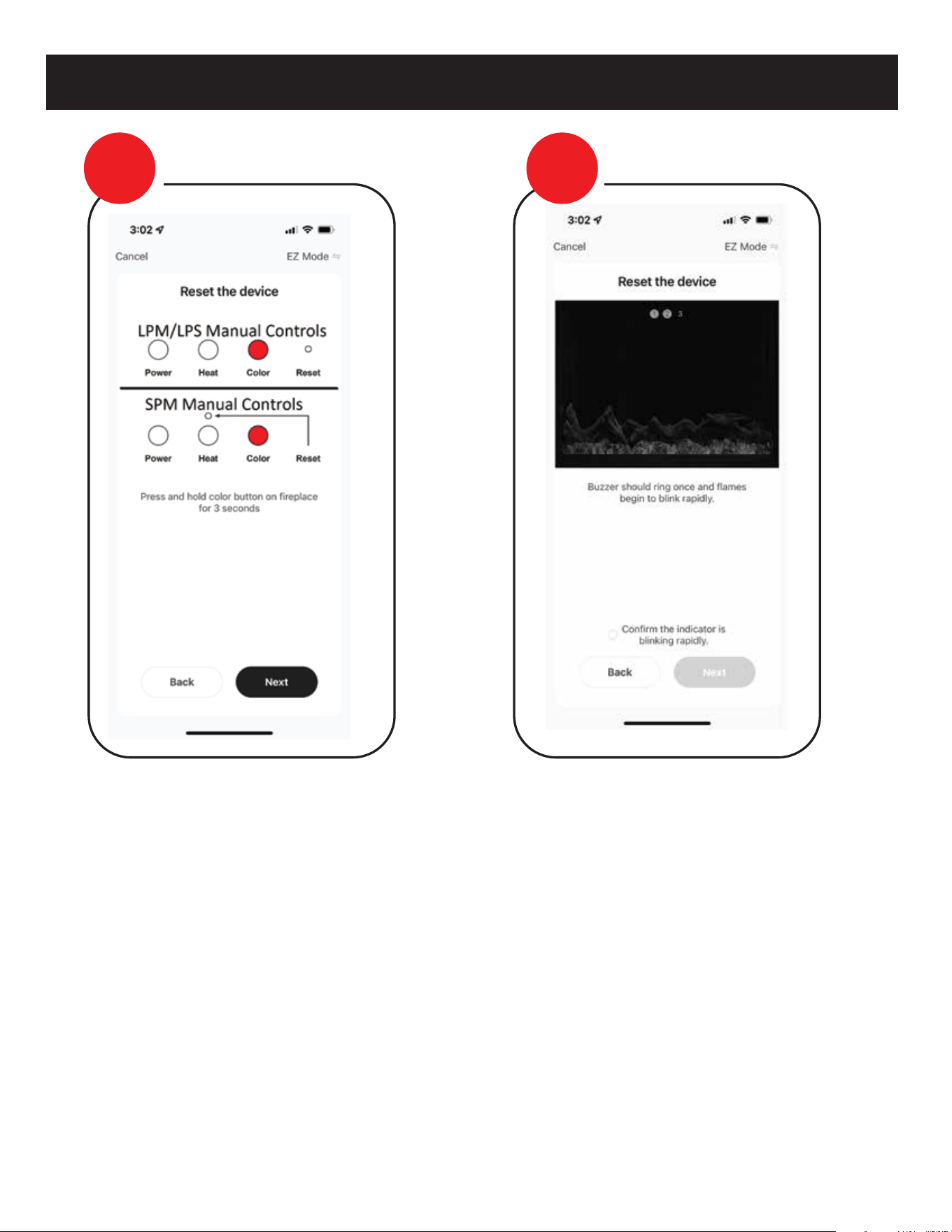

Placing in Wi-Fi Paring Mode:

-EZ Mode: While the ﬁreplace is ON, long

press the Preset Color button for 3 seconds.

An audible beeping tone will sound and the

ﬂame light, ember bed light, and down light

will turn to white and begin ﬂashing rapidly.

Fireplace is now in EZ pairing mode, which

lasts for 2 minutes.

-AP Mode: While the ﬁreplace is ON, long press the

Preset Color button for 6 seconds. Two audible

beeping tones will sound and then only the

FLAME LIGHTS and nothing else will turn to

white and begin ﬂashing slowly. Fireplace is

now in AP pairing mode, which lasts for 2

minutes.

NOTE: Fireplace is also equipped with Bluetooth

pairing. There is no mode setting for the

Bluetooth as the APP will automatically detect

the Bluetooth signal for pairing when

attempting to pair ﬁreplace to Bluetooth.

Link to video on how to change

battery in Pro Series remote

CR2025 battery

HOW TO CHANGE REMOTE BATTERY

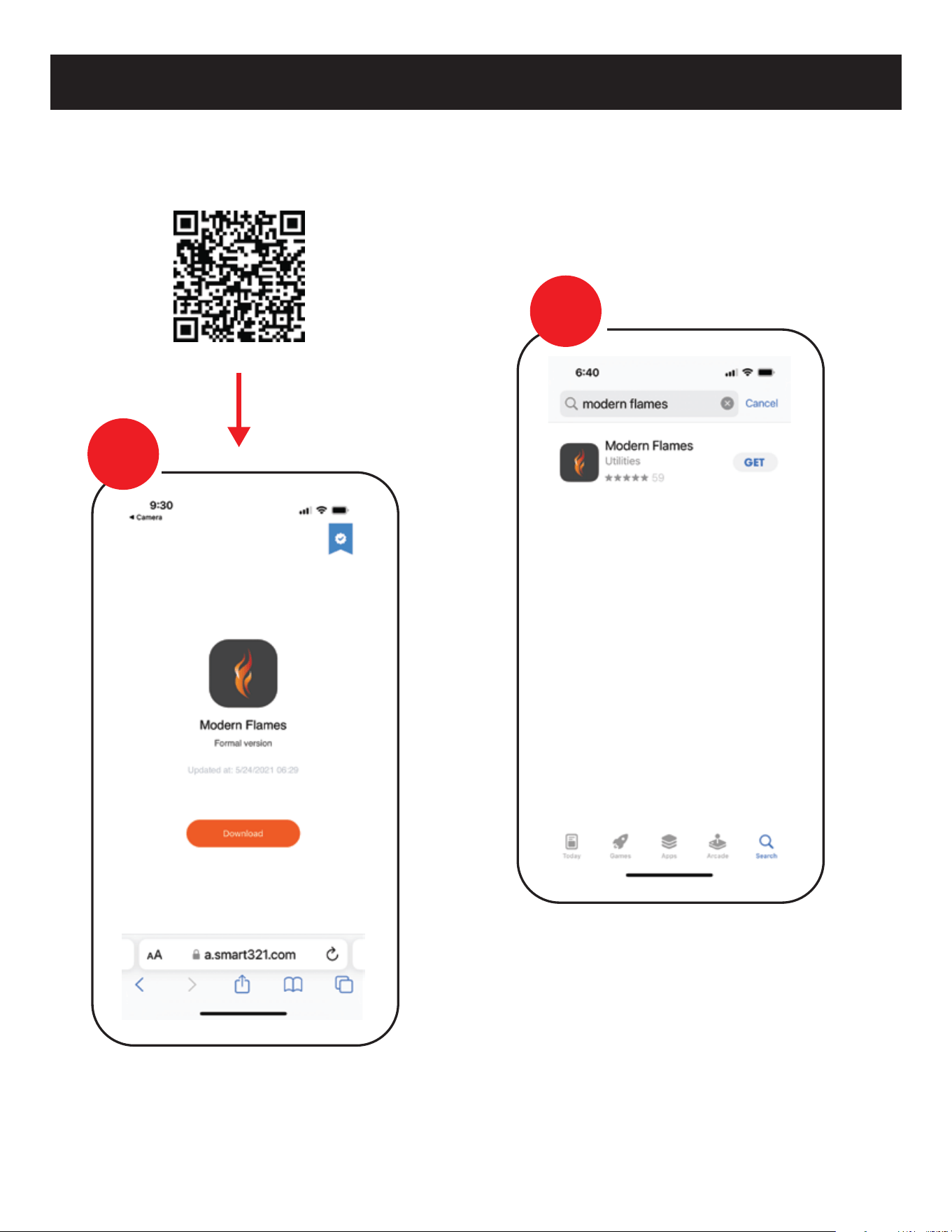

LINK TO DOWNLOAD MOBILE APP

Link to Mobile App for tablets & phones

17

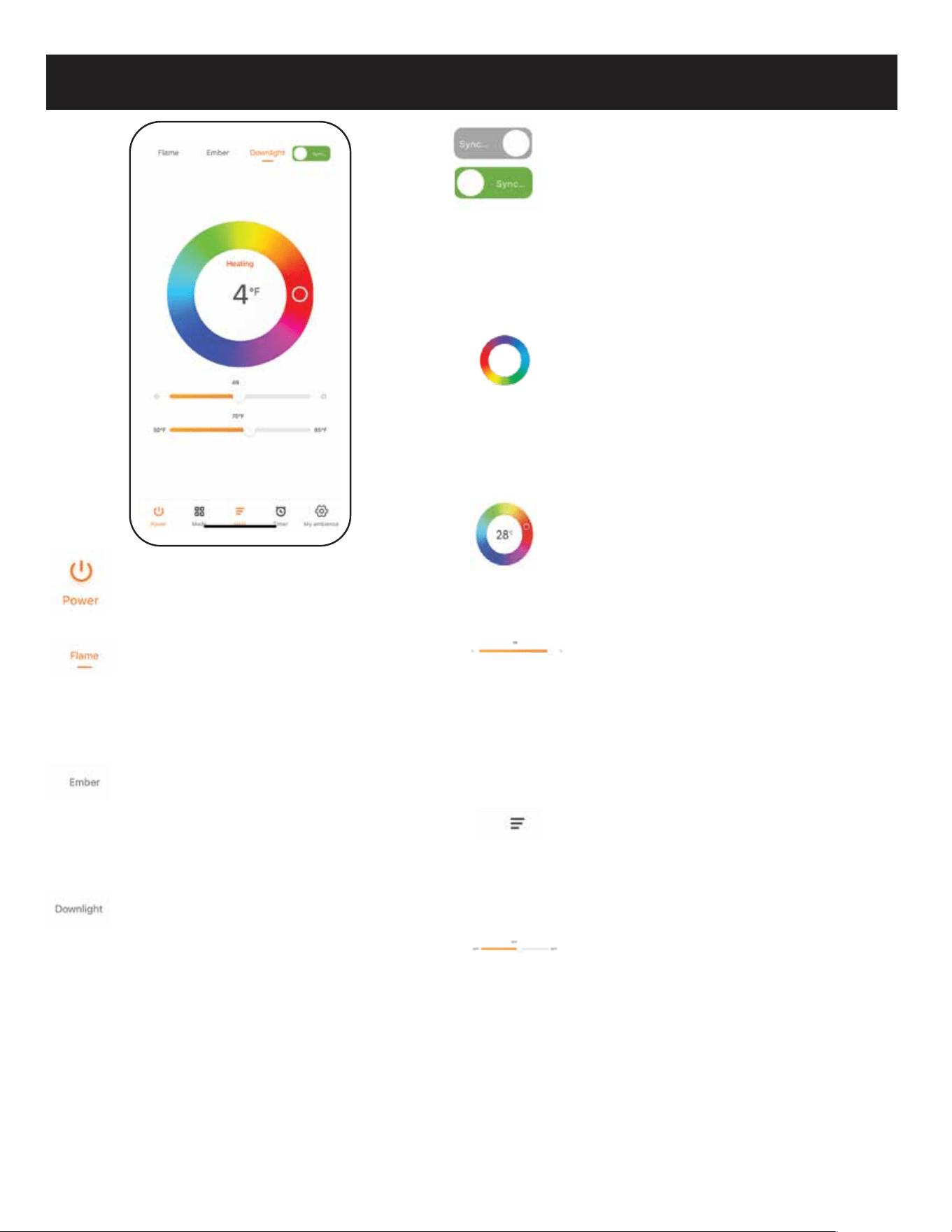

WI-FI REMOTE

Power

Powers unit On & Oﬀ.

Flame

This is the ﬂame zone adjustment tab.

After pressing this tab, the color ring

and brightness bar can be adjusted.

Ember Bed

This is the ember bed zone adjustment

tab. After pressing this tab, the color

ring and brightness bar can be adjusted.

Downlight

This is the downlight zone adjustment

tab. After pressing this tab, the color

ring and brightness bar can be adjusted.

Sync

This is a synchronization selector, used

to synchronize the current color on the

color wheel to all of the zones

(Flame/Ember Bed/Downlight). Grayed

out SYNC is when synchronization is

“OFF”. Green SYNC is when

synchronization is “ON”.

Color Wheel

This is the color adjustment wheel for all

zones. Keeping contact on the color

circle, the color of the selected zone will

change continuously base on where you

have your ﬁnger.

Temperature Read Out

The number in the color circle is the

built-in thermostat temperature reading

of the ﬁreplace.

Brightness Control

Brightness adjustment, for all zones

depending on tab selected or if sync is

on. The brightness of the ﬁreplace

changes in real time as the slider is

moved.

Heat Control

Heat controls open a drop-down menu.

The menu displays oﬀ, low, and high.

Can be used without thermostat.

Thermostat Slider

Normally inactive while heater is “ON.”

To use the thermostat while the heater

is “ON,” activate the thermostat by

setting the slider to the desired

temperature.

Note: Does not save when turned “OFF.”

18

WI-FI REMOTE

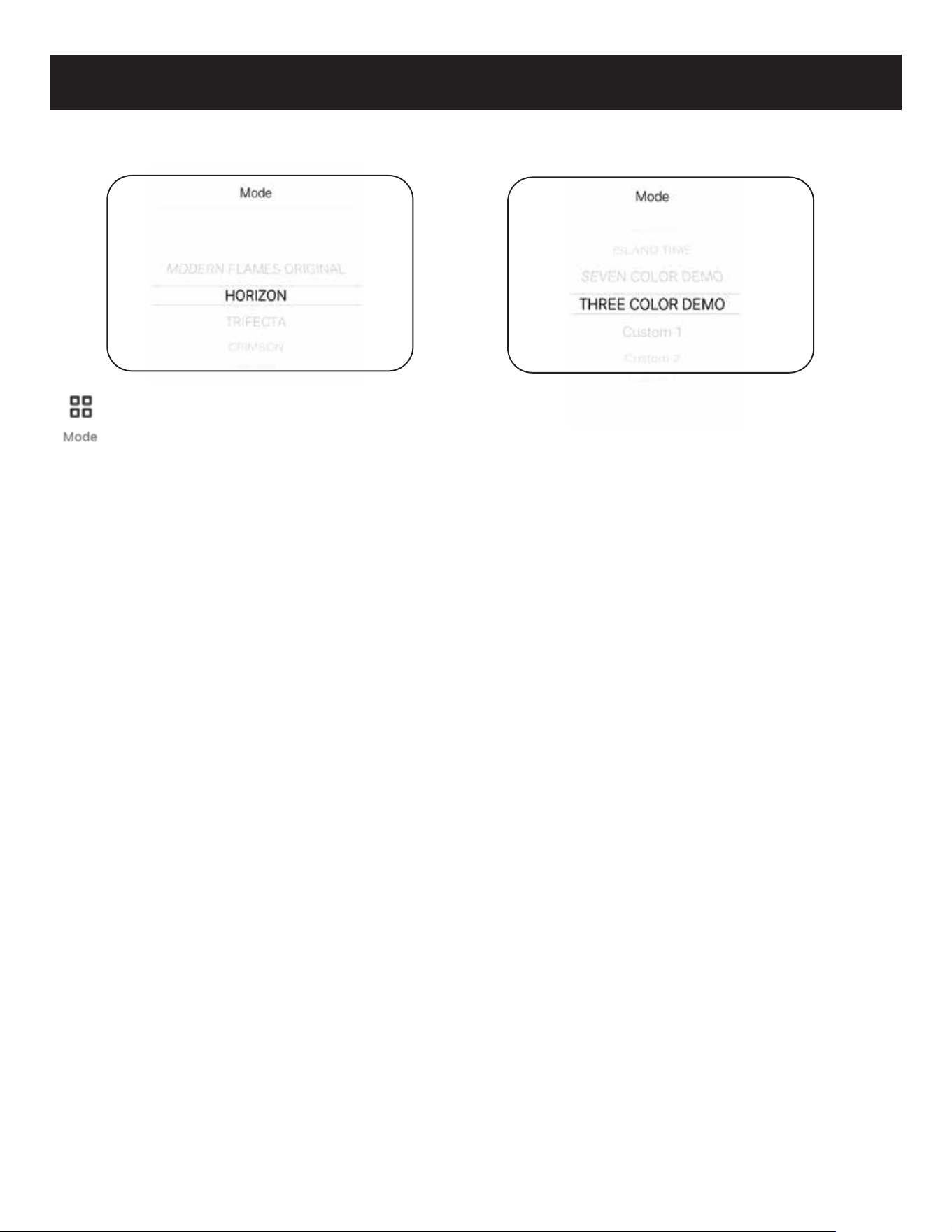

Mode Button

Opens a sub menu for selecting presets.

PRESET MENU

> Modern Flames Original

Modern Flames Orange (Static).

> Horizon

Same as remote control, 7 color gradi-

ent cycle R->G->B->RG->RB->GB->RGB.

> Trifecta

Same as remote control，R-G-B

three color gradient cycle.

> Crimson

Same as remote control,

3 color gradient cycle R->G->B.

> Hillside

Same as remote control，

green monochrome fade cycle.

> Island Time

Same as remote control blue

monochrome fade cycle.

> Seven Color Demo

Same as remote control, 7 color jump

cycles: R->G->B->RG->RB->GB->RGB.

> Three Color Demo

Same as remote control, 3 color jump

cycles: R->G->B.

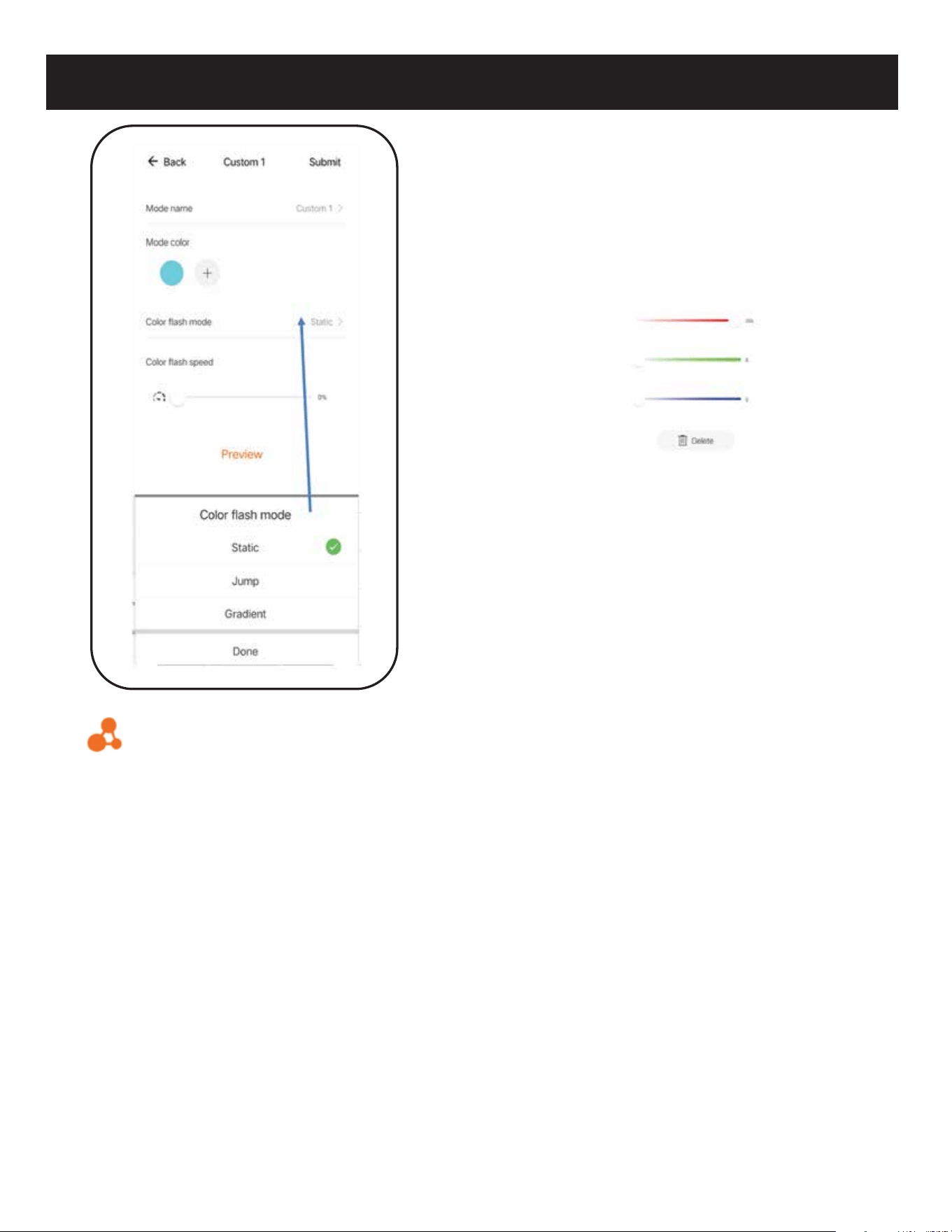

> Custom 1

Custom mode can be modiﬁed from

“My Ambience” setting. The default

color is Red.

> Custom 2

Custom mode can be modiﬁed from

“My Ambience” setting. The default

color is White.

> Custom 3

Custom mode can be modiﬁed from

“My Ambience” setting. The default

color is Blue.

Mode Sub Menu Preset Menu

19

WI-FI REMOTE

> Temperature Scale

Set the temperature unit according to

needs. “°C” for Celsius and “°F” for

Fahrenheit. The main temperature

read out will change accordingly.

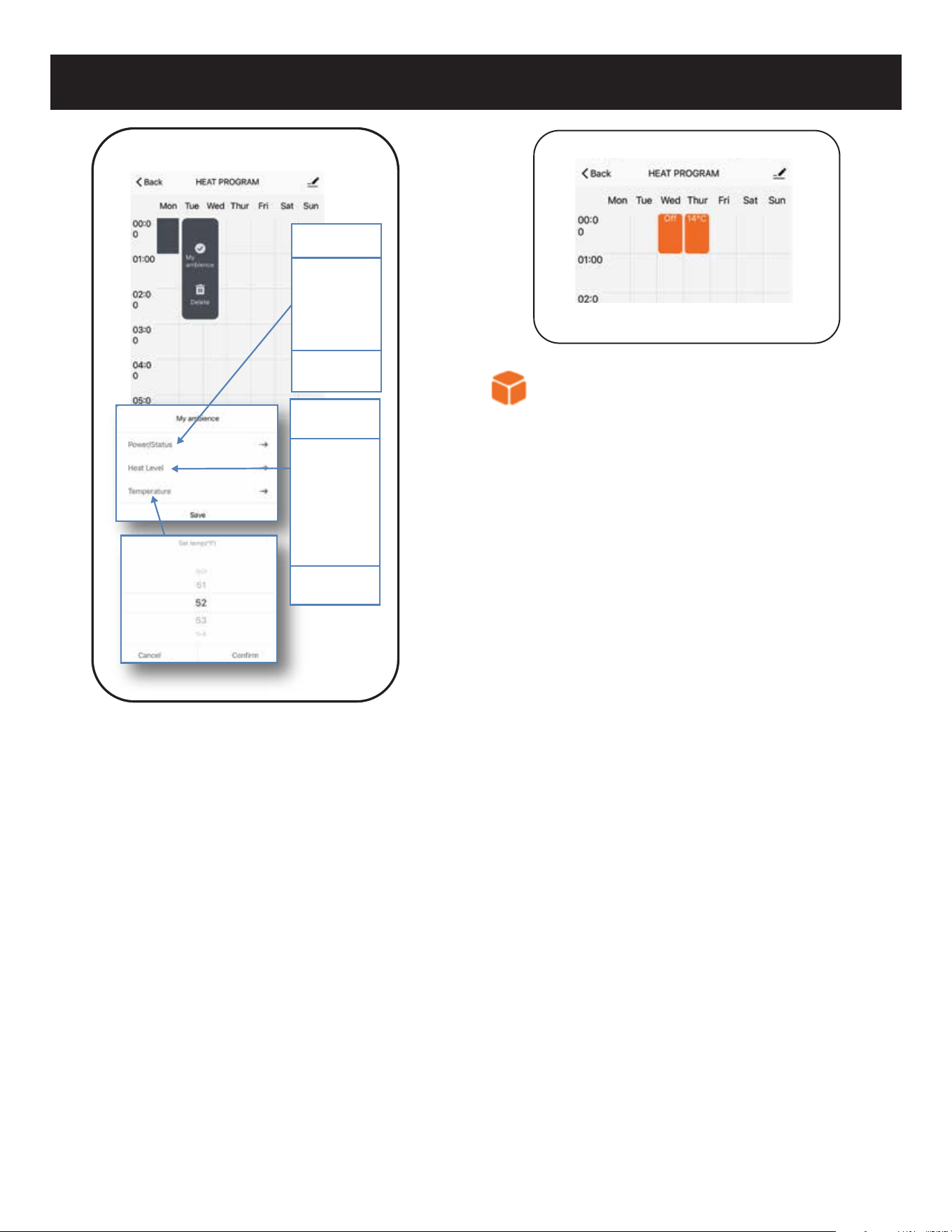

> Heat Program

Setup a custom weekly schedule. This

includes the state of the ﬁreplace, the

heater level and thermostat for the heat

if desired. (See Heat Program Sub menu

continued for more info.)

> Customize Mode

Conﬁgure the custom modes via

4 options: mode name, mode color, Color

ﬂash mode, Color ﬂash speed. Includes a

preview function. (See Customize Mode

Sub menu continued for more info.)

Timer

Pressing the timer button will pop up a

sub-menu with 10 options to choose

from: 0.5-1-2-3-4-5-6-7-8 hours-cancel.

Once the selected time has elapsed, the

ﬁreplace will turn oﬀ.

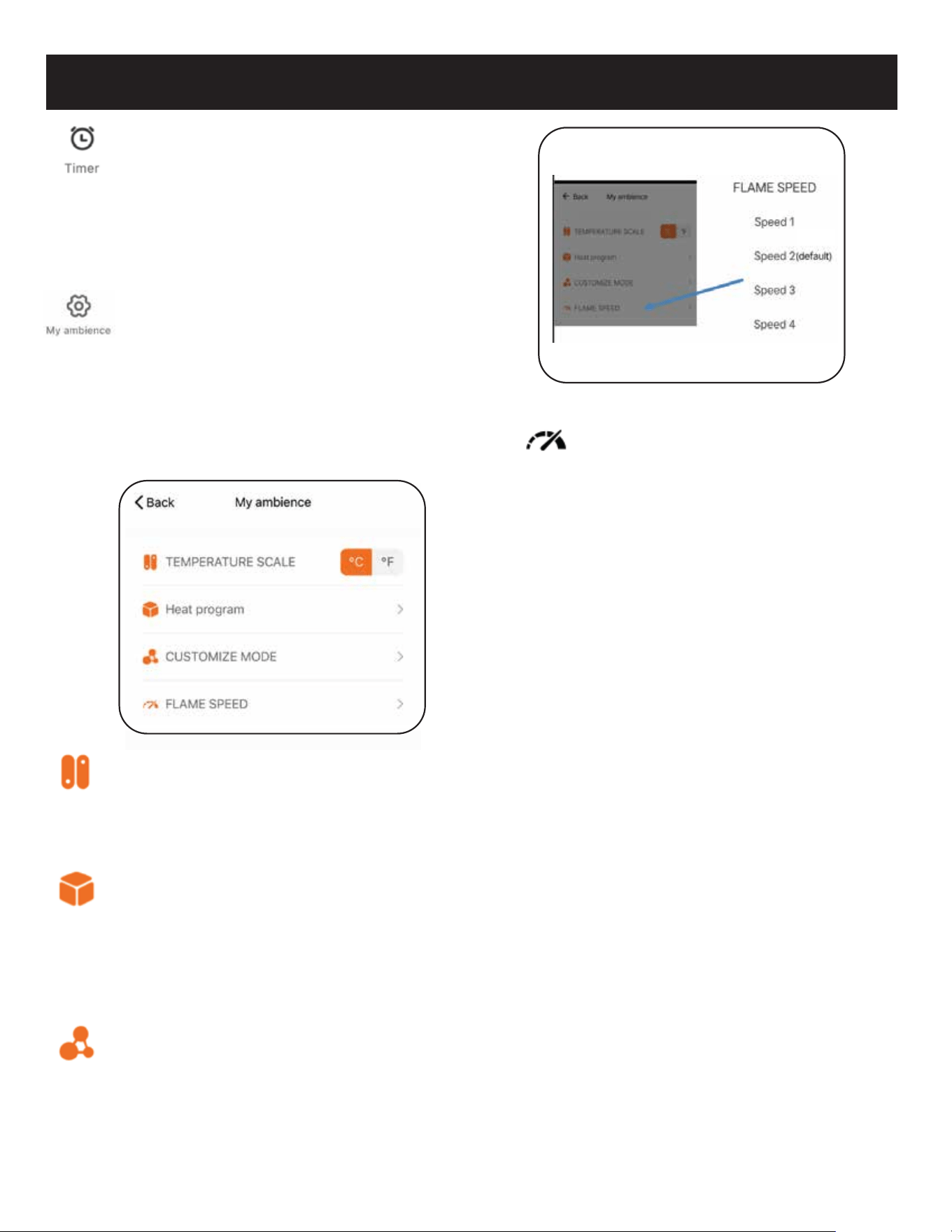

Ambience Setting

The Ambience Setting button will open

up a second window where

customizations can be performed,

including temperature scale setting (C/F),

Weekly/Heat programming, Custom

mode conﬁguration, and changing

speed of the ﬂame and ember bed.

> Flame Speed

Change between 4 speeds:

Low, Medium, Default & High.

(default)

20

WI-FI REMOTE

HEAT PROGRAM

SUB MENU CONTINUED

> Power

Sets ﬁreplace status (no heat) OFF/ON.

> Heat Level

Sets Heat Level: OFF/LOW/HIGH.

> Temperature

Temperature Level for the heater to

turn on if the ambient temperature falls

below the set temperature (High Heat).

Power

O

Turn On

Cancel

Heat Level

O

Low

High

Cancel

21

> Mode Color

Mode color: In the Static mode, only

one color can be selected. After clicking

the color symbol, you can change to

additional colors. When using the

Jump/Gradient feature, 8 colors can

be programmed by clicking “+” color.

By adjusting the color sliders, select the

corresponding RGB value to obtain the

desired color combination..

WIFI REMOTE

> Color Flash Mode

Customizing how the color changes.

>Static

No change in brightness and

ﬂash and only one color can be

selected.

> Jump

Cycles between selected colors,

up to 8. Jump speed is selected

using the speed slider.

> Gradient

Color progression between

chosen colors, up to 8.

Gradient speed is selected

using the speed slider.

> Preview

Will Preview any customization being

made.

CUSTOMIZE MODE SUB MENU

> Mode Name

Custom name of selected mode

(default will be present until changed).

22

WI-FI INITIAL LOG-IN

> After Download & Installed

Login to Modern Flames app.

Search for and install the “MODERN FLAMES” app from Google Play or

Apple App store or scan the QR code.

> App Example

STEP

1

STEP

2

23

WI-FI PAIRING

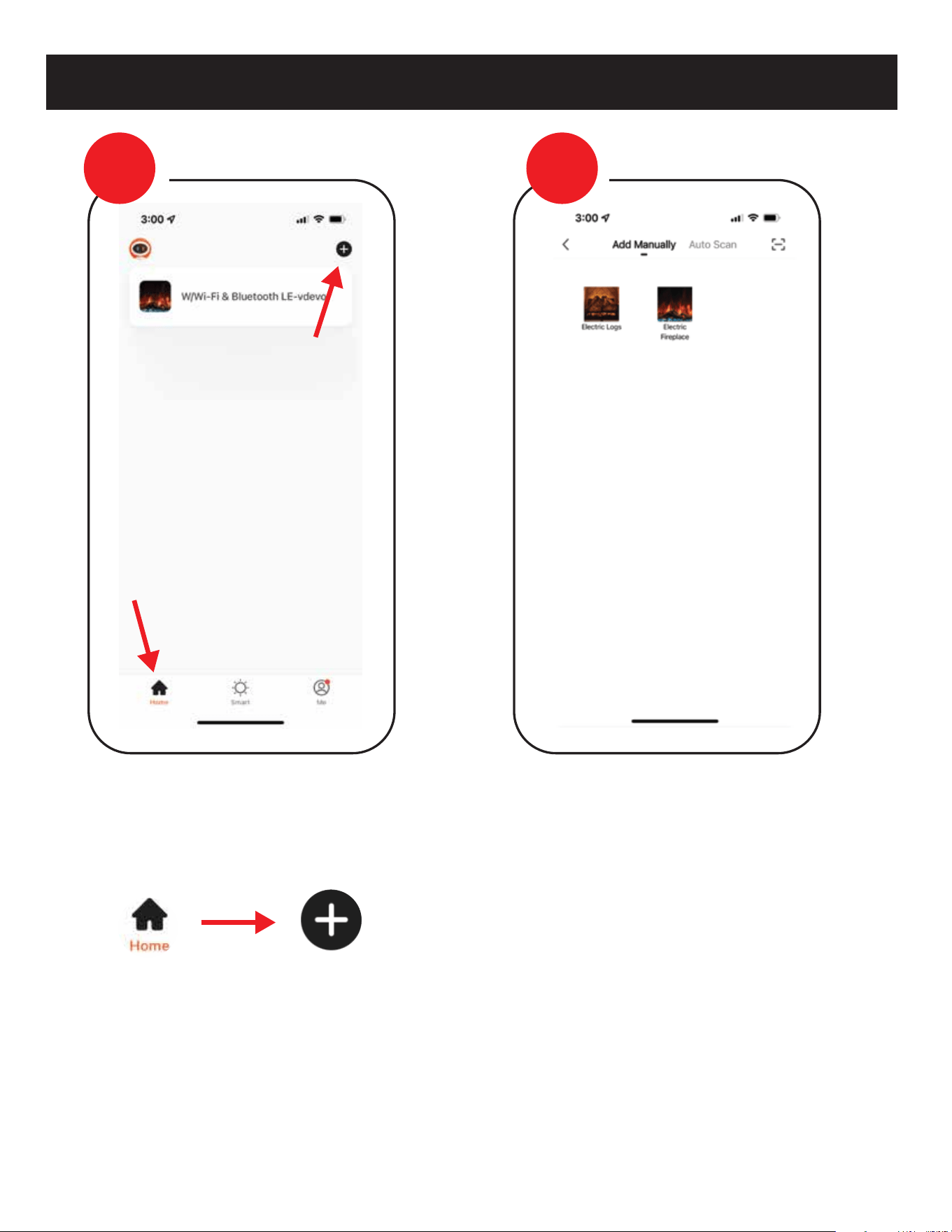

> Once Opened and Logged In

From the home page, select the add

“+” symbol.

> Select Fireplace

Select series of ﬁreplace that will be

pairing too and follow instructions.

STEP

3

STEP

4

24

WI-FI REMOTE

> Ensure Fireplace is ON

Using the ﬁreplace manual touch

controls, turn ON the ﬁreplace.

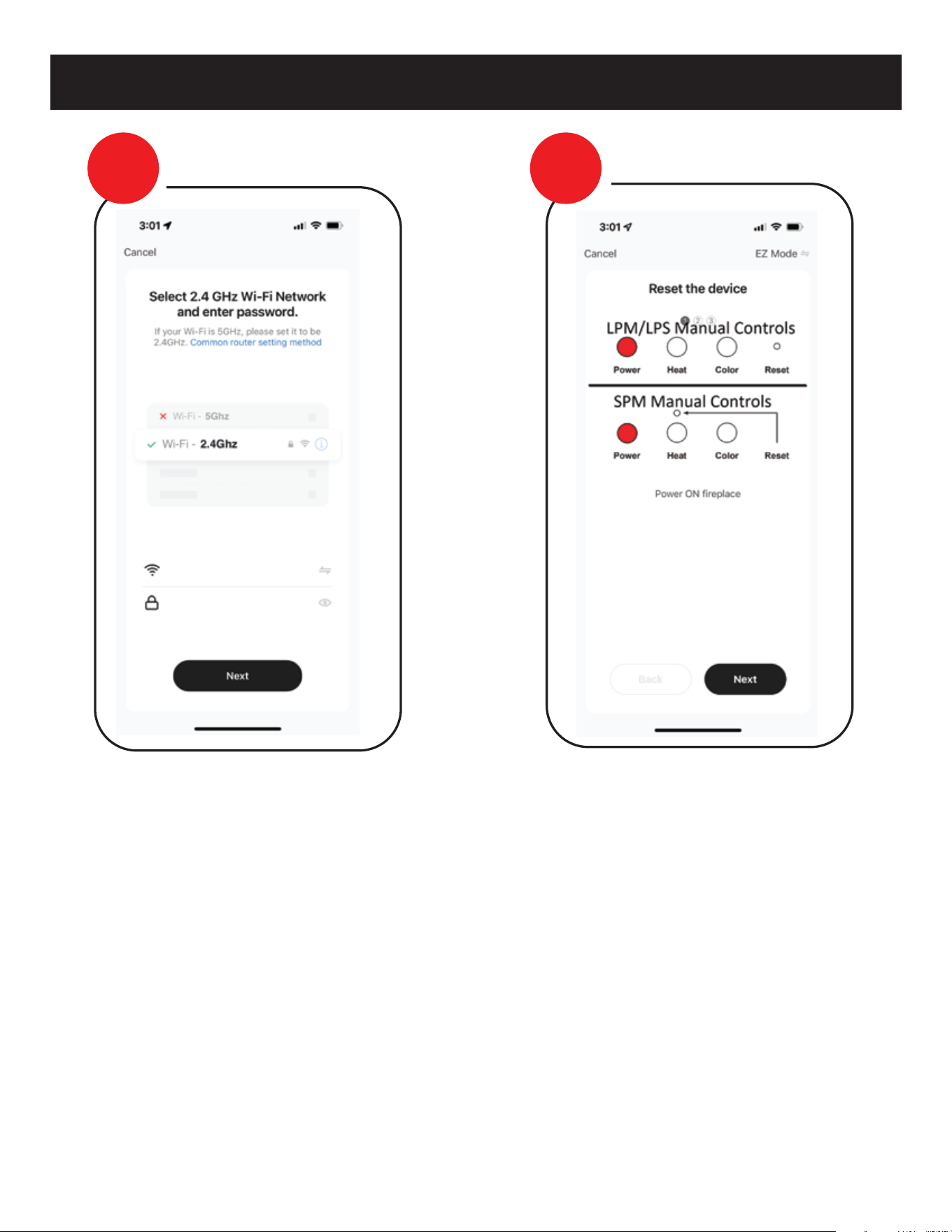

> Wi-Fi Information

If pairing via Wi-Fi you must use 2.4 GHz

Wi-Fi, and must have information ﬁlled

out to move to next step.

STEP

5

STEP

6

25

WI-FI REMOTE

> Place Fireplace in Pairing

Mode

Once ﬁreplace is “ON”, place ﬁreplace in

Wi-Fi pairing mode following the

instructions for pairing mode on the

APP. There are 3 types of pairing EZ

mode, AP mode and a Bluetooth mode.

EZ and AP modes will be displayed

accordingly on the top right of the

screen. Example displayed is EZ mode.

> Wi-Fi Pairing Conﬁrmed

EZ pairing mode is conﬁrmed with a

single audible beeping tone is heard

and all the lights begin to blink rapidly

AP pairing mode is conﬁrmed with two

audible beeping tones are heard and

ONLY the FLAME begins blinking

slowly.

*Select conﬁrm to move forward to

Next step

Note: Device remains in pairing mode

for 2 minutes.

STEP

7

STEP

8

26

WI-FI REMOTE

> Device Paired Successfully

NOTE: Do not turn oﬀ or disconnect the

ﬁreplace from power while pairing the

Wi-Fi or performing updates. Failure to do

so can result in damage to the electrical

components of the ﬁreplace. Damage as a

result of this may not be covered under

warranty.

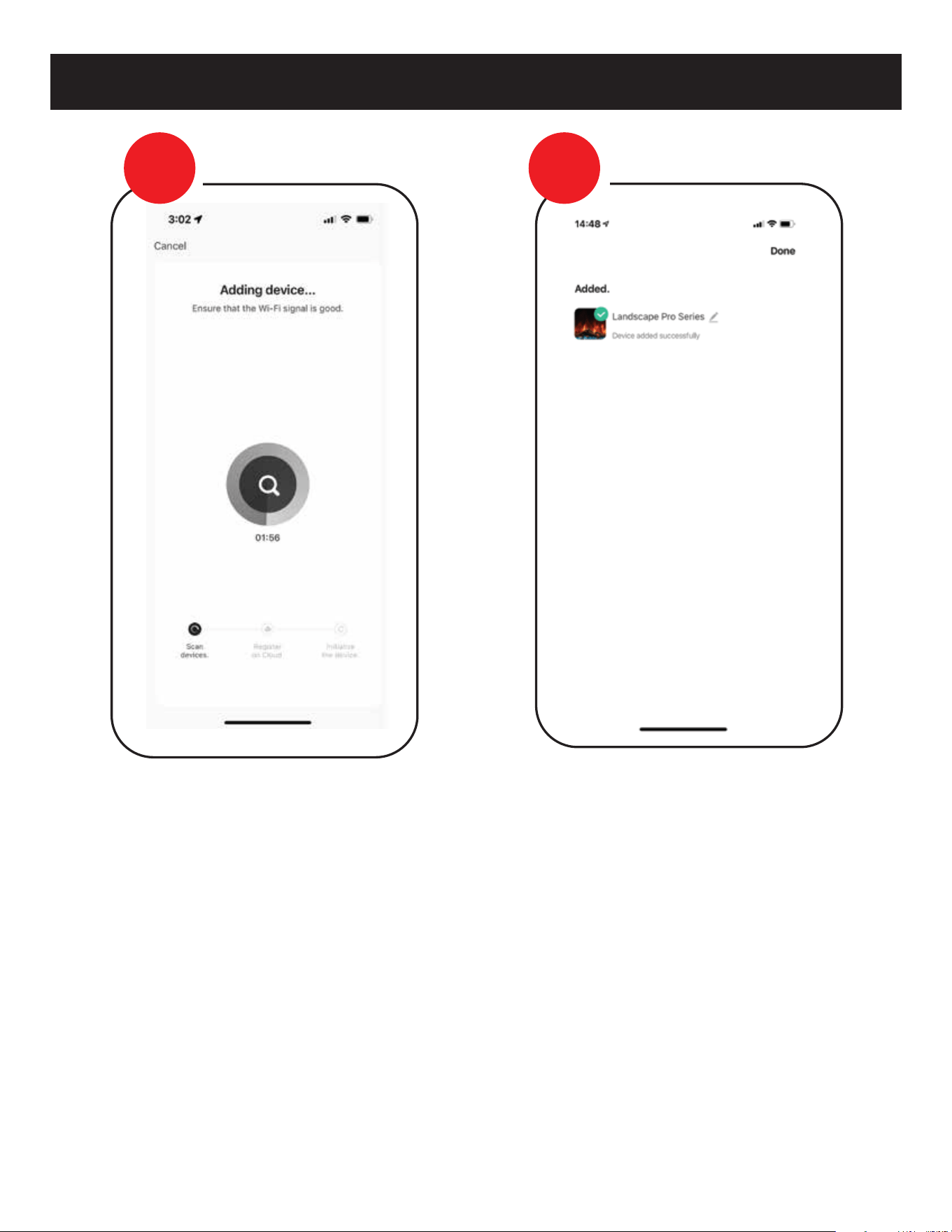

> Pairing

Device & APP should now begin to pair.

Depending on Wi-Fi this can take up the

entire 2 minutes to pair, or it may need

to be repeated more than once, if the

signal isn’t captured the ﬁrst time.

Question or assistance about pairing device contact.

AUSTRALIA/NEW ZEALAND

info@modernﬂames.com or call 07 5630 6837

Monday-Friday, 9:00 am - 4:00 pm (AEST).

EUROPE

europe@modernﬂames.com

or call +46 762 09 58 09

Monday-Friday, 9:00 am - 4:00 pm (CEST).

customerservice@modernﬂames.com

or call (877) 246-9353

Monday-Friday, 8:00 am - 5:00 pm (MST).

STEP

9

STEP

10

27

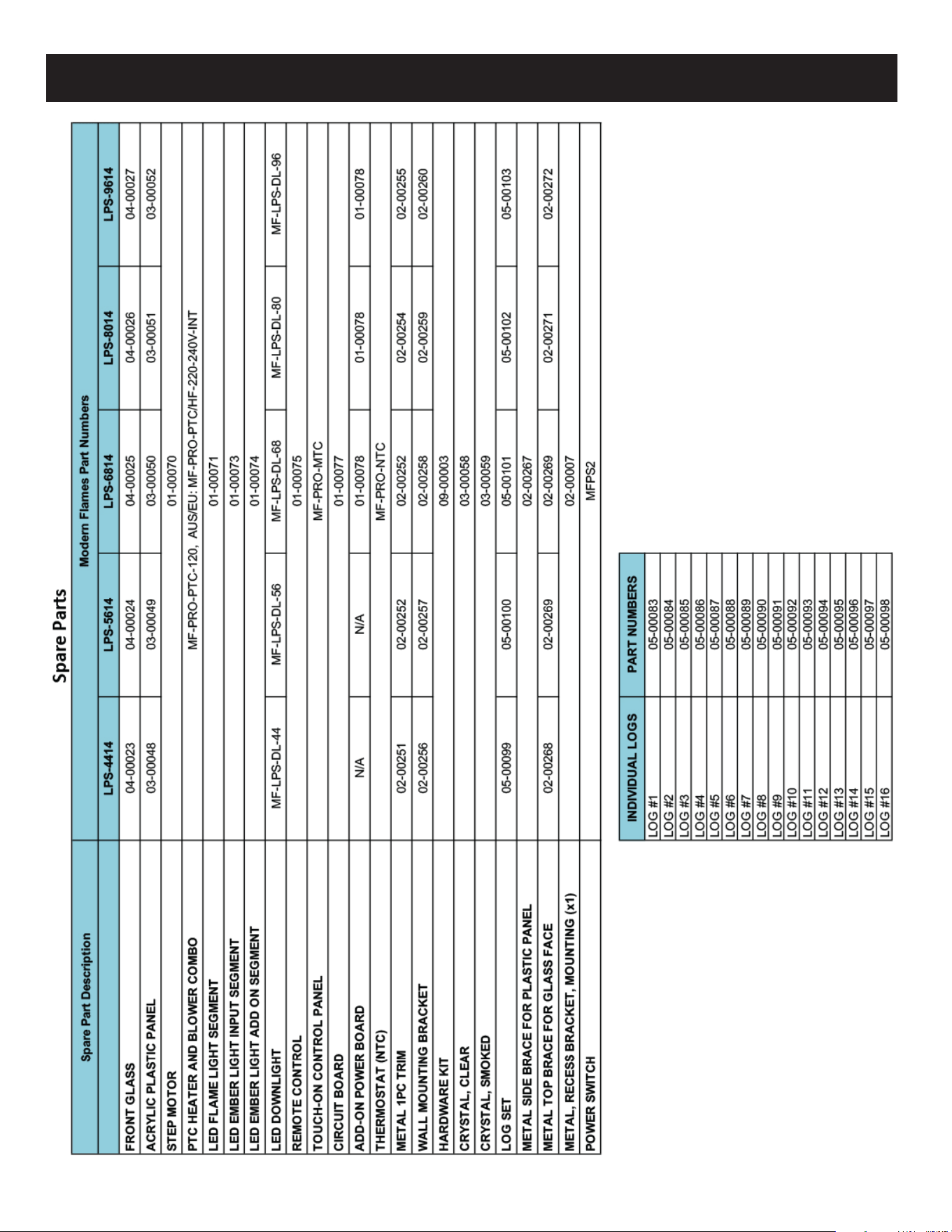

MAINTENANCE

28

TROUBLE SHOOTING

PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION

Nothing comes on

(touch screen, etc.)

Touch Screen Comes on

- then nothing

Fireplace turns oﬀ and

will not turn back on

Can operate ﬁreplace

functions with manual

controls but not

remote control

Heater does not provide

heat when on

Flame is not visible

when unit is turned on

Fireplace lights up but

there is no ﬂame image

or ﬂame image frozen

Fireplace is squeaking

when ﬂame image is on

A. Breaker tripped or circuit has no

power

B. Internal component is frozen and

needs to be reset

C. Loose connection

D. Defective component

A. Reset breaker, test circuit for power, check

power switch

B. Turn power oﬀ at the main breaker for 60

seconds. Turn power back on.

C. Inspect wiring for loose or damaged

connection

D. Replace motherboard, touch control or

power switch

A. Not operating touch control

properly with ﬁnger

B. Loose connection on mother-

board

C. Motherboard is defective

A. Press ﬂat part of ﬁnger ﬁrmly on the touch

screen and apply moderate pressure

B. Check functions with remote control. If

functional, check connections on

motherboard

C. Replace Motherboard

A. Fireplace has overheated and

safety disc has snapped or circuit

breaker has tripped

A. Turn the main breaker to the “oﬀ” position

for 60 seconds. Next ﬂip the breaker back

to “on” position.

A. Low Batteries

B. Remote not paired properly

C. Remote control defective

A. Replace batteries in remote control with -

CR2025

B. With the ﬁreplace ON, press and hold the

Power button for about 3 seconds until you

hear the buzzer sound twice and the power

indicators begin to ﬂash. Within 5 seconds

on the hand held remote or wall touch

control press the Power button repeatedly

until the buzzer sounds again and the

indicators ﬂash acknowledging that it has

paired. You may also hear another buzzer

and the pair is now completed.

C. Replace remote control

A. Wiring is loose

B. Snap disc tripped

C. Heater core is defective

A. Disconnect unit from power source and

inspect for loose connections

B. Turn oﬀ for 5 minutes to reset

C. Replace Heater Core

A. Wiring is loose

B. LEDs defective

C. Motherboard is defective

A. Disconnect unit from power source and

inspect for loose connections

B. Replace LEDs

C. Replace motherboard

A. Wiring for motor is loose

B. Spindle rod came loose

C. Motor is defective

A. Disconnect unit from power source and

inspect for loose connections from motor

B. Reconnect spindle rod

C. Replace motor

A. Fireplace spindle/rod is contact-

ing to metal

B. Motor is defective

A. Apply lithium grease or any standard

grease to contacts with rod and metal

and rubber bushings

B. Replace motor

29

FREQUENTLY ASKED QUESTIONS

Q. How do you change the optional Wall Touch Control to

Fahrenheit/Celsius?

A. Long press on the up and down arrows on the ﬁre unit to toggle

between Fahrenheit and Celsius.

Q. What distance can the remote be used from the ﬁreplace?

A. Optimal distance for the remote control is maximum 20 feet.

Q. Can you turn on the ﬁreplace via the manual control and oﬀ

via the remote (or vise versa)?

A. Yes.

Q. Can the ﬁreplace be installed outside?

A. Yes. Please review the entire safety chapter before installing

this ﬁreplace outside.

Q. Does the ﬁreplace need to be on a dedicated 15 amp circuit?

A. Yes, It is recommended that the ﬁreplace be on a dedicated

13 (EU) 10 Amp (AU/NZ) circuit.

Q. What thickness of sheetrock should be used for the recessed

installation?

A. 12mmm or 16 mm, thinner is recommended for tile facade.

Q. How often do the batteries in the remote need to be replaced?

A. Annually, possibly more with heavy use.

Q. Is there a remote receiver in the ﬁreplace that requires batteries?

A. No, only the actual remote requires batteries.

The rest of the ﬁreplace runs entirely oﬀ of the main power

supply.

Q. How do I reset the unit?

A. Turn power oﬀ at the breaker for 1 minute.

Q. How do I install the Optional Wall Control and Wi-Fi App?

A. Optional wall control & Wi-Fi app instructions available for

download on Modern Flames’ website

30

FCC CAUTION

This device complies with part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) this device may not cause harmful interference, and (2) this device must accept

any interference received, including interference that may cause undesired operation.

Any changes or modifications not expressly approved by the party responsible for compliance

could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This equip-

ment generates, uses and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can

be determined by turning the equipment off and on, the user is encouraged to try to correct

the interference by one or more of the following measures:

-- Reorient or relocate the receiving antenna.

-- Increase the separation between the equipment and receiver.

-- Connect the equipment into an outlet on a circuit different

from that to which the receiver is connected.

-- Consult the dealer or an experienced radio/TV technician for help.

To maintain compliance with FCC’s RF exposure guidelines, this equipment should be installed

and operated with minimum distance between 20cm the radiator your body: Use only the

supplied antenna.

31

__________________________________________________________________________________________________

NOTES

32

__________________________________________________________________________________________________

NOTES

33

__________________________________________________________________________________________________

NOTES

34

112023

The product images shown are for illustration purposes only and may not be an exact representation of the product.

DO NOT RETURN TO STORE!

CALL US FIRST

For immediate help with installation, product information or

if your product arrives damaged, please call our toll-free number at:

OUR STAFF IS READY TO PROVIDE ASSISTANCE

customerservice@modernﬂames.com modernﬂames.com

AUSTRALIA/NEW ZEALAND

EUROPE

+46 762 09 58 09

1-877-246-9353

07 5630 6840

Or email us at:

[email protected]

(Monday - Friday, 8:00AM - 5:00PM, AZ MST)

(Monday - Friday, 9:00AM - 4:00PM, CEST)

(Monday - Friday, 9:00AM - 4:00PM, AEST)

europe@modernflames.com

info@modernflames.com

Or email us at:

LPS-4414-INT Modern Flames Landscape Pro Slim 44" Gen 1 Built In Fireplace

Product's Documents

LPS-4414-INT User manual.

Specifications

Modern Flames LPS-4414-INT Questions and Answers
