EN
ROBOTIC VACUUM CLEANER
Translation of the original manual
SRV 1550WH
SRV 1550WH
A
1
2
3
4
9
10
11
12
13
14
15
5
6
7
8
16
17
18
19
S 550WH
B
1
2
3
4
C
1
2
3
4
5
6
D
E
E1 E2 E3 E4
E5 E6 E7
- 1 -
11/2023
2023, .
EN Robotic Vacuum Cleaner
Important Safety Instructions
READ CAREFULLY AND STORE FOR FUTURE USE.
• This appliance may be used by children 8 years of age
and older and by persons with physical, sensory or mental
impairments or by inexperienced persons, if they are
properly supervised or have been informed about how to
use of the product in asafe manner and understand the
potential dangers.
• Children must not play with the appliance. Cleaning
and maintenance performed by the user must not be
performed by unsupervised children.
• If the power adapter or charging station is damaged,
have it replaced by aqualified service centre to avoid
adangerous situation. It is forbidden to use the appliance
with adamaged power adapter or charging station.
• Prior to cleaning or maintenance, always disconnect the
appliance from the power socket and turn it off using the
power switch.
• The appliance must only be used with the charging station
and power adapter supplied with the appliance.
- 2 -
11/2023
2023, .
Warning:
• Do not use the charging station or power adapter
to charge batteries or appliances that are not
designed for this purpose.
• Connect the power adapter only to apower socket
withaprotective contact.
Electrical Safety
• Before connecting the adapter to apower socket check that the technical details on the rating label match the electrical voltage in the socket.
• Connect the power adapter only to aproperly grounded socket. Do not use an extension cord.
• Do not disconnect the power adapter from the socket by pulling on the power cord. This could damage the power adapter or the socket. Disconnect
the power adapter from the power socket by pulling the plug.
• Do not lay the power adapter of the collection station over sharp objects. Make sure that the power cord does not hang over the edge of the table or
touch aheated or hot surface.
• Keep the power adapter and its power cord dry.
• Do not connect or disconnect the power adapter to or from the power socket with wet hands.
• Do not uncover the electronic parts of the robotic vacuum cleaner or its battery. They do not contain any components repairable by the user. Have
the appliance serviced by qualified persons.
• To prevent possible electric shock, do not spray the robotic vacuum cleaner, the power supply unit or the power adapter with water or immerse it in
water or other liquids.
• Do not use the robotic vacuum cleaner when it is not working correctly, if it has been damaged or has been submerged in water.
• To avoid the danger of injury by electrical shock, do not repair the robotic vacuum cleaner yourself or make any adjustments to it. Have all repairs
or adjustments performed at an authorised service centre. Tampering with the robotic vacuum cleaner during the warranty period may void the
warranty.
• Prior to cleaning or maintenance, always disconnect the robotic vacuum cleaner from the power socket and turn it off using the power switch.
Safety in Use
• This robotic vacuum cleaner is designed for use in households, offices and similar types of areas. Do not use it in industrial surroundings or outdoors.
• The robotic vacuum cleaner is not intended for vacuuming water and, therefore, must not be used in damp or wet areas, for example in laundries,
bathrooms or around swimming pools. If it were to come into contact with water, the internal electronics of the vacuum cleaner would be destroyed.
• Do not use the robotic vacuum cleaner to vacuum the following items:
• smouldering cigarettes, burning or flammable items, matches or ash;
- water and other liquids;
- sharp items, e.g. splinters, needles, pins, etc.;
- flour, wall plaster and other building materials;
- larger pieces of paper or plastic bags, which can easily block the suction opening.
• Do not expose the robotic vacuum cleaner to direct sunlight and do not place it near an open fire or appliances that are asource of heat.
• Do not use the robotic vacuum cleaner on narrow raised surfaces such as tables, wardrobes, etc. If the vacuum cleaner does not have sufficient
space for manoeuvring, it may fall and be damaged.
• Only use the robotic vacuum cleaner with original accessories from the manufacturer.
• Ensure that the robotic vacuum cleaner has adust filter correctly installed in the dust container before use.
• Before putting the robotic vacuum cleaner into operation, check that the entry door into your apartment or house is closed. From the floor surfaces
remove clothing, paper, toys, power or extension cords and other items that the vacuum cleaner could suck in or catch. Lift curtains and drapes that
reach to the floor so that they do not get caught in the vacuum cleaner.
• Do not place any items on to the robotic vacuum cleaner and do not step or sit on it.
• If the robotic vacuum cleaner is running, watch out for children and household pets.
• When the robotic vacuum cleaner is running, ensure that the air outlet openings are not covered and that the suction opening is not blocked.
Otherwise, the robotic vacuum cleaner may be damaged.
• Follow the cleaning andmaintenance instructions provided inthis user'smanual.
- 3 -
11/2023
2023, .
•
Prior to using this appliance, please read the user'smanual
thoroughly, even in cases, when one has already familiarised
themselves with previous use of similar types of appliances.
Use the appliance only as described in this user'smanual. Keep
the manual for future reference. In the event that you hand this
appliance over to somebody else, make sure to also include this
user'smanual.
• Carefully unpack the appliance and take care not to throw
away any part of the packaging before you find all its parts.
It is recommended to keep the original shipping carton,
packing material, receipt and confirmation of the extent of the
seller'sliability or warranty certificate at least for the duration
of the legal right of defective performance or quality guarantee.
When transporting the appliance, we recommend packaging it
again in the original box provided by the manufacturer.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DESCRIPTION OF THE ROBOTIC VACUUM CLEANER
A1 Button (to switch on and
interrupt automatic cleaning)
A2 Bumper bar
A3 Infrared sensors
A4 Hinged cover
A5 Charging contacts
A6 Left side rotary brush
A7 Battery (located under cover)
A8 Left castor
A9 Front swivel wheel
A10 Right side rotary brush
A11 Suction hole
A12 Right castor
A13 Bottom cover
A14 Squeegee
A15 Dust container
A16 Dust container lid
A17 Coarse filter
A18 HEPA filter
A19 HEPA filter holder
No illustration: mop sleeve holder, mop sleeve
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DESCRIPTION OF THE CHARGING STATION
B1 Signal communication
window
B2 Recharging indicator
B3 Charging contacts
B4 Connector for adapter terminal
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DESCRIPTION OF THE REMOTE CONTROL
C1 Button
to return to
charging station
C2 Directional buttons to move
the vacuum cleaner forward/
backward/left/right
C3 Button
to start cleaning
along the walls
C4 Button
to start 30-minute
cleaning
C5 Button to start automatic
cleaning / interrupt cleaning
C6 Button
to start local
cleaning
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
INCLUDED CONTENTS
• Robotic vacuum cleaner
• Charging station
• Remote control
• Mop sleeve (3 pcs)
• HEPA filter (2 pcs: 1 pc installed on the vacuum cleaner; 1 pc spare
HEPA filter)
• Side rotary brush (4 pcs: 2 pcs installed on the vacuum cleaner; 2 pc
spare side rotary brushes)
• Power adapter
• AAA batteries for remote control (2 pcs)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PURPOSE OF USE AND FEATURES OF THE ROBOTIC
VACUUM CLEANER
• The robotic vacuum cleaner is intended for cleaning various types
of hard floors such as wooden or laminate floating floors, tiles, vinyl,
etc. and carpets with alow pile height. While vacuuming, it effectively
combines various routes to optimally clean the entire floor area.
• The suction opening effectively removes hair, animal hair, etc. Side
rotary brushes sweep dirt from hard-to-reach areas along walls and
furniture and from corners. The motorised rubber castors protect
sensitive floors against scratching and can travel over threshold strips
up to aheight of 1.3 cm and ride on to a1.3 cm high carpet.
• The suspended bumper enables the vacuum cleaner to dampen the
approach to an obstacle and to efficiently clean around it. The infrared
sensors in the front bumper prevent the robotic vacuum cleaner from
colliding with obstacles. Safe operation in rooms with stairs is made
possible by the bottom anti-stair-fall sensors.
• The remote control is used for convenient operation, which allows the
vacuum cleaner to be switched on and off, put into automatic cleaning
mode, select an operating mode or send the robotic vacuum cleaner to
the charging station.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ROBOTIC VACUUM CLEANER CLEANING MODES
Automatic Cleaning (Sencor Smart Room)
• This is the main program of the vacuum cleaner. This is asmart
program that selects the most efficient route to vacuum the maximum
area. When the charge level drops to 15%, vacuuming stops and the
vacuum cleaner will locate the charging station and docks in it.
30-minute Cleaning Mode (Sencor Smart Room)
• The robot vacuum cleaner selects the most efficient route to vacuum
the maximum area for 30 minutes. Vacuuming then stops and the
vacuum cleaner locates the charging station and dock in it to recharge.
This mode is suitable for smaller rooms or individual rooms.
Local Cleaning Mode
• The robotic vacuum cleaner will effectively clean an area about 1 m in
diameter by vacuuming from acentral point and spiralling outwards
and then inwards back to the central point. This is ahighly efficient
cleaning of acertain area with increased suction power.
Cleaning Along the Wall Mode
• The robotic vacuum cleaner will vacuum along the walls, furniture
legs, etc.
Note:
Prior to starting the robotic vacuum cleaner, always check
that it is fully charged and that all obstacles, foreign objects,
cables, etc. have been removed from the area.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PREPARING THE ROBOTIC VACUUM CLEANER
• Take the robotic vacuum cleaner and all its accessories out of the
packaging. Check that you have taken out all the parts.
• Check the robotic vacuum cleaner and its accessories for damage.
• Remove protective foils and advertising labels from the robotic
vacuum cleaner and all accessories.
Installation of Side Rotary Brushes
• The side rotary brushes are intended for smooth floor surfaces and
ensure effective cleaning in corners, along walls and furniture.
EN
Robotic Vacuum Cleaner
User’sManual
- 4 -
11/2023
2023, .
• Turn the vacuum cleaner upside down. Place the rotary brushes on
the pins and push slightly until you hear aclick. Turn the vacuum
cleaner back over.
• When using the vacuum cleaner to clean rooms with carpets, remove
the rotary brushes. To remove it, proceed in the reverse sequence.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

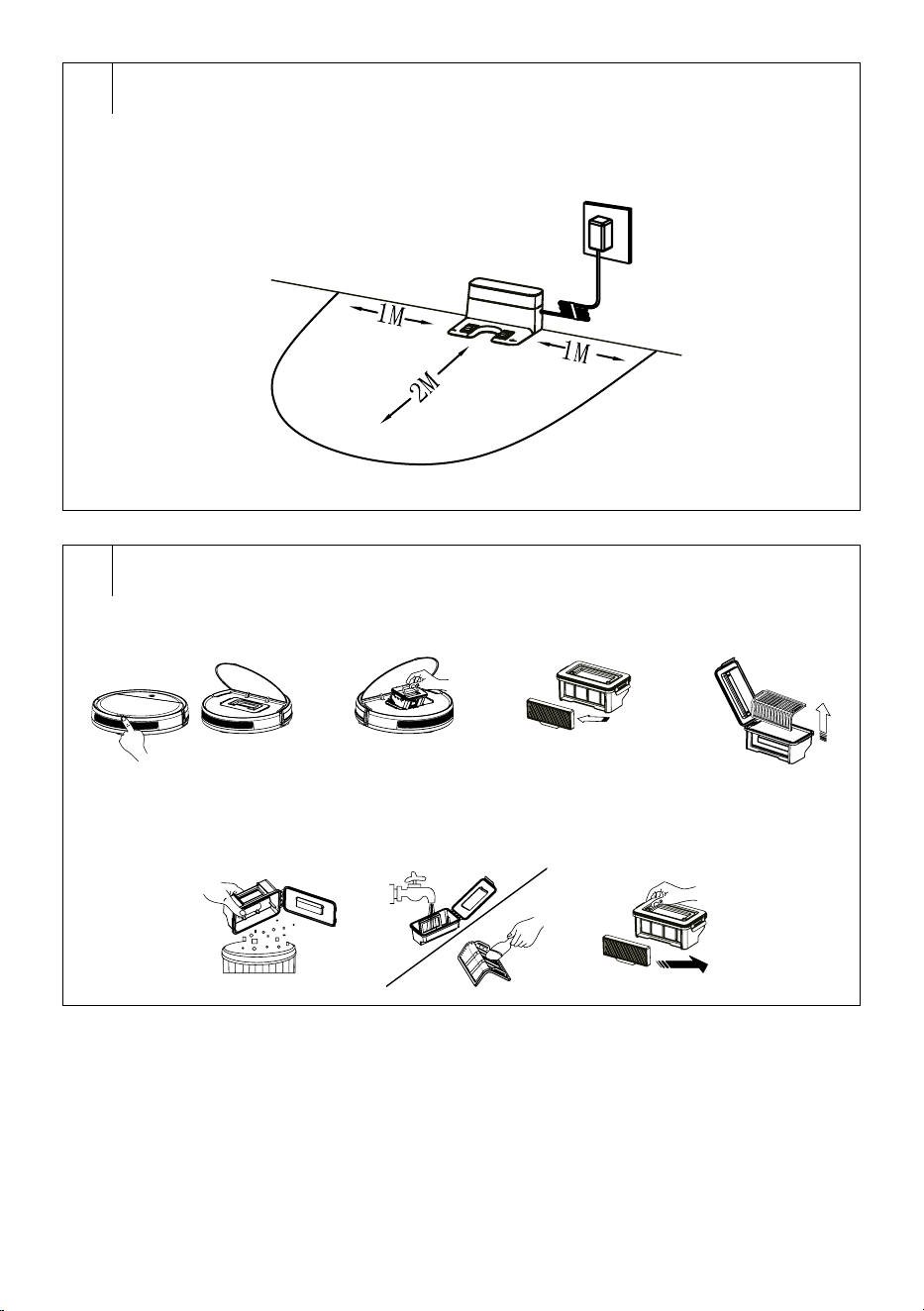

LOCATION OF THE CHARGING STATION
• The charging station is used toautomatically recharge the battery and
the vacuum cleaner must have good access to it.
• Place the charging station against awall on ahard, horizontal anddry
surface withinreach of the power socket – see Figure D. Ensure that
there are no steps or obstacles within 1 m to the left and right and 2
m in front of the station that would prevent the vacuum cleaner from
locating the charging station and docking successfully.
• Connect the power adapter cable connector to the socket on the
charging station and plug the male plug of the adapter into apower
socket. Position the power cord so that it will not get tangled in the
rotary brushes of the vacuum cleaner.
• If you will not be using the vacuum cleaner for along time, disconnect
the charging station from the power socket andstore it in adry, clean
andcool place.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CHARGING THE ROBOTIC VACUUM CLEANER
• The vacuum cleaner can be charged in the charging station, which
the vacuum cleaner automatically seeks out when it has finished
cleaning.
• Always make sure the vacuum cleaner is switched on with the
button.
Charging the Vacuum Cleaner for the First Time
• Before first use, it is necessary to fully charge the robotic vacuum
cleaner. Allow the robotic vacuum cleaner to charge for up to 12 hours.
• Grasp the vacuum cleaner and manually place it into the charging
station so that the charging contacts on the underside of the vacuum
cleaner and the charging contacts on the charging station are
connected. When the contacts are connected, the charging process
will start.
Automatic Charging
• The robotic vacuum cleaner utilises the automatic charging function
after 30 minutes of cleaning and when it detects alow battery during
operation. The robotic vacuum cleaner starts actively searching for
acharging station. It is thus important that it is always connected to
apower source and is freely accessible for the vacuum cleaner so that
it can dock in it.
• The robotic vacuum cleaner can be sent to be charged also by
pressing the charging button on the remote control. In such acase, the
operation of the robotic vacuum cleaner will stop and it will seek out
the charging station.
• After docking in the charging station, the charging cycle will
commence. Acomplete charge takes approximately 4 to 6 hours. The
actual charging time depends on the power level of the battery at the
start of the charging process.
• Full charge ensures up to 50 minutes of operation.
• In the event that the charging contacts are disconnected during the
charging cycle, the vacuum cleaner will move away from the charging
station and then re-dock itself to resume the charging process, unless
it is prevented from doing so by an obstacle.
• In the event of apower outage, the charging cycle will be interrupted
and will continue after the power supply is renewed.
• In the event that the maximum charging current is exceeded, the
charging process will be automatically interrupted.
• If the robotic vacuum cleaner is completely discharged, e.g. due to the
vacuum cleaner being unable to locate the charging station or dock in
it, it must be manually positioned.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CONTROLLING THE VACUUM CLEANER USING ITS
BUTTON
• The buttons on the vacuum cleaner are used for basic controls. For
advanced control, use the remote control.
Turning the Robotic Vacuum Cleaner On/Off
• Press the
button to turn the robotic vacuum cleaner on. The
robotic vacuum cleaner will switch to the stand-by mode.
• Press and hold down the
button for 3 seconds to turn off the
robotic vacuum cleaner.
Note:
It is not possible to turn off the robotic vacuum cleaner during
the charging process.
Cleaning Mode Selection
• While the robotic vacuum cleaner is in stand-by mode, press the
button and the robotic vacuum cleaner will start automatic cleaning
(Sencor Smart Room).
Pausing the Cleaning Process
• If the
button is pressed during the operation of the robotic vacuum
cleaner then the operation of the robotic vacuum cleaner will be
paused. Pressing the
button again will resume its operation.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CONTROLLING THE VACUUM CLEANER USING THE
REMOTE CONTROL
• Push down the latch of the cover on the rear side of the remote control
to release it and remove the cover.
• Insert two type AAA (1.5 V) batteries into the remote control. When
inserting the batteries ensure the correct polarity as shown inside the
battery compartment. Put the cover back on and click it into place.
• In the event that the batteries are flat, replace them with new ones. Do
not combine various types of batteries or new and old batteries.
• The signal range of the remote control is approximately 6 m.
• When replacing batteries, first remove the flat batteries and then insert
the new ones.
Note:
Never combine flat and new batteries nor various types of
batteries.
Starting Cleaning
• Press the
button to start automatic cleaning of the Sencor Smart
Room/interrupt cleaning.
• Press the
button to start local cleaning.
• Press the
button to start cleaning along the walls.
• Press the
button to start the 30-minute cleaning.
• The robotic vacuum cleaner will start and begin vacuuming. After
finishing the cleaning, the vacuum cleaner will turn off and the vacuum
cleaner will search for the charging station and dock in it to recharge.
In automatic cleaning, the vacuum cleaner will run until the battery
is 15% empty, in 30-minute cleaning the robotic vacuum cleaner will
switch off after 30 minutes.
• If the vacuum cleaner detects alow charge level during cleaning, it will
interrupt cleaning and search for acharging station to recharge.
Pausing the Cleaning Process
• While the vacuum cleaner is running, press the
button to stop its
operation. Press the button again to resume operation.
- 5 -
11/2023
2023, .
Manual Cleaning Stop
• If you need to end the cleaning before it is complete, press the button
, the robotic vacuum cleaner will stop, end the cleaning process,
seek out the charging station and dock in it.
Robotic Vacuum Cleaner Movement
• The directional buttons are used to manually move the robotic
vacuum cleaner. However, it is important that the robot vacuum
cleaner is not in operation.
• The button is used to move forward.
• The
button is used to turn the robotic vacuum cleaner by 180°.
• The
button is used to turn the robotic vacuum cleaner by 90° to
the left and move it to the left.
• The
button is used to turn the robotic vacuum cleaner by 90° to
the right and move it to the right.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
MOPPING
• The robotic vacuum cleaner is supplied with amop sleeve. This allows
the floor to be vacuumed and wiped at the same time.
• Before use, moisten the mop sleeve inclean andwarm water, slightly
wring it out by hand andattach it to the mop sleeve holder. Attach it to
the bottom of the robotic vacuum cleaner.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CLEANING AND MAINTENANCE
• Before cleaning, always turn off the vacuum cleaner with the
button.
• Never use abrasive cleaners, thinners, etc. for cleaning.
• Neglecting cleaning and maintenance may negatively affect
the working order of the vacuum cleaner and lead to its reduced
performance.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ROBOTIC VACUUM CLEANER
Emptying the Dust Container
1. To remove the dust container, open the top cover – see Figure E1;
and pull the container out of the vacuum cleaner – see Figure E2.
2. Open the dust container lid andremove the coarse filter – see Figure
E4.
3. Take the dust container over agarbage bin and turn it upside down
so that the lid of the dust container points downwards. Dump the
contents of the dust container into the garbage bin – see Figure E5.
4. Close the lid and gently push on it until you hear aclick. This
indicates that the lid is properly secured in place.
5. Place the coarse filter back in place and place the dust container
back into the vacuum cleaner.
Note:
For hygiene reasons, we recommend emptying the container
outside the living area.
Cleaning the Dust Container
1. To remove the dust container, open the top cover – see Figure E1;
and pull the container out of the vacuum cleaner - see Figure E2.
2. Remove the holder with the HEPA filter – see figure E3.
3. Open the dust container lid andremove the coarse filter – see Figure
E4.
4. Take the dust container over agarbage bin and turn it upside down
so that the lid of the dust container points downwards. Dump the
contents of the dust container into the garbage bin – see Figure E5.
5. Shake the HEPA filter and remove the dirt with asoft brush or dry
cloth. In the event of heavy soiling, you can vacuum them out using
adifferent vacuum cleaner with an attached brush nozzle. Do not
wash the HEPA filter in water. This may damage the lid. In the event
that the HEPA filter is already heavily soiled or deformed, replace it
with anew one. We recommend replacing the HEPA filter based on
the frequency of use at least once every six months.
6. Rinse the coarse filter under running water and wipe dry with aclean
wiping cloth.
7. Wipe the dust container out using alightly dampened sponge and
wipe dry using aclean wiping cloth. If necessary, you can pour
asmall amount of water into the dust container and wipe it out with
asponge – see Figure E6. Then thoroughly wipe it dry using aclean
wiping cloth.
8. Return the coarse filter and the HEPA filter – see Figure E7.
9. Close the dust container lid. Gently push down on the lid until you
hear aclick. This indicates that the lid is properly closed.
10. Place the dust container back into the vacuum cleaner.
Warning:
Prior to inserting the filter into the dust container and
closing the lid, always ensure that all the parts are
clean and completely dry. Otherwise, there is arisk of
damaging the robotic vacuum cleaner.
Cleaning the Mop Sleeve
To prevent the formation of moulds and damaging microorganisms that
may cause unpleasant odours and be damaging to health, it is necessary
to clean the mop sleeve holder and the mop sleeve after every use.
1. Carefully snap the mop sleeve holder from the underside of the
vacuum cleaner.
2. Carefully remove the mop sleeve from the holder.
3. Wipe the mop sleeve holder using alightly dampened sponge and
wipe dry using aclean wiping cloth.
4. Hand wash the mop sleeve in lukewarm water with asmall amount
of fine washing powder, wring it out by hand and allow it to dry
naturally. Do not wash the mop sleeve in awashing machine or dry
it in aclothes dryer.
Cleaning the Side Rotary Brushes
1. Take the side rotary brush out of the vacuum cleaner by pulling it
upwards.
2. Remove any dust and dirt from the location where the brushes were
mounted.
3. Remove all dust and dirt from the brushes. If necessary you may
wash the brushes under running water. If the bristles were deformed
while the vacuum cleaner was running, dip them in warm water to
allow them to return to their original shape. Allow the brushes to dry
before reattaching to the vacuum cleaner.
4. Place the rotary brushes on the pins and push slightly until you hear
aclick.
Cleaning the Sensors
• The sensors on the robotic vacuum cleaner are important for its proper
control and safe operation. It is therefore important that you clean
them regularly andkeep them ingood condition.
• Wipe the sensors using asoft dry wiping cloth or cotton bud.
Cleaning the Outer Surface of the Robotic Vacuum Cleaner
• Regularly wipe the surface of the vacuum cleaner using asoft dry
wiping cloth.
• Clean the front swivel wheel, motorised castors, suction hole, rotary
brush and the bottom sensors at least once per week or more
frequently.
• First remove any coarser dirt from the front swivel wheel and the
motorised castors. Then clean them around their entire perimeter
using alightly dampened cloth and wipe them dry. Do not forget to
also clean the area around the castors.
Replacing the HEPA Filter
1. Take out the dust container andtake out the HEPA filter holder.
2. Take the old HEPA filter out of the holder andinsert the new HEPA
filter.
3. Place the holder with the new HEPA filter back into the container
and insert it into the vacuum cleaner.
Replacing the Side Rotary Brushes
• The rotary brushes become worn out when used. After acertain time it
is necessary to replace the used brushes with new ones. To order new
brushes, please contact your vendor or an authorised service centre.
- 6 -
11/2023
2023, .
1. Take the old side rotary brushes out of the vacuum cleaner by pulling
them upwards.
2. Place the new rotary brushes on the pins and push slightly until you
hear aclick.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CLEANING THE CHARGING STATION
Cleaning the Charging Station
• Wipe the outer surface of the collection station with adry soft cloth.
Cleaning the Sensors
• The sensors on the charging station are important for its operation. It
is therefore important that you clean them regularly andkeep them
ingood condition.
• Wipe the infrared sensors andcharging contacts with adry soft cloth
or cotton swab.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
REPLACING THE BATTERY
Replacement battery model number: SRX 1501
In the event that you need to replace the battery, proceed as follows:
1. Make sure that the vacuum cleaner is turned off using the
button. Turn the vacuum cleaner upside down.
2. Using ascrewdriver, loosen the screws of the battery cover, remove
it and carefully remove the battery.
3. Disconnect the battery connector and remove the battery from the
inside of the vacuum cleaner.
4. Connect the new battery and insert it into the internal area. The
battery can only be connected in one way. The connector is coded
and cannot be turned around.
5. Put on the bottom cover and secure it in place using the screws. Turn
the vacuum cleaner back to the operating position.
6. Place the vacuum cleaner into the charging station and allow the
battery to charge to full capacity.
Note:
The robotic vacuum cleaner is supplied with the battery
already inserted.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
LONG-TERM STORAGE
• When not using the vacuum cleaner for an extended period of time,
do the following:
• Clean the vacuum cleaner as described in chapter CLEANING AND
MAINTENANCE.
• Disconnect the collection station from the power socket. Store the
vacuum cleaner with all its accessories in adry, clean and cool place.
• It is recommended to charge the vacuum cleaner every 3 months as
this will extend the lifetime of the built-in battery.
• Remove the battery from the remote control.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
TROUBLESHOOTING
Problem Cause Solution
The vacuum cleaner
is not charging itself.
The charging contacts
are not touching.
Check that the
contacts are touching
when inserting the
vacuum cleaner into
the charging station.
The charging station
is disconnected from
the power source.
Insert the power
adapter into apower
socket and keep
the charging station
permanently con-
nected.
The vacuum cleaner
is stuck in asingle
location.
The vacuum cleaner
has become entan-
gled in wires/cables
lying on the ground,
in curtains or other
foreign objects on the
carpet.
The vacuum cleaner
will always attempt to
free itself on its own,
however, we recom-
mend to remove it by
hand from the stuck
location.
The vacuum cleaner
returned to the charg-
ing station without
completing the
cleaning process.
The vacuum cleaner
detected alow
battery charge level
and automatically re-
turned to the charging
station to recharge.
This is anormal
occurrence. Allow the
vacuum cleaner to
recharge.
The remote control
doesn't work.
(Recommended
distance is 5 m.)
Batteries are flat. Replace the batteries
in the remote control.
The vacuum cleaner
battery is almost flat.
Allow the vacuum
cleaner to recharge.
The remote signal
receiver on the
vacuum cleaner or
the signal transmitter
on the remote control
is blocked or soiled.
Wipe the signal
receiver and trans-
mitter using aclean
wiping cloth.
The remote control
signal is being inter-
fered with by another
device in its vicinity.
Do not use the remote
control in the vicinity
of devices with an
infrared signal.
Dirt remains on the
floor after cleaning is
finished.
Suction opening is
blocked.
Clean the suction
opening.
The dust container is
full or the HEPA filter
is clogged.
Empty the dust
container or clean the
HEPA filter.
It is not possible to
turn on the vacuum
cleaner.
The battery is flat. Allow the battery to
fully recharge.
The vacuum cleaner
has problems with
movement on the
floor.
Front swivel wheel is
blocked.
Clean out the front
swivel wheel and
move the robotic
vacuum cleaner into
an open area.
The vacuum cleaner
will seek out the
charging station but
does not dock in it.
The charging station
is blocked or is too
far away, it is not
connected to apower
source; foreign
objects are caught on
the mop sleeve holder
or the mop sleeve is
rolled up.
Place the charging
station into an open
area and place the
robotic vacuum
cleaner into its vicinity
and turn it on; insert
the plug of the power
adapter into apower
socket; clean out the
mop sleeve holder
and straighten out the
mop sleeve.
The vacuum cleaner
is not behaving
normally.
Internal fault. Turn off the robotic
vacuum cleaner
and then turn it on
again and start it. If
the problem persists,
turn off the vacuum
cleaner and contact
an authorised service
centre.
Abnormal sounds
are made during the
cleaning process.
Aforeign object has
become stuck to the
central castor.
Turn off the robotic
vacuum cleaner and
remove the foreign
object.
- 7 -
11/2023
2023, .
Error messages
Status Meaning Solution
The red andwhite
indicator lights are
blinking simulta-
neously, beeping
sounds.
Ground control error Place the vacuum
cleaner on the floor
again.
Charging error Remove andinsert
the adapter back into
the power socket.
The red indicator light
flashes slowly.
Side brush fault Check the side brush.
The red indicator light
flashes slowly and
beeps.
Castors fault Check the castors.
The red andwhite
indicator lights flash
alternately, beeping
sounds.
Forward movement
fault
Check the front
bumper for blockages.
Note:
If the problem is not listed or the problem persists, turn off
the robot vacuum cleaner and contact an authorised service
centre.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
TECHNICAL SPECIFICATIONS
Robotic vacuum cleaner
Power input of the robotic vacuum cleaner .................. 19 VDC current 0.6 A
Rated power ............................................................................................................18 W
Battery ............................................................................. Li-ion / 11,1 V/ 1,500 mAh
Dimensions (diameter × height) ...................................................... 290 x 70 mm
Weight .....................................................................................................................1.9 kg
Operating time per single charge .................................................................50 min
Dust container capacity ................................................................................. 200 ml
Power adapter
Rated voltage range ..............................................................................100−240 V~
Rated frequency ..........................................................................................50/60 Hz
Output ....................................................................................... 19 VDC current 0.6 A
Charging station
Input voltage ...........................................................................19 VDC current 0.6 A
Output voltage ........................................................................ 19 VDC current 0,6 A
Rated power .............................................................................................................15 W
Dimensions ..................................................................................132 x 130 x 72 mm
Name of manufacturer FAST ČR, a.s.
USanitasu 1621
CZ-251 01 Říčany
Model identification number Power adapter for SRV
1550WH
Input voltage 100–240 V~
Input frequency 50/60 Hz
Output voltage 19 V
Output current 0.6 A
Output power 11.4 W
Average efficiency in active mode 83.95%
Efficiency at low load (10%) 70.99%
No load power consumption 0.075 W
Amendments to text and technical parameters are reserved.
Original Consumable Accessories
SRX 1504 HEPA filter
SRX 1503 Side rotary brush
SRX 1502 Mop sleeve
The product is intended for household use only. The product is not
intended for outdoor use.
Safety class for electric shock protection:
Class II – Electric shock protection is provided by double or heavy-duty
insulation.
This symbol indicates that the appliance must not be used if the power
plug is damaged.
BATTERY DISPOSAL
Prior to disposing of the product or handing it over at
aspecialised collection facility, it is necessary to ensure
that the battery is removed. Before removing the battery, it
is necessary to start the vacuum cleaner and wait until it is
completely flat. The battery contains environmentally
damaging compounds and therefore does not belong in
standard household waste. Its proper disposal shall be
ensured by the relevant collection point.
DISPOSAL OF USED BATTERIES
Batteries contain environmentally damaging compounds
and therefore do not belong in standard municipal waste.
Take used batteries for proper disposal at adesignated
battery collection point.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
INSTRUCTIONS AND INFORMATION ON DISPOSAL OF USED
PACKAGING MATERIAL
Dispose of used packaging material at asite designated for waste in your
municipality.
DISPOSING OF USED ELECTRICAL AND ELECTRONIC EQUIPMENT
This symbol on the products or accompanying documents
indicates that used electrical and electronic products
should not be disposed of with regular municipal waste.
For proper disposal and recycling, take these products to
designated collection points. Or in some European Union
states or other European countries the products can be
returned to the local retailer when buying an equivalent
new product. Disposing of this product correctly helps save
valuable natural resources and prevents damage to the environment by
improper waste disposal. Ask your local authorities or collection facility for
more details. In accordance with national regulations penalties may be
imposed for the incorrect disposal of this type of waste.
For Business Entities in European Union States
If you want to dispose of electric or electronic devices, ask your retailer or
supplier for the necessary information.
Disposal in Other Countries Outside the European Union
This symbol is valid in the European Union. If you wish to dispose of this
product elsewhere, request the necessary information about the correct
disposal method from the local council or from your retailer.
This product complies with all the essential requirements of
the applicable EU directives.
FAST ČR, a.s.
U Sanitasu 1621
CZ-251 01 Říčany
www.sencor.eu
