User Guide
Quality, Design and Innovation
home.liebherr.com/fridge-manuals
Contents
1 Appliance at a glance............................................ 3
1.1 Scope of delivery.......................................................... 3
1.2 Overview of the appliance and equipment.............. 3
1.3 SmartDevice.................................................................. 3
1.4 Appliance range of use............................................... 3
1.5 Conformity..................................................................... 4
1.6 SVHC substances according to REACH regulation. 4
1.7 EPREL database........................................................... 4
2 General safety instructions.................................. 4
3 Putting into operation........................................... 5
3.1 Switching on appliance............................................... 5
3.2 Inserting the components.......................................... 6
4 Foods management............................................... 6
4.1 Storing food.................................................................. 6
4.2 Storage times............................................................... 6
5 Saving energy........................................................ 7
6 Controls................................................................. 7
6.1 Controls and displays.................................................. 7
6.1.1 Status display..............................................................7
6.1.2 Navigation.................................................................... 7
6.1.3 Operating structure.................................................... 7
6.1.4 Display symbols.......................................................... 8
6.2 Control concept............................................................ 8
6.2.1 Activating/deactivating the function..................... 8
6.2.2 Selecting function value........................................... 8
6.2.3 Activating/deactivating settings.............................8
6.2.4 Selecting the setting value.......................................8
6.2.5 Go to the Customer menu......................................... 8
6.3 Functions....................................................................... 9
Turn off appliance.......................................................9
WiFi.............................................................................. 9
Temperature...............................................................10
SuperFrost.................................................................10
PartyMode.................................................................. 10
SabbathMode........................................................... 10
E-Saver........................................................................ 11
Display brightness.....................................................11
Door alarm.................................................................. 11
Entry lock.................................................................... 11
Info...............................................................................11
Reset............................................................................11
6.4 Fault messages............................................................ 12
6.4.1 Warnings.................................................................... 12
6.4.2 DemoMode................................................................. 12
7 Features................................................................. 12
7.1 Drawers.......................................................................... 12
7.2 Glass shelves................................................................ 13
7.3 VarioSpace.................................................................... 14
8 Maintenance.......................................................... 14
8.1 Disassembling / assembling pull-out systems...... 14
8.2 Defrosting the appliance............................................ 15
8.3 Cleaning the appliance............................................... 15
9 Customer help....................................................... 16
9.1 Technical specifications............................................. 16
9.2 Operating noises.......................................................... 16
9.3 Technical fault.............................................................. 16
9.4 Customer Services....................................................... 17
9.5 Model plate................................................................... 18
10 Shutting down....................................................... 18
11 Disposal................................................................. 18
11.1 Preparing appliance for disposal.............................. 18
11.2 Disposing of the appliance in an environmentally
friendly manner............................................................ 18
The manufacturer is continually working on the further
development of all types and models. Please be aware that
we reserve the right to make changes to the shape, equip‐
ment and technology.

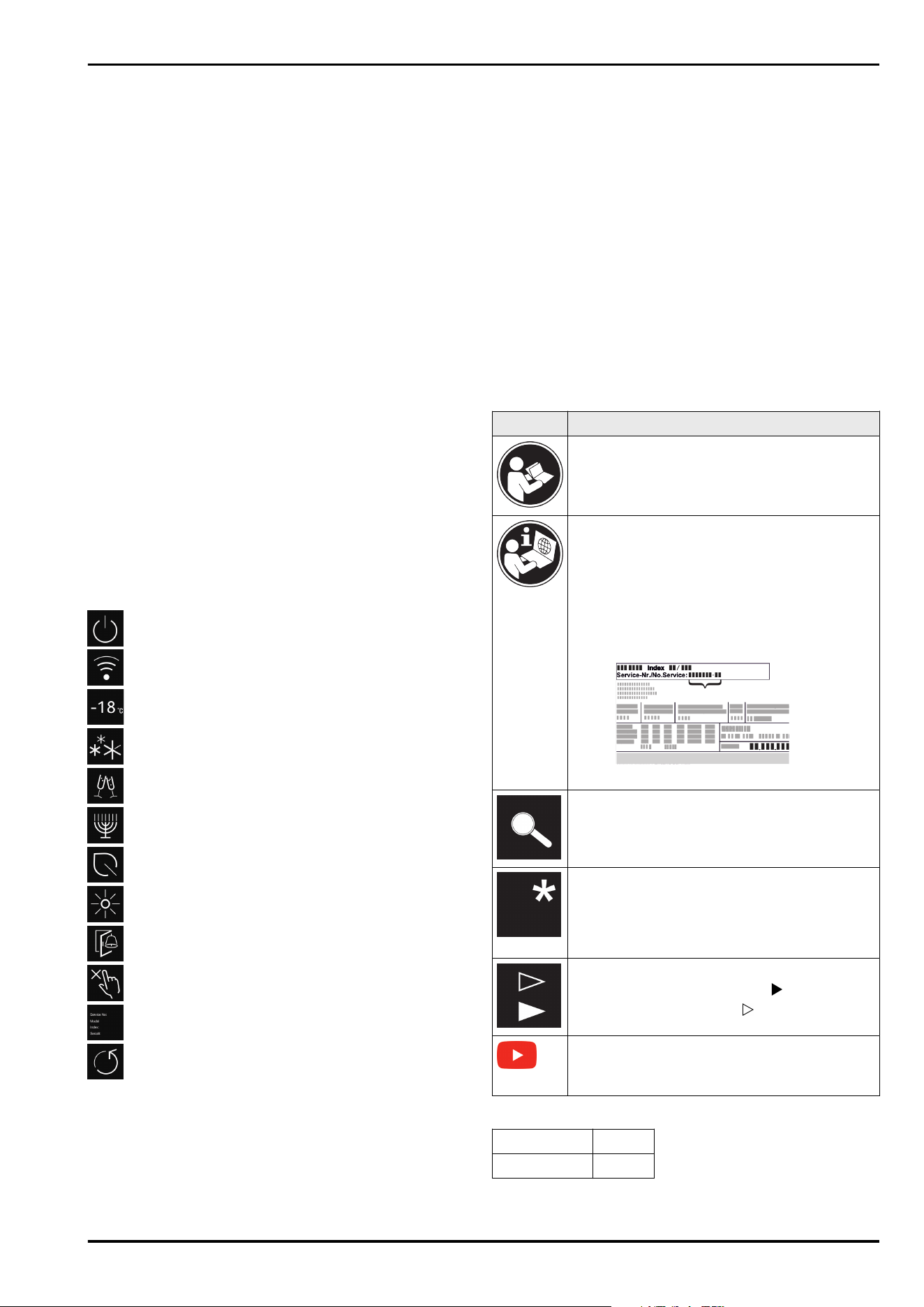

Symbol
Explanation
Read instructions
Please read the information in these instruc‐
tions carefully to understand all of the benefits
of your new appliance.
Full instructions on the internet
You can find detailed instructions on the
internet using the QR code on the front
of these instruction or by entering the
service number at home.liebherr.com/fridge-
manuals.
The service number can be found on the serial
tag:
Fig. Example illustration
Check appliance
Check all parts for transport damage. If you
have any complaints, please contact your
agent or customer service.
Differences
These instructions apply to a range of models,
so differences are possible. Sections that
apply to certain models only are marked with
an asterisk (*).
Instructions and results
Instructions are marked with a .
Results are marked with a .
Videos
Videos about the appliances are available on
the YouTube channels of Liebherr-Hausgeräte.
These operating instructions apply to:
IFe/IFSe/IFNe
35..39....
SIFNf/SIFNSf 51..
2 * Depending on model and options
Note
If your appliance has an N in its appliance designation, it is
a NoFrost appliance.*
1 Appliance at a glance
1.1 Scope of delivery
Check all parts for damage during transport. If you have
any complaints, please contact your retailer or Customer
Services (see 9.4 Customer Services) .
Your new appliance comes with the following parts:
-
Built-in appliance
-
Features (depending on the model)
-
Installation materials (depending on the model)
-
“Quick Start Guide”
-
“Installation Guide”
-
Service Brochure
1.2 Overview of the appliance and
equipment

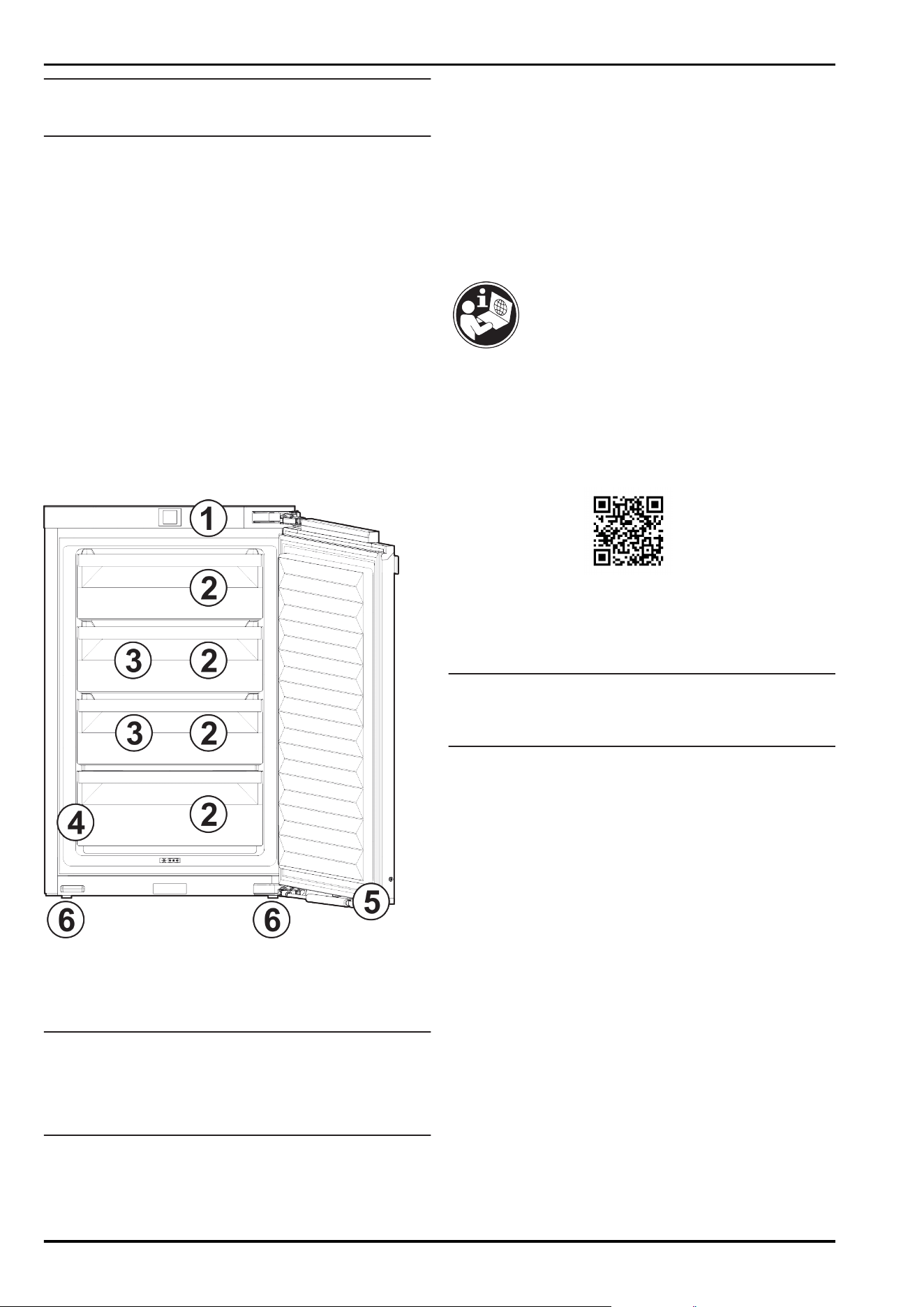

Fig. 1
(1)
Operating and control
elements
(4) Type plate
(2) Drawers (5) Soft-closing
(3) VarioSpace (6) Adjustable feet
Note
u
Shelves, drawers and baskets are arranged for optimum
energy efficiency when the appliance is delivered.
Changing how the shelves, for example, are inserted in
the fridge compartment does not have any impact on
energy consumption.
1.3 SmartDevice
SmartDevice is the networking solution for your freezer.
If your appliance SmartDevice-enabled or compatible, you
can quickly and easily connect your appliance to your
WiFi. With the SmartDevice app, you can operate your appli‐
ance from a mobile device. Additional functions and setting
options are available in the SmartDevice SmartDevice app.
SmartDevice-
compatible appli‐
ance:
Your appliance is compatible for use
with the SmartDeviceBox. You must
first purchase and install the Smart‐
DeviceBox. In order to connect your
appliance to the WiFi, you need to
download the SmartDevice app.
More information
about SmartDe‐
vice:
smartdevice.liebherr.com
Purchasing the
SmartDeviceBox
in the Liebherr-
Hausgeräte store:
home.liebherr.com/shop/de/deu/
smartdevicebox.html
Downloading the
SmartDevice app:
After installing and configuring the
SmartDevice, you can connect your
appliance to the WiFi using the
SmartDevice app and the WiFi appli‐
ance function (see WiFi) .
Note
You cannot use the SmartDeviceBox in the following coun‐
tries: Belarus, Kazakhstan, Russia. The SmartDevice func‐
tion is not available.
1.4 Appliance range of use
Intended use
The appliance is only suitable for cooling
food products in a domestic or household-like
environment. This includes, for example, use:
-
in staff kitchens, bed and breakfast estab‐
lishments,
-
by guests in country houses, hotels, motels
and other accommodation,
-
for catering and similar services in the
wholesale trade.
All other types of use are not permitted.
Foreseeable misuse
The following applications are expressly
forbidden:
-
Storing and refrigerating medicines, blood
plasma, laboratory preparations or similar
substances and products based on the
Medical Device Directive 2007/47/EC
-
Use in areas at risk of explosions
Appliance at a glance
* Depending on model and options 3
Misusing the appliance may lead to damage
to the goods stored or they may spoil.
Climate classifications
Depending on the climate classification the
appliance is designed to operate in restricted
ambient temperatures. The climate classifica‐
tion applying to your appliance is printed on
the rating plate.
Note
u
Keep to the specified ambient tempera‐
tures in order to guarantee that the appli‐
ance works properly.
Climate clas‐
sification
for ambient temperatures of
SN 10 °C to 32 °C
N 16 °C to 32 °C
ST 16 °C to 38 °C
T 16 °C to 43 °C
SN-ST 10 °C to 38 °C
SN-T 10 °C to 43 °C
1.5 Conformity
The refrigerant circuit has been tested for leaks. When
installed, the appliance complies with the applicable safety
regulations and with the corresponding directives.
The full text of the EU Declaration of Conformity is available
on the following website: www.Liebherr.com
1.6 SVHC substances according to
REACH regulation
You can check whether your appliance contains SVHC
substances according to REACH regulation at the following
link: home.liebherr.com/de/deu/de/liebherr-erleben/nach‐
haltigkeit/umwelt/scip/scip.html
1.7 EPREL database
Details about energy labelling and ecodesign requirements
will be available on the European product database (EPREL)
from 1st March 2021. You can access the product database
at the following link: https://eprel.ec.europa.eu/ You will be
asked to enter the model ID. You can find the model ID on
the nameplate.
2 General safety instructions
Please keep these operating instructions in a
safe place so you can refer back to them at
any time.
If you pass the appliance on, please hand
these operating instructions to the next user.
Read these operating instructions carefully
before use to ensure safe and correct use of
the appliance. Follow the instructions, safety
instructions and warning messages included
at all times. They are important for ensuring
you can operate and install the appliance
safely and without any problems.
Danger for the user:
-
This device can be used by children and
people with impaired physical, sensory or
mental abilities or with a lack of experi‐
ence and knowledge provided that they
are supervised or have received instruction
in the safe use of this device, and about
the resulting hazards. Children must not
play with this appliance. Cleaning and user
maintenance work must not be carried out
by children without adult supervision. Chil‐
dren aged between 3 and 8 are allowed
to load and unload the appliance. Children
below the age of 3 must be kept away from
the appliance unless they are under contin‐
uous adult supervision.
-
The socket must be easily accessible so
that the appliance can be disconnected
quickly from the electricity in an emer‐
gency. It must not be located in the area
behind the appliance.
-
When disconnecting the appliance from the
supply, always take hold of the plug. Do not
pull the cable.
-
In the event of a fault pull out the mains
plug or deactivate the fuse.
-
Do not damage the mains power cable. Do
not operate the appliance with a defective
mains power cable.
-
Only customer service or other specially
trained staff may repair or perform other
operations on the appliance.
-
Only install, connect and dispose of the
appliance according to the instructions.
-
Only use the appliance when is installed.
Fire hazard:
-
The coolant used (information on the model
plate) is ecofriendly but also flammable.
Any leaking coolant may ignite.
•
Do not damage the refrigerant circuit
pipes.
•
Do not handle ignition sources inside the
appliance.
•
Do not use electrical appliances inside
the appliance (e.g. steam cleaners,
heaters, ice cream makers, etc.).
•
If the refrigerant leaks: remove any naked
flames or ignition sources from the
vicinity of the leakage point. Properly air
the room. Inform customer services.
-
Do not store explosives or sprays using
combustible propellants such as butane,
General safety instructions
4 * Depending on model and options
propane, pentane, etc. in the appliance. To
identify these spray cans, look for the list
of contents printed on the can, or a flame
symbol. Gases possibly escaping may ignite
due to electrical components.
-
Keep burning candles, lamps and other
items with naked flames away from the
appliance so that they do not set the appli‐
ance on fire.
-
Please be sure to store alcoholic drinks
or other packaging containing alcohol in
tightly closed containers. Any alcohol that
leaks out may be ignited by electrical
components.
Danger of tipping and falling:
-
Do not misuse the plinth, drawers, doors
etc. as a step or for support. This applies
particularly to children.
Danger of food poisoning:
-
Do not consume food which has been
stored too long.
Danger of frostbite, numbness and pain:
-
Avoid prolonged skin contact with cold
surfaces or refrigerated/frozen goods or
take protective measures, e.g wear gloves.
Danger of injury and damage:
-
Hot steam can lead to injury. Do not use
electrical heating or steam cleaning equip‐
ment, open flames or defrosting sprays to
defrost.
-
Do not use sharp implements to remove the
ice.
Risk of crushing:
-
Do not hold the hinge when opening and
closing the door. Fingers may get caught.
Symbols on the appliance:
This symbol may be located on the
compressor. It relates to the oil in the
compressor and makes reference to the
risk that: Swallowing or inhaling can be
fatal. This advice is only relevant to recy‐
cling. There is no danger in normal opera‐
tion.
This symbol is located on the compressor
and indicates the danger of flammable
materials. Do not remove the sticker.
This or a similar sticker may be located
on the rear of the appliance. This sticker
indicates that there are vacuum insulation
panels (VIP) or perlite panels in the door
and/or housing. This advice is only relevant
to recycling. Do not remove the sticker.
Please note the warning messages and other
specific advice in the other chapters:
DANGER
indicates an immediately
hazardous situation which will
lead to death or serious injuries if
it is not avoided.
WARNING indicates a hazardous situation
which may lead to death or serious
injuries if it is not avoided.
CAUTION indicates a hazardous situation
which may lead to minor or
moderate injuries if it is not
avoided.
NOTICE indicates a hazardous situation
which may lead to damage to
property if it is not avoided.
Note indicates useful instructions and
tips.

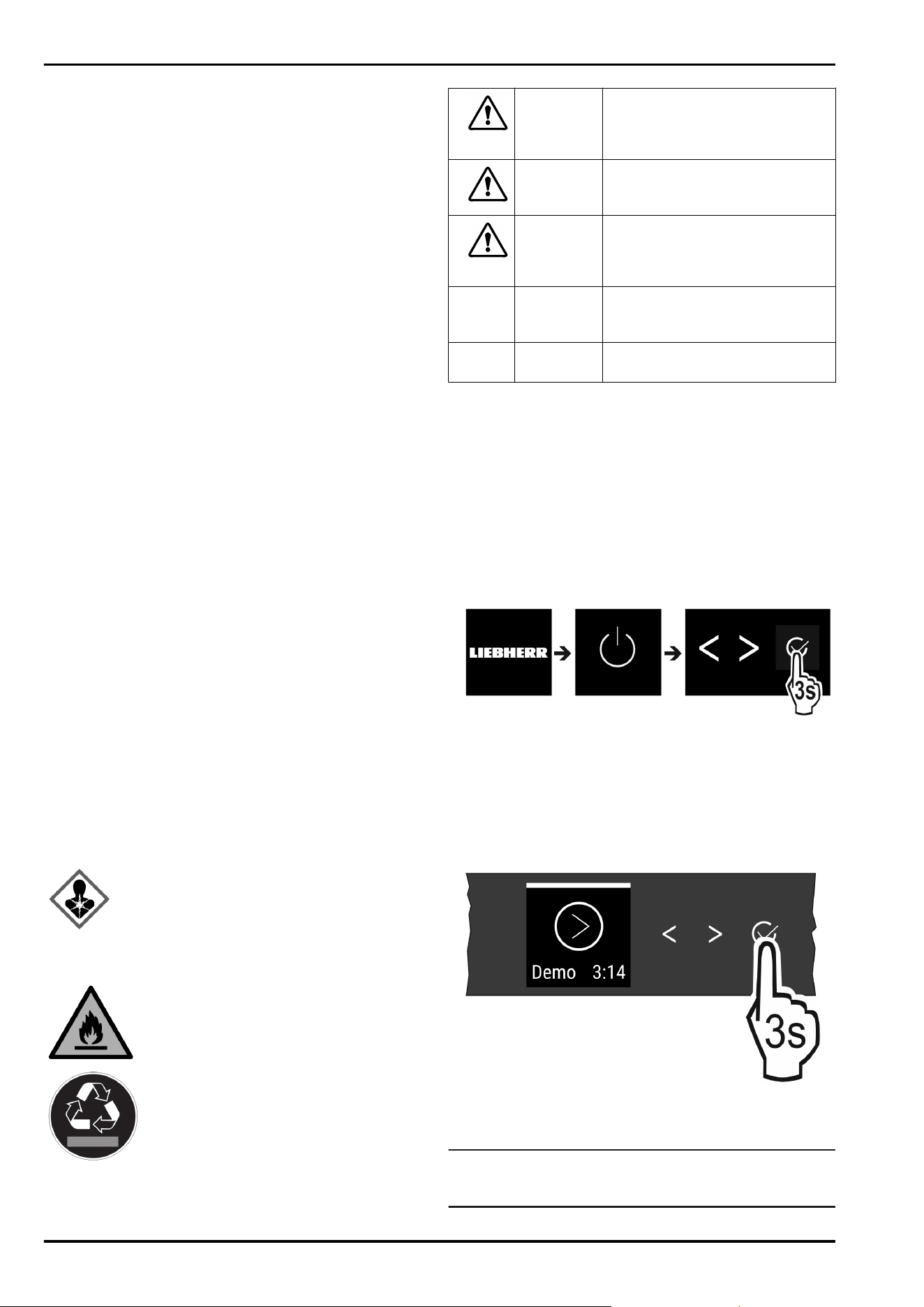

3 Putting into operation
3.1 Switching on appliance
Ensure that the following conditions are met:
q
Appliance is installed and connected according to instal‐
lation instructions.
q
All adhesive strips, adhesive and protective films as well
as transport safety devices in and on the appliance are
removed.
q
All marketing leaflets are removed from the drawers.
Fig. 2
u
Switch on the appliance using the control panel next to
the display.
w
The status display appears.
The appliance starts in DemoMode:
If the appliance starts in DemoMode, you can deactivate
DemoMode within the next 5 minutes.
Fig. 3
u
Press Confirm next to the display for 3 seconds.
w
DemoMode is deactivated.
Note
The manufacturer recommends:
u
Store frozen foods at -18 °C or colder.
Putting into operation
* Depending on model and options 5
3.2 Inserting the components
Note
Accessories can be purchased from the Liebherr-
Hausgeräte store at home.liebherr.com/shop/de/deu/
zubehor.html.
u
Insert the supplied components to make the most of your
appliance.
4 Foods management
4.1 Storing food
WARNING
Risk of fire
u
Do not use any electrical appliances in the food area of
the appliance unless recommended by the manufacturer.
Note
The energy consumption increases and the cooling power
goes down if ventilation is not sufficient.
u
Always keep air slots clear.
When storing food, always observe the following:
q
Air vents on the inside rear wall are unobstructed.
q
Air vents on the fan are unobstructed.
q
Food is in sealed packaging.
q
Raw meat and fish are in clean, sealed containers to
prevent them coming into contact with or dripping onto
other foods.
q
Foods are not stored too closely together, as the air
needs to circulate.
Note
Failure to follow these guidelines can lead to food perishing.
4.1.1 Freezer compartment
This provides a dry, frosty storage climate at -18 °C. A frosty
climate is great for storing frozen food and frozen goods for
several months, making ice cubes and freezing fresh food.
Freezing food
You can freeze as many kilograms of fresh food within 24
hours as indicated on the nameplate (see 9.5 Model plate)
under "freezing capacity ... kg/24h".
So that the food is rapidly frozen through to the core, keep
to the following quantities per pack:
-
Fruit, vegetables up to 1 kg
-
Meat up to 2.5 kg
Before freezing goods, please make sure of the following:
q
Appliances without NoFrost:*
SuperFrost is activated (see 6.3 Functions) when the
amount of food to freeze exceeds approx. 1 kg.
*
q
Appliances with NoFrost:*
SuperFrost is activated (see 6.3 Functions) when the
amount of food to freeze exceeds approx. 2 kg.
*
q
With a small amount of frozen goods: SuperFrost is acti‐
vated approx. 6 hours prior.
q
With the maximum amount of frozen goods: SuperFrost is
activated approx. 24 hours prior.
Arrange your food as follows:
CAUTION
Risk of injury from glass fragments!
Drink bottles and cans may explode if frozen. This applies
particularly to carbonated drinks.
u
Only freeze drink bottles and cans when using the bottle
timer function.
For appliances smaller than 122 cm:
With a small amount of frozen goods:
u
Distribute packaged groceries across all drawers.
u
If possible, place groceries at the back of the drawer near
the rear wall.
With a maximum amount of frozen goods:
u
Distribute packaged groceries across all drawers.
u
If possible, place groceries at the back of the drawer near
the rear wall.
For appliances larger than or exactly 122 cm:
With a small amount of frozen goods:
u
Distribute packaged groceries across all drawers, but do
not place any groceries in the top drawer.
With a maximum amount of frozen goods:
u
Distribute packaged groceries across all drawers.
u
If possible, place groceries at the back of the drawer near
the rear wall.
For all appliances:
With a maximum amount of frozen goods:
u
Once SuperFrost deactivates automatically, place food
into the drawer.
Defrost the food
- In the fridge
- In the microwave
- In the stove/oven
- At room temperature
WARNING
Risk of food poisoning!
u
Do not re-freeze thawed food.
u
Only take out the food you need at the time.
u
Cook defrosted food as soon as possible.
Freezer tray*
Use the freezer tray for berries, herbs, vegetables and other
small goods without them freezing together in the process.
The food keeps its shape and is easier to separate into
portions later on.
u
Spread food, unsealed, at a good distance apart, over the
whole surface of the freezer tray.
4.2 Storage times
Refer to the specified storage times as a guide.
In the case of foods with a minimum shelf life, the date
indicated on the packaging still applies.
Recommended storage period for various types of food
Ice cream at -18 °C 2 to 6 months
Sausages, ham at -18 °C 2 to 3 months
Bread, baked goods at -18 °C 2 to 6 months
Game, pork at -18 °C 6 to 9 months
Fatty fish at -18 °C 2 to 6 months
Lean fish at -18 °C 6 to 8 months
Cheese at -18 °C 2 to 6 months
Foods management
6 * Depending on model and options

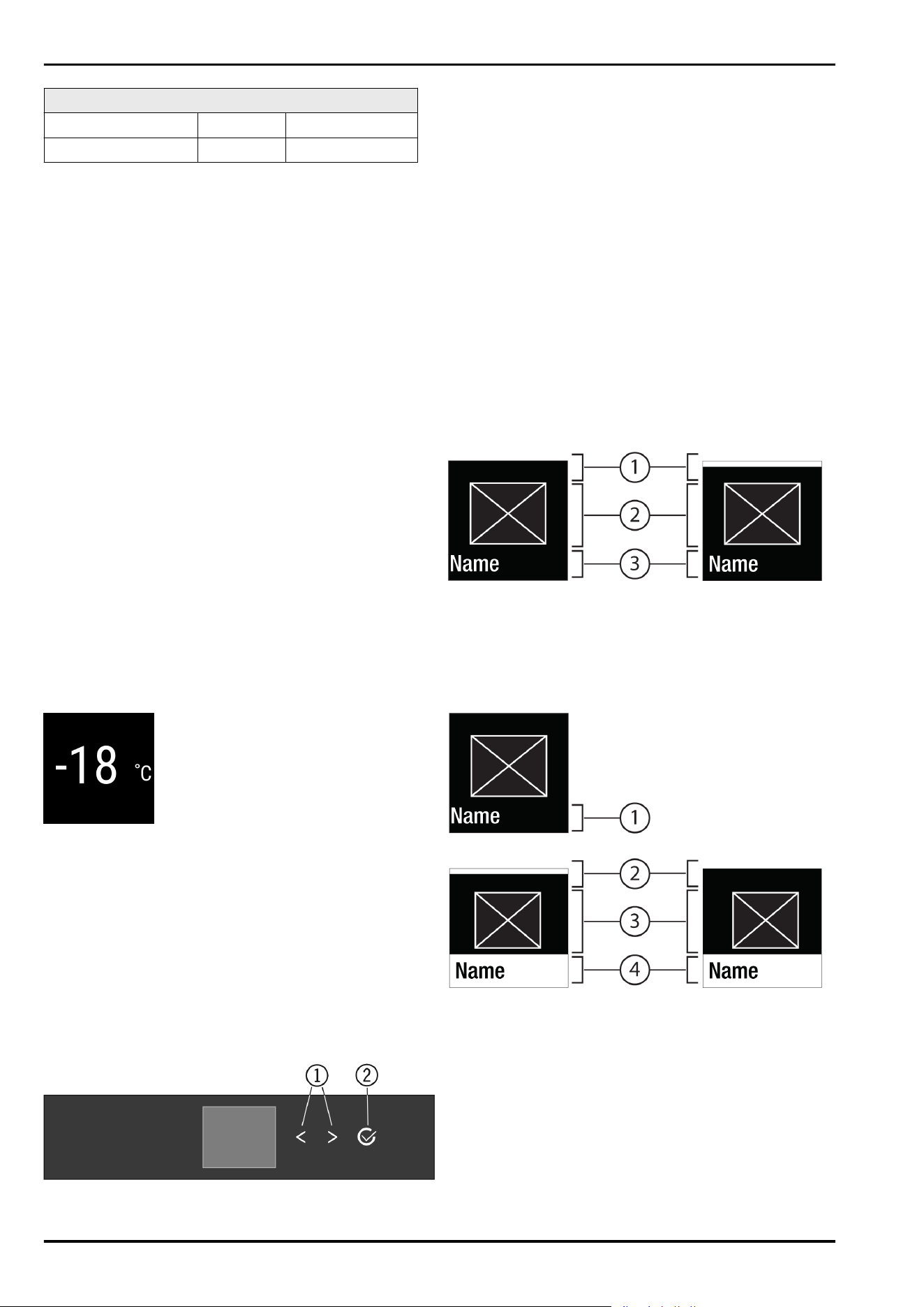

Recommended storage period for various types of food
Poultry, beef at -18 °C 6 to 12 months
Vegetables, fruit at -18 °C 6 to 12 months
5 Saving energy
-
Pay attention to good ventilation. Do not cover ventilation
holes or grids.
-
Always keep the fan air slits clear.
-
Do not install the appliance in direct sunlight, next to an
oven, radiator or similar.
-
Energy consumption depends on the installation condi‐
tions, e.g. the ambient temperature (see 1.4 Appliance
range of use) . A warmer ambient temperature can
increase the energy consumption.
-
Open the appliance for as short a time as possible.
-
The lower the temperature is set the higher the energy
consumption.
-
Keep all food properly packed and covered. This prevents
frost from forming.
-
Inserting warm food: allow to cool down to room temper‐
ature first.
-
If there is a thick layer of frost in the appliance: defrost
the appliance.*
6 Controls
6.1 Controls and displays
The display provides a quick overview of the temperature
setting and the status of functions and settings. You
can control the functions and settings either by deacti‐
vating/activating them or by selecting a value.
6.1.1 Status display
Fig. 4
(1)
Temperature display
The Status display shows the set temperature and is the
home display. From there, you can navigate to the options
and settings.
6.1.2 Navigation
Navigate in the menu to access the individual functions.
An audible signal sounds after confirming a function or
setting. If no selection is made after 10 seconds the display
switches to the Status display.
The appliance is operated with the buttons next to the
display.
Fig. 5
(1)
Navigation arrow left/
right
(2) Confirm
Navigation arrow left/right Fig. 5 (1):
-
Navigating in the menu. After the last menu page, it goes
back to the first one.
Confirm Fig. 5 (2):
-
Activating/deactivating a function.
-
Open a submenu.
-
Confirm a selection. After confirmation the display
switches back to the menu.
Back to Status display: in the fastest manner:
-
Close and open the door.
-
or wait 10 seconds. The display switches to the Status
display.
6.1.3 Operating structure
The controls are explained by a template. The display
changes depending on the function or settings.
Menus without a submenu
Fig. 6
(1)
Status deactivated /
status activated white
bar in the top area
(3) Menu: Function name or
menu: Setting name
(2) Symbol or activated
value
Menus with a submenu
Fig. 7
(1)
Menu: Function name
or menu: Setting name
(3) Symbol or activated
value
(2) Status (4) Submenu: function name
or submenu: Setting
name
(2) off / on
You can navigation as follows:
-
Press the left/right Fig. 5 (1) arrow to navigate.
-
Press Confirm Fig. 5 (2) to open the submenu Fig. 7 (4).
•
Press the left/right Fig. 5 (1) arrow to navigate.
Saving energy
* Depending on model and options 7
•
Set a new value: Press Confirm Fig. 5 (2) to select an
active value Fig. 6 (1).
•
Back to the menu: Press Confirm Fig. 5 (2) to select the
active value Fig. 6 (2).
6.1.4 Display symbols
Display symbols provide information on the current appli‐
ance status:
Symbol Appliance status
Standby
The appliance or temperature zone
is switched off.
Flashing number
Appliance is working. Temperature
flashes until the set value is
reached.
Flashing symbol
Appliance is working. Setting is
made.
Bar grows steadily
Function is activated.

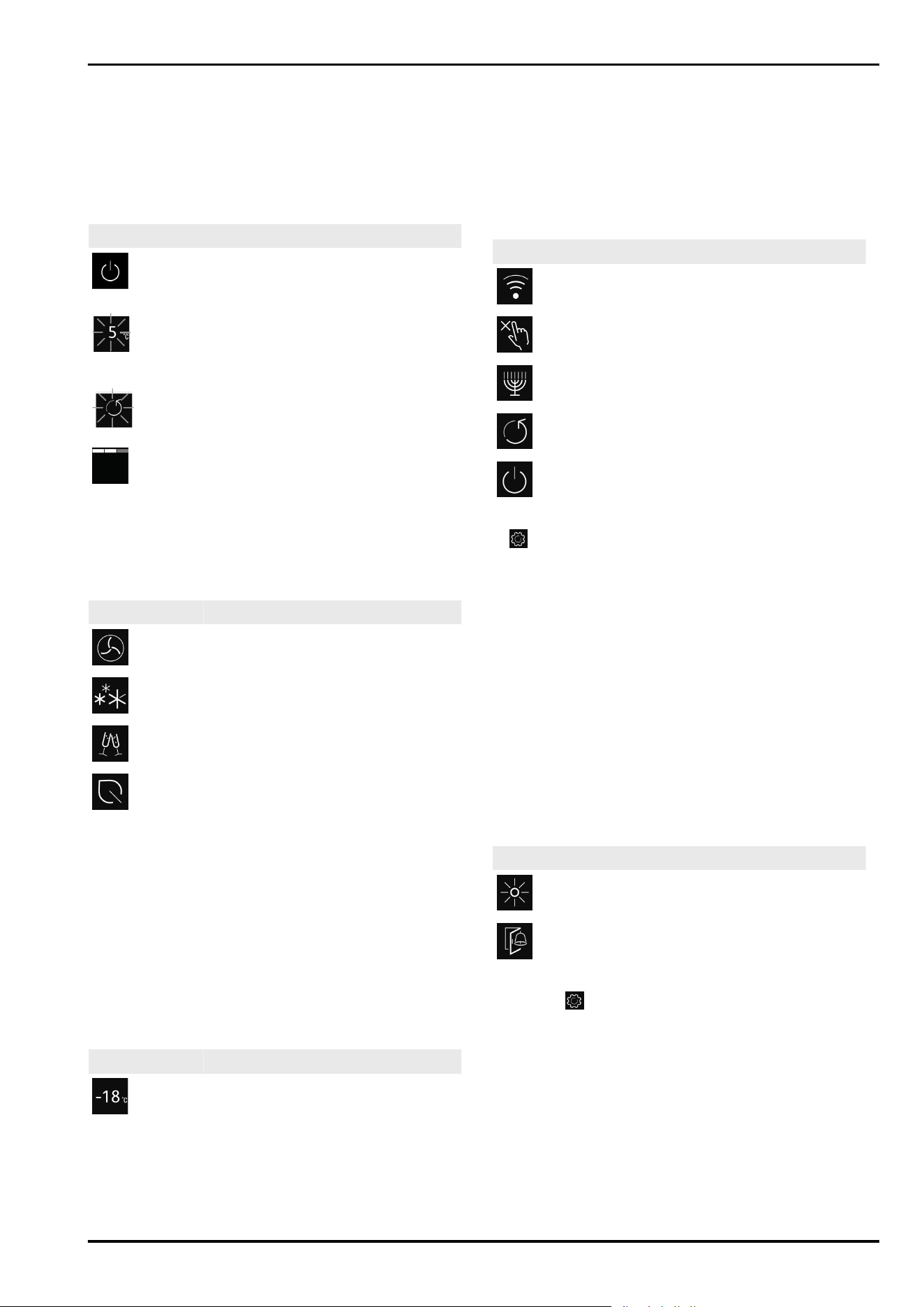

6.2 Control concept
6.2.1 Activating/deactivating the function
You can activate/deactivate the following functions:
Symbol
Function
PowerCool
x
SuperFrost
x
PartyMode
x
E-Saver
x
When function is on, the appliance works harder. This
means appliance noise when operating may be louder for
a short while, and more energy will be consumed.
u
Press the navigation arrows Fig. 5 (1) repeatedly until the
function is displayed.
u
Press Confirm Fig. 5 (2).
w
You hear the confirmation tone.
w
Status appears in the menu.
w
Function is on/off.
6.2.2 Selecting function value
With the following functions you can set a value in the
submenu:
Symbol
Function
Setting the temperature
Switch the appliance on/off
u
Tap the navigation arrows Fig. 5 (1) repeatedly until the
function is displayed.
u
Press Confirm Fig. 5 (2).
u
Select the setting value with the navigation arrows
Fig. 5 (1).
Setting the temperature
u
Press Confirm Fig. 5 (2).
w
You hear the confirmation tone.
w
Status: On Fig. 6 (1) appears briefly in the submenu
Fig. 7 (4).
w
Display switches back to the menu.
6.2.3 Activating/deactivating settings
You can activate/deactivate the following settings:
Symbol Setting
WiFi
1
Entry lock
2
SabbathMode
2
Reset
2
Switch off
2
u
Tap the navigation arrows Fig. 5 (1) repeatedly until the
settings appear.
u
Press Confirm Fig. 5 (2).
u
Tap the navigation arrows Fig. 5 (1) repeatedly until the
desired setting is displayed.
1
Activate setting (shortpress)
u
Press Confirm Fig. 5 (2).
w
You hear the confirmation tone.
w
Status appears in the menu.
w
Setting is on / off.
2
Activate setting (longpress)
u
To Confirm Fig. 5 (2), press for 3 seconds.
w
You hear the confirmation tone.
w
Status appears in the menu.
w
Display changes.
6.2.4 Selecting the setting value
With the following settings you can set a value in the
submenu:
Symbol
Settings
Brightness
Door alarm
u
Tap the navigation arrows Fig. 5 (1) repeatedly until
settings appears.
u
Press Confirm Fig. 5 (2).
u
Tap the navigation arrows Fig. 5 (1) repeatedly until the
desired setting is displayed.
u
Press Confirm Fig. 5 (2).
u
Select the setting value with the navigation arrows
Fig. 5 (1).
u
Press Confirm Fig. 5 (2).
w
You hear the confirmation tone.
w
Status appears briefly in the submenu.
w
Display switches back to the menu.
6.2.5 Go to the Customer menu
You can see the following settings in the Customer menu:
Controls
8 * Depending on model and options

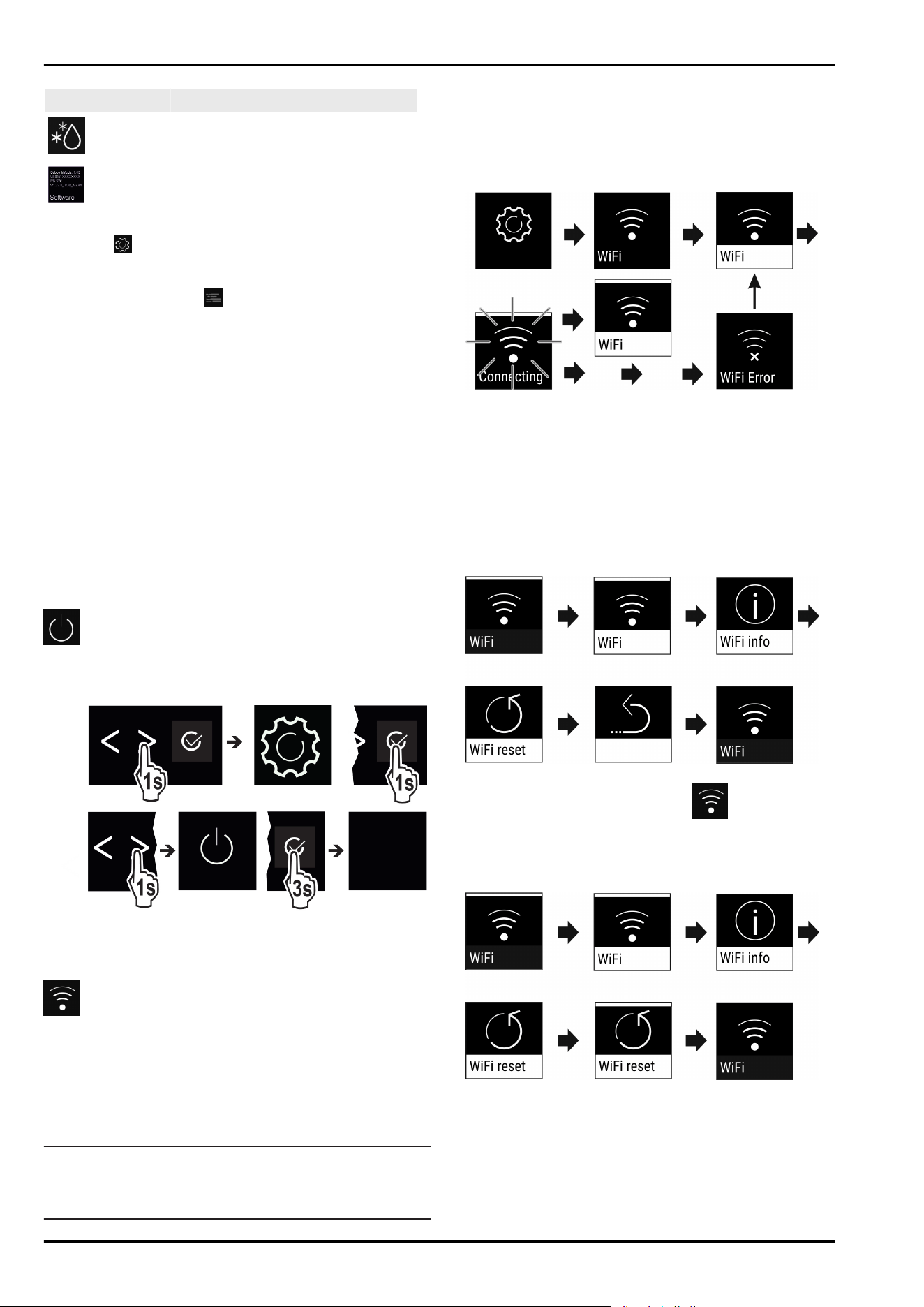

Symbol Function
*
Defrost
2
*
Software
u
Press the navigation arrows Fig. 5 (1) repeatedly until the
settings appear.
u
Press Confirm Fig. 5 (2).
u
Press the navigation arrows Fig. 5 (1) repeatedly until the
appliance information
appears in the display.
u
Press Confirm Fig. 5 (2).
u
Enter the numerical code 151.
w
The customer menu appears.
u
Press the navigation arrows Fig. 5 (1) repeatedly in the
customer menu until the desired setting appears.
1
Select the value
u
Press Confirm Fig. 5 (2).
w
You hear the confirmation tone.
w
Status appears briefly in the display.
w
Display switches back to the menu.
2
Activate the setting
u
ToConfirm Fig. 5 (2), press for 3 seconds.
w
You hear the confirmation tone.
w
Status appears on the display.
w
The symbol flashes as long as the appliance is working.
6.3 Functions
Turn off appliance
This setting turns off the whole appliance.
Switching off the entire appliance
Fig. 8
u
Activating/deactivating (see 6.2 Control concept) .
w
Off: Display goes black.
WiFi
Use this function to connect your appliance to the WiFi. You
can then operate it via the SmartDevice app on a mobile
device. You can also use this function to disconnect or reset
the WiFi connection. To connect your appliance to the WiFi,
you need the SmartDeviceBox. For more information about
the SmartDeviceBox and how to use the SmartDevice app:
(see 1.3 SmartDevice)
Note
You cannot use the SmartDeviceBox in the following coun‐
tries: Belarus, Kazakhstan, Russia. The SmartDevice func‐
tion is not available.
Establishing a WiFi connection
Make sure that the following requirements are fulfilled:
q
You have purchased and inserted a SmartDeviceBox.
(see 1.3 SmartDevice)
q
You have installed the SmartDevice app (see
apps.home.liebherr.com).
Fig. 9
u
Activate the setting. (see 6.2 Control concept)
w
Connection is established: Status: activated Fig. 6 (1) and
WiFi connecting appears. The symbol flashes.
w
Connection is established: Status: activated Fig. 6 (1)
appears.
w
Connection failed: Status and Connect appear. The
symbol is permanently visible.
Disconnecting from the WiFi
u
Deactivate the setting. (see 6.2 Control concept)
Fig. 10
w
There is no connection: Symbol is permanently
visible.
Resetting the WiFi connection
u
Reset settings. (see 6.2 Control concept)
Fig. 11
w
The connection and other settings are reset to the
factory settings.
Controls
* Depending on model and options 9

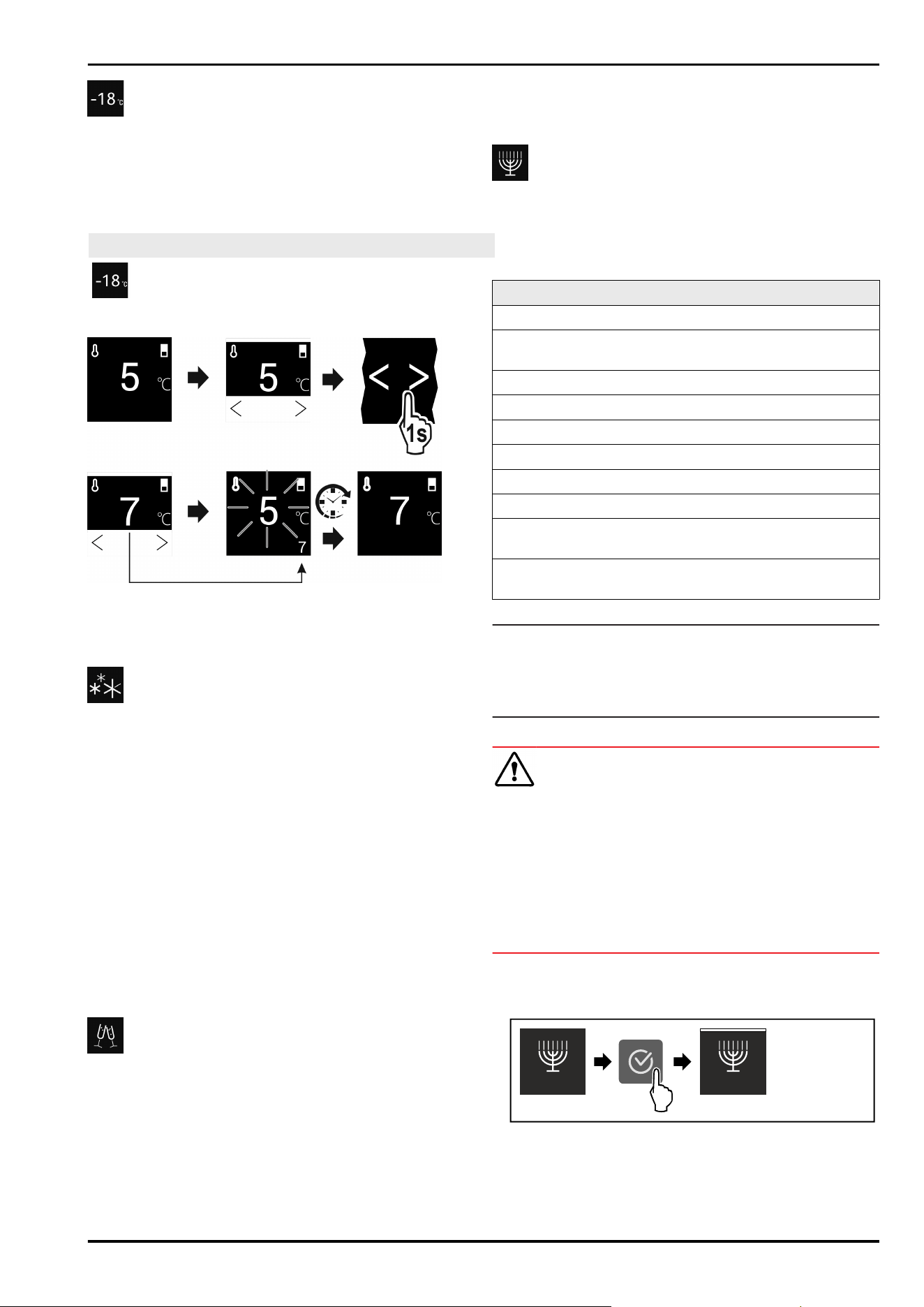

Temperature
The temperature depends on the following factors:
-
The amount of times the door is opened
-
How long the door is open for
-
The room temperature of the installation site
-
The type, temperature and amount of food
Freezer compartment Recommended setting
-18 °C
Setting the temperature
Fig. 12
u
Set the value. (see 6.2 Control concept) .
w
Set temperature is shown at the bottom right of the
display.
SuperFrost
This function selects the lowest freezing temperature. This
gives you colder storage temperatures.
Use:
-
For storing more than 2 kg fresh food every day.
-
Freezing fresh food quickly to the core.
-
Increasing the cold reserves in the stored goods before
defrosting the appliance.
Activating/deactivating the function
With a small amount to freeze:
u
Activate 6 hours before use.
With a maximum amount to freeze:
u
Activate 24 hours before use.
u
Activating/deactivating (see 6.2 Control concept) .
The function automatically turns off. The appliance goes
back to normal mode. The temperature adjusts itself to the
set level.
PartyMode
This option offers an assortment of special functions and
settings that are useful if you are having a party.
The following functions are on:
-
SuperFrost
All the functions can be adjusted flexibly and separately.
Changes are discarded when the function turns off.
Activating/deactivating the function
u
Activating/deactivating (see 6.2 Control concept) .
w
On: All functions are activated at the same time.
w
Deactivated: Previously set temperatures are restored.
After 24 hours the function turns off automatically.
SabbathMode
With this function you can activate or deactivate the
SabbathMode. If you activate this function, some electronic
functions will be switched off. This allows your appliance to
meet religious requirements on Jewish holidays such as the
Sabbath and comply with STAR-K Kosher certification.
Appliance status with active SabbathMode
The status display continuously shows SabbathMode.
All functions in the display except the Deactivate
SabbathMode function are locked.
Active functions remain active.
The display stays lit when you close the door.
Reminders are disabled. The set time intervals are paused.
Reminders and warnings are not displayed.
There is no door alarm.
There is no temperature alarm.
The defrost cycle only works for the specified time without
taking account of appliance use.
After a power failure, the appliance returns to
SabbathMode.
Appliance status
Note
This appliance has certification from the “Institute for
Science and Halacha”. (www.machonhalacha.co.il)
You can find a list of STAR-K-certified appliances at
www.star-k.org/appliances.
Activating SabbathMode
WARNING
Danger of food poisoning from spoiled food!
If you have SabbathMode activated and a power failure
occurs, no message appears in the status display about the
power failure. Once the power is restored, the appliance
continues to operate in SabbathMode. The power failure
may mean that food spoils and the consumption of this food
could lead to food poisoning.
After a power failure:
u
Do not consume food that was frozen and has thawed
out.
u
Call up the settings menu. (see 6.2 Control concept)
u
Tap the navigation arrow repeatedly until the corre‐
sponding function is displayed.
3s
Fig. 13
u
Complete the steps (see Fig. 1201) .
w
SabbathMode is activated.
w
Status display continuously shows SabbathMode.
Controls
10 * Depending on model and options

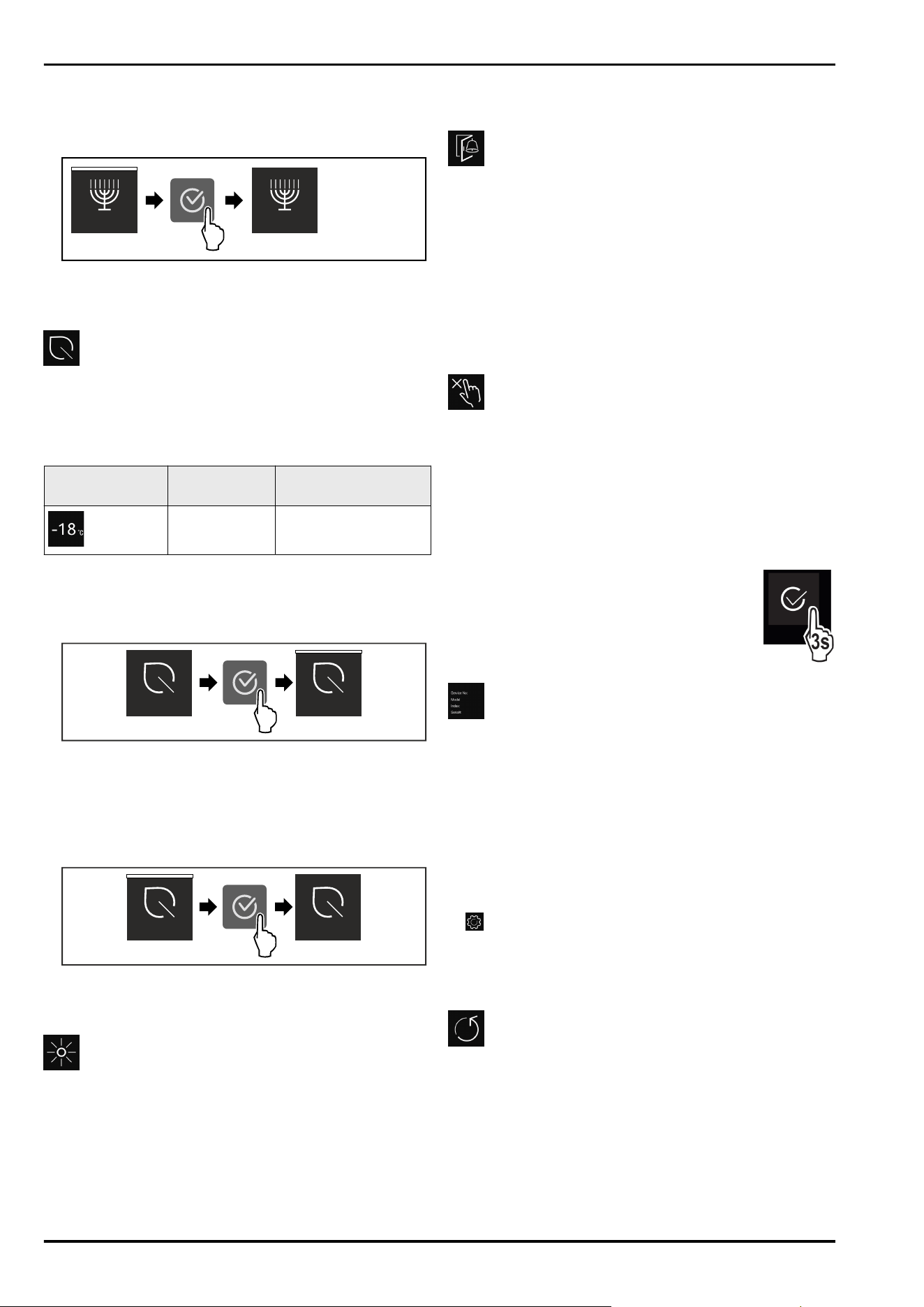

Deactivating SabbathMode
u
Call up the settings menu. (see 6.2 Control concept)
u
Tap the navigation arrow repeatedly until the corre‐
sponding function is displayed.
3s
Fig. 14
u
Complete the steps (see Fig. 1202) .
w
SabbathMode is deactivated.
E-Saver
This function activates or deactivates the energy-saving
mode. When you activate this function, the energy
consumption decreases and the temperature increases by
2 °C in the appliance. The food remains fresh, but the shelf
life is shortened.
Temperature zone
Recommended
setting
Temperature when E-
Saver activated
-18 °C -16 °C
Temperatures
Activating E-Saver
u
Tap navigation arrow repeatedly until corresponding
function is displayed.
E-Saver
E-Saver
Fig. 15
u
Complete the steps (see Fig. 1203) .
w
Energy-saving mode is activated.
Deactivating E-Saver
u
Tap navigation arrow repeatedly until corresponding
function is displayed.
E-Saver
E-Saver
Fig. 16
u
Complete the steps (see Fig. 1204) .
w
Energy-saving mode is deactivated.
Display brightness
Set the brightness level of the display.
You can set the following brightness levels:
-
40%
-
60%
-
80%
-
100%
Choose the setting
u
Set the level (see 6.2 Control concept) .
Door alarm
Set the time before the door alarm (see Close the door)
sounds.
The options are as follows:
-
1 min
-
2 min
-
3 min
-
Off
Choose the setting
u
Set the time (see 6.4 Fault messages) .
Entry lock
This setting prevents unintentional use of the appliance,
e.g. by children.
Use:
-
Avoid settings being changed unintentionally.
-
Avoid the appliance being switched off unintentionally.
-
Avoid the temperature being changed unintentionally.
Activating/deactivating settings
u
Activating/deactivating. (see 6.2 Control
concept)
Info
This setting allows the appliance information to be read out
as well as access to the customer menu.
It provides the following information:
-
Model name
-
Index
-
Serial number
-
Service number
Show appliance data
u
Tap the navigation arrows Fig. 5 (1) repeatedly until the
settings appear.
u
Press Confirm Fig. 5 (2).
u
Tap the navigation arrows Fig. 5 (1) repeatedly until the
information is displayed.
u
Read the appliance info.
Reset
This function resets all settings to the factory settings. All
settings that you have made thus far will be reset to their
original values.
Activating the setting
u
Activate (see 6.2 Control concept) .
Controls
* Depending on model and options 11

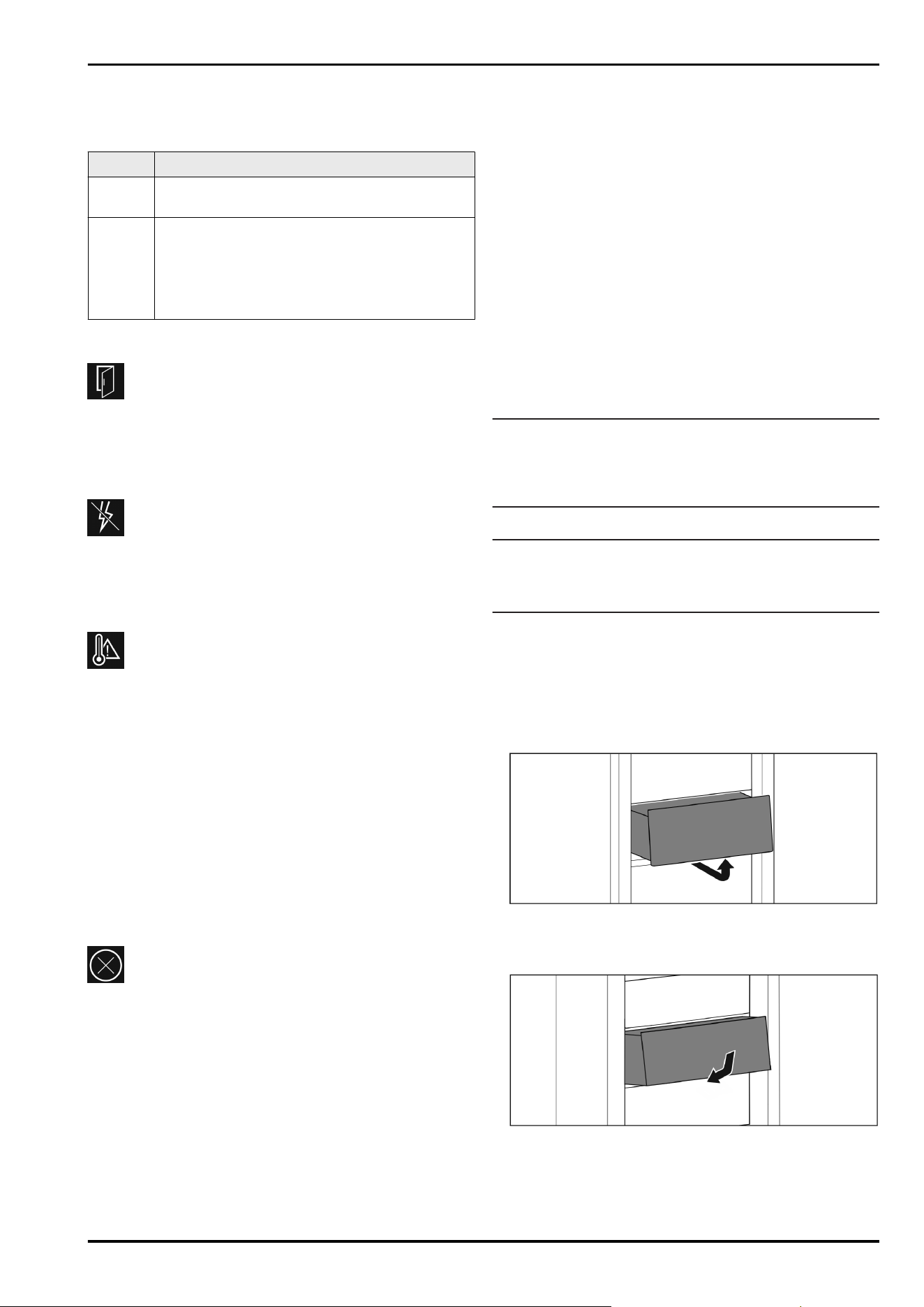

6.4 Fault messages
Fault messages appear in the display. There are two catego‐
ries of fault message:
Category Meaning
Message Reminder of general procedures. You can carry
out these procedures to eliminate the message.
Warning Appears when there are malfunctions. A signal
sounds in addition to the display. The signal
becomes louder until you acknowledge by
tapping the display. You can eliminate simple
defects yourself. For more serious defects, you
must contact customer service.
6.4.1 Warnings
Close the door
This message appears if the door is open for too long.
You can set how long it takes for this message to appear .
u
Stop alarm: Confirm the message.
-or-
u
Close the door.
Power cut
This message appears if the freezer temperature increased
due to a power cut. After the power is restored, the appli‐
ance continues to work at the set temperature.
u
Stop alarm: Confirm the message.
w
Temperature alert appears (see Temperature alarm) .
Temperature alarm
This message appears if the temperature does not match
the set temperature.
Variations in temperature could be because:
-
Hot, fresh food was inserted.
-
Too much warm room air flowed in when rearranging and
removing food.
-
The power was cut off for a while.
-
The appliance is faulty.
When the fault is eliminated the appliance continues to
work at the set temperature.
u
Confirm the display.
w
The highest temperature is shown.
u
Confirm display again.
w
The status display is displayed.
w
The current temperature is shown.
Error
This message appears if there is a fault with the appliance.
An appliance component indicates a fault.
u
Open the door.
u
Note down the fault code.
u
Confirm the message.
w
The signal tone stops.
w
The status display appears.
u
Close the door.
u
Contact customer service. (see 9.4 Customer Services)
6.4.2 DemoMode
If “D” appears on the display, demo mode is on. This option
is designed for retailers, as it turns off all the cooling func‐
tions.
Stopping DemoMode
If you see the following running in the display:
u
Confirm the display within the countdown.
w
DemoMode is off.
If the timer is not running:
u
Unplug the appliance.
u
Plug the appliance in again.
w
DemoMode is off.
7 Features
7.1 Drawers
You can remove the drawers for cleaning.
You can remove the drawers to use VarioSpace.
The way to remove/insert the drawers varies depending
on the pull-out system. Your appliance can contain various
pull-out systems.
For appliances with NoFrost:*
Note
The energy consumption increases and the cooling power
goes down if ventilation is not sufficient.*
u
Leave the bottom drawer in the appliance!*
u
Always leave the fan air vents clear on the back wall!*
For appliances without NoFrost:*
Note
The energy consumption increases and the cooling power
goes down if ventilation is not sufficient.*
u
Always leave the fan air vents clear on the back wall!*
7.1.1 Drawer on appliance base or glass shelf
The drawer runs directly on the appliance base or on a glass
shelf. There are no rails.
When you remove the drawers, you can use the glass
shelves below them as storage shelves.
Removing drawer
Fig. 17
u
Remove drawer as shown in the illustration.
Inserting drawer
Fig. 18
u
Insert drawer as shown in the illustration.
Features
12 * Depending on model and options

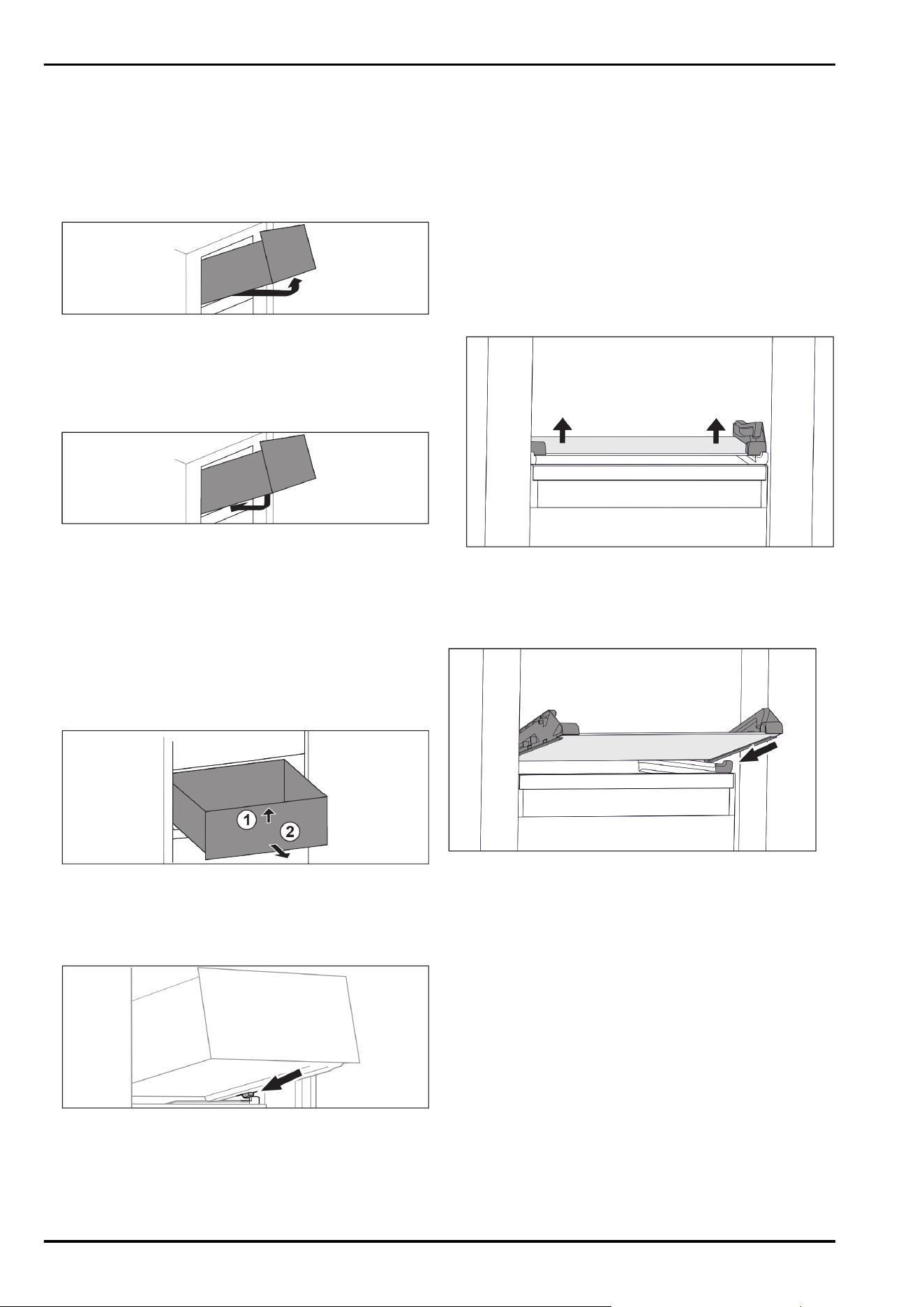

7.1.2 Top tilting drawer
When you pull out the top drawer, it tilts forward. This gives
you a better view into the drawer. The function depends on
the height of the appliance.
When you remove the tilting drawers, you can use the glass
shelf below them as a storage shelf.
Removing drawer
Fig. 19
u
Pull out drawer as far as it will go.
u
Lift drawer up at the front and at the same time push up
at the back from below.
u
Remove drawer to the front.
Inserting drawer
Fig. 20
u
Position drawer as shown.
w
The drawer rests on the glass panel.
u
Lift drawer slightly from below at the back and slide over
the lip.
u
Slide in drawer to the back.
7.1.3 Drawer on moulded rib
The drawer runs directly on the moulded rib. There are no
rails.
Removing drawer
Fig. 21
u
Pull out drawer as far as it will go.
u
Lift up drawer at the front. Fig. 21 (1)
u
Remove drawer to the front. Fig. 21 (2)
Inserting drawer
Fig. 22
u
Place drawer at an angle behind the stoppers on the
moulded rib. (see Fig. 1210)
u
Lower drawer.
u
Slide in drawer to the back.
7.2 Glass shelves
You can remove the glass shelves under the drawers for
cleaning.
You can remove the glass shelves under the drawers to use
VarioSpace.
7.2.1 Removing / inserting the glass shelf
under the tilting drawer
The glass shelf is located under the top tilting drawer.
Make sure that the following requirements are fulfilled:
q
Drawer has been removed. (see 7.1.2 Top tilting drawer)
Removing glass shelf
Fig. 23 Tilting drawer glass shelf
u
Push glass shelf upwards from below on both sides. (see
Fig. 1211)
u
Take out the glass shelf to the front.
Inserting glass shelf
Fig. 24 Tilting drawer glass shelf
u
Position glass shelf at an angle behind the stoppers. (see
Fig. 1212)
u
Lower glass shelf.
u
Slide in glass shelf to the back.
w
Glass shelf clicks into place.
7.2.2 Removing / inserting the glass shelf
Depending on the equipment, the glass shelf may be
located under the drawer.
Make sure that the following requirements are fulfilled:
q
Glass shelf under the drawer: The drawer has been
removed. (see 7.1 Drawers)
Features
* Depending on model and options 13

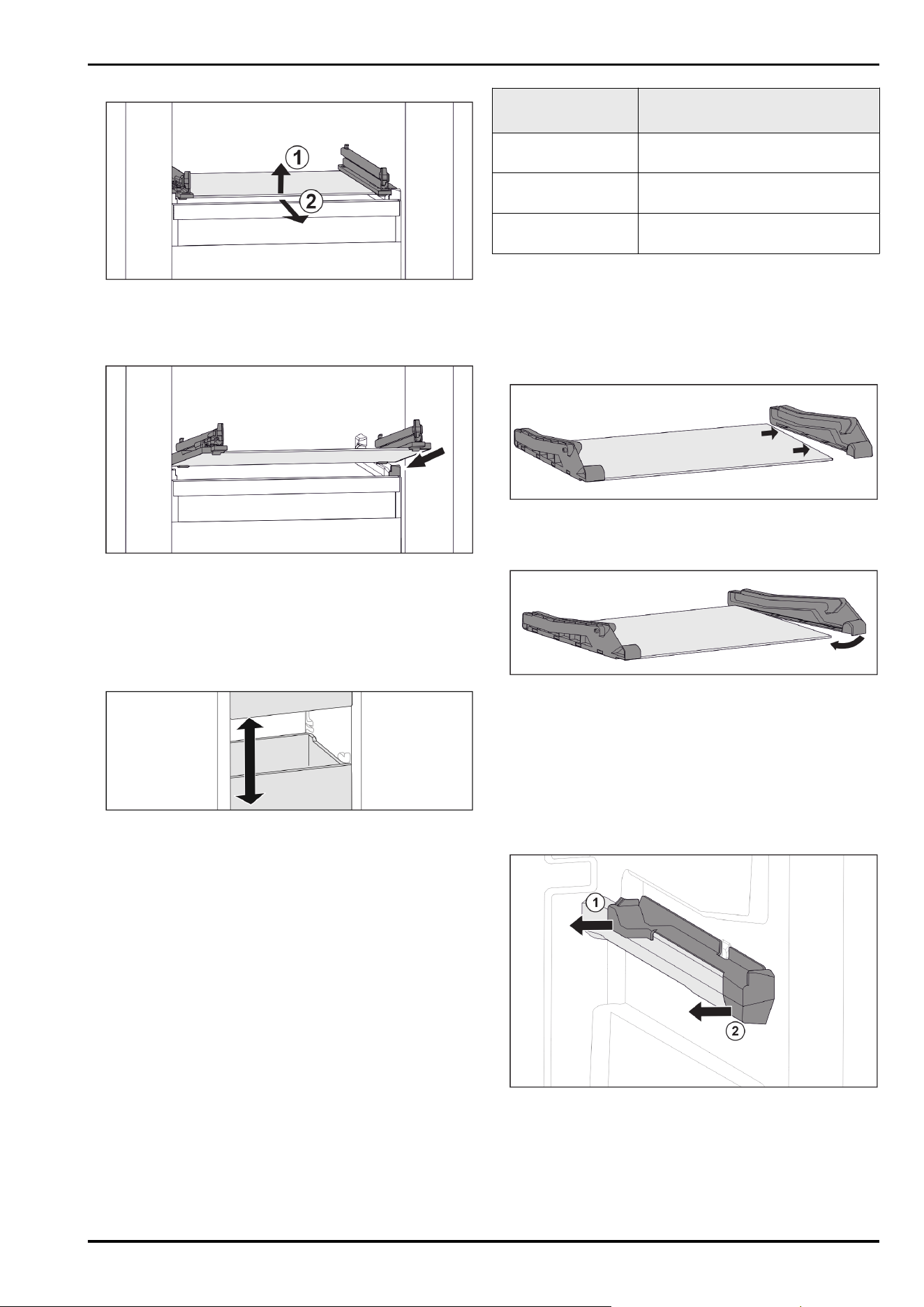

Removing glass shelf
Fig. 25 Example illustration of glass shelf
u
Lift glass shelf at the front. Fig. 25 (1)
u
Take out glass shelf to the front. Fig. 25 (2)
Inserting glass shelf
Fig. 26 Example illustration of glass shelf
u
Position glass shelf at an angle behind the stoppers. (see
Fig. 1214)
u
Lower glass shelf.
u
Slide in glass shelf to the back.
7.3 VarioSpace
Fig. 27
You can remove drawers and glass panels from your appli‐
ance. This provides more room for large food items such as
poultry, joints of meat, large game, and tall baked products.
You can then freeze these items whole for later preparation.
u
Note the weight limits on the drawers and glass panels
(see 9.1 Technical specifications) .
8 Maintenance
8.1 Disassembling / assembling pull-
out systems
8.1.1 Notes on disassembly
You can disassemble some of the pull-out systems for
cleaning. Your appliance can contain a variety of pull-out
systems.
The following pull-out systems can be disassembled or
cannot be disassembled:
Pull-out system
can be disassembled /
cannot be disassembled
Drawer on appliance
base or glass shelf
cannot be disassembled
Top tilting drawer can be disassembled (see 8.1.2 Top
tilting drawer)
Drawer on moulded
rib
can be disassembled
(see 8.1.3 Drawer on moulded rib)
8.1.2 Top tilting drawer
Disassembling pull-out system
Make sure the following prerequisites are met:
q
Drawer has been removed. (see 7.1.2 Top tilting drawer)
q
Glass shelf has been removed. (see 7.2 Glass shelves)
Fig. 28 Glass shelf with side parts
u
Pull off side part from glass shelf sideways.
Installing pull-out system
Fig. 29 Glass shelf with side parts
u
Place on side part at the back.
u
Press side part onto glass shelf at the front.
8.1.3 Drawer on moulded rib
Disassembling pull-out system
Make sure the following prerequisites are met:
q
Drawer has been removed. (see 7.1.3 Drawer on moulded
rib)
Fig. 30 Attachment on the right moulded rib
u
Grab attachment at the back from below.
u
Pull off attachment at the back sideways. Fig. 30 (1)
u
Pull off attachment at the front sideways. Fig. 30 (2)
Maintenance
14 * Depending on model and options

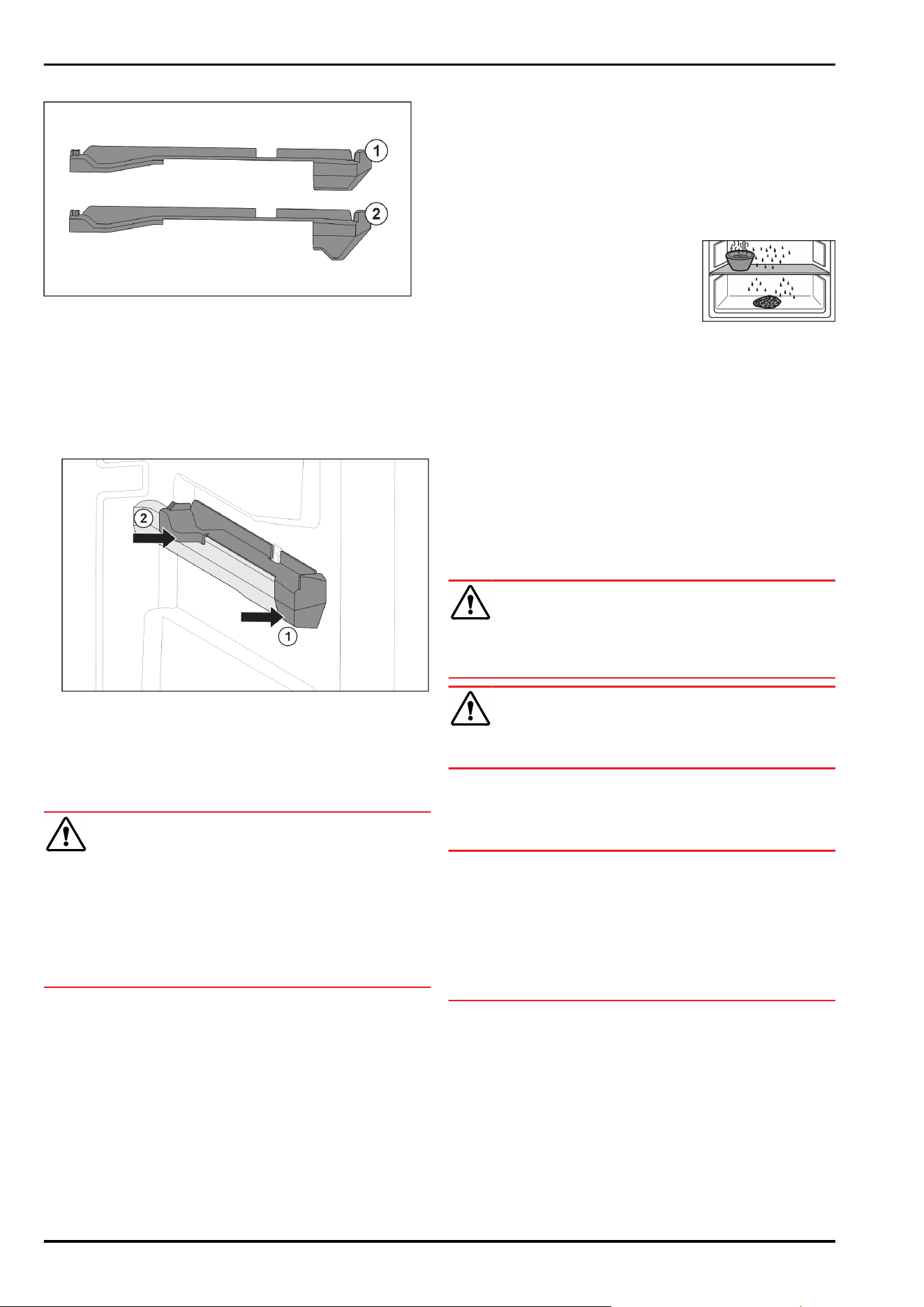

Installing pull-out system
Fig. 31 Comparing attachments
There are two different attachments in the appliance. The
attachment above the lowest drawer Fig. 31 (2) has a three-
cornered edge. All other attachments Fig. 31 (1) have a
straight edge.
u
Fit attachment Fig. 31 (2) with the three-cornered edge
above the lowest drawer.
u
Fit attachment Fig. 31 (1) with straight edge in all other
positions.
Fig. 32 Attachment on the right moulded rib
u
Position attachment on moulded rib at the front.
Fig. 32 (1)
u
Press on attachment at the back. Fig. 32 (2)
8.2 Defrosting the appliance
WARNING
Improper defrosting of the appliance!*
Injuries and damage.
u
Do not use mechanical equipment or other methods to
speed up the defrosting process other than those recom‐
mended by the manufacturer.
u
Do not use electrical heating or steam-cleaning appli‐
ances, naked flames or defroster sprays to defrost.
u
Do not use sharp objects to remove ice.
8.2.1 Defrosting with NoFrost*
Defrosting is performed automatically with the NoFrost
system. The moisture is deposited on the evaporator, is peri‐
odically defrosted and evaporates.
The appliance does not need to be defrosted.
8.2.2 Defrosting the freezer compartment
manually*
8.2.2 Manual defrosting
A layer of frost or ice forms after prolonged use.
The following factors promote the formation of frost or ice:
- The appliance is opened frequently.
- Hot food is put in.
One day before defrosting:
u
Activate SuperFrost (see 6.3 Functions) .
w
Frozen goods have a “residual coldness”.
u
Switch off the appliance .
u
Pull out the mains plug or switch off the fuse.
u
Wrap the frozen produce in newspaper or blankets and
store in a cool place.
u
Place a pan of hot water (not
boiling) on the middle shelf.
-or-
u
Fill the two bottom drawers half-
full with warm water and place
them inside the appliance.
w
This speeds up the defrosting process.
w
Water from the thawing process is collected in the
drawers.
u
Leave the appliance door open during defrosting.
u
Remove loosened pieces of ice.
u
Make sure that there is no melted ice water in the
cabinet.
u
Soak up the melted ice water with a sponge or cloth
several times as necessary.
u
Clean the appliance (see 8.3 Cleaning the appliance) .
8.3 Cleaning the appliance
8.3.1 Ready
WARNING
Danger of electric shock!
u
Remove the refrigerator connector or interrupt the power
supply.
WARNING
Risk of fire
u
Do not damage the refrigeration circuit.
u
Empty the appliance.
u
Remove mains connector.
8.3.2 Cleaning the interior
NOTICE
Improper cleaning!
Damage to the appliance.
u
Only use soft cleaning cloths and ph-neutral all-purpose
cleaners.
u
Do not uses abrasive sponges or steel wool which may
cause scratches.
u
Do not use any sharp or abrasive cleaning agents, nor
any that contain sand, chloride or acid.
u
Plastic surfaces: clean by hand with a soft clean cloth,
lukewarm water and a little detergent.
u
Metal surfaces: clean by hand with a soft clean cloth,
lukewarm water and a little detergent.
u
Drain hole: remove deposits using a thin item (for
example a cotton bud).
Maintenance
* Depending on model and options 15
8.3.3 Clean the components
NOTICE
Improper cleaning!
Damage to the appliance.
u
Only use soft cleaning cloths and ph-neutral all-purpose
cleaners.
u
Do not uses abrasive sponges or steel wool which may
cause scratches.
u
Do not use any sharp or abrasive cleaning agents, nor
any that contain sand, chloride or acid.
Clean with a soft, clean cloth, lukewarm water and some
detergent:
- Drawer
- Freezer tray*
Wash in the dishwasher up to 60 °C:
- Ice cube tray*
u
To disassemble components: see the relevant section.
u
Clean the components.
8.3.4 After cleaning
u
Wipe the appliance and the components dry.
u
Connect and switch on the appliance.
u
Activate SuperFrost (see 6.3 Functions) .
The temperature is cold enough:
u
Place the food inside.
u
Repeat cleaning regularly.
9 Customer help
9.1 Technical specifications
Temperature range
Freeze -28 °C to -15 °C
Maximum freezer quantity / 24 hrs
Freezer compart‐
ment
See the type plate under “Freezer
goods … /24 hours”
Maximum component capacity
Features Appliance
width
550 mm
(see instal‐
lation
instruc‐
tions,
appliance
dimen‐
sions)
Appliance
width
600 mm
(see
installa‐
tion
instruc‐
tions,
appliance
dimen‐
sions)
Appliance
width
700 mm
(see instal‐
lation
instruc‐
tions, appli‐
ance
dimen‐
sions)
Drawer on glass
shelf
(see 7.1.1 Drawer on
appliance base or
glass shelf)
12 kg 15 kg --
Drawer on moulded
rib
(see 7.1.3 Drawer
on moulded rib)
14 kg 19 kg 19 kg
9.2 Operating noises
The appliance makes different noises when it is on.
-
At higher temperatures the appliance uses less energy
but works for longer. It is quieter.
-
At lower temperatures the food is cooled faster. It is
louder.
Examples:
•
Functions on (see 6.3 Functions)
•
Fan running
•
Food recently added
•
High ambient temperature
•
Door open for a while
Noise
Possible cause Type of noise
Bubbling and
splashing
Coolant flowing
into the cooling
circuit.
Normal operating
noise
Hissing Coolant sprays
into the cooling
circuit.
Normal operating
noise
Humming The appliance
is cooling. The
volume depends
on the cooling
output.
Normal operating
noise
Suction noises Soft-closing door
is being opened
and closed.
Normal operating
noise
Humming and
rustling
The fan is running. Normal operating
noise
Clicking Components are
switched on and
off.
Normal switching
noise
Rattling or
humming
Valves or flaps are
working.
Normal switching
noise
Noise Possible
cause
Type of noise Lifting
Vibration Improper
installation
Defective
noise
Check the
installation.
Level the
appliance.
Rattling Components,
items inside
the appliance
Defective
noise
Secure
components.
Leave
enough
space
between the
items.
9.3 Technical fault
Your appliance is designed and built to ensure it works reli‐
ably and has a long service life. In the unlikely event that
a fault occurs during operation, please check whether it is
due to an operating error. If so, you will be charged for the
callout and repair costs even if it falls within the warranty
period.
You can fix the following faults yourself.
Customer help
16 * Depending on model and options
9.3.1 Appliance function
Defect Cause Remedy
The appliance is
not working.
→ The appliance is not switched on.
u
Switch the appliance on.
→ The power plug is not properly
plugged into the socket.
u
Check the power plug.
→ There is something wrong with the
power outlet fuse.
u
Check the fuse.
→ Power cut
u
Keep the appliance closed.
u
Protecting food: Lay freezer packs on top of the food or
use another freezer if the power is off for a prolonged
period.
u
Do not re-freeze defrosted food,
→ The appliance plug does not fit the
appliance properly.
u
Check the appliance plug.
Temperature is not
cold enough.
→ The appliance door is not closed
properly.
u
Close the appliance door.
→ Not enough ventilation.
u
Keep ventilation grille clear, and clean it.
→ The ambient temperature is too
high.
u
Solution: (see 1.4 Appliance range of use) .
→ The appliance was opened too
many times or for too long.
u
Wait to see if the required temperature corrects itself.
If not, contact Customer Service (see 9.4 Customer Serv‐
ices) .
→ Too much fresh food was placed
inside without SuperFrost.
u
Solution: (see SuperFrost)
→ The temperature is set incorrectly.
u
Turn down the temperature and check after 24 hours.
→ The appliance is too close to a heat
source (oven, radiator, etc).
u
Move the appliance or the heat source.
→ The appliance was not correctly
installed in the recess.
u
Check if the appliance was installed correctly and that
the door closes properly.
The door seal is
defective or needs
to be replaced for
another reason.
→ The door seal can be replaced. It
can be replaced without the need
for special tools.
u
Contact Customer Services (see 9.4 Customer Services) .
The appliance
builds up too much
ice or condensa‐
tion.
→ The door seal may have slipped out
of its groove.
u
Check that the door seal is well fitted in the groove.
Concentrated
collection of ice
on inside face at
centre of appliance
cover.*
→ This build-up of ice is normal.
Physical properties cause ice to
build up inside the top of the appli‐
ance.
u
Remove the ice with a scraper tool.
9.4 Customer Services
First check if you can fix the error yourself (see 9 Customer
help) . If you can't, contact Customer Services.
Please refer to the enclosed “Liebherr-Service” brochure for
the address.
WARNING
Unprofessional repair!
Injuries.
u
Have any repairs and action - not expressly specified -
on the appliance and mains cable carried out by service
personnel only. (see 8 Maintenance)
u
A damaged mains cable may only be replaced by the
manufacturer, the manufacturer’s Customer Service or a
similarly qualified person.
u
In the case of appliances with an IEC connector, the
change may be made by the customer.
Customer help
* Depending on model and options 17

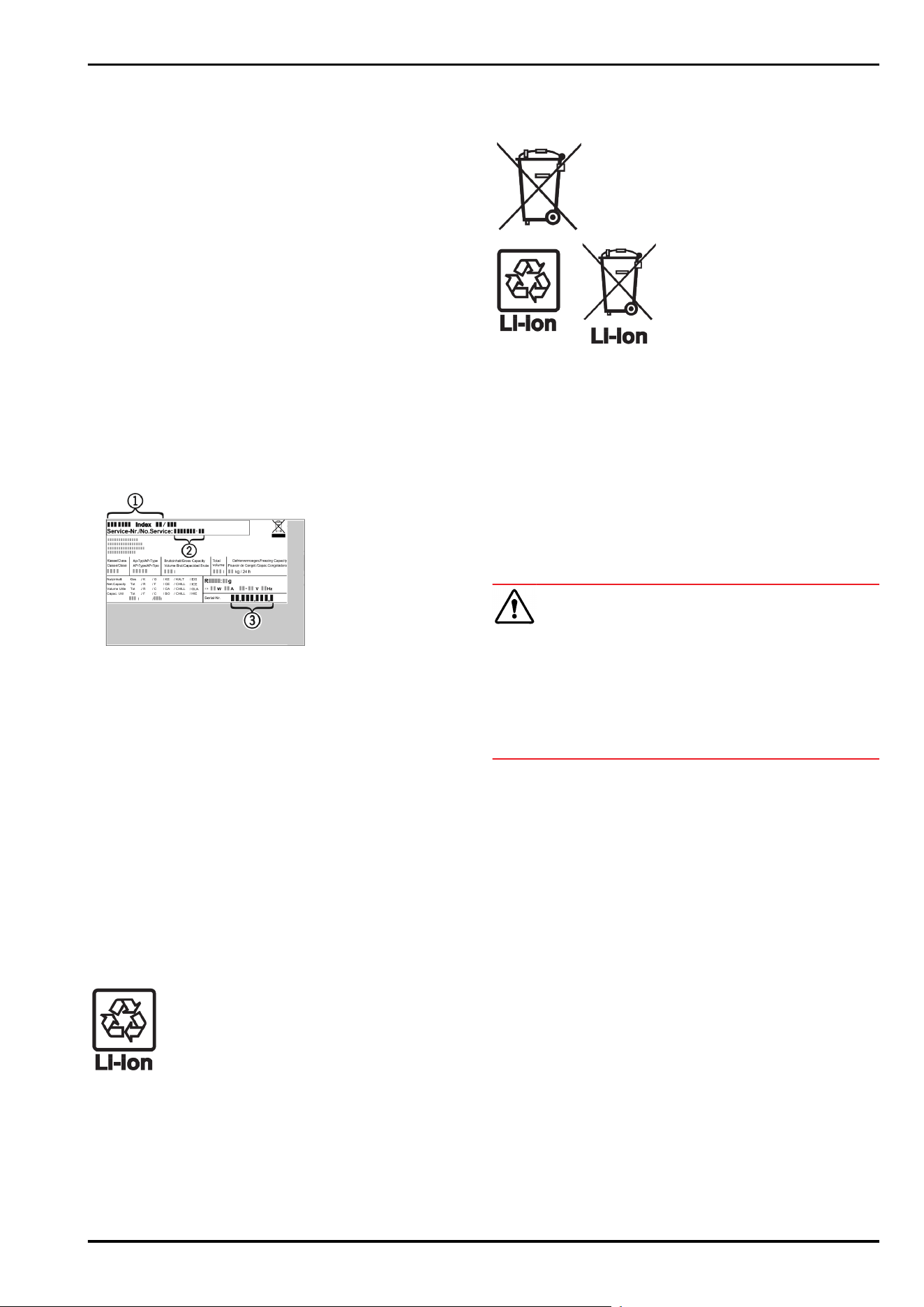

9.4.1 Contact Customer Services
Make sure you have the following appliance data at the
ready:
q
Appliance name (model and index)
q
Service no. (Service)
q
Serial no. (S no.)
u
Look up the appliance information on the display
(see Info) .
-or-
u
Referring to appliance info on the nameplate
(see 9.5 Model plate) .
u
Note down the appliance information.
u
Notify Customer Services of the following: Give us the
appliance data.
w
This will help us to provide you with a faster, more accu‐
rate service.
u
Follow any further instructions given by Customer Serv‐
ices.
9.5 Model plate
The model plate is behind the drawers on the inside of the
appliance.
Fig. 33
(1)
Appliance description (3) Serial no.
(2) Service no.
u
Note the data on the model plate.
10 Shutting down
u
Empty the appliance.
u
Turn off the appliance .
u
Remove mains connector.
u
Remove appliance connector if required: Remove and
move from left to right at the same time.
u
Clean the appliance (see 8.3 Cleaning the appliance) .
u
Leave the door open to avoid bad smells building up.
11 Disposal
11.1 Preparing appliance for disposal
Liebherr uses batteries in some of its appli‐
ances. In the EU, for environmental reasons,
legislation obliges the end user to remove
these batteries before disposing of old appli‐
ances. If your appliance contains batteries, a
corresponding notice is attached.
Lamps If you can remove the lamps yourself without
destroying them, also remove these before
disposal.
u
Take the appliance out of operation.
u
Appliances with batteries: remove the batteries. For
description, see Maintenance chapter.
u
If possible: remove lamps without destroying them.
11.2 Disposing of the appliance in an
environmentally friendly manner
The appliance still contains
valuable materials and must
be disposed of separately from
unsorted municipal waste.
Dispose of batteries separately
from the old appliance. To do
this, you can return the batteries
free of charge to retailers as
well as recycling centres and
collection centres for recyclable
materials.
Lamps Dispose of removed lamps
via the respective collection
systems.
For Germany: You can dispose of the appli‐
ance free of charge via the
class 1 collection containers
at the local recycling and
recyclable material collection
centres. When purchasing a new
fridge/freezer, if the sales area
> 400 m
2
, retailers will also take
back the old appliance free of
charge.
WARNING
Leaking coolant and oil!
Fire. The coolant contained in the appliance is eco-friendly,
but also flammable. The oil contained in the appliance
is flammable. Escaping coolant and oil can ignite if the
concentration is high enough and in contact with an
external heat source.
u
Do not damage the pipelines of the coolant circuit and
the compressor.
u
Transport the appliance without damaging it.
u
Dispose of batteries, lamps and the appliance according
to the above specifications.
Shutting down
18 * Depending on model and options
Disposal
* Depending on model and options 19
home.liebherr.com/fridge-manuals
built-in fridges and freezers
Issue date: 20230315
Part number index: 7088271-00
Liebherr-Hausgeräte Ochsenhausen GmbH
Memminger Straße 77-79
88416 Ochsenhausen
Deutschland
