7082 217-02
GG 5510
Original operating instructions Page 8
Freezer
Read the operating instructions before switching on for the rst time
EN
8
Content
Priority of warnings ...................................................................8
EPREL database ......................................................................8
Safety instructions and warnings .............................................8
Symbols on the appliance ........................................................9
Intended use .............................................................................9
Foreseeable incorrect use........................................................9
Declaration of conformity .........................................................9
Noise emissions from the appliance ........................................9
Climate rating ...........................................................................9
Description of the appliance ...................................................10
Electrical connection .............................................................. 10
Setting up ...............................................................................10
Levelling the appliance ...........................................................10
Dimensions ............................................................................10
Equipment ..............................................................................10
Operating and control elements ............................................. 11
Switching the appliance on and o ........................................ 11
Setting the temperature .......................................................... 11
Alarm messages .................................................................... 11
Safety lock .............................................................................. 11
Storing .................................................................................... 11
Defrosting ...............................................................................12
Cleaning .................................................................................12
Malfunctions ...........................................................................12
Shutting your appliance down ................................................ 12
Disposal notes ........................................................................12

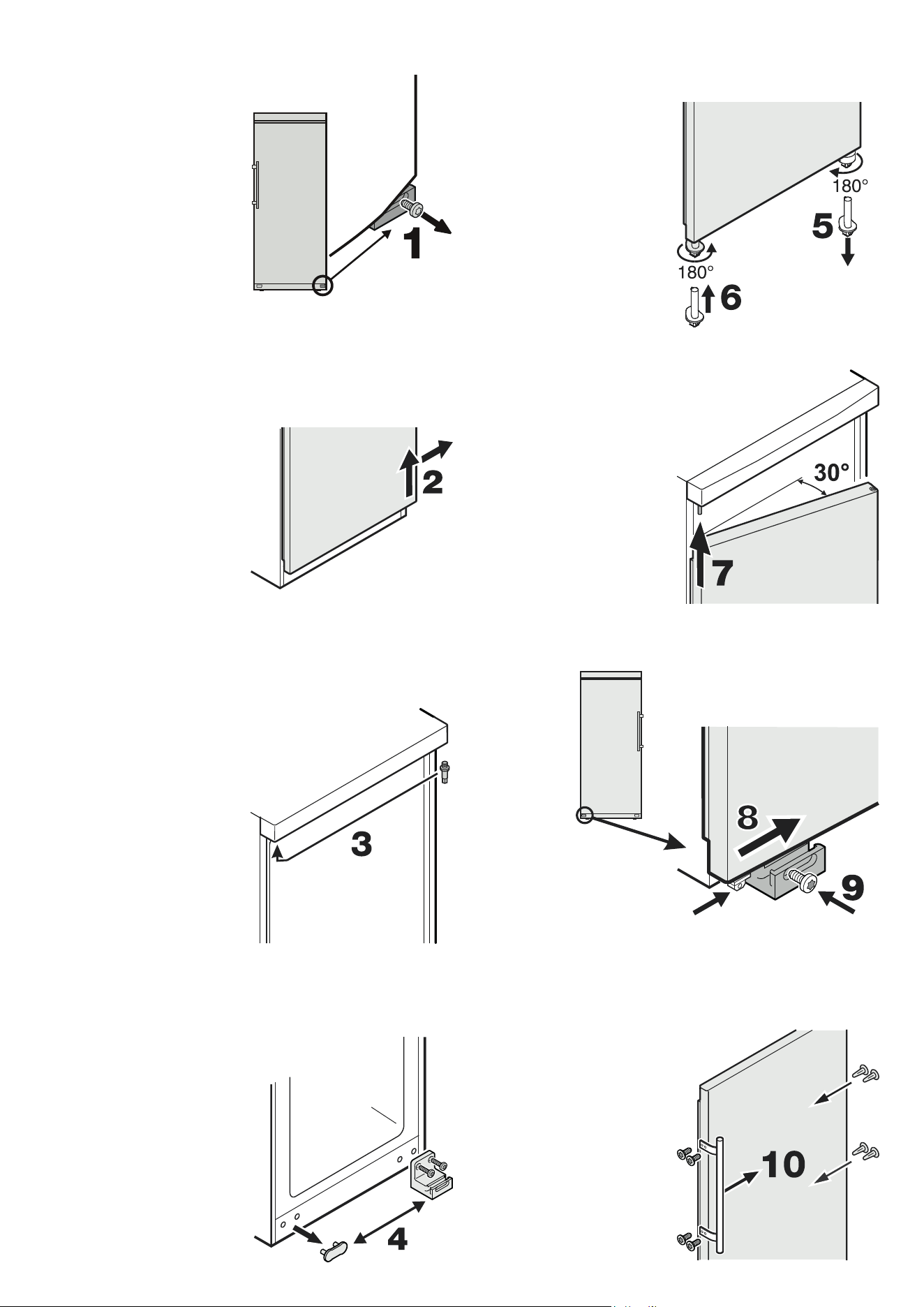

Changing over door hinges ....................................................13
Priority of warnings
DANGER
identies a situation involving direct
danger which, if not obviated, may result
in death or severe bodily injury.
WARNING
identies a dangerous situation which,
if not obviated, may result in death or
severe bodily injury.
CAUTION
identies a dangerous situation which,
if not obviated, may result in minor or
medium bodily injury.
NOTICE
identies a dangerous situation
which, if not obviated, may result in
damage to property.
Note
identies useful information and tips.
Safety instructions and warnings
- WARNING: do not seal
ventilation openings on the
appliance housing or enclo-
sure.
- WARNING: only use the
mechanical devices or other
aids recommended by the
manufacturer to help speed up the defrosting
process.
- WARNING: do not damage the refrigerant circuit.
- WARNING: do not use any electrical devices in the
refrigerator compartment which do not comply with
the design recommended by the manufacturer.
- WARNING: the mains cable must not be dam-
aged while installing the appliance.
- WARNING: multi-sockets or distributor strips
and other electronic devices (such as halogen
transformers) must not be positioned and oper-
ated at the rear of appliances.
- WARNING: this appliance must be secured as
described in the operating instructions to rule
out any potential risks due to its instability.
- This appliance can be used by children of 8 years
old and over, and also by persons with restricted
physical, sensory or mental capacity or lack of
experience and knowledge, if they are supervised
or have been instructed on safe use of the appli-
ance and understand the resulting risks. Children
must not be allowed to play with the appliance.
Cleaning and user maintenance must not be
carried out by children without supervision.
- Do not store any explosive substances, such as
aerosol containers with flammable propellant
gas, inside the appliance.
- To prevent injury and damage to property, the
appliance should only be installed by two people.
- After unpacking it, check the appliance for signs
of damage. Contact the supplier if it is damaged.
Do not connect the appliance to the mains power
supply.
- Avoid prolonged skin contact with cold surfaces
(e.g. chilled/frozen products). If necessary, take
safety action (e.g. gloves).
- All repairs and work on the appliance may only
be carried out by customer service personnel
or other trained personnel. The same applies to
changing the mains power cable.
EPREL database
As from 1 March 2021, information about energy labelling and
ecodesign requirements will be available in the European product
database (EPREL). You can access the product database using
the following link: https://eprel.ec.europa.eu/. You will be asked
to enter the model identier. You will nd the model identier on
the type plate.
9
EN
- Only carry out repair and other work on the ap-
pliance when the mains plug has visibly been
disconnected.
- Only install, connect and dispose of the appliance
as described in these operating instructions.
- In the event of a fault, pull out the plug or switch
o the fuse.
- When disconnecting the appliance from the
mains, pull on the plug. Do not pull on the cable.
- Ensure that food which has been stored for too
long is not consumed. Dispose of food which has
been stored for too long properly.
- Do not allow naked ames or ignition sources to
enter the appliance.
- Alcoholic drinks or other vessels containing al-
cohol should be sealed tightly for storage.
Symbols on the appliance
The symbol can be located on the compressor. It
refers to the oil in the compressor and indicates
the following danger: swallowing or inhaling can
be fatal. This is only relevant for recycling. There
is no danger in normal operation.
Warning about inammable substances.
A sticker to this eect may be applied to the rear
of the appliance. It refers to the foampadded
panels in the door and/or the housing. This is
only relevant for recycling. Do not remove the
sticker.
Noise emissions from the appliance
The noise level while the appliance is operating is below 70 dB(A)
(relative noise level 1 pW).
Declaration of conformity
The refrigerant circuit has been tested for leaks. The appliance
complies with the relevant safety regulations and EU Directives
2006/42/EG, 2014/30/EU, 2009/125/EG and 2011/65/EU.
Climate rating
The climate rating indicates at what
room temperature the appliance
may be operated to achieve full cool-
ing capacity and what the maximum
humidity level in the area around the
appliance may be to ensure that no
condensation forms on the exterior
housing.
The climate rating is indicated on the type plate.
Climate rating
Max. room
temperature
Max. relative
humidity
3 25 °C 60%
4 30 °C 55%
5 40 °C 40%
7 35 °C 75%
The minimum room temperature at the place of installation is 10°C.
Intended use
The appliance is suited only for cooling food.
This appliance may be used to display food and drink in retail
sales outlets. It is suitable for commercial use, for example in
restaurants, canteens, hospitals and in commercial businesses
such as bakeries, butchers' shops, supermarkets, etc.
This professional refrigeration appliance is designed for storing
frozen food. It is not designed for the presentation of food or for
the removal of food by customers.
The appliance is designed for use in enclosed rooms. All other
types of use are not permitted.
Foreseeable incorrect use
Do not use the appliance for the following applications:
• Storage and cooling of medicines, blood plasma, laboratory
preparations or similar substances and products subject to the
Medical Devices Directive 2007/47/EC.
• Use in potentially explosive atmospheres.
• Use outdoors or in areas where it is exposed to splash water or
damp conditions.
Incorrect use of the appliance will result in damaging or spoiling
the goods stored in it.
10
Levelling the appliance
Compensate oor unevenness using the adjustable feet.
NOTICE
The appliance must be aligned horizontally and vertically. If the
appliance is not level, the main body of the appliance can be
deformed and the door will not close properly.
Setting up
• Do not place the appliance in direct sunlight or near cookers,
radiators and similar sources of heat.
• Do not place heat-emitting appliances, e.g. microwave oven,
toaster, etc., on top of the appliance.
• The more coolant there is in the appliance, the larger the room
in which the appliance is installed must be. If the room is too
small, any leak may create a flammable mixture of gas and air.
For each 8 g of coolant the installation space must be at least
1 m³. Information on the coolant is on the model plate inside the
appliance.
• Always install the appliance directly
against the wall.
• If several appliances are installed next
to each other, leave a gap of 30 mm
between them. If this gap is too narrow,
condensation forms between the side
walls.
Electrical connection
Only operate the appliance with alternating current (AC).
The permissible voltage and frequency are indicated on the type
plate. The position of the type plate is shown in the section entitled
Description of the appliance.
The socket must be properly earthed and protected by a fuse.
The tripping current of the fuse must be between 10 A and 16 A.
The socket must not be situated behind the appli-
ance and must be easily accessible.
Do not connect the appliance using an exten-
sion cable or extension socket.
Do not use stand-alone inverters (conversion
of direct current to alternating current/three-
phase current) or energy-saving plugs. Risk
of damage to the electronic control system!
Insert the grid shelves.
Dimensions
Equipment
Fit the supplied shelf rails to the
right and left of the appliance.
Suspend the rails at the desired
height, by inserting into the
rear clip-in strip rst and then
clipping in at the front.

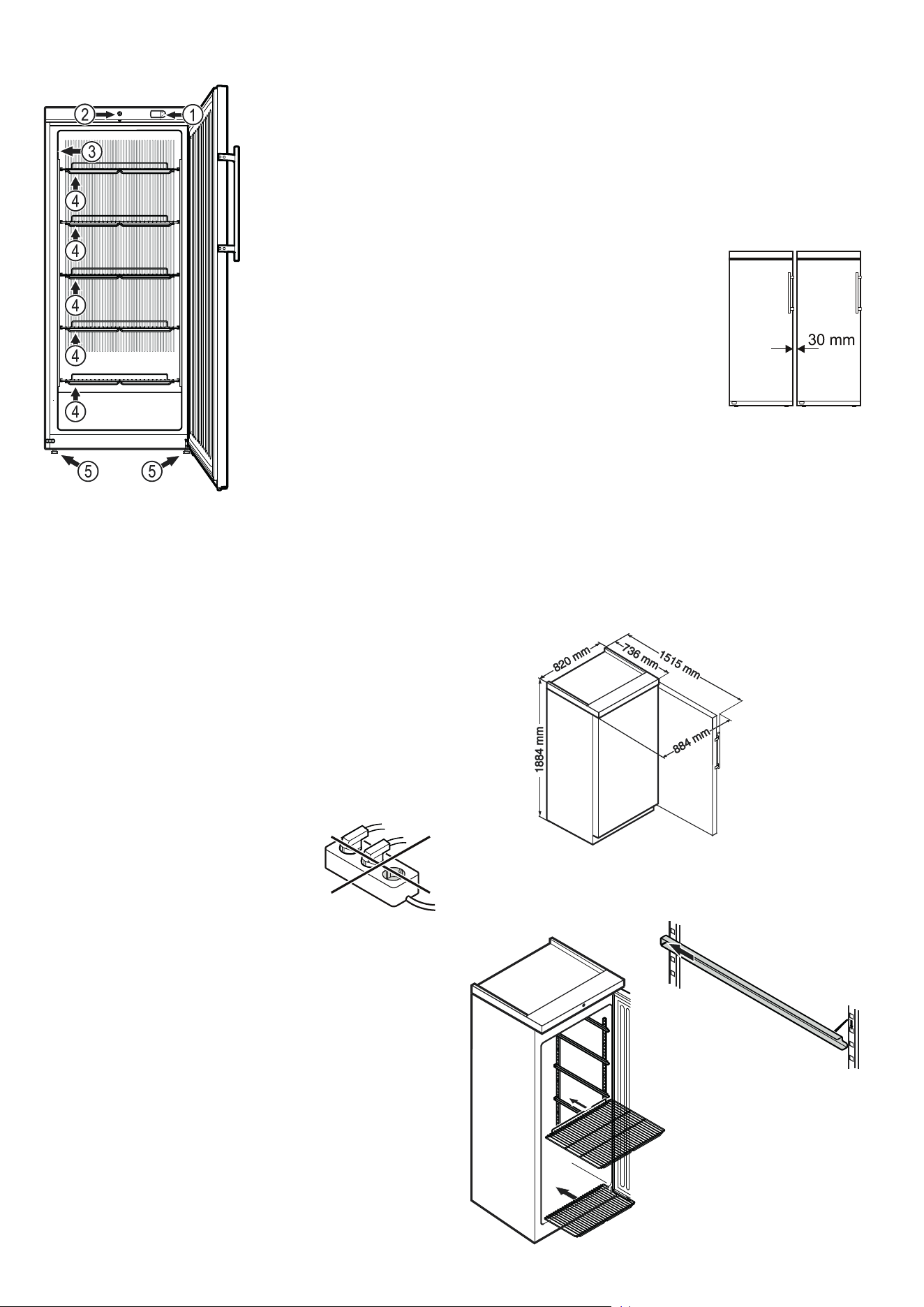

Description of the appliance
NOTICE
The maximum load per grid shelf is 60 kg.
(1) Operating and control ele-
ments
(2) Lock
(3) Type plate
(4) Grid shelves
(5) Adjustable-height feet
11
EN
Safety lock
The lock is equipped with a safety
mechanism.
Locking the appliance
• Insert the key as shown by arrow
1.
• Turn the key 180°.
To unlock the appliance, the same
procedure must be repeated in the
same order.
ON / OFF button
+ Temperature buttons
Set button (Enter)
Compressor is running
LED ashing - refrigeration unit switches on after a delay.
The compressor will start automatically after the pressure
in the refrigerant circuit has equalised.
Alarm function
Switching the appliance on and o
To switch the appliance on
Keep button pressed for approx. 5 seconds - the display
reads ON.
To switch the appliance o
Keep button pressed for approx. 3 seconds - the display
reads OFF.
Setting the temperature
• Press button for 1 second. The temperature display ashes.
• To increase the temperature (warmer): press button
.
• To reduce the temperature (colder): press button
.
• Press button
again.
The desired temperature setting is saved.
The temperature can be set at between -14°C and -26°C.
Operating and control elements Alarm messages
LED ashes, which reads HI
The interior is too warm.
This can be caused by:
• the freezer door being left open for a long time, allowing warm
ambient air to enter;
• a long power failure;
• a fault in the appliance.
In each case, make sure food has not defrosted or perished.
If
E0, EE or EL appears in the display, the appliance has a fault.
Contact the customer serv ice department.
Storing
The grid shelves can be moved to accommodate dierent height
of packages.
NOTICE
Store raw meat or sh in clean sealed containers on the bottom
shelf of the refrigerator/freezer compartment so that it cannot
come into contact with any other food or drip liquid onto it.
A failure to follow these instructions may result in the food being
spoilt.
12
Malfunctions
• E0, EE or EL appears in the display.
– The appliance has suffered a fault. Contact the customer service
department.
You may be able to rectify the following faults by checking
the possible causes yourself:
• Appliance does not function:
– Is the appliance switched on?
– Is the plug correctly fitted in the mains socket?
– Is the fuse intact?
• The temperature is not low enough:
– Is the temperature setting correct (see "Setting the temperature")?
– Does the separately installed thermometer show the correct
reading?
– Is the ventilation system working properly?
– Is the appliance set up too close to a heat source?
If none of the above causes
apply and you cannot rec-
tify the fault yourself, contact
the nearest customer ser-
vice department stating the
type designation
1, service
number
2and appliance
number
3as indicated on the
type plate.
The position of the type plate is shown in the section entitled
Description of the appliance.
Shutting your appliance down
If the appliance is left empty for a lengthy period, it must be
switched o, defrosted, cleaned and dried and the door is to be
left open to prevent mould formation.
Disposal notes
The appliance contains reusable materials and should
be disposed of properly - not simply with unsorted
household refuse. Appliances which are no longer
needed must be disposed of in a professional and
appropriate way, in accordance with the current local
regulations and laws.
Do not damage the refrigerant circuit of an appliance that is no
longer needed during its disposal.
This appliance contains inammable gases in the refrigerant
circuit and insulation foam.
Your local council or a waste disposal contractor can provide
information about how to dispose of the appliance correctly.
Defrosting
After a longer period of operation a layer of frost or ice can build up
on the cooling plates in the freezer compartment. This will increase
the energy consumption.
• To defrost, switch the appliance off. Pull out the mains plug!
• Transfer items to other appliances.
• Remove shelf rails.
• Leave the door of the appliance open while defrosting.
• After a defrosting time of approx. 20 minutes, the layer of frost
or ice can be detached from the interior container by hand and
removed.
• Mop up the remaining water with a cloth and clean the appliance.
Cleaning
WARNING
Before cleaning, always disconnect the appliance
from the mains. Pull out the plug or switch o the
fuse.
Surfaces which may come into contact with food
and accessible drain systems must be cleaned at
regular intervals.
CAUTION
Risk of damage to the appliance components and
risk of injury due to hot steam.
Do not use steam cleaning equipment to clean
the appliance.
• Clean the inside, equipment parts and outer walls with lukewarm
water and a little detergent. Do not use chemical solvents or any
cleaning agents containing sand or acid.
• To avoid short-circuits, ensure no cleaning water penetrates into
the electrical components when cleaning the appliance.
• Dry all parts well with a cloth.
• Use a commercially available stainless-steel cleaning agent for
stainless-steel appliances.
• Do not damage or remove the type plate on the inside of the
appliance. It is very important for servicing purposes.
13
EN
Changing over door hinges
4. Transfer lower hinge bracket
and cover plate to the op-
posite side.
1. Remove screw from lower
hinge bracket.
2. Lift door, tilt to the right and
remove.
5. Turn lower hinge pin through
180° and remove.
6. Insert pin on the opposite
side and turn through 180°.
3. Transfer pin at the top to the
other side.
7. Locate door on upper pin.
8. Tilt door inwards from the
left.
9. Secure hinge pin with
screw.
10. Transfer handle and plugs
to the opposite side of the
door.
*708221702*
Liebherr-Hausgeräte GmbH
Memminger Straße 77-79
88416 Ochsenhausen
Germany
home.liebherr.com
