WC48G4BG4
EN
DETAILED
INSTRUCTIONS FOR USE
OF WINE COOLER
www.gorenje.comwww.gorenje.com
2
We thank you for the confidence you have shown by purchasing our
appliance which is designed to simplify your life. To make the use of the product
easier, we have supplied detailed instructions for use. The instructions should
allow you to learn about your new appliance as quickly as possible.
We wish you find a lot of pleasure in its use.
The appliance is intended solely for household use.
Please visit our website where you can enter your appliance model number,
indicated on the rating plate or the warranty sheet, to find detailed description
of your appliance, tips on use, troubleshooting, service information, instructions
for use etc.
http://www.gorenje.com
Important safety warning
General warnings and tips
ii
Protecting the environment
!
Do not wash in the dishwasher
Link to the EU EPREL database
The QR code on the energy label supplied with the appliance provides a web
link to the registration of this appliance in the EU EPREL database. Keep
the energy label for reference together with the user manual and all other
documents provided with this appliance.
It is possible to find information related to the performance of the product
in the EU EPREL database using the link https://eprel.ec.europa.eu and the
model name and product number that you can find on the rating plate of the
appliance.
For more detailed information about the energy label, visit www.theenergylabel.eu.
3
CONTENTS
INTRODUCTION
APPLIANCE
DESCRIPTION
CLEANING THE
APPLIANCE
4 IMPORTANT NOTES AND PRECAUTIONS
4 BEFORE USING THE APPLIANCE FOR THE FIRST TIME
5 IMPORTANT SAFETY INSTRUCTIONS
8 IMPORTANT INFORMATION ON THE USE OF APPLIANCE
9 ENVIRONMENT PROTECTION
10 ADVICE FOR SAVING POWER WITH REFRIGERATION
APPLIANCES
11 INSTALLATION AND CONNECTION
13 APPLIANCE DESCRIPTION
14 OPERATING THE APPLIANCE
16 APPLIANCE INTERIOR EQUIPMENT
17 CLEANING THE APPLIANCE
18 TROUBLESHOOTING
MISCELLANEOUS
4
IMPORTANT NOTES AND
PRECAUTIONS
Before connecting the appliance to the power mains, please
read carefully the instructions for use which describe the
appliance and its correct and safe use. The instructions
apply to several appliance types/models; thus, settings or
equipment may be described herein which is not available
in your appliance. We recommend saving this instruction
manual for future reference and attach it to the appliance if
it is sold in the future.
Check for any damage or irregularities on your appliance. If
you find your appliance is damaged, notify the retailer from
which you have purchased the appliance.
Before connecting the appliance to the power mains, let
the appliance rest in a vertical position for a minimum of 24
hours. This will reduce the possibility of operation faults due
to the effect of transport on the cooling system.
BEFORE USING THE APPLIANCE FOR
THE FIRST TIME
ii
5
IMPORTANT SAFETY INSTRUCTIONS
!
The appliance must be connected to the power mains and
grounded in compliance with the effective standards and
regulations.
WARNING! Do not locate multiple portable socket-outlets
or portable power supplies at the rear of the appliance.
Before cleaning the appliance, unplug it from the power
mains (unplug the power cord from the wall outlet).
WARNING! If the supply cord is damaged, it must be
replaced by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
WARNING! When positioning the appliance, ensure the
supply cord is not trapped or damaged.
If LED lighting does not work, call a service technician. Do
not attempt a repair of the LED lighting yourself, as there is
danger of contact with high voltage!
WARNING! Do not use any electric devices inside the
appliance, except for those allowed by the manufacturer
of this refrigeration appliance.
WARNING! Do not use mechanical devices or other
means to accelerate the defrosting process, other than
those recommended by the manufacturer.
WARNING! To avoid any hazard resulting from poor
stability of the appliance, make sure it is installed as
instructed.
!
!
!
WARNING! Risk of fire/flammable materials.
6
Under no circumstances should any external covers be
removed for servicing or maintenance except by suitably
qualified personnel.
WARNING: Do not damage the refrigerant circuit.
Safety of children and vulnerable persons
The appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not
play with the appliance.
Cleaning and user maintenance shall not be made by
children without supervision.
Cleaning and user maintenance shall not be made by
children without supervision.
Remove the packaging intended to protect the appliance
or particular parts during transport and keep it outside the
reach of children.
It presents danger of injury or suffocation.
7
For European markets only
This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by
children without supervision.
Children aged from 3 to 8 years are allowed to load and
unload refrigerating appliances.
Warning regarding the refrigerant
The appliance contains a small amount of an
environmentally friendly yet flammable gas R600a. Make
sure that no parts of the cooling system are damaged. A
gas leak is not hazardous to the environment, but it could
cause eye injury or fire.
In case of a gas leak, ventilate the room thoroughly,
disconnect the appliance from the power mains, and call a
service technician.
Please keep the products away from the fire or similar
glowing substance before you dispose the appliance.
GWP( Global Warming Potential): R600a=3
8
The appliance may not be used outdoors and it may not be
exposed to rain.
Do not store explosive substances such as aerosol cans
with a flammable propellant in this appliance.
If the appliance will be out of use for an extended period of
time, switch it off using the relevant button, and unplug it
from the power mains. Empty the appliance, defrost it, clean
it, and leave the door ajar.
WARNING! Keep ventilation openings, in the
appliance enclosure or in the built-in structure, clear of
obstruction.
ii
IMPORTANT INFORMATION ON THE USE
OF APPLIANCE
WARNING! This appliance is intended to be used in
household and similar applications such as:
– staff kitchen areas in shops, offices and other working
environments;
- farm houses and by clients in hotels, motels and other
residential type environments;
- bed and breakfast type environments;
- catering and similar non-retail applications.
This appliance is for domestic purposes only and is
intended to be used exclusively for the storage of
sealed bottled wines and beverages.
ii
9
The symbol on the product or its packaging indicates that the product
should not be treated as normal household waste. The product should be
taken to an authorized collection centre for waste electric and electronic
equipment processing. Correct disposal of the product will help prevent
any negative effects on the environment and health of people which could
occur in case of incorrect product removal. For detailed information on
removal and processing of the product, please contact the relevant municipal
body in charge of waste management, your waste disposal service, or the
store where you bought the product.
Packaging is made of environmentally friendly materials
that can be recycled, disposed of, or destroyed without any
hazard to the environment.
!
Removing an obsolete appliance
To protect the environment, take the obsolete appliance to
an authorized home appliance collection centre.
Before doing so, do the following:
• disconnect the appliance from the power mains;
• do not allow children to play with the appliance.
ENVIRONMENT PROTECTION
WARNING! Do not damage the refrigerant circuit.
This will also prevent pollution.
ii
Technical information on the appliance
Rating plate can be found in the appliance interior. It
indicates data on voltage, gross and net volume, type
and amount of refrigerant, and information on the climate
classes.
10
ADVICE FOR SAVING POWER
WITH REFRIGERATION
APPLIANCES
ii
• Install the appliance as specified in the instruction manual.
• Occasionally make sure air circulation underneath the appliance is
unobstructed.
• If the gasket is damaged or does not provide a perfect seal for any reason,
have it replaced as soon as possible.
• In appliances with a fan, do not block the fan slots or vents.
• Only store wine in sealed containers.
• Do not overload the cabinet.
• Only open the door when necessary. Opening the door for long periods
can cause a significant increase in temperature of the compartments of the
appliance
• Do not cover the shelves with aluminium foil or anything else that will
prevent air from circulating around the cabinet.
• To prevent damage to the door seal, ensure the door is fully open before
removing the shelves.
• Do not pull the shelves beyond the anti-stop position (approximately one
third out) when fully loaded.
• This appliance is intended to be used exclusively for the storage of wine.
• In the event of a power failure, leave the door closed as much as possible
to maintain the internal working temperature. Should the power failure
continue for a prolonged period, you should take steps to protect the
contents of the wine cooler against a rise in temperature. The wine cooler
will remember the selected temperature settings and revert to these
settings once the power is restored.
11

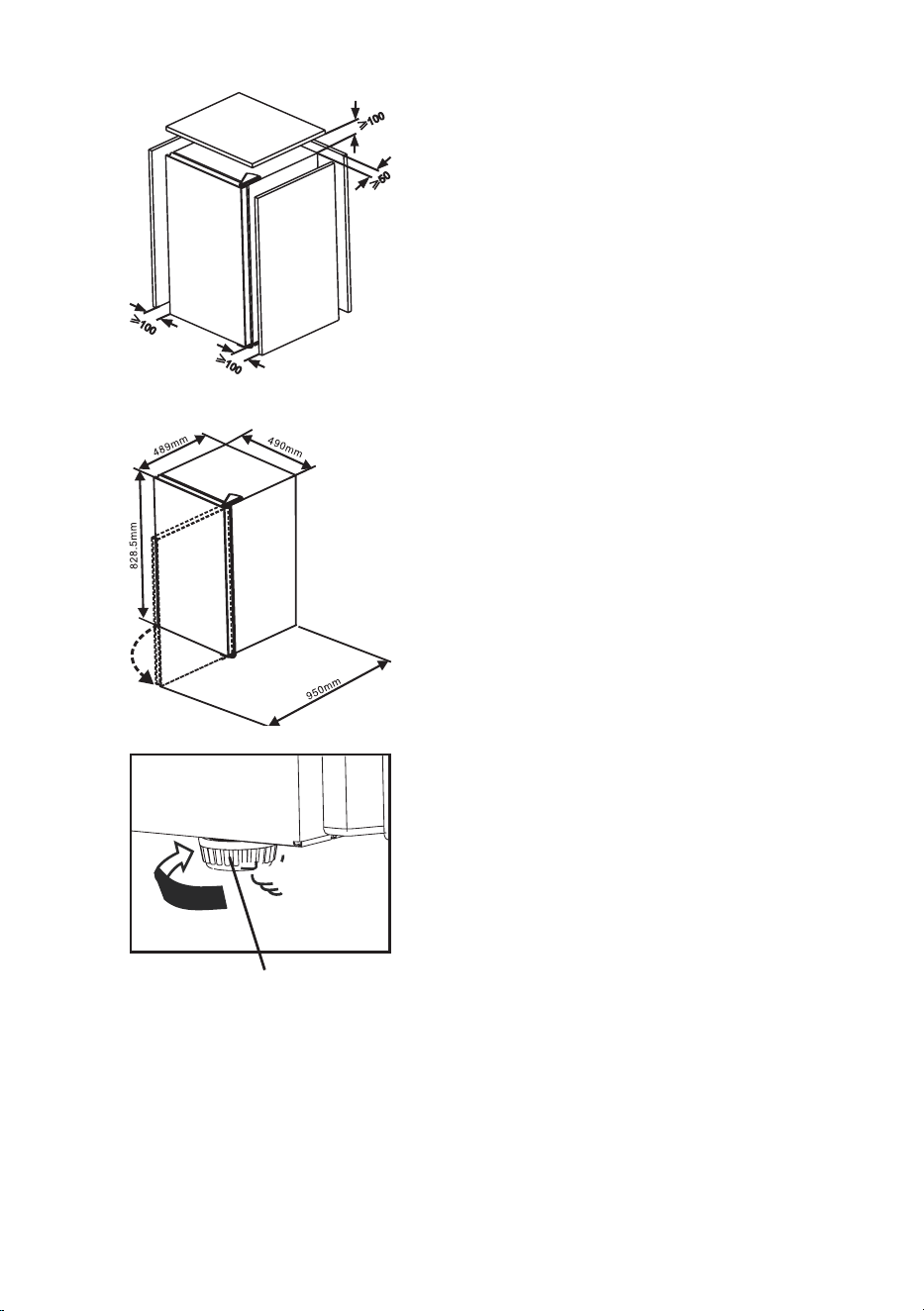

INSTALLATION AND
CONNECTION
SELECTING THE ROOM
• Install the appliance in a dry and well ventilated room. The appliance will
operate correctly if the environment temperature is in the interval specified in
the table. The appliance class is indicated on the rating plate / label with the
basic information on the appliance.
Description Class Ambient temperature
range °C
Relative humidity
Extended temperate SN +10 to +32
≤ 75%
Temperate N +16 to +32
Subtropical ST +16 to +38
Tropical T +16 to +43
• Do not place an appliance in a room where temperature can drop to
below 5 °C as this may cause abnormal appliance operation or failure!
ii
• This appliance is not intended to be used as a build-in appliance.
• After the installation, the appliance mains plug should be accessible!
• Do not place the appliance near appliances or devices radiating heat, such as
a cooker, a stove, a radiator, water heater etc., and do not expose it to direct
sunlight. The appliance should stand at least 3 cm away from an electric or gas
cooker or at least 30 cm away from an oil or solid fuel stove. If the distance
between such source of heat and the appliance is smaller, use an insulating
panel.
Note: Place the appliance in a suciently large room. There should be at least
1 m
3
of space per 8 grams of refrigerant. Amount of refrigerant is indicated on
the rating plate in the appliance interior.
12
To allow for adequate ventilation and
cooling of the appliance, there has to be
sufficient clearence behind the appliance
(at least 50 mm) and on both sides as
well (at least 100 mm).
There has to be a clearance of at least
100 mm between the appliance and
any cabinet above it (see installation
diagram).
Please, also observe the clearance
required to fully open the door in order
to allow pulling out the drawers and
shelves (see installation diagram).
When the appliance is placed on the
intended surface, it should be completely
level in order to decrease vibration. To
level the appliance, use the adjustable
feet at the front of the appliance.
Cabinet leg
13
APPLIANCE DESCRIPTION
Appliance interior equipment may change according to the appliance model.
1 LED lighting
2 Control unit
3 Pull-out shelves (max
capacity: 30 bottles)
4 Adjustable- height feet
1
2
3
4
14
A Temperature display key
B Light On/o key
C »+« Temperature key
D »-« Temperature key
B
C
D
A
OPERATING THE APPLIANCE
• The factory default setting is the recommended
temperature of 12 °C.
• The temperature range is from 5°C (41°F) to 20°C
(68°F).
• Press the C or D buttons until the required temperature
is shown on the display.
TO CHANGE THE TEMPERATURE
• The appliance will work continuously until it gets to the correct temperature.
Continuous noise from the compressor and refrigeration system is normal.
15
Below is a table showing the recommended storage temperatures for diferent
types of wine. These are also the ideal drinking temperatures for most types.
Wine Type Recommended Temp.
Red Wine 15 - 18°C (59°F-64°F)
Dry ⁄ White Wine 9 - 14°C (48°F-57°F)
Rosé Wine 10 - 11°C (50°F-52°F)
Sparkling Wine 5 - 8°C (41°F-46°F)
OPTIMAL TEMPERATURE SELECTION
You can change the temperature display reading from
Fahrenheit to Celsius, or Celsius to Fahrenheit
• Press the A key.
TO CHANGE THE TEMPERATURE READING
• Press the key B to switch the light on or o.
TO USE THE INTERNAL LIGHT
16
APPLIANCE INTERIOR
EQUIPMENT
STORAGE DIAGRAM
Placement of bottles
• To appliance is equipped with 4 bottle
shelves including 2 upper shelves, 1
lower shelf and 1 bottom shelves.
Warning!
• To prevent the bottles from rolling
down and being broken, there should
not be more than 3 bottles placed on
the bottom shelf.
• The maximum loading of each type of
shelf is 15 kg.
Storing bottles
• Moving the bottles or excessive vibration can have a negative eect on the
ageing process and thus on the wine’s flavour.
• Keep the bottles intended for daily use on the front half of the shelves. Keep
the wines you intend to store for a long time or age in the bottom part of the
cabinet.
• To prevent moving the bottles unnecessarily when searching for a particular
wine, keep bottles of the same wine on the same shelf.
• Store the bottles horizontally, so that cork stoppers are also kept moist from
within.
Total number of bottles; 30pcs
17
CLEANING THE APPLIANCE
• Use a soft cloth to clean all surfaces. Cleaners that contain abrasive
substances, acids, or solvents are not suitable for cleaning as they may
damage the surface.
Clean the appliance exterior with water or a mild solution of suds.
Wipe the inside surfaces with a sponge and baking soda solution. The solution
should be about 2 tablespoons of baking soda to 1 quart (approx. 1 litre) of
warm water. Wash the shelves with a mild detergent solution. Allow wooden
shelves to dry before placing back into the wine cooler.
Do not use steel wool or steel brush on the stainless steel. These will scratch the
stainless steel with steel particles and rusting may occur.
Appliance interior can be cleaned with lukewarm water to which you can
add some vinegar.
Before cleaning, unplug the appliance from the power mains.
!
• Do not wash the parts of appliance interior equipment in a dishwasher as
they may be damaged.
18
TROUBLESHOOTING
Problem: Cause or remedy
If the appliance is not
working, check
• There is power to the appliance
• The house fuses or circuit breakers are intact and
the fuse in the plug has not blown.
• The plug socket is functioning correctly. To check
this, plug another electrical appliance in to see if
the socket is working.
• The ambient temperature is between 16°C to 38°C.
The appliance is
working, but not very
well, check
• The appliance is not overloaded.
• The thermostat is set to an appropriate
temperature.
• The door is closing properly.
• The door gasket is sealing properly
• There is enough ventilation at the side and rear
walls.
• The ambient temperature is between 16°C to 38°C.
The appliance is noisy,
check
• The appliance is level and stable.
• The cooling gas will make some noise, even when
the compressor is not running.
• During operation, it is normal for the fan to run,
even when the compressor is not running.
Condensate (dew) on
the shelf
• This is transient phenomenon which cannot be
entirely avoided in periods of high environment
temperature and humidity. It subsides when
temperature and humidity are normalized.
The appliance is turning
cooling on and off
frequently
• The internal temperature is fluctuating, causing the
system to cool..
The light does not work,
check
• There is power to the appliance.
• The house fuses or circuit breakers are intact and
the fuse in the plug has not blown.
• The light button is not set to off
Please note: The LED lighting cannot be replaced
without a service call. If the light fails, contact
Gorenje Customer Care.
19
Problem: Cause or remedy
The door will not close
properly, check
• The appliance is level and stable.
• If the door has been removed, it may not have
been correctly refitted.
• Whether the door seal is dirty.
• The shelves are positioned correctly.
Water on the floor • Water drain hole is blocked.
If the above tips do not resolve your problem, call the nearest authorized service
centre and state the type, model, and serial number indicated on the appliance
rating plate or label located in the appliance interior.
Gorenje, d.o.o.
Partizanska 12
SI - 3320 Velenje, Slovenija
www.gorenje.com
WE RESERVE THE RIGHT TO CHANGES THAT DO NOT AFFECT THE
APPLIANCE FUNCTIONALITY.
