INSTRUCTIONS
Cool Trough
®
eG9899 revised 08/17
eagle Foodservice equipment, eagle Mhc, specFAB, and retail Display are divisions of eagle Group. ©2017 by the eagle Group
• 100 Industrial Boulevard, Clayton, Delaware 19938-8903 U.S.A. • www.eaglegrp.com
• Phone: 302/653-3000 • (Foodservice) 800/441-8440 • (MHC/Retail) 800/637-5100
• Fax: 302/653-2065
CAUTION
insPect contents iMMeDiAteLY AnD FiLe cLAiM With DeLiVerinG cArrier For AnY DAMAGe.
SAVE YOUR BOX AND ALL PACKING MATERIALS.
You Are resPonsiBLe For DAMAGe to Your unit iF returneD iMProPerLY PAcKeD.
(continued on next page)

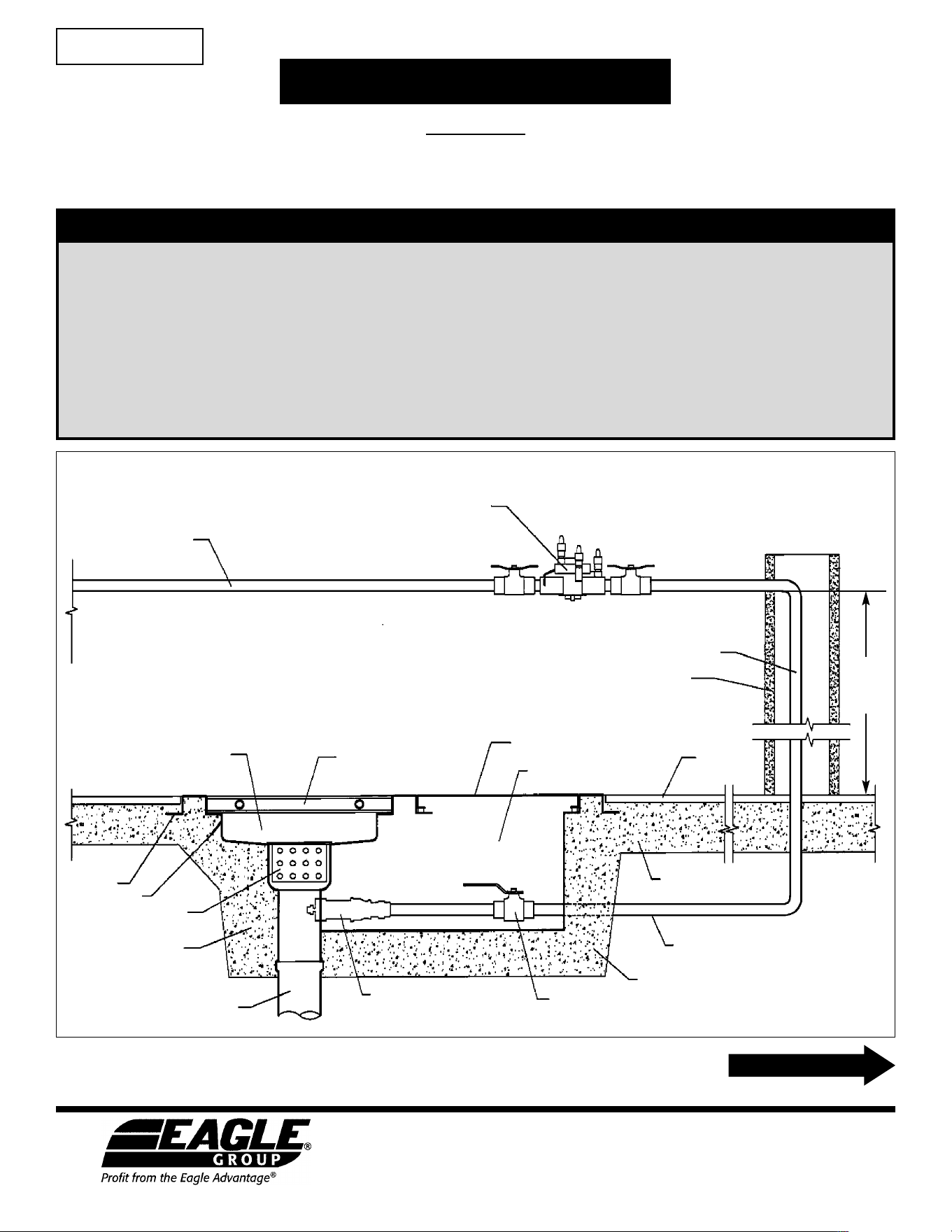

1˝ water line above
ceiling by trades
RPZ valve supplied by Eagle & installed by
Plumbing Contractor. Mount 12˝ min. above
trough flood level. Must be accessible for testing
service. DO NOT MOUNT ABOVE CEILING.
1˝ water line
in wall by trades
1˝ water line
in wall by trades
concrete floor slab
by trades
interior wall
14 gauge S/S floor pan
S/S or fiberglass
removable floor grate
S/S removable cover with
water tight rubber gasket
14 gauge S/S access
compartment
finished floor
by trades
floor clips
S/S anchor clips
S/S basket drain with cover
welded to 14 gauge S/S pan
recessed concrete slab
by trades
3˝ or 4˝ waste
by trades
drain water
tempering valve
by Eagle
shutoff valve
by Eagle
recess concrete slab
by trades
Tempering Water Temperature Floor Grate Detail
instruction sheet
#383353
minimum
12˝
above
floor
• Local Code - You are required to consult the local building and plumbing codes prior to installation. If information given here is
inconsistent with local building or plumbing code, the local codes should be followed.
• Testing - The backflow preventer must be tested periodically in compliance with local codes, but at least once per year. For field
testing procedures, refer to Watts instruction sheets: IS-TK-DP/DL, IS-TK-9A, IS-TK-99E, and IS-TK-99D found on www.watts.com.
• Indoors - The backflow preventer assembly must be easily accessible to facilitate testing and servicing. If it is located in a line
close to a wall, be sure the test cocks are easily accessible.
In normal operation, there will be a slight discharge of water. A drain line and air gap should be piped from the relief valve
connection, where evidence of discharge will be clearly visible so that water damage will not occur.
NEVER INSTALL IN CONCEALED LOCATIONS.
IMPORTANT!
INSTRUCTIONS
Cool Trough
®

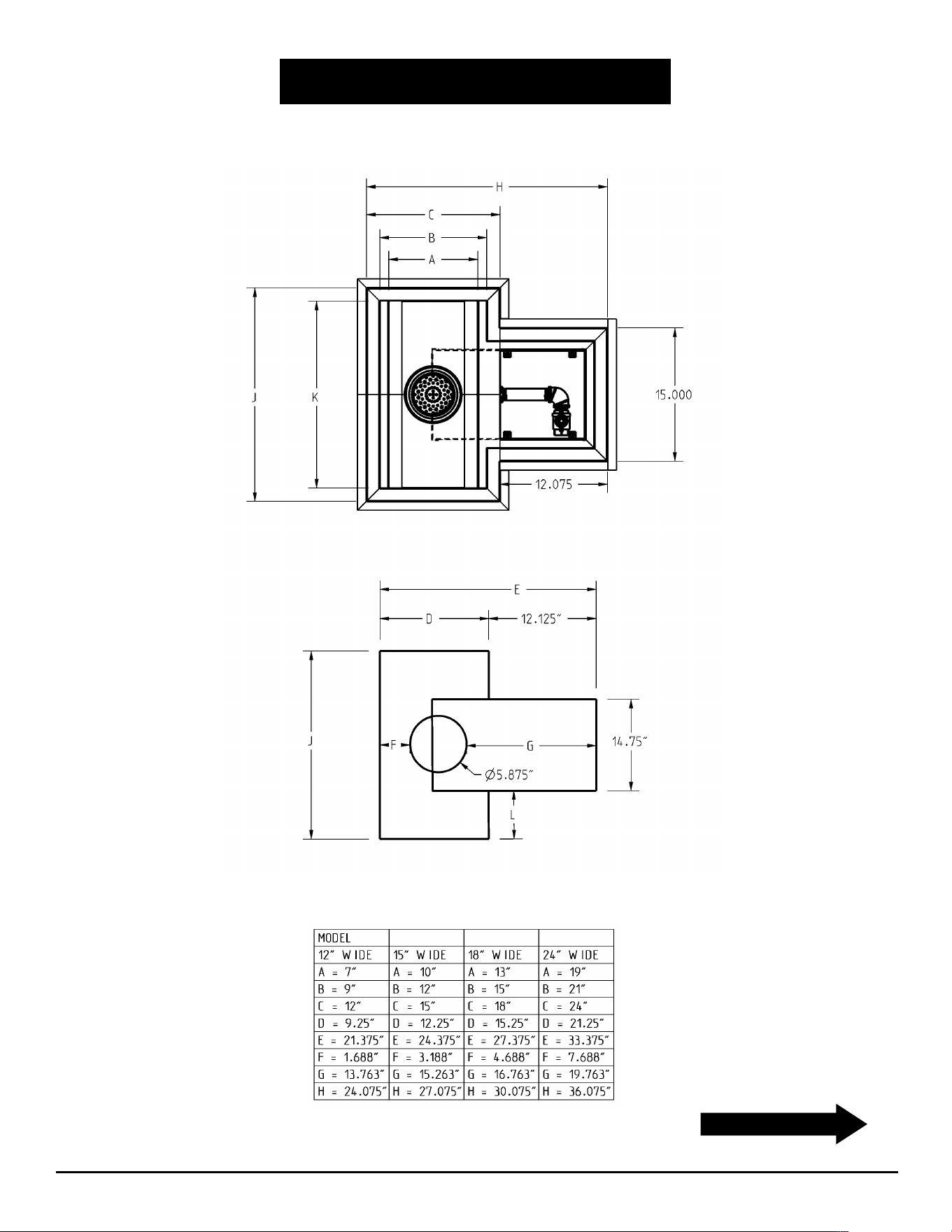

Top View
Bottom View
Widths
— See next page for Lengths.
(continued on next page)
2
INSTRUCTIONS
Cool Trough
®

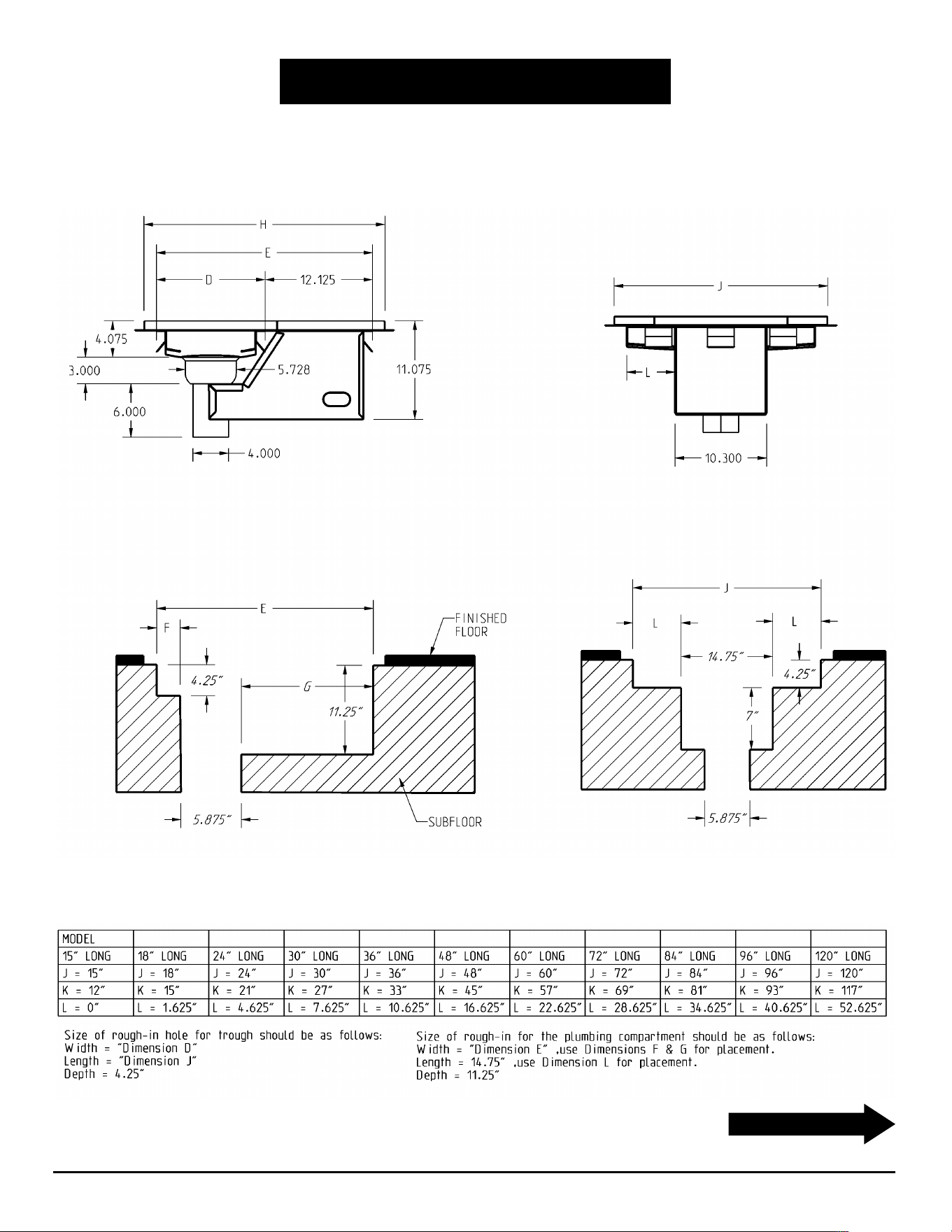

End View of Cool Trough
®
Lengths — See previous page for Widths.
End View of Rough-In
Front View of Cool Trough
®
Front View of Rough-In
(continued on back page)
3
(End)
INSTRUCTIONS
Cool Trough
®
eagle Foodservice equipment, eagle Mhc, specFAB, and retail Display are divisions of eagle Group. ©2017 by the eagle Group
• 100 Industrial Boulevard, Clayton, Delaware 19938-8903 U.S.A. • www.eaglegrp.com
• Phone: 302/653-3000 • (Foodservice) 800/441-8440 • (MHC/Retail) 800/637-5100
• Fax: 302/653-2065
Widths

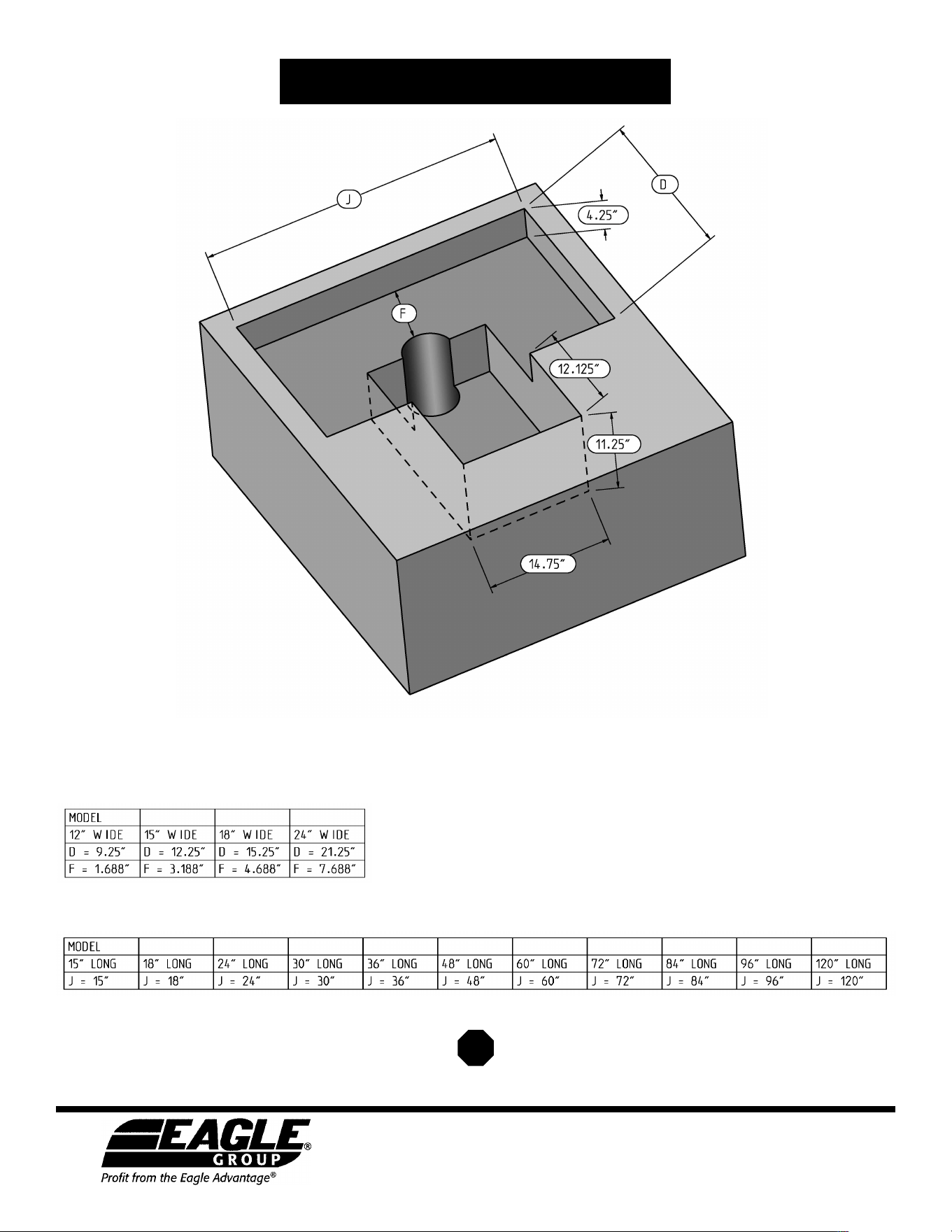

Isometric View of Rough-In
Lengths
