20
V
MAX
Please read this instruction manual carefully
before using the tod
Before using the spray gun, please read this manual carefully, any improper use may cause
damage or serious injury!
Technical parameters
Rated Speed: 42000rpm
Spray width: 200-300mm
Air flow: 160L/min
Viscosity：40Din-sec
Function
Suitable for wall, fence, door, window, metal rust, ceiling
And used for car repairing, high-altitude operations, etc.
Usage method
Paint Name
Solvent-based primer
Solvent-based paint
water-based primer
water-based paint
Wood Preservative, Stripper, Oil
Car paint
outflow time(S)
20-60
25-60
35-60
30-55
30-55
No dilution required
Model：YX-SG05
Paint primer needs to be diluted before use
Test method after dilution: fill the viscosity cup and count the time when
Voltage: 20V MAX
Spraying distance: 200-250mm

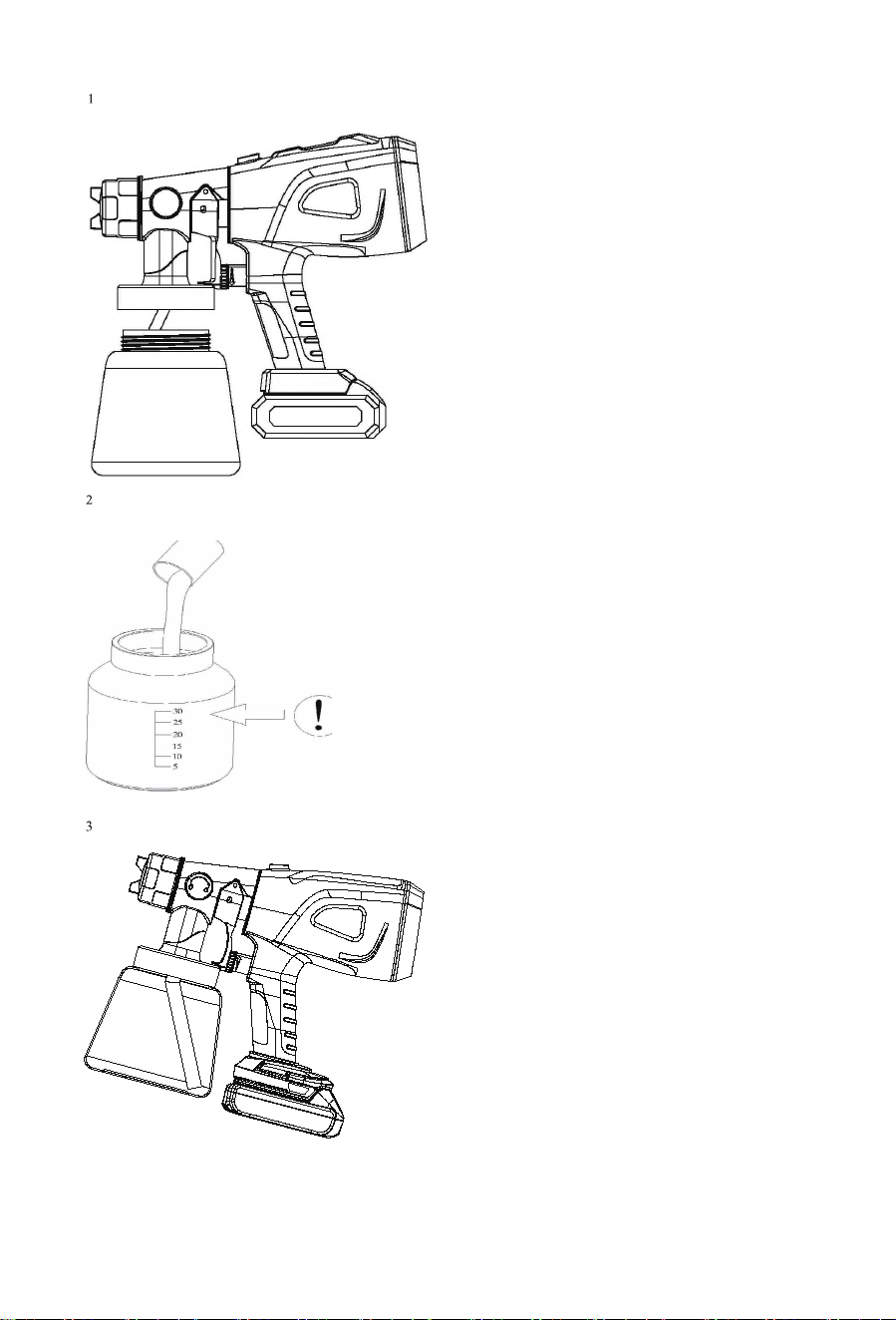

Pour the material into the container, no more
than 1000ml
If spray in an upward direction, the angled end of the suction tube should be pointing toward
the rear of the spray gun
Unscrew the paint container from the spray gun
a)
Adjusting the suction tube
b
a
b
a
b
If spray in a downward direction, the angled end of the suction tube should be pointing the
front of the spray gun

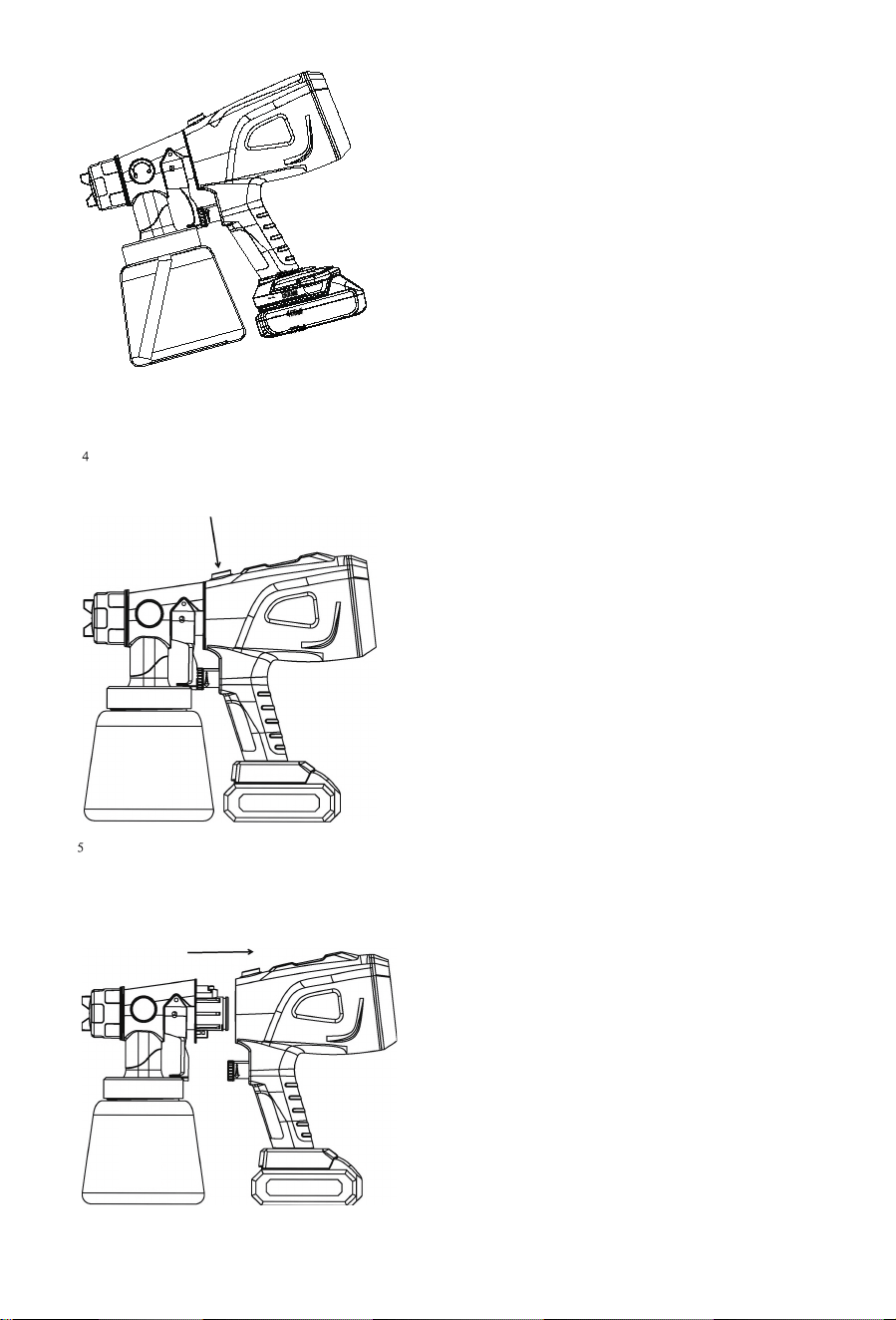

Hold the gun with your hand and press the button
Connection between spray gun and body
Hold the spray gun with your hand, align the bump on the spray gun with the slot
on the motor, and then insert it
When the gun and the main unit are in place, it is locked
Remove the motor
Pull out to remove the motor from the gun

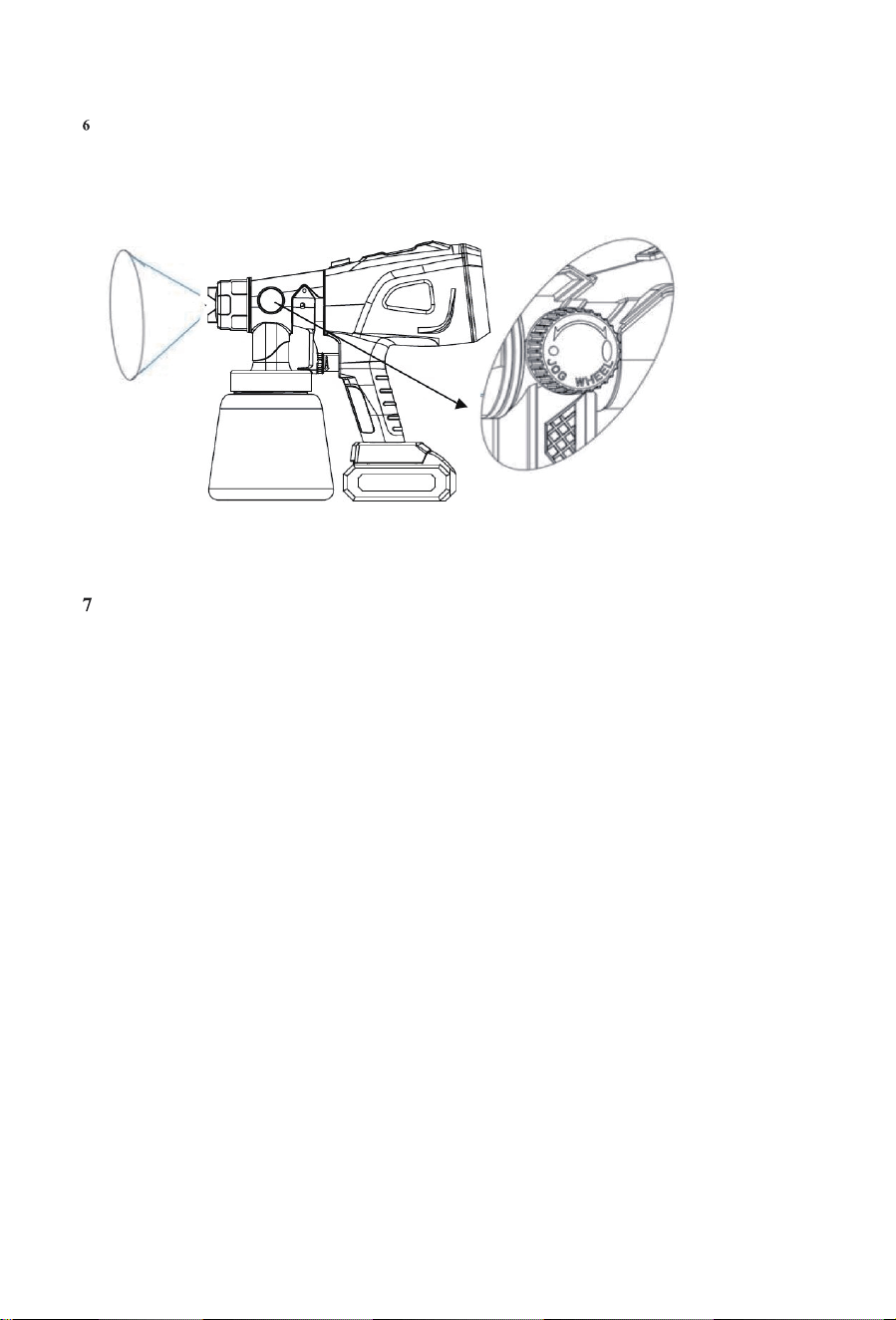

Adjust the needle adjustment nut to meet your requirements
Rotate the nut to the right to reduce the paint and reduce the paint thickness.
Adjust the required length according to the spraying environment, reduce waste and save materials
The counterclockwise rotation shortens the length, and when it rotates to the stop position，it is sprayed
with the largest circle
Adjust the screw to the right to increase paint volume，increase paint thickness
a
b
a
Spray length adjustment: Turn this knob to adjust the round shape from vertical to
a
b

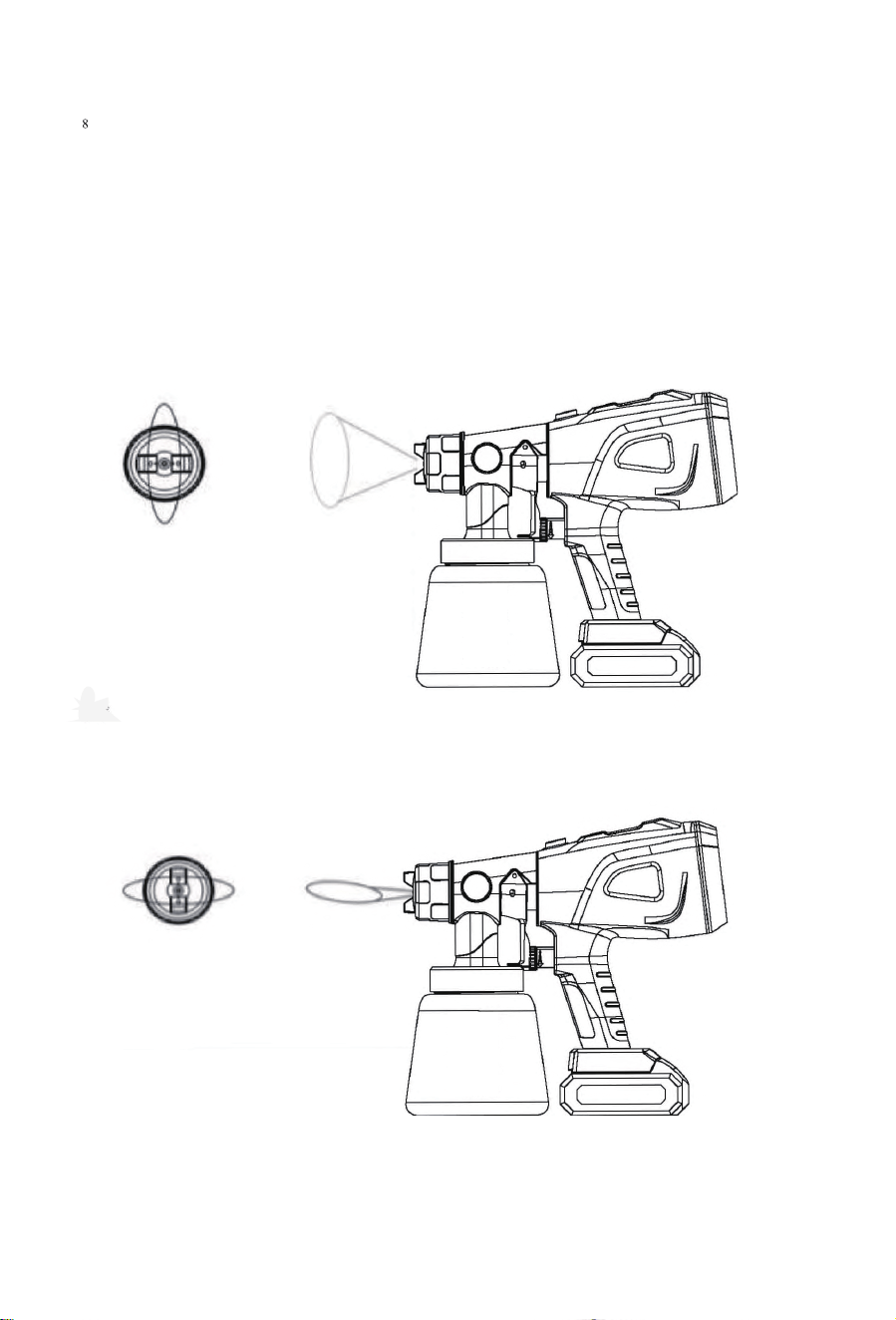

Adjust spray patterns
Detailed pattern to a vertical fan pattern by adjusting the nozzle
Vertical
Level
The spray gun pattern can be changed from horizontal oval fan pattern to around
Troubleshooting
Problem Cause Solution
Problem
Cause Solution
Little or no material flow
atomization is too coarse
spary jet pulsates
pattern runs or sags
too much over-spray
pattern is very light and
splotchy
large cloud of paint
Nozzle clogged
Suction tube clogged
material volume setting
turn too far to the right
viacosity of material too high
Nozzle clogged
to little pressure build-up
material in container
running out
The liquid in the pot is
Liquid viscosity too high
applying too much material
moving the spray gun too far
Clean
Clean
turn to the left
insert
check viscosity
strain paint
thin
turn to the right
clean
tighten container
refill
check viscosity
Add liquid
Check viscosity
Adjust the material flow or
increase movement of spay gun
Adjust material flow or decrease
movement of spray gun
move gun away from surface
and reduce paint flow
Keep your workplace clean and tidy, never use the tool in hazardous areas that contain flammable liquids
，gasses or dusts
Use only paints, solvents or other materials with an ignition point of 73 ° F (22 °C) or higher
Do not point the gun at people or animals. In case of injury, seek medical attention immediately
Be sure to read the paint manufacturer's detailed instructions before use
You must clean the spray gun thoroughly after each use
A.
B.
4
C.
D.
E.
F
.
G
.
1.
1
.
4
.
5
1
.
1.
gun too close to surface
.
Warning！
1
1
1
1
1
1
suction tube loose
matrial is too thick
container is loose
7.
inconsistent paint
7.
tighten the container
material volume setting
material is too thick
Only use the relevant battery
6
.
