Reolink Doorbell Wired
Operational Instructions
English English1 2
EN
Contents
01
02
03
04
05
06
07
08
09
10
11
12

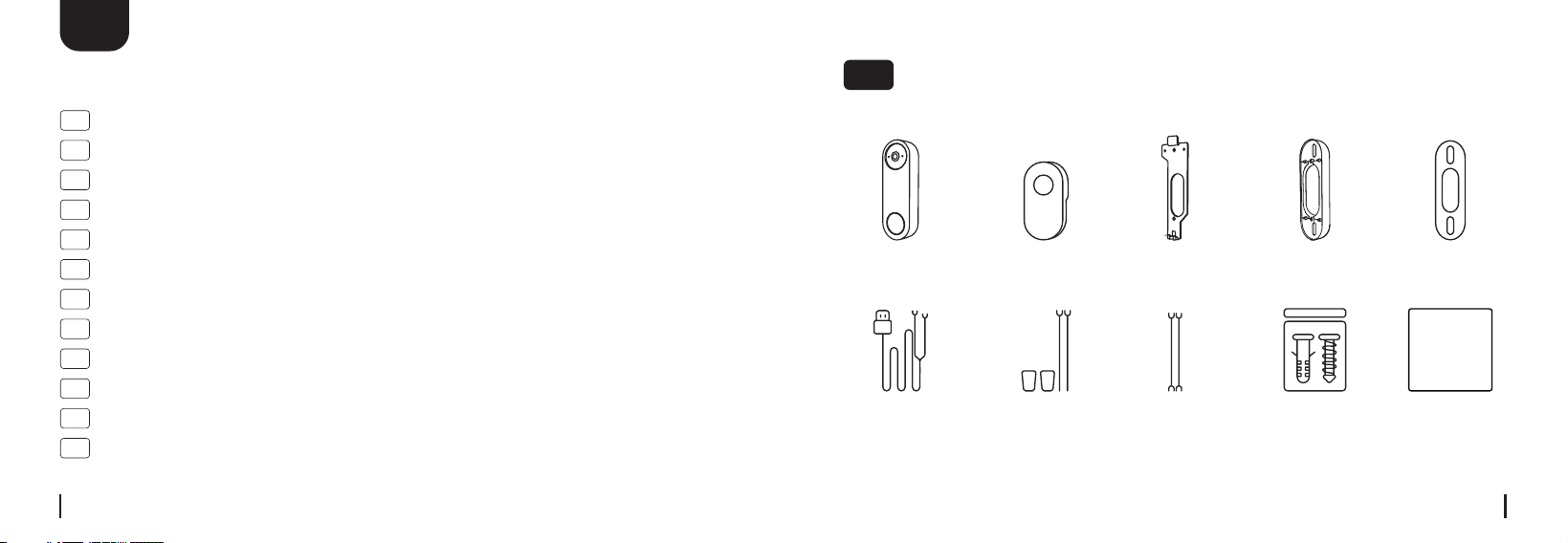

What's in the Box
Doorbell Chime Mounting
Template
Screw PackWire
Extensions
Mounting
Plate
Horizontal
Wedge
Jumper
Cables
Operational
Instructions
USB-A Y-split
Power Cable
Operational
Instructions
01
What's in the Box··························································2
Device Overview ··························································3
Setting Up the Device ·····················································5
Setting Up the Chime ·····················································9
Installation Tips ··························································13
Installation Steps ························································14
Detaching the Doorbell ··················································24
Specifications ···························································25
Troubleshooting ·························································25
Safety Instructions ·······················································27
Legal Disclaimer ·························································28
Compliance ·····························································29
English English3 4

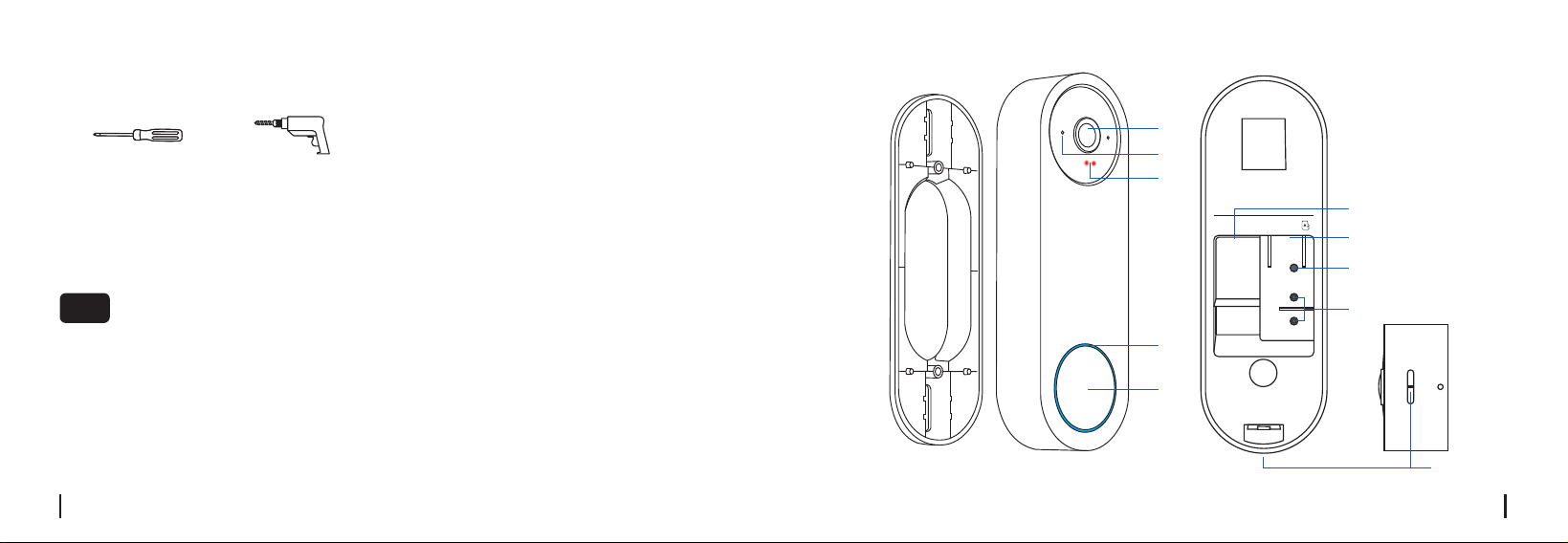

Device Overview
02
RST
microSD
LAN/POE
❶
❼
❽
❾
❿
❹
❺
❻
❷
❸
❶
Camera Lens
❷
Microphone
❸
IR LED
❹
Button Ring Light
❺
Doorbell Button
❻
LAN/PoE Port
❽
Reset Button
* Press and hold the Reset Button for 5 seconds to
restore the device to its factory default settings.
❾
Screw Terminals
❿
Speaker
❼
microSD Card Slot
What You Also Need
(Not Included)
Power Drill #2 Phillips
Screwdriver
English English5 6

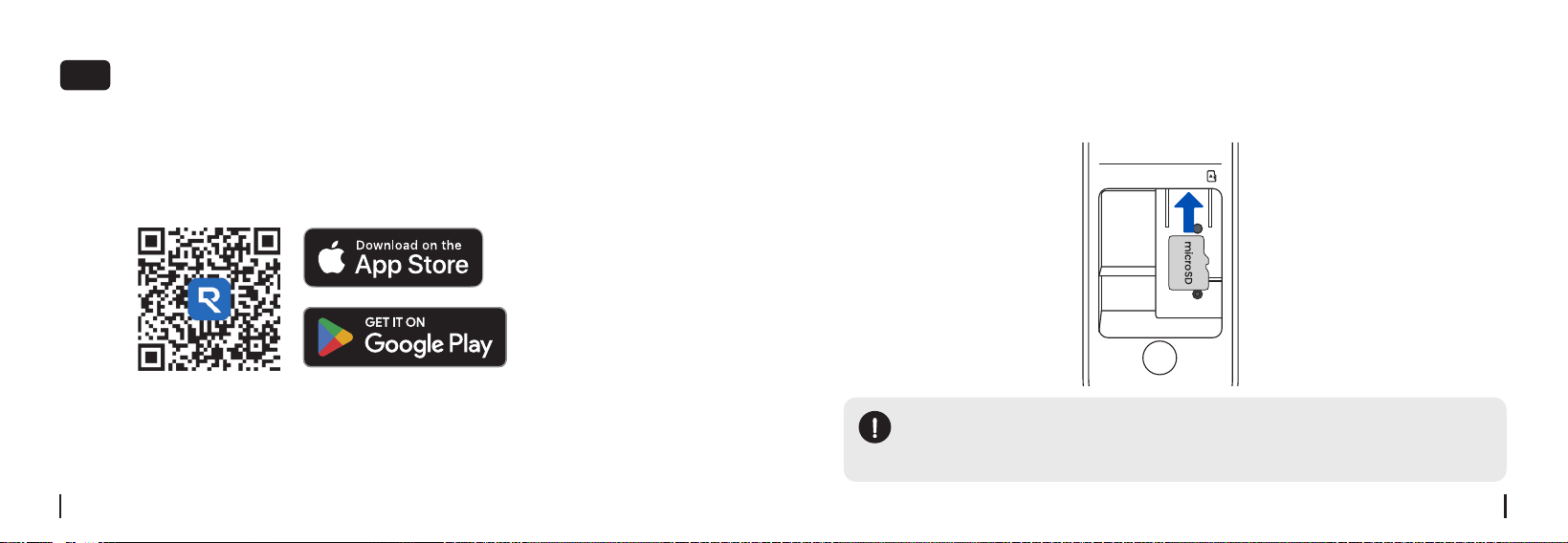

Step 2. Insert the microSD Card (Optional)
Insert a microSD card into the designated slot on the side of the device.
NOTE:
Supports microSD cards up to 512GB (Class 10 or higher speed ratings
recommended). Card is sold separately.
RST
microSD
LAN/POE
Setting Up the Device
Step 1. Download the Reolink App or Client
· On Smartphone
Scan the QR code below to download the Reolink App.
· On PC
Download the Reolink Client at reolink.com > Support > App & Client.
03
English English7 8

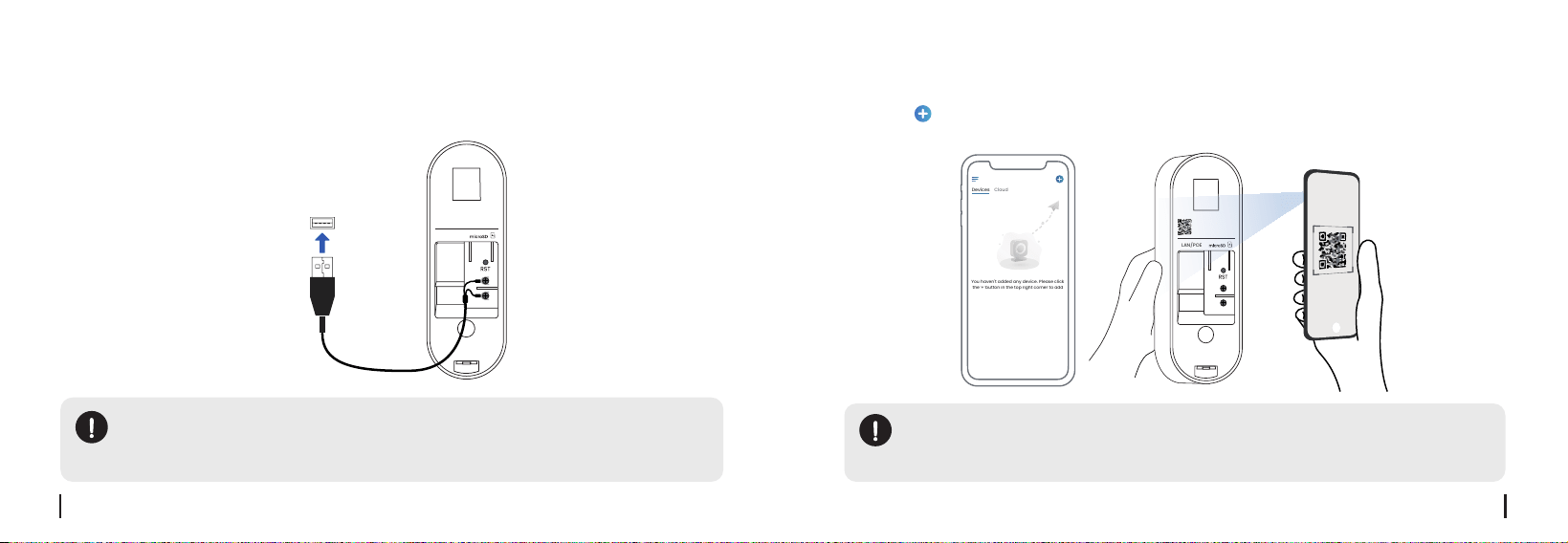

For initial setup, connect the included USB-A Y-split power cable to a 5V/2A
USB power adapter (not included).
Step 3. Power On the Doorbell
NOTE: Alternative Power Options
You can alternatively power the device using a standalone power
adapter (24V/0.5A) or a PoE source (both sold separately).
LAN/POE
LAN/POE
USB-A Y-split
Power Cable
Step 4. Scan QR Code to Set Up
Tap the button in the top corner, scan the doorbell's QR code and follow
the on-screen instructions to finish the initial setup.
NOTE:
This doorbell uses Bluetooth for the initial network setup. Ensure your
phone’s Bluetooth is turned on before proceeding.
Devices
Cloud
You haven't added any device. Please click
the"+"button in the top right corner to add
LAN/POE
English English9 10
Setting Up the Chime
04
NOTE:
The included chime is pre-paired with your doorbell out of the box.
Manual pairing is required if you are adding multiple chimes to a
single doorbell.
NOTE:
If it doesn't, go to Doorbell Settings to pair it manually, or contact
Reolink Support.

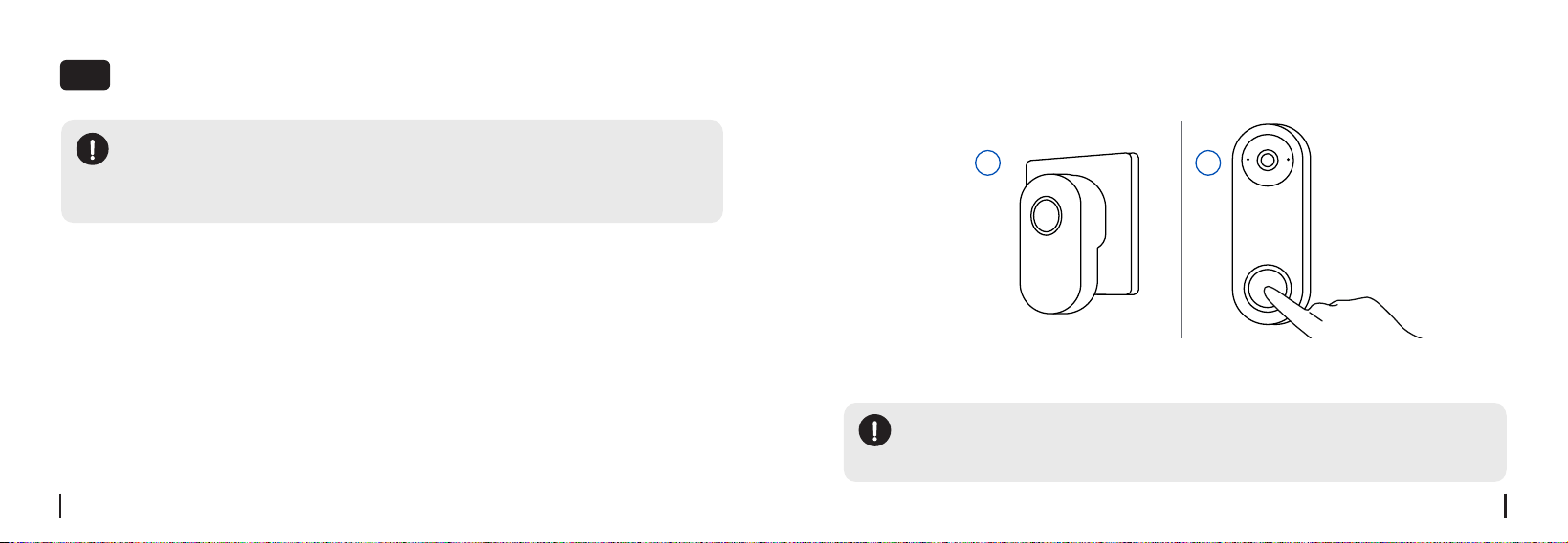

Step 1. Plug It In
Plug the Reolink Chime into a standard wall outlet.
Step 2. Test the Connection
Press the doorbell button. The chime should ring immediately.
1
2
English English11 12

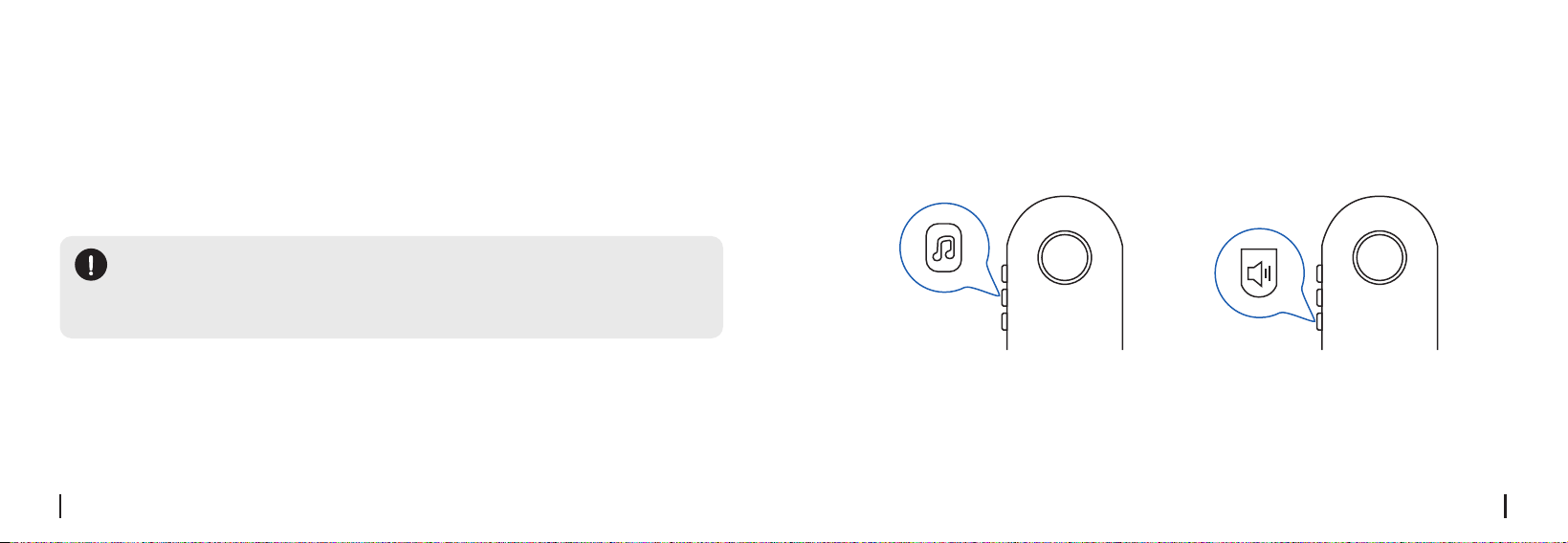

Step 3. Customize Your Chime
1.
Change Ringtone:
Press the Ringtone button on the side to cycle through
tones, or select one via the app.
2.
Adjust Volume:
Press the Volume button to cycle through volume levels
(Mute, Low, Moderate, Loud, Very Loud). Or adjust it in the app.
Ringtone
Button
Volume
Button
TIPS:
1.
The chime will beep twice to signal it has reached the minimum
(Low) or maximum (Very Loud) volume.
2.
When muted, the status light will flash instead of ringing.
How to Reset the Chime:
Press and hold the Volume Button while plugging the chime into the outlet.
Keep holding until you hear 10 slow beeps followed by 4 rapid beeps.
English English13 14

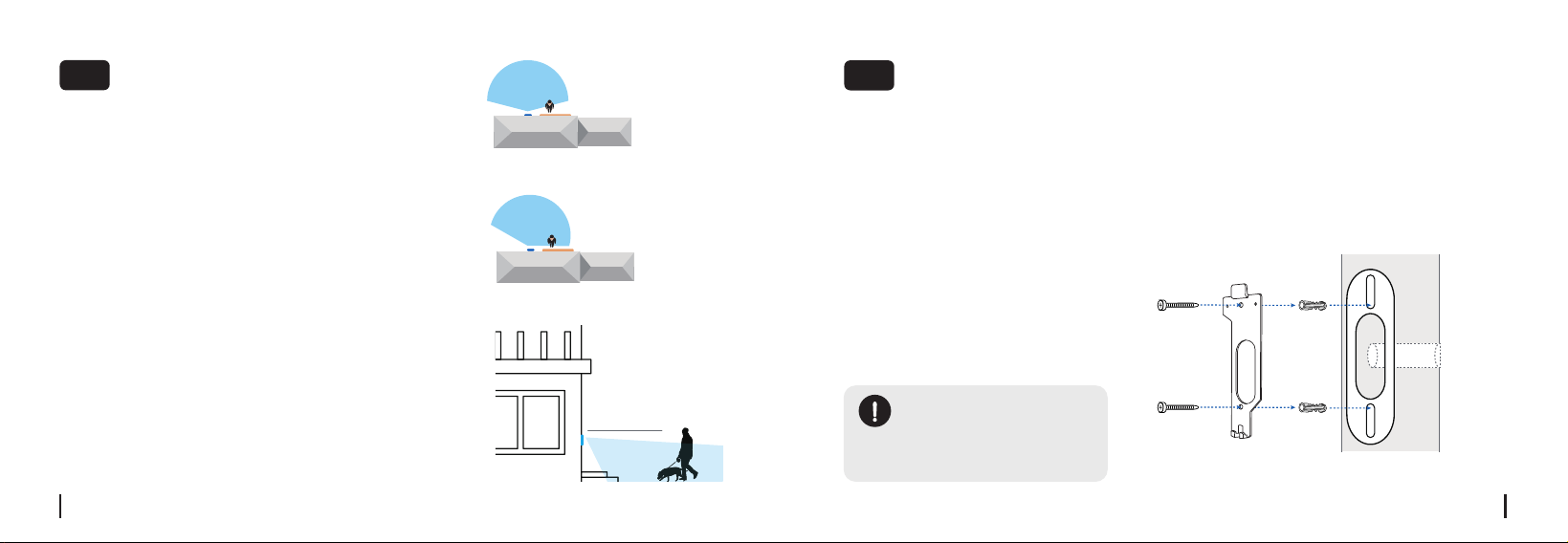

1. Install the doorbell on a flat, stable surface.
2. For optimal viewing, mount it, approximately
48 inches (1.2 m) above the ground.
3. For optimal motion detection, angle the
doorbell so visitors move across the field of
view rather than directly toward it. Use the
included horizontal wedge if needed.
4. If mounting near a side wall, ensure the wall
is outside the camera's field of view to avoid
night vision glare.
Installation Tips
05
Without a 15° Horizontal Wedge
Doorbell
Door
With a 15° Horizontal Wedge
Door
Doorbell
Mounting Height:
1.2 m
Installation Steps
06
Step 1. Install the Mounting Plate
Option A
Flat Mount (Standard)
Secure the Mounting Plate to the wall with the included long screws.
Long Screws
Mounting Plate
Mounting Template
Anchors
NOTE:
Anchors required for
drywall/brick; not
required for wood.
English English15 16

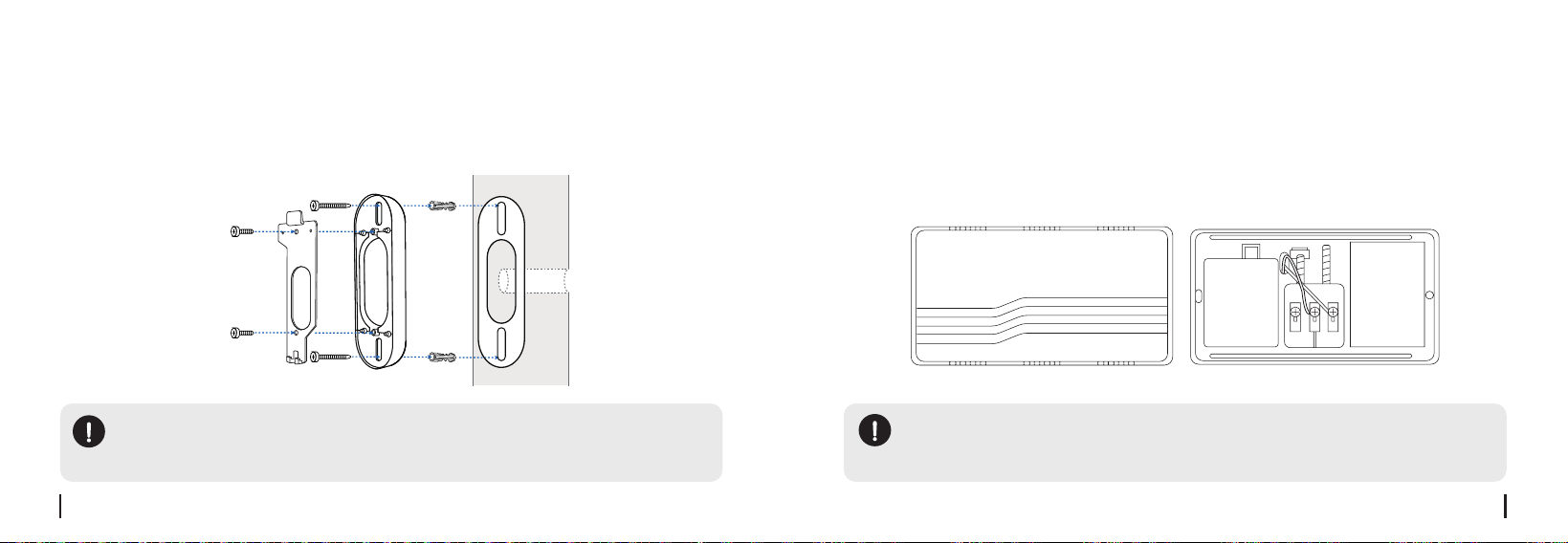

Option B
Mount With Horizontal Wedge (Optional)
If you need to adjust the doorbell angle, use the included Horizontal Wedge
with the Mounting Plate.
Long Screws
Short Screws
Mounting Plate
Anchors
Wedge
NOTE:
1.
Hole positions differ depending on whether the wedge is used.
2.
Anchors required for drywall/brick; not required for wood.
Mounting Template
Step 2. Power the Doorbell
Option A
Powered by Existing Mechanical Chime System
1. Locate Your Existing Chime
Press your existing doorbell and locate your indoor chime box by sound.
Mechanical Chime
NOTE:
Voltage Requirement: 12–24V AC
If the voltage does not meet this requirement, replace or upgrade your
transformer.
English English17 18

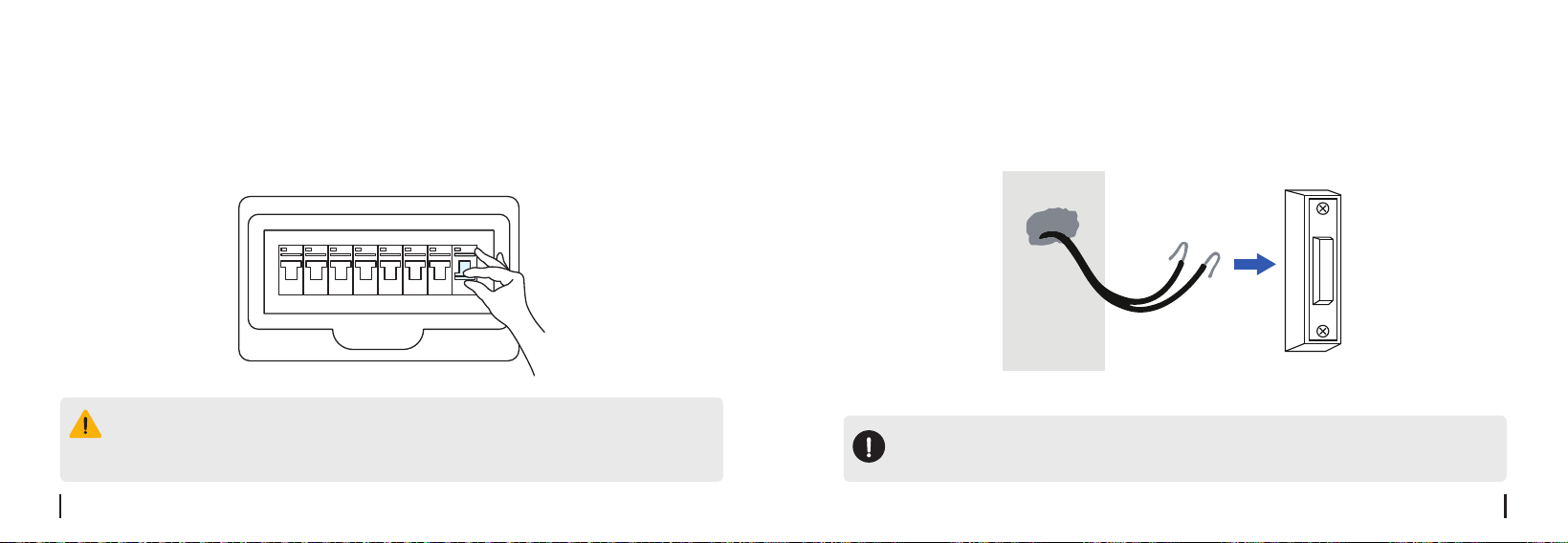

2. Turn Off the Power
Turn off power at the circuit breaker. Handle wires with care. If unsure, consult a
licensed electrician.
Press the old doorbell button to verify that the power is completely off (the chime
should not sound).
3. Remove the Existing Doorbell
Disconnect the wires, remove the old doorbell and all related accessories.
WARNING:
To avoid the risk of electric shock, do not touch any wires until the
power is turned off.
Slightly bend the bare wires so they don't accidentally slip back inside
the wall cavity.
English English19 20

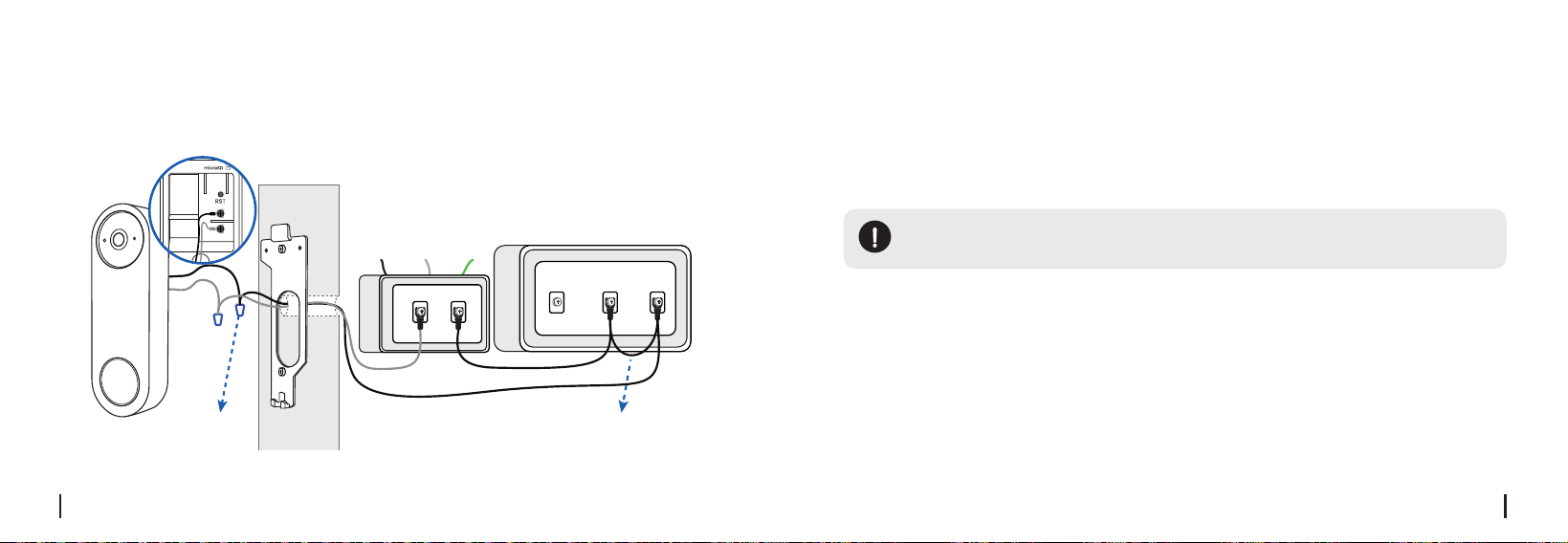

4. Connect Doorbell Wires
Connect as shown in the diagram below. Use the jumper cable to bypass your
mechanical chime; this ensures sufficient power and prevents humming.
LAN/POE
Mechanical Chime
Doorbell
Transformer
Ground
Jumper cable
Wire Extensions
NeutralAC
Rear FrontTrans
NOTE:
CAT5 or above standard Ethernet cable recommended.
Option B
Powered by PoE Source (Sold Separately)

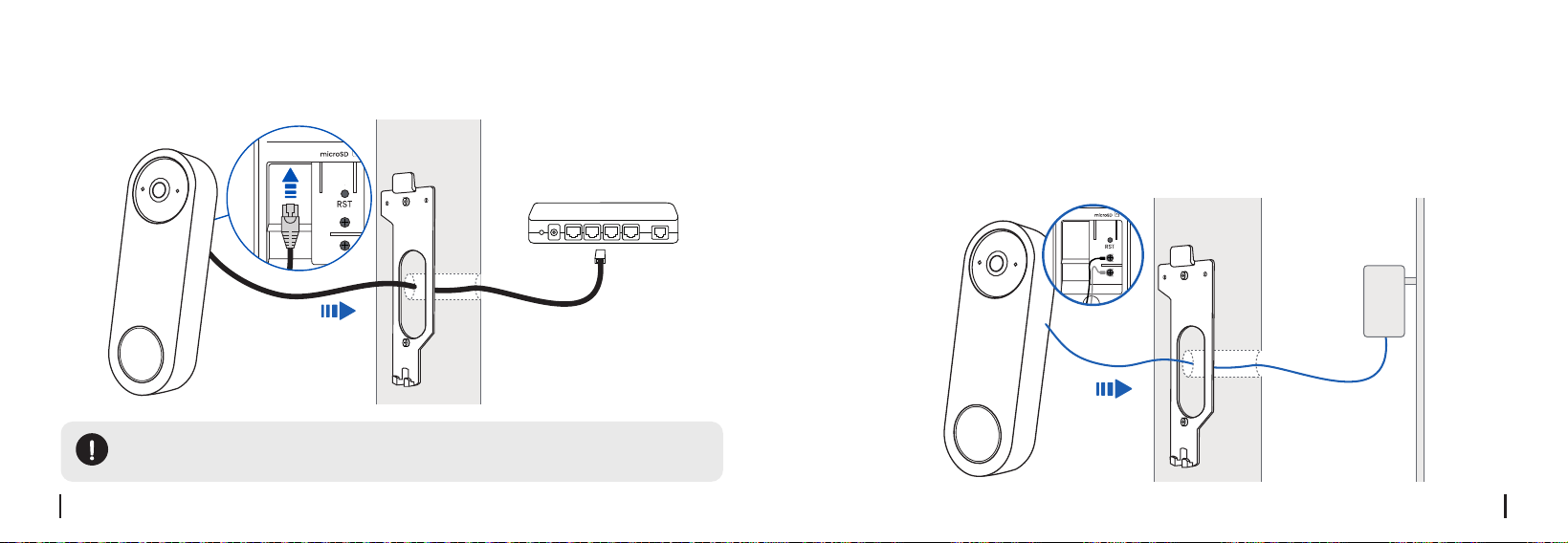

1. Connect the Ethernet Cable
Run the Ethernet cable through the hole in the wall and the mounting plate, then
plug it into the doorbell.
English English21 22
LAN/POE
PoE Switch
(sold separately)
Ethernet Cable
NOTE:
Ensure your powering device is IEEE 802.3af compliant.
2. Connect to PoE Source
Plug the other end into your PoE Injector, Switch, or Reolink PoE NVR for power
and data.
LAN/POE
Power Adapter
Option C
Powered by Power Adapter (Sold Separately)
Securely fasten the wire leads to the terminals on the back of the doorbell,
then power it on using the adapter (24V/0.5A).
English English23 24
Step 3. Secure the Doorbell

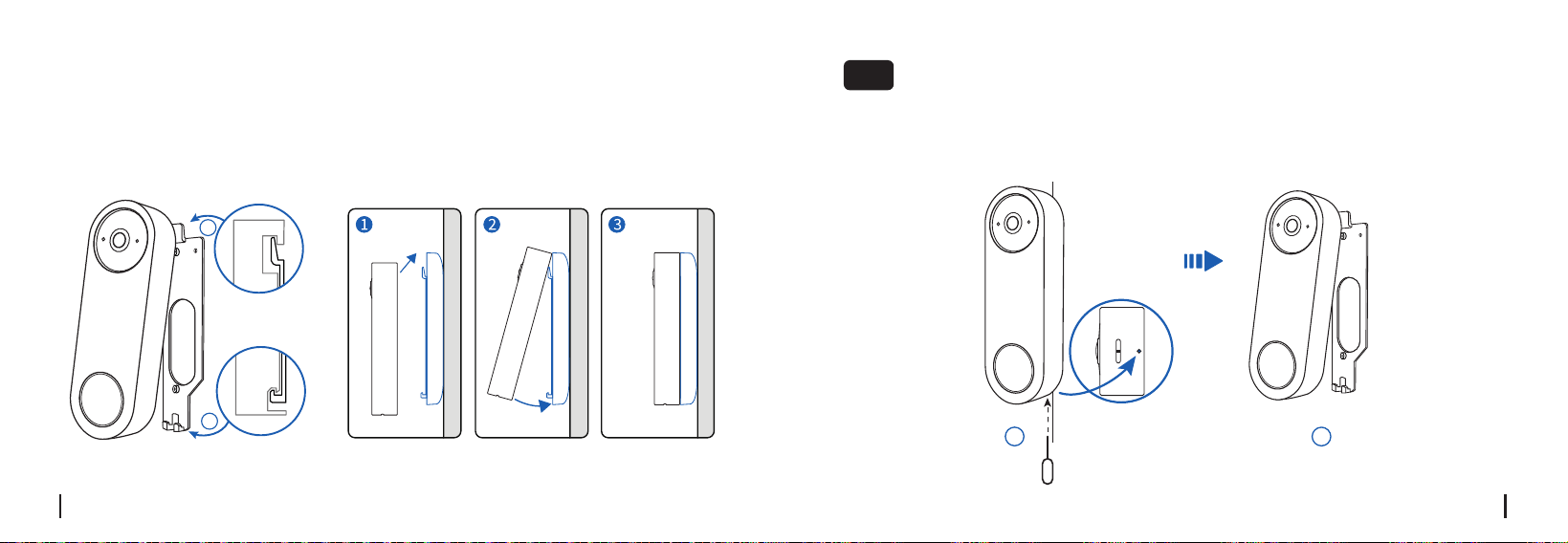

Hook the top of the doorbell onto the mounting plate, then press the bottom
until it clicks into place.
Once installed, turn the power back on and verify operation via the app.
2
1
• Shut off the power for safety.
• Insert the included release pin into the slot at the bottom to release the doorbell
from the mounting plate.
Detaching the Doorbell
07
2
1
English English25 26
Field of View: 130° Horizontal, 95° Vertical, 180° Diagonal
Dimensions: 138.4 × 46.0 × 24.9 mm
Weight: 101g
Operating Temperature: -10°C – 50°C (14°F – 122°F)
Specifications
08
Troubleshooting
09
Failed to Connect to Wi-Fi During Initial Setup Process
If the camera fails to connect to Wi-Fi, please try the following solutions:
• Ensure that you have entered the correct Wi-Fi password.
• Put the camera closer to your router to ensure a strong Wi-Fi signal.
• Change the encryption method of the Wi-Fi network to WPA2-PSK/WPA-PSK
(safer encryption) on your router interface.
• Change your Wi-Fi SSID or password and make sure that SSID is within 31
characters and password is within 64 characters.
• Set your password using only the characters available on the keyboard.
If the problem is not solved, please contact Reolink Support.
Camera Doesn’t Work Properly When Added to the Reolink
NVR or Home Hub
If your Reolink camera isn’t working properly after being added to an NVR or
Home Hub, please make sure the firmware on your camera, NVR, and Hub is
updated to the latest version. If the issue continues after updating, contact
Reolink Support at https://support.reolink.com/.
English English27 28
Please read the instructions carefully before using the device.
1. Replace only with the same or equivalent type of accessories recommended by Reolink.
2. Do not use the device in an environment that exceeds the recommended temperature range.
3. Do not use the device in an environment that exceeds the recommended humidity range.
4. Do not attempt to disassemble, repair, or alter the device by yourself.
5. Always follow the local safety laws and regulations when using the device.
6. The device contains (or comes with) small components, small plastic elements, and other small parts
that may cause choking hazards. Keep the device and its accessories out of reach of children. Consult a
physician immediately if small parts are swallowed.
7. The device contains (or comes with) cables or cords that may cause strangulation hazards. Keep the
device and its accessories out of reach of children.
8. The product doesn’t include assistive features. Customers with disabilities can use devices with
assistive features, like computers or smartphones with text-to-speech tools, for accessibility. For
individuals with visual or physical impairments, professional help may be needed for installation. Once
installed, the product can be controlled entirely via the app.
Safety Instructions
10
Legal Disclaimer
11
To the maximum extent permitted by applicable law, this document and the product described,
with its hardware, software, firmware, and services, are delivered on an "as-is" and "as-available" basis,
with all faults and without warranty of any kind. Reolink disclaims all warranties, express or implied,
including but not limited to, warranties of merchantability, satisfactory quality, fitness for a particular
purpose, accuracy, and non-infringement of third-party rights. In no event will Reolink, its directors,
officers, employees, or agents be liable to you for any special, consequential, incidental or indirect
damages, including but not limited to damages for loss of business profits, business interruption, or loss
of data or documentation, in connection with the use of this product, even if Reolink has been advised of
the possibility of such damages.
To the extent permitted by applicable law, your use of the Reolink products and services is at your sole
risk and you assume all risks associated with internet access. Reolink does not take any responsibilities
for abnormal operation, privacy leakage or other damages resulting from cyber attacks, hacker attacks,
virus inspections, or other internet security risks. However, Reolink will provide timely technical support if
required.
The laws and regulations related to this product vary by jurisdiction. Please check all relevant laws
and regulations in your jurisdiction before using this product to ensure that your use conforms to the
applicable law and regulation. During the use of the product, you must comply with relevant local laws
and regulations. Reolink is not responsible for any illegal or improper use and its consequences. Reolink
is not liable in the event that this product is used with illegitimate purposes, such as third-party rights
infringement, medical treatment, safety equipment, or other situations where the product failure could
lead to death or personal injury, or for weapons of mass destruction, chemical and biological weapons,
nuclear explosion, and any unsafe nuclear energy uses or anti-humanity purposes. In the event of any
conflicts between this manual and the applicable law, the latter prevails.
English English29 30
Compliance
12
Hereby, REOLINK TECHNOLOGY PTE.LTD. declares that the radio equipment type [refer to the cover of
the Operational Instructions] is in compliance with Directive 2014/53/EU.The full text of the EU and UK
declaration of conformity is available at the following internet address:
https://reolink.com/certication-compliance/
RF exposure information: The Maximum Permissible Exposure (MPE) level has been calculated based on
a distance of 20cm between the device and the human body. To maintain compliance with RF exposure
requirement, use product that maintain a 20cm distance between the device and human body.
Hereby, REOLINK TECHNOLOGY PTE.LTD. declares that this device is in compliance with The Product Security
and Telecommunications Infrastructure (Security Requirements for Relevant Connectable Products)
Regulations 2023. For the Statement of Compliance, visit the Web site:
https://reolink.com/certication-compliance/
(a)the equipment does not have a standby mode or other equivalent state in terms of energy efciency
requirements, power management function or the ability to deactivate wireless network connections
mode;
(b)the power consumption of the equipment is likely to be higher than other equipment models meeting
these functional requirements.
Wi-Fi Operating Frequency
Operating Frequency :
2412~2472MHz RF Power:≤20dBm(EIRP)
Bluetooth operating Frequency
OPERATING FREQUENCY :
2402~2480MHz RF Power:≤10dBm(EIRP)
Sub 1G Operating Frequency
OPERATING FREQUENCY :
868MHz RF Power:≤10dBm(EIRP)
Correct Disposal of This Product
This symbol indicates that this electrical or electronic device must not be treated as household waste at
the end of its life; instead, it requires separate collection. Free collection points for recycling and reuse are
available in your local area. Please contact your municipal authority for these locations. Upon request,
authorized retailers may accept up to three old devices free of charge at or near the point of sale. You are
required to separate old equipment from general municipal waste. Before returning the device, please
remove any batteries, accumulators, or lamps that are not permanently built-in and can be removed
without damage. If the device contains personal data, you are responsible for deleting it prior to disposal.
Limited Warranty
This product comes with a 2-year limited warranty that is valid only if purchased from Reolink Ofcial Store
SIMPLIFIED EU AND UK DECLARATION OF CONFORMITY
English English31 32
FCC Statement
Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1)this device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and
operated with minimum distance 20cm between the radiator & your body.
IC statement
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic DevelopmentCanada’s licence-
exempt RSS(s). Operation is subject to the following two conditions:
(1)This device may not cause interference.
(2)This device must accept any interference, including interference that may cause undesired operation of the device.
The term “IC: “ before the certification/registration number only signifies that the Industry Canada technical specifications were met.
This product meets the applicable Industry Canada technical specifications.
Cet appareil contient des émetteurs / récepteurs exemptés de licence conformes aux RSS (RSS) d'Innovation, Sciences etDéveloppement économique
Canada. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pasproduire de brouillage,et (2) l'utilisateur de l'appareil doit
accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.
L'émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme auxCNR d'Innovation, Sciences et Développement économique
Canada applicables aux appareils radio exempts de licence.
L'exploitation est autorisée aux deux conditions suivantes :
1)L'appareil ne doit pas produire de brouillage;
2)L'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre lefonctionnement.
This transmitter must not be co-located or operating in conjunction with any other antenna ortransmitter. This equipment should be
installed and operated with a minimum distance of 20centimeters between the radiator and your body.
Cet émetteur ne doit pas être Co-placé ou ne fonctionnant en même temps qu'aucune autre antenne ouémetteur. Cet équipementdevrait
être installé et actionné avec une distance minimum de 20 centimètres entre le radiateur et votre corps.
