APPLICABLE MODELS: K180W - K240W
INSTALLATION MANUAL
WINE COOLER
PRO IN YOUR KITCHEN
| TABLE OF CONTENTS
SAFETY INFORMATION 2
4
Save these instructions
2
General safety
2
Types of safety warnings
14
Installation dimensions
16
Electrical location
24
Removing the packing
17
Carbon filter
14
Installation instructions
39
Installing the limit pins
13
Parts identification
4
Disposal of old appliance
5
Before using your appliance
5
Installation of your appliance
6
Attention
6
Electrical connection
7
INTRODUCTION
8
LIST OF MATERIALS
9
PRODUCT SPECIFICATIONS
9
INTERNAL STORAGE
17
Installing the handle
18
Changing the door opening direction
27
Mounting the anti-tip brackets
26
Removing the vent hole assembly
44
CARE AND MAINTENANCE
41
OPERATING YOUR APPLIANCE
46
TROUBLESHOOTING
40
Removing the wooden shelves
Use this appliance only as described in this manual. Other uses not recommended may cause fire,
electric shock or personal injury.
This appliance is not intended for use by young children or infirm persons unless they have been
adequatly supervised by a responsible person to ensure that they can use the appliance safely.
To protect against the risk of electric shock, NEVER IMMERSE the unit, cord, or plug in water of
spray any other liquid.
Unplug the appliance from the plug socket when not in use, when moving from one location to
another and before cleaning.
Young children should be supervised to ensure that they never play with the appliance.
2
| SAFETY INFORMATION
DANGER
Danger means that failure to heed this safety statement may result in
severe injury or death.
WARNING
Warning means that failure to heed this safety statement may result in
extensive product damage, serious personal injury, or death.
CAUTION
Caution means that failure to heed this safety statement may result in
minor or moderate personal injury, property or equipment damage.
DANGER
When using an electrical appliance, basic precautions should always be
followed to reduce the risk of fire, electric shock, and injury to persons.
WARNING
To reduce the risk of fire, electric shock or personal injury, unplug or
disconnect the appliance from the power supply before servicing.
CAUTION
Flammable refrigerant used! When handling, moving and use of the
refrigerator, make sure to avoid either damaging the refrigerant tubing,
or incresing the risk of a leak.
Your safety and the safety of others are very important. We have provided many important safety
messages in this manual for your appliance. Always read and obey all safety messages.
For your safety, read all instructions carefully before operating the appliance.
This is the Safety Alert Symbol. This symbol alerts you to pothential hazards that can cause
severe bodily injury or death. All safety messages will follow the Safety Alert Symbol and
either the words “DANGER”, “WARNING” or “CAUTION”.
GENERAL SAFETY
To disconnect the appliance, grip the plug and pull it from the wall outlet. Never full by the cord.
Never operate the appliance in the presence of explosive and/or flammable fumes.
Never place the appliance or any of its parts near an open flame, cooking or other heating
appliance.
Never operate the appliance with a damaged cord or plug, if the product malfunctions, or if it is
dropped or damaged in any manner.
A loose fit between the AC outlet (receptacle) and plug may cause overheating and a distortion
of the plug. Contact a Qualified electrician to replace loose or worn outlet.
The use of attachments not recommended by the manufacturer may be hazardous.
Never operate if the housing is removed or damaged.
Locate the unit away from direct sunlight and sources of heat (stove, heater, radiator, etc.)
Never use an appliance with a damaged circuit.
This appliance is CFC and HFC free and contains small quantities of isobutane (R600a), an
enviromentally friendly coolant.
Ensure that the ventilation openings to and from a built-in appliance are never blocked or covered.
You must ensure that the cooling circuit is undamaged when installing the appliance. However, if it
becomes damaged, avoid proximity to open fires and heat sources of all kinds. The room in which
the appliance is located should be ventilated properly and according to state and local codes.
No liability will be accepted for any damage caused by misuse of the appliance, or as a result of
repairs carried out by unquialified person. In this case neither the warranty or any other liability
claims will apply.
CAUTION - Risk of fire or explosion due to puncture of refrigerant tubing; follow handling
instructions carefully. Flammable refrigerant used.
WARNING
Prop. 65 Warning for California Residents: This product may contain chemicals known to the State
of California to cause cancer, birth defects, or other reproductive harm.
Never attempt to repair or replace any part of your appliance unless it is specifically recommended
in this manual. All other servicing should be referred to a qualified technician.
DANGER - Risk of fire or explosion. Flammable refrigerant used. To be repaired only by trained
service personnel. Use only manufacturer authorized service parts. Any repair equipment used
must be designed for flammable refrigerants. Follow all manufacturer repair instructions. Do not
puncture refrigerant tubing.
WARNING
Never operate any other electrical appliance inside this appliance.
3
4
DANGER - Risk of fire or explosion. Flammable refrigerant used. Do not use mechanical devices to
defrost refrigerator. Do not puncture refrigerant tubing.
WARNING - Risk of child entrapment. Before you throw away your old refrigerator or freezer, take
off the doors. Leave the shelves in place so that children may not easily climb inside.
CAUTION - Risk of fire or explosion. Dispose of refrigerator properly in accordance with the
applicable federal or local regulations. Flammable refrigerant used.
The appliance must not be disposed with normal household waste collection.
Replace all access panels before operating.
Never connect or disconnect the electric plug with wet hands.
Use two or more people to move and install the appliance. Failure to do so can result in back or
other injury.
It is recommended that a separate circuit, serving only your appliance be provided. Use
receptacles that cannot be turned off by a switch or pull chain.
Never clean appliance parts with flammable liquids. These fumes can create a fire hazard or
explosion. Never store or use gasoline or other flammable vapors and liquids in the vicinity of this
or any other appliance.
WARNING
To reduce the risk of fire, electric shock or personal injury, unplug or disconnect the appliance
from the power supply before servicing.
WARNING
Please ensure that old, worn appliances are rendered unusable before disposal by removing the
plug, cutting the power cable, and removing or detroying any snap fastenings or bolts. You will
thus prevent children from locking themselves in the appliance during play (Risk of suffocation) or
endangering their lives in any other way.
If you are experiencing problems, check the Troubleshooting Guide at the back of this manual.
It lists causes of minor operating problems that you can correct yourself.
SAVE THESE INSTRUCTIONS
Dispose of your appliance packaging properly. Refrigeration equipment must be properly disposed
of in a way which protects the enviroment. This applies to your old appliance and to your new unit
once it has reached the end of its service life.
DISPOSAL OF OLD APPLIANCE
5
Remove all exterior and interior packing.
Clean the interior surface with warm water using a soft cloth.
Before connecting the appliance to the power source, let it stand upright for approximately 2
hours. This will reduce the possibility of a malfunction in the cooling system caused by handling
during transportation.
The door on this appliance can be opened from either the left ot the right side. The unit is delivered
with the door opening on the left side. Should you wish to open the door from the right, follow the
instructions, “Reversing the Door Swing of your Appliance”, listed below.
The symbol on the product or its packaging indicates that this product is not to be handled as
normal household waste but is to be taken to a recycling collection point for electrical and
electronic goods. By correctly disposing of this product you are contributing to the protection of
the enviroment. Improper disposal endangers health and the enviroment. Further information
about the recycling of the product may be obtained from your town hall or local waste collection
department.
The coolant circuit, particulary the heat exchange at the back/bottom of the unit, must not be
damaged.
WARNING
Do not store or install the appliance outdoors.
BEFORE USING YOUR APPLIANCE
The appliances are designed for either built-in, or free-standing installation.
Never place the unit in damp areas.
Plug the appliance into an exclusive, easily accessible electrical socket.
The air vent at the front of the appliance must never be covered or blocked in any way.
Place your appliance on a floor that is strong enough to support it chen it is fully loaded. To level
your appliance, adjust the 4 legs until level.
Any questions concerning power and/or electrical connection should be directed towards a
qualified electrician or an authorized products service center.
The appliance must be installed to all electrical connections in accordance with state and local
codes.
Locate the appliance away from direct sunlight and sources of heat (stove, heater, radiator, etc.)
Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption.
Extreme cold ambient temperatures may also cause the unit not to perform properly.
INSTALLATION OF YOUR APPLIANCE
6
WARNING
The appliance must be installed to all electrical connections in accordance with state and local
codes.
Use two or more people to move and install the beverage cooler. Failure to do so can result in back
or other injury.
The cooler may experience decreased cooling efficiency if air ow is restricted due to a fully
loaded cabinet.
Install the beverage cooler in a well-ventilated area where the ambient temperature is above 50ºF
and below 90ºF.
ATTENTION
Never overload the cabinet.
Never open the door unless necessary.
Never cover shelves with aluminum foil or any other shelf material which may prevent air circulation.
Should the appliance be left empty for long periods, it is suggested that the appliance be
unplugged, and, after careful cleaning, leave the door ajar to allow air to circulate inside the cabinet
in order to avoid possible condensation, mold or odors from forming.
Check that the voltage marked on the product corresponds with your supply voltage.
This appliance should be properly grounded for your safety. The power cord of this appliance is
equipped with a three-pin plug which mates with standard three-pin wall outlets to minimize
the possibility of electrical shock.
Never under any circumstances cut or remove the third ground prong from the power cord
supplied. For personal safety, this appliance must be properly grounded.
To prevent accidental injury, the cord should be secured behind the appliance and not left
exposed or dangling.
Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is
properly grounded. When a standard two-pin wall outlet is encountered, it is your responsibility
and obligation to have it replaced with a properly grounded three-pin wall outlet.
The appliance should always be plugged into its own individual electrical outlet which has a voltage
rating that matches the rating label on the appliance. This provides the best performance and also
prevent overloading wiring circuits that could cause a re hazard from overheating. Never unplug
the appliance by pulling the power cord. Always grip the plug rmly and pull straight out from the
receptacle. Repair or replace immediately all power cords that have become frayed or otherwise
damaged. Never use a cord that shows cracks or abrasion damage along its length or at either end.
When moving the appliance, be careful not to damage the power cord.
Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is
damaged, have it replaced by a qualified electrician or an authorized service center.
ELECTRICAL CONNECTION
7
| INTRODUCTION
Never use your appliance with an extension cord unless this cord has been checked and tested by a
qualied technician or service person. The extension cord must be a UL/CUL Listed, 3-wire grounding
extension cord that has a grounding plug and outlet and that the electrical rating of the cord is 115
volts and at least 10 amperes.
For Your Records
Model Number:
Serial Number:
Date of Purchase:
Please write down the model number and serial number below for future reference. Both numbers
are located on the rating label on the back of your unit or inside of the unit and are needed to obtain
warranty service. You may also want to staple your receipt to this manual as it is the proof of your
purchase and may also be needed for service under warranty.
Read and follow this instruction manual carefully to help you install, use and maintain your unit.
Read the troubleshooting section of this manual as it will help you diagnose and solve common
issues.
To better serve you, please do the following before contacting customer service:
If you received a damaged product, immediately contact the retailer or dealer that sold you the
product.
This manual contains important information regarding the proper installation, use, and maintenance
of your beverage cooler. Following this manual will ensure that your product will work at its peak
performance and efficiency.
Thank you for purchasing your beverage cooler!
8

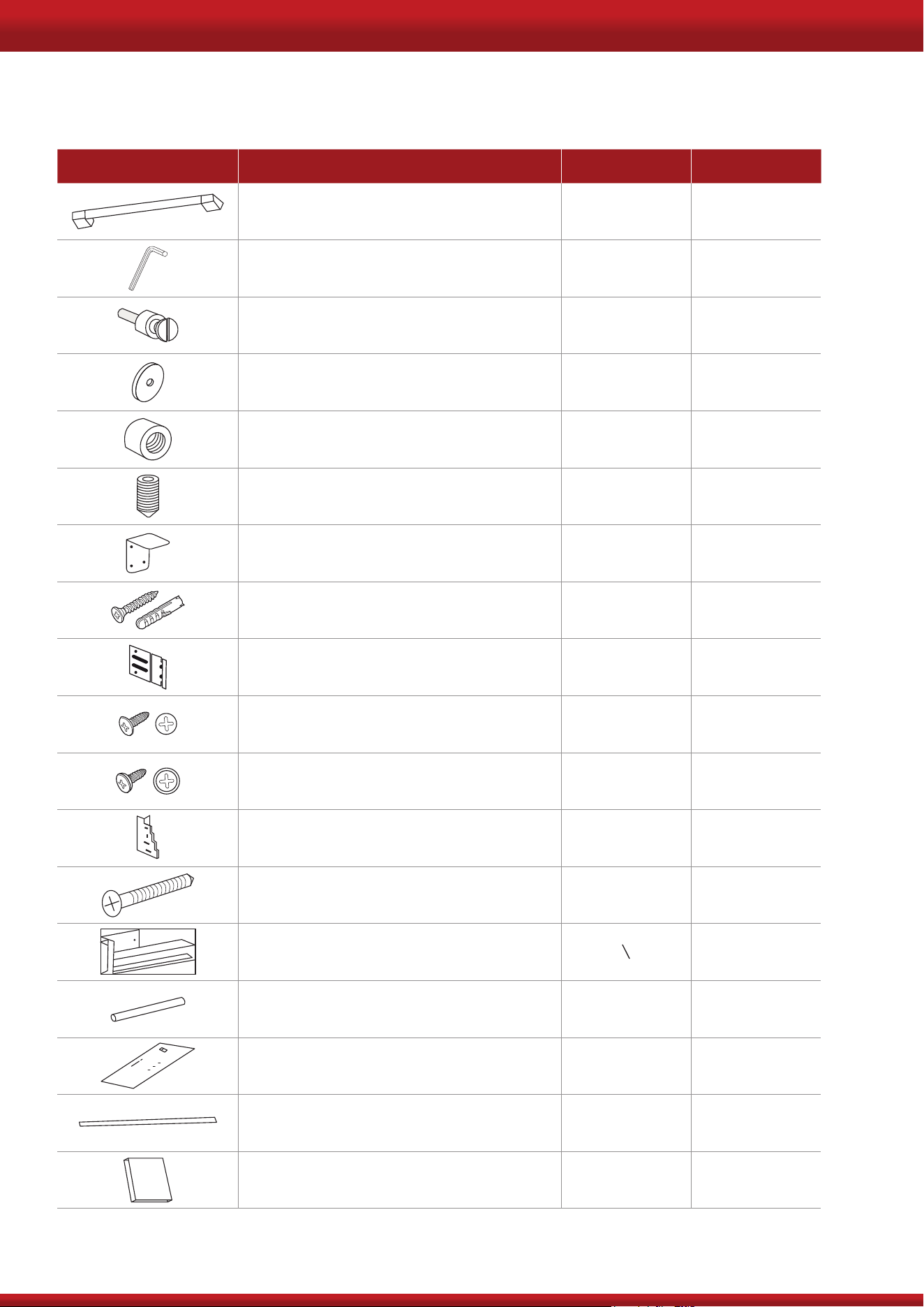

| LIST OF MATERIALS
Quantity Part K180W K240W
Door handle (if applicable)
1 1
Allen/hex key (if applicable)
1 1
1 1
1 1
1 1
1
Handle mounting fastener (if applicable)
2 2
2 2
2 2
2 2
2 2
8 8
8 8
8 8
1+2+2 1+2+2
2 2
20 20
16 16
Gasket (if applicable)
Stop nut, M5 (if applicable)
Set screw M5*10 (if applicable)
Anti-tip bracket
Anti tip bracket screws and dowels
Bracket furniture
Countersunk head screw, ST4x14
Truss washer head, ST4*12
Position adjustment part
Countersunk head screws for fixing
wooden doors ST4x35
Air vent hinge part (if applicable)
90°limit pin
Furniture door preparation template
Decorative parts
User manual
9
| PRODUCT SPECIFICATIONS

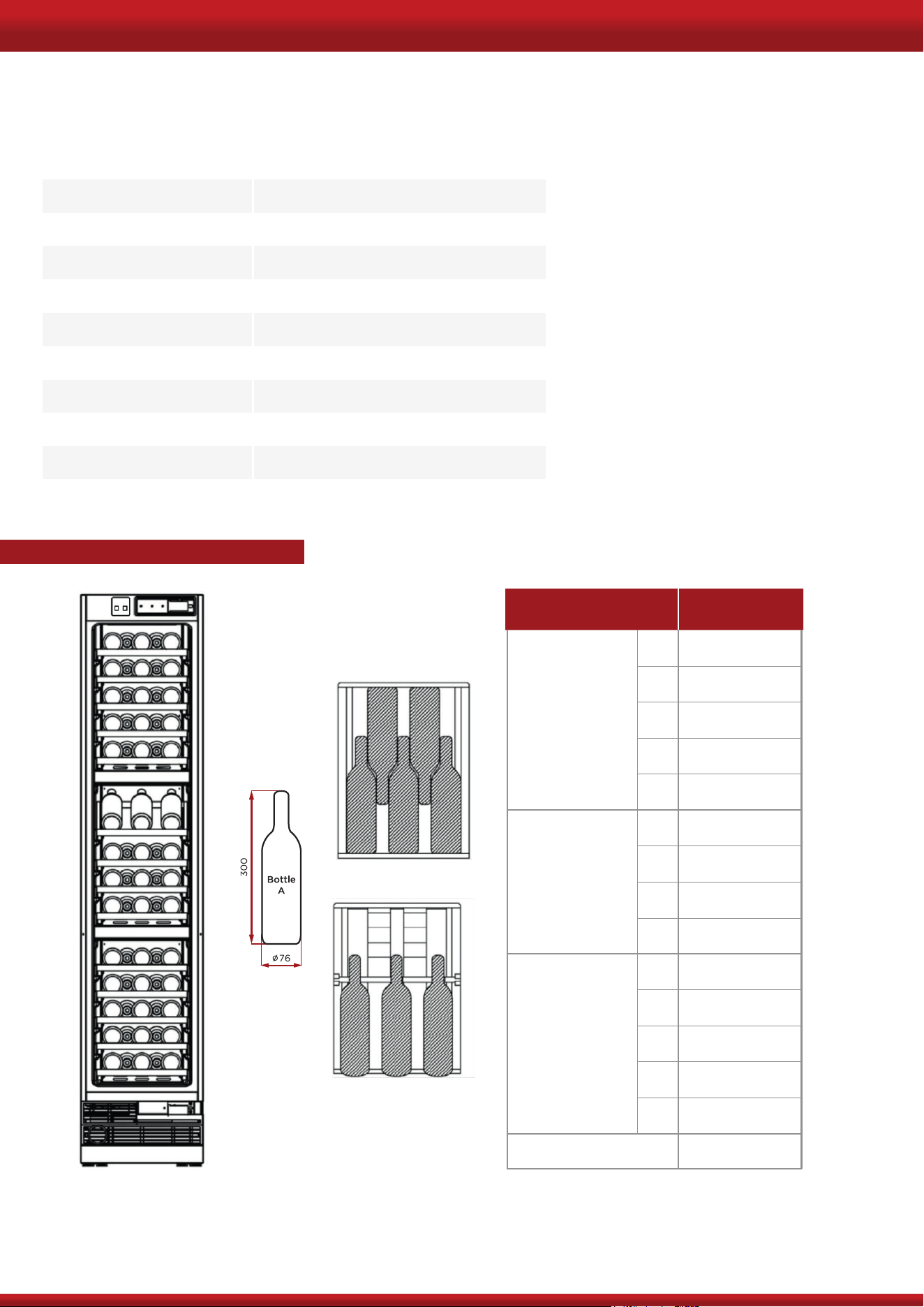

INTERNAL STORAGE K180W
*Storage capacity is based on standard 12oz. cans and 750ml. Bordeaux-style wine bottles.
Description of product Wine cooler
Model K180W
Voltage/Frequency AC 115/ 50&60Hz
Amperage 1.5A
Color White or Grey
Storage capacity* 68 & 62 Bottles
Refrigerant R600a
Temperature range 41°F - 68°F
Dimensions (HxWxD) 83
9/16
x 17
3/4
x 23
1/2
(2130x451x597mm)

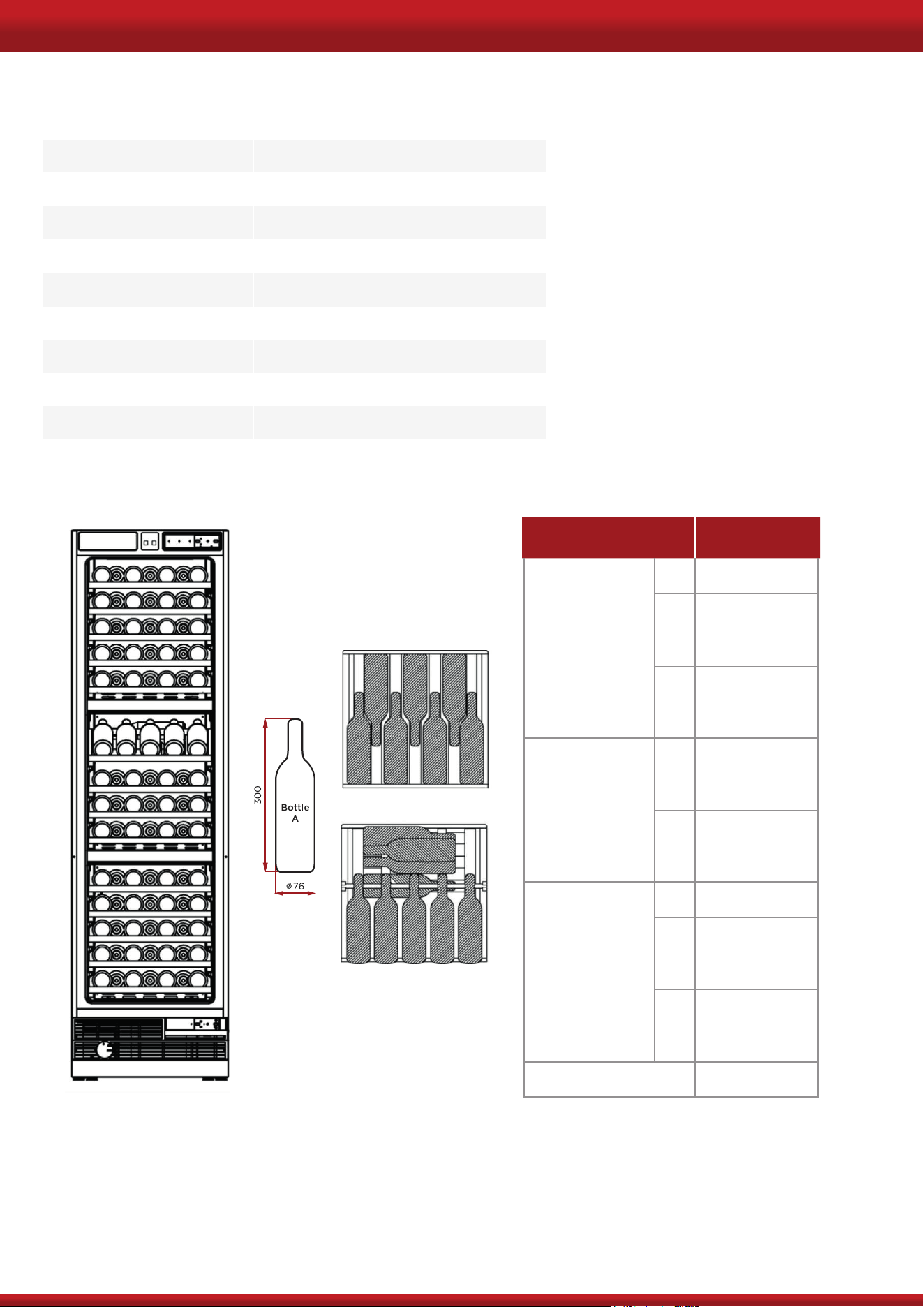

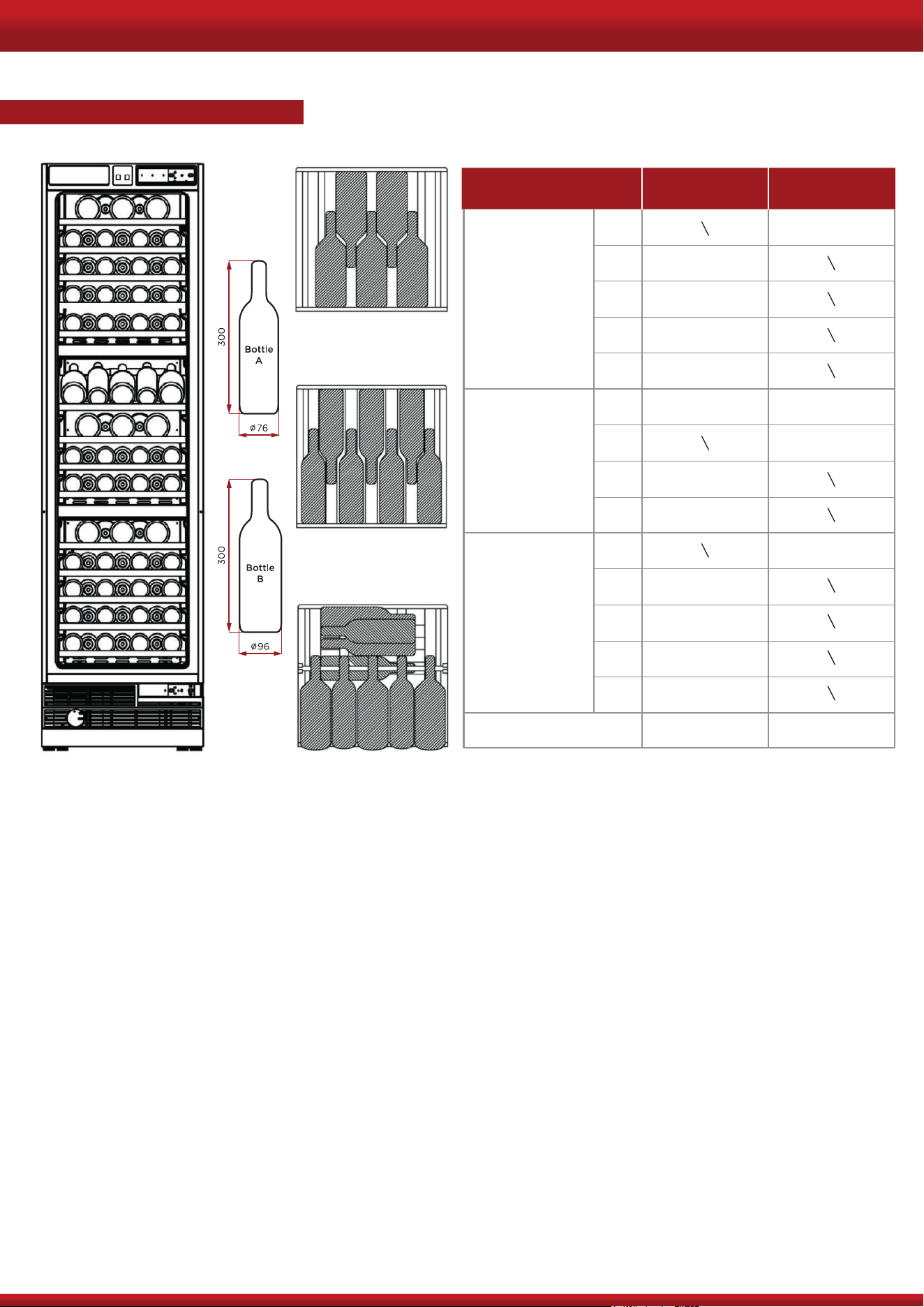

Internal Storage K180W
Load capacity
Upper zone
Bottle storage
(Bottle A)
1
2
3
4
5
1
2
3
4
5
5
5
5
5
3
5
5
5
Middle zone
1
2
3
4
5
5
5
5
5
5
Lower zone
Total 68
10
INTERNAL STORAGE K180W
Load capacity
Upper zone
Middle zone
1
2
3
4
5
1
2
3
4
1
2
3
4
5
Lower zone
Total
Bottle storage
(Bottle A)
5
5
5
5
5
5
5
5
5
5
50
Bottle storage
(Bottle B)
3
3
3
3
12
11
*Storage capacity is based on standard 12oz. cans and 750ml. Bordeaux-style wine bottles.
Description of product Wine cooler
Model K240W
Voltage/Frequency AC 115/ 50&60Hz
Amperage 1.5A
Color White or Grey
Storage capacity* 100 & 94 Bottles
Refrigerant R600a
Temperature range 41°F - 68°F
Dimensions (HxWxD) 83
9/16
x 23
3/4
x 23
1/2
(2123x603x597mm)

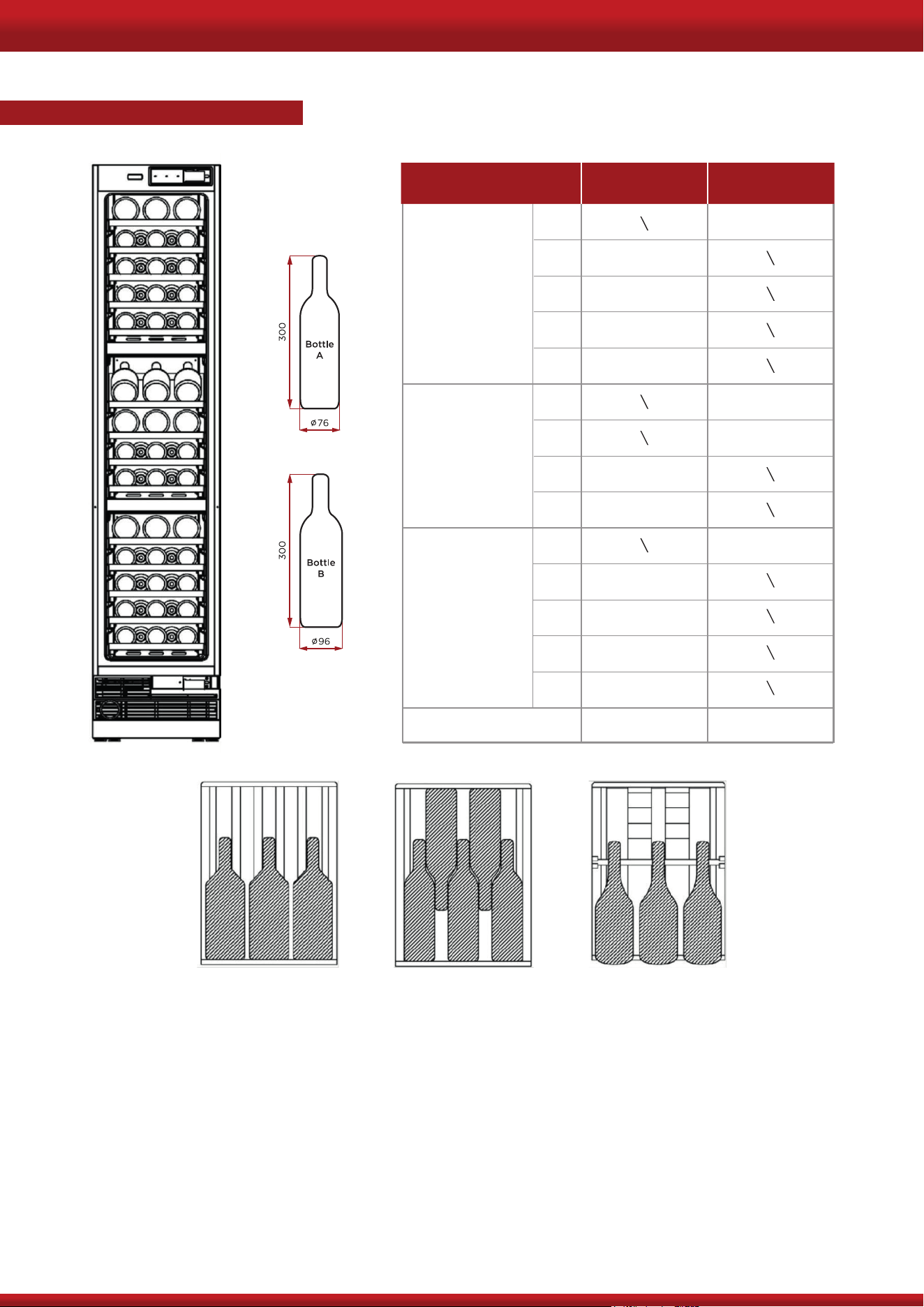

Internal Storage K240W
Load capacity
Upper zone
Bottle storage
(Bottle A)
1
2
3
4
5
1
2
3
4
7
7
7
7
7
9
7
7
7
Middle zone
1
2
3
4
5
7
7
7
7
7
Lower zone
Total 100
12
INTERNAL STORAGE K240W
Load capacity
Upper zone
Middle zone
1
2
3
4
5
1
2
3
4
1
2
3
4
5
Lower zone
Total
Bottle storage
(Bottle A)
7
7
7
7
7
6
7
7
7
7
7
76
Bottle storage
(Bottle B)
5
3
5
5
18
13
K240W

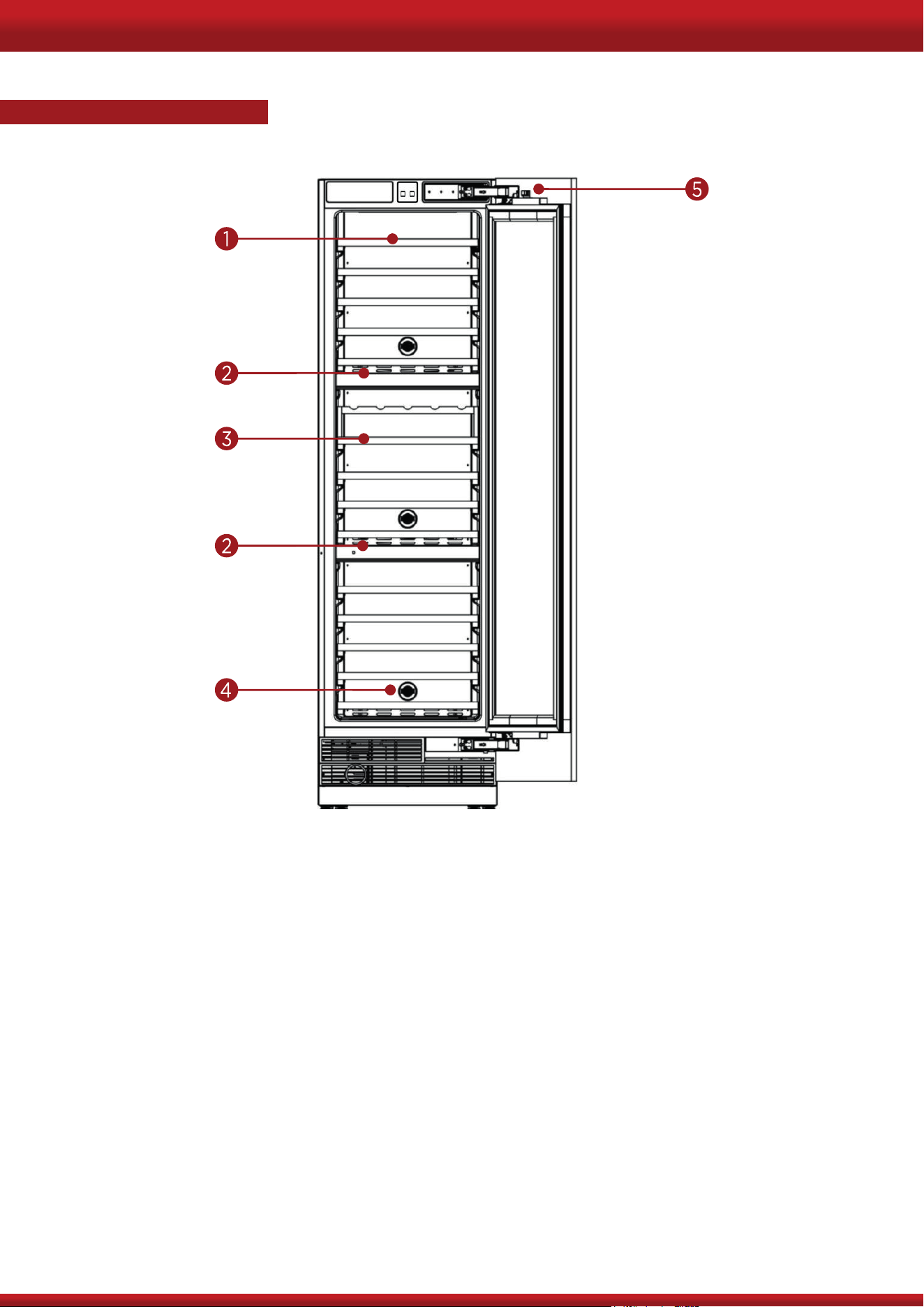

PARTS IDENTIFICATION
1. Wine Shelf A
2. Control Panel & Compartment Wall
3. Wine Shelf B
4. Carbon filter
5. Electromagnetic Switch
14

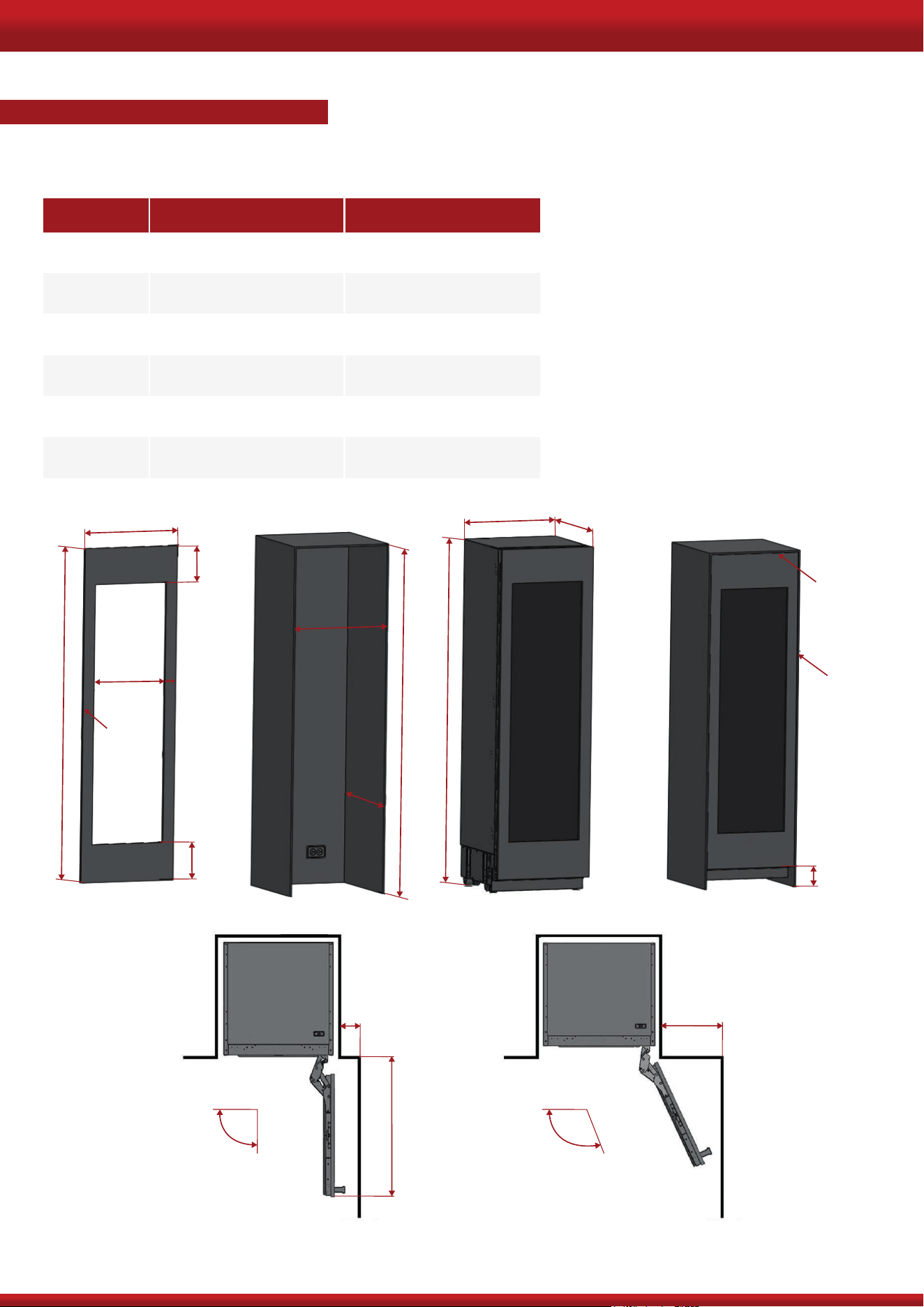

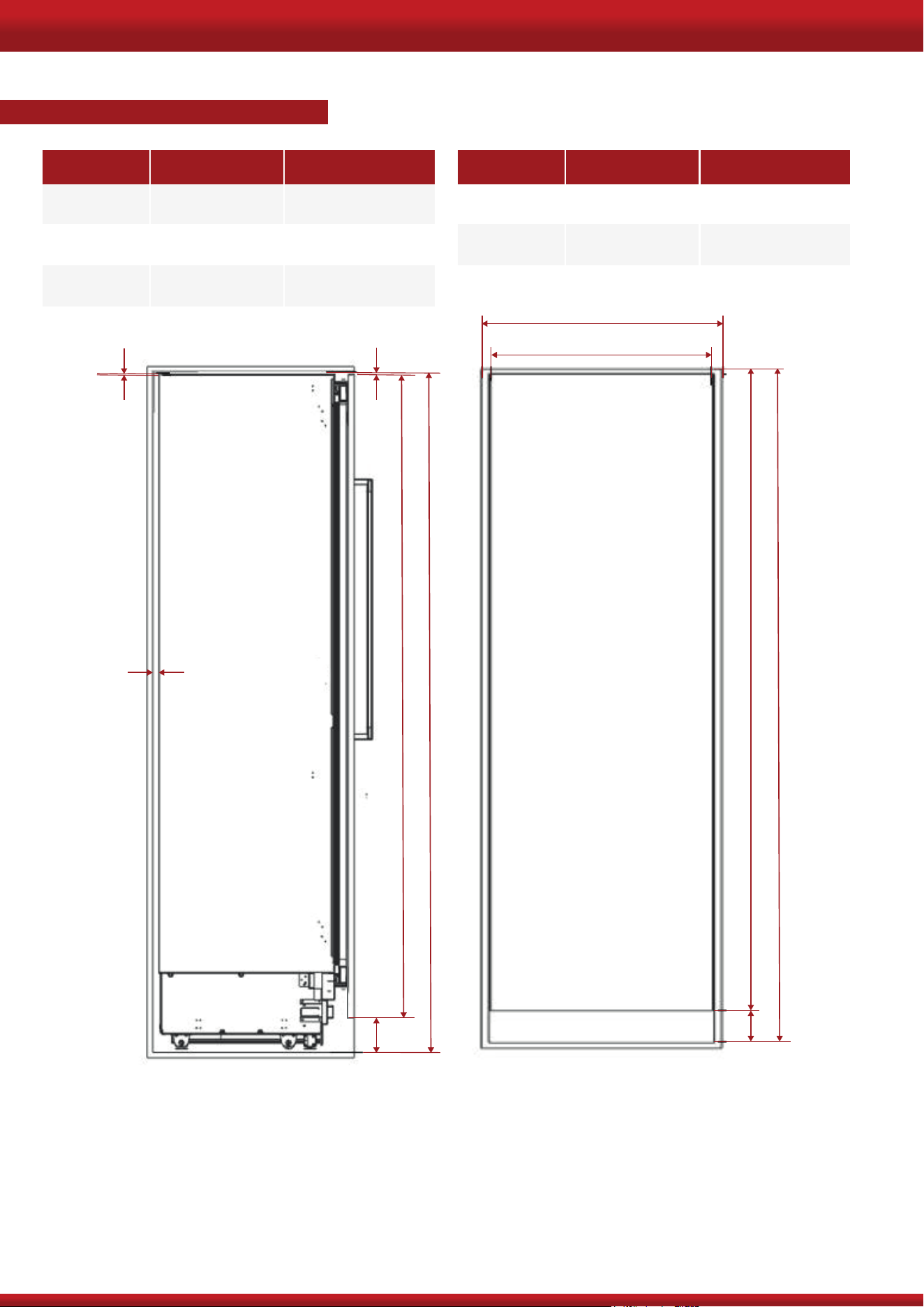

Wood panel cutout dimension and installation clearance
Installation dimensions
INSTALLATION INSTRUCTIONS
F
E
20’’ (508mm) 26’’ (660mm)
11’’ (280mm) 14’’ (356mm)
D
C
B
A
17
3/4
’’ (451mm)
K180W
23
3/4
’’ (603mm)
12
1/4
’’ (311mm) 18
1/4
’’ (463mm)
18’’ (457mm) 24’’ (609mm)
17
3/4
’’ (451mm) 23
3/4
’’ (603mm)
K240W
D
C
A
79
15/16
’’ (2030mm)
84’’ (2134mm)
83
9/16
’’ (2123mm)
4’’ (101mm)
9
1/16
’’ (230mm)
9
1/16
’’ (230mm)
3/4’’ (19mm)
2
3/4
’’ (70mm)
Gap: 1/8’’ (3mm)
Gap: 1/8’’ (3mm)
Without panel: 23
1/2
’’ (597mm)
With panel: 24
1/4
’’ (616mm)
25’’ (635mm)
B
E
F
WallWall
4 3/8’’ (110mm)
90° Door Swing 115° Door Swing
15
INSTALLATION INSTRUCTIONS
Maximum
Minimum
Standard
4’’ (101mm)
A
3
3/4
’’ (95mm)
5
5/16
’’ (135mm)
84’’ (2134mm)
83
3/4
’’ (2127mm)
85
5/16
’’ (2167mm)
B
D
C
18’’ (457mm)
K180W
17
3/4
’’ (451mm)
24’’ (609mm)
23
3/4
’’ (603mm)
K240W
79
15/16
’’ (2030mm)
B
C
D
A
79
15/16
’’ (2030mm)
84’’ (2134mm)
1/8
’’ (3mm)
1/16
’’ (2mm)
4’’ (101mm)
3/4
’’ (19mm)
Remaining space
after install
16

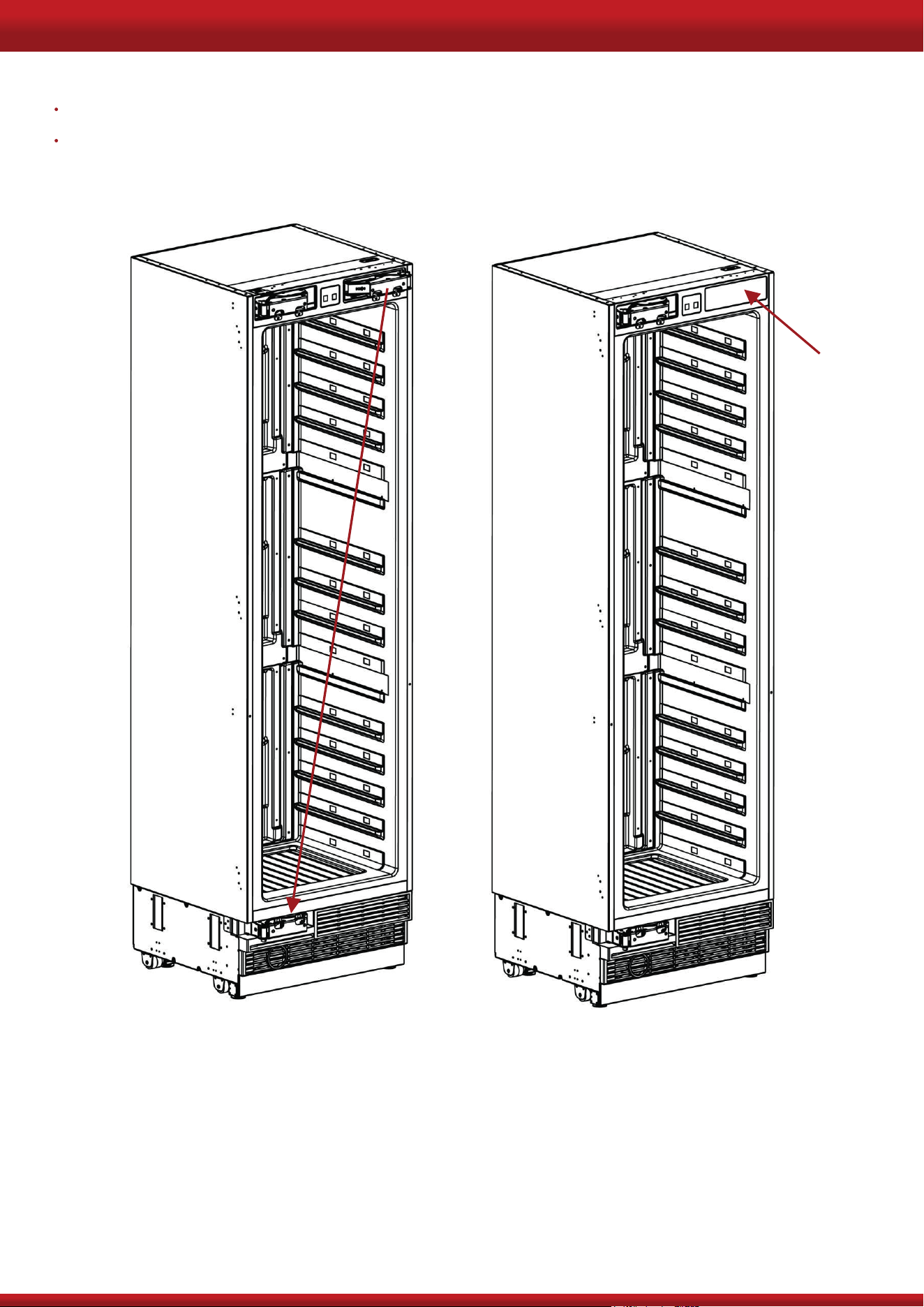

Anti tip brackets location

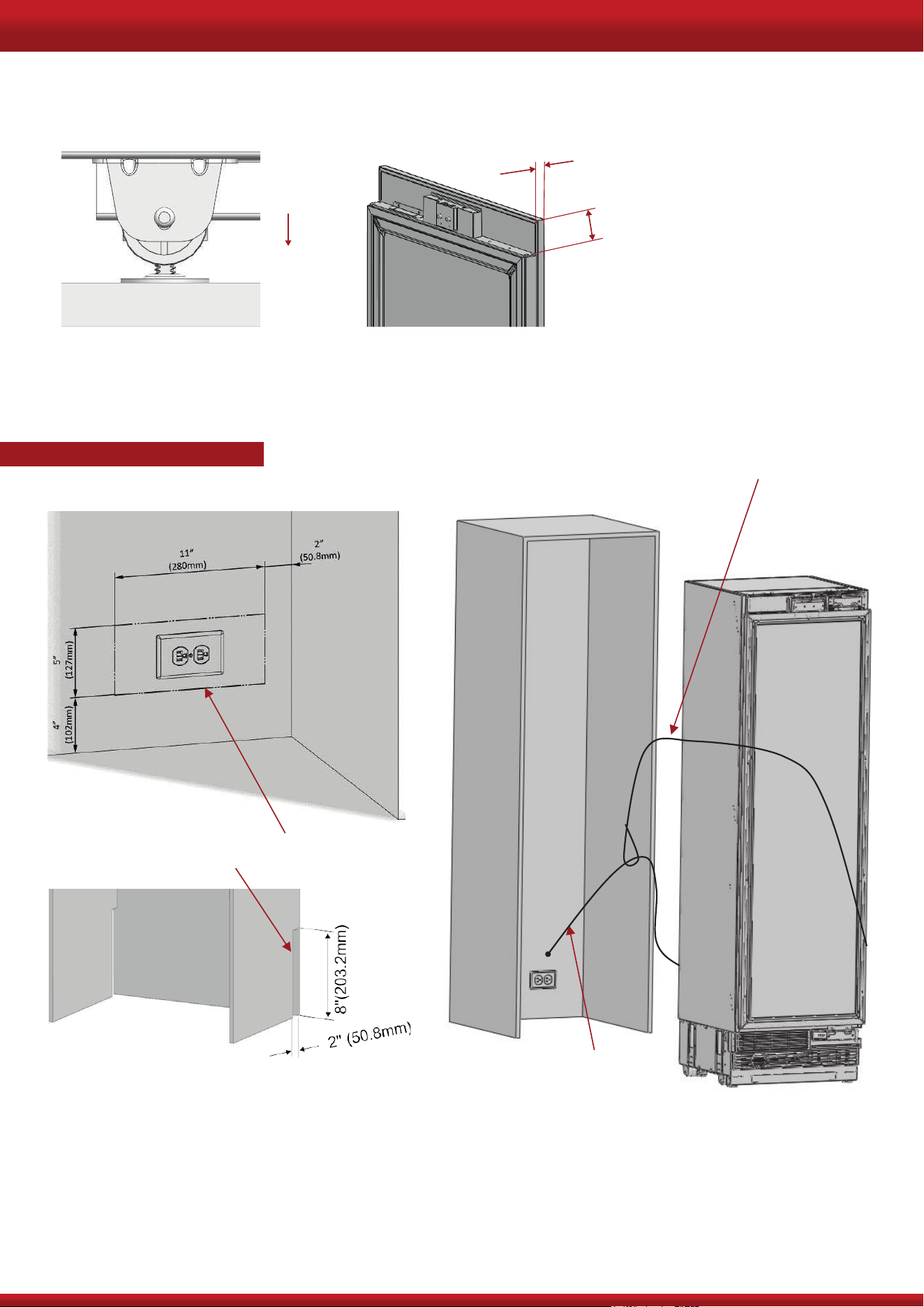

Power cord installation
Use nylon string to prevent the cable from getting jammed.
ELECTRICAL LOCATION
Minimum height
adjustment for leveling
5/16
’’ (8mm)
Assembly dimension
between wood panel
and fridge door
3
3/8
’’ (82mm)
3/4
’’ (19mm)
Nylon string
Cable
location
Power cord
Keep for power cord
17

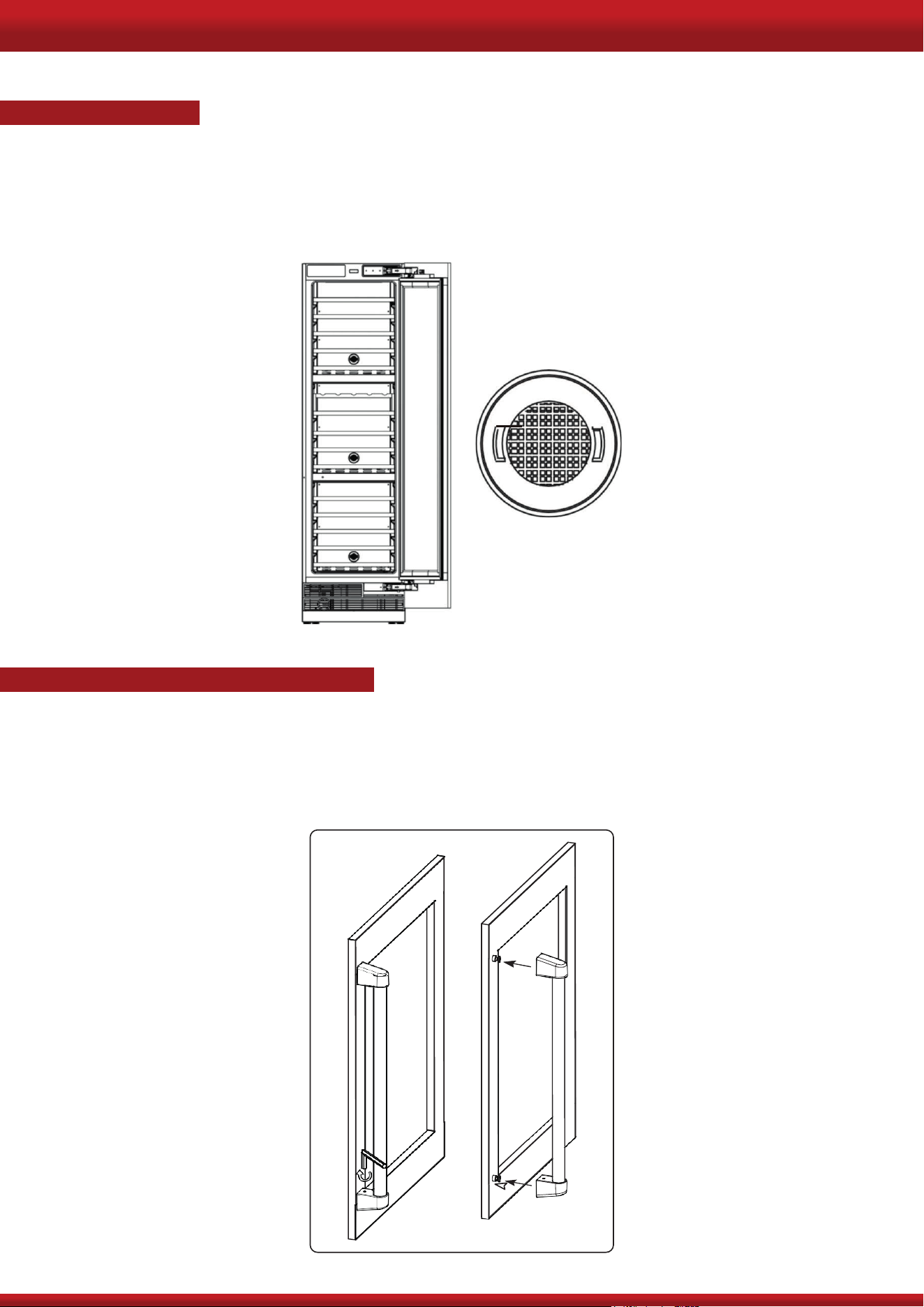

A built-in carbon filter protects your beverages by acting as a natural barrier against harmful odors.
The carbon filter should be replaced every 3-6 months depending on the unit’s exposure level to
odor. If the unit is placed in a kitchen, regular replacement every three months is ideal.
If a pro handle or different colored contemporary handles are desired, refer below for the handle
dimensions and part number.
Align the handle fixing holes with the holes on the wooden door, then install the handle with
a screwdriver.
1.
Remove the carbon filter by turning counterclockwise to unlock from rear panel.
CARBON FILTER
INSTALL THE HANDLE (If applicable)
ATTENTION
The clad door will be released when these screws are removed.
You must take measures to prevent the door from falling.
You can tape the Furniture Door to the Inner Door or ask for help from another person.
18

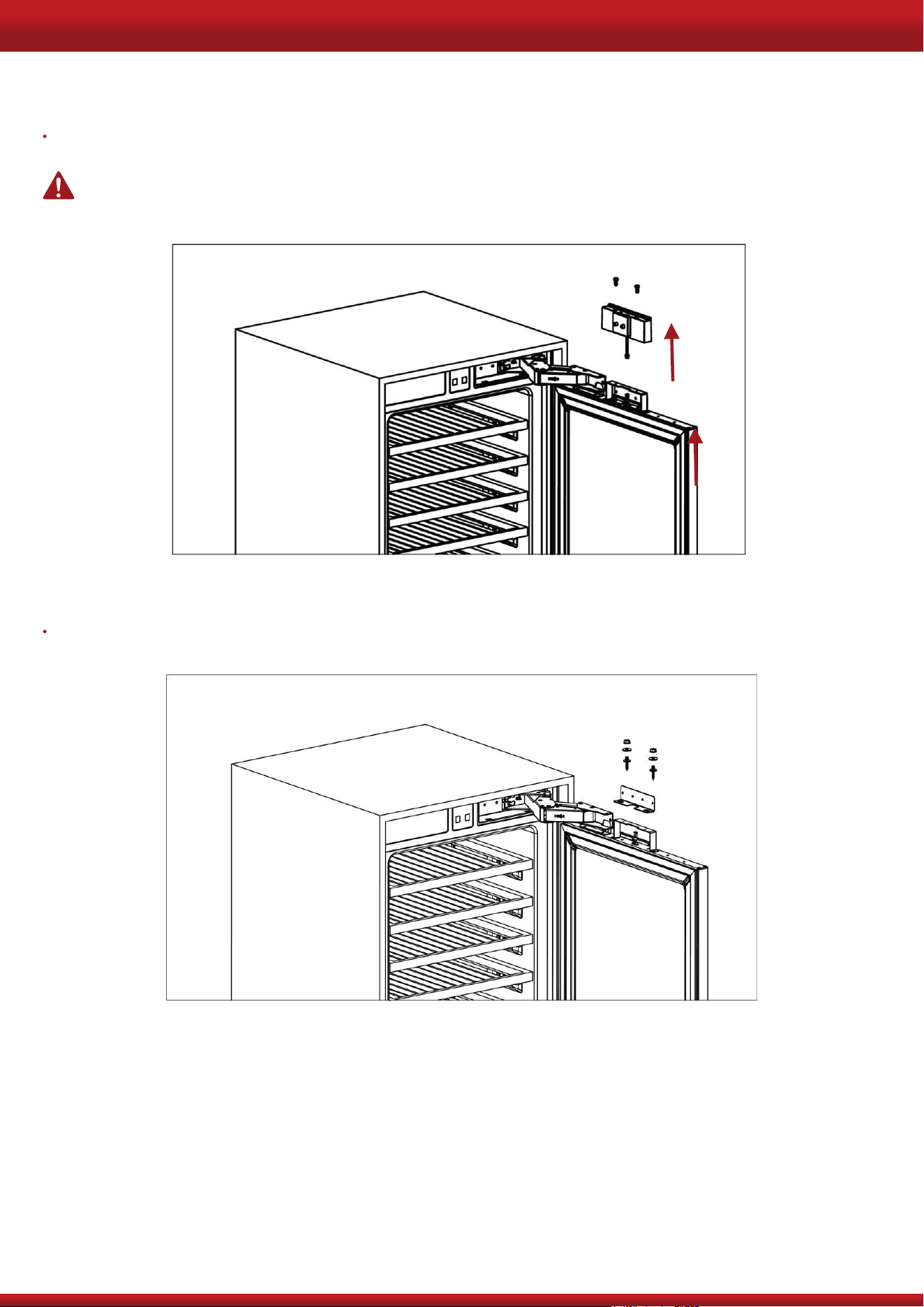

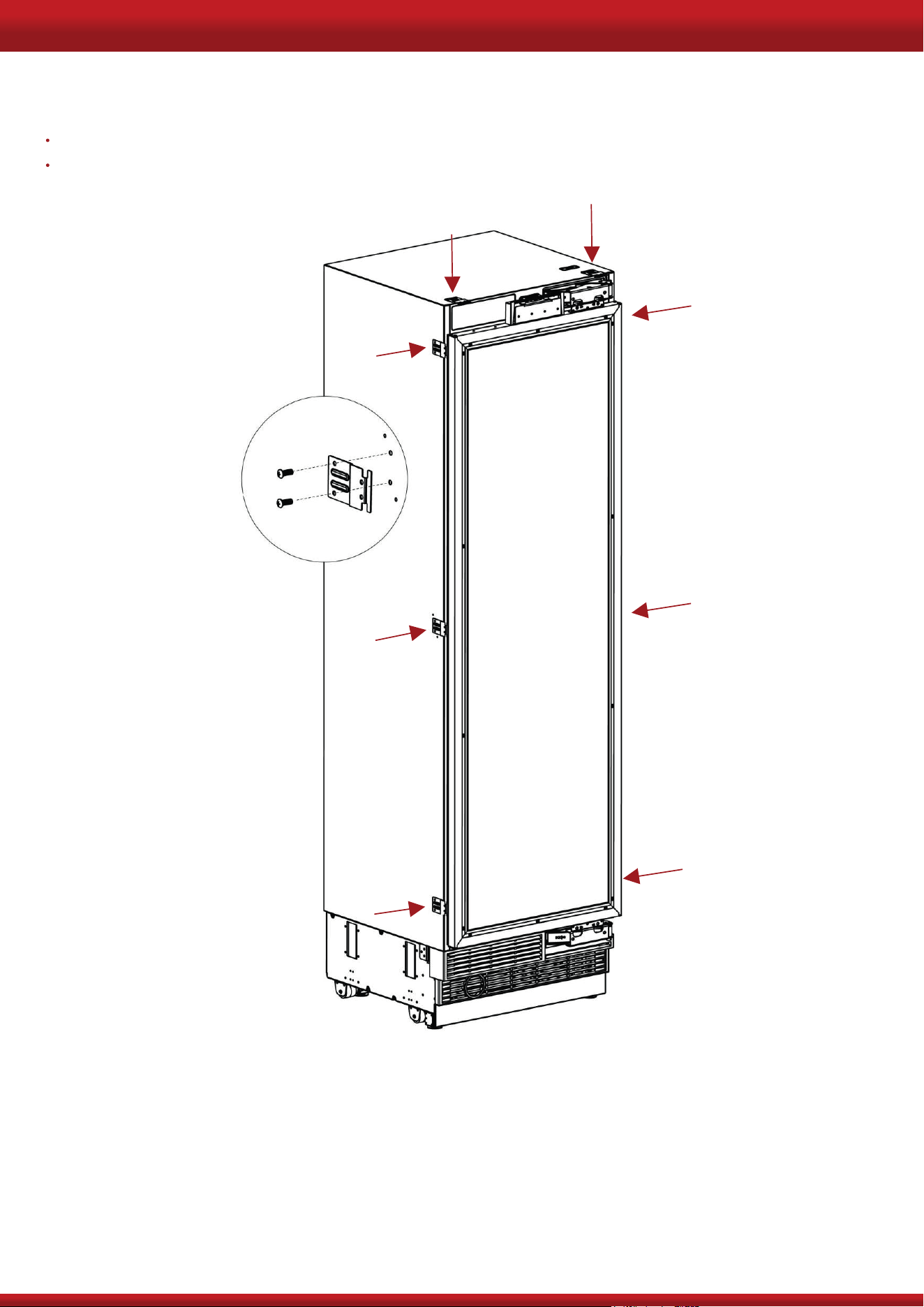

Remove the hinge connection screws of the Hinge Brackets.
Should you desire to reverse the opening direction of the door, please follow the instructions below.
Safely reversing the door swing of your appliance should require at least two people.
CHANGING THE DOOR OPENING DIRECTION
K240W
19

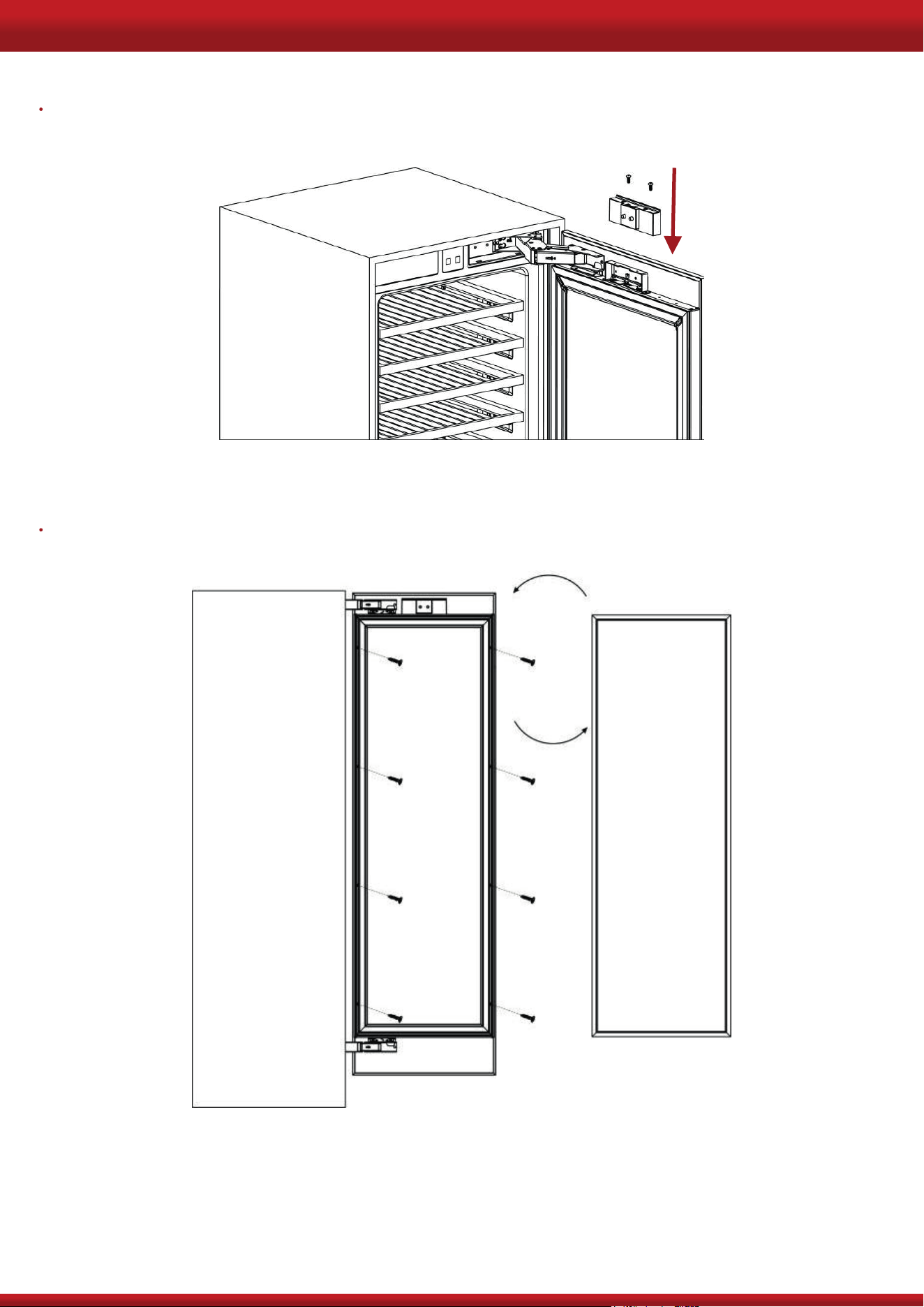

Take out door and lay it down on a table.
Remove the hinge brackets on the fridge door.
Take out the new hinge brackets from Accessories bag and screw it on the reverse side.
20
Remove the Hinge Caps located at the other side where you will fix the hinges.
Remove the lower right hinge by loosening its 2 screws and fix it to its slot at the upper left side.
21
Remove the air vent part and change direction as shown figure.
How to change air vent upper part direction
Air vent upper part for the right hinge
Air vent cover
Air vent hinge part right
Air vent upper part for the left hinge
Air vent hinge part left
Rotate air vent cover by 180°
22
Remove the upper right hinge by loosening its 2 screws and fix it to its slot at the lower left side.
Attach the Hinge Slot Caps removed from the left side to the Hinge Caps to the right side.
23
Place the door to the refrigerator and fix it with 4 screws.
24
At least two persons must carry the refrigerator.

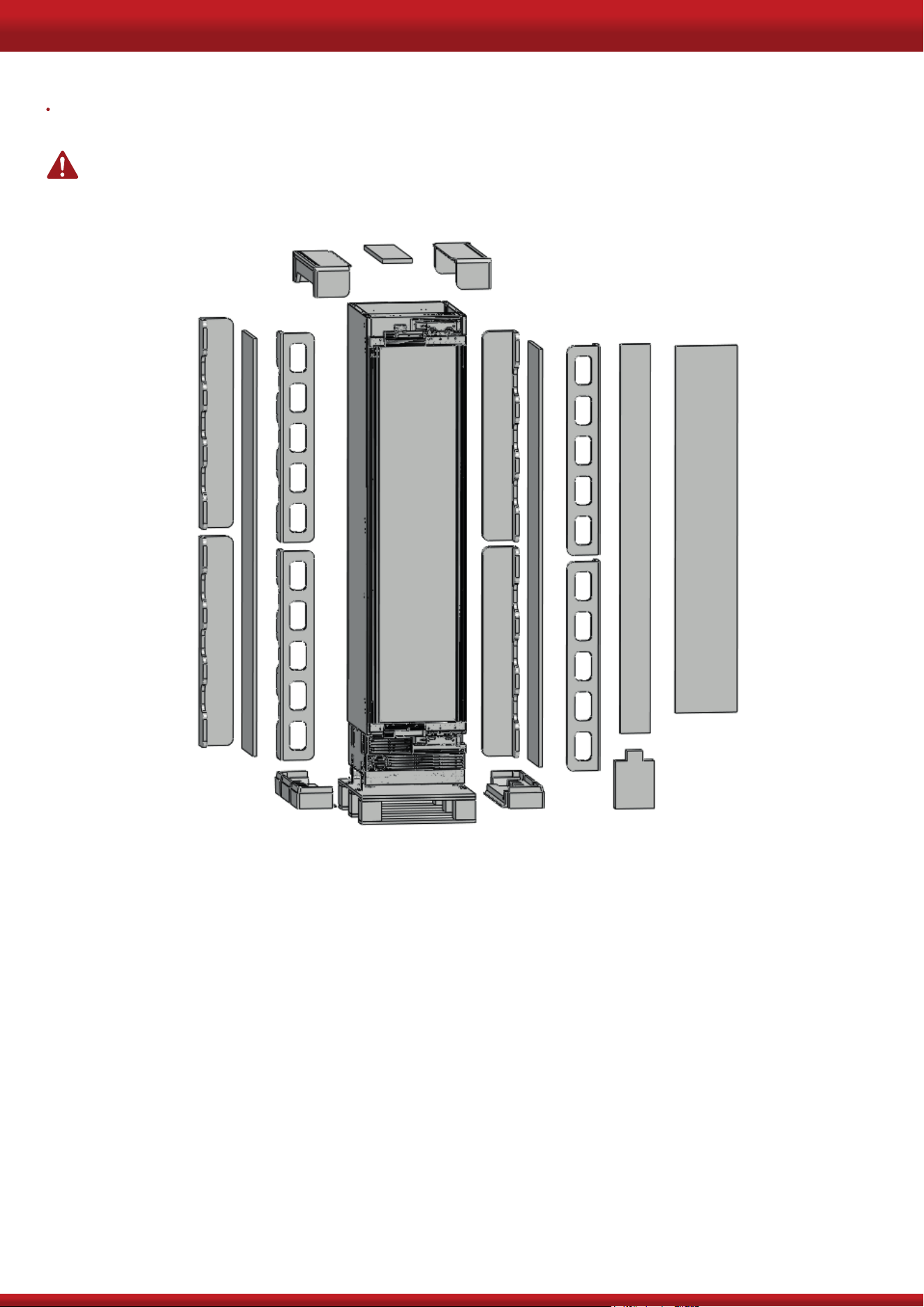

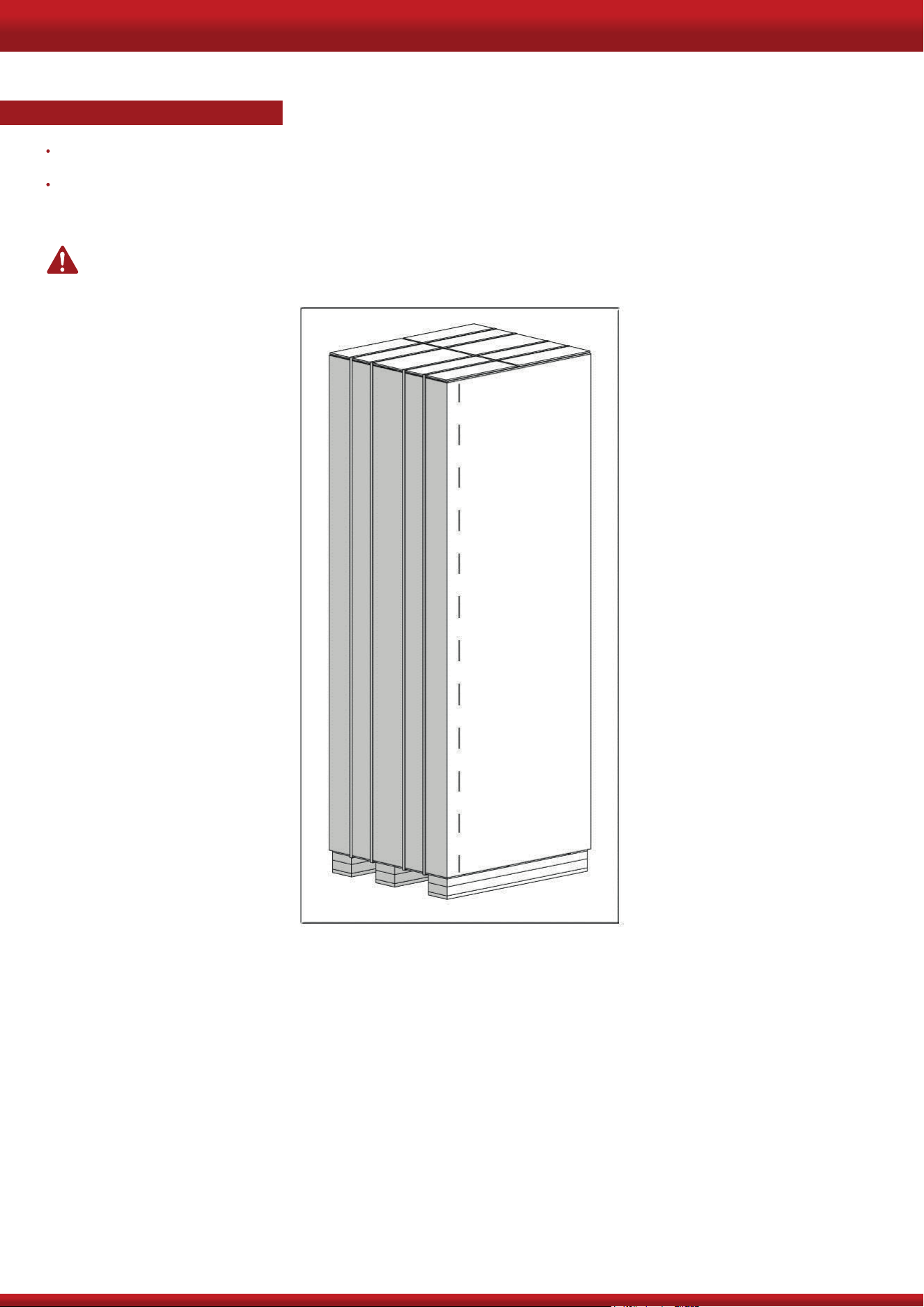

REMOVING THE PACKING
Use a box cutter to remove the tapes.
Cut the Packaging Board with a Box Cutter through the section illustrated in dotted lines and
remove it.
25
Do not remove the tape of the upper door on the product until the refrigerator is placed into
the cabin. Risk of tipping over.
Remove the Packaging Polystyrene material.
Taking the refrigerator from the wooden pallet
26
The risk of tipping over is high as of this point. You should not open the doors until the product is
placed into the cabin.

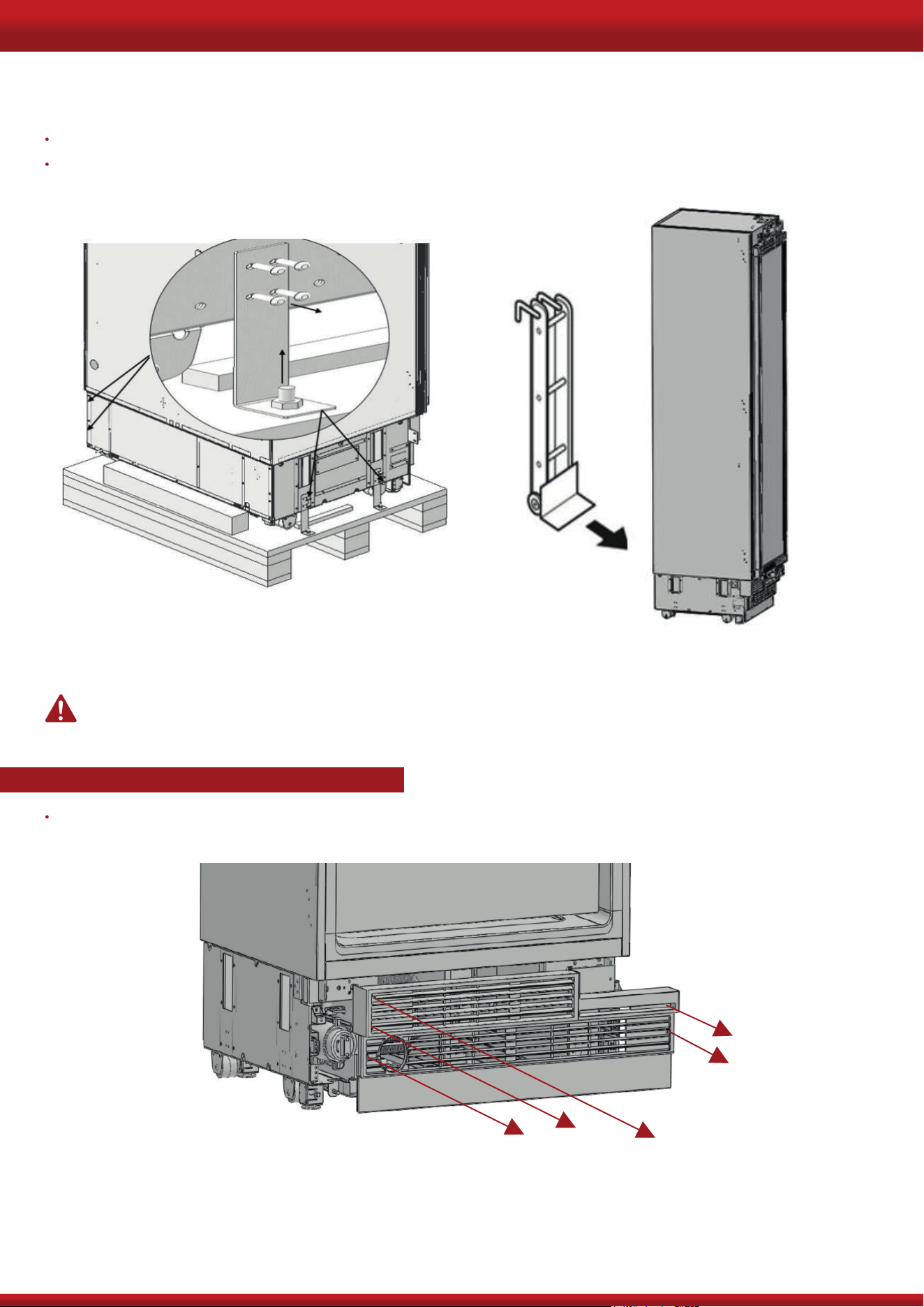

Remove the brackets that connect the refrigerator to the wooden pallet.

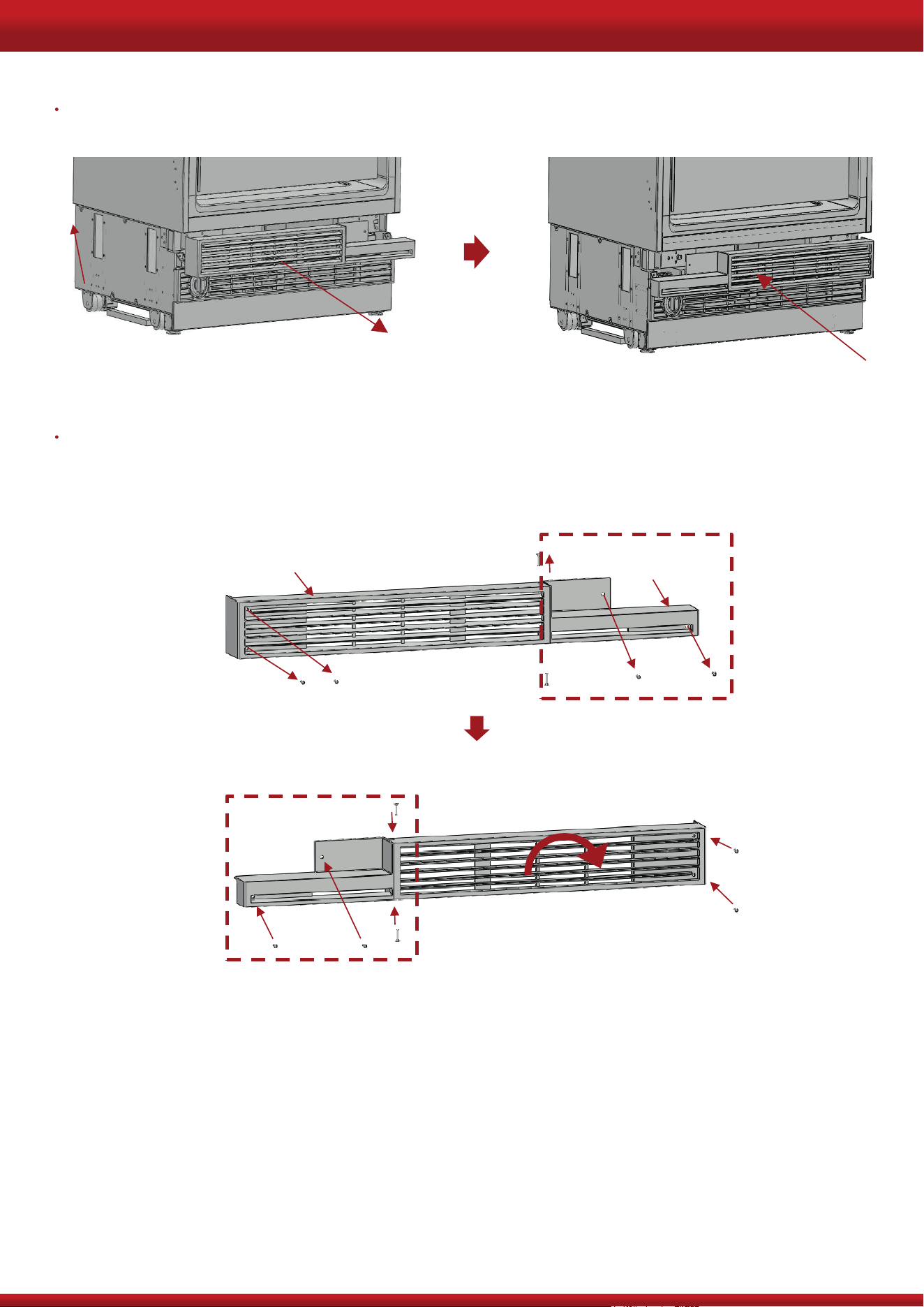

REMOVING THE VENT HOLE ASSEMBLY
Remove 5 screws to take out the Vent Hole Assembly.
Recline the wine cooler slowly and pull back with the help of the cart, and then land it.
27
Please remember to use the necessary protective
equipment when drilling holes on the wall and
perfoming installation.

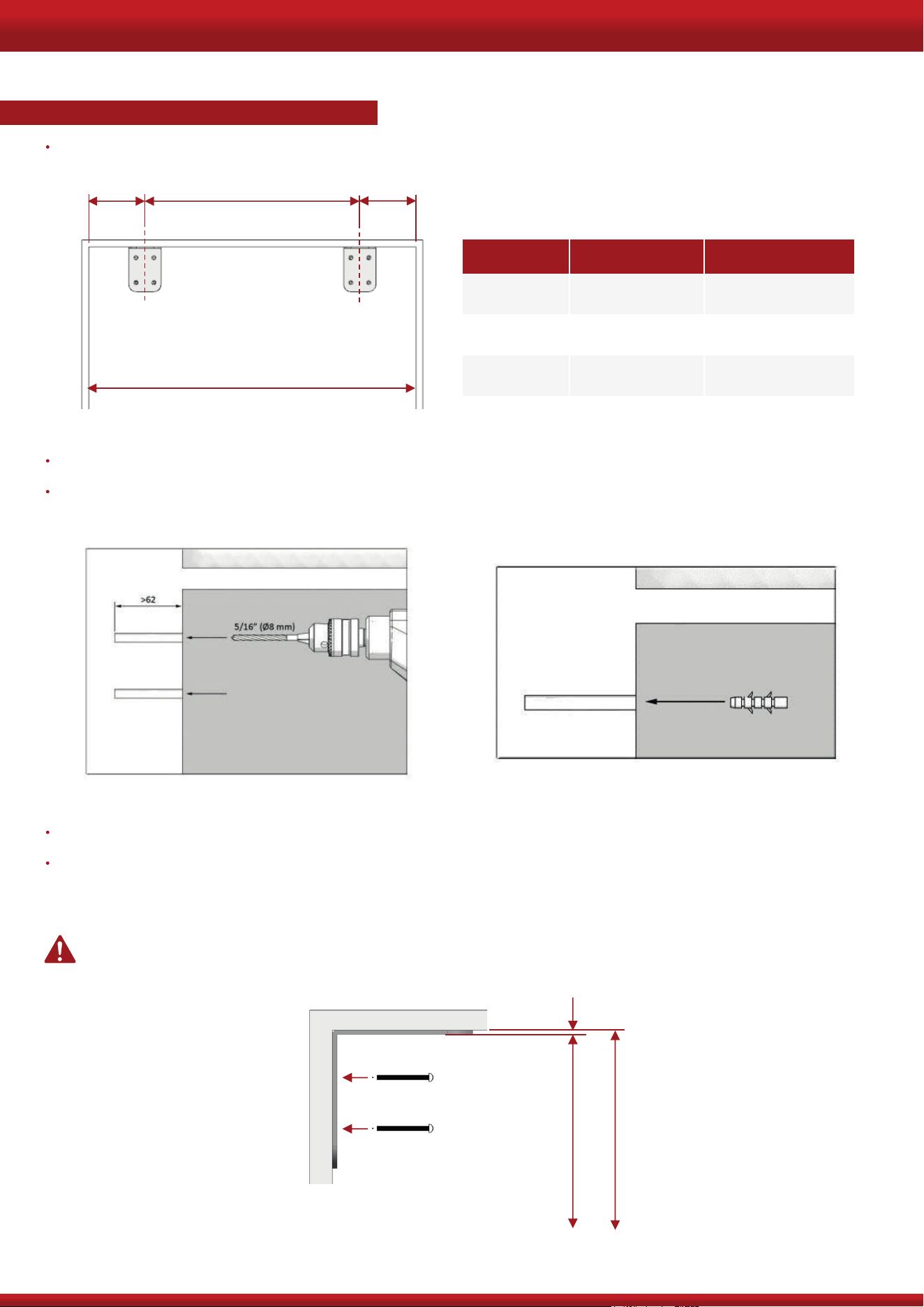

Mark the wall for anti-tip brackets.
Use a drill to create holes for dowels at the market points. (5/16’’ - Ø8).
Use the hammer to fit the dowels.
Fit the brackets into their places, using 4 screws for each.
You must use all of the 2 brackets to ensure safety of the product.
MOUNTING THE ANTI-TIP BRACKETS
Anti-tip brackets on the wall
A
BC C
C
B
A
18’’ (457mm)
K180WCategory
11
5/8
’’ (295mm)
3
3/16
’’ (81mm)
24’’ (609mm)
17
5/8
’’ (447mm)
3
3/16
’’ (81mm)
K240W
83 27/32’’ (2130mm)
84’’ (2134mm)
5/32’’ (4mm)
Thicknees
28
Screwing the side and upper brackets
Fix the bracket furniture to the unit, where 2 on the top, and 3 on every side.
Use the truss washer head screws (M4*12) to tighten.
29

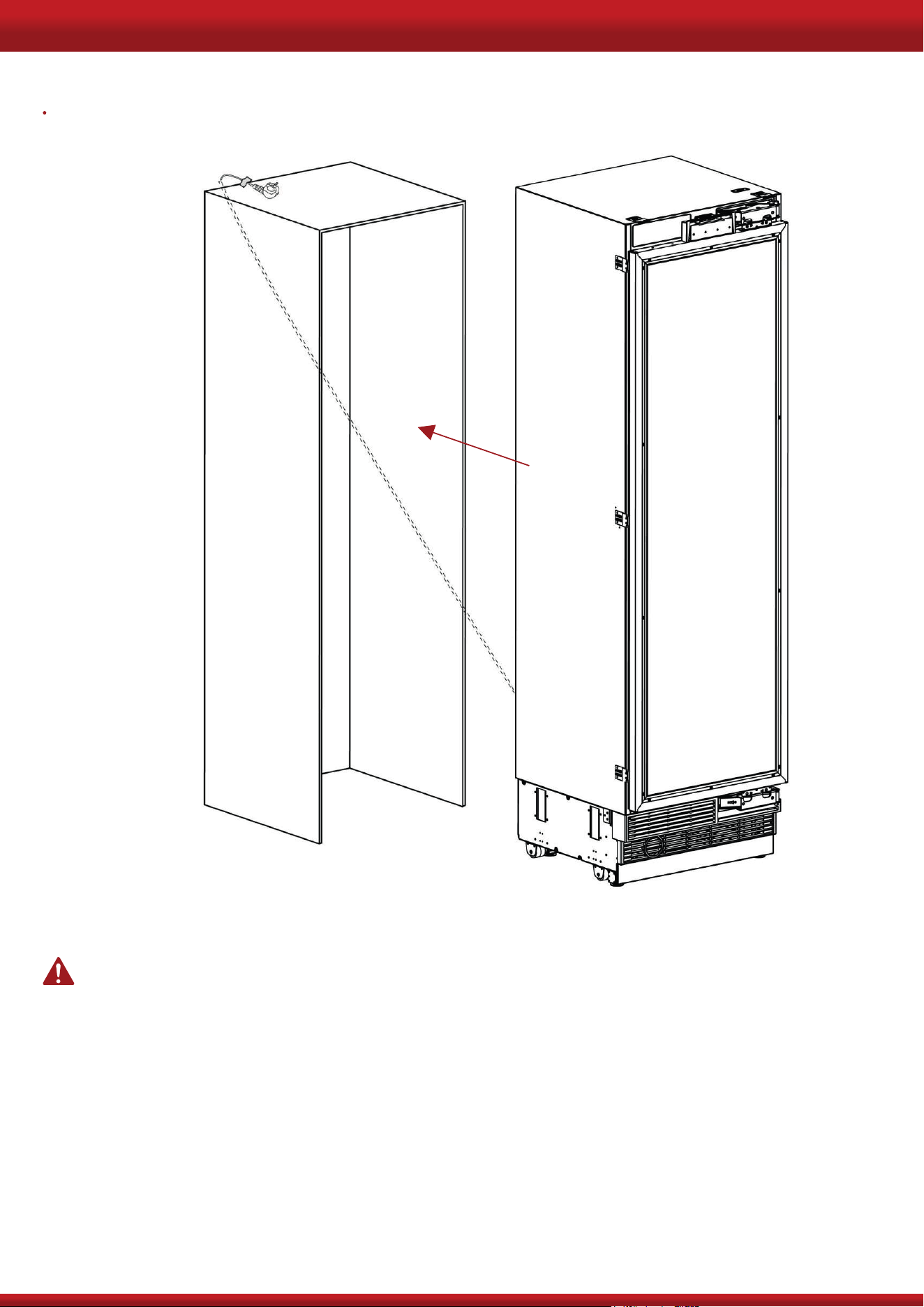

Push the product carefully towards the cabin to place it.
The plug of the product must be accesible after installation.
30

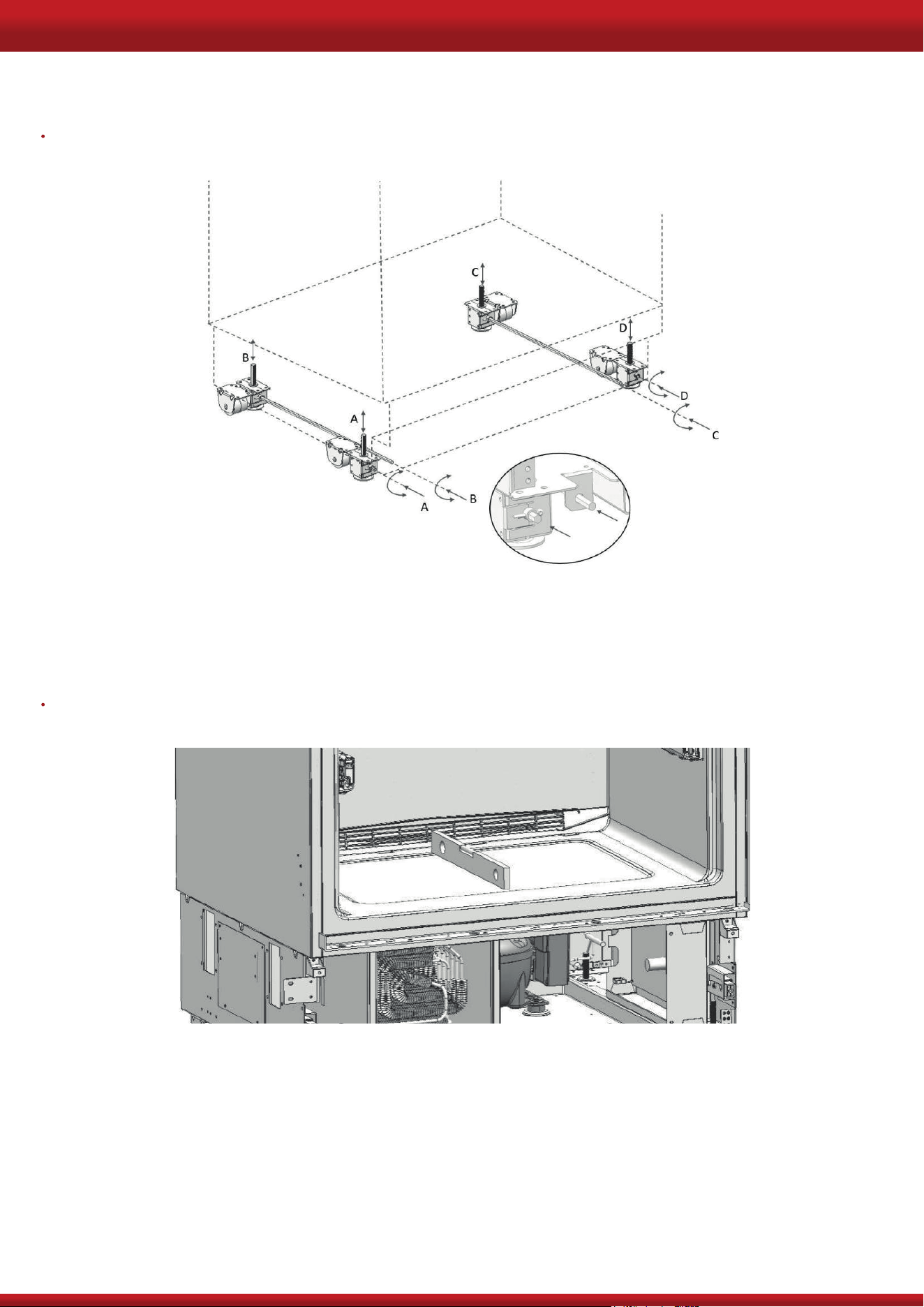

First of all, raise the front feet to reduce the risk of the cabin falling frontward.
A/D –Turn the key clockwise to lift the front
B/C – Turn the key clockwise to lift the rear
Adjusting the height of the wine cooler in the cabin
Adjust the wine cooler height using the adjustable feet.
After adjusting the adjustable feet, check the flatness in both width and depth directions.
31

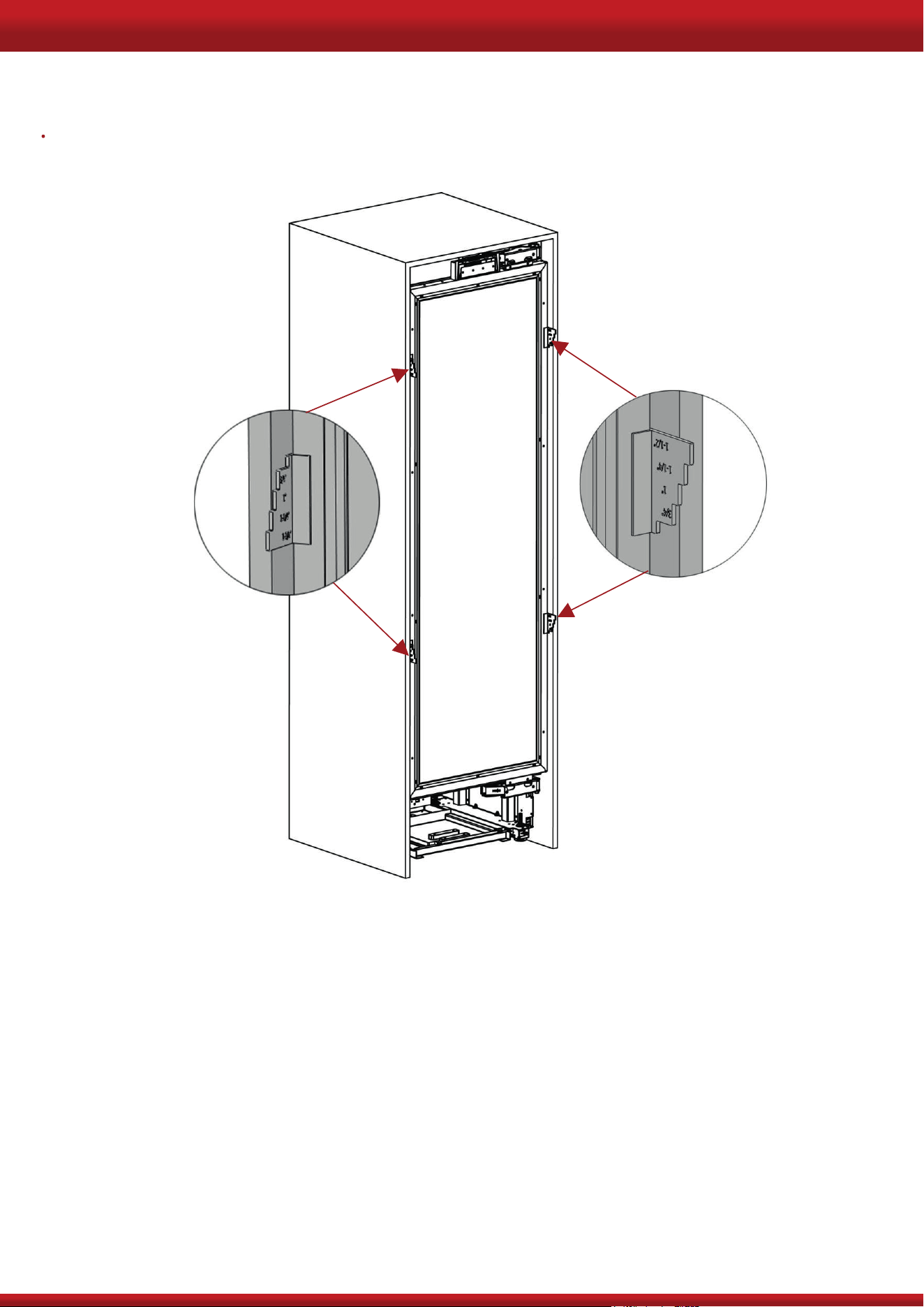

Adjusting the refrigerator according to the cabin flange
Position of the level adjustment must be adjusted according to the thickness of the door.
32

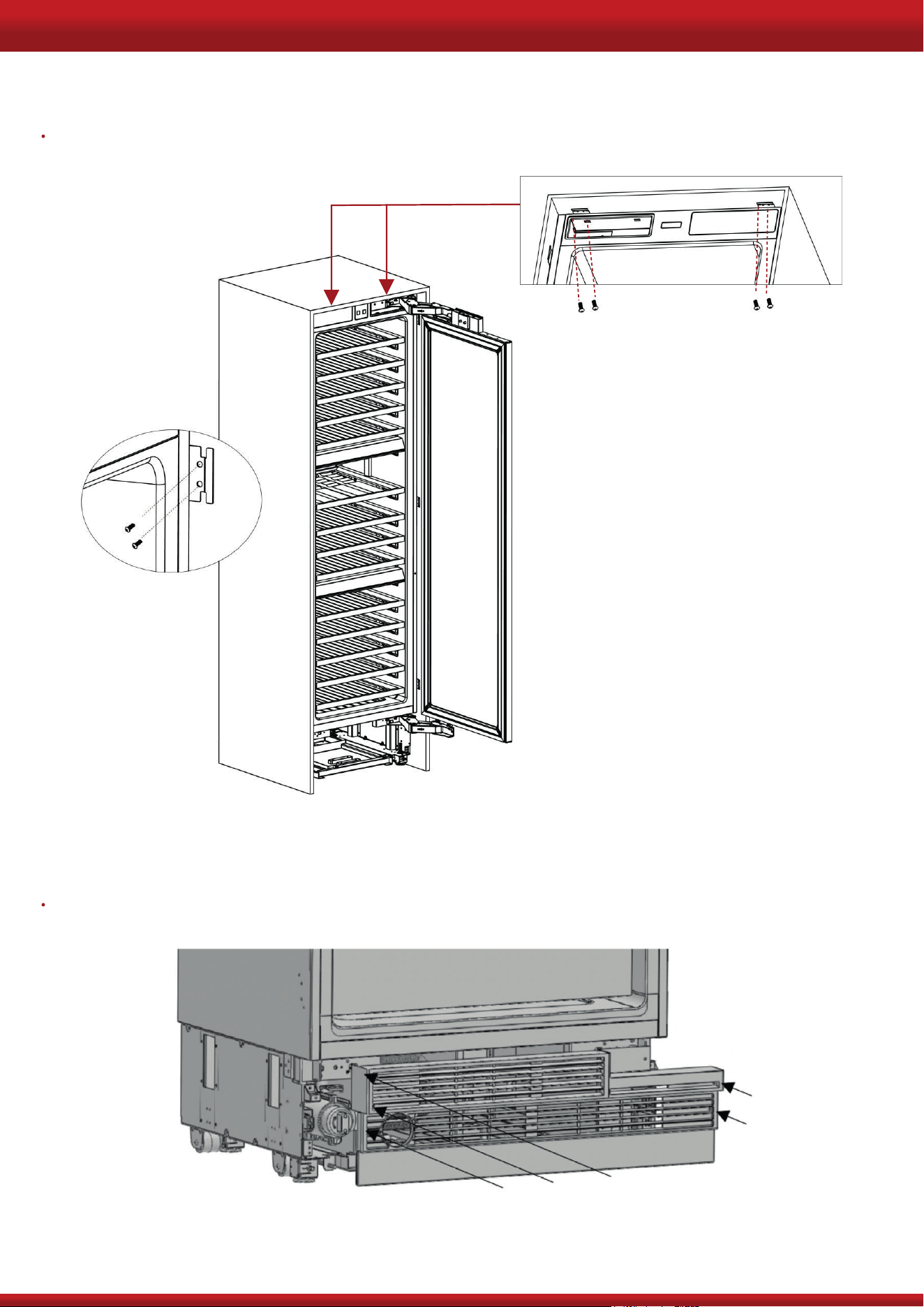

Screwing the side and upper brackets
Attach the bracket furniture to the furniture with 16 screws (M4x14).
Attaching the vent hole assembly
Use 5 screws to attach the vent hole assembly.
33
Attaching the decorative parts

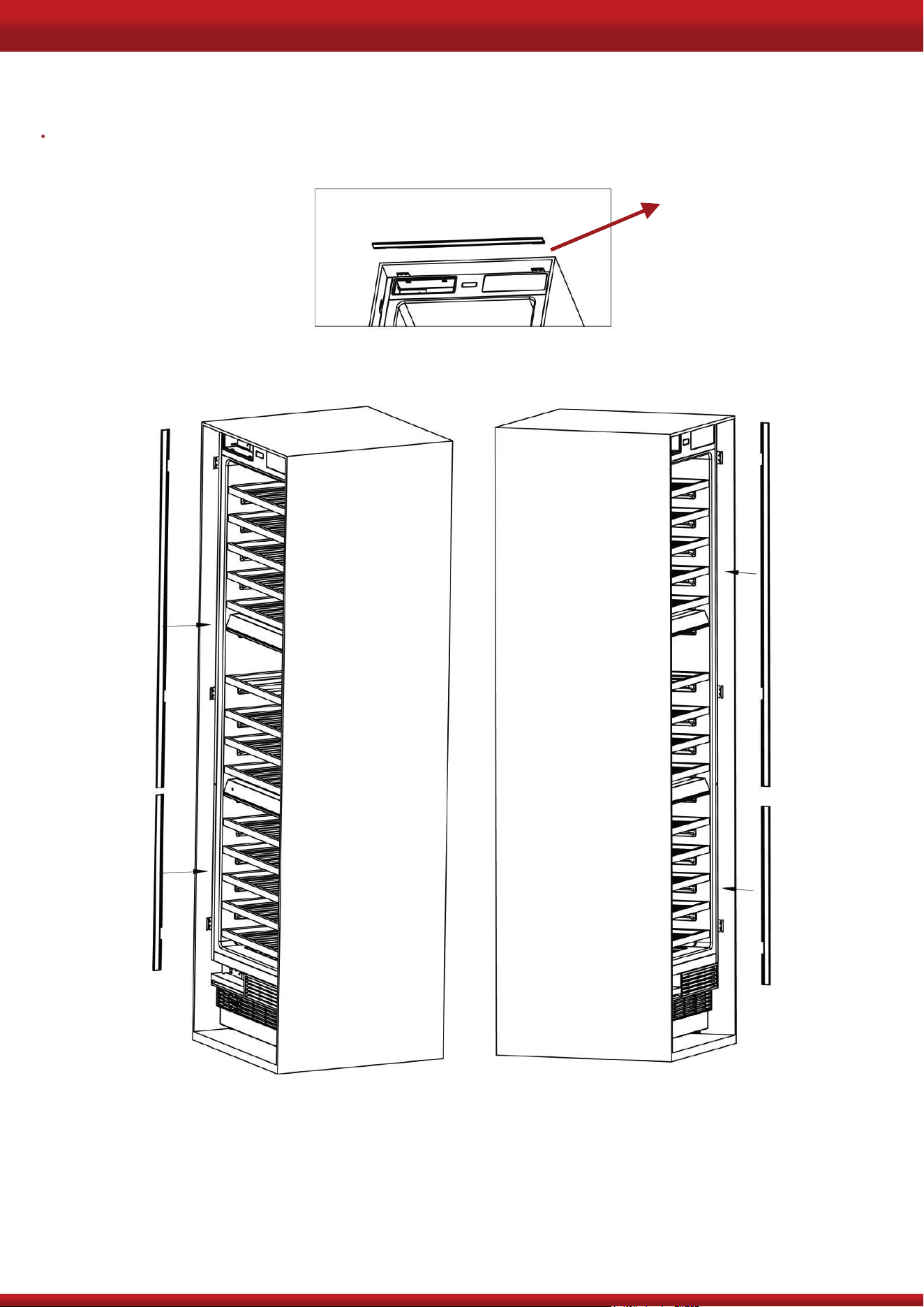

Attach the side closing parts onto the right/left/upper connection brackets.
K180W: 18’’ / 457mm
K240W: 24’’ / 609mm
85’’
2159mm
85’’
2159mm
24.3’’
617mm
24.3’’
617mm
34
There is a magnet on the top hanger bracket cover. This is a functional part for the
operation of the product. It should not be confused with the low hanger bracket cover.

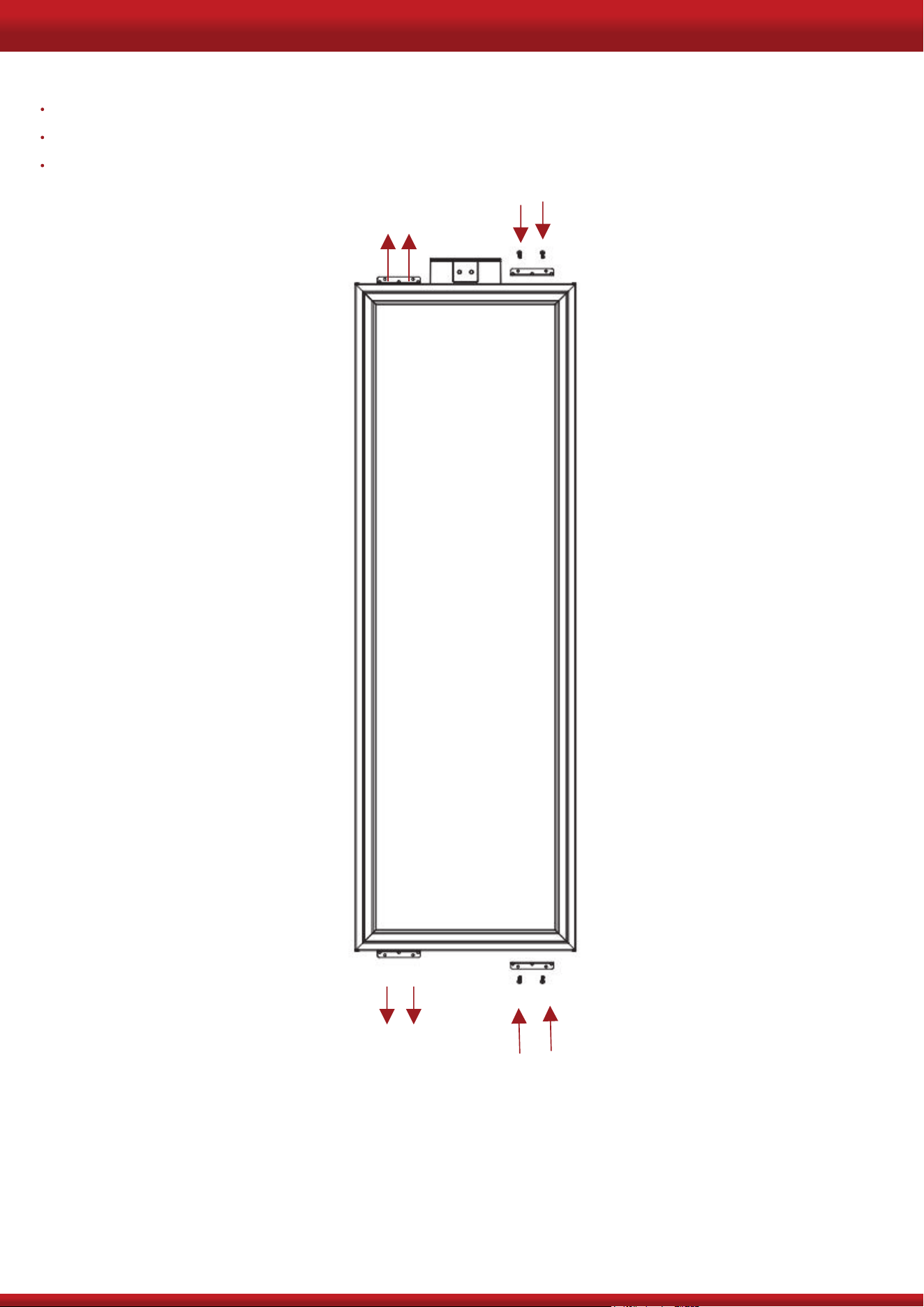

Removing the panel-adjustment mechanisms on the refrigerator

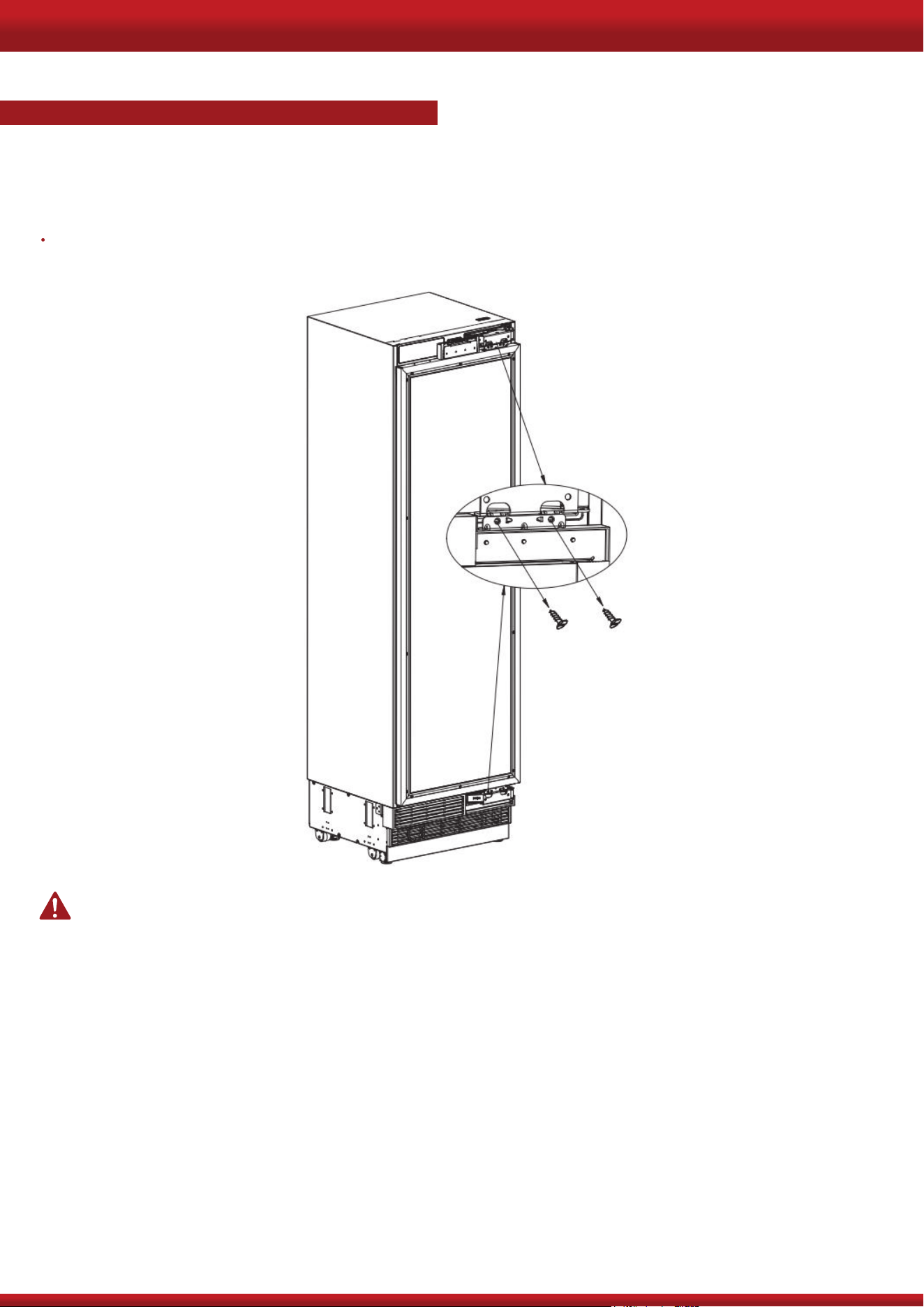

Remove screws to take out the top hanger bracket cover.

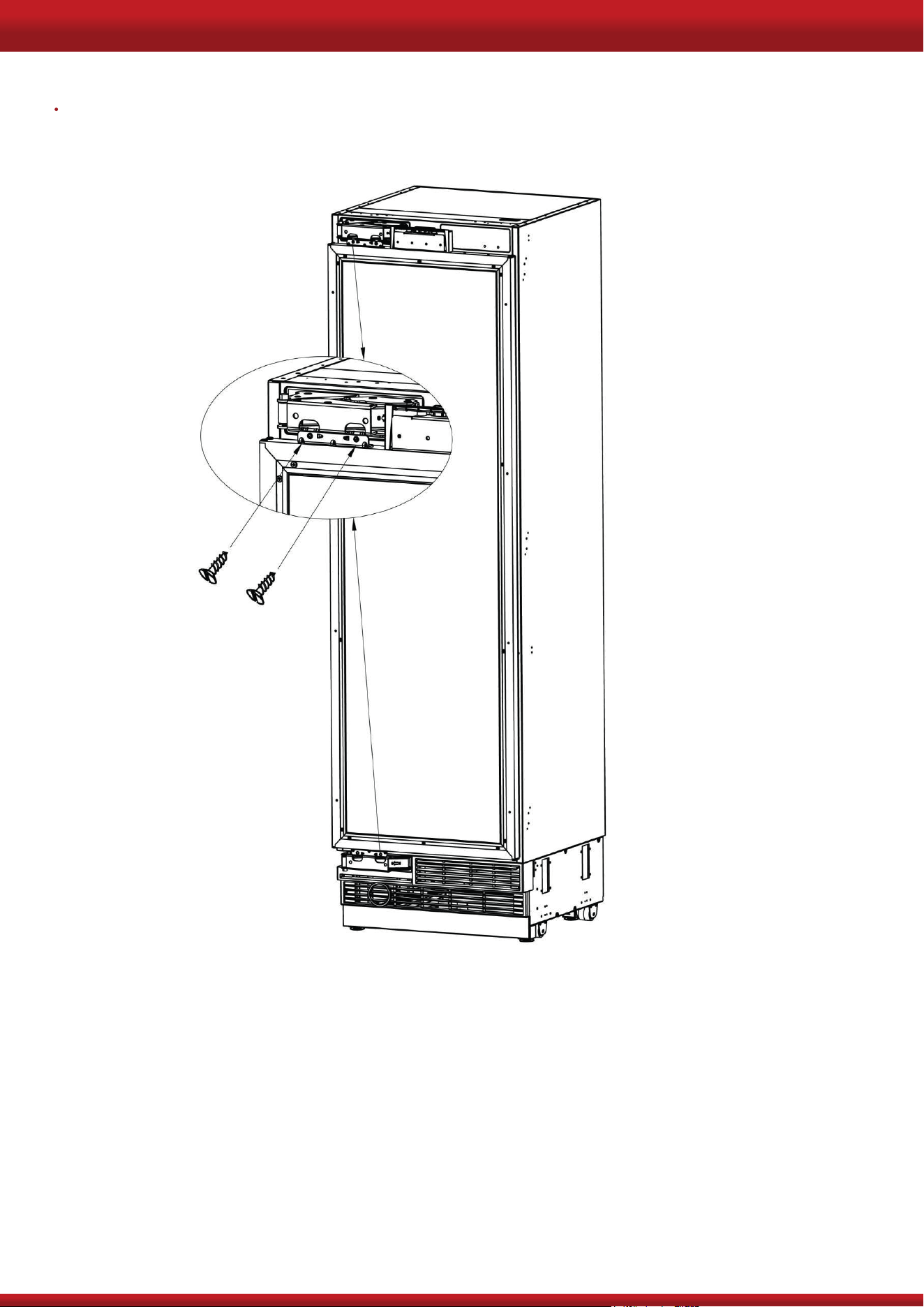

Remove the upper and lower adjusting mechanism assemblies from the door.
35

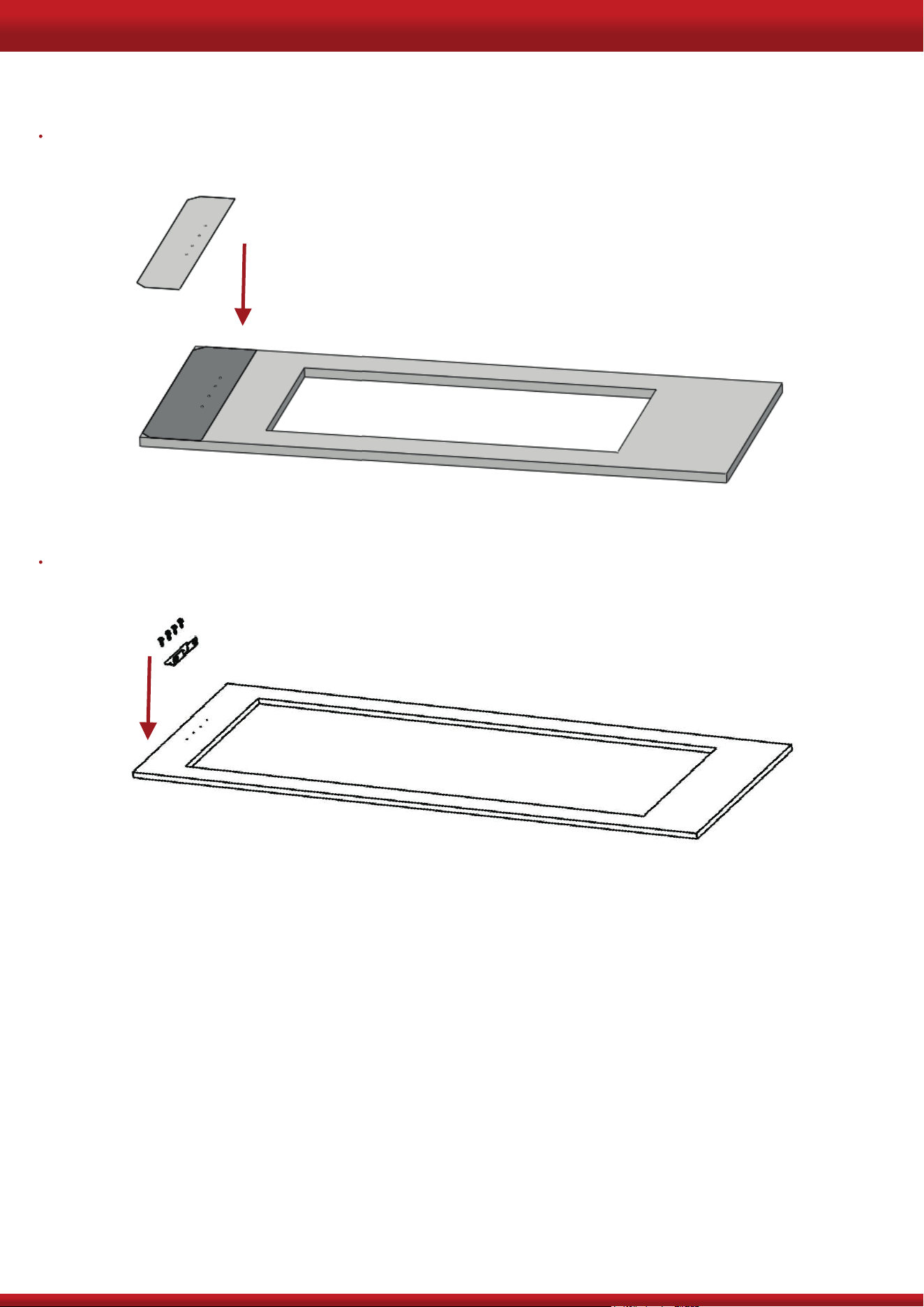

Preparing furniture door
When marking, you can use the "Furniture door preparation template" provided with the product.
Install cradles using the chipboard screws.
36
Installing the furniture door
Use 2 screws to fix.
Attach the furniture door to the door
37

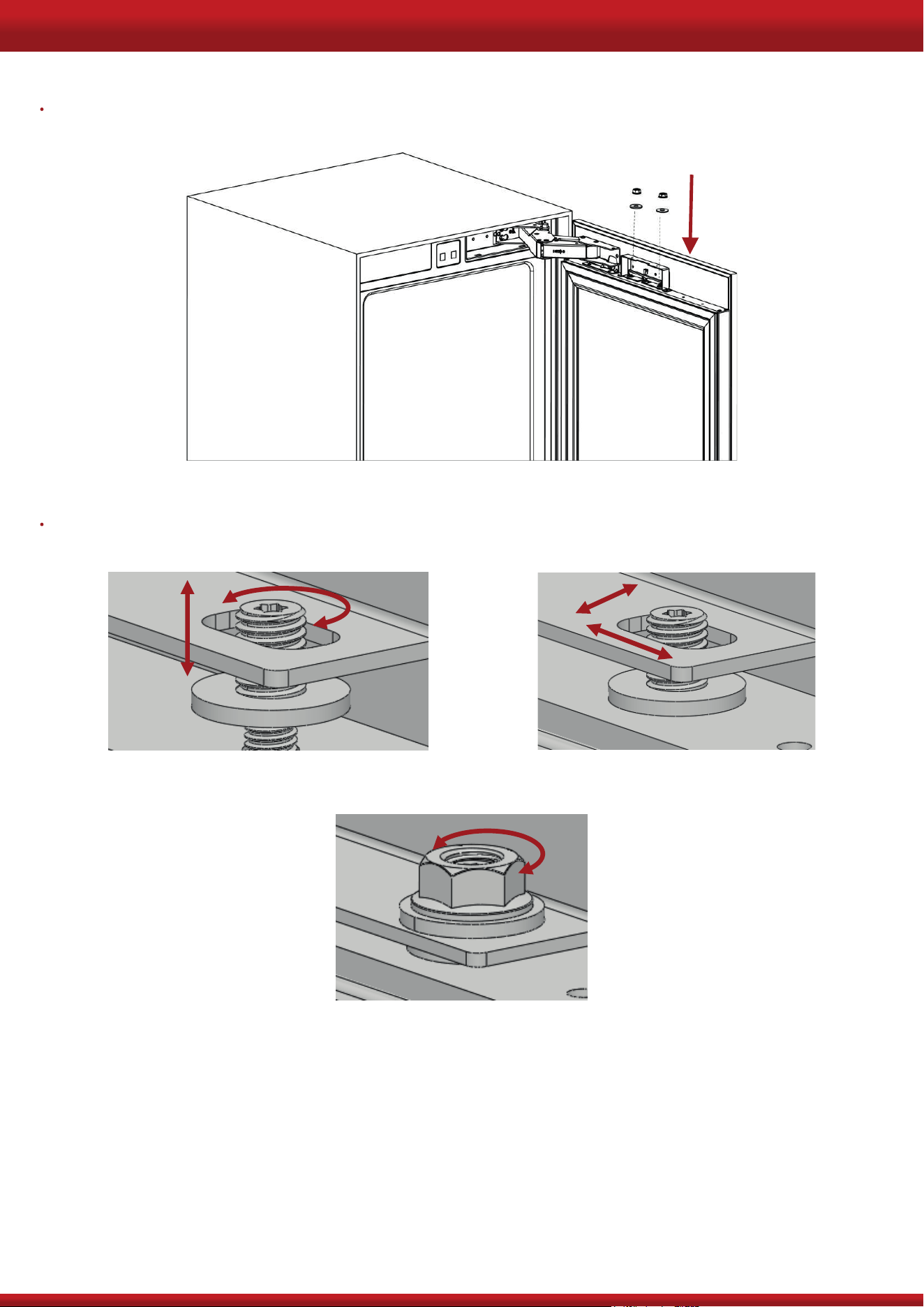

You should adjust 3D direction using by two fixing bolt to perform fine adjustments.
How to align the furniture door upper part with bolts.
Up & down
Front & back
Left & right
Fixing furniture door completely
38
Attach and screw the upper decoration cover.
The left and right are secured by installing screws (ST4x35).
39

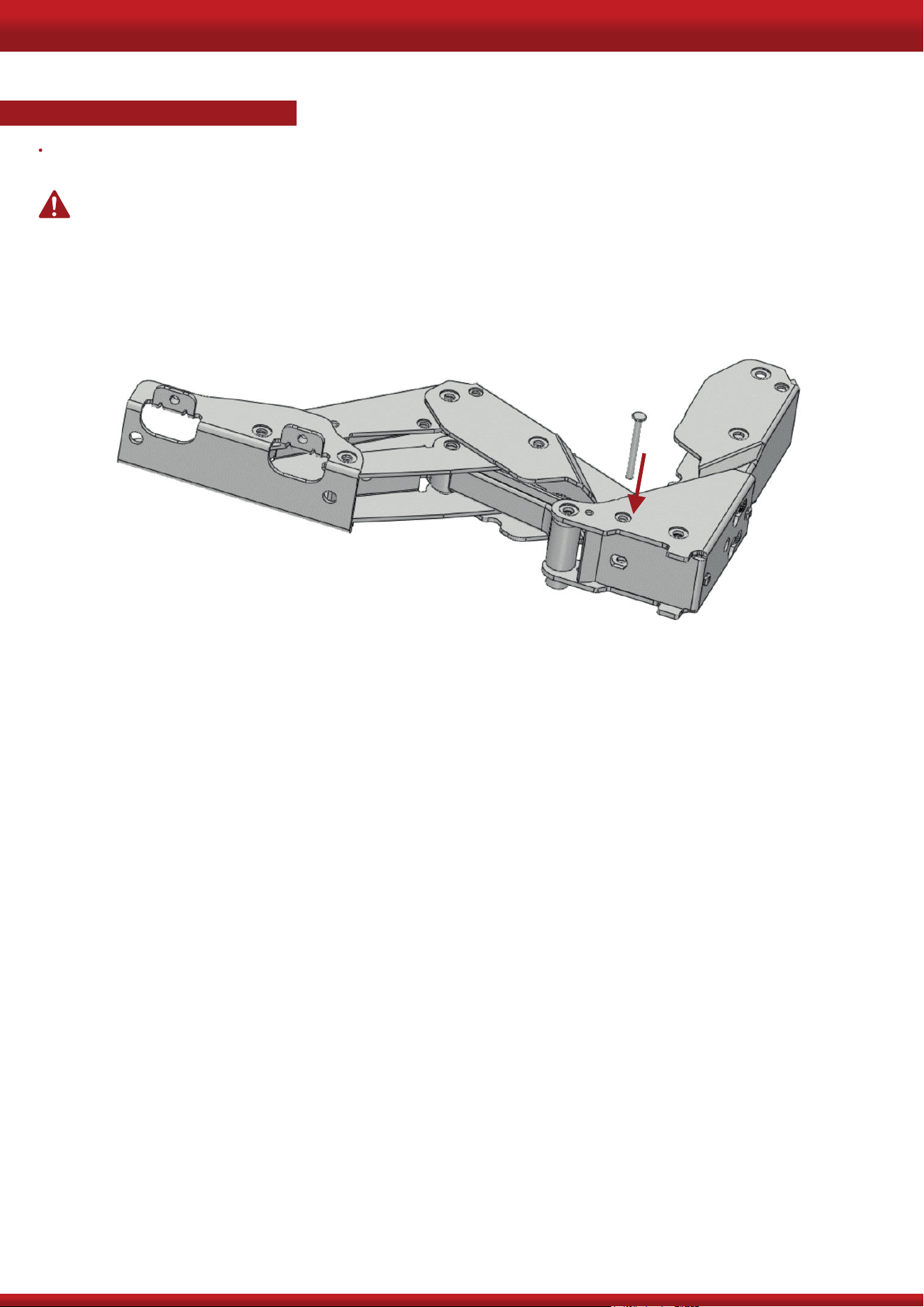

The door of your refrigerator can open by 115° maximum.
If the door thickness is more than 1 ½” (38 mm), the door should not open more than 90°.
You must use 90°limit pin on the hinge.
Pin must be fully seated in the bracket or the door will not close properly.
INSTALLING THE LIMIT PINS
Limit pin should be inserted to upper hinge and lower hinge.
40

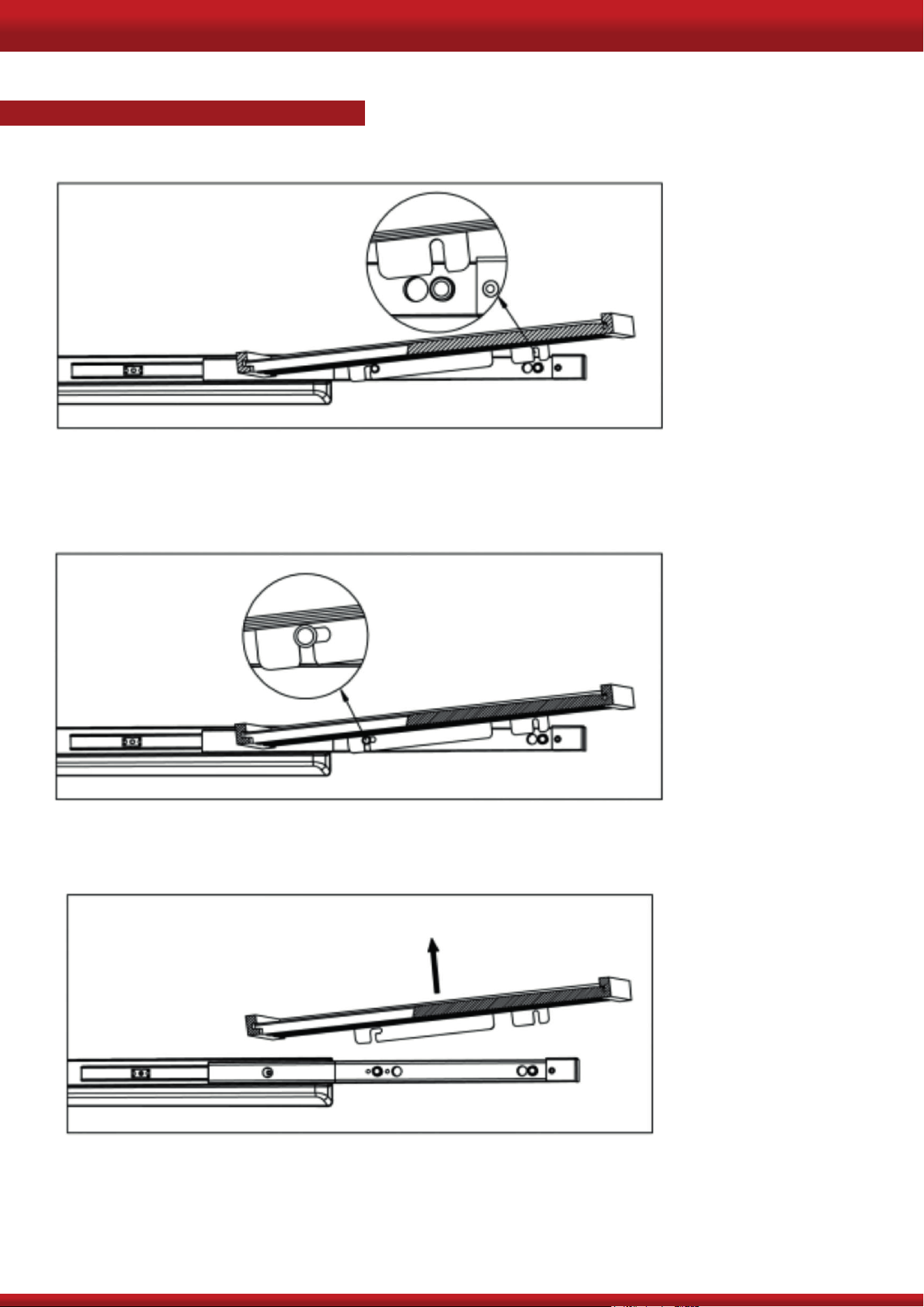

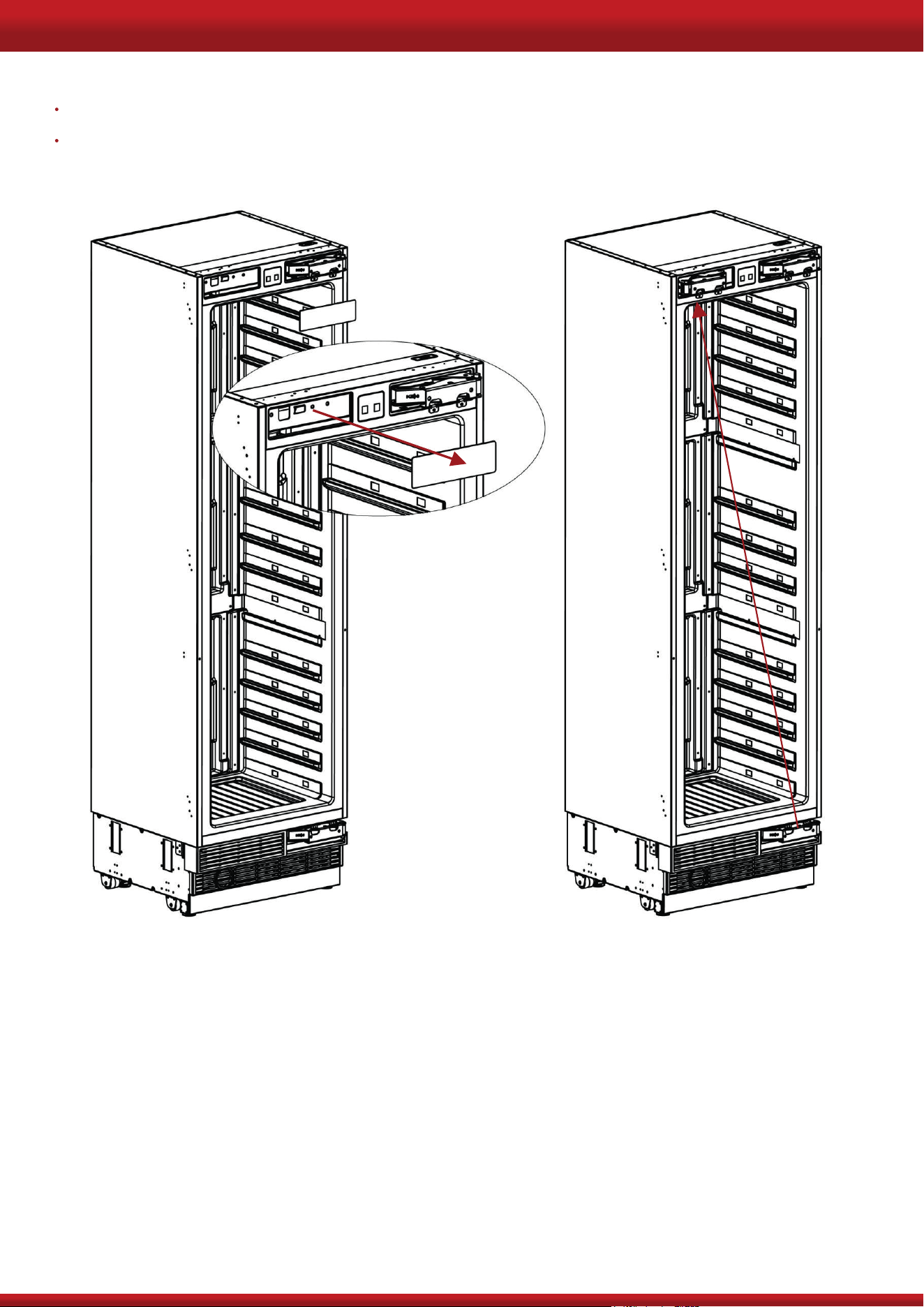

Pull the wine rack. Wine rack card slot out of the guide rail fixed column.1.
REMOVING THE WOODEN SHELVES
Pull the wine rack forward. The guide retaining post is stuck in the position indicated in
the gure that the retaining.
2.
Pull the wine rack to remove.3.
41
| OPERATING YOUR APPLIANCE
If the unit is unplugged, power lost, or turned o, you must wait 3 to 5 minutes before restarting the
unit. If you attempt to restart before this time delay, the appliance may not start and will not keep the
last set temperature.
Screwing the side and upper brackets
1
2
3
5 6
7
8 9
10

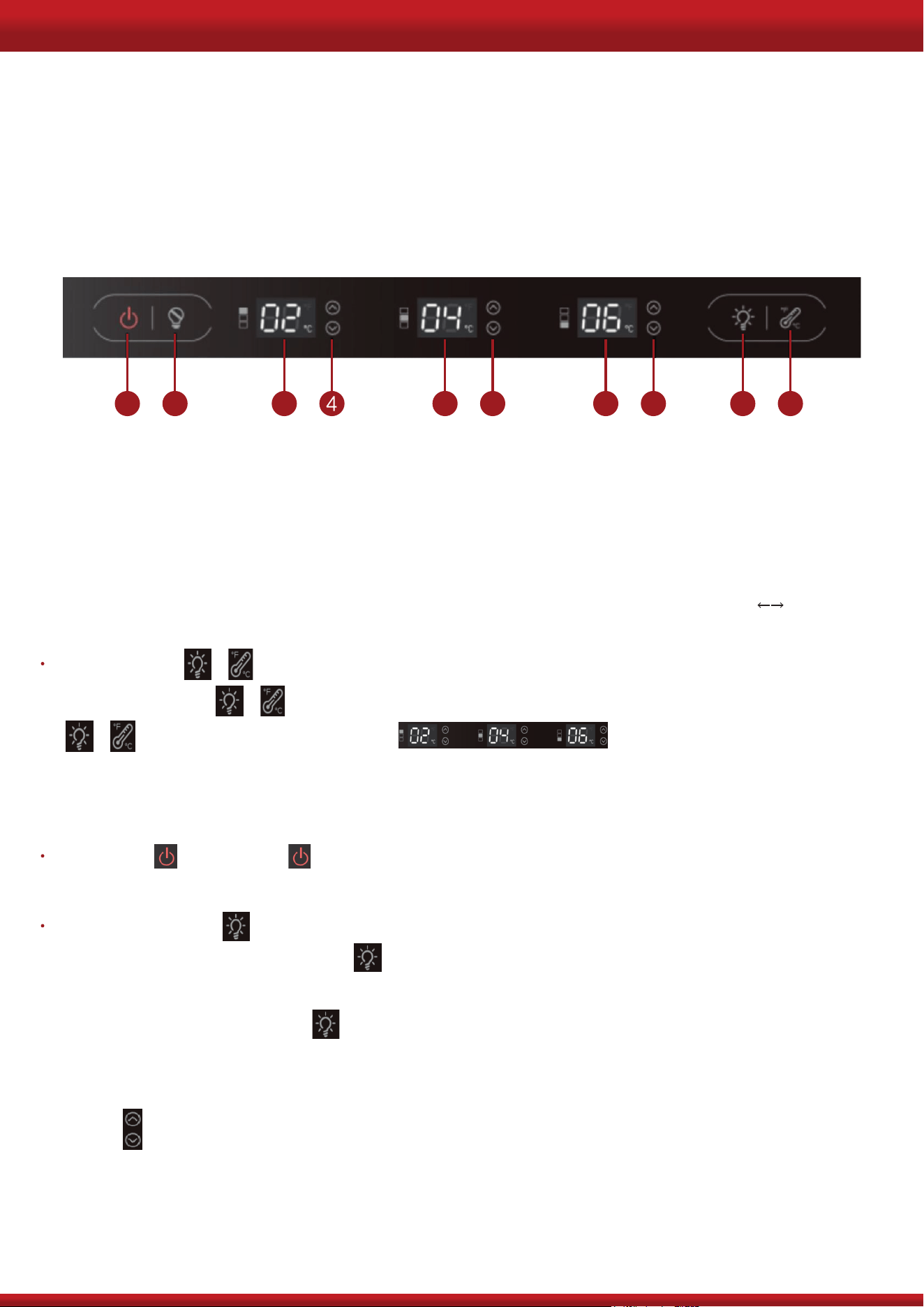

1. Power On/Off
2. Sabbath Mode
3. Upper Zone Temp
4. Above Zone Temp. Control
5. Middle Zone Temp
6. Middle Zone Temp. Control
7. Lower Zone Temp
8. Below Zone Temp. Control
9. Light Switch
10. Temp. Display Change °C °F
Child lock key ): Power on the default unlocked state; if you need to lock,+(
you need to press ), manual locking, such as the need to unlock, press+(
the three temperature zones of the temperature value of the digital screen at the
same time blinking for 3 seconds, accompanied by beeping to suggest that in the locking state.
), to unlock; lock, press any key, the box within+(
On/Off key : Long press for 3s to turn on or turn off the power; when shutting down,
cut off the power of all peripherals and enter standby mode.
‘‘ ’’
LED lighting button : LED lighting controlled by the door switch, open the door light,
close the door light off; short press
off the light cycle between switching, memory of the last state (off the state of the light
is not memorized); long press
the digital screen of the three temperature zones are displayed ON for 5 seconds, 5 seconds
after the digital screen to restore the temperature value display; in the digital screen display
cycle of adjustment, a total of 7 levels, L7 is the brightest, the memory of the last time state.
3 seconds to realize the light is always on, at the same time,
to realize the LED lighting amber, blue, white,
‘‘ ’’
‘‘ ’’
the key can be adjusted up and down to adjust the brightness of the LED lighting, L1 ~ L7
42
UPPER ZONE Temperature: 5-20°C (41°F - 68°F)
MIDDLE ZONE Temperature: 5-20°C (41°F - 68°F)
OWER ZONE Temperature: 5-20°C (41°F - 68°F)
When you change the temperature on the panel, the panel displays the current temperature and
the temperature on the display will gradually change according to the internal temperature until it
reaches the desired temperature. Note that it will take time for the wine cellar to reach the new
temperature. This is normal. You do not need to set the desired temperature just because the
display does not show your desired temperature.
If the control panel has moisture or liquid on its surface, it may fail. Wipe the moisture or liquid using
a dry cloth, and then try again.
Power failure memory function (after power-on, the settings remain in the state before power failure)
NOTE
Open and close the door control: when the door is opened, the lighting is turned on, the
display is lit and kept until the door is closed, the fan stops, when the door is opened for more
than 5 minutes, the open door alarm is opened, and the alarm is canceled by pressing any key;
when the door is closed, the lighting is turned off (except for the manual operation of the
light), the fan stops the state of lifting and starting immediately, and the door is closed for 30
seconds, and the display is turned off.
Sabbath On/Off key: Short press
and after exiting, it will run in normal mode.
the press and fan will run normally, the lighting will go out long time, the display will go out
long time, the buzzer will turn off, and the power failure will be memorized, and the power
failure will be automatically exited after 96 hours of operation, and the failure will also be
automatically exited; if you need to exit manually, press
key to enter or exit Sabbath; after entering Sabbath,
key to exit the Sabbath mode,
‘‘ ’’
‘‘ ’’
compressor stops working, all other normal work, shutdown state of the three temperature
zones of the digital tube are displayed Sn. Power failure memory, no key operation, 72 hours
) key for 3 seconds, enter the Show room mode.+(
Show room mode: Long press
after the automatic exit; Show room mode, press the ) key again, exit the Show room mode.+(
43
WARNING
Do not puncture refrigerant tubing.
Explanation
Above Zone In-cabinet probes
Above Zone In-cabinet probes
Middle Zone In-cabinet probes
Above Zone Frosting probe
Middle Zone Frosting probe
Below Zone Frosting probe
Open Circuit Code
E1
E3
E5
E7
E9
E11
E2
E4
E6
E8
E10
E12
Short Circuit Code
When a malfunction occurs, contact a service technician for repairs
Trouble Code
The wine cooler is designed with an automatic defrost system. However, on colder settings, some frost
may build up. Additionally, the more humid the ambient conditions, the more frost may build up.
Keep the door closed as much as possible and avoid opening the door unnecessarily to minimize frost
build-up.
If frost is preventing the door from closing properly, you may need to power the unit o until the frost melts
(possibly up to 24 hours). Use a soft absorbent towel to dry the unit.
Defrosting
When there is a fault code, the buzzer will emit "Tick" "Tick" "Tick" three consecutive alarm
sounds, the fault code flashes, every 10 seconds for a cycle, and the alarm will be activated, if
you want to release the alarm sound. If you want to release the alarm sound, press the On/Off key.
1.
Whenever a key is pressed, the buzzer sounds "Tick".2.
NOTE
44
| CARE AND MAINTENANCE
Your new wine cooler may make sounds that are not familiar to you. Most of the new sounds are normal.
Hard surfaces like the floor or walls can make the sounds seem louder than they actually are.
The following describes the kinds of sounds that might be new to you and what may be making them.
Normal Sounds
Periodic cleaning and proper maintenance will ensure efficiency, top performance, and long life.
The door and cabinet may be cleaned with a mild detergent and lukewarm water solution such
as two (2) tablespoons of baking soda to one (1) quart of water. Do not use solvent based or
abrasive cleaners. Use a soft sponge and rinse with clean water. Wipe with a soft clean towel to
prevent water spotting. If the door panel is stainless steel, it can discolor when exposed to
chlorine gas and moisture. Clean stainless steel with a cloth dampened with a mild detergent
and warm water solution.
Never use an abrasive or caustic cleaning agent.
Interior Cleaning
Exterior Cleaning
Cleaning the Unit
Rattling noises may come from the flow of the refrigerant or the water line.
Items stored on top of the wine cooler can also make noises.
The high efficiency compressor may make a pulsating or high-pitched sound.
Water running from the evaporator to the water bin may make a splashing sound.
You may hear air being forced over the condenser by the condenser fan.
As each cycle ends, you may hear a gurgling sound due to the refrigerant flowing in your
beverage cooler.
Disconnect power to the unit.1.
Open the door and remove the contents and shelves.2.
With a clean cloth, wipe down the interior of the unit.3.
Reinsert the shelves and beverages.4.
Reconnect power to the unit.5.
45
Most power failures are corrected within a few hours and should not affect the temperature of
your appliance if you minimize the number of times the door is opened. If the power is going to
be off for a longer period of time, you need to take the proper steps to protect your contents.
Power Failure
Energy Saving Tips
The appliance should be located in the coolest area of the room, away from heat producing
appliances, and out of the direct sunlight.
Ensure that the unit is adequately ventilated. Never cover air vents.
Only open the door for as long as necessary.
Moving Your Wine Cooler
Remove all items.
Securely tape down all loose items (shelves) inside your appliance.
Turn the adjustable leg all the way up (clockwise) to the base to avoid damage.
Tape the door shut.
Be sure the appliance stays secure in the upright position during transportation.
Also protect outside of appliance with a blanket, or similar item.
46
| TROUBLESHOOTING
Problem
The appliance is not
cold enough
The appliance does not
operate
The appliance turns
on and off frequently
The body of the
appliance is electrified
Frost is forming in
the appliance
The appliance makes
too much noise
The door will not close
properly
Possible Causes
Temperature control setting is too high.
The door gasket is not sealed properly.
Demonstration mode may be enabled.
The cooler does not have sufficient ventilation.
The cooler has restricted air flow due to too
much storage.
External environment may require a higher setting.
The door is opened too frequently or for long
periods of time.
Not plugged in.
The appliance is turned off.
The circuit breaker tripped or has a blown fuse.
The room temperature is hotter than normal.
The door gasket is not sealed properly.
The cooler does not have sufficient ventilation.
The door is not closed completely.
The door is opened too frequently or for long
periods of time.
The unit is not properly grounded.
The environment is too humid.
The ambient temperature is too low.
The door is being opened too frequently.
The rattling noise may come from the flow of the
refrigerant, which is normal. As each cycle ends,
you may hear gurgling sounds caused by the
flow of refrigerant in the appliance.
The unit is not level or is touching another
appliance.
Contraction and expansion of the inside walls
may cause popping and cracking noises.
The appliance is not level.
The door gasket is not installed correctly.
The gasket is dirty.
The shelves are out of position.
Adjust the set temperature.
Ensure the door gasket is not loose.
See the Operating Your Appliance section and
verify if Demonstration mode is disabled.
Read and follow the “Installation Clearance
Requirements” in the Installation Instructions section.
Open space in the cabinet to allow air flow.
Keep the appliance away from sunshine or other
heat sources.
Close the door tightly and do not open the door
too frequently or for a long period of time.
Ensure the appliance is plugged in and the power
outlet has power.
Turn on the appliance.
Replace the broken fuse or reset the breaker.
Solutions
Run the refrigerator at the appropriate ambient
temperature.
Ensure the door gasket is not loose.
Make sure the door is completely closed.
Close the door tightly and do not open the door
too frequently or for a long period of time.
Read and follow the “Installation Clearance
Requirements” in the Installation Instructions section.
Contact your local electrician to test your electrical
grounding system.
The unit uses an ‘auto-defrost’ system, under certain
conditions, manual defrosting may be required.
If frost builds up, you can try running the
refrigerator on a warmer temperature setting,
minimizing the number of times you open the door
or unplugging the unit to allow the frost to melt.
It is normal that as each cooling cycle ends, you
may hearing ratting or gurgling sounds caused
by the flow of refrigerant in the appliance. The high
efficiency compressor may make a pulsating or high
pitched sound.
Check to make sure the cooler is level and that it is
non in contact with another appliance or furniture.
Some popping or cracking noises are normal. They
are caused by expansion and contraction of the
inside walls due to temperature changes.
Make sure the appliance is on a level surface.
Make sure the door gasket is properly installed.
Clean the door gasket.
Install the shelves correctly.
FOR MORE DETAILS AND INFORMATION, PLEASE VISIT OUR WEBSITE WWW.KUCHT.COM
DESIGN: LONDON DC - WWW.LONDON-DC.COM
WE TRANSFORM A SIMPLE KITCHEN INTO A PRO ONE.
THIS IS WHY WE CARE ABOUT MAKING VERY HIGH PERFORMANCE
RANGES AND HOODS, TO MAKE YOU FEEL LIKE A PRO AND STYLISH COOKER.
