Thank you for having chosen our company’s fog machine. For your own
safety, please read this user manual carefully before installing the device.
When receiving the machine, open the package and check carefully whether
the machine is damaged or the accessories are lost, if any problems, please
contact the supplier.
Accessories
Name
Quantity
Name
Quantity
Smoke machine
1piece
Handle
1piece
Power cord
1 piece
pad
2 piece
Manual
1 piece
Screw knob
4pieces
Remote controller
1 piece
Technical Parameter
Power: 1500W
Voltage: AC 110V 60Hz
Warm-up time: 3minutes
Capacity of tank : 2.5liters
Smoke distance: 4-5 meters
Weight: 5.4kg
Fluid consumption(100%output):
20000Cuft/min
Size : 47*25*20cm
Remote control
Voltage:DC 12V
Frequency
433.92MHz
Guidance ………………………………………………………■
1. This product can be installed in high places(with hanger), or placed on the
ground.
2. Keep the fog machine flat,do not tilt or flip. Before connecting this unit to
the mains power supply, you must add the fluid tank with high quality fog
fluid and check that the nozzle is clean and unobstructed.
3. Before connect to power, you should check whether the voltage you use is
suitable for the fog machine or not.
4. Power cord should be plugged into a grounded electrical outlet,put the
switch to “ON”, then fog machine start warming up, can spray fog after
warming up is completely.
5. Connect the controllers with the fog machine, then you can control the fog
machine by the controllers.
Control Mode………………………………………………■
1. Remote control key functions:
S button control pump, M is the LED mode (menu) key, “+” and “-” are
the key of changing color. ( press and hold button for one second )
2. Digital display: has 4 buttons.
MENU button: the switch of LED lights
UP/DOWN button : can change color of LED lights
ENTER button : press to spray fog, press again will stop to spray fog.
Notice 1………………………………………………………■
1. This fog machine should be used in dry and well-ventilated place .
Please avoid any water or rain fall in the machines, if water and rain fall
in, turn off the power immediately. The room for cool should be at least
30cm. Keep far away from children, fire, explosive and flammable things,
and avoid scalding.
2. In the first time use, some water spray out is normal.
3. When the fog fluid is used up, you should add fog liquid in time. If the
fog machine work without fog fluid, the pump and other parts will get
damaged. When adding fluid, remember to turn off the power, and
carefully avoid spilling over to cause short cut.
4. The fog machine should work under professional worker’s supper
vision, please do not add flammable liquids, gas or perfume into the fog
fluid tank.
5. When working, do not touch the machine and power cord..
6. When long time no use or after use, please disconnect power or unplug
the power cord.
Other notice…………………………………………■
1. All fog machine will have condensation in condensation or moisture
around the nozzle.
2. All fog machine are used occasionally during or after you stop using a
small amount of smoke emitted.
3. All fog machine have cycles and temperature cooling to a point, the pump
will automatically turn on and begin heating, until heating complete, the
machine starts to spray smoke
Routine Maintenance and common faults ………………………■
Periodically clean your machine to reduce replacement parts and repair
expenses.
1. The poor fog liquid can cause blockage, it is recommended to use high
quality fog liquid.
2. The machine might be blocked due to high concentration fluid, not clean
fluid or overheat, so regular care and maintenance can ensure long-term use.
After about 40 hours continually use, please use 80% distilled water and 20%
white vinegar to remove the accumulated impurities inside the heat pipe , as
following:
1）washing the pipe in the tank and the filter head.
2）Pour out the fog liquid , replacing the cleaning liquid ( 80% distilled
water and 20% white vinegar), turn on the power , keep it operating till the
cleaning liquid runs out.
3. If the fog turns less, and the pump makes noise, or can not spray fog, you
should turn off the power immediately and at the same time check the fluid
tank, fuse, controller interface and power plug. If all of these are normal,
please connect the power with the plug and try again, if the problems still can
not be solved, you should contact supplier.

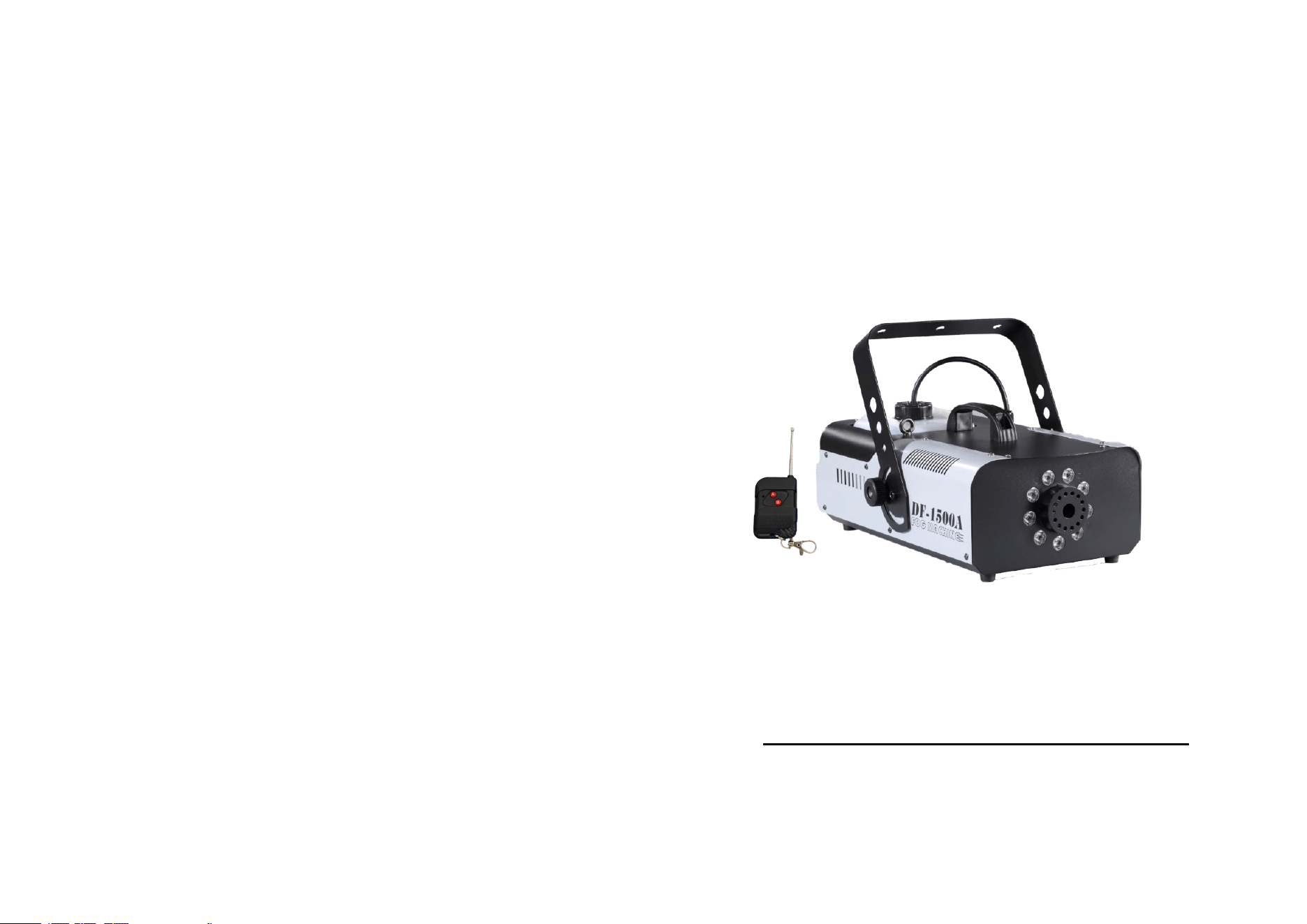

1500W LED FOG MACHINE
MANUAL
Please read this manual carefully before using
Remote control :
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
The device has been evaluated to meet general RF exposure requirement. The
device can be used in portable exposure condition without restriction.
