EN
Model X20-BLOWER-4A
Form No. ASP-X20-BLOWER-4A-880E-M (FH)
OPERATOR’S MANUAL
CORDLESS COMPACT LEAF BLOWER
20V* MAX |4.0 Ah
1
Original instructions.
© 2026 All Season Power LLC.
Snow Joe
®
, Sun Joe
®
, Aqua Joe
®
, Auto Joe
®
, and Power Joe
®
are
registered trademarks used under license from Weather Brands LLC.
New Castle, DE 19720
SAVE THESE INSTRUCTIONS
THANK YOU FOR YOUR PURCHASE!
Failure to register your product purchase will not diminish
your warranty rights. For more information visit shopjoe.com
Place UPC sticker here
UPGRADE YOUR COVERAGE
AT SHOPJOE.COM
/
REGISTER
FOR UP TO 2, 3, OR 4 YEARS OF TOTAL TOOL COVERAGE
When we say we stand behind our product, we mean it! Now you can blow, mow, cut,
saw or tend to any other yard task with confidence, knowing that if there is a problem
with your tool within the warranty period, we will gladly solve it.
+EXTENDED
WARRANTY
ACTIVATE YOUR
1 YEAR WARRANTY
RECEIVE
90 DAYS BONUS COVERAGE
VISIT
SHOPJOE.COM/REGISTER
TELL YOUR FRIENDS
AND TAG US!
We love to hear your feedback! Share your experience by
writing comments and reviews on shopjoe.com, or
connect with us on social media!
HAS YOUR SNOW JOE
EXPERIENCE LEFT
YOU SMILING?
#GOWITHJOE
E Q
OR HAS SOMETHING
LEFT YOU LESS
THAN SATISFIED?
WE’RE SORRY
ABOUT THAT!
Our friendly customer service team is ready to
help you with any issues you may have.
@ SNOWJOECO
CALL US
1-866-225-9723
m
For fastest response
CHAT WITH US
SHOPJOE.COM/CHAT
*DISCLAIMER: Initial no-load voltage, when fully charged,
peaks at 20V; nominal voltage under typical load is 18V.
EN
Model X20-BLOWER-4A
Form No. ASP-X20-BLOWER-4A-880E-M (FH)
OPERATOR’S MANUAL
CORDLESS COMPACT LEAF BLOWER
20V* MAX |4.0 Ah
2
IMPORTANT!
Safety Instructions
All Operators Must Read These
Instructions Before Use
Read all the instructions contained in this manual. Keep this manual in
a safe place, so that the information is available at all times. If you give
the equipment to another person, make sure to provide these operating
instructions. Basic safety precautions should always be followed to
reduce the risk of fire, electric shock, and personal injury.
m
DANGER!
This indicates a hazardous situation, which,
if not followed, will result in serious injury or death.
m
WARNING!
This indicates a hazardous situation, which, if not
followed, could result in serious injury or death.
m
CAUTION!
This indicates a hazardous situation, which, if not
followed, could result in minor or moderate injury.
Improper use of the machine will invalidate the warranty, relieve the
manufacturer from all liabilities. The user will consequently be liable for
all and any damage or injury to himself/herself or others.
General machine
safety warnings
m
WARNING!
Read all safety warnings, instructions, illustrations
and specifications provided with this machine. Failure to follow all
instructions listed below may result in electric shock, fire and/or serious
injury. Save all warnings and instructions for future reference.
1. Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas invite
accidents.
b) Do not operate machines in explosive atmospheres, such as
in the presence of flammable liquids, gases or dust. machines
create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a machine.
Distractions can cause you to lose control.
2. Electrical safety
a) Machine plugs must match the outlet. Never modify the plug in
any way. Do not use any adapter plugs with earthed (grounded)
machines. Unmodified plugs and matching outlets will reduce
risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as
pipes, radiators, ranges and refrigerators. There is an increased
risk of electric shock if your body is earthed or grounded.
c)
Do not expose machines to rain or wet conditions. Water
entering a machine will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or
unplugging the machine. Keep cord away from heat, oil, sharp
edges or moving parts. Damaged or entangled cords increase
the risk of electric shock.
e) When operating a machine outdoors, use an extension cord
suitable for outdoor use. Use of a cord suitable for outdoor use
reduces the risk of electric shock.
f) If operating a machine in a damp location is unavoidable, use a
RESIDUAL CURRENT DEVICE (RCD) protected supply. Use of
an RCD reduces the risk of electric shock.
3. Personal safety
a) Stay alert, watch what you are doing and use common sense
when operating a machine. Do not use a machine while you are
tired or under the influence of drugs, alcohol or medication. A
moment of inattention while operating machines may result in
serious personal injury.
b) Use personal protective equipment. Always wear eye protection.
Protective equipment such as a dust mask, non-skid safety
shoes, hard hat or hearing protection used for appropriate
conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off
position before connecting to power source and/or BATTERY
pack, picking up or carrying the tool. Carrying machines with
your finger on the switch or energising machines that have the
switch on invites accidents.
d) Remove any adjusting key or wrench before turning the machine
on. A wrench or a key left attached to a rotating part of the
machine may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times.
This enables better control of the machine in unexpected
situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep
your hair and clothing away from moving parts. Loose clothes,
jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and
collection facilities, ensure these are connected and properly
used. Use of dust collection can reduce dust-related hazards.
SAVE THESE INSTRUCTIONS
3
h) Do not let familiarity gained from frequent use of tools allow
you to become complacent and ignore tool safety principles.
A careless action can cause severe injury within a fraction of a
second.
4. Machine use and care
a) Do not force the machine. Use the correct machine for your
application. The correct machine will do the job better and safer
at the rate for which it was designed.
b) Do not use the machine if the switch does not turn it on and
off. Any machine that cannot be controlled with the switch is
dangerous and must be repaired.
c) Disconnect the plug from the power source and/or remove the
BATTERY pack, if detachable, from the machine before making
any adjustments, changing accessories, or storing machines.
Such preventive safety measures reduce the risk of starting the
machine accidentally.
d) Store idle machines out of the reach of children and do not allow
persons unfamiliar with the machine or these instructions to
operate the machine. Machines are dangerous in the hands of
untrained users.
e) Maintain machines and accessories. Check for misalignment
or binding of moving parts, breakage of parts and any other
condition that may affect the machine's operation. If damaged,
have the machine repaired before use. Many accidents are
caused by poorly maintained machines.
f) Keep cutting tools sharp and clean. Properly maintained cutting
tools with sharp cutting edges are less likely to bind and are
easier to control.
g) Use the machine, accessories and tool bits etc. in accordance
with these instructions, taking into account the working
conditions and the work to be performed. Use of the machine
for operations different from those intended could result in a
hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil
and grease. Slippery handles and grasping surfaces do not allow
for safe handling and control of the tool in unexpected situations.
5. BATTERY tool use and care
a) Recharge only with the charger specified by the manufacturer.
A charger that is suitable for one type of BATTERY pack may
create a risk of fire when used with another BATTERY pack.
b) Use machine only with specifically designated BATTERY packs.
Use of any other BATTERY packs may create a risk of injury and
fire.
c) When BATTERY pack is not in use, keep it away from other metal
objects, like paper clips, coins, keys, nails, screws or other small
metal objects, that can make a connection from one terminal to
another. Shorting the BATTERY terminals together may cause
burns or a fire.
d) Under abusive conditions, liquid may be ejected from the
BATTERY; avoid contact. If contact accidentally occurs, flush
with water. If liquid contacts eyes, additionally seek medical help.
Liquid ejected from the BATTERY may cause irritation or burns.
e) Do not use a BATTERY pack or tool that is damaged or modified.
Damaged or modified batteries may exhibit unpredictable
behaviour resulting in fire, EXPLOSION or risk of injury.
f) Do not expose a BATTERY pack or tool to fire or excessive
temperature. Exposure to fire or temperature above 130 °C may
cause explosion.
g) Follow all charging instructions and do not charge the BATTERY
pack or tool outside the temperature range specified in the
instructions. Charging improperly or at temperatures outside the
specified range may damage the BATTERY and increase the
risk of fire.
6. Service
a) Have your machine serviced by a qualified repair person using
only identical replacement parts. This will ensure that the safety
of the machine is maintained.
b) Never service damaged BATTERY packs. Service of BATTERY
packs should only be performed by the manufacturer or
authorized service providers.
Garden blower
safety warnings
a) Do not use the machine in bad weather conditions, especially
when there is a risk of lightning. This decreases the risk of being
struck by lightning.
b) Wear eye protection and ear protection. Adequate protective
equipment will reduce the risk of personal injury.
c) While operating the machine, always wear non-slip and protective
footwear. Do not operate the machine when barefoot or wearing
open sandals. This reduces the risk of injury to the feet.
d) Do not wear loose fitting clothing or articles such as scarves,
strings, chains, ties, etc., that could get drawn into the air inlets.
Tie back or cover long hair to make sure it does not get drawn
into the air inlets. If any of these items are drawn into the air inlets,
it can increase the risk of personal injury.
e) Keep bystanders away while operating the machine. Thrown
debris can increase the risk of personal injury.
f) Never point the blower nozzle in the direction of people or pets
or in the direction of windows. Use extra caution when blowing
debris near solid objects, such as trees, automobiles and walls
that can cause debris to ricochet. Thrown objects can damage
property and increase the risk of personal injury.
g) Do not use the machine to pick up or blow anything that is
burning or smoking, such as cigarettes, matches or hot ashes.
These ignition sources may increase the risk of fire.
h) Do not touch the fan while still in motion. Turn off the machine,
wait until the fan stops and unplug the machine, before removing
any part that may give access to the fan. This reduces the risk of
injury from moving parts.
i) When clearing jammed material or servicing the machine, make
sure the power switch is off and the power cord is disconnected.
Unexpected actuation of the machine while clearing jammed
material or servicing may increase the risk of personal injury.
4
j) Machine is intended to be used by the operator at ground level
and not on ladders or any unstable support.
k) Inspect machine for damage if there appears to be excessive
vibration.
GENERAL SAFETY WARNINGS
FOR BATTERY PACK
a) Do not dismantle, open or shred battery pack.
b) Do not expose battery pack to heat or fire. Avoid storage in direct
sunlight.
c) Do not short-circuit a battery pack. Do not store battery packs
haphazardly in a box or drawer where they may short-circuit
each other or be short-circuited by other metal objects. When
battery pack is not in use, keep it away from other metal objects,
like paper clips, coins, keys, nails, screws or other small metal
objects, that can make a connection from one terminal to
another. Shorting the battery terminals together may cause burns
or fire.
d) Do not remove battery pack from its original packaging until
required for use.
e) Do not subject battery pack to mechanical shock.
f) In the event of battery leaking, do not allow the liquid to come in
contact with the skin or eyes. If contact has been made, wash
the affected area with copious amounts of water and seek
medical advice.
g) Observe the plus (+) and minus (–) marks on the battery back
and equipment and ensure correct use.
h) Do not use any battery pack which is not designed for use with
the equipment.
i) Keep battery pack out of the reach of children.
j) Seek medical advice immediately if a cell or battery has been
swallowed.
k) Always purchase the battery pack recommended by the device
manufacturer for the equipment.
l) Keep battery pack clean and dry.
m) Wipe the battery pack terminals with a clean dry cloth if they
become dirty.
n) Battery pack needs to be charged before use. Always use the
correct charger and refer to the manufacturer’s instructions or
equipment manual for proper charging instructions.
o) Do not leave battery pack on prolonged charge when not in use.
p) After extended periods of storage, it may be necessary to charge
and discharge the battery pack several times to obtain maximum
performance.
q) Battery pack gives its best performance when it is operated at
normal room temperature (20 °C ± 5 °C).
r) When disposing of battery packs, keep battery packs of different
electrochemical systems separate from each other.
s) Recharge only with the charger specified by the manufacturer.
Do not use any charger other than that specifically provided for
use with the equipment. A charger that is suitable for one type
of battery pack may create a risk of fire when used with another
battery pack.
t) Retain the original product literature for future reference.
u) Use only the battery pack in the application for which it was
intended.
v) Remove the battery pack from the equipment when not in use.
w) Dispose of properly.
Safety Symbols
The following table depicts and describes safety symbols that may
appear on this product. Read, understand and follow all instructions on
the machine before attempting to assemble and operate.
SAFETY ALERT – Indicates a
precaution, a warning, or a danger.
READ THE OPERATOR'S MANUAL(S)
– Read, understand, and follow all
instructions in the user manual(s) before
attempting to assemble and operate.
WARNING! Disconnect battery before
maintenance.
Symbols
Descriptions
WARNING! – Do not expose the
unit to rain or wet conditions. Keep
dry.
Wear eye and ear protection.
Keep bystanders a safe distance
away from the work area.
5
Know Your Cordless Turbine Jet Blower
Read the owner’s manual and safety instructions carefully before operating the cordless turbine jet blower. Compare the illustration below to the
cordless turbine jet blower in order to familiarize yourself with the location of the various controls and adjustments. Save this manual for future
reference.
7
4
5
3
1
2
6
8
9
12
13
11
10
Technical Data
Motor ...........................................................................................775 W Brushed
Battery Voltage Max* .......................................................................20V D.C.
Battery Capacity ........................................................................................4.0 Ah
Charger Input .........................................................................120v-60hz 75w
Charger Output ................................................................................20V DC 0.75A
Charge Time Max .......................................................................................5-6 hours
Air Flow Max......................................................................................................400 cfm
Machine Net Weight (with tube) ......................................4.189 lbs (1.9 kg)
1. Start button
2. Speed level button
3. Handle
4. Battery compartment
5. Air inlet
6. Upper blower tube
7. Lower blower tube
8. 20V lithium-ion charger
9. Charger plug
10. Charge socket
11. Press button for battery indicator
12. Battery indicators
13. 20V iON+ lithium-ion battery
* DISCLAIMER: Initial no-load voltage, when fully charged, peaks at 20V; nominal voltage under typical load is 18V.
6
Unpacking
Carton Contents
• Cordless turbine jet blower body
• Upper blower tube
• Lower blower tube
• 20V* ESCOSHARP
®
lithium-ion battery
• 20V* ESCOSHARP
®
lithium-ion charger
• Manual
1. Carefully remove the cordless turbine jet blower and check to see
that all of the above items are supplied.
2. Inspect the product carefully to make sure no breakage or
damage occurred during shipping. If you find damaged or
missing parts, DO NOT return the unit to the store. Please call the
All Season Power customer service center at 1-866-225-9723.
NOTE:
Do not discard the shipping carton and packaging
material until you are ready to use the cordless turbine jet blower.
Properly dispose of these materials in accordance with local
regulations.
IMPORTANT! The equipment and packaging material are not toys. Do
not let children play with plastic bags, foils or small parts. These items
can be swallowed and pose a suffocation risk!
Battery Pack Operation
The equipment is powered by a lithium-ion battery. The battery pack is
completely sealed and maintenance free.
Battery Charge Level Indicator
The battery pack is equipped with a push button for checking the
charge level. Simply press the push button to read off the battery
charge level from the LEDs of the battery indicator:
• All 3 level monitoring LEDs are lit: Battery charge level is high.
• 2 level monitoring LEDs are lit: Battery charge level is decreasing.
Stop work as soon as possible.
1 level monitoring LED is lit: Battery is low. Stop work IMMEDIATELY
and charge the battery. Otherwise the battery's service life will be
greatly shortened.
NOTE:
Immediately after using the battery pack, the charge level button
may display a lower charge than it will if checked a few minutes later.
The battery cells “recover” some of their charge after resting.
Charger Operation
m
WARNING!
Charge only 20V* ESCOSHARP
®
lithium-
ion battery packs with its compatible 20V* ESCOSHARP
®
lithium-
ion charger. Other types of batteries may cause personal injury and
damage. To reduce the risk of electric shock, do not allow water to flow
into the charger's AC/DC plug. When to Charge the ESCOSHARP
®
20VBAT-LTE Lithium-ion battery.
NOTE:
The ESCOSHARP
®
20VBAT-LTE lithium-ion battery packs do
not develop a "memory" when charged after only a partial discharge.
Therefore, it is not necessary to run down the battery pack before
inserting the charger plug.
• Use the battery indicator lights to determine when to charge your
ESCOSHARP
®
20VBAT-LTE lithium-ion battery pack.
• You can "top-off" your battery pack's charge before starting a big
job or after a long day of use.
Charging the Battery
1.
Push the push lock button on the battery to pull the battery pack
out of the equipment (Fig. 1).
Fig. 1
Battery
pack
Battery
Compartment
Push lock button
2.
Then, plug the charger adapter into an appropriate AC power
outlet. Connect the charger plug into the charge socket of the
battery to start charging (Fig. 2).
Lights Light Indicators
Charge level button
The battery is at 30% capacity
and requires charging
The battery is at 60% capacity
and requires charging soon
The battery is at full capacity
7
Fig. 2
Battery
indicators
3. The battery will take approximately 5-6 hours to charge. The battery
indicator LEDs will twinkle and illuminate one by one during the
charging process. Unplug the charger immediately when the 3
LEDs are all illuminated.
m
CAUTION!
FIRE HAZARD. When disconnecting the charger
from the battery, be sure to unplug the charger from the outlet first, then
disconnect the charger from the battery.
4. Timely recharging of the battery will help prolong the battery's life.
You must recharge the battery pack when you notice a drop in the
equipment's power.
IMPORTANT! Never allow the battery pack to become fully
discharged as this will cause irreversible damage to the battery.
Assembly
m
WARNING!
To avoid serious personal injury, read and
understand all safety instructions provided.
m
WARNING!
Do not insert battery until assembly is complete.
Failure to comply could result in accidental starting and possible
serious personal injury.
m
WARNING!
Before performing any maintenance, make sure
battery is removed. Failure to heed this warning could result in serious
personal injury.
m
WARNING!
To prevent serious personal injury, make sure the
switch is in the OFF (0) position, the battery is removed and the impeller
has come to a complete stop before attaching or detaching the tubes.
Attaching the Jet Blower Tube
1. Align the notches on the cordless turbine jet blower body with the
notches on the blower tube and slide together until they click into
place. (Fig. 3).
Fig. 3
Cordless tur-
bine jet blower
body
Notches
Lower blower tube
Upper blower tube
m
WARNING!
To avoid the risk of injury, it is not recommended
to disassemble the blower tube.
Operation
Starting + Stopping
m
CAUTION!
Starting, stopping, and restarting a DC motor
repeatedly within a few seconds can generate a great deal of heat
and damage the motor. To protect the life of your cordless turbine
jet blower, always wait at least five seconds after stopping before
restarting the jet blower.
1.
Insert the battery into the battery compartment until it clicks to lock
it into position (Fig. 4).
Fig. 4
Battery
pack
Battery
Compartment
8
2. To start the cordless turbine jet blower, press the ON/OFF
button(Fig. 5).
Fig. 5
ON/OFF switch
3. To adjust the speed, press the speed level button (Fig. 6).
Fig. 6
Adjust the speed

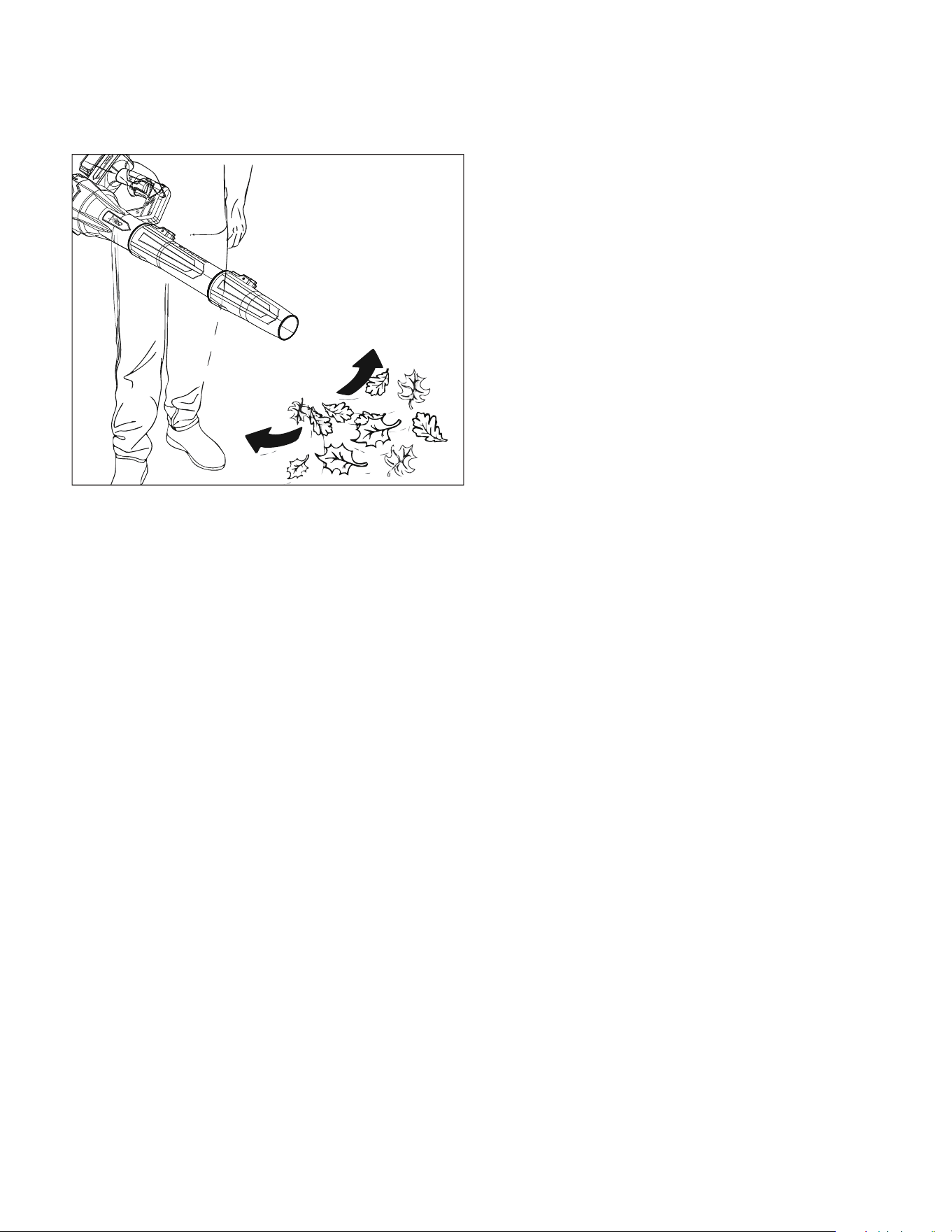

Operating Tips
Speed Adjustment
This leaf blower features 6-speed settings,
allowing you to customize airflow power for
different tasks.
1. Press the start button to start the blower at Speed Level 1 (Lowest)
2. Press the speed level button once to increase the speed by 1 level.
When maximum speed (Level 6) is reached, pressing speed level
button again will cycle back to Level 1.
3. Press and hold the speed level button to instantly jump to Level 6
(Max Speed) and maintain it.
Note: Avoid continuous high-speed use to prolong motor life.
m
WARNING!
Use the cordless turbine jet blower only in
daylight
or good artificial light.
• When using the cordless turbine jet blower, plant your feet firmly
on the ground and place your dominant hand on the unit handle to
control the unit. Use your other hand to steady the unit as needed.
• Wear personal protective equipment during your work session. This
includes boots, safety glasses/goggles, ear defenders, long pants
and a long-sleeve shirt.
• Make sure the jet blower tube is not directed at anybody or any
loose debris before starting the unit.
•
Verify that the unit is in good working condition. Make sure the
tubes are in place and secure.
• Keep a firm grip on the unit handle while in use.
• To reduce the risk of hearing loss associated with increased sound
levels, hearing protection is required.
• Operate power equipment only at reasonable hours—not early in the
morning or late at night when people might be disturbed. Comply
with times listed in local ordinances. Usual recommendations are
9:00 am to 5:00 pm, Monday through Saturday.
• To reduce noise levels, limit the number of pieces of power
equipment used at any one time and operate power blowers at the
lowest possible speed setting necessary to do the job.
• Use rakes and brooms to loosen debris before blowing.
• In dusty conditions, slightly dampen surfaces.
• Conserve water by using power blowers instead of hoses for many
lawn and garden applications, including areas such as gutters,
screens, patios, grills, porches and gardens.
• Blow debris into a safe, open area away from children, pets, open
windows or freshly washed cars.
• Clean up after using leaf blowers and other lawn equipment.
Dispose of debris appropriately.
m
WARNING!
To avoid serious personal injury, wear ear
defenders, goggles or safety glasses at all times when operating this unit.
Wear a
face mask or dust mask in dusty locations.
m
WARNING!
To prevent serious personal injury or damage to
the unit, make sure the blower tube is in place before operating the unit.
m
WARNING!
Never cover air vents. Keep them free from
obstructions and debris. They must always remain clear for proper motor
cooling.
m
WARNING!
To avoid serious personal injury, do not wear
loose fitting clothing or articles such as scarves, strings, chains, ties,
etc., that could get drawn into the air vents. To make sure long hair
does not get drawn into the air vents, tie back long hair.
m/s=Meters per second
Level Airspeed (m/s)
1 21
2 24
3 28
4 33
5 37
6 40
9
Blowing Operation
• Hold the jet blower firmly with your dominant hand on the unit
handle. Sweep from side to side with the lower tube several inches
above the ground or floor (Fig. 7).
Fig. 7
• Slowly advance the unit, keeping the accumulated pile of debris in
front of you.
Maintenance
m
WARNING!
Always wear protective gloves during
maintenance
operations. Do not carry out maintenance when the engine is running
or hot.
m
WARNING!
Use only original manufacturer’s replacement parts,
accessories and attachments. Failure to do so can cause possible injury
and poor performance. To order genuine replacement parts or accessories
for the Sun Joe
®
ESCOSHARP
®
X20-BLOWER-4A cordless turbine jet
blower, please visit shopjoe.com or contact the All Season Power customer
service center at 1-866-225-9723.
m
WARNING!
Remove the battery before performing any
maintenance task. If the battery is connected with the unit, someone
could accidentally turn on the unit while you are inspecting it, which
could result in serious personal injury.
1. Store the tool, instruction manual and accessories in a secure, dry
place. In this way, you will always have the information ready at hand.
2. Keep the tool’s air vents unclogged and clean at all times.
3. Remove dust and dirt regularly. Cleaning is best done with a rag or
brush.
4. Never use caustic agents to clean plastic parts.
m
WARNING!
Do not use cleaning agents to clean the plastic
parts of the tool. A mild detergent on a damp cloth is recommended.
Water must never come into contact with the tool.
Storage
1. Examine the cordless turbine jet blower thoroughly for worn, loose,
or damaged parts. Should you need to repair or replace a part,
contact an authorized Snow Joe
®
+ Sun Joe
®
dealer or call the
All Season Power customer service center at 1-866-225-9723 for
assistance.
2. Remove the battery from the cordless turbine jet blower before
storing.
3. Store the jet blower in a dry, well-ventilated place that is inaccessible
to children. Keep away from corrosive agents.
Battery Caution + Disposal
Always dispose of your battery pack according to federal, state, and
local regulations. Contact a recycling agency in your area for recycling
locations.
m
CAUTION!
Even discharged battery packs contain some
energy. Before disposing, use electrical tape to cover the terminals to
prevent the battery pack from shorting, which could cause a fire or
explosion.
m
WARNING!
To reduce the risk of injury or explosion, never
burn or incinerate a battery pack even if it is damaged, dead, or
completely discharged. When burned, toxic fumes and materials are
emitted into the surrounding atmosphere.
1. Batteries vary according to device. Consult your manual for specific
information.
2. Install only new batteries of the same type in your product (where
applicable).
3. Failure to insert batteries in the correct polarity, as indicated in the
battery compartment or manual, may shorten the life of the batteries
or cause batteries to leak.
4. Do not mix old and new batteries.
5. Do not mix Alkaline, Standard (Carbon-Zinc), or Rechargeable (Nickel
Cadmium, Nickel Metal Hydride, or Lithium-Ion) batteries.
6. Do not dispose of batteries in fire.
7. Batteries should be recycled or disposed of as per state and local
guidelines.
Service and Support
If your Sun Joe
®
ESCOSHARP
®
X20-BLOWER-4A cordless turbine jet
blower requires service or maintenance, please call 1-866-225-9723 for
assistance.
Model and Serial Numbers
When contacting the company, reordering parts, or arranging service
from an authorized dealer, you will need to provide the model and serial
numbers, which can be found on the decal located on the housing of
the unit. Copy these numbers into the space provided below.
10
Record the following numbers from the housing or
handle of your new product:
X 2 0 - B L O
W E R - 4 A
Model #:
Serial #:
Optional Accessories
m
WARNING!
ALWAYS use only authorized Snow Joe
®
+ Sun Joe
®
replacement parts and accessories. NEVER use replacement parts or accessories
that are not intended for use with this saw. Contact All Season Power if you are
unsure whether it is safe to use a particular replacement part or accessory with
your saw. The use of any other attachment or accessory can be dangerous and
could cause injury or mechanical damage.
ModelAccessories Item
1
2
20V*ECOSHARP
4.0 Ah Lithium-ion
Battery
X20-BATT-4A
GC09-2100750
US
Charger for X20
Series - SAW,
CBLW, BLOWER
Trouble Shooting
Problem
Possible
Cause
Solution
Unit will not
start
Battery not
inserted or
discharged
Reinsert battery
until it clicks or
fully recharge
Unit will not
start
Battery faulty
Test with a known
working battery
Unit shuts off
during use
Low battery Recharge battery
Unit shuts off
during use
Overload or
overheating
Turn OFF, wait
10–15 minutes,
restart
Weak airflow Low battery Recharge battery
Weak airflow Air inlet blocked
Turn OFF, remove
battery, clear
debris
Excessive
vibration or
noise
Tube not secure
Reattach tube
firmly
Excessive
vibration or
noise
Internal damage
Stop use and
contact customer
support
Battery will not
charge
Battery too hot/
cold
Allow to reach
room temperature
Battery will not
charge
Charger issue
Check outlet or
replace charger
11
R1_09222025
OUR CUSTOMER PROMISE + LIMITED WARRANTY
OUR WARRANTY:
All Season Power warrants new, genuine, powered and non-powered Products to be free from defects in material or workmanship when
used for ordinary household use for a period of one year from the date of purchase or delivery by the original, end-user purchaser when
purchased from All Season Power or from one of All Season Power’s authorized sellers with proof of purchase. Because All Season Power
is unable to control the quality of its Products sold by unauthorized sellers, unless otherwise prohibited by law, this Warranty does not
cover Products purchased from unauthorized sellers. If you have any questions about how to buy from an authorized seller, chat with us at
shopjoe.com/support or call us at 1-866-225-9723. If your Product does not work or there’s an issue with a specific part that is covered
by the terms of this Warranty, All Season Power will elect to either (1) send you a free replacement part, (2) replace the Product with a new
or comparable product (which may include a refurbished, like-new product) at no charge, or (3) repair the Product. How cool is that!
PRODUCT REGISTRATION:
All Season Power strongly encourages you to register your Product. You can register online at shopjoe.com/register, by chatting with us at
shopjoe.com/support
or calling our Customer Service Department at 1-866-225-9723. Failure to register your Product will not diminish your
warranty rights. However, registering your Product will allow All Season Power to better serve you with any of your customer service needs.
WHO CAN SEEK LIMITED WARRANTY COVERAGE:
This Warranty is extended by All Season Power to the original purchaser and original owner of the Product.
WHAT IS NOT COVERED?
This Warranty does not apply if the Product has been used commercially or for non-household or rental applications. This Warranty also
does not apply if the Product was purchased from an unauthorized seller. This Warranty also does not cover cosmetic changes that do
not affect performance. Wearing parts like belts, augers, chains and tines are not covered under this Warranty, and can be purchased at
shopjoe.com or by calling 1-866-225-9723.
We encourage you to use CERTIFIED AUTHENTIC Snow Joe
®
, Sun Joe
®
, Aqua Joe
®
+ Auto Joe
®
replacement parts + accessories. Damage
caused by the use of any other parts + accessories on your Product will not be covered under the warranty. Genuine parts + accessories
can be found and purchased here by entering the model number of your product.
ABOVE ALL ELSE, All Season Power, LLC (“All Season Power”) is dedicated to you, our customer. We strive to make your experience as
pleasant as possible. Unfortunately, there are times when a Snow Joe
®
, Sun Joe
®
, Aqua Joe
®
or Auto Joe
®
product (“Product”) does not
work or breaks under normal operating conditions. We think it’s important that you know what you can expect from us. That’s why we have
a Limited Warranty (“Warranty”) for our Products.
When you register your powered or non-powered Product with All Season Power at shopjoe.com/register, you will receive an additional
90 days of warranty coverage. In addition, you will have the option of purchasing extended warranty coverage beyond the standard 1-year
manufacturer’s warranty. Choose from two, three, or four years of extended coverage through Extend, Inc. Additional charges apply. When
you Go With Joe
®
, you’re not just buying an extended warranty; you’re buying total peace of mind to know that you can rely on our top-notch
tools, top-tier customer support, complete product coverage + no hassle return policy. Chat with us at shopjoe.com/support or call us at
1-866-225-9723 7 days a week 10AM-6PM EST. We’ve got you covered!
There are no warranties which extend beyond those stated herein. ANY IMPLIED WARRANTIES THAT MAY BE APPLICABLE TO PRODUCTS,
INCLUDING IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION
TO THE DURATION OF THIS WARRANTY. Some States do not allow limitations on how long an implied warranty lasts, so the above
limitation may not apply to you.
UNDER NO CIRCUMSTANCES SHALL WE BE LIABLE FOR ANY SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES BASED UPON
BREACH OF THIS LIMITED WARRANTY, BREACH OF CONTRACT OR STRICT LIABILITY. Some States do not allow the exclusion or
limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific
legal rights, and you may also have other rights which vary from State to State. This warranty supersedes those printed in product manuals.
EN
R
shopjoe.com
