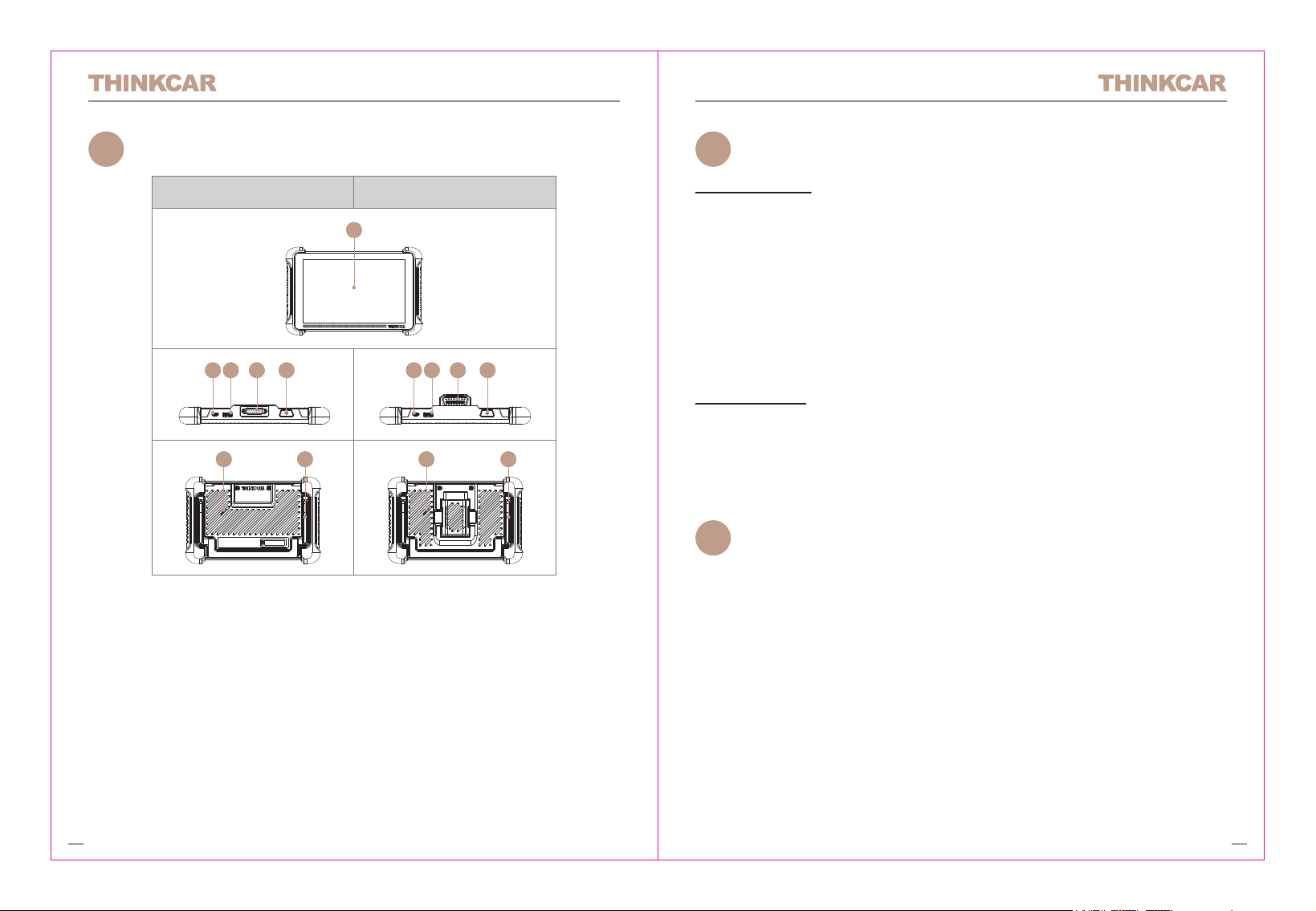

1. Touch Screen: 8 inches touch screen.
2. Charging Port: Type-C charging port for charger or data transmission.
3. USB expansion slot: For connecting USB expansion module.
4. Diagnostic cable interface (TK689): Connect to car OBD port for
diagnosis;
Diagnostic connector (TK689BT): Bluetooth diagnostic connector,
connect to car OBD port for diagnosis.
5. Power/Screen Lock Button: Long press for 3 seconds to turn on or off,
single press to lock/unlock the screen.
6. Loudspeaker: Indicate product connection status and important
information.
7. Bracket: Place the product on the desktop.
Product Overview
1
Technical Specifications
2
How To Use
3
01
TK689 TK689BT
1
6 67 7
2 3 4 5 2 3 4 5
Host Computer
Display: 8" display
Resolution: 1280*800 pixel
Working Environment: 0°C~50°C (32°F~122°F )
Storage Environment: -20°C~60°C (-4°F~140°F )
Model TK689:
Working voltage:9~18V
Working current: ≤1.2A
Model TK689BT:
Working voltage:5V
Working current: 2.5A
Thinkscan VCI
Model TK689BT:
Working Voltage: 9~18V
Workding Current: ≤130mA
Working Environment: 0°C~50°C (32°F~122°F )
Storage Environment: -20°C~60°C (-4°F~140°F )
Data Link Connector (DLC) Location
The DLC (Data Link Connector or Diagnostic Link Connector) is typically a
16 pin connector where diagnostic code readers interface with the
vehicle’s on board computer. The DLC is usually located 12 inches from
the center of the instrument panel (dash), under or around the driver’s side
for most vehicles. If Data Link Connector is not located under dashboard,
a label should be there telling location. For some Asian and European
vehicles, the DLC is located behind the ashtray and the ashtray must be
removed to access the connector. If the DLC cannot be found, refer to the
vehicle’s service manual for the location.

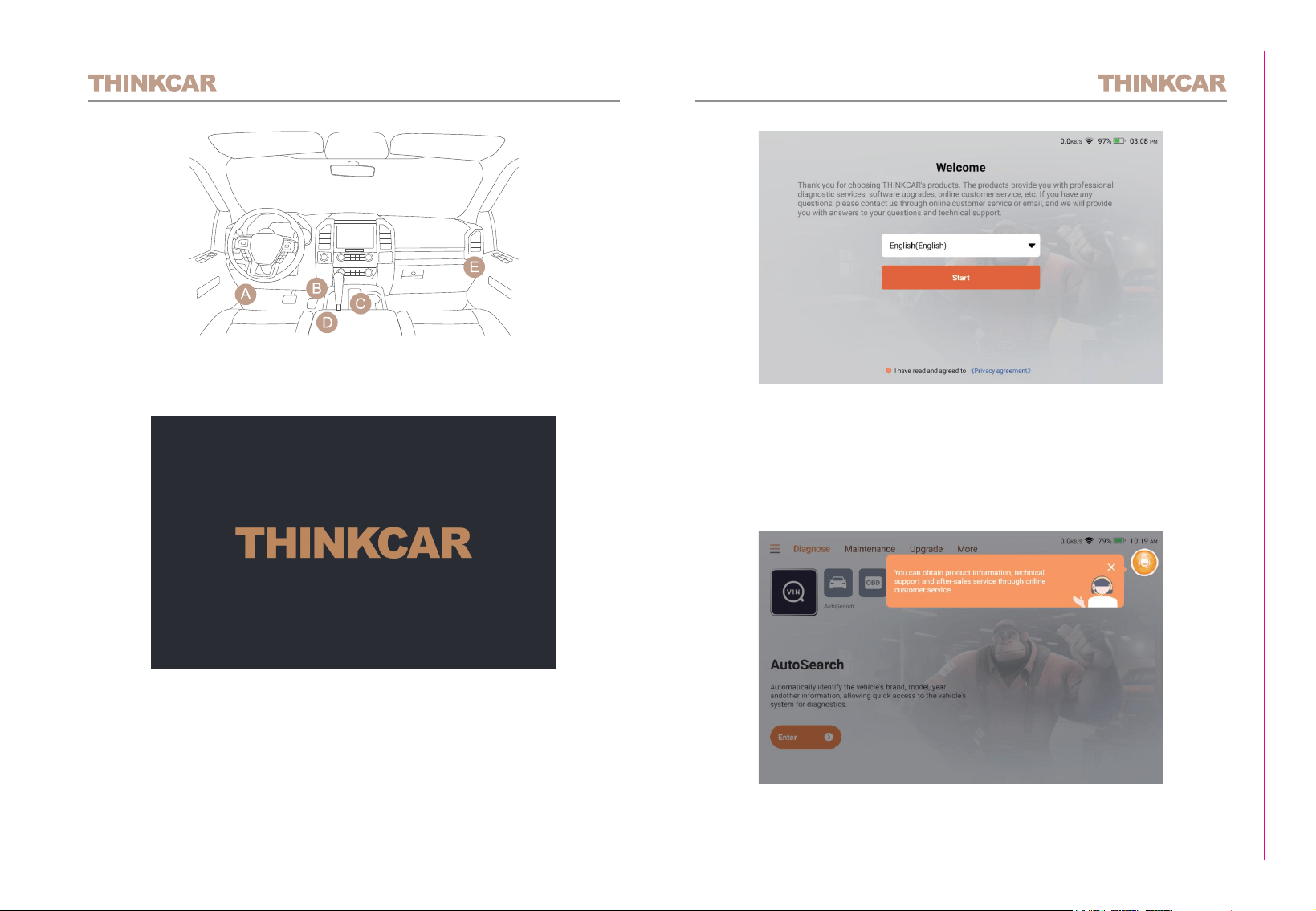

Connect the THINKSCAN host computer with your vehicle through the
OBDII port/diagnostic connector. Usually, the OBD port is located under
the dashboard, above the pedal on the driver’s side. The five locations
shown in the picture are common OBDII port locations.
02
3.1 Turn on the device
After pressing the power button, image will be shown on the screen as
follow.
3.2 Language Setting
Select the tool language from the languages displayed on the page, If you
do not select a language, the default language is English. Please read and
agree to the privacy agreement. Click the Start button to start using this
product.
03
3.3 Start using
When you enter the product homepage, you can use the product
functions. Our products provide online customer service functions. If you
have any product-related questions, you can get technical support through
online customer service. We have a professional team to provide you with
services.
04
Function Descriptions
4
The THINKSCAN provides 4 functional modules, including Diagnose,
Maintenance, Upgrade, More. In addition, there are shortcuts to the above
functions.
Tips: Please note that manual and product pages may differ due to version updates.
3.4 Connect Wi-Fi (Recommend)
For a better product experience, we recommend that you connect to Wi-Fi
then check and update to the latest software version before you start using
the product. If there is no Wi-Fi, you can connect to the mobile hotspot, but
please note that some software has a large capacity, so please pay
attention to the data consumption in a non-Wi-Fi environment to avoid
additional data consumption and incurring fees.
4.1 Diagnose
Full system diagnosis: it supports more than 140 automobile brands, smart
diagnosis , full-system and full-function diagnosis: read fault codes, clear
fault codes, read real-time data streams, special functions, action tests,
etc. A diagnostic report will be automatically generated after the diagnosis.
05

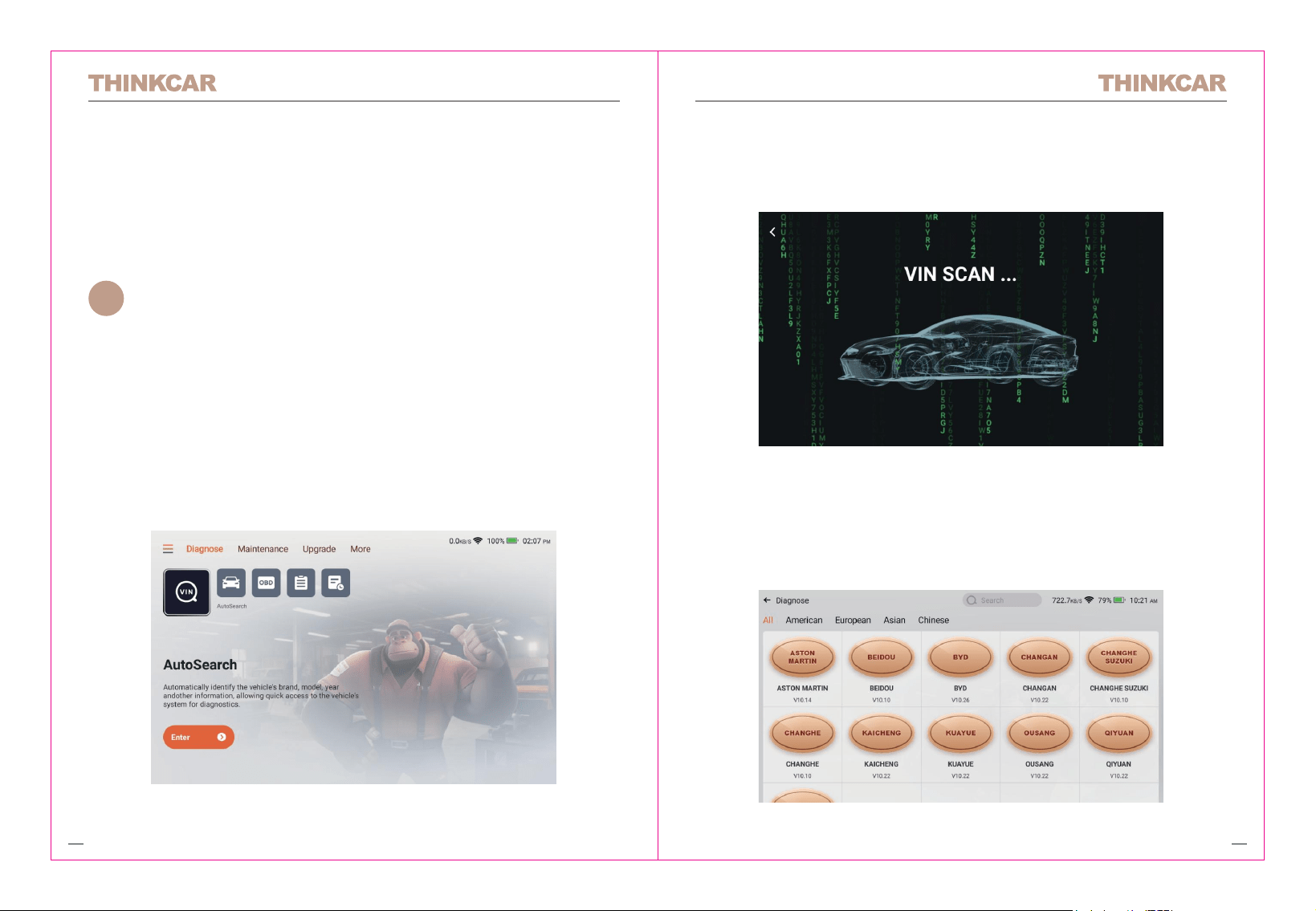

4.1.1 AutoSearch
Autosearch can automatically read the car's VIN number, manufacturer
and year of manufacture. If the vehicle information cannot be read, you
can enter it manually and continue the diagnosis.
4.1.2 Diagnose
The diagnose module supports manual vehicle selection. You can filter by
vehicle region, brand, model, etc. Using this function requires you to have
a full understanding of the diagnostic vehicle information. If you do not
know enough about the vehicle information, it is recommended that you
use Autosearch to automatically identify the vehicle information and
perform diagnosis.
06
4.1.3 OBD
OBD (On-Board Diagnostics) is a system found in most modern vehicles
that monitors and diagnoses the performance of various components. It
allows mechanics and car owners to access real-time data and trouble-
shoot issues more efficiently. OBD can provide information about engine
speed, fuel efficiency, emission levels, and sensor readings. Additionally, it
can detect and display fault codes, enabling technicians to identify and fix
problems quickly. Overall, OBD plays a crucial role in vehicle maintenance
and helps ensure optimal performance and reduced emissions.When you
click the OBD button, the connection will automatically start. After the
connection is successful, you will enter the OBD diagnostic page.

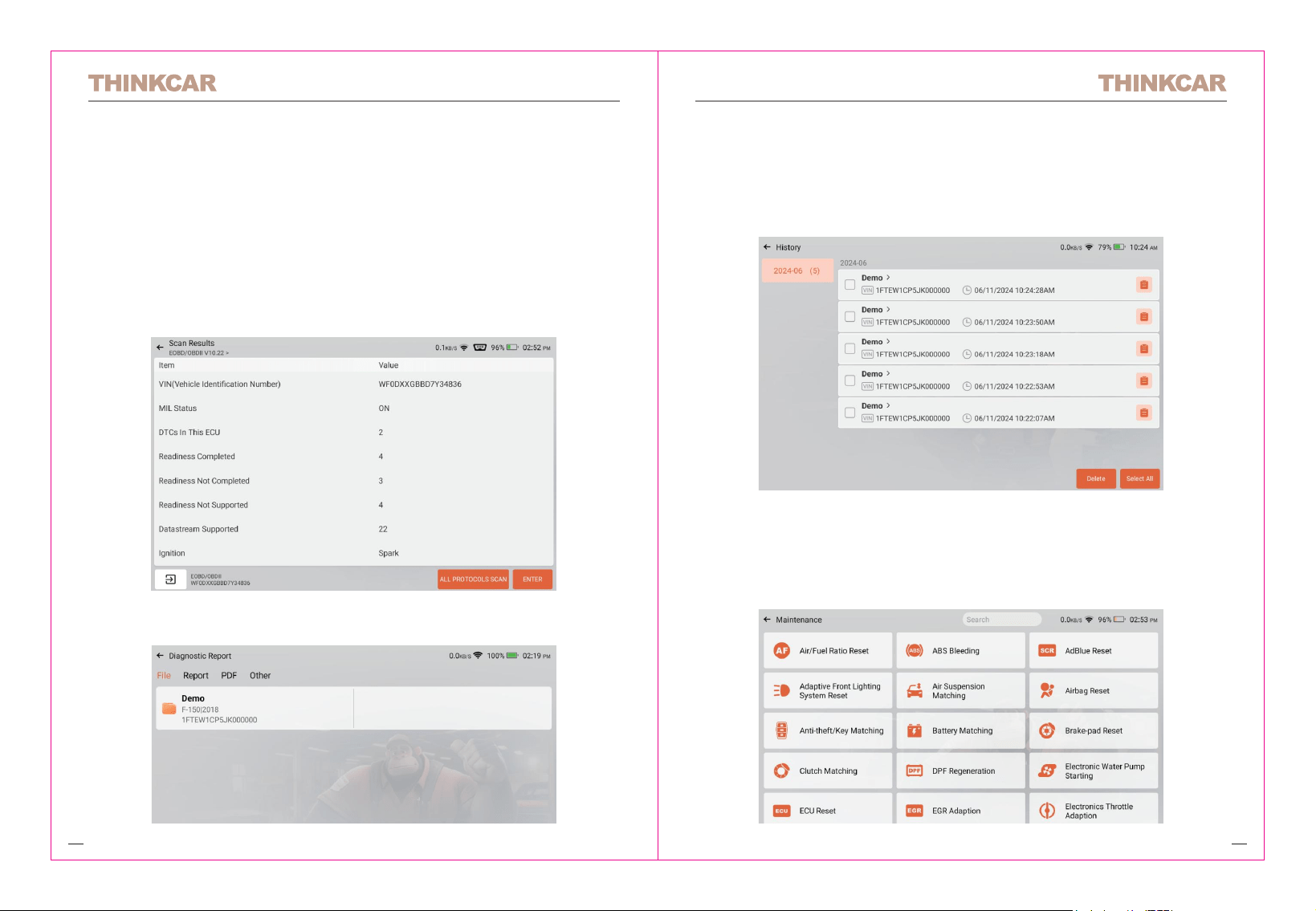

4.1.4 Report
Historical vehicle diagnostic reports can be found here.
4.1.5 History
The diagnosed vehicle records will be displayed here. Click to view the
diagnosis records. If you diagnose a vehicle that has been diagnosed in
the history records again, click the arrow in the history records to quickly
diagnose the vehicle again.
07
4.2 Maintenance
The reset function in car maintenance refers to the ability to reset certain
maintenance indicators or parameters in a vehicle's onboard computer
system. This feature allows users to clear or restart specific mainte-
nance-related notifications or tracking systems.
08
4.4 More
This module provides a variety of functions, including Online Service,
query function, system settings, etc. The following is a brief explanation of
each function to help you quickly understand and use the product.
4.4.1 Settings
System settings for the product host. After the initial setting is completed,
the user can modify or add related information here.
4.4.2 Online Service
Online manual customers provide you with product-related consultation
and services.
4.4.3 User Manual
Electronic manual of the product. If you lose the paper manual, you can
view the electronic version here.
4.4.4 OBD Fault Code Library
If you encounter a fault code that you do not understand during the
diagnosis process, you can check the detailed explanation of the fault
code here.
09
10
4.3 Upgrade

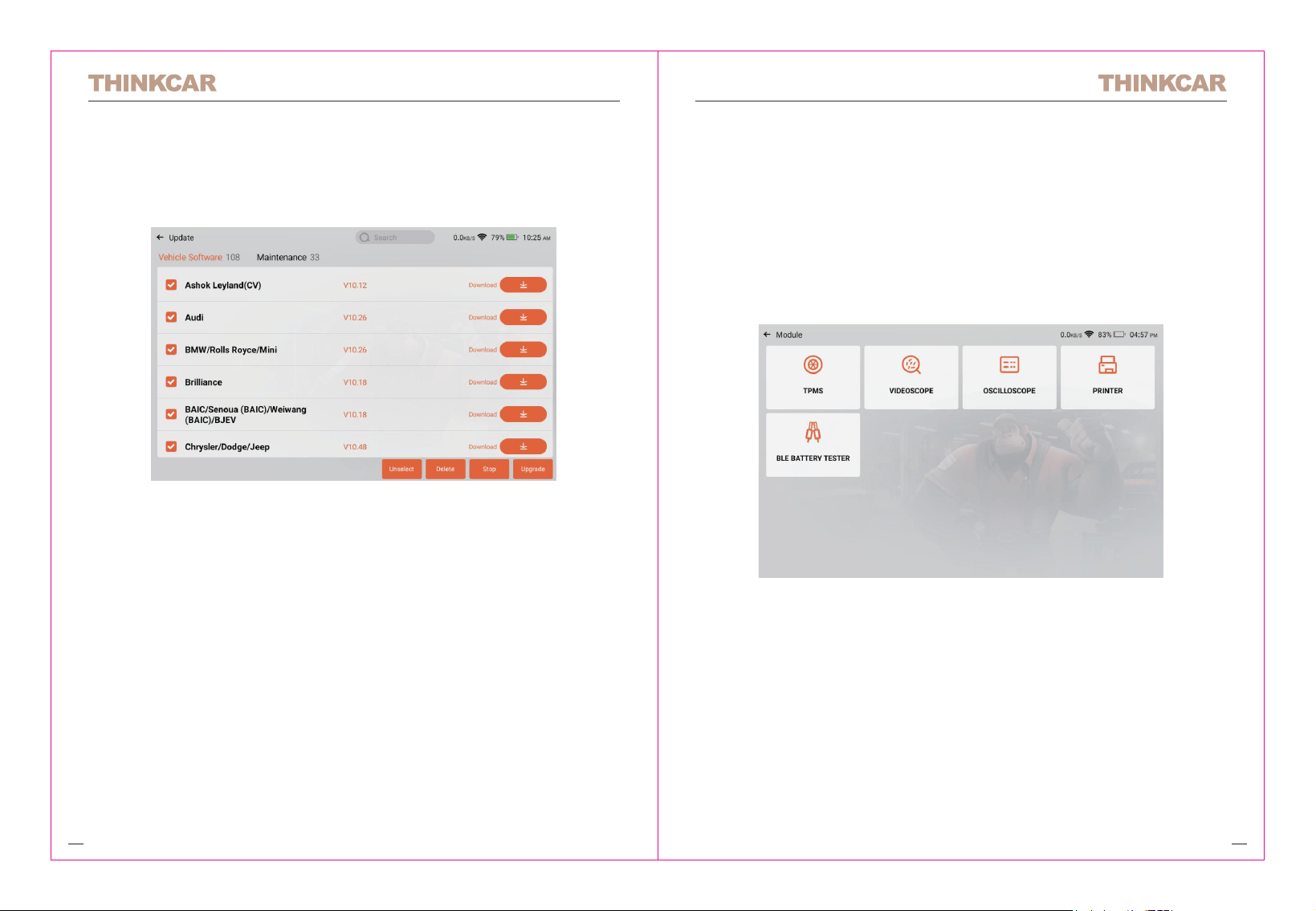

This module supports you to download and update vehicle model software
and maintenance software. And you can delete the software you no longer
use in this module to save memory. The search box is at the top of the
page, through which you can quickly find the software you need.
4.4.5 Coverage List
Check the models and functions supported by this product.
4.4.6 Module
It is the entry to use modular function components. On the screen, you can
find and use functional modules already connected to the host, check
functional modules already bought or buy functional modules needed.
Supports USB printer, USB oscilloscope, USB video scope, Bluetooth
battery tester, tire pressure stick(TPMS), etc.
Tips: These functions are optional.
4.4.7 Feedback
You can feedback the diagnostic software/app bugs to us for analysis and
improvements.
Your submitted questions will be analyzed and provided with solutions by
professionals.

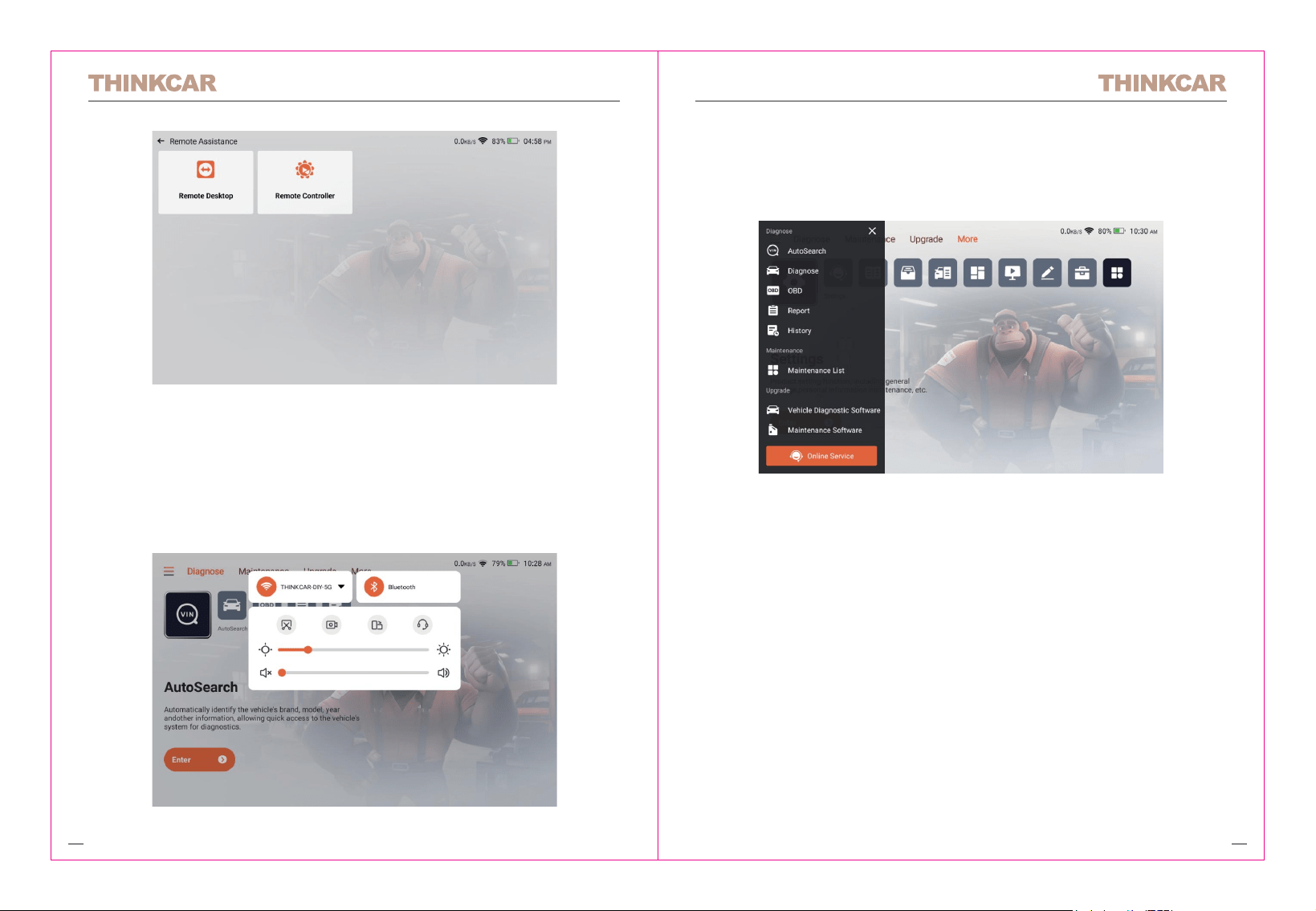

4.4.8 Remote Assistance
Provide service support through the use of remote assistance software.
Different regions can choose different remote assistance software accord-
ing to your needs.Please note that before using the remote assistance
software, please communicate with the staff through the online customer
service to arrange the assistance time so that the technical staff can
provide assistance.
4.4.9 Gadget
Provide tools such as chrome.
11
12
4.5.2 Function shortcuts
Click the icon in the upper left corner of the home screen to display the
shortcut menu of product functions. Click the corresponding product
function to quickly enter the function.
4.5 Quick access
4.5.1 Quick access to settings
Swipe down from the screen to display the system settings shortcut keys.
Supports Wi-Fi, Bluetooth, screenshot, screen recording, screen flip,
screen brightness adjustment, and volume adjustment.
Warranty Terms
This warranty applies only to users and distributors who purchase
THINKCAR products through normal procedures. Provide free warranty
within one year. THINKCAR warranty including electronic products for
damages caused by defects in materials or workmanship. Damages to the
equipment or components caused by abusing, unauthorized modification,
using for non-designed purposes, operation in a manner not specified in
the instructions, etc.are not covered by this warranty. The compensation
for dashboard damage caused by the defect of this equipment is limited to
repair or replacement. THINKCAR does not bear any indirect and inciden-
tal losses. THINKCAR will judge the nature of the equipment damage
according to its prescribed inspection methods.
THINKCAR TECH CO.,LTD.
Customer Service Email: support@mythinkcar.com
Official Website: www.mythinkcar.com
Products tutorial, videos, Q&A and coverage list are available on Thinkcar
official website.
Follow us on
@thinkcar.official @ObdThinkcar
Here we list some common questions and answers related to this tool.
Q: Why does it have no responses when connected to a car computer?
A: Check whether the connection with the vehicle diagnostic seat is
normal, whether the ignition switch is on, and whether the car supports
the tool.
Q: Why does the system stop while reading the data stream?
A: This may be caused by loose connectors. Please turn off the tool,
connect the connector firmly, and then turn it on again.
Q: Why does the host screen flash when the engine ignition starts?
A: It is normal and caused by electromagnetic interference.
Q: How to upgrade the system software?
A: 1. Start the tool and ensure a stable Internet connection.
2. Set up: select "System Version", and then click "Check Version" to
enter the system upgrade interface.
3. Complete the process by following the instructions on the screen
step by step. It may take a few minutes depending on the internet
speed. Please be patient. After successfully completing the upgrade,
the tool will automatically restart and enter the main interface.
Q: How to add function modules?
A: THINKCAR TECH INC offers 5 other functional modules. You can buy
them on the official website or contact dealer.
Q: Why does it have no diagnostic results for my car?
A: This may be caused by the incompatibility of the vehicle model. Please
use the online customer service to inquire whether your vehicle model
is supported.
13
14
Q&A
5
