USE AND CARE GUIDE
Questions, problems, missing parts?
Before returning to the store, call
9 a.m – 5 p.m., CST, Monday-Friday
1-866-441-5080
Item # 211-4758 Model # M27BC
Item # 211-4759 Model # M27BCTB
Item # 211-4760 Model # M27BCTR
Item # 211-4761 Model # M27BCW
Assembly Instructions
27 IN 2-Door Base Cabinet
Table of Contents
Table of Contents .................................................. 2
Safety Information ............................................... 2
Warranty ................................................................ 3
Specifications ........................................................ 3
Package Contents .................................................. 3-4
Assembly ............................................................... 5
7............................... ................................ ecnanetniaM
6 ..............................................................
Operation
Safety Information
1. Do not pull this unit, push it when moving.
2. Use the brakes when this product is not being
moved. This prevents the product from rolling.
3. Secure this product properly before moving it with a
forklift.
4. Do not tow the product with power equipment.
5. Do not alter this product in any manner. For
example, do not weld external lock bars or attach
electrical equipment.
Do not stand on this product. You
may fall which may cause personal injury or
CAUTION: Keep the product on level surfaces.
The product may become unstable and tip if
stored or moved on an unlevel surface, which
may cause personal injury or product damage.
CAUTION:
Replacement Parts ................................................ 7
product damage.
2
Do not attach or mount this
product
to a vehicle or mobile trailers. This may cause
personal injury or product damage. Mounting this
product to any vehicle or mobile trailers in any
warranty.
CAUTION:
manner will void
CAUTION:
Lock the door
before moving
this product. The doors could come open and
make the product unstable and tip, which may
cause personal or product damage.
Specifications
Casters support up to
600 lbs.
NOTE: Begin product assembly close to t nal
intended location of your cabinet. This product is
heavy and may be di
cult to move after assembly.
) shelf( rep thgiew mumixaM
100 lbs.

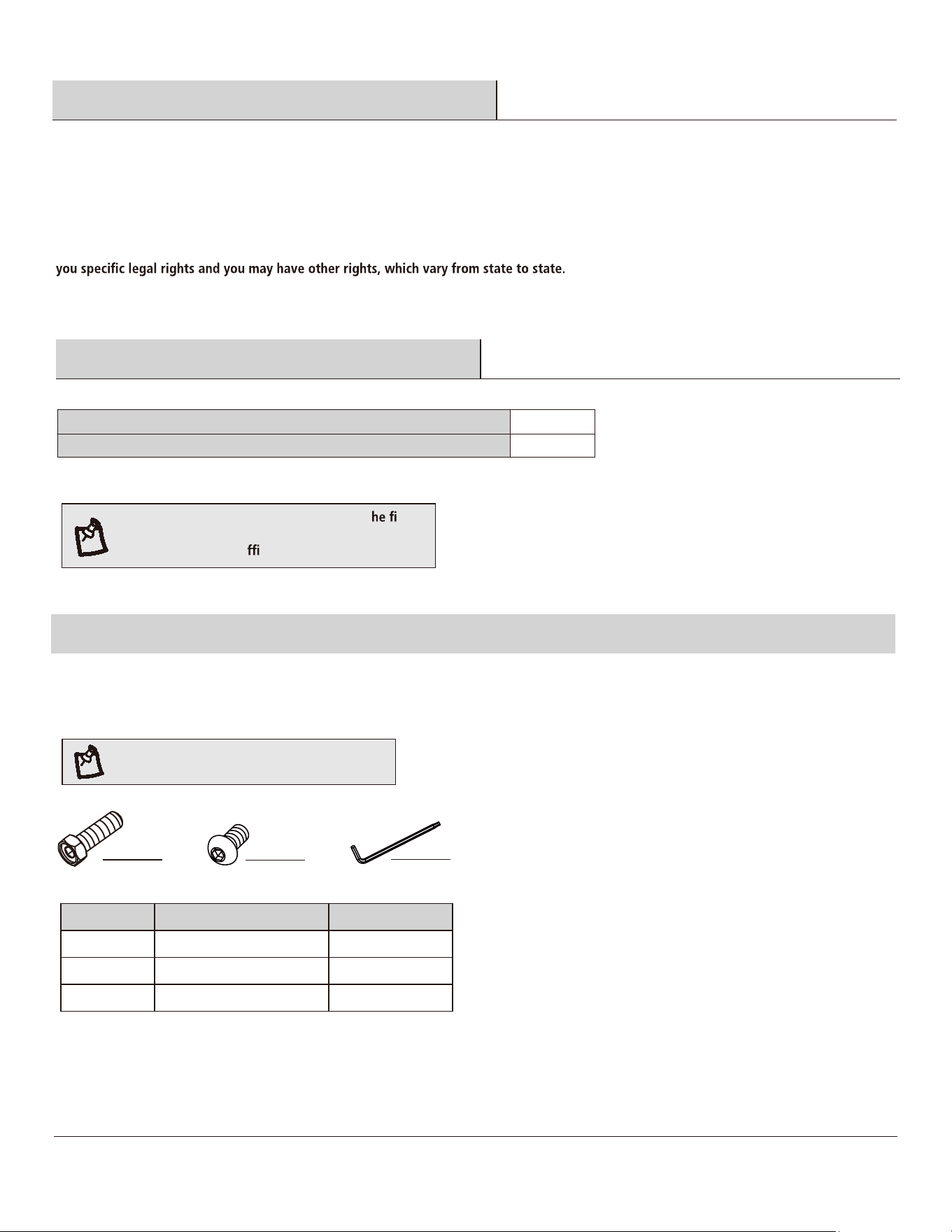

Package Contents
HARDWARE INCLUDED
NOTE: Hardware not shown to actual size.
Part Description
AA
BB
M6 x 16 bolt
M8 x 20 bolt
8
CC Hex key 1
Quantity
CC
BB
AA
3
16
Limited Lifetime Warranty
PERFORMAX® Tool Cabinets and Chests are warranted to be free from defects in materials and workmanship under normal use for the lifetime
that you own the product. If any part of the product is found to be defective during normal use, the defective product or part will be replaced at
our discretion. This warranty does not cover products that are damaged through accident, abuse, misuse, commercial/industrial applications or
neglect. This warranty also does not cover any losses, injuries or costs including indirect, incidental or consequential damages. This warranty
may not be transferred or sold. When requesting warranty service please call 1-866-441-5080 and have the model number, cash register receipt
and the date of purchase available when you call. If the product is defective, we will replace the defective part at no cost to you. Some states
do not allow the exclusion or limitation of incidental damages, so the above limitations or exclusions may not apply to you. This warranty gives
Part Description Quantity
A
B
C
Cabinet 1
4
D
2
2
Swivel caster with brake

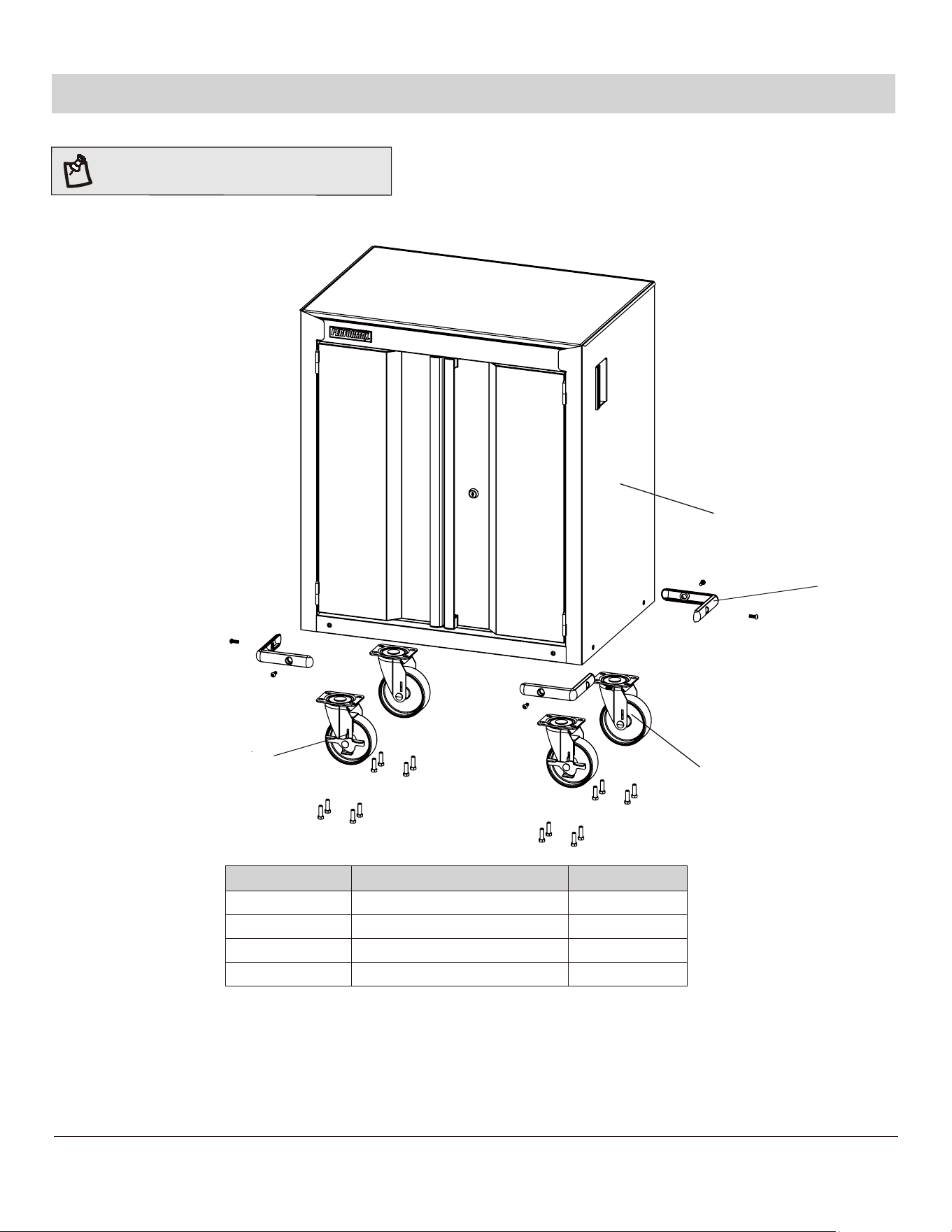

Package Contents (continued)
4
NOTE: Cabinet Keys are inside shelf.
A
B
C
D
Bumper
Swivel caster without brake
Assembly
CAUTION:
Two people are recommended for assembly.
5
A
B
BB

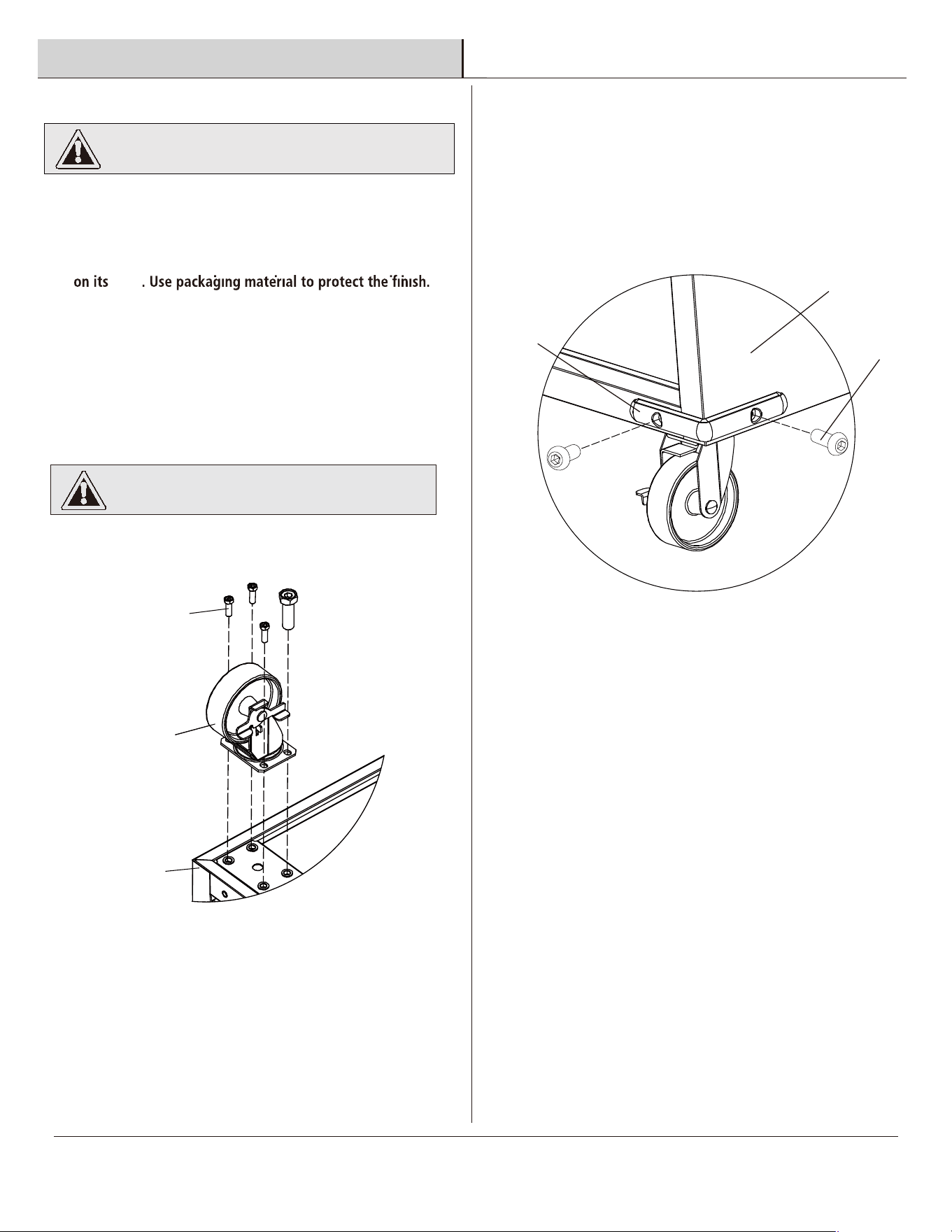

Attaching the casters
□ Be sure the doors are locked and lay the cabinet (A)
□ Attach the swivel casters with brake (D) on the front of the
unit inserting four bolts (AA) per caster into the cabinet (A).
□ Tighten with supplied hex key (CC).
□ Attach the swivel casters without brake (C) on the back of
the unit inserting four bolts (AA) per caster into the
cabinet (A).
□ Return the cabinet (A) to its upright position.
CAUTION:
Do not over tighten the bolts.
1
AA
D
A
Attaching the
2
bumpers
□ Position the bumpers (B) over the corner holes. Insert 2
bolts (BB) into bumper holes and tighten with supplied Hex
key (CC). Do not over tighten.
back

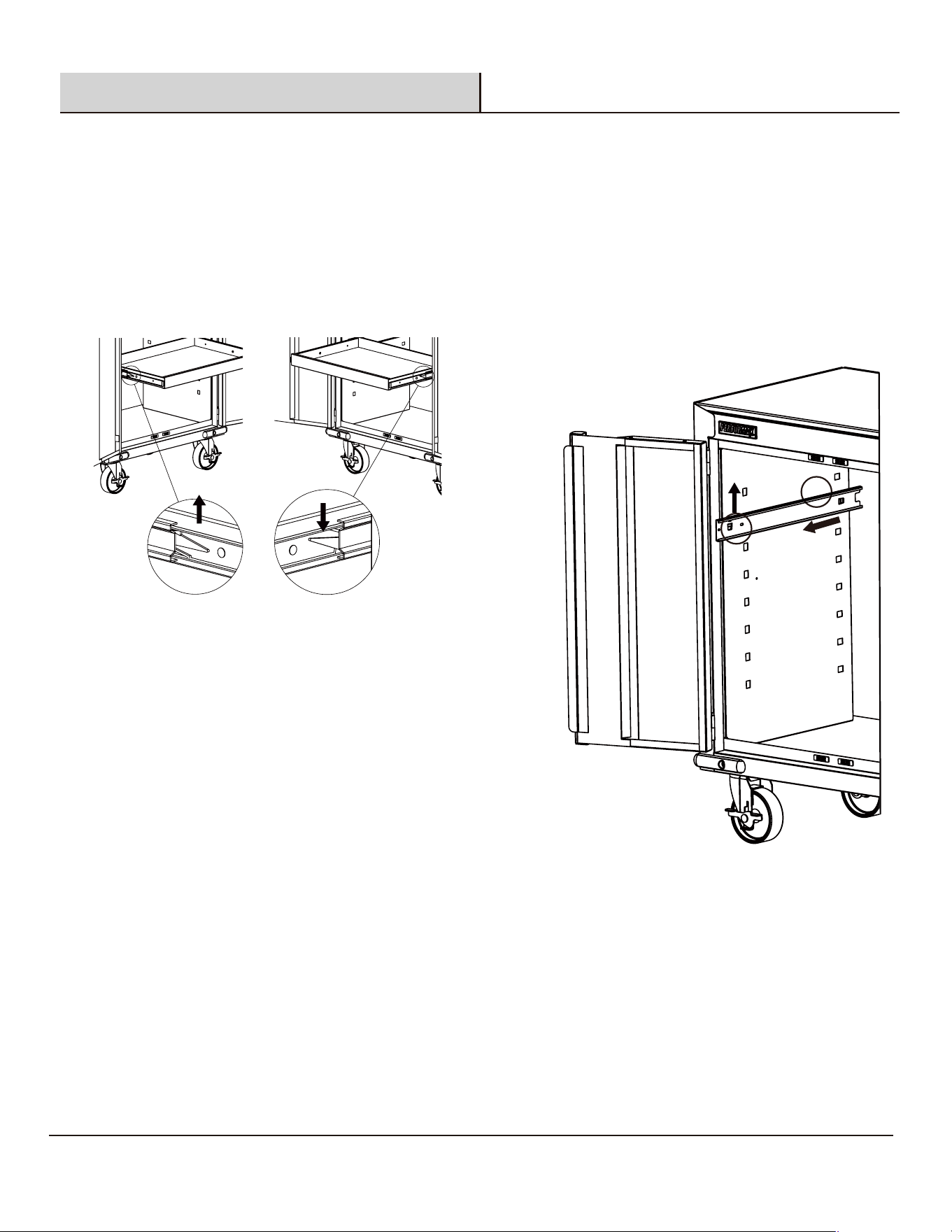

Operation
1
Removing the sliding tray
2
Sliding tray height adjustment
Fully extend the empty sliding tray.
□
□
elihw revel esaeler eno eht pu hsuP pulling
down on the other release lever.
□ Pull the tray outward until it is released from the
tray slide.
With the sliding tray removed, push up at the front
of the outer slide to release the clip from the side
panel groove and then pull outward to remove.
□
□
Insert the back clip of the outer slide, and then push
down to lock the front clip into the groove of the
side panel.
□ Determine the desired height of your shelf.
3
Re-inserting the sliding tray
Extend the tray slides.
□
□
Insert the brackets on each side of the tray into
the slots in the slides, being careful that they are
properly positioned.
□ Once properly inserted, completely close the tray
to set the slides in their proper positions.
6
7

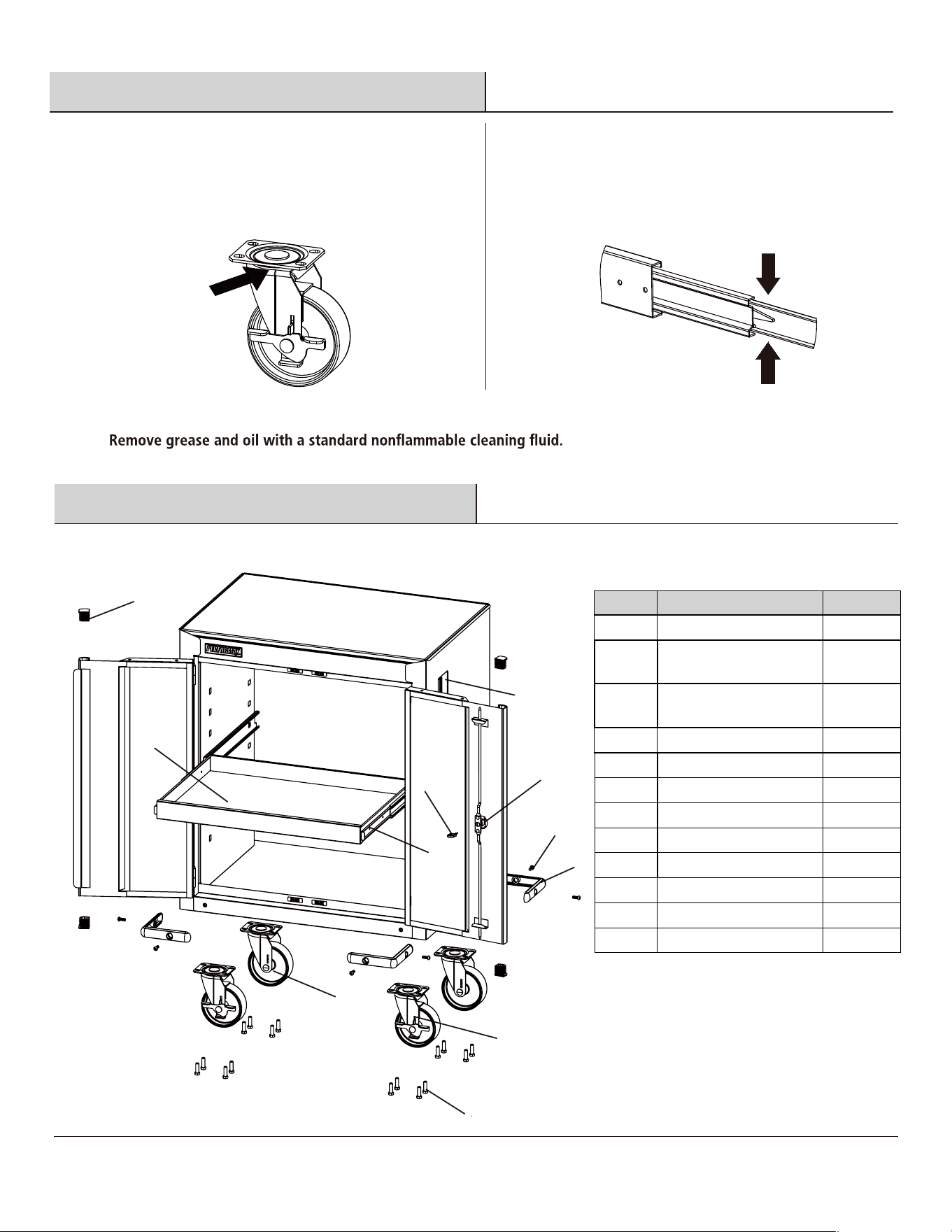

Replacement Parts
For assistance with replacement parts please call 1-866-441-5080.
Drawer Liner 1
A Cabinet Handle 2
B
2
C
2
D
Lock 1
F
Badge
1
H
Drawer Slide
2
G
Caster Bolt
16
I
4
J
Key
2
E
Part
Description Quantity
Swivel Caster without
brake
Swivel Caster with
brake
Bumper
K
Bumper Bolt
8
L
Plastic Cap
4
A
C
B
E
H
J
K
D
I
G
L
Maintenance
1
Caster maintenance
2
Drawer maintenance
□ Grease the casters annually using high-quality
bearing grease.
□ Lu
bearing grease.
bricate the slides semi-annually with high-quality
□
Periodically clean the drawer fronts, drawer trim, and other surfaces with a mild detergent and water.
□
