Remote Control
Instruction Manual
Product Name: Long Remote Control
I. Product Application Scope
This product is applicable to integrated smart toilets and smart toilet
seats.
II. Product Operating Conditions
1. Operating Environment: This product is required to be used in an
environment free of dust and corrosive air.
2. Operating Temperature Range: Ambient temperature 0℃~40℃
3. Operating Humidity Range: Ambient humidity ≤ 95%RH (no
condensation)
4. Storage Temperature Range: -10℃~50℃
III. Product Characteristics
1. Operating Voltage: 3.0V (DC)

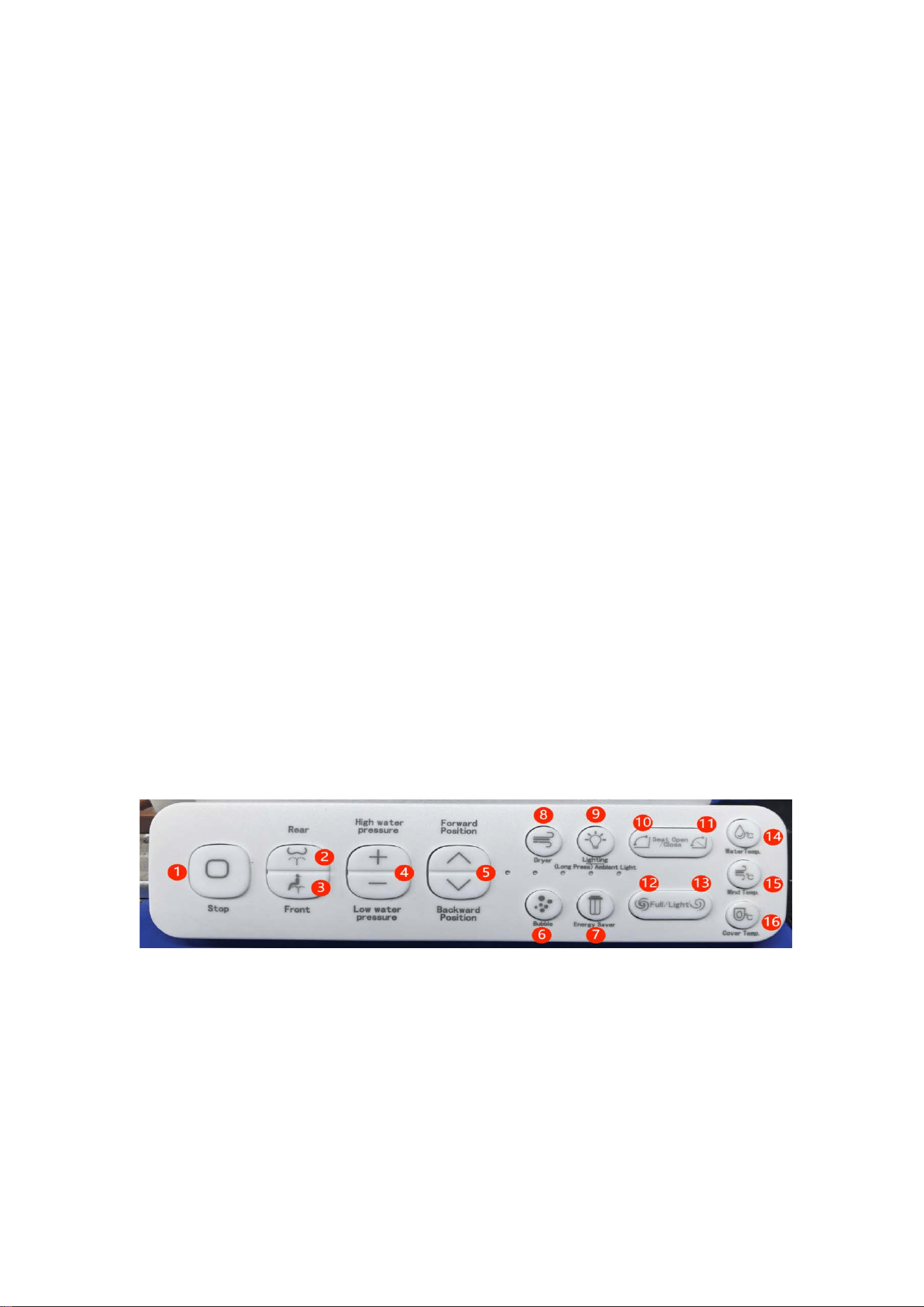

1.
Stop button
Press and hold to stop function
Long press to enter standby / power on
2.
Buttocks wash button
Press the buttocks to clean them
3.
Female wash button
Press the female wash button
4.
Water pressure +/- button
Press +/- to adjust water pressure for cleaning
5.
Position Button
Tap to adjust the cleaning position
6.
Press the bubble button to start foaming.
7.
Press the energy-saving button to switch on/off energy-saving mode.
8.
Drying button
Press to activate warm air drying
9.
Night light button for pressing switch on/off the night light
10.
Flip cover button
Press to open/close the seat cover open/close button
11.
Flip ring button
Press to open/close the seat ring
12.
Press the "Dai Chong" button
Press and hold to start the flushing and fully discharge the water volume
13.
Press the "Big Flush" button
Press and hold to start the flushing with half the water volume
14.
Water temperature button
Press and hold to start adjusting water temperature
15.
Wind temperature button
Press again to start adjusting the wind temperature
16.
Seat temperature button
Press again to start adjusting the water temperature Seat
F C C I D : 2 B O Y X - 1 8 K E Y
M o d e l : 1 8- K E Y
This device complies with part 15 of the FCC Rules
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that
may cause undesired operation.
Note:
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
- Reorient or relocate the receiving antenna. - Increase the separation between
the equipment and receiver. - Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected. - Consult the dealer or an
experienced radio/TV technician for help.
Any changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
