GRA, GRAF, GRBD, & GRBDF SERIES GAS FRYER REPLACEMENT PARTS
F-43210 Rev. C (June 2019) - 2 - © VULCAN-HART COMPANY 2019
Table of Contents
5 CONTROL BOX
7 POWER SUPPLY BOX
9 BODY UNIT (STAND-ALONE)
11 BODY UNIT (BATTERY)
15 BURNER COMPONENTS (STAND-ALONE)
17 BURNER COMPONENTS (BATTERY)
19 GAS VALVE
21 GAS INLET MANIFOLD
23 TANK AND DRAIN (STAND-ALONE)
25 TANK AND DRAIN (BATTERY)
27 OIL RETURN (BATTERY)
29 FILTER ASSEMBLY
31 BASKETLIFT COMPONENTS (OPTIONAL)
33 RECOMMENDED SPARE PARTS LIST
GRA, GRAF, GRBD, & GRBDF SERIES GAS FRYER REPLACEMENT PARTS
- 3 - F-43210 Rev. C (June 2019)
CONTROL BOX
GRA, GRAF, GRBD, & GRBDF SERIES GAS FRYER REPLACEMENT PARTS
F-43210 Rev. C (June 2019) - 4 -

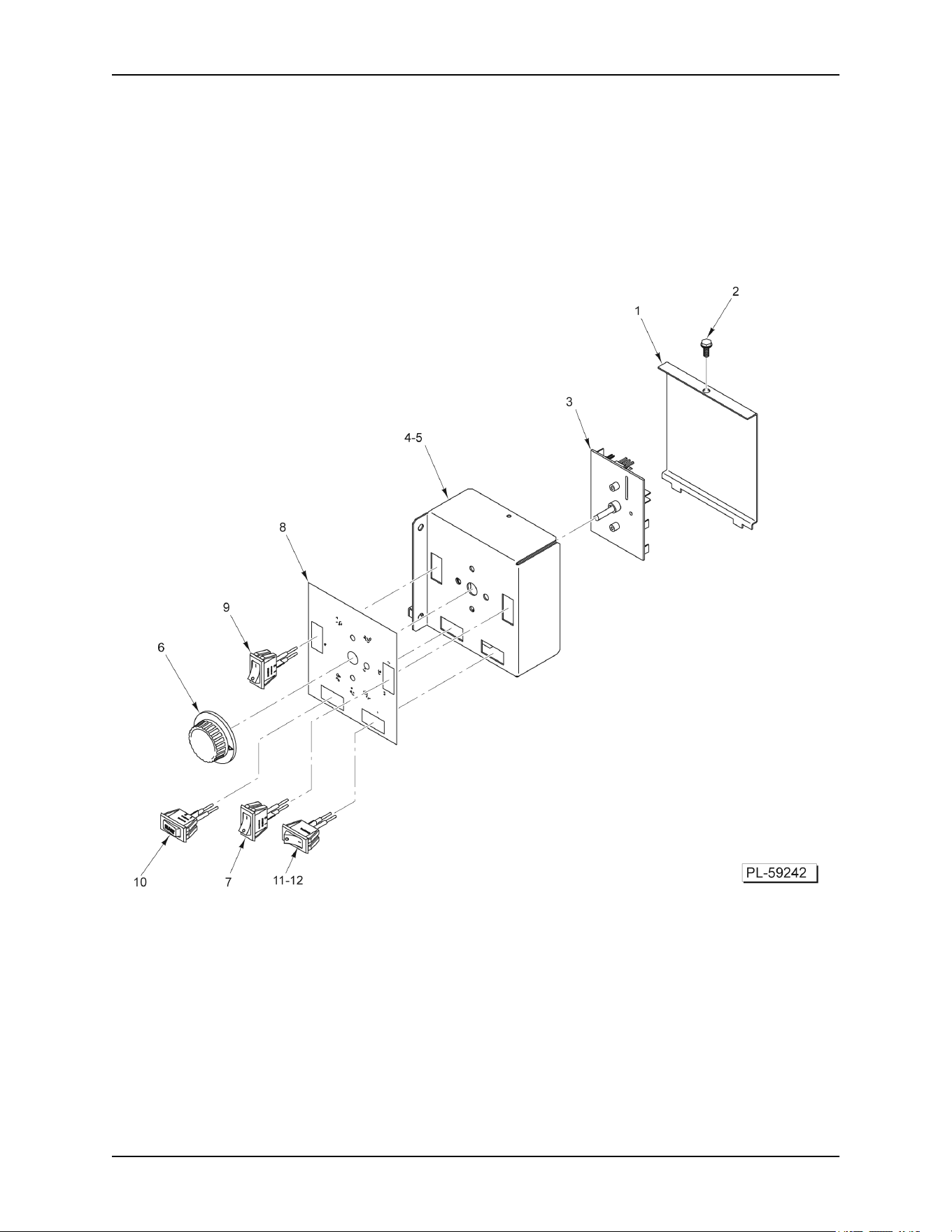

CONTROL BOX
ILLUS.
PL-PL-59242
PART NO. NAME OF PART AMT.
1 00-957822-00001 Cover - Control Box....................................................................................................................1
2 SD-032-07 Self-Tapping Screw 10-24 x 1/2 Hex Washer Hd., Type TT......................................................1
3 00-956926-000G1 Control Assy. - Behind Door (W/no LED's)................................................................................1
4 00-499716-00001 Plate - Control Mounting (LH).....................................................................................................1
5 00-499716-00002 Plate - Control Mounting (RH) (2G4, 2G6, 2G8, 3G4, 3G6, 3G8, 4G4, 4G6, & 4G8)
...................................................................................................................................................1
6 00-411242-00001 Knob...........................................................................................................................................1
7 00-427755-000G1 Switch Assy. - Power..................................................................................................................1
8 00-956827-00002 Overlay.......................................................................................................................................1
9 00-427755-000G1 Switch- Rocker S.P.S.T..............................................................................................................1
10 00-427755-000G2 Switch Assy. (Start)....................................................................................................................1
11 00-427755-000G1 Switch Assy. - Power (Filter)......................................................................................................1
12 00-426251-00002 Plug - Switch (Non-Filter)...........................................................................................................1
GRA, GRAF, GRBD, & GRBDF SERIES GAS FRYER REPLACEMENT PARTS
- 5 - F-43210 Rev. C (June 2019)
POWER SUPPLY BOX
GRA, GRAF, GRBD, & GRBDF SERIES GAS FRYER REPLACEMENT PARTS
F-43210 Rev. C (June 2019) - 6 -
POWER SUPPLY BOX
ILLUS.

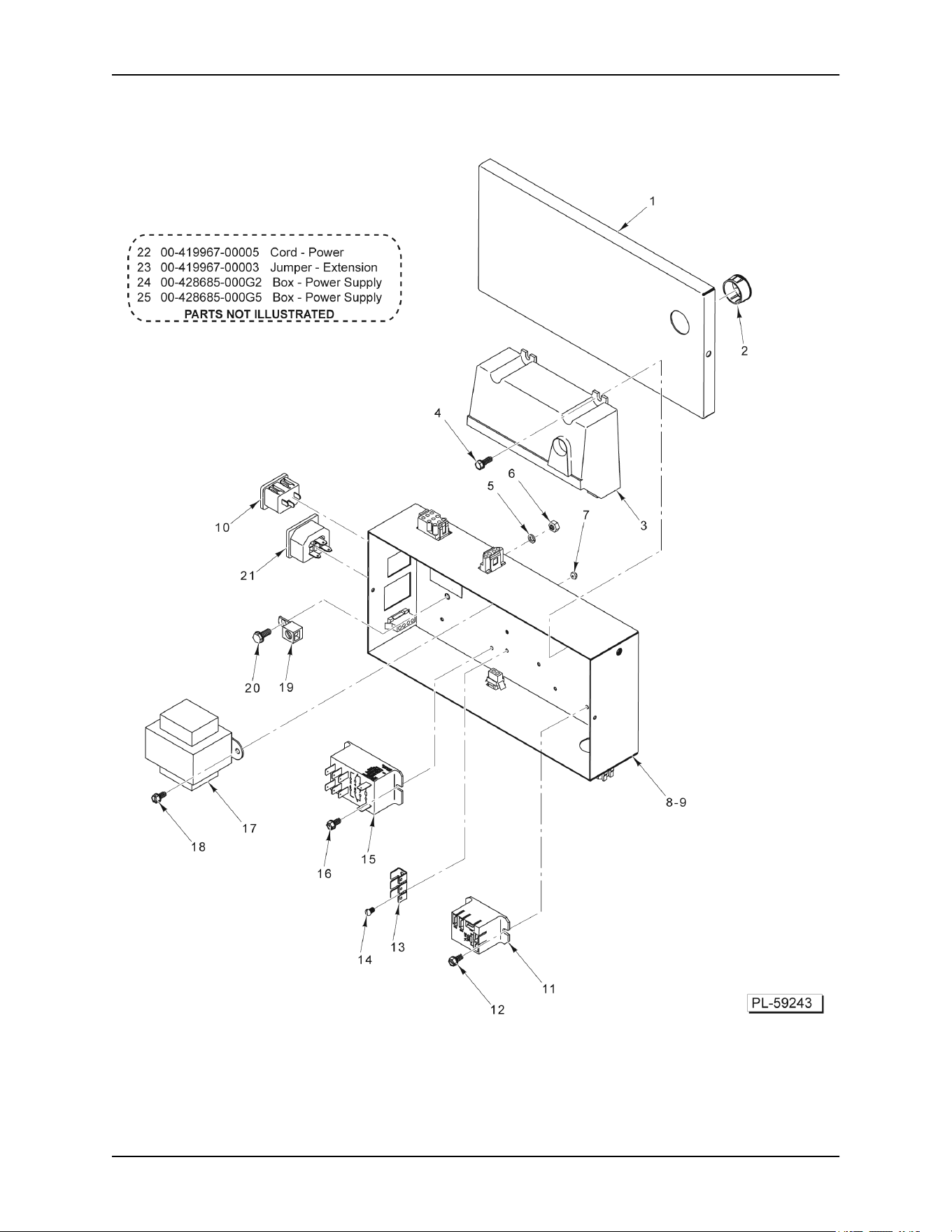

PL-PL-59243
PART NO. NAME OF PART AMT.
1 00-428684-00002 Lid - Power Supply.....................................................................................................................1
2 FE-024-24 Bushing - Electrical Snap...........................................................................................................1
3 00-857207-00001 Module - Ignition.........................................................................................................................1
4 SD-037-49 Self-Tapping Screw 8-18 x 1/2 Hex Washer Hd., Type AB........................................................4
5 WL-004-40 Lockwasher 10 Helical...............................................................................................................1
6 NS-044-09 Nut Assy. 10-24 Hex KEPS........................................................................................................1
7 NS-047-32 Lock Nut 4-40.............................................................................................................................2
8 00-428716-000G1 Box - Power Supply (Filter)........................................................................................................1
9 00-428716-000G2 Box - Power Supply (120 V.) (Non-Filter)...................................................................................1
10 00-419973-000G1 Receptacle - Male Power...........................................................................................................1
11 00-497125-00001 Relay (SPDT, 24 VAC) (Battery Units) (Filter)...........................................................................1
12 SD-036-03 Self-Tapping Screw 8-18 x 3/8 Hex Washer Hd., Type AB........................................................2
13 00-419317 Lug - Terminal............................................................................................................................1
14 SC-060-23 Mach. Screw 4-40 x 1/4 Slotted Rd. Hd.....................................................................................2
15 00-428864-00001 Relay (Battery Units)..................................................................................................................1
16 SD-036-03 Self-Tapping Screw 8-18 x 3/8 Hex Washer Hd., Type AB........................................................2
17 00-411500-00012 Transformer (120 VAC, 24 V., 40 VA)........................................................................................1
18 SD-036-03 ...................................................................................................................................................2
19 00-417856-00001 Lug - Ground..............................................................................................................................1
20 SD-032-07 Self-Tapping Screw 10-24 x 1/2 Hex Washer Hd., Type TT......................................................1
21 00-419973-000G2 Receptacle - Female Power (Battery Units)...............................................................................1
22 00-419967-00005 Cord - Power Supply (84 In.)......................................................................................................1
23 00-419967-00003 Jumper - Extension (24-1/2 In.)..................................................................................................1
24 00-428685-000G2 Box - Power Supply (With Filtration) (Incls. Items 1 thru 8 & 10 thru 21)...................................1
25 00-428685-000G5 Box - Power Supply (Without Filtration) (Incls. Items 1 thru 7 & 9 thru 21)................................1
GRA, GRAF, GRBD, & GRBDF SERIES GAS FRYER REPLACEMENT PARTS
- 7 - F-43210 Rev. C (June 2019)
BODY UNIT (STAND-ALONE)
GRA, GRAF, GRBD, & GRBDF SERIES GAS FRYER REPLACEMENT PARTS
F-43210 Rev. C (June 2019) - 8 -
BODY UNIT (STAND-ALONE)

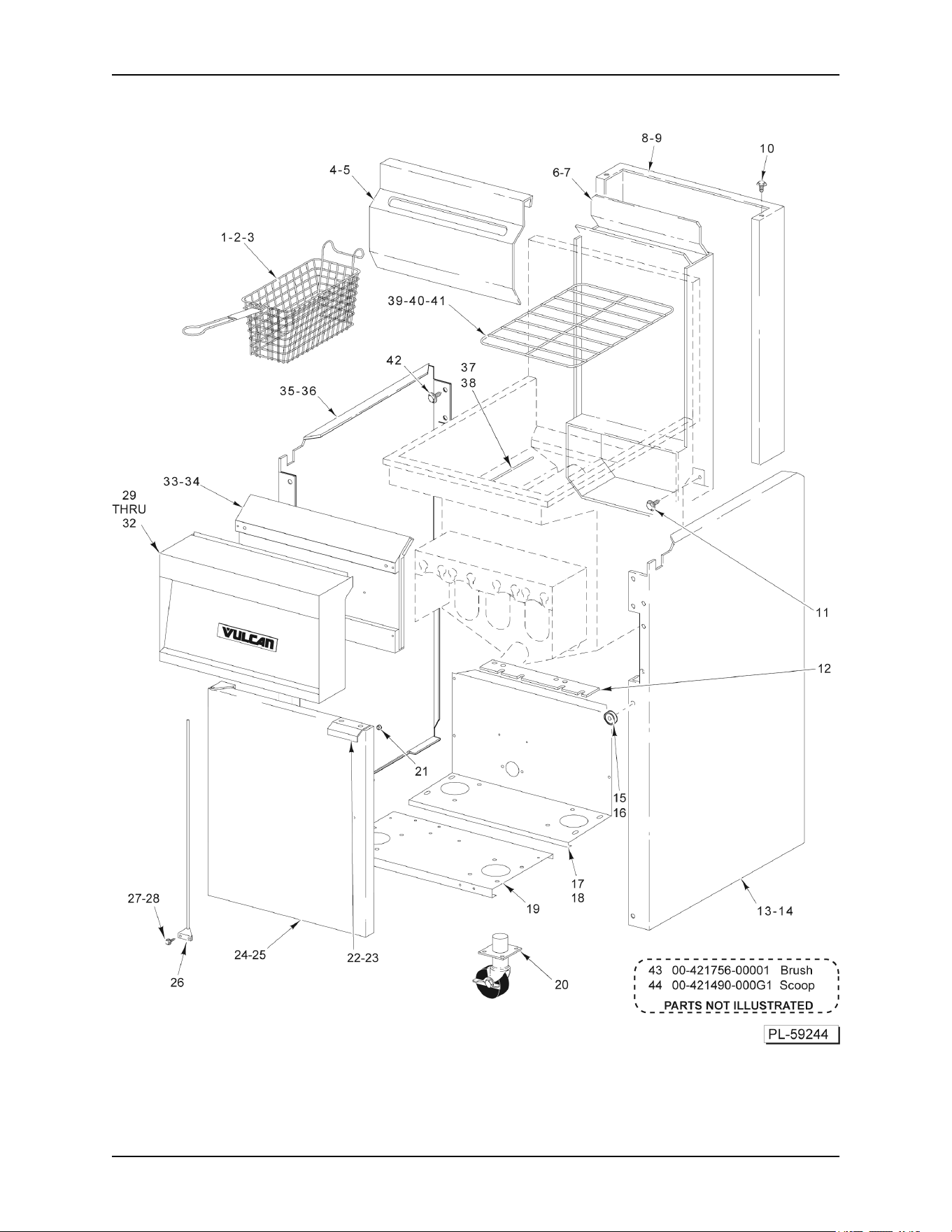

ILLUS.
PL-PL-59244
PART NO. NAME OF PART AMT.
1 00-499223-00001 Basket - Twin (1G4)...................................................................................................................2
2 00-499223-00002 Basket - Twin (1G6)...................................................................................................................2
3 00-499223-00003 Basket - Twin (1G8)...................................................................................................................1
4 00-417056-00002 Hanger - Basket (1G4)...............................................................................................................2
5 00-418321-00002 Hanger - Basket (1G6 & 1G8)....................................................................................................2
6 00-418201-000G2 Flue Assy. (4 Tube) (1G4)..........................................................................................................1
7 00-418205-000G2 Flue Assy. (5 Tube) (1G6 & 1G8)...............................................................................................1
8 00-416959-00002 Wrap - Flue (4 Tube) (1G4)........................................................................................................1
9 00-418336-00002 Wrap - Flue (5 Tube) (1G6 & 1G8).............................................................................................1
10 SD-032-07 Self-Tapping Screw 10-24 x 1/2 Hex Washer Hd., Type TT......................................................2
11 SD-037-70 Self-Tapping Screw 1/4-20 x 1/2 Hex Washer Hd., Type TT.....................................................4
12 00-428688-00001 Bracket - Power Supply Mounting..............................................................................................1
13 00-419648-00002 Body - RH Side (SST) (1G4 & 1G6)...........................................................................................1
14 00-420596-00004 Body - RH Side (SST) (1G8)......................................................................................................1
15 RS-033-04 Rivet - Pop..................................................................................................................................1
16 00-497296-000G1 Magnet Assy...............................................................................................................................1
17 00-497428-00001 Body - Bottom (1G4)..................................................................................................................1
18 00-497428-00003 Body - Bottom (1G6)..................................................................................................................1
19 00-497428-00004 Body - Bottom (1G8)..................................................................................................................1
20 00-421893-00001 Caster (W/Mount Plate) (Set).....................................................................................................1
21 00-420769-00001 Bumper - Rubber........................................................................................................................1
22 00-419653 Handle - Door.............................................................................................................................1
23 RS-033-04 Rivet - Pop..................................................................................................................................2
24 00-499487-000G1 Door Assy. (LH) (1G4)................................................................................................................1
25 00-499487-000G5 Door Assy. (LH) (1G6 & 1G8)....................................................................................................1
26 00-428023-000G2 Hinge Assy. (LH Door)...............................................................................................................1
27 SD-032-07 Self-Tapping Screw 10-24 x 1/2 Hex Washer Hd., Type TT......................................................1
28 NS-044-09 Nut Assy. 10-24 Hex KEPS........................................................................................................1
29 00-428116-000G1 Frame - Front Assy. (1G4).........................................................................................................1
30 00-428116-000G2 Frame - Front Assy. (1G6 & 1G8)..............................................................................................1
31 00-417700-00002 Nameplate (6 In.)........................................................................................................................1
32 NS-047-79 Lock Nut 3/16.............................................................................................................................2
33 00-418379-000G1 Heat Shield (1G4).......................................................................................................................1
34 00-418324-000G1 Heat Shield (1G6 & 1G8)...........................................................................................................1
35 00-419648-00001 Body - LH Side (SST) (1G4 & 1G6)...........................................................................................1
36 00-420596-00003 Body - LH Side (SST) (1G8).......................................................................................................1
37 00-419379-00001 Probe - Thermistor.....................................................................................................................1
38 00-419592-00001 Clip - Thermistor Probe..............................................................................................................1
39 00-427883-00002 Screen - Basket Support (1G4)..................................................................................................1
40 00-427883-00003 Screen - Basket Support (1G6)..................................................................................................1
41 00-427883-00004 Screen - Basket Support (1G8)..................................................................................................1
42 SD-037-49 Self-Tapping Screw 8-18 x 1/2 Hex Washer Hd., Type AB.....................................................AR
43 00-421756-00001 Brush - Fryer Cleaning...............................................................................................................1
44 00-421490-000G1 Scoop.........................................................................................................................................1
GRA, GRAF, GRBD, & GRBDF SERIES GAS FRYER REPLACEMENT PARTS
- 9 - F-43210 Rev. C (June 2019)
BODY UNIT (BATTERY)
GRA, GRAF, GRBD, & GRBDF SERIES GAS FRYER REPLACEMENT PARTS
F-43210 Rev. C (June 2019) - 10 -
BODY UNIT (BATTERY)

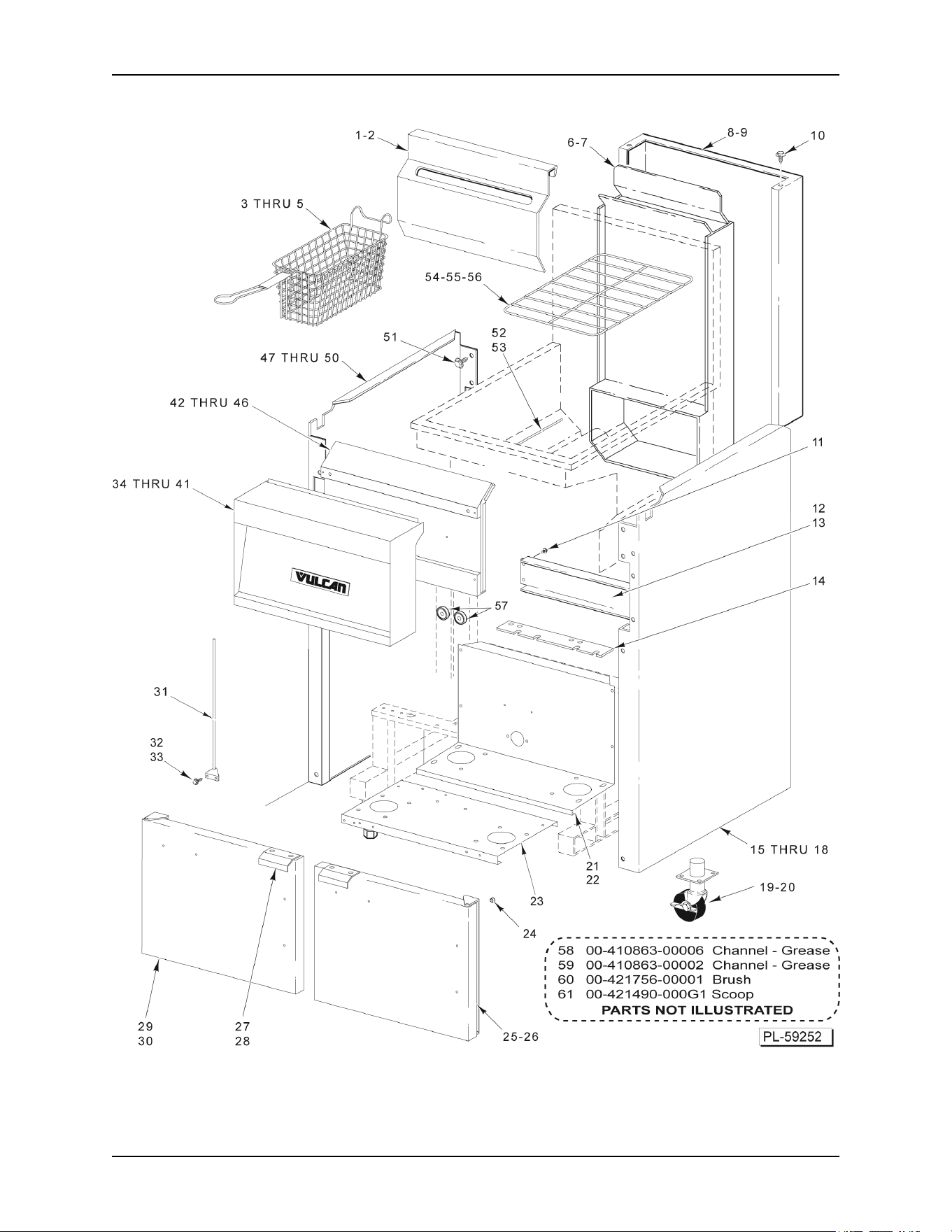

ILLUS.
PL-PL-59252
PART NO. NAME OF PART AMT.
1 00-417056-00002 Hanger - Basket (2G4, 3G4, 4G4, & 2XG4)...............................................................................2
2 00-418321-00002 Hanger - Basket (2G6, 2G8, 3G6, 3G8, 4G6, 4G8, 2XG6, & 2XG8).........................................2
3 00-499223-00001 Basket - Twin (2G4, 3G4, 4G4, & 2XG4)................................................................................AR
4 00-499223-00002 Basket - Twin (2G6, 3G6, 4G6, & 2XG6)................................................................................AR
5 00-499223-00003 Basket - Twin (2G8, 3G8, 4G8, & 2XG8)................................................................................AR
6 00-418201-000G2 Flue Assy. (4 Tube) (2G4, 3G4, 4G4, & 2XG4)..........................................................................1
7 00-418205-000G2 Flue Assy. (5 Tube) (2G6, 2G8, 3G6, 3G8, 4G6, 2XG6, 2XG8, & 4G8)....................................1
8 00-416959-00002 Flue - Wrap (SST) (2G4, 3G4, 4G4, & 2XG4)............................................................................2
9 00-418336-00002 Flue - Wrap (SST) (2G6, 2G8, 3G6, 3G8, 4G6, 4G8, 2XG6, & 2XG8)......................................2
10 SD-032-07 Self-Tapping Screw 10-24 x 1/2 Hex Washer Hd., Type TT......................................................2
11 SD-032-07 Self-Tapping Screw 10-24 x 1/2 Hex Washer Hd., Type TT......................................................2
12 00-428699-00002 Brace - Rear (2TG4, 3G4, 4G4, & 2XG4)..................................................................................1
13 00-428749-00002 NLA - Obsolete--Brace - Rear (2G6, 2G8, 3G6, 3G8, 4G6, 4G8, 2XG6, & 2XG8)....................1
14 00-428688-00001 Bracket - Power Supply Mounting..............................................................................................1
15 00-419777-00004 Body - Side (SST) (2G8, 3G8, & 2XG8).....................................................................................1
16 00-417711-00002 Body - RH Side (SST) (2G4, 2G6, 3G4, 3G6, 2XG4, & 2XG6)..................................................1
17 00-419648-00002 Body - RH Side (SST) (4G4 & 2XG4)........................................................................................1
18 00-420596-00004 Body - Side (SST) (RH) (4G8)....................................................................................................1
19 00-418907-00001 Caster - Swivel Assy. (Adjustable).............................................................................................2
20 00-418907-00003 Caster.........................................................................................................................................2
21 00-497428-00001 Body - Bottom (3G4 & 4G4).......................................................................................................1
22 00-497428-00003 Body - Bottom (3G6 & 4G6).......................................................................................................1
23 00-497428-00004 Body - Bottom (3G8 & 2XG4).....................................................................................................1
24 00-420769-00001 Bumper - Rubber........................................................................................................................1
25 00-499487-000G8 Door Assy. (RH) (2G6, 2G8, 3G6, 3G8, 4G6, G4G8, 2XG6, & 2XG8)......................................1
26 00-499487-000G4 Door Assy. (RH) (2G4, 3G4, 4G4, & 2XG4)...............................................................................1
27 00-419653 Handle........................................................................................................................................2
28 RS-033-04 Rivet - Pop..................................................................................................................................4
29 00-499487-000G7 Door Assy. (LH) (2G6, 2G8, 3G6, 3G8, 4G6, 4G8, 2XG6, & 2XG8)..........................................1
30 00-499487-000G3 Door Assy. (LH) (2G4, 3G4, 4G4, & 2XG4)...............................................................................1
31 00-428023-000G2 Hinge Assy. (LH Door)...............................................................................................................2
32 SD-032-07 Self-Tapping Screw 10-24 x 1/2 Hex Washer Hd., Type TT......................................................4
33 NS-044-09 Nut Assy. 10-24 Hex KEPS........................................................................................................4
34 00-428116-000G3 Frame - Front Assy. (2G4 & 2XG4) (2 Unit)...............................................................................1
35 00-428116-000G4 Frame - Front Assy. (2G6, 2G8, & 2XG8) (2 Unit).....................................................................1
36 00-428116-000G5 Frame - Front Assy. (3G4) (3 Unit).............................................................................................1
37 00-428116-000G6 Frame - Front Assy. (3G6 & 3G8) (3 Unit).................................................................................1
38 00-428116-000G7 Frame - Front Assy. (4G4) (4 Unit).............................................................................................1
39 00-428116-00G12 Frame - Front Assy. (4G6 & 4G8) (4 Unit).................................................................................1
40 00-426806-000G5 Frame - Front Assy. (2XG8) (2 Unit)..........................................................................................1
41 00-417700-00002 Nameplate (6 In.)........................................................................................................................1
42 00-418379-000G1 Heat Shield (2G4, 3G4, 4G4, & 2XG4)......................................................................................1
43 00-418324-000G1 Heat Shield (2G6, 2G8, 3G6, 3G8, 4G6, 4G8, 2XG6, & 2XG8).................................................1
44 00-418322-00001 Heat Shield (2XG6 & 2XG8).......................................................................................................1
45 00-428548-00002 Heat Shield (5 Tube) (2XG8)......................................................................................................1
46 00-417037-00001 NLA - Obsolete--Shield - Heat (2XG4).......................................................................................1
47 00-419777-00003 Body - Side (SST) (2G8 & 2XG8)...............................................................................................1
48 00-417711-00001 Body - LH Side (SST) (2G4, 2G6, 2XG4, & 2XG6)....................................................................1
49 00-420596-00003 Body - LH Side (SST) (NFR) (3G8 & 4G8).................................................................................1
50 00-419648-00001 Body - LH Side (SST) (HG45/65DF & HG45/65CF) Body - LH Side (SST) (3G4, 3G6,
4G4, & 4G6)...............................................................................................................................1
51 SD-036-03 Self-Tapping Screw 8-18 x 3/8 Hex Washer Hd., Type AB.....................................................AR
52 00-419379-00001 Probe - Thermistor.....................................................................................................................1
53 00-419592-00001 Clip - Thermistor Probe..............................................................................................................1
54 00-427883-00002 Rack - Basket Support (2G4, 3G4, 4G4, & 2XG4).....................................................................2
55 00-427883-00003 Rack - Basket Support (2G6, 3G6, 4G6, 2XG6)........................................................................2
GRA, GRAF, GRBD, & GRBDF SERIES GAS FRYER REPLACEMENT PARTS
- 11 - F-43210 Rev. C (June 2019)
BODY UNIT (BATTERY)
ILLUS.
PL-PL-59252
PART NO. NAME OF PART AMT.
56 00-427883-00004 Rack - Basket Support (2G8, 3G8, 4G8, & 2XG8).....................................................................2
57 00-497296-000G1 Magnet Assy...............................................................................................................................2
58 00-410863-00006 Strip - Grease (2G8, 3G6, 3G8, 4G6, 4G8, & 2XG8).................................................................1
59 00-410863-00002 Strip - Grease (2G4, 2G6, 3G4, 4G4, 2XG4, & 2XG6)...............................................................1
60 00-421756-00001 Brush - Fryer Cleaning...............................................................................................................1
61 00-421490-000G1 Scoop.........................................................................................................................................1
GRA, GRAF, GRBD, & GRBDF SERIES GAS FRYER REPLACEMENT PARTS
F-43210 Rev. C (June 2019) - 12 -
NOTES
GRA, GRAF, GRBD, & GRBDF SERIES GAS FRYER REPLACEMENT PARTS
- 13 - F-43210 Rev. C (June 2019)

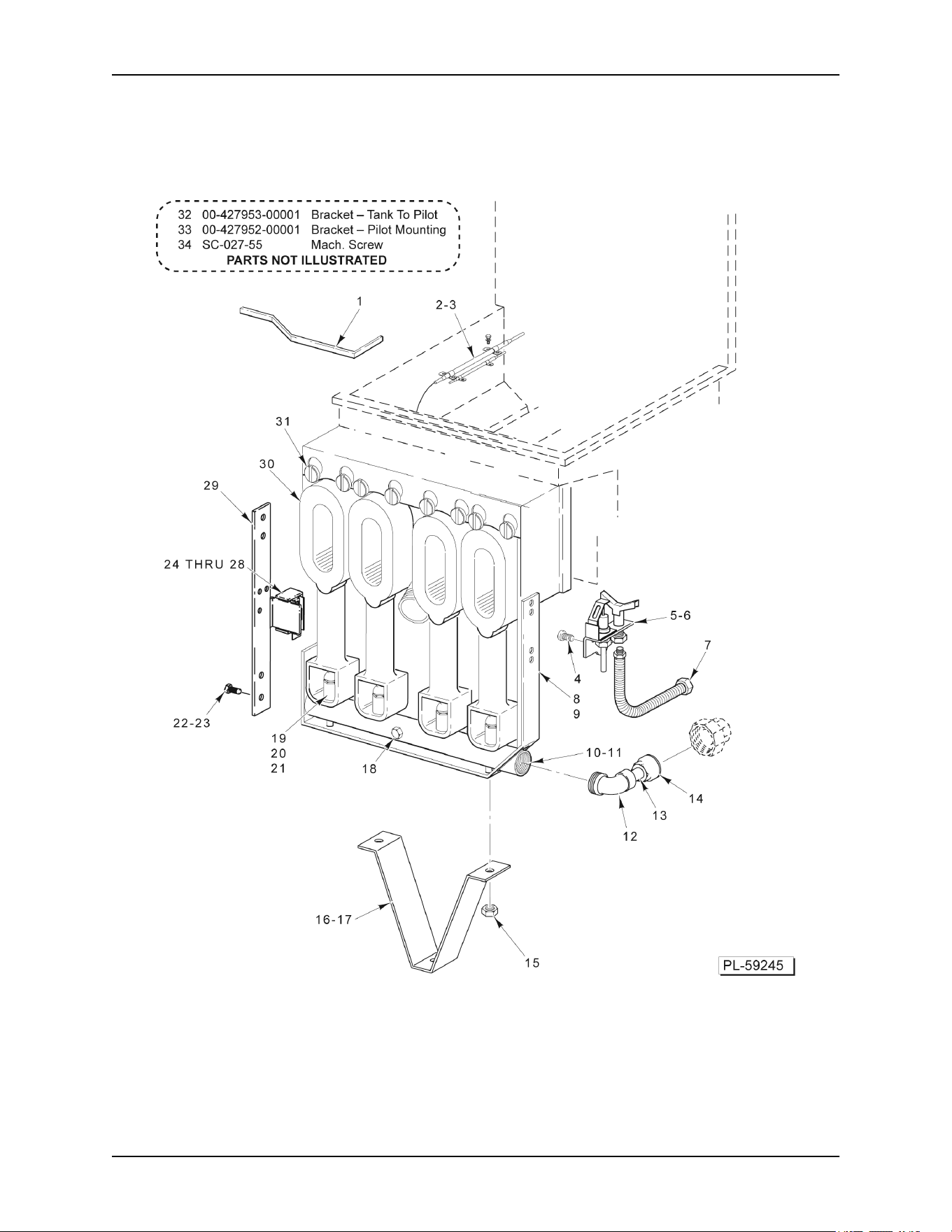

BURNER COMPONENTS (STAND-ALONE)
GRA, GRAF, GRBD, & GRBDF SERIES GAS FRYER REPLACEMENT PARTS
F-43210 Rev. C (June 2019) - 14 -
BURNER COMPONENTS (STAND-ALONE)
ILLUS.
PL-PL-59245
PART NO. NAME OF PART AMT.
1 00-409300-00005 Rod - Clean-Out.........................................................................................................................1
2 00-417522-00003 Clip - Capillary............................................................................................................................2
3 SD-035-02 Self-Tapping Screw 8-18 x 3/8 Hex Washer Hd., Type AB........................................................4
4 SC-018-32 Mach. Screw 8-32 x 3/8 Slotted Pan Hd....................................................................................2
5 00-419316-00001 Pilot (Nat. Gas) (W/Electronic Ignition).......................................................................................1
6 00-419316-00002 Pilot (L.P. Gas) (W/Electronic Ignition).......................................................................................1
7 00-426505-00023 Tube - Flex 1/4 O.D. x 23 In. Lg.................................................................................................1
8 00-418211-00001 Hanger - Manifold (1G4).............................................................................................................1
9 00-418317-00001 Hanger -Manifold (1G6 & 1G8)..................................................................................................1
10 00-418212-00001 Manifold - Burner (1G4)..............................................................................................................1
11 00-418318-00001 Manifold - Burner (1G6 & 1G8)..................................................................................................1
12 FP-086-74 Elbow - Pipe 1/2 x 90 Deg..........................................................................................................1
13 FP-059-01 Pipe 1/2 x 1 3/4 TBE..................................................................................................................1
14 FP-022-11 Union - Pipe................................................................................................................................1
15 NS-047-72 Lock Nut 1/4-20..........................................................................................................................2
16 00-420561-00001 Bracket - Support (1G4).............................................................................................................1
17 00-420562-00001 Bracket - Support (1G6 & 1G8)..................................................................................................1
18 FP-085-53 Pipe Plug 1/8..............................................................................................................................1
19 00-010901-00039 Orifice - Spud (NAT Gas) (Sea Level - 2000 Ft.)....................................................................AR
20 00-010901-00052 Orifice - Spud (LP Gas) (Sea Level - 3499 Ft.) Orifice - Spud (LP Gas) (Sea Level -
3499 Ft.)..................................................................................................................................AR
21 00-410695-00001 Extension - Orifice...................................................................................................................AR
22 SD-037-70 Self-Tapping Screw 1/4-20 x 1/2 Hex Washer Hd., Type TT..................................................AR
23 NS-046-52 Nut Assy. 1/4-20 Hex..............................................................................................................AR
24 00-419548 Bracket - Hi-Limit........................................................................................................................1
25 SD-037-70 Self-Tapping Screw 1/4-20 x 1/2 Hex Washer Hd., Type TT.....................................................4
26 NS-046-52 Nut Assy. 1/4-20 Hex.................................................................................................................4
27 SD-036-80 Self-Tapping Screw 8-32 x 3/8 Hex Washer Hd., Type TT........................................................2
28 00-410840-00002 Box - Control With Stuffing.........................................................................................................1
29 00-417714-00001 Extension - Hanger.....................................................................................................................1
30 00-410681-00001 Burner......................................................................................................................................AR
31 00-428035-00001 Bolt - Shoulder.........................................................................................................................AR
32 00-427953-00001 Bracket - Tank To Pilot...............................................................................................................1
33 00-427952-00001 Bracket - Pilot Mounting.............................................................................................................1
34 SC-027-55 Mach. Screw 10-32 x 1/4 Slotted Rd. Hd. (Brass)......................................................................2
GRA, GRAF, GRBD, & GRBDF SERIES GAS FRYER REPLACEMENT PARTS
- 15 - F-43210 Rev. C (June 2019)

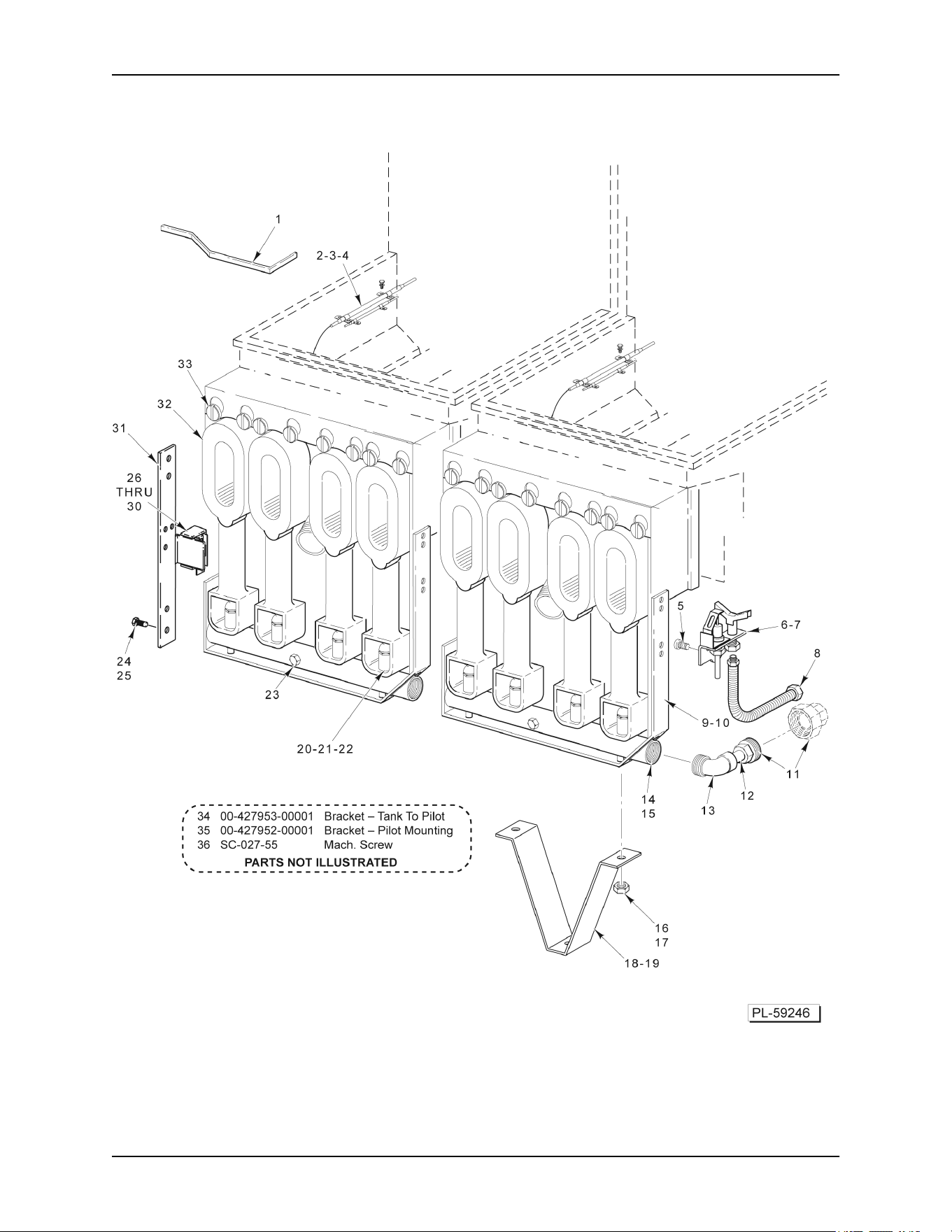

BURNER COMPONENTS (BATTERY)
GRA, GRAF, GRBD, & GRBDF SERIES GAS FRYER REPLACEMENT PARTS
F-43210 Rev. C (June 2019) - 16 -
BURNER COMPONENTS (BATTERY)
ILLUS.
PL-PL-59246
PART NO. NAME OF PART AMT.
1 00-409300-00005 Rod - Clean-Out.........................................................................................................................1
2 00-402558-00005 Clamp.........................................................................................................................................2
3 00-417522-00003 Clip - Capillary............................................................................................................................2
4 SD-035-02 Self-Tapping Screw 8-18 x 3/8 Hex Washer Hd., Type AB........................................................4
5 SC-018-32 Mach. Screw 8-32 x 3/8 Slotted Pan Hd....................................................................................2
6 00-419316-00001 Pilot (Nat. Gas) (W/Electronic Ignition).......................................................................................1
7 00-419316-00002 Pilot (L.P. Gas) (W/Electronic Ignition).......................................................................................1
8 00-426505-00023 Tube - Flex 1/4 O.D. x 23 In. Lg.................................................................................................1
9 00-418211-00001 Hanger - Manifold (2G4, 3G4, 4G4, & 2XG4)............................................................................1
10 00-418317-00001 Hanger - Manifold (5 Tube) (2G6, 2G8, 3G6, 3G8, 4G6, 4G8, 2XG6, & 2XG8)........................1
11 FP-022-11 Union - Pipe.............................................................................................................................AR
12 FP-059-01 Pipe 1/2 x 1 3/4 TBE..................................................................................................................1
13 FP-086-74 Elbow - Street 1/2 x 90 Deg. (Brass)..........................................................................................1
14 00-418212-00001 Manifold - Burner (2G4, 3G4, 4G4, & 2XG4).............................................................................1
15 00-418318-00001 Manifold - Burner (2G6, 2G8, 3G6, 3G8, 4G6, 4G8, 2XG6, & 2XG8)........................................1
16 NS-047-72 Lock Nut 1/4-20..........................................................................................................................2
17 NS-046-52 Nut Assy. 1/4-20 Hex.................................................................................................................2
18 00-420561-00001 Bracket - Support (3G4 & 4G4)..................................................................................................1
19 00-420562-00001 Bracket - Support (3G6, 3G8, 4G6, & 4G8)...............................................................................1
20 00-010901-00039 Orifi ce - Spud (NAT Gas) (Sea Level - 2000 Ft.)...................................................................AR
21 00-010901-00052 Orifi ce -Spud (LP Gas) (Sea Level -3499 Ft.)........................................................................AR
22 00-410695-00001 Extension - Orifice...................................................................................................................AR
23 FP-085-53 Pipe Plug 1/8..............................................................................................................................1
24 SD-037-70 Self-Tapping Screw 1/4-20 x 1/2 Hex Washer Hd., Type TT..................................................AR
25 NS-046-52 Nut Assy. 1/4-20 Hex..............................................................................................................AR
26 00-419548 Bracket - Hi-Limit........................................................................................................................1
27 SD-037-70 Self-Tapping Screw 1/4-20 x 1/2 Hex Washer Hd., Type TT.....................................................4
28 NS-046-52 Nut Assy. 1/4-20 Hex.................................................................................................................4
29 SD-036-80 Self-Tapping Screw 8-32 x 3/8 Hex Washer Hd., Type TT........................................................2
30 00-410840-00002 Box - Control With Stuffing.........................................................................................................1
31 00-417714-00001 Extension - Hanger.....................................................................................................................1
33 00-410681-00001 Burner......................................................................................................................................AR
34 00-428035-00001 Bolt - Shoulder.........................................................................................................................AR
35 00-427953-00001 Bracket - Tank To Pilot...............................................................................................................1
36 00-427952-00001 Bracket - Pilot Mounting.............................................................................................................1
37 SC-027-55 Mach. Screw 10-32 x 1/4 Slotted Rd. Hd. (Brass)......................................................................2
GRA, GRAF, GRBD, & GRBDF SERIES GAS FRYER REPLACEMENT PARTS
- 17 - F-43210 Rev. C (June 2019)

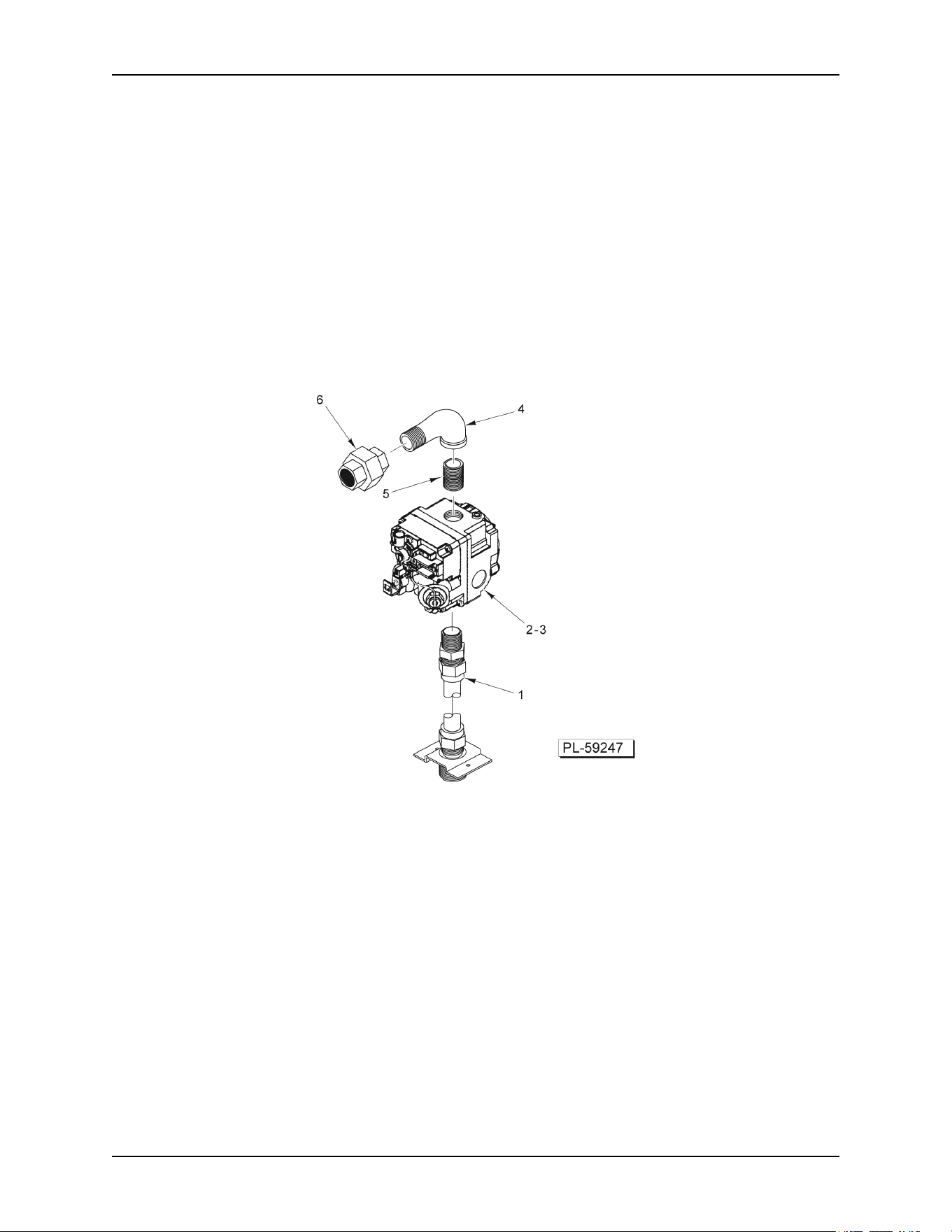

GAS VALVE
GRA, GRAF, GRBD, & GRBDF SERIES GAS FRYER REPLACEMENT PARTS
F-43210 Rev. C (June 2019) - 18 -
GAS VALVE
ILLUS.
PL-PL-59247
PART NO. NAME OF PART AMT.
1 00-427882-000G3 Tube - Flex (Gas Inlet)...............................................................................................................1
2 00-410841-00028 Valve - Combination (NAT) (Electronic Ignition).........................................................................1
3 00-410841-00029 Valve - Combination (LP) (Electronic Ignition)...........................................................................1
4 FP-013-17 Elbow - Street 1/2 x 90 Deg.......................................................................................................1
5 FP-035-95 Pipe 1/2 x 2 TBE........................................................................................................................1
6 FP-022-11 Union - Pipe................................................................................................................................1
GRA, GRAF, GRBD, & GRBDF SERIES GAS FRYER REPLACEMENT PARTS
- 19 - F-43210 Rev. C (June 2019)

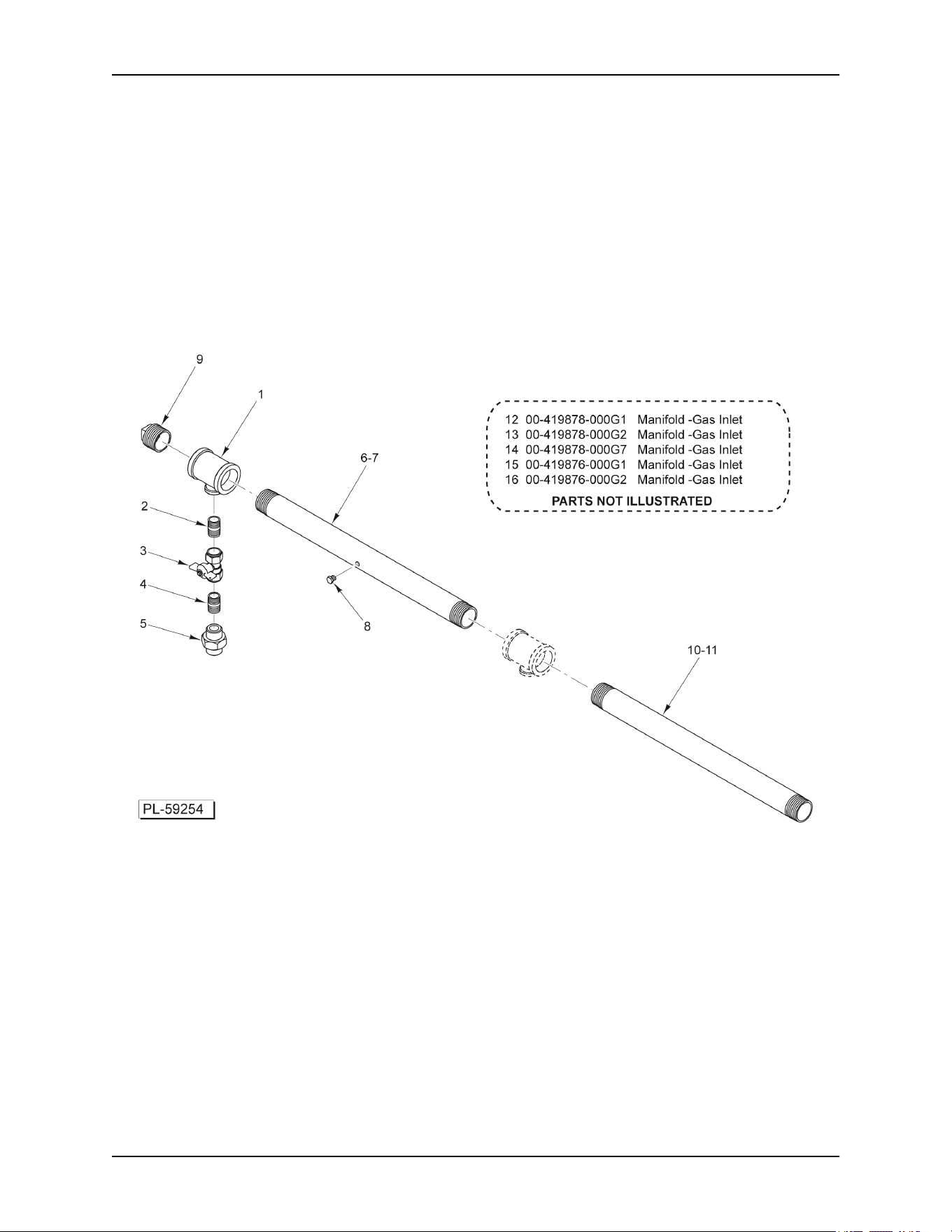

GAS INLET MANIFOLD
GRA, GRAF, GRBD, & GRBDF SERIES GAS FRYER REPLACEMENT PARTS
F-43210 Rev. C (June 2019) - 20 -
GAS INLET MANIFOLD
ILLUS.
PL-PL-59254
PART NO. NAME OF PART AMT.
1 FP-090-80 Tee 1-1/4 x 1-1/4 x 1/2............................................................................................................AR
2 FP-035-91 Pipe 1/2 x 1-1/8 TBE...............................................................................................................AR
3 00-428472-00001 Valve - Ball..............................................................................................................................AR
4 FP-035-91 Pipe 1/2 x 1-1/8 TBE...............................................................................................................AR
5 FP-022-11 Union - Pipe.............................................................................................................................AR
6 00-957744-00001 Pipe - Rear Gas (With Tap) (2G4, 3G4, & 4G4)......................................................................AR
7 00-957744-00002 Pipe - Rear Gas (With Tap) (3G6 & 3G8)...............................................................................AR
8 FP-085-53 Pipe Plug 1/8 (SST).................................................................................................................AR
9 FP-028-26 Pipe Plug 1-1/4 Sq. Hd............................................................................................................AR
10 00-957744-00004 Pipe - Rear Gas (Without Tap) (3G4 & 4G4)..........................................................................AR
11 00-957744-00003 Pipe - Rear Gas (Without Tap) (3G6 & 3G8)..........................................................................AR
12 00-419878-000G1 Manifold - Gas Inlet (2G4) (Incls. Items 1 thru 6, 8, & 9)............................................................1
13 00-419878-000G2 Manifold - Gas Inlet (3G4) (Incls. Items 1 thru 6, 8, 9, & 10)......................................................1
14 00-419878-000G7 Manifold - Gas Inlet (4G4) (Incls. Items 1 thru 6, 8, 9, & 10)......................................................1
15 00-419876-000G1 Manifold - Gas Inlet (2G6, 2G8, 4G6, & 4G8) (Incls. Items 1 thru 5, 7, 8, & 9)..........................1
16 00-419876-000G2 Manifold - Gas Inlet (3G6 & 3G8) (Incls. Items 1 thru 5, 7, 8, 9, & 11).......................................1
GRA, GRAF, GRBD, & GRBDF SERIES GAS FRYER REPLACEMENT PARTS
- 21 - F-43210 Rev. C (June 2019)

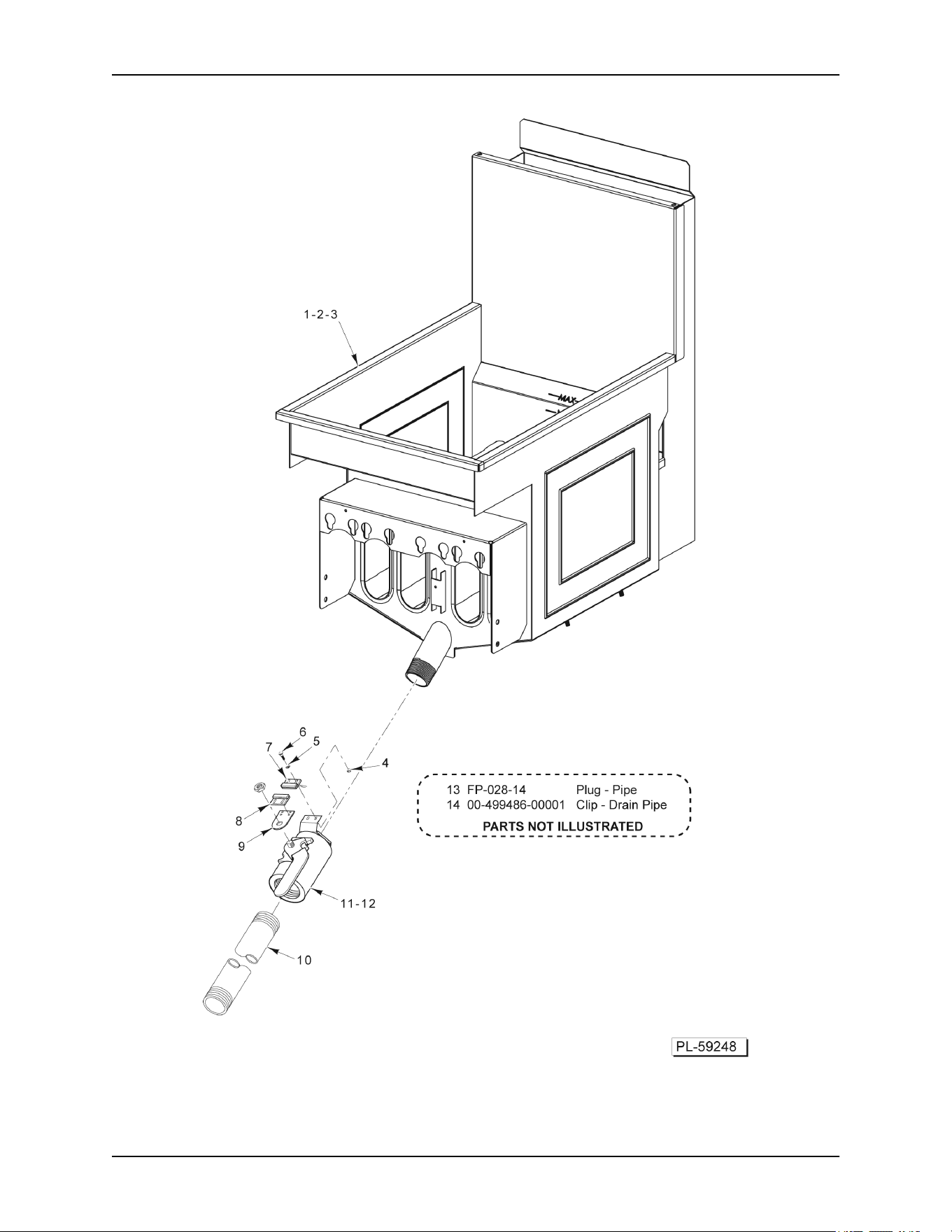

TANK AND DRAIN (STAND-ALONE)
GRA, GRAF, GRBD, & GRBDF SERIES GAS FRYER REPLACEMENT PARTS
F-43210 Rev. C (June 2019) - 22 -
TANK AND DRAIN (STAND-ALONE)
ILLUS.
PL-PL-59248
PART NO. NAME OF PART AMT.
1 00-499701-000G2 Tank Assy. (1G4) (SST).............................................................................................................1
2 00-499702-000G2 Tank Assy. (1G6) (SST).............................................................................................................1
3 00-499703-000G2 Tank Assy. (1G8) (SST).............................................................................................................1
4 NS-044-01 Nut Assy. 4-40 KEPS.................................................................................................................4
5 WL-003-03 Lockwasher #4 Helical...............................................................................................................4
6 SC-018-55 Mach. Screw 4-40 x 1/2 Phil. Pan Hd.........................................................................................4
7 00-426805-000G1 Switch Assy................................................................................................................................1
8 00-426801-00002 Switch - Mounted........................................................................................................................1
9 00-426798-00001 Plate - Switch.............................................................................................................................1
10 FP-085-74 Pipe 1-1/4 x 63/4........................................................................................................................1
11 00-426803-000G8 Valve - Drain Assy. (1-1/4) (LH) (With Magnet)..........................................................................1
12 00-426803-000G9 Valve - Drain Assy. (1-1/4) (RH) (With Magnet).........................................................................1
13 FP-028-14 Pipe - Plug 1/2 Sq. Hd................................................................................................................1
14 00-499486-00001 Clip - Drain Pipe.........................................................................................................................1
GRA, GRAF, GRBD, & GRBDF SERIES GAS FRYER REPLACEMENT PARTS
- 23 - F-43210 Rev. C (June 2019)
TANK AND DRAIN (BATTERY)
GRA, GRAF, GRBD, & GRBDF SERIES GAS FRYER REPLACEMENT PARTS
F-43210 Rev. C (June 2019) - 24 -
TANK AND DRAIN (BATTERY)
ILLUS.
PL-PL-59249
PART NO. NAME OF PART AMT.
1 00-499701-000G2 Tank Assy. (SST) (2G4, 3G4, 4G4, & 2XG4).............................................................................1
2 00-499702-000G2 Tank Assy. (SST) (2G6, 3G6, 4G6, & 2XG6).............................................................................1
3 00-499703-000G2 Tank - Fry (2G6, 3G8, 4G8, & 2XG8).........................................................................................1
4 00-426805-000G1 Switch Assy. (Drain Valve Interlock)..........................................................................................1
5 00-426803-000G8 Valve - Drain Assy. (LH) (1-1/4) (With Magnet) (2G4, 2G6, 2G8, 3G4, 3G6, 3G8, 4G4,
4G6, & 4G8)...............................................................................................................................1
6 00-497567-000G1 Pipe - Drain (LH) With Spout (2G4)............................................................................................1
7 00-497567-000G2 Pipe - Drain (LH) With Spout (2G6 & 2G8)................................................................................1
8 00-497569-000G1 Pipe - Drain (Center) With Spout (3G4 & 4G4)..........................................................................1
9 00-497569-000G2 Pipe - Drain With Spout (3G6, 3G8, 4G6, & 4G8)......................................................................1
10 00-497568-000G1 Pipe - Drain (Center) (4G4)........................................................................................................1
11 00-497568-000G2 Pipe - Drain (Center) (4G6 & 4G8).............................................................................................1
12 00-497566-000G1 Pipe - Drain (End) (45 Lbs.) (2G4, 3G4, & 4G4)........................................................................1
13 00-497566-000G3 Pipe - Drain (RH) (65/85 Lbs.) (2G6, 2G8, 3G6, 3G8, 4G6, & 4G8)..........................................1
14 00-497566-000G2 Pipe - End Section (LH) (5 Tube) (3G6, 3G8, 4G6, & 4G8).......................................................1
15 00-497571-000G1 Plug - Drain................................................................................................................................2

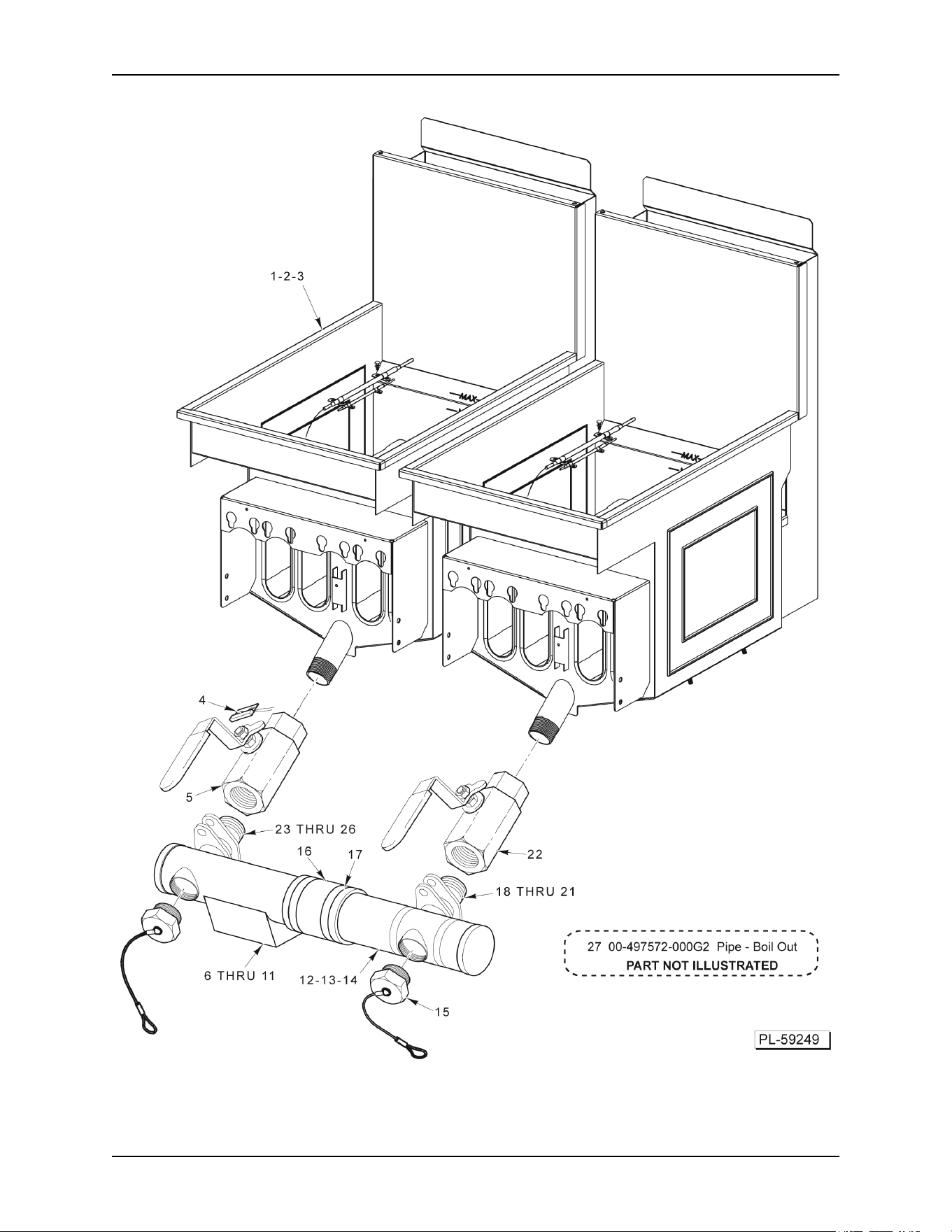

16 00-419351-00001 Hose - Connect (2G4, 2G6, 2G8, 3G4, 3G6, 3G8, 4G4, 4G6, & 4G8)...................................AR
17 00-497409-00001 Clamp - Drain Tube.................................................................................................................AR
18 00-420726-00001 Flange - Pipe (1 1/4 In.)..............................................................................................................1
19 00-420553-00002 Gasket - Silicone........................................................................................................................1
20 FP-090-69 Pipe 1 1/4 x 1 TBE.....................................................................................................................1
21 SC-036-13 Cap Screw 1/4-20 x 3/4 Hex Hd.................................................................................................2
22 00-426803-000G9 Valve - Drain Assy. (1-1/4) (RH) (With Magnet).........................................................................1
23 00-420553-00002 Gasket - Silicone........................................................................................................................1
24 00-420726-00001 Flange - Pipe (1 1/4 In.)..............................................................................................................1
25 FP-090-69 Pipe 1 1/4 x 1 TBE.....................................................................................................................1
26 SC-036-13 Cap Screw 1/4-20 x 3/4 Hex Hd.................................................................................................2
27 00-497572-000G2 Pipe - Boil Out Bypass (With Hose Fitting).................................................................................1
GRA, GRAF, GRBD, & GRBDF SERIES GAS FRYER REPLACEMENT PARTS
- 25 - F-43210 Rev. C (June 2019)
OIL RETURN (BATTERY)
GRA, GRAF, GRBD, & GRBDF SERIES GAS FRYER REPLACEMENT PARTS
F-43210 Rev. C (June 2019) - 26 -

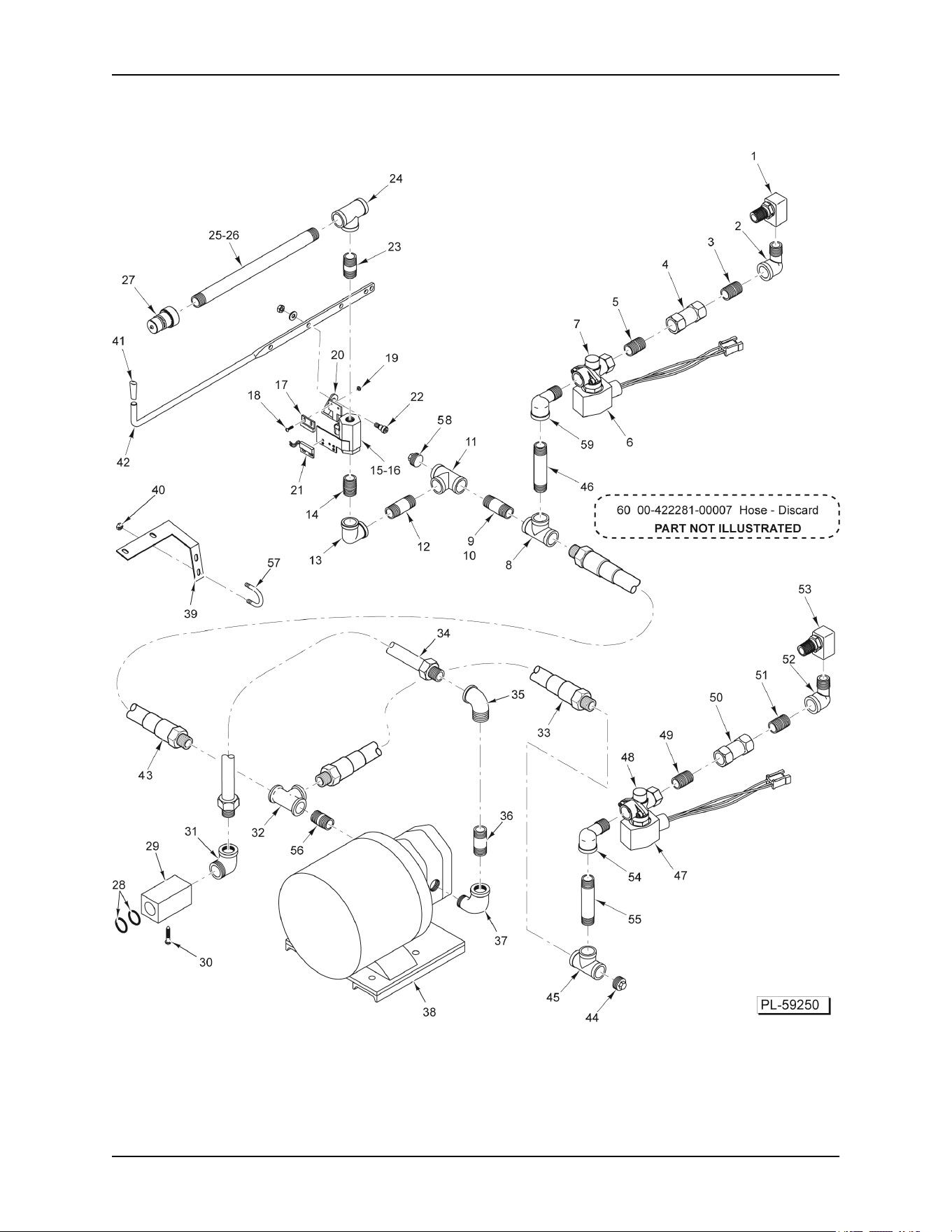

OIL RETURN (BATTERY)
ILLUS.
PL-PL-59250
PART NO. NAME OF PART AMT.
1 00-419251-00001 Fitting - 90 Deg. Swivel..............................................................................................................1
2 FP-013-17 Elbow - Street 1/2 x 90 Deg.......................................................................................................1
3 FP-035-91 Pipe 1/2 x 1-1/8 TBE..................................................................................................................1
4 00-418786-00001 Valve - Check.............................................................................................................................1
5 FP-035-91 Pipe 1/2 x 1-1/8 TBE..................................................................................................................1
6 00-428691-00002 Valve - Solenoid (120 V.)...........................................................................................................1
7 FP-035-91 Pipe 1/2 x 1-1/8 TBE..................................................................................................................1
8 FP-019-25 Tee 1/2 x 1/2 x 1/2......................................................................................................................1
9 FP-035-95 Pipe 1/2 x 2 TBE (2G4, 3G4, 4G4, & 2XG4)..............................................................................1
10 FP-059-63 Pipe 1/2 x 6 TBE (2G6, 2G8, 3G6, 3G8, 4G6, 4G8, 2XG6, & 2XG8)........................................1
11 FP-019-25 Tee 1/2 x 1/2 x 1/2......................................................................................................................1
12 FP-035-95 Pipe 1/2 x 2 TBE........................................................................................................................1
13 FP-077-68 Elbow 1/2 x 90 Deg....................................................................................................................1
14 FP-035-91 Pipe 1/2 x 1-1/8 TBE..................................................................................................................1
15 00-428694-000G1 Valve - Discard (LH) (Incls. Items 16 thru 21)............................................................................1
16 00-428753-00001 Valve - Oil Discharge..................................................................................................................1
17 00-426801-00002 Magnet - Switch Element Head..................................................................................................1
18 SC-018-55 Mach. Screw 4-40 x 1/2 Phil. Pan Hd.........................................................................................4
19 NS-044-01 Nut Assy. 4-40 KEPS.................................................................................................................4
20 00-428697-00001 Actuator - Oil Discharge.............................................................................................................1
21 00-426805-000G2 Switch Assy................................................................................................................................1
22 SC-116-19 Shoulder Bolt 1/4-20 x 3/4..........................................................................................................1
23 FP-035-94 Pipe 1/2 x 1-1/2 TBE..................................................................................................................1
24 FP-019-25 Tee 1/2 x 1/2 x 1/2......................................................................................................................1
25 FP-036-91 Pipe 1/2 x 9-1/2 TBE (2G4, 2G6, 3G4, 3G6, G4G4, 4G6, 2XG4, & 2XG6)...............................1
26 FP-090-81 Pipe 1/2 x 13-1/2 TBE (2G8, 3G8, 4G8, & 2XG8)......................................................................1
27 00-418781-00001 Disconnect - Male.......................................................................................................................1
28 00-426567-00002 O-Ring (Viton)............................................................................................................................2
29 00-426567-00003 Receptacle - Oil Suction.............................................................................................................1
30 SC-114-01 Mach. Screw 10-32 x 3/8 Hex Washer Hd.................................................................................1
31 FP-013-17 Elbow - Street 1/2 x 90 Deg.......................................................................................................1
32 FP-019-25 Tee 1/2 x 1/2 x 1/2......................................................................................................................1
33 00-426602-00001 Tube - Flex (12 In.) (2G4, 3G4, 4G4, 2XG6, & 2XG8)...............................................................1
34 00-426602-00004 Tube - Flex (19 In.).....................................................................................................................1
35 FP-077-68 Elbow 1/2 x 90 Deg....................................................................................................................1
36 FP-035-95 Pipe 1/2 x 2 TBE........................................................................................................................1
37 FP-077-68 Elbow 1/2 x 90 Deg....................................................................................................................1
38 00-417792-00005 Pump Motor Assy. (115 V., 60 Hz.) (8 G.P.M.)..........................................................................1
39 00-497087-00001 Bracket - Quick Disconnect (2XG4, 2XG6, & 2XG8)..................................................................2
40 NS-046-52 Nut Assy. 1/4-20 Hex.................................................................................................................1
41 00-416435-00002 Grip (Yellow)...............................................................................................................................1
42 00-428693-00004 Rod - Pull Kleenscreen...............................................................................................................1
43 00-426602-00001 Tube - Flex (12 In.) (2G4, 3G4, 4G4, 2XG6, & 2XG8)...............................................................1
44 FP-028-14 Pipe - Plug 1/2 Sq. Hd................................................................................................................1
45 FP-019-25 Tee 1/2 x 1/2 x 1/2......................................................................................................................1
46 Pipe............................................................................................................................................1
47 00-428691-00002 Valve - Solenoid (120 V.)...........................................................................................................1
48 FP-035-91 Pipe 1/2 x 1-1/8 TBE..................................................................................................................1
49 FP-035-91 Pipe 1/2 x 1-1/8 TBE..................................................................................................................1
50 00-418786-00001 Valve - Check.............................................................................................................................1
51 FP-035-91 Pipe 1/2 x 1-1/8 TBE..................................................................................................................1
52 FP-013-17 Elbow - Street 1/2 x 90 Deg.......................................................................................................1
53 00-419251-00001 Fitting - 90 Deg. Swivel..............................................................................................................1
54 Elbow..........................................................................................................................................1
55 Pipe............................................................................................................................................1
56 FP-035-91 Pipe 1/2 x 1-1/8 TBE..................................................................................................................1
57 00-521820 U-Bolt.........................................................................................................................................1
58 FP-028-14 Pipe - Plug 1/2 Sq. Hd................................................................................................................1
59 Elbow..........................................................................................................................................1
60 00-422281-00007 Hose - Discard (6 Ft.).................................................................................................................1
GRA, GRAF, GRBD, & GRBDF SERIES GAS FRYER REPLACEMENT PARTS
- 27 - F-43210 Rev. C (June 2019)
FILTER ASSEMBLY
GRA, GRAF, GRBD, & GRBDF SERIES GAS FRYER REPLACEMENT PARTS
F-43210 Rev. C (June 2019) - 28 -

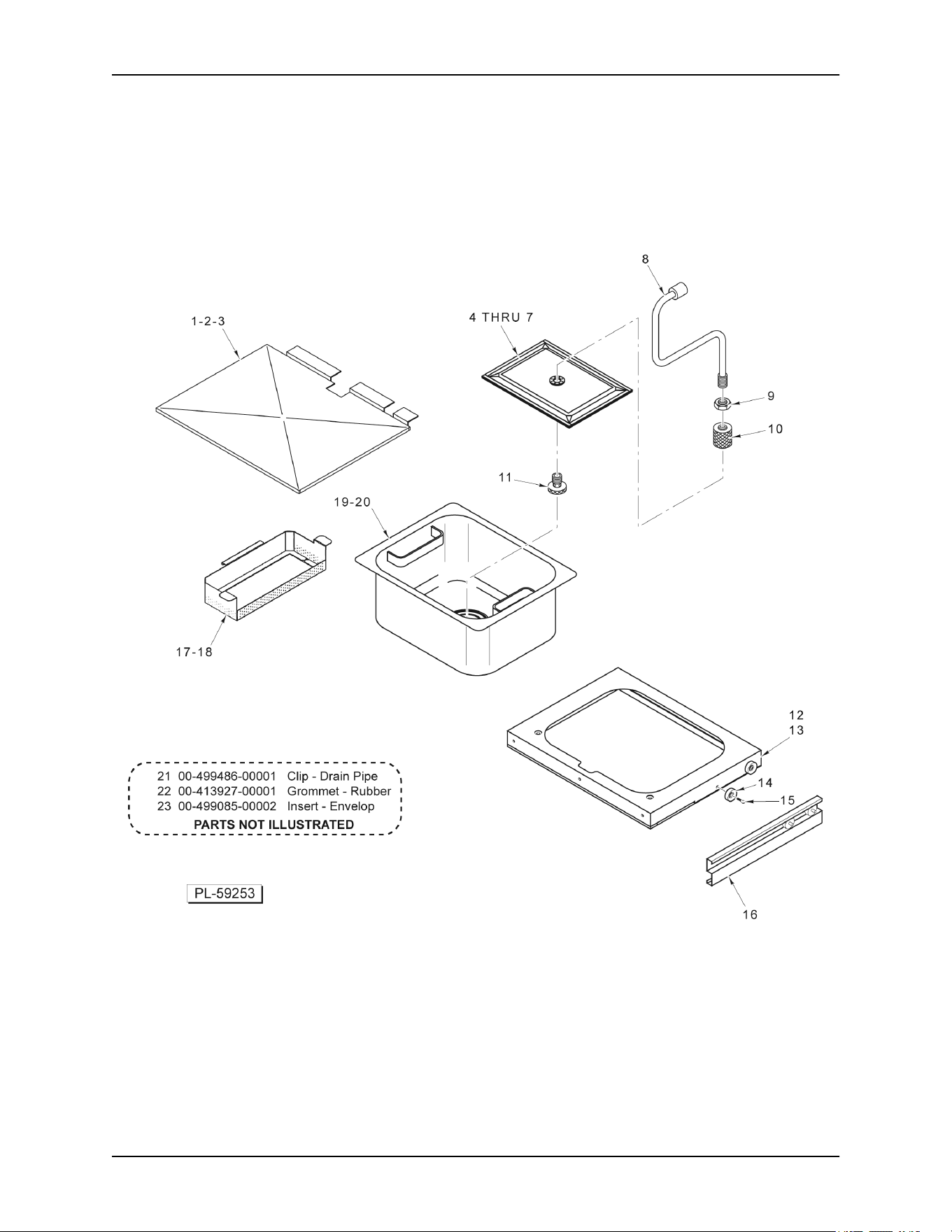

FILTER ASSEMBLY
ILLUS.
PL-59253
PART NO. NAME OF PART AMT.
1 00-428677-00001 Splash Guard (G4 Series)..........................................................................................................1
2 00-428678-00001 Splash Guard (G6 Series)..........................................................................................................1
3 00-428911-00001 Splash Guard (G8 Series)..........................................................................................................1
4 00-499087-00001 Screen - Fine Mesh Filter (Metal)...............................................................................................1
5 00-499085-00001 Insert - Filter Screen...................................................................................................................1
6 00-499086-00001 Filter - Envelope (17.25 x 12.5)..................................................................................................1
7 00-499089-00001 Clip - Filter..................................................................................................................................1
8 00-499081-000G3 Tube - Suction............................................................................................................................1
9 NS-017-49 Jam Nut......................................................................................................................................1
10 00-499083-00002 Coupling.....................................................................................................................................1
11 00-499084-00002 Knob...........................................................................................................................................1
12 00-428180-000G4 Drawer Assy. (G4 Series) (Incls. Item 16)..................................................................................1
13 00-428180-000G5 Drawer Assy. (G6 & G8 Series) (Incls. Items 14, 15, & 16).......................................................1
14 00-426600-00002 Bearing - Roller..........................................................................................................................2
15 00-426600-00003 Screw 1/4-20..............................................................................................................................2
16 00-426600-000G1 Roller Guide Assy.......................................................................................................................1
17 00-426606-000G4 Basket - Scrap (G4 Series)........................................................................................................1
18 00-426606-000G6 Basket - Scrap (G6 & G8 Series)...............................................................................................1
19 00-497374-000G1 Vessel Assy. (G4 Series)...........................................................................................................1
20 00-497374-000G2 Vessel Assy. (G6 & G8 Series)..................................................................................................1
21 00-499486-00001 Clip - Drain Pipe.........................................................................................................................1
22 00-413927-00001 Grommet - Rubber.....................................................................................................................1
23 00-499085-00002 Insert - Fabric Envelope (11 x 15 In.).........................................................................................1
GRA, GRAF, GRBD, & GRBDF SERIES GAS FRYER REPLACEMENT PARTS
- 29 - F-43210 Rev. C (June 2019)
BASKETLIFT COMPONENTS (OPTIONAL)
GRA, GRAF, GRBD, & GRBDF SERIES GAS FRYER REPLACEMENT PARTS
F-43210 Rev. C (June 2019) - 30 -

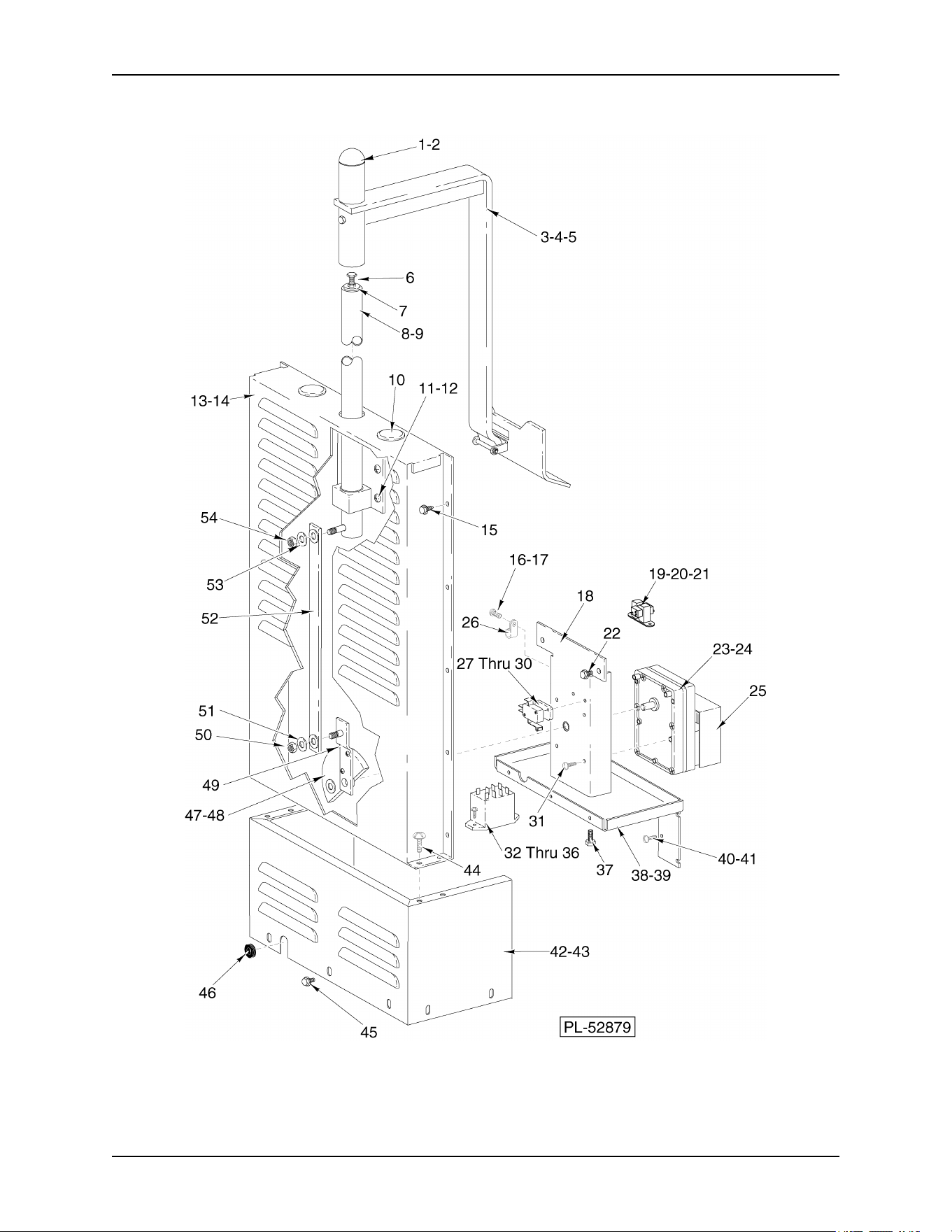

BASKETLIFT COMPONENTS (OPTIONAL)
ILLUS.
PL-52879
PART NO. NAME OF PART AMT.
1 423374-1 Cap - Rod End............................................................................................................................1
2 SC-047-35 Set Screw 5/16-18 x 1/2 Hdls, Cup Pt........................................................................................1
3 422495-G1 Lift Assy......................................................................................................................................1
4 422495-G2 Lift Assy......................................................................................................................................1
5 422495-G3 Lift Assy......................................................................................................................................1
6 418118-1 Bolt - Adjusting...........................................................................................................................1
7 NS-018-01 Jam Nut 14-20 Hex....................................................................................................................1
8 418479-G2 Tube - Basketlift.........................................................................................................................1
9 423262-G1 Tube - Basketlift.........................................................................................................................1
10 PB-004-04 Plug Button (1-1/4).....................................................................................................................2
11 SD-032-07 Self-Tapping Screw 10-24 x 1/2 Hex Washer Hd., Type TT......................................................6
12 422247-G1 Bearing Support Assy.................................................................................................................1
13 422017-1 Wrap - Top.................................................................................................................................1
14 422018-1 Wrap - Top.................................................................................................................................1
15 SD-036-03 Self-Tapping Screw 8-18 x 3/8 Hex Washer Hd., Type AB......................................................10
16 SC-109-10 Mach. Screw 6-32 x 3/8 Slotted Pan Hd. (SST).........................................................................1
17 NS-009-07 Nut 6-32 Hex..............................................................................................................................1
18 418123-G1 Plate - Motor...............................................................................................................................1
19 411500-12 Transformer (120 V., A.C., 24 V., 20 VA)................................................................................AR
20 411500-13 Transformer (200-240 V.A.C., 28 V., 20 VA)...........................................................................AR
21 SD-032-07 Self-Tapping Screw 10-24 x 1/2 Hex Washer Hd., Type TT......................................................2
22 SD-037-80 Self-Tapping Screw 10-24 x 1/2 Hex Washer Hd., Type TT......................................................6
23 418156-1 Gear Motor (115V.,60 Hz.).........................................................................................................1
24 418156-2 Gear Motor (208V).....................................................................................................................1
25 418517-1 Shroud - Motor...........................................................................................................................1
26 078752-12 Clamp - Cable............................................................................................................................1
27 418159-1 Block - Cam Switch....................................................................................................................1
28 411496-F3 Switch - Micro.............................................................................................................................1
29 SC-112-90 Mach. Screw 4-40 x 1 Slotted Pan Hd.......................................................................................2
30 NS-009-12 Nut 8-32 Hex..............................................................................................................................2
31 SC-018-47 Mach. Screw 10-32 x 3/4 Pan Hd...............................................................................................4
32 416535-4 Relay S.P.D.T. 24 V. Coil (Elect. Ingnition) (Located on rear of panel)......................................1
33 416535-6 Switch - Relay.........................................................................................................................AR
34 416535-7 Switch - Relay (240V)..............................................................................................................AR
35 SC-109-10 Mach. Screw 6-32 x 3/8 Slotted Pan Hd. (SST).........................................................................2
36 NS-009-07 Nut 6-32 Hex..............................................................................................................................2
37 SD-037-80 Self-Tapping Screw 10-24 x 1/2 Hex Washer Hd., Type TT......................................................2
38 422730-1 Base - Motor Mounting...............................................................................................................1
39 422729-1 Base - Motor Mounting...............................................................................................................1
40 SC-037-80 Cap Screw 10-24 x 1/2 Hex Hd..................................................................................................2
41 SD-032-07 Self-Tapping Screw 10-24 x 1/2 Hex Washer Hd., Type TT......................................................2
42 418480-1 Wrap - Bottom............................................................................................................................1
43 418510-1 Wrap - Bottom............................................................................................................................1
44 SD-036-03 Self-Tapping Screw 8-18 x 3/8 Hex Washer Hd., Type AB......................................................14
45 SC-037-80 Cap Screw 10-24 x 1/2 Hex Hd..................................................................................................2
46 418482-1 Grommet....................................................................................................................................1
47 418475-G1 Crank-Arm Assy.........................................................................................................................1
48 SC-055-02 Set Screw 1/4-20 x 1/4 Hdls., Cup Pt.........................................................................................2
49 SD-015-41 Self-Tapping Screw 8-32 x 1/2 Phil. Pan Hd., "Taptite".............................................................2
50 NS-047-73 Lock Nut 5/16-18 Hex.................................................................................................................1
51 WS-004-33 Washer.......................................................................................................................................1
52 418477-G2 Coupler Assy..............................................................................................................................1
53 WS-004-33 Washer.......................................................................................................................................1
54 NS-047-73 Lock Nut 5/16-18 Hex.................................................................................................................1
GRA, GRAF, GRBD, & GRBDF SERIES GAS FRYER REPLACEMENT PARTS
- 31 - F-43210 Rev. C (June 2019)
RECOMMENDED SPARE PARTS LIST
use when no PL illustration is needed or available
GRA, GRAF, GRBD, & GRBDF SERIES GAS FRYER REPLACEMENT PARTS
F-43210 Rev. C (June 2019) - 32 -
RECOMMENDED SPARE PARTS LIST
ILLUS.
PL-BLANK
PART NO. NAME OF PART AMT.
00-956926-000G1 Control Assy. - Behind Door (W/no LED's)................................................................................1
00-411242-00001 Knob...........................................................................................................................................1
00-427755-000G1 Switch Assy. - Power..................................................................................................................1
00-411496-00B10 Switch - Rocker S.P.S.T.............................................................................................................1
00-427755-000G2 Switch Assy. (Start)....................................................................................................................1
00-427755-000G1 Switch Assy. - Power (Filter)......................................................................................................1
00-857207-00001 Module - Ignition.........................................................................................................................1
00-497125-00001 Relay (SPDT, 24 VAC)...............................................................................................................1
00-428864-00001 Relay (Battery Units)..................................................................................................................1
00-411500-00012 Transformer (120 VAC, 24 V., 40 VA)........................................................................................1
00-419967-00005 Cord - Power Supply (84 In.)......................................................................................................1
00-427882-000G3 Tube - Flex (Gas Inlet)...............................................................................................................1
00-410841-00028 Valve - Combination (NAT) (Electronic Ignition).........................................................................1
00-410841-00029 Valve - Combination (LP) (Electronic Ignition)...........................................................................1
00-428472-00001 Valve - Gas (1/2 In.)................................................................................................................AR
* 00-418907-00001 Caster - Swivel Assy. (Adjustable).............................................................................................2
* 00-418907-00003 Caster.........................................................................................................................................2
* 00-426805-000G1 Switch Assy. (Drain Valve Interlock)..........................................................................................1
* 00-426803-000G8 Valve - Drain Assy. (LH) (11/4) (With Magnet) (2G4, 2G6, 2G8, 3G4, 3G6, 3G8, 4G4,
4G6, & 4G8)...............................................................................................................................1
* 00-426803-000G9 Valve - Drain Assy. (1-1/4) (RH) (With Magnet).........................................................................1
* 00-420553-00002 Gasket - Silicone........................................................................................................................1
* 00-418786-00001 Valve - Check.............................................................................................................................2
* 00-428691-00002 Valve - Solenoid (120 V.)...........................................................................................................2
* 00-426801-00002 Switch - Valve Mounted..............................................................................................................1
* 00-426805-000G2 Switch Assy................................................................................................................................1
* 00-426567-00002 O-Ring (Viton)............................................................................................................................2
* 00-426602-00001 Tube - Flex (12 In.) (2G4, 3G4, 4G4, 2XG6, & 2XG8)...............................................................1
* 00-426602-00004 Tube - Suction Flex (19 In.)........................................................................................................1
* 00-417792-00005 Pump Motor Assy. (115 V., 60 Hz.) (8 G.P.M.)..........................................................................1
* 00-426602-00001 Tube - Flex (12 In.) (2G4, 3G4, 4G4, 2XG6, & 2XG8)...............................................................1
** 00-497296-000G1 Magnet Assy...............................................................................................................................1
** 00-418907-00002 Caster - Adjustable Swivel.........................................................................................................1
** 00-421893-00002 Caster - Plate Mount..................................................................................................................1
** 00-419379-00001 Probe - Thermistor.....................................................................................................................1
** 00-417522-00003 Clip - Capillary............................................................................................................................2
** 00-419316-00001 Pilot (Nat. Gas) (W/Electronic Ignition).......................................................................................1
** 00-419316-00002 Pilot (L.P. Gas) (W/Electronic Ignition).......................................................................................1
** 00-426505-00023 Tube - Flex 1/4 O.D. x 23 In. Lg.................................................................................................1
** 00-010901-00039 Orifi ce - Spud (NAT Gas) (Sea Level - 2000 Ft.)...................................................................AR
** 00-010901-00052 Orifi ce - Spud (LP Gas) (Sea Level - 3499 Ft.)......................................................................AR
** 00-410840-00002 Box - Control Hi-Limit With Stuffi ng...........................................................................................1
** 00-410681-00001 Burner......................................................................................................................................AR
** 00-426805-000G1 Switch Assy................................................................................................................................1
** 00-426801-00002 Switch - Mounted........................................................................................................................1
** 00-426803-000G8 Valve - Drain Assy. (1-1/4) (LH) (With Magnet)..........................................................................1
** 00-426803-000G9 Valve - Drain Assy. (1-1/4) (RH) (With Magnet).........................................................................1
*** 00-499081-000G3 Tube - Suction............................................................................................................................1
*** 00-499084-00002 Knob...........................................................................................................................................1
*** 00-426600-00002 Bearing - Roller..........................................................................................................................2
*** 00-413927-00001 Grommet - Rubber.....................................................................................................................1
* BODY UNIT (BATTERY)
** BODY UNIT (STAND-ALONE)
*** FILTER ASSEMBLY
GRA, GRAF, GRBD, & GRBDF SERIES GAS FRYER REPLACEMENT PARTS
- 33 - F-43210 Rev. C (June 2019)
GRA, GRAF, GRBD, & GRBDF SERIES GAS FRYER REPLACEMENT PARTS
FORM 43210 Rev. C JUNE 2019 PRINTED IN U.S.A.
