Roc 1 Max
Model: I25M02
User Manual

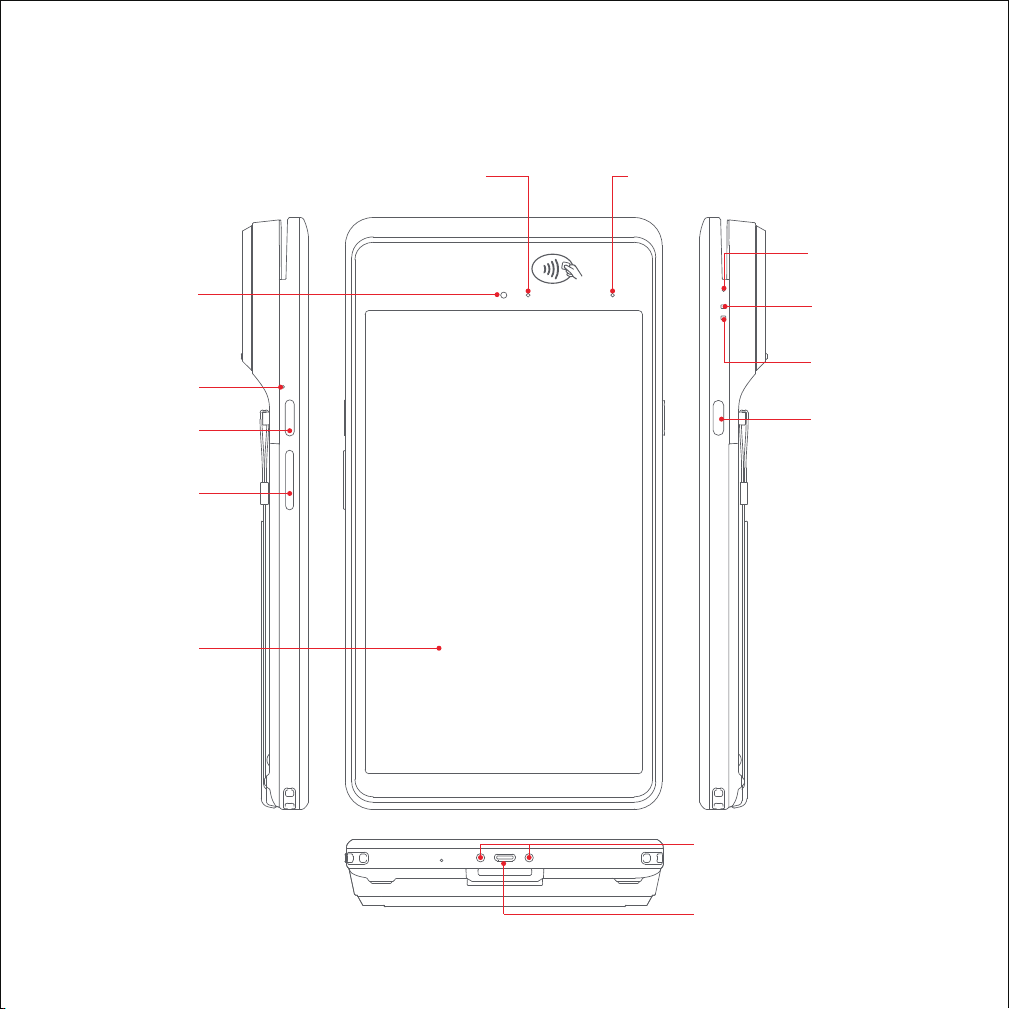

Introduction
Type-C
Front Camera
Pogo Pin
Power Button
(Fingerprint)
Volume Button
Display
Functional
Button
Mic
IndicatorLight Sensor
Module Power
Button
Module Power
Status
Module BT
Status
Removable
Lithium Battery
PSAM Card
Slot (optional)
TF Card Slot
SIM Card Slot

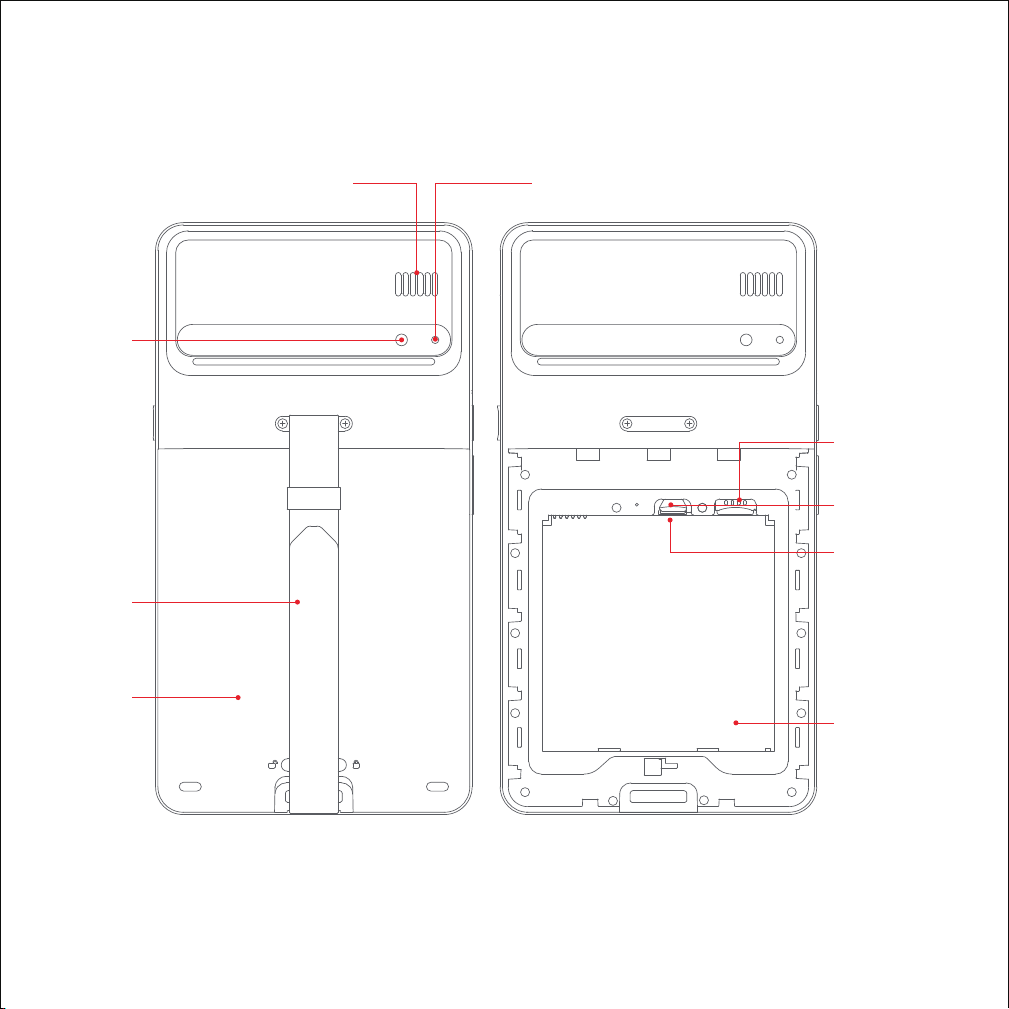

Rear
Camera
Flash light
Battery
Cover
Strap
Speaker
Technical Specif ications
OS
CPU
Screen
Storage
Camera
Barcode scanner
LED indicator
Sensor
Fingerprint unlock
WLAN
Network
GNSS
Bluetooth
Payment Module
Functional
External Interface
Card Slot
Battery
Power Adapter
Charging Temperature
Operating Temperature
Storage Temperature
Operating Humidity
IP Rating
Rolling Drop
Drop-proof
Android 14 GMS
QCS5430 FP2.5, Octa-core (4*A78 @2.4GHz + 4*A55 @1.8GHz), AI: 6 TOPS (INT8)
8.68 inches LCD screen , 800 x 1340, Brightness: 500 nits", Incell, multi-point touch
4GB RAM + 64GB ROM / 8GB RAM + 128GB ROM
8 MP rear camera, with flash light, 5 MP front camera,
Independent professional 1D/2D scanner engine
Optional
Red & Green LED
G-sensor, Light sensor
Yes
WiFi6E, 2.4GHz/5GHz/6GHz, IEEE 802.11 a/b/g/n/ac/ax
2G/3G/4G ( LTE-FDD: B2/B4/B5/B12/B13/B14/B66/B71, WCDMA: B2/B4/B5 )
GPS/Galileo/Glonass/Beidou/QZSS
BT5.2
Ingenico Moby5500M
Controlling scanner / Customized
USB Type-C x 1，support OTG, DP out
TF card x 1 (Maximum 1 TB), Nano SIM x 1, eSIM x 1 (optional), PSAM x 1 (optional)
Main Battery: 3.89V 8000mAh Swappable Smart Battery
Backup Battery: 3.8V 205mAh (Maximum 1.5A output)
Output power 18W, Input: AC 100-240V, Output: DC 9V/2A
0℃ to 40℃
-10℃ to 50℃
-20℃ to 60℃
5% to 95% r.H.
IP55 (Except Moby5500M part)
0.5m, 250 rounds
1.22m drop test
Safety Information
Safety and Handling
· Please plug-in power adapter to only its corresponding AC
socket.
· Do not use in explosive gas atmosphere.
· Do not disassemble the equipment. It should be serviced or
recycled only by iMin or an authorised service provider.
· This is a Grade B product. The product may cause radio
interference and interfere with medical devices. The user
may be required to take practical measures to reduce the
possibility of causing interference to radios, televisions and
other electronic devices.
· About the battery replacement:
1. Do not attempt to replace the battery yourself - you may
damage the battery, which could cause overheating, f ire
and injury.
2. The replaced/ used battery should be disposed according
to local environmental laws and guidelines. Do not
dispose in f ire. It should be serviced or recycled by iMin
or an authorised service provider, and must be recycled
or disposed of separately from household waste.
Company Statement
Our company is not responsible for the following actions:
· Damage caused by misuse, lack of care in maintaining the
equipment, or placing the device under conditions that may
cause undesired operation and risk as specif ied in this
instruction manual.
· We will not be responsible for any damage or problem
caused by third party parts or components (other than the
original products or approved products provided by us).
Without our consent, you have no right to modify or alter
the products.
· The operating system of this product is supported by off icial
regular OS update. If the user breached the third party's
ROM system or change the system f ile by hacking, it may
cause unstable, undesired system operation and bring
security risk.
Advices
· Do not expose the device to moisture, dampness, or wet
weather, such as rain, snow or fog.
· Do not use the device in extreme cold or hot environments
eg, near a f ire or lit cigarette.
· Do not topple, throw, or bend.
· Use in optimally clean and dust-free environment to avoid
tiny particles clogging and seeping through gaps in the
device.
· Do not at tempt to use the device near medical equipment.
Important Safety Information
· Do not install or use during thunder storms and lightning
conditions, otherwise, there will be risk of electric shock,
injury or death in the event of thunder or lightning hit.
· If you f ind unusual odour, overheating or smoke, please cut
off the power immediately.
· Do not expose the device to moisture, dampness, or wet
weather, such as rain, snow or fog; Do not use in explosive
gas atmosphere.
Disclaimer
Due to regular updates and enhancements made to the
product, some details of this document may be inconsistent
with the physical product. Please take the product you
received as current standard. The right to interpret this
document belongs to our company. We reserve the right to
amend this specif icat ion without prior not ice.
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications to this device not explicitly approved by manufacturer
could void your authority to operate this equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Specific Absorption Rate (SAR) information:
This POS Device meets the government's requirements for exposure to radio waves. The
guidelines are based on standards that were developed by independent scientific organizations
through periodic and thorough evaluation of scientific studies. The standards include a
substantial safety margin designed to assure the safety of all persons regardless of age or health.
FCC RF Exposure Information and Statement the SAR limit of USA (FCC) is 1.6 W/kg averaged over
one gram of tissue. Device types: POS Device has also been tested against this SAR limit. This
device was tested for typical body-worn operations with the back of the POS Device kept 0mm
from the body. To maintain compliance with FCC RF exposure requirements, use accessories that
maintain an 0 mm separation distance between the user's body and the back of the POS Device.
The use of belt clips, holsters and similar accessories should not contain metallic components in
its assembly. The use of accessories that do not satisfy these requirements may not comply with
FCC RF exposure requirements, and should be avoided.
