Body-Solid SOSB250 2" Olympic Shoulder Press Bench User Manual

Assembly Instructions

OWNER’S MANUAL

V. SOSB250-20200622

SOSB250

Notes

Warning, Safety & Maintenance

Be sure that all users carefully read and understand all

warning, safety and maintenance labels on the machine

before each use. Failure to do so may result in death or

serious injury.

It is imperative that you retain this Owner’s Manual and be

sure all warning labels are legible and intact. Replacement

Owner’s Manuals and warning labels are available from your

local Body-Solid dealer.

If you have any questions about the operation, set up or

maintenance of this machine please call our customer service

department at 1 (800) 556-3113.

Table of Contents

• SAFETY INSTRUCTIONS.............................. PAGE 5

• PREPARATION............................................... PAGE 6

• HARDWARE ILLUSTRATION......................... PAGE 9

• PART / HARDWARE LIST............................... PAGE 10

• ASSEMBLY INSTRUCTIONS......................... PAGE 11

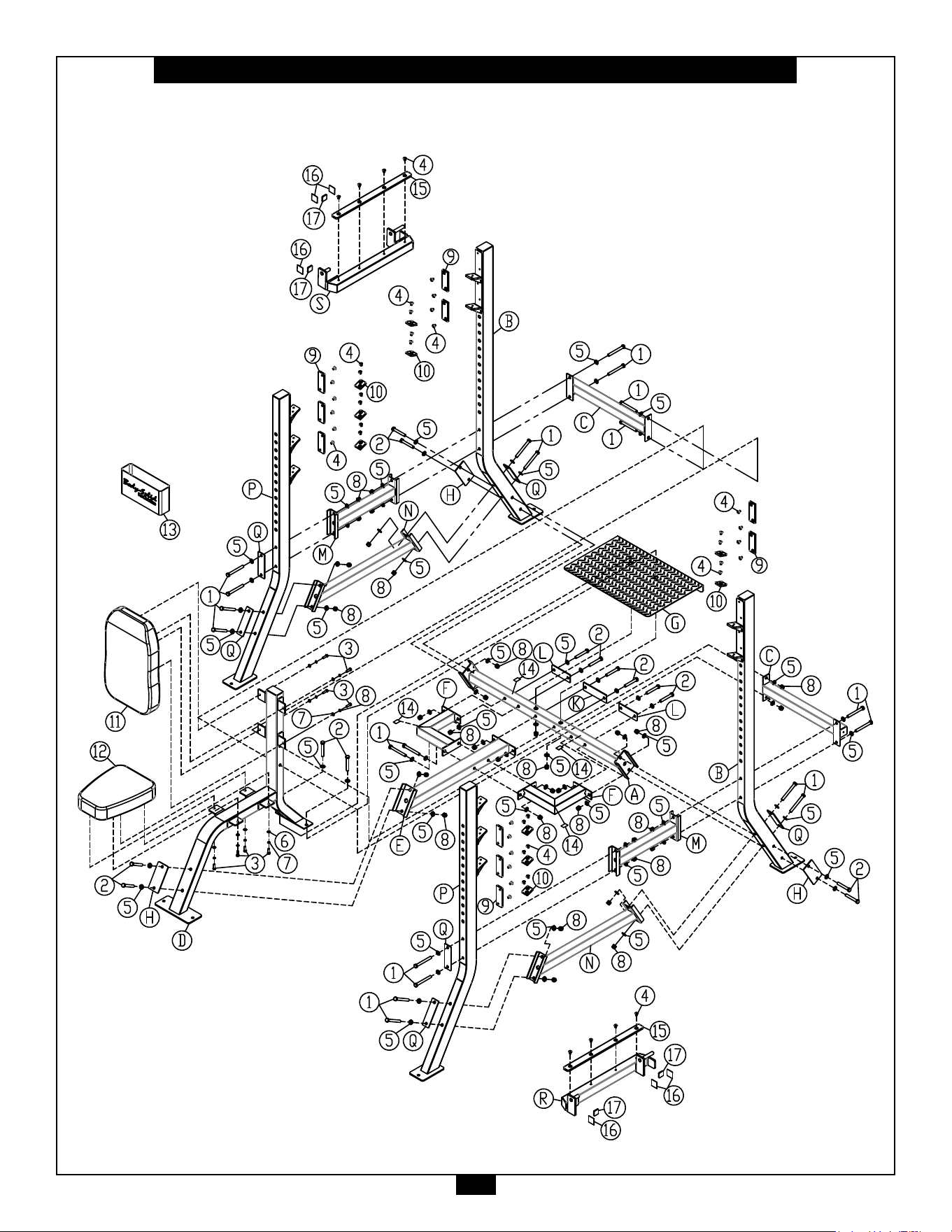

• EXPLODED VIEW.......................................... PAGE 19

• CONTACT PAGE............................................ PAGE 20

Important Safety Instructions

Beforebeginninganytnessprogram,youshouldobtainacompletephysicalexaminationfromyourphysician.

Il est conseille de subir un examen medical complet avant d’entreprendre tout programme d’exercise.

Si vous avez des etourdissements ou des faiblesses, arretez les exercices immediatement.

Antes de comenzar cualquier programma de ejercicios, deberias tener un examen sico con su doctor.

When using exercise equipment, you

should always take basic precautions,

including the following:

m ReadallinstructionsbeforeusingtheSOSB250.

Theseinstructionsarewrittentoensureyoursafety

andtoprotecttheunit.

m Do not remove any safety labels from the

machine.

m Donotallowchildrenonorneartheequipment.

m Usetheequipmentonlyforitsintendedpurpose

asdescribedinthisguide.Donotuseaccessory

attachmentsthatarenotrecommendedbythe

manufacturer.Suchattachmentsmightcause

injuries.

m Wearproperexerciseclothingandshoesforyour

workout,nolooseclothing.

m Keephands,limbs,looseclothing,andlonghairwell

outofthewayofallmovingparts.

m Usecarewhengettingonoro󰀨theunit.

m Donotoverexertyourselforworktoexhaustion.

m Ifyoufeelanypainorabnormalsymptoms,stop

yourworkoutimmediatelyandconsultyour

physician.

m Neveroperateunitwhenithasbeendroppedor

damaged.Returntheequipmenttoaservice

centerforexaminationandrepair.

m Neverdroporinsertobjectsintoanyopeningin

theequipment.

m Alwayschecktheunitanditscablesbeforeeach

use.Makesurethatallfastenersandcablesare

secureandingoodworkingcondition.

m Donotusetheequipmentoutdoorsornearwater.

Personal Safety During Assembly

m Beforebeginningassembly,pleasetakethetime

toreadtheinstructionsthoroughly.

m Readeachstepintheassemblyinstructionsand

followthestepsinsequence.Donotskipahead.

Ifyouskipahead,youmaylearnlaterthatyou

havetodisassemblecomponentsandthatyou

mayhavedamagedtheequipment.

m Assembleandoperatethe SOSB250onasolid,

levelsurface.Locatetheunitafewfeetfromthe

wallsorfurnituretoprovideeasyaccess.

TheSOSB250 isdesignedforyourenjoyment.By

followingtheseprecautionsandusingcommonsense,

youwillhavemanysafeandpleasurablehoursof

healthfulexercisewithyourBody-SolidCOMMERCIAL

SHOULDER PRESS OLYMPIC BENCH.

Afterassembly,youshouldcheckallfunctionsto

ensurecorrectoperation.Ifyouexperienceproblems,

rstrechecktheassemblyinstructionstolocateany

possibleerrorsmadeduringassembly.Ifyouareunable

tocorrecttheproblem,callthedealerfromwhomyou

purchasedthemachineorcall1-800-556-3113forthe

dealernearestyou.

Obtaining Service

PleaseusethisOwner’sManualtomakesurethatall

partshavebeenincludedinyourshipment.When

orderingparts,youmustusethepartnumberand

descriptionfromthisOwner’sManual.Useonly

Body-Solidreplacementpartswhenservicingthis

machine.Failuretodosowillvoidyourwarrantyand

couldresultinpersonalinjury.

Forinformationaboutproductoperationorservice,

checkouttheo󰀩cialBody-Solidwebsiteat

www.bodysolid.comorcontactanauthorized

Body-SoliddealeroraBody-Solidfactory-authorized

servicecompanyorcontactBody-Solidcustomer

serviceatoneofthefollowing:

Toll Free: 1-800-556-3113

Phone: 1-708-427-3555

Fax: 1-708-427-3556

Hours: M-F 8:30-5:00 CST

E-Mail: [email protected]

Or write to: Body-Solid, Inc.

Service Department

1900 S. Des Plaines Ave.

Forest Park, IL 60130 USA

Retain this Owner’s Manual for future

reference. If you need to order replacement

parts please be prepared to provide the

following information when contacting us so

that we can assist you better.

1. Model Number

2. Place of Purchase

3. Serial Number (S/N)

4. Part # and Description

Preparation

ThankyouforpurchasingtheSOSB250.ThisProductispartoftheBody-Solidlineofqualitystrengthtraining

machines,whichletsyoutargetspecicmusclegroupstoachievebettermuscletoneandoverallbody

conditioning. To maximize your use of the equipment please study this Owner’sManual thoroughly.

Body-Solidcontinuallyseekswaystoimprovetheperformance,specicationsandproductmanualsinordertoensurethatonly

superiorproductsarereleasedfromourfactories.Pleasetakethetimetocarefullyreadthroughthismanualthoroughly.Instructions

containedinthisdocumentarenotintendedtocoveralldetailsorvariationspossiblewithBody-Solidequipment,ortocoverevery

contingencythatmaybemetinconjunctionwithinstallation,operation,maintenanceortroubleshootingoftheequipment.Even

thoughwehavepreparedthismanualwithextremecare,neitherthepublishernortheauthorcanacceptresponsibilityforanyerrors

in,oromissionfrom,theinformationgiven.Shouldadditionalinformationberequired,orshouldsituationsarisethatarenotcovered

bythismanual,themattershouldbedirectedtoyourlocalBody-Solidrepresentative,ortheServiceDepartmentatBody-SolidInc.

inForestPark,Illinois.

Required Tools

Thebasictoolsthatyoumustobtainbeforeassembling

theSOSB250includebutarenotlimitedto:

m StandardWrenchSet

m MetricWrenchSet

m AdjustableWrench

Installation Requirements

Followtheseinstallationrequirementswhenassembling

theSOSB250:SetuptheSOSB250onasolid,at

surface.Asmooth,atsurfaceunderthemachinehelps

keepitlevel.Alevelmachinehasfewermalfunctions.

Provideamplespacearoundthemachine.Open

spacearoundthemachineallowsforeasieraccess.

Insertallboltsinthesamedirection.Foraesthetic

purposes,insertallboltsinthesamedirectionunless

specied(intextorillustrations)todootherwise.

Leaveroomforadjustments.Tightenfastenerssuchas

bolts,nuts,andscrewssotheunitisstable,butleave

roomforadjustments.Donotfullytightenfasteners

untilinstructedintheassemblystepstodoso.

Fill out and mail the warranty card.

Assembly Tips

Readall“Notes”oneachpagebeforebeginningeach

step.

WhileyoumaybeabletoassembletheSOSB250using

theillustrationsonly,importantsafetynotesandother

tipsareincludedinthetext.

Somepiecesmayhaveextraholesthatyouwillnotuse.

Useonlythoseholesindicatedintheinstructionsand

illustrations.

NOTE: Withsomanyassembledparts,proper

 alignmentandadjustmentiscritical.While

 tighteningthenutsandbolts,besuretoleave

 roomforadjustments.

CAUTION: Obtainassistance!Ifyoufeellikeyoucan’t

 assembletheSOSB250byyourselfthendo

 notattempttodosoasthiscouldresultin 

 injury.Reviewtheinstallationrequirements 

 beforeproceedingwiththefollowingsteps.

YourS/N#can

befoundhere

↑

SOSB250 Hardware Illustration

Part#2  HEXHEADBOLTM12x80mm     QTY. 14

Part#1  HEXHEADBOLTM12x105mm     QTY. 20

Part#3  HEXHEADBOLTM8x25mm     QTY.8





















SOSB250 Hardware Illustration

Part#5  FLATWASHERM12      QTY.68

Part#4  LOW-PROFILESOCKETHEADCAPSCREW  QTY.48

M8x10mm(PRE-INSTALLED)

Part#6  FLATWASHERM8      QTY.8





























































































































































































































































































































































































SOSB250 Hardware Illustration

Part#7  LOCKWASHERM8      QTY.8

Part#8  NYLONLOCKNUTM12      QTY.34









































































































































































































SOSB250 Parts & Hardware List

Part# Qty Description

LOWER CROSSMEMBER

REAR UPRIGHT

UPPER CROSSMEMBER

MAIN CENTER FRAME

LOWER CENTER FRAME

FOOT PLATE SUPPORT FRAME

FOOT PLATE

BRACKET,150

X70mm

BRACKET,165X48mm

BRACKET,130X48mm

UPPER SIDE CROSSMEMBER

LOWER SIDE CROSSMEMBER

FRONT UPRIGHT

BRACKET,150X45mm

LEFT SAFETY CATCH

RIGHT SAFETY CATCH

HEXHEADBOLT, M12

X105mm

HEXHEADBOLT, M12X80mm

HEXHEADBOLT,M8X25mm

LOW-PROFILE SOCKET HEAD CAP

SCREW,M8

X10mm(Pre-Installed)

M12 FLAT WASHER

M8FLATWASHER

M8LOCKWASHER

M12 NYLON LOCK NUT

PLASTICINSERT,120

X40mm

PLASTICINSERT,47X40mm

BACK PAD

SEAT PAD

PAD WRAP

FOAM TAPE

PLASTICINSERT,550

X40mm

PROTECTIVE FILM

RUBBER PAD

STEP

Be careful to assemble all components

in the sequence they are presented.

NOTE:

Finger tighten all hardware in this step. DO NOT wrench tighten until instructed.

Some components may be pre-assembled. Nylon lock nuts will not fully screw onto

bolts, they must be wrench tighten to fully go on.

1A. AttachUprights(B) toLowerCrossmember(A)using:

4 - (#2) M12x80mm Hex Head Bolt

8 - (#5) M12 Flat Washer

4 - (#8) M12 Nylon Lock Nut

2 - (H) Bracket

STEP

AboveshowsStep1assembledandcompleted.

STEP

Be careful to assemble all components

in the sequence they are presented.

NOTE:

Finger tighten all hardware in this step. DO NOT wrench tighten until instructed.

Some components may be pre-assembled. Nylon lock nuts will not fully screw onto

bolts, they must be wrench tighten to fully go on.

2A. AttachLowerCenterFrame(E) toLowerCrossmember(A)using:

2 - (#2) M12x80mm Hex Head Bolt

4 - (#5) M12 Flat Washer

2 - (#8) M12 Nylon Lock Nut

1 - (K) Bracket

2B. AttachFootPlateSupportFrames(F) toLowerCrossmember(A)using:

4 - (#1) M12x80mm Hex Head Bolt

8 - (#5) M12 Flat Washer

4 - (#8) M12 Nylon Lock Nut

2 - (L) Bracket

Note: Please make sure the side of Foot Plate Support Frame (F) that does not

have the weld seam faces up.

2C. AttachFootPlateSupportFrames(F) toLowerCenterFrame(E)using:

2 - (#1) M12x105mm Hex Head Bolt

4 - (#5) M12 Flat Washer

2 - (#8) M12 Nylon Lock Nut

3D. StickFourFoamTapes(#14) on FootPlateSupportFrames(F) &

asLowerCrossmember(A)shownonSTEP2Drawing.

2E. AttachMainCenterFrame(D) &FootPlate(G)toLower

 Crossmember(A) using:

2 - (#2) M12x80mm Hex Head Bolt

4 - (#5) M12 Flat Washer

2 - (#8) M12 Nylon Lock Nut

2F. AttachMainCenterFrame(D)toLowerCenterFrame(E) using:

2 - (#2) M12x80mm Hex Head Bolt

4 - (#5) M12 Flat Washer

2 - (#8) M12 Nylon Lock Nut

1 - (H) Bracket

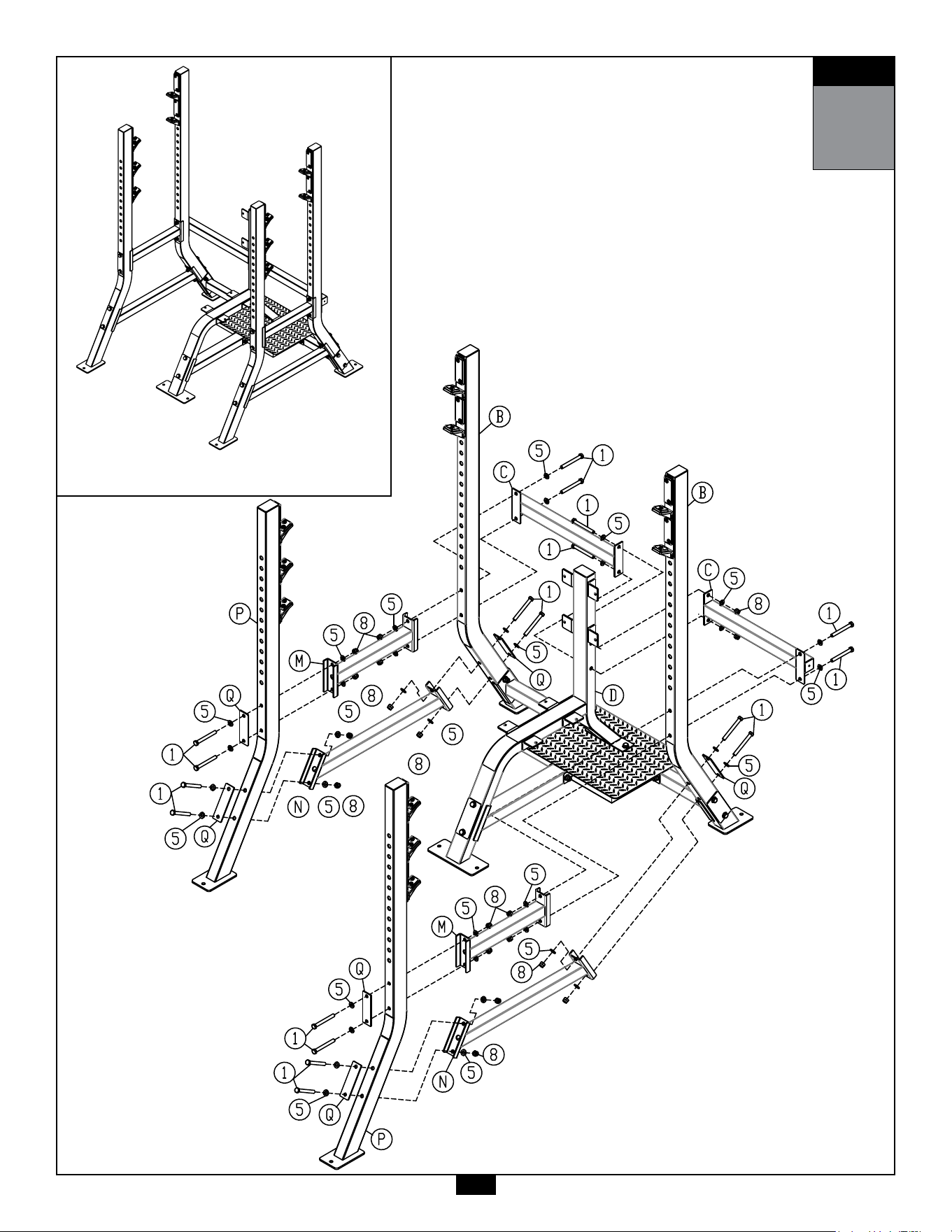

STEP

AboveshowsStep2assembledandcompleted.

Note:

This Side Up

STEP

Be careful to assemble all components

in the sequence they are presented.

NOTE:

Finger tighten all hardware rst in this step. Wrench tighten ALL hardware at the end of

STEP 3E. Some components may be pre-assembled. Nylon lock nuts will not fully screw

onto bolts, they must be wrench tighten to fully go on.

3A. AttachUpperCrossmembers(C) toCenterMainFrame(D)using:

2 - (#1) M12x105mm Hex Head Bolt

4 - (#5) M12 Flat Washer

2 - (#8) M12 Nylon Lock Nut

3B. AttachUpperCrossmembers(C) & UpperSideCrossmembers(M)

toRearUprights(B)using:

4 - (#1) M12x105mm Hex Head Bolt

8 - (#5) M12 Flat Washer

4 - (#8) M12 Nylon Lock Nut

3C. Attach LowerSideCrossmembers(N) toRearUprights(B)using:

4 - (#1) M12x105mm Hex Head Bolt

8 - (#5) M12 Flat Washer

4 - (#8) M12 Nylon Lock Nut

2 - (Q) Bracket

3D. Attach UppeSideCrossmembers(M) toFrontUprights(P)using:

4 - (#1) M12x105mm Hex Head Bolt

8 - (#5) M12 Flat Washer

4 - (#8) M12 Nylon Lock Nut

2 - (Q) Bracket

3E. Attach LowerSideCrossmembers(N) toFrontUprights(P)using:

4 - (#1) M12x105mm Hex Head Bolt

8 - (#5) M12 Flat Washer

4 - (#8) M12 Nylon Lock Nut

2 - (Q) Bracket

STEP

AboveshowsStep3assembledandcompleted.

STEP

Be careful to assemble all components

in the sequence they are presented.

NOTE:

Finger tighten all hardware rst in this step. Wrench tighten ALL hardware at the end of

STEP 4B. Some components may be pre-assembled. Nylon lock nuts will not fully screw

onto bolts, they must be wrench tighten to fully go on.

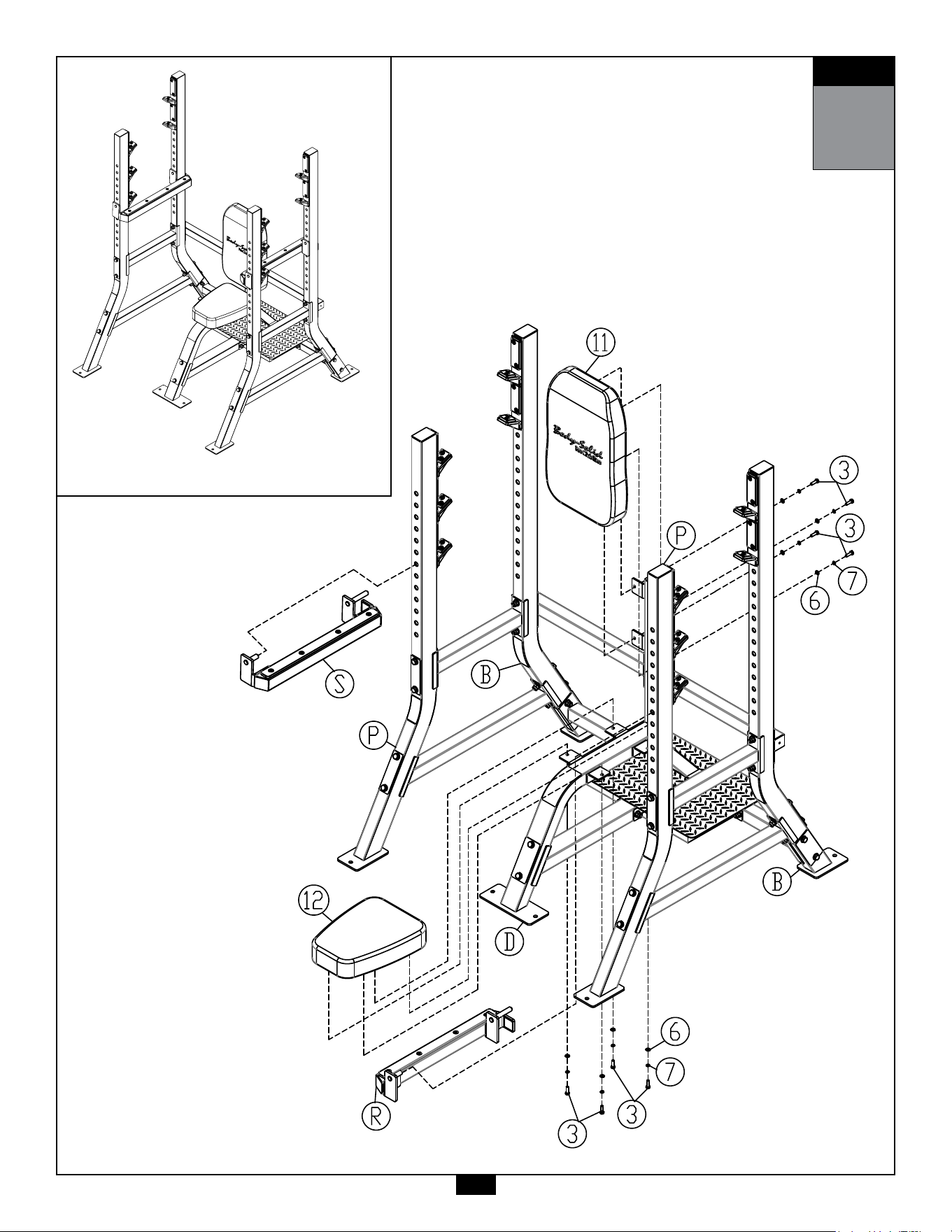

4A. AttachBackPad(#11) toCenterMainFrame(D)using:

4 - (#3) M8x25mm Hex Head Bolt

4 - (#6) M8 Flat Washer

4 - (#7) M8 Lock Washer

4B. AttachSeatPad(#12) toCenterMainFrame(D)using:

4 - (#3) M8x25mm Hex Head Bolt

4 - (#6) M8 Flat Washer

4 - (#7) M8 Lock Washer

4C. AttachLeft&RightSafetyCatches(R & S) toUprights(P & B).

STEP

AboveshowsStep4assembledandcompleted.

SOSB250 Exploded View

1900S.DesPlainesAve.

ForestPark,IL60130

Phone:(708)427-3555

Fax:(708)427-3556

Hours:M-F8:30-5:00CST

www.bodysolid.com

PLEASE WRITE YOUR SERIAL NUMBER IN THE BOXES BELOW

S/N# 016002-��-��-��-��

SOSB250

Body-Solid SOSB250 2" Olympic Shoulder Press Bench

Product's Documents

Product Manual

Specifications

Body-Solid SOSB250 Questions and Answers

Related Products

Body-Solid BFOB10B Olympic Bench

Body-Solid GPR370B Olympic Multi Press Rack

Body-Solid SOFB250 Pro Clubline Flat Olympic Bench

Body-Solid FID46 Olympic Leverage Flat Incline Decline Bench

Body-Solid OTB100 2" Olympic Open Trap Bar

Body-Solid GWT76 High-Capacity Olympic Plate Rack
