HUSQVARNA OUTDOOR PRODUCTS ITALIA SPA
V41000001
PNC ML Model Brand
965998401 03 GD 46 V Gardena
Number
of Pages 1 of 3
Factory: IIQ - Valmadrera Product Group: OP 93
Publication Number: EIPL2012 V41000001 Petrol Portable
Publication Date: 08/10/12 Sub Group 1071
HUSQVARNA OUTDOOR PRODUCTS ITALIA SPA
EIPL2012 V41000001 Page 2 of 3
HUSQVARNA OUTDOOR PRODUCTS ITALIA SPA
EIPL2012 V41000001 Page 3 of 3

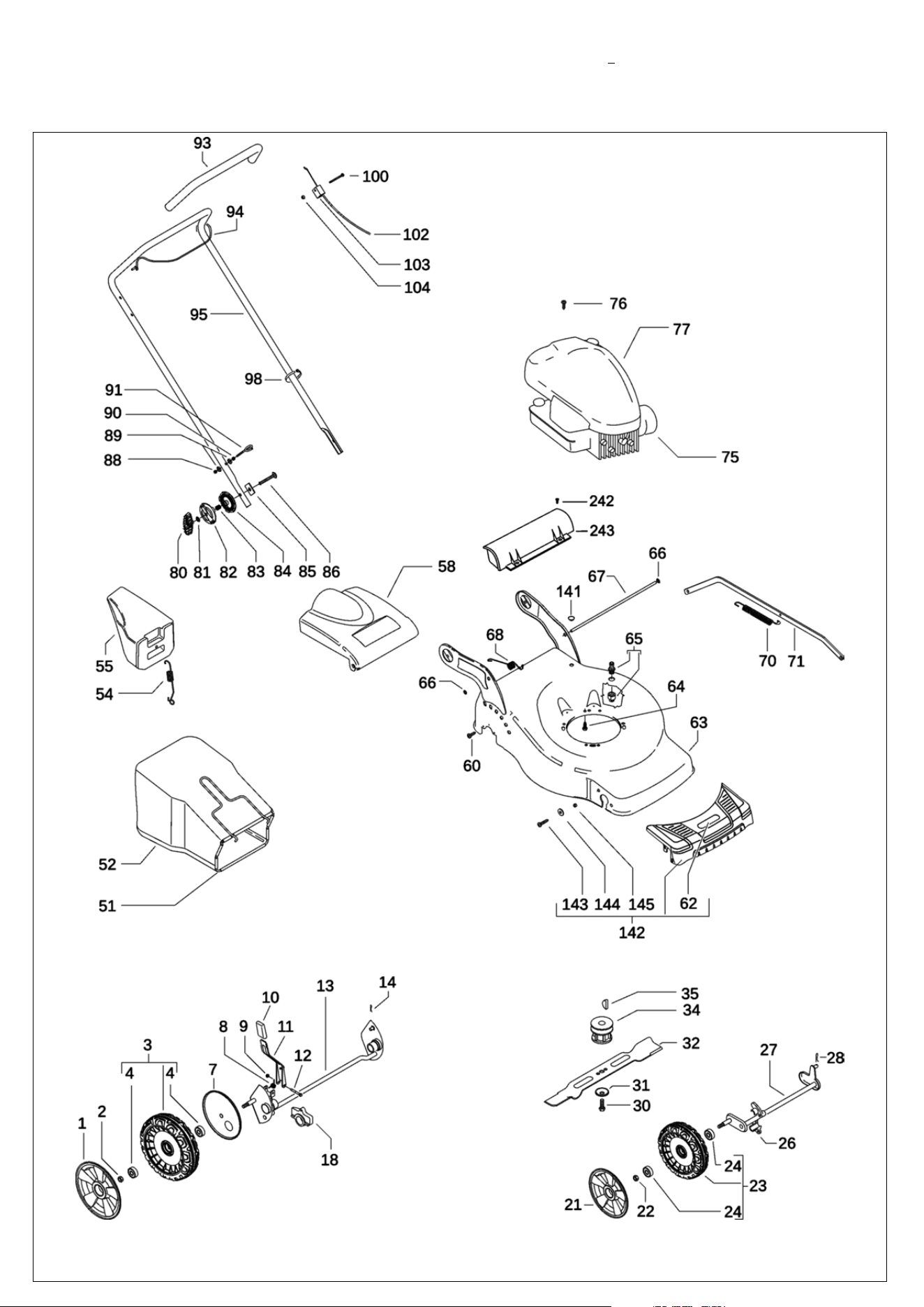

Item PN Description Qty
1 544 44 61–01 wheel cover Ø210 2
2 504 85 78–01 nut M8, self locking, flanged 2
3 544 91 69–01 wheel assy Ø210 2
4 504 54 82–01 ball bearing 2
7 504 82 73–01 dust shield Ø210 2
8 531 21 08–17 spring, wheel regulator lever 1
9 531 20 84–92 nut M5, self locking 1
10 525 34 74–02 handle, wheel regulator 1
11 525 34 84–01 wheel regulator lever 1
12 538 23 58–07 screw M5x45 1
13 504 80 01–01 rear axle 1
14 531 20 66–53 cotter pin 1
18 531 20 59–44 rear axle housing 2
21 544 44 59–01 wheel cover Ø190 1
22 504 85 78–01 nut M8, self locking, flanged 2
23 544 91 73–01 wheel assy Ø190 2
24 504 54 82–01 ball bearing 2
26 531 20 50–57 front axle housing 4
27 573 97 60–01 front axle 1
28 531 20 66–53 cotter pin 1
30 531 20 80–08 screw, 3/8” 1
31 531 20 72–37 spring washer 1
32 531 21 10–17 mulching blade 1
34 531 20 72–42 blade support 1
35 505 29 09–01 key 1
51 531 21 34–67 sack frame 1
52 525 34 81–01 sack 1
54 531 21 11–84 spring, mulching plug 1
55 531 21 06–17 mulching plug 1
58 525 34 83–01 safety flap 1
60 531 20 82–16 screw 5x16, self threading 2
62 525 34 00–01 label, Gardena 1
63 521 94 87–42 deck 1
64 531 21 28–51 screw 3/8” + split washer 3
65 525 34 78–01 snap on connector 1/2” 1
66 531 21 08–24 lock washer 2
67 531 21 14–41 safety flap bar 1
68 531 21 18–40 spring 1
70 531 21 37–83 wheel regulation spring 1
71 531 20 50–69 wheel regulation bar 1
75 ——— engine, Briggs & Stratton, model
number 09T5020134
1
76 531 21 27–10 screw 2
77 525 34 82–01 engine cover 1
80 525 34 74–01 knob 2
81 531 20 49–22 washer 2
82 531 21 14–74 locking disc, outer 2
83 531 21 14–76 spring 2
84 531 21 14–73 locking disc, inner 2
85 531 21 15–81 plate 2
86 531 21 14–80 screw M8x55 2
88 531 20 84–91 nut M6 self 2
89 531 20 49–61 washer 4
90 531 20 71–65 nut M6 2
91 531 20 51–69 starter cable guide 2
93 531 21 07–25 handle sheat 1
Item PN Description Qty
94 531 20 58–63 brake lever 1
95 525 34 73–01 handle 1
99 531 20 55–81 binder 2
100 531 20 63–46 screw M5x40 1
102 531 21 35–22 brake cable 1
103 531 20 80–43 cable support 1
104 531 20 52–13 nut M5 1
141 531 20 51–53 cap 1
142 574 25 45–01 front cover, kit 1
143 525 43 31–02 screw 4.2x19, self threading 4
144 505 22 74–02 washer 5x15x1.5, black 4
145 529 29 93–01 spacer 4
242 576 04 74–01 screw 2
243 579 30 09–01 grass seal 1
