HWO60S4LMB3
Oven, 60cm, 4 Function
USER GUIDE NZ AU
3
CONTENTS
Safety and warnings ................................................................................5
First use ............................................................................................... 10
Cooking functions................................................................................. 12
Care and cleaning.................................................................................. 13

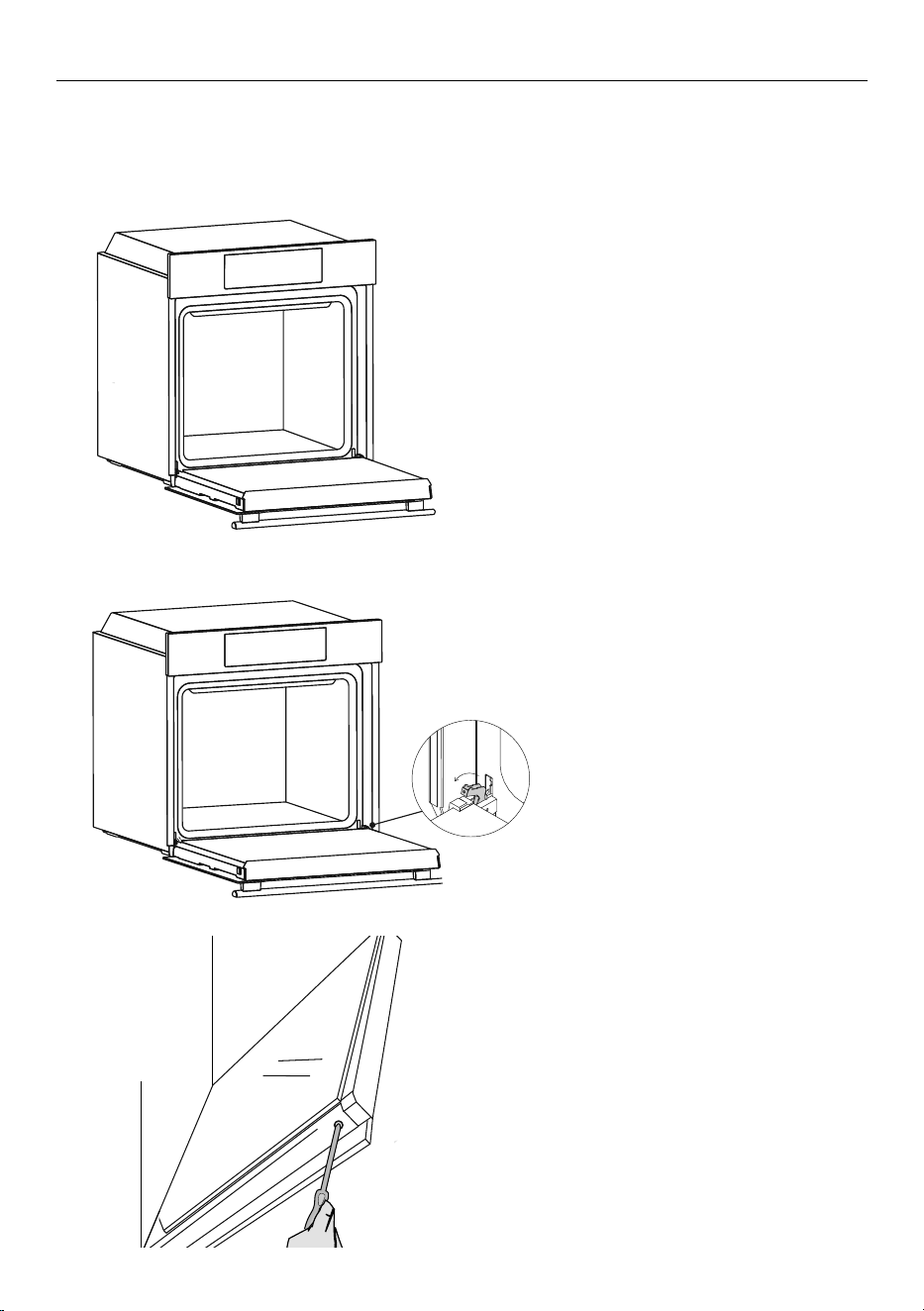

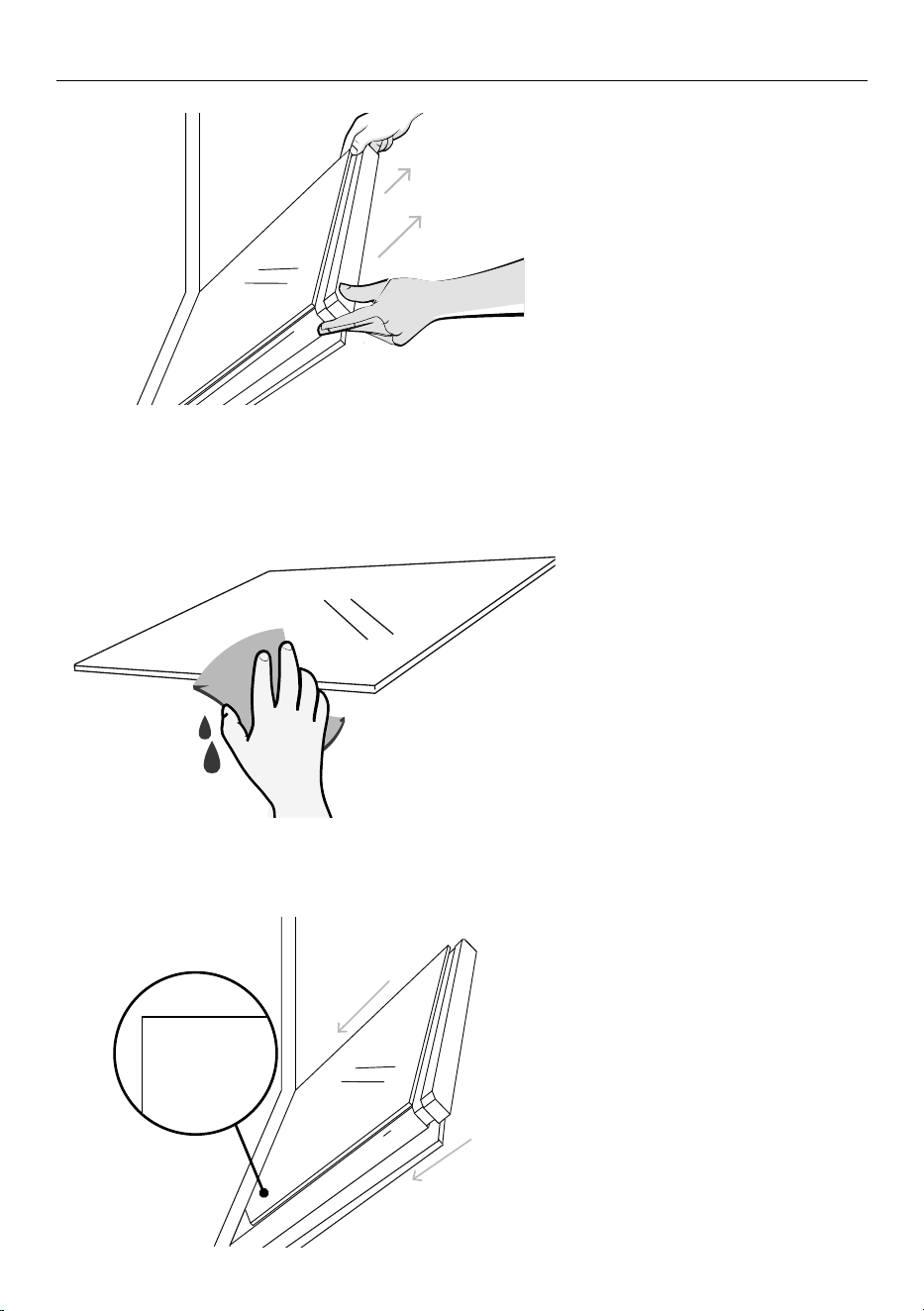

Cleaning the oven door.......................................................................... 15
Manufacturer's Warranty ....................................................................... 16
Customer service.................................................................................. 18
4
5
WARNING!
Electric Shock Hazard
Failure to follow this advice may result in electric
shock or death.
• Do not cook on a broken or cracked cooktop. If the
cooktop surface should break or crack, switch the
appliance off immediately at the mains power supply
(wall switch) and contact a qualified technician.
• Switch the appliance off before cleaning
or maintenance.
WARNING!
Fire Hazard
Failure to follow this advice may result in serious
burns or death.
• Unattended cooking on a hob with fat or oil can be
dangerous and may result in fire.
• Cover flame, eg with a lid or fire blanket, or use dry
chemical or foam-type extinguisher.
• Do not store items on cooking surfaces.
WARNING!
Cut Hazard
Failure to follow this advise could result in injury
and cuts.
• The razor sharp blade of a cooktop scraper is exposed
when the safety cover is retracted. Use with extreme
care and always store safely and out of the reach
of children.
SAFETY AND WARNINGS
6
WARNING!
Hot Surface Hazard
Failure to follow this advice could result in burns and
scalds.
• Do not touch surface units or areas near units. Surface
units maybe hot even though they are dark in colour.
• Surfaces of the appliance may become hot enough to
cause burns.
• During and after use, do not touch or let clothing or
other flammable materials contact heating elements
until they have had sufficient time to cool.
• Handles of saucepans may be hot to touch. Check
saucepan handles do not overhang other cooking zones
that are on. Keep handles out of reach of children.
• Never leave metal objects (such as kitchen utensils) or
empty pans on the cooktop as they can become very
hot quickly.
SAFETY AND WARNINGS
7
READ AND SAVE THIS GUIDE
Only use the oven for its intended purpose, that is only for the cooking of foods: any other use, for
example as a heat source, is considered improper and therefore dangerous. The manufacturer cannot
be held responsible for any damage resulting from improper, incorrect or unreasonable usage.
General warnings
z
Do not use a steam cleaner for cleaning operations.
z
CAUTION: in order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this
appliance must not be supplied through an external switching device, such as a timer, or connected to
a circuit that is regularly switched on and off by the utility.
z
During use the appliance become hot. Care should be taken to avoid touching heating elements inside
the oven.
Use limitations
z
The appliance can be used by children aged from 8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of experience and knowledge if they have been given
supervision or instruction concerning use of the appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance. Cleaning and maintenance shall not be made by
children without supervision.
z
This appliance is not intended to be used by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a person responsible for their safety.
z
Children should be supervised to ensure that they do not play with the appliance.
z
WARNING: the appliance and its accessible parts become hot during use. Care should be taken to
avoid touching heating elements.
z
Children less than 8 years of age shall be kept away unless continuously supervised.
z
WARNING: Accessible parts may become hot during use. Young children should be kept away.
Installation warnings
z
The oven can be located high in a column or under a worktop.
z
Before fixing, you must ensure good ventilation in the oven space to allow proper circulation of the
fresh air required for cooling and protecting the internal parts. Make the openings specified on the
illustrations according to the type of fitting. Always fix the oven to the furniture with screws provided
with the appliance.
z
No additional operation/setting is required in order to operate the appliance at the rated frequencies.
z
The appliance must not be installed behind a decorative door in order to avoid overheating.
z
During installation the oven should be disconnected from the mains electricity supply.
z
If the assistance of the manufacturer is required to rectify faults arising from incorrect installation,
this assistance is not covered by the guarantee. The installation instructions for professionally
qualified personnel must be followed.
z
Incorrect installation may cause harm or injury to people, animals or belongings. The manufacturer
cannot be held responsible for such harm or injury.
z
Installation must be carried on by a qualified technician who must know and respect the laws in force
in the country of installation and the manufacturer’s instruction.
z
After unboxing the appliance, always check it is not damaged, in case of issue contact the customer
service before installing and do not connect to the power supply.
z
Remove the packaging material before operating the appliance.
z
During installation do not use the oven door’s handle to lift and move the oven.
z
The installation furniture and the adjacent ones must with stand temperatures of 95°C.
SAFETY AND WARNINGS
8
z
Do not install the product in open environments exposed to atmospheric agents.
z
This appliance is designed to be used at altitude lower than 2000m.
z
It is recommended to wear protective gloves during installation to avoid cut injuries.
Electrical warnings
z
The socket must be suitable for the load indicated on the tag and must have ground contact
connected and in operation. The earth conductor is yellow-green in colour. This operation should be
carried out by a suitably qualified professional.
z
Connection to the power source can be made by plug or by fixed wiring placing an omnipolar breaker,
with contact separation compliant to the requirements for overvoltage category III, between the
appliance and the power source that can bear the maximum connected load and that is in line with
current legislation.
z
ln case of incompatibility between the socket and the appliance plug, ask a qualified electrician to
substitute the socket with another suitable type. The plug and the socket must be conformed to the
current norms of the installation country.
z
The yellow-green earth cable should not be interrupted by the breaker. The socket or omnipolar
breaker used for the connection should be easily accessible when the appliance is installed.
z
lf the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard. For any repairs, refer only to the Customer Care
Department and request the use of original spare parts.
z
Disconnect the appliance from the mains electricity supply before carrying out any work or
maintenance on it.
z
WARNING: ensure that the appliance is switched off before replacing the bulb, to avoid the possibility
of electric shocks.
z
The oven must be switched off before removing the removable parts. After cleaning, reassemble
them according the instructions.
z
The use of any electrical appliance implies the observance of some fundamental rules:
z
do not pull on the power cable to disconnect the appliance from the power source;
z
do not touch the appliance with wet or damp hands or feet;
z
in general the use of adaptors, multiple sockets and extension cables is not recommended;
z
in case of malfunction and/or poor operation, switch off the appliance and do not tamper with it.
z
NOTE: as the oven could require maintenance work, it is advisable to keep another wall socket
available so that the oven can be connected to this if it is removed from the space in which it is
installed.
z
Any repair, installation and maintenance not carried out correctly can seriously endanger the user.
z
The manufacturing company hereby states that it does not assume any responsibility for direct or
indirect damages caused by incorrect installation, maintenance, or repair work. Furthermore, it is
not liable for damages caused by the absence or interruption of the grounding system (e.g. electric
shock).
z
CAUTION: in order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this
appliance must not be supplier through an external switching device, such as a timer, or connected to
a circuit that is regularly switched on and off by the utility.
z
The appliance is not designed to be activated by an external timer or separate remote control system.
Use and maintenance
z
Wash all accessories before first use with a solution of hot water and washing up liquid.
z
The dripping pan collects the residues that drip during cooking.
z
When you place the grid or air fry tray on the side racks, make sure that the shorter section of the
side (between the stop and the extremity) is directed towards the interior of the oven. If the grid has
a decorative metal bar, pay attention to position it on the exterior of the oven so that the brand logo
SAFETY AND WARNINGS
9
can be visible and readable. For the correct positioning refer also to the image in the Accessories
section of this user manual.
z
Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glasses, since they
can scratch the surface, which may result in shattering of the glass.
z
During cooking, moisture may condense inside the oven cavity or on the glass of the door. This is a
normal condition. To reduce this effect, wait 10-15 minutes after turning on the power before putting
food inside the oven. ln any case, the condensation disappears when the oven reaches the cooking
temperature.
z
Cook the vegetables in a container with a lid instead of an open tray.
z
Avoid leaving food inside the oven after cooking for more than 15/20 minutes.
z
A long power supply failure during an occurring cooking phase may cause a malfunction of the
monitor. ln this case contact customer service.
z
WARNING: Do not line the oven walls with aluminium foil or single-use protection available from
stores. Aluminium foil or any other protection, in direct contact with the hot enamel, risk melting and
deteriorating the enamel of the insides.
z
WARNING: Never remove the oven door seal.
z
CAUTION: Do not refill the cavity bottom with water during cooking or when the oven is hot.
z
For a correct use of the oven it is advisable not to put the food in direct contact with the racks and
trays, but to use oven papers and/or special containers.
z
WARNING: Risk of burn and damage to the appliance: Using the steam function the released steam
can cause burns: Open the door carefully to avoid injury after using a cooking function with steam.
z
Use only drinking water to fill in the cavity bottom during the steam function.
SAFETY AND WARNINGS
10

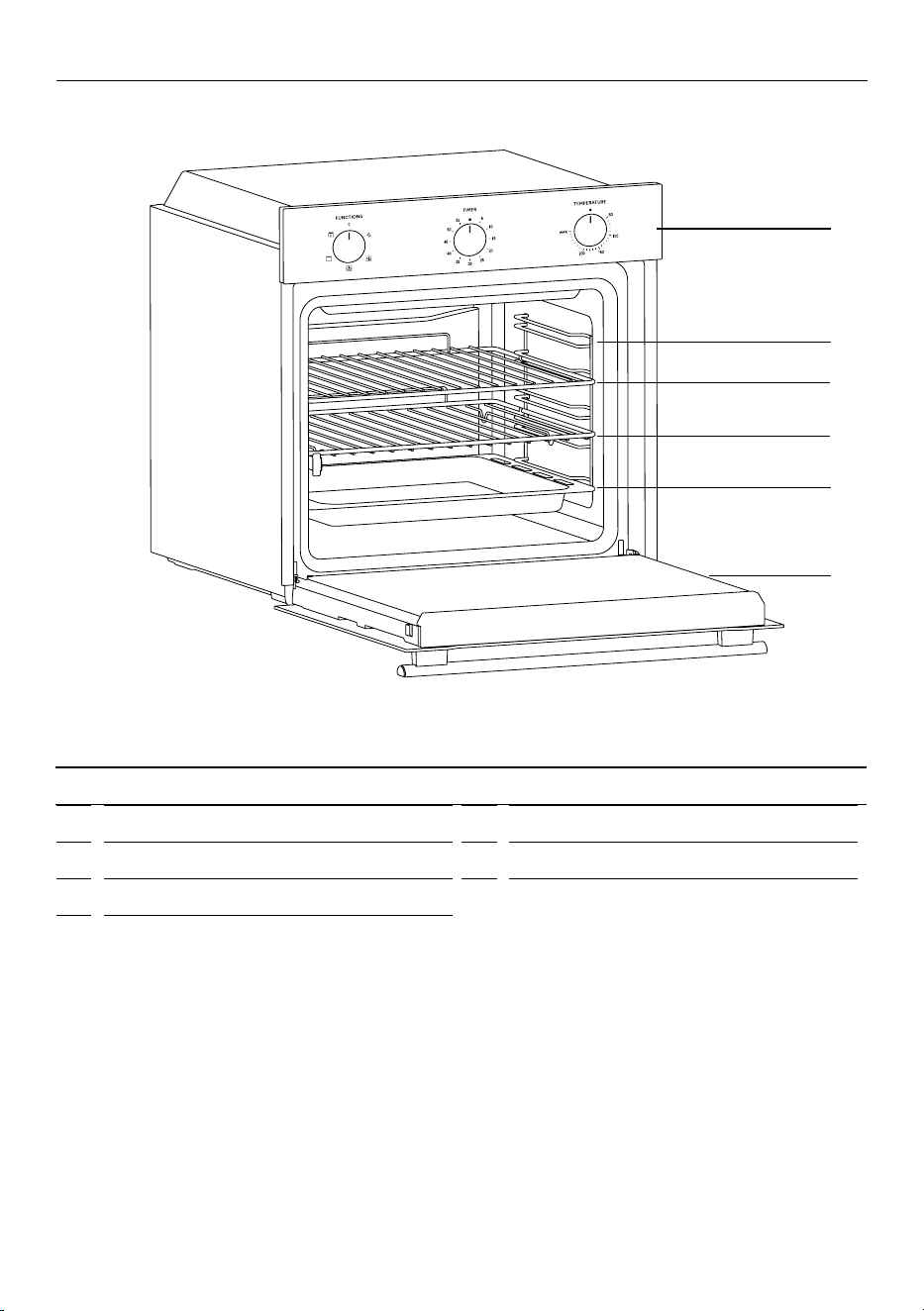

FEATURES AND ACCESSORIES
1 Oven controls
2 Side racks
3 Wire shelves
4 Roasting dish
5 Oven door
FIRST USE
1
2
3
3
4
5
11
FIRST USE
321
Preparing your oven
Before using your oven for the first time, remove and wash all accessories, and clean the inside of the oven
with a damp, soft cloth and mild detergent. Wipe the outside with a damp, soft cloth. Dry with a clean cloth.
Run the empty oven at maximum temperature for 60 minutes to remove the newness smell. The oven may
smoke slightly during this process. This is normal.

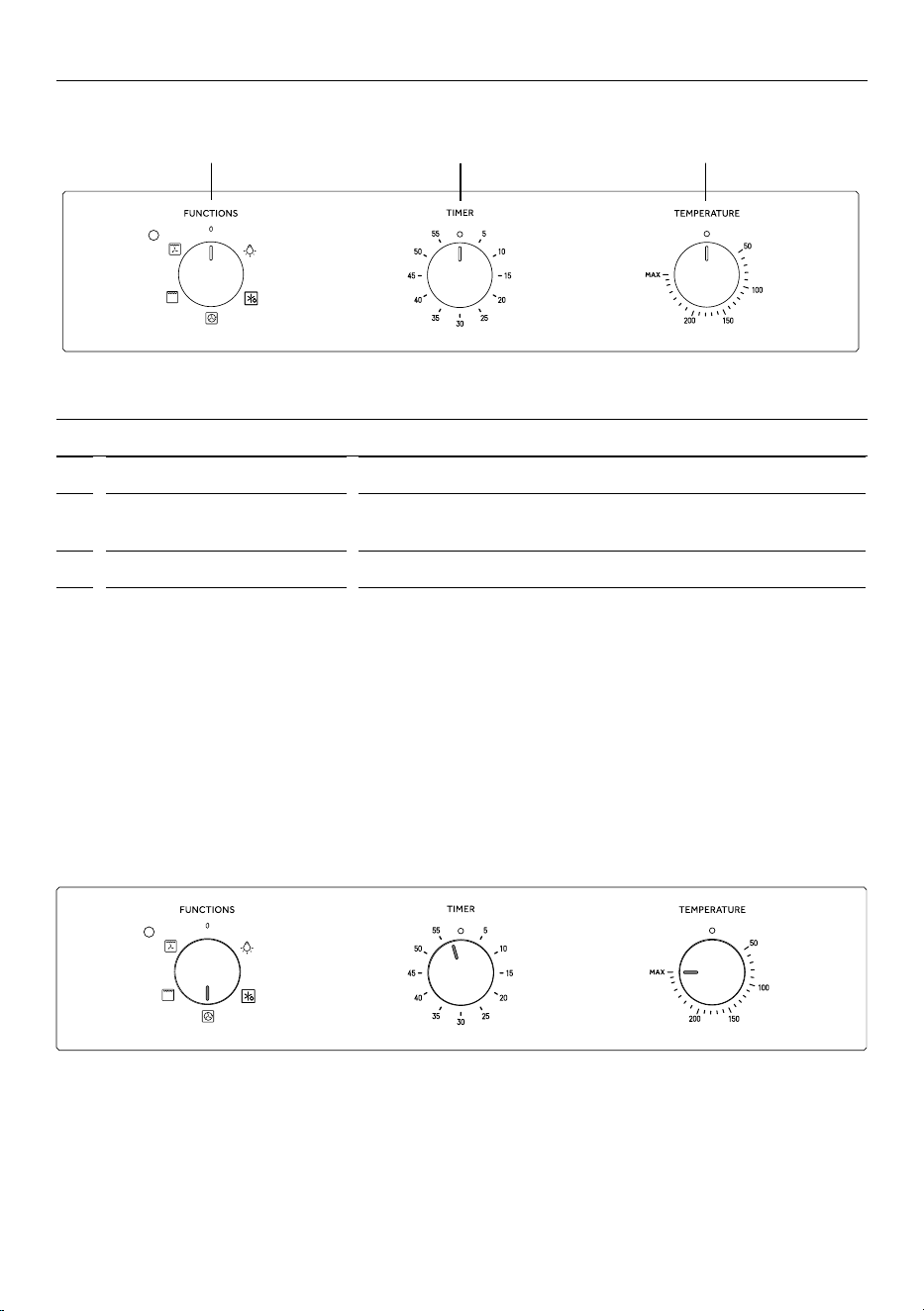

1
Function selector Turn to select a function.
2
Timer selector Turn one complete revolution before setting to the required time.
When the time has lapsed, the signal will ring for a few seconds.
3
Temperature selector Turn to set oven temperature.
CONTROL PANEL
12
COOKING FUNCTIONS
FUNCTION DESCRIPTION
LIGHT Turns on the oven light.
DEFROST
Fan circulates air at room temperature around the frozen food so
that it defrosts.
FAN FORCED
Uses the rear element in conjunction with the fan. Recommended
for most applications, including poultry, pastries, fish and
vegetables.
GRILL
The power level can be adjusted and the oven should be allowed to
preheat for 5 minutes. White meats should be put at a distance from
the grill to avoid the meat drying out. Place food on the wire shelf
with the roasting dish underneath to catch any drips . Turn food 2/3
of the way through cooking if required. Use the grill function with
door closed.
FAN GRILL
The top heating element is used with the fan circulating the air
inside the oven. Ideal for cooking large cuts of meat such as roast
pork and poultry. Food can be placed on the wire shelf with the
roasting dish underneath to catch any drips. Turn food half way
through cooking if required. Use the fan grill function with the door
closed.
13
CARE AND CLEANING
The life of your product can be extended through regular cleaning. Wait for the oven to cool before carrying
out manual cleaning operations. Never use abrasive detergents, steel wool or sharp objects for cleaning as
these may damage enamelled parts. Use only water, soap, or bleach-based detergents (ammonia).
Oven window seal
Clean the seals with a slightly damp sponge. Abrasive detergents should not be used for these parts.
Accessories
Clean accessories with a wet, soapy sponge before rinsing and drying them. Abrasive detergents should
not be used for these parts.
Roasting dish
After using the grill, remove the pan from the oven. Pour the hot fat into a container and wash the pan in
hot, soapy water. You can wash this pan in the dishwasher or using commercial oven detergent. Never put
a dirty pan back into the oven. In addition to the dish supplied with the oven, we advise you only use dishes
and baking moulds resistant to very high temperatures.
Side racks
The wire racks can be cleaned in the dishwasher or using a wet sponge, ensuring that they are dried
afterwards. Remove the wire racks by pulling them away from the oven walls.
Changing the light bulb
1. To remove your light bulb, undo
the glass cover, unscrew the bulb
and replace it with a new bulb of the
same type.
2. Once the bulb is replaced, ensure
the glass cover is replaced. Ensure
you disconnect the oven from the
mains supply before you clean or
change your light bulb.
14
CLEANING THE OVEN DOOR
Everyday cleaning
It is advisable to clean the glass window with an absorbent kitchen towel after every use of the oven. To
remove more stubborn stains, you can use a detergent-soaked sponge, well wrung out, and then rinse with
water.
Removal and cleaning of the
door glass
1. Open the oven door fully.
3. Remove the screws at each side of
the door.
2. Rotate the hinge locks outwards.
You may wish to use a screwdriver to
grip the hinge.
15
CLEANING THE OVEN DOOR
4. Remove the upper metal cover by
pulling it upwards.
5. Carefully remove the glass from
the oven door. Wipe clean with a
soft, damp cloth and mild detergent.
6. Once clean, carefully refit the
glass and ensure the 'LOW-E' label
is on the left side of the door, close
to the hinge. The label will be inside
the door.
LOW-E
16
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSES WHAT TO DO
The oven does
not work
No power. Check that the mains power supply (wall switch) is
turned on, the fuse has not tripped and there is no
power outage in your area.
The lights do not
operate when I open
the oven door
The lights are turned o.
Turn function selector to
to turn the lights on.
The oven lights have blown. Replace the lights. See 'Changing the light bulb'
The oven is
not heating
The door is not fully closed. Make sure the door is properly closed. The heating
elements are disabled while the door is open.
The door has been opened too
often during cooking.
Avoid opening the door too often during cooking.
A glass pane in the
door has cracked,
chipped or shattered
The glass has been knocked or
cleaned incorrectly.
You must NOT use the oven. Call your Authorised
Repairer or Customer Service.
Hot air is coming out
of the vents when
the oven is off
The cooling fan is running. This is normal. You do not need to do anything.
17
MANUFACTURER'S WARRANTY
Please read this warranty card carefully. Attach your purchase receipt to this warranty card and keep in a
safe place. You must produce both warranty card and proof of purchase in the event of a warranty repair
being required.
When you purchase any new Haier Product you automatically receive a two year Manufacturer's Warranty
covering parts and labour for servicing.
The Manufacturer undertakes to:
Repair or, at its option, replace without cost to the owner either for material or labour any part of the
Product, the serial number of which appears on the Product, which is found to be defective within TWO
YEARS from the date of purchase.
This warranty DOES NOT cover:
A Service calls which are not related to any defect in the Product. The cost of a service call will be charged
if the problem is not found to be a Product related fault. For example:
1 Correct the installation of the product.
2 Provide Instruction on use of the product or change the setup of the product.
3 Replace house fuses or correct house wiring.
4 Correcting fault(s) caused by the user.
5 Noise or vibration that is considered normal.
6 Water on the floor due to incorrect loading or excessive suds.
7 Blocked pumps, removal of foreign objects/substances from the machine, including the pump and
inlet house filters.
8 Correcting damage caused by pests, eg. rats, cockroaches etc.
9 Correct corrosion or discolouration due to chemical attack.
!0 Power outages or surges.
B Defects caused by factors other than:
1 Normal domestic use or
2 Use in accordance with the Product's User Guide.
C Defects to the Product caused by accident, neglect, misuse or 'Act of God'.
D The cost of repairs carried out by non-authorised repairers or the cost of correcting such
unauthorised repairs.
E Normal recommended maintenance as set out in the Product's User Guide.
F Repairs when the appliance has been dismantled, repaired or serviced by other than an AUTHORISED
CUSTOMER SERVICE CENTRE or the selling dealer.
G Pick up and delivery.
H Transportation or travelling costs involved in the repair when the product is installed outside the
AUTHORISED CUSTOMER SERVICE CENTRE'S normal service area.
This product has been designed for use in a normal domestic environment. It is not intended for
commercial use. Doing so may affect product warranty.
Service under this warranty must be provided by an Authorised Service Repairer (refer to the Customer
Care section for contact details). Such service shall be provided during normal business hours. This
warranty certificate should be shown when making any claim.
18
Note:
This Warranty is an extra benefit and does not affect your legal rights and applies only to product
purchased in New Zealand and Australia. Please keep this Warranty Card in a safe place.
For Australian customers:
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are
entitled to a replacement or refund for a major failure and for compensation for any other reasonably
foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to
be of acceptable quality and the failure does not amount to a major failure.
MANUFACTURER'S WARRANTY
19
CUSTOMER SERVICE
Complete and keep for safe reference:
If you have a problem with your appliance you can contact:
z
Your local dealer.
z
Service & Support:
From New Zealand Online www.haier.co.nz
Toll free phone 0800 242 437
Fax (09) 273 0656
Email customer.care@haier.co.nz
Postal address P.O. Box 58732, Botany, Manukau 2163
From Australia Online www.haier.com.au
Toll free phone 1300 729 948
Fax (07) 3826 9298
Email customer[email protected]
Postal address P.O. Box 798, Cleveland QLD 4163
When calling or writing, please provide your name, address, the model number of your appliance, the serial
number, the date of purchase and a description of the problem.
Model
Serial No.
Purchase Date
Purchaser
Dealer
Suburb
To w n
Country
